Article

In Situ Construction of Ag/Ni(OH)2 Composite Electrode by Combining Electroless Deposition Technology with Electrodeposition

by
Sa Lv
*,
Fan Yang
,
Xuefeng Chu
,
Huan Wang
,
Jia Yang
,
Yaodan Chi
and
Xiaotian Yang
*
Jilin Provincial Key Laboratory of Architectural Electricity & Comprehensive Energy Saving, School of Electrical Engineering and Computer, Jilin Jianzhu University, Changchun 130118, China
*
Authors to whom correspondence should be addressed.
Metals 2019, 9(8), 826; https://doi.org/10.3390/met9080826
Submission received: 1 July 2019 / Revised: 20 July 2019 / Accepted: 23 July 2019 / Published: 25 July 2019
Browse Figures
Versions Notes

Abstract

:
The Ag/Ni(OH)2 composite electrode has been designed and in situ constructed on a copper substrate by combining electroless deposition technology with electrodeposition. The products can be directly used as a high performance binder free electrode. The synergistic effect between the Ag nanocubes (AgNCs) as backbones and the deposited Ni(OH)2 as the shell can significantly improve the electrochemical properties of the composite electrode. Moreover, this in situ growth strategy forms a strong bonding force of active materials to the substrate, which can improve the cycling performance and lower the equivalent series resistance. The Ag/Ni(OH)2 composite electrode exhibits enhanced electrochemical properties with a high specific capacitance of 3.704 F cm−2, coulombic efficiency of 88.3% and long-term cyclic stability.

Graphical Abstract

1. Introduction

In order to satisfy the increasing energy demands, much effort has been devoted to discovering efficient energy storage/conversion systems and designing various power source devices, such as the supercapacitor and lithium-ion battery [1]. Electrode materials have gained extensive attention as being the most critical part of energy storage devices and considerable efforts have been made to design various types of electrode materials [2,3]. To date, transition metal oxide/hydroxide including Ni(OH)2/NiO, Co3O4 and MnO2 have become a research hotspot due to their efficient Faradaic reaction, low cost, and environmentally friendly characteristics [4,5,6,7,8]. Specifically, Ni(OH)2 and its composites have attracted extraordinary research interests because they have a high chemical stability, natural abundance and high theoretical specific capacity [9,10]. Various synthetic paths, such as the solvothermal process, electrochemical deposition, electrospinning technique and microwave-assisted methods have been explored in tailoring Ni(OH)2 micro/nano-architectures to enhance their electrochemical activity [11,12,13].
Although Ni(OH)2 has been reported in previous literature as having good electrochemical propertie., the relatively poor electrical conductivity seriously limits its practical application. To solve this problem, the research mainly focuses on the design of various binary or multiple composites by adding proper components to give full play to the synergistic effect of each component, such as NiO/Ni(OH)2 [14], Ag@Ni(OH)2/graphene [15], Ni(OH)2/C/Cu [16]. The addition of conductive materials or elements significantly improves the overall performance. Typically, graphene, Ag, Au and Cu can be combined with metal oxides/hydroxides in order to achieve a high performance owing to their high electrical conductivity [17,18,19,20]. In particular, the Ag nanostructures have been extensively studied owing to its excellent electronic conductivity and electrochemical properties. For example, when Unalan et al. presented the coaxial growth of silver nanowires as the core and Ni(OH)2 nanoflakes as the shell, the electrodes achieved specific capacitance of 1162.5 F g−1 with a current density of 3 A g−1 [21]. Yu et al. synthesized Ni-Co double hydroxide nanosheets coated on Ag nanowires through the electrochemical deposition method, which exhibited the areal capacitance of 1133.3 mF cm−2 at 1 mA cm−2 [22]. In addition, Narciso et al. prepared 3D aluminum foam through a replication process. The Pt/aluminum foam electrodes then obtained by electrodeposition had obvious electrocatalytic behavior [23]. Metal foams are used as substrates based on their high surface area and conductivity. Therefore, it is reasonable to believe that the participation of Ag nanostructures enhances the conductivity and increases the specific capacity to some extent.
Herein, the Ag/Ni(OH)2 composite electrode has been designed and in situ constructed on a copper foam substrate through a simple two-step process. Ag nanocubes (AgNCs) were formed initially on copper foam by a displacement reaction between AgNO3 and the copper foam (electroless deposition), and then Ni(OH)2 layers were constantly loaded onto the AgNCs surface by electrodeposition. The fabricated Ag/Ni(OH)2 samples were directly used as electrodes, avoiding the process of making electrodes by mixing them with a binder and then pressing them onto the substrates. This possessed a high specific capacitance, low RESR, higher coulombic efficiency and long-term cyclic stability. The improved electrochemical performance was attributed to the in situ growth mode, which was bound to produce strong adhesion between the electrode materials and substrates, ensuring the full utilization of the active electrode materials. At the same time, the effective participation of AgNCs by the direct growth mode can improve the conductivity, providing a large surface area for the Ni(OH)2 layer deposition, and directly participating in the Faradaic reaction as an active component.

2. Materials and Methods

2.1. Materials

The copper foam substrate was carefully cleaned with acetone, ethanol and deionized water before use. Silver nitrate (AgNO3, 99.8%), nickel nitrate (Ni(NO3)2·6H2O, 99%) and NaOH were used in this report.

2.2. Synthesis of Ag/Ni(OH)2 Composite Electrode

Firstly, the pre-cleaned copper foam was suspended and immersed in a AgNO3 aqueous solution (0.1 M) and the growth of Ag nanostructures on copper foam was allowed for 10 min. Next, the copper foam with the gray silver precipitates was rinsed with ethanol and deionized water. After that, a freshly prepared Ni(NO3)2 solution (0.05 M) was deposited Ni(OH)2 on the Ag core, where the Ag/copper foam worked as an electrode, a platinum foil acted as a counter electrode, and saturated calomel electrode (SCE) worked as a reference electrode. The potentiostatic deposition was performed at about 300 s at −1.0 V vs. SCE. Finally, the prepared composite electrode was rinsed with ethanol and deionized water.

2.3. Materials Characterization

The results were collected by XRD measurements (Shimadzu Co., Ltd, Kyoto, Japan) using Cu Kα radiation (λ = 1.5406 Å) and FE-SEM (FE-SEM JEOL JSM-7610F, Tokyo, Japan). XPS measurements were performed by an ESCALAB 250Xi (Thermo Fisher Scientific Co., Ltd, Waltham, MA, USA) with Al Kα as the X-ray source.

2.4. Electrochemical Measurements

Cyclic voltammetry (CV) and the galvanostatic charge-discharge test (GCD) were carried out with a CHI 660E electrochemical workstation. The obtained Ag/Ni(OH)2 composite sample was used as an working electrode, platinum foil and Hg/HgO as a counter electrode and reference electrode, respectively, and electrolyte was the 5 M NaOH solution. The cycling performance was Neware testing system.

3. Results

The Ag/Ni(OH)2 composite is in situ constructed through the combination of the displacement reaction followed by an electrodeposition process as illustrated in Scheme 1. Firstly, AgNCs affixed to a copper foam substrate are fabricated by immersing copper foam into the AgNO3 solution based on the displacement equation: Cu(s) + 2 Ag+(aq) → 2 Ag(s) + Cu2+(aq) [24], which is an electroless deposition technology. Copper foam acts as both a reducing agent and substrate. After that, the AgNCs/copper foam is used as the working electrode for electrochemical deposition through the three-electrode system in Ni(NO3)2 aqueous solution. The OH− generated by the dissolution of NH3, produced by reduction of NO3− near the electrode surface, which were captured by Ni2+ on the surface of the Ag electrode and Ni(OH)2 layer, formed. Therefore, the AgNCs as cores dominated the final morphology of the composite, and the Ag/Ni(OH)2 composite was finally obtained.
Figure 1 displays FE-SEM images of samples obtained through combining the electroless deposition technology with electrodeposition. Densely distributed deposits are covered on the copper foam substrate after immersing the copper substrate into AgNO3 solution (0.1 M) at room temperature without stirring, as shown in Figure 1a. An automatic displacement reaction occurs (electroless deposition) between the AgNO3 solution and copper foam substrate. The high magnification image (Figure 1b) shows that the AgNCs with an average length of 180–250 nm are uniformly grown on the copper substrate, and the AgNCs surface is smooth (inset in Figure 1b). Subsequent electrochemical deposition allows the uniform Ni(OH)2 nanostructures to coat the AgNCs/copper foam substrate with a high density (Figure 1c). AgNCs are surrounded tightly by large numbers of Ni(OH)2 nanoparticles when the deposition takes only 30 s, while the original shape of the AgNCs is clearly visible. The FE-SEM image of the Ag/Ni(OH)2 electrode and the corresponding EDS element mapping images recorded in Figure S1 reveal that the co-existence of different elements including Cu, Ag, Ni and O. The amount of Ni(OH)2 nanoparticles deposited onto the AgNC surface continuously increases with time. When the deposition time reaches 300 s, Ag/Ni(OH)2 nanospheres are obtained with a diameter of about 350–560 nm and they are packed closely with each other. From the enlarged image in the inset of Figure 1d, the nanospheres are actually made up of a large number of nanoparticles about 10 nm in diameter, and the smaller nanoparticles interconnect with each other to form a worm-like structure.
The low-magnification FE-SEM image of Ag/Ni(OH)2 composite and EDS mapping images reveal the presence of uniformly distributed Cu, Ag, Ni and O elements (Figure 2a). The EDS spectrum in Figure 2b also confirms the presence of Ni, Ag and O in fabricated copper foam substrates.
Figure 3a presents the XRD patterns of AgNCs and Ag/Ni(OH)2 composite. Three characteristic peaks labeled with asterisks belong to the copper substrate (JCPDS card No. 01–1241). The AgNCs demonstrate crystalline peaks at about 38.12°, 44.28° and 77.48°, corresponding to (111), (200) and (311) crystalline plane of face-centered cubic (fcc) Ag (JCPDS card No. 04–0783), respectively. The Ag/Ni(OH)2 composite exhibits (001), (100), (101), (110) and (111) crystalline peak at 19.00°, 33.52°, 38.64°, 59.02°,62.66°, respectively, indicating the β phase of the Ni(OH)2 (JCPDS card No. 14–0117). The composition and electron structure of the composite was further performed by XPS. The survey spectrum (Figure 3b) confirms the presence of C, O, Ni and Ag signals, consistent with the EDS data. The peaks of Ag 3d5/2 and Ag 3d3/2 located at 368.65 eV and 374.70 eV are observed in Figure 3c. The main peaks at 856.1 and 873.8 eV in Figure 3d are ascribed to the binding energies of Ni 2p3/2 and Ni 2p1/2, respectively. So the spin energy separation is 17.7 eV [21]. The Ni 2p3/2 peak at 861.6 eV and Ni 2p1/2 peak at 880 eV are two satellite peaks. The O 1s spectrum (Figure 3e) can be deconvoluted into two peaks, one located at 531.2 eV corresponding to OH- group and the other is ascribed to adsorbed water at 532.8 eV [22].
To estimate the electrochemical properties of the Ag/Ni(OH)2 electrode, CV and GCD tests were performed. Figure 4a records the CV curves of Ag/Ni(OH)2, Ni(OH)2, Ag electrode and copper substrate at the scan rate of 10 mV s−1 in 5 M NaOH aqueous solution. Among all the samples, the Ag/Ni(OH)2 electrode has the largest enclosure area, revealing its highest specific capacity according to the equation [25]. Figure 4b shows the GCD curves of Ag/Ni(OH)2, Ni(OH)2 and Ag electrode at 2 mA cm−2. Ag/Ni(OH)2 electrode shows the longest discharge time, which indicates that it has the highest pseudocapacitance.
Figure 5a records the representative CV curves of Ag/Ni(OH)2 electrode at potential window (0–0.6 V) at different scan rates ranged from 2 to 20 mV s−1. A pair of strong redox peaks is visible in each CV curve, which indicates a strong pseudocapacitive behavior of the hybrid material by the following reversible Faradaic reactions:
Ni(OH)2 + OH− ⇄ NiOOH + H2O + e−
In addition, a pair of weak redox peak of oxidation (0.3 V) and reduction peaks (0.1 V) can be attributed to the redox couple of Ag/Ag+ [21,26,27,28]. It is noteworthy that the current response increases with increasing scan rates, and the potential of oxidation peak and reduction peak moves to more positive and negative directions, respectively, and the specific capacity decreases accordingly. This ascribes to the fact that many internal electroactive sites of the electrode are not sufficiently involved in Faradaic reactions at relatively high scan rates due to the limitation of ionic/electronic diffusion. Typical GCD tests were further performed at potential from 0 to 0.5 V at different current densities of 2–20 mA cm−2 (Figure 5b). Corresponding to current density of 2, 4, 8, 12, 16, 20 mA cm−2, the specific capacitances are about 3.692, 3.258, 2.632, 2.376, 2.186 and 2.024 F cm−2, respectively (Figure 5c). The areal capacitance of Ag/Ni(OH)2 electrode are derived from the equation in Supplementary Materials [29,30]. When the current density is 2 mA cm−2, the coulombic efficiency reaches 88.3%, which illustrates the great redox reversibility of the pseudocapacitive material. Furthermore, the tiny plateaus at about 0.17 V in GCD curve should attribute to the redox pair Ag/Ag+, consistent with the CV measurements and previous reports [26,28]. Moreover, the electrochemical properties of the Ni(OH)2 and Ag electrode were also performed for comparison. The specific capacitances of Ni(OH)2 and Ag electrodes achieved at various current density are also recorded in Figure S2 and Table S1 in the Supplementary Materials. The capacitance retention curve of the Ag/Ni(OH)2 electrode are displayed in Figure 5d. It maintains 88.4% and 83.7% of its original specific capacity after 1000 and 3000 cycles, respectively. No obvious structure deformation is observed (Figure S3). The good cyclic properties are beneficial from the effective bonding between the active material and copper foam. Furthermore, as seen from the inset of Figure 5d, the average equivalent series resistance (RESR) is 0.952 Ω cm−2 based on the equation in the Supplementary Materials [30]. The low RESR is attributed to the direct growth of AgNCs on copper foam substrate, which ensures a close bonding between them. Meanwhile, Ag nanostructures with good conductivity act as both collector and effective constituent of the active material.
The enhanced electrochemical properties of the Ag/Ni(OH)2 electrodes are mainly attributed to the following reasons: (1) AgNCs are grown directly on the copper substrate, and such a strong adhesion avoids the utilization of conductive agent and binder to make electrode, which reduces the contact resistance. At the same time, the AgNCs act as the bridge between the Ni(OH)2 layer and copper substrate, favorable for electron transmission. Furthermore, AgNCs as an active component improve the conductivity of the active materials [25]; (2) the Ag-decorated copper foam substrate provides a much higher surface area for subsequent electrodeposition of Ni(OH)2, which keeps the active materials from conventional aggregation [31]; (3) the electrodeposition of smaller Ni(OH)2 nanoparticles interconnected with each other on the surface of the AgNCs generates abundant space, making the electrolyte fully accessible to the internal area of the electrode. This facilitates the transmission of the electrolyte, and a full contact between the electrodes and electrolytes is ensured [25,31].

4. Conclusions

In summary, we have developed a cost-effective approach to fabricate Ag/Ni(OH)2 composite electrode on copper foam substrate through the combination of electroless deposition technology with electrodeposition. Copper foam acts as both reducing agent and substrate. The Ag/Ni(OH)2 electrode shows a high specific capacitance value, low RESR, good coulombic efficiency and cycling performances. The good electrochemical performance should be related to the effective utilization of Ag by electroless deposition technology, which increases the electrical conductivity and increase the specific surface area of the active material. Moreover, this convenient method can be extended to design other binary or multiple composites with Ag as core.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4701/9/8/826/s1, Figure S1: FE-SEM image of the Ag/Ni(OH)2 electrode (the deposition time of Ni(OH)2 is 30 s) and the corresponding EDS element mapping images of Cu, Ag, Ni and O elements. Figure S2: The plots of specific capacitance versus current density of the Ni(OH)2 (a) and Ag electrode (b), respectively. Insets are the corresponding GCD test curve. Figure S3. FE-SEM images of the Ag/Ni(OH)2 composite at different magnifications after 3000 cycles. Table S1. The specific capacitance versus current density of the three electrodes. Formulas for calculating specific capacitance and average equivalent series resistance.

Author Contributions

Formal analysis, F.Y. and X.C.; investigation, Y.C.; methodology, H.W.; software, J.Y.; supervision, X.Y.; writing—original draft, S.L.; writing—review and editing, S.L. and X.Y.

Funding

This research was funded by The National Key Technology R & D Program of China (Grant No. 2016YFB0401103) and National Natural Science Foundation of China (Grant No. 51672103).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, J.; Wu, C.; Sun, X.; Hu, H.; Zhi, C.; Hou, L.; Yuan, C. Recent progresses in high-energy-density all pseudocapacitive-electrode-materials-based asymmetric supercapacitors. J. Mater. Chem. A 2017, 5, 9443–9464. [Google Scholar] [CrossRef]
  2. Hossain, A.; Bandyopadhyay, P.; Guin, P.S.; Roy, S. Recent developed different structural nanomaterials and their performance for supercapacitor application. Appl. Mater. Today 2017, 9, 300–313. [Google Scholar] [CrossRef]
  3. Saha, S.; Samanta, P.; Murmu, N.C.; Kuila, T. A review on the heterostructure nanomaterials for supercapacitor application. J. Energy Storage 2018, 17, 181–202. [Google Scholar] [CrossRef]
  4. Lokhande, P.; Chavan, U. Nanoflower-like Ni(OH)2 synthesis with chemical bath deposition method for high performance electrochemical applications. Mater. Lett. 2018, 218, 225–228. [Google Scholar] [CrossRef]
  5. Chiku, M.; Toda, M.; Higuchi, E.; Inoue, H. NiO layers grown on a Ni substrate by galvanostatic anodization as a positive electrode material for aqueous hybrid capacitors. J. Power Sources 2015, 286, 193–196. [Google Scholar] [CrossRef]
  6. Liu, G.; Zhao, C.; Liu, T.; He, D.; Suo, H. Facile route to achieve book-like tricobalt tetraoxide microstructures on copper foam for high performance supercapacitor. Mater. Lett. 2018, 220, 78–81. [Google Scholar] [CrossRef]
  7. Huang, M.; Li, F.; Dong, F.; Zhang, Y.X.; Zhang, L.L. MnO2-based nanostructures for high-performance supercapacitors. J. Mater. Chem. A 2015, 3, 21380–21423. [Google Scholar] [CrossRef]
  8. Zhang, G.D.; Liu, X.C.; Wang, Y.H.; Liu, C.Z.; Xing, S.X. Achieving MnO2 nanosheets via surface redox reaction on nickel nanochains for catalysis and energy storage. Chem. Eur. J. 2017, 23, 5557–5562. [Google Scholar] [CrossRef]
  9. Ruan, Y.J.; Wang, C.D.; Jiang, J.J. Nanostructured Ni compounds as electrode materials towards high-performance electrochemical capacitors. J. Mater. Chem. A 2016, 4, 14509–14538. [Google Scholar] [CrossRef]
  10. Zheng, M.; Li, B.; Xue, H.; Pang, H. High performance electrochemical capacitor materials focusing on nickel based materials. Inorg. Chem. Front. 2016, 3, 175–202. [Google Scholar]
  11. Hou, C.; Lang, X.Y.; Wen, Z.; Zhu, Y.F.; Zhao, M.; Li, J.C.; Zheng, W.T.; Lian, J.S.; Jiang, Q. MnO2-based nanostructures for high-performance supercapacitors. J. Mater. Chem. A 2015, 3, 23412–23419. [Google Scholar] [CrossRef]
  12. Aguilera, L.; Leyet, Y.; Peña-Garcia, R.; Hernández, E.P.; Passos, R.; Pocrifka, L. Cabbage-like α-Ni(OH)2 with a good long-term cycling stability and high electrochemical performances for supercapacitor applications. Chem. Phys. Lett. 2017, 677, 75–79. [Google Scholar] [CrossRef]
  13. Meng, X.; Deng, D. Bio-inspired synthesis of α-Ni(OH)2 nanobristles on various substrates and their applications. J. Mater. Chem. A 2016, 4, 6919–6925. [Google Scholar] [CrossRef]
  14. Lee, D.U.; Fu, J.; Park, M.G.; Liu, H.; Kashkooli, A.G.; Chen, Z. Self-Assembled NiO/Ni(OH)2 Nanoflakes as Active Material for High-Power and High-Energy Hybrid Rechargeable Battery. Nano Lett. 2016, 16, 1794–1802. [Google Scholar] [CrossRef] [PubMed]
  15. Ghosh, D.; Giri, S.; Mandal, A.; Das, C.K. Graphene decorated with Ni(OH)2 and Ag deposited Ni(OH)2 stacked nanoplate for supercapacitor application. Chem. Phys. Lett. 2013, 573, 41–47. [Google Scholar] [CrossRef]
  16. Kang, K.N.; Kim, I.H.; Ramadoss, A.; Kim, S.I.; Yoon, J.C.; Jang, J.H. Ultrathin nickel hydroxide on carbon coated 3D-porous copper structures for high performance supercapacitors. Phys. Chem. Chem. Phys. 2018, 20, 719–727. [Google Scholar] [CrossRef]
  17. Liao, G.; Fang, J.; Li, Q.; Li, S.; Xu, Z.; Fang, B. Ag-Based nanocomposites: Synthesis and applications in catalysis. Nanoscale 2019, 11, 7062–7096. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, L.; Liu, X.; Wang, Y.; Chen, G.; Xing, S. Dual Role of Polyaniline for Achieving Ag Dendrites and Enhancing Its Oxygen Reduction Reaction Catalytic Activity. ChemistrySelect 2017, 2, 10300–10303. [Google Scholar] [CrossRef]
  19. Shi, D.; Zhang, L.; Yin, X.; Huang, T.J.; Gong, H. A one step processed advanced interwoven architecture of Ni(OH)2 and Cu nanosheets with ultrahigh supercapacitor performance. J. Mater. Chem. A 2016, 4, 12144–12151. [Google Scholar] [CrossRef]
  20. Liao, G.F.; Chen, J.; Zeng, W.G.; Yu, C.H.; Yi, C.F.; Xu, Z.S. Facile preparation of uniform nanocomposite spheres with loading silver nanoparticles on polystyrene-methyl acrylic acid spheres for catalytic reduction of 4-nitrophenol. J. Phys. Chem. C 2016, 120, 25935–25944. [Google Scholar] [CrossRef]
  21. Yuksel, R.; Coskun, S.; Kalay, Y.E.; Unalan, H.E. Flexible, silver nanowire network nickel hydroxide core-shell electrodes for supercapacitors. J. Power Sources 2016, 328, 167–173. [Google Scholar] [CrossRef]
  22. Sekhar, S.C.; Nagaraju, G.; Yu, J.S. Conductive silver nanowires-fenced carbon cloth fibers-supported layered double hydroxide nanosheets as a flexible and binder-free electrode for high-performance asymmetric supercapacitors. Nano Energy 2017, 36, 58–67. [Google Scholar] [CrossRef]
  23. Salavagione, H.; Prieto, R.; Morallo´n, E.; Narciso, J. 3D Electrodes from aluminium foams prepared by replication process. J. Appl. Electrochem. 2010, 40, 241–246. [Google Scholar] [CrossRef]
  24. Wu, G.X.; Yang, S.J.; Liu, Q.M. Synthesis of silver nanostructures by simple redox under electrodeposited copper microcubes and the orient attachment growth of 2D silver. Appl. Surf. Sci. 2015, 357, 583–592. [Google Scholar] [CrossRef]
  25. Kazemi, S.H.; Kiani, M.; Ghaemmaghami, M.; Kazemi, H. Nano-architectured MnO2 Electrodeposited on the Cu-decorated Nickel Foam substrate as Supercapacitor Electrode with Excellent Areal Capacitance. Electrochim. Acta 2016, 197, 107–116. [Google Scholar] [CrossRef]
  26. Usman, M.; Pan, L.; Sohail, A.; Mahmood, Z.; Cui, R. Fabrication of 3D vertically aligned silver nanoplates on nickel foam-graphene substrate by a novel electrodeposition with sonication for efficient supercapacitors. Chem. Eng. J. 2017, 311, 359–366. [Google Scholar] [CrossRef]
  27. Park, S.; Tan, A.W.M.; Wang, J.; Lee, P.S. Coaxial Ag–base metal nanowire networks with high electrochemical stability for transparent and stretchable asymmetric supercapacitors. Nanoscale Horiz. 2017, 2, 199–204. [Google Scholar] [CrossRef]
  28. Liu, P.; Liu, J.; Cheng, S.; Cai, W.; Yu, F.; Zhang, Y.; Wu, P.; Liu, M. A high-performance electrode for supercapacitors: Silver nanoparticles grown on a porous perovskite-type material La0.7Sr0.3CoO3−δ substrate. Chem. Eng. J. 2017, 328, 1–10. [Google Scholar] [CrossRef]
  29. Gao, L.; Zhang, L.; Jia, S.; Liu, X.; Wang, Y.; Xing, S. Facile route to achieve hierarchical hollow MnO2 nanostructures. Electrochim. Acta 2016, 203, 59–65. [Google Scholar] [CrossRef]
  30. He, D.; Wang, G.; Liu, G.; Suo, H.; Zhao, C. Construction of leaf-like CuO–Cu2O nanocomposites on copper foam for high-performance supercapacitors. Dalton Trans. 2017, 46, 3318–3324. [Google Scholar] [CrossRef]
  31. Dong, C.; Wang, Y.; Xu, J.; Cheng, G.; Yang, W.; Kou, T.; Zhang, Z.; Ding, Y. 3D binder-free Cu2O@Cu nanoneedle arrays for high-performance asymmetric supercapacitors. J. Mater. Chem. A 2014, 2, 18229–18235. [Google Scholar] [CrossRef]
Metals 09 00826 sch001 550

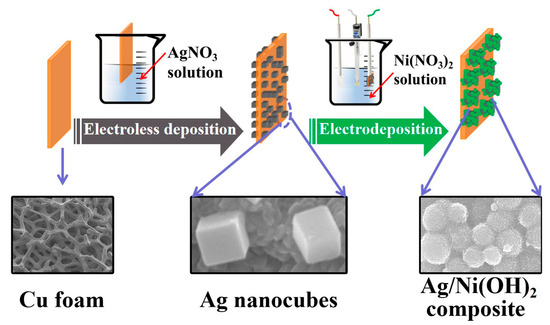

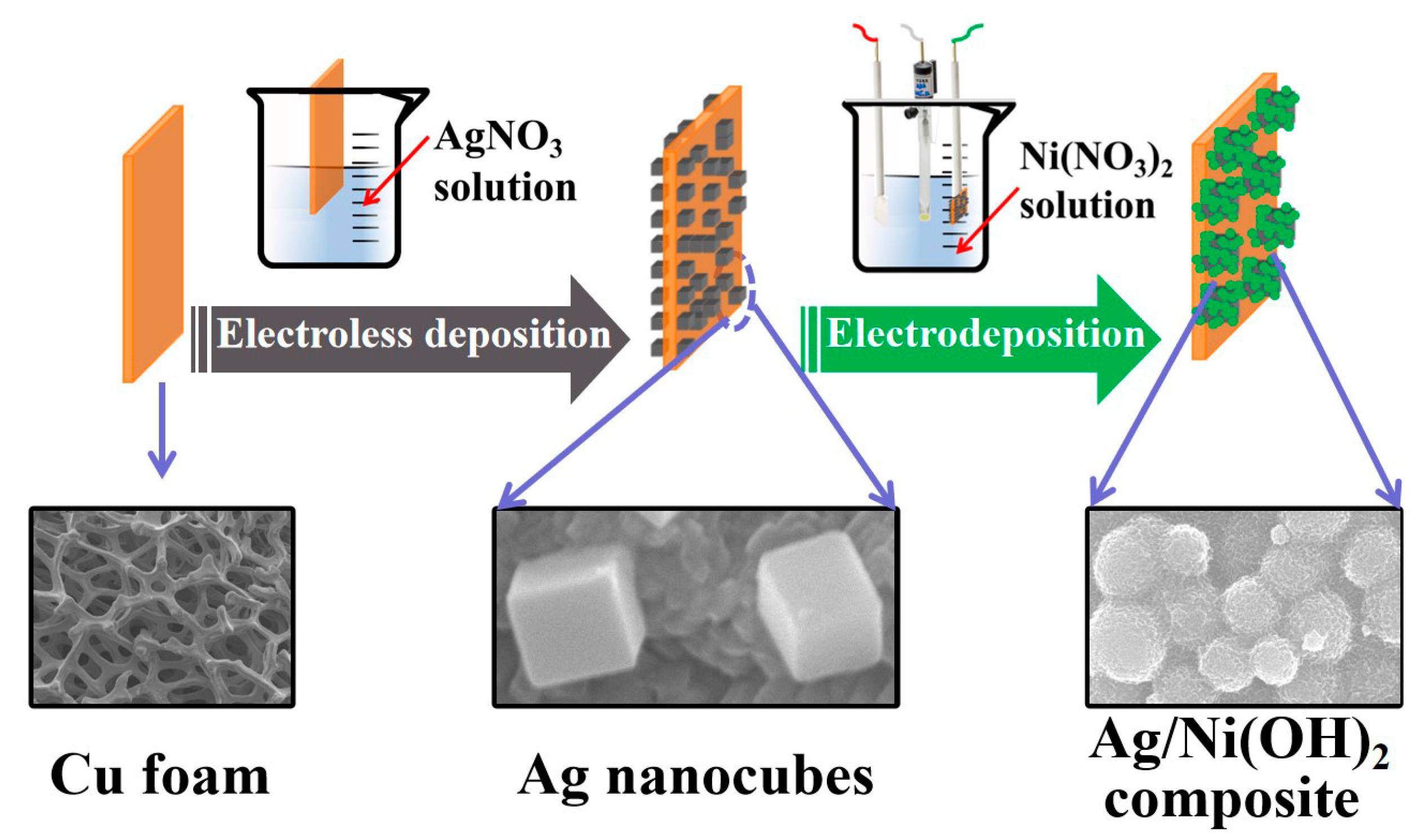

Scheme 1. The illustration of the construction procedure of Ag/Ni(OH)2 electrode on copper foam.
Scheme 1. The illustration of the construction procedure of Ag/Ni(OH)2 electrode on copper foam.
Metals 09 00826 sch001
Metals 09 00826 g001 550

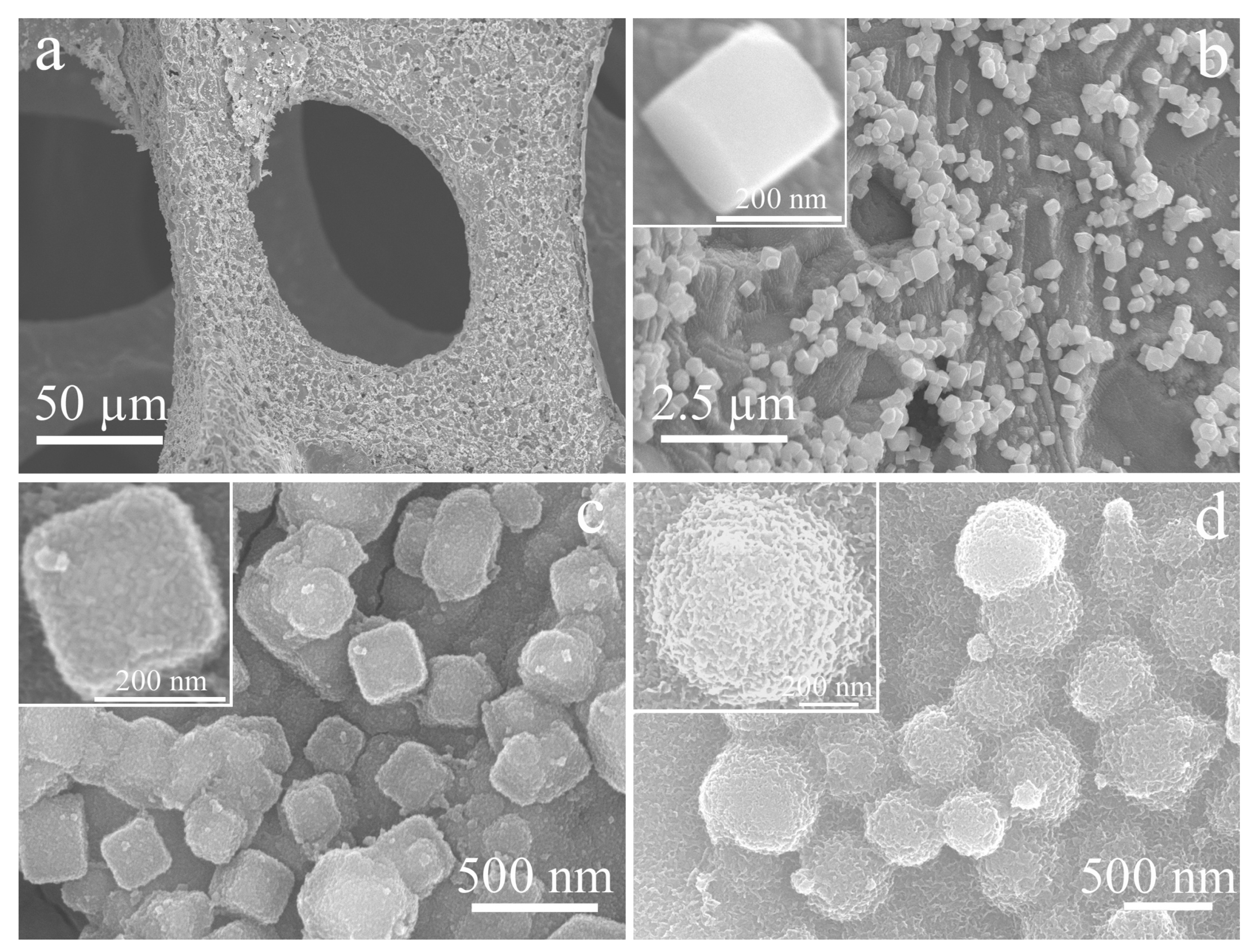

Figure 1. FE-SEM images: (a,b) AgNCs and (c,d) Ag/Ni(OH)2 composite with 30 s and 300 s the deposition time of Ni(OH)2, respectively.
Figure 1. FE-SEM images: (a,b) AgNCs and (c,d) Ag/Ni(OH)2 composite with 30 s and 300 s the deposition time of Ni(OH)2, respectively.
Metals 09 00826 g001
Metals 09 00826 g002 550

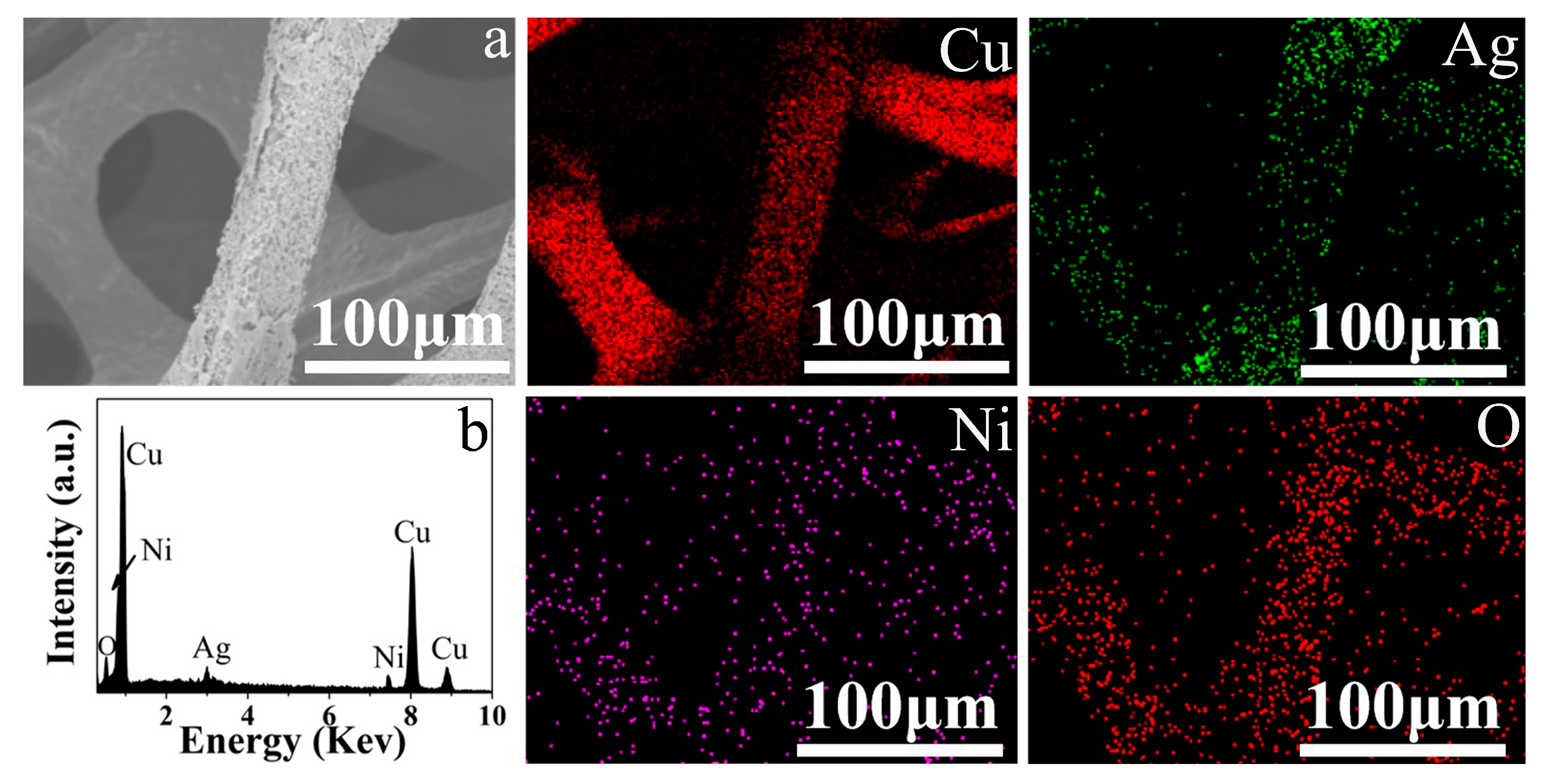

Figure 2. Ag/Ni(OH)2 composite: (a) FE-SEM images and the corresponding EDS element mapping images of Cu, Ag, O and Ni elements; (b) EDS spectrum.
Figure 2. Ag/Ni(OH)2 composite: (a) FE-SEM images and the corresponding EDS element mapping images of Cu, Ag, O and Ni elements; (b) EDS spectrum.
Metals 09 00826 g002
Metals 09 00826 g003 550

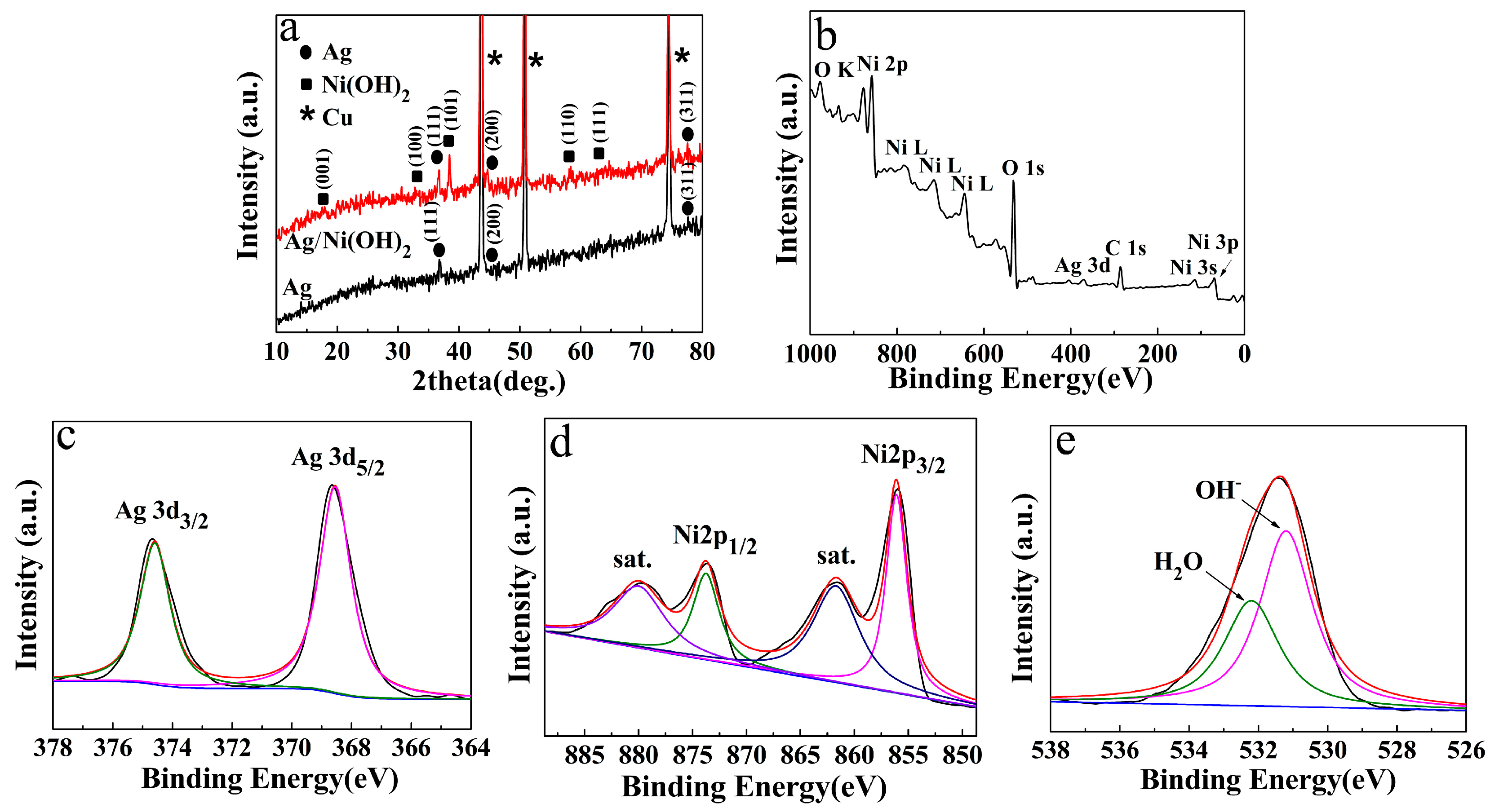

Figure 3. XRD patterns (a) Ag and Ag/Ni(OH)2. XPS of the Ag/Ni(OH)2: survey scan (b), Ag 3d (c), Ni 2p (d) and O 1s (e) spectra.
Figure 3. XRD patterns (a) Ag and Ag/Ni(OH)2. XPS of the Ag/Ni(OH)2: survey scan (b), Ag 3d (c), Ni 2p (d) and O 1s (e) spectra.
Metals 09 00826 g003
Metals 09 00826 g004 550

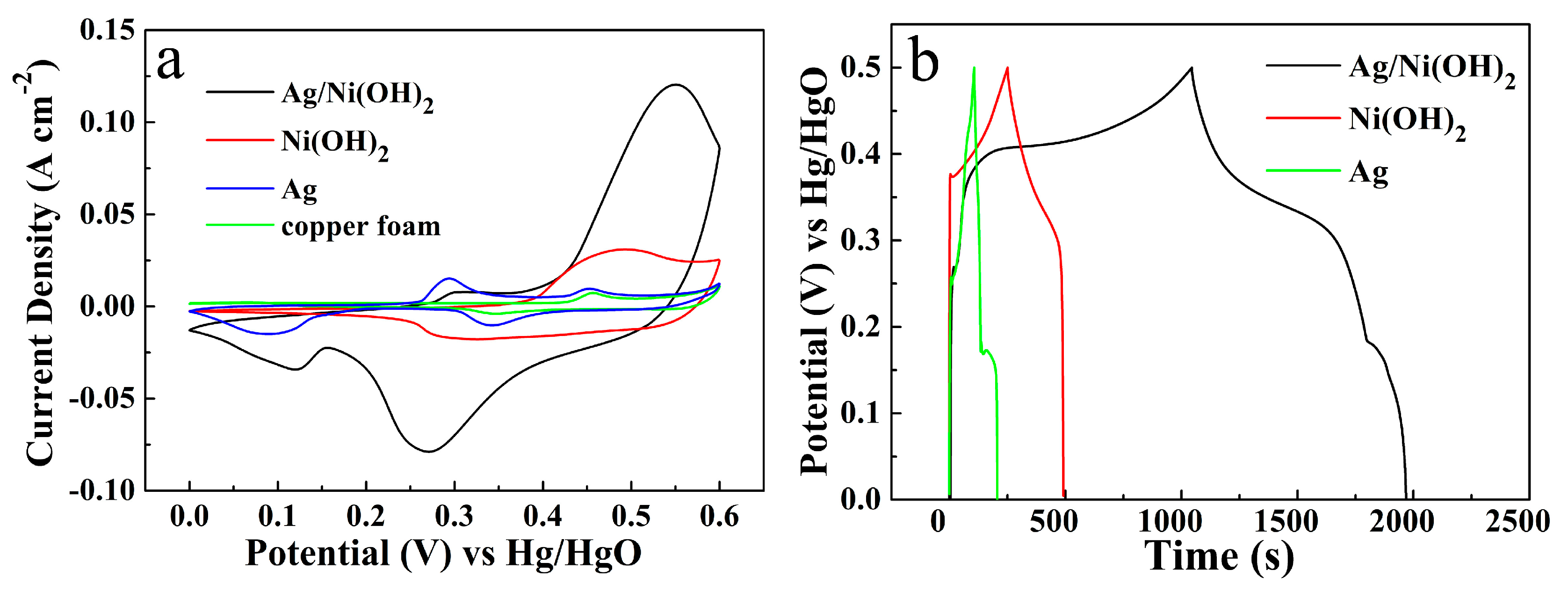

Figure 4. (a) CV curves of Ag/Ni(OH)2, Ni(OH)2, Ag electrode and copper foam substrate at a scan rate of 10 mV s−1; (b) a comparison of GCD curves of the three electrode.
Figure 4. (a) CV curves of Ag/Ni(OH)2, Ni(OH)2, Ag electrode and copper foam substrate at a scan rate of 10 mV s−1; (b) a comparison of GCD curves of the three electrode.
Metals 09 00826 g004
Metals 09 00826 g005 550

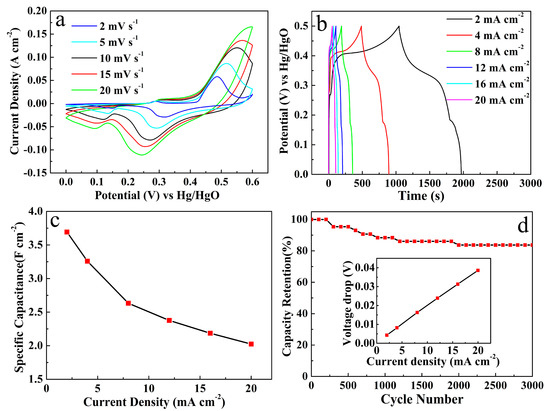

Figure 5. Electrochemical performance of the Ag/Ni(OH)2 composite electrode: (a) The CV curves, (b) GCD curves, (c) plots of specific capacitance versus current density, (d) cycling performance, inset is voltage drops during the GCD tests of the Ag/Ni(OH)2 composite electrode.
