Influence of a Diamond-Like Carbon-Coated Mechanical Part on the Operation of an Orbital Hydraulic Motor in Water

Faculty of Mechanical Engineering, University of Ljubljana, Aškerčeva 6, 1000 Ljubljana, Slovenia
*
Author to whom correspondence should be addressed.
Metals 2019, 9(4), 466; https://doi.org/10.3390/met9040466
Received: 21 March 2019 / Revised: 13 April 2019 / Accepted: 17 April 2019 / Published: 22 April 2019
  |
PDF [8973 KB, uploaded 22 April 2019]
  |

Abstract

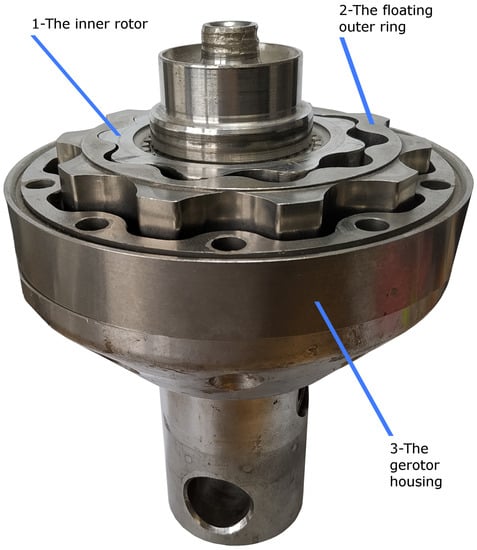

The increasing focus on reducing the environmental impact of hydraulic applications has driven efforts to apply new surface-engineering technologies and replace classic lubricants with alternative solutions. In particular, water has gained increasing attention in recent years. However, water has very poor lubrication properties and, especially in combination with steel/steel contact, it leads to severe tribological behavior. A literature review and preliminary research showed that appropriate surface engineering regarding diamond-like carbon (DLC) coatings represents a promising solution to overcome the limitation of steel/steel contacts in water. Basic tribological ball-on-disc tests were performed. The result of the tribological investigation showed that there was very low friction and wear in the steel/DLC contact in water. This was our motivation for using DLC coating in a real hydraulic application. The DLC was deployed on the floating outer ring, so steel/DLC contacts between the floating outer ring and three other important parts were created. It was proven that the poor lubrication properties of the water were overcome with appropriate surface engineering. In such a case, the hydraulic motor operated satisfactorily when the water was applied as a working fluid. View Full-Text
Keywords: diamond-like carbon; efficiency; orbital hydraulic motor; surface engineering; water diamond-like carbon; efficiency; orbital hydraulic motor; surface engineering; water
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Strmčnik, E.; Majdič, F.; Kalin, M. Influence of a Diamond-Like Carbon-Coated Mechanical Part on the Operation of an Orbital Hydraulic Motor in Water. Metals 2019, 9, 466.
