Next Article in Journal
Numerical Modeling Rolling Contact Problem and Elasticity Deformation of Rolling Die under Hot Milling
Next Article in Special Issue
Mechanical Properties of Direct-Quenched Ultra-High-Strength Steel Alloyed with Molybdenum and Niobium
Previous Article in Journal
Shaping of Aluminum Foam during Foaming of Precursor Using Steel Mesh with Various Opening Ratios
Previous Article in Special Issue
Modelling and Microstructural Aspects of Ultra-Thin Sheet Metal Bundle Cutting
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessFeature PaperArticle
Metals 2019, 9(2), 224;

Influence of Mechanical Anisotropy on Micro-Voids and Ductile Fracture Onset and Evolution in High-Strength Low Alloyed Steels

Rina Consulting—Centro Sviluppo Materiali S.p.A, Via di Castel Romano 100, 00128 Roma, Italy
Department of Mechanical and Aerospace Engineering, Sapienza University of Rome, via Eudossiana 18, 00184 Roma, Italy
Dipartimento di Ingegneria, Università di Perugia, 06125 Perugia, Italy
Author to whom correspondence should be addressed.
Received: 20 December 2018 / Revised: 4 February 2019 / Accepted: 12 February 2019 / Published: 13 February 2019
(This article belongs to the Special Issue High-Strength Low-Alloy Steels)
Full-Text   |   PDF [6240 KB, uploaded 15 February 2019]   |

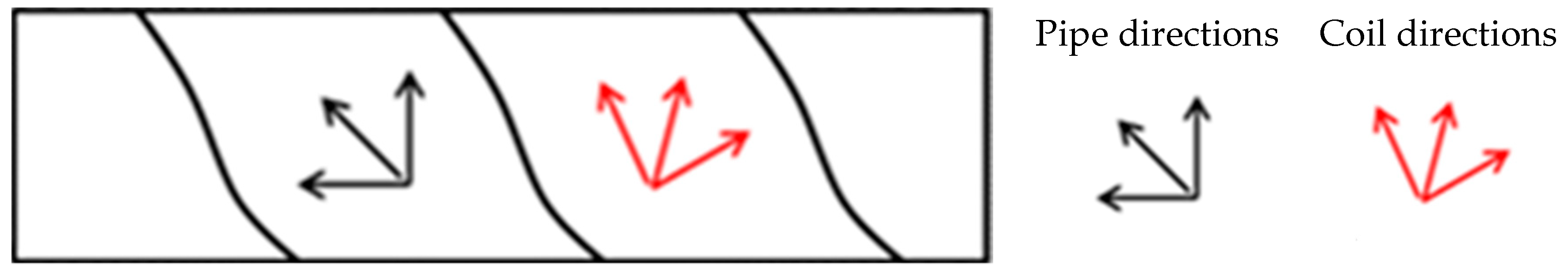

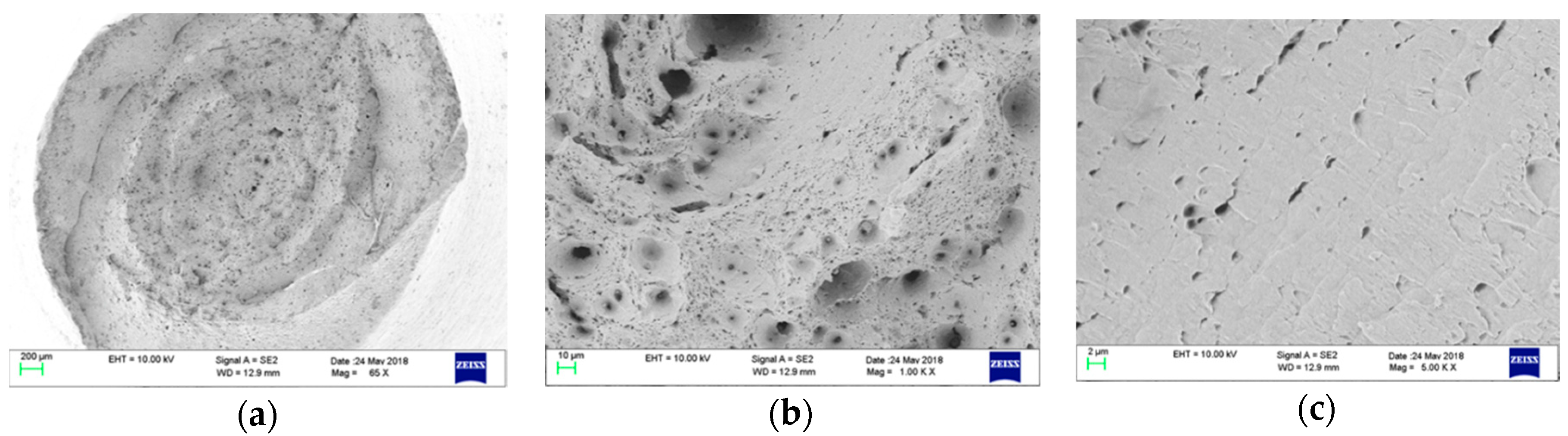

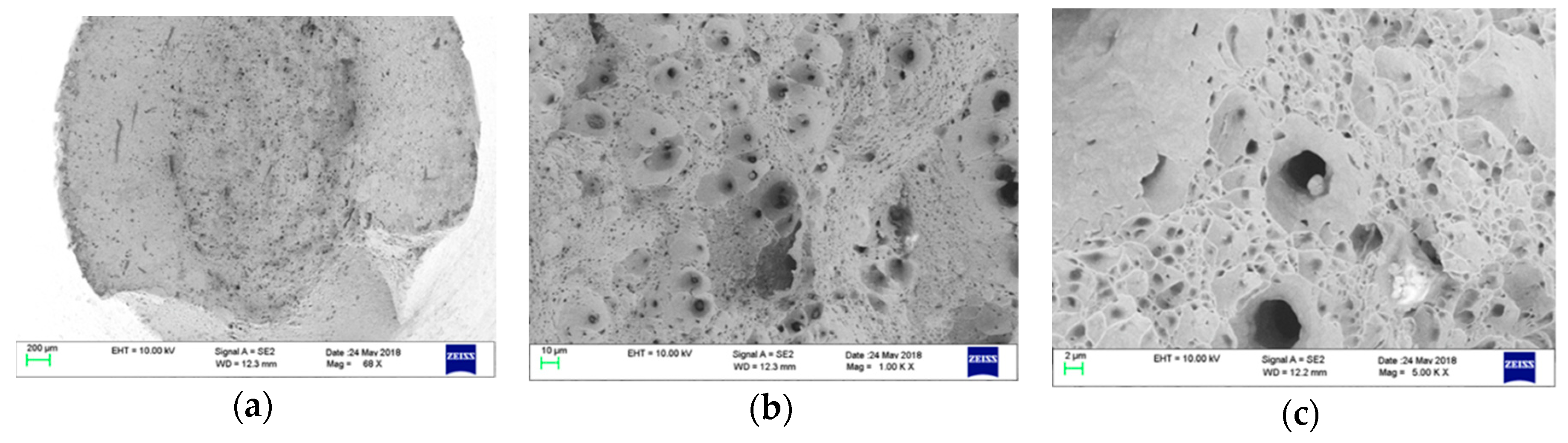

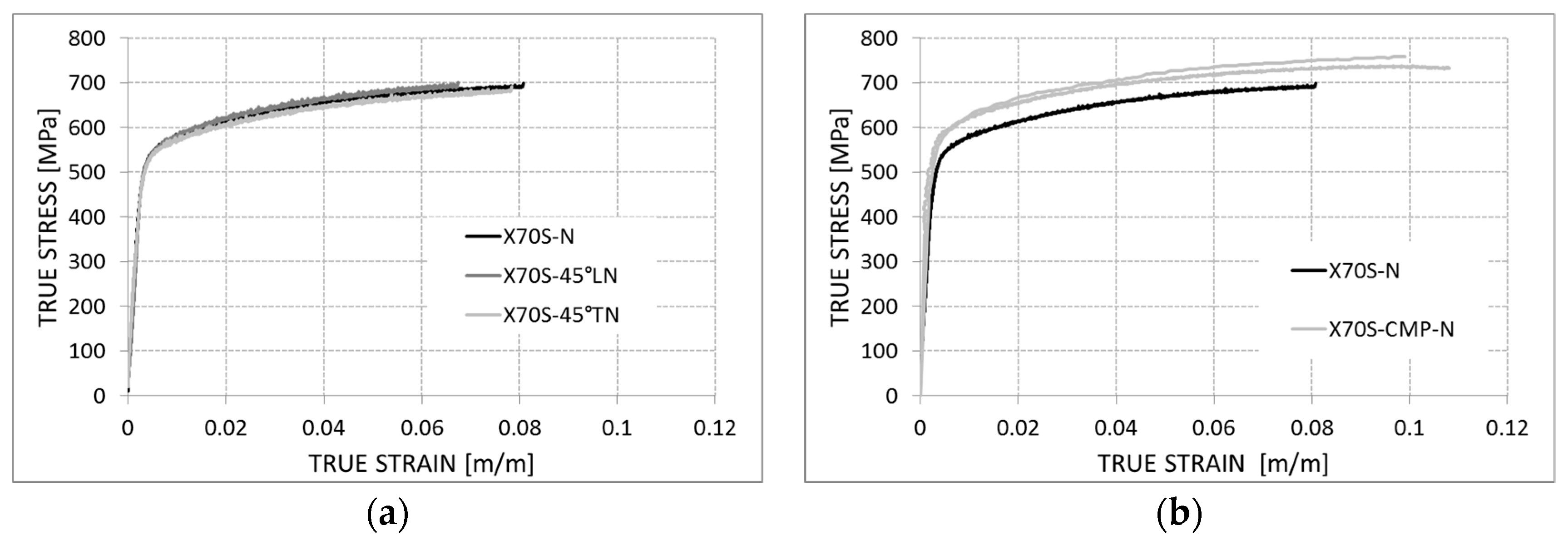

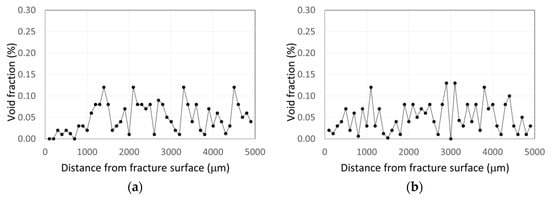

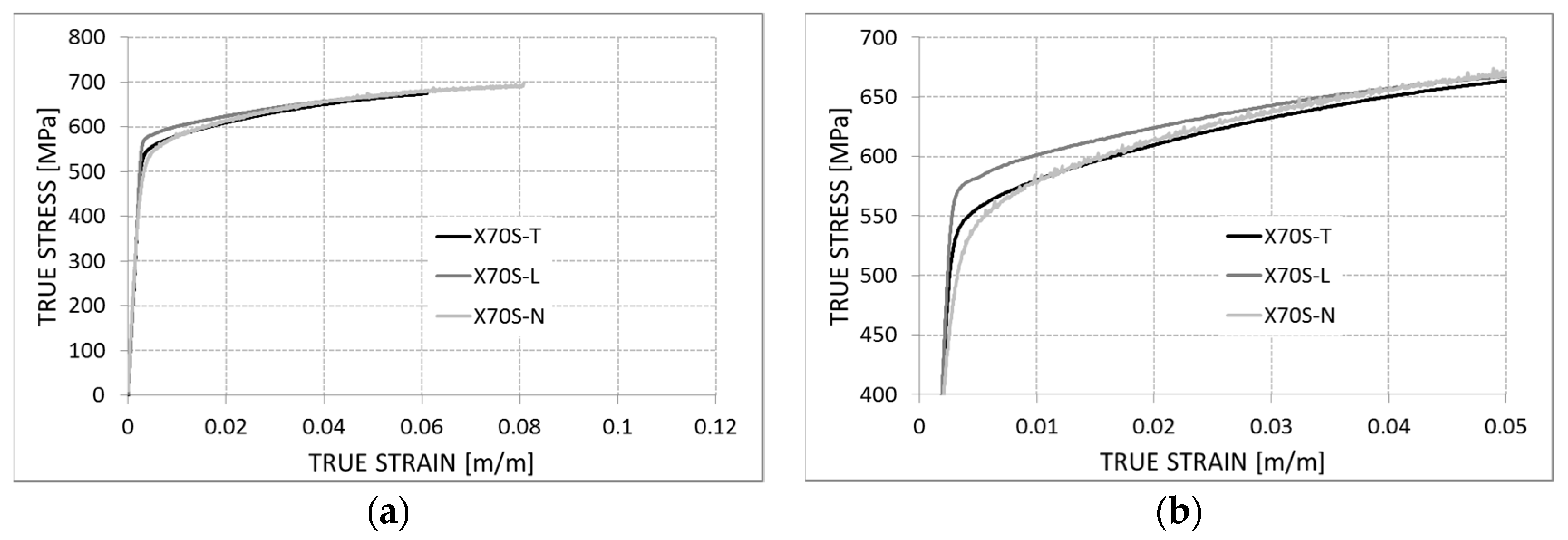

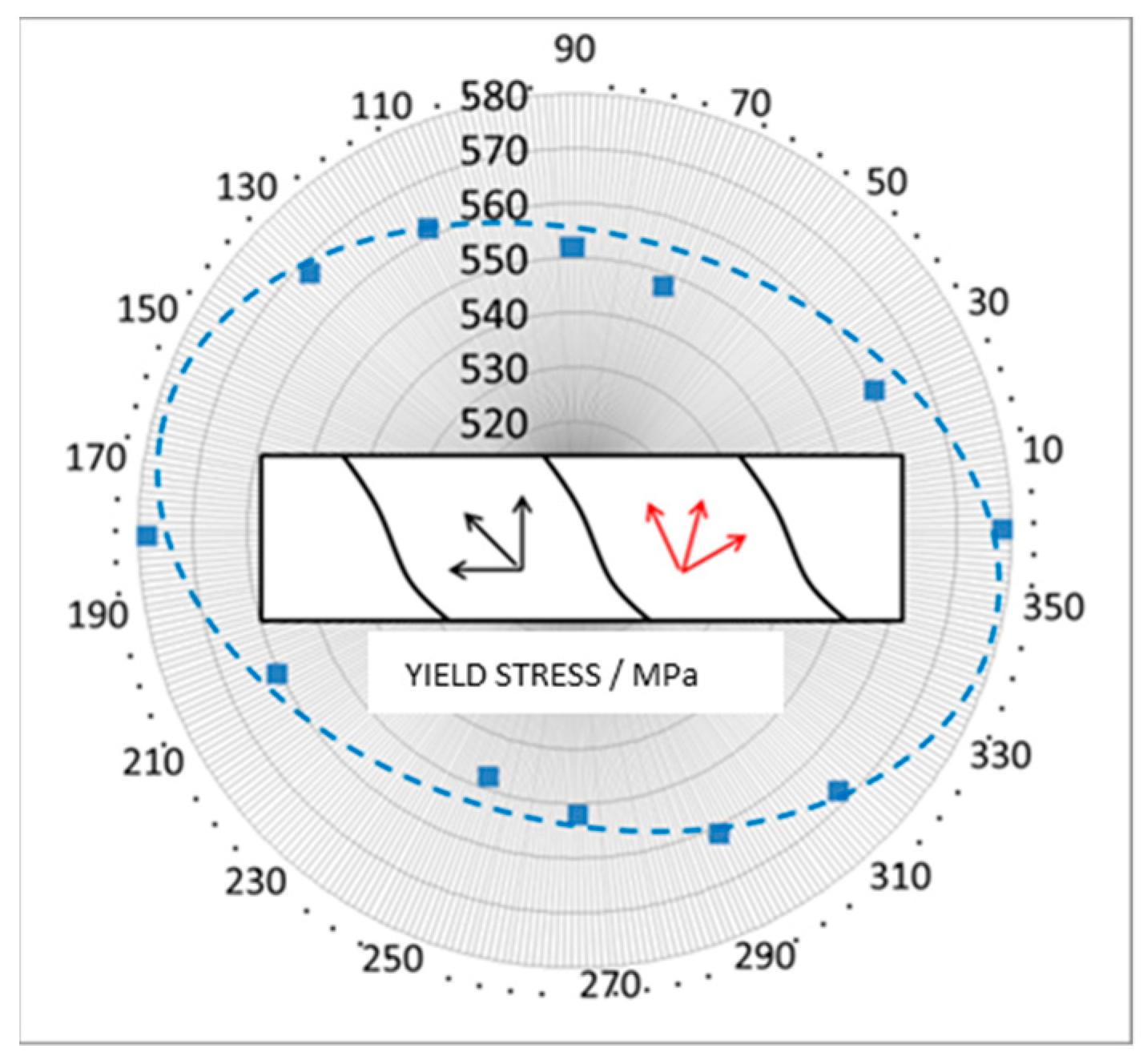

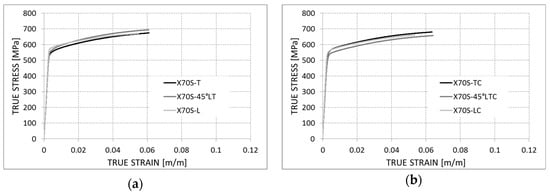

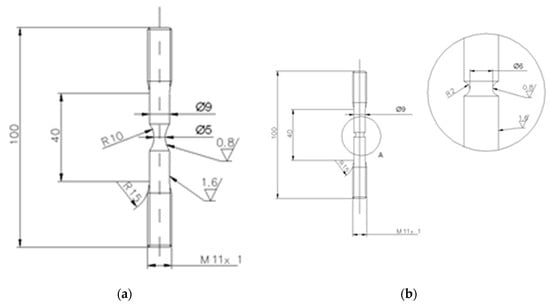

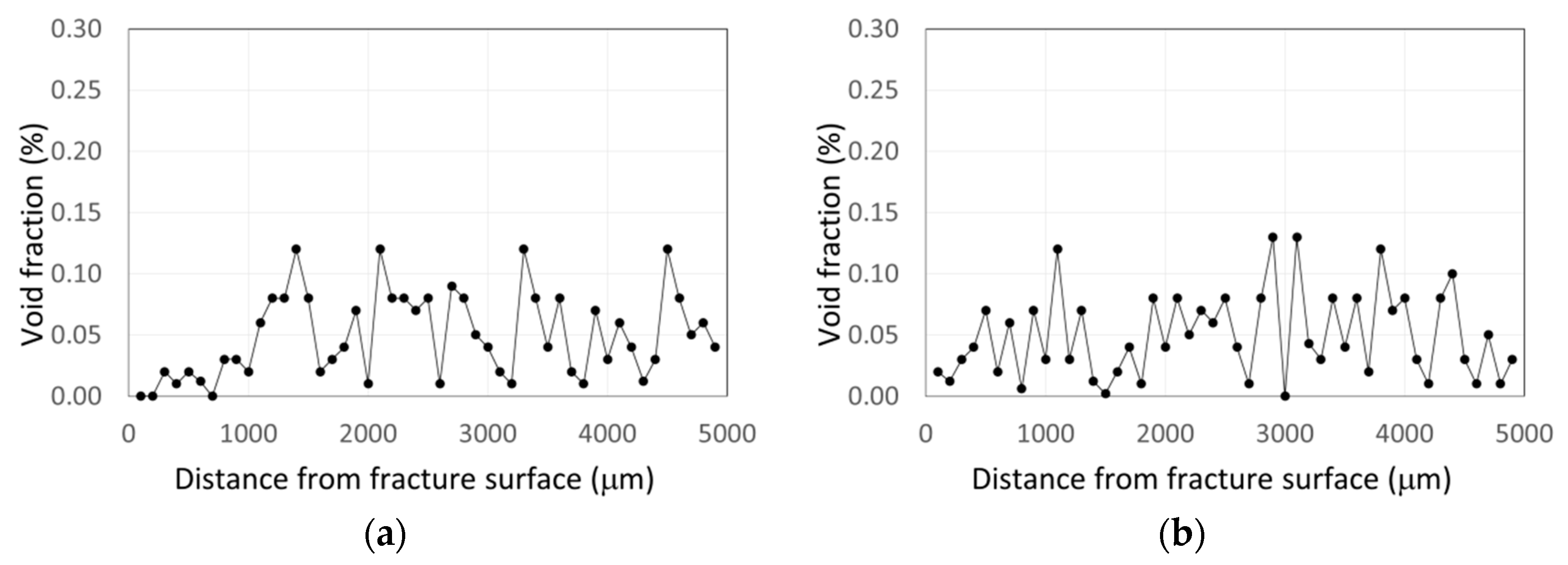

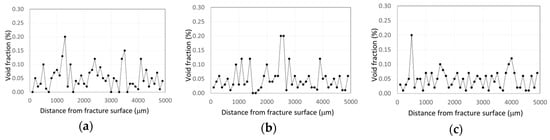

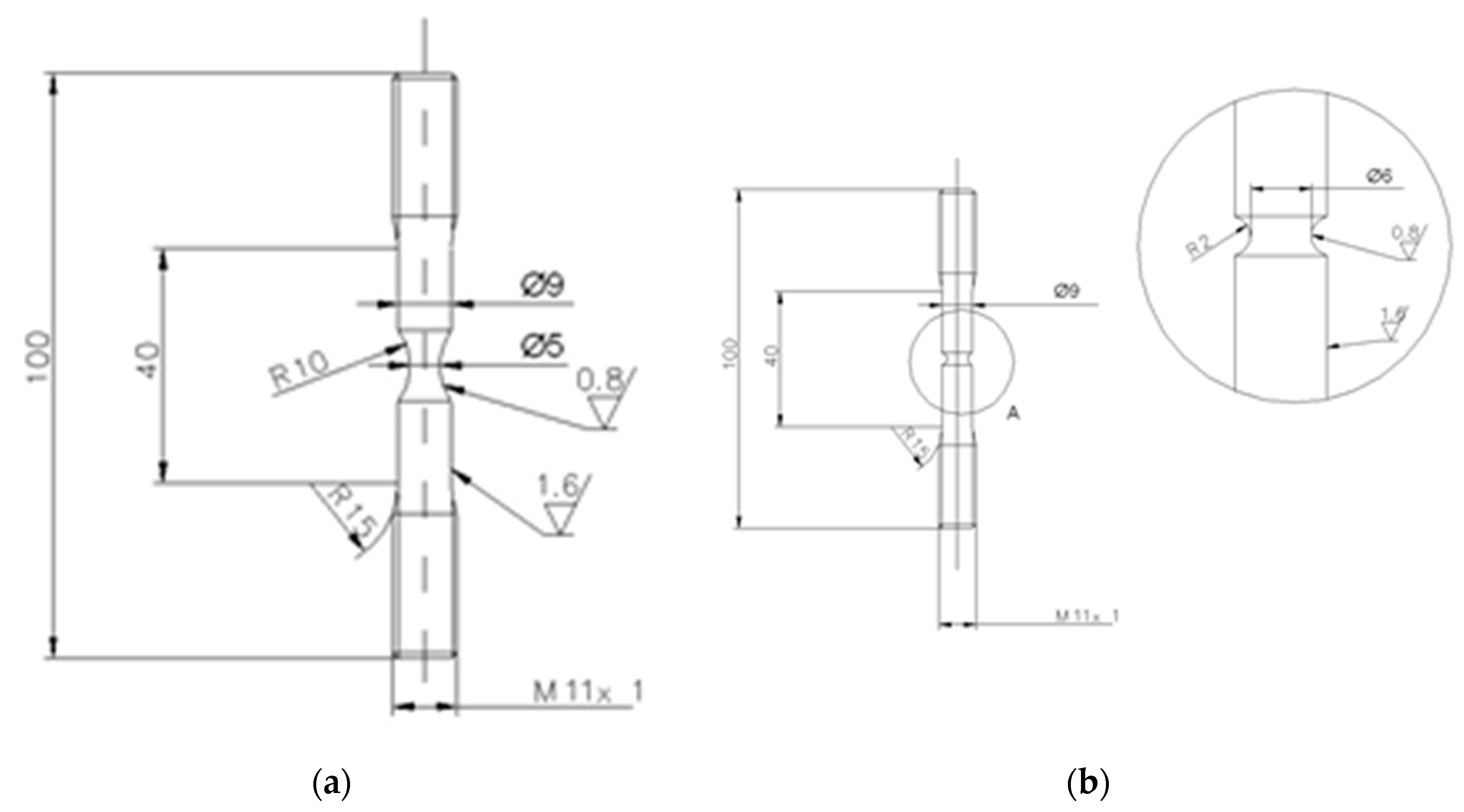

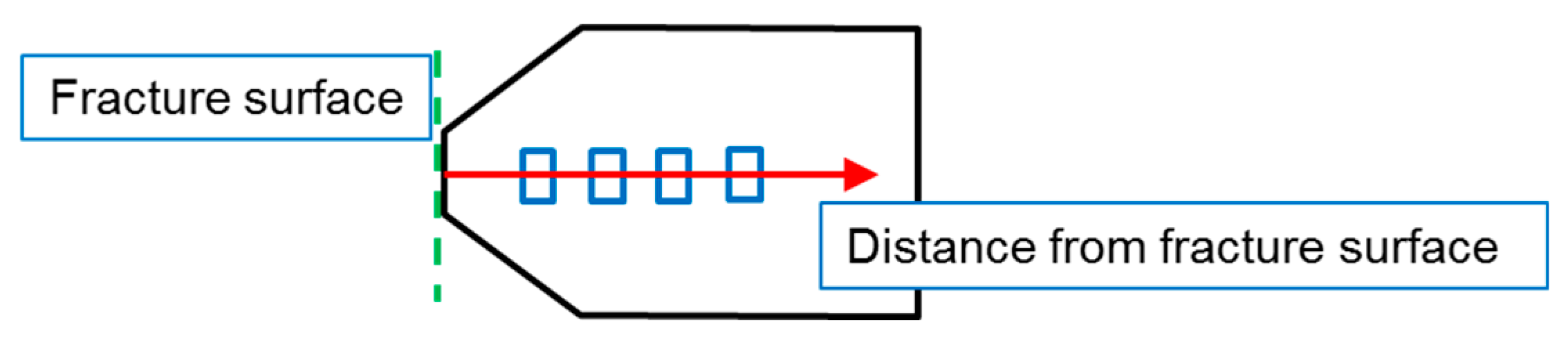

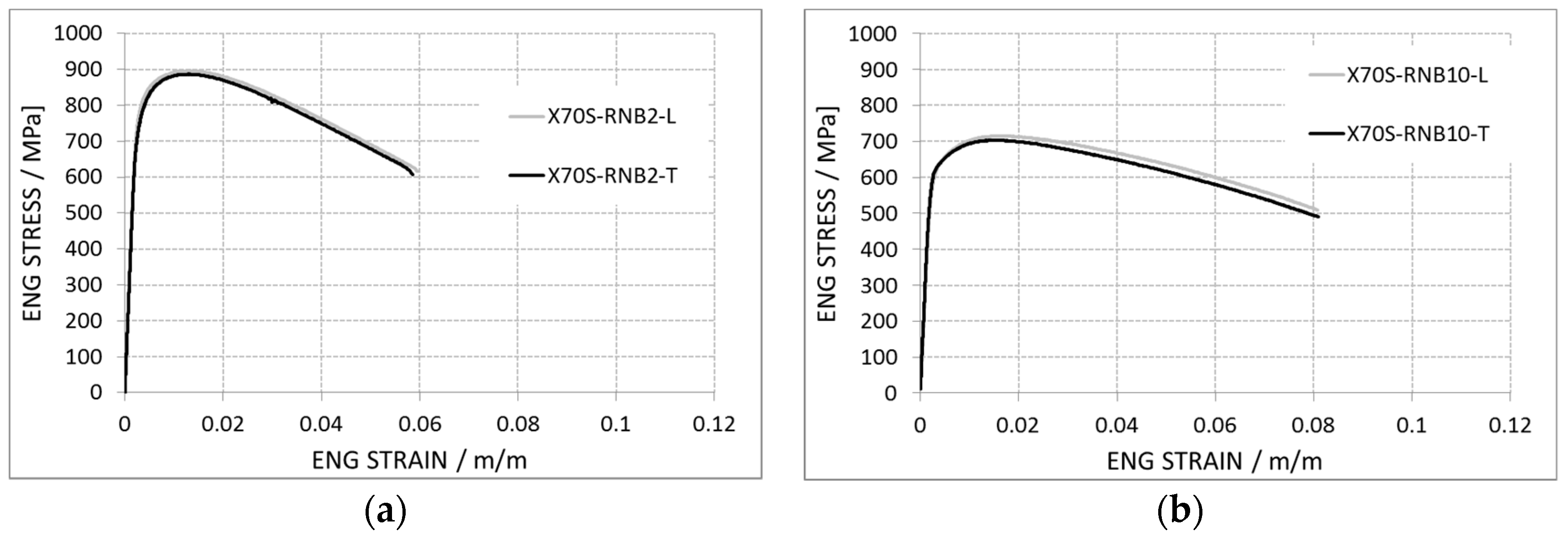

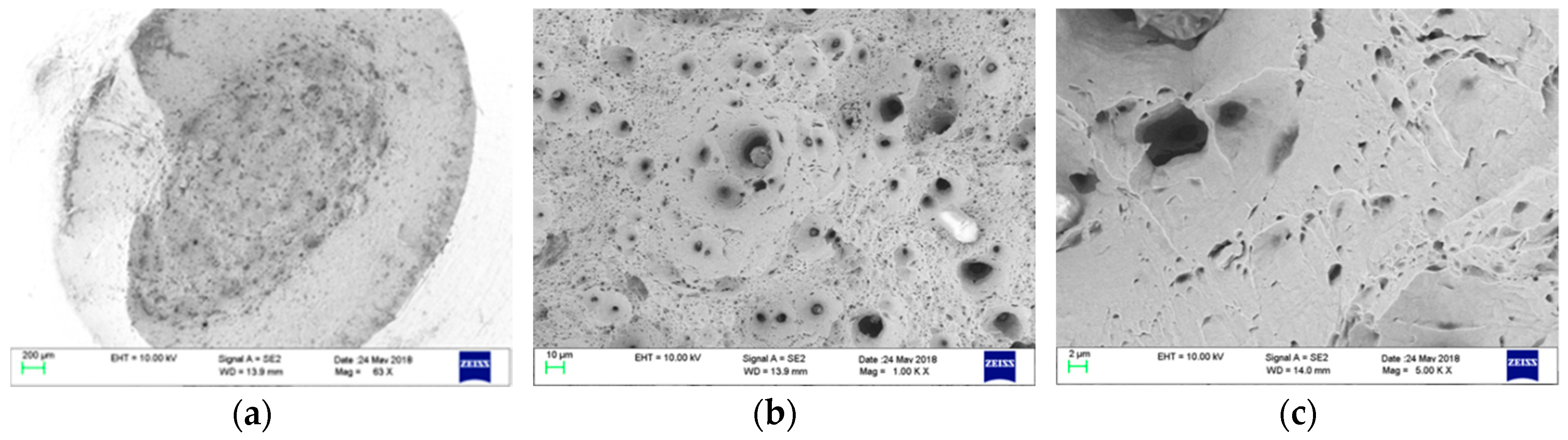

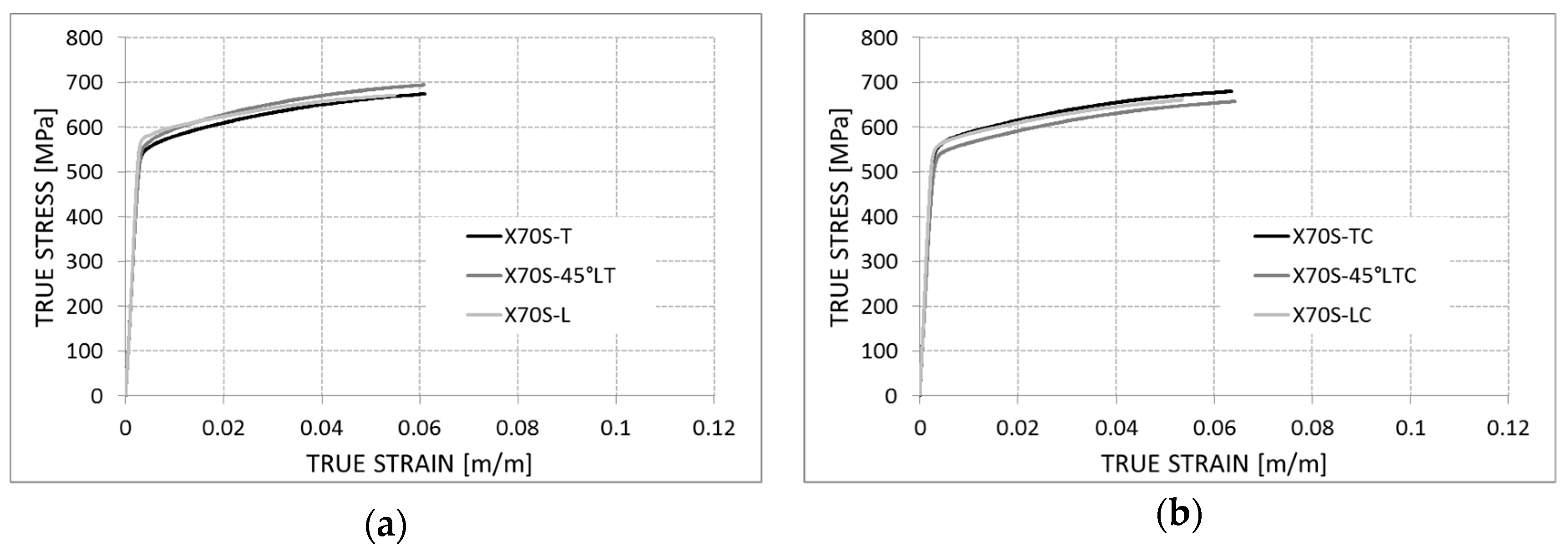

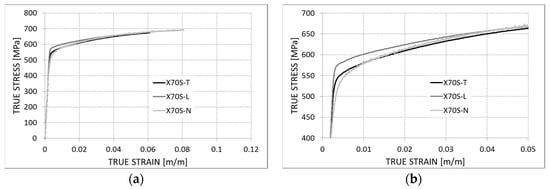

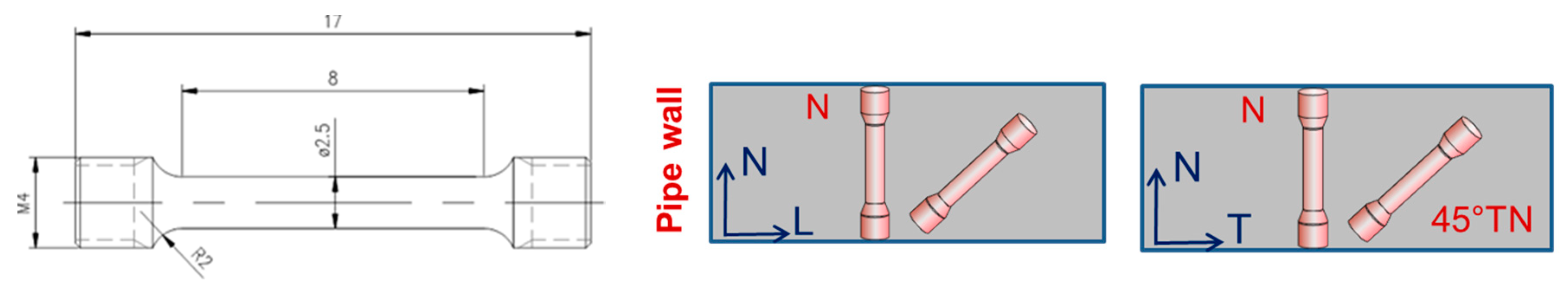

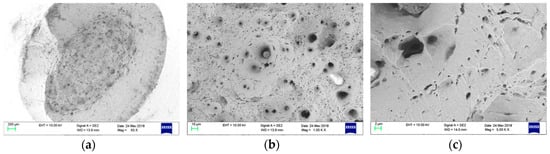

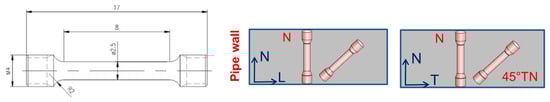

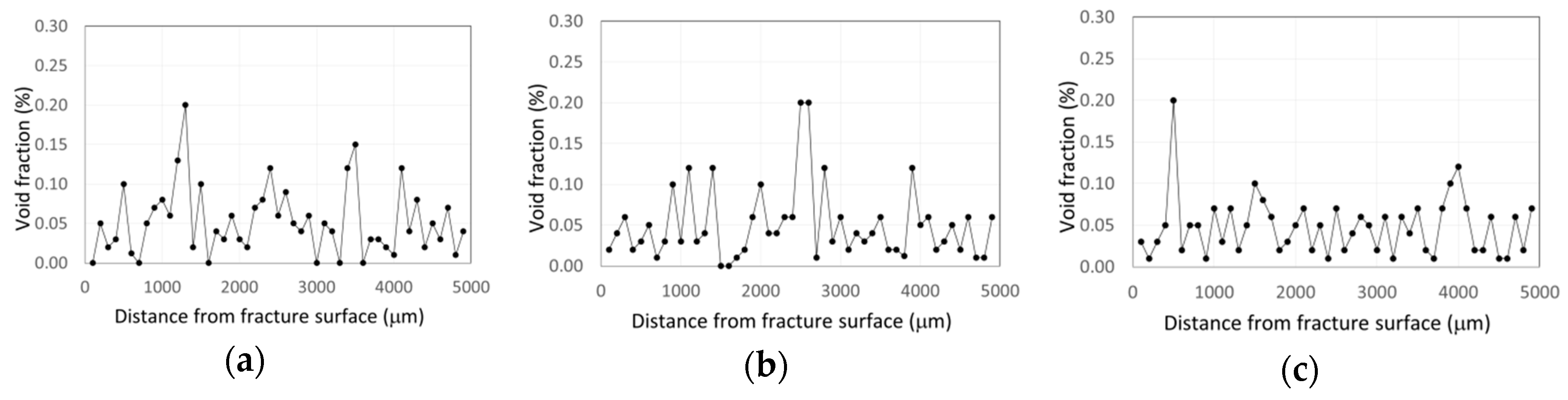

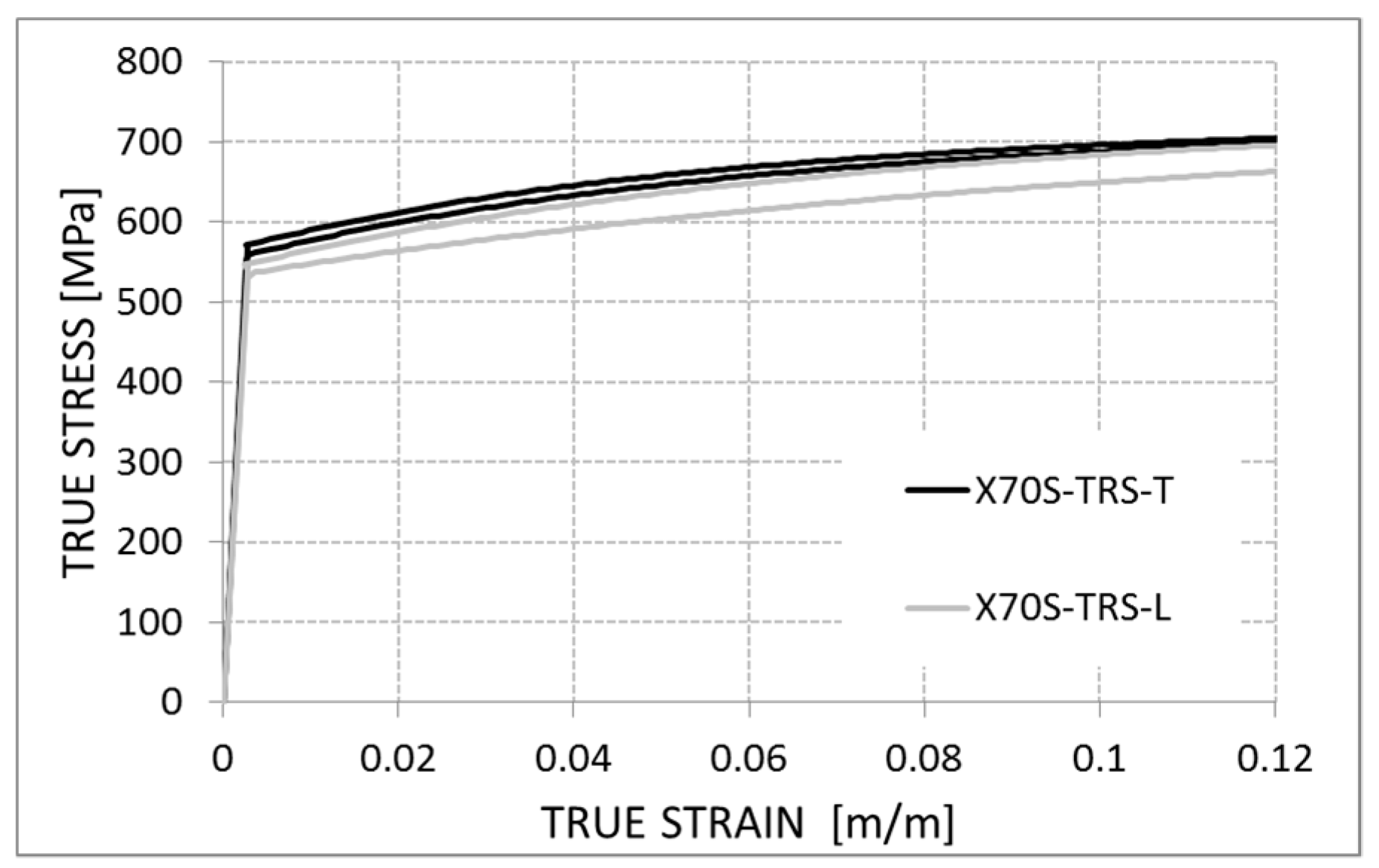

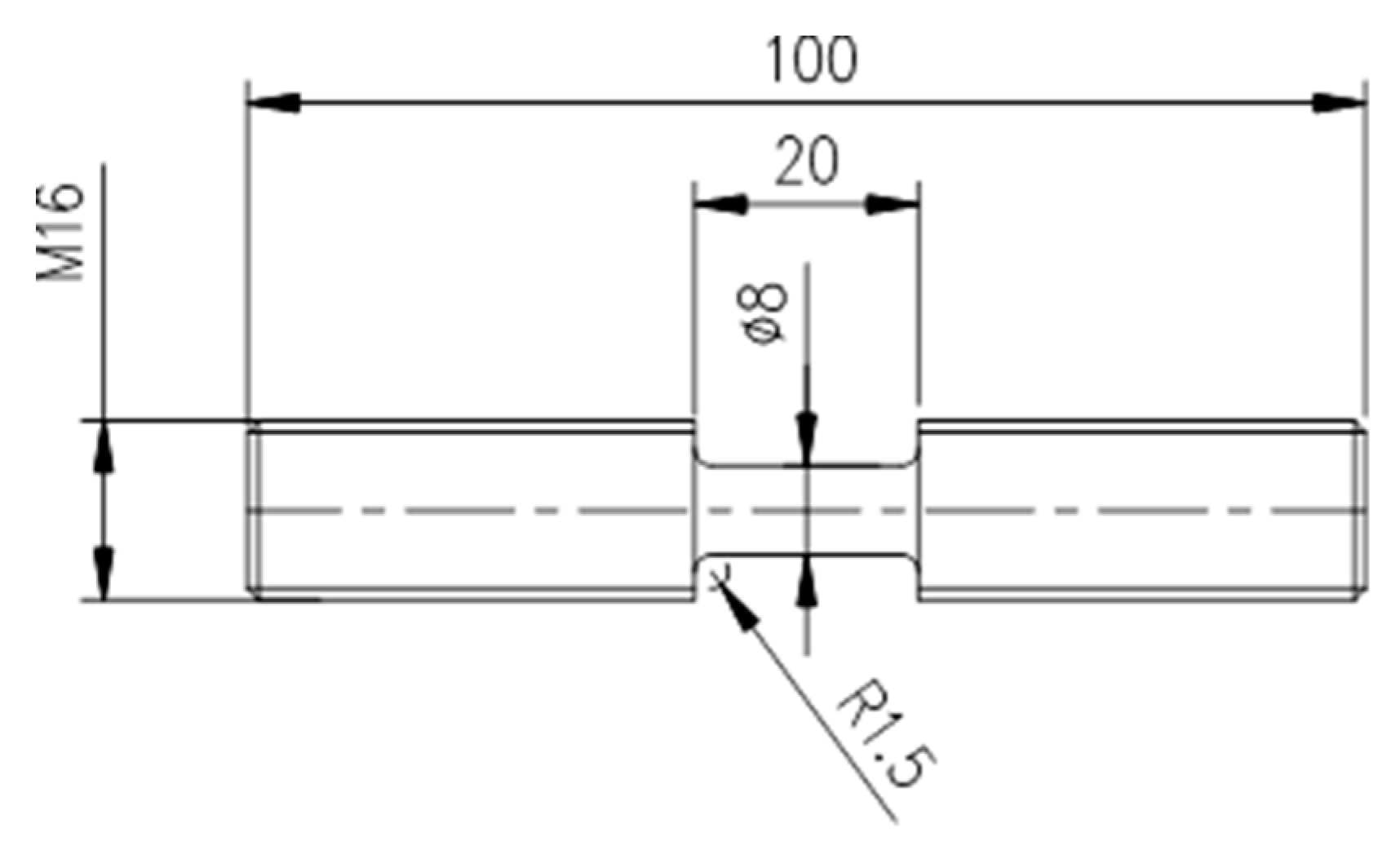

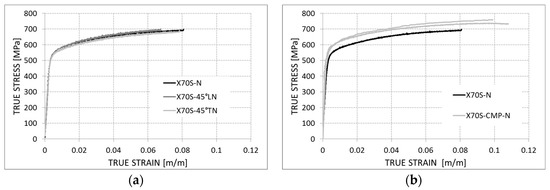

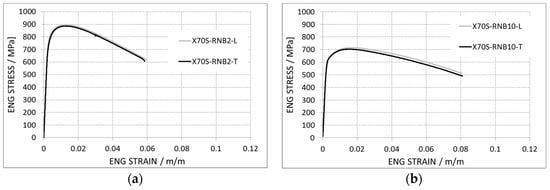

In this paper results of a wide and innovative mechanical assessment, that was performed on large diameter spiral line pipes for gas transportation, are reported. The anisotropic material hardening has been characterized by tensile (smooth and notched specimens), torsion, and compression tests. Tests were performed in the pipe of the pipe with specimens machined along several orientations, taking into account the pipe through thickness direction. The influence of different triaxiality stress states on anisotropic behavior of the material have also been analyzed by means of tensile tests on notched specimens. After the experiments, the material was assessed by measuring the void distribution on the material as is, and on many deformed and fractured specimens, including tensile tests at different triaxiality, and torsion tests. The results showed that in such a class of materials, the experimental void fraction is fully negligible and not related to the applied plastic strain, even at the fracture proximity. As a consequence it can be concluded that, the plastic softening hypothesis may be dropped and damage due to void evolution hypothesis is not adequate. View Full-Text
Keywords: mechanics; microstructure; fracture; anisotropy mechanics; microstructure; fracture; anisotropy

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Iob, F.; Cortese, L.; Di Schino, A.; Coppola, T. Influence of Mechanical Anisotropy on Micro-Voids and Ductile Fracture Onset and Evolution in High-Strength Low Alloyed Steels. Metals 2019, 9, 224.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
