Next Article in Journal
Thermodynamic Modelling on Nanoscale Growth of Magnesia Inclusion in Fe-O-Mg Melt
Previous Article in Journal
Hard Metal Production by ERS: Processing Parameter Roles in Final Properties
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Metals 2019, 9(2), 173;

Effect of Artificial Aging, Delayed Aging, and Pre-Aging on Microstructure and Properties of 6082 Aluminum Alloy

Light Alloy Research Institute, Central South University, Changsha 410083, China
School of Materials Science and Engineering, Central South University, Changsha 410083, China
Suntown Technology Group Co., Ltd., Changsha 410200, China
Guangdong Fenglu Aluminum Industry Co., Ltd., Fushan 528100, China
Author to whom correspondence should be addressed.
Received: 14 January 2019 / Revised: 28 January 2019 / Accepted: 30 January 2019 / Published: 2 February 2019
Full-Text   |   PDF [6082 KB, uploaded 2 February 2019]   |

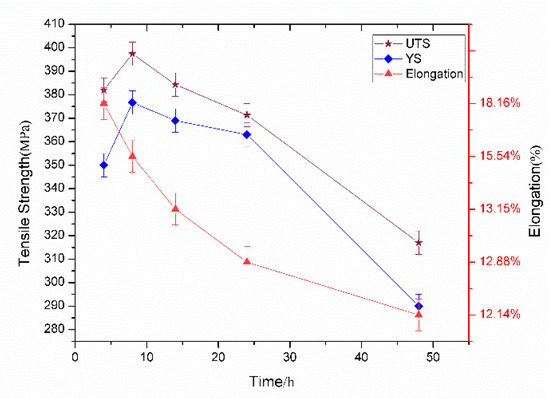

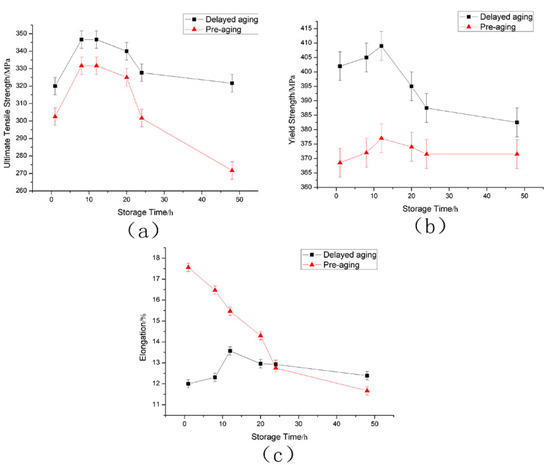

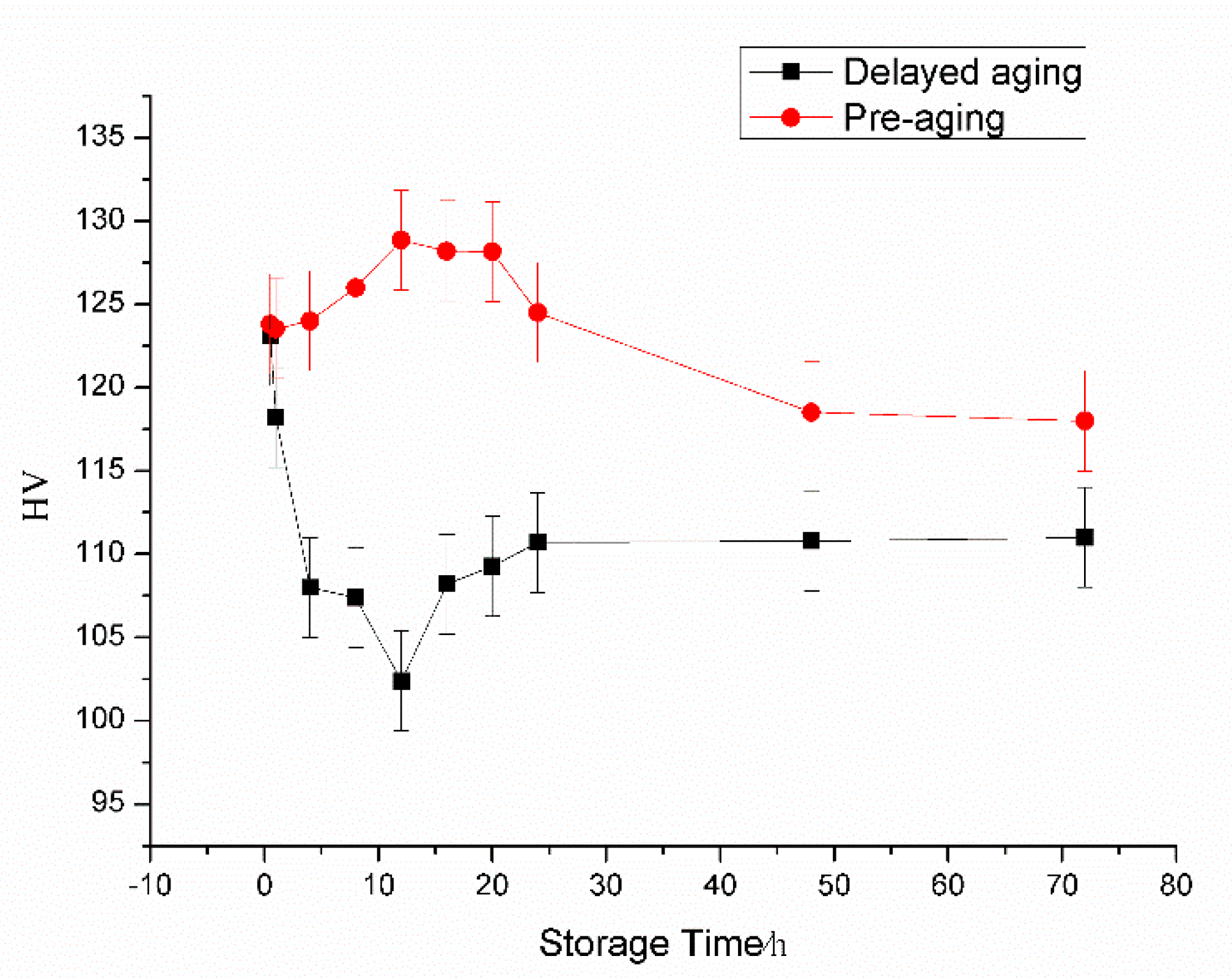

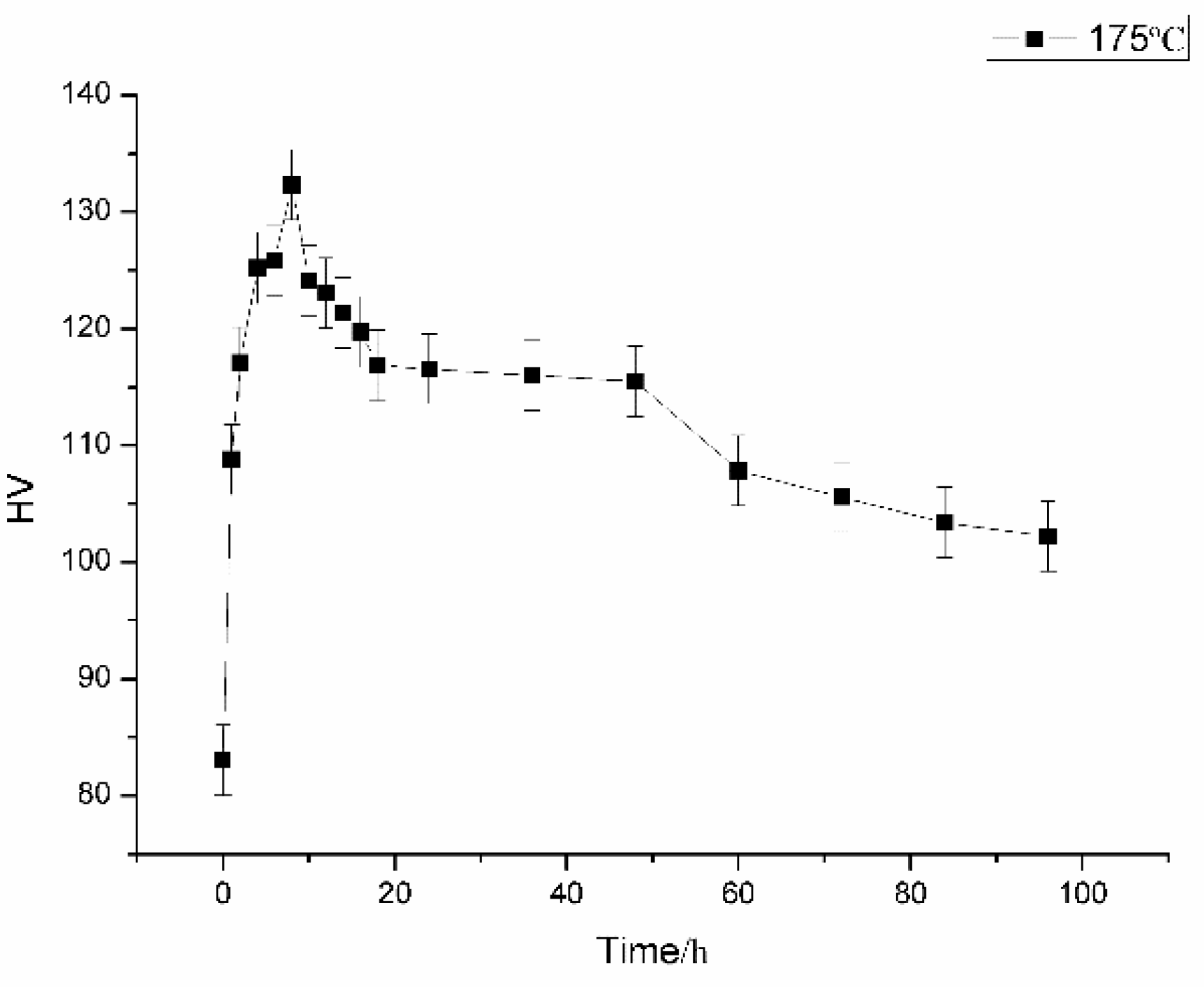

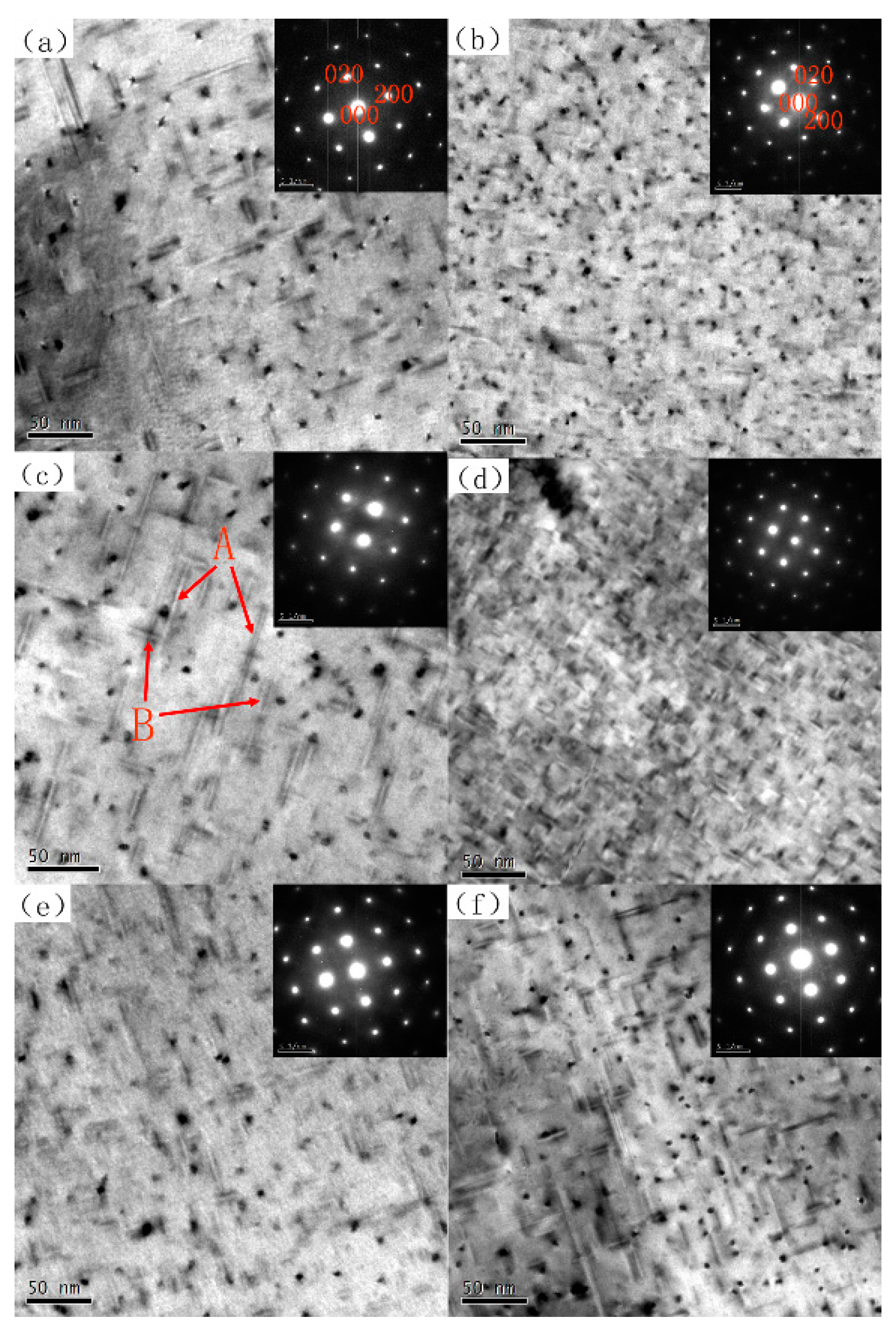

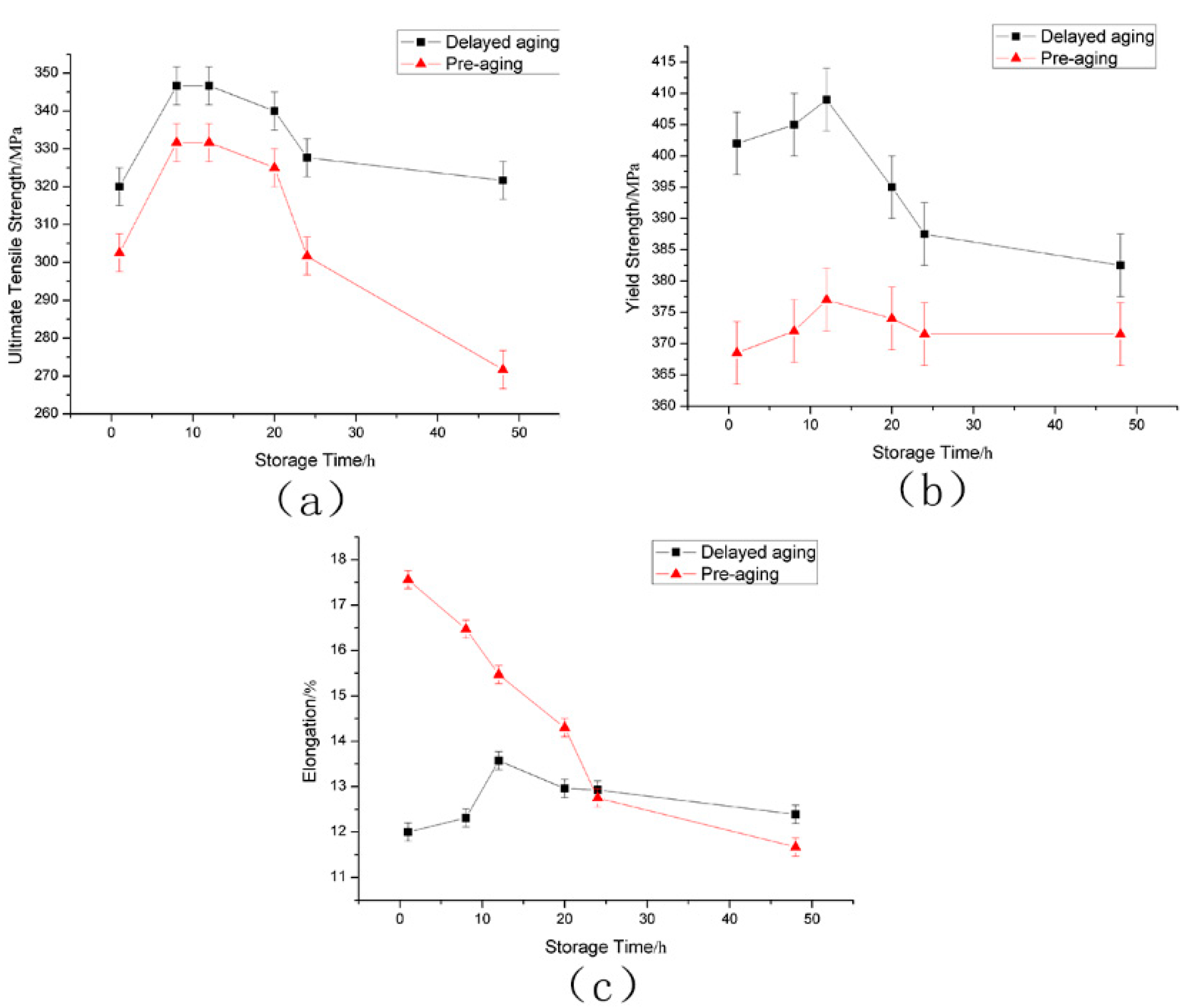

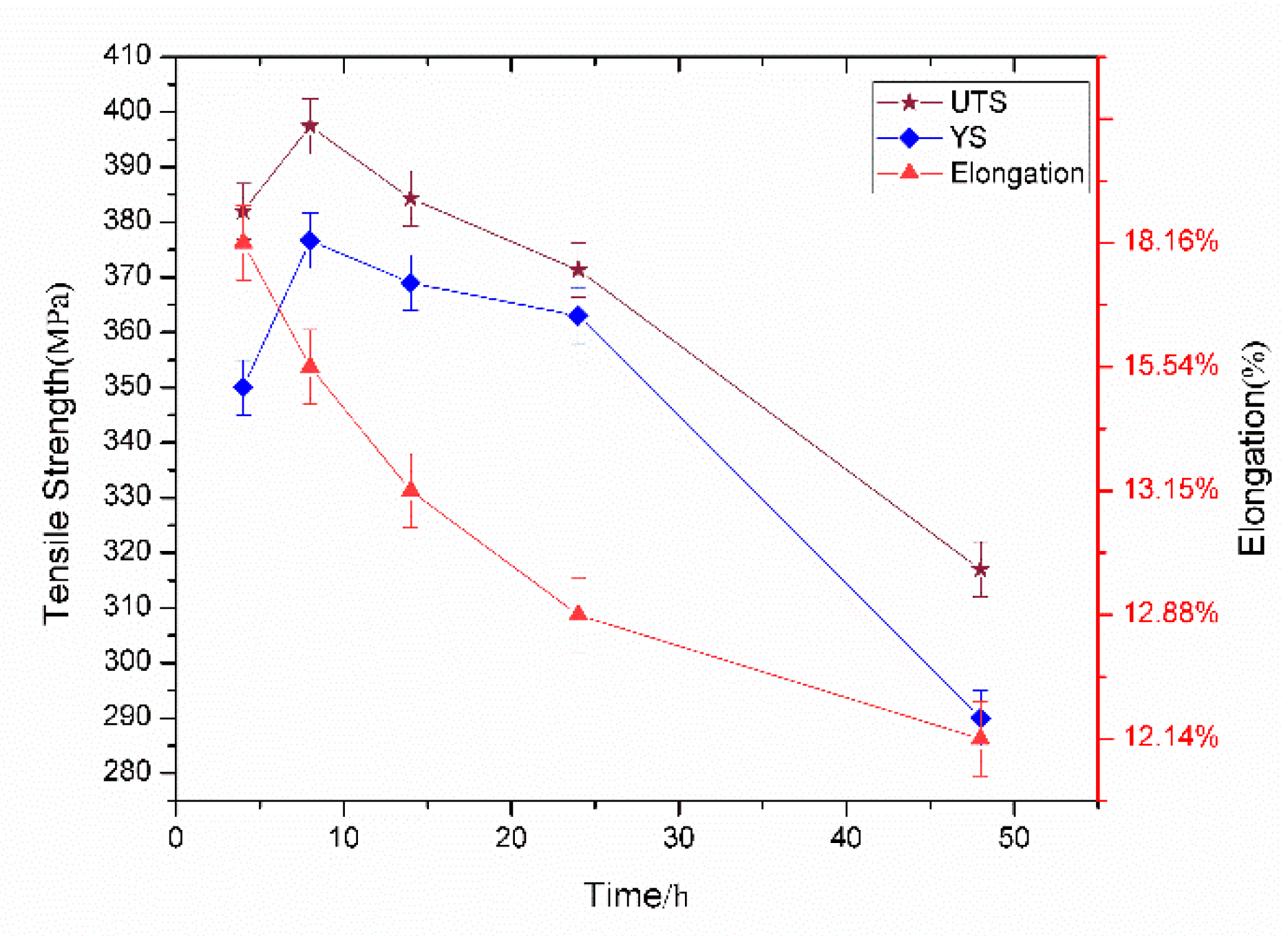

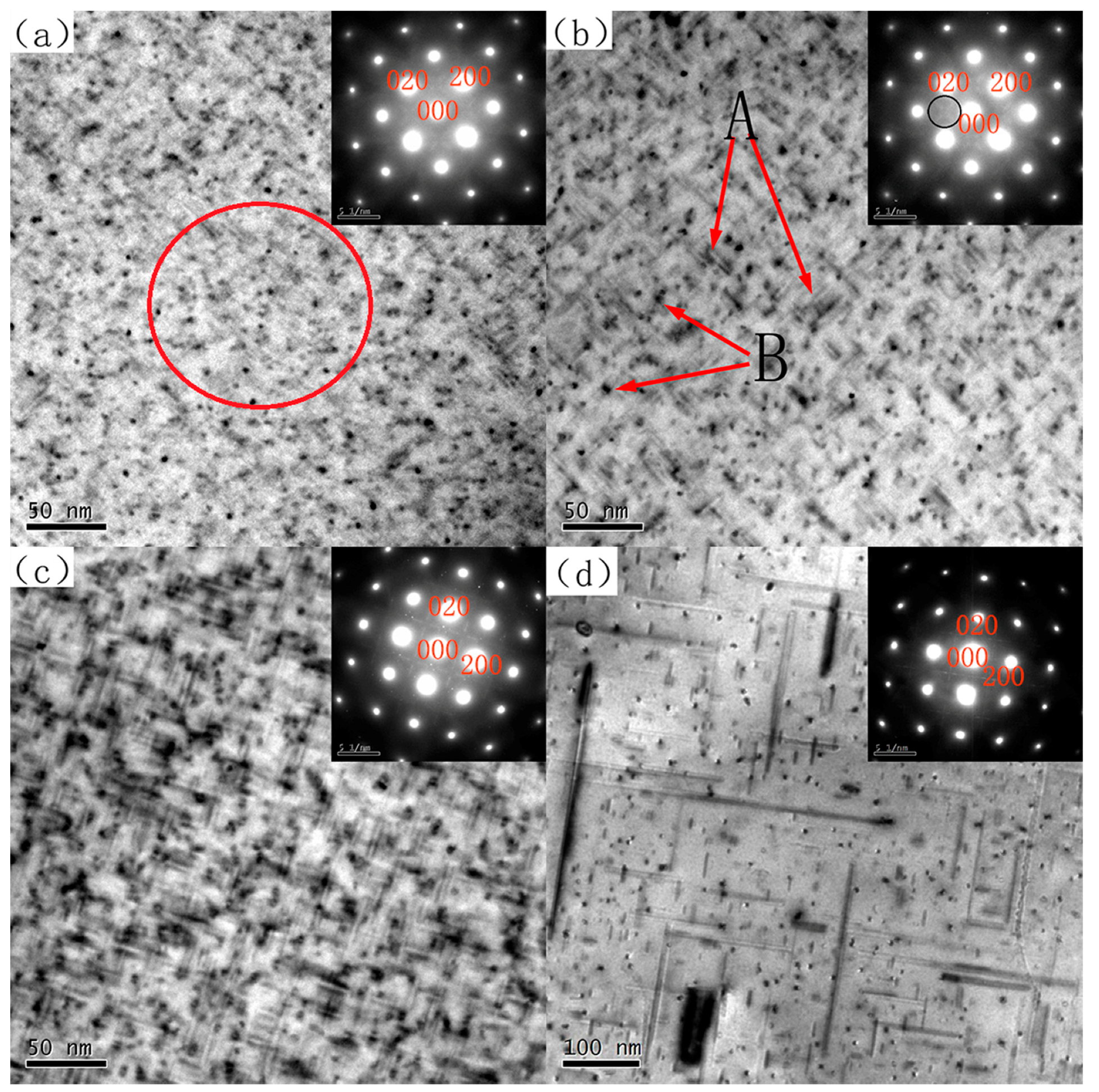

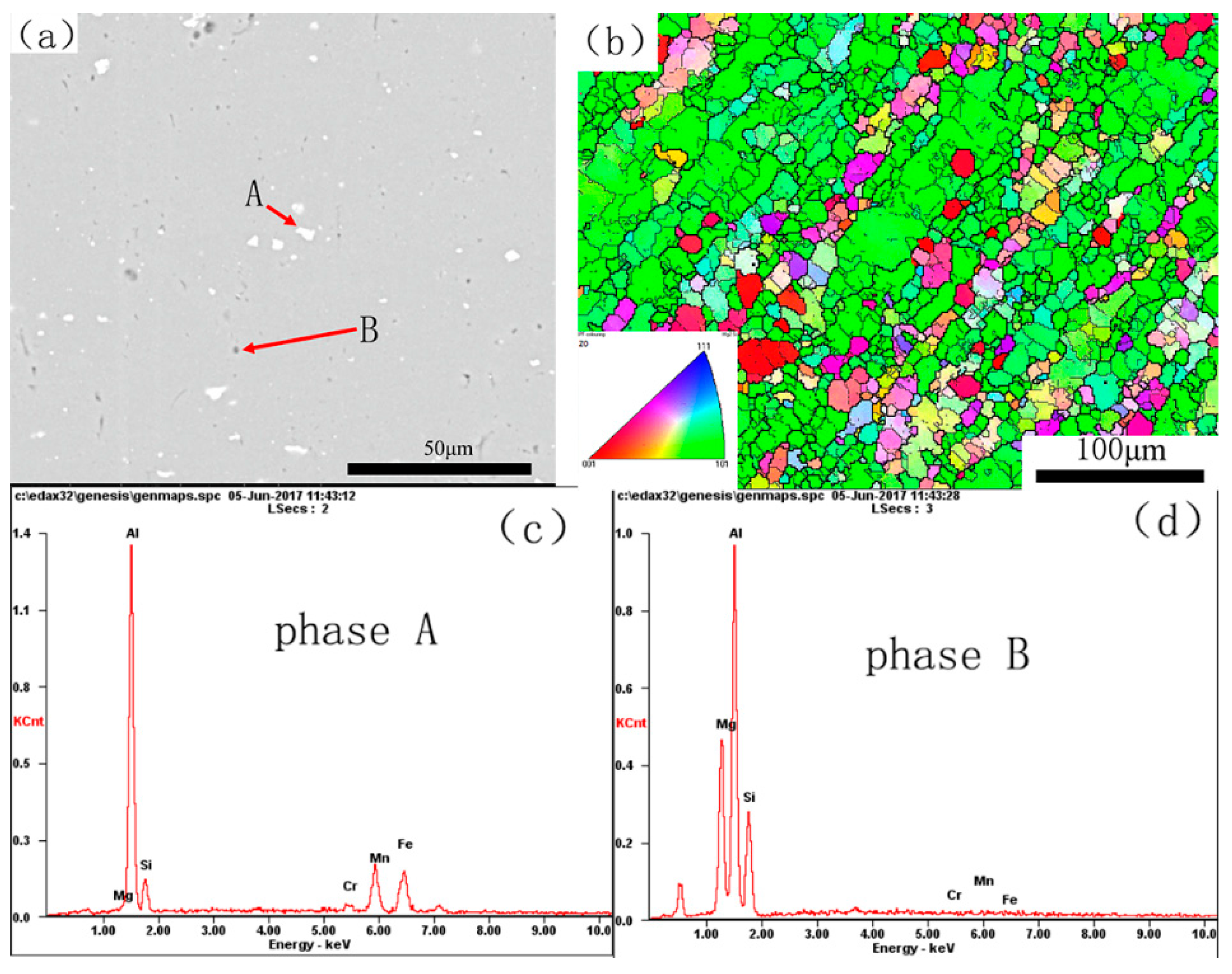

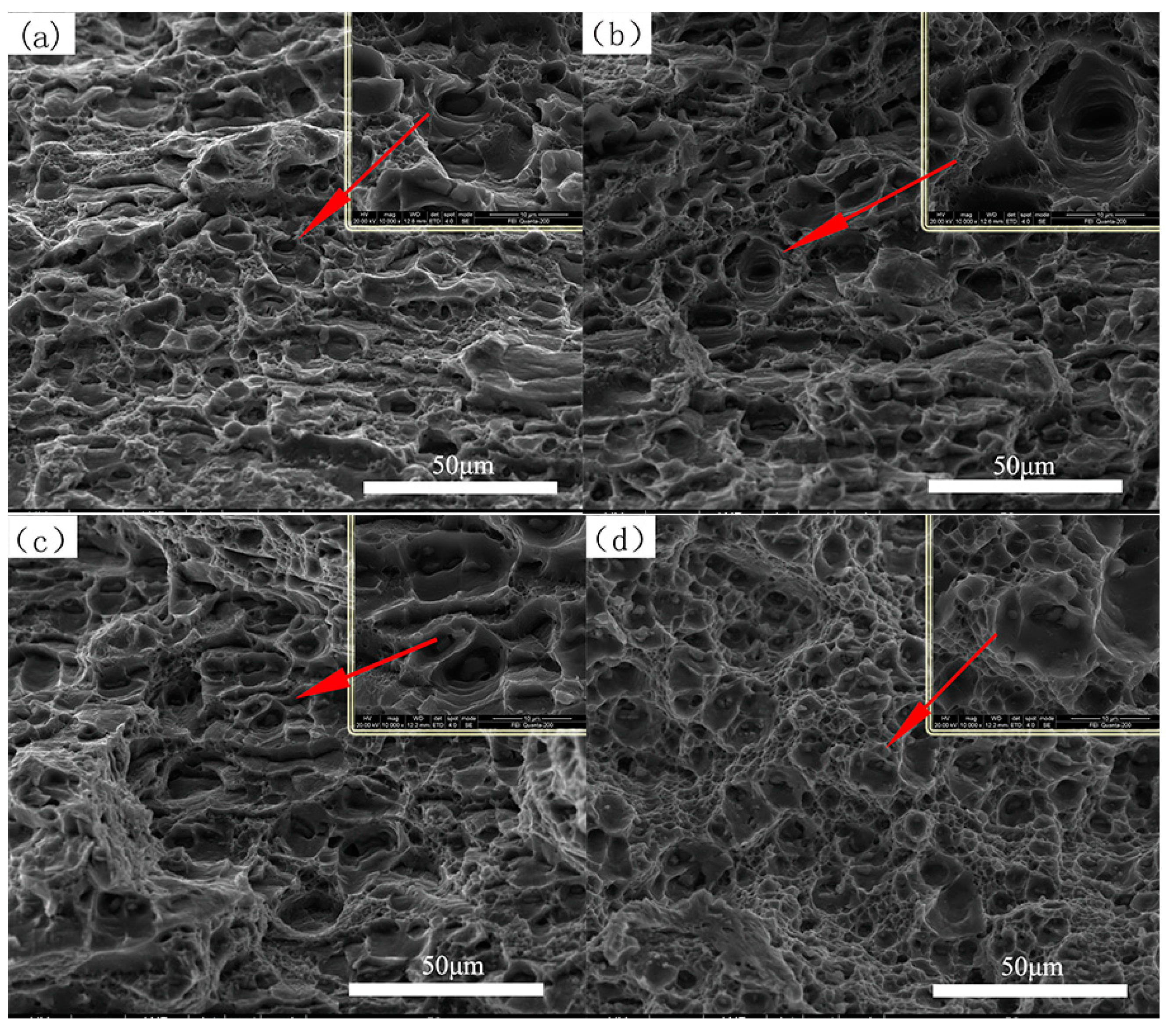

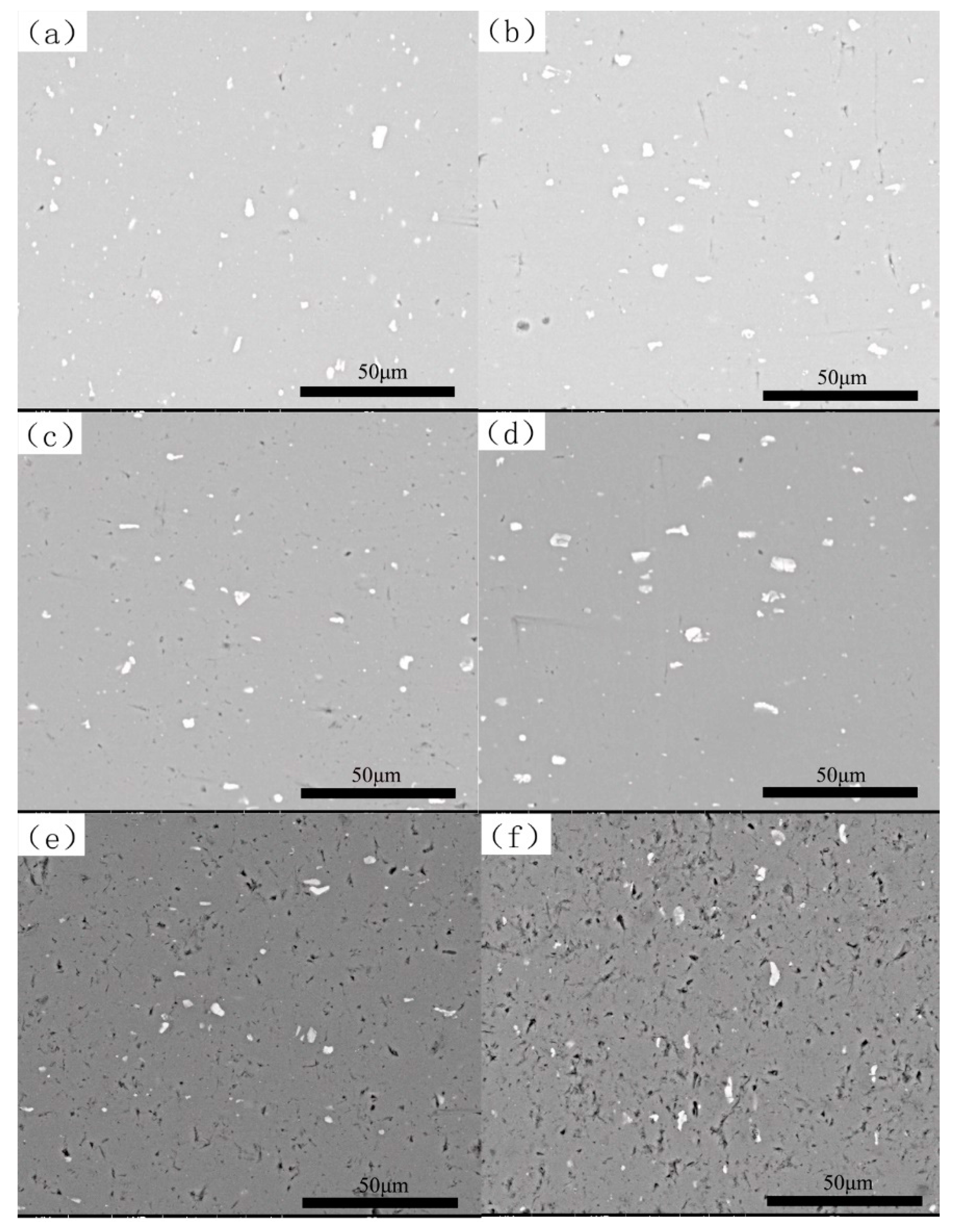

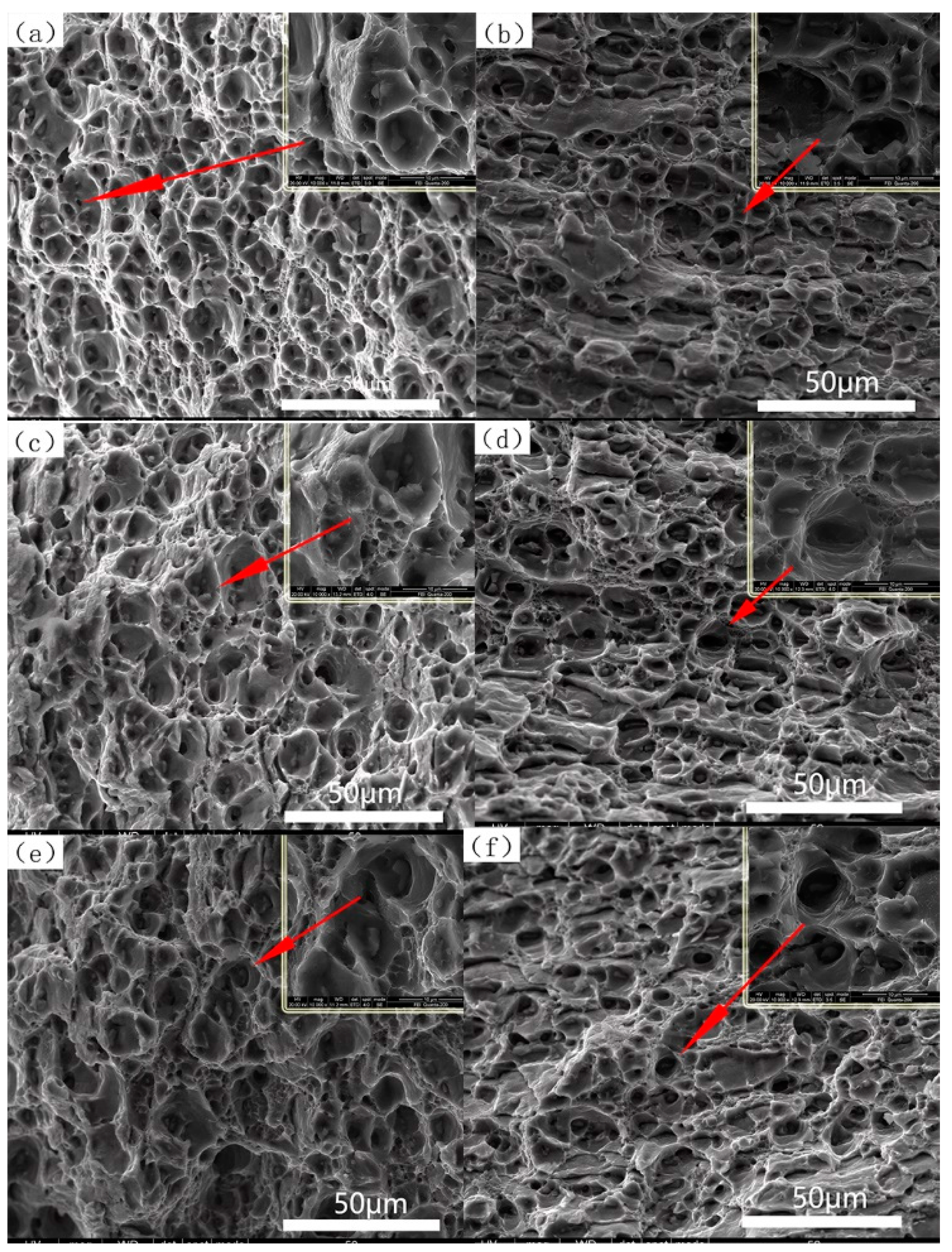

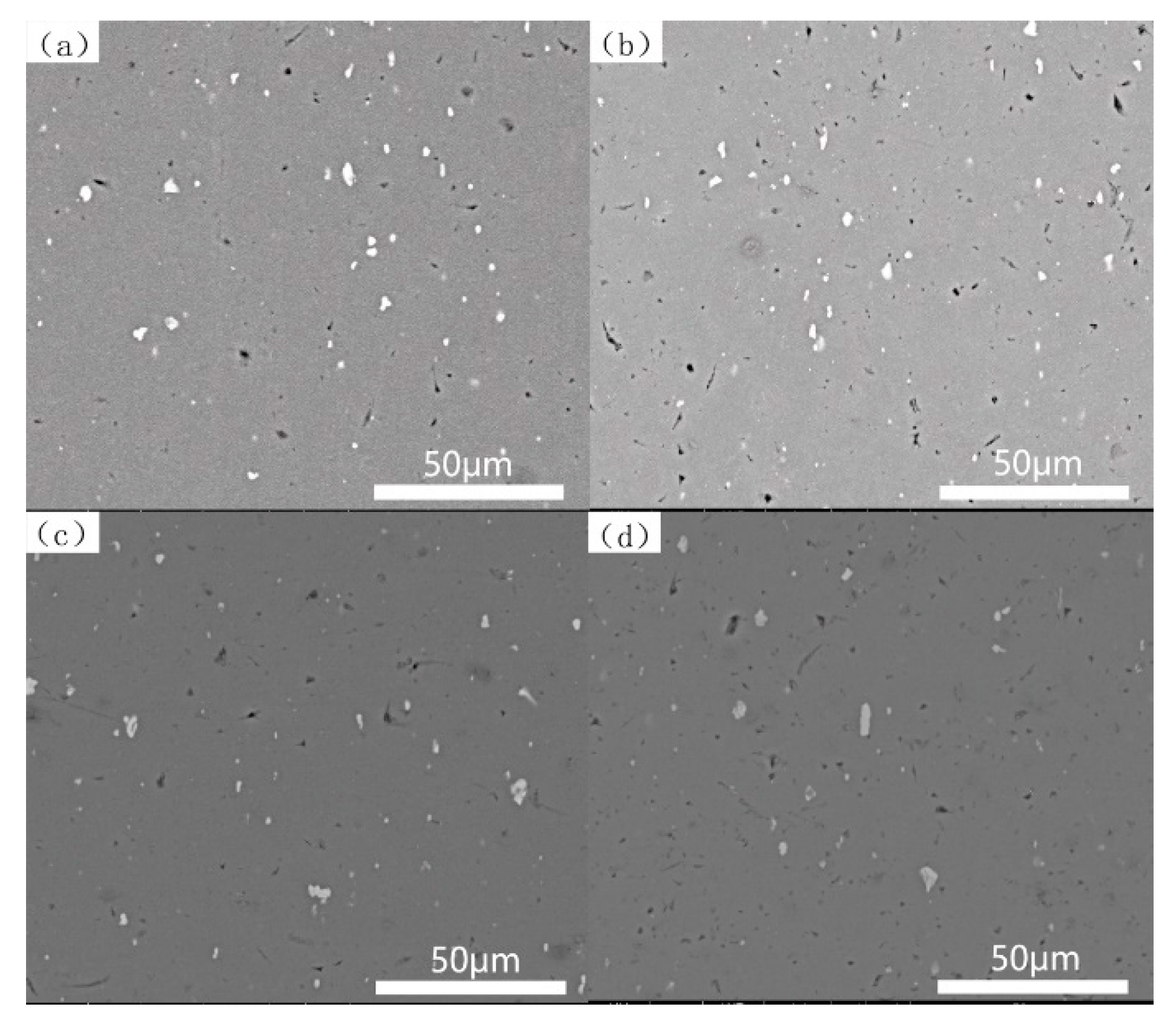

Three different aging treatments including single-aging, delayed-aging, and pre-aging were carried out on 6082 extruded profiles after solution heat treatment, then their hardness, tensile strength, and microstructure were tested. The experimental results reveal that the properties and microstructure changes during single-aging. Based on this, the negative effects of room temperature delay and the results of short-term pre-aging treatments used in the experiment to improve this phenomenon have been concluded. View Full-Text
Keywords: 6082; single-aging; delayed-aging; pre-aging 6082; single-aging; delayed-aging; pre-aging

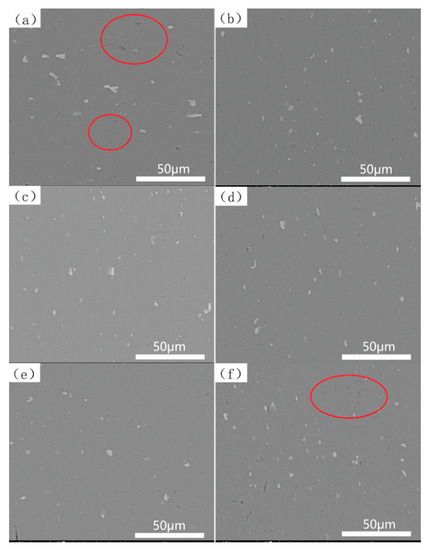

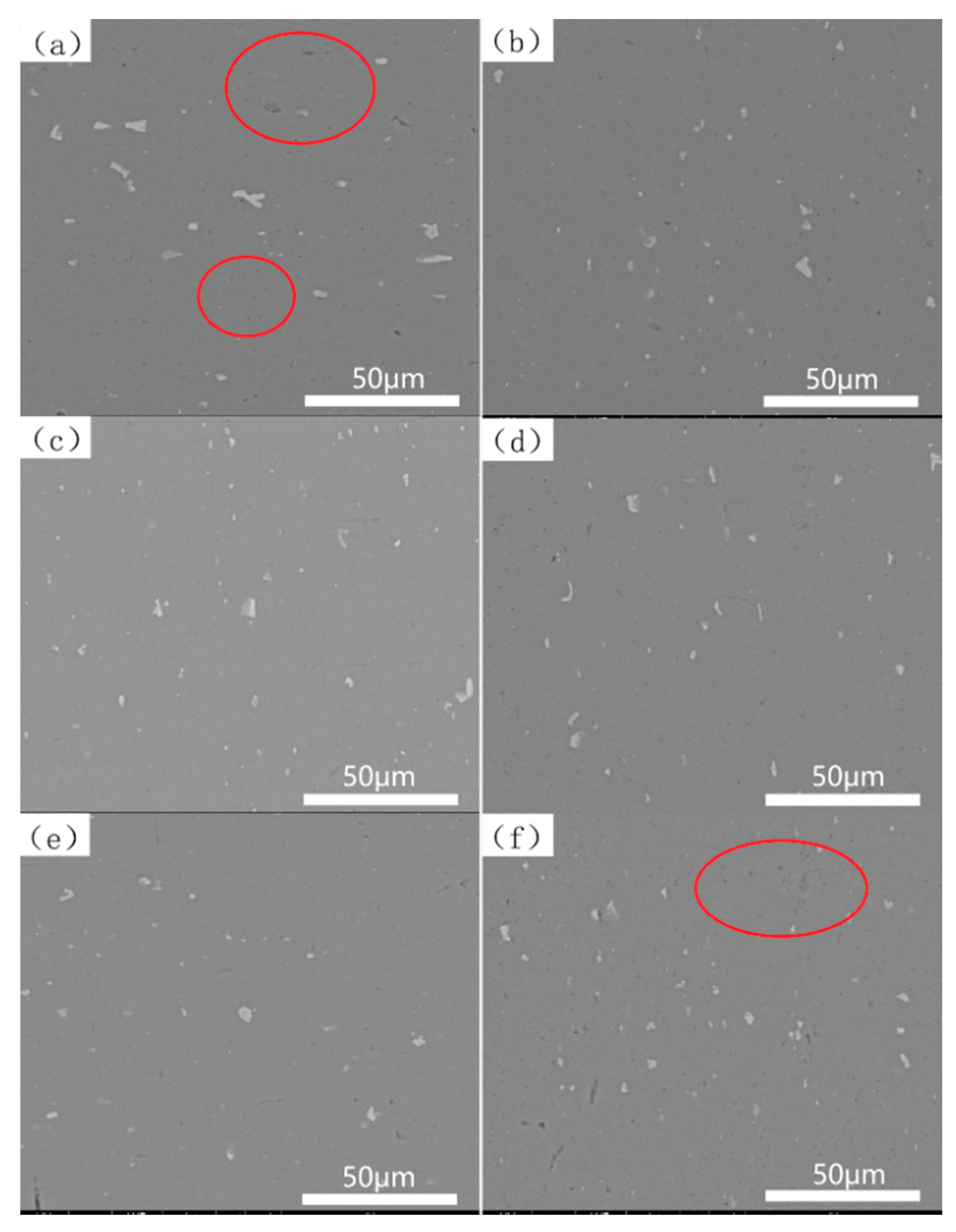

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

He, X.; Pan, Q.; Li, H.; Huang, Z.; Liu, S.; Li, K.; Li, X. Effect of Artificial Aging, Delayed Aging, and Pre-Aging on Microstructure and Properties of 6082 Aluminum Alloy. Metals 2019, 9, 173.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
