Effect of Substituting CaO with BaO and CaO/Al₂O₃ Ratio on the Viscosity of CaO–BaO–Al₂O₃–CaF₂–Li₂O Mold Flux System

Abstract

The effect of substituting CaO with BaO and CaO/Al₂O₃ ratio on the viscosity of CaO–BaO–Al₂O₃–CaF₂–Li₂O mold flux system was studied by rotational viscosity method. The results showed that the viscosity increased with increasing BaO as a substitute for CaO, while the viscosity decreased with the increase in CaO/Al₂O₃ ratio. The viscous activation energy of the slags is from 92.1 kJ·mol⁻¹ to 133.4 kJ·mol⁻¹. Either the Arhenius or the Weymann–Frenkel equation can be applied to establish the viscosity prediction model. In this paper, the Weymann–Frenkel equation and a new optical basicity with regard to Al₂O₃ as an acidic oxide were applied to the modified NPL model for predicting the viscosity of CaO–BaO–Al₂O₃–CaF₂–Li₂O mold flux system. The estimated viscosity is in good agreement with the measured viscosity.

1. Introduction

High Mn-high Al steel, exemplified by twin-induced plasticity (TWIP) steel, has high strength and good ductility, as well as a smaller density compared with plain steels due to high contents of aluminum and manganese. This perfectly accords with next-generation steel for automobiles, the development of which is continuously devoted to pursuing safety and energy conservation and environmental protection [1,2]. However, the high aluminum content, is an unprecedented challenge to the production of high Mn-high Al steel using continuous casting, and the key to the solution for this is to select a proper mold flux [3]. It is well known that high Al content in molten steel will react with the traditional CaO–SiO₂-based mold flux, leading to a sharp reduction of SiO₂ and an increase of Al₂O₃ in molten slags, as shown in Equation (1), which will convert the original CaO–SiO₂-based mold flux into CaO–Al₂O₃-based mold flux [4,5]. With a substantial change of components, the physical properties of the slag, such as melting temperature and viscosity, will change dramatically, deteriorating the lubrication and heat transfer of slags and further resulting in all kinds of casting defects and even casting interruption [6,7,8,9,10].

Al + (SiO₂) → Si + (Al₂O₃),

(1)

Al + (Na₂O) → Na(g) + (Al₂O₃),

(2)

Al + (B₂O₃) → B + (Al₂O₃).

(3)

Significant efforts have been made to solve the casting problems by employing various kinds of mold fluxes. Strong oxidizing components, such as MnO and Fe₂O₃, which have priority over SiO₂ to react with Al in molten steel, have been added to mold fluxes so as to protect SiO₂ from oxidation [11], but this still led to a big increase in Al₂O₃ and altered the performance of the mold fluxes. Naturally, the CaO–Al₂O₃-based mold flux with low SiO₂ content was then introduced to cast high Mn-high Al steel in order to weaken or avoid interfacial reactions [7,12,13,14]. However, they still contain a small number of reactive components other than the low content of SiO₂, such as B₂O₃ and Na₂O, as shown in Equations (2) and (3). The components of the CaO–BaO–Al₂O₃–CaF₂–Li₂O mold flux system studied in this paper have been verified not to react with Al in molten steel from thermodynamic calculation at the temperature of steelmaking [15]. Thus, the mold flux system can essentially avoid the reactivity problem and possess good application prospects in the casting of high Mn-high Al steel.

Viscosity is one of the most important indexes for evaluating the performance of mold fluxes, as it has a significant effect on the lubrication of casting blanks. In industrial production, the viscosity of mold fluxes at 1300 °C (η) and casting speed (υ) generally meet the correlation η·υ = 1.0–3.5 (Poise m·min⁻¹), so as to meet the demands for adequate lubrication and heat transfer [16]. A significant amount of research regarding the effect of Al₂O₃ on the viscosity of different slag systems has been conducted [17,18,19,20,21,22], while little research has been reported on mold fluxes in the absence of SiO₂. It has been concluded that Al₂O₃ exists as [AlO₄]⁵⁻ ions with four coordinated oxygens and forms a tetrahedral network structure in basic melts [23,24]; however, more work needs to be done regarding how Al₂O₃ behaves in slags without SiO₂. It was also found that substituting CaO with BaO can reduce the viscosity and improve the vitrification rate of mold fluxes [25], which are conducive to the lubrication of the casting blank in continuous casting process. Thus, the viscosity of the CaO–BaO–Al₂O₃–CaF₂–Li₂O mold flux system with various BaO/CaO and CaO/Al₂O₃ ratios in mass was studied in this paper.

Over the last few decades, a series of viscosity models has been developed to predict the viscosity of BF slags, refining slags and mold fluxes. The empirical and semi-empirical models, e.g., Urban model [26], Riboud model [27], Iida model [28,29] and NPL model [30], involve a numerical fit of viscosity to chemical composition based on Arrhenius or Weymann–Frenkel equation. A viscosity prediction model of the CaO–BaO–Al₂O₃–CaF₂–Li₂O mold flux system according to the modified NPL model is established in this paper, and the estimated viscosity fits well with the experimental results.

2. Materials and Methods

2.1. Sample Preparation

Slag samples were prepared using reagent-grade Al₂O₃, CaF₂, CaO, BaCO₃ and Li₂CO₃ (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), with BaCO₃ and Li₂CO₃ being used as the sources for BaO and Li₂O, respectively. In a muffle furnace, Al₂O₃, CaF₂, BaCO₃ and Li₂CO₃ were calcined for 2 h at 500 °C to remove moisture, while CaO was calcined for 5 h at 1000 °C to decompose any carbonate and hydroxide before experiment.

Table 1. Chemical composition of experimental slags (wt %).

Slag No.	CaO	BaO	Al2O3	F−	Li2O	BaO/CaO	CaO/Al2O3
S-1	36	14	34	8	8	0.39	-
S-2	32	18	34	8	8	0.56	-
S-3	28	22	34	8	8	0.79	-
S-4	24	26	34	8	8	1.08	0.71
S-5	28	26	30	8	8	-	0.93
S-6	32	26	26	8	8	-	1.23
S-vali 1	24	30	30	8	8	1.25	0.80

¹ S-vali is a slag for validation of the modified NPL (National Physical Laboratory, Teddington, UK) model.

gives the chemical compositions of samples. The prepared powders were then ground and weighed according to the designed compositions and mixed in a mortar for melting. Each fused sample was about 250 g.

2.2. Viscosity Measurement

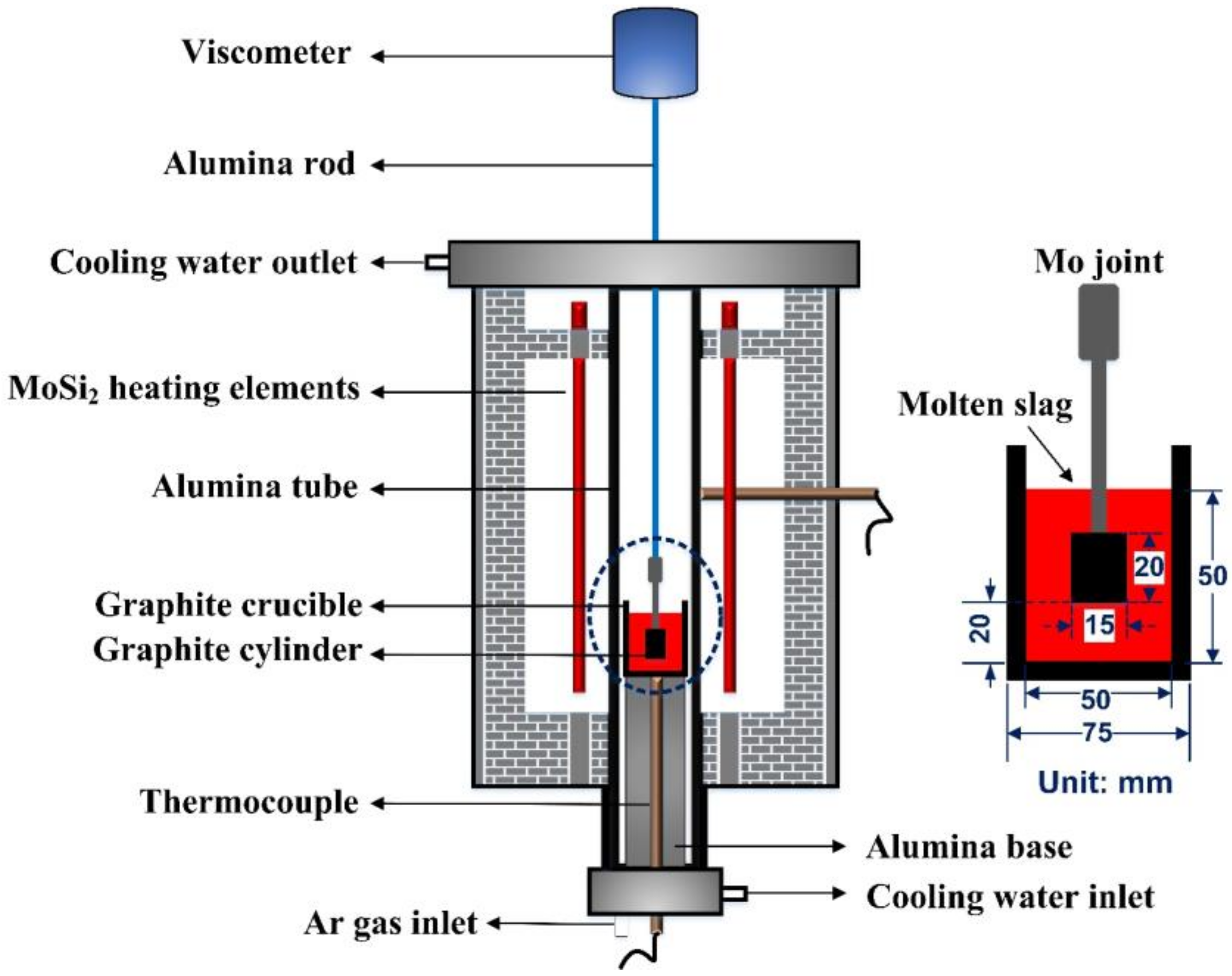

Viscosity was measured using a rotation viscometer. The experimental apparatus (Chongqing Safety Production Scientific Research Co., Ltd., Chongqing, China) for viscosity measurement is shown in Figure 1. A high-temperature furnace with U-shape MoSi₂ heating elements is monitored by a B-type thermocouple and a proportional-integral-derivative (PID) controller to ensure that the deviation of temperature in the uniform temperature zone can be maintained within ±2 °C. Before the viscosity measurement, crucible and cylinder were set along the axis of the viscometer, and a calibration measurement was carried out at room temperature by using castor oil of known viscosity. Then, the furnace was heated to the experimental temperature (1400 °C) and held for 10 min to stabilize the temperature and homogenize the slag melt under an Ar gas atmosphere (flow rate: 0.5 L/min). After that the cylinder was carefully immersed into molten slag just 20mm above the bottom of graphite crucible and rotated at a speed of 12 rpm. When the signal from viscometer became stable, the furnace was cooled at a rate of 6 °C/min and the viscosity measurement started and lasted until the value of the measured viscosity reached nearly 3 Pa·S. In the end, the furnace was reheated to 1400 °C at a speed of 15 °C/min to pull out the cylinder and pour out the molten flux.

3. Results and Discussion

3.1. The Effect of Substituting CaO with BaO on the Viscosity

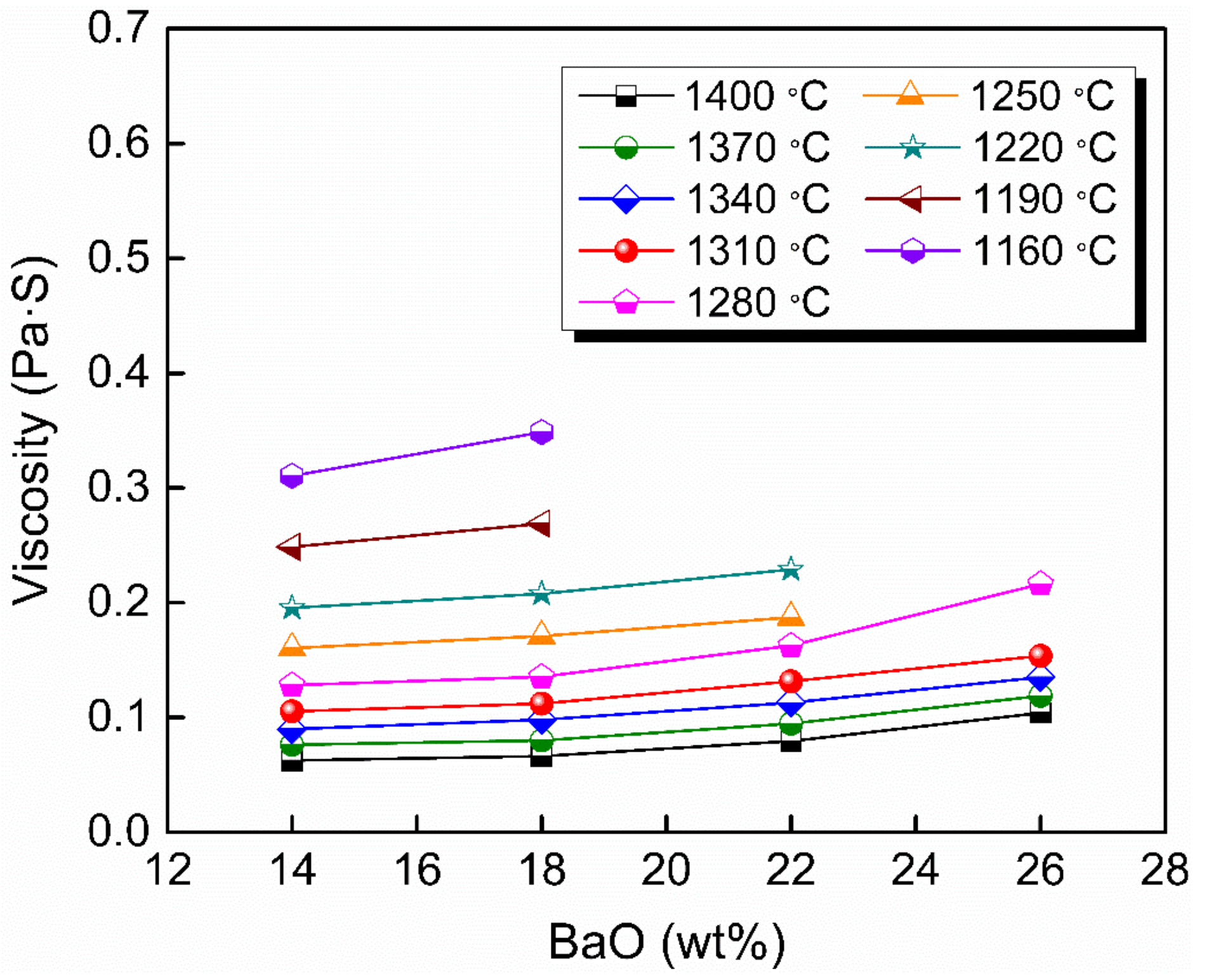

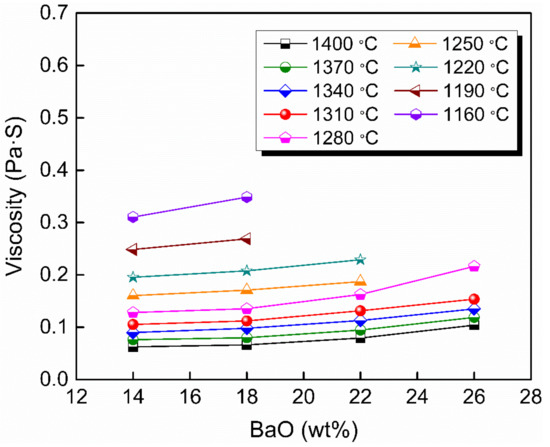

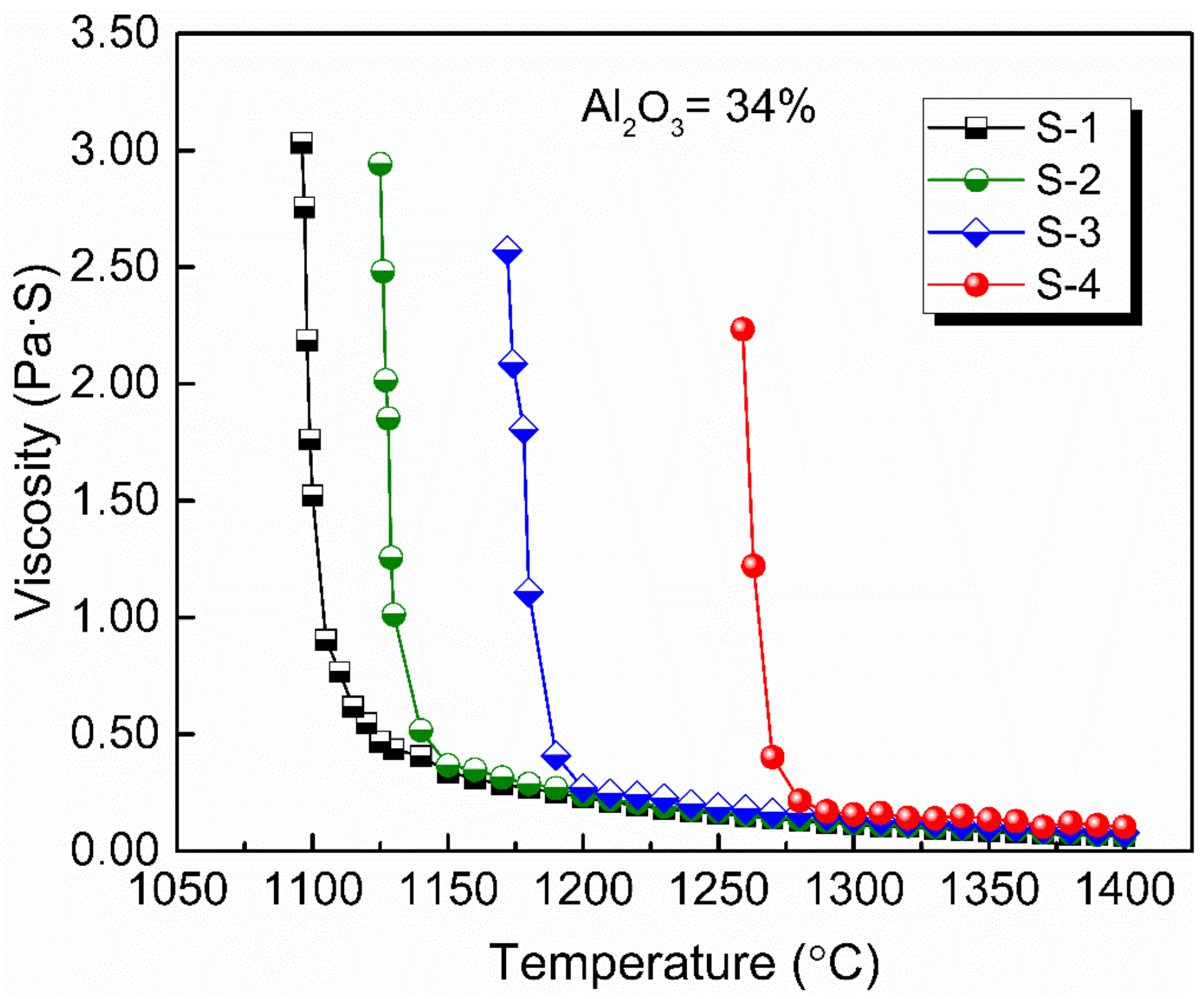

Figure 2 shows the viscosity–temperature (η–T) curves of slags S-1 to S-4. Figure 3 shows the effect of substituting CaO with BaO on the viscosity of slags S-1 to S-4. It can be seen that the viscosity of the slags increases gradually with increasing BaO as a substitute for CaO. This is consistent with the trend observed by Wang et al. [31] for a CaO–BaO–SiO₂–MgO–Al₂O₃ slag system and Sukenaga et al. [32] for a CaO–SiO₂–Al₂O₃–BaO slag system (CaO/SiO₂ = 0.67 in mass). Meanwhile, it is inconsistent with the results observed for a BaO–CaO–Al₂O₃–MgO–B₂O₃–SiO₂–CaF₂–Li₂O slag system by Wu et al. [25], who found that the viscosity decreased with BaO substituting CaO. CaO and BaO, as alkaline-earth metallic oxides in the slags, have two completely different effects on the structure of the aluminates. On the one hand, as the Ba²⁺ ion radius (1.44 Å) is larger than the Ca²⁺ ion radius (1.08 Å) [33], the electrostatic potential of Ba²⁺ is smaller than that of Ca²⁺. That is, it is easier for BaO to dissociate free oxygen (O²⁻), and it possesses a greater depolymerization effect on network structure, which reduces the viscosity with BaO substituting CaO. On the other hand, in aluminosilicate systems, Al₂O₃ is a typical amphoteric oxide, and its behavior depends on the basicity of the melts [34]. When in an alkaline environment, it acts as a network former with charge compensation from cations and increases the complexity of the network structure. Since there is no SiO₂ in slags according to the composition in Table 1, Al₂O₃ serves as a network former and exists in the form of [AlO₄]⁵⁻ tetrahedron with charge compensation from alkaline-earth metals [35]. As mentioned before, the electrostatic potential of Ba²⁺ is smaller than that of Ca²⁺; that is, the capacity of charge compensation of Ba²⁺ is stronger than that of Ca²⁺; therefore, substituting CaO with BaO can increase the structural stability of [AlO₄]⁵⁻, which leads to the increase of the viscosity [31,36]. The experimental results indicate that the latter played a dominant role in affecting the network structure of the slags investigated in this study.

It should be noted that the substitution with BaO for CaO was performed by equal weight in mass. As the molecular weight of BaO is much greater than that of CaO, the free oxygen (O²⁻) and charge compensation cations in the slags decreased after the substitution, which may also be a potential reason for the increase in viscosity.

3.2. Effect of CaO/Al₂O₃ Ratio on the Viscosity

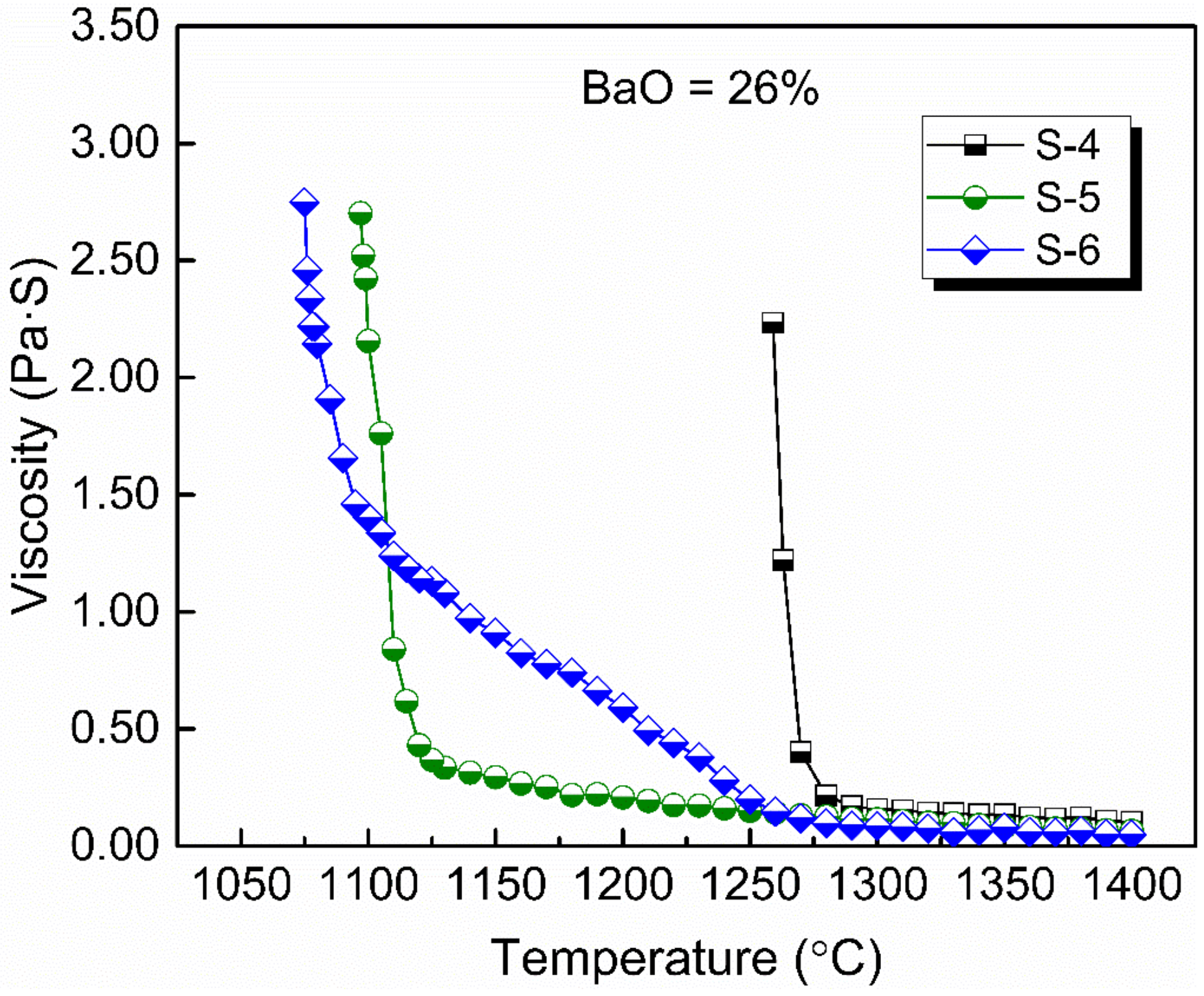

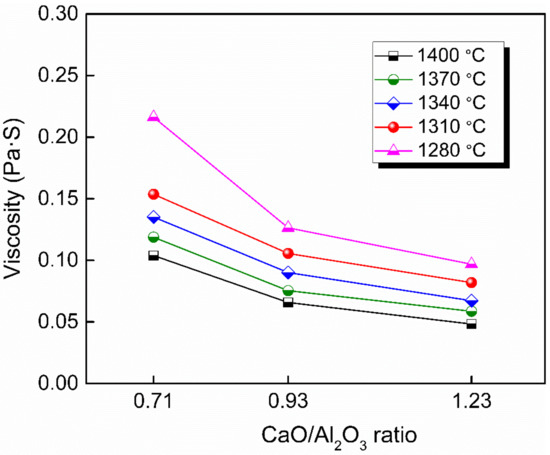

Figure 4 shows the viscosity–temperature (η–T) curves of slags S-4 to S-6. Figure 5 shows the effect of CaO/Al₂O₃ ratio on the viscosity of slags S-4 to S-6. The results show that the viscosity of the slags decreased with the increase in CaO/Al₂O₃ ratio. This is consistent with the trend observed by Behera et al. [22] for an Al₂O₃–Cr₂O₃–CaO–CaF₂ slag system and Xu et al. [37] for a CaO–Al₂O₃–MgO slag system. Neuville et al. [38] studied the structure of crystals, glasses, and melts along CaO-Al₂O₃ join. The results show that Al is in octahedral coordination with high Al₂O₃ contents (>80 mol%) and essentially in fourfold coordination with 4 bridging O atoms (BOs) at Al₂O₃ contents of between 30 and 75 mol%. At around 25 mol% Al₂O₃, Al is in tetrahedral coordination with two BOs. The presence of higher-coordinated species at high Al₂O₃ contents and their absence at low Al₂O₃ contents imply different viscous flow mechanisms for high- and low-concentration Al₂O₃ networks. That is, a higher CaO/Al₂O₃ ratio tends to increase the concentration of free oxygen (O²⁻), leading to the depolymerization of [AlO₄]⁵⁻ tetrahedron converting into simple structure units, reducing the complexity of the network structure and decreasing the viscosity [35]. Therefore, the viscosity decreased with the increase of CaO/Al₂O₃ ratio from slags S-4 to S-6.

The optical basicity (Λ) can characterize the ‘availability’ of providing free oxygen ions, which indicates the degree of polymerization of the melts. A corrected optical basicity (Λ^corr) was proposed by Mills to charge balance the Al³⁺ ions incorporated into the Si⁴⁺ chain or ring [39]. Λ^corr is calculated by Equation (4), where X is the mole fraction, Λ is the optical basicity, and n refers to the number of oxygen atoms in the molecule, e.g., three for Al₂O₃, and one for CaF₂, etc., since two fluorine ions can be considered equivalent to one oxygen ion. A correction needs to be made in the calculation process: the component with the highest optical basicity will compensate the charge of Al₂O₃ first (if it is not enough, the one with the second-highest optical basicity will continue to compensate, and so on), and the remaining, together with the components not participating in charge compensation, contributes to the corrected optical basicity of the slag system. The values of the corrected optical basicity (Λ^corr) of slags S-1 to S-6 are listed in

Table 2. Melting temperature (T_m), break temperature (T_br), corrected optical basicity (Λ^corr), new optical basicity (Λ_new), and viscous activation energy of experimental slags.

Slag No.	Tm (°C)	Tbr (°C)	Λcorr	Λnew	Eη (kJ·mol−1)	Ew (kJ·mol−1)
S-1	1087	1132	0.760	1.760	133.4	146.2
S-2	1096	1148	0.753	1.771	131.0	143.9
S-3	1114	1196	0.748	1.783	119.1	132.2
S-4	1119	1285	0.743	1.797	91.2	101.3
S-5	1114	1124	0.777	1.787	118.1	130.9
S-6	1080	1268	0.811	1.778	121.9	135.3

. For a series of slags with a similar structure in the silicate system, the viscosity of slags generally decreases with the increase in basicity. This is also applied to slags S-4 to S-6, the viscosity of which decreases with the increase of the corrected optical basicity (Λ^corr). Similarly, the viscosity of slags increases with the decrease of corrected optical basicity (Λ^corr) for slags S-1 to S-4.

$${\mathrm{\Lambda }}^{\mathrm{corr}}=\frac{{\displaystyle \sum (X_1{n}_1{\mathrm{\Lambda }}_1+X_2{n}_2{\mathrm{\Lambda }}_2+X_3{n}_3{\mathrm{\Lambda }}_3\cdots )}}{{\displaystyle \sum (X_1{n}_1+X_2{n}_2+X_3{n}_3\cdots )}}$$

(4)

Moreover, Xu et al. found that the curves of viscosity versus CaO/Al₂O₃ ratio was a ‘V’ shape when studying the effect of CaO/Al₂O₃ ratio on the viscosity of a CaO–Al₂O₃–MgO slag system [37]. They deemed that the formation of low melting compounds (12CaO·7Al₂O₃) was conducive to the viscosity reduction. It can be seen from Table 2 that the variation tendency of the melting temperature is correspondingly in agreement with that of the viscosity for slags S-4 to S-6 or slags S-1 to S-4.

3.3. Viscous Flow Activation Energy

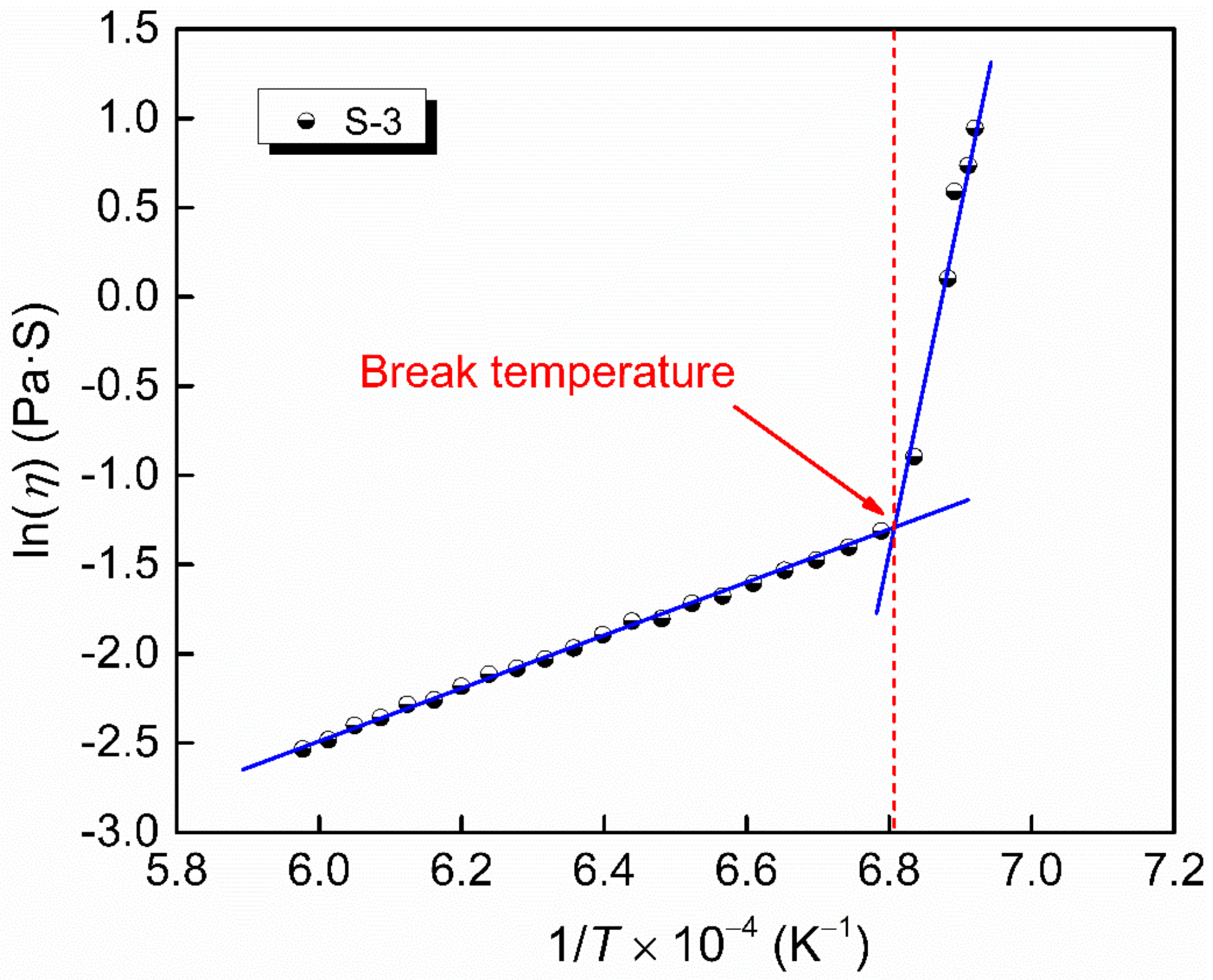

It can be observed from the viscosity–temperature curves in Figure 2 and Figure 4 that there is a temperature point below which the viscosity of the slag increases sharply in a narrow range of temperature. This temperature point is known as the break temperature (T_br), which can be obtained from the graph of the natural logarithm of viscosity versus inverse absolute temperature, as shown in Figure 6, taking slag S-3 as an example. When the temperature is above the T_br, the molten slag is in the state of fully liquid phase, and is a Newtonian fluid, while it presents as a non-Newtonian fluid when the temperature is below the T_br as a result of crystallization or solidification [40,41]. The break temperature of the slags is also listed in Table 2.

The temperature dependence of the viscosity is usually expressed by Arrhenius equation (Equation (5)) or Weymann–Frenkel equation (Equation (6)):

$$\mathsf{\eta }=A\exp (\frac{E_{\mathsf{\eta }}}{RT}),$$

(5)

$$\mathsf{\eta }=AT\exp (\frac{E_{\mathrm{w}}}{RT}),$$

(6)

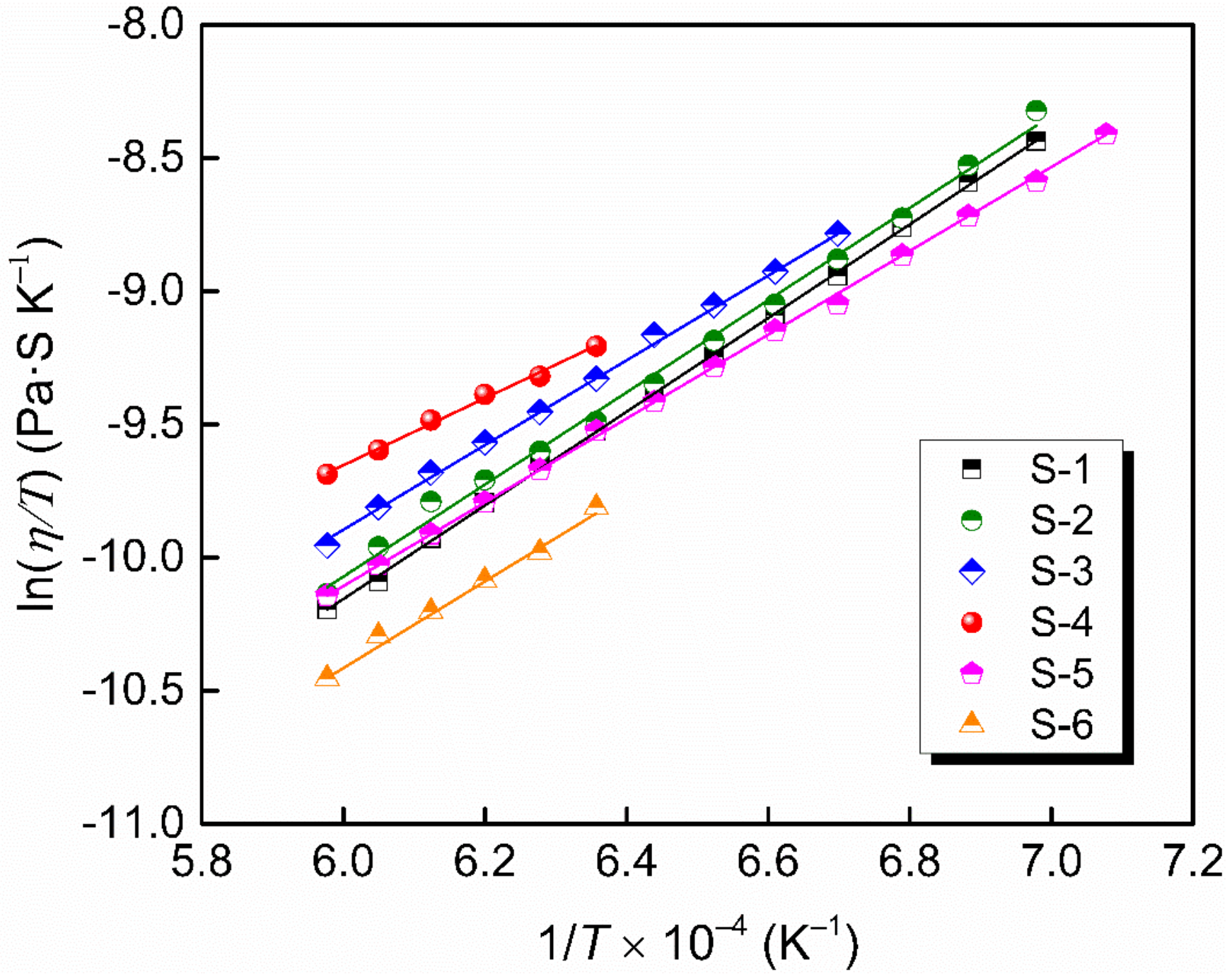

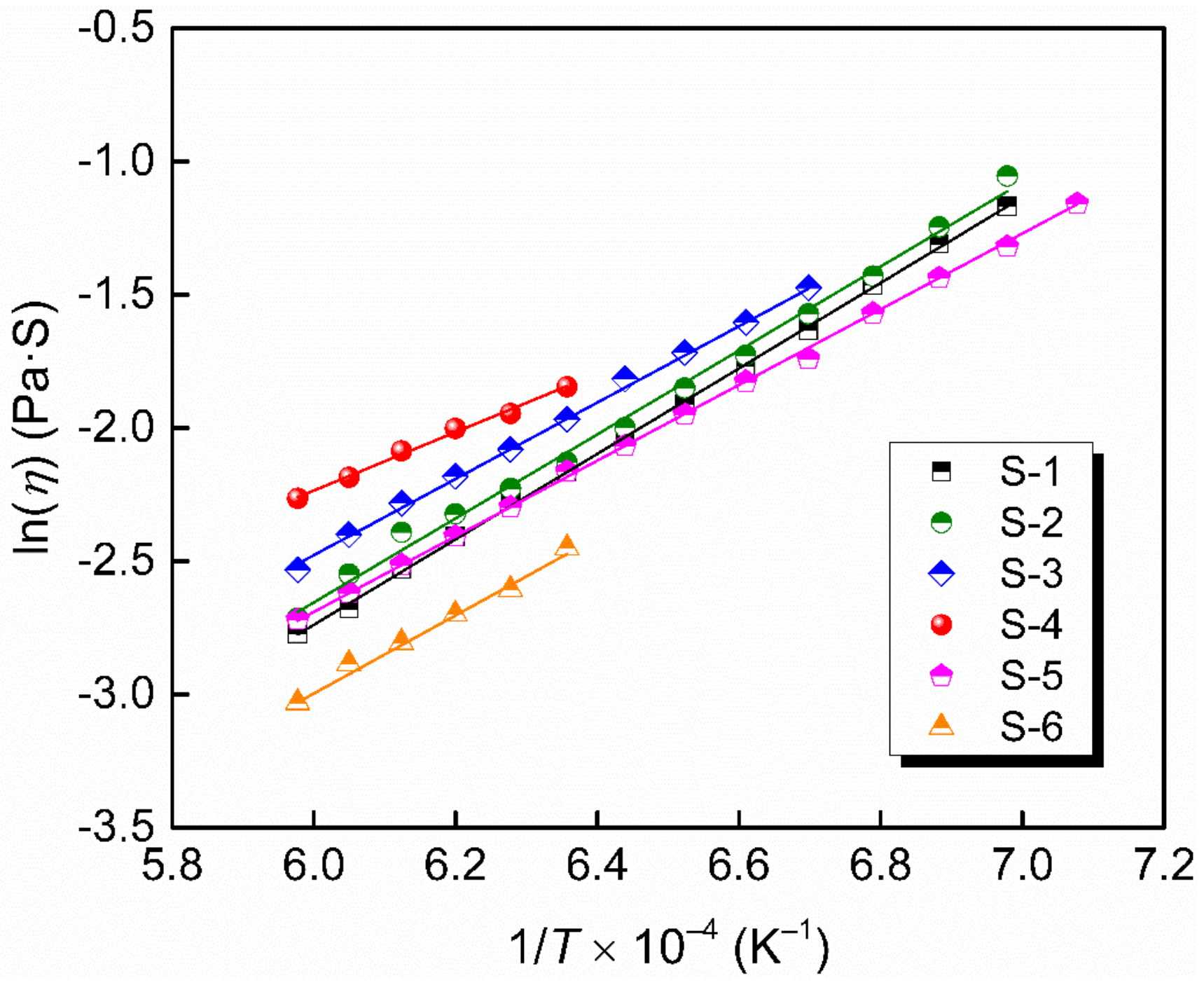

where A is a proportionality constant, E_η and E_w are the activation energies for viscous flow, R is the gas constant and T is the absolute temperature. Figure 7 shows a linear relationship between lnη and 1/T and Figure 8 shows a linear relationship between ln(η/T) and 1/T in the Newton fluid region, from which the activation energy is obtained. The deviations between E_η and E_w for slags in the present study are below 10%, indicating that either the Arrhenius or Weymann–Frenkel equation can be used to evaluate the activation energy for viscous flow. The activation energies according to Arrhenius listed in Table 2 are from 91.2 kJ·mol⁻¹ to 133.4 kJ·mol⁻¹, which are lower than those by Xu et al. [37] and Kim et al. [42], with their results being in the range of 175–400 kJ·mol⁻¹. It may be that the slags in this study contained a higher content of fluxing agent—namely, Li₂O—and diluting agent—namely, CaF₂. Additionally, the difference in network structure between their slags and the authors’ slags also leads to a difference in activation energy.

3.4. Industrial Application Prospect

To evaluate whether the viscosity of the slags in the present study is applicable for industrial application, 20Mn23AlV was selected as an instance. The casting speed of 20Mn23AlV is about 0.9 m/min, and the viscosities of the mold fluxes at 1300 °C in this paper are from 1.13 to 1.58 Poise; thus, the values of η·υ are from 1.02 to 1.42, which meet the correlation η·υ = 1.0–3.5 (Poise m·min⁻¹). Moreover, according to the above empirical formula, the fluxes studied in this paper can be applied to industrial production with a maximum casting speed of approximately 3 m/min. Meanwhile, the casting speed of high Mn-high Al steel in industrial production is generally less than 2 m/min, due to the solidification characteristics of the steels and the limitations of the actual casting conditions. Therefore, from the perspective of slag viscosity, the fluxes studied in this paper have good prospects for industrial application. Nevertheless, other properties, such as break temperature, vitrification rate, etc., need to be taken into consideration, so as to select a proper mold flux.

4. Viscosity Model

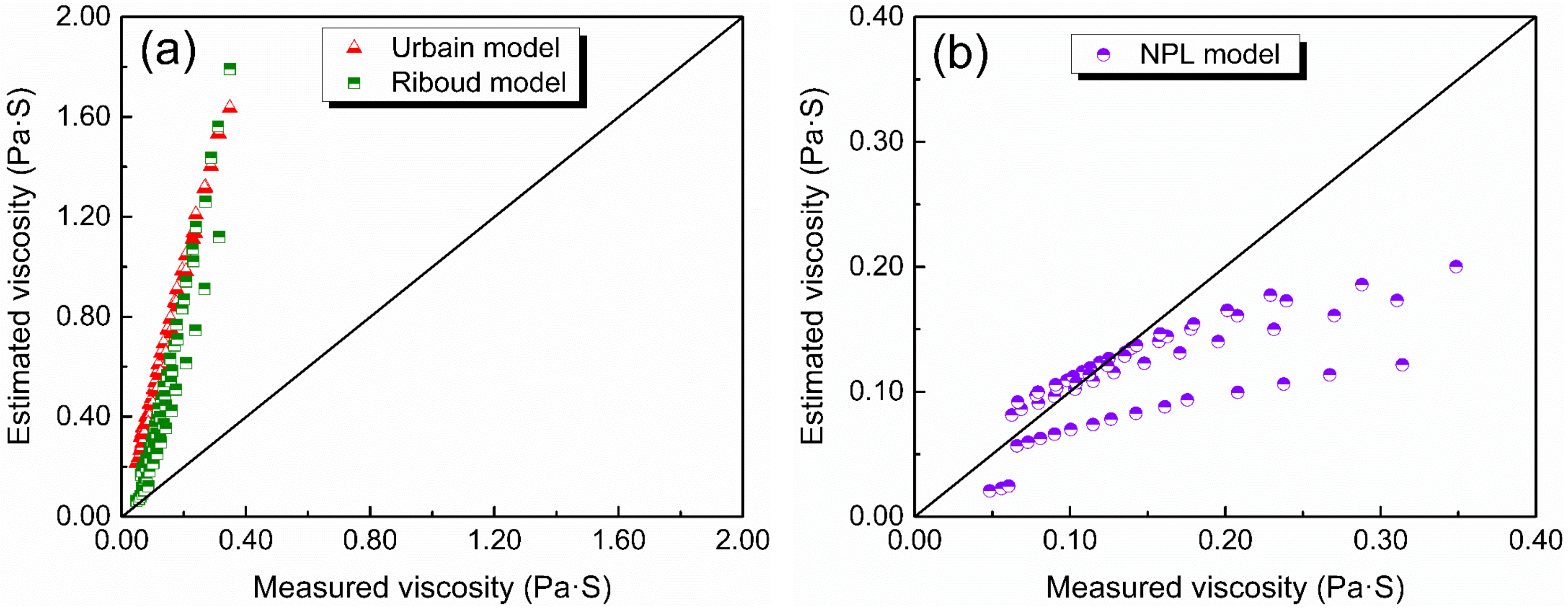

Since viscosity measurement is time-consuming work, several researchers have tried to establish various viscosity models to predict the viscosity of slags, e.g., the Riboud model [27,43], the Urbain model [26,44], the Iida model [28], the KTH model [45], and the NPL model [30,46,47]. These viscosity models were mainly based on CaO–SiO₂-based slags or CaO–SiO₂–Al₂O₃-based slags with low Al₂O₃ content. Figure 9 shows the estimated viscosity against measured viscosity of slags in this study with the Urbain model, Riboud model, and NPL model. It can be observed that there is a large deviation between the viscosity predicted by the Urbain model and the Riboud model and the measured viscosity. However, the predicted results according to the NPL model are much better, with some estimated viscosity being in good agreement with the measured viscosity, while the rest does not have a large deviation. Therefore, a modified NPL model based on the Weymann–Frenkel equation and optical basicity to predict the viscosity of slags was established in this study.

The Weymann–Frenkel equation (Equation (6)) can be rewritten as follows:

$$\ln \frac{\mathsf{\eta }}{T}=\ln A+\frac{1000B}{T},$$

(7)

where parameter B ($B=\frac{E_{\mathrm{w}}}{1000R}$) is a quadratic expression of the optical basicity, parameters A and B are in a linear relationship [44,46]. Moreover, according to the intercept and slope of each fitted line in Figure 8, the values of parameters A and B of each mold flux (or each optical basicity) can be obtained, respectively.

Similar to the traditional definition of basicity, Shankar et al. [47] redefined the optical basicity, termed as the new optical basicity, and its expression is as follows:

$${\mathrm{\Lambda }}_{\mathrm{new}}=\frac{\frac{{\displaystyle \sum (X_{\mathrm{B}}{n}_{\mathrm{B}}{\mathrm{\Lambda }}_{\mathrm{B}}+\cdots )}}{{\displaystyle \sum (X_{\mathrm{B}}{n}_{\mathrm{B}}+\cdots )}}}{\frac{{\displaystyle \sum (X_{\mathrm{A}}{n}_{\mathrm{A}}{\mathrm{\Lambda }}_{\mathrm{A}}+\cdots )}}{{\displaystyle \sum (X_{\mathrm{A}}{n}_{\mathrm{A}}+\cdots )}}}.$$

(8)

In Equation (8), the new optical basicity is defined as the ratio of the total basic oxides to the total acidic oxides in the slag. Al₂O₃ is regarded as an acidic oxide in the slags studied in this paper, as it is the only network former of the molten slags. The new optical basicity is employed to predict the parameters A and B in Equation (7).

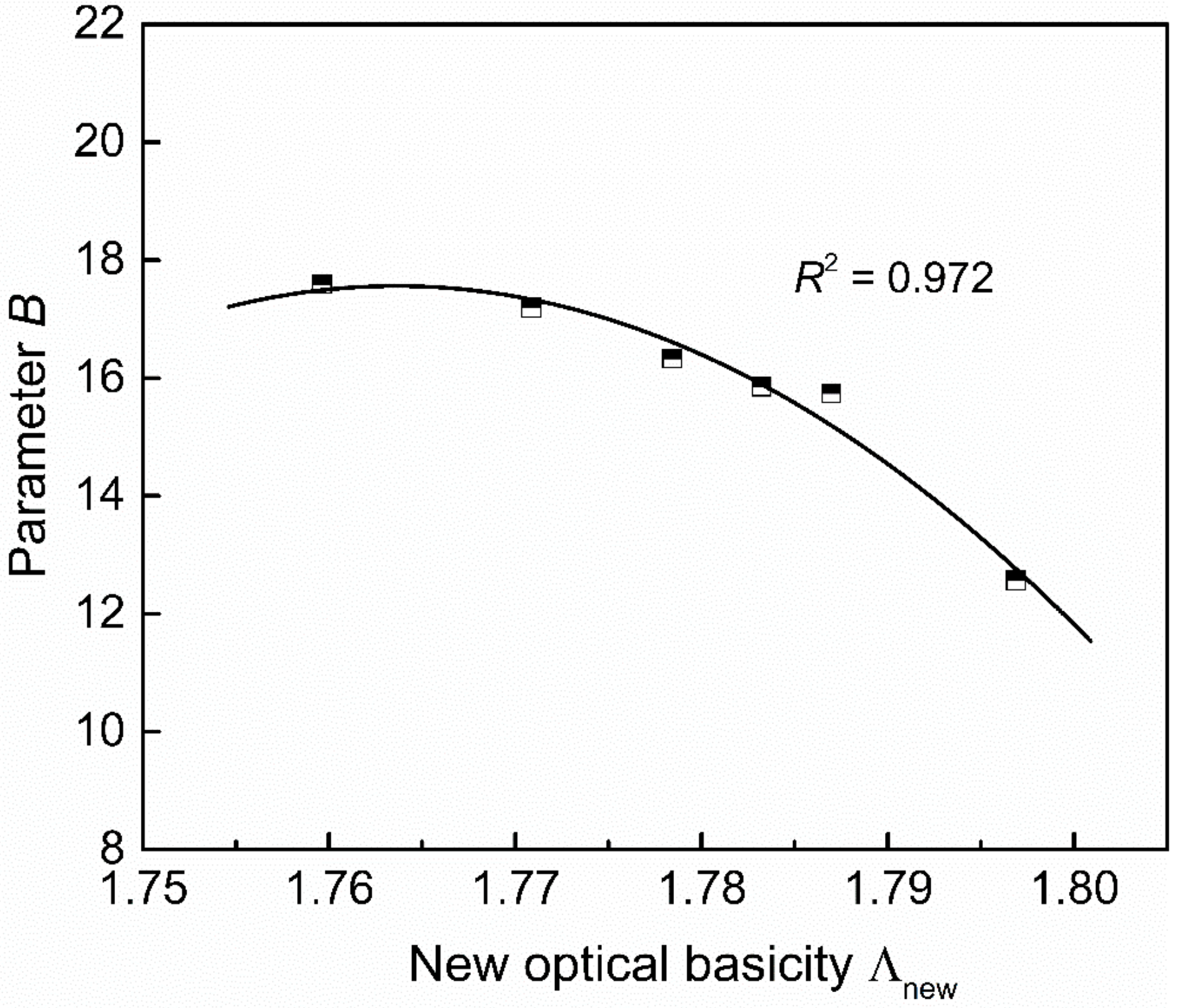

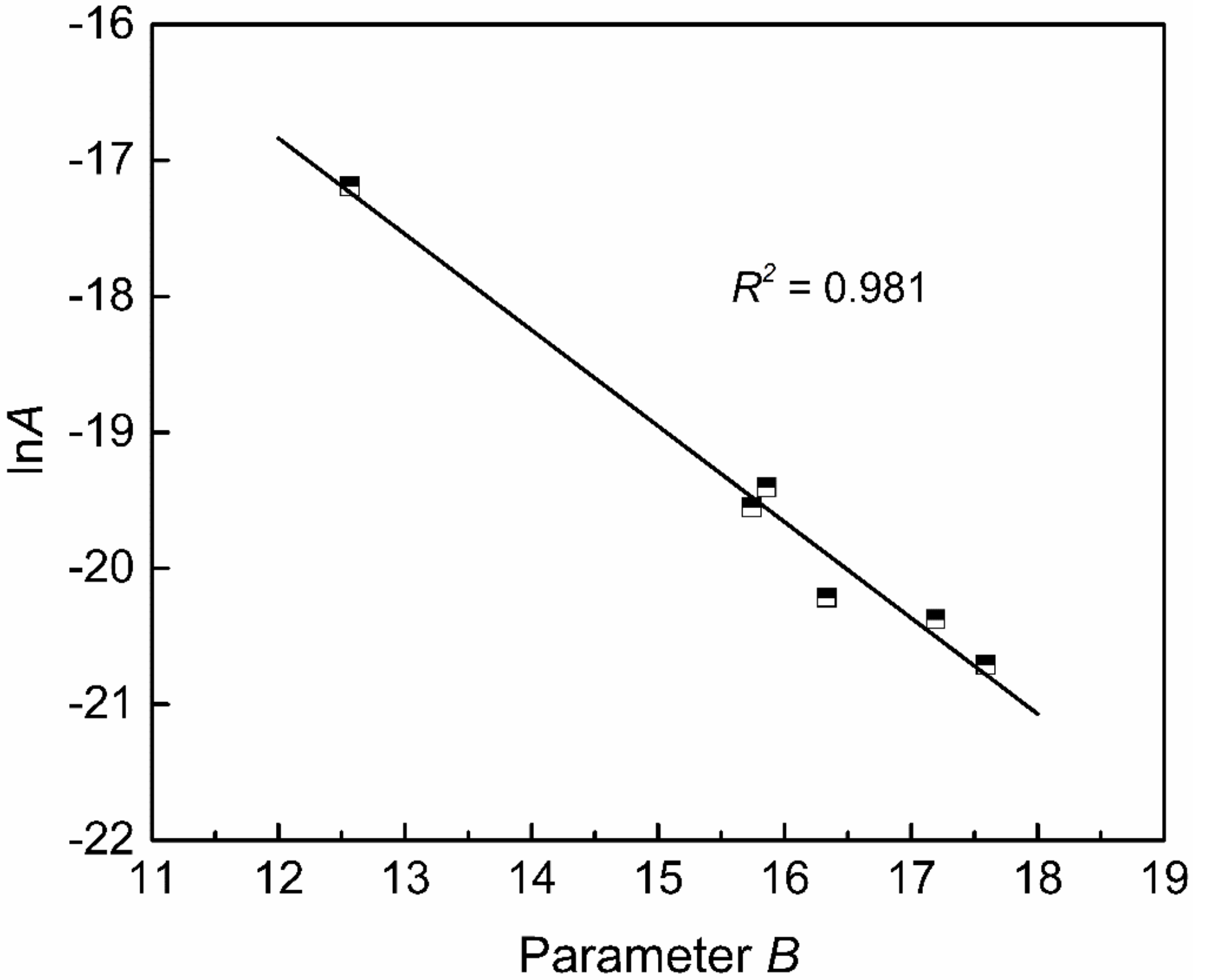

Figure 10 shows the relationship between the new optical basicity and parameter B calculated from the measured viscosity by Equation (7). Their relation can be fitted by a quadratic polynomial with a determination coefficient of 0.972, as shown in Equation (9). The parameters B and lnA are in a linear relationship, as shown in Figure 11, which can be expressed by Equation (10) with a determination coefficient of 0.981.

$$B = –4337.4{\mathrm{\Lambda }}^2+15298.9\mathrm{\Lambda }–13473.2,$$

(9)

$$\ln A =–0.7057B–8.3678.$$

(10)

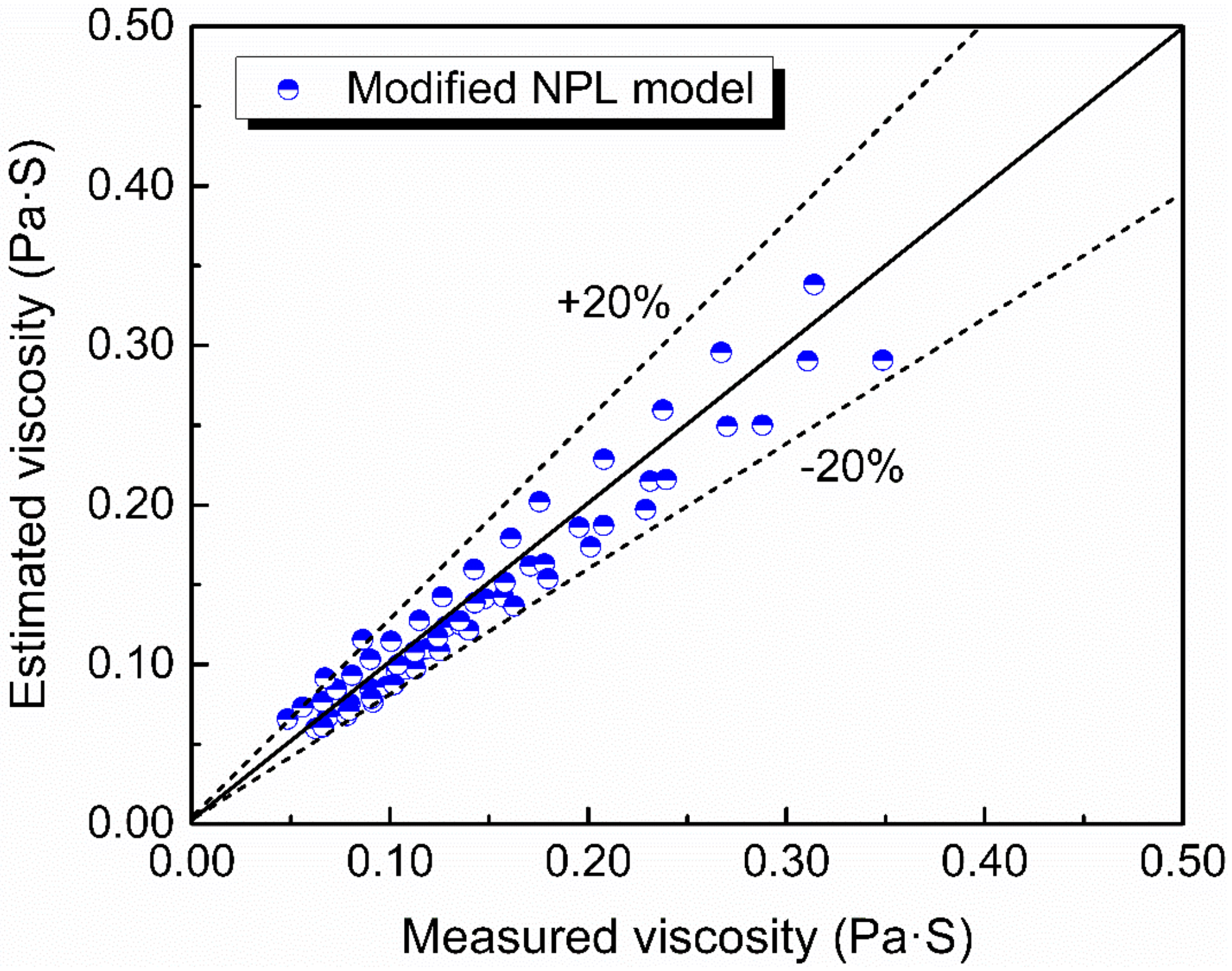

Viscosity of the slags now can be calculated by Equations (7)–(10). The estimated viscosity compared with the measured viscosity is shown in Figure 12. It can be seen that the predicted viscosity by the modified NPL model is in a reasonable agreement with the experimental data with the deviation below 20%.

To sum up, the modified parameters A and B, as well as a new optical basicity, were employed in the modified NPL model to reveal the dependence of viscosity on composition of CaO–Al₂O₃-based slag system in this study. As there is no measured viscosity data for slags with similar compositions in the other literature, an additional mold flux (S-vali) was measured with the composition listed in Table 1. Using the modified NPL model in this paper, it is found that the predicted and measured values also fit very well as shown in Figure 13.

5. Conclusions

In this paper, the effect of substituting CaO with BaO and CaO/Al₂O₃ ratio on the viscosity of CaO–BaO–Al₂O₃–CaF₂–Li₂O mold flux system was investigated. It was found that the viscosity of the slags increased with increasing BaO as a substitute for CaO, while the viscosity decreased with the increase of CaO/Al₂O₃ ratio due to the combination effect of depolymerization by free oxygen and polymerization by charge compensation on Al-O network structure. The deviation of the viscous activation energy calculated by Arrhenius and Weymann–Frenkel equations is less than 10% and the values of the viscous activation energy according to Arrhenius equation are in the range of 92.1–133.4 kJ·mol⁻¹. The modified NPL model and the new optical basicity regarding Al₂O₃ as an acid oxide were employed to predict the viscosity. The prediction results show that the estimated viscosity is in a reasonable agreement with the measured value, with the deviation less than 20%.
