Open AccessArticle
Metals 2018, 8(9), 688; https://doi.org/10.3390/met8090688

Selection of Parameters and Strategies to Reduce Energy Consumption and Improve Surface Quality in EN-AW 7075 Molds Machining

Department of Mechanical Engineering, University of Cordoba, Medina Azahara Avenue, 5, 14071 Cordoba, Spain
*
Author to whom correspondence should be addressed.
Received: 3 August 2018 / Revised: 18 August 2018 / Accepted: 28 August 2018 / Published: 31 August 2018
(This article belongs to the Special Issue Metallic Materials and Manufacturing)
Full-Text   |   PDF [1235 KB, uploaded 31 August 2018]   |

Abstract

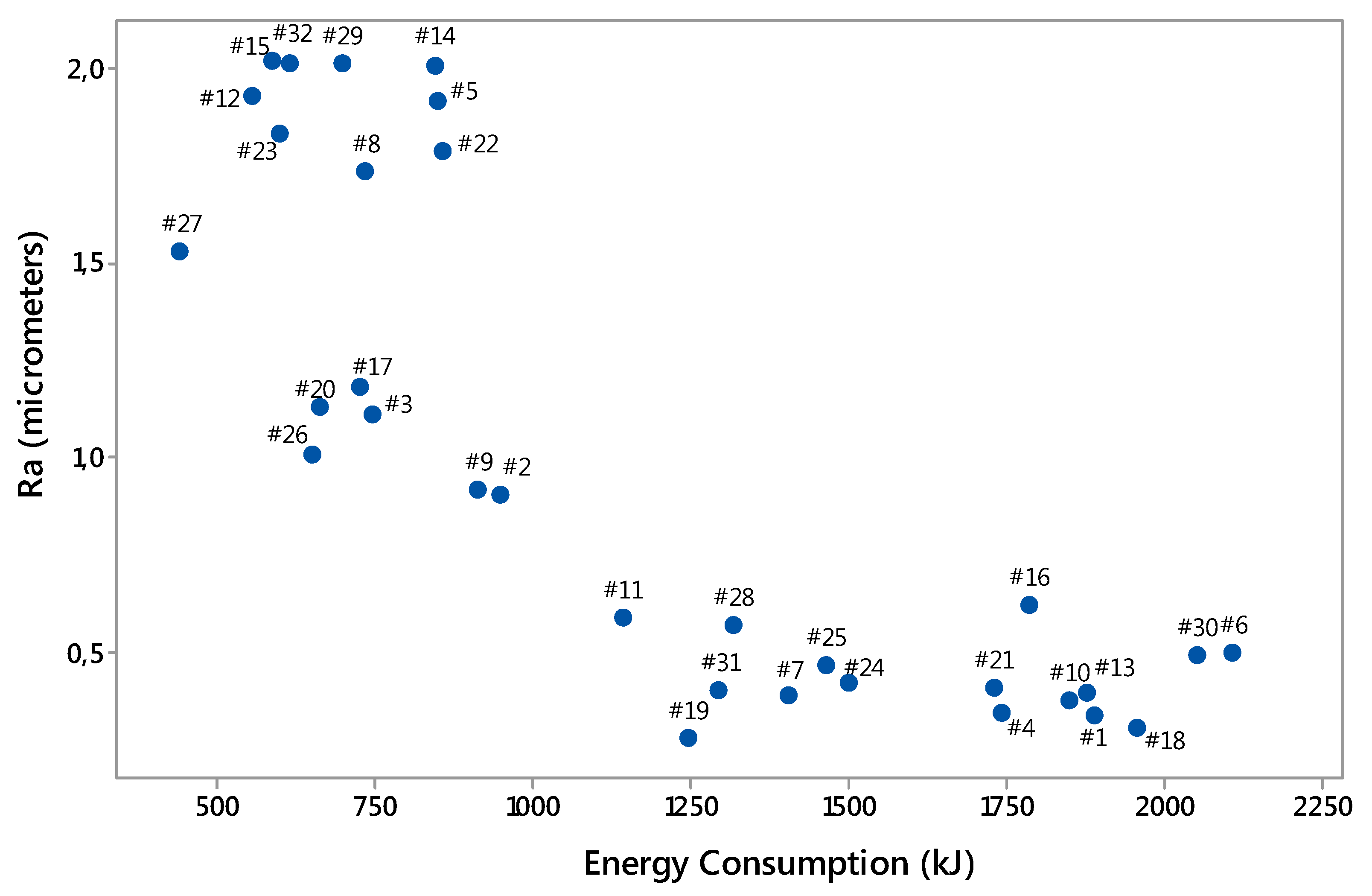

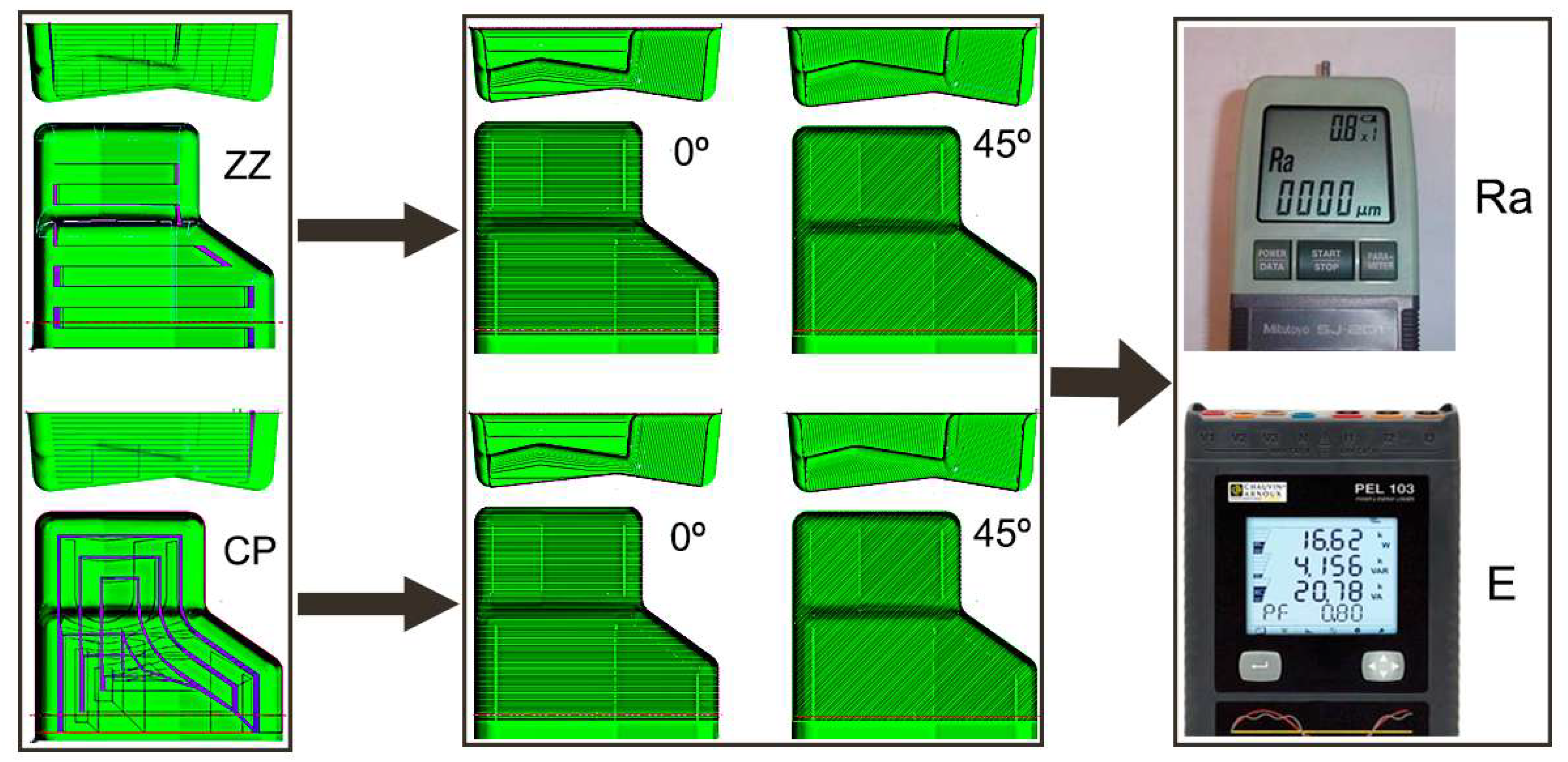

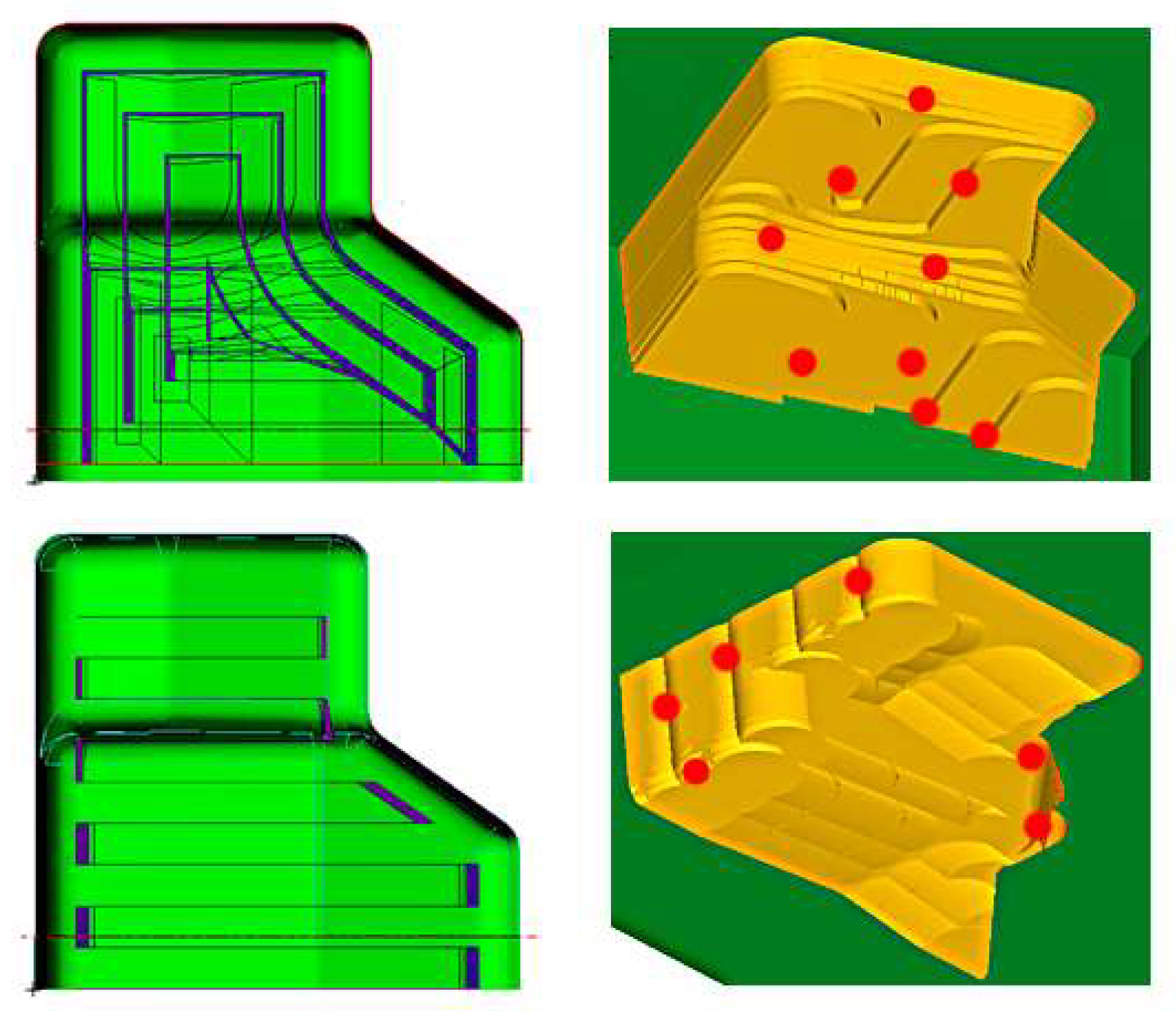

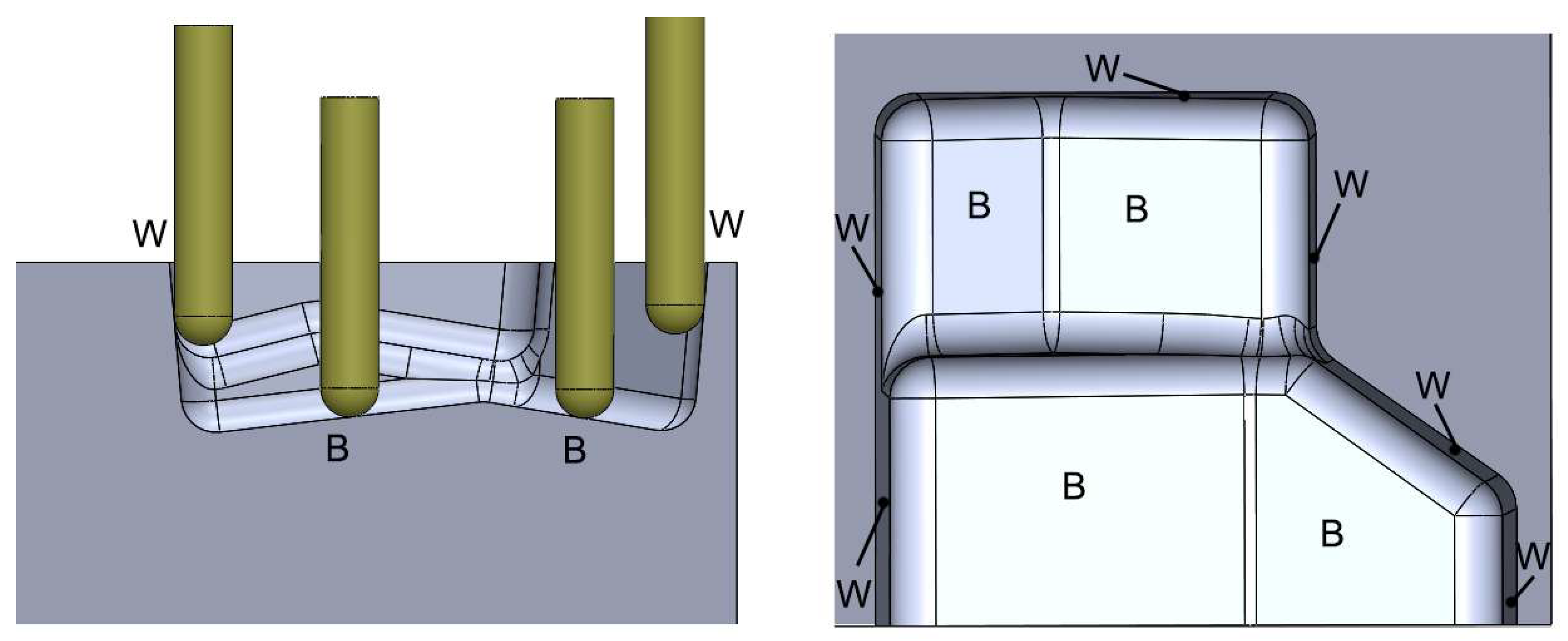

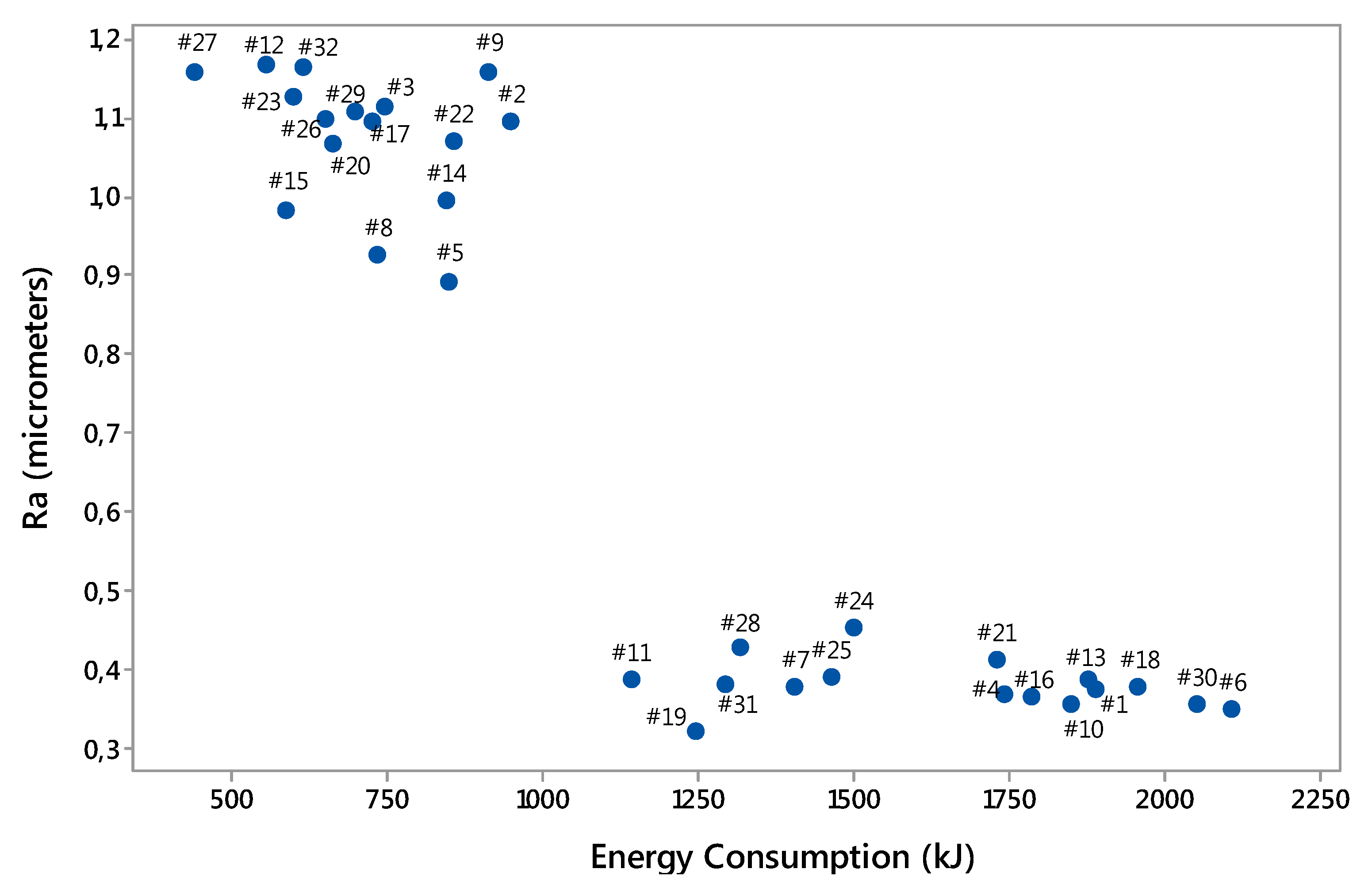

The machining of cavities for blow molding is a long and costly process, with the objective of obtaining an excellent surface finish with the minimal possible electrical energy consumption (EEC). This work has studied which combination of cutting parameters and cutting strategies to use to achieve an optimum surface finish on the mold using the minimal associated EEC: in roughing operation, tool path strategy and axial depth of cut were studied; in finishing operation, tool path strategy, spindle-speed, feed-rate, and step-over were evaluated. Thirty-two molds were machined in blocks of aluminium alloy EN-AW 7075 T6 in a machining center of a three-axis, following an orthogonal design of experiments. The analysis of results demonstrates that: a roughing strategy has influence on the surface roughness on the bottom of the mold; a finishing strategy is an influential factor on the surface roughness on the walls of the mold; certain parameters have no relevance on the surface roughness but have an influence on the EEC; an adequate selection of cutting strategies and cutting parameters permit an improvement of surface roughness of up to 70%, and a reduction of 40% in EEC, compared to the less favorable tests. View Full-Text
Keywords: mold; machining; surface roughness; electrical energy consumption mold; machining; surface roughness; electrical energy consumption
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Rodriguez-Alabanda, O.; Bonilla, M.T.; Guerrero-Vaca, G.; Romero, P.E. Selection of Parameters and Strategies to Reduce Energy Consumption and Improve Surface Quality in EN-AW 7075 Molds Machining. Metals 2018, 8, 688.
