Open AccessArticle
Metals 2018, 8(4), 274; https://doi.org/10.3390/met8040274

Characterizing the Soldering Alloy Type In–Ag–Ti and the Study of Direct Soldering of SiC Ceramics and Copper

1
Faculty of Materials Science and Technology in Trnava, Slovak University of Technology in Bratislava, Jána Bottu č. 2781/25, 917 24 Trnava, Slovakia
2
FMMI—Faculty of Metallurgy and Material Engineering, 17. listopadu 15, Poruba, 708 33 Ostrava, Czech Republic
*
Author to whom correspondence should be addressed.
Received: 13 March 2018 / Revised: 10 April 2018 / Accepted: 11 April 2018 / Published: 16 April 2018
(This article belongs to the Special Issue Science, Characterization and Technology of Joining and Welding)
Full-Text   |   PDF [9402 KB, uploaded 3 May 2018]   |

Abstract

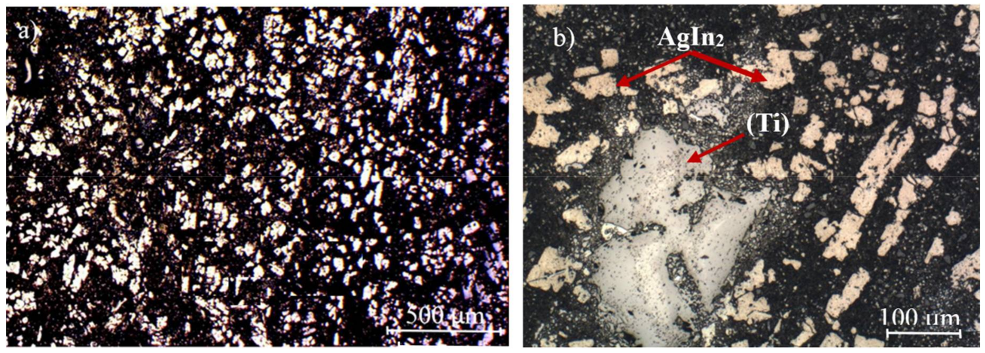

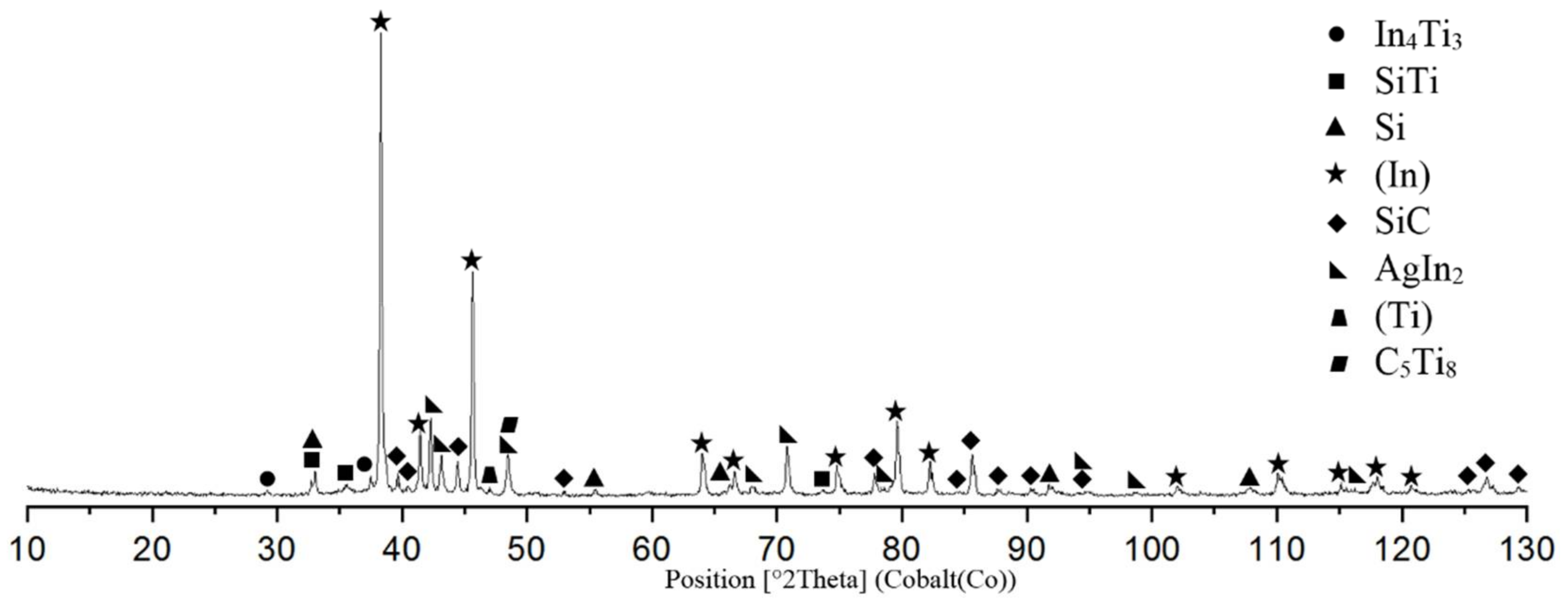

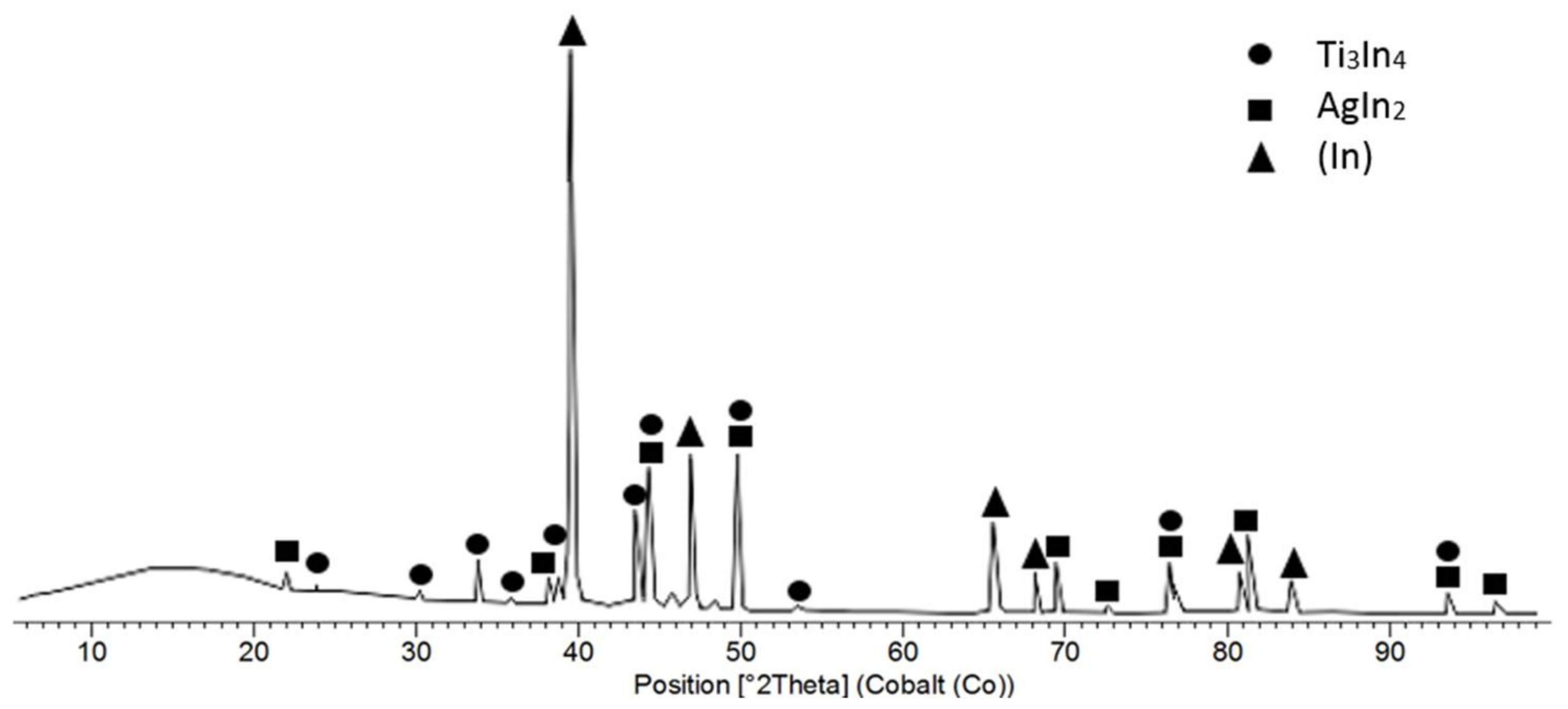

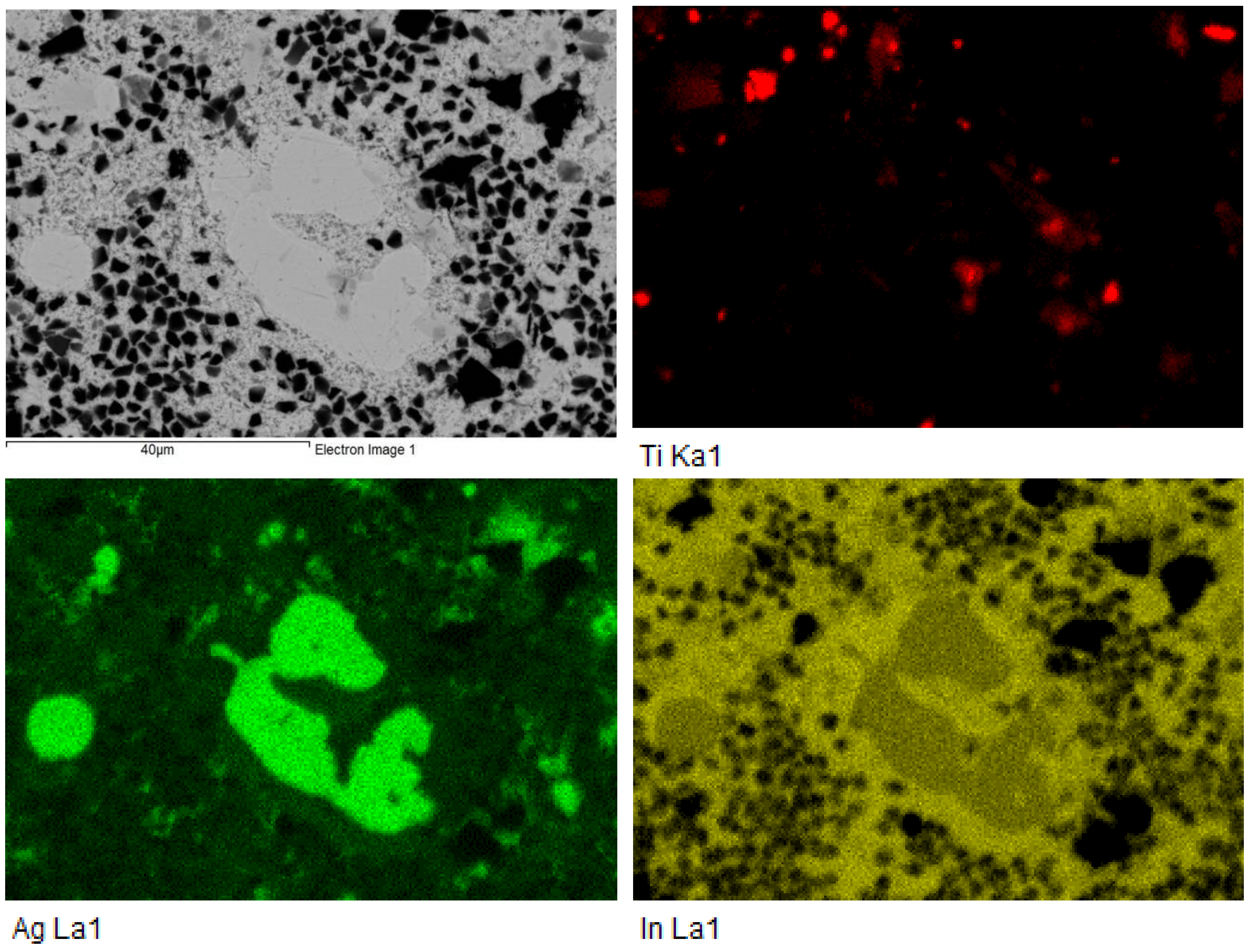

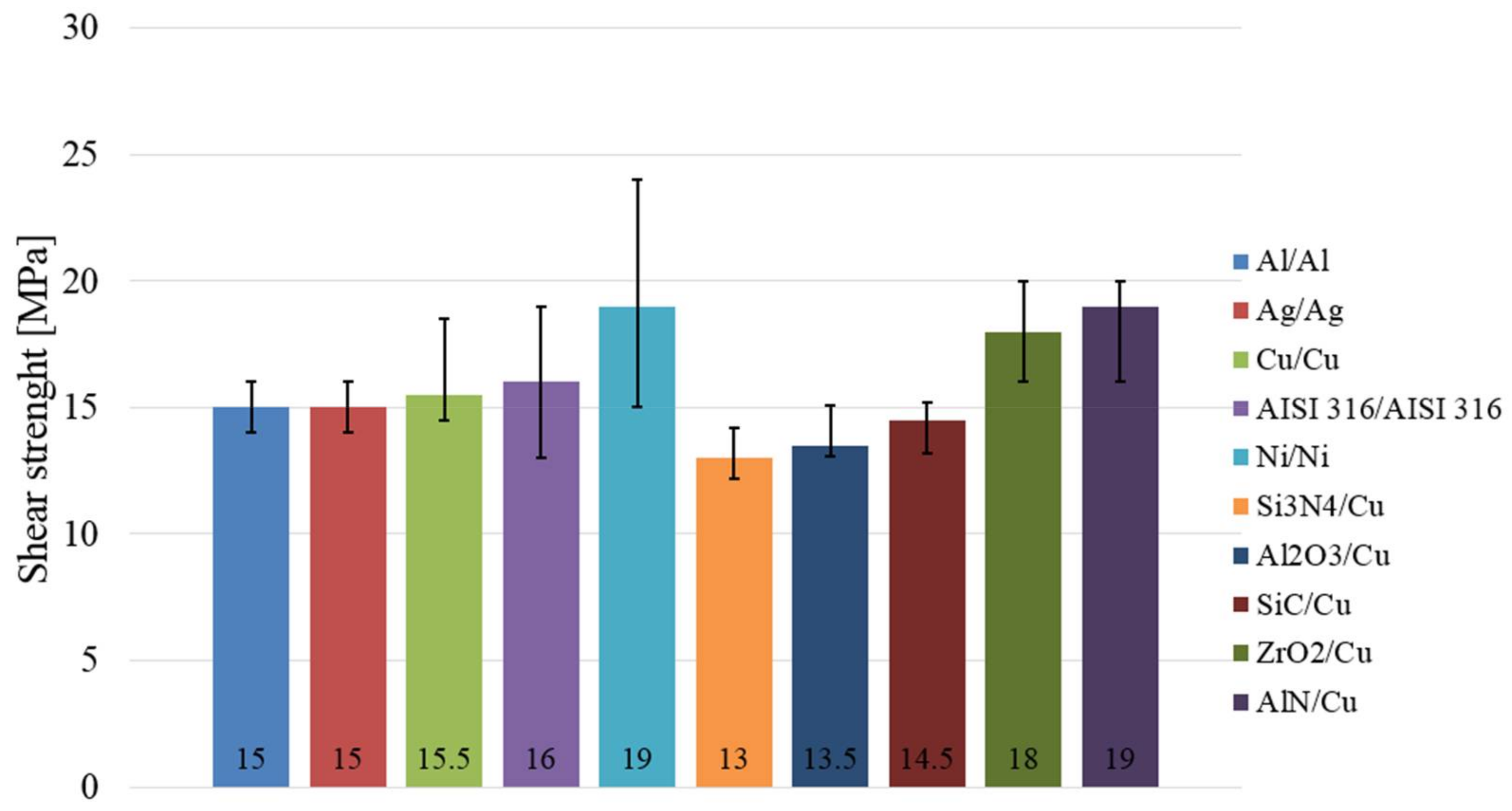

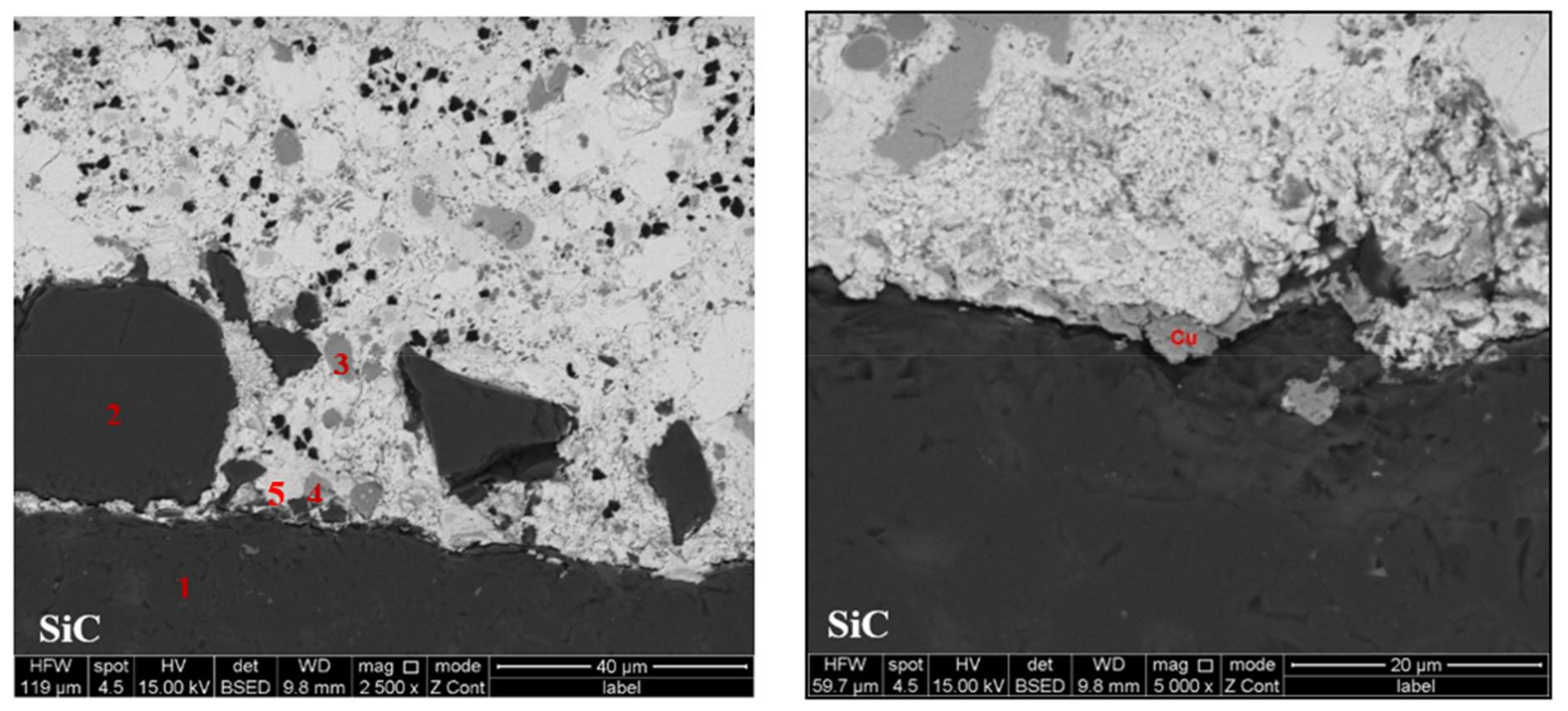

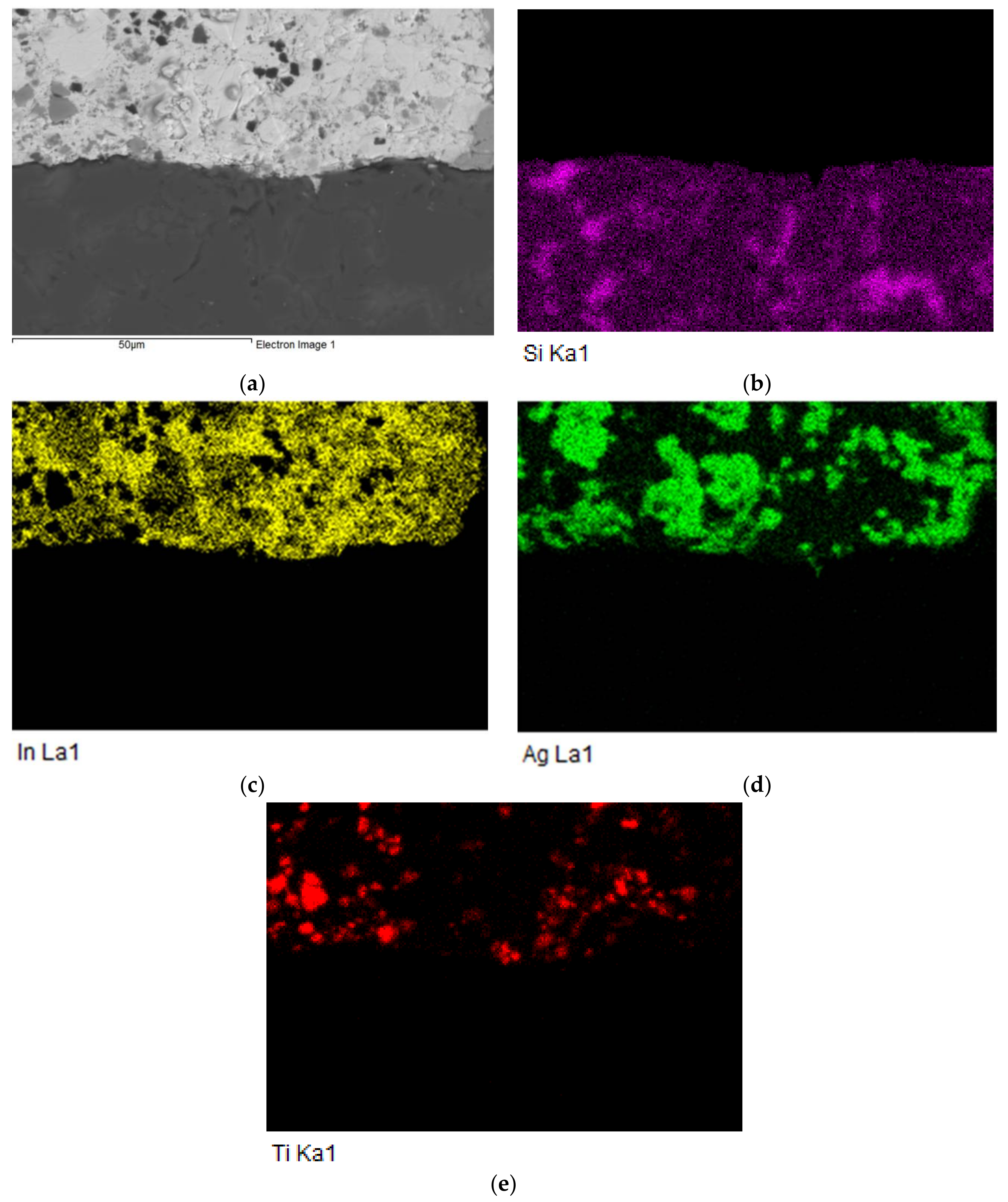

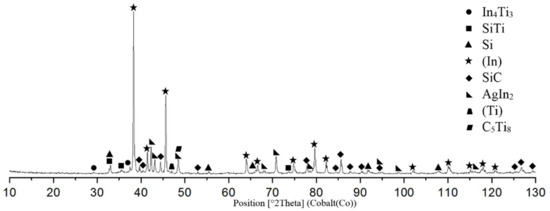

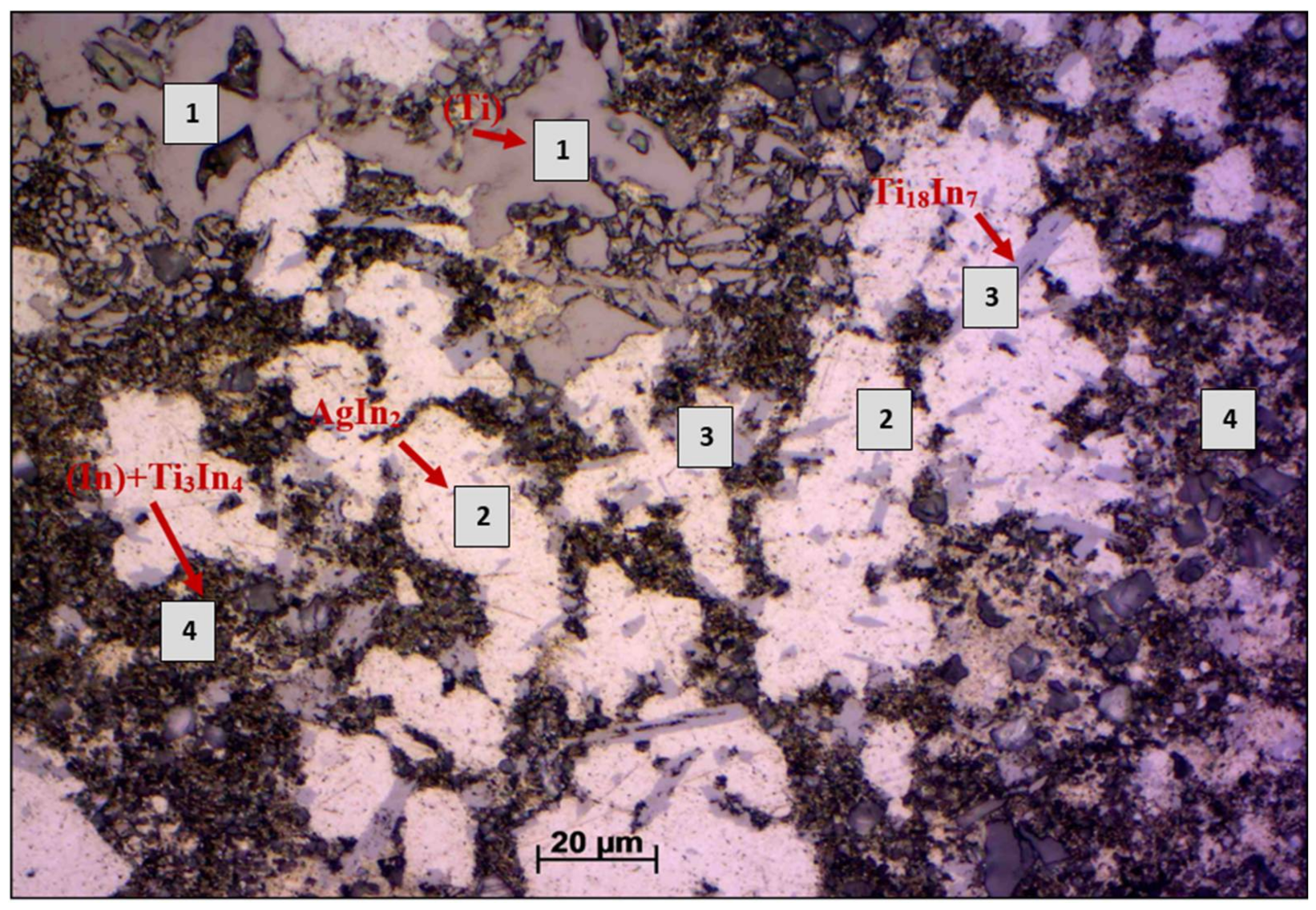

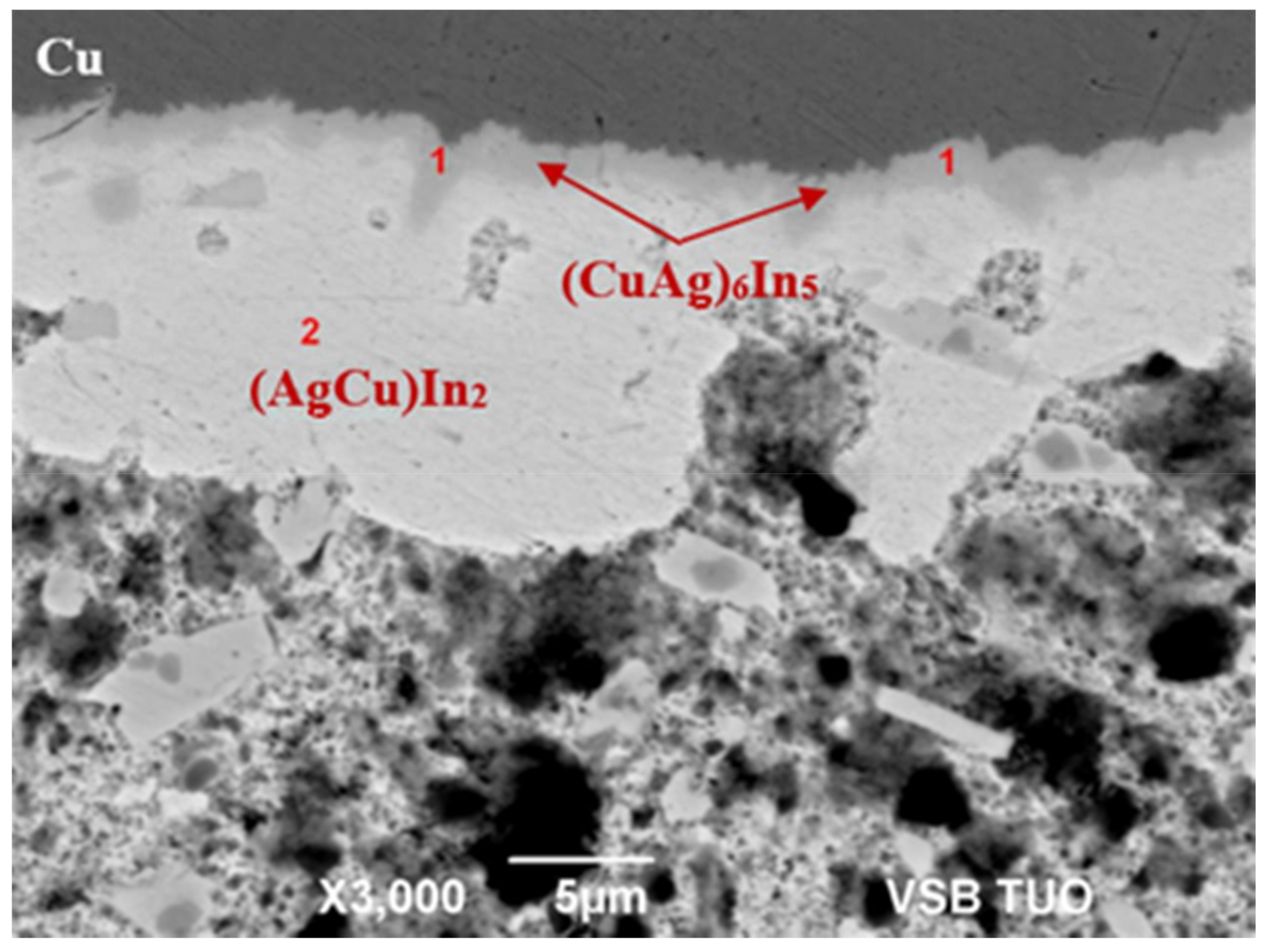

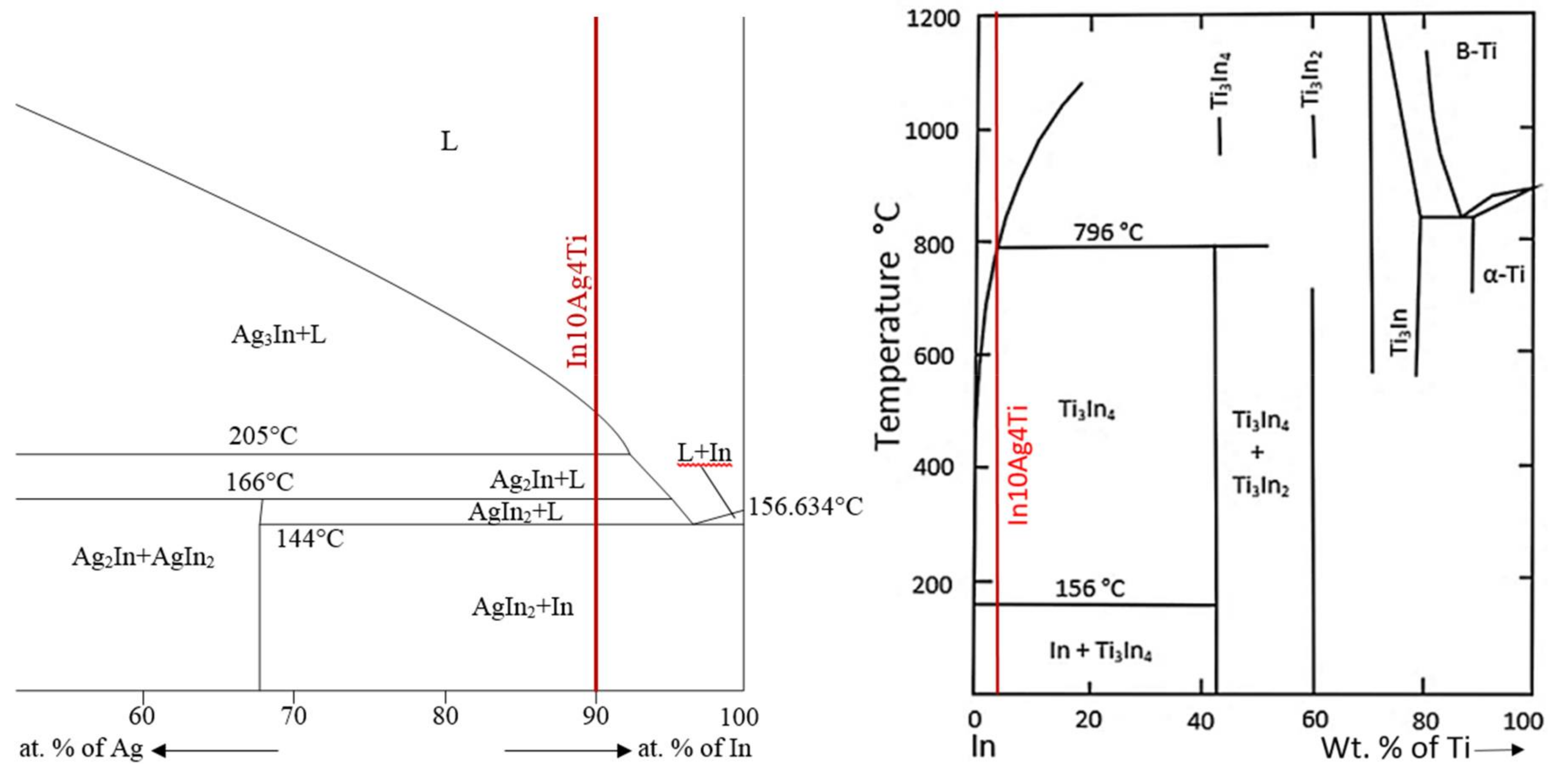

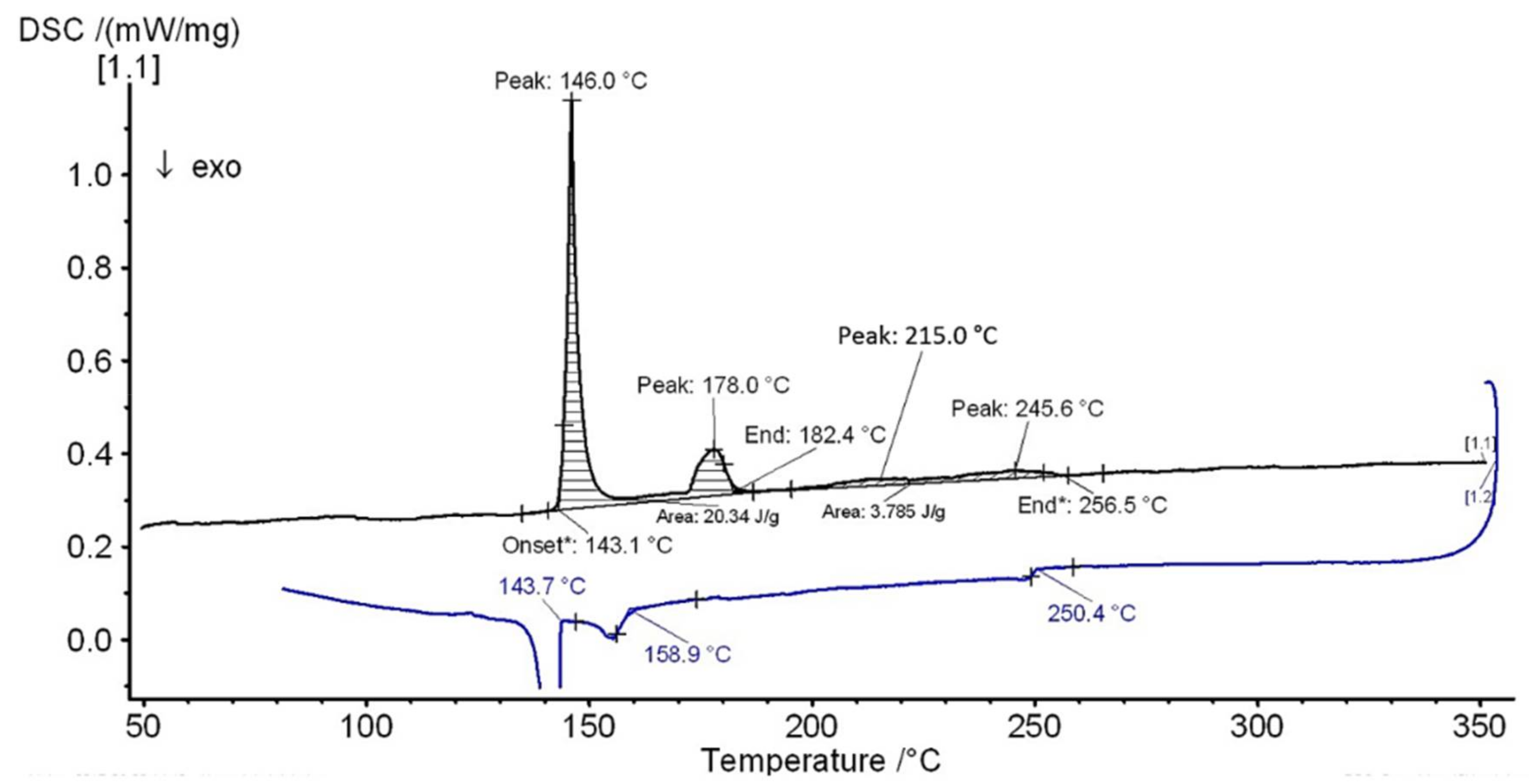

The aim of the research was to characterize the soldering alloy In–Ag–Ti type, and to study the direct soldering of SiC ceramics and copper. The In10Ag4Ti solder has a broad melting interval, which mainly depends on its silver content. The liquid point of the solder is 256.5 °C. The solder microstructure is composed of a matrix with solid solution (In), in which the phases of titanium (Ti3In4) and silver (AgIn2) are mainly segregated. The tensile strength of the solder is approximately 13 MPa. The strength of the solder increased with the addition of Ag and Ti. The solder bonds with SiC ceramics, owing to the interaction between active In metal and silicon infiltrated in the ceramics. XRD analysis has proven the interaction of titanium with ceramic material during the formation of the new minority phases of titanium silicide—SiTi and titanium carbide—C5Ti8. In and Ag also affect bond formation with the copper substrate. Two new phases were also observed in the bond interphase—(CuAg)6In5 and (AgCu)In2. The average shear strength of a combined joint of SiC–Cu, fabricated with In10Ag4Ti solder, was 14.5 MPa. The In–Ag–Ti solder type studied possesses excellent solderability with several metallic and ceramic materials. View Full-Text
Keywords: solder; ceramics; copper; flux-less soldering solder; ceramics; copper; flux-less soldering
