Influence of Alkali Treatment on Anodized Titanium Alloys in Wollastonite Suspension
Previous Article in Journal
Effects of Alloying Elements (Mo, Ni, and Cu) on the Austemperability of GGG-60 Ductile Cast Iron

Metals 2017, 7(8), 321; https://doi.org/10.3390/met7080321

Article
Crystallization and Beneficiation of Magnetite for Iron Recycling from Nickel Slags by Oxidation-Magnetic Separation
by Yongbo Ma 1,2, Xueyan Du 1,2,*, Yingying Shen 1,2, Guozhou Li 1,2 and Ming Li 1,2
1
State Key Laboratory of Advanced Processing and Recycling of Non-Ferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China
2
School of Materials Science and Engineering, Lanzhou University of Technology, Lanzhou 730050, China
*
Author to whom correspondence should be addressed.
Received: 22 June 2017 / Accepted: 18 August 2017 / Published: 22 August 2017

Abstract

:
The iron resources in nickel slag were recycled by oxidation and magnetic separation. The effects of holding time, temperature, air flow rate and basicity on the crystallization of magnetite were investigated systematically. Moreover, the influence of particle size and magnetic flux density on the recovery and grade of iron during the magnetic separation was also explored. Results showed that the magnetite particles were significantly influenced by holding time, and the average diameter size reached about 20 μm after holding for 20 min at 1623 K. The holding temperature obviously affected the microstructure of magnetite phases: with the increase in holding temperature, the shapes of the magnetite particles changed from polyhedral form to skeletal particles. As the air flow rate was increased to 170 mL/min, the magnetite developed into tiny spherical particles due to the strong stirring. It was also found that the crystallization of magnetite was slightly effected by basicity. The iron recovery reduced with the decrease of particle size, while the iron grade first increased to a maximal value of 38 μm, and then decreased. As the magnetic flux density increased, the iron recovery initially increased rapidly, reaching a maximal value at 120 mT, while the iron grade remained almost constant. The final iron recovery and grade were 75.99% and 54.08%, respectively, via multi-step magnetic separation instead of single magnetic separation. Iron in concentrate mainly exists in the form of magnetite and magnesium ferrite, and contents of siderophile elements (Ni, Co) in final concentrate were also higher than that of raw slags.
Keywords:
nickel slag; oxidation; crystallization; beneficiation; magnetite; magnetic separation

1. Introduction

Due to the high content of iron (about 36–45 wt % [1]) and value-added metals, such as Ni, Co, Cu, iron-rich nickel slag can be considered to be an important secondary source of metals, especially for iron ore. As yet, the only way to recover iron from nickel slag efficiently is by reduction-magnetic separation [2,3,4]. In this process, coke or coal is used to reduce fayalite (Fe2SiO4) in nickel slag, while producing iron and silicates; CaO is also added to improve the reaction rate by destroying the structure of the silicates. However, several disadvantages of this method have limited its industrial applications: (1) the inevitable emission of CO and CO2; (2) the difficulty of removal of impure elements, such as Pb, Zn, and As, which are simultaneously reduced and are harmful to the subsequently steel production; and (3) the severe uncontrollability and large quantities of CaO addition.
Therefore, an environmentally friendly method for iron recycling from slags by an oxidation process has prompted wide attention. Numerous scholars have studied the oxidation of the iron-bearing phase in slag systems. Semykina [5] presented the kinetics of the oxidation of divalent iron to a trivalent state in liquid FeO-CaO-SiO2 slags. Zhang [6] studied the oxidation mechanism of CaO-FeOx-SiO2 slag with high iron content in a pure oxygen atmosphere. The crystal growth during oxidation of a liquid FeO-CaO-SiO2 slag was shown in the research work of Semykina [7]. Fan [8] reported the crystallization behavior of copper smelter slag during molten oxidation. Liu [9] analyzed the multiphase transformation during the copper slag calcination process.
Magnetic separation has been applied to separate the iron-bearing minerals from metallurgical slags. Zhang [10] studied the recovery of iron from waste pyrite slag by using magnetic separation after reduction roasting. Peng [11] reported the recovery of iron from zinc ferrite (ZnFe2O4) undergoing reduction roasting via magnetic separation. Two-step magnetic separation was used to recover magnetite from red mud by Li [12].
Although the oxidation of iron-bearing phases in metallurgical slags have been studied [5,6,7,8,13], few reports about the influence of factors on the crystallization of magnetite phases in nickel slag were available. In this work, holding time, temperature, air flow rate, basicity, particle size and magnetic flux were adjusted to study their influence on the crystallization behavior and beneficiation of magnetite phases, attempting to provide a scientific basis for the recovery of iron sources from nickel slags.

2. Materials and Methods

2.1. Experimental Materials

Water-quenched nickel slag, appearing as ash black spherical particles (<5 mm), were taken from a nickel flash furnace in Jinchuan Group Ltd. (Jinchang, China); its composition is given in Table 1. The total iron content accounted for approximately 40% of the material, which also contained some valuable metals including Ni, Co, and Cu. The raw slag mainly consisted of fayalite, resulting in the X-ray diffraction patterns in Figure 1. The elemental scanning maps showed the Fe, Si, Mg and Ca distributed uniformly in slags, indicating that iron was hard to be recovered via conventional separation methods.
Calcium oxide (CaO) powder with a purity of 99.9%, supplied by Damao chemical reagents Co., Ltd. (Tianjin, China), was employed as the modifier. Alumina crucibles for holding the slags were of 99.99% purity, and were 50 mm in diameter, 80 mm in height, and 1 mm in thickness.

2.2. Equipmental and Analytical Method

MobileLab Workstation, including a muffle furnace (Tangshan nano source microwave thermal instrument manufacturing Co., Ltd., Tangshan, China), was used to heat and control the temperature. The nickel slags were crushed to a specific size via a grinder (QM-3SP04, Yongsheng mineral equipment manufacturing Co., Ltd., Ganzhou, China). The magnetic separation was performed by a wet feebleness magnetic-separation machine (XCGQ-50, Tangshan Shida automation instrumentation technology Co., Ltd., Tangshan, China) with a maximum flux of 350 mT.
X-ray diffraction (XRD) measurements were performed on a diffractometer (D/Max 2400, Rigaku, Tokyo, Japan), and a scanning electron microscope (SEM) equipped with an energy dispersive spectrometer (SU-6600, Hitachi, Tokyo, Japan) was used to analyze the microstructure and elemental distribution. The magnetic properties of samples were tested using a vibrating sample magnetometer (VSM) (LakeShore 7304, Lake Shore Cryotronics, Inc., Westerville, OH, USA). Compositions of the samples were analyzed by ICP (ICAP-7400, Thermo Scientific, Logan, UT, USA).

2.3. Experimental Procedure

The molten oxidation process was carried out in a microwave muffle furnace in the MobileLab Workstation. The whole treatment process is shown in Figure 2. Firstly, the nickel slag particles were crushed to −180 μm (80 mesh), and then mixed with CaO in various specific proportions. Secondly, the mixture, placed into an alumina crucible and located in the center of the furnace, was heated in air to the target temperature at a rate of 5 K/min. Subsequently the air from a compressor was blown into the molten slags through an alumina tube at various rates. After a certain holding duration, the sample was cooled to room temperature in air at a rate of 5 K/min. Finally, the oxidized nickel slags (ONS) were crushed into powders and magnetic separation was performed at various magnetic flux densities.

3. Results and Discussion

3.1. Thermodynamic Feasibility Analysis

It is well known from Molecular theory that molten slag is made up of electroneutral simple oxides and combined oxides. The two kinds of oxides are dynamically balanced under certain conditions, and only free oxide can participate in the reactions with other groups in the slag. So the primary reactions in this study are shown to be the following:
Fe2SiO4 = 2FeO + SiO2
Fe2SiO4 + CaO = 2FeO + CaSiO3
6FeO + O2 = 2Fe3O4
4FeO + O2 = 2Fe2O3
3Fe2SiO4 + O2 = 2Fe3O4 + 3SiO2
3Fe2SiO4 + 3CaO + O2 = 2Fe3O4 + 3CaSiO3
4Fe3O4 + O2 = 6Fe2O3
The Gibbs free energy of the above reactions from 273 K to 1873 K was calculated using HSC Chemistry 5.11 software (Outotec, Espoo, Finland), and the relationship between Gibbs free energy and temperature is shown in Figure 3. It can be seen that the fayalite phase cannot decompose below 1873 K. The fayalite has a greater tendency to react with oxygen due to the addition of CaO. The free FeO, which was replaced from fayalite by CaO, can react with oxygen to produce hematite and magnetite, and the latter is much more easily formed. Magnetite may be oxidized by the excessive oxygen, but that seems not to happen when temperature is higher than 1623 K.
In order to investigate the role of temperature and CaO in the oxidation process, liquidus projections of FeO-SiO2-MgO-CaO-O2 with different CaO addition were calculated by FactSage 7.1 (Thermfact/CRCT, Montreal, Canada; GTT-Technologies, Aachen, Germanyt), as shown in Figure 4. It was found that the spinel-structured magnetite formed a narrow low melting zone (1673 K) without CaO addition. But with increasing addition of CaO, both this zone and the spinel phase zone obviously expanded, and a lower liquidus zone (1573 K) and hematite phase occurred simultaneously when the addition of CaO was about 10%. If the addition of CaO was increased to 15%, both the 1573 K zone and hematite zone expanded, while the spinel phase zone shrunk, but the spinel zone at 1573 K barely changed. This means a moderate CaO addition can not only expand the spinel phase zone, but also decrease the liquidus temperature of the slag.
Therefore, the addition of CaO can help oxidation and produces spinel structured magnetite at a lower temperature in FeO-SiO2-MgO-CaO-O2 system slag.

3.2. Influence Factors on the Crystallization of Magnetite

After oxidation, the fayalite phase changed mainly into magnetite phase, as shown in Figure 5, which was in good agreement with the results of thermodynamic analysis. In order to control the growth of magnetite phase and obtain larger particles, further studies on the crystallization of magnetite were subsequently systematically performed.

3.2.1. Holding Time

Figure 5 shows that iron in ONS mainly existed as magnetite and magnesium ferrite after being oxidized in air. The average diameter of magnetite particles was about 10 μm when the temperature reached 1623 K. The diameter of the particles, accompanied by some tiny particles, increased to 20 μm when the holding time was 20 min, while the crystal size grew slightly when the holding time was longer than 20 min. This result was similar to the findings for oxidation of FeO-CaO-SiO2 slag systems [7].

3.2.2. Temperature

It can be seen from Figure 6 that the temperature obviously affected the microstructure of magnetite phases. Similar results appeared in the molten oxidation of copper slags, which was attributed to the phase transition of magnetite to hematite [8]. Indeed, the microstructure of magnetite depended upon the interface and preferred orientation. Even though the greater viscosity at lower temperatures was unfavorable to the diffusion of components and deteriorated the condition of crystallization, the fully growed magnetite particles was able to compensate for these imperfections. Thus, tiny spherical particles and polyhedral grains formed under these conditions. The spherical magnetite could be attributed to Oswald ripening, while the angular grains resulted from unstable growth.
It was also found that the micro-structure of magnetite changed into a skeletal structure when the temperature was higher than 1723 K. This could be primarily attributed to the preferred orientation and rapid growth at higher temperatures.

3.2.3. Air Flow Rate

Lower air flow rate provided a weaker stirring, resulting in homogeneous crystallization of magnetite particles, and producing many spherical particles or polyhedral grains. If the air flow rate was higher than 170 mL/min, the violent stirring was able to break the dendrites and cause the production of tiny crystal. The produced tiny particles were able to embed into silicate in other areas due to Oswald ripening, as shown in Figure 7.

3.2.4. Basicity

As a modifier, CaO plays an activation role in the oxidation process and changes the basicity of nickel slags. Generally, CaO is mainly used to enhance the reaction, i.e., Equation (6), between fayalite and oxygen by destroying the structure of fayalite. The basicity in this work can be described as [w (CaO) + w (MgO)]/w (SiO2). The basicity was 0.6, 0.7, 0.8, 0.9 and 1.0, for added proportions of CaO of 7.4%, 10.5%, 13.7%, 16.9% and 20.0%, respectively.
It can be seen from Figure 8 that the morphology of magnetite particles remained very similar with the increase of amount of added CaO, implying that the addition of CaO may have little influence on the crystallization of magnetite. In addition, the raw slags could not be melted until the temperature reached 1603 K, and a temperature higher than 1623 K was also required by slags with a basicity of 0.5. However, liquid phase occurred before 1623 K when the basicity was increased to 0.6. This means that the liquidus temperature of the slags seems to decrease with the increase of CaO addition, as reported in the literature [4].

3.3. Magnetic Separation

It can be concluded from the above studies that the iron-bearing samples consisted of mainly magnetite and magnesium ferrites. Because of their excellent magnetic properties, they can be separated from slags by using of magnetic separation. Research [10,14] has already proved that magnetic separation is an effective way to concentrate iron resources.
The index of beneficiation, such as yield of concentrates and iron recovery, can be calculated as follows:
γn = mconcentrate, n/mconcentrate, n−1 ×100%
εn = γ × wiron, n/wiron, n−1
where γn, mconcentrate, n and wiron, n are the yield, mass and iron grade, respectively, of concentrate separated n times; if n = 1, mconcentrate,0 and wiron,0 presents for the mass and iron grade of ONS; ε is the recovery of iron.
After the samples were crushed and ground into particles with a size of −74 μm, the powders were underwent magnetic separation with a magnetic flux density of 300 mT. Influence of factors on the iron recovery and grade are shown in Figure 9, while the magnetic flux density and particle size were 300 mT and −74 μm, respectively. It can be seen that the iron recovery varied regularly, while the iron grade changed irregularly, and temperature was a significant influence factor that affected iron recovery due to the formation of different micro-structures, such as spherical, polyhedral and skeletal structures, as shown in Figure 6. Generally, the samples were crushed or ground into small particles before magnetic separation. After the grinding process, the skeletal particles accompanied with silicate could only be extracted incompletely, due to their weak magnetic property, causing a decrease in iron recovery. In contrast, the spherical and polyhedral particles could be extracted more completely, and, accordingly, a higher iron recovery could be obtained due to their uniform and regular shapes, i.e., a higher degree of mineral liberation. Therefore, spherical and polyhedral particles were conducive to the magnetic separation.
In order to explore the reasons for this change, the sample with the highest iron recovery was selected to perform SEM observation; its elemental scanning mappings are given in Figure 10. It was found that the sample contained not only Fe element, but Ni, Co, Mg, Cu, Si and Ca elements, implying that iron grade was at a low level (about 42%). Therefore, it was necessary to research the influence factors on magnetic separation in more detail.

3.3.1. Particle Size

It is well known that particle size is an important factor in magnetic separation. Therefore, the relationship between iron recovery, iron grade and particle size was studied in detail.
It can be seen from Figure 11a that with decreasing particle size, the iron recovery decreased gradually, while the iron grade firstly increased to a maximal value at 38 μm, and then decreased. This might mainly be attributed to the liberation degree of magnetite, and result from the combination of magnetite and augite. Figure 12a shows the saturation magnetization value of various particle sizes, implying −38 μm particles can be easily separated, and accordingly cause the maximal value of iron grade. Meanwhile, the abandoned augite particles inevitably carry off some magnetite particles during the separation, so the iron recovery exhibits a linearly declining tendency. As the particle size was smaller than 38 μm, it was difficult to separate magnetite particles, because of the magnetic action in the given magnetic field. Moreover, the fine magnetic particles reunited as clusters easily, which prevented the non-magnetic silicate from being removed. Ku’s work [15] also proved that the fine magnetic particles have a tendency to assemble chains.

3.3.2. Magnetic Flux Density

The magnetic flux density is another influence factor on the magnetic separation. With lower magnetic flux density, ferromagnetic minerals, such as magnetite and magnesium ferrite, can be separated easily. Higher magnetic flux density is used to separate the paramagnetic minerals from the surrounding gangue.
As shown in Figure 11b, the iron recovery increased with the increase of magnetic flux density in the range of 60–120 mT, while the iron grade remained almost constant. This can be ascribed mainly to the overgrinding and lower liberation degree of magnetite. In other words, the fine particles tended to go into the tailings when the magnetic flux was lower than 120 mT, due to the weaker magnetic force. If the magnetic flux was higher than 120 mT, the iron recovery seemed to reach a saturation value, implying that the tiny magnetite particles were separated completely. The iron grade was almost constant in the range of 60–160 mT, which was caused by the high liberation degree of magnetite. Figure 12b shows the value of saturation magnetizations, from which we found that 120 mT was the highest among the various fluxes.

3.3.3. Optimal Conditions

It can be concluded that the iron recovery increased obviously with a change in external factors, while the iron grade improved slightly. Therefore, multi-step magnetic separation, instead of single magnetic separation, was adopted to improve the iron grade. The separation process and the corresponding results are shown in Figure 13. The final iron recovery and grade reached 75.99% and 54.08%, respectively, as shown in Table 2. It is worth mentioning that the contents of siderophile elements (Ni, Co) in the final concentrate were higher than that of raw slags, as shown in Table 3.

4. Conclusions

(1)
It can be seen from the thermodynamic analysis that fayalite in nickel slag cannot be decomposed spontaneously, even with temperatures of up to 1873 K, but can be oxidized into magnetite with the help of CaO and O2. Liquidus projection of FeO-SiO2-MgO-CaO-O2 shows that the addition of CaO can not only expand the spinel phase zone, but also obviously decrease the liquidus temperature.
(2)
Fayalite in nickel slags can be oxidized to form magnetite phase in air at high temperature. The holding time, temperature, and air flow rate significantly affect the crystallization behavior of magnetite, while the addition of CaO affects it slightly. The average diameter size of the magnetite reaches 20 μm after undergoing a holding process at 1623 K for 20 min. Temperature and air flow rate obviously affect the shapes of magnetite, which exhibits spherical, polyhedral and skeletal shapes.
(3)
The iron recovery and grade are obviously affected by particle size and magnetic flux density. The iron recovery decreases with the decrease of particle size, while the iron grade reaches a maximal value at 38 μm. As the magnetic flux density increases, the iron recovery initially increases rapidly, reaching a maximal value at 120 mT, while the iron grade remains almost constant.
(4)
The final iron recovery and grade reaches 75.99% and 54.08%, respectively, via multi-step magnetic separation, instead of single magnetic separation. Iron in the concentrate mainly exists in the form of magnetite and magnesium ferrite; and the contents of siderophile elements (Ni, Co) in the final concentrate were also higher than that of the raw slags.

Acknowledgments

This work was financially supported by Science and Technology Major Project Plan of Gansu Province; the authors wish to express their thanks for the sponsorship. The fellowship for Ma Yongbo from LUT is also gratefully acknowledged.

Author Contributions

Yongbo Ma, Xueyan Du and Yingying Shen conceived and designed the experiments; Yongbo Ma and Guozhou Li performed the experiments; Yongbo Ma and Ming Li analyzed the data; Xueyan Du contributed reagents/materials/analysis tools; Yongbo Ma wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Jones, R.T. Economic and environmentally beneficial treatment of slags in DC arc furnaces. In Proceedings of the VII International Conference on Molten Slags, Fluxes and Salts, Cape Town, South Africa, 25–28 January 2004. [Google Scholar]
  2. Pan, J.; Zheng, G.L.; Zhu, D.Q.; Zhou, X.L. Utilization of nickel slag using selective reduction followed by magnetic separation. Trans. Nonferrous Met. Soc. China 2013, 11, 3421–3427. [Google Scholar] [CrossRef]
  3. Ni, W.; Ma, M.S.; Wang, Y.L.; Wang, Z.J.; Liu, F.M. Thermodynamic and kinetic in recovery of iron from nickel residue. J. Univ. Sci. Technol. B 2009, 2, 163–168. [Google Scholar]
  4. Jin, Y.; Wang, W.Z.; Zhang, C.M. Research the kinetic of abstracting iron from Jin Chuan waste slag. In Proceedings of the VII National Conference on Metallurgical Reaction Engineering, Shenyang, China, 15–19 May 1998. [Google Scholar]
  5. Semykina, A.; Shatokha, V.; Iwase, M.; Seetharaman, S. Kinetics of oxidation of divalent iron to trivalent state in liquid FeO-CaO-SiO2 slags. Metall. Mater. Trans. B 2010, 12, 1230–1239. [Google Scholar] [CrossRef]
  6. Zhang, L.N.; Zhang, L.; Wang, M.Y.; Sui, Z.T. Oxidization mechanism in CaO-FeOx-SiO2 slag with high iron content. Trans. Nonferrous Met. Soc. China 2005, 4, 938–943. [Google Scholar]
  7. Semykina, A.; Nakano, J.; Sridhar, S.; Shatokha, V.; Seetharaman, S. Confocal scanning laser microscopy studies of crystal growth during oxidation of a liquid FeO-CaO-SiO2 slag. Metall. Mater. Trans. B 2011, 6, 471–476. [Google Scholar] [CrossRef]
  8. Fan, Y.; Shibata, E.; Iizuka, A.; Nakamura, T. Crystallization behavior of copper smelter slag during molten oxidation. Metall. Mater. Trans. B 2015, 5, 2158–2164. [Google Scholar] [CrossRef]
  9. Liu, H.L.; Hu, J.H.; Wang, H.; Wang, C.; Li, J.Q. Multiphase transformation during process of copper slag calcination. J. Cent. South Univ. 2013, 8, 3159–3165. [Google Scholar]
  10. Zhang, G.F.; Yang, Q.R.; Yang, Y.D.; Wu, P.; McLean, A. Recovery of iron from waste slag of pyrite processing using reduction roasting magnetic separation method. Can. Metall. Q. 2013, 2, 153–159. [Google Scholar] [CrossRef]
  11. Peng, N.; Peng, B.; Chai, L.Y.; Li, M.; Wang, J.M.; Yan, H.; Yuan, Y. Recovery of iron from zinc calcines by reduction roasting and magnetic separation. Miner. Eng. 2012, 35, 57–60. [Google Scholar] [CrossRef]
  12. Li, G.H.; Gu, F.Q.; Jiang, T.; Luo, J.; Deng, B.N.; Peng, Z.W. Beneficiation of Aluminum-, iron-, and titanium-bearing constituents from diasporic bauxite ores. JOM 2017, 2, 315–322. [Google Scholar] [CrossRef]
  13. Semykina, A.; Shatokha, V.; Sridhar, S. Innovative approach to recovery of iron from steelmaking slags. Ironmak. Steelmak. 2010, 7, 536–540. [Google Scholar] [CrossRef]
  14. Wang, P.; Dong, F.Z. Research on Preparation of Iron Concentrate from Iron Tailings. In Proceedings of the 2010 International Symposium on Low-Carbon Economy and Technology Science, Zibo, China, 29–31 October 2010. [Google Scholar]
  15. Ku, J.G.; Chen, H.H.; He, K.; Yan, Q.X. Force analysis and dynamic simulation of ferromagnetic mineral particles in magnetic separation process. J. Cent. South Univ. 2015, 5, 1577–1582. [Google Scholar]

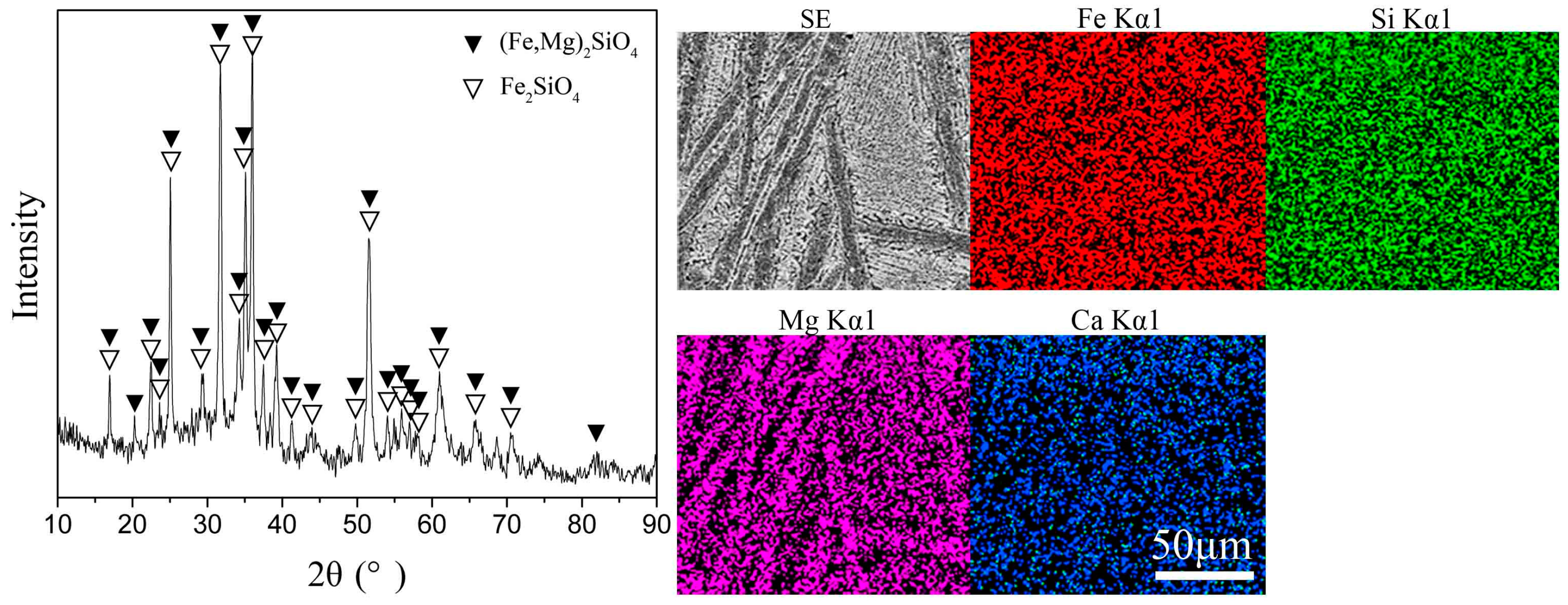

Figure 1. XRD patterns and elemental scanning maps of water-quenched nickel slag.
Figure 1. XRD patterns and elemental scanning maps of water-quenched nickel slag.
Metals 07 00321 g001

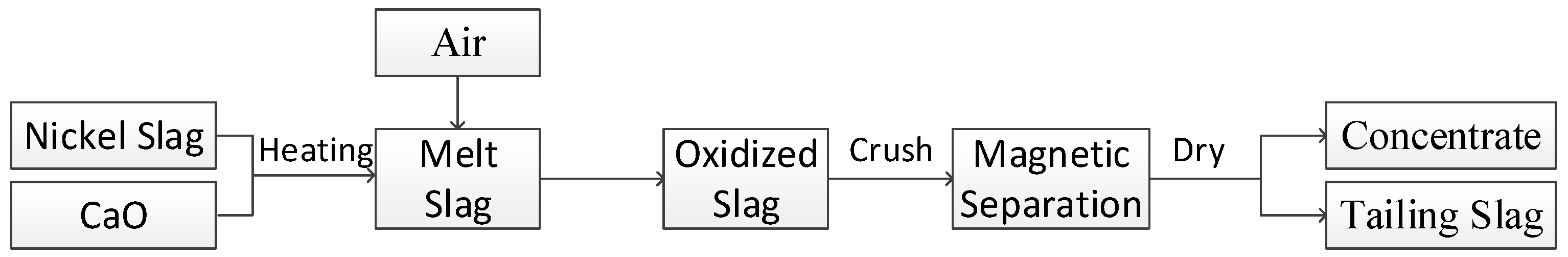

Figure 2. The flowsheet of the oxidation and separation process.
Figure 2. The flowsheet of the oxidation and separation process.
Metals 07 00321 g002

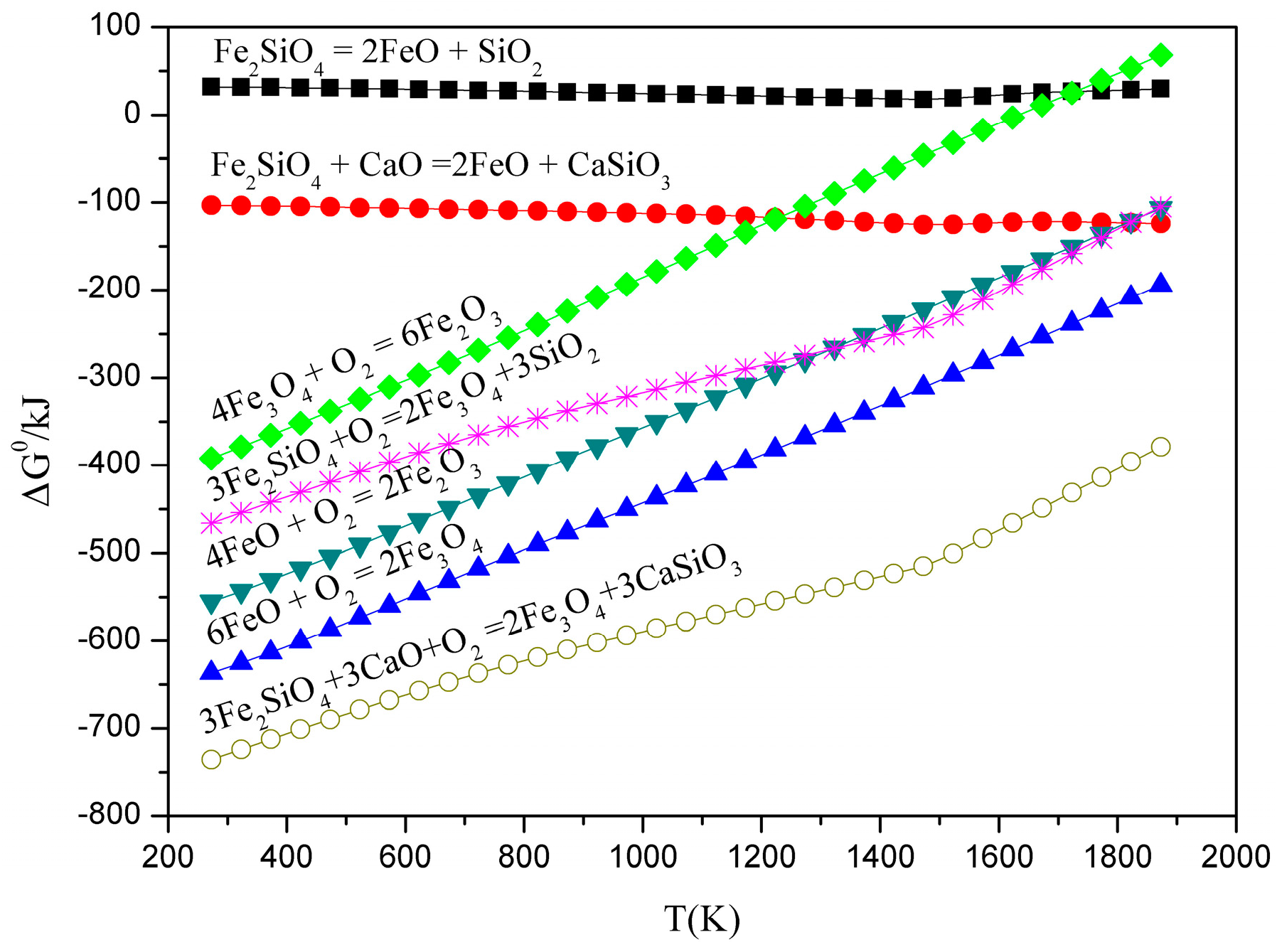

Figure 3. Relationship between ∆G0 and temperature.
Figure 3. Relationship between ∆G0 and temperature.
Metals 07 00321 g003

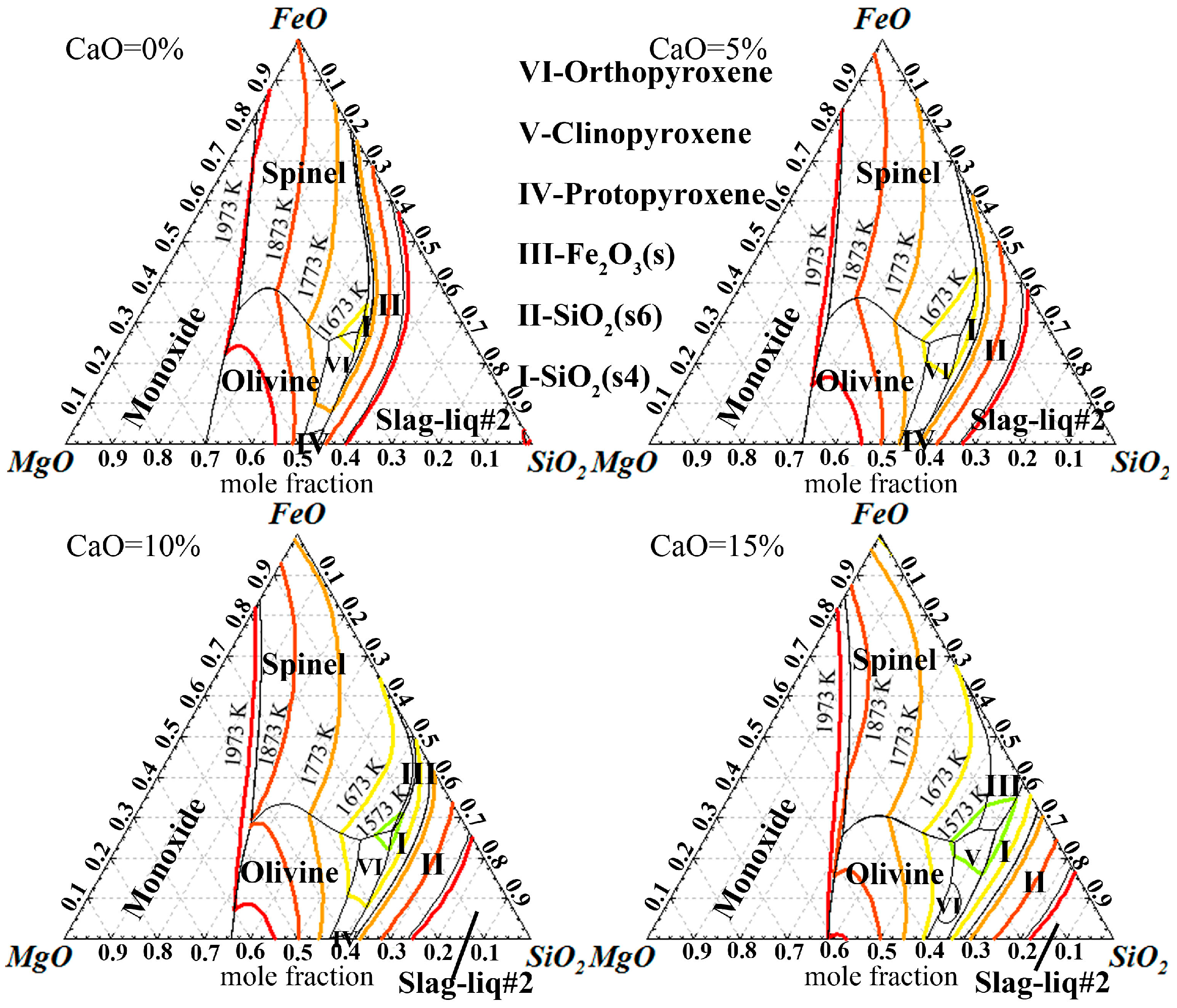

Figure 4. Liquidus projections of FeO-SiO2-MgO-CaO-O2 with various levels of CaO addition.
Figure 4. Liquidus projections of FeO-SiO2-MgO-CaO-O2 with various levels of CaO addition.
Metals 07 00321 g004

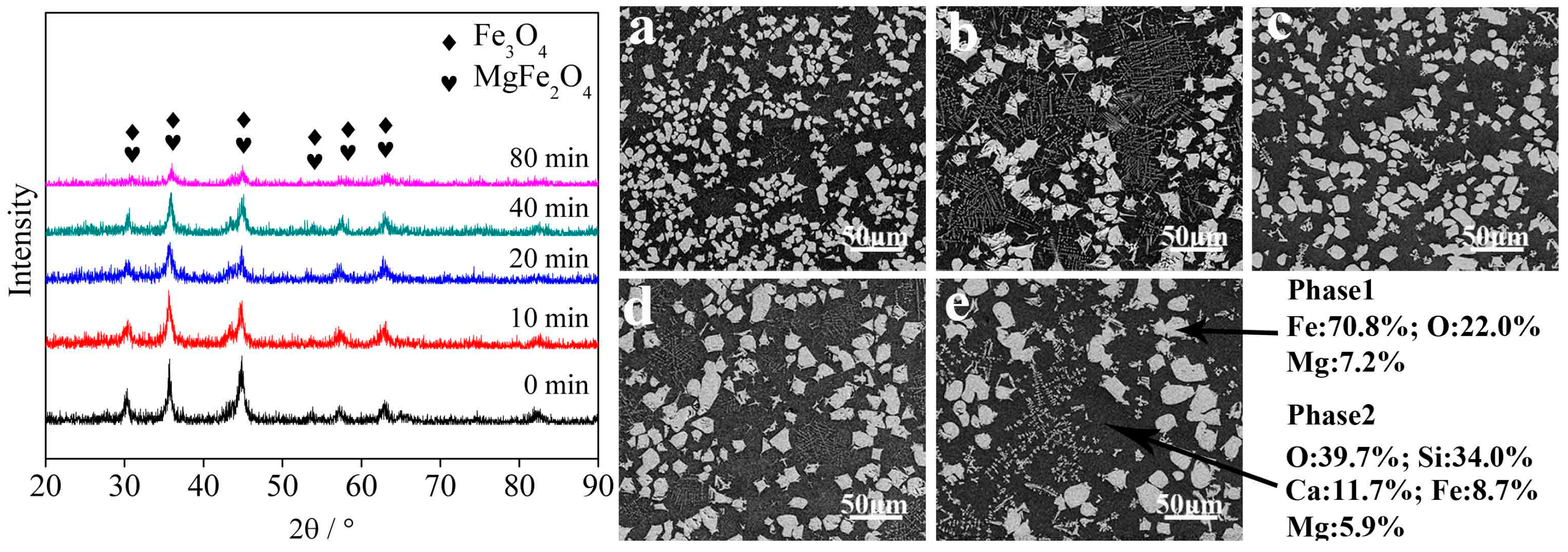

Figure 5. XRD patterns and SEM images of water-quenched samples held for various times. (a) 0 min; (b) 10 min; (c) 20 min; (d) 40 min; (e) 80 min.
Figure 5. XRD patterns and SEM images of water-quenched samples held for various times. (a) 0 min; (b) 10 min; (c) 20 min; (d) 40 min; (e) 80 min.
Metals 07 00321 g005

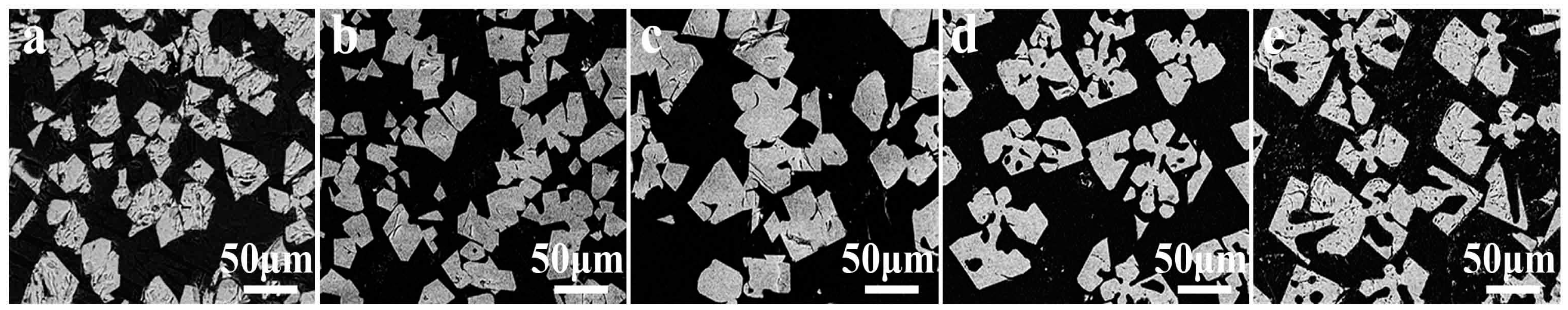

Figure 6. SEM images of cooled samples after treatment at different holding temperatures. (a) 1623 K; (b) 1673 K; (c) 1723 K; (d) 1773 K; (e) 1823 K.
Figure 6. SEM images of cooled samples after treatment at different holding temperatures. (a) 1623 K; (b) 1673 K; (c) 1723 K; (d) 1773 K; (e) 1823 K.
Metals 07 00321 g006

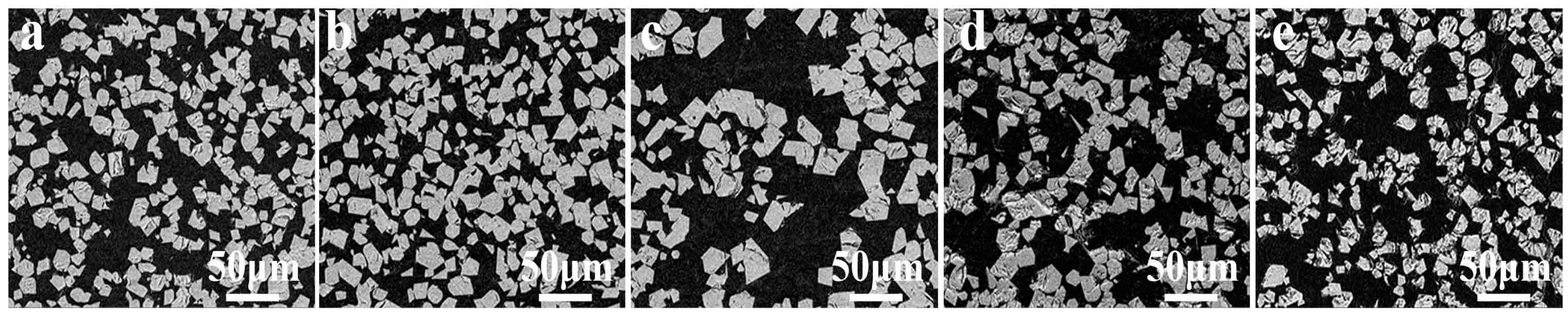

Figure 7. SEM images of cooled samples at various air flow rate. (ae) show 140, 155, 170, 185 and 200 mL/min, respectively.
Figure 7. SEM images of cooled samples at various air flow rate. (ae) show 140, 155, 170, 185 and 200 mL/min, respectively.
Metals 07 00321 g007
Figure 8. SEM images of cooled samples at various basicity. (a) 0.6; (b) 0.7; (c) 0.8; (d) 0.9; (e) 1.0.
Figure 8. SEM images of cooled samples at various basicity. (a) 0.6; (b) 0.7; (c) 0.8; (d) 0.9; (e) 1.0.
Metals 07 00321 g008

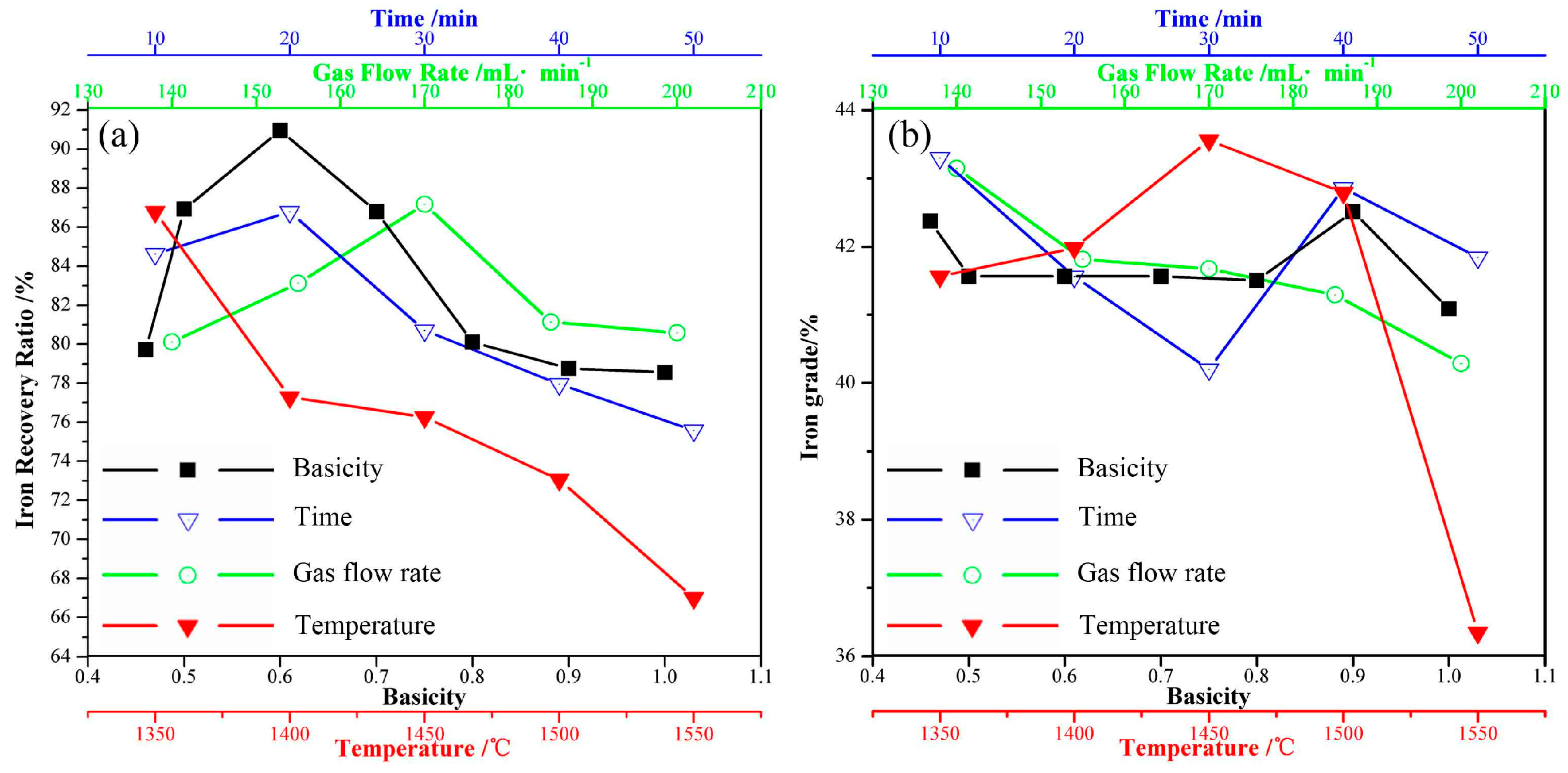

Figure 9. Effect of different factors on the iron recovery (a) and grade (b).
Figure 9. Effect of different factors on the iron recovery (a) and grade (b).
Metals 07 00321 g009

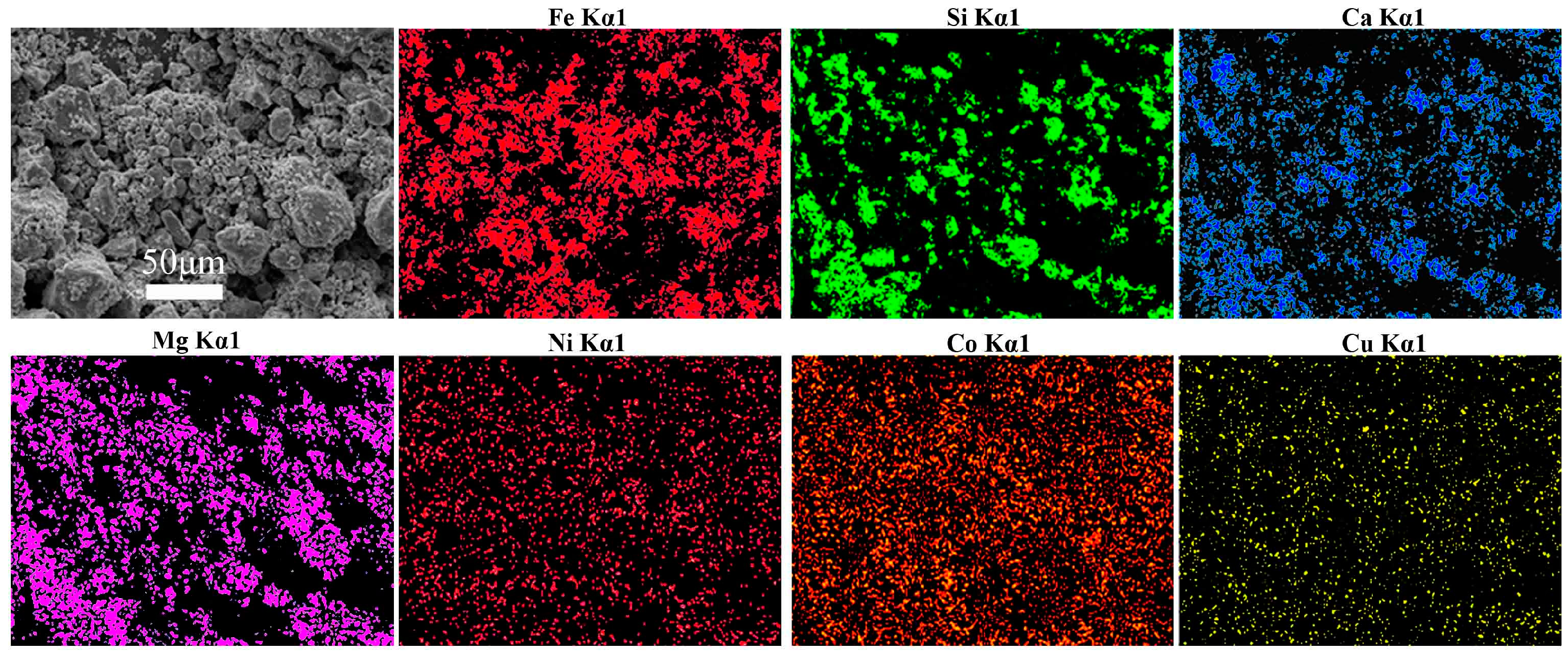

Figure 10. SEM images and elemental scanning maps of the sample separated once.
Figure 10. SEM images and elemental scanning maps of the sample separated once.
Metals 07 00321 g010

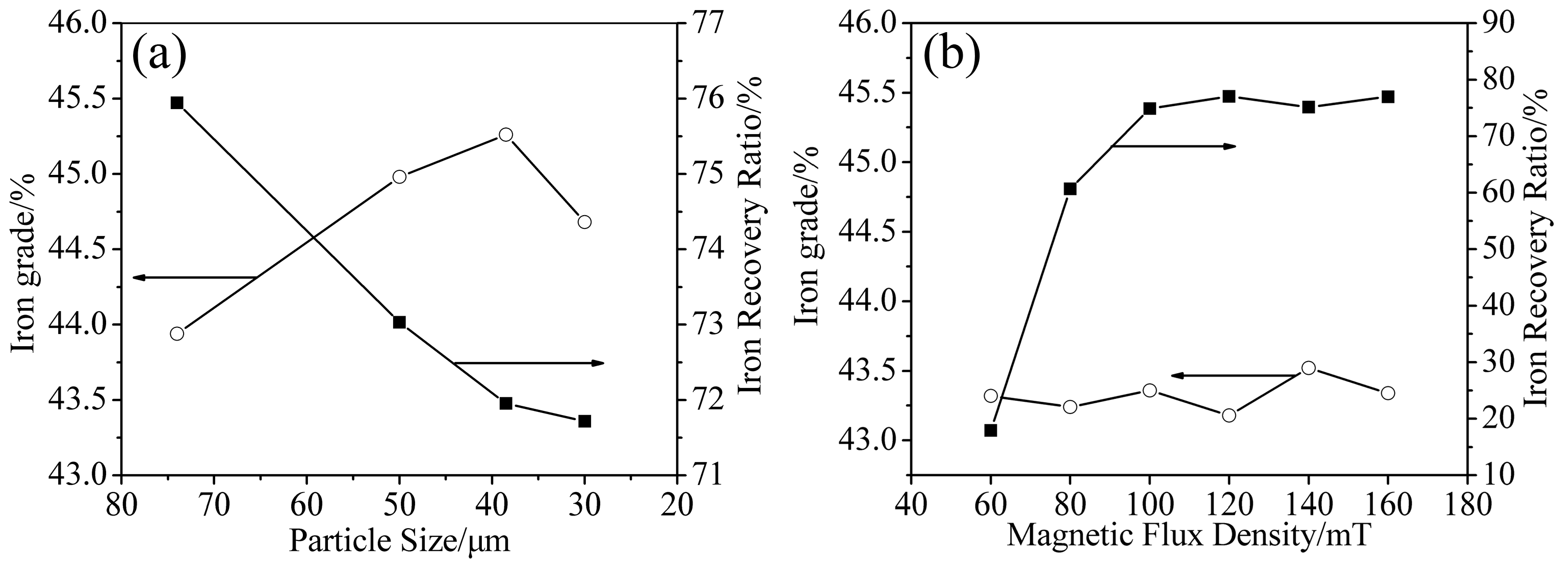

Figure 11. Effect of particle size (a) and magnetic flux density (b) on iron recovery and grade.
Figure 11. Effect of particle size (a) and magnetic flux density (b) on iron recovery and grade.
Metals 07 00321 g011

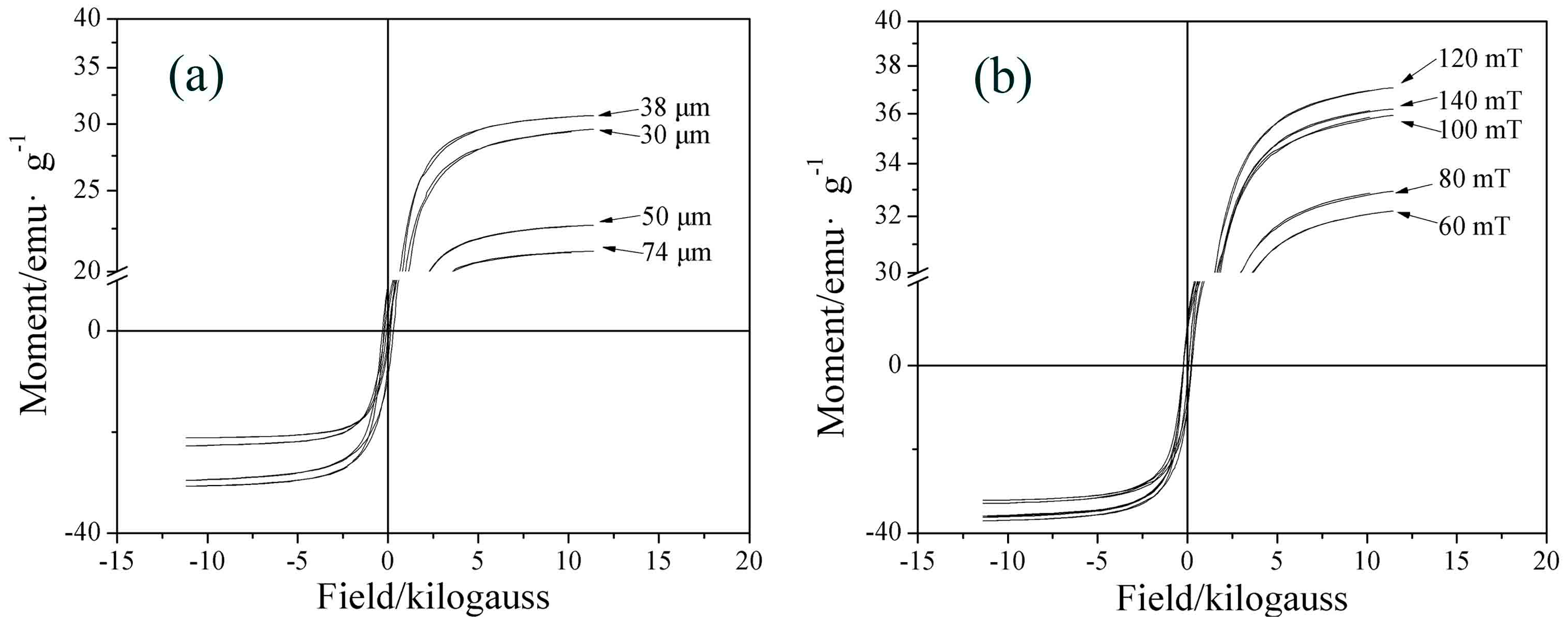

Figure 12. Effect of particle size (a) and magnetic flux density (b) on saturation magnetization.
Figure 12. Effect of particle size (a) and magnetic flux density (b) on saturation magnetization.
Metals 07 00321 g012
Figure 13. Flowsheet of magnetic separation for ONS.
Figure 13. Flowsheet of magnetic separation for ONS.
Metals 07 00321 g013
Table 1. Compositions of nickel slag (wt %).
Table 1. Compositions of nickel slag (wt %).
FeSiMgCaSNiCoCuPbZnAs
39.1920.145.072.561.200.160.080.220.010.050.00048
Table 2. Iron grade, yield and recovery of concentrates (wt %).
Table 2. Iron grade, yield and recovery of concentrates (wt %).
ProductsIron GradeYieldRecovery
IndividualCumulativeIndividualCumulative
Concentrate I42.6470.3970.3983.2283.22
Concentrate II49.8880.4556.6394.1178.32
Concentrate III54.0889.4850.6797.0275.99
Table 3. Compositions of concentrates and tailing slag (wt %).
Table 3. Compositions of concentrates and tailing slag (wt %).
ProductsTFeSiMgCaNiCoCuPbZnAs
Concentrate I42.648.834.813.200.180.100.210.0020.040<0.001
Concentrate II49.887.424.662.480.200.120.230.0010.049<0.001
Concentrate III54.085.043.150.820.210.120.240.0050.049<0.001
Tailing slag18.7120.265.647.030.060.040.140.0150.05<0.001
