# Effect of Structural Heterogeneity of 17Mn1Si Steel on the Temperature Dependence of Impact Deformation and Fracture

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Procedure

## 3. Theoretical Procedure

- The stress ${\varsigma}_{ik}^{n-1}$ at the interface boundary of the i-th element and its k-th neighbor at the (n − 1)-th time step is calculated as the difference of hydrostatic pressures acting from each element of the considered pair:$${\varsigma}_{ik}^{n-1}={p}_{k}^{n-1}-{p}_{i}^{n-1}.$$
- A relation analogous to the Newtonian viscous flow assuming he proportionality between the force and velocity [3] is used to calculate the average velocity of material points ${v}_{ik}^{n}$ moving through a virtual boundary between fixed elements of space under the action of stress ${\varsigma}_{ik}^{n-1}$:$${v}_{ik}^{n}=-{\aleph}_{ik}\cdot {\varsigma}_{ik}^{n-1}.$$$${\aleph}_{ik}={\left({\aleph}_{0}\right)}_{ik}\cdot {\left(\frac{{\eta}_{i}^{n-1}\text{\hspace{0.17em}}+\text{\hspace{0.17em}}{\eta}_{k}^{n-1}}{{N}_{i}^{n}+{N}_{k}^{n}}\right)}^{{\eta}_{i}^{n-1}\text{\hspace{0.17em}}+\text{\hspace{0.17em}}{\eta}_{k}^{n-1}}{e}^{-\frac{{\Im}_{ik}}{{k}_{B}{T}_{ik}}}.$$$${\left({\aleph}_{0}\right)}_{ik}=\frac{c}{{Y}_{i}{Y}_{k}}{e}^{-\frac{{({Y}_{i}-{Y}_{k})}^{2}}{{Y}_{i}{Y}_{k}}},$$$${\Im}_{ik}=\{\begin{array}{cc}{\gamma}_{HAGB}\frac{\Delta ({\overrightarrow{\theta}}_{i},\text{\hspace{0.17em}}{\overrightarrow{\theta}}_{k})}{{\theta}_{HAGB}}\left(1-\mathrm{ln}\frac{\Delta ({\overrightarrow{\theta}}_{i},\text{\hspace{0.17em}}{\overrightarrow{\theta}}_{k})}{{\theta}_{HAGB}}\right),& \text{\hspace{0.17em}}\Delta ({\overrightarrow{\theta}}_{i},\text{\hspace{0.17em}}{\overrightarrow{\theta}}_{k})>0,\\ 0,& \Delta ({\overrightarrow{\theta}}_{i},\text{\hspace{0.17em}}{\overrightarrow{\theta}}_{k})=0\hfill \end{array},$$$$\frac{{\Delta \mathsf{\Lambda}}_{ik}^{n}}{{\mathsf{\Lambda}}_{c}}=\Delta {\beta}_{ik}^{n}=\frac{{v}_{ik}^{n-1}\Delta \tau}{{l}_{c}},$$$$\Delta {E}_{ik}^{n}=\Delta {\beta}_{ik}^{n}{\varsigma}_{ik}^{n-1}\text{\hspace{0.17em}}{\mathsf{\Lambda}}_{c}.$$
- The total relative volume change ($\Delta {\beta}_{i}^{n}$) and the mechanical energy change ($\Delta {E}_{i}^{n}$) of the i-th element are found as a result of its interaction with all of nearest neighbors:$$\Delta {\beta}_{i}^{n}=\frac{{\Delta \mathsf{\Lambda}}_{i}^{n}}{{\mathsf{\Lambda}}_{c}}={\displaystyle \sum _{k=1}^{K}\frac{{\Delta \mathsf{\Lambda}}_{ik}^{n}}{{\mathsf{\Lambda}}_{c}}}={\displaystyle \sum _{k=1}^{K}\Delta {\beta}_{ik}^{n}},$$$$\Delta {E}_{i}^{n}={\displaystyle \sum _{k=1}^{K}\Delta {E}_{ik}^{n}}.$$

_{G}is the total number of grains. At the same time, the following conditions must be satisfied at the zero time step:

## 4. Results and Discussion

#### 4.1. Simulation of Impact Loading Meso-Dynamics at Different Temperatures

^{−1}during the first 500 μs and then extended at the same rate during the next 500 μs (Figure 3b,d). There is no energy exchange through other boundaries.

#### 4.2. Fracture Micromechanisms

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Panin, V.E.; Egorushkin, V.E. Basic Physical Mesomechanics of Plastic Deformation and Fracture of Solids as Hierarchically Organized Nonlinear Systems. Phys. Mesomech.
**2015**, 18, 377–390. [Google Scholar] [CrossRef] - Panin, V.E.; Panin, A.V.; Moiseenko, D.D. Physical mesomechanics of a deformed solid as a multilevel system. II. Chessboard-like mesoeffect of the interface in heterogeneous media in external fields. Phys. Mesomech.
**2007**, 10, 5–14. [Google Scholar] [CrossRef] - Moiseenko, D.D.; Panin, V.E.; Elsukova, T.F. Role of local curvature in grain boundary sliding in a deformed polycrystal. Phys. Mesomech.
**2013**, 16, 335–347. [Google Scholar] [CrossRef] - Makarov, P.V.; Schmauder, S.; Cherepanov, O.I.; Smolin, I.Y.; Romanova, V.A.; Balokhonov, R.R.; Saraev, D.Y.; Soppa, E.; Kizler, P.; Fischer, G.; et al. Simulation of elastic-plastic deformation and fracture of materials at micro-, meso- and macrolevels. Theor. Appl. Fract. Mech.
**2001**, 37, 183–244. [Google Scholar] [CrossRef] - Shilkrot, L.E.; Curtin, W.A.; Miller, R.E. A coupled atomistic/continuum model of defects in solids. J. Mech. Phys. Solids
**2002**, 50, 2085–2106. [Google Scholar] [CrossRef] - Olson, G.B. Computational Design of Hierarchically Structured Materials. Science
**1997**, 277, 1237–1242. [Google Scholar] [CrossRef] - Mura, R.; Ting, T.C.T. Micromechanics of Defects in Solids (2nd rev. ed.). J. Appl. Mech.
**1989**, 56, 487. [Google Scholar] [CrossRef] - Ohashi, T.; Kawamukai, M.; Zbib, H. A multiscale approach for modeling scale-dependent yield stress in polycrystalline metals. Int. J. Plast.
**2007**, 23, 897–914. [Google Scholar] [CrossRef] - Kouznetsova, V.; Geers, M.G.D.; Brekelmans, W.A.M. Multi-scale constitutive modelling of heterogeneous materials with a gradient-enhanced computational homogenization scheme. Int. J. Numer. Methods Eng.
**2002**, 54, 1235–1260. [Google Scholar] [CrossRef] - Kouznetsova, V.G.; Geers, M.G.D.; Brekelmans, W.A.M. Multi-scale second-order computational homogenization of multi-phase materials: A nested finite element solution strategy. Comput. Methods Appl. Mech. Eng.
**2004**, 193, 5525–5550. [Google Scholar] [CrossRef] - Miehe, C. Computational micro-to-macro transitions discretized micro-structures of heterogeneous materials at finite strains based on the minimization of averaged incremental energy. Comput. Methods Appl. Mech. Eng.
**2003**, 192, 559–591. [Google Scholar] [CrossRef] - Panin, V.E.; Egorushkin, V.E.; Panin, A.V.; Chernyavskii, A.G. Plastic distortion as a fundamental mechanism in nonlinear mesomechanics of plastic deformation and fracture. Phys. Mesomech.
**2016**, 19, 255–258. [Google Scholar] [CrossRef] - McDowell, D.L. A perspective on trends in multiscale plasticity. Int. J. Plast.
**2010**, 26, 1280–1309. [Google Scholar] [CrossRef] - Zhu, T.; Li, J.; Samanta, A.; Leach, A.; Gall, K. Temperature and strain-rate dependence of surface dislocation nucleation. Phys. Rev. Lett.
**2008**, 100. [Google Scholar] [CrossRef] [PubMed] - Chen, L.Y.; He, M.; Shin, J.; Richter, G.; Gianola, D.S. Measuring surface dislocation nucleation in defect-scarce nanostructures. Nat. Mater.
**2015**, 14, 707–713. [Google Scholar] [CrossRef] [PubMed] - Nicola, L.; Bower, A.F.; Kim, K.S.; Needleman, A.; Van der Giessen, E. Surface versus bulk nucleation of dislocations during contact. J. Mech. Phys. Solids
**2007**, 55, 1120–1144. [Google Scholar] [CrossRef] - Gale, W.F.; Totemeir, T.C. Smithells Metals Reference Book; Elsevier Butterworth-Heinemann: Oxford, UK, 2004. [Google Scholar]
- Pyshmintsev, I.Y.; Struin, A.O.; Gervasyev, A.M.; Lobanov, M.L.; Rusakov, G.M.; Danilov, S.V.; Arabey, A.B. Effect of bainite crystallographic texture on failure of pipe steel sheets made by controlled thermomechanical treatment. Metallurgist
**2016**, 60, 405–412. [Google Scholar] [CrossRef] - Nykyforchyn, H.; Lunarska, E.; Tsyrulnyk, O.T.; Nikiforov, K.; Genarro, M.E.; Gabetta, G. Environmentally assisted “in-bulk” steel degradation of long term service gas trunkline. Eng. Fail. Anal.
**2010**, 17, 624–632. [Google Scholar] [CrossRef] - Yasnikov, I.S.; Vinogradov, A.; Estrin, Y. Revisiting the Considère Criterion from the Viewpoint of Dislocation Theory Fundamentals. Scr. Mater.
**2014**, 76, 37–40. [Google Scholar] [CrossRef] - Vinogradov, A. Mechanical Properties of ultrafine grained metals: New challenges and perspectives. Adv. Eng. Mater.
**2015**, 17, 1710–1722. [Google Scholar] [CrossRef] - Lehto, P.; Remes, H.; Saukkonen, T.; Hänninen, H.; Romanoff, J. Influence of grain size distribution on the Hall-Petch relationship of welded structural steel. Mater. Sci. Eng. A
**2014**, 592, 28–39. [Google Scholar] [CrossRef] - Zhuang, Z.; O’Donoghu, P.E. The recent development of analysis methodology for rapid crack propagation and arrest in gas pipelines. Int. J. Fract.
**2000**, 101, 269–290. [Google Scholar] [CrossRef] - Han, Y.; Shi, J.; Xu, L.; Cao, W.Q.; Dong, H. Effect of hot rolling temperature on grain size and precipitation hardening in a Ti-microalloyed low-carbon martensitic steel. Mater. Sci. Eng. A
**2012**, 553, 192–199. [Google Scholar] [CrossRef] - Farber, V.M.; Pyshmintsev, I.Yu.; Arabei, A.B.; Selivanova, O.V.; Polukhina, O.N. Contributions of structural factors to the strength of K65 steels. Steel Transl.
**2012**, 42, 687–690. [Google Scholar] [CrossRef] - Bhattacharjee, D.; Knott, J.F.; Davis, C.L. Charpy-impact-toughness prediction using an “Effective” grain size for thermomechanically controlled rolled microalloyed steels. Metall. Mater. Trans. A
**2004**, 35, 121–130. [Google Scholar] [CrossRef] - Smirnov, M.A.; Pyshmintsev, I.Y.; Maltseva, A.N.; Mushina, O.V. Effect of ferrite-bainite structure on the properties of high-strength pipe steel. Metallurgist
**2012**, 56, 43–51. [Google Scholar] [CrossRef] - O’Donoghue, P.E.; Kanninen, M.F.; Lueng, C.P.; Demofonti, G.; Venzi, S. The development and validation of a dynamic fracture propagation model for gas transmission pipelines. Int. J. Press. Vessels Pip.
**1997**, 70, 11–25. [Google Scholar] [CrossRef] - Pyshmintsev, I.Y.; Boryakova, A.N.; Smirnov, M.A.; Krainov, V.I. Influence of the plastic-deformation temperature on the structure and properties of low-carbon pipe steel. Steel Transl.
**2010**, 40, 21–26. [Google Scholar] [CrossRef] - Tsuji, N.; Okuno, S.; Koizumi, Y.; Minamino, Y. Toughness of Ultrafine Grained Ferritic Steels Fabricated by ARB and Annealing Process. Mater. Trans.
**2004**, 45, 2272–2281. [Google Scholar] [CrossRef] - Safarov, I.M.; Korznikov, A.V.; Galeyev, R.M.; Sergeev, S.N.; Gladkovsky, S.V.; Pyshmintsev, I.Y. An anomaly of the temperature dependence of the impact strength of low-carbon steel with an ultrafine-grain structure. Dokl. Phys.
**2016**, 61, 15–18. [Google Scholar] [CrossRef] - Zhao, R.; Han, J.Q.; Liu, B.B.; Wan, M. Interaction of forming temperature and grain size effect in micro/meso-scale plastic deformation of nickel-base superalloy. Mater. Des.
**2016**, 94, 195–206. [Google Scholar] [CrossRef] - Kouznetsova, V.; Brekelmans, W.A.M.; Baaijens, F.P.T. Approach to micro-macro modeling of heterogeneous materials. Comput. Mech.
**2001**, 27, 37–48. [Google Scholar] [CrossRef] - Armstrong, R. The influence of polycrystal grain size on several mechanical properties of materials. Metall. Mater. Trans. B
**1970**, 1, 1169–1176. [Google Scholar] [CrossRef] - Hwang, B.; Kim, Y.G.; Lee, S.; Kim, Y.M.; Kim, N.J.; Yoo, J.Y. Effective grain size and charpy impact properties of high-toughness X70 pipeline steels. Metall. Mater. Trans. A
**2005**, 36, 2107–2114. [Google Scholar] [CrossRef] - Mirzaev, D.A.; Schastlivtsev, V.M.; Yakovleva, I.L.; Tereshchenko, N.A.; Shaburov, D.V. The formation of delamination cracks in impact-toughness tests as a cause of the increase in the impact toughness of steels with bcc structure. Phys. Met. Metallogr.
**2015**, 116, 1253–1258. [Google Scholar] [CrossRef] - Priester, L. Grain Boundaries; Springer Series in Materials Science 172; Springer Science+Business Media: Dordrecht, The Netherlands, 2013. [Google Scholar]
- Chernov, V.M.; Kardashev, B.K.; Moroz, K.A. Low-temperature embrittlement and fracture of metals with different crystal lattices—Dislocation mechanisms. Nucl. Mater. Energy
**2016**, 9, 496–501. [Google Scholar] [CrossRef] - Benac, D.J.; Cherolis, N.; Wood, D. Managing Cold Temperature and Brittle Fracture Hazards in Pressure Vessels. J. Fail. Anal. Prev.
**2016**, 16, 55–66. [Google Scholar] [CrossRef] - Hansen, N. Hall-petch relation and boundary strengthening. Scr. Mater.
**2004**, 51, 801–806. [Google Scholar] [CrossRef] - Shin, S.Y.; Hwang, B.; Lee, S.; Kim, N.J.; Ahn, S.S. Correlation of microstructure and charpy impact properties in API X70 and X80 line-pipe steels. Metall. Mater. Trans. A
**2007**, 458, 281–289. [Google Scholar] [CrossRef] - Panin, S.; Vinogradov, A.; Moiseenko, D.; Maksimov, P.; Berto, F.; Byakov, A.; Eremin, A.; Narkevich, N. Numerical and Experimental Study of Strain Localization in Notched Specimens of a Ductile Steel on Meso- and Macroscales. Adv. Eng. Mater.
**2016**, 18, 2095–2106. [Google Scholar] [CrossRef] - Margolin, B.Z.; Shvetsova, V.A. Brittle fracture criterion: Structural mechanics approach. Strength Mater.
**1992**, 24, 115–131. [Google Scholar] [CrossRef] - Goritskii, V.M.; Shneyderov, G.R.; Lushkin, M.A. Nature of anisotropy of impact toughness of structural steels with ferrite-pearlite structure. Phys. Met. Metall.
**2013**, 114, 877–883. [Google Scholar] [CrossRef] - Panin, S.V.; Maruschak, P.O.; Vlasov, I.V.; Moiseenko, D.D.; Berto, F.; Vinogradov, A. Effect of temperature-force factors and concentrator shape on impact fracture mechanisms of 17Mn1Si steel. Adv. Mater. Sci. Eng.
**2017**, 2017, 12. [Google Scholar] [CrossRef]

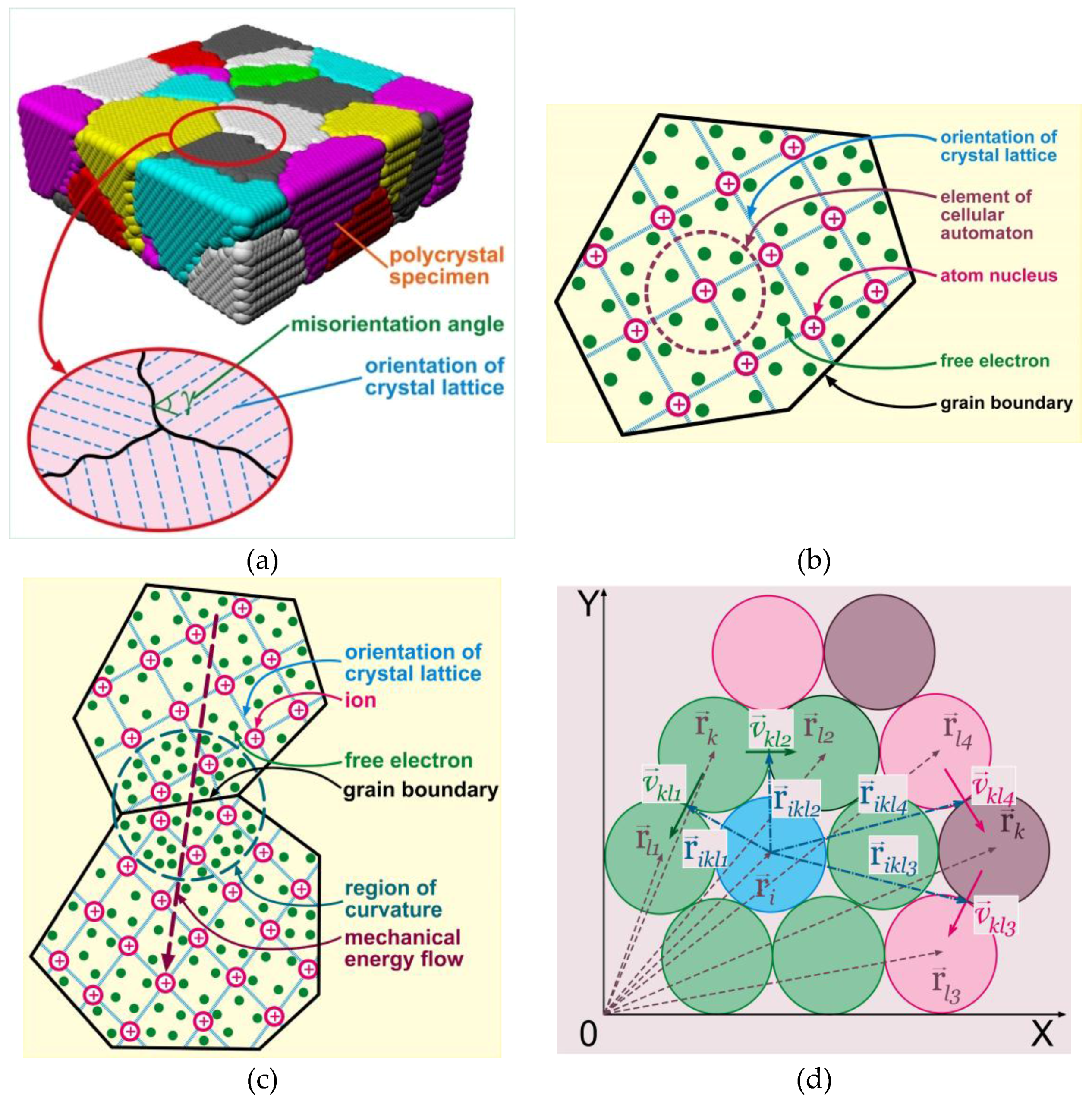

**Figure 1.**Schematic illustrations: (

**a**) polycrystalline specimen as a cellular automaton; (

**b**) grains with crystal lattice; (

**c**) neighboring grains with different lattice orientations; (

**d**) calculation scheme for the angular velocity of material microrotation in the active element of the cellular automaton.

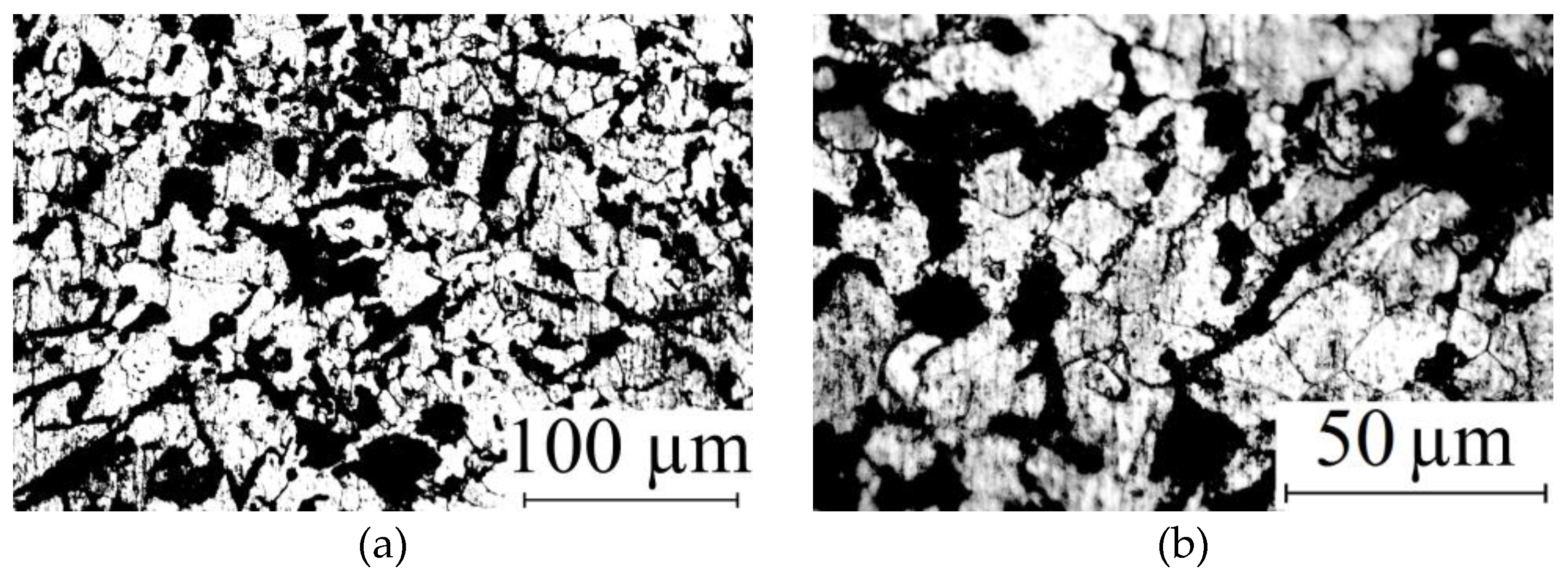

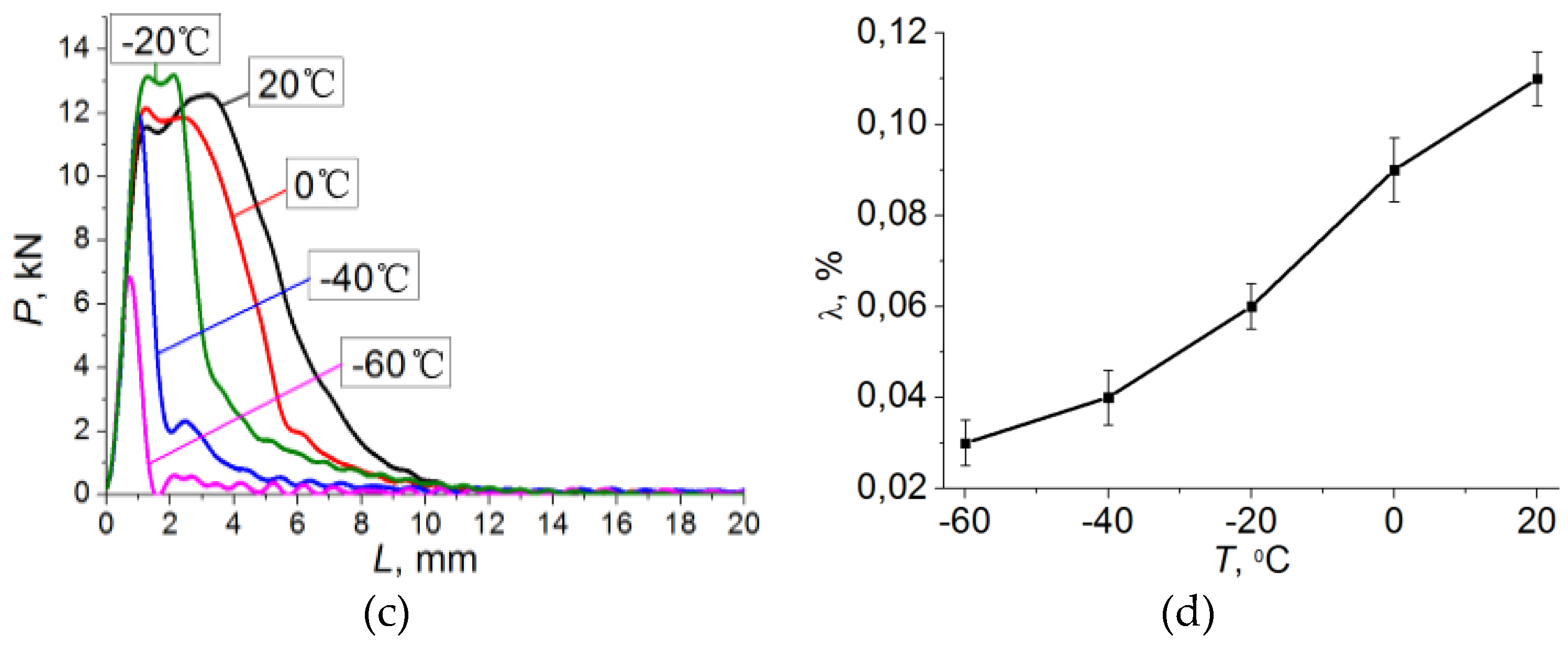

**Figure 2.**(

**a**,

**b**) Optical images of 17Mn1Si steel microstructure in the as-delivered state, (

**c**) impact loading curves in the “load–displacement” coordinates for the specimens with the V-notch tested at different temperatures shown in the legend, (

**d**) dependence of the maximum contraction ratio of specimens λ (%) in the crack growth region on the test temperature T, °C for specimens with different concentrator shapes

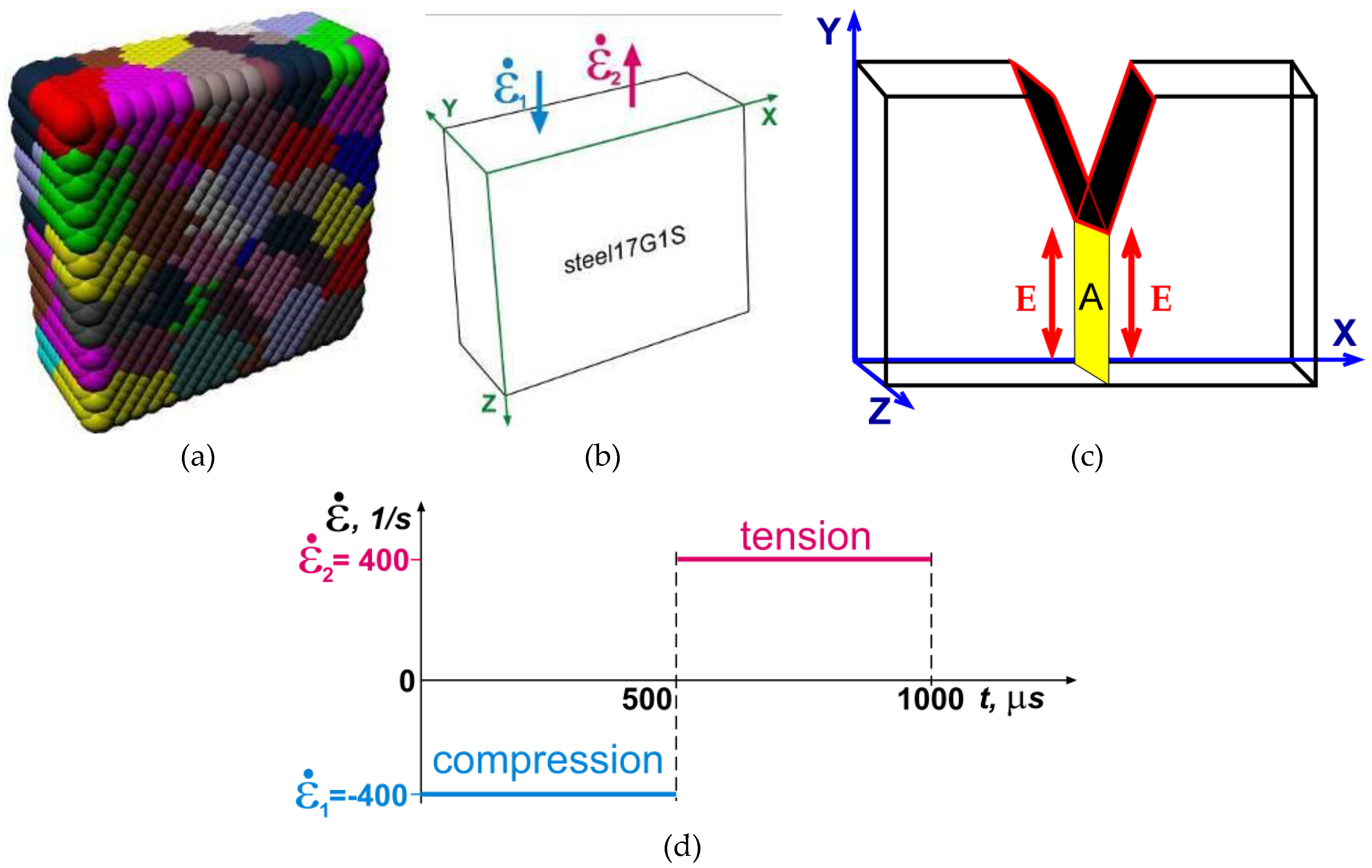

**Figure 3.**Schematic of the specimen or simulated mesoscopic volume (

**a**); deformation scheme (

**b**); position of the simulated specimen (plane A) in the simulated system (

**c**); and time—load dependence (

**d**). E in (

**c**) means residual cross section in the notch tip vicinity.

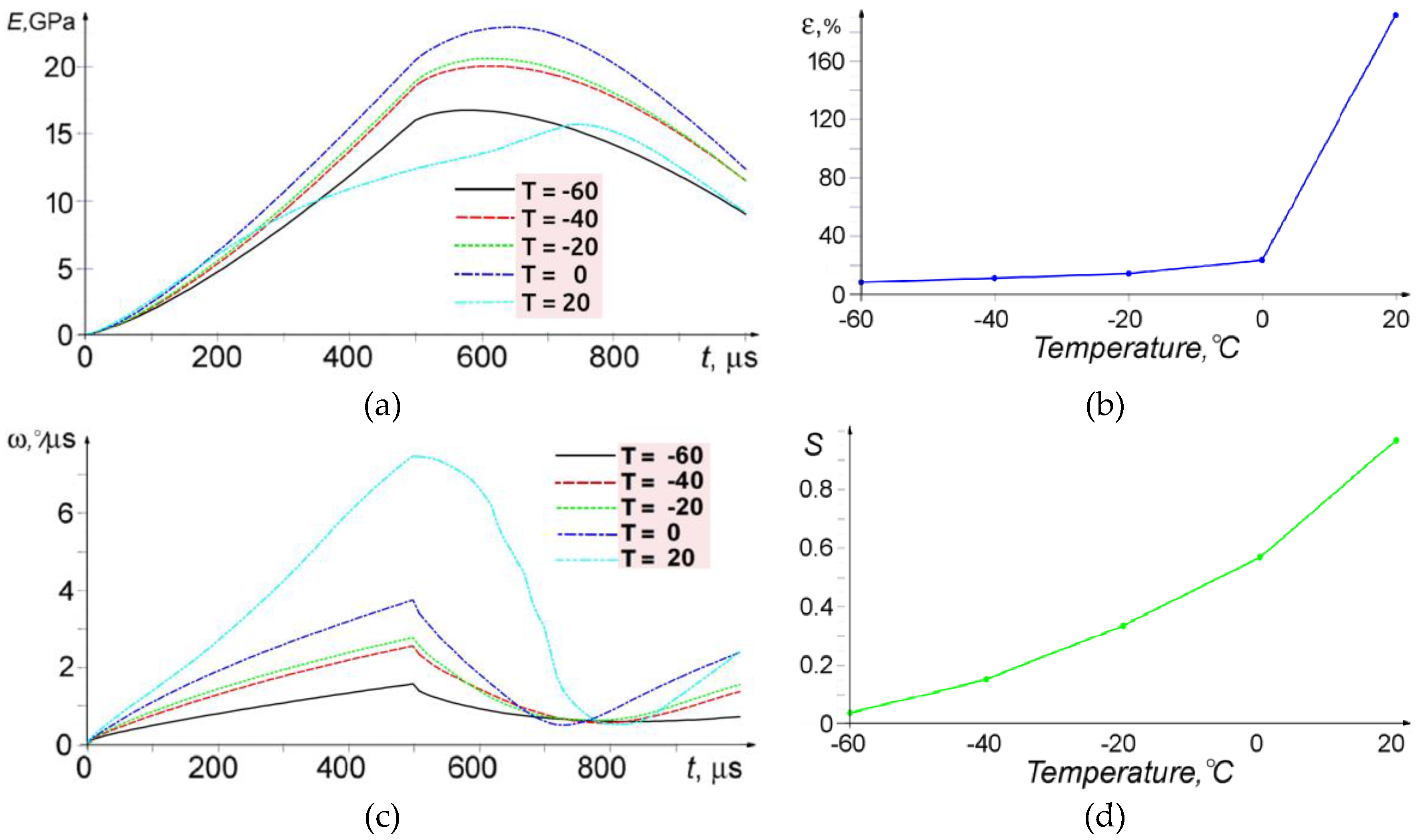

**Figure 4.**Specific elastic energy of specimens vs. time (

**a**); total strain vs. test temperature (500 µm) (

**b**); average angular velocity of microrotations vs. time (

**c**); and fraction of microrotation energy in the total elastic energy supplied vs. test temperature (500 µm) (

**d**). The legends show the temperatures T in °C.

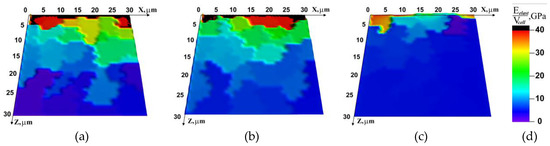

**Figure 5.**Specific elastic energy distribution on specimen faces at different temperatures at 500 μs after the beginning of loading. (

**a**) −60 °C; (

**b**) −20 °C; (

**c**) 20 °C; (

**d**) color legend.

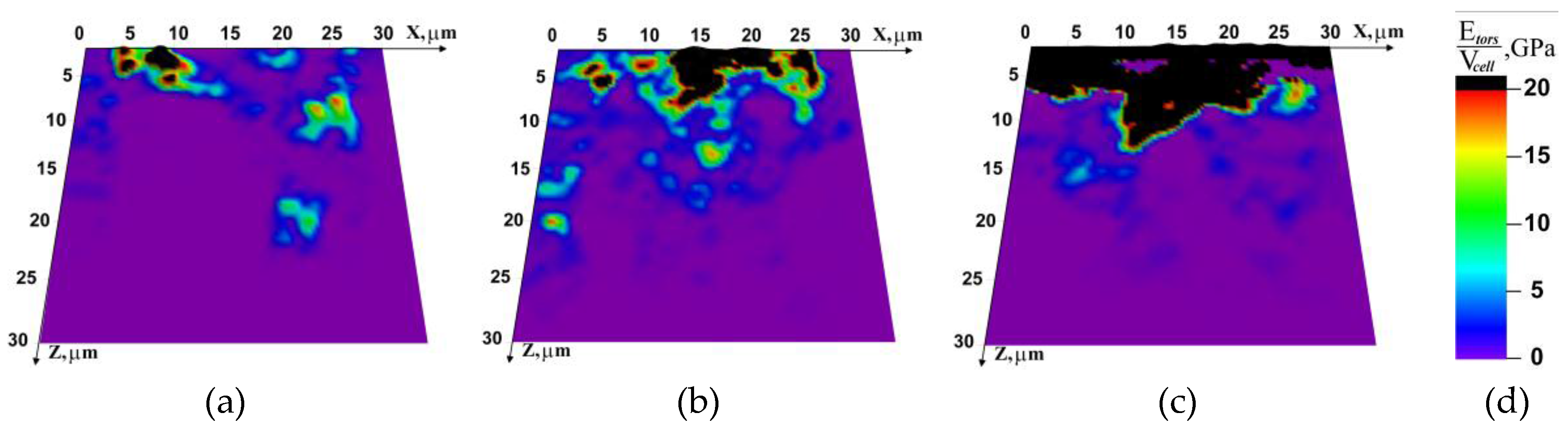

**Figure 6.**Specific rotation energy distribution on specimen faces at different temperatures at 500 μs after the beginning of loading. (

**a**) −60 °C; (

**b**) −20 °C; (

**c**) 20 °C; (

**d**) color legend.

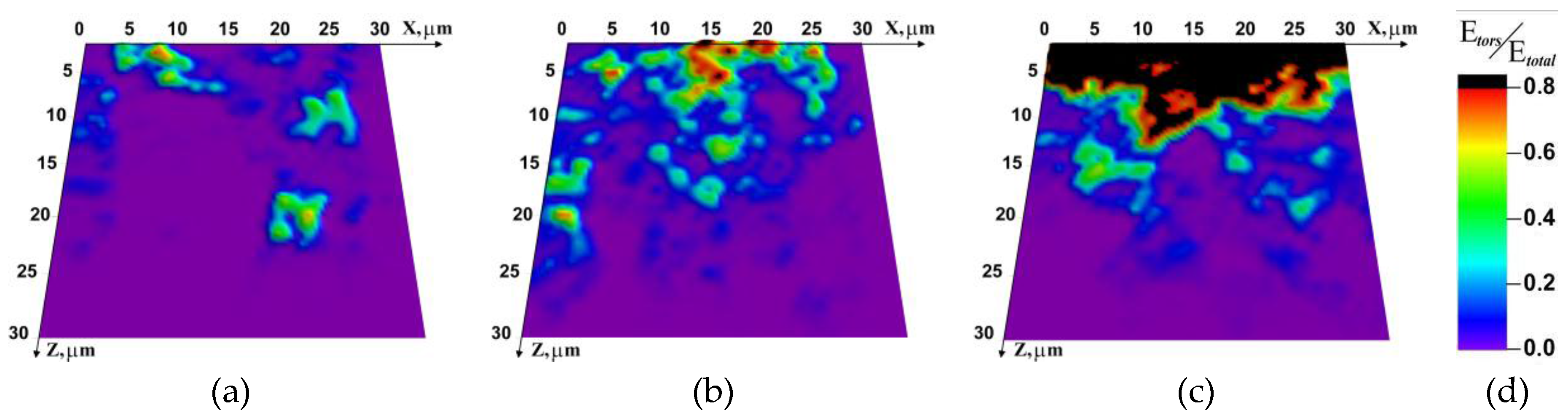

**Figure 7.**Relative rotation energy distribution on specimen faces at different temperatures at 500 μs after the beginning of loading. (

**a**) −60 °C; (

**b**) −20 °C; (

**c**) 20 °C; (

**d**) color legend.

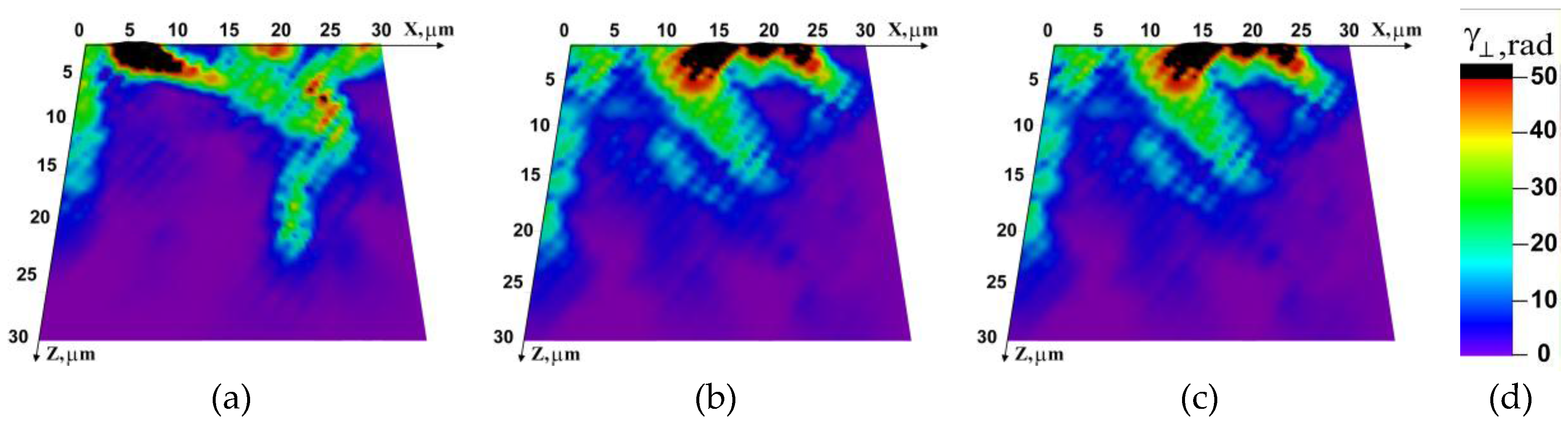

**Figure 8.**Distribution of the accumulated angle of local material rotation ${\gamma}_{\perp}=\sqrt{{\gamma}_{x}^{2}+{\gamma}_{z}^{2}}$ on specimen faces at different temperatures at 500 μs after the start of loading: (

**a**) −60 °C; (

**b**) −20 °C; (

**c**) 20 °C; (

**d**) color legend.

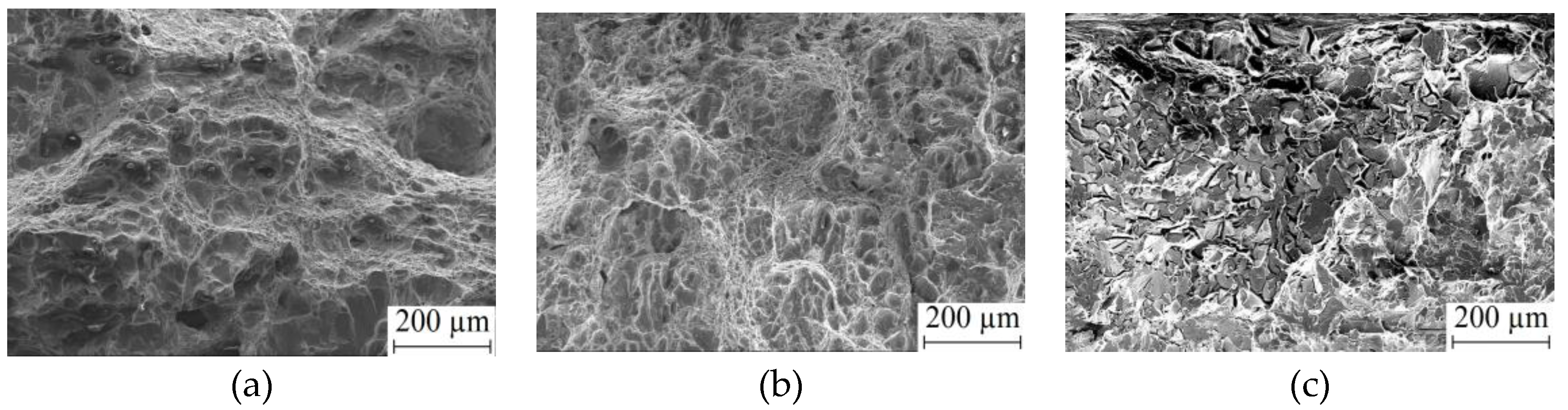

**Figure 9.**Scanning Electron Microscope (SEM) images of the fracture surface of impact bending specimens tested at different temperatures. (

**a**) T = 20 °C; (

**b**) T = −20 °C; (

**c**) T = −60 °C.

**Table 1.**Impact toughness and maximum contraction ratio of specimens λ (%) in the crack growth region.

T, °C | −60 | −40 | −20 | 0 | 20 |
---|---|---|---|---|---|

KCV, J/cm^{2} | 9.3 ± 2 | 20 ± 3 | 46 ± 9 | 60 ± 10 | 73.3 ± 12 |

λ, % | 0.03 ± 0.005 | 0.04 ± 0.006 | 0.06 ± 0.005 | 0.09 ± 0.007 | 0.11 ± 0.006 |

Temperature, K (°C) | 213.2 (−60) | 233.2 (−40) | 253.2 (−20) | 273.2 (0) | 293.2 (20) |
---|---|---|---|---|---|

k_{diss} | 250 | 500 | 1000 | 2000 | 4000 |
