Abstract

:
This paper is devoted to the preparation of high-purity anhydrous nanocrystalline cesium perrhenate, which is applied in catalyst preparation. It was found that anhydrous cesium perrhenate with a crystal size <45 nm can be obtained using cesium ion sorption and elution using aqueous solutions of perrhenic acid with subsequent crystallisation, purification, and drying. The following composition of the as-obtained product was reported: 34.7% Cs; 48.6% Re and <2 ppm Bi; <3 ppm Zn; <2 ppm As; <10 ppm Ni; < 3 ppm Mg; <5 ppm Cu; <5 ppm Mo; <5 ppm Pb; <10 ppm K; <2 ppm Na; <5 ppm Ca; <3 ppm Fe.
Keywords:
cesium; caesium; rhenium; perrhenate; cation resin

1. Introduction

Both cesium and rhenium are classified as rare metals with naturally occurring deposits scattered around the world [1,2]. Molybdenites from porphyry copper deposits are the most important rhenium sources, while cesium can be mainly found in pollucite (CsAlSi2O6) [1,2,3]. Rhenium can be characterised by a high melting temperature (3453 K) and high density (21.0 g/cm3). It can be used in organic and inorganic chemistry, catalysis, and pharmacy [1,3]. Recently, it has been used as an alloy and superalloy additive, while 186Re and 188Re isotopes have been found in radiotherapy [2]. It is catalytically active in hydrogenation and dehydrogenation reactions. It can be used in either heterogeneous or homogenous catalysis of numerous other organic reactions [4,5]. Platinum–rhenium catalysts are used in the petrochemical industry in high-octane petrol production [1]. On the contrary, cesium is soft and one of the most reactive metals, and due to its strong photoelectric effect, is mainly used in photocell production. It may also be found in infrared radiation sensors, organic synthesis, and hydrogenation reaction catalysts. The 137Cs isotope is used in cancer treatment.
Synthesis, properties, and applications of cesium perrhenate are poorly described. In the past, CsReO4 was mainly synthesised to define its physicochemical properties [6]. According to these sources, cesium perrhenate can be obtained by neutralisation of perrhenic acid aqueous solution in the presence of cesium carbonate or hydroxide [7,8,9,10,11], as well as by reaction of sodium perrhenate aqueous solution with cesium chloride [12,13] and by reaction of cesium hydroxide with ammonium perrhenate [14,15]. It was also reported that cesium perrhenate can be used in the synthesis of heterogenous rhenium–cesium catalyst [16,17]. The ion-exchange technique is applied, for example, to nickel(II) and cobalt(II) perrhenate production [18]. There are also reports concerning cesium recovery from nuclear wastewater using different sorbents [19,20,21,22,23,24].
This paper presents the synthesis of high-purity anhydrous nanocrystalline cesium perrhenate, which can be used as a substrate in the preparation of organic and inorganic rhenium compounds, including rhenium catalysts (e.g., methyltrioxorhenium (MTO), rhenium carbonyl (Re2(CO)10) and its derivatives), as well as heterogeneous catalysts containing rhenium and cesium additives (e.g., Al2O3- or SiO2-based. It should be noted that, currently, at the large-laboratory scale, MTO is manufactured from silver perrhenate, while Re2(CO)10 is manufactured from ammonium perrhenate [25,26]. Cesium perrhenate has similar properties to silver and ammonium perrhenates and, therefore, it may be applied in MTO and Re2(CO)10 synthesis. The important benefits of CsReO4 application may be: reaction yield increase, reaction time shortening, and selection of more environmentally friendly solvents.
There are also reports on heterogenous rhenium catalysts doped with cesium. Currently, these catalysts are prepared using aqueous ammonium perrhenate solution as the rhenium source and aqueous cesium nitrate solution as a source of cesium [27]. Replacing these solutions by a single aqueous cesium perrhenate solution may result in: uniform migration of the solution in catalyst support, easier catalyst preparation, and no need to eliminate unnecessary components, like nitrate and ammonium ions.
Currently, only the nuclear industry uses cesium perrhenate on a large scale [28].

2. Experimental Section

2.1. Materials

High-purity perrhenic acid, prepared in the Institute of Non-Ferrous Metals (IMN) in Gliwice using the ion-exchange method, was used as a rhenium source [29,30,31]. Its chemical composition was as follows: 100.0 g/dm3 Re and <20 ppm ammonium ions and <2 ppm As; <2 ppm Bi, <3 ppm Zn, <3 ppm Mg, <3 ppm Cu, <5 ppm Mo, <5 ppm Ni, <5 ppm Pb, <10 ppm K, <3 ppm Ca, <3 ppm Fe, <3 ppm Al, <5 ppm Co [10,11,12]. Cesium nitrate(V) from Alfa Aesar (Chemat, Gdańsk, Poland) was used as a cesium source. Strongly acidic hydrogenated cation-exchange resins (C160, PFC100, CT169 from Purolite (Gdynia, Poland) and S100, SP112 from Bayer Chemicals (ChemTech, Warsaw, Poland) were examined. Double-distilled water with a specific conductivity of <2 μS/cm, 30% hydrogen peroxide solution (Merck, Warsaw, Poland), and acetone (Sigma Aldrich, Poznań, Poland) were used.

2.2. Cesium Perrhenate Preparation—Ion Exchange

A new method of anhydrous nanocrystalline cesium perrhenate synthesis, an alternative to the classical one, was developed. It is composed of two stages: sorption of Cs+ ions and their elution by aqueous solution of perrhenic acid:
sorption: [cationite]-H+ + Cs+ → [cationite]-Cs+ + H+
elution: [cationite]-Cs+ + HReO4 → [cationite]-H+ + CsReO4
Tests were performed in static and dynamic conditions. Preliminary experiments at static conditions allowed the choice of the best-fitted cationite for Cs+ sorption. Then, in further static tests, the effect of selected parameters (temperature, contact time of a solution with ion-exchange resin, and cesium concentration in an initial solution) on Cs+ sorption efficiency of resins was determined. Ion-exchange selection was carried out using the following procedure: 10.0 g of ion-exchange resin was mixed for 30 min at ambient temperature with 100 cm3 of cesium nitrate(V) aqueous solution containing 5.0 g/dm3 Cs and followed by vacuum filtration. Solutions were analysed to estimate cesium content. Cesium sorption efficiency was calculated using the following formula:
W C s = m 0 C s   -   C C s V m 0 C s × 100 %
where: m 0 C s is the cesium mass in a solution before sorption (g); C C s is the cesium concentration in a solution after sorption (g/dm3); and V is the volume of the solution after sorption (dm3).
The effect of temperature, contact time, and cesium concentration of an initial solution on cesium sorption efficiency was conducted in the same conditions as presented for ion-exchange selection. The examined temperature was in the range 293–333 K, with a contact time of 30–120 min, and a cesium concentration of 0.5–20.0 g/dm3. The effect of contact time and cesium concentration on sorption efficiency was examined at ambient temperature, while the effect of cesium concentration was examined for a contact time of 60 min.
In the next stage, the influence of contact time, temperature, and rhenium–cesium ratio on Cs elution was determined. Ion-exchange resins after the sorption stage contained: C160: 4.6% Cs; PFC100: 4.5% Cs; CT169: 4.7% Cs. The procedure was as follows: 5.0 g of ion-exchange resin containing sorbed cesium was magnetically mixed with 10 cm3 perrhenic acid of concentration 100.0 g/dm3 Re. Solutions were mixed for 30 min, and vacuum filtered. Then, cesium content was analysed. The following parameter ranges were examined: contact time 30–180 min, temperature 293–333 K, and rhenium-to-cesium ratio 5:1–30:1. Contact time of 60 min was used to examine the effect of temperature and Re:Cs ratio. Elution efficiency was calculated using the formula:
W C s = C C s V m 0 C s   -   C C s V × 100 %
where: m 0 C s is the cesium mass in a solution before elution (g); C C s is the cesium concentration in a solution after elution (g/dm3); and V ′ is the volume of solution after elution (dm3).
Dynamic tests were carried out according to the following procedure: 100 cm3 CT169 or C160 ion-exchange resins were placed in a column 2.5 cm in diameter. Then, a cesium nitrate(V) solution containing 5.0 g/dm3 Cs was added until the cesium concentration in the effluent reached the initial level. The effluent solution was separated into three portions of 100 cm3 and analysed for cesium content. After, the sorption ion-exchange resin was washed with distilled water until pH 7.0 was reached. Then, 600 cm3 perrhenic acid at a concentration of 100 g Re/dm3 was passed up the column. Ion-exchange resin was washed until neutral pH was reached and used in the next process.
Solutions from elution and the first portion of washing solutions (containing 1.0 g/dm3 Cs) were concentrated. Three operation cycles were performed in this way. The succeeding data were evaluated: cesium ion sorption efficiency: Equation (1), cesium ion elution efficiency: Equation (2), ion-exchange saturation by cesium ions in each stage: Equation (3); OZ1: bed volume for which cesium concentration is <0.01 g/dm3; OZ2: bed volume when the column is totally filled; OZ3: bed volume when cesium concentration is higher than 5.0 g/dm3, for elution; OZ4: bed volume when cesium concentration is higher than 1.0 g/dm3, for elution and washing after elution.
S C s = m 0 C s   -   C C s V m J × 100 %
where: m 0 C s is the cesium mass in a solution before sorption (g); m J is the mass of ion-exchange resin (cm3); C C s is the cesium concentration in solution after sorption (g/dm3); and V is the volume of solution after sorption (dm3).
Solutions from elution and washing after elution were combined in such a way as to obtain different cesium concentrations, namely 3, 5, and 10 g/dm3 in a concentration stage. The volume of solutions directed to crystallisation was constant and equal to 1.5 dm3. Concentrated solutions were intensively mixed at temperatures up to 353 K. Then, solutions were cooled at 0.5 K/min until ambient temperature. Crystallised cesium perrhenate was separated from solutions by filtration. Additionally, cesium perrhenate prepared using 10 g/dm3 Cs solution was divided into five parts and directed to the purification stage. The purification process was a single- or two-step washing of filtered crystals. The washing media were 50 cm3 portions of 5% or 10% aqueous hydrogen peroxide solutions and/or 20 cm3 portions of anhydrous acetone. Purified crystals were dried at 393 K until constant mass. Cesium and rhenium content, as well as selected contaminations (i.e., As, Cu, Zn, Ca, Fe, Mo, Ni, Pb, Na, K, Mg, Bi) were analysed and the crystallite size was evaluated.

2.3. Characterisation

All necessary analyses were performed in the Department of Analytical Chemistry at the Institute of Non-Ferrous Metals in Gliwice. Base element (Re, Cs) content was determined in obtained cesium perrhenates. A weight method using tetraphenylarsenic chloride (CTFA) as the precipitating agent was used to evaluate rhenium content and flame atomic emission spectroscopy (FAES, spectrophotometer AAS novAA400) for cesium content. In order to determine As, Cu, Zn, Ca, Fe, Mo, Ni, Pb, Na, K, Mg, Bi content, different techniques were used: GFAAS (graphite furnace atomic absorption spectroscopy with graphite cells, Z-2000, HITACHI), ICP-OES (inductively coupled plasma—optical emission spectrometer, ULTIMA 2, HORIBA Jobin-Ivon), and ICP-MS (inductively coupled plasma mass spectrometry, ICP MS NexION). Solutions were analysed to evaluate rhenium and cesium content by FAAS (flame atomic absorption spectroscopy equipped with flame module and deuter background correction, SOLAAR S4, THERMO). X-ray diffraction analysis was performed using Co Kα radiation and an Fe filter (XRD 7, Seifert-FPM). Based on the XRD pattern, the crystallite size was calculated using the Scherrer method without accounting for stresses. Crystallite size can be calculated using the formula:
L = K λ B ( 2 θ ) c o s θ
where: L is the crystallite size, K is the shape factor ca. 0.9 if crystallites are spherical, λ is the X‑ray wavelength, θ is Bragg’s angle, and B ( 2 θ ) is the line-broadening at half-maximum.

3. Results and Discussion

3.1. Ion-Exchange Resin Selection—Sorption Stage

In the preliminary experiments concerning ion-exchange resin selection, it was found that all materials had above 65.0% efficiency of cesium ion sorption. The highest values were recorded for PFC100 and C160—above 90.0% cesium sorption. Results are presented in Table 1. CT169, C160, and PFC100 were selected for further investigations.

3.2. Influence of Temperature on Cesium Ion Sorption Efficiency

No influence of this parameter on sorption was observed for C160 ion-exchange resin. For the other materials, a slight sorption increase with increasing temperature was observed. Due to that observation, and the lower stability of ion exchange resins at elevated temperatures, all tests were performed at ambient temperature. The results are presented in Table 2.

3.3. Influence of Contact Time on Cesium Ion Sorption Efficiency

No influence of contact time on cesium ion sorption efficiency was found for C160 ion-exchange resin while, for PFC100 and CT169, a significant increase was observed for longer contact times. Therefore, 60 min was selected as a required contact time for further static measurements. Results are presented in Figure 1.

3.4. Influence of Cesium Concentration on Cesium Ion Sorption Efficiency

Cesium concentration in nitrate(V) solutions before sorption was in the range 0.5–20.0 g/dm3. It was found that, for CT169, efficiency of cesium ions was 99% when a solution of concentration 5.0 g/dm3 was used. Additionally, C160 and PFC100 had slightly lower cesium sorption efficiencies. For cesium concentration higher than 5.0 g/dm3, about 90% sorption efficiency was observed, regardless of the type of ion-exchange resin. The results are presented in Figure 2.

3.5. Ion-Exchange Selection—Elution Stage

Elution tests allowed the distinguishing and selection of the best appropriate ion-exchange resins. A high value of cesium ion elution was observed for C160 and CT169. It should be noted that these resins had high stability and appropriate sorption parameters. These materials were chosen for further experiments to perform cesium ion elution tests. The results are presented in Table 3.

3.6. Influence of Contact Time vs. Elution Efficiency

It was established that cesium ion elution efficiency slightly increased with increase of contact time. The time of 60 min was assumed to be optimal for further research. Results are presented in Figure 3.

3.7. Influence of Temperature on Cesium Ion Elution Efficiency

No temperature influence on elution efficiency for CT169 and C160 was observed. Results are presented in Table 4.

3.8. Influence of Rhenium-to-Cesium Ratio on Cesium Ion Elution Efficiency

The rhenium-to cesium ratio increase in a solution enhances Cs+ ion elution efficiency. It was found that at least a 10 times excess of rhenium with respect to cesium was required to exceed 90% cesium elution efficiency for CT169 resin. In the case of C160, the highest elution efficiency (92%) was reported for a rhenium-to-cesium ratio 30:1. Results are presented in Figure 4. CT169 was chosen as the best resin and it was used in dynamic tests.

3.9. Analysis of Three Cycles of CT169 in Dynamic Conditions

Sorption and elution tests of cesium ions allowed the determination of CT169 as the most appropriate resin for this purpose. Based on these results, optimum process parameters for dynamic tests were presented. Three operation cycles were performed using CT169. Results of cesium ion sorption are presented in Figure 5 and Table 5, while elution results are shown in Figure 6 and Table 6. High and stable sorption parameters, 75%–70% sorption efficiency and 4.5%–4.6% ion-exchange saturation, by cesium ions were obtained. Elution was very effective with an efficiency significantly above 95.0% in all cycles. It should be pointed out that a slight increase in the efficiency was observed in subsequent cycles, which indicates proper operation of the ion-exchange resin.
Results of crystallisation tests are presented in Table 7. It was found that over 80% efficiency of cesium perrhenate crystallisation may be achieved when cesium concentration in a solution is higher than 5.0 g/dm3 Cs. Impurity contents before and after purification are shown in Table 8 and Table 9, respectively. The proposed two-step crystal purification method—with 50 cm3 10% aq. H2O2 solution, followed by 20 cm3 acetone washing—allowed for obtaining nanocrystalline cesium perrhenate containing stoichiometric amounts of cesium and rhenium (i.e., 34.7% Cs and 48.6% Re and <2 ppm Bi; <3 ppm Zn; <2 ppm As; <10 ppm Ni; <3 ppm Mg; <5 ppm Cu; <2 ppm Na; <5 ppm Ca; <3 ppm Fe; <5 ppm Mo; <5 ppm Pb; <10 ppm K). XRD analysis of the crystals (Figure 7) proved that cesium perrhenate was prepared.

3.10. Scheme of the Developed Technology

The results of the experiments allowed the development of a technological scheme to produce high-purity nanocrystalline cesium perrhenate, which is patent-pending [32].
The developed method of anhydrous cesium perrhenate preparation is composed of eight technological blocks (Figure 8). Firstly, aqueous cesium nitrate solutions are directed to cesium sorption stage, where the solution is transferred through a CT169 ion-exchange resin bed placed inside an ion-exchange column. Sorption is performed down the columns at room temperature. The solution–bed contact time is up to 60 min. After the sorption stage the ion-exchange resin is washed using demineralised water, while post-sorption and post-washing solution streams are connected and directed to the initial solution preparation. The washed column containing the bed with sorbed cesium is eluted downward with aqueous perrhenic acid solution at room temperature, so the eluent–resin contact time is above 120 min. The eluate is collected as a single portion and directed to concentration and crystallisation, while the eluted bed is washed with demineralised water. The post-washing solutions obtained after elution are divided into two portions—the first one is connected with the solution directed to the concentration stage, while the second one, together with mother liquors and post-purification solutions, is directed to waste management. The solution obtained after the second part of elution, containing more than 5.0 g/dm3 Cs, is directed to concentration and crystallisation. The concentration stage is carried out at a temperature not exceeding 80 °C, preferably under vigorous stirring. Then, the solution is quenched and cesium perrhenate is crystallised. The crystals are filtered from a solution and washed with 10% aq. hydrogen peroxide solution and anhydrous acetone. Finally, the prepared cesium perrhenate crystals (≤45 nm) are dried at 120 °C until constant mass.
The proposed method, and its process conditions, allow the preparation of anhydrous nanocrystalline (≤45 nm) cesium perrhenate of stoichiometric composition in a reproducible way (Table 10).

4. Conclusions

It was found that the ion-exchange method with strongly acidic cation-exchange resin (CT169) was able to produce extra-pure anhydrous cesium perrhenate with crystallite size <45 nm and with the following composition: 34.7% Cs; 48.6% Re; <2 ppm Bi; <3 ppm Zn; <2 ppm As; <10 ppm Ni; <3 ppm Mg; <5 ppm Cu; <2 ppm Na; <5 ppm Ca; <3 ppm Fe; <5 ppm Mo; <5 ppm Pb; <10 ppm K. Using this method, 2.0 kg cesium perrhenate was prepared.

Acknowledgments

This work was supported by The Polish State Committee for Scientific Research, Project No. PBS2/A5/40/2014 and by own funds.

Author Contributions

K.L.S. and G.B. conceived and designed the experiments; K.L.S. and J.M. performed the experiments; K.L.S., G.B. and M.D. analysed the data; K.L.S. and M.C. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Roskil Information Services. Economics of Caesium and Rubidium (Reports on Metals & Minerals); Roskill Information Services: London, UK, 1984; p. 51. [Google Scholar]
  2. Leddicotte, G.W. The Radiochemistry of Rhenium; Subcomitee on Radiochemistry National Academy of Sciences—National Research Council: Washington, DC, USA, 1961. [Google Scholar]
  3. Roskil. Rhenium: Market Outlook to 2020; Roskill Information Services: London, UK, 2010; p. 51. [Google Scholar]
  4. Ryashentseva, M.A. Rhenium-containing catalysts in reactions of organic compounds. Russ. Chem. Rev. 1998, 67, 157–177. [Google Scholar] [CrossRef]
  5. Kuninobu, Y.; Takai, K. Organic Reactions Catalyzed by Rhenium Carbonyl Complexes. Chem. Rev. 2011, 111, 1938–1953. [Google Scholar] [CrossRef] [PubMed]
  6. Shugurov, S.M.; Lopatin, S.I. Thermochemical Study of Gaseous Salts of Oxygen-Containing Acids: XXIV.1 Polymers of Alkali Metals Perrenates. Russ. J. Gen. Chem. 2008, 78, 1882–1888. [Google Scholar] [CrossRef]
  7. Range, K.-J.; Rögner, P.; Heyns, A.M.; Prinsloo, L.C. An X-Ray, Raman and IR Study of α-CsReO4, the High-Temperature Modification of Cesium Perrhenate. Z. Naturforsch. 1992, 47b, 1513–1520. [Google Scholar] [CrossRef]
  8. Rögner, P.; Range, K.-J. The Crystal Structure of β-CsReO4, the Room-Temperature Modification of Cesium Perrhenate. Z. Naturforsch. 1993, 48b, 685–687. [Google Scholar] [CrossRef]
  9. Smith, W.T.; Long, S.H. The Salts of Perrhenic Acid. I. The Alkali Metals and Ammonium. J. Am. Chem. Soc. 1948, 70, 354–356. [Google Scholar] [CrossRef]
  10. Lukas, W.; Chatillon, C.; Alliber, M. The thermodynamic activity of LiReO4 in the LiReO4-CsReO4 system as determined by mass spectrometry. J. Less-Common Met. 1979, 66, 211–217. [Google Scholar] [CrossRef]
  11. Arthers, S.A.; Beattie, I.R.; Gomme, R.A.; Jones, P.J.; Ogden, J.S. Matrix Isolation Studies on Alkali Metal Perrhenates: The Shape and Vibrational Assignments of Caesium Perrhenate, CsReO4. J. Chem. Soc. Dalton Trans. 1983, 7, 1461–1464. [Google Scholar] [CrossRef]
  12. Hurd, L.C. The Determination of Rhenium. Ind. Eng. Chem. Anal. Ed. 1936, 8, 112–114. [Google Scholar] [CrossRef]
  13. Process for Electroplating Magnetic Films for High Density Recording. Available online: https://docs.google.com/viewer?url=patentimages.storage.googleapis.com/pdfs/US3704211.pdf (accessed on 23 December 2016).
  14. Alkylene Oxide Catalysts Having Enhanced Activity and/or Stability. Available online: https://docs.google.com/viewer?url=patentimages.storage.googleapis.com/pdfs/US5504053.pdf (accessed on 23 December 2016).
  15. Kleppa, O.J.; Meschel, S.V. Thermochemistry of anion mixture in simple fused salt systems. II. Solutions of some salts of Mo4 and Mo4−2 anions in the corresponding alkali nitrates. J. Phys. Chem. 1963, 67, 2750–2753. [Google Scholar] [CrossRef]
  16. Kawai, T.; Goto, H.; Yamazaki, Y.; Ishikawa, T. Metathesis of n-alkenes over a CsNO3-Re2O7-Al2O3 catalyst. J. Mol. Catal. 1988, 46, 157–172. [Google Scholar] [CrossRef]
  17. Process for Converting C5 Olefinic Cuts by Metathesis Using a Catalyst Based on Rhenium and Cesium. Available online: https://docs.google.com/viewer?url=patentimages.storage.googleapis.com/pdfs/US6235958.pdf (accessed on 23 December 2016).
  18. Leszczyńska-Sejda, K.; Benke, G.; Chmielarz, A.; Anyszkiewicz, K.; Satora, W.; Kozub, K. Hydrometallurgical Methods for Production of Ni(ReO4)2 and Co(ReO4)2. In Proceedings of the European Metallurgical Conference EMC 2013, Weimar, Germany, 23–26 June 2016; Eicke, S., Hahn, M., Eds.; GDMB: Clausthal-Zellerfeld, Germany, 2013; pp. 885–898. [Google Scholar]
  19. Duignan, M.R.; Nash, C.A. Removal of Cesium from Savannah River Site Waste with Spherical Resorcinol Formaldehyde Ion Exchange Resin: Experimental Tests. Sep. Sci. Technol. 2010, 45, 1828–1840. [Google Scholar] [CrossRef]
  20. Awual, M.R.; Suzuki, S.; Taguchi, T.; Shiwaku, H.; Okamoto, Y.; Yaita, T. Radioactive cesium removal from nuclear wastewater by novel inorganic and conjugate adsorbents. Chem. Eng. J. 2014, 242, 127–135. [Google Scholar] [CrossRef]
  21. Awual, M.R. Ring size dependent crown ether based mesoporous adsorbent for high cesium adsorption from wastewater. Chem. Eng. J. 2016, 303, 539–546. [Google Scholar] [CrossRef]
  22. Awual, M.R.; Miyazaki, Y.; Taguchi, T.; Shiwaku, H.; Yaita, T. Encapsulation of cesium from contaminated water with highly selective facial organic–inorganic mesoporous hybrid adsorbent. Chem. Eng. J. 2016, 291, 128–137. [Google Scholar] [CrossRef]
  23. Awual, M.R.; Yaitaa, T.; Taguchi, T.; Shiwaku, H.; Suzuki, S.; Okamoto, Y. Selective cesium removal from radioactive liquid waste by crownether immobilized new class conjugate adsorbent. J. Hazard. Mater. 2014, 278, 227–235. [Google Scholar] [CrossRef] [PubMed]
  24. Lai, Y.C.; Chang, Y.R.; Chen, M.L.; Lo, Y.K.; Lai, J.Y.; Lee, D.J. Poly(vinyl alcohol) and alginate cross-linked matrix with immobilized. Bioresour. Technol. 2016, 214, 192–198. [Google Scholar] [CrossRef] [PubMed]
  25. Leszczyńska-Sejda, K.; Benke, G.; Anyszkiewicz, K.; Chmielarz, A. Metylotrioxorhenium(VII) as catalyst of important organic reactions. Przem. Chem. 2008, 87, 1102–1105. [Google Scholar]
  26. Hermann, W.; Kratzer, R.M.; Fisher, R.W. Alkylrhenium Oxides from Perrhenates: A New, Economical Access to Organometallic Oxide Catalysts. Angew. Chem. Int. Ed. Engl. 1997, 36, 2652–2654. [Google Scholar] [CrossRef]
  27. Kojima, R.; Enomoto, H.; Muhler, M.; Aika, K. Cesium-promoted rhenium catalysts supported on alumina for ammonia synthesis. Appl. Catal. A 2003, 246, 311–322. [Google Scholar] [CrossRef]
  28. U.S. Nuclear Regulatory Commision. § 30.71 Schedule B; United States Nuclear Regulatory Commission: North Bethesda, MD, USA, 2007.
  29. Leszczyńska-Sejda, K.; Benke, G.; Anyszkiewicz, K. Opracowanie metod otrzymywania kwasu nadrenowego z nadrenianu amonu. Przem. Chem. 2006, 85, 847. [Google Scholar]
  30. Leszczyńska-Sejda, K.; Benke, G.; Chmielarz, A.; Krompiec, S.; Michalik, S.; Krompiec, M. Synthesis of perrhenic acid using ion exchange method. Hydrometallurgy 2007, 89, 289–296. [Google Scholar] [CrossRef]
  31. Leszczyńska-Sejda, K.; Benke, G.; Anyszkiewicz, K. Zastosowanie jonitów do sorpcji jonów amonowych z wodnych roztworów renianu(VII) amonu. Przem. Chem. 2008, 87, 289–295. (In Polish) [Google Scholar]
  32. Leszczyńska-Sejda, K.; Benke, G.; Malarz, J.; Drzazga, M.; Ciszewski, M. Sposób Wytwarzania Bezwodnego Renianu(VII) Cezu. Polish Patent Application P.419867, 20 December 2016. [Google Scholar]

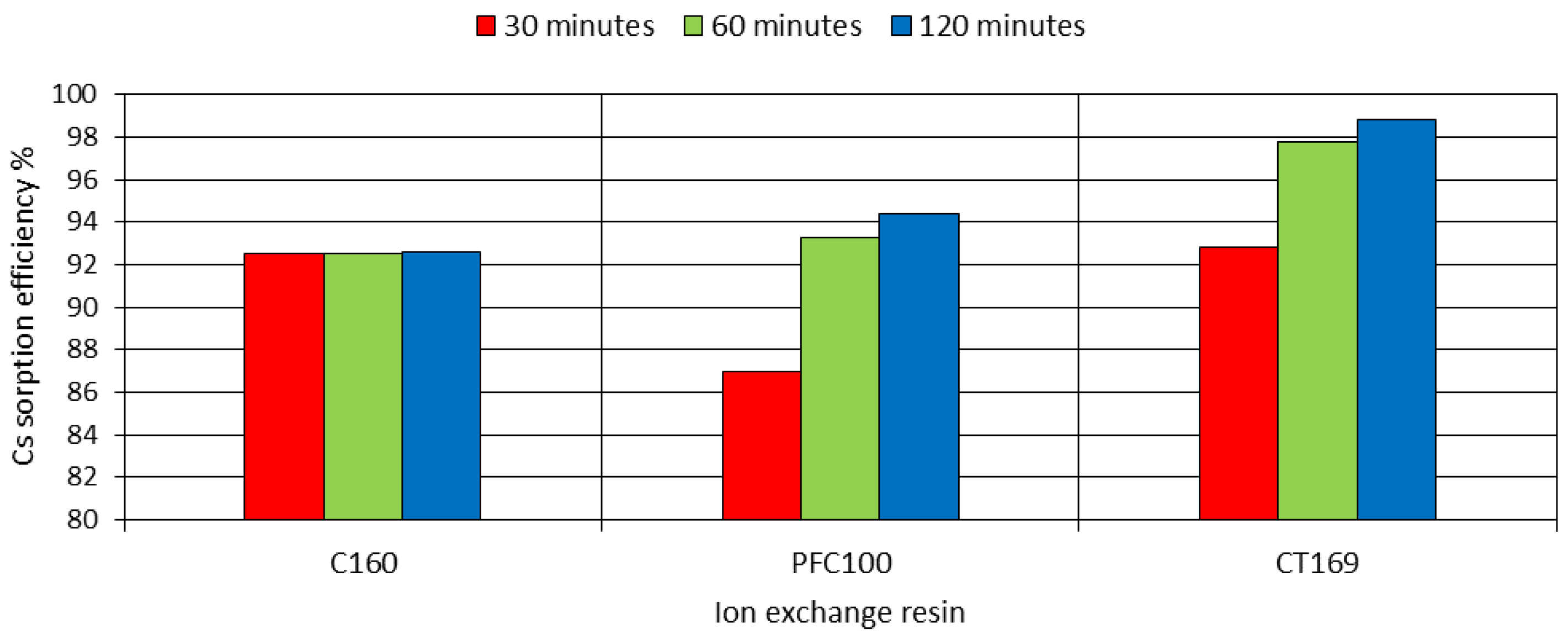

Figure 1. Influence of contact time on cesium ion sorption efficiency.
Figure 1. Influence of contact time on cesium ion sorption efficiency.
Metals 07 00096 g001

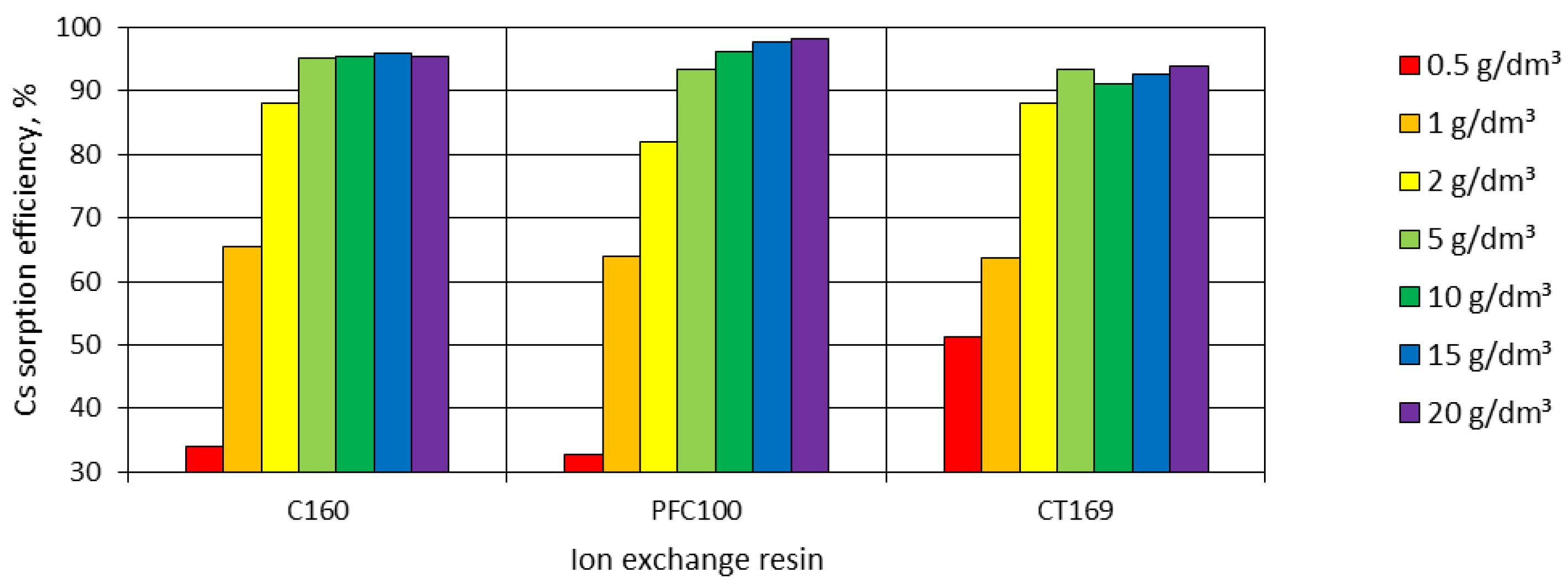

Figure 2. Influence of cesium concentration on cesium ion sorption efficiency.
Figure 2. Influence of cesium concentration on cesium ion sorption efficiency.
Metals 07 00096 g002
Figure 3. Influence of contact time on cesium ion elution efficiency.
Figure 3. Influence of contact time on cesium ion elution efficiency.
Metals 07 00096 g003
Figure 4. Influence of rhenium-to-cesium ratio on cesium ion elution efficiency.
Figure 4. Influence of rhenium-to-cesium ratio on cesium ion elution efficiency.
Metals 07 00096 g004

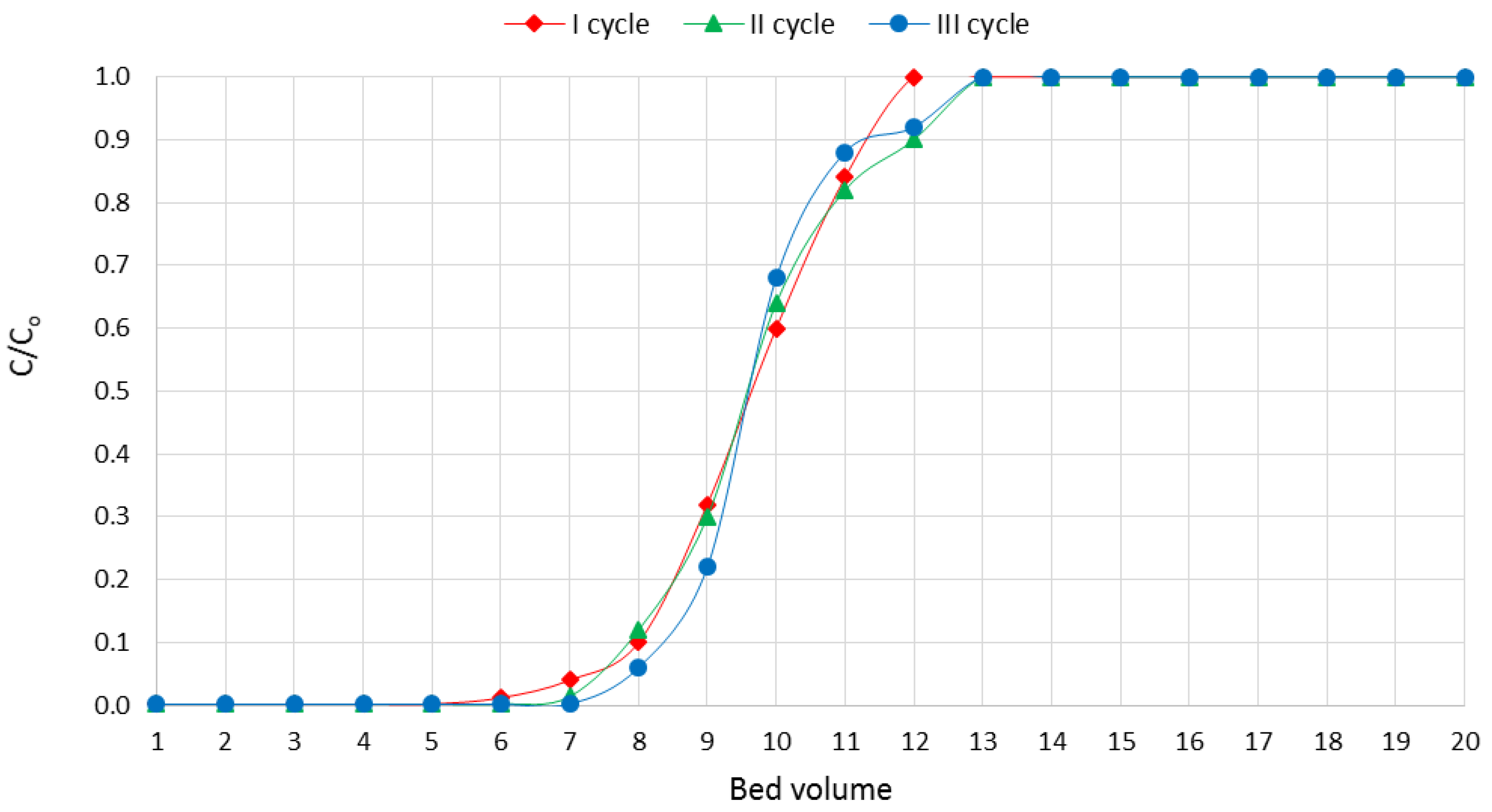

Figure 5. Characteristics of CT169 during sorption.
Figure 5. Characteristics of CT169 during sorption.
Metals 07 00096 g005

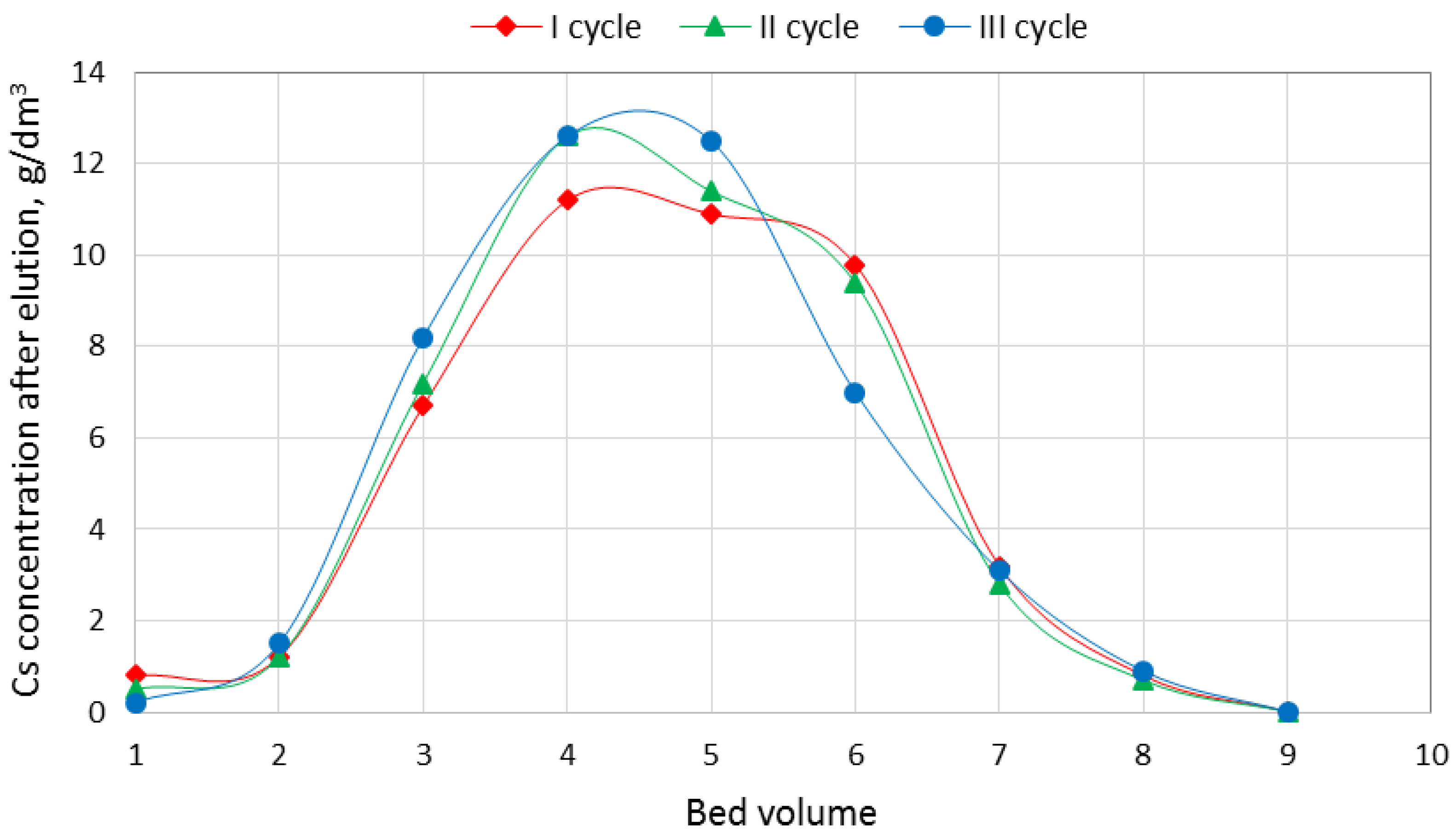

Figure 6. Characteristics of CT169 during elution.
Figure 6. Characteristics of CT169 during elution.
Metals 07 00096 g006

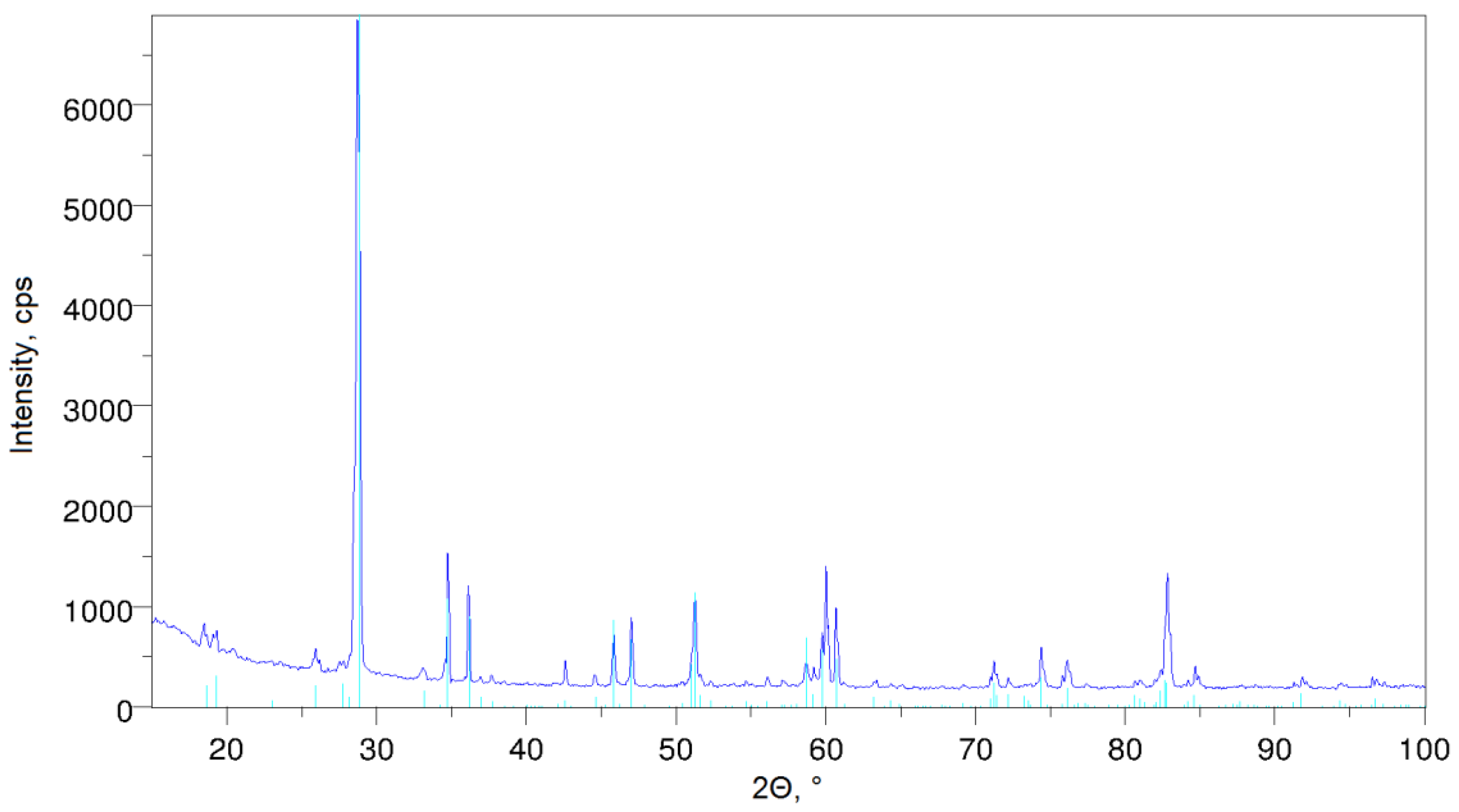

Figure 7. X-ray powder diffraction (XRD) patterns of cesium perrhenate crystals. (dark blue—sample pattern; light blue—database data).
Figure 7. X-ray powder diffraction (XRD) patterns of cesium perrhenate crystals. (dark blue—sample pattern; light blue—database data).
Metals 07 00096 g007

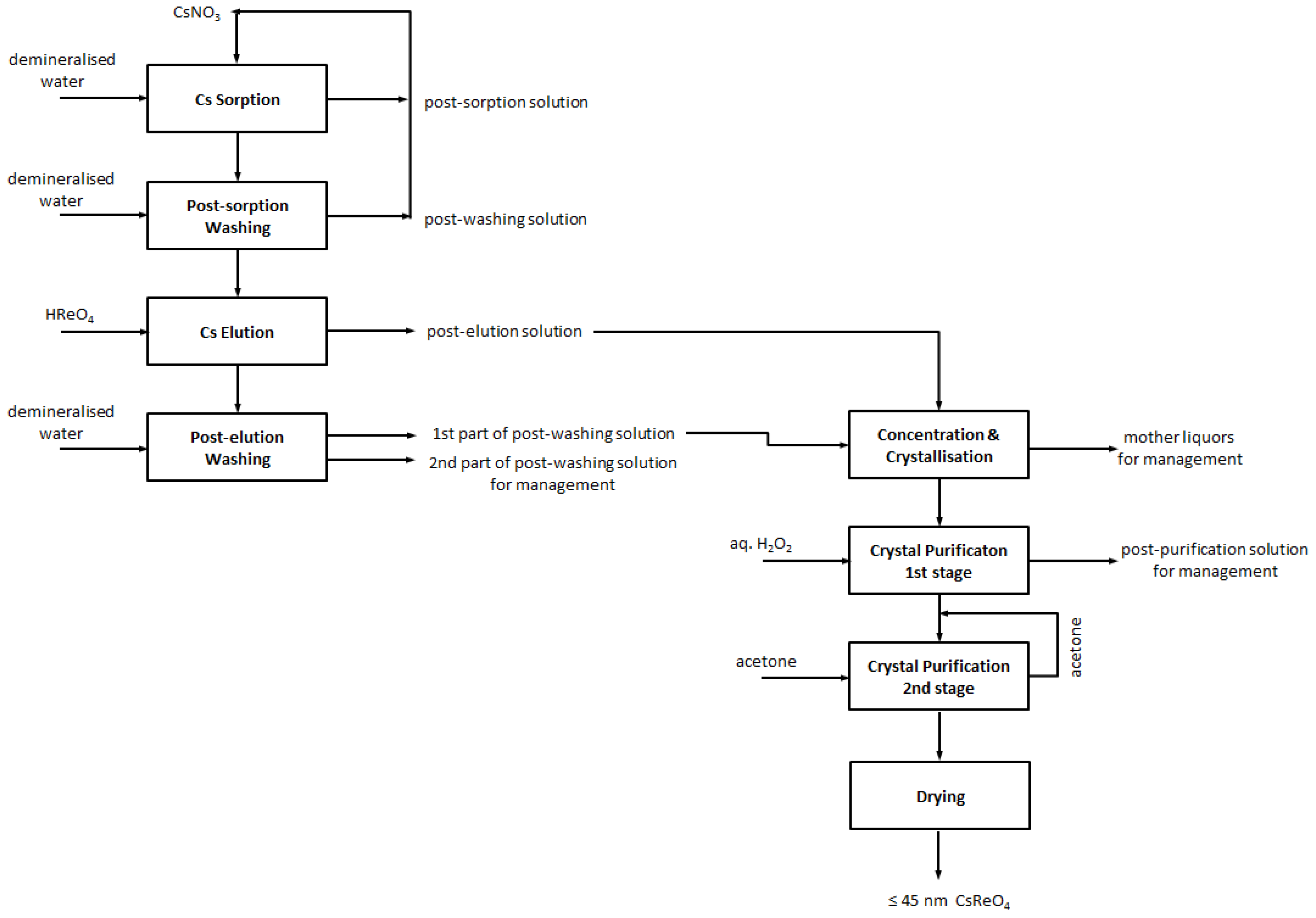

Figure 8. Technological scheme of anhydrous nanocrystalline cesium perrhenate preparation.
Figure 8. Technological scheme of anhydrous nanocrystalline cesium perrhenate preparation.
Metals 07 00096 g008
Table 1. Results of ion-exchange resin selection for cesium sorption.
Table 1. Results of ion-exchange resin selection for cesium sorption.
Ion-Exchange ResinVolume of a Solution after SorptionCs Concentration in a Solution after SorptionCs+ Sorption Efficiency
cm3g/cm3%
S1001101.371.4
SP1121151.467.8
PFC1001250.490.0
CT1691200.392.8
C1601250.392.5
Table 2. Results of the effect of temperature on cesium ion sorption efficiency.
Table 2. Results of the effect of temperature on cesium ion sorption efficiency.
Ion Exchange ResinTemperatureVolume of a Solution after SorptionCs Concentration in a Solution after SorptionCs+ Sorption Efficiency
Kcm3g/cm3%
C1602931250.392.5
3131200.392.8
3331250.392.5
CT1692931200.392.8
3131200.197.6
3331260.197.5
PFC1002931250.490.0
3131200.295.2
3331250.295.0
Table 3. Results of ion-exchange resin selection for cesium sorption.
Table 3. Results of ion-exchange resin selection for cesium sorption.
Ion-Exchange ResinVolume of a SolutionCs Concentration in a Solution after ElutionCs+ Elution Efficiency
cm3g/cm3%
C160258.188.0
CT169249.496.0
PFC100254.550.0
Table 4. Influence of temperature on cesium ions elution efficiency.
Table 4. Influence of temperature on cesium ions elution efficiency.
Ion-Exchange ResinTemperatureVolume of a SolutionCs Concentration in a Solution after ElutionCs+ Sorption Efficiency
Kcm3g/cm3%
CT169293249.597.0
313249.496.0
333249.597.0
C160293249.397.0
313239.898.0
333239.898.0
Table 5. Parameters for cesium ion sorption—CT169.
Table 5. Parameters for cesium ion sorption—CT169.
Cycle No.OZ1OZ2WCs, %SCs, %
I51275.64.5
II61370.74.6
III61370.94.6
Table 6. Parameters for cesium ions elution—CT169.
Table 6. Parameters for cesium ions elution—CT169.
Cycle No.OZ3OZ4W′Cs, %
I4698.3
II4699.6
III4699.7
Table 7. Results of CsReO4 crystallisation tests.
Table 7. Results of CsReO4 crystallisation tests.
Test No.c0KCs (g/dm3)c0KRe (g/dm3)Crystallite Size (nm)Crystals Mass (g)XCs (%)XRe (%)WKCsReO4 (%)
10.856.0- *1.10- *- *31.8
23.275.0449.1034.8849.2565.8
35.285.04018.0034.8048.8980.1
410.598.03540.0034.7548.6188.2
* analysis not done due to crystal mass being too small; c0KCs: concentration of cesium in a solution directed to crystallisation; c0KRe: concentration of rhenium in a solution directed to crystallisation; XCs: cesium content in crystals; XRe: rhenium content in crystals; WKCsReO4: crystallisation efficiency (i.e., ratio of crystals’ mass to theoretical mass calculated according to Cs content in a solution).
Table 8. Impurity contents in crystallised CsReO4.
Table 8. Impurity contents in crystallised CsReO4.
Test No.Bi (ppm)Na (ppm)As (ppm)Ni (ppm)Mg (ppm)Cu (ppm)Ca (ppm)Fe (ppm)Zn (ppm)Mo (ppm)K (ppm)Pb (ppm)
1<250<24815<5<51210<5<10<5
24838161512
34750122015
Table 9. Impurity contents after purification.
Table 9. Impurity contents after purification.
Ni (ppm)Mg (ppm)Na (ppm)Fe (ppm)Zn (ppm)
No purification5012472015
5% H2O2321020515
10% H2O2<101015<312
acetone4651565
10% H2O2 + acetone<10<3<2<3<3
Table 10. Separation and purification of cesium perrhenate.
Table 10. Separation and purification of cesium perrhenate.
Volume of Solution Sent for ConcentrationCs Concentration in a Solution for ConcentrationRe Concentration in a Solution for ConcentrationCrystallite SizeCrystallisation Efficiency
cm3g/dm3g/dm3nm%
3000.856.0--
3003.275.04465.5
3005.285.04080.2
30010.598.03585.6
