Next Article in Journal
Role of Microstructure Heterogeneity on Fatigue Crack Propagation of Low-Alloyed PM Steels in the As-Sintered Condition
Previous Article in Journal
The BCC/B2 Morphologies in AlxNiCoFeCr High-Entropy Alloys
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Metals 2017, 7(2), 59;

Microstructure and Oxidation Behavior of CrAl Laser-Coated Zircaloy-4 Alloy

Department of Advanced Materials Engineering, Hanbat National University, 125 Dongseo-daero, Yuseong-gu, Daejeon 34158, Korea
Light Water Reactor Fuel Technology Division, Korea Atomic Energy Research Institute, 989-111 Daedek-daero, Yuseong-gu, Daejeon 34057, Korea
Author to whom correspondence should be addressed.
Received: 24 October 2016 / Accepted: 10 February 2017 / Published: 15 February 2017
Full-Text   |   PDF [3419 KB, uploaded 16 February 2017]   |

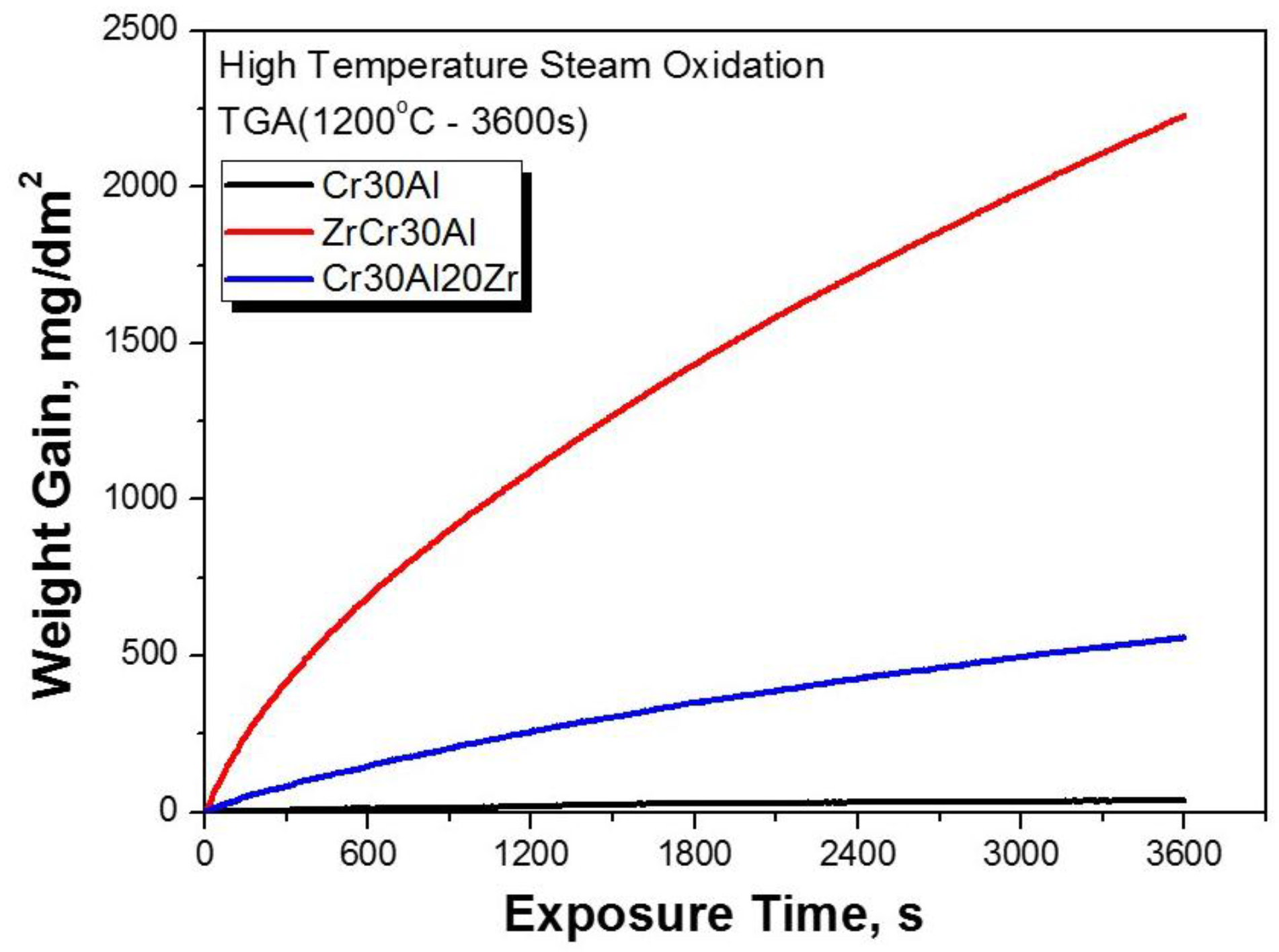

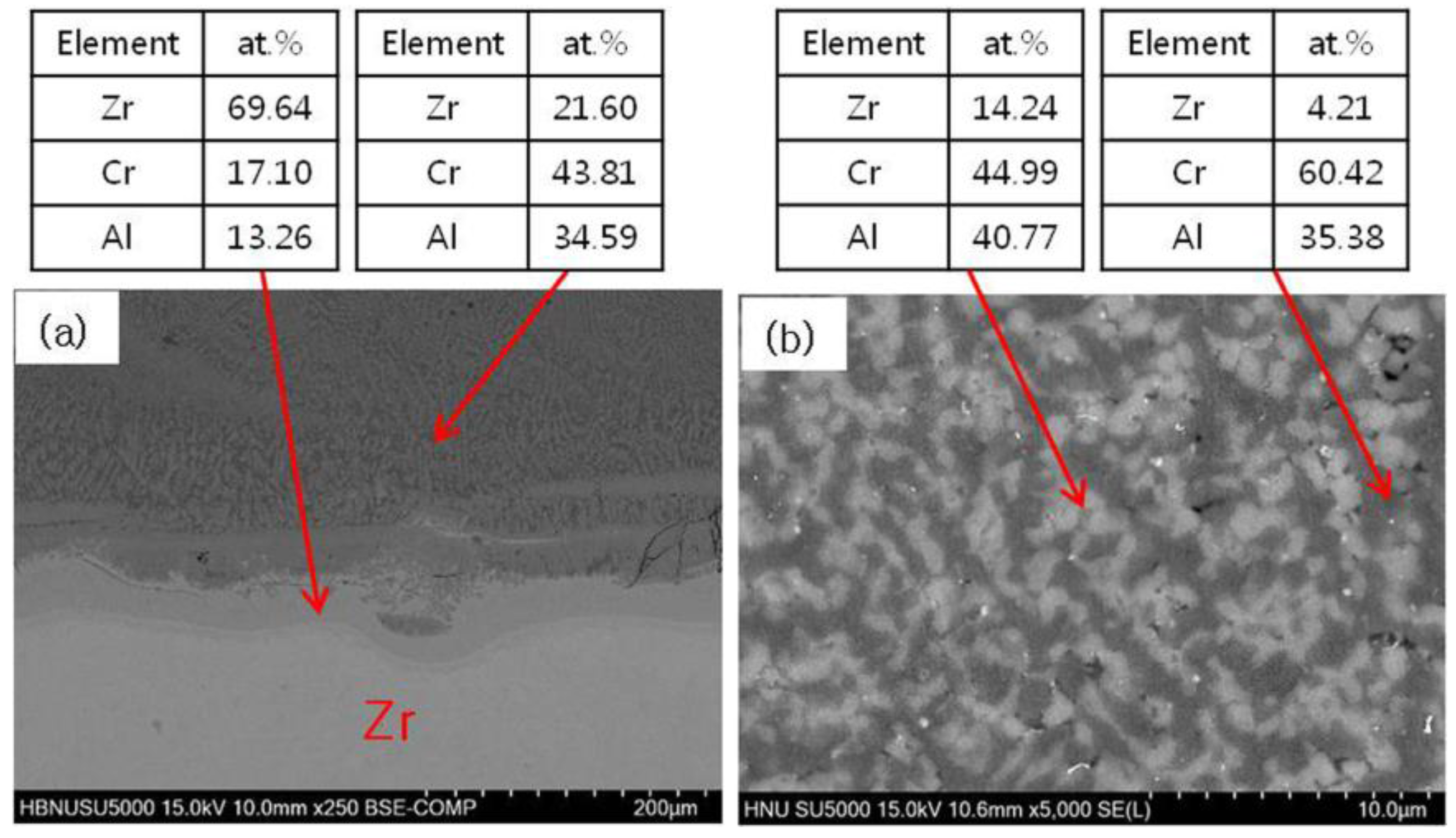

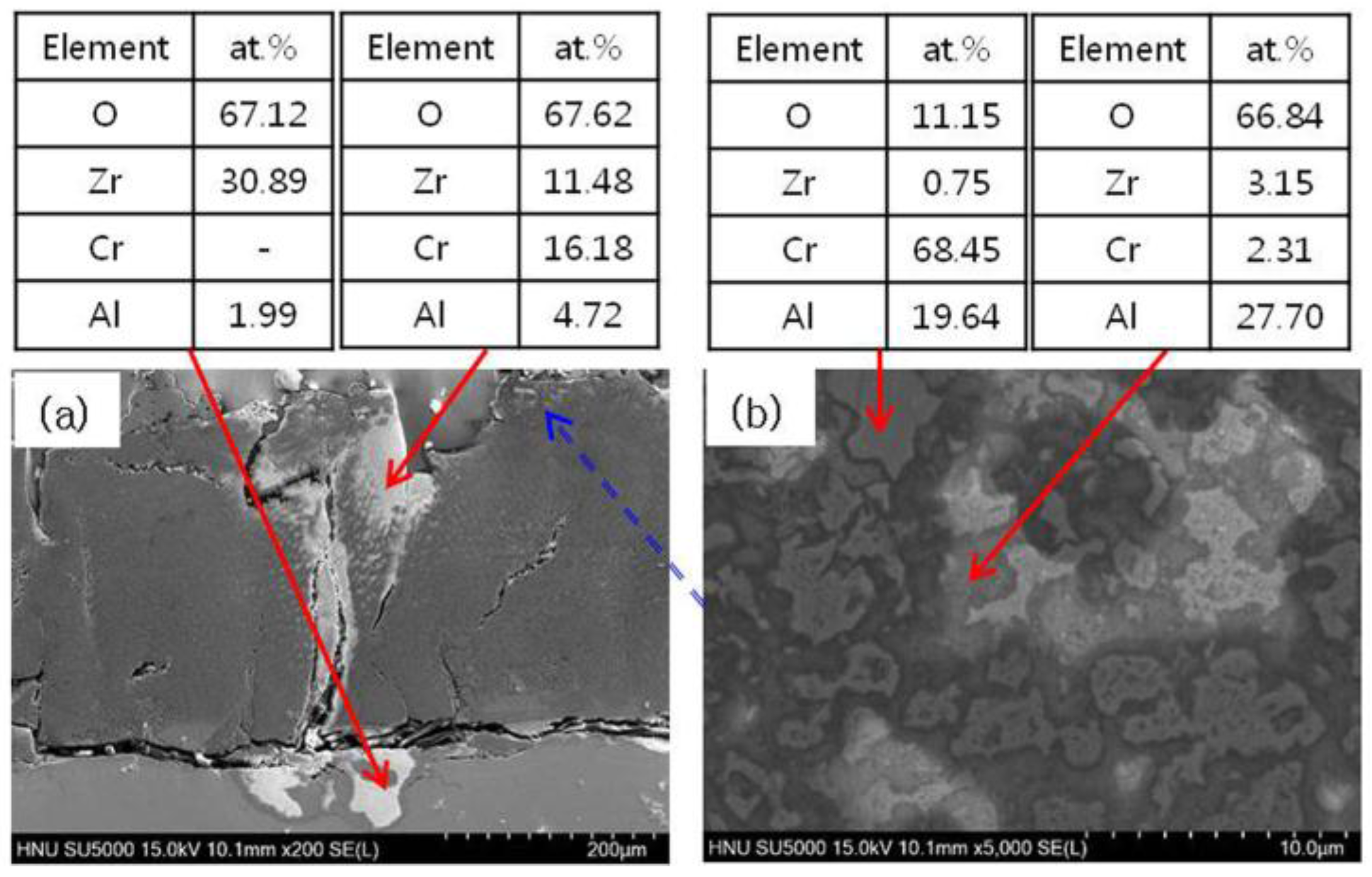

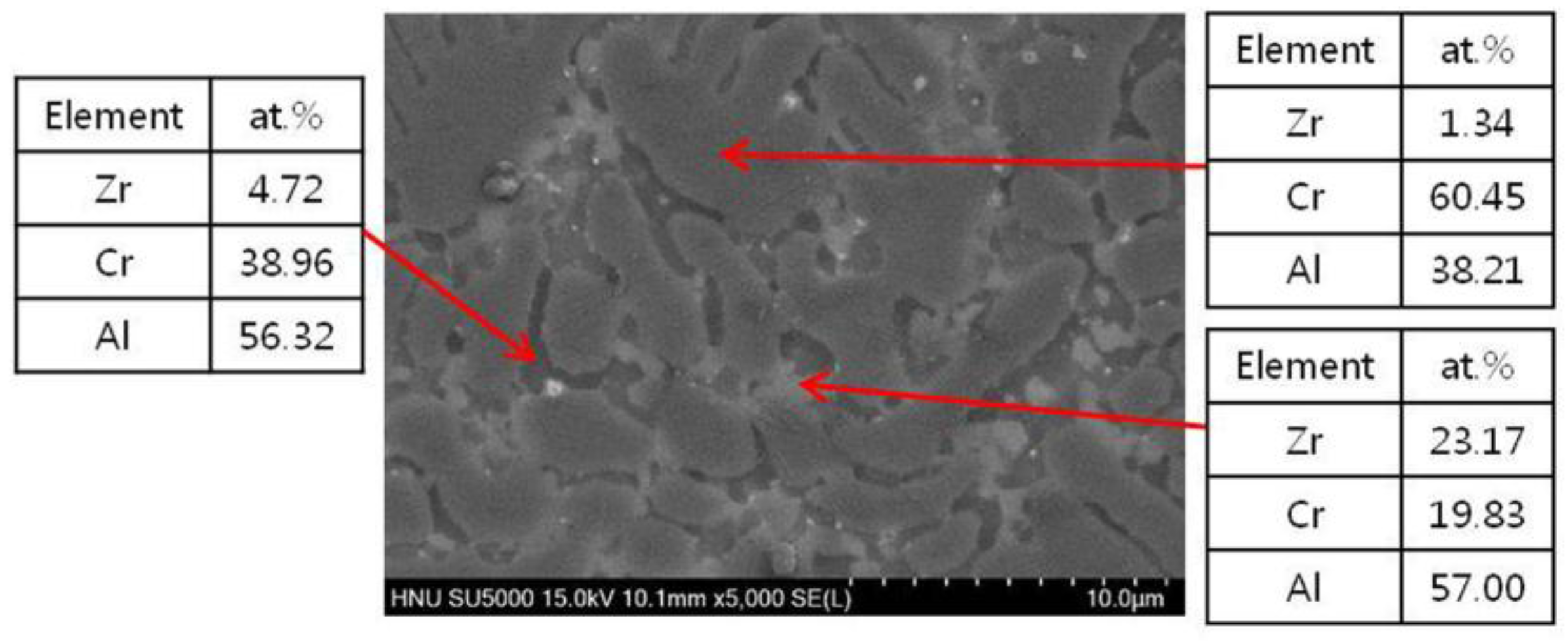

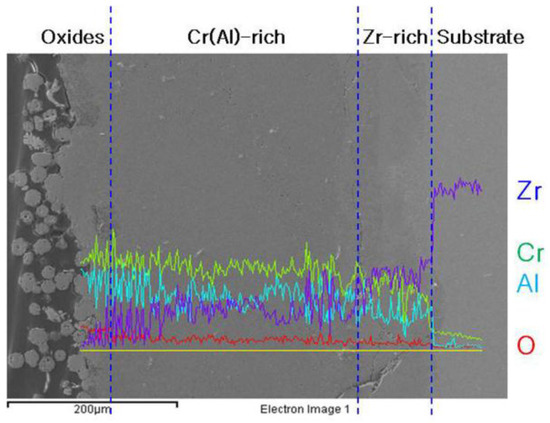

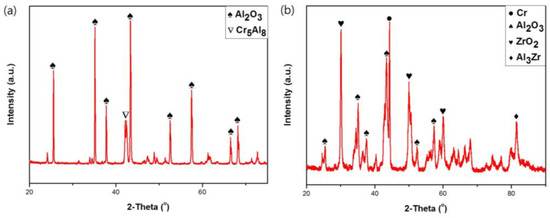

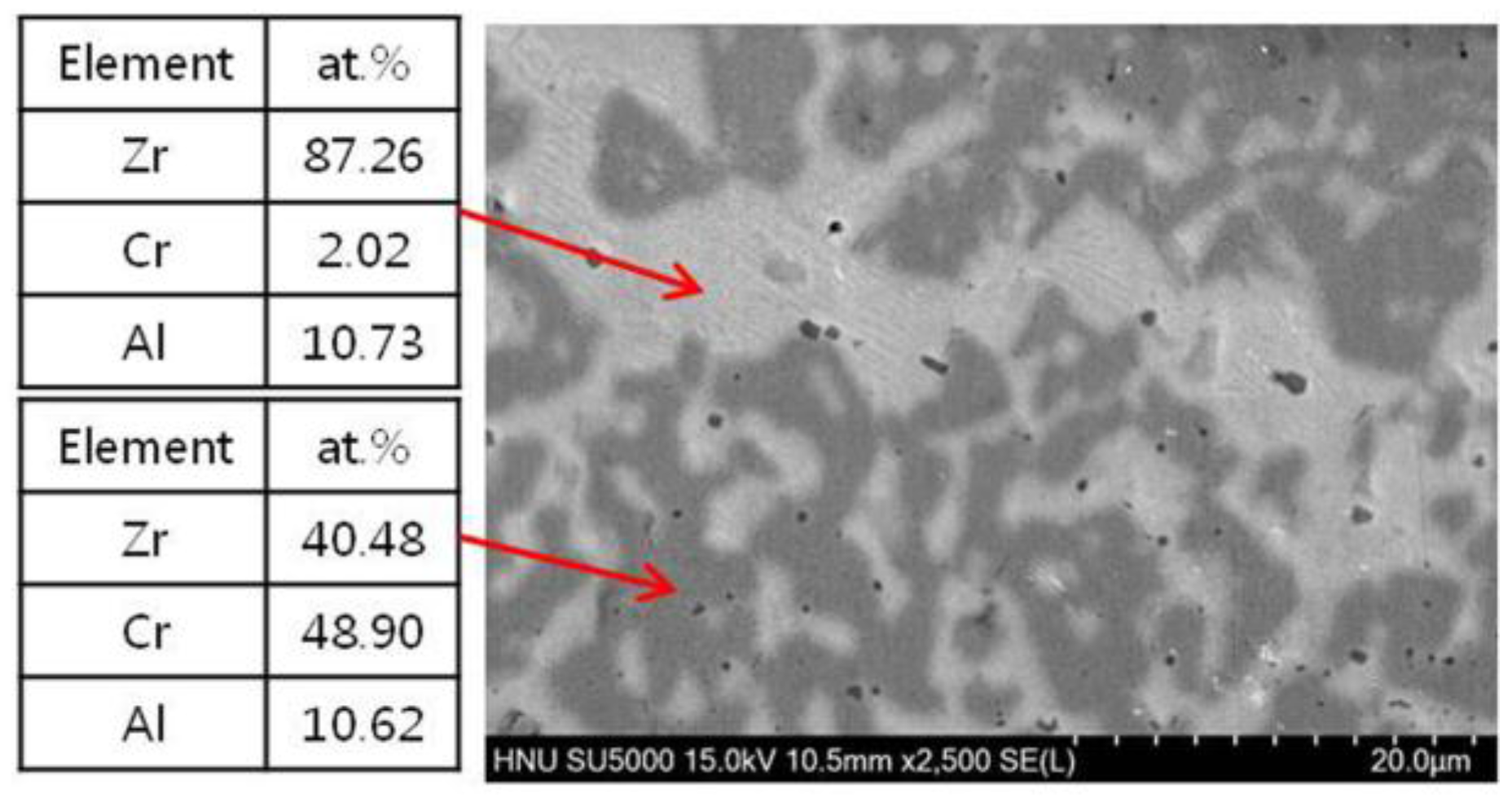

Laser coating of a CrAl layer on Zircaloy-4 alloy was carried out for the surface protection of the Zr substrate at high temperatures, and its microstructural and thermal stability were investigated. Significant mixing of CrAl coating metal with the Zr substrate occurred during the laser surface treatment, and a rapidly solidified microstructure was obtained. A considerable degree of diffusion of solute atoms and some intermetallic compounds were observed to occur when the coated specimen was heated at a high temperature. Oxidation appears to proceed more preferentially at Zr-rich region than Cr-rich region, and the incorporation of Zr into the CrAl coating layer deteriorates the oxidation resistance because of the formation of thermally unstable Zr oxides. View Full-Text
Keywords: laser coating; Zircaloy-4; CrAl; microstructure; oxidation laser coating; Zircaloy-4; CrAl; microstructure; oxidation

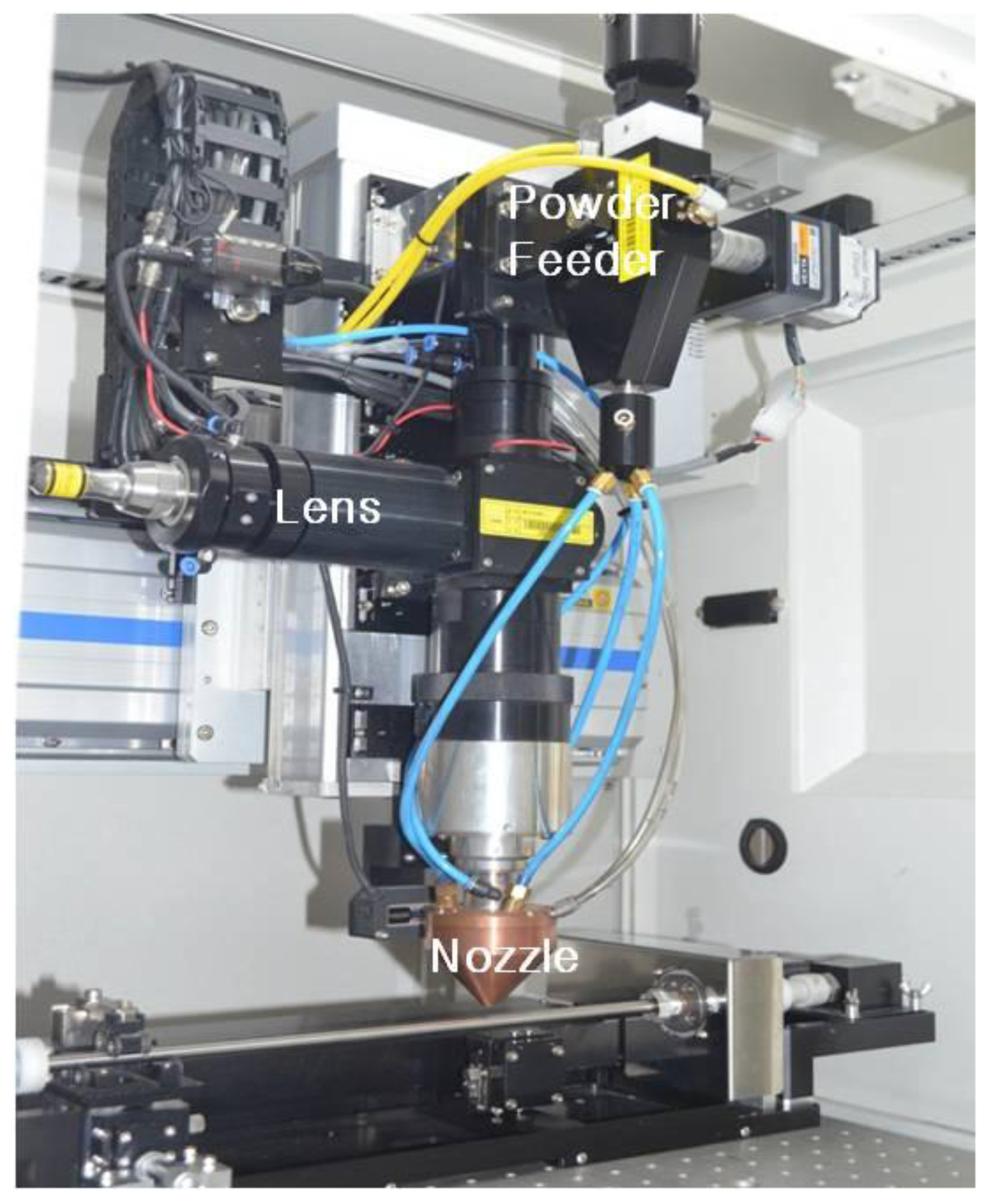

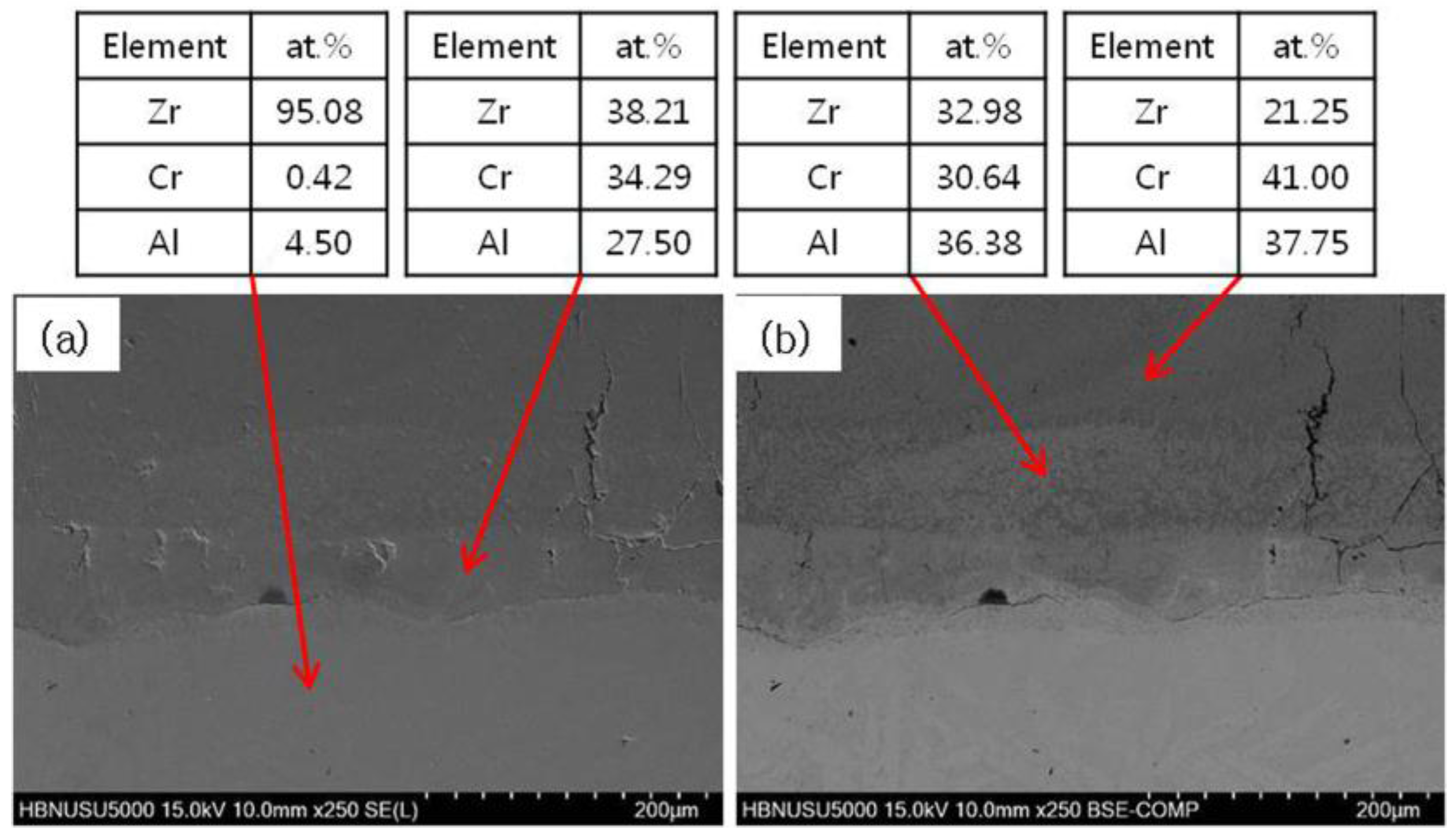

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Kim, J.-M.; Ha, T.-H.; Kim, I.-H.; Kim, H.-G. Microstructure and Oxidation Behavior of CrAl Laser-Coated Zircaloy-4 Alloy. Metals 2017, 7, 59.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
