Open AccessArticle
Metals 2017, 7(2), 57;

The BCC/B2 Morphologies in AlxNiCoFeCr High-Entropy Alloys

Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology, Dalian 116024, China
Department of Materials Science and Engineering, The University of Tennessee, Knoxville, TN 37996, USA
Guangxi Key Laboratory of Information Materials, Guangxi Collaborative Innovation Center of Structure and Property for New Energy and Materials, School of Material Science and Engineering, Guilin University of Electronic Technology, Guilin 541004, China
Author to whom correspondence should be addressed.
Academic Editors: Michael C. Gao and Junwei Qiao
Received: 31 December 2016 / Revised: 7 February 2017 / Accepted: 9 February 2017 / Published: 15 February 2017
(This article belongs to the Special Issue High-Entropy Alloys (HEAs))
PDF [3678 KB, uploaded 15 February 2017]

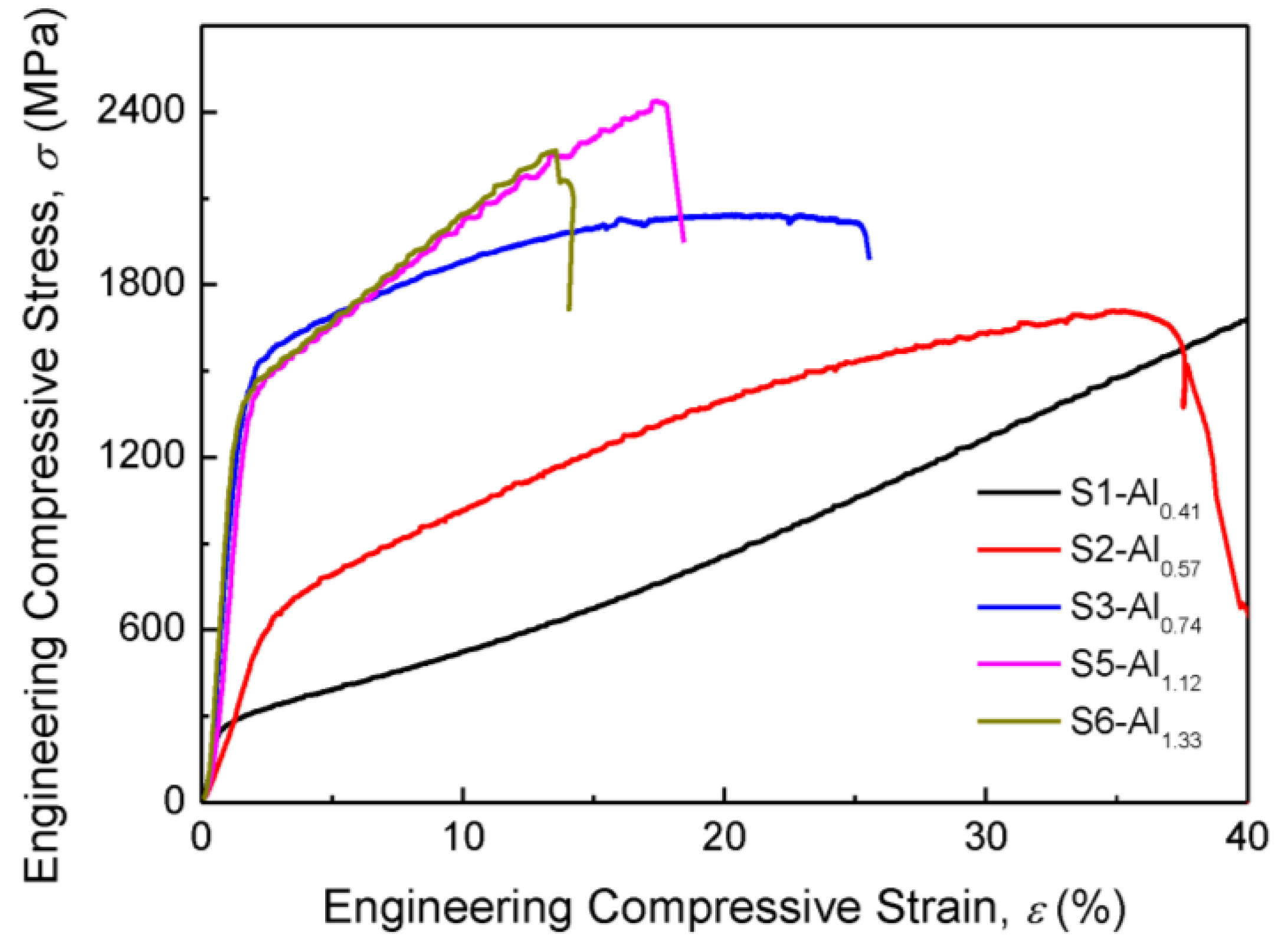

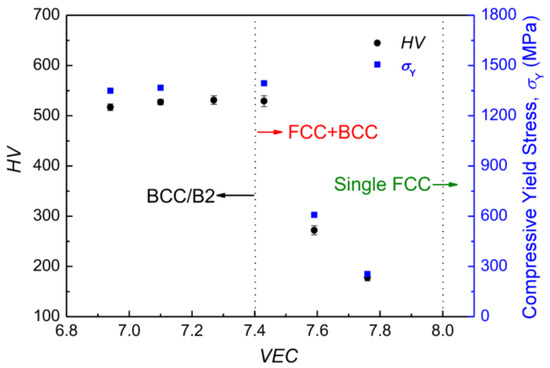

The present work primarily investigates the morphological evolution of the body-centered-cubic (BCC)/B2 phases in AlxNiCoFeCr high-entropy alloys (HEAs) with increasing Al content. It is found that the BCC/B2 coherent morphology is closely related to the lattice misfit between these two phases, which is sensitive to Al. There are two types of microscopic BCC/B2 morphologies in this HEA series: one is the weave-like morphology induced by the spinodal decomposition, and the other is the microstructure of a spherical disordered BCC precipitation on the ordered B2 matrix that appears in HEAs with a much higher Al content. The mechanical properties, including the compressive yielding strength and microhardness of the AlxNiCoFeCr HEAs, are also discussed in light of the concept of the valence electron concentration (VEC). View Full-Text
Keywords: high-entropy alloys; Al-Ni-Co-Fe-Cr alloys; microstructure; precipitation morphology; mechanical property high-entropy alloys; Al-Ni-Co-Fe-Cr alloys; microstructure; precipitation morphology; mechanical property

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ma, Y.; Jiang, B.; Li, C.; Wang, Q.; Dong, C.; Liaw, P.K.; Xu, F.; Sun, L. The BCC/B2 Morphologies in AlxNiCoFeCr High-Entropy Alloys. Metals 2017, 7, 57.
