Effect of Oxidation Temperature on the Oxidation Process of Silicon-Containing Steel

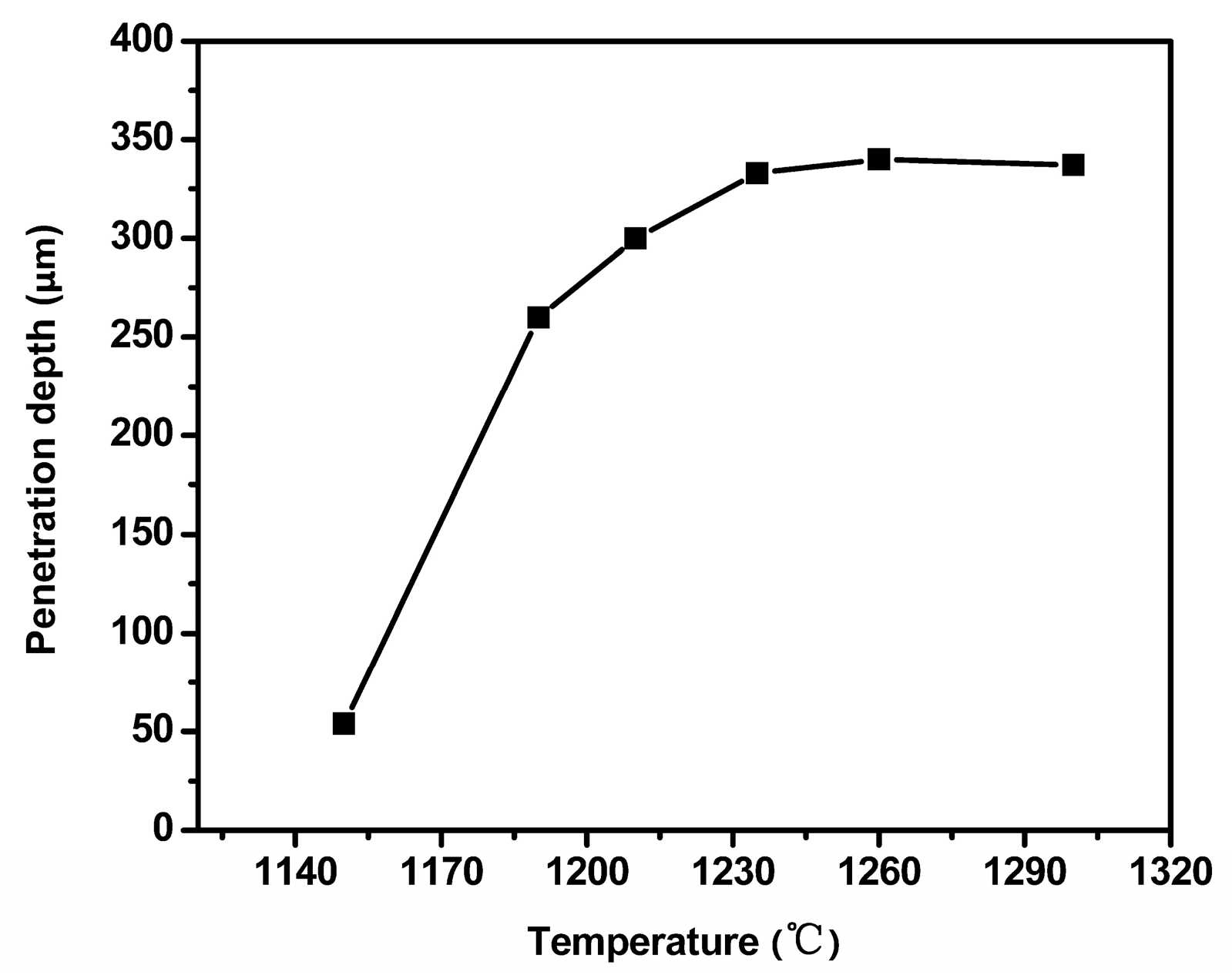

AbstractThe oxidation behavior of silicon-containing steel was studied by applying segmented heating routes similar to the atmosphere and heating process in an industrial reheating furnace. The oxidation tests were carried out on a simultaneous thermal analyzer at heating temperatures of 1150 °C–1300 °C. The morphologies of Fe2SiO4 were observed by SEM, and the penetration depths of the Fe2SiO4 layer at different oxidation temperatures were determined by using the Image-Pro Plus 6.0 software. The results show that at heating temperatures ≥1235 °C, the oxidation rate and total oxidation mass gain have no relation with the heating temperature; the mass gain versus time follows a linear law after about 1164 °C (lower than the eutectic temperature of fayalite). In addition, the oxidation rate first decreases slowly and then drops from 1190 °C to 1210 °C during the isothermal holding stage. With the increase in temperature, the oxidation rate and mass gain also increase gradually; the relationship between the mass gain and time is close to a parabolic law. Moreover, at a heating temperature of 1150 °C, the oxidation rate decreases rapidly during the isothermal holding stage, and the mass gain versus time follows a parabolic law. View Full-Text
Share & Cite This Article
He, B.; Xu, G.; Zhou, M.; Yuan, Q. Effect of Oxidation Temperature on the Oxidation Process of Silicon-Containing Steel. Metals 2016, 6, 137.
He B, Xu G, Zhou M, Yuan Q. Effect of Oxidation Temperature on the Oxidation Process of Silicon-Containing Steel. Metals. 2016; 6(6):137.Chicago/Turabian Style
He, Bei; Xu, Guang; Zhou, Mingxing; Yuan, Qing. 2016. "Effect of Oxidation Temperature on the Oxidation Process of Silicon-Containing Steel." Metals 6, no. 6: 137.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
