Precipitation Behavior of the Second Phase in High-Nitrogen Austenitic Stainless Steel Alloyed with V and Nb

by
Ronghua Zhang
1,*,
Wenzhi Song
1,
Chuan Yang
1,
Xin Zhao
2,
Qian Liu
1,
Yuan Zhang
1 and
Liansheng Chen
1
1
Key Laboratory of the Ministry of Education for Modern Metallurgy Technology, College of Metallurgy and Energy, North China University of Science and Technology, Tangshan 063210, China
2
Qinggong College, North China University of Science and Technology, Tangshan 064000, China
*
Author to whom correspondence should be addressed.
Metals 2023, 13(7), 1183; https://doi.org/10.3390/met13071183
Submission received: 15 May 2023 / Revised: 21 June 2023 / Accepted: 21 June 2023 / Published: 26 June 2023
Browse Figures
Versions Notes

Abstract

:
The retaining ring is one of the components with the highest stress on the rotor of the turbine generator. Due to the high content of alloying elements in this type of steel, it is extremely easy to precipitate a large amount of the second phase during the forming process of a material, which deteriorates the processability, Therefore, it is very important to study the second phase precipitation of high-nitrogen steel. This work addresses the precipitation behavior of the second phase in a high-nitrogen austenitic stainless steel alloyed with V and Nb. The optical microscopy, scanning electron microscopy, transmission electron microscopy and X-ray diffractometry were applied to investigate the influence of heat treatment parameters on the morphology and composition of the precipitated particles. The addition of V and Nb results in the formation of NbVN and VN particles, of which the amount is slightly decreased after a subsequent solution treatment at 1200 °C for 1 h. The results demonstrate that an additional aging treatment at 800~1000 °C for three leads to the participation of lamellar Cr2N and the undissolved MX phase. The content of the precipitates increases with increasing both the aging temperature and the aging time. The addition of V/Nb elements effectively improves the stability of MX phase, and the existence of high energy zones (the MX phase interface and grain boundary) promotes the early formation of Cr2N. Cr2N is shown to nucleate in the high energy zones, which thereafter grows into austenite grains, demonstrating a normal discontinuous cellular growth.

1. Introduction

High-Nitrogen Austenitic Stainless Steel (HNASS) is a new type of metal material which is nickel-saving and bio-friendly with excellent mechanical properties and corrosion resistance [1]. Owing to the above advantages, in recent years, it has been widely used in various fields such as machinery, chemical industry, energy and electricity, biomedicine and jewelry [2,3,4] and is also a potential candidate in the manufacturing of armor [5]. P900 (18Cr-18Mn-0.6N), P900-N (18Cr-18Mn-0.9N) [6] and P2000 (16Cr-14Mn-3Mo-0.9N) [7] steels are the typical industrially used high-nitrogen austenitic stainless steel employed in the manufacturing of large generator guard rings [8]. Due to the high content of alloying elements in this type of steel, it is extremely easy to precipitate a large amount of the second phase during the forming process of a material (high-temperature pressure processing, welding, etc.) [9], which deteriorates the processability [10].
In recent years, extensive research has been directed towards the second phase precipitation behavior of HNASS [1], especially concerning Mn18Cr18N steel with the obtainment of excellent results. Regarding intermetallic phases (σ, η, etc.), Lee [11] and Ma et al. [12] proposed that the σ phase can be transformed from γ or χ phase, accompanied by the diffusion and transfer of N element. Moreover, increasing the content of Mo element in HNASS promotes the precipitation of χ and η phases [13,14]. In addition, research activities focusing on the precipitation of carbonitrides such as M2X, M23C6 and M7C3 are also implemented [15]. Hu et al. [16] pointed out that with an increase in the nitrogen content in HNASS, the precipitation of M23C6 during the hot stretching process can be promoted, and M23C6 appears at the grain boundaries, leading to intergranular cracking easily [17]. Apparently, M23C6 has a detrimental effect on the hot forming of HNASS.
As one of the most popular second phases in HNASS, Cr2N is a brittle phase with a closely packed hexagonal structure. As stated in [18,19], irrespective of the initial processing state of the Mn18Cr18N steel, Cr2N as well as a small amount of Cr23C6 develops during solution and aging treatments. With decrease in the C/N mass ratio, the precipitation of Cr2N becomes more sensitive, while the precipitation of Cr23C6 is gradually retarded [20]. Generally, Cr2N is prone to precipitate at the grain boundaries and grows into crystal grains in a discontinuous cellular growth type such that forming the “nitrogen-containing pearlite” with unbalanced austenite [21]. The presence of a large amount of Cr2N seriously deteriorates the plasticity of HNASS, which is not conducive to plastic pressure forming [22,23]. Kartik et al. [24] demonstrated that during high-temperature aging, the precipitation of Cr2N and other intermetallic phases is accompanied by the consumption of N, Cr, Mn and other elements in the solid solution. As a result, the strength and hardness of HNASS decrease.
Previous research shows that the addition of V and Nb in HNASS has measurable influence on the second phase precipitation behavior of HNASS, which thereafter affects performance and serviceability (mechanical properties, stress corrosion resistance, etc.). Knutsen [25] et al. believed that the addition of V and Nb can regulate the association between M2X and MX phases during precipitation. Among them, V improves the stability of M2X phase, and Nb inhibits the stability and kinetics of M2X phase. For the MX phase, Knutsen believes that Nb promotes the formation of MX-type precipitation during solidification and aging, while V participates in the reaction of MX-type precipitation formation, but its role is not clear. Therefore, in this study, the precipitation behavior of the second phase in HNASS was studied by the solution aging method. The second phase precipitation process in HNASS is studied [22].

2. Materials and Experimental Methods

The experimental HNASS was smelted using a Dming Technology 40 kg induction electric furnace and cast into steel ingots at 1500~1700 °C. To improve the compositional uniformity of the material, the ingot was electro slag remelted. Finally, the chemical constituents of HNASS were obtained as shown in Table 1. The HNASS after electroslag remelting was forged into a round rod-shaped sample with a diameter of 30 mm, referred to as the original sample.
The rectangular parallelepiped samples with size of 5 mm × 5 mm × 10 mm were cut at the center of the round bar and solution heat treated at 1200 °C for 1 h with following water cooling. Aging of the solid solution treated samples was achieved by isothermal heating at 600, 800, 900 and 1000 °C for 0.5~5 h and the subsequent water-cooling. The original forged state samples, solid solution samples and aging samples were pre-grinded, polished and etched using a mixture of 2.5 g CuCl2 + 100 mL HCl + 100 mL C2H5OH (solution). The morphology was observed by a Leica DM6M optical microscope (OM), FEI Scios03040702 focused ion beam field emission scanning electron microscope (SEM) and FEI Tecnai G2F20S-TWIN transmission electron microscope (TEM). The elemental composition of the precipitates was characterized by energy dispersive spectroscopy (EDS) with an SEM and TEM. A D/MAX2500PC03030502 X-ray diffractometer (XRD) was used to analyze the phases of the original and solid solution samples.

3. Results

3.1. The Second Phase of the Original HNASS before Heat Treatment

The microstructure of the original HNASS in Figure 1a displays that the metallurgical structure of the original forged HNASS is composed of austenitic grains of different sizes and granular second-phase particles dispersed onto the grains. The XRD analysis of the original structure (Figure 1b) demonstrates that the as-produced HNASS sample is composed of mainly austenite and nitrides (i.e., NbVN or VN). The SEM photograph in Figure 1c clearly shows that secondary particles in a special shape are irregularly preferentially distributed in the austenite grains rather than boundaries, consistent with the metallographic analysis in Figure 1a. The EDS surface scanning of the granular second phase exhibits that the elemental composition of the particles is poor in Fe and Mn and rich in N and V as compared to in the austenite matrix. Accordingly, these particles are VN precipitates rather than σ-equal intermetallic consisting of Fe and Mn.

3.2. The Second Phase in Solution-Treated HNASS

Figure 2a shows the X-ray diffractogram of the solution heat-treated sample. Similar to that of the as-produced sample, the phase structure is characterized by the predominant austenite and a small amount of V and Nb alloyed nitrides. The intensity of the diffraction peaks of precipitates, however, is lower compared to the as-produced sample, indicating that VN particles are not completely dissolved after solution heat treatment. The undissolved second phase is observed in the TEM image of the solution-treated HNASS (Figure 2b), which confirms the existence of the second phase precipitates in a solution heat treated V and Nb alloyed HNASS.
The TEM image of the solid solution HNASS in Figure 2b confirms the co-existence of two types of second phases showing different dimensions. As shown in Figure 3a–c, the dimension of the relatively large precipitate is about 200 nm, while the other small precipitates with a size of about 50 nm are present in spherical shape. The massive second phase in Figure 3a was subjected to SAED calibration (Figure 3b), and the MX phase was determined with a simple cubic structure and a lattice constant of a = b = c = 0.413 nm with the actual chemical formula, VN. A comparison of the EDS results between the two precipitates (Figure 3d) displays that the types of elements contained in the two second-phase precipitates are the same, but the content of each element is slightly different. Despite a significant difference in size, the two precipitates as observed are both in the MX type.

3.3. Precipitated Phases in Aging HNASS

3.3.1. Precipitated Phase after 3 h of Aging

Aging treatment at different temperatures leads to remarkable differences in the morphologies of HNASS. The SEM micromorphology of HNASS after isothermal aging at 600~1000 °C for 3 h is shown in Figure 4, where the morphology of each precipitate is marked. It is noted that with increasing aging temperature, the content of the precipitated phase in HNASS gradually increases, and in particular, clustered lamellar based on the dispersed particles is present.
After aging at 600 °C for 3 h, no second phase was found at the austenite grain boundaries, and fine precipitated phases were evenly distributed inside the austenite grains (Figure 4a). After a 3 h of aging at 800 °C, the austenite grain boundaries become more visible, while a small amount of granular precipitates can be observed at some grain boundaries. The particles of the precipitated phase inside the crystal grains are larger than those for 600 °C, and part of the precipitates are found to fall off, with pits remaining on the austenite matrix (Figure 4b). The microstructure of the sample after aging at 900 °C for 3 h is shown in Figure 4c, where in discontinuous short rod-like precipitates appear at the austenite grain boundaries. The cell-like precipitates composed of lamellar precipitates and lamellar gaps are identified. The lamellar precipitates grow from the grain boundaries to the interior of the grain, and the lamellae direction and the grain boundaries are distributed at an acute angle. The granular precipitates could be observed in the austenite matrix, the size of which is not significantly different from that at 800 °C, and there is no obvious shedding. Furthermore, a small amount of large precipitates is also found on the matrix. It is more likely that the grain boundaries after aging at 1000 °C are occupied with short rod-like precipitates, and the spacing of the lamellar precipitates inside the grains is slightly larger than for 900 °C. The granular precipitations inside the crystal grains did not change significantly as compared to that developed at 900 °C, but the massive precipitation phase increased significantly. With an increase in the aging temperature, the content of the precipitated phase also gradually increased, i.e., 0.8% → 5% → 12% → 17%.

3.3.2. Precipitated Phase after 5 h of Aging

At the same temperature, the precipitated phases in HNASS with different aging times display substantial differences. Figure 5 displays the SEM microstructural image of HNASS after aging at 800 °C for 5 h and demonstrates the micromorphology near the coarse grains. As compared to that after aging at 800 °C for 3 h in Figure 4b, more precipitates with a size of about 1 μm are detected in the substrate. Fine precipitates at the grain boundaries and the formation of lamellar precipitates could be observed around the part of the grain boundaries. At the boundaries of smaller grains (Figure 5b), a large number of short rod-like precipitates with a width of 1 μm and a length of about 2~4 μm as well as the lamellar precipitates are present. Increasing aging time from 3 to 5 h results in an improvement in the content of the overall precipitated phase from 5 to 11%. EDS analysis on the granular precipitates inside the grains and the short rod-like precipitates at the grain boundaries (Figure 5c,d) displays that the precipitates inside the grains contain V, while the precipitates at the grain boundaries are Vanadium-free. This potentially suggests that these are the two different types of precipitations.
Figure 6 and Figure 7 exhibits the SEM microstructural image of HNASS after aging at 900 °C for 5 h and confirms the existence for four different shapes of precipitated phases. The lamellar precipitates, which grow from the grain boundaries to the inside of the grains, show lamellar space and the lamellar widths in the range of 100~300 nm and 70~100 nm, respectively. The short rod-like precipitates with a width of approximately 0.5 μm are present at the grain boundaries, while the massive precipitates with a size of about 0.5~1 μm are located inside the crystal grains. Additionally, the granular precipitates with a size of about 200 nm are dispersed on the austenite matrix. When the aging time was increased from 3 to 5 h, the content of precipitates increased from 12 to 22%. The morphology of the short rod-like precipitates at the grain boundaries was evaluated from discontinuous (Figure 4c) to end-to-end connected, and other precipitated phases did not change significantly. Figure 6c shows the results of EDS analysis of large precipitate (Spot 1), short rod-like precipitate (Spot 2) and lamellar precipitate (Spot 3) after aging at 900 °C for 5 h. Nitrogen is found exclusively in the lamellar precipitate (Spot 3), which is more likely the M2X-type Cr2N phase, according to the lamellar characteristics base on morphological analysis. The rod-like precipitate and lamellar precipitate are identified to be intermetallic compounds since the energy spectra of Spot 1 and Spot 2 are mainly composed of Fe, Cr, Mn and Mo elements.

4. Discussion

The excellent mechanical property of HNASS is associated with the presence of an interstitial solid solution of N in the steel. The occurrence of precipitation behavior leads to the depletion of N in the HNASS matrix, which reduces the material processing as well as mechanical properties. A deeper understanding of the influence of the addition of V and Nb on the precipitation behavior and the precipitation mechanism has obvious positive significance for effectively avoiding the degradation performance during the processing and utilization of HNASS [26].

4.1. Characteristics and the Mechanism of Formation of Precipitates

4.1.1. MX Phase

The MX phase is present in the original state and solid solution state, as well as aging state of HNASS. The MX phase is a non-stoichiometric carbonitride formed by the combination of microalloying elements of Nb, V, C and N. In general, its crystal structure is cubic with the chemical formula (NbxV1−x)(CyN1−y). The common MX phase is granular, which is dispersed into steel and has significant fine grain strengthening and precipitation strengthening effects [27]. An obvious difference in the sizes of MX phase particles could be noted, which is due to the ratio in the contents of Nb and V in the MX phase. Xu et al. [28] found a clear positive relationship between the size of the MX phase and c(Nb)/c(V). Only the MX phase of large particles has a Nb(CN) core. In contrast, the small particles do not possess a core but have carbonitride solid solutions of Nb and V. The correctness of this model needs to be verified, but it is useful to understand the reasons for the observed differences in the size of the MX phase [29].
Studies have shown that the addition of V, Nb and other elements to HNASS can promote the formation of the MX phase, where Nb effectively improves the high-temperature stability of the MX phase [30]. Therefore, the MX phase is not completely dissolved after treatment with the solid solution and water cooling [31,32]. Due to the existence of the MX phase, solute drag and precipitated phase pinning effects occur during the hot deformation of HNASS, thereby suppressing the recrystallization of austenite and playing the role of refining the grains. High-temperature rolling and other mechanical processing methods could make the size of the MX phase significantly smaller, and the distribution conditions also change accordingly, which further improves the mechanical properties of the material [33].

4.1.2. M2X Phase

A large number of lamellar precipitates appearing in HNASS could be noted after aging at 900~1000 °C for 3~5 h, as shown in Figure 4c,d and Figure 6a,b. This lamellar “nitrogen-containing pearlite” is a typical M2X-type precipitated phase. In HNASS, the M2X phase mainly stands for Cr2N. The typical mechanism of precipitation of Cr2N is the discontinuous cellular precipitation [34,35], which usually grows along the grain boundaries into the grains (Figure 8a), obeying the crystallographic OR: [110]γ//[1100]Cr2N and (111)γ//(0001)Cr2N [12]. The micromorphology of Cr2N is affected by the aging temperature and time, which result in changes in the sheet thickness and sheet spacing [36]. As shown in Figure 8b, the growth direction of Cr2N lamellae is not consistent within the same austenite grain; the Cr2N lamellae on the same extension line are also discontinuous, along with the presence of granular precipitates at the discontinuities. Due to many defects and high energy at the grain boundaries, N atoms are easily captured, and Cr2N is preferentially generated at the grain boundaries and grows into the grains [37,38]. At the same time, the austenite grain boundaries accompanied by the growth of Cr2N also migrate. Knutsen et al. [26] supposed that the migration of austenite grain boundaries led to discontinuous cellular precipitation behavior of Cr2N, and the key reason for the migration of grain boundary is the difference in the chemical potential between the transformed and unconverted austenite. However, more subsequent studies have shown that the discontinuous cellular precipitation behavior of Cr2N is related to the short-range diffusion of Cr and the long-range diffusion of N from the untransformed austenite to unbalanced austenite. This study supports the theory of elemental diffusion. First, not only the growth of Cr2N from the austenite grain boundaries but also the growth of Cr2N in the austenite grains was observed, as shown in Figure 4c and Figure 5b. This proves that without the migration of austenite grain boundaries, the discontinuous cell precipitation behavior of Cr2N can still occur. Secondly, the longitudinal growth of flaky Cr2N (growth on the same extension line) was not completely continuous.
The discontinuous Cr2N lamellae grow from the granular precipitate and stop before the next particulate matter. The previous analysis proves that the granular precipitate is a large amount of MX phase and intermetallic phase with a high content of Cr. Studies [39,40] have shown that N diffuses from the γ phase and Cr diffuses from the intermetallic phase, forming Cr2N at the interface between the γ and intermetallic phases. By considering the short-range diffusion of Cr, the granular precipitated phase can provide the corresponding interfacial energy. It can be speculated that the mechanism of discontinuous cell precipitation of Cr2N is divided into two steps. First, the interface of austenite and other precipitated phases assists short-range diffusion of Cr to provide the basic conditions for the nucleation of Cr2N. Then, the long-range diffusion of N from the untransformed austenite to austenite promotes the growth of discontinuous cellular precipitation of Cr2N (Figure 9). The addition of microalloying elements such as V and Nb to HNASS improves the stability of MX phase and the equivalent intermetallic Laves phase, providing favorable conditions for the precipitation of Cr2N phase. At the same time, it also supports the observations of Knutsen [26] that the V element can improve the stability of M2X-type precipitates.

4.1.3. Intermetallic Phase

The σ, χ and Laves phases are the common precipitated phases in HNASS. The σ phase usually appears in the as-cast HNASS while absence in the aging HNASS. High N alloying can effectively suppress the formation of the σ phase. Since the N content in HNASS is as high as 1.021% and the aging treatment is performed for a maximum of 5 h in the heat treatment, the χ phase is an intermetallic phase of α-Mn type body-centered cubic structure which commonly exists in stainless steels. The temperature range of precipitation is narrow, and the precipitation time is long. It is often replaced by the M2N phase. The existence of the χ phase cannot be determined in this study. The Laves phase is a hexagonal C14 or C36 type intermetallic phase with the chemical formula, (Fe0.85Cr0.15)(Mo0.3Nb0.4Si0.25Ti0.05) and has excellent high-temperature mechanical properties. The addition of Nb to HNASS can promote the formation of Laves phase, and V can improve the stability of Laves phase [41]. The existence of MX phase leads to a reduction in the surrounding C and N elements and also contributes to the formation of the Laves phase [42]. Since both the MX and Laves phases are granular precipitates, below 5 μm in size, it is not easy to distinguish them in OM and SEM photographs. Based on EDS (Figure 6), it is determined that the Laves phase is present in the granular precipitates of aging HNASS. The confirmation of the Laves phase needs to be further verified by more TEM observations and SAED calibration. The addition of V and Nb causes the formation of granular MX and Laves phases in HNASS, which indirectly promotes and stabilizes the precipitation of M2X phase.

5. Conclusions

In this study, the precipitation behavior of the second phase in HNASS was investigated in terms of the heat treatment response. The following conclusions could be drawn:
(1) Solution/aging treatment experiments show that the MX phase, which exists in the as-produced HNASS, is not completely dissolved after a heat treatment at 1200 °C for 1 h. Isothermal aging that was performed in temperature range 800~1000 °C for 3 h induces the participation of M2X phases. The content of the precipitates increases with increasing both the aging temperature and the aging time.
(2) The MX phase was precipitated by adding V and Nb in HNASS, which does not dissolve after solution and aging treatments. The microscopic morphology of the MX phase is granular, dominated by VN with a cubic structure and a lattice parameter of a = 0.413 nm.
(3) M2X is the main precipitation phase in HNASS treated by isothermal aging, and its typical representative is Cr2N. The Cr2N is present in the lamellar structure, where the thickness and spacing depend on the aging temperature and duration. The existence of MX phase provides interfacial energy for the precipitation of Cr2N, such that Cr2N nucleates in the austenite grain based on the interface of MX phase and extends toward the interior of the austenite.

Author Contributions

R.Z.; the determination of the framework of the article, the analysis of the experimental data and the modification of the content. W.S.; the expansion of the experiment and the acquisition of experimental data. C.Y.; the development and conduct of the experiment. X.Z.; the development and conduct of the experiment. Q.L.; perfect processing and content analysis of the experiment. Y.Z.; make the experimental plan and optimize the experimental process. L.C.; optimization and communication of experiments. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation-Steel and Iron Foundation of Hebei Province (E2018209280); Natural Science Foundation of Hebei Province (E2020209153); Science and Technology Project of Tangshan (20130205b); National Natural Science Foundation of China (51574107).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Toshihiro, A.; Lee, D.S.; Nie, Y. Bio-medical Materials. In Abstracts of IUMRS, Proceedings of the 11th International Conference in Asia (IUMRS-ICA2010), Qingdao, China, 25–28 September 2010; Chinese Society for Materials Research: Beijing, China, 2010; pp. 369–391. [Google Scholar]
  2. Gavriljuk, V.G.; Berns, H. High Nitrogen Steels: Structure, Properties, Manufacture, Applications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 1999. [Google Scholar] [CrossRef]
  3. Di Schino, A.; Kenny, J.M.; Mecozzi, M.G.; Barteri, M. Development of high nitrogen, low nickel, 18%Cr austenitic stainless steels. J. Mater. Sci. 2000, 35, 4803–4808. [Google Scholar] [CrossRef]
  4. Li, M.; Wu, H.; Wang, Y.; Yin, T.; Gregersen, H.; Zhang, X.; Liao, X.; Wang, G. Immobilization of heparin/poly-l-lysine microspheres on medical grade high nitrogen nickel-free austenitic stainless steel surface to improve the biocompatibility and suppress thrombosis. Mater. Sci. Eng. C 2017, 73, 198–205. [Google Scholar] [CrossRef]
  5. Singh, B.B.; Sukumar, G.; Rao, P.P.; Kumar, K.S.; Madhu, V.; Kumar, R.A. Superior ballistic performance of high-nitrogen steels against deformable and non-deformable projectiles. Mater. Sci. Eng. A 2019, 751, 115–127. [Google Scholar] [CrossRef]
  6. Ichii, K.; Ueda, N.; Nakata, K. Low Temperature Ion-Nitriding of Austenitic High Nitrogen P900N Mo and X3MnCrNiMo16-16-16-4 Steel. In High Nitrogen Steel International Conference Papers; Dong, J., Su, J., Speidel, M.O., Eds.; Metallurgical Industry Press: Beijing, China, 2006; pp. 452–457. [Google Scholar]
  7. Kauss, N.; Heyn, A.; Michael, O.; Schymura, M.; Rosemann, P. Application limits and sensitisation behaviour of the manganese- and nitrogen-alloyed austenitic stainless steel P2000 (X13CrMnMoN18-14-3). Mater. Corros. 2021, 72, 1656–1667. [Google Scholar] [CrossRef]
  8. Xie, J.; Qu, X.; Jie, W.; Liu, X. Advanced Processing Technologies of Materials. In Abstracts of IUMRS, Proceedings of the 11th International Conference in Asia(IUMRS-ICA2010), Qingdao, China, 25–28 September 2010; Trans Tech Publications: Durnten, Switzerland, 2011; pp. 150–182. [Google Scholar]
  9. Luo, C.; Zhang, J.; Wen, J. Study on properties of aluminum alloy welded by friction stir welding. In Proceedings of the 2019 2nd International Conference on Advanced Electronic Materials, Computers and Materials Engineering (AEMCME 2019), Changsha, China, 19–21 April 2019; IOP Publishing: Bristol, UK, 2019; pp. 290–294. [Google Scholar]
  10. Li, H.-B.; Jiang, Z.-H.; Feng, H.; Ma, Q.-F.; Zhan, D.-P. Aging Precipitation Behavior of 18Cr-16Mn-2Mo-1.1N High Nitrogen Austenitic Stainless Steel and Its Influences on Mechanical Properties. J. Iron Steel Res. Int. 2012, 19, 43–51. [Google Scholar] [CrossRef]
  11. Lee, T.-H.; Kim, S.-J.; Shin, E.; Takaki, S. On the crystal structure of Cr2N precipitates in high-nitrogen austenitic stainless steel. III. Neutron diffraction study on the ordered Cr2N superstructure. Acta Crystallogr. Sect. B Struct. Sci. 2006, 62, 979–986. [Google Scholar] [CrossRef]
  12. Ma, Y.; Rong, F.; Zhou, R.; Lang, Y.; Jiang, Y. Study on precipitation in austenitic stainless steel 18Cr18Mn2MoN during isothermal aging at 900 °C. Iron Steel 2007, 42, 64–68. (In Chinese) [Google Scholar] [CrossRef]
  13. Shi, Y.; Liu, Y.; Wang, X.; Zhou, Y.; Ma, J.; Zhang, S. Corrosion Study on Ni-based Alloy in Acidic Environment. In Proceedings of the 2019 International Conference on Advanced Material Research and Processing Technology (AMRPT 2019), Wuhan, China, 19–21 July 2019; IOP Publishing: Bristol, UK, 2019; pp. 64–69. [Google Scholar]
  14. Xu, Y.; Yang, Y. Microstructure and Corrosion Properties 0Cr21Mn17Mo2N0.8 High Nitrogen Austenitic Stainless Steel. In Proceedings of the 2018 4th International Conference on Applied Materials and Manufacturing Technology (ICAMMT 2018), Nanchang, China, 25–27 May 2018; IOP Publishing: Bristol, UK, 2018; pp. 302–308. [Google Scholar]
  15. Hong, C.-M.; Shi, J.; Sheng, L.-Y.; Cao, W.-Q.; Hui, W.; Dong, H. Influence of hot working on microstructure and mechanical behavior of high nitrogen stainless steel. J. Mater. Sci. 2011, 46, 5097–5103. [Google Scholar] [CrossRef]
  16. Hu, G.; Wang, P.; Li, D.; Li, Y. Effects of nitrogen on precipitation and tensile behaviors of 25Cr 20Ni austenitic stainless steels at elevated temperatures. Mater. Sci. Eng. A 2019, 752, 93–100. [Google Scholar] [CrossRef]
  17. Hu, G.; Wang, P.; Li, D.; Li, Y. High-temperature Tensile Behavior in Coarse-grained and Fine-grained Nb-containing 25Cr–20Ni Austenitic Stainless Steel. Acta Metall. Sin. (Engl. Lett.) 2020, 33, 1455–1465. [Google Scholar] [CrossRef]
  18. Fang, F.; Li, J.; Wang, Y. Characteristics and forming mechanism of precipitates in 18Mn18Cr high nitrogen steel. J. Univ. Sci. Technol. Beijing 2014, 36, 768–779. (In Chinese) [Google Scholar] [CrossRef]
  19. Qin, F.; Li, Y.; Zhao, X.; He, W.; Chen, H. Effect of nitrogen content on precipitation behavior and mechanical properties of Mn18Cr18N austenitic stainless steel. Acta Metall. Sin. 2018, 54, 55–64. (In Chinese) [Google Scholar] [CrossRef]
  20. Li, N.; Huang, S.; Zhang, G.; Qin, R.; Liu, W.; Xiong, H.; Shi, G.; Blackburn, J. Progress in additive manufacturing on new materials: A review. J. Mater. Sci. Technol. 2019, 35, 242–269. [Google Scholar] [CrossRef]
  21. Kamado, S.; Shin, K.S. Magnesium(Fourth International Conference on Magnesium). In Proceedings of the 11th International Conference in Asia (IUMRS-ICA2010), Qingdao, China, 25–28 September 2010; pp. 62–107. [Google Scholar]
  22. Shi, F.; Wang, L.; Cui, W.; Liu, C. Precipitation behavior of M2N in a high-nitrogen austenitic stainless steel during isothermal aging. Acta Met. Sin. (Engl. Lett.) 2007, 20, 95–101. [Google Scholar] [CrossRef]
  23. Kim, K.-S.; Kang, J.-H.; Kim, S.-J. Effects of carbon and nitrogen on precipitation and tensile behavior in 15Cr-15Mn-4Ni austenitic stainless steels. Mater. Sci. Eng. A 2018, 712, 114–121. [Google Scholar] [CrossRef]
  24. Kartik, B.; Veerababu, R.; Sundararaman, M.; Satyanarayana, D. Effect of high temperature ageing on microstructure and mechanical properties of a nickel-free high nitrogen austenitic stainless steel. Mater. Sci. Eng. A 2015, 642, 288–296. [Google Scholar] [CrossRef]
  25. Hua, J.; Wang, F.; Xue, X.; Ding, Z.; Chen, Z. Residual monotonic mechanical properties of bimetallic steel bar with fatigue damage. J. Build. Eng. 2022, 55, 104703. [Google Scholar] [CrossRef]
  26. Li, Q.; Wu, J.; Bao, L.; Gu, Y. Research Status and Control Measures of Transverse Cracks for Micro-alloyed Continuous Casting Billet. In Proceedings of the 4th International Conference on Manufacturing, Material and Metallurgical Engineering (ICMMME 2019), Chengdu, China, 22–25 March 2019; IOP Publishing: Bristol, UK, 2019; pp. 9–13. [Google Scholar]
  27. Xu, Y.; Li, W.; Wang, M.; Zhang, X.; Wu, Y.; Min, N.; Liu, W.; Jin, X. Nano-sized MX carbonitrides contribute to the stability of mechanical properties of martensite ferritic steel in the later stages of long-term aging. Acta Mater. 2019, 175, 148–159. [Google Scholar] [CrossRef]
  28. Characterization and measurement of nanostructure. In Abstracts Book of China International Conference on Nanoscience & Technology; Bulletin of Chinese Academic of Science: Beijing, China, 2005; pp. 199–260.
  29. Xu, W.; Sun, F. The Fine structure of Nb and V precipitates in Nb-V steel. Acta Metall. Sin. 1983, 6, 29–35, 117, 118. Available online: https://www.ams.org.cn/EN/abstract/abstract12108.shtml (accessed on 30 June 1983).
  30. Park, D.-B.; Huh, M.-Y.; Jung, W.-S.; Suh, J.-Y.; Shim, J.-H.; Lee, S.-C. Effect of vanadium addition on the creep resistance of 18Cr9Ni3CuNbN austenitic stainless heat resistant steel. J. Alloys Compd. 2013, 574, 532–538. [Google Scholar] [CrossRef]
  31. Erisir, E.; Prahl, U.; Bleck, W. Effect of precipitation on hot formability of high nitrogen steels. Mater. Sci. Eng. A 2010, 528, 519–525. [Google Scholar] [CrossRef]
  32. Wu, S.; Pan, T.; Cao, J.; He, D.; Xiao, Z. Barrier–corridor effect of longitudinal range–gorge terrain on monsoons in Southwest China. Geogr. Res. 2012, 31, 1–13. [Google Scholar] [CrossRef]
  33. Wang, Y.D.; Wu, D.; Qu, W.Q.; Zhang, Z.F.; Zhang, W.F.; Gan, Y.; Long, S.G.; Wang, F.P.; Zhang, Z. Materials Characterization and Evaluation. In Abstracts of IUMRS, Proceedings of the 11th International Conference in Asia (IUMRS-ICA2010), Qingdao, China, 25–28 September 2010; Chinese Society for Materials Research: Beijing, China, 2010; pp. 417–437. [Google Scholar]
  34. Zhang, S.; Li, H.; Jiang, Z.; Li, Z.; Wu, J.; Zhang, B.; Duan, F.; Feng, H.; Zhu, H. Influence of N on precipitation behavior, associated corrosion and mechanical properties of super austenitic stainless steel S32654. J. Mater. Sci. Technol. 2020, 42, 143–155. [Google Scholar] [CrossRef]
  35. Kikuchi, M.; Kajihara, M.; Choi, S.-K. Cellular precipitation involving both substitutional and interstitial solutes: Cellular precipitation of Cr2N in Cr Ni austenitic steels. Mater. Sci. Eng. A 1991, 146, 131–150. [Google Scholar] [CrossRef]
  36. Li, X.; Hu, S. Research Progress of Springback in Multi-Point Forming of Sheet Metal. In Proceedings of the 2021 2nd International Conference on Mechanical Engineering and Materials (ICMEM 2021), Beijing, China, 19–20 November 2021; IOP Publishing: Bristol, UK, 2021; pp. 59–68. [Google Scholar]
  37. Lee, T.-H.; Oh, C.-S.; Gil Lee, C.; Kim, S.-J.; Takaki, S. Precipitation of σ-phase in high-nitrogen austenitic 18Cr–18Mn–2Mo–0.9N stainless steel during isothermal aging. Scr. Mater. 2004, 50, 1325–1328. [Google Scholar] [CrossRef]
  38. Lee, T.-H.; Kim, S.-J.; Takaki, S. Time-temperature-precipitation characteristics of high-nitrogen austenitic Fe−18Cr−18Mn−2Mo−0.9N steel. Met. Mater. Trans. A 2006, 37, 3445–3454. [Google Scholar] [CrossRef]
  39. Zhang, B.; Jiang, Z.; Li, H.; Zhang, S.; Feng, H.; Li, H. Precipitation behavior and phase transformation of hyper duplex stainless steel UNS S32707 at nose temperature. Mater. Charact. 2017, 129, 31–39. [Google Scholar] [CrossRef]
  40. Maetz, J.-Y.; Douillard, T.; Cazottes, S.; Verdu, C.; Kléber, X. M23C6 carbides and Cr2N nitrides in aged duplex stainless steel: A SEM, TEM and FIB tomography investigation. Micron 2016, 84, 43–53. [Google Scholar] [CrossRef]
  41. Han, J.; Li, H.; Barbaro, F.; Jiang, L.; Zhu, Z.; Xu, H.; Ma, L. Precipitation and impact toughness of Nb–V stabilised 18Cr–2Mo ferritic stainless steel during isothermal aging. Mater. Sci. Eng. A 2014, 612, 63–70. [Google Scholar] [CrossRef]
  42. Xiao, C.; Feng, Q.; Chang, Y.J.O.; Liu, L.; Wu, Y. Advanced High Temperature Structural Materials. In Abstracts of IUMRS, Proceedings of the 11th International Conference in Asia (IUMRS-ICA2010), Qingdao, China, 25–28 September 2010; Trans Tech Publications: Durnten, Switzerland, 2011; pp. 108–132. [Google Scholar]
Metals 13 01183 g001 550

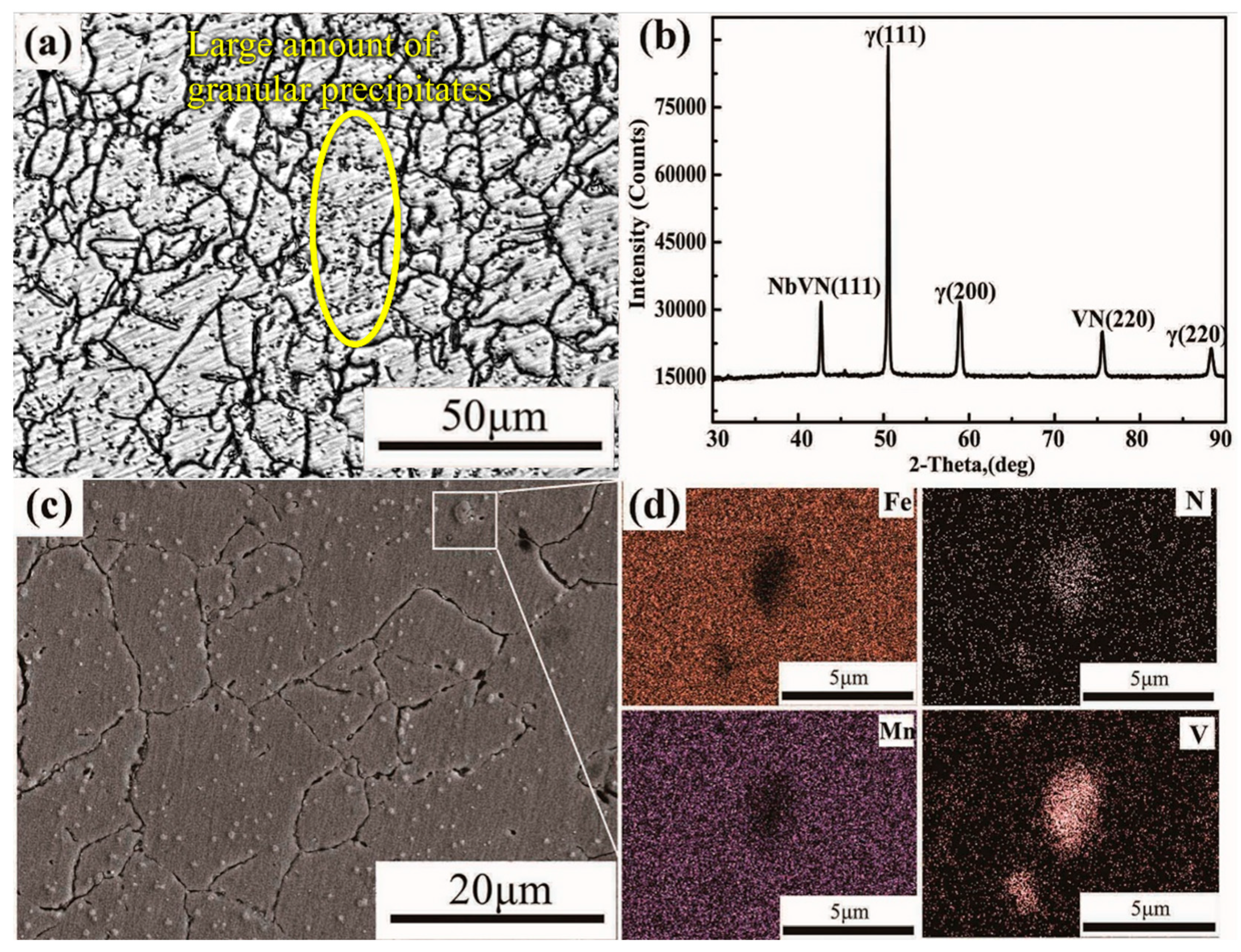

Figure 1. Metallographic structure of the original sample (a): dispersed granular second phase; XRD pattern (b): indicates that the precipitates are NbVN and VN; SEM image (c); EDS surface scan of the elemental distribution of the second phase-VN (d).
Figure 1. Metallographic structure of the original sample (a): dispersed granular second phase; XRD pattern (b): indicates that the precipitates are NbVN and VN; SEM image (c); EDS surface scan of the elemental distribution of the second phase-VN (d).
Metals 13 01183 g001
Metals 13 01183 g002 550

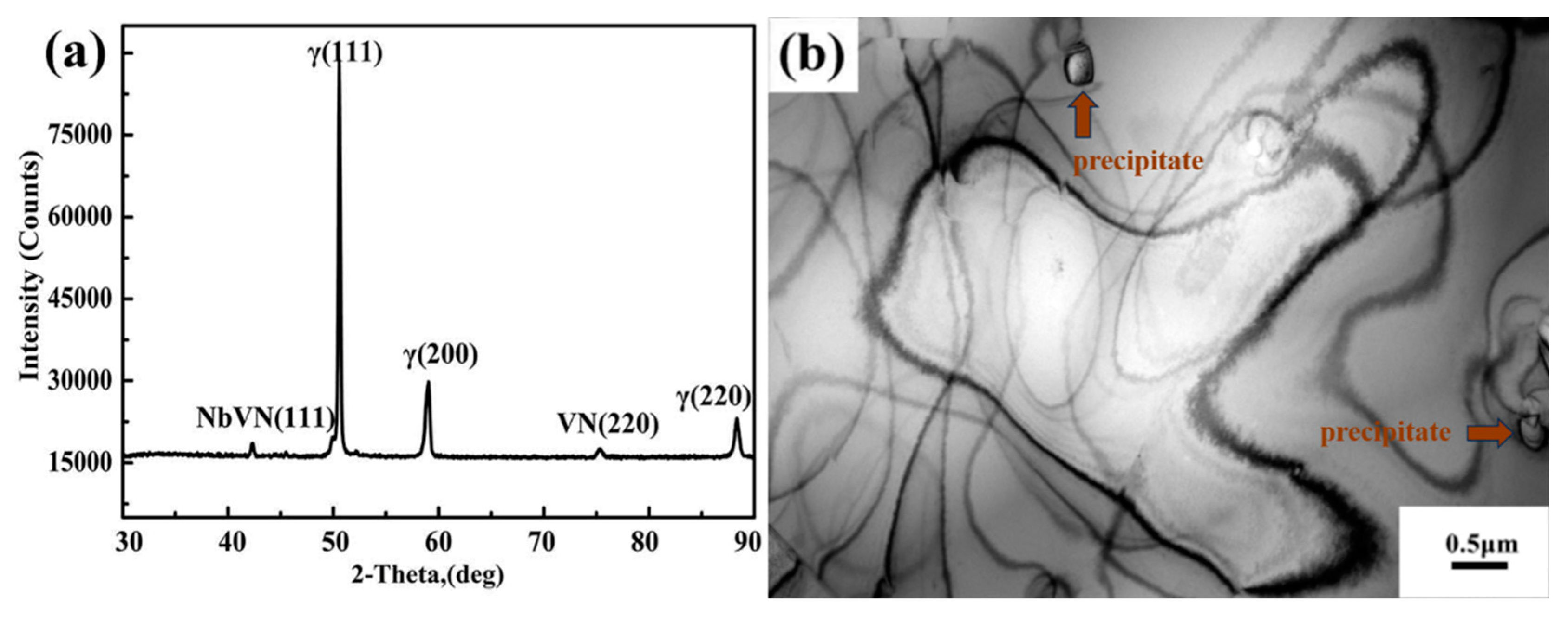

Figure 2. XRD analysis of the HNASS solid solution (a): the content of precipitates decreases and TEM image (b): small amounts of undissolved precipitates were found.
Figure 2. XRD analysis of the HNASS solid solution (a): the content of precipitates decreases and TEM image (b): small amounts of undissolved precipitates were found.
Metals 13 01183 g002
Metals 13 01183 g003 550

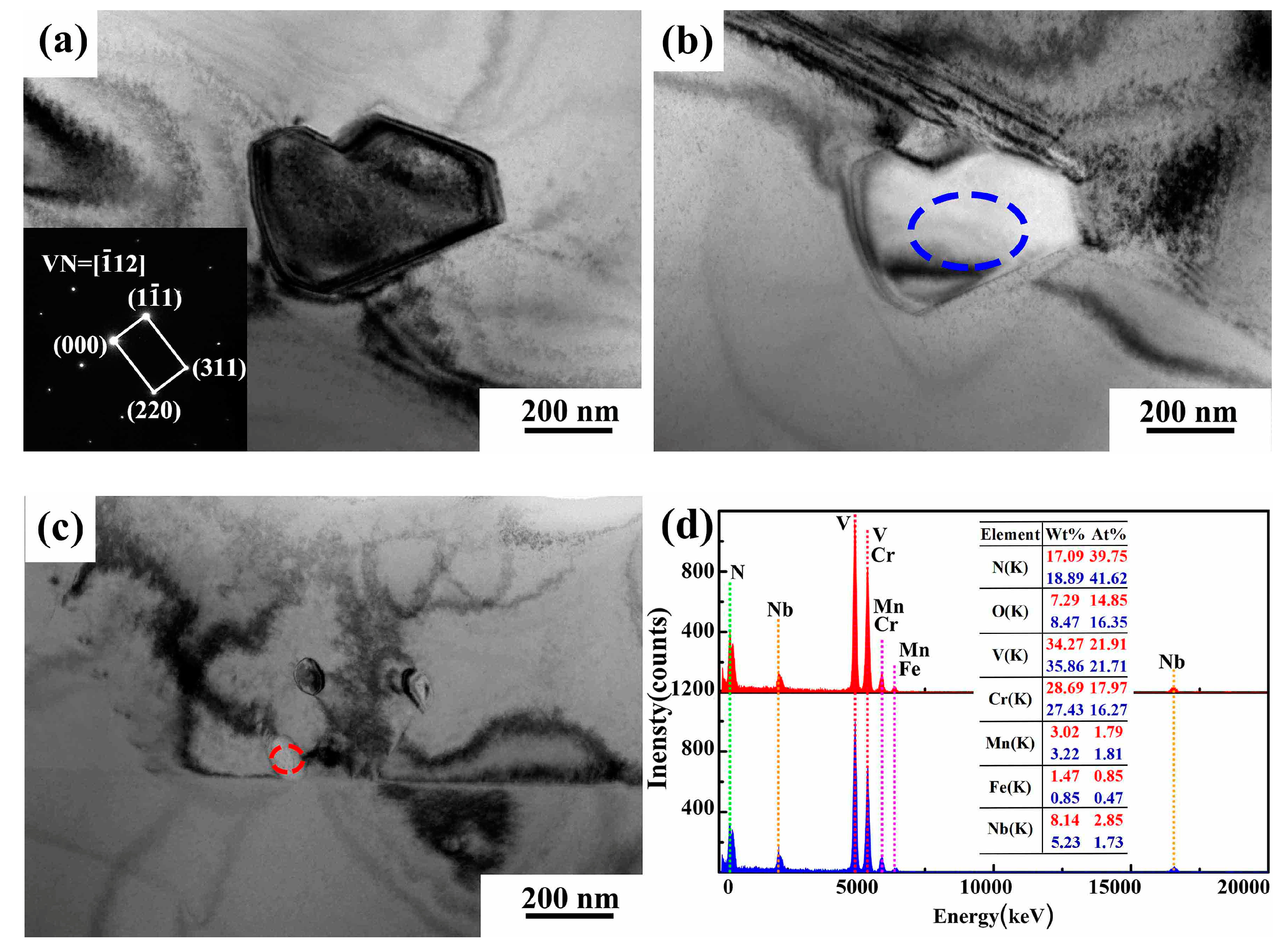

Figure 3. TEM image and EDS analysis of the second phase in solid solution HNASS after 1 h at 1200 °C: the addition of Nb and V elements results in the precipitation of MX-type nitrides.
Figure 3. TEM image and EDS analysis of the second phase in solid solution HNASS after 1 h at 1200 °C: the addition of Nb and V elements results in the precipitation of MX-type nitrides.
Metals 13 01183 g003
Metals 13 01183 g004 550

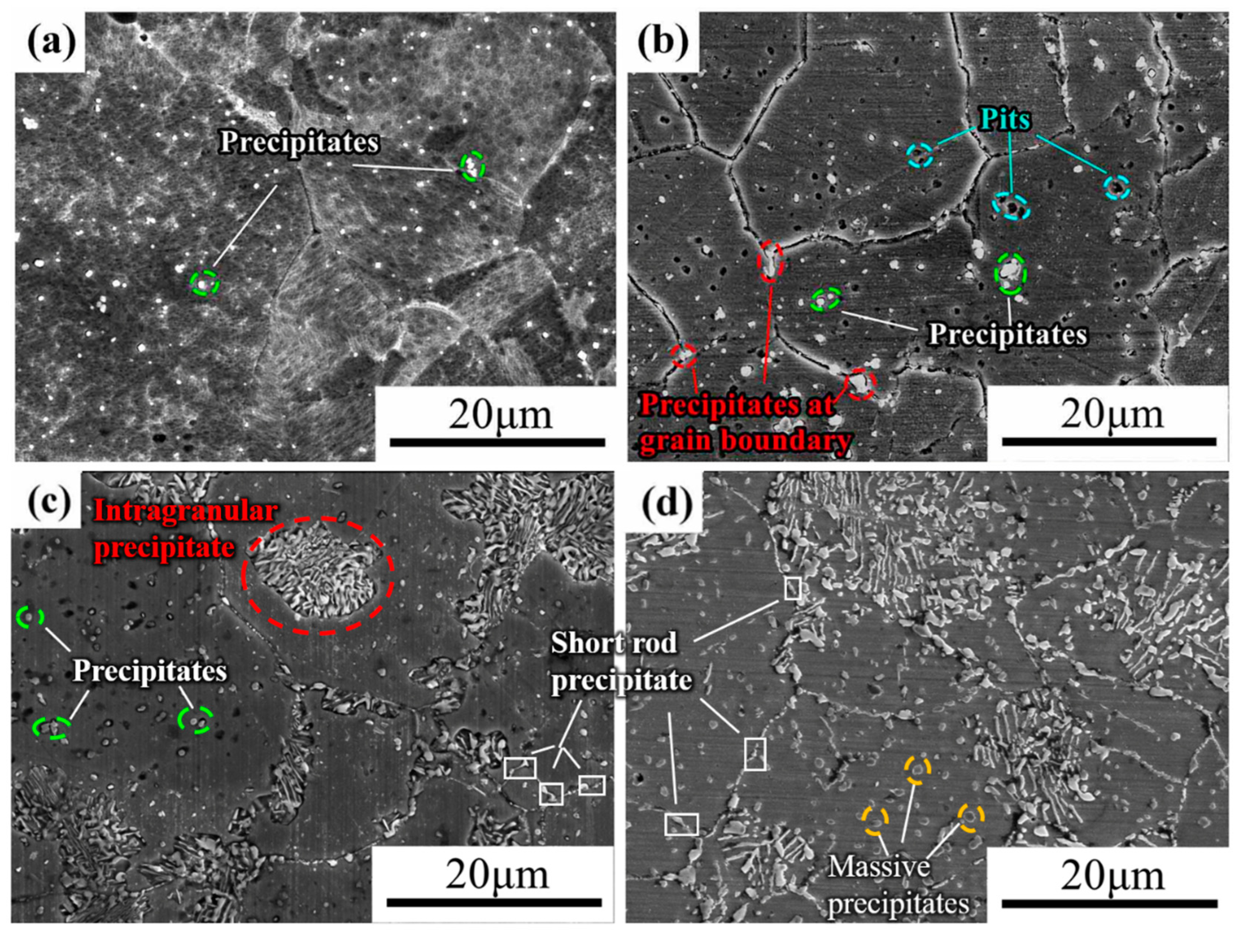

Figure 4. Microscopic morphology of HNASS after 3 h of aging at different temperatures. (a) 600 °C: dispersively distributed granular precipitates; (b) 800 °C: the size of the precipitates increased, and some of them fell off; (c) 900 °C: lamellar precipitates appeared; (d) 1000 °C: the lamellar precipitate content and the whole precipitate content increased.
Figure 4. Microscopic morphology of HNASS after 3 h of aging at different temperatures. (a) 600 °C: dispersively distributed granular precipitates; (b) 800 °C: the size of the precipitates increased, and some of them fell off; (c) 900 °C: lamellar precipitates appeared; (d) 1000 °C: the lamellar precipitate content and the whole precipitate content increased.
Metals 13 01183 g004
Metals 13 01183 g005 550

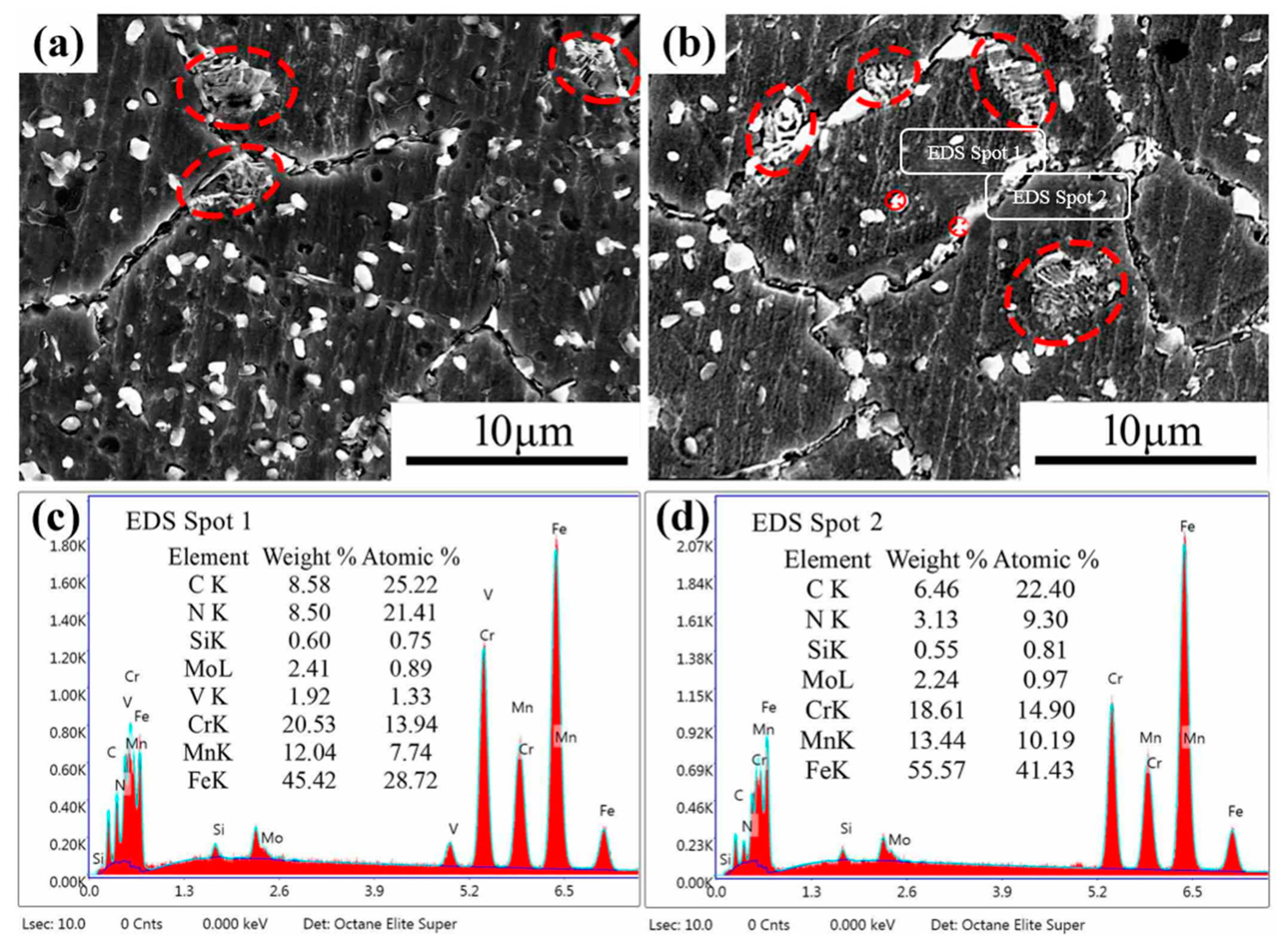

Figure 5. SEM micrograph and EDS analysis of HNASS after aging at 800 °C for 5 h. (a,b) SEM image: lamellar precipitates germinated at grain boundary; (c) EDS Spot 1: containing elements of V; (d) EDS Spot 2: no Element V, indicating that it is not the same precipitate as Spot 1.
Figure 5. SEM micrograph and EDS analysis of HNASS after aging at 800 °C for 5 h. (a,b) SEM image: lamellar precipitates germinated at grain boundary; (c) EDS Spot 1: containing elements of V; (d) EDS Spot 2: no Element V, indicating that it is not the same precipitate as Spot 1.
Metals 13 01183 g005
Metals 13 01183 g006 550

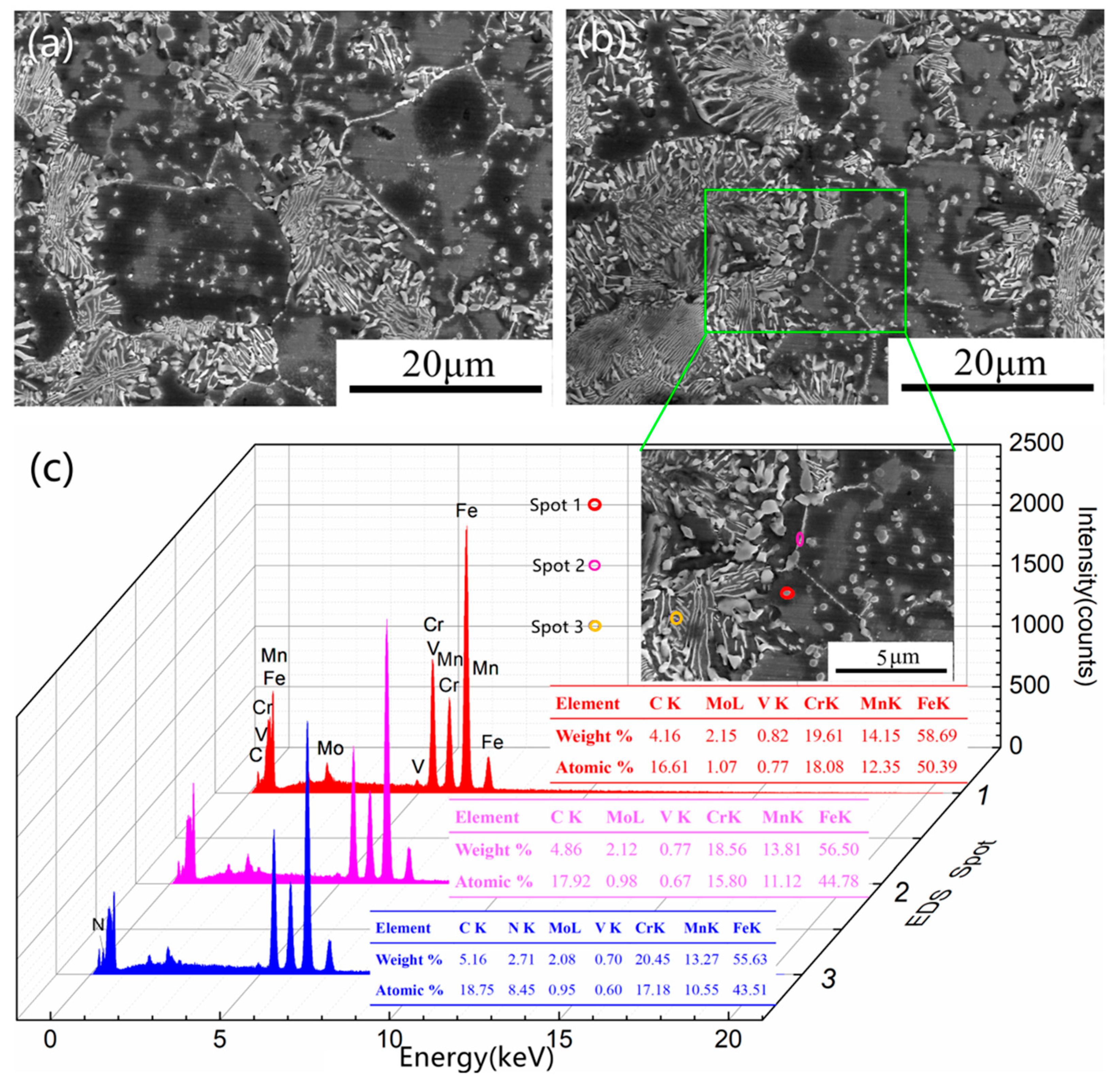

Figure 6. SEM micrographs of HNASS after aging at 900 °C for 5 h (a,b): compared with 3 h, the precipitate content increased, and EDS analysis (c): it is speculated that the precipitates at point 1 are Cr2N, and the precipitates at point 2 and 3 are intermetallic phase.
Figure 6. SEM micrographs of HNASS after aging at 900 °C for 5 h (a,b): compared with 3 h, the precipitate content increased, and EDS analysis (c): it is speculated that the precipitates at point 1 are Cr2N, and the precipitates at point 2 and 3 are intermetallic phase.
Metals 13 01183 g006
Metals 13 01183 g007 550

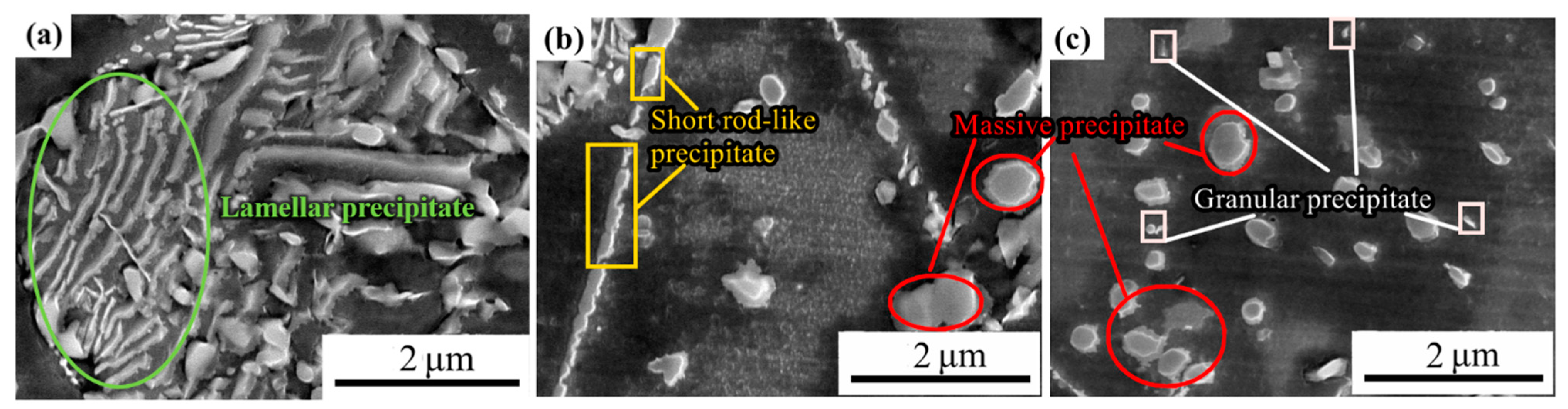

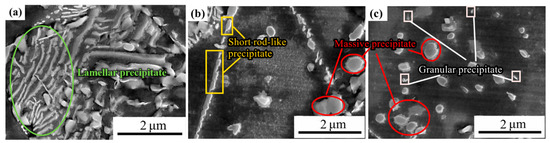

Figure 7. SEM morphology of the typical precipitates of HNASS after aging at 900 °C for 5 h. (a) Lamellar precipitate; (b) Short rod-like precipitate and Massive precipitate; (c) Granular precipitate and Massive precipitate.
Figure 7. SEM morphology of the typical precipitates of HNASS after aging at 900 °C for 5 h. (a) Lamellar precipitate; (b) Short rod-like precipitate and Massive precipitate; (c) Granular precipitate and Massive precipitate.
Metals 13 01183 g007
Metals 13 01183 g008 550

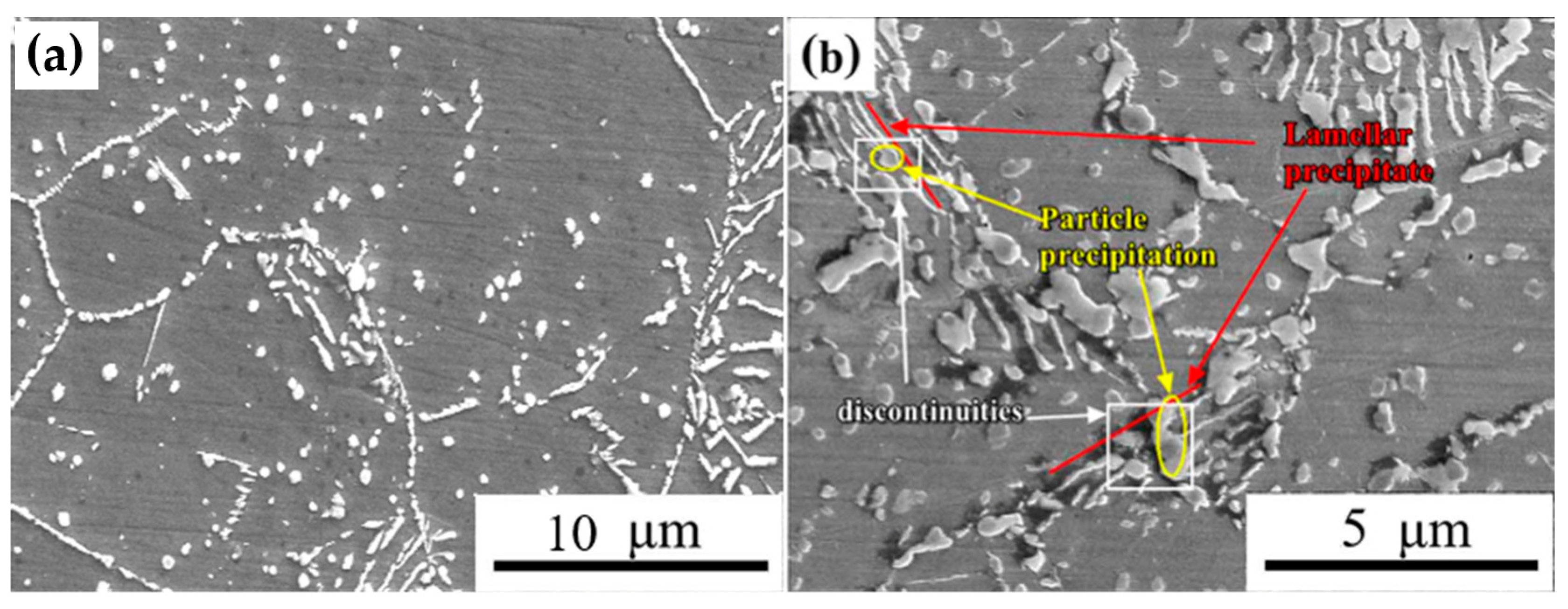

Figure 8. SEM morphology of HNASS at 1000 °C for 0.5 h (a) and SEM morphology of precipitates after 3 h (b).
Figure 8. SEM morphology of HNASS at 1000 °C for 0.5 h (a) and SEM morphology of precipitates after 3 h (b).
Metals 13 01183 g008
Metals 13 01183 g009 550

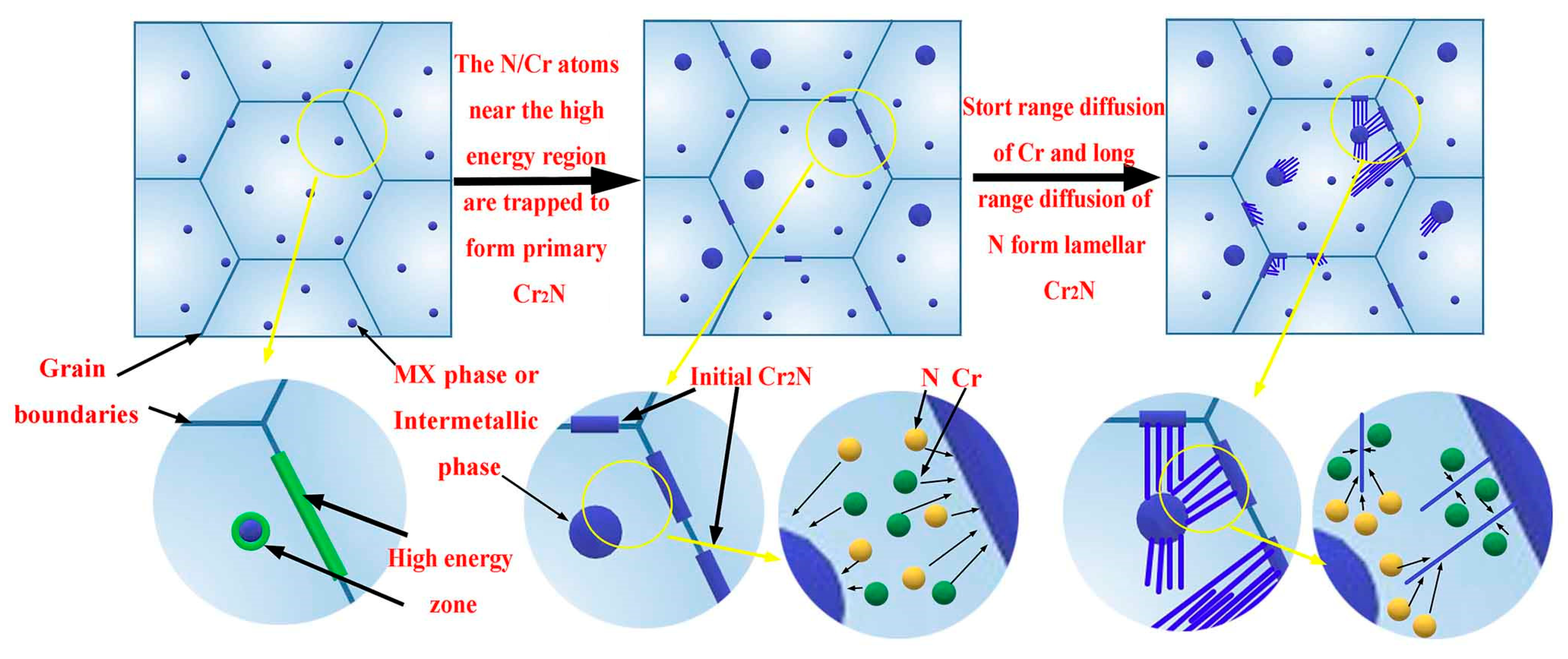

Figure 9. Schematic diagram of the formation mechanism of Cr2N: at the early stage, Cr and N aggregated at the high-energy interface to form Cr2N, and then Cr2N grew from the interface to the grain in a certain orientation under the action of the long-range diffusion of N and the short range diffusion of Cr.
Figure 9. Schematic diagram of the formation mechanism of Cr2N: at the early stage, Cr and N aggregated at the high-energy interface to form Cr2N, and then Cr2N grew from the interface to the grain in a certain orientation under the action of the long-range diffusion of N and the short range diffusion of Cr.
Metals 13 01183 g009
Table
Table 1. Chemical composition of test materials (wt. %).
Table 1. Chemical composition of test materials (wt. %).
ElementCSiMnCrMoNbVNSPFe
Content (wt.%)0.060.6315.6618.073.020.070.661.020.0050.009margin
