# Components of the Shear Modulus and Their Dependence on Temperature and Plastic Deformation of a Metallic Glass

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Experimental

## 3. Results and Discussion

#### 3.1. Shear Modulus Components of Predeformed Samples in the Initial and Relaxed States

#### 3.2. Separation of Non-Relaxation Components of the Shear Modulus

#### 3.3. Separation of the Relaxation Component and Its Dependence on Plastic Deformation

#### 3.4. Dependence of the Shear Modulus Components on the Defect Concentration and Plastic Deformation

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Wang, J.; Li, R.; Hua, N.; Zhang, T. Co-based ternary bulk metallic glasses with ultrahigh strength and plasticity. J. Mater. Res.
**2011**, 26, 2072. [Google Scholar] [CrossRef] - Wang, J.; Kaban, I.; Levytskyi, V.; Li, R.; Han, J.; Stoica, M.; Gumeniuk, R.; Nielsch, K. Ultra-high strength Co–Ta–B bulk metallic glasses: Glass formation, thermal stability and crystallization. J. Alloy. Compd.
**2021**, 860, 158398. [Google Scholar] [CrossRef] - Ding, J.; Cheng, Y.Q.; Ma, E. On the origin of elastic strain limit of bulk metallic glasses. Appl. Phys. Lett.
**2014**, 104, 011912. [Google Scholar] [CrossRef] - Qu, R.T.; Liu, Z.Q.; Wang, R.F.; Zhang, Z.F. Yield strength and yield strain of metallic glasses and their correlations with glass transition temperature. J. Alloy. Compd.
**2015**, 637, 44. [Google Scholar] [CrossRef] - Khonik, V.A.; Zelenskiy, V.A. High-temperature ductility and superplasticity of metallic glasses. Phys. Met. Metall.
**1989**, 67, 196. [Google Scholar] - Nieh, T.G.; Wadsworth, J. Homogeneous deformation of bulk metallic glasses. Scr. Mater.
**2006**, 54, 387. [Google Scholar] [CrossRef] - Zhang, Y. Inhomogeneous deformation in metallic glasses. Mater. Sci. Technol.
**2008**, 24, 379. [Google Scholar] [CrossRef] - Greer, A.L.; Cheng, Y.Q.; Ma, E. Shear bands in metallic glasses. Mater. Sci. Eng. R.
**2013**, 74, 71. [Google Scholar] [CrossRef] - Spaepen, F. A Microscopic mechanism for steady state inhomogeneous flow in metallic glasses. Acta Metall.
**1977**, 25, 407. [Google Scholar] [CrossRef] - Argon, A.S. Plastic deformation in metallic glasses. Acta Metall.
**1979**, 27, 47. [Google Scholar] [CrossRef] - Khonik, V.A.; Spivak, L.V. On the nature of low temperature internal friction peaks in metallic glasses. Acta Mater.
**1996**, 44, 367. [Google Scholar] [CrossRef] - Vinogradov, A.; Seleznev, M.; Yasnikov, I. Dislocation characteristics of shear bands in metallic glasses. Acta Mater.
**2017**, 130, 138. [Google Scholar] [CrossRef] - Seleznev, M.; Vinogradov, A. Shear bands topology in the deformed bulk metallic glasses. Metals
**2020**, 10, 374. [Google Scholar] [CrossRef][Green Version] - Chen, H.S. Glassy metals. Rep. Prog. Phys.
**1980**, 43, 353. [Google Scholar] [CrossRef] - Khonik, V.A.; Kitagawa, K.; Mikhailov, A.V.; Vinogradov, A.Y. The role of structural relaxation in the plastic flow of metallic glasses. J. Appl. Phys.
**1998**, 83, 5724. [Google Scholar] [CrossRef] - Dyre, J.C. The glass transition and elastic models of glass-forming liquids. Rev. Mod. Phys.
**2006**, 78, 953. [Google Scholar] [CrossRef][Green Version] - Makarov, A.S.; Konchakov, R.A.; Mitrofanov, Y.P.; Kretova, M.A.; Kobelev, N.P.; Khonik, V.A. A simple kinetic parameter indicating the origin of the relaxations induced by point(-like) defects in metallic crystals and glasses. J. Phys. Condens. Matter.
**2020**, 32, 495701. [Google Scholar] [CrossRef] [PubMed] - Makarov, A.S.; Afonin, G.V.; Qiao, J.C.; Glezer, A.M.; Kobelev, N.P.; Khonik, V.A. Determination of the thermodynamic potentials of metallic glasses and their relation to the defect structure. J. Phys. Condens. Matter.
**2021**, 33, 435701. [Google Scholar] [CrossRef] [PubMed] - Makarov, A.; Afonin, G.; Zakharov, K.; Vasiliev, A.; Qiao, J.; Kobelev, N.; Khonik, V. Boson heat capacity peak and its evolution with the enthalpy state and defect concentration in a high entropy bulk metallic glass. Intermetallics
**2022**, 141, 107422. [Google Scholar] [CrossRef] - Granato, A.V. Interstitialcy model for condensed matter states of face-centered-cubic metals. Phys. Rev. Lett.
**1992**, 68, 974. [Google Scholar] [CrossRef] - Granato, A.V. Interstitialcy theory of simple condensed matter. Eur. J. Phys. B
**2014**, 87, 18. [Google Scholar] [CrossRef] - Khonik, V.A.; Kobelev, N.P. Metallic glasses: A new approach to the understanding of the defect structure and physical Properties. Metals
**2019**, 9, 605. [Google Scholar] [CrossRef][Green Version] - Afonin, G.V.; Mitrofanov, Y.P.; Kobelev, N.P.; Khonik, V.A. Shear modulus relaxation and thermal effects in a Zr
_{65}Cu_{15}Ni_{10}Al_{10}metallic glass after inhomogeneous plastic deformation. J. Exp. Theor. Phys.**2020**, 131, 582. [Google Scholar] [CrossRef] - Makarov, A.S.; Afonin, G.V.; Aronin, A.S.; Kobelev, N.P.; Khonik, V.A. Thermodynamic approach for the understanding of the kinetics of heat effects induced by structural relaxation of metallic glasses. J. Phys. Condens. Matter.
**2022**, 34, 125701. [Google Scholar] [CrossRef] [PubMed] - Vasil’ev, A.N.; Gaĭdukov, Y.P. Electromagnetic excitation of sound in metals. Sov. Phys. Usp.
**1983**, 26, 952. [Google Scholar] [CrossRef] - Gordon, C.A.; Granato, A.V. Equilibrium concentration of interstitials in aluminum just below the melting temperature. Mater Sci. Eng. A
**2004**, 370, 83. [Google Scholar] [CrossRef] - Montanari, R.; Varone, A. Synergic role of self-interstitials and vacancies in indium melting. Metals
**2015**, 5, 1061. [Google Scholar] [CrossRef] - Mitrofanov, Y.P.; Wang, D.P.; Makarov, A.S.; Wang, W.H.; Khonik, V.A. Towards understanding of heat effects in metallic glasses on the basis of macroscopic shear elasticity. Sci. Rep.
**2016**, 6, 23026. [Google Scholar] [CrossRef] [PubMed] - Mitrofanov, Y.P.; Kobelev, N.P.; Khonik, V.A. Different metastable equilibrium states in metallic glasses occurring far below and near the glass transition. J. Non-Cryst. Sol.
**2018**, 497, 48. [Google Scholar] [CrossRef] - Kobelev, N.P.; Khonik, V.A. Theoretical analysis of the interconnection between the shear elasticity and heat effects in metallic glasses. J. Non-Cryst. Sol.
**2015**, 427, 184. [Google Scholar] [CrossRef] - Makarov, A.S.; Mitrofanov, Y.P.; Afonin, G.V.; Kobelev, N.P.; Khonik, V.A. Shear susceptibility—A universal integral parameter relating the shear softening, heat effects, anharmonicity of interatomic interaction and “defect” structure of metallic glasses. Intermetallics
**2017**, 87, 1. [Google Scholar] [CrossRef] - Makarov, A.S.; Afonin, G.V.; Mitrofanov, Y.P.; Konchakov, R.A.; Kobelev, N.P.; Qiao, J.C.; Khonik, V.A. Evolution of the activation energy spectrum and defect concentration upon structural relaxation of a metallic glass determined using calorimetry and shear modulus data. J. Alloy. Compd.
**2018**, 745, 378. [Google Scholar] [CrossRef] - Afonin, G.V.; Mitrofanov, Y.P.; Makarov, A.S.; Kobelev, N.P.; Khonik, V.A. On the origin of heat effects and shear modulus changes upon structural relaxation and crystallization of metallic glasses. J. Non-Cryst. Sol.
**2017**, 475, 48. [Google Scholar] [CrossRef] - Donati, C.; Douglas, J.F.; Kob, W.; Plimpton, S.J.; Poole, P.H.; Glotzer, S.C. Stringlike cooperative motion in a supercooled liquid. Phys. Rev. B
**1998**, 80, 2338. [Google Scholar] [CrossRef][Green Version] - Nordlund, K.; Ashkenazy, Y.; Averback, R.S.; Granato, A.V. Strings and interstitials in liquids, glasses and crystals. Europhys. Lett.
**2005**, 71, 625. [Google Scholar] [CrossRef][Green Version] - Konchakov, R.A.; Makarov, A.S.; Kobelev, N.P.; Glezer, A.M.; Wilde, G.; Khonik, V.A. Interstitial clustering in metallic systems as a source for the formation of the icosahedral matrix and defects in the glassy state. J. Phys. Condens. Matter.
**2019**, 31, 385703. [Google Scholar] [CrossRef] [PubMed]

**Figure 1.**Temperature dependences of the normalized shear modulus g in the initial (run 1) and relaxed (run 2) states of a sample plastically predeformed by ${\epsilon}_{pl}=20\%$. The solid and dashed lines give temperature dependences of the sum of harmonic, anharmonic and electronic components denoted as ${g}_{norel}$ for the initial state (run 1) and after relaxation (run 2). The calorimetric glass transition temperature ${T}_{g}$ is indicated by the arrow. The error is less than symbols’ size.

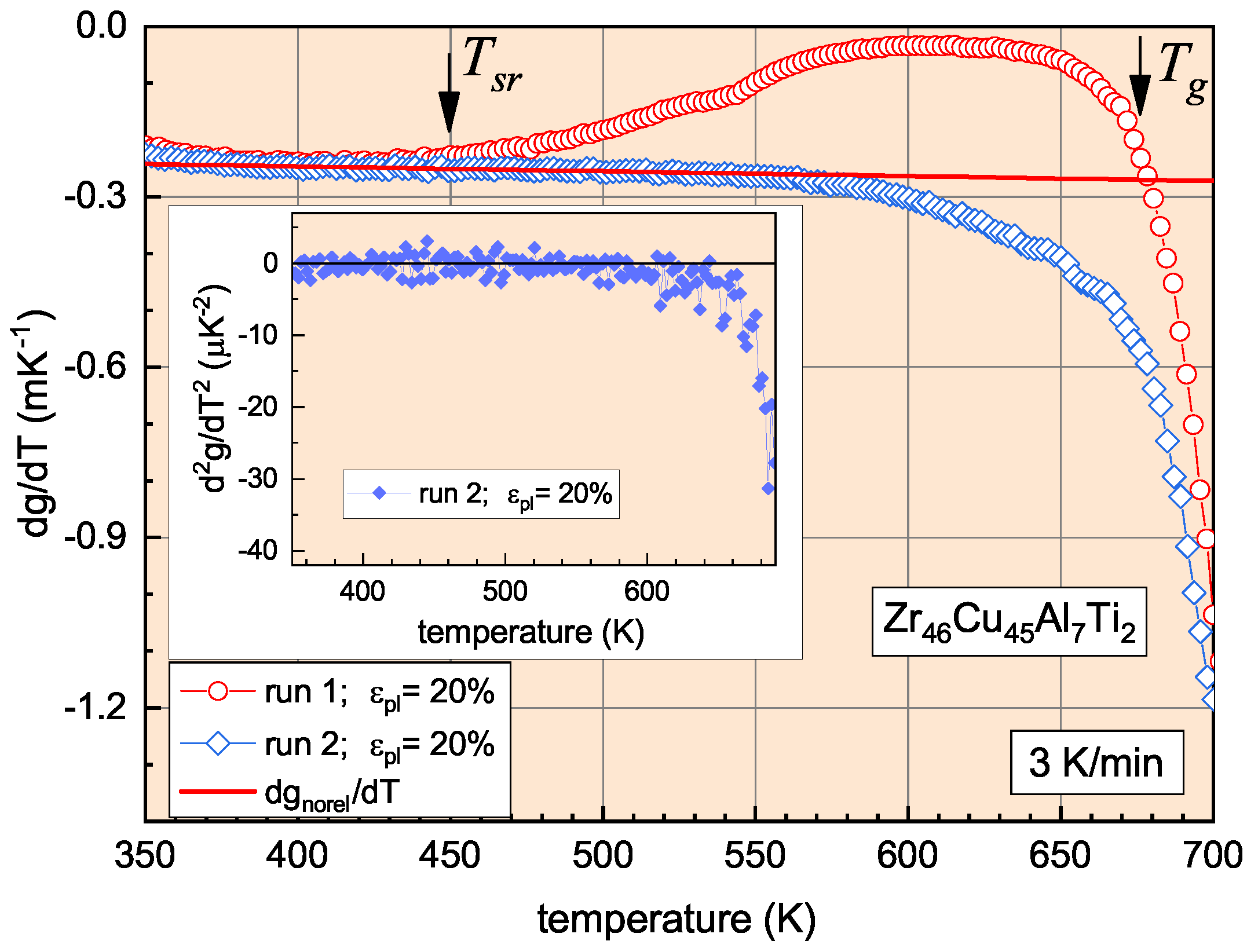

**Figure 2.**Temperature dependences of the first derivative of the normalized shear modulus over temperature $dg/dT$ in the initial (run 1) and relaxed (run 2) states of a sample predeformed by ${\epsilon}_{pl}=20\%$. The derivative of the non-relaxation component is given by the straight line. The inset gives temperature dependence of the second derivative ${d}^{2}g/d{T}^{2}$ in the relaxed (run 2) state. The glass transition temperature ${T}_{g}$ and the temperature of structural relaxation onset ${T}_{sr}$ are indicated by the arrows.

**Figure 3.**Temperature dependences of the relaxation component of the normalized shear modulus of bulk glassy Zr${}_{46}$Cu${}_{45}$Al${}_{7}$Ti${}_{2}$ in the undeformed state (${\epsilon}_{pl}=0$) and after deformation by different ${\epsilon}_{pl}$ as indicated. The error is about the symbols’ size.

**Figure 4.**The integral magnitude of the relaxation contribution to the shear modulus ${S}_{rel}$ calculated with Equation (9) and the change of the defect concentration $\Delta c$ determined according to Equation (8) as a function of plastic deformation ${\epsilon}_{pl}$. The lines give square least-fit approximations. It is seen that $\Delta Srel$ is proportional to $\Delta c$.

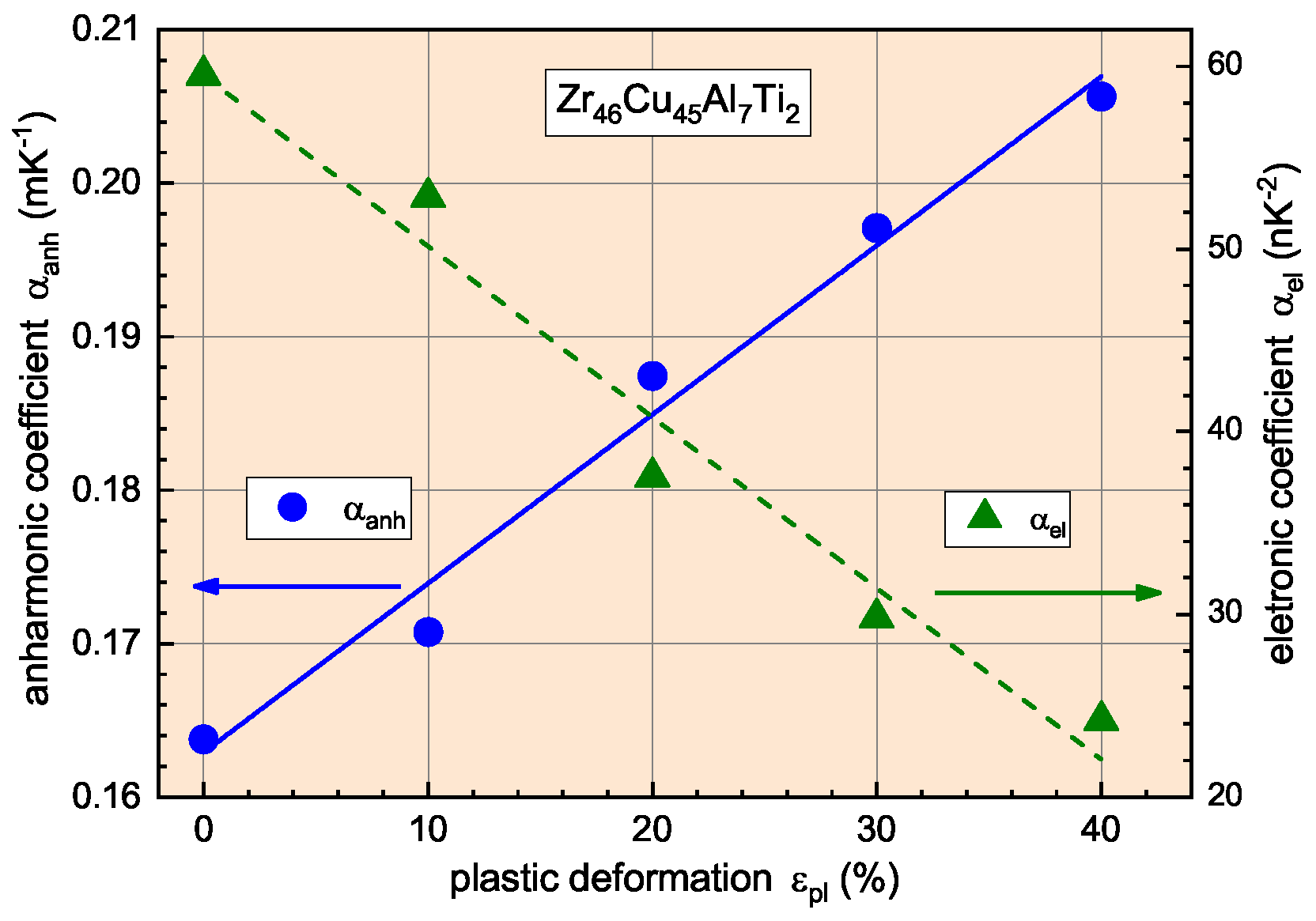

**Figure 5.**Dependence of the anharmonic coefficient ${\alpha}_{anh}$ and electronic coefficient ${\alpha}_{el}$ defined by Equation (1) on plastic deformation ${\epsilon}_{pl}$. The solid lines give least-square-fits of the data points. The errors are about the symbols’ size.
