Underwater Laser Welding of Pure Ti: Oxidation and Hardening Behaviors
Abstract
:1. Introduction
2. Materials and Methods
3. Results and Discussion
3.1. Macro-Morphology

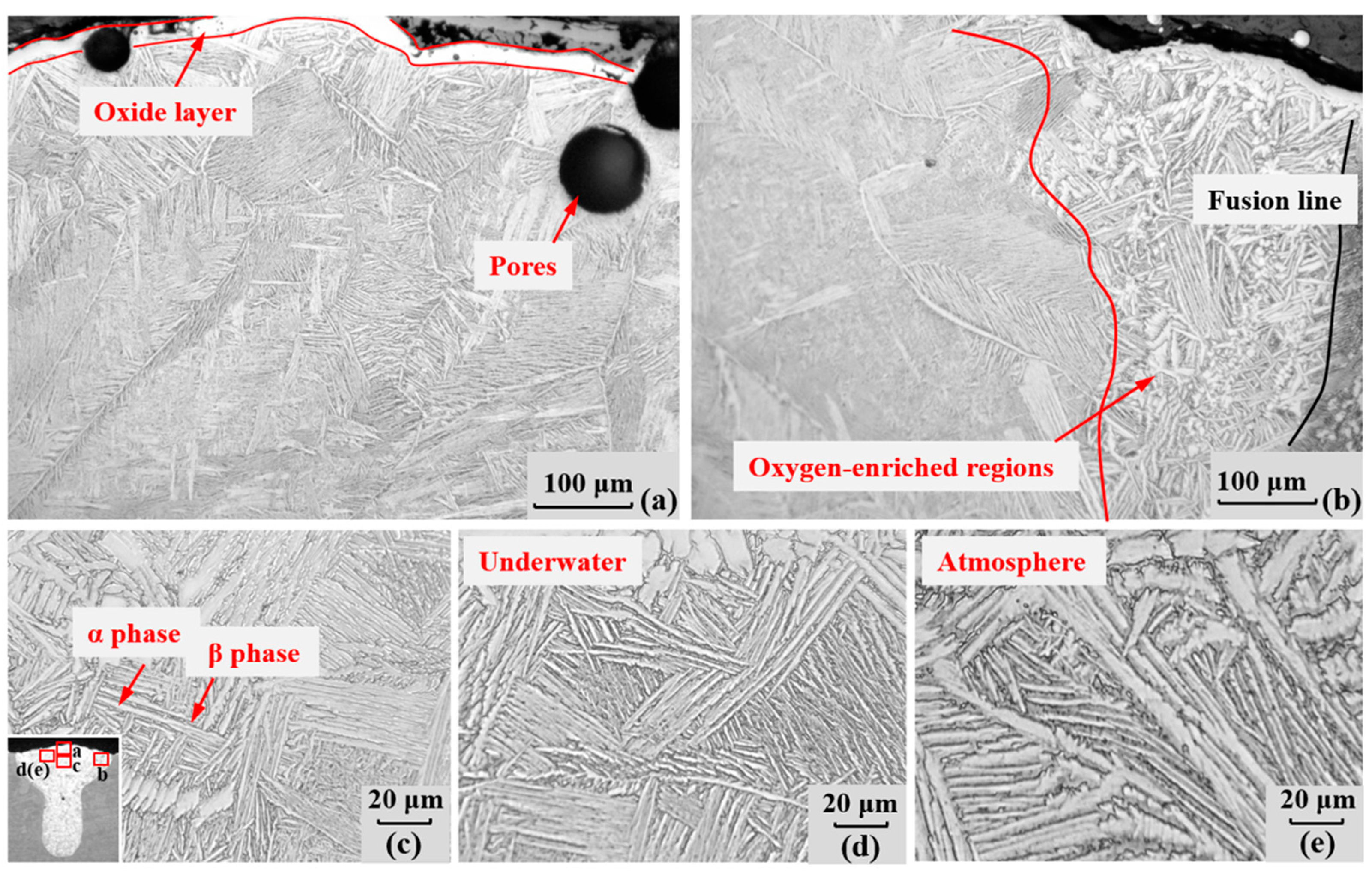

3.2. Microstructure
3.3. Oxidation Behavior of Underwater Weld
3.4. Hardening Behavior of Underwater Welds
4. Conclusions
- (1)
- The weld morphology of underwater local dry laser welding is smooth and slightly oxidized, which is better than that of underwater wet welding. With the increase of welding speed, the oxidation degree of the surface of the weld decreases due to the decrease of local energy input.
- (2)

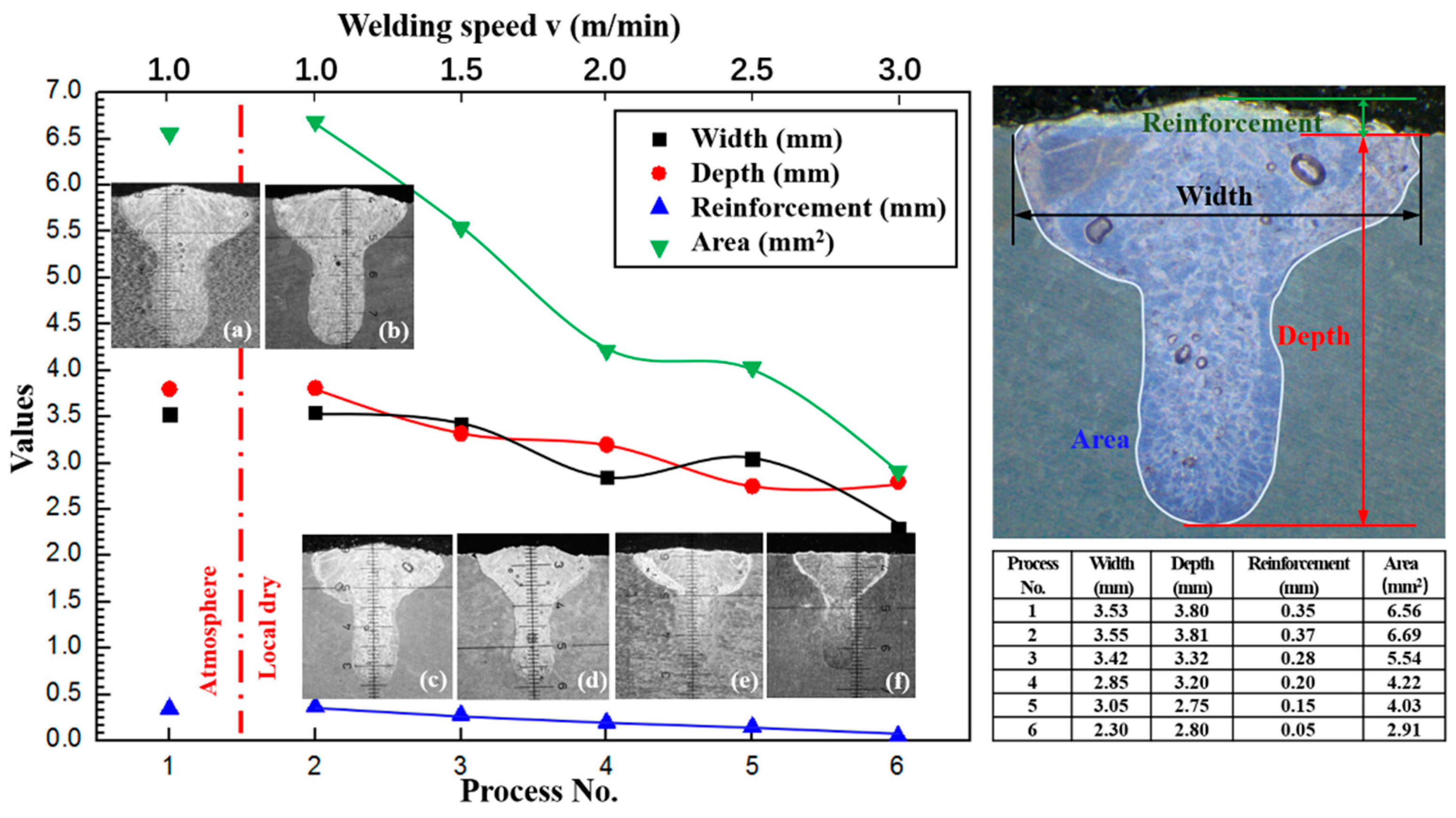

- Compared with a weld with the same process parameters in atmosphere, the cross-section geometric morphology was almost unaffected by the special underwater welding environment. The variation law of the cross-section morphology was the same as that in ordinary atmosphere laser welding.
- (3)
- The weld of underwater local dry laser welding presents a three-layer structure of an oxide layer, an oxygen-enriched area, and an oxidation free area. High temperature and high pressure water vapor and local blowing are the direct causes of weld oxidation, and the porosity defects further aggravate the oxidation behavior. Reducing the heat input and adjusting the blowing direction of the assisting gas may reduce the weld oxidation.
- (4)

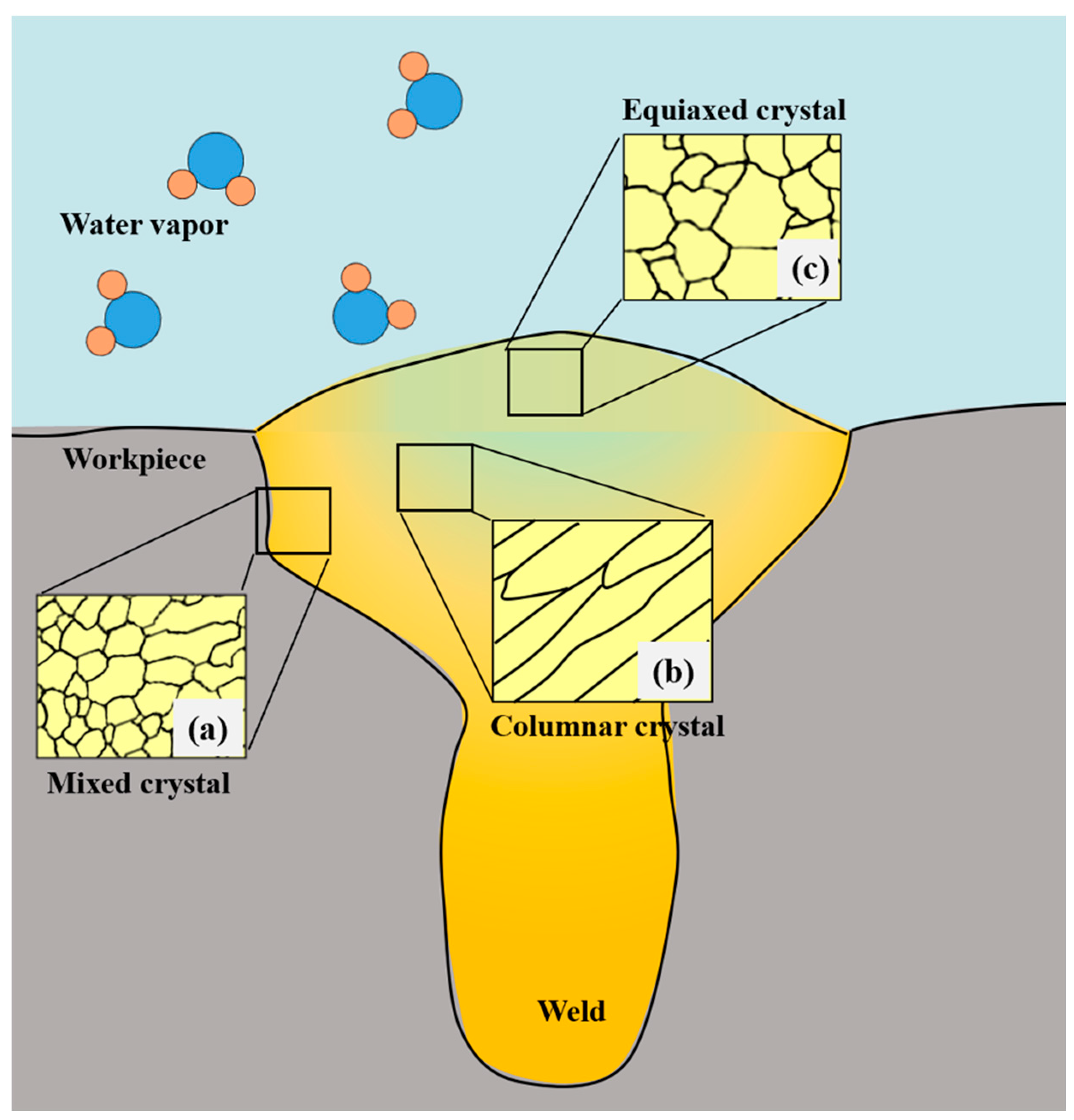

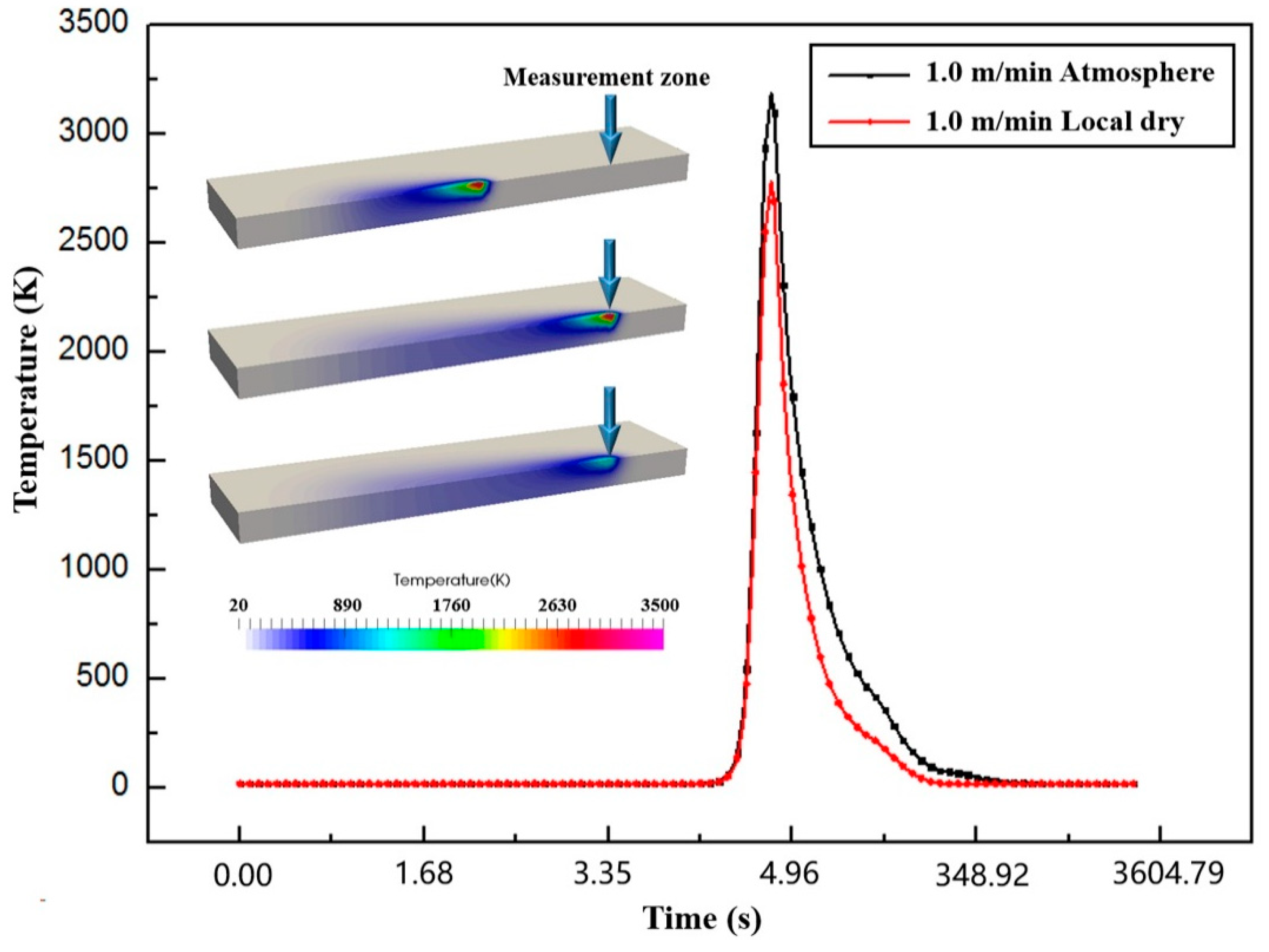

- The water environment will affect the solid-state phase transformation process, accelerate the cooling of the molten pool, and form fine acicular martensite. It will increase the overall microhardness of the weld in water. In addition, the oxygen enriched ambience is the cause of the increase in local microhardness.
- (5)

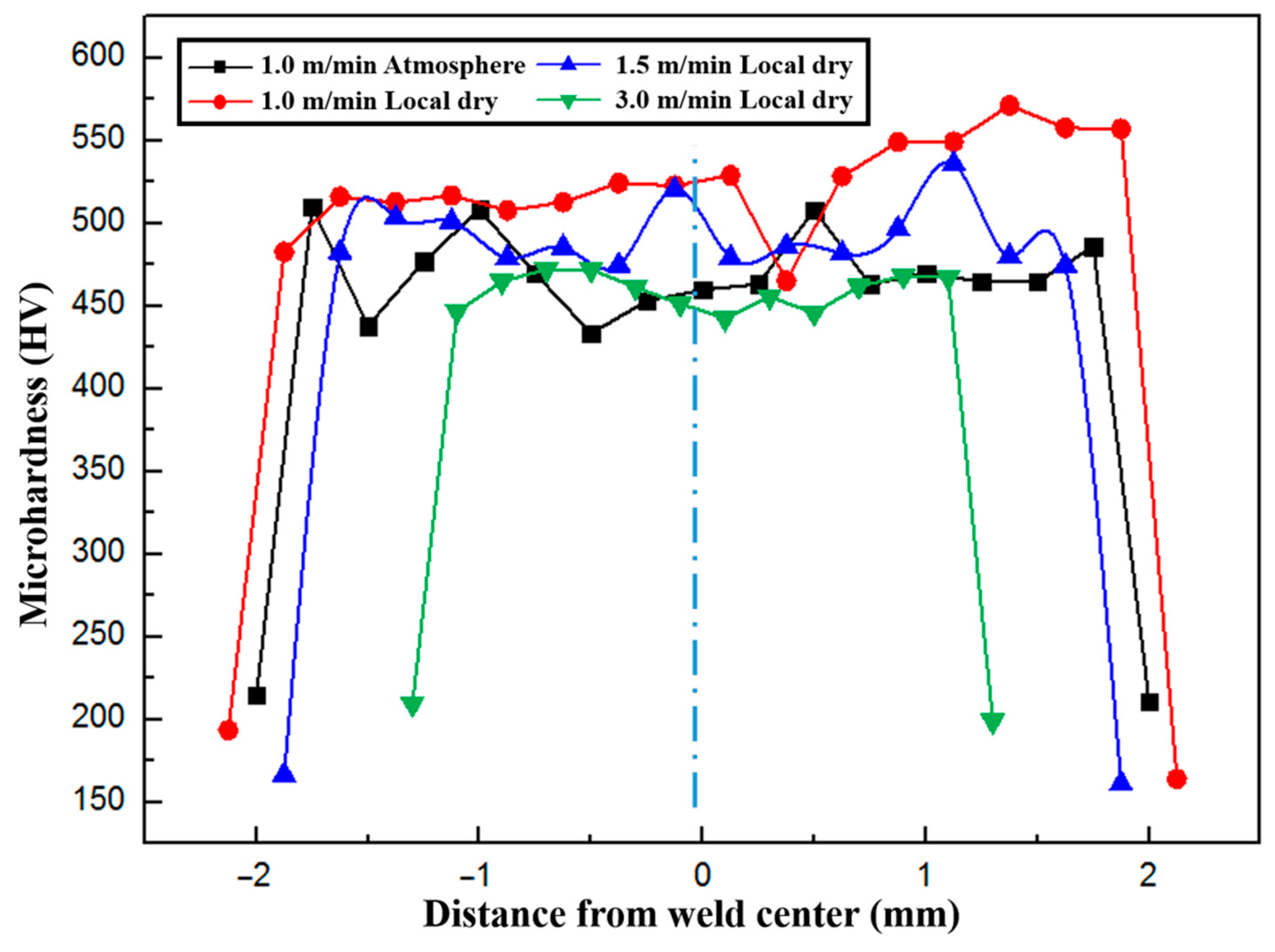

- With the increase of welding speed, the microhardness of a weld in water decreases. When the welding speed was increased to 3 m/min, the microhardness of the weld was almost the same as that in the atmospheric environment. In this way, local dry underwater laser welding with air assistance is a cost-effective method, which is promising for the in situ repair of large-scale underwater facilities.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yoda, M.; Tamura, M.; Fukuda, T.; Shiihara, K.; Sudo, T.; Maehara, T.; Morishima, Y.; Kato, H.; Ichikawa, H. Underwater laser beam welding for nuclear reactors. In Proceedings of the 20th International Conference on Nuclear Engineering and the ASME 2012 Power Conference, Anaheim, CA, USA, 30 July–3 August 2012; pp. 191–195. [Google Scholar]
- Zhu, J.; Jiao, X.; Wang, K.; Gu, Y.; Cai, Z. Development of Underwater Laser Wire-Filling Welding Device and Welding Maintenance Technology for Offshore Oil and Gas Pipeline. In Offshore Technology Conference Asia, Proceedings of the Offshore Technology Conference, Kuala Lumpur, Malaysia, 2 November–19 August 2020; Offshore Technology Conference: Houston, TX, USA.
- Noack, J.; Vogel, A. Laser-induced plasma formation in water at nanosecond to femtosecond time scales: Calculation of thresholds, absorption coefficients, and energy density. IEEE J. Quantum Electron. 1999, 35, 1156–1167. [Google Scholar] [CrossRef] [Green Version]
- Bergmann, J.; Patschger, A.; Bastick, A. Enhancing Process Efficiency due to high Focusing with high Brightness Lasers-Applicability and constraints. Phys. Procedia 2011, 12, 66–74. [Google Scholar] [CrossRef] [Green Version]
- Brooks, R. Underwater Laser-Beam Welding Set for U.S. Debut. Weld. Des. Fabr. 2012, 4, 24. [Google Scholar]
- Zhang, X.; Chen, W.; Ashida, E.; Matsuda, F. Effect of shielding conditions on welding properties in underwater local-dry laser welding. Lasers in Material Processing and Manufacturing. Int. Soc. Opt. Photonics 2002, 4915, 97–106. [Google Scholar]
- Łabanowski, J.; Fydrych, D.; Rogalski, G. Underwater welding-a review. Adv. Mater. Sci. 2008, 8, 11–22. [Google Scholar] [CrossRef]
- Sepold, G.; Teske, K. Results of underwater welding with high power CO2 lasers. Int. Congr. Appl. Lasers Electro. Opt. 1983, 38, 87–89. [Google Scholar]
- Zhu, J.; Jiao, X.; Zhou, C.; Gao, H. Applications of Underwater Laser Peening in Nuclear Power Plant Maintenance. Energy Procedia 2012, 16, 153–158. [Google Scholar] [CrossRef] [Green Version]
- Habenicht, I.; Santos, J.; Szelagowski, P.; Franz, T. Development of a Nozzle for Underwater Laser Beam Welds; Process of Offshore Mechanics and Arctic Engineering III; American Society of Mechanical Engineers: New York, NY, USA, 1996; pp. 141–149. [Google Scholar]
- Jones, M. Underwater Laser Welding Nozzle. U.S. Patent US6060686 A, 9 May 2000. [Google Scholar]
- Yamashita, Y.; Kawano, T.; Mann, K. Underwater Laser Welding by 4 kW CW YAG Laser. J. Nucl. Sci. Tech. 2001, 38, 891–895. [Google Scholar] [CrossRef]
- Morita, I.; Owaki, K.; Yamaoka, H.; Kim, C. Study of Underwater Laser Welding Repair Technology. Weld. World 2006, 50, 37–43. [Google Scholar] [CrossRef]
- Bucurel, R.; Hlifka, G. Laser beam welding process automates underwater repairs. Weld. J. 2010, 89, 47–49. [Google Scholar]
- Zhang, X.; Chen, W.; Ashida, E.; Matsuda, F. Relationship between weld quality and optical emissions in underwater Nd: YAG laser welding. Opt. Laser Eng. 2004, 41, 717–730. [Google Scholar] [CrossRef]
- Luo, M.; Hu, R.; Li, Q.; Huang, A.; Pang, S. Physical understanding of keyhole and weld pool dynamics in laser welding under different water pressures. Int. J. Heat. Mass Transf. 2019, 137, 328–336. [Google Scholar] [CrossRef]
- Di, X.; Ji, S.; Cheng, F.; Wang, D.; Cao, J. Effect of cooling rate on microstructure, inclusions and mechanical properties of weld metal in simulated local dry underwater welding. Mater. Des. 2015, 88, 505–513. [Google Scholar] [CrossRef]
- Guo, N.; Cheng, Q.; Zhang, X.; Fu, Y.; Huang, L. Microstructure and mechanical properties of underwater laser welding of titanium alloy. Materials 2019, 12, 2703. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Çolak, Z.; Ayan, Y.; Kahraman, N. Weld morphology and mechanical performance of marine structural steel welded underwater in a real marine environment. Int. J. Adv. Manuf. Tech. 2020, 109, 491–501. [Google Scholar] [CrossRef]
- Hu, Y.; Shi, Y.; Sun, K.; Shen, X.; Wang, Z. Microstructure and mechanical properties of underwater hyperbaric FCA-welded duplex stainless steel joints. J. Mater. Process. Tech. 2018, 261, 31–38. [Google Scholar] [CrossRef]
- Fu, Y.; Guo, N.; Zhu, B.; Shi, X.; Feng, J. Microstructure and properties of underwater laser welding of TC4 titanium alloy. J. Mater. Process. Tech. 2020, 275, 116372. [Google Scholar] [CrossRef]
- Ueda, Y.; Yamakawa, T. Analysis of thermal elastic plastic stress and strain during welding by finite element method. Trans. Jpn. Weld. Soc. 1971, 2, 90–100. [Google Scholar]
- Liang, L.; Hu, R.; Wang, J.; Luo, M.; Huang, A.; Wu, B.; Pang, S. A CFD-FEM Model of Residual Stress for Electron Beam Welding Including the Weld Imperfection Effect. Metall. Mater. Trans. A 2019, 50, 2246–2258. [Google Scholar] [CrossRef]
- Li, C.; Ding, Y.; Fu, G.; Li, X.; Jiang, J. Effect of fiber Laser–MIG hybrid process parameters on weld bead shape and tensile properties of commercially pure titanium. Mater. Manuf. Process. 2010, 25, 1309–1316. [Google Scholar] [CrossRef]
- Cui, L.; Bin, L.; Wu, Z.; Qi, X.; Ye, B.; Wang, A. Stitch welding of Ti–6Al–4V titanium alloy by fiber laser. Trans. Nonferrous Met. Soc. China 2017, 27, 91–101. [Google Scholar]
- Kim, J.; Ki, H. Scaling law for penetration depth in laser welding. J. Mater. Process. Technol. 2014, 214, 2908–2914. [Google Scholar] [CrossRef]
- Katsman, A.; Grabke, H.; Levin, L. Penetration of oxygen along grain boundaries during oxidation of alloys and intermetallics. Oxid. Met. 1996, 46, 313–331. [Google Scholar] [CrossRef]

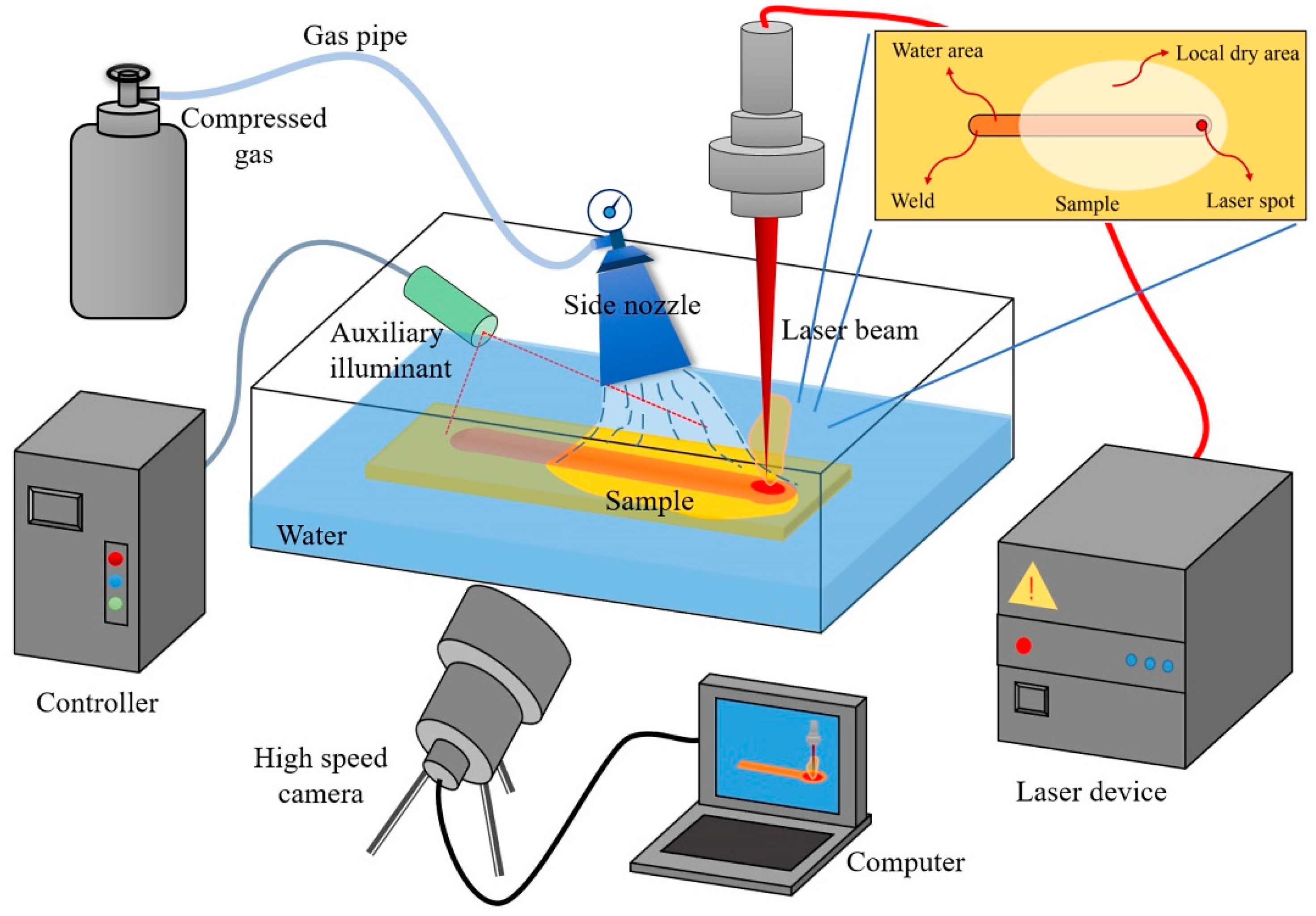

Process No. | Power P (kW) | Welding Speed v (m/min) | Raw Water Depth D (mm) | Welding Environment |
---|---|---|---|---|
1 | 3 | 1.0 | 0 | Atmosphere |
2 | 3 | 1.0 | 2 | Local dry |
3 | 3 | 1.5 | 2 | Local dry |
4 | 3 | 2.0 | 2 | Local dry |
5 | 3 | 2.5 | 2 | Local dry |
6 | 3 | 3.0 | 2 | Local dry |
