Research on High-Pressure Hydrochloric Acid Leaching of Scandium, Aluminum and Other Valuable Components from the Non-Magnetic Tailings Obtained from Red Mud after Iron Removal

1
Laboratory of Physical Chemistry and Technology of Iron Ore Processing, A.A. Baikov Institute of Metallurgy and Materials Science, Russian Academy of Science, 49 Leninsky Prosp., 119334 Moscow, Russia
2
Faculty of Biotechnology and Industrial Ecology, D. Mendeleev University of Chemical Technology of Russia, 9 Miusskaya Square, 125047 Moscow, Russia
3
Laboratory of Complex Chemical Research, N.P. Lyakishev Scientific Center for Complex Processing of Raw Materials, I. P. Bardin Central Research Institute of Ferrous Metallurgy, 23/9 bdg. 2, Radio Str., 105005 Moscow, Russia
4
Department of Energy-Efficient and Resource-Saving Industrial Technologies, National University of Science & Technology (MISIS), 4 Leninsky Prosp., 119049 Moscow, Russia
*
Author to whom correspondence should be addressed.
Academic Editors: Fernando Castro and Anna Kaksonen
Metals 2021, 11(3), 469; https://doi.org/10.3390/met11030469
Received: 30 January 2021 / Revised: 16 February 2021 / Accepted: 8 March 2021 / Published: 12 March 2021
(This article belongs to the Section Extractive Metallurgy)

Abstract

Red mud is a hazardous waste of the alumina industry that contains high amounts of iron, aluminum, titanium and rare-earth elements (REEs). One of the promising methods for the extraction of iron from red mud is carbothermic reduction with the addition of sodium salts. This research focuses on the process of hydrochloric high-pressure acid leaching using 10 to 20% HCl of two samples of non-magnetic tailings obtained by 60 min carbothermic roasting of red mud at 1300 °C and the mixture of 84.6 wt.% of red mud and 15.4 wt.% Na2SO4 at 1150 °C, respectively, with subsequent magnetic separation of metallic iron. The influence of temperature, leaching duration, solid-to-liquid-ratio and acid concentration on the dissolution behavior of Al, Ti, Mg, Ca, Si, Fe, Na, La, Ce, Pr, Nd, Sc, Zr was studied. Based on the investigation of the obtained residues, a mechanism for passing valuable elements into the solution was proposed. It has shown that 90% Al, 91% Sc and above 80% of other REEs can be dissolved under optimal conditions; Ti can be extracted into the solution or the residue depending on the leaching temperature and acid concentration. Based on the research results, novel flowsheets for red mud treatment were developed.
Keywords: red mud; bauxite residue; reduction roasting; sodium sulfate; magnetic separation; alumina; high pressure acid leaching; hydrochloric acid; recycling; utilization red mud; bauxite residue; reduction roasting; sodium sulfate; magnetic separation; alumina; high pressure acid leaching; hydrochloric acid; recycling; utilization

1. Introduction

Red mud is a solid waste generated during the extraction of alumina from bauxite ores by the Bayer method [1]. At the present time, the main treatment methods for red mud include stockpiling by damming, direct sea-fill, and sea-fill after neutralization [2]. Globally, about 4 billion tons of red mud are currently stored [3,4]. The lack of efficient processing technologies is the main reason why red mud is out of use and accumulated in special sludge storage facilities, which have an adverse impact on the environment and have even led to technogenic catastrophe [3]. It has found that red mud is proved to be a promising material for obtaining coagulants and can be used as an adsorbent for heavy metals in wastewater [5]; it can also be utilized in a wide range of catalytic applications [6], as well as for a production of various building materials [7].
The typical contents of valuable components in red mud such as Ti, Si, Fe, Na and Al are 2 to 12%, 1 to 9%, 14 to 45%, 1 to 6% and 5 to 14%, respectively [8]. Moreover, red mud also contains a small proportion of REEs in the range of 0.05 to 0.17% [9]. It is important to note that the Sc content in red mud is in the range of 0.013 to 0.039% [10], which is quite significant. The actual composition of red mud depends on the bauxite mineralogy and different technological parameters of the Bayer process [11]. The iron content in red mud is comparable with poor iron ore [12], which is an important driver for research on the processing of red mud.
Many processes have been proposed for the recovery of valuable components from red mud [9,13,14]. In the last years, there has been a high interest for the selective recovery of scandium [10,15,16]. Direct leaching processes using different lixiviants such as alkaline solutions [17,18], hydrochloric and sulfuric acids [19,20,21,22,23,24,25], organic acids [26,27] and ionic liquids [28,29] have been thoroughly investigated. However, direct leaching methods are either non-selective or ineffective for the extraction of titanium and REEs.
The high content of iron in red mud is the main hindering factor for the extraction of REEs from the solutions obtained by red mud acid leaching [29,30]. For this reason, the most promising way to comprehensively recycle red mud is by using combined pyro- and hydrometallurgical methods with the recovery of iron by pyrometallurgical methods followed by the leaching of valuable components from the iron-depleted red mud [31]. The main pyrometallurgical ways for iron recovery from red mud are reduction smelting and carbothermic roasting with the subsequent magnetic separation of reduced iron. The reduction smelting either requires a high temperature and uses different fluxes such as CaO [32], CaO–SiO2 mixtures [30,33,34], Al2O3 [35], or needs the preliminary extraction of alumina [36] for the obtaining of slags with a low viscosity and melting temperature. The more favorable way is carbothermic roasting followed by magnetic separation, which is favorable due to its lower energy consumption compared with reduction smelting. Many studies [37,38,39,40,41,42] have shown that direct carbothermic roasting of red mud with different additions followed by magnetic separation results in the obtaining of iron concentrates with about 95% of iron content at temperatures below 1200 °C.
There are several studies describing the leaching of valuable elements from tailings obtained by the carbothermic roasting of red mud with alkaline salts followed by magnetic separation. Such a two-step process followed by alumina extraction using alkaline leaching was proposed for red mud treatment [43,44], but alkaline leaching of the tailings led to the recovery of only alumina and sodium without the extraction of other valuable elements. It has shown [45] that the addition of sodium salts such as Na2CO3 and Na2SO4 significantly improves the recovery of Al, Fe, Ti and Si from the tailings by sulfuric acid leaching at 30 °C.
The dissolution of silicon from red mud during an acid leaching can lead to the formation of silica gel, which causes significant difficulties for the filtration of the leached solution [46], so different methods were proposed to avoid it. The comparative atmosphere leaching of the tailings by different inorganic acids, namely, hydrochloric, nitric, sulfuric, and phosphoric [47] has indicated that only phosphoric acid allows the selective removal of SiO2 with substantial enrichment of Sc2O3 and TiO2 in the residue. A suggested two-step process includes SiO2 extraction by phosphoric acid leaching followed by Al2O3 extraction from the residue by the leaching using sodium hydroxide. The other approaches, which allows silica gel formation to be avoided, are high-pressure acid leaching (HPAL) or using a high liquid-to-solid ratio [48]. The comparative study of the dissolution efficiency of the slags after red mud reduction smelting at atmosphere leaching and high-pressure leaching using HCl and H2SO4 have shown that high-pressure hydrochloric acid leaching allows for the extraction of more than 90% Al and above 95% Y, La, and Nd, as well as up to 80% Sc with the co-dissolution of Si and Ti below 5% [30]. The use of hydrochloric acid for HPAL for the aluminum extraction in different high-silica materials, e.g., coal ash [49], and boehmite-kaolinite bauxites [50,51], resulted in higher aluminum extraction compared with other mineral acids [52].
Thus, a promising way for the extraction of valuable components from red mud is the reduction roasting with obtaining of magnetic iron concentrate and non-magnetic tailings enriched in aluminum, titanium and REEs followed by the treatment of the tailings by high-pressure hydrochloric acid leaching.
In this paper, we study hydrochloric acid leaching of two different kinds of the tailings after the carbothermic roasting and magnetic separation of red mud. The leaching behavior of major elements (Al, Ti, Ca, Si, Fe, Na, Mg) and minor elements (Sc, Y, La, Ce, Nd, Pr, Zr) under atmosphere and high-pressure conditions were investigated. The most influencing factors on the leaching process were identified, and optimal leaching conditions were determined. The obtained solutions and the solid residues were characterized by different methods, so a leaching mechanism to extract valuable components was proposed. Two flowsheets for the processing of the both non-magnetic tailings were developed.

2. Materials and Methods

2.1. Raw Materials

Two samples of non-magnetic tailings were derived by reduction roasting—a magnetic separation process of red mud (RM) from the Bogoslovsky Aluminium Plant (Russian Federation, Krasnoturyinsk, 59.84° N, 60.19° E) at optimal conditions according to our previous work [53]. The first sample codenamed as without addition tailings (WAT) was obtained by the reduction roasting of RM at 1300 °C for 1 h. The second sample codenamed as sodium sulfate addition tailings (SSAT) was obtained by reduction roasting of the mixture of 84.6 wt.% RM and 15.4 wt.% Na2SO4 at 1150 °C for 3 h. Both the roasted samples were ground, screened through a 300-mesh sieve, and magnetically separated using a wet method by the Davis tube XCGS–50 (Shaoxing Weibang Mining Machinery Manufacturing Co., Ltd., Zhejiang, China) at magnetic field intensity of 0.1 T. Table 1 demonstrates the chemical compositions including iron content of the RM, WAT, and SSAT samples.
As can be seen, the contents of Al2O3, TiO2, and REEs are significantly increased, but the Fe content was considerably decreased in the WAT and SSAT samples compared with the RM sample. The compositions of both the tailings are quite similar, but they are different in sulfur and sodium contents due to the addition of Na2SO4 for the SSAT sample in the roasting process.

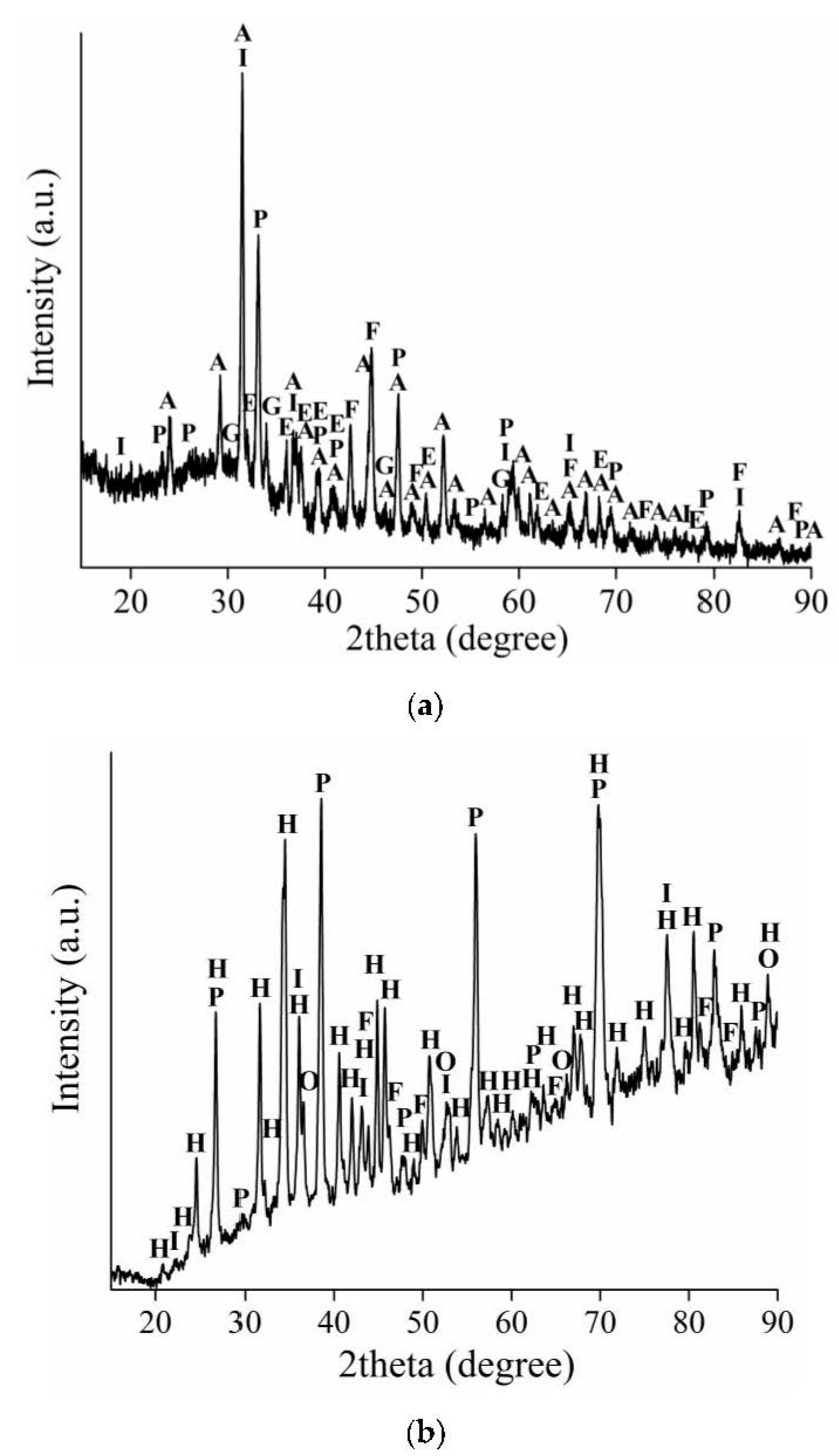

Figure 1 shows diffractograms of the WAT and SSAT samples with phase signs. The phase composition of the RM sample is in our previous paper [53]. The mineral compositions of the samples are quite different.
The major phases of the WAT sample are Ca2Al2SiO7 (gehlenite), CaTiO3 (perovskite), Ca3Al2Si3O12 (grossular). Furthermore, it contains small amounts of Mg3Al2Si3O12 (pyrope), MgAl2O4 (magnesium aluminum oxide), and Fe (iron). The major phases of the SSAT sample are NaAlSiO4 (nepheline) and CaS (oldhamite), which were formed by chemical reactions between Na2SO4 and calcium-aluminum-silicon oxides during the carbothermic roasting of red mud [53]. It should be noted that there is an absence of gehlenite and grossular in the SSAT compared to the WAT, as well as a similarity of other minerals to the WAT sample.

2.2. Experimental Procedure

The chemical composition of the tailings and solid residues after the leaching were analyzed after an appropriate digestion using an inductively coupled plasma atomic emission spectrometer (ICP AES) Vista Pro (Varian Optical Spectroscopy Instr., Mulgrave, Australia). The samples for the analysis of Si were fused at 950 °C in the presence of soda and boric acid, then leached using 1 N HCl. The samples for ICP AES analysis of other elements were digested by a mixture of concentrated hydrofluoric, sulfuric and nitric acids; if it was necessary, the filtered residue was also fused at 950 °C in the presence of soda and boric acid and leached using 1 N HCl. Two duplicate samples were digested; three analyses by the ICP AES device were carried out for all the digested samples.
Additionally, the tailings and the solid residues were analyzed by X-ray fluorescence spectrometer (XRF) ARL QUANT’X (Thermo Fisher Scientific, Ekublens, Switzerland) and AXIOSmax Advanced (PANalytical, Almelo, The Netherlands), respectively. The mother liquors and washings were analyzed by an inductively coupled plasma atomic emission spectrometer (ICP-MS) Perkin–Elmer Sciex ELAN 6100 DRC (PerkinElmer Inc., Waltham, MA, USA) and ICP AES Optima 3300RL (PerkinElmer Inc., Waltham, MA, USA). X-ray diffraction patterns (XRD) were obtained by diffractometers Difrey (JSC Scientific Instruments, Saint-Petersburg, Russian Federation) using Co-Kα radiation or ARL X’tra diffractometer (Thermo Fisher Scientific, Ekublens, Switzerland) using Cu-Kα radiation with their subsequent processing by the Match! software (Crystal Impact, Bonn, Germany) [54] using Crystallography Open Database.
The tailings were preliminary dried at 110 °C for 2 h and then leached using a laboratory autoclave P2004 (Shanghai Jieang Instrument Co., Shanghai, China) in 25 mL stainless steel pots with teflon inserts at a temperature in the range of 50 to 210 °C at a stirring speed of 350 rpm and duration time of 30 to 90 min. Hydrochloric acid with a concentration in the range of 10 to 20% was used for the leaching; the solid-to-liquid ratios (S:L) used were 1:5.5, 1:11, 1:16.5. As a result of the leaching, a mother liquor was obtained by vacuum filtration. The solid residue obtained by the filtration was washed with distilled water and dried at 110 °C in an air furnace for 2 h.
The recovery degree of major and minor elements was calculated using following equations, respectively:
%ε = 100 − (mr × %MjEr)/(m0 × %MjE0) × 100,
%ε = (α × Vliq + β × Vwater)/(m0 × %MnE0) × 100,
where ε—element recovery degree, %; mr—mass of the solid residue, g; m0—mass of the tailings, g; %MjE0 and %MjEr—content of a major element in tailings and in the solid residue, respectively, %; %MnE0—content of a minor element in the tailings,%; α—content of an element in mother liquor, g/L; Vliq—volume of mother liquor, l; β—content of an element in washing distilled water, g/L; Vwater—volume of washing distilled water, l.
The samples before and after leaching were placed onto the carbon tape and analyzed using scanning electron microscope (SEM) VEGA 3SB (Tescan, Brno, Czech Republic) equipped by energy-dispersive X-ray analyzer (EDX) INCA SDD X-MAX (Oxford Instruments, Abingdon, UK).

3. Results

3.1. HPAL Experiments with the Variation of Leaching Temperature and HCl Concentration

3.1.1. HPAL for the WAT Sample

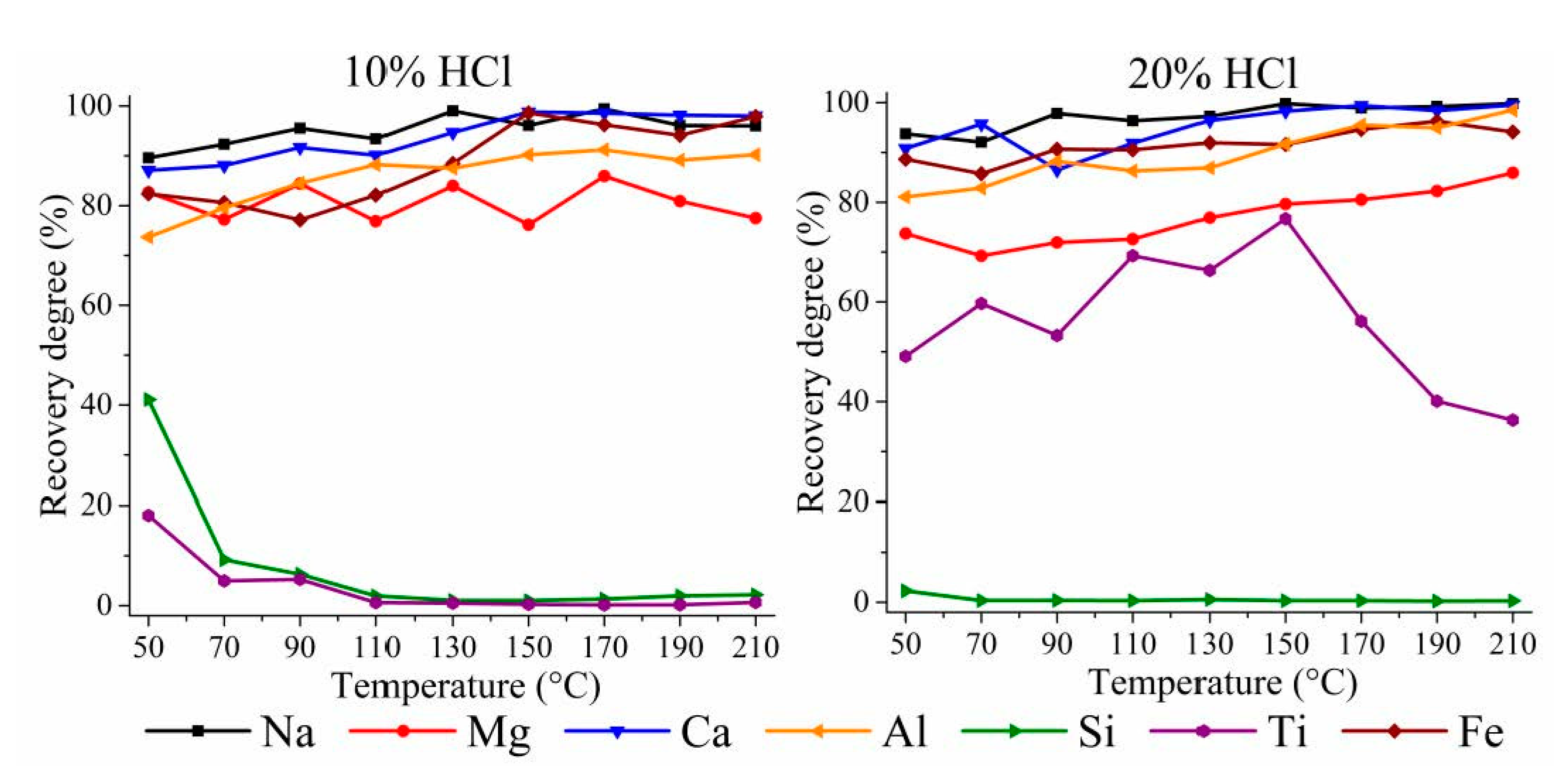

Figure 2 demonstrates the influence of the leaching temperature on the recovery degree of major elements for the WAT sample. A significant simultaneous dissolution of aluminum, iron, calcium, magnesium and sodium for both the acid concentration of 10% and 20% were discovered. An increase of temperature from 70 to 170 °C led to a growth of the aluminum extraction degree from 74 to 91% for 10% HCl, while a temperature rise from 50 to 210 °C with the application of 20% HCl resulted in an increase of the aluminum recovery degree from 81 to 98%.
Silicon dissolution degree was 41% at 50 °C for diluted acid, and it decreased to less than 2% with an increase of leaching temperature above 100 °C; an increase of acid concentration also led to a similarly low dissolution of silicon. These results can be explained by significant retardation of silica hydration with a HPAL temperature rise due to water released as vapor, so a partially hydrated metal reacts with hydrochloric acid to silica form. Therefore, the use of HPAL allows silica gel formation to be avoided. The process can be described by the following equation [30,55]:
M2SiO4(s) + 4HCl(l) + (4n − 2)H2O(l) = 2MCl2 nH2O(l) + SiO2(filterable),
The leaching behavior of titanium is quite different for 10% and 20% acid concentration. The recovery degree of titanium for diluted acid is 18% at 50 °C; it decreases to less than 1% at temperatures above 100 °C. In contrast, the dissolution degree of titanium at 50 °C is 49% for concentrated acid; it increases to 77% with HPAL temperature rising up to 150 °C, then decreases to 36%. These results agree well with previously reported data [56,57], where perovskite is proved to be highly soluble in concentrated hydrochloric acid and poorly soluble in diluted acid. Hence, the use of high-pressure diluted hydrochloric acid leaching allows to separate selectively titanium and silicon from the other elements.

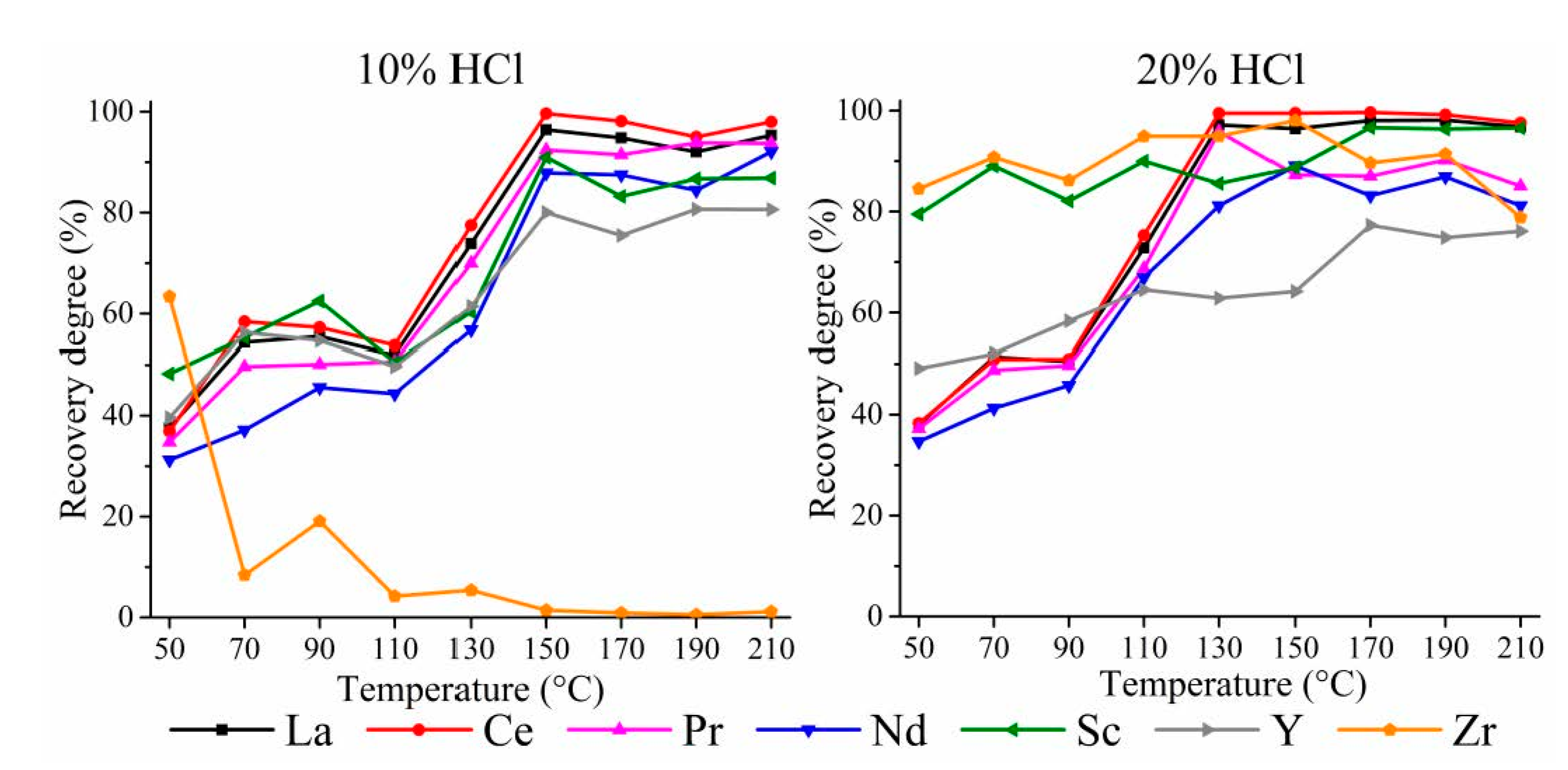

Figure 3 shows the influence of leaching temperature on the extraction degree of minor elements.
As can be seen, for both 10 and 20% HCl the dissolution degrees of La, Ce, Pr, Nd are very similar, but the dissolution behavior of Sc and Y is rather different; it is in agreement with the results of other researchers [58]. The recovery degrees of all REEs were near 40% for both the acid concentrations at 50 °C; they increase significantly with temperature rising. REE extraction degrees have a peak with the values of more than 75% for 10% HCl at the temperatures above 150 °C. These results are also in accordance with [58], where a significant influence of the temperature on the leaching of REEs from iron-removed red mud was noted. There are a few differences between REE leaching using the diluted and concentrated acids. The REE extraction degree for 10% HCl starts to increase dramatically at temperatures over 110 °C, and for 20% HCl such an abrupt jump occurs above 90 °C. The dissolution degree of Sc is near 80 to 90% at the low temperatures for the concentrated acid unlike 50 to 60% for the diluted acid. However, a rise of the temperature up to 150 °C and above using the diluted acid led to an achievement of a plateau at a level of 83 to 91%, while using of the concentrated acid enabled to achieve the best extraction degrees of 96 to 97% in the range of 170 to 210 °C.
A zirconium behavior is considerably different compared with the other minor elements. The application of 10% HCl at the temperature range of 110 to 210 °C resulted in the recovery degrees of Zr below 5%, while the application of 20% HCl at the same range led to 78 to 95% Zr extraction. Therefore, either dissolution or retention in the residue can be considered for Zr recovery in the case of its economic feasibility. It should be noted that the behavior of Zr correlates with Ti qualitatively but differs quantitatively; this is probably because of the similarity of their properties due to their presence in the same subgroup of the periodic table.

3.1.2. HPAL for the SSAT Sample

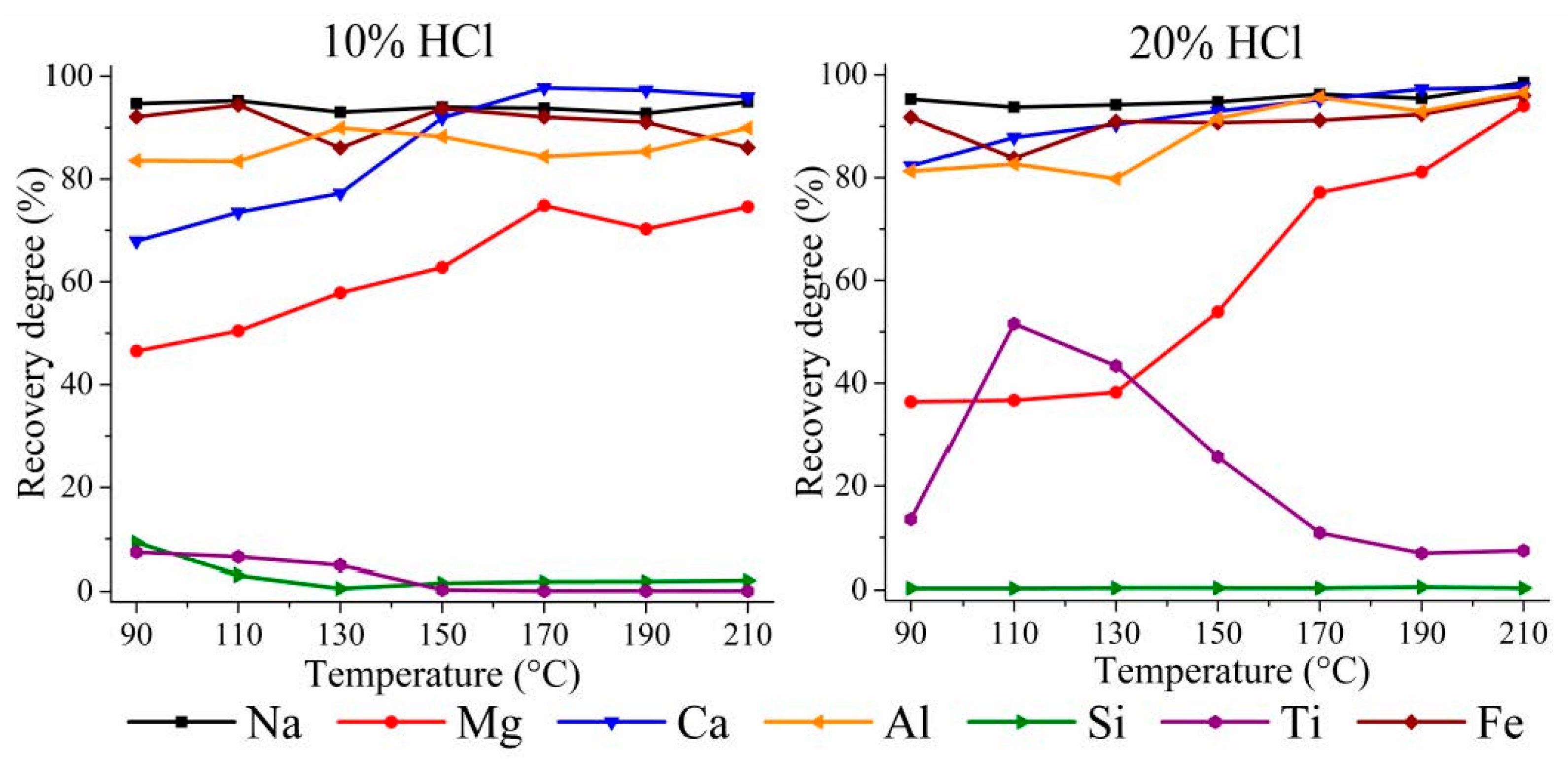

The leaching of the SSAT sample was performed starting with 90 °C to avoid a substantial silicon dissolution at temperatures below. Figure 4 depicts the effect of the temperature and the acid concentration on the extraction degree of the major elements for the SSAT sample.
The curves of Fe, Al, Na, Ti, and Si are fairly similar to the ones obtained by the processing of the WAT sample, but a behavior of Mg and Ca is significantly different. As can be seen, the extraction degree of calcium for 10% acid concentration is 68% at 90 °C, whereas for the WAT sample under similar conditions is more than 91% (Figure 2). The dissolution degree of calcium grows up with a temperature increase and becomes above 91% only at 150 °C for both 10 and 20% acid concentration. The magnesium recovery degree rises from 46 to 74% for the diluted acid and from 36 to 94% for the concentrated acid at the range of 90 to 170 °C. The maximum recovery degree of magnesium for the SSAT sample is 94% at 210 °C and 20% HCl concentration.
Figure 5 shows the effect of the temperature on the extraction degree of minor elements for the SSAT sample.
As can be inferred from the plots, the main factor influencing the REE dissolution is the temperature for both the WAT and SSAT sample. An increase of acid concentration also leads to a rise of the REE recovery degree at low temperatures. The extraction degrees of La, Ce, Pr, and Nd are similar in the SSAT compared to the WAT sample, but the dissolution degrees of Sc and Y are lower. The maximum recovery degrees of Sc for the WAT sample were 91% for the diluted acid and 96% for concentrated acid, wherein they were only 66 and 75% for the SSAT sample, respectively. Other REEs also have a rather lower dissolution degree for the SSAT sample. A discrepancy in dissolution behavior of elements for the WAT and SSAT samples is likely due to a difference in chemical and phase compositions; we consider it below.

3.2. The Analysis of the Solid Residues

3.2.1. The Solid Residues Obtained from the WAT Sample

To determine the leaching mechanism, the XRD and SEM-EDX analyses of the solid residues after the leaching were performed.
Figure 6 demonstrates the elemental distribution of one of the residues obtained by HPAL of the WAT sample. It is clearly presented that the residue is a mixture of SiO2 and minerals containing aluminum, calcium and titanium.
Figure 7 presents the XRD patterns of the WAT residues obtained at various leaching temperatures using different HCl concentrations. The WAT sample contains four aluminum phases, namely, Ca2Al2SiO7, Ca3Al2Si3O12, Mg3Al2Si3O12, and MgAl2O4 (Figure 1), but the solid residues obtained by HPAL of the WAT sample using 10 and 20% HCl contains no gehlenite, which fully dissolves at low leaching temperatures. These results correlate with the data of other researchers [59], where gehlenite passed into the solution in 1 M HCl after three-stage leaching during 2 h at room temperature. Aluminum in the solid residues is in the Ca3Al2Si3O12, Mg3Al2Si3O12, and MgAl2O4 phases that were incompletely dissolved at the experimental conditions. It has been shown [60] that grossular has a low solubility in the diluted hydrochloric acid; to decompose it fully, a high acid concentration and temperature over 130 °C are required (Figure 7). The magnesium aluminum oxide is also undissolved even at 190 °C and 20% acid concentration. MgAl2O4 is a hardly soluble phase that remains in the residue after sequential long-time treatment by 36 to 38% HCl and 40% HF [61]. Even high-pressure leaching by a strong HCl solution at 210 °C led to substantial but still incomplete dissolution of MgAl2O4 [62]. Therefore, full aluminum extraction requires a high temperature, a strong acid concentration and the use of HPAL.
The dissolution behavior of titanium is very different for the diluted and the concentrated acids. Figure 7a shows that perovskite exists in the solid residues after the treatment of the WAT sample by HPAL with 10% HCl up to 130 °C, and it was undetected in the residue at 190 °C.
As follows from Figure 7b, the use of 20% HCl led to the full dissolution of perovskite at temperatures lower than the use of 10% HCl, but the precipitation of titanium was incomplete. The titanium extraction degree increases with leaching temperature rising (Figure 2). A similar titanium behavior in hydrochloric acid solution also was reported earlier [30,62] that is likely owing to the titanium hydrolysis process [62]. The processes of dissolution and precipitation of titanium can be described as follows:
2CaO⋅TiO2(s) + 8HCl(l) = 2CaCl2(l) + TiCl4(l) + TiO2(s)↓ + 4H2O(l),
CaO⋅TiO2(s) + 4HCl(l) = TiOCl2(l) + CaCl2(l) + 2H2O(l),
TiOCl2(l) + (x + 1) H2O(l) = 2HCl(l) + TiO2⋅xH2O(s)↓.
Although the main part of aluminum passed into solution during HPAL, small peaks of aluminum-containing phase, 5Al2O3∙H2O, were still detected in the residues obtained at 70 to 190 °C using 10% HCl and at 70 to 130 °C using 20% HCl. Figure 8 and Table 2 also confirm the presence of this phase using SEM-EDX analyses. As reported by [63], 5Al2O3∙H2O may be formed only under hydrothermal conditions. It is an open question how this phase has been generated during the experiments, but its formation is an unambiguously adverse factor due to the decrease of the aluminum dissolution degree.
Table 3 shows that the residues obtained by HPAL using the diluted and the concentrated acids contain different amounts of SiO2 and TiO2, as well as a similar amount of Al2O3. The residue obtained by HPAL using 20% HCl at 210 °C has a lower Al2O3 and MgO amount compared with the residues obtained at lower temperatures and acid concentration. These data substantiate the above-mentioned leaching mechanism for the WAT leaching.
Figure 3 demonstrates that REE dissolution is sharply increased at temperatures for both acid concentrations above 110 and 90 °C, respectively; this is likely due to the dissolution of CaTiO3 (Figure 7). REEs can be associated with perovskite in the form of solid solution [64]. It was reported that Sc in the slag obtained after red mud reduction smelting is associated with CaTiO3 [30] and with Ti in the initial red mud [65]. It should be mentioned that Sc also can be partially associated with grossular [58].
In summary, it can be inferred that the leaching temperature of 150 °C and acid concentration of 10% are the optimal conditions for the WAT treatment that led to passing into solution of 91% Sc and above 80% of other REEs and maintaining TiO2 and SiO2 in the residue. It should be noted that small aluminum losses with the residue are inevitable.

3.2.2. The Solid Residues Obtained from the SSAT Sample

Figure 9 shows the results of the SEM-EDX analysis of the residue obtained by HPAL of the SSAT sample using 10% HCl at 170 °C. One can see from the images that the SSAT residue, like the WAT sample, mainly consists of SiO2 and titanium oxide. Moreover, sulfur can be observed in the form of particular grains. It is noteworthy that the distribution of aluminum and magnesium correlates clearly point to the presence of MgAl2O4.
The generation of elemental sulfur during HPAL is probably due to the following mechanism. It is clear that calcium sulfide containing in the tailings interacts with hydrochloric acid forming hydrogen sulfide:
CaS(s) + 2HCl(l) = CaCl2(l) + H2S(g).
Then hydrogen sulfide can react with atmospheric oxygen in gaseous phase with precipitation of sulfur [66]:
2H2S(g) + O2(g) = 2S(s)↓ + 2H2O(g),
2H2S(g) + O2(g) = 2SO2(g) + 2H2O(g),
2H2S(g) + SO2(g) = 3S↓ + 2H2O(g).
Moreover, sulfur forms quite likely by the interaction of hydrogen sulfide and ferric chloride [67]:
H2S(g) + 2FeCl3(l) = 2FeCl2(l) + S↓ + 2HCl(g),
Figure 10 shows the XRD patterns of the SSAT residues obtained at different leaching temperatures using both the HCl concentrations.
The SSAT sample contains only one aluminum-containing phase, namely, NaAlSiO4, which is more soluble in acid solutions compared with Ca3Al2Si3O12 and Ca2Al2SiO7 phases, which is clearly seen from the XRD spectra. Nonetheless, aluminum passed into the solution incompletely even at high temperatures and acid concentrations due to the formation of 5Al2O3∙H2O and MgAl2O4 phases. Table 4 gives the elemental composition of the residues obtained by HPAL of the SSAT sample using the diluted and the concentrated acids. They mainly contain SiO2 and TiO2 that indicated to the same dissolution behavior of Ti and Si during leaching of the SSAT and WAT samples alike.
As can be seen from Figure 3 and Figure 5, the extraction degrees of Sc for the SSAT sample were lower compared to the WAT sample, probably owing to an increase of pH solution due to the dissolution of sodium, whose content in the SSAT sample is very high (Table 1). It is well-known that an increase of pH value of the solution led to a decrease of Sc extraction [47,48]. It has been previously reported [58] that a significant part of Y and Sc can be associated with NaAlSiO4 in the tailings obtained after carbothermic roasting of red mud with the addition of sodium salts, but the present investigation has shown that there was no positive correlation between their dissolution. On the contrary, SEM-EDX analysis of the residue obtained by HPAL of the SSAT sample (Figure 11 and Table 5) indicates clearly that Sc along with Zr are predominantly associated with titanium. The detected presence of zirconium and scandium together and an increase of the Sc extraction degree with Zr dissolution degree rise in 20% HCl (Figure 3 and Figure 5) enable the assumption that a minor part of scandium is probably associated with zirconium minerals; this is consistent with the results of the authors [68], who noted that 10% of the total Sc is associated with ZrSiO4 in red mud.
The optimal leaching conditions for the SSAT sample, which allows the extraction of 91% Al, 75% Sc, 63% Y, and more than 78% of other REEs, are 150 °C and 20% HCl concentration. However, it should be appreciated that about 26% Ti also passed into the solution under these conditions.

3.3. HPAL Experiments with Variation of Leaching Time, S:L Ratio, and HCl Concentration

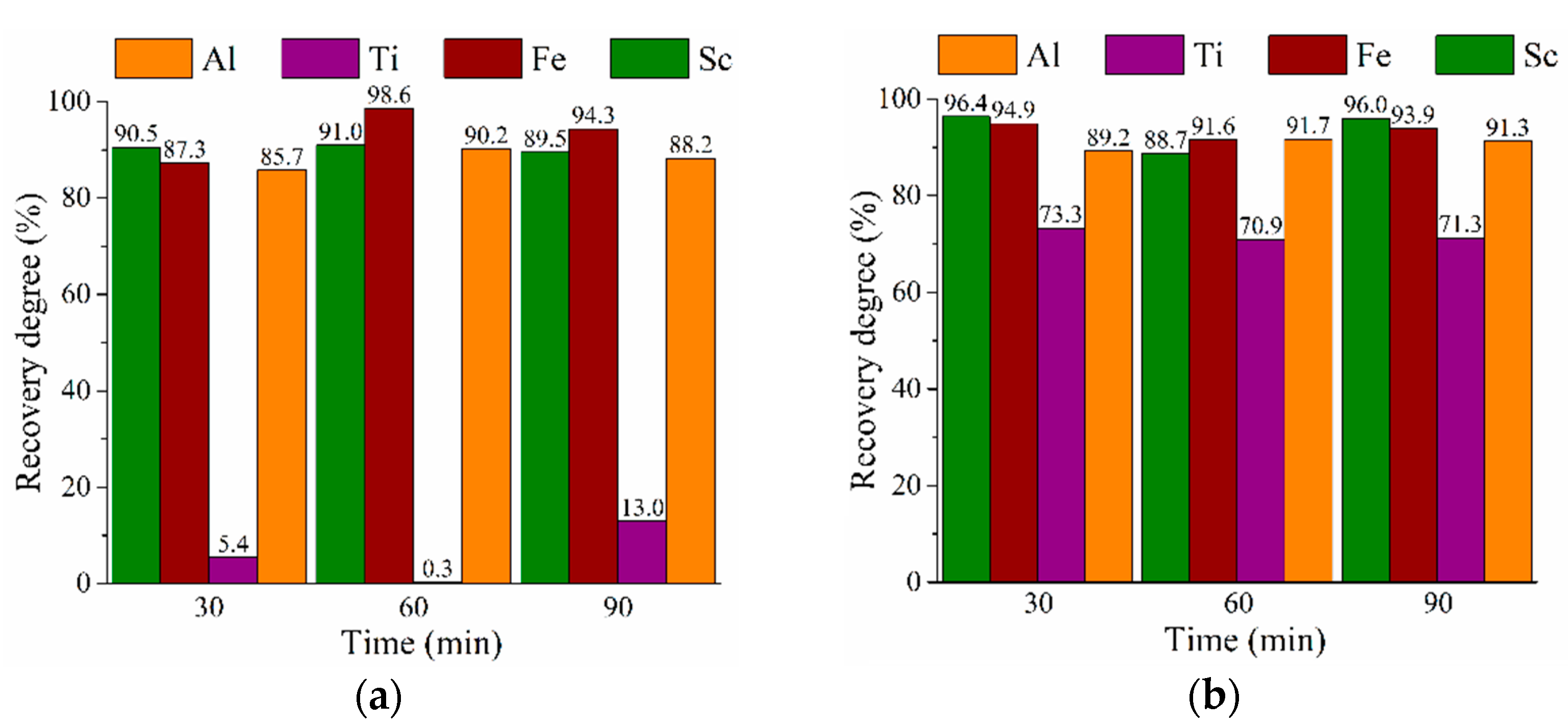

The performed experiments have pointed out that the use of HPAL with hydrochloric acid for the WAT sample is more preferable compared to the SSAT sample due to the enabling of the selective separation of titanium and silicon from the other elements. To elucidate the dissolution behavior of the most important elements in the WAT sample, a set of the experiments at the optimal temperature with a variation of different leaching parameters was carried out. Figure 12 illustrates the influence of leaching duration on recovery degree of aluminum, titanium, iron, and scandium. An increase of leaching time led to insignificant growth of the extraction degree of Sc and Al for both the acid concentrations. Moreover, the decrease of leaching time led to an increase of Ti extraction degree, which negatively affects the process selectivity.
Figure 13 demonstrates the influence of the S:L ratio and concentration of the acid on the recovery degree of aluminum, titanium, iron, and scandium. As can be seen, the dissolution degree of Ti drastically grows up with an increase of acid concentration and S:L ratio that is consistent with Equation (6). It has to be taken into account that an increase of S:L ratio led to a drop not only aluminum extraction degree, but also scandium extraction degree that is in accordance with previous studies [69,70].

4. Discussion

The HPAL of the tailings using the diluted hydrochloric acid allows the selective separation of REEs and Al from Ti and SiO2 with high effectivity. The obtained residue can contain more than 20% TiO2 and over 50% SiO2 (Table 3) which indicates that it is a valuable raw material for Ti extraction. To extract Ti, various leaching treatments have been suggested, such as using the mixture of hydrogen peroxide and sulfuric acid with a suppression of Si dissolution [71], as well as using alkaline solutions [72], phosphoric acid [47], etc. However, the most promising way for Ti extraction from the residue is the leaching by concentrated hydrochloric acid with its dissolution and subsequent precipitation of TiO2 [73]. The obtained amorphous SiO2 can be used for the production of white carbon black [74].
REEs can be relatively simply recovered from the leached solutions by well-known methods, e.g., solvent extraction, ion-exchange sorption, selective precipitation, etc. [75]. The remaining aluminum chloride solution can be used as a coagulant for water treatment [62,76] or as a raw material for the production of metallurgical alumina [77]. Thus, a two-step hydrochloric acid leaching process can be implemented.
As reflected by Figure 13, the application of 20% HCl with S:L ratio of 1:16.5 led to a considerable rise of Al, Ti, Sc extraction degree that enables the consideration of the simultaneous dissolution of these elements with a following stepwise extraction of REEs and titanium from the leached solution. Moreover, after the REE extraction, Al-Ti-containing solution can be regarded as a complex coagulant, which has an increased efficiency for waste water treatment compared with the Ti-free solutions [78,79]. However, it should be noted that the use of an excess of acid and liquid-to-solid ratio during HPAL deteriorates the cost efficiency of the process, so a feasibility study is necessary.
The application of the HPAL method using HCl led to a similar Al recovery for the WAT and SSAT samples, but the treatment of the SSAT resulted in a rather lower Sc recovery and a slightly higher acid consumption. Furthermore, the residue obtained by the leaching of the SSAT sample can contain a substantial percentage of elemental sulfur and sodium chloride, so additional stages for their removal is necessary. The process of elemental sulfur precipitation is given in Section 3.2.2; sodium chloride was likely precipitated during the filtration of the mother liquors. To remove NaCl, washing by water can be applied, and to extract elemental sulfur, distillation [80] or flotation [81] can be used. Despite the mentioned disadvantages of the SSAT leaching, the total cost of red mud processing using sodium sulfate may be lower owing to the reduced roasting temperature and improved grindability of the roasted sample. Moreover, the cost of both flowsheets can be additionally reduced by the replacement of a carbonaceous reductant with blast furnace sludge [82]. In any case, a comparative economic assessment of the treatment of the WAT and SSAT samples is required.

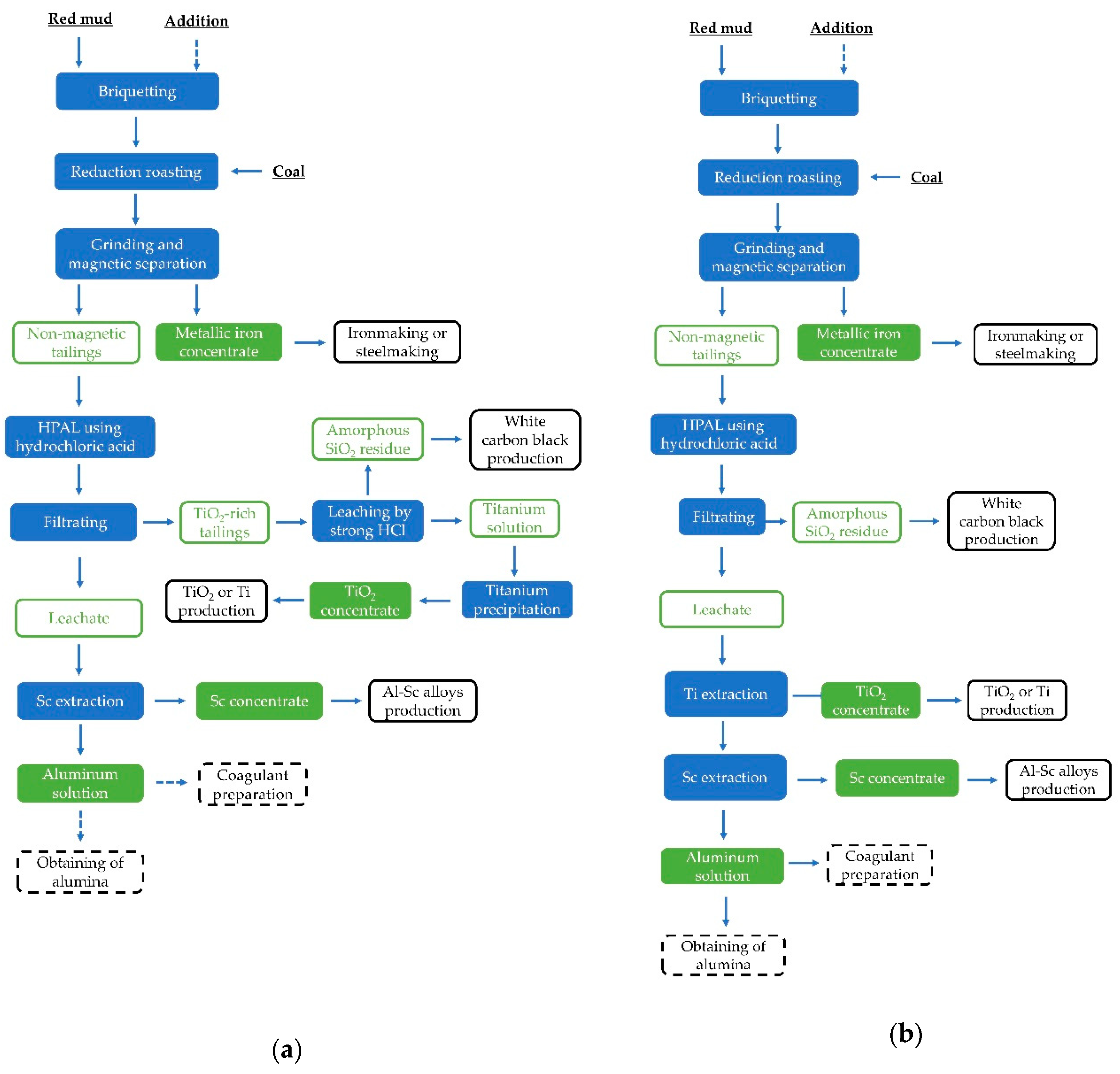

Figure 14 shows two principal flowsheets of red mud processing developed as a result of the study.
The suggested flowsheets aimed at a comprehensive utilization of red mud with the extraction of all valuable components. The recovery of iron by reduction roasting at the first stage at 1150 to 1300 °C allows the reduction of energy costs compared with a reduction smelting with the application of a low-grade coal or carbon-containing waste as a reducing agent.
As mentioned above, hydrochloric acid leaching is an effective method for the alumina recovery, and it was used on a pilot scale to extract Al2O3 from coal fly ash in China [83]. To obtain polyaluminum chloride, 30 to 32% HCl is commonly used to dissolve aluminum hydroxide. The process occurs using high-pressure leaching in reactors at 150 to 180 °C depending on the charge material. The use of 3–6 M HCl is due to the possibility of acid regeneration during the thermal hydrolysis of aluminum chloride hexahydrate to obtain alumina. The hydrochloric acid flowsheet involves obtaining alumina by the precipitation of salt from an acidic aluminum chloride solution followed by calcination of the salt to form aluminum oxide. Hydrochloric acid regenerates simply—HCl vapor bubbles through the water, so up to 6 M HCl can be obtained. Hence, the proposed flowsheets can be characterized by a low environmental impact.
It also should be noted that there is a high flexibility of the suggested flowsheets. The process can be organized to obtain high-demand products at the moment. For example, at high prices for alumina, it can be extracted from the solution; otherwise, the coagulants can be obtained. In the same way, based on market conditions, titanium can be passed into solution to obtain complex coagulants, or it can be extracted into a particular product. An engineering and economic evaluation of the flowsheets is possible after obtaining and characterizing the final products, namely, the REE and titanium concentrates, white carbon black, the coagulants, and alumina. However, the above-mentioned advantages and a possibility of obtaining various high-demand products indicate the economic feasibility of the proposed methods.

5. Conclusions

The application of HPAL using hydrochloric acid for the extraction of Al and REEs from non-magnetic tailings obtained from red mud after iron removal has shown a high effectivity. The leaching of valuable elements from the WAT sample is probably more preferable than from the SSAT sample.
For the WAT sample, the optimal leaching conditions, which are leaching temperature of 150 °C, acid concentration of 10%, solid-to-liquid ratio of 1:11, and duration of 60 min, led to passing into solution of 90% Al, 91% Sc and above 80% of other REEs, as well as maintaining TiO2 and SiO2 in the residue. To dissolve titanium along with Al and REEs, the temperature of 150 °C, acid concentration of 20%, solid-to-liquid ratio of 1:16.5, and duration of 60 min can be applied to allow the extraction of 93% Al, 82% Ti, 98% Sc.
For the SSAT sample, 91% Al, 75% Sc, above 60% of other REEs, and 26% Ti were dissolved under the optimal conditions, which were a leaching temperature of 150 °C, acid concentration of 20%, solid-to-liquid ratio of 1:11, and duration of 60 min.
Based on HPAL using hydrochloric acid, two flowsheets were proposed for the treatment of both kinds of non-magnetic tailings.
