Next Article in Journal
Optimum Strength Distribution for Structures with Metallic Dampers Subjected to Seismic Loading
Previous Article in Journal
Nanoindentation Properties of 18CrNiMo7-6 Steel after Carburizing and Quenching Determined by Continuous Stiffness Measurement Method
Open AccessFeature PaperArticle

Texture and Lattice Strain Evolution during Tensile Loading of Mg–Zn Alloys Measured by Synchrotron Diffraction

1
Institute of Materials Science and Engineering, Clausthal University of Technology, Agricolastrasse 6, D-38678 Clausthal-Zellerfeld, Germany
2
Magnesium Innovation Centre, Helmholtz-Zentrum Geesthacht, Max-Planck-Str 1, D-21502 Geesthacht, Germany
3
Helmholtz-Zentrum Geesthacht, GEMS outstation at DESY, Notkestraße 85, D-22607 Hamburg, Germany
4
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 124; https://doi.org/10.3390/met10010124 (registering DOI)
Received: 29 November 2019 / Revised: 10 January 2020 / Accepted: 10 January 2020 / Published: 15 January 2020

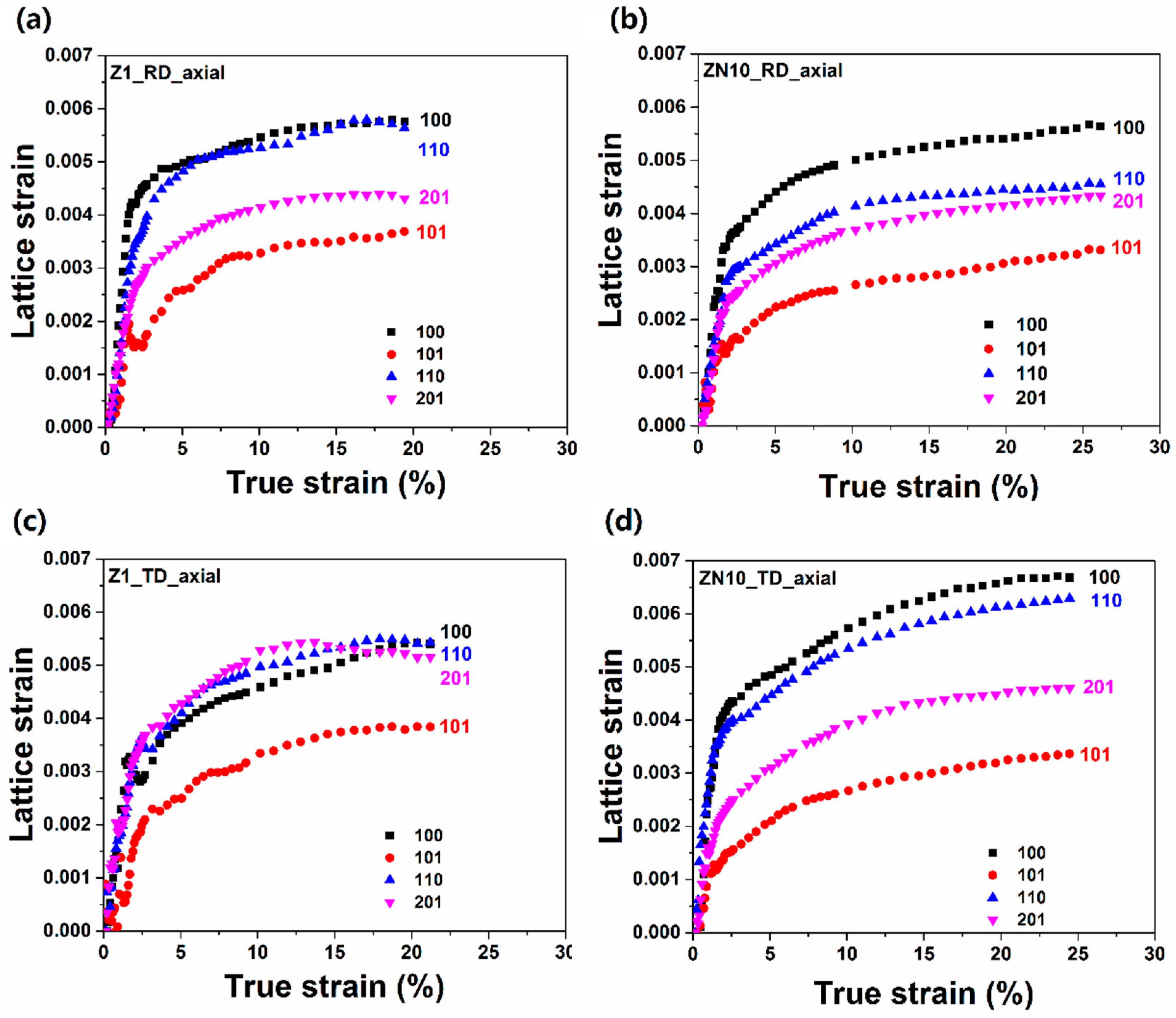

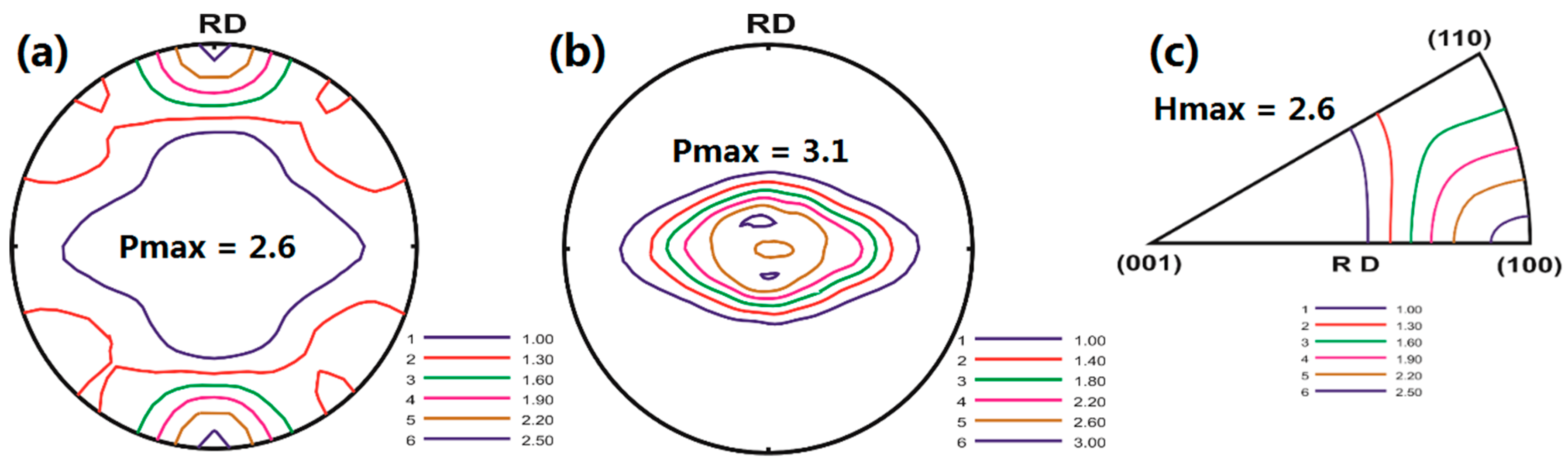

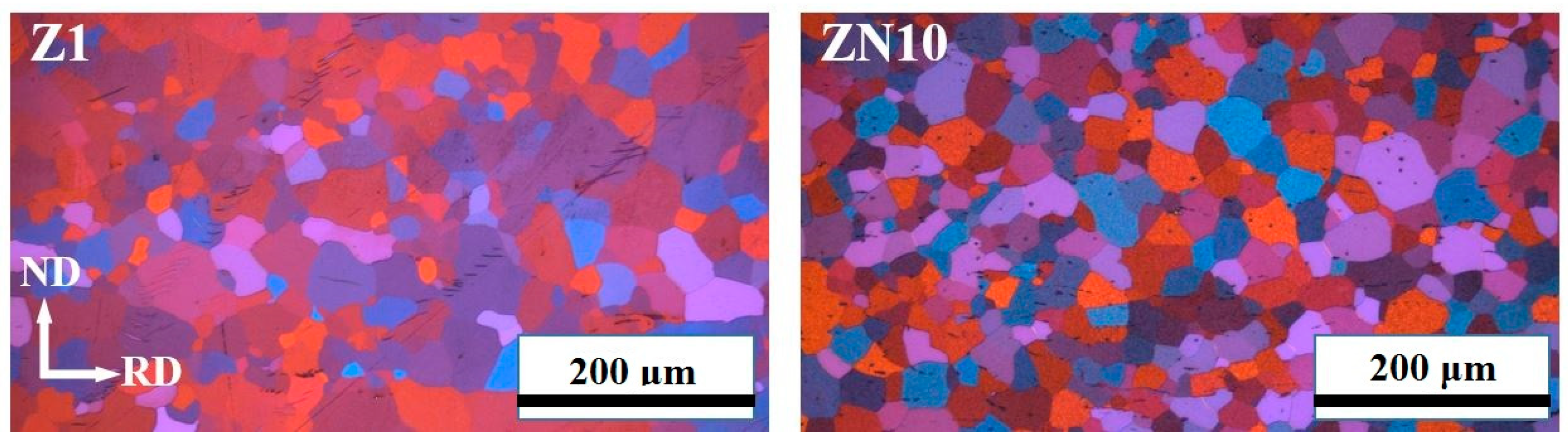

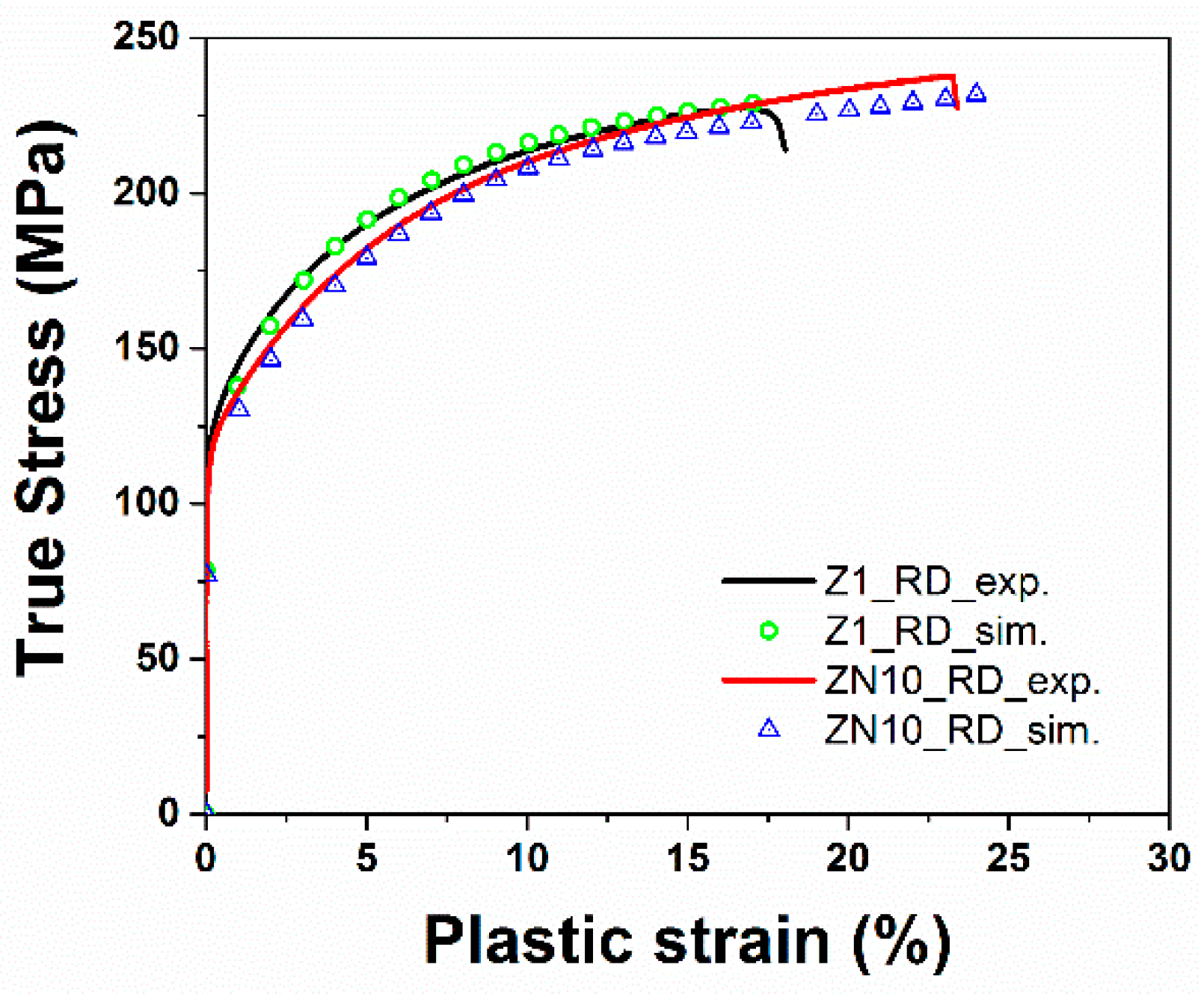

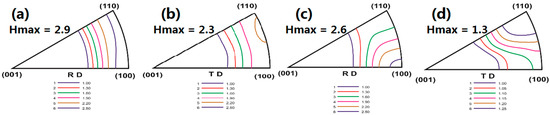

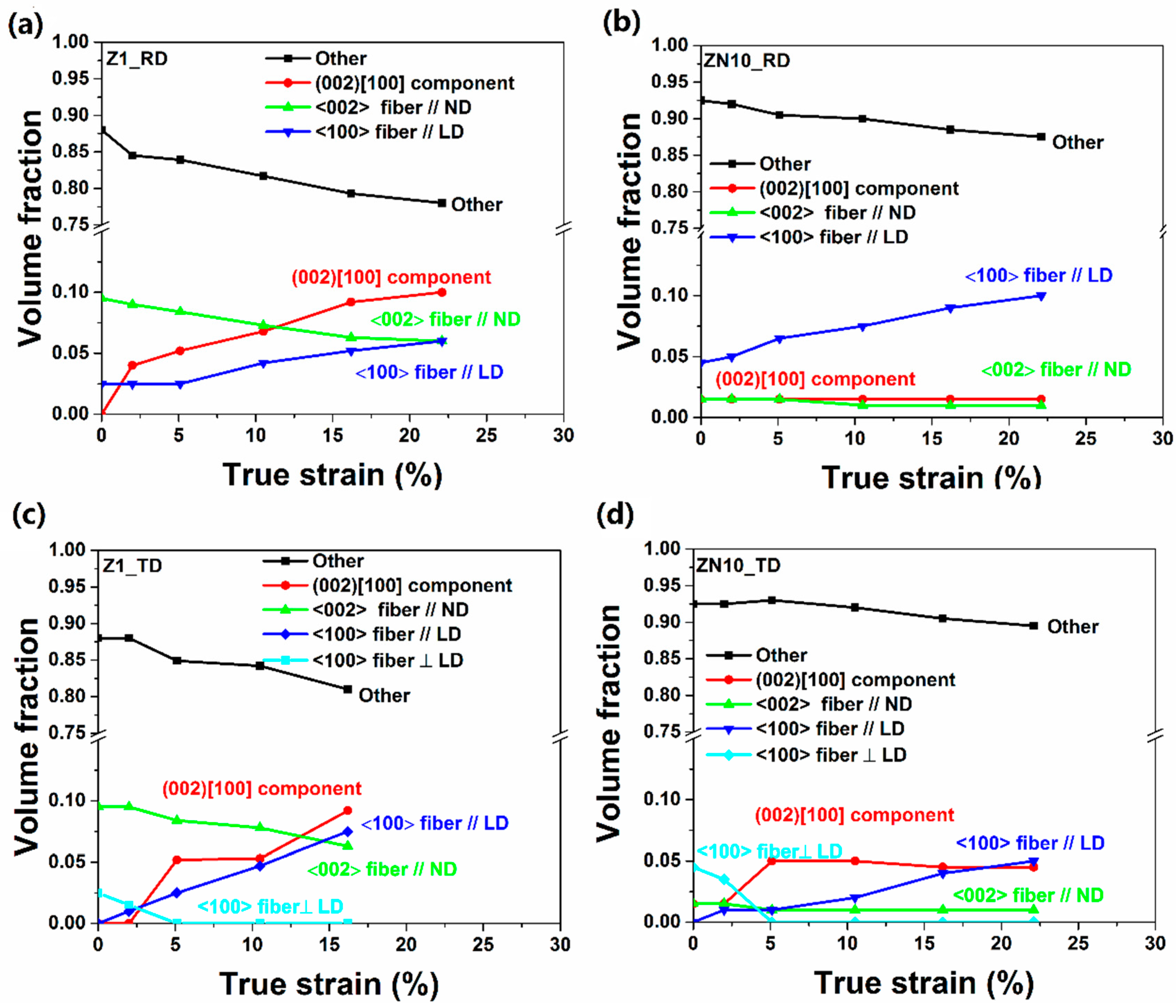

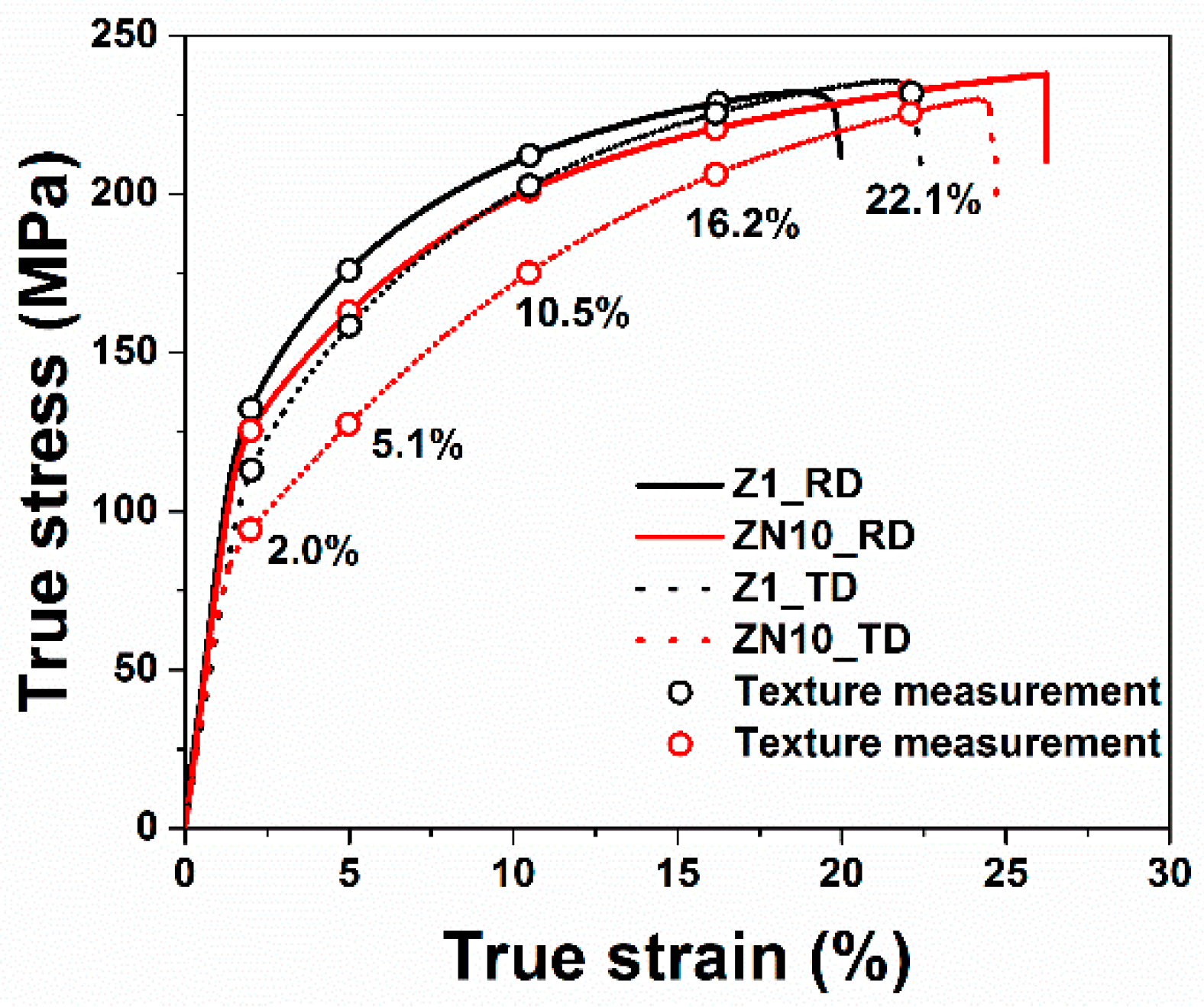

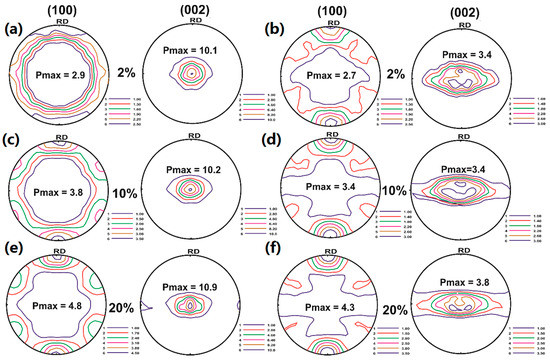

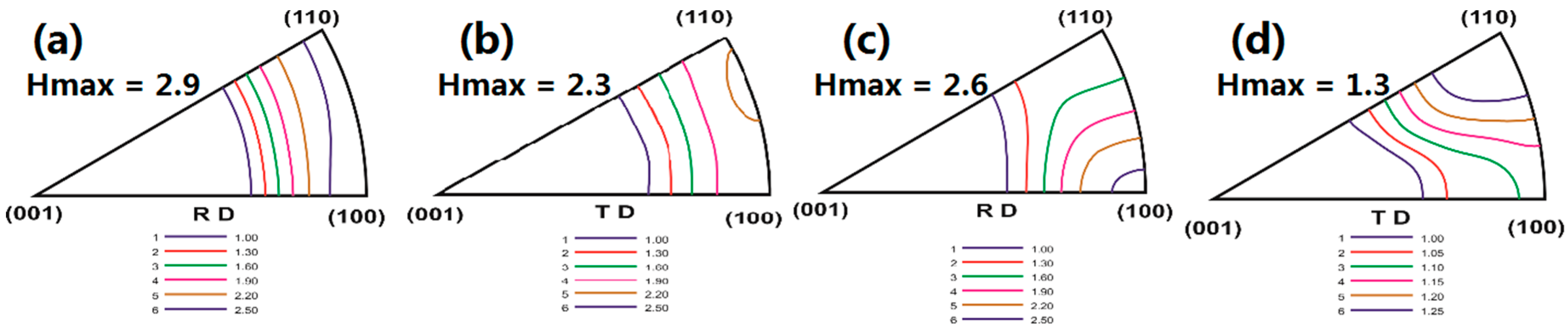

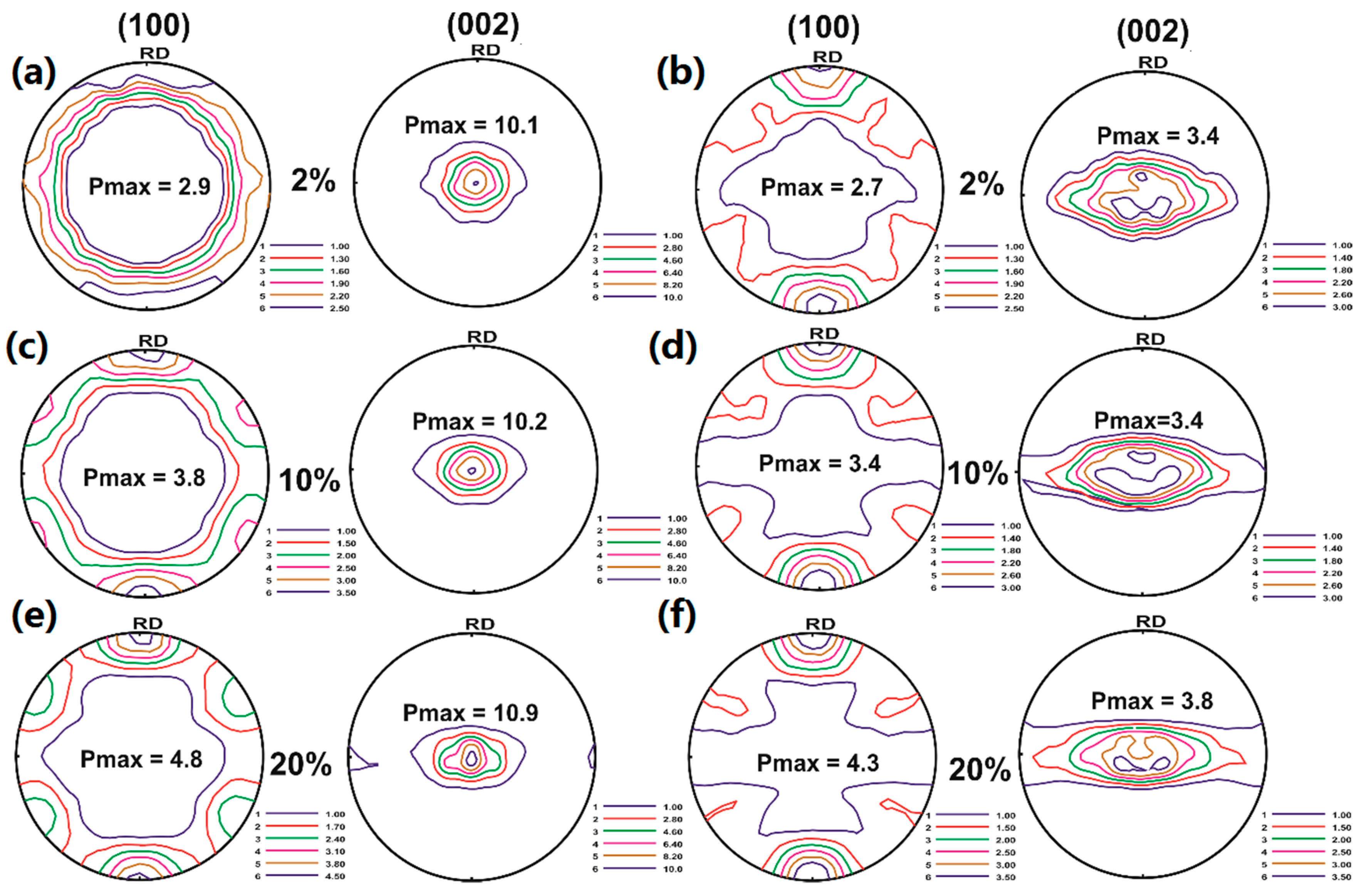

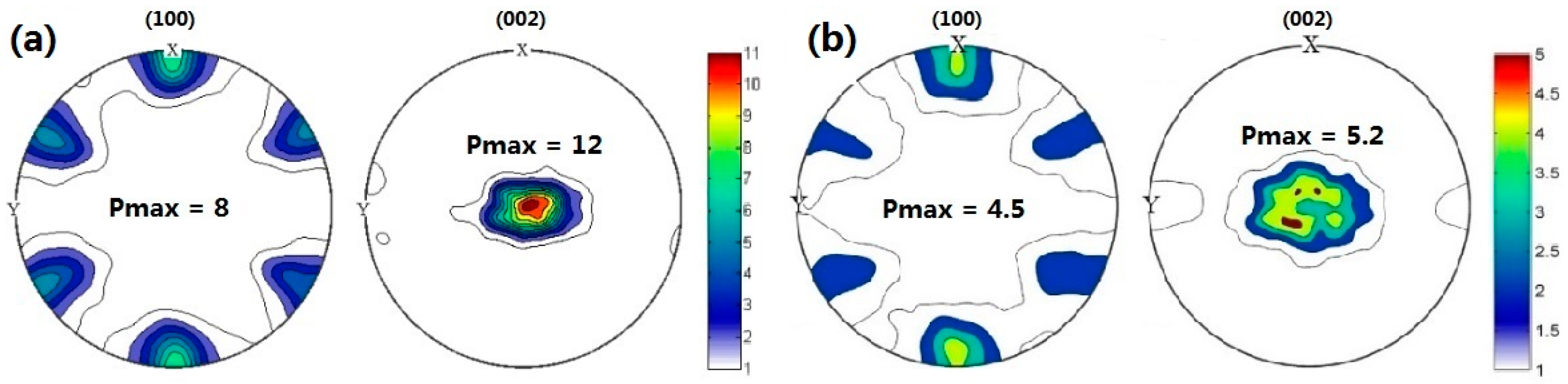

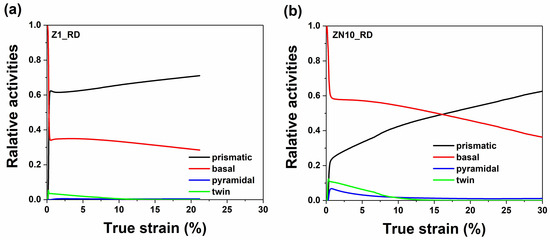

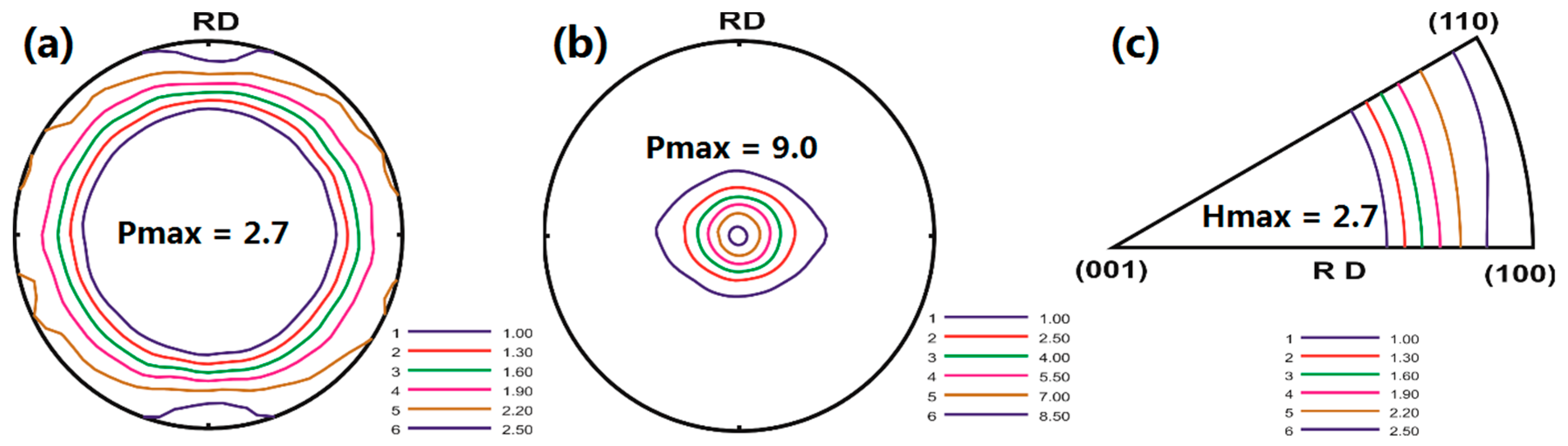

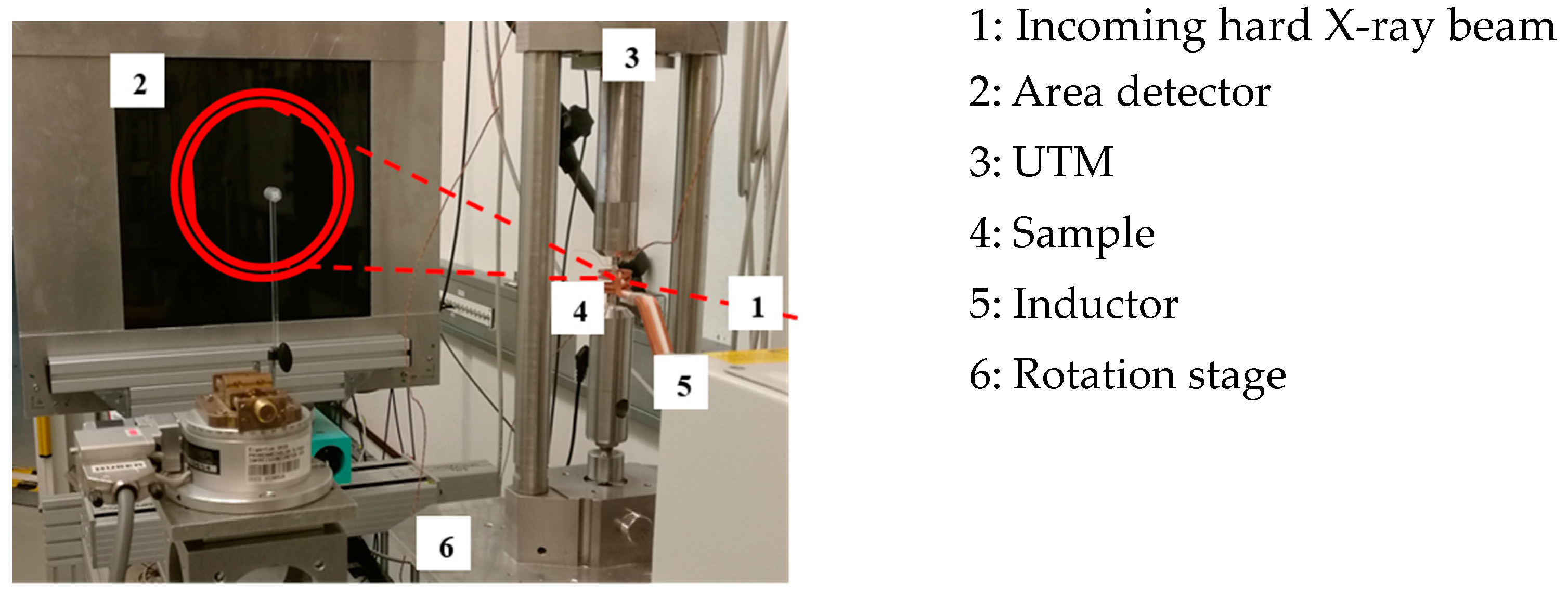

To explore the effect of neodymium (Nd) on the deformation mechanisms of Mg–Zn alloys, texture and lattice strain developments of hot-rolled Mg–Zn (Z1) and Mg–Zn–Nd (ZN10) alloys were investigated using in situ synchrotron diffraction and compared with elasto-viscoplastic self-consistent simulation under tensile loading. The Nd-containing ZN10 alloys show much weaker texture after hot rolling than the Nd-free Z1 alloy. To investigate the influence of the initial texture on the texture and lattice strain evolution, the tensile tests were carried out in the rolling and transverse direction. During tension, the {002}<100> texture components develop fast in Z1, which was not seen for ZN10. On the other hand, <100> fiber // loading direction (LD) developed in both alloys, although it was faster in ZN10 than in Z1. Lattice strain investigation showed that <101> // LD-oriented grains experienced plastic deformation first during tension, which can be related to basal slip activity. This was more apparent for ZN10 than for Z1. The simulation results show that the prismatic slip plays a vital role in the plastic deformation of Z1 directly from the beginning. In contrast, ZN10 plastic deformation starts with dominant basal slip but during deformation prismatic slip becomes increasingly important. View Full-Text
Keywords: texture; lattice strain; synchrotron diffraction; elasto-viscoplastic self-consistent simulation (EVPSC); Mg-Nd-Zn texture; lattice strain; synchrotron diffraction; elasto-viscoplastic self-consistent simulation (EVPSC); Mg-Nd-Zn
Show Figures

Figure 1

MDPI and ACS Style

Zhou, X.; Ha, C.; Yi, S.; Bohlen, J.; Schell, N.; Chi, Y.; Zheng, M.; Brokmeier, H.-G. Texture and Lattice Strain Evolution during Tensile Loading of Mg–Zn Alloys Measured by Synchrotron Diffraction. Metals 2020, 10, 124.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
