Preliminary Assessment of Bespoke (‘X-tec’) Silica Particles for IRS Applications

Simple Summary

Indoor residual spraying (IRS) encounters significant challenges that affect product efficacy and cost-effectiveness, such as the varied surfaces on which a.i.’s are sprayed, absorption into those surfaces, suboptimal presentation of the insecticide on the surface, and the effect of surface pH on the insecticide’s longevity. Any technologies that can reduce the amount of insecticide required while maintaining comparative mortality could significantly reduce product costs and impact IRS cost-effectiveness. This study investigates the potential of bespoke X-tec silica particles as a unique carrier for insecticides. Clothianidin-loaded X-tec silica is sprayed at different application rates to see whether the insecticide content in the IRS formulation can be reduced while maintaining its residual biological activity. It is likely that, at a lower dose, less active ingredient is available for mosquito pickup, causing reduced mortality. Caution must be taken in extrapolating these results, as no prior confirmatory work on these silica particles exists. Nevertheless, the efficacy seen at lower doses suggests that silica could be used to improve the cost-effectiveness of IRS applications, and a cost–benefit analysis should be conducted.

Abstract

The efficacy of indoor residual spray (IRS) products is affected by various factors, such as the substrate on which they are sprayed and the surface concentration and bioavailability of the insecticide. This study investigated the potential of bespoke silica particles (hereafter referred to as ‘X-tec silica’) as a unique carrier for insecticides to reduce the insecticide content in an IRS formulation by improving pickup by mosquitoes and optimising the physical state of the insecticide while maintaining its residual biological activity on a surface. Molecular computer modelling was used to define the critical crystallisation size of clothianidin, and silica particles were manufactured with pore diameters smaller than this length to maintain the insecticide in an amorphous state. Silica carriers were then formulated to incorporate clothianidin inside their pores, and a full material characterisation was conducted to assess the clothianidin coating position on/in the silica particles, their concentration, and their physical form. The clothianidin-formulated silica (10%) was sprayed at three different application rates (30, 60, and 90 mg active ingredient (a.i.)/m²) onto two surfaces: glazed and unglazed tiles. The tiles were tested for bioefficacy against the insecticide-susceptible Anopheles gambiae s.s. Kisumu mosquito strain at 1 week and 8 months post-spray application. At 1 week post-spray application, at 60 and 90 mg a.i./m² application rates, 100% mortality was observed on both surfaces within 48 h. For the lowest concentration (30 mg a.i./m²), 100% mortality was reached within 72 h on glazed tiles; however, for unglazed tiles, due to the surface irregularity and porosity, it remained below 60%. At 8 months post-spray application, on glazed tiles, 100% mortality was reached within 24 h at 60 and 90 mg a.i./m² application rates and within 48 h at 30 mg a.i./m². On unglazed tiles, 96 h mortality was not measured; however, 100% mortality was reached within 72 h (90 mg a.i./m²) and 120 h (60 mg a.i./m²) at higher concentrations. At the lowest concentration (30 mg a.i./m²) at 120 h, mortality only reached 25%. The lowest application rate tested (30 mg a.i./m²) is ten times lower than that of current products on the market and demonstrates the potential of this approach. Preliminary findings from this study suggest that X-tec silica particles may enhance the effectiveness of IRS using clothianidin. However, further extensive research is needed to confirm this.

1. Introduction

1.1. Indoor Residual Spraying (IRS) of Insecticides

Disease vector control mainly relies on two key interventions: insecticide-treated nets (ITNs) and indoor residual spraying (IRS). While ITN products predominately rely on the pyrethroid class of insecticides, IRS products employ a range of insecticidal classes, with alternative modes of action, which are effective against pyrethroid-resistant mosquitoes. IRS, however, is a comparatively expensive vector control intervention, with cost modelling of IRS campaigns suggesting that product costs comprise ~33% of the total costs [1]. New active ingredients (a.i.’s) in development are expected to be more expensive, potentially increasing product costs and, consequently, IRS campaign costs. IRS encounters significant challenges that affect product efficacy and cost-effectiveness, such as the varied surfaces on which a.i.’s are sprayed, absorption into those surfaces, suboptimal presentation of the insecticide on the surface, and the effect of surface pH on the insecticide’s longevity. Insecticides can also have significantly different physical–chemical properties, complicating the standardisation of IRS formulations. Therefore, any technologies that can reduce the amount of insecticide required while maintaining comparative mortality or that can simplify formulation development could significantly reduce product costs and impact IRS cost-effectiveness.

1.2. The Physical State of Insecticides and Biological Efficacy

In general, research has focused on the correlation between the total insecticide concentration of a product and its bioefficacy. However, the physical state of an insecticide, and how that may change over time, can play a significant role in understanding how insecticidal products perform in the lab and field.

The physical state of an insecticide can either be crystalline (solid with aligned molecular lattice bonds) or amorphous (solid with no orderly aligned lattice bonds). Several studies have shown that different insecticide crystal structures (polymorphs) can affect insecticidal activity, leading to higher insect mortality if the most efficacious polymorph is controlled and used [2,3,4,5,6,7]. When insecticides are in a crystalline form, the pickup by a target organism (i.e., a mosquito) is influenced by several factors, including crystal size and shape. However, in an amorphous form, it is believed that the insecticide material exhibits diffusion within the carrier substrate (including on the surface), potentially offering a larger surface area for pickup. So, insecticides presented in the amorphous state could be more efficacious than those presented in the crystalline state. Therefore, understanding which physical state of an insecticide gives the best efficacy and optimising formulations to maintain long-term stability are important factors to consider when developing an insecticidal product.

1.3. Silica as a Carrier for Insecticides

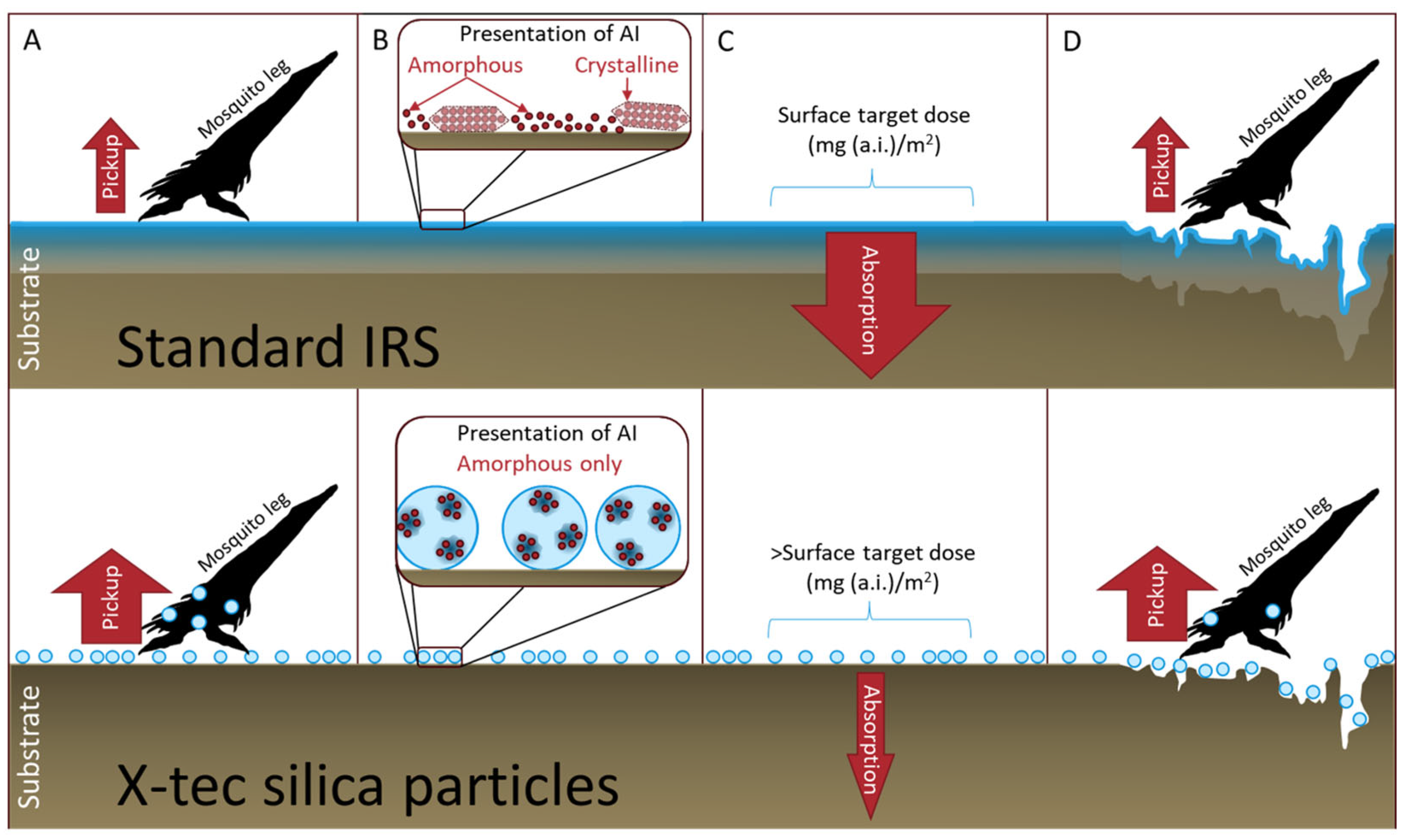

Silica has been used as a carrier for insecticides for decades [8]. It can offer the advantage of solid diffusion [9], a slow delivery mechanism that can reduce an insecticide’s environmental toxicity while increasing its bioefficacy against a target organism. However, the insecticide’s physical state and its presentation within or on a silica carrier are poorly understood and not controlled. It is possible that, by altering the parameters of the silica carrier, the crystallinity of an insecticide could be controlled by that carrier to hold it in an amorphous physical state. This is one of several ways that X-tec silica could enhance the bioefficacy of insecticides compared to standard IRS (Figure 1).

The critical crystallisation size of an insecticide refers to the minimum size at which insecticide particles can form stable crystals without redissolving. The critical crystallisation size can be understood by using mathematical and computer modelling [10,11]. These models can be applied to insecticides to provide a theoretical size at which the molecule can be maintained in an amorphous solid form.

To test this, a bespoke silica carrier (‘X-tec silica’) was developed with pores of a specific diameter and volume according to the specifications of the critical crystallisation size of an insecticide. To prove the concept of bespoke silica particles, clothianidin was chosen as an example insecticide, and X-tec silica was loaded with clothianidin. Clothianidin-loaded X-tec silica was sprayed at different application rates to see whether the insecticide content in the IRS formulation could be reduced while maintaining its residual biological activity. If similar or improved bioefficacy is achieved by reduced concentrations, or if the spray’s durability (longevity) is improved by the X-tec silica, this could result in cost savings compared to standard IRS formulations.

2. Materials and Methods

2.1. Molecular Computer Modelling of Silica Particles

Molecular computer modelling was used to simulate silica pores to determine the critical crystallisation size of clothianidin. The system used for the computer modelling was a parallel Linux cluster (Barkla, High Performance Computing resource, University of Liverpool, Liverpool, UK).

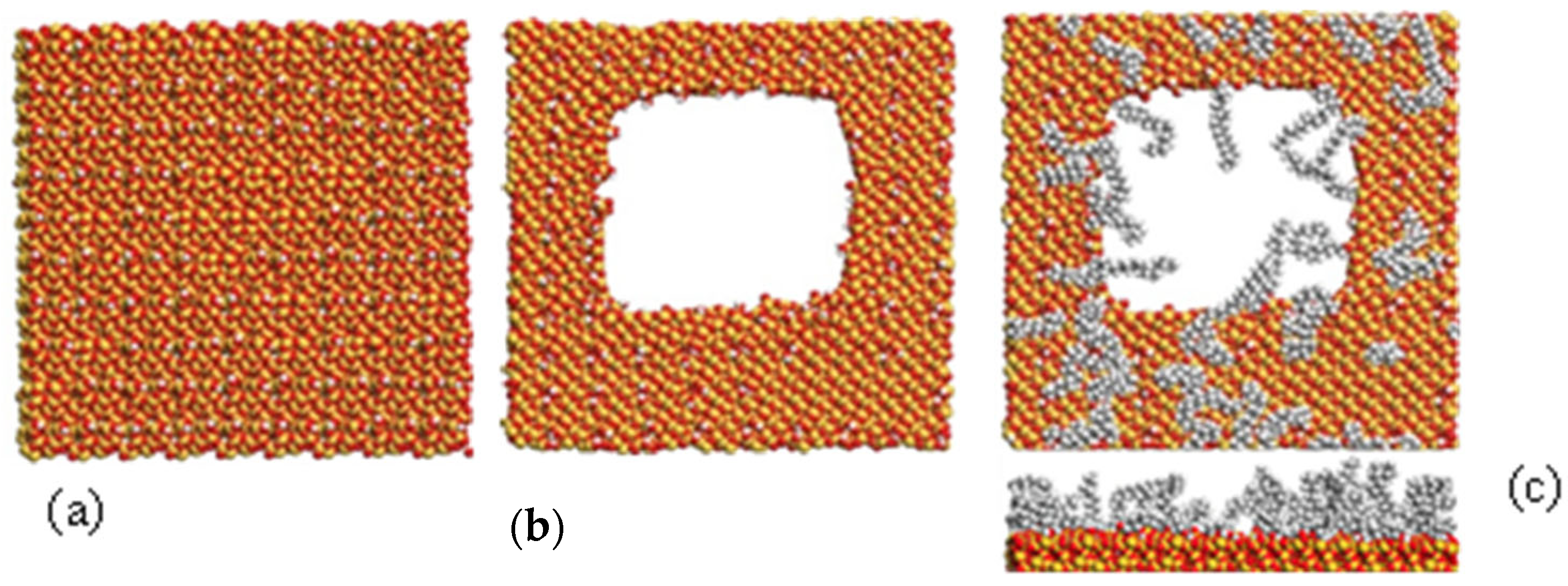

A preliminary analysis was conducted to demonstrate the capabilities of molecular computer modelling and understand how a functionalised silica surface can interact with water and functional groups. A molecular dynamics simulation was used to build an amorphous silica surface of a 1 nm thick slab in a 9 × 9 nm cell (Figure 2a). The surface was functionalised in the software by annealing and adding hydroxyl groups in a specific concentration. Then, a 6 nm pore was built to represent a real pore system (Figure 2b). The surface was further functionalised by adding C18 chain groups to reduce the hydrophilicity (Figure 2c). The mean maximum distance of the C18 from the silica surface was 1.4 nm, reducing the pore diameter to 3 nm. This amorphous silica surface model (Figure 2) was then used to illustrate the effect of absorbing clothianidin to the amorphous silica surface.

2.2. X-tec Silica Manufacture

X-tec silica was manufactured using a proprietary process and according to the specifications defined by the modelling analysis. The X-tec silica particles were then loaded with 10% clothianidin to produce the formulated product (hereafter referred to as ‘10% X-tec silica’).

2.3. Material Characterisation of 10% X-tec Silica

Material characterisation was conducted to measure the specifications of 10% X-tec silica to validate the manufacturing process and computer modelling using the following methods:

2.4. Carbon, Hydrogen, and Nitrogen (CHN) Analysis

A CHN analysis was carried out to confirm the loading of X-tec silica. Carbon, hydrogen, nitrogen, and sulphur were analysed using a ThermoFisher CHNS elemental analyser (https://www.thermofisher.com/). Dried and powdered samples were combusted in a tin sample crucible with a vanadium pentoxide catalyst in an oxygen environment. The resulting gas mixture containing N₂, CO₂, H₂O, and SO₂ flowed into the chromatographic column and was detected with a thermal conductivity detector (TCD).

2.5. Nitrogen Porosimetry

Nitrogen porosimetry was used to measure the surface area, pore diameter, and pore volume of the unloaded and 10% loaded silica particles, using nitrogen as the filling material. Apparent surface areas were measured by nitrogen adsorption at 77.3 K using a Micromeritics ASAP 2020 volumetric adsorption analyser (https://micromeritics.com/). Powder samples were degassed offline at 393 K for 12 h under a dynamic vacuum (10⁻⁵ bar). Before the adsorption test, the inert gas was removed using a high vacuum provided by the turbomolecular drag pump. The specific surface areas were evaluated using the Brunauer–Emmett–Teller (BET) model. The pore size distributions of the silica were obtained by fitting nonlocal density functional theory to the adsorption data.

2.6. Particle Size Measurement

To analyse the average particle size of the 10% X-tec silica, a powder multisizer technique (Beckman Coulter Multisizer 3; https://www.mybeckman.uk/) in volume mode was used to detect changes in electrical impedance as particles passed through a small aperture.

2.7. Scanning Electron Microscopy/Energy-Dispersive X-Ray Spectroscopy (SEM/EDS)

SEM/EDS was used as a quality control technique to assess whether the particles were damaged during manufacturing or formulation and as a qualitative technique to detect clothianidin on the X-tec silica. A powdered 10% X-tec silica sample was applied on a carbon tape and coated with chromium. Images of the sample’s surface were taken using an SEM (Tescan FIB SEM S8000G; https://tescan.com/). During the visual investigation of the surface, EDS (Oxford EDS system) was used for elemental analysis to confirm the origin of the features observed. Chlorine (Cl) and sulphur (S) were used to identify clothianidin (C₆N₅H₈SO₂Cl).

2.8. Powder X-Ray Diffraction (PXRD)

PXRD was carried out to confirm that the X-tec silica could maintain the amorphous physical state of clothianidin at 10% loading. PXRD patterns were recorded on a Bruker D8 Advance diffractometer (https://www.bruker.com/), with Cu Kα radiation and a voltage of 40 kV. Data were collected in the 2θ range of 2–40°, with steps of 0.02°.

2.9. Entomological Testing: Mosquito Rearing

The Anopheles gambiae s.s. Kisumu strain is reared and maintained in the Liverpool Insect Testing Establishment (LITE) insectaries at the Liverpool School of Tropical Medicine (LSTM) under controlled environmental conditions and a standardised blood feeding procedure (Williams et al., 2019) [12]. The strain was first colonised in Kenya in 1975 and was sourced from the Malaria Research and Reference Reagent Resource Centre. Adult mosquitoes are kept in 30 × 30 cm mesh cages at 27 ± 1 °C and 75% RH ± 5% with ad libitum access to a 10% glucose solution on cotton wool. The mosquitoes used in these experiments were non-blood-fed 2–5-day-old adult females.

2.10. Cone Bioassays

X-tec silica (10%) was mixed with water containing 2% v/v methanol and sprayed on glazed and unglazed tiles using an auto-load precision spray potter tower (Burkard Manufacturing Co., Ltd., Rickmansworth, UK) at three different application rates (30, 60, and 90 mg a.i./m²). After application, the tiles were kept for one week before testing to allow drying time. The tiles were tested at 1 week and 8 months post-spray application. The tiles were stored after spray application and between tests at 30 ± 2 °C and 80 ± 10% RH to replicate the temperatures and humidity typically encountered under field conditions.

The bioefficacy of the sprayed tiles was determined using a WHO cone bioassay [13]. Two to four tiles from each treatment group were tested at a time, exposing 10 ± 2 mosquitoes to each tile for 30 min. Mosquitoes exposed to the untreated tiles and unformulated X-tec silica tiles were used as controls. Knock-down was assessed at 60 min post-exposure, and mosquito mortality was recorded at 24, 48, 72, 96, and 120 h post-exposure. All tests were conducted at 27 ± 2 °C and 75 ± 10% relative humidity.

3. Results

3.1. Molecular Computer Modelling of Silica Particles

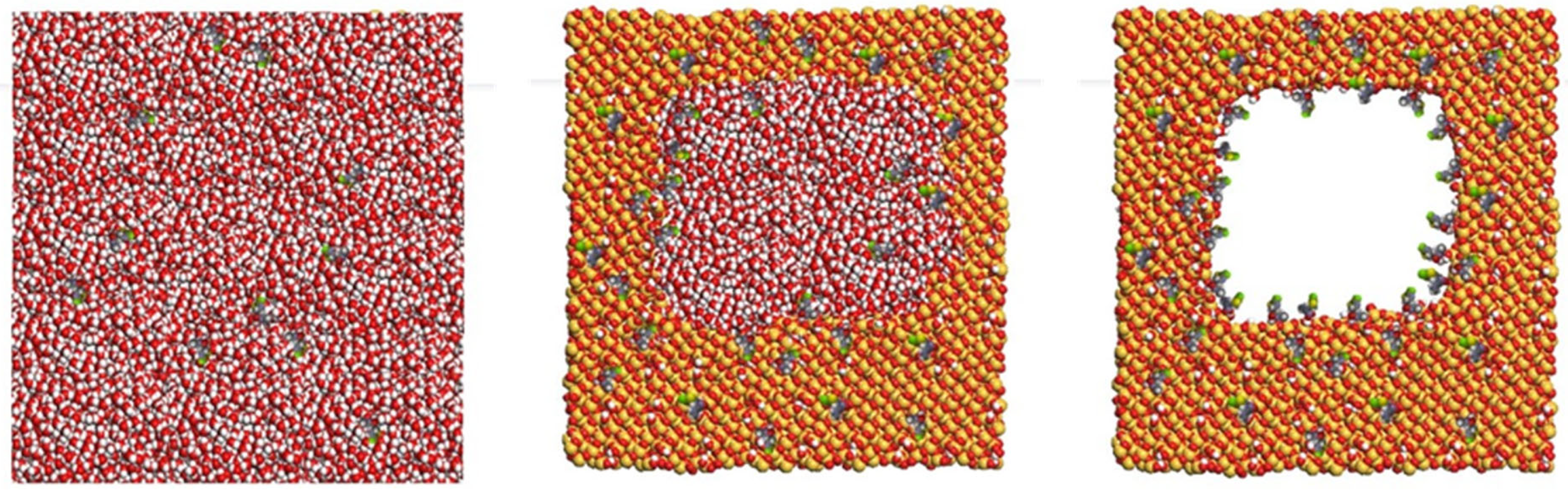

The molecular computer modelling suggested that the optimum specifications of X-tec silica particles to be used as carriers for clothianidin were 5 µm spheres manufactured by reaction-limited kinetics with 7–8 nm pores, a surface area of 200 m²/g, 2.0 silanols nm², and a minimal of vicinal or geminal silanols (Figure 3).

3.2. X-tec Silica Manufacture

The manufactured silica particles had an average size of 5 µm spheres with 7 nm pores and a 170 m²/g surface area. The 10% X-tec silica had an average particle size of 5.64 µm.

3.3. Material Characterisation of 10% X-tec Silica

3.3.1. CHN Analysis

The CHN analysis was carried out to confirm that the loading of X-tec silica was successful and occurred at the expected rate. The expected (calculated) value was 2.4% carbon, with the measured value being 3.9% carbon. The proximity of the estimated and measured values indicates that the silica was loaded with the target AI concentration.

3.3.2. Nitrogen Porosimetry

Compared to the unloaded X-tec silica, the 10% X-tec silica showed significant reductions in the specific surface area (16% reduction) and mean pore volume (14% reduction) (

Table 1. Summary of nitrogen porosimetry data detailing specific surface area (SSA), mean pore volume (MPV), and mean pore diameter (MPD) for unloaded and 10% clothianidin-loaded X-tec silica.

Name	SSA (m2/g)	MPV (cm3/g)	MPD (nm)
X-tec silica (unloaded)	167	0.42	7.3
X-tec silica (10% clothianidin)	140	0.36	6.9

). The mean pore diameter did not change after formulation.

3.3.3. SEM/EDS

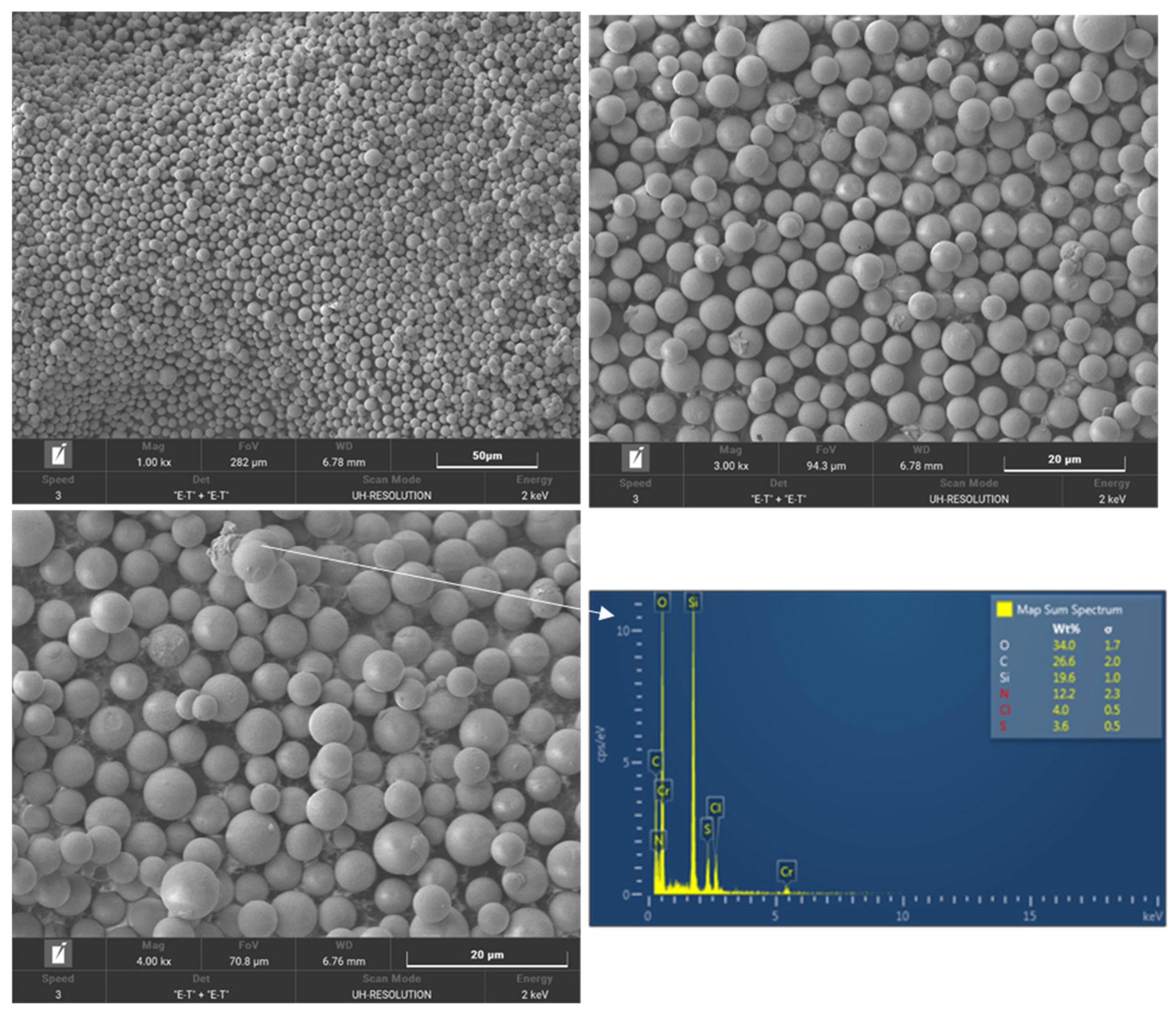

The SEM analysis found traces of clothianidin around the 10% X-tec silica. This was confirmed by detecting Cl and S (stoichiometrically equal, as it is on clothianidin) in the EDS (Figure 4). The silica particles maintained their shape without being damaged or altered during manufacture and formulation.

3.3.4. PXRD Analysis

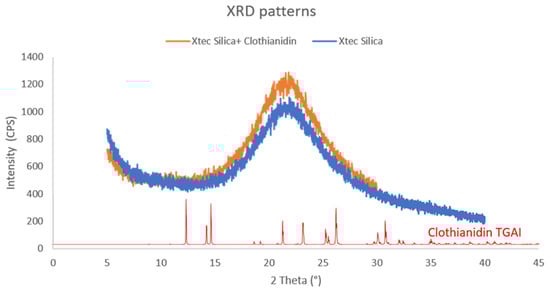

The PXRD analysis was conducted to confirm that the X-tec silica can maintain the amorphous physical state of clothianidin. The PXRD patterns showed no peaks, confirming that the sample contained an amorphous silica powder with no diffracting crystalline component (a representative example is shown in Figure 5).

3.4. Entomological Testing: Cone Bioassays

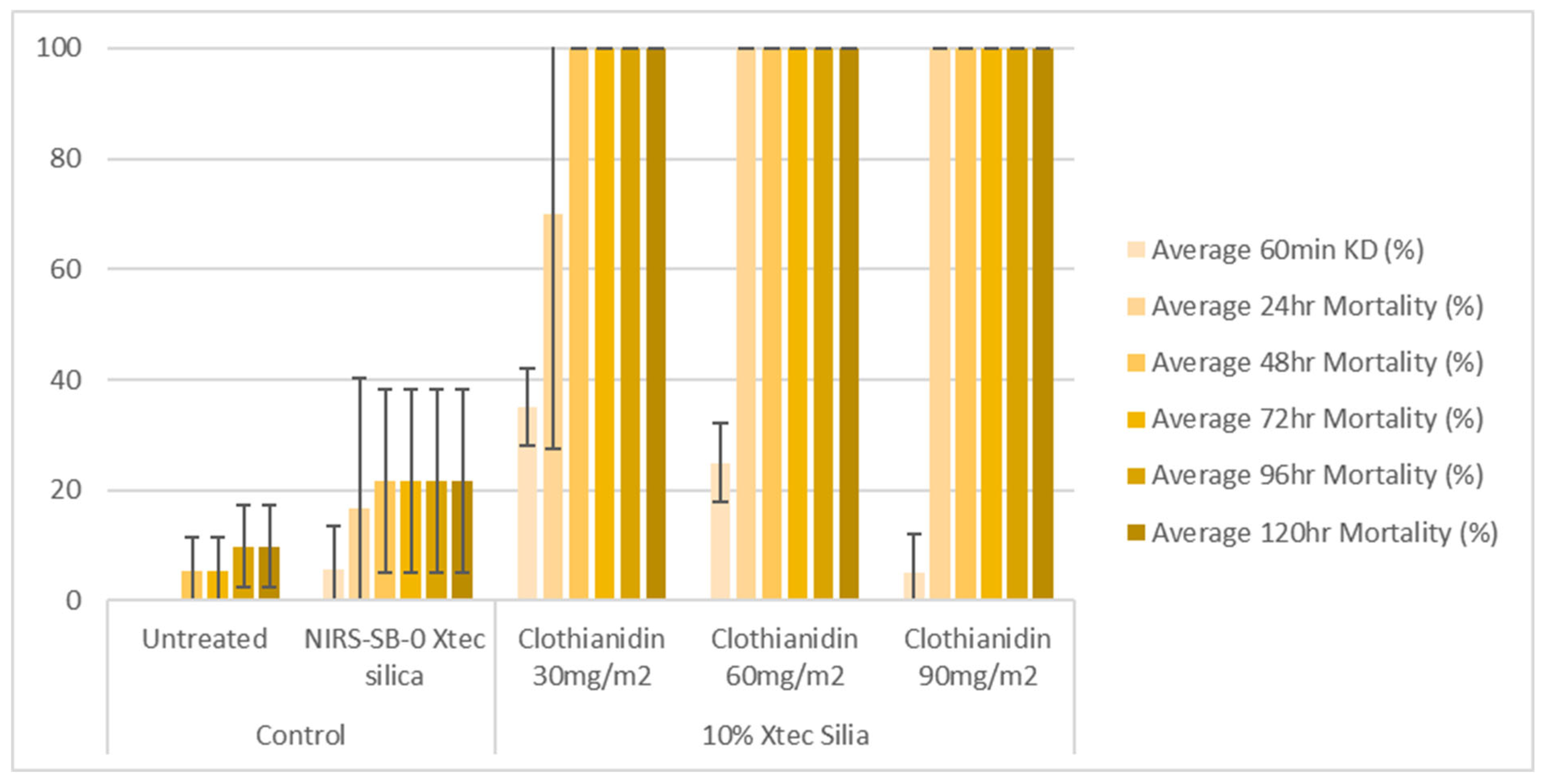

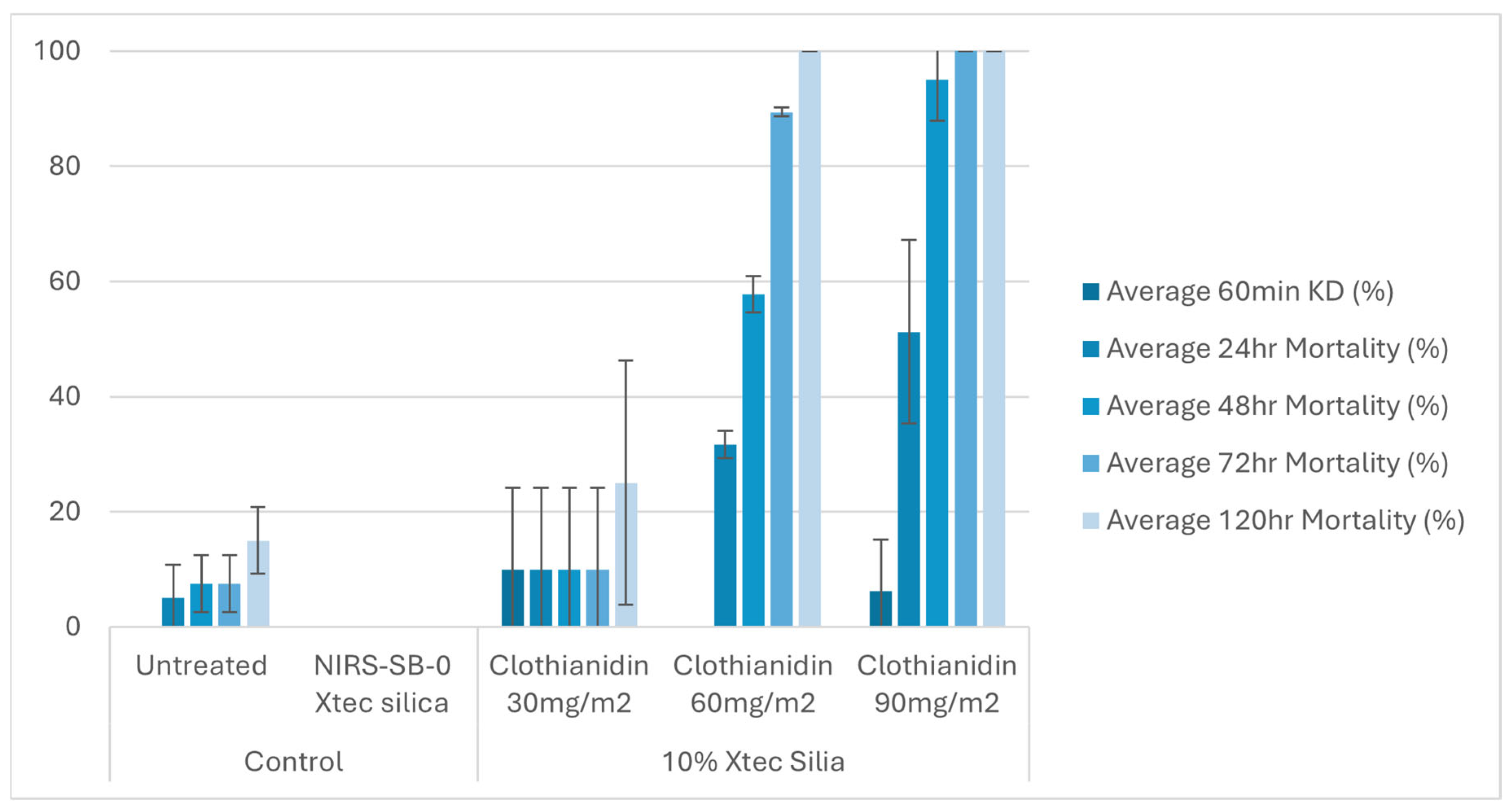

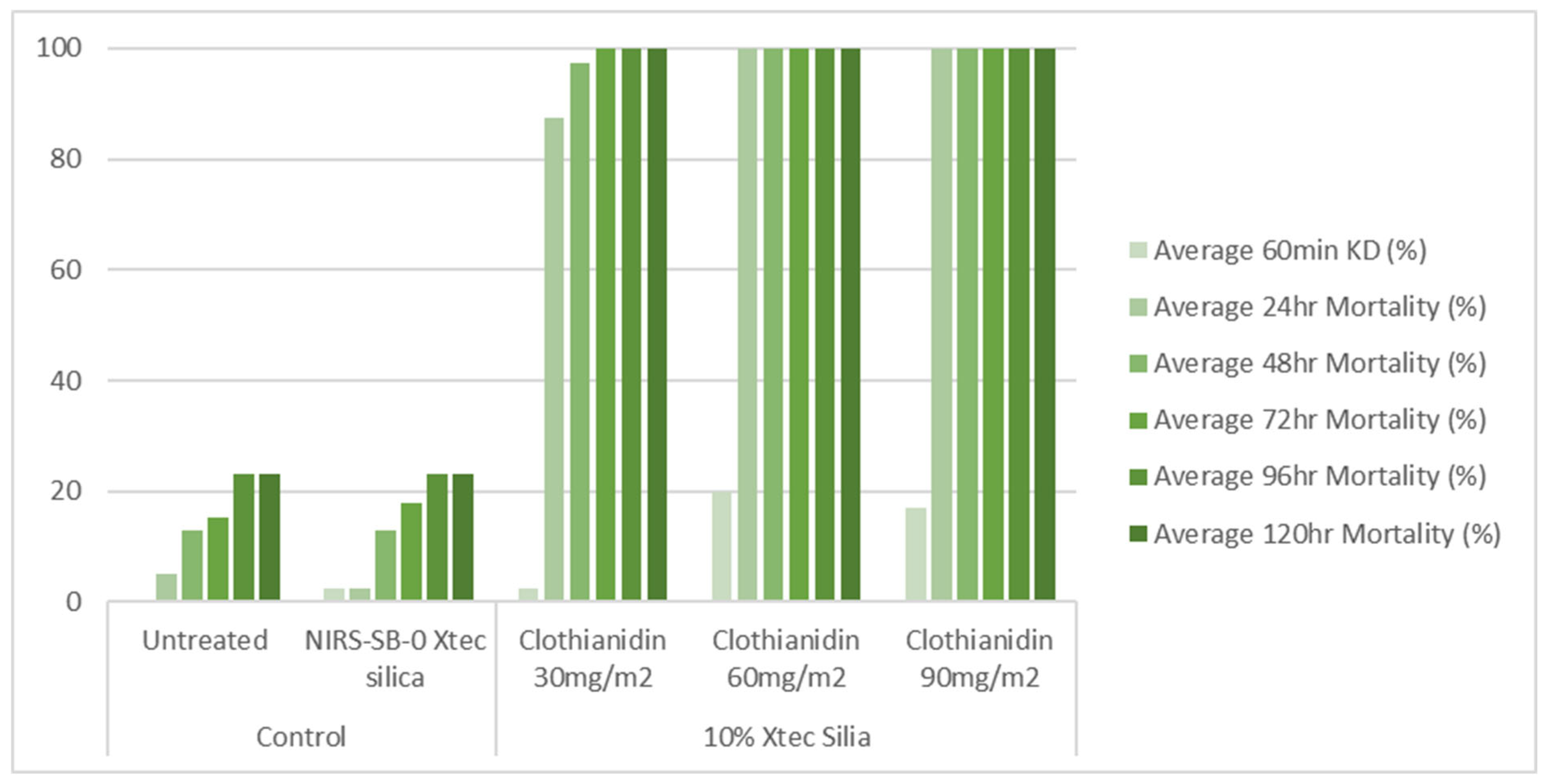

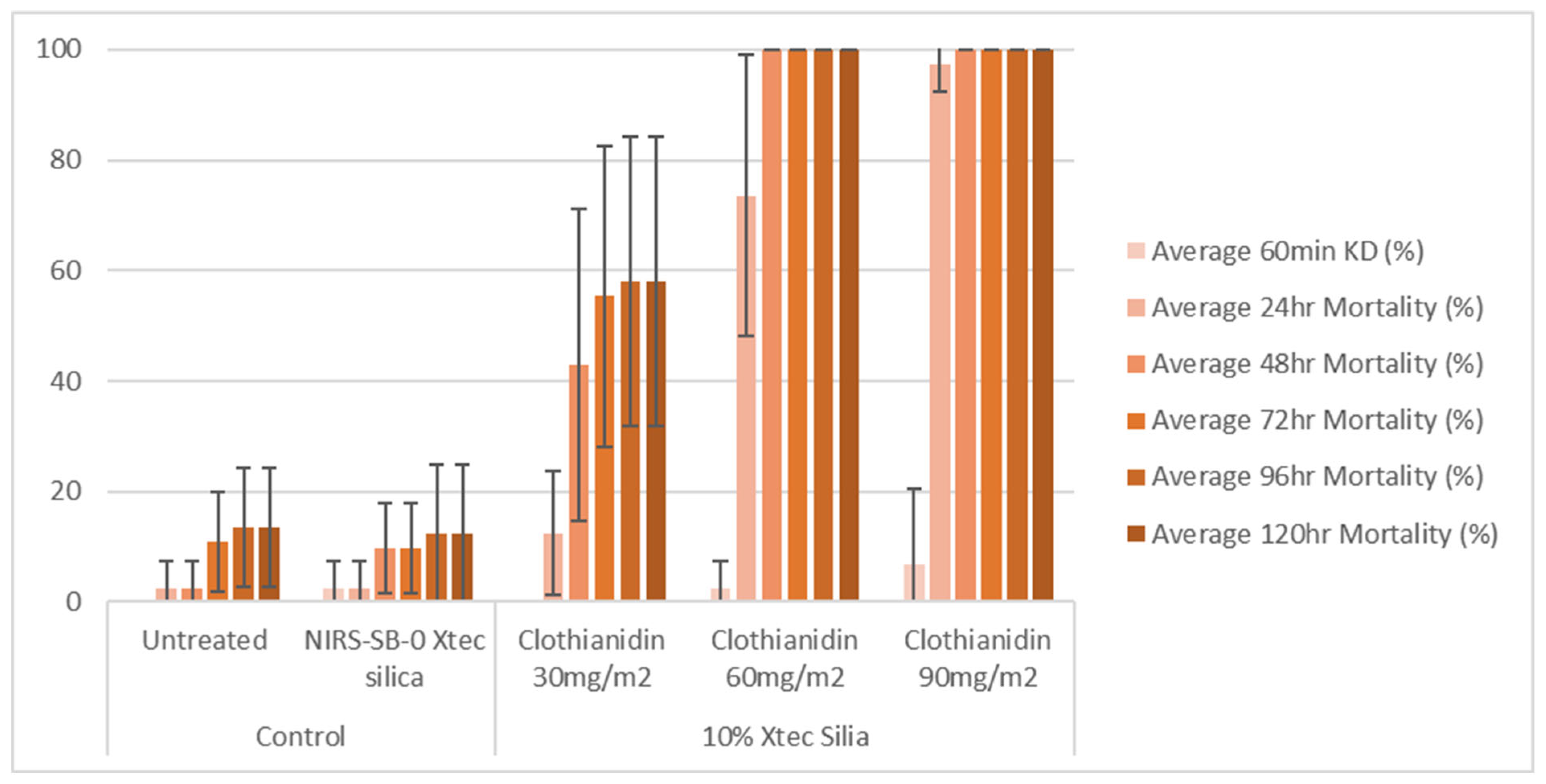

At 1 week post-application, on glazed tiles, all three application rates (30, 60, and 90 mg a.i./m²) of the 10% X-tec silica resulted in >80% mosquito mortality within 24 h (Figure 6 and Table S1). Replicates were pooled following exposure, so, for this dataset, error bars could not be calculated. On unglazed tiles (Figure 7 and Table S2), efficacy was lower; however, the two higher concentrations still surpassed >80% mortality (by 24 h for 90 mg a.i./m², N = 41, and 48 h for 60 mg a.i./m², N = 40). Mortality was <60% for the 30 mg a.i./m² application rate at the final time point (120 h, N = 40). At 8 months post-spray application, on glazed tiles (Figure 8 and Table S3), 100% mortality was reached within 24 h at 60 (N = 20) and 90 (N = 21) mg a.i./m² application rates and within 48 h at 30 mg a.i./m² (N = 20). On unglazed tiles (Figure 9 and Table S4), 96 h mortality was not recorded; however, 100% mortality was reached within 72 h (90 mg a.i./m², N = 18) and 120 h (60 mg a.i./m², N = 19). For the lowest concentration (30 mg a.i./m², N = 20), mortality only reached 25% within the 120 h period. For the NIRS-SB-0 X-tec silica control, mortality was 0% across all time points.

4. Discussion

This was not a confirmatory study but rather a proof of concept to test the feasibility of bespoke X-tec silica particles as a unique carrier for insecticide. Further studies on multiple active ingredients and specific IRS formulations are required before X-tec silica particles can be recommended for use in IRS.

The results, highlighted by the PXRD and SEM/EDS data, suggest that 10% X-tec silica particles were successfully manufactured to control the crystallinity of clothianidin and hold it in an amorphous physical state. The average particle size and SEM images show that the silica remained undamaged during the formulation process, with the CHN data indicating that the expected loading of clothianidin was successfully achieved in the silica batch. The surface area, measured by porosimetry, was significantly reduced in the 10% X-tec silica compared to the unformulated silica, indicating that the pores were filled up by the amorphous clothianidin. This study did not conduct a comparison on the efficacy of amorphous versus crystalline clothianidin, so it cannot determine which state is more efficacious. However, the ability to control the physical state of an insecticide could have far-reaching implications in cases where an insecticide is known to be more efficacious in a particular state, particularly if cost modelling shows that the costs of the bespoke silica are offset by the reduction in the amount of active ingredient needed to achieve the same or improved efficacy.

The 10% X-tec silica demonstrated high bioefficacy against the insecticide-susceptible Kisumu mosquito strain, with most dose/substrate combinations achieving 100% mortality within 120 h at 8 months post-spray application. The current clothianidin-based IRS product on the market specifies a target dose of 300 mg a.i./m². Therefore, the demonstration of 100% efficacy at substantially reduced doses (60 and 90 mg a.i./m²) is positive. When calculating diagnostic concentrations, the dose that kills 100% of a susceptible strain is typically multiplied by 2. When doubling the susceptible dose that we observed to 120–180 a.i./m²), it is still significantly lower than the current market dose (300 mg a.i./m²). Even at a 10-fold reduced dose (30 mg a.i./m²), mortality was observed, although its efficacy was surface-dependent (1-week post-spray application: 100% on glazed tiles and 58% on unglazed tiles; 8-months post-spray application: 100% on glazed tiles and 25% on unglazed tiles). Although the X-tec silica was assumed to have reduced the absorption of the insecticide, the reduction in efficacy on the unglazed tiles at the lowest dose suggests that the effect of capillary action directly affects the bioavailability of the compound. It is likely that, at the lower dose, less active ingredient is available for mosquito pickup, causing reduced mortality. However, it is critical to understand that the presentation of any insecticide in any physical state will be impacted by the substrate on which it is sprayed. Secondly, caution must be taken in extrapolating these results, as no prior confirmatory work on these silica particles exists. Nevertheless, the efficacy seen at these lower doses suggests silica could be used to improve the cost-effectiveness of IRS applications, and a cost–benefit analysis should be conducted. Further testing should consider investigating the efficacy of the formulated silica on pyrethroid-resistant mosquito strains and exploring the efficacy of formulated silica with alternative active ingredients.

5. Conclusions

This study investigated the potential of bespoke X-tec silica particles as a unique carrier for insecticides. Preliminary findings from this study suggest that X-tec silica particles may enhance the effectiveness of IRS using clothianidin, maintaining its bioefficacy for up to eight months post-spray. However, further extensive research is needed to confirm this.
