Transcriptional Response of ABCH Transporter Genes to Host Allelochemicals in Dendroctonus armandi and Their Functional Analysis

by
Bin Liu
*,
Jinrui Zhu
and
Xiaoman Ning
Guangxi Key Laboratory of Forest Ecology and Conservation, College of Forestry, Guangxi University, Nanning 530004, China
*
Author to whom correspondence should be addressed.
Insects 2025, 16(11), 1075; https://doi.org/10.3390/insects16111075
Submission received: 1 September 2025 / Revised: 15 October 2025 / Accepted: 20 October 2025 / Published: 22 October 2025
(This article belongs to the Special Issue Bark and Wood-Boring Insects: Past and Present Research and Essential Future Knowledge—2nd Edition)
Browse Figures
Versions Notes

Simple Summary

The Chinese white pine beetle (Dendroctonus armandi) is a highly destructive forest pest that inflicts significant damage to coniferous ecosystems in the middle Qinling Mountains of China. Insect ATP-binding cassette (ABC) transporters are critically involved in mediating xenobiotic metabolism. However, the roles of ABC genes in host terpenoid detoxification remain uncharacterized in D. armandi. In the present study, verapamil (an ABC transporter inhibitor) significantly increased beetle mortality induced by four monoterpenes. Then we characterized three ABCH subfamily genes. All three genes were upregulated during developmental transitions and predominantly expressed in Malpighian tubules, fat body, and midgut. Notably, DaABCH1 was significantly induced by α-pinene and limonene and silencing DaABCH1 significantly increased mortality, which indicated DaABCH1 represents a critical candidate gene implicated in plant chemical defense mechanisms.

Abstract

Bark beetles depend on detoxifying enzymes to counteract the defensive terpenoids produced by host trees. Insect ABC transporters play a critical role in the detoxification of insecticides and plant secondary metabolites. However, the specific functions of ABC genes in the metabolism of host allelochemicals remain unclear in D. armandi. In this study, we observed that verapamil significantly enhanced the mortality of host allelochemicals in beetles, indicating that ABC transporter genes are involved in the metabolism of monoterpenes by D. armandi. We then sequenced and characterized the full-length cDNAs of three ABCH subfamily genes (DaABCH1–DaABCH3) from D. armandi. Spatiotemporal expression profiling revealed that all three genes were upregulated during developmental transitions (egg to larva and pupa to adult) and tissue-specific enrichment in detoxification-related organs (Malpighian tubules, fat body, and midgut). Additionally, DaABCH3 expression was detected in the hindgut and brain. Furthermore, DaABCH1 and DaABCH2 were significantly induced by treatment with α-pinene and limonene, whereas DaABCH3 was induced by β-pinene and limonene. Importantly, silencing DaABCH1 significantly increased mortality in adults fumigated with α-pinene and limonene. These results strongly suggest that DaABCH1 acts as a key regulator modulating D. armandi’s sensitivity to host plant allelochemicals. This finding provides a conceptual basis for developing novel control strategies against this economically significant forest pest.

Graphical Abstract

1. Introduction

The Chinese white pine beetle, Dendroctonus armandi, represents a devastating pest threatening coniferous forests in the central Qinling and Bashan Mountains of China. It not only invades healthy Chinese white pines (Pinus armandii) aged 30 years old but also attracts other pest to infest these host trees, thereby disrupting forest ecosystems and causing huge economic losses [1]. Bark beetles spend nearly their entire life cycle beneath the bark of pine trees, except during dispersal to new host trees and the initiation of reproductive activities. A critical phase in their life cycle is host colonization, during which these insects must overcome the tree’s defensive barriers to reproduce successfully [2].
P. armandii’s resistance against bark beetles primarily relies on its constitutive and induced physical–chemical defense systems, with constitutive and induced oleoresin terpenes acting as the core defensive components [3]. Oleoresin is a complex mixture composed a lot of monoterpenes, diterpenes, and small quantities of sesquiterpenes [4]. Prior research has identified α-pinene, β-pinene, camphene, myrcene, and limonene as the main components of volatile monoterpenes extracted from P. armandii resin [3]. These compounds can harm or kill bark beetles through the toxic properties [5,6]. Although monoterpenes serve as precursors for kairomones or pheromones in the chemical ecology of bark beetles, the insects must metabolize these substances to avoid adverse impacts. Throughout the prolonged coevolutionary arms race between herbivorous insects and plants, insects have evolved sophisticated detoxification enzyme systems. These systems facilitate the breakdown of diverse plant secondary metabolites and synthetic insecticides, thereby endowing insects with remarkable resilience in hostile environments [7].
In insects, xenobiotic detoxification is further divided into three phases, involving multiple detoxification-related enzymes and transporters: cytochrome P450 monooxygenases (P450s) and esterases (ESTs) act as central catalysts in phase I metabolism by mediating oxidation and hydrolysis reactions; glutathione S-transferases (GSTs) operate in phase II via conjugation processes; and ATP-binding cassette (ABC) transporters facilitate phase III through elimination [8]. Studies exploring the tolerance mechanisms of D. armandi have shown that elevated activity of detoxifying enzymes (such as P450s, ESTs, and GSTs) is the primary factor contributing to the beetle’s metabolic tolerance to monoterpenes [9,10,11,12]. Although many studies have found that ABC transporters are involved in transporting toxic substances out of cells [13,14,15], it is still unclear whether they participate in the detoxification of monoterpenes in D. armandi.
ABC transporter family is one of the largest families of transporter-encoding genes in the metazoans [16]. Most ABC transporters primarily function in the ATP-dependent active transport of a wide range of substrates, such as lipids, peptides, amino acids, polysaccharides and their conjugates, pharmaceuticals, and as a pump that extrudes toxicants from the cells [15,16,17,18]. Moreover, ABC transporters also participate in a broad spectrum of other biochemical and physiological processes, including uric acid uptake, ocular pigmentation, and acting as ion receptors and channels [15,19,20]. Typical ABC transporters contain two highly conserved structural domains: the nucleotide-binding domain (NBD) and the transmembrane domain (TMD) [21]. Between the two domains, NBD binds and hydrolyzes ATP to supply energy for substrate transport, and TMD governs substrate selectivity. Based on the sequence similarity of NBDs, ABC transporters are categorized into eight subfamilies, labeled ABCA to ABCH [16,18].
ABCH represents the sole transporter subfamily absent in humans and other mammals yet conserved across all arthropods, offering an advantageous and biosafe target for novel arthropod-specific pest control agents [16]. It was first discovered in the genome of the fruit fly Drosophila melanogaster [22]. ABCH transporters have been linked to lipid transport: RNA interference (RNAi)-mediated knockdown of ABCH genes in D. melanogaster, Tribolium castaneum, Locusta migratoria, Plutella xylostella, and Diabrotica virgifera virgifera leads to high mortality due to desiccation [23,24,25,26,27]. Additionally, ABCH transporters have been found to be differentially induced by xenobiotic exposure in several insect species, including T. castaneum, P. xylostella, Anopheles coluzzii, Acyrthosiphon pisum, and Sitophilus zeamais [20,28,29,30,31]. However, the role of ABCH transporters in host terpenoid tolerance remains uncharacterized in D. armandi.
Since no insecticides have been used against bark beetles at our sampling site, the host tree’s chemical defense is the primary selective pressure on D. armandi. Detoxifying enzymes of bark beetles have long been a major research focus for understanding the molecular mechanisms underlying bark beetle host selection and colonization behaviors [32,33,34]. In this study, we first evaluated the synergistic effect of verapamil (an ABC transporter inhibitor) on host allelochemicals. We then cloned and identified three ABCH genes from the transcriptome sequencing data of D. armandi and constructed a phylogenetic tree using these genes. Furthermore, we analyzed the expression patterns of the three DaABCH genes. Additionally, we investigated the functions of these DaABCH genes in responding to monoterpenes via RNAi. This study aimed to identify ABCH transporter genes in D. armandi and elucidate their mechanistic roles in mediating responses to key host monoterpenes, thereby establishing a theoretical framework for targeted pest management strategies.

2. Materials and Methods

2.1. Insect and Reagent Preparation

Chinese white pine beetles were sampled from Pinus armandii trees naturally infested by the beetle at the Huoditang Experimental Forest Station. This station is located on the southern slopes of the central Qinling Mountains, Shaanxi Province, China (33°18′ N, 108°21′ E). The beetles were maintained on a synthetic diet in a laboratory environment controlled at 25 ± 1 °C, 70% relative humidity (RH), and constant darkness [35]. α-Pinene (98%), β-pinene (99%), 3-carene (90%), limonene (95%), and verapamil were purchased from Aladdin Industrial Corporation (Shanghai, China).

2.2. Synergism Bioassays

Verapamil (an ABC transporter inhibitor) was used to assess the role of ABC transporters in the tolerance of adult beetles to monoterpenes. 100 μL of verapamil (final concentration of 100 mg⋅L−1) was topically applied to the pronotum of individual adult beetles. The acetone used as control groups, respectively. After 24 h, allowing for complete penetration of verapamil into the beetle’s body, survival rates were recorded. The adults were then fumigated with different monoterpenes (final concentration of α-pinene, β-pinene, 3-carene and limonene is 36 μL⋅L−1, 43 μL⋅L−1, 15 μL⋅L−1 and 10 μL⋅L−1) for 24 h. Following fumigation, the beetles were transferred to an artificial climate cabinet, and mortality was observed at 48 h post-fumigation. Each treatment consisted of three biological replicates, each of which used 40 males and 40 females.

2.3. Cloning and RACE

Total RNA was extracted from three developmental stages of D. armandi (larvae, pupae, and adults of both sexes), and RNA concentration and quality were determined as previously described [35]. Partial sequences of three DaABCH genes were retrieved from the D. armandi transcriptome database [10] and used for primer design (Table S1). Full-length cDNA sequences of DaABCH genes were obtained through 5′ and 3′ RACE and verified as reported previously [36]. Briefly, cDNA-specific primers for 5′ and 3′ RACE (Table S1) were designed based on the partial sequences. RACE-ready cDNA was synthesized from total RNA using the SMARTer RACE cDNA Amplification Kit (Clontech Laboratories Inc., Mountain View, CA, USA) in accordance with the manufacturer’s protocol.

2.4. Bioinformatic Analysis

The three cDNA sequences have been submitted to GenBank under the accession numbers provided in Table 1. Open reading frames (ORFs) of the full-length cDNAs were identified by ORF Finder (https://www.ncbi.nlm.nih.gov/orffinder/, accessed on 16 July 2025). Multiple sequence alignments were carried out using DNAMAN 6.0. The molecular weights (MW) and isoelectric points (pI) of the deduced proteins were predicted using ProtParam (http://web.expasy.org/protparam/, accessed on 16 July 2025). The secondary structures of deduced DaABCHs amino acid sequences were predicted using the NPS-SOPMA tool [37]. Phylogenetic trees were built using the neighbor-joining method in MEGA 6.0 [38].

2.5. Insect Sampling and Treatments for RT-qPCR

Eggs of D. armandi were classified into two developmental substages: early-stage eggs (exhibiting light coloration) and late-stage eggs (proximal to eclosion). Larvae were categorized into two distinct phases: feeding larvae (actively consuming host phloem for growth) and mature larvae (having terminated feeding activity). Pupal development was segmented into early pupae (recently metamorphosed from larvae) and late pupae (approaching adult morphogenesis). Adults were further differentiated into three subgroups: teneral adults (characterized by light cuticular pigmentation), emerged adults, and attacking adults (engaged in colonization of new host trees). Six individuals were pooled as one sample. Antennae, brain, foregut, midgut, hindgut, fat body, Malpighian tubules, reproductive organs, and hemolymph of emerged adults were dissected, ten individuals were pooled as one sample. Subsequently frozen in liquid nitrogen and maintained at −80 °C for long-term preservation until further analysis.
Monoterpenes stimulation was performed using the same method as that in the fumigant toxicity assay. Each treatment group contained 40 males and 40 females of roughly the same size. After 12, 24, and 36 h of exposure to different monoterpenes, beetles surviving in each group were euthanized using liquid nitrogen. An additional 15 individuals per sex were collected at the initial time point (0 h) as controls. All samples were subsequently utilized for real-time PCR analysis, with three biological replicates performed per treatment.
The β-actin gene of D. armandi (accession number: KJ507199.1) was used as the reference gene for qRT-PCR [10]. Gene-specific primers were employed to detect the expression of the three DaABCH genes (Table S1). qRT-PCR was performed as described in our previous study [35]. All treatments were performed in three technical replicates, and relative gene expression was quantified via the 2−ΔΔCt method [39].

2.6. Double-Strand RNA (dsRNA) Synthesis and Injection

The T7 Ribo-MAX™ Express RNAi System (Promega, Madison, WI, USA) was used for dsRNA synthesis [36]. RNA interference primers (Table S1) were designed using the complete DaABCH gene sequences. The resulting double-stranded RNA (dsRNA) products were diluted to a concentration of 1000 ng/μL using DEPC-treated water, preserved at −80 °C, and utilized within a six-month period. Newly emerged adult D. armandi beetles were microinjected with 0.15 μL of dsRNA solution employing a Hamilton Micro-liter™ syringe (700 series) fitted with a 32 G fine-point needle (Hamilton, Bonaduz, Switzerland). Injection of dsGFP served as the control treatment. Following injection, the beetles were maintained in an environmentally controlled chamber under standardized conditions. Each experimental group included three biological replicates (with independent microinjection procedures), with 60 beetles of each sex injected per biological replicate. Survival was recorded at 48 h post-injection. Six randomly selected adults from each treatment were collected at 24, 48, and 72 h post-injection for qRT-PCR analysis. At 48 h post-injection, adults of both sexes were treated with distinct monoterpenes following established protocols, maintained under controlled conditions for 48 h, and mortality rates were recorded. All treatments were performed with three biological replicates.

2.7. Statistical Analysis

All statistical analyses were performed using SPSS Statistics v.25.0 (IBM, Chicago, IL, USA). One-way analysis of variance (ANOVA) followed by Tukey’s post hoc test was used to verify the significance of differences among multiple groups. Student’s t-test was applied for two-sample comparisons (* p < 0.05, ** p < 0.01, *** p < 0.001). The results were reported as mean ± standard error (SE). Graphs were generated using Prism 6.0 (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. Synergistic Effect of Verapamil on Monoterpenes

Treatment of D. armandi adults with verapamil for 48 h had no impact on mortality (Figure 1), indicating that the inhibitor itself did not impair the beetles’ physiological condition. However, verapamil treatment led to a significant rise in adult mortality following exposure to α-pinene, β-pinene, 3-carene, and limonene: mortality increased by 48.7%, 26.2%, 31.6%, and 50.1% in males (Figure 1A, p = 0.032) and by 23.3%, 14.0%, 22.7%, and 46.6% in females, respectively (Figure 1B, p = 0.021).

3.2. Sequencing and Bioinformatic Analysis

Based on the D. armandi transcriptome database, three putative ABCH genes (named DaABCH1–DaABCH3) with complete ORFs were identified. The deduced amino acid sequences of these genes ranged from 710 to 777 amino acids in length (Table 1). The predicted molecular weights varied from 79.36 to 85.94 kDa, and the isoelectric points ranged from 6.12 to 7.81 (Table 1). Signal peptide prediction showed that none of the encoded proteins contained a signal peptide, confirming they are non-secretory proteins. SMART analysis revealed that all DaABCH proteins possess transmembrane regions, and transmembrane helix prediction indicated that each DaABCH protein has 5–7 transmembrane helices—consistent with their classification as membrane proteins (Table 1). Moreover, all DaABCH proteins contain potential N-glycosylation sites, O-glycosylation sites, and phosphorylation sites. In addition, secondary structure analysis showed that all DaABCH proteins are mainly composed of α-helices (39.57–40.82%), with a small proportion of β-turns (5.20–6.56%; Table 1).
All DaABCH genes consist of AAA domains (Figure 2A). Moreover, each DaABCH gene encodes a single ABC_tran structural domain (NBD) and one ABC2_membrane domain (TMD; Figure 2B). Thus, all DaABCH transporters exhibit a reverse domain arrangement (NBD-TMD) and are classified as half-transporters (HTs).
Phylogenetic trees constructed using ABCH subfamily genes from D. armandi and T. castaneum showed a one-to-one orthologous relationship between DaABCH and TcABCH genes. This suggests that the number and function of ABCH genes are relatively conserved in coleopteran beetles (Figure 3). In addition, the amino acid sequence similarity between DaABCH and TcABCH proteins ranged from 59.6% to 82.3%, indicating that the amino acid sequence of ABCH transporters is highly conserved.

3.3. Expression Profiles Across D. armandi Developmental Stages and Tissues

The three DaABCH genes were widely expressed across all developmental stages of D. armandi, though with distinct patterns: all were upregulated during developmental transitions (from egg to larva and from pupa to adult; Figure 4). The expression level was highest in emerged adults and lowest in early pupae (DaABCH1: p = 0.015; DaABCH2: p = 0.024; DaABCH3: p = 0.017) (Figure 4). Furthermore, the expression level of DaABCH1 and DaABCH2 was significantly higher in females than in males in the emerged adult stage, while DaABCH3 showed higher expression in females than in males in the attacking adult stage (Figure 4F, p = 0.035).
The DaABCH genes displayed tissue-specific expression patterns, with sex differences observed in some tissues (DaABCH1: p = 0.023; DaABCH2: p = 0.009; DaABCH3: p = 0.004) (Figure 5). Specifically, DaABCH1 and DaABCH2 were highly expressed in the midgut, fat body, and Malpighian tubules, with minimal expression detected in other tissues (Figure 5). DaABCH3 was mainly expressed in the Malpighian tubules, followed by the hindgut and brain (Figure 5C). Additionally, DaABCH1 and DaABCH3 showed higher expression in females than in males in the fat body and Malpighian tubules (Figure 5), while DaABCH2 exhibited higher female-biased expression in the fat body and reproductive organs (Figure 5B).

3.4. Exposure to Monoterpenes

As shown in Figure 6, monoterpenes treatment induced the expression of the three DaABCH genes to varying degrees in D. armandi adults, except for DaABCH3 in males (Figure 6E, p = 0.26). In female adults, the relative expression of DaABCH1 was significantly increased following terpenoid exposure at all time points (Figure 6B). Notably, DaABCH1 and DaABCH2 were strongly induced by α-pinene and limonene, while DaABCH3 was induced by β-pinene and limonene.

3.5. Functional Analysis of DaABCH Genes by RNAi Silencing

To further explore the role of DaABCH genes in host chemical defense, we suppressed the expression of these genes via RNAi in adults. Compared with the control group, DaABCH1 expression was significantly downregulated at 24, 48, and 72 h post-dsRNA injection in emerged adults, except at 24 h in males (Figure 7A, p = 0.072). DaABCH2 expression was significantly downregulated at 48 h post-RNAi, while DaABCH3 expression showed no significant reduction (Figure 7C,F). The maximum reduction in DaABCH1 expression reached 78.3% (males, p < 0.001) and 55.6% (females, p < 0.001), while the maximum reduction in DaABCH2 expression was 79.5% (males, p = 0.003) and 58.4% (females, p = 0.004, Figure 7).
No statistically significant differences in survival rates were detected in adults injected with dsGFP (control) and those injected with dsDaABCH1 or dsDaABCH2 at 48 h post-injection (Figure S1; Male: p = 0.15; Female: p = 0.32), confirming that the injection procedure itself did not affect the beetles’ physiology.
Adults injected with dsDaABCH1 showed significantly higher mortality than controls after exposure to α-pinene and limonene (Figure 8A,B). Specifically, mortality increased by 46.8% and 52.1% in males, and by 44.9% and 49.2% in females, at 48 h post-exposure to α-pinene and limonene, respectively (Figure 8). In contrast, silencing DaABCH2 significantly increased mortality only after limonene exposure in female adults (Figure 8B).

4. Discussion

The role of ABC transporters in insecticide detoxification has been extensively studied using ABC transporter inhibitors. Evidence supporting the transport function of ABC transporters typically comes from the quantification of transcript or protein levels and synergism assays using ABC inhibitors. For example, in Apis mellifera, verapamil treatment significantly increased bee mortality after insecticide exposure [40]. In T. castaneum, verapamil inhibited the elimination of the fluorochrome Texas Red from fat body cells [41]. Verapamil has also been shown to enhance the toxicity of diflubenzuron and temephos against fourth-instar larvae of Aedes caspius [42], and to increase the toxicity of chlorantraniliprole and abamectin in Chilo suppressalis [43,44]. Additionally, the combination of verapamil and tannic acid reduced the survival rate of A. pisum compared with tannic acid treatment alone [20]. In this study, verapamil treatment significantly increased D. armandi mortality following exposure to host allelochemicals, suggesting that ABC transporters are also involved in the detoxification of monoterpenes in D. armandi.
Bioinformatic analyses provided insights into the potential functions of DaABCH proteins. Signal peptide prediction confirmed that DaABCH proteins are non-secretory, while transmembrane helix prediction identified them as membrane proteins with 5–7 transmembrane helices. The presence of predicted phosphorylation and glycosylation sites indicates that DaABCH proteins undergo post-translational modifications, which may be involved in cell signal transduction process. Phylogenetic analysis of the ABCH subfamily revealed a clear orthologous relationship between DaABCH and TcABCH genes, indicating functional conservation across coleopteran species.
Most insect species have only three ABCH members; however, 8–15 ABCH homologs have been identified in certain hemipteran, including Bemisia tabaci, Lygus hesperus, and Diaphorina citri [45,46,47]. This expanded gene set likely originated from lineage-specific duplication events. In contrast, D. armandi possesses a limited ABCH transporter repertoire, comprising only three members, suggesting potential evolutionary or functional specialization. ABCH transporters were first annotated in D. melanogaster [22], and subsequent studies have identified ABCH genes in various metazoans [16], such as the nematode Caenorhabditis elegans, the sea urchin Strongylocentrotus purpuratus, the green spotted pufferfish Tetraodon nigroviridis, and the zebrafish Danio rerio [48,49,50,51].
Previous studies have reported that ABCH genes are upregulated with age in some insect species [20,52,53]. RT-qPCR analysis of DaABCH expression across developmental stages showed that these genes are expressed throughout the D. armandi life cycle, with the highest transcript levels in larvae and adults, and the lowest in pupae. This pattern may be associated with xenobiotic detoxification during feeding (larval and adult stages). These results suggest that DaABCH genes play a stage-specific role. Stage-specific expression of ABCH genes has been linked to physiological function in Tribolium castaneum and Locusta migratoria [24,26]. For example, the transcription level of LmABCH-9C in L. migratoria peaks after molting; knock-down of ABCH-9C reduces cuticular lipids in both L. migratoria and T. castaneum, leading to desiccation and death. The stage-specific expression patterns of ABCH genes support their potential functional specialization, though further validation is required in D. armandi.
Tissue-specific expression of ABCH genes in insects often reflects their physiological roles. Several tissues, including the fat body, Malpighian tubules, and midgut, are known to be involved in insecticide detoxification across different insect species. For instance, the insect fat body contributes to innate immunity and detoxification [54], while the Malpighian tubules play a key role in the detoxification of xenobiotic [55]. In this study, the three DaABCH genes showed high transcript levels in the Malpighian tubules, fat body, and midgut, a pattern consistent with observations in T. castaneum and Chrysomela populi [30,56]. This suggests that DaABCH genes are involved in xenobiotic detoxification. In contrast, BdABCH genes in Bactrocera dorsalis showed relatively low expression in detoxification-related tissues [53]. The differential expression patterns of ABCH genes across insect species highlight their functional versatility in fundamental physiological processes. Furthermore, DaABCH3 exhibited high expression in the hindgut, which is consistent with its expression profiles in B. dorsalis and L. migratoria [26,53]. Previous studies have shown that hindgut osmoregulatory capacity is associated with cold tolerance in B. dorsalis and L. migratoria [53,57], suggesting that DaABCH3 may be involved in hindgut reabsorption in cold-acclimated D. armandi. Meanwhile DaABCH2 showed a higher expression in reproductive organs of the female adult, which may be related to the reproduction of D. armandi. These hypotheses require further verification.
Previous reports have indicated that genes upregulated by xenobiotic exposure are generally involved in xenobiotic detoxification. For example, the relative expression levels of ABCH3, ABCH4, ABCH8, and ABCH10 in Aphis craccivora were significantly upregulated in response to imidacloprid treatment [52]. In A. pisum, ApABCH2 expression was upregulated after tannic acid exposure [20]. Additionally, ABCH genes were strongly upregulated in S. zeamais exposed to terpinen-4-ol [29], and in larvae of Monochamus alternatus, ABC transporters exhibit specific responsiveness to oleoresin terpenoids derived from Pinus massoniana [58]. Monoterpenes are volatile; when damaged phloem exudes resin, these compounds coat the surface of mining beetles and may enter the beetle’s body via the respiratory system, cuticle, or digestive tract. This study focused on respiratory exposure to monoterpenes. Our results showed that only DaABCH1 expression was significantly increased after almost four monoterpenes exposure, indicating that this gene plays the most critical role in the detoxification of monoterpenes in D. armandi. Moreover, the expression levels of DaABCHs in female adults exhibited greater variability compared to males following monoterpene exposure, potentially attributable to female adults enter the bark earlier than males, and they were more sensitive to host volatiles and more important in the location and detoxification of host monoterpenes than males. Although the current results provide important evidence of the role of DaABCH1 genes in bark beetles’ adaptation to host chemical defense mechanisms, the functions of ABC genes from other subfamilies remain undetermined. Moreover, previous studies have demonstrated that other detoxification systems also play key roles in host adaptation [9,10,11,12], which suggests potential functional crosstalk among these detoxification enzymes. Further research should focus on all other ABC genes to elucidate their network-level defense mechanisms.
RNAi is a valuable tool for investigating the physiological functions of insect ABCH genes in xenobiotic detoxification [16,31,52]. To examine the potential roles of DaABCH, we silenced these genes. The results showed effective downregulation of DaABCH1 and DaABCH2 genes, though with differences in silencing efficiency and duration. Notably, silencing DaABCH1 significantly increased adult mortality following exposure to α-pinene and limonene, identifying DaABCH1 as a key candidate gene involved in host chemical defense. α-Pinene is the most abundant volatile monoterpene in P. armandii resin [3], while limonene causes higher beetle mortality in fumigant toxicity assays than other terpenoids [10]. This finding is consistent with prior studies on Aphis craccivora, where dsRNA feeding suppressed ABCH3 and ABCH4 expression, increasing A. craccivora sensitivity to imidacloprid [52]. Similarly, dsRNA-mediated silencing reduced ABCH2 transcript levels by approximately 80% in whole female mosquitoes, significantly increasing pyrethroid toxicity [31]. Furthermore, 14C-deltamethrin penetration assays showed that Anopheles coluzzii lacking this transporter exhibited increased penetration of the radiolabeled insecticide after brief contact [31]. Additionally, RNAi PxABCH1 can cause 100% larval and pupal mortality in a Bt Cry1Ac-resistant strain of P. xylostella [28]. In contrast, silencing ABCH genes in T. castaneum did not significantly increase mortality following exposure to the pyrethroid cyfluthrin or the diacylhydrazine tebufenozide [30], and while ApABCH2 was upregulated in A. pisum exposed to tannic acid, silencing ApABCH2 had no effect on tannic acid-induced mortality [20]. These results emphasize that increased transcript levels in response to xenobiotic exposure do not always indicate a role in detoxification, they may instead reflect a non-specific stress response.
However, the RNAi silencing achieved only partial knockdown, leaving room for residual gene activity and potential compensation by other detoxification pathways, and off-target effects were not rigorously excluded. The present results remain inferential in this respect as long as CRISPR/Cas knock-out experiments have not been carried out. Future work will involve conducting direct transport assays combined with CRISPR/Cas9 knockout technology to provide definitive evidence of the role of DaABCH proteins in terpenoid export or sequestration.

5. Conclusions

In summary, this study provides preliminary information on the gene structures, sequence characteristics and expression patterns of three ABCH genes in D. armandi. Verapamil treatment significantly increased D. armandi’s susceptibility to host monoterpenes. Additionally, silencing DaABCH1 significantly reduced D. armandi’s tolerance to α-pinene and limonene. The results of this study suggest that DaABCH genes have distinct functional characteristics, with DaABCH1 potentially playing a role in the process of adapting to the host’s chemical defense. Findings from this study may provide a theoretical basis for the development of novel pest management strategies to effectively control this impactful pest. However, this study only preliminarily conducted functional experiments of DaABCH genes; the next step will involve metabolic validation, protein-level analysis and CRISPR/Cas knock-out experiments to provide more definitive evidence.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects16111075/s1. Table S1. Primer sequences used in the research. Figure S1. The survival rates of emerged adults (sex separated) in D. armandi after dsRNA injection at 48 h. Different letters indicate significant differences at p < 0.05. Post-hoc Tukey tests following one-way analysis of variance (ANOVA).

Author Contributions

B.L.: Conceptualization, Investigation, Data curation, Methodology, Visualization, Validation, Software, Writing—original draft, Writing—review and editing. J.Z.: Investigation, Data curation, Methodology. X.N.: Investigation, Data curation, Methodology. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by High-level Talents Project of Guangxi University, grant number A3360051026.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare they have no competing interests.

References

  1. Chen, H.; Li, Z.; Tang, M. Laboratory evaluation of flight activity of Dendroctonus armandi (Coleoptera: Curculionidae: Scolytinae). Can. Entomol. 2010, 142, 378–387. [Google Scholar] [CrossRef]
  2. Huber, D.P.W.; Robert, J.A. The Proteomics and Transcriptomics of Early Host Colonization and Overwintering Physiology in the Mountain Pine Beetle, Dendroctonus ponderosae Hopkins (Coleoptera: Curculionidae). In Pine Bark Beetles; Tittiger, C., Blomquist, G.J., Eds.; Academic Press: Cambridge, MA, USA, 2016; pp. 101–128. [Google Scholar]
  3. Chen, H.; Tang, M.; Gao, J.; Chen, X.; Li, Z. Changes in the composition of volatile monoterpenes and sesquiterpenes of Pinus armandi, P-tabulaeformis, and P-bungeana in Northwest China. Chem. Nat. Compd. 2006, 42, 534–538. [Google Scholar] [CrossRef]
  4. Bohlmann, J. Pine terpenoid defences in the mountain pine beetle epidemic and in other conifer pest interactions: Specialized enemies are eating holes into a diverse, dynamic and durable defence system. Tree Physiol. 2012, 32, 943–945. [Google Scholar] [CrossRef]
  5. López, M.F.; Cano-Ramírez, C.; Shibayama, M.; Zúñiga, G. alpha-Pinene and Myrcene Induce Ultrastructural Changes in the Midgut of Dendroctonus valens (Coleoptera: Curculionidae: Scolytinae). Ann. Entomol. Soc. Am. 2011, 104, 553–561. [Google Scholar] [CrossRef]
  6. Chiu, C.C.; Keeling, C.I.; Bohlmann, J. Toxicity of Pine Monoterpenes to Mountain Pine Beetle. Sci. Rep. 2017, 7, 8858. [Google Scholar] [CrossRef] [PubMed]
  7. Nishida, R. Chemical ecology of insect-plant interactions: Ecological significance of plant secondary metabolites. Biosci. Biotechnol. Biochem. 2014, 78, 1–13. [Google Scholar] [CrossRef] [PubMed]
  8. Li, X.; Schuler, M.A.; Berenbaum, M.R. Molecular mechanisms of metabolic resistance to synthetic and natural xenobiotics. Annu. Rev. Entomol. 2007, 52, 231–253. [Google Scholar] [CrossRef] [PubMed]
  9. Dai, L.; Ma, J.; Ma, M.; Zhang, H.; Shi, Q.; Zhang, R.; Chen, H. Characterisation of GST genes from the Chinese white pine beetle Dendroctonus armandi (Curculionidae: Scolytinae) and their response to host chemical defence. Pest Manag. Sci. 2016, 72, 816–827. [Google Scholar] [CrossRef]
  10. Dai, L.; Ma, M.; Wang, C.; Shi, Q.; Zhang, R.; Chen, H. Cytochrome P450s from the Chinese white pine beetle, Dendroctonus armandi (Curculionidae: Scolytinae): Expression profiles of different stages and responses to host allelochemicals. Insect Biochem. Mol. Biol. 2015, 65, 35–46. [Google Scholar] [CrossRef]
  11. Liu, B.; Chen, H. Disruption of CYP6DF1 and CYP6DJ2 increases the susceptibility of Dendroctonus armandi to (+)-α-pinene. Pestic. Biochem. Physiol. 2022, 188, 105270. [Google Scholar] [CrossRef]
  12. Liu, B.; Chen, H. Disruption of carboxylesterase DaEST3 reduces tolerance to host allelochemicals in Dendroctonus armandi. Arthropod Plant Interact. 2023, 17, 673–685. [Google Scholar] [CrossRef]
  13. Amezian, D.; Nauen, R.; Van Leeuwen, T. The role of ATP-binding cassette transporters in arthropod pesticide toxicity and resistance. Curr. Opin. Insect Sci. 2024, 63, 101200. [Google Scholar] [CrossRef] [PubMed]
  14. Gott, R.C.; Kunkel, G.R.; Zobel, E.S.; Lovett, B.R.; Hawthorne, D.J. Implicating ABC Transporters in Insecticide Resistance: Research Strategies and a Decision Framework. J. Econ. Entomol. 2017, 110, 667–677. [Google Scholar] [CrossRef]
  15. Liu, L.; Hong, B.; Wei, J.-W.; Wu, Y.-T.; Song, L.-W.; Wang, S.-S. Transcriptional response and functional analysis of ATP-binding cassette transporters to tannic acid in pea aphid, Acyrthosiphon pisum (Harris). Int. J. Biol. Macromol. 2022, 220, 250–257. [Google Scholar] [CrossRef]
  16. Dermauw, W.; Van Leeuwen, T. The ABC gene family in arthropods: Comparative genomics and role in insecticide transport and resistance. Insect Biochem. Mol. Biol. 2014, 45, 89–110. [Google Scholar] [CrossRef]
  17. Wu, C.; Chakrabarty, S.; Jin, M.; Liu, K.; Xiao, Y. Insect ATP-Binding Cassette (ABC) Transporters: Roles in Xenobiotic Detoxification and Bt Insecticidal Activity. Int. J. Mol. Sci. 2019, 20, 2829. [Google Scholar] [CrossRef]
  18. Chen, J.; Duan, Y.; Zhou, Y.; Yang, Q. Squeeze pumping of lipids and insecticides by ABCH transporter. Cell 2025, 188, 944–957.e19. [Google Scholar] [CrossRef] [PubMed]
  19. Borycz, J.; Borycz, J.A.; Kubow, A.; Lloyd, V.; Meinertzhagen, I.A. Drosophila ABC transporter mutants white, brown and scarle altered contents and distribution of biogenic amines in the brain. J. Exp. Biol. 2008, 211, 3454–3466. [Google Scholar] [CrossRef]
  20. Yan, Y.; Ziemek, J.; Schetelig, M.F. CRISPR/Cas9 mediated disruption of the white gene leads to pigmentation deficiency and copulation failure in Drosophila suzukii. J. Insect Physiol. 2020, 126, 104091. [Google Scholar] [CrossRef] [PubMed]
  21. ter Beek, J.; Guskov, A.; Slotboom, D.J. Structural diversity of ABC transporters. J. Gen. Physiol. 2014, 143, 419–435. [Google Scholar] [CrossRef]
  22. Dean, M.; Hamon, Y.; Chimini, G. The human ATP-binding cassette (ABC) transporter superfamily. J. Lipid Res. 2001, 42, 1007–1017. [Google Scholar] [CrossRef]
  23. Adedipe, F.; Grubbs, N.; Coates, B.; Wiegmman, B.; Lorenzen, M. Structural and functional insights into the Diabrotica virgifera virgifera ATP-binding cassette transporter gene family. BMC Genom. 2019, 20, 899. [Google Scholar] [CrossRef]
  24. Broehan, G.; Kroeger, T.; Lorenzen, M.; Merzendorfer, H. Functional analysis of the ATP-binding cassette (ABC) transporter gene family of Tribolium castaneum. BMC Genom. 2013, 14, 6. [Google Scholar] [CrossRef]
  25. Denecke, S.; Rankić, I.; Driva, O.; Kalsi, M.; Luong, N.B.H.; Buer, B.; Nauen, R.; Geibel, S.; Vontas, J. Comparative and functional genomics of the ABC transporter superfamily across arthropods. BMC Genom. 2021, 22, 553. [Google Scholar] [CrossRef]
  26. Yu, Z.; Wang, Y.; Zhao, X.; Liu, X.; Ma, E.; Moussian, B.; Zhang, J. The ABC transporte ABCH-9C is needed for cuticle barrier construction in Locusta migratoria. Insect Biochem. Mol. Biol. 2017, 87, 90–99. [Google Scholar] [CrossRef]
  27. Zuber, R.; Norum, M.; Wang, Y.; Oehl, K.; Gehring, N.; Accardi, D.; Bartozsewski, S.; Berger, J.; Flötenmeyer, M.; Moussian, B. The ABC transporter Snu and the extracellular protein Snsl cooperate in the formation of the lipid-based inward and outward barrier in the skin of Drosophila. Eur. J. Cell Biol. 2018, 97, 90–101. [Google Scholar] [CrossRef]
  28. Guo, Z.; Kang, S.; Zhu, X.; Xia, J.; Wu, Q.; Wang, S.; Xie, W.; Zhang, Y. The novel ABC transporter ABCH1 is a potential target for RNAi-based insect pest control and resistance management. Sci. Rep. 2015, 5, srep13728. [Google Scholar] [CrossRef] [PubMed]
  29. Huang, Y.; Liao, M.; Yang, Q.; Xiao, J.; Hu, Z.; Zhou, L.; Cao, H. Transcriptome profiling reveals differential gene expression of detoxification enzymes in Sitophilus zeamais responding to terpinen-4-ol fumigation. Pestic. Biochem. Physiol. 2018, 149, 44–53. [Google Scholar] [CrossRef] [PubMed]
  30. Rösner, J.; Tietmeyer, J.; Merzendorfer, H. Functional analysis of ABCG and ABCH transporters from the red flour beetle, Tribolium castaneum. Pest Manag. Sci. 2021, 77, 2955–2963. [Google Scholar] [CrossRef] [PubMed]
  31. Kefi, M.; Balabanidou, V.; Sarafoglou, C.; Charamis, J.; Lycett, G.; Ranson, H.; Gouridis, G.; Vontas, J. ABCH2 transporter mediates deltamethrin uptake and toxicity in the malaria vector Anopheles coluzzii. PLoS Pathog. 2023, 19, e1011226. [Google Scholar] [CrossRef]
  32. Blomquist, G.J.; Tittiger, C.; MacLean, M.; Keeling, C.I. Cytochromes P450: Terpene detoxification and pheromone production in bark beetles. Curr. Opin. Insect Sci. 2021, 43, 97–102. [Google Scholar] [CrossRef]
  33. Cano-Ramírez, C.; López, M.F.; Cesar-Ayala, A.K.; Pineda-Martínez, V.; Sullivan, B.T.; Zúñiga, G. Isolation and expression of cytochrome P450 genes in the antennae and gut of pine beetle Dendroctonus rhizophagus (Curculionidae: Scolytinae) following exposure to host monoterpenes. Gene 2013, 520, 47–63. [Google Scholar] [CrossRef]
  34. López, M.F.; Cano-Ramírez, C.; Cesar-Ayala, A.K.; Ruiz, E.A.; Zúñiga, G. Diversity and expression of P450 genes from Dendroctonus valens LeConte (Curculionidae: Scolytinae) in response to different kairomones. Insect Biochem. Mol. Biol. 2013, 43, 417–432. [Google Scholar] [CrossRef]
  35. Liu, B.; Fu, D.; Gao, H.; Ning, H.; Sun, Y.; Chen, H.; Tang, M. Cloning and Expression of the Neuropeptide F and Neuropeptide F Receptor Genes and Their Regulation of Food Intake in the Chinese White Pine Beetle Dendroctonus armandi. Front. Physiol. 2021, 12, 662651. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, B.; Fu, D.; Ning, H.; Tang, M.; Chen, H. Knockdown of CYP6CR2 and CYP6DE5 reduces tolerance to host plant allelochemicals in the Chinese white pine beetle Dendroctonus armandi. Pestic. Biochem. Physiol. 2022, 187, 105180. [Google Scholar] [CrossRef] [PubMed]
  37. Combet, C.; Blanchet, C.; Geourjon, C.; Deléage, G. NPS@: Network protein sequence analysis. Trends Biochem. Sci. 2000, 25, 147–150. [Google Scholar] [CrossRef]
  38. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  39. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2–ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  40. Hawthorne, D.J.; Dively, G.P. Killing Them with Kindness? In-Hive Medications May Inhibit Xenobiotic Efflux Transporters and Endanger Honey Bees. PLoS ONE 2011, 6, e26796. [Google Scholar] [CrossRef]
  41. Rösner, J.; Merzendorfer, H. Transcriptional plasticity of different ABC transporter genes from Tribolium castaneum contributes to diflubenzuron resistance. Insect Biochem. Mol. Biol. 2020, 116, 103282. [Google Scholar] [CrossRef]
  42. Porretta, D.; Gargani, M.; Bellini, R.; Medici, A.; Punelli, F.; Urbanelli, S. Defence mechanisms against insecticides temephos and diflubenzuron in the mosquito Aedes caspius: The P-glycoprotein efflux pumps. Med. Vet. Entomol. 2008, 22, 48–54. [Google Scholar] [CrossRef]
  43. Guan, D.; Yang, X.; Jiang, H.; Zhang, N.; Wu, Z.; Jiang, C.; Shen, Q.; Qian, K.; Wang, J.; Meng, X. Identification and Validation of ATP-Binding Cassette Transporters Involved in the Detoxification of Abamectin in Rice Stem Borer, Chilo suppressalis. J. Agric. Food Chem. 2022, 70, 4611–4619. [Google Scholar] [CrossRef]
  44. Meng, X.; Yang, X.; Wu, Z.; Shen, Q.; Miao, L.; Zheng, Y.; Qian, K.; Wang, J. Identification and transcriptional response of ATP-binding cassette transporters to chlorantraniliprole in the rice striped stem borer, Chilo suppressalis. Pest Manag. Sci. 2020, 76, 3626–3635. [Google Scholar] [CrossRef]
  45. Tian, L.; Song, T.; He, R.; Zeng, Y.; Xie, W.; Wu, Q.; Wang, S.; Zhou, X.; Zhang, Y. Genome-wide analysis of ATP-binding cassette (ABC) transporters in the sweetpotato whitefly, Bemisia tabaci. BMC Genom. 2017, 18, 330. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, Z.; Tian, F.; Cai, L.; Zhang, J.; Liu, J.; Zeng, X. Identification of candidate ATP-binding cassette transporter gene family members in Diaphorina citr (Hemiptera: Psyllidae) via adult tissues transcriptome analysis. Sci. Rep. 2019, 9, 15842. [Google Scholar] [CrossRef] [PubMed]
  47. Hull, J.J.; Chaney, K.; Geib, S.M.; Fabrick, J.A.; Brent, C.S.; Walsh, D.; Lavine, L.C. Transcriptome-Based Identification of ABC Transporters in the Western Tarnished Plant Bug Lygus hesperus. PLoS ONE 2014, 9, e113046. [Google Scholar] [CrossRef] [PubMed]
  48. Sheps, J.A.; Ralph, S.; Zhao, Z.Y.; Baillie, D.L.; Ling, V. The ABC transporter gene family of Caenorhabditis elegans has implications for the evolutionary dynamics of multidrug resistance in eukaryotes. Genome Biol. 2004, 5, R15. [Google Scholar] [CrossRef]
  49. Annilo, T.; Chen, Z.-Q.; Shulenin, S.; Costantino, J.; Thomas, L.; Lou, H.; Stefanov, S.; Dean, M. Evolution of the vertebrate ABC gene family: Analysis of gene birth and death. Genomics 2006, 88, 1–11. [Google Scholar] [CrossRef]
  50. Liu, S.; Li, Q.; Liu, Z. Genome-Wide Identification, Characterization and Phylogenetic Analysis of 50 Catfish ATP-Binding Cassette (ABC) Transporter Genes. PLoS ONE 2013, 8, e63895. [Google Scholar] [CrossRef]
  51. Jeong, C.-B.; Kim, B.-M.; Kang, H.-M.; Choi, I.-Y.; Rhee, J.-S.; Lee, J.-S. Marine medaka ATP-binding cassette (ABC) superfamily and new insight into teleost Abch nomenclature. Sci. Rep. 2015, 5, srep15409. [Google Scholar] [CrossRef]
  52. Yang, Y.; Duan, A.; Zhang, C.; Zhang, Y.; Wang, A.; Xue, C.; Wang, H.; Zhao, M.; Zhang, J. Overexpression of ATP-binding cassette transporters ABCG10, ABCH3 and ABCH4 in Aphis craccivora (Koch) facilitates its tolerance to imidacloprid. Pestic. Biochem. Physiol. 2022, 186, 105170. [Google Scholar] [CrossRef] [PubMed]
  53. He, W.; Wei, D.-D.; Xu, H.-Q.; Yang, Y.; Miao, Z.-Q.; Wang, L.; Wang, J.-J.; Geib, S. Molecular Characterization and Transcriptional Expression Analysis of ABC Transporter H Subfamily Genes in the Oriental Fruit Fly. J. Econ. Entomol. 2021, 114, 1298–1309. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, Y.; Liu, H.; Liu, S.; Wang, S.; Jiang, R.-J.; Li, S. Hormonal and nutritional regulation of insect fat body development and function. Arch. Insect Biochem. Physiol. 2009, 71, 16–30. [Google Scholar] [CrossRef]
  55. Dow, J.A.T.; Davies, S.A. The Malpighian tubule: Rapid insights from post-genomic biology. J. Insect Physiol. 2006, 52, 365–378. [Google Scholar] [CrossRef]
  56. Schmidt, L.; Wielsch, N.; Wang, D.; Boland, W.; Burse, A. Tissue-specific profiling of membrane proteins in the salicin sequestering juveniles of the herbivorous leaf beetle, Chrysomela populi. Insect Biochem. Mol. Biol. 2019, 109, 81–91. [Google Scholar] [CrossRef]
  57. Gerber, L.; Overgaard, J. Cold tolerance is linked to osmoregulatory function of the hindgut in Locusta migratoria. J. Exp. Biol. 2018, 221, jeb173930. [Google Scholar] [CrossRef]
  58. He, X.; Hao, Z.; Li, H.; Xu, T.; Chen, R.; Xia, X.; Li, S.; Hao, D. Transcriptome profiling and RNA interference reveals relevant detoxification genes in Monochamus alternatus response to (+)-α-pinene. J. Appl. Entomol. 2022, 146, 823–837. [Google Scholar] [CrossRef]
Insects 16 01075 g001
Figure 1. The synergistic effects of verapamil on the toxicity of four terpenoids to Dendroctonus armandi male (A) and female (B) adults. Different lowercase letters indicate significant differences at p < 0.05. Post hoc Tukey tests following one-way analysis of variance (ANOVA). All values are mean ± SE; n = 3 biological replicates.
Figure 1. The synergistic effects of verapamil on the toxicity of four terpenoids to Dendroctonus armandi male (A) and female (B) adults. Different lowercase letters indicate significant differences at p < 0.05. Post hoc Tukey tests following one-way analysis of variance (ANOVA). All values are mean ± SE; n = 3 biological replicates.
Insects 16 01075 g001
Insects 16 01075 g002
Figure 2. Conserved domain analysis of D. armandi ABCH transporters. (A) The yellow regions containing AAA modules indicate nucleotide-binding domains (NBDs). The AAA signature signifies ATPases associated with diverse cellular functions. Blue rectangular areas correspond to transmembrane domains, while purple highlighted segments denote low-complexity regions. (B) The ABC_tran represents NBD. The ABC2_membrane represents TMD.
Figure 2. Conserved domain analysis of D. armandi ABCH transporters. (A) The yellow regions containing AAA modules indicate nucleotide-binding domains (NBDs). The AAA signature signifies ATPases associated with diverse cellular functions. Blue rectangular areas correspond to transmembrane domains, while purple highlighted segments denote low-complexity regions. (B) The ABC_tran represents NBD. The ABC2_membrane represents TMD.
Insects 16 01075 g002
Insects 16 01075 g003
Figure 3. Phylogenetic analysis of D. armandi ABCH transporters with other insect species. The phylogenetic tree constructed in MEGA 6.0 using the neighbor-joining method. Bootstrap values (1000 replicates) are indicated next to the branches and GenBank accession numbers are shown behind the insect species. ABCH amino acid sequences are from D. armandi (Da), D. ponderosae (Dp), Tribolium castaneum (Tc), Sitophilus oryzae (So), Aethina tumida (At), Anoplophora glabripennis (Ag), Tenebrio molitor (Tm), Leptinotarsa decemlineata (Ld), Plutella xylostella (Px), Cydia pomonella (Cp), Chilo suppressalis (Cs), Ostrinia furnacalis (Of), Helicoverpa armigera (Ha), Manduca sexta (Ms), Spodoptera litura (Sl), Helicoverpa zea (Hz), and Bombyx mori (Bm). The D. armandi ABCHs are highlighted with red colors.
Figure 3. Phylogenetic analysis of D. armandi ABCH transporters with other insect species. The phylogenetic tree constructed in MEGA 6.0 using the neighbor-joining method. Bootstrap values (1000 replicates) are indicated next to the branches and GenBank accession numbers are shown behind the insect species. ABCH amino acid sequences are from D. armandi (Da), D. ponderosae (Dp), Tribolium castaneum (Tc), Sitophilus oryzae (So), Aethina tumida (At), Anoplophora glabripennis (Ag), Tenebrio molitor (Tm), Leptinotarsa decemlineata (Ld), Plutella xylostella (Px), Cydia pomonella (Cp), Chilo suppressalis (Cs), Ostrinia furnacalis (Of), Helicoverpa armigera (Ha), Manduca sexta (Ms), Spodoptera litura (Sl), Helicoverpa zea (Hz), and Bombyx mori (Bm). The D. armandi ABCHs are highlighted with red colors.
Insects 16 01075 g003
Insects 16 01075 g004

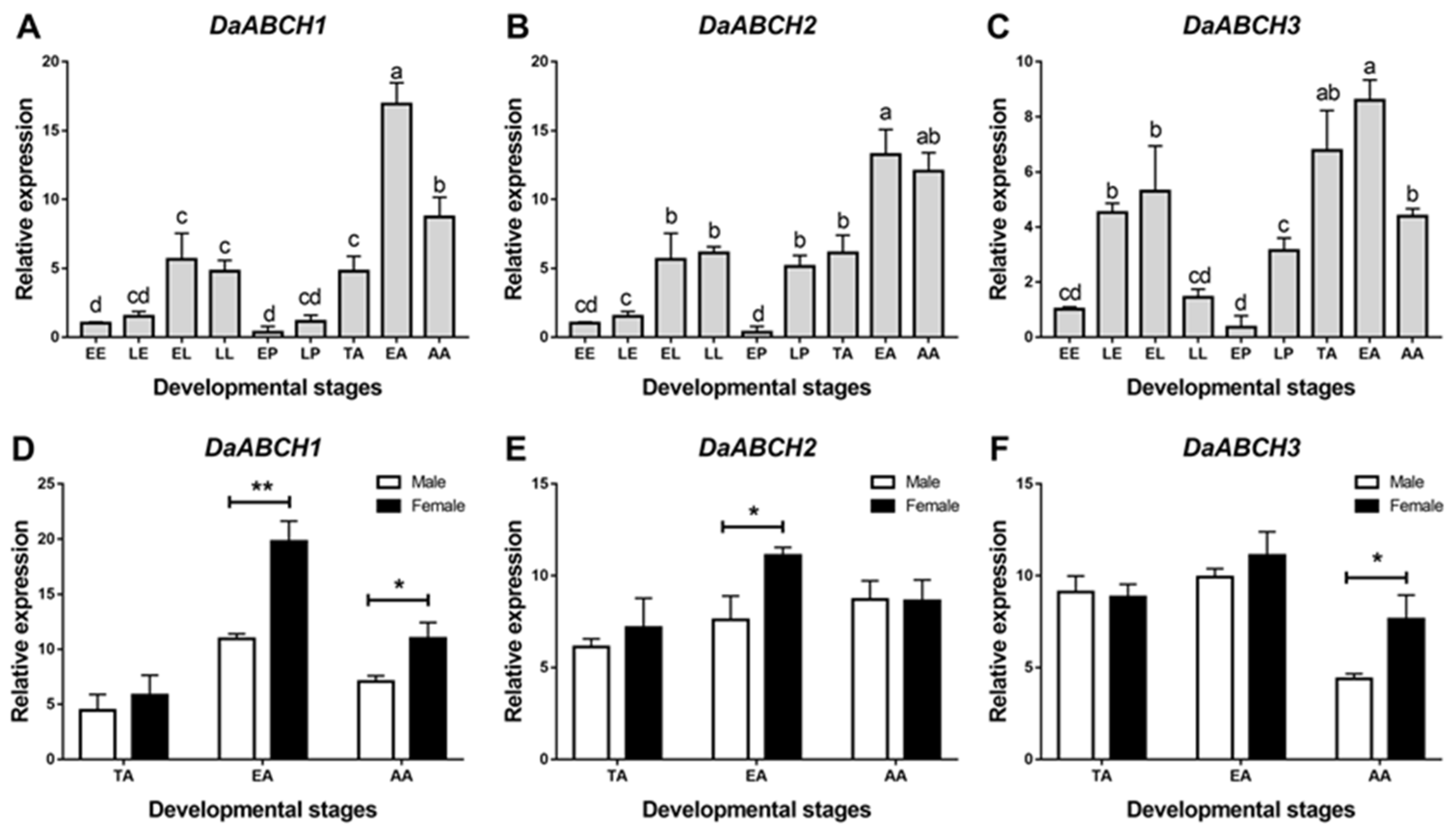

Figure 4. Relative mRNA expression levels of DaABCH1 (A,D), DaABCH2 (B,E) and DaABCH3 (C,F) in different developmental stages and adults of D. armandi. Different lowercase letters indicate significant differences at the 0.05 level. The asterisk indicates a significant difference between female and male expression levels (* p < 0.05, ** p < 0.01, independent Student’s t-test). EE, early egg; LE, late egg; EL, early larvae; LL, late larvae; EP, early pupae; LP, late puage; TA, teneral adult; EA, emerged adult; AA, attacking adult. All values are mean ± SE; n = 3 biological replicates.
Figure 4. Relative mRNA expression levels of DaABCH1 (A,D), DaABCH2 (B,E) and DaABCH3 (C,F) in different developmental stages and adults of D. armandi. Different lowercase letters indicate significant differences at the 0.05 level. The asterisk indicates a significant difference between female and male expression levels (* p < 0.05, ** p < 0.01, independent Student’s t-test). EE, early egg; LE, late egg; EL, early larvae; LL, late larvae; EP, early pupae; LP, late puage; TA, teneral adult; EA, emerged adult; AA, attacking adult. All values are mean ± SE; n = 3 biological replicates.
Insects 16 01075 g004
Insects 16 01075 g005
Figure 5. Relative expression levels of emerged adults of DaABCH1 (A), DaABCH2 (B) and DaABCH3 (C) in different tissues of D. armandi. The asterisk indicates a significant difference between female and male expression levels (* p < 0.05, ** p < 0.01, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Figure 5. Relative expression levels of emerged adults of DaABCH1 (A), DaABCH2 (B) and DaABCH3 (C) in different tissues of D. armandi. The asterisk indicates a significant difference between female and male expression levels (* p < 0.05, ** p < 0.01, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Insects 16 01075 g005
Insects 16 01075 g006
Figure 6. Relative expression levels of DaABCH1 (A), DaABCH2 (C), DaABCH3 (E) in emerged male adults and DaABCH1 (B), DaABCH2 (D), DaABCH3 (F) in emerged female adults of D. armandi after stimulation with four terpenoids at exposure times of 12, 24 and 36 h. The asterisk indicates a significant difference between control and treatment groups (* p < 0.05, ** p < 0.01, *** p < 0.001, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Figure 6. Relative expression levels of DaABCH1 (A), DaABCH2 (C), DaABCH3 (E) in emerged male adults and DaABCH1 (B), DaABCH2 (D), DaABCH3 (F) in emerged female adults of D. armandi after stimulation with four terpenoids at exposure times of 12, 24 and 36 h. The asterisk indicates a significant difference between control and treatment groups (* p < 0.05, ** p < 0.01, *** p < 0.001, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Insects 16 01075 g006
Insects 16 01075 g007

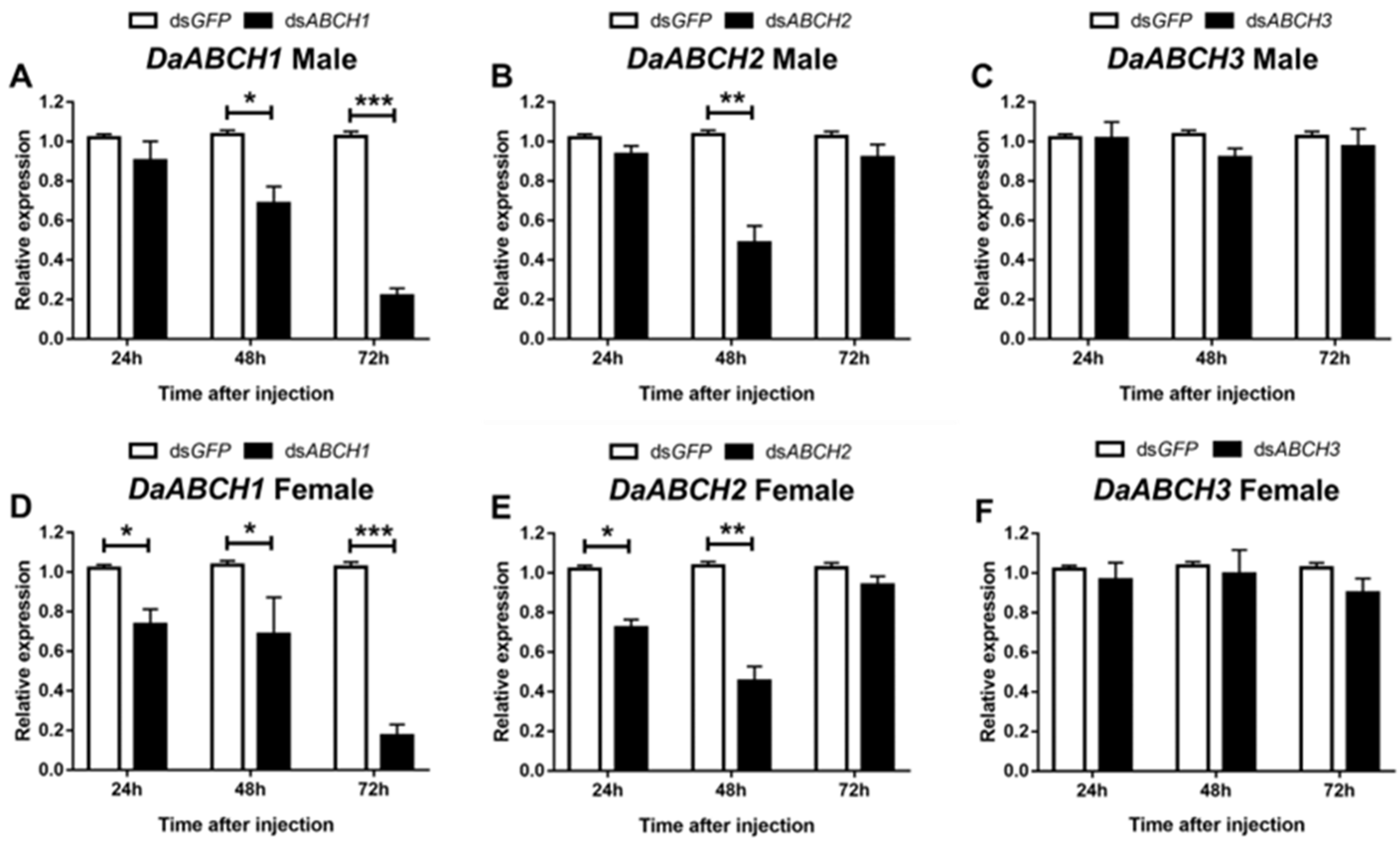

Figure 7. Relative expression levels of DaABCH1 (A), DaABCH2 (B), DaABCH3 (C) in emerged male adults and DaABCH1 (D), DaABCH2 (E), DaABCH3 (F) in emerged female adults of D. armandi after injected dsRNA at different time points (24, 48 and 72 h). The asterisk indicates a significant difference between control and treatment groups (* p < 0.05, ** p < 0.01, *** p < 0.001, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Figure 7. Relative expression levels of DaABCH1 (A), DaABCH2 (B), DaABCH3 (C) in emerged male adults and DaABCH1 (D), DaABCH2 (E), DaABCH3 (F) in emerged female adults of D. armandi after injected dsRNA at different time points (24, 48 and 72 h). The asterisk indicates a significant difference between control and treatment groups (* p < 0.05, ** p < 0.01, *** p < 0.001, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Insects 16 01075 g007
Insects 16 01075 g008
Figure 8. The mortality of D. armandi emerged male (A) and female (B) adults exposed to terpenoids at 48 h after dsRNA injection. The asterisk indicates a significant difference between treatment and control groups (* p < 0.05, ** p < 0.01, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Figure 8. The mortality of D. armandi emerged male (A) and female (B) adults exposed to terpenoids at 48 h after dsRNA injection. The asterisk indicates a significant difference between treatment and control groups (* p < 0.05, ** p < 0.01, independent-sample t-test). All values are mean ± SE; n = 3 biological replicates.
Insects 16 01075 g008
Table 1. Sequence characteristics of ABCH genes and their deduced amino acids in Dendroctonus armandi.
Table 1. Sequence characteristics of ABCH genes and their deduced amino acids in Dendroctonus armandi.
Gene NameGenBank
Accession No.		ORF (bp)Amino Acid SizeTopologyMW (KDa)pIPhospho-Rylation
Sites (Ser/Thr/Tyr)		N-Glycosy-Lation SiteO-Glycosyl-Ation SiteSecondary Structure (α-Helix/β-Turn/Extended Strand/Random Coil)/%
DaABCH1PV6591372334777NBD-7TM85.947.2235/18/591340.22/5.20/29.87/24.71
DaABCH2PV6591382133710NBD-5TM79.367.8132/24/76240.82/5.42/28.34/24.42
DaABCH3PV6591392286761NBD-5TM84.436.1245/23/741239.57/6.56/26.97/26.90
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, B.; Zhu, J.; Ning, X. Transcriptional Response of ABCH Transporter Genes to Host Allelochemicals in Dendroctonus armandi and Their Functional Analysis. Insects 2025, 16, 1075. https://doi.org/10.3390/insects16111075

AMA Style

Liu B, Zhu J, Ning X. Transcriptional Response of ABCH Transporter Genes to Host Allelochemicals in Dendroctonus armandi and Their Functional Analysis. Insects. 2025; 16(11):1075. https://doi.org/10.3390/insects16111075

Chicago/Turabian Style

Liu, Bin, Jinrui Zhu, and Xiaoman Ning. 2025. "Transcriptional Response of ABCH Transporter Genes to Host Allelochemicals in Dendroctonus armandi and Their Functional Analysis" Insects 16, no. 11: 1075. https://doi.org/10.3390/insects16111075

APA Style

Liu, B., Zhu, J., & Ning, X. (2025). Transcriptional Response of ABCH Transporter Genes to Host Allelochemicals in Dendroctonus armandi and Their Functional Analysis. Insects, 16(11), 1075. https://doi.org/10.3390/insects16111075

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
