Analysis of Transcriptome Difference between Blood-Fed and Starved Tropical Bed Bug, Cimex hemipterus (F.) (Hemiptera: Cimicidae)

by
Li Lim
1 and
Abdul Hafiz Ab Majid
1,2,*
1
Household & Structural Urban Entomology Laboratory, Vector Control Research Unit, School of Biological Sciences, Universiti Sains Malaysia, Minden 11800, Malaysia
2
Centre for Insect Systematics (CIS), Faculty of Science and Technology, Universiti Kebangsaan Malaysia (UKM), Bangi 43600, Malaysia
*
Author to whom correspondence should be addressed.
Insects 2022, 13(4), 387; https://doi.org/10.3390/insects13040387
Submission received: 14 March 2022 / Revised: 1 April 2022 / Accepted: 12 April 2022 / Published: 14 April 2022
(This article belongs to the Special Issue Insect Bioinformatics)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Bed bugs are well known for their extreme resilience to starvation. The molecular mechanisms behind this ability, however, are little known. Thus, the whole transcriptomes of blood-fed and starved bed bugs from the species Cimex hemipterus (tropical bed bugs) were sequenced and compared. The transcriptome of tropical bed bugs was initially annotated. Following differentially expressed genes (DEGs) analysis, regulated transcripts were mostly identified in biological processes during blood-feeding and starvation. The results provide an overview of the functional genes proportion of this species and a deeper understanding of the bed bug’s molecular mechanism of resistance to blood feeding and starvation.

Abstract

The reference transcriptome for Cimex hemipterus (tropical bed bug) was assembled de novo in this study, and differential expression analysis was conducted between blood-fed and starved tropical bed bug. A total of 24,609 transcripts were assembled, with around 79% of them being annotated against the Eukaryotic Orthologous Groups (KOG) database. The transcriptomic comparison revealed several differentially expressed genes between blood-fed and starved bed bugs, with 38 of them being identifiable. There were 20 and 18 genes significantly upregulated in blood-fed and starved bed bugs, respectively. Differentially expressed genes (DEGs) were revealed to be associated with regulation, metabolism, transport, motility, immune, and stress response; endocytosis; and signal transduction. The Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis showed an enrichment of genes encoding steroid biosynthesis, glycosaminoglycan biosynthesis, butanoate metabolism, and autophagy in both blood-fed and starved bed bugs. However, in blood-fed bed bugs, genes involved in histidine metabolism, caffeine metabolism, ubiquinone/terpenoid-quinone biosynthesis, and sulfur relay system were enriched. On the other hand, starvation activates genes related to nicotinate and nicotinamide metabolism, fatty acid elongation, terpenoid backbone biosynthesis, metabolism of xenobiotics by cytochrome P450, riboflavin metabolism, apoptosis, and protein export. The present study is the first to report a de novo transcriptomic analysis in C. hemipterus and demonstrated differential responses of bed bugs in facing blood-feeding and starvation.

1. Introduction

Cimex hemipterus, the tropical bed bug, is an obligatory blood-feeding insect [1] and one of the most difficult to control in urban areas. Not only are they well known for their insecticide resistance, but they are also well known for their extreme resilience to starvation and dehydration, allowing them to survive long periods between blood meals [2]. Bed bugs may exhibit adapting mechanisms to this stressful situation, such as thin cuticle with a low water permeability, a slow respiration rate, and clustering to reduce water loss [3,4]. Nevertheless, the molecular mechanism behind this ability is elusive.
Biotechnological approaches have emerged as an alternative to pest management, and advancements in next-generation sequencing (NGS) development simplified the process of assembling a transcriptome and analyzing gene expression patterns in an organism or acquiring genetic information about a target pest [5,6]. Thus, to better understand how tropical bed bugs cope with fluctuating food resources, comparative transcriptome analysis based on Illumina high-throughput sequencing was performed on the blood-fed and starved (45 days post-feeding) tropical bed bugs. The regulatory pathways or genes responsible for surviving a blood meal and prolonged starvation could be revealed, benefitting pest management.

2. Materials and Methods

2.1. Bed Bugs Samples

The strain of Cimex hemipterus used in this study was collected in Kuala Lumpur International Airport (KLIA) in 2014 and maintained at the Household and Structural Urban Entomology Laboratory, Vector Control Research Unit, School of Biological Sciences, Universiti Sains Malaysia, since that time [7]. At 23 ± 1 °C, the bed bugs colony were maintained in plastic containers (200 mL) covered with cloth mesh and fed directly on the volunteer arm once every two weeks. The feeding of bed bugs on human blood was conducted following the designated protocol by the code USM/JEPeM/19120868 and approved by the Human Research Ethics Committee USM (HREC). Newly emerged male adult tropical bed bugs were used in this experiment, and they were allowed to feed on a human volunteer’s arm. Two tested treatments were conducted: tropical bed bugs under blood-fed state (bed bugs were euthanized and preserved in absolute ethanol after feeding) and bed bugs under a starved state (bed bugs were euthanized and preserved in absolute ethanol 45 days post-feeding), each with two biological replications (one individual bed bug per replicate). The samples were coded as FBB1 (sample 1) and FBB2 (sample 2) for blood-fed bed bugs and SBB1 (sample 1) and SBB2 (sample 2) for starved bed bugs.

2.2. RNA Isolation, Library Preparation and Sequencing

Each bed bug sample was sterilized with 75% ethanol and then rinsed with sterile distilled water. A sterile micro pestle was used to grind the samples, and total RNA was extracted using a HiYield Total RNA Mini PCR Kit (Real Biotech Corporation, Taipei, Taiwan). After extraction, the concentration and purity (OD260/280 detection) of RNA was assessed by a Nanodrop spectrophotometer (Labgene Scientific, Châtel-saint-denis, Switzerland). Agarose gel electrophoresis was also used to assess the integrity of the RNA samples, and Agilent2100 (Agilent Technologies, Santa Clara, CA, USA) was used for RIN value mensuration. Only RNA samples with a purity of 1.80–2.20 and an RIN ≥ 8.0 were used for library construction.
Qualified RNA samples were processed for cDNA library construction using the Truseq RNA sample prep Kit (Illumina, San Diego, CA, USA) following the manufacturer’s instructions. The samples were then sequenced using the Illumina HiSeq 2500 platform.
The raw data have been submitted to the Sequence Read Archive (SRA) database with accession numbers SAMN18780127 and SAMN18780128 under BioProject, PRJNA640473, while the assembled data are available in the figshare repository (DOI: https://doi.org/10.6084/m9.figshare.18393767.v1, accessed on 10 January 2022).

2.3. Initial Sequence Processing and Analysis of Reads

The following workflow was performed on Linux system Ubuntu (64-bit) with 6 CPUs processor and 13,000 MB base memory. The adapter, ploy-N, and low-quality reads were removed from the raw reads using Cutadapt (ver1.9.1) [8]. FastQC was used to estimate the quality of the clean reads obtained [9]. The number of clean paired-end reads with 150 bp were 22,811,975; 20,768,077; 22,030,403; and 21,707,859 for samples FBB1, FBB2, SBB1, and SBB2, respectively. The de novo assembly of high-quality clean raw reads was performed using SOAPdenovo-Trans (ver1.03) with default parameter [10] and gap-filled was performed using GapCloser (ver1.12-r6) [11]. The quality of the assembly was assessed using rnaQUAST (ver1.4.0) [12]. The assembled genes were annotated against the Eukaryotic Orthologous Groups (KOG) databases [13].
The Kallisto program (ver0.46.0) was used to quantify the abundances of transcripts from RNA-Seq data [14]. The counts matrix prepared using Kallisto program was submitted to a web server using Integrative Differential Expression Analysis for Multiple Experiments (IDEAMEX) [15] for differential expression analysis using the DESeq2 method. The thresholds, p-value < 0.05, and log2 (fold change) ≥ 1 were set for calculating significantly differential expression of a gene (DEGs). A volcano plot with the x-axis, log2 fold changes versus the y-axis, and the adjusted p-value was generated to visualize the differential expression between samples, with each dot representing a gene.
The Kyoto Encyclopedia of Genes and Genomes (KEGG) [16] enrichment pathway analysis was used to understand the overall expression trends of genes using KOBAS [17], a web server for testing the statistical enrichment of KEGG pathways in bed bugs under blood-fed and starved situations against the Cimex lectularius database.

2.4. Quantitative Real-Time Polymerase Chain Reaction (qRT-PCR) Validation

qRT-PCR was performed to validate RNA-Seq results. Two genes, Trypsin-1 (PRSS1) and Pickpocket protein 28 (ppk28) were selected from the assembled transcripts as differentially expressed. The 60S ribosomal protein L18 (RPL18) was used as the housekeeping gene [18]. No template control (NTC) was also included in amplification. Primers were designed based on assembled transcriptome sequences (Table 1) using the primer designing tool from NCBI [19]. Apical Scientific SDN. BHD. (Selangor, Malaysia) generated the primer sequences of the selected genes used in qRT-PCR analysis.
qRT-PCR was conducted using SYBR Green qPCR Master Mix, Universal, 2X (Thermo Fisher Scientific, Waltham, MA, USA) in a Rotor-Gene Q real-time PCR system (Qiagen, Düsseldorf, Germany). Two biological replicates were used for each selected gene. The following qRT-PCR procedures were used: initial denaturation, 95 °C for 2 min; followed by 40 cycles of denaturation (95 °C for 5 s) and annealing (65 °C for 15 s). Amplification and melting curves were generated to assess amplification accuracy. Primers that produce a single peak suggest a single amplification product and are selected for qRT-PCR. The cycle threshold (Ct) was determined, and the samples’ relative fold gene expression for each gene was calculated using 2−∆∆Ct (delta-delta Ct method). The mean of the relative fold gene expression was then compared using t-test.

3. Results

3.1. De Novo Assembly of the C. hemipterus Transcriptome

A total of 24,609 transcripts were obtained, with N50 and N75 being 2175 bp and 1208 bp, respectively. The assembly exhibited 38.75% of GC content, and the largest size of the transcript was 39,981,897 bp (Table 2).

3.2. Functional Annotation of Unigenes

The unigenes, which refer to a cluster of sequences/genes that perform a particular function, annotated by KOG were classified into four main categories (Figure 1). The highest proportion of unigenes was found in cellular processes and signaling with a value up to 38.58% of the total unigenes, followed by metabolism (21.51), poorly characterized (20.32%), and information storage and processing (19.25%).

3.3. Differential Expression Analysis of Blood-Fed and Starved C. hemipterus

Differential expression analysis showed genes expressed differentially with significant differences in blood-fed and starved bed bugs (Figure 2).
The sequences of the significantly altered genes were blasted against the NCBI and KOG database for identification. The upregulated genes in blood-fed bed bugs could be grouped according to their functions. In general, these genes are associated with oxygen transport (HBA2 and HBB), protein metabolism (EEF1A1, RAB37, coiled-coil protein TPD52, DAN4, and Miga), endocytosis and signal transduction (EHD3, dynein beta chain, GOLGA6L1, transmembrane protein, MFSD14A, and nuclear pore complex), iron metabolism (FTH1 and FTL), locomotion (thymosin beta 4 X-linked), stress response (Hsp70Ba), translation regulation (PKM), and reproduction (MARF1) (Table 3).
On the other hand, upregulated genes in starved bed bugs included those that related to age (ACP7 and PCP36), protein metabolism (FBXL16, E3 ubiquitin ligase, ankyrin repeat protein, and UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit), immunity (CYP, PRG4, ALPK1), excretion (ABCC, GMPR), energy production (TER94 and SBK1), mRNA processing (SNRNP70), locomotion (twk-18), smell perception (general odorant-binding protein), apoptosis (FGFR3), and pyrimidine biosynthesis (PYRE-F) (Table 3).

3.4. KEGG Pathway Enrichment Analysis

Table 4 summarizes the KEGG pathway enriched in blood-fed bed bugs, with most pathways related to metabolisms, including histidine metabolism, steroid biosynthesis, caffeine metabolism, ubiquinone/terpenoid-quinone biosynthesis, butanoate metabolism, and glycosaminoglycan biosynthesis.
In starved bed bugs, enriched pathways were also related mainly to metabolisms, including steroid, glycosaminoglycan, butanoate, nicotinate/nicotinamide, fatty acid, riboflavin, terpenoid, and the metabolism of xenobiotics by cytochrome P450. Other pathways could be categorized as cellular processes (Apoptosis, Autophagy) and genetic information processing (Protein export) (Table 4).
Nevertheless, pathways including oxidative phosphorylation, glycosaminoglycan biosynthesis, steroid biosynthesis, and butanoate metabolism were found in both blood-fed and starved bed bugs (Table 4).

3.5. qRT-PCR Validation

Based on Figure 3, two selected genes, Pickpocket protein 28 (Ppk28), and Trypsin-1 were expressed similarly in blood-fed and starved bed bugs (p-value = 0.538 for gene Ppk28 and 0.630 for gene Trypsin-1). The qPCR results showed a similar regulated trend in the DEGs analysis of these genes.

4. Discussion

This study is the first to report on the transcriptomic analysis of C. hemipterus. The annotation of the assembly has elucidated the fundamental molecular knowledge of C. hemipterus, and this transcript information may aid in further molecular research on C. hemipterus.
Notably, RNA was collected from blood-fed and starved tropical bed bugs for determining the functional profile of the bed bugs concerning blood meals. Differential expression analysis was used to identify upregulated genes in blood-fed and starved bed bugs. Although most of the transcriptome remains unaltered (Figure 2), a molecular shift indeed occurred in bed bugs following blood meal consumption, with 38 transcripts being differentially expressed.
Differentially expressed genes (DEGs) revealed that the expression of heat shock 70 kDa protein Ba was upregulated. The upregulation is probably due to the thermal stress caused by the intake of large amounts of warm blood, as this protein responds to heat and the immediate increase in its expression to protect the bed bugs from the thermal stress while also activating the signaling pathways in blood processing and digesting [20,21].
After blood feeding, genes related mainly to transport and endocytosis were upregulated. For instance, three genes were upregulated, including hemoglobin subunit alpha 2, hemoglobin subunit beta, and O-acyltransferase-like protein involved in oxygen transport, indicating the bed bugs require higher oxygen and ions transport after blood feeding. The genes encoding the proteins, including dynein beta chain, transmembrane protein, hippocampus abundant transcript 1 protein, and nuclear pore complex are all required for transportation, whether food or oxygen. They either function as a gate to control the macromolecules passage or are involved in cilium biogenesis, which is essential for moving substances. Both EH domain-containing protein 3 and golgin subfamily A member 6-like protein 1 were also upregulated, which is essential for endocytosis, a process to take in substances such as nutrients. These upregulated genes are essential for nutrient absorption and distribution and correspond to bed bugs’ states following blood feeding.
Transcripts involved in protein transport and syntheses such as eukaryotic translation elongation factor 1 alpha 1, ras-related protein Rab-37, coiled-coil protein TPD52, mitoguardin, and cell wall protein DAN4 were also upregulated. The upregulation is reasonable given that the primary composite of blood includes proteins (such as albumin, clotting factors, antibodies, enzymes, and hormones) [22]. Increased amino acid catabolism may result in molecules involved in gluconeogenesis and subsequently into the tricarboxylic acid cycle (TCA) cycle [23]. Iron levels found in hemoglobin should be elevated in blood-fed bed bugs during blood meal processing. Both heavy and light ferritin chains were upregulated, probably to deal with the increased iron level through siderophore uptake and oxidative stress management [24].
Since blood meal is essential for bed bug’s developmental progression and mating [2], there was also an increase in the related genes following bed bug’s blood feeding. For example, thymosin beta 4 X-linked gene expression is essential for the organization of the cytoskeleton. At the same time, pyruvate kinase and meiosis regulator and mRNA stability factor 1 are proteins that are essential in meiosis.
Many species are commonly suffered intermittent food shortages. Thus, the starvation of insects could trigger a response by increasing the storage of resources (energy or water) utilized during starvation or by lowering metabolic rates [25,26]. This study discovered that starvation significantly alters some of the functional transcript such as genes involved in proteolysis. In contrast to blood-fed bed bugs, whose protein metabolism is mainly degraded and synthesized, the protein metabolism in starved bed bugs is likely dominated by proteolysis. The genes encoding F-box/LRR-repeat protein 16, E3 ubiquitin ligase, ankyrin repeat protein, UDP-N-acetylglucosamine–peptide N-acetylglucosaminyltransferase 110 kDa subunit are all critical in the UbI conjugation pathway, which participates in protein processing, activation, conjugation or deconjugation, and signaling proteolysis [27]. Nevertheless, further studies are needed to confirm the actual functions of these proteins in bed bugs.
Starvation is a crisis faced by bed bugs. Fibroblast growth factor receptor 3 involved in apoptosis, which produces phagocytic cells capable of engulfing and rapidly removing nearly damaged cells, confers advantages for bed bugs’ life cycle. The same applies to the the upregulation of uridine 5′-monophosphate synthase, which is essential for pyrimidine biosynthesis, enhancing the mode of regulation and flexibility of a metabolic pathway by demonstrating compartmentation within different parts of the cell—cytosol, mitochondria, and chloroplasts, acting as a pacemaker for cell growth and proliferation [28]. Moreover, U1 small nuclear ribonucleoprotein 70 kDa involved in mRNA processing is essential for cell processes. Genes encoding immune-related proteins system are also upregulated, including cytochrome P450, proteoglycan 4, and alpha-protein kinase 1. These genes participate in immune regulation and the repair of damage, thereby enhancing insects’ resistance to starvation [29]. Cytochrome P450s are a group of widespread metabolic enzymes involved in the oxidation of various of endogenous such as steroids and hormones and exogenous compounds, including alcohol, drugs, and environmental pollutants [30]. In this study, starvation upregulates cytochrome P450s, suggesting a critical role for cytochrome P450s in starvation resistance.
Simultaneously, the genes associated with olfactory (general odorant-binding protein) and locomotion (TWiK family of potassium channels protein 18) were also upregulated in starved bed bugs. These are important for the insect to locate a host for a blood meal. The multidrug resistance-associated protein, which mediates the efflux of drugs and their metabolites from cells, and GMP reductase 1, which is essential for Purine metabolism, were also upregulated. These proteins are considered to play a role in excretion or waste removal.
As the bed bugs were left for 45 days after blood feeding, some genes were upregulated, probably due to their “old” age, as they are all considered as developmental proteins. These upregulated proteins such as acid phosphatase type 7 are involved in acid phosphatase activity for gametes maturation [31]. The pupal cuticle protein 36 is a structural constituent of the cuticle, and transitional endoplasmic reticulum ATPase TER94, which is a developmental protein, and serine/threonine-protein kinase SBK1 may be related in brain development control.
Generally, the metabolic rates should be decreased as the duration of starvation increases, and insects that are starved should consume carbohydrates first and reserve lipid for later consumption due to the need for constant energy expenses [25,32]. However, in this study, the KEGG enrichment pathway analysis revealed no changes in lipid, carbohydrate, and energy metabolism following prolonged starvation (Table 4). In both blood-fed and starved bed bugs, oxidative phosphorylation (energy metabolism), glycosaminoglycan biosynthesis (glycan biosynthesis and metabolism), steroid biosynthesis (lipid metabolism), and butanoate metabolism (carbohydrate metabolism) were enriched. Similarly, starving Gryllus crickets did not reduce metabolic rates during prolonged starvation [33]. This suggests that a balance or homeostasis between these different types of metabolism may be achieved, which may be a critical role in starvation resistance. Similarly, autophagy should increase in response to starvation as it is a pathway for the cell to redistribute valuable nutrients by digesting their cellular contents via lysosomal machinery and acting a protective mechanism by helping in the reduction in apoptosis in fat cells, which is essential for the insect maintenance [5,34,35]. Nevertheless, the autophagy pathway was identified in both blood-fed and starved bed bugs.
There was an increase in KEGG enrichments following blood feeding, indicating alterations in biological processes including histidine metabolism, sulfur relay system, synthesis, and the degradation of ketone bodies, caffeine metabolism, and ubiquinone/terpenoid-quinone biosynthesis (Table 4). Histidine is an essential amino acid that bed bugs could obtain from their blood meal because hemoglobin contains high concentration of histidine [36]. As a result, the blood-fed bed bugs have an enriched histidine metabolism. By playing a role in ATP production, histidine could be used as the energy source to maintain or restore cell viability after starvation [37]. Moreover, histidine has increased iron absorption and exhibits antioxidant capabilities [38]. Moreover, the enriched pathway–sulfur relay system is required for protein folding, sorting, and degradation. Other pathways were also identified after blood feeding, including the synthesis and degradation of ketone bodies, caffeine metabolism, and ubiquinone/terpenoid-quinone biosynthesis, which are involved in other secondary metabolites biosynthesis, and the metabolism of cofactors and vitamins.
Hunger-induced stress may invoke a series of regulated anti-starvation mechanisms. In this study, some pathways, including fatty acid elongation, nicotinate/nicotinamide metabolism, riboflavin metabolism, terpenoid backbone biosynthesis, protein export, ribosome, the metabolism of xenobiotics by cytochrome P450, and drug metabolism—cytochrome P450—were only identified in starved bed bugs (Table 4). With the exception for apoptosis, a typical process of cell growth and death, generally, the identified pathways in starved bed bugs could be divided into two functions: metabolism and the immune system.
In most organisms, fatty acids serve as energy storage and structural components in biomembranes. However, fatty acids and the products of their metabolism, principally hydrocarbons and wax esters, also contribute significantly to the thin layer of cuticular lipids that protect insects from desiccation [39]. Terpenoid is the precursor in producing steroids and sterols. Thus, the constant actives of the terpenoid backbone biosynthesis pathway are important in the regulation of steroids as they regulate a variety of developmental (molting, metamorphosis, and diapause) and biological processes (aging, germline development, and innate immunity) in insects [40]. Riboflavin, nicotinate, and nicotinamide metabolisms remain active in starved bed bugs because vitamin B is produced by the Wolbachia endosymbiont and is not obtained from their diet [41,42]. The pathway for ribosomal proteins was also identified in starved bed bugs. Apart from protein biosynthesis, ribosomal proteins have participated in various cellular processes. Thus, in conjunction with protein exports, the pathway for ribosomal proteins is important in insects’ development progression [43]. Similarly to DEGs results, cytochromes P450 are known to metabolize most drugs or xenobiotic substrates using a limited number of enzymes by converting them from a toxic insoluble form to a water-soluble form, playing a vital role in the defense system of starved bed bugs [5,44,45,46].
Pickpocket protein 28 and Trypsin-1 were selected for qRT-PCR validation as these genes were expected to be upregulated in blood-fed and starved bed bugs, respectively. Nevertheless, the expression of these two genes remains similar in bed bugs under different physiological states. DEGs analysis revealed no difference in the expression of these two genes in both situations, and the qRT-PCR results were consistent with the DEGs results. Trypsin-1 is mainly involved in digestion and proteolysis. Thus, the expression of Trypsin-1 after blood-feeding is sensible. The expression of Trypsin-1 remained nearly constant in starved bed bugs, consistent with DEGs analysis, as most genes upregulated in starved bed bugs involved in protein metabolism are involved in proteolysis. Pickpocket protein 28 (Ppk28) acts as an osmosensitive ion channel that mediates the cellular and behavioral response to water. As bed bugs survive only on water obtained from their last blood meal [2], the constitutive expression of Ppk28 may aid in water retention, allowing bed bugs to resist dehydration.

5. Conclusions

In general, a transcriptome was generated for C. hemipterus to provide a reference for future RNA-Seq-based experiments. The present study also identified genes differentially expressed between the blood-fed and starved bed bugs using DEGs analysis. Enriched pathways were identified between the two physiological states of bed bugs, which are primarily associated with the metabolism. The present data provided insights on the molecular mechanism of bed bugs in facing blood-feeding and how they may overcome the challenges associated with prolonged starvation. It also contributes to advancing knowledge advancement about transcripts in tropical bed bugs, which may serve as a source of target genes for pest management.

Author Contributions

L.L. and A.H.A.M. designed the experiment; L.L. collected data; analyzed the data, and wrote the manuscript. A.H.A.M. read, corrected, and approved the manuscript. Supervision, A.H.A.M.; project administration, A.H.A.M.; funding acquisition, A.H.A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research is supported by the Fundamental Research Grant (FRGS), 203/PBIOLOGI/6711681.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and was approved by the Universiti Sains Malaysia Research Ethics Committee (Human) JEPeM Code:USM/JEPeM/19120868.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data have been submitted to the Sequence Read Archive (SRA) database with accession numbers SAMN18780127 and SAMN18780128 under BioProject, PRJNA640473, while the assembled data are available in the figshare repository (DOI: https://doi.org/10.6084/m9.figshare.18393767.v1).

Acknowledgments

We would also like to thank Abd Hafis bin Abd Rahim for volunteering in bed bugs blood feeding.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Cannet, A.; Akhoundi, M.; Berenger, J.M.; Michel, G.; Marty, P.; Delaunay, P. A review of data on laboratory colonies of bed bugs (Cimicidae), an insect of emerging medical relevance. Parasite 2015, 22, 21. [Google Scholar] [CrossRef] [Green Version]
  2. Benoit, J.B. Physiology. In Advances in the Biology and Management of Modern Bed Bugs; Doggett, S.L., Miller, D.M., Lee, C.Y., Eds.; John Wiley & Sons: Hoboken, NJ, USA, 2018. [Google Scholar]
  3. Benoit, J.B.; del Grosso, N.A.; Yoder, J.A.; Denlinger, D.L. Resistance to dehydration between bouts of blood feeding in the bed bug, Cimex lectularius, is enhanced by water conservation, aggregation, and quiescence. Am. J. Trop. Med. Hyg. 2007, 76, 987–993. [Google Scholar] [CrossRef] [Green Version]
  4. DeVries, Z.C.; Kells, S.A.; Appel, A.G. Effects of starvation and molting on the metabolic rate of the bed bug (Cimex lectularius L.). Physiolo. Biochem. Zool. 2015, 88, 53–65. [Google Scholar] [CrossRef] [Green Version]
  5. Yue, Y.J.; Tang, X.D.; Xu, L.; Yan, W.; Li, Q.L.; Xiao, S.Y.; Fu, X.L.; Wang, W.; Li, N.; Shen, Z.Y. Early responses of silkworm midgut to microsporidium infection—A Digital Gene Expression analysis. J. Invertebr. Pathol. 2015, 124, 6–14. [Google Scholar] [CrossRef]
  6. Niu, D.; Zhao, Y.; Yang, Y.; Yang, R.; Gong, X.; Hu, L. De novo RNA-seq and functional annotation of Haemaphysalis longicornis. Acta Parasitol. 2019, 64, 807–820. [Google Scholar] [CrossRef]
  7. Zulaikha, Z.; Hassan, A.A. A survey on the infestation levels of tropical bed bugs in Peninsular Malaysia: Current updates and status on resurgence of Cimex hemipterus (Hemiptera: Cimicidae). Asian Pacific J. Trop. Dis. 2016, 6, 40–45. [Google Scholar] [CrossRef]
  8. FastQC: A Quality Control Tool for High Throughput Sequence Data. Available online: https://www.bioinformatics.babraham.ac.uk/projects/fastqc/ (accessed on 10 January 2022).
  9. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet. J. 2011, 17, 10–12. [Google Scholar] [CrossRef]
  10. Xie, Y.; Wu, G.; Tang, J.; Luo, R.; Patterson, J.; Liu, S.; Huang, W.; He, G.; Gu, S.; Li, S. SOAPdenovo-Trans: De novo transcriptome assembly with short RNA-Seq reads. Bioinformatics 2014, 30, 1660–1666. [Google Scholar] [CrossRef] [Green Version]
  11. Xu, M.; Guo, L.; Gu, S.; Wang, O.; Zhang, R.; Peters, B.A.; Fan, G.; Liu, X.; Xu, X.; Deng, L.; et al. TGS-GapCloser: A fast and accurate gap closer for large genomes with low coverage of error-prone long reads. Gigascience 2020, 9, 94. [Google Scholar] [CrossRef] [PubMed]
  12. Bushmanova, E.; Antipov, D.; Lapidus, A.; Suvorov, V.; Prjibelski, A.D. rnaQUAST: A quality assessment tool for de novo transcriptome assemblies. Bioinformatics 2016, 32, 2210–2212. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  14. Bray, N.L.; Pimentel, H.; Melsted, P.; Pachter, L. Near-optimal probabilistic RNA-seq quantification. Nat. Biotech. 2016, 34, 525–527. [Google Scholar] [CrossRef] [PubMed]
  15. Jiménez-Jacinto, V.; Sanchez-Flores, A.; Vega-Alvarado, L. Integrative differential expression analysis for multiple experiments (IDEAMEX): A web server tool for integrated RNA-Seq data analysis. Front. Genet. 2019, 11, 279. [Google Scholar] [CrossRef] [PubMed]
  16. Kanehisa, M.; Araki, M.; Goto, S.; Hattori, M.; Hirakawa, M.; Itoh, M.; Katayama, T.; Kawashima, S.; Okuda, S.; Tokimatsu, T.; et al. KEGG for linking genomes to life and the environment. Nucleic Acids Res. 2007, 36, 480–484. [Google Scholar] [CrossRef] [PubMed]
  17. Xie, C.; Mao, X.; Huang, J.; Ding, Y.; Wu, J.; Dong, S.; Kong, L.; Gao, G.; Li, C.Y.; Wei, L. KOBAS 2.0: A web server for annotation and identification of enriched pathways and diseases. Nucleic Acids Res. 2011, 39, 316–322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Mamidala, P.; Rajarapu, S.P.; Jones, S.C.; Mittapalli, O. Identification and validation of reference genes for quantitative real-time polymerase chain reaction in Cimex lectularius. J. Med. Entomol. 2011, 48, 947–951. [Google Scholar] [CrossRef]
  19. Ye, J.; Coulouris, G.; Zaretskaya, I.; Cutcutache, I.; Rozen, S.; Madden, T.L. Primer-BLAST: A tool to design target-specific primers for polymerase chain reaction. BMC Bioinform. 2012, 13, 134. [Google Scholar] [CrossRef] [Green Version]
  20. Benoit, J.B.; Lopez-Martinez, G.; Patrick, K.R.; Phillips, Z.P.; Krause, T.B.; Denlinger, D.L. Drinking a hot blood meal elicits a protective heat shock response in mosquitoes. Proc. Natl. Acad. Sci. USA 2011, 108, 8026–8029. [Google Scholar] [CrossRef] [Green Version]
  21. Paim, R.M.; Araujo, R.N.; Leis, M.; Sant’Anna, M.R.; Gontijo, N.F.; Lazzari, C.R.; Pereira, M.H. Functional evaluation of Heat Shock Proteins 70 (HSP70/HSC70) on Rhodnius prolixus (Hemiptera, Reduviidae) physiological responses associated with feeding and starvation. Insect Biochem. Mol. Biol. 2016, 77, 10–20. [Google Scholar] [CrossRef]
  22. Benoit, J.B.; Adelman, Z.N.; Reinhardt, K.; Dolan, A.; Poelchau, M.; Jennings, E.C.; Szuter, E.M.; Hagan, R.W.; Gujar, H.; Richards, S.; et al. Unique features of a global human ectoparasite identified through sequencing of the bed bug genome. Nat. Commun. 2016, 7, 10165. [Google Scholar] [CrossRef] [Green Version]
  23. Martin, S.A.; Douglas, A.; Houlihan, D.F.; Secombes, C.J. Starvation alters the liver transcriptome of the innate immune response in Atlantic salmon (Salmo salar). BMC Genom. 2010, 11, 418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sharma, P.; Rani, J.; Chauhan, C.; Kumari, S.; Tevatiya, S.; das De, T.; Savargaonkar, D.; Pandey, K.C.; Dixit, R. Altered gut microbiota and immunity defines Plasmodium vivax survival in Anopheles stephensi. Front. Immunol. 2020, 11, 609. [Google Scholar] [CrossRef] [PubMed]
  25. Marron, M.T.; Markow, T.A.; Kain, K.J.; Gibbs, A.G. Effects of starvation and desiccation on energy metabolism in desert and mesic Drosophila. J. Insect Physiol. 2003, 49, 261–270. [Google Scholar] [CrossRef]
  26. Zhang, D.W.; Xiao, Z.J.; Zeng, B.P.; Li, K.; Tang, Y.L. Insect behavior and physiological adaptation mechanisms under starvation stress. Front. Physiol. 2019, 10, 163. [Google Scholar] [CrossRef] [PubMed]
  27. The UniProt Consortium. UniProt: The universal protein knowledgebase in 2021. Nucleic Acids Res. 2021, 49, D480–D489. [Google Scholar] [CrossRef] [PubMed]
  28. Monika, L.Z. Pyrimidine biosynthesis. In Encyclopedia of Biological Chemistry; Hudmon, A., Schulman, H., Eds.; Elsevier: Amsterdam, The Netherlands, 2004. [Google Scholar]
  29. Riddell, C.E.; Mallon, E.B. Insect psychoneuroimmunology: Immune response reduces learning in protein starved bumblebees (Bombus terrestris). Brain Behav. Immun. 2006, 20, 135–138. [Google Scholar] [CrossRef]
  30. Merrill Jr, A.H.; Nikolova-Karakashian, M.; Schmelz, E.M.; Morgan, E.T.; Stewart, J. Regulation of cytochrome P450 expression by sphingolipids. Chem. Phys. Lipids. 1999, 102, 131–139. [Google Scholar] [CrossRef]
  31. Moore, C.A.; Frazier, J.L. Partial characterization of acid phosphatases of the boll weevil Anthonomus grandis. Insect Biochem. 1976, 6, 525–527. [Google Scholar] [CrossRef]
  32. Arrese, E.L.; Soulages, J.L. Insect fat body: Energy, metabolism, and regulation. Annual Rev. Entomol. 2010, 55, 207–225. [Google Scholar] [CrossRef] [Green Version]
  33. Sinclair, B.J.; Bretman, A.; Tregenza, T.O.M.; Tomkins, J.L.; Hosken, D.J. Metabolic rate does not decrease with starvation in Gryllus bimaculatus when changing fuel use is taken into account. Physiol. Entomol. 2011, 36, 84–89. [Google Scholar] [CrossRef]
  34. Chichi, L.I.; Liqun, L.I.; Huang, C.; Zhang, D. Autophagy promotes survival of adipose cells by inhibiting apoptosis under in vitro starvation. Chi. J. Pathophysiol. 2015, 12, 2228–2232. [Google Scholar]
  35. Santos-Araujo, S.; Bomfim, L.; Araripe, L.O.; Bruno, R.; Ramos, I.; Gondim, K.C. Silencing of ATG6 and ATG8 promotes increased levels of triacylglycerol (TAG) in the fat body during prolonged starvation periods in the Chagas disease vector Rhodnius prolixus. Insect Biochem. Mol. Biol. 2020, 127, 103484. [Google Scholar] [CrossRef] [PubMed]
  36. Vickery, H.B. The histidine content of the hemoglobin of man and of the horse and sheep, determined with the aid of 3, 4-dichlorobenzenesulfonic acid. J. Biol. Chem. 1942, 144, 719–730. [Google Scholar] [CrossRef]
  37. Barisón, M.J.; Damasceno, F.S.; Mantilla, B.S.; Silber, A.M. The active transport of histidine and its role in ATP production in Trypanosoma cruzi. J. Bioenerg. Biomembr. 2016, 48, 437–449. [Google Scholar] [CrossRef]
  38. Vera-Aviles, M.; Vantana, E.; Kardinasari, E.; Koh, N.L.; Latunde-Dada, G.O. Protective role of histidine supplementation against oxidative stress damage in the management of anemia of chronic kidney disease. Pharmaceuticals 2018, 11, 111. [Google Scholar] [CrossRef] [Green Version]
  39. Stanley-Samuelson, D.W.; Jurenka, R.A.; Cripps, C.; Blomquist, G.J.; de Renobales, M. Fatty acids in insects: Composition, metabolism, and biological significance. Archives Insect Biochem. Physiol. 1988, 9, 1–33. [Google Scholar] [CrossRef]
  40. Niwa, R.; Niwa, Y.S. Enzymes for ecdysteroid biosynthesis: Their biological functions in insects and beyond. Biosci. Biotech. Biochem. 2014, 78, 1283–1292. [Google Scholar] [CrossRef] [Green Version]
  41. Hosokawa, T.; Koga, R.; Kikuchi, Y.; Meng, X.Y.; Fukatsu, T. Wolbachia as a bacteriocyte-associated nutritional mutualist. Proc. Natl. Acad. Sci. USA 2010, 107, 769–774. [Google Scholar] [CrossRef] [Green Version]
  42. Moriyama, M.; Nikoh, N.; Hosokawa, T.; Fukatsu, T. Riboflavin provisioning underlies Wolbachia’s fitness contribution to its insect host. MBio 2015, 6, e01732-15. [Google Scholar] [CrossRef] [Green Version]
  43. Dai, M.S.; Arnold, H.; Sun, X.X.; Sears, R.; Lu, H. Inhibition of c-Myc activity by ribosomal protein L11. EMBO J. 2007, 26, 3332–3345. [Google Scholar] [CrossRef]
  44. Korzekwa, K.R.; Jones, J.P. Predicting the cytochrome P450 mediated metabolism of xenobiotics. Pharmacogenetics 1993, 3, 1–18. [Google Scholar] [CrossRef] [PubMed]
  45. Anzenbacher, P.; Anzenbacherova, E. Cytochromes P450 and metabolism of xenobiotics. Cellular Mol. Life Sci. CMLS 2001, 58, 737–747. [Google Scholar] [CrossRef] [PubMed]
  46. Mittapelly, P.; Bansal, R.; Michel, A. Differential expression of cytochrome P450 CYP6 genes in the brown marmorated stink bug, Halyomorpha halys (Hemiptera: Pentatomidae). J. Econo. Entomol. 2019, 112, 1403–1410. [Google Scholar] [CrossRef] [PubMed]
Insects 13 00387 g001 550

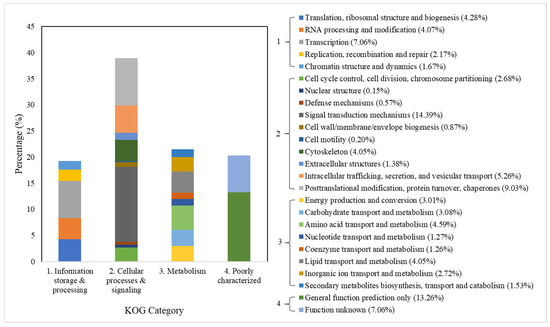

Figure 1. KOG gene function classification of the C. hemipterus unigenes.
Figure 1. KOG gene function classification of the C. hemipterus unigenes.
Insects 13 00387 g001
Insects 13 00387 g002 550

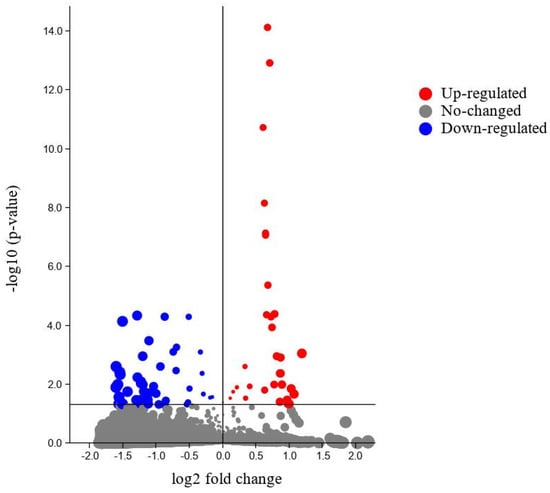

Figure 2. Differentially expressed genes identified in blood-fed and starved bed bugs.
Figure 2. Differentially expressed genes identified in blood-fed and starved bed bugs.
Insects 13 00387 g002
Insects 13 00387 g003 550

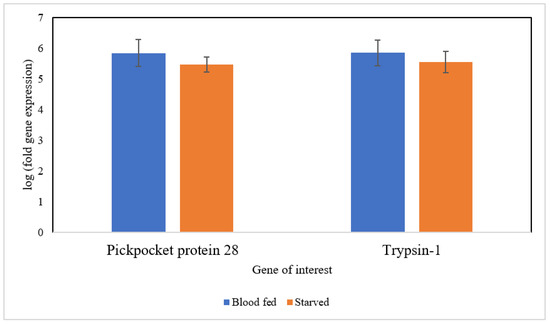

Figure 3. qRT-PCR analysis of two genes: Pickpocket protein 28 and Trypsin-1.
Figure 3. qRT-PCR analysis of two genes: Pickpocket protein 28 and Trypsin-1.
Insects 13 00387 g003
Table
Table 1. Primer sets of qRT-PCR used in the study.
Table 1. Primer sets of qRT-PCR used in the study.
Target Gene NamePrimer Sequence (5′–3′)Description
RPL18 (housekeeping gene)ATCGGCCTCCTATCTCTCTATC60S ribosomal protein L18
TACGCAAGGCACAGATCTTC
PRSS1ATGTATGAAGGCACGGTTGTCACTrypsin-1
CAGTTACGGCCAAGTTGATTTCG
ppk28TCAACAGGCTCAAACGAGAGCPickpocket protein 28
GGGTTCACTTGACTCGGGAAAG
Table
Table 2. Statistics of RNA-seq assembly.
Table 2. Statistics of RNA-seq assembly.
Number of contigs24,609
Largest contig (bp)22,971
Total length (bp)39,981,897
N502175
N751208
GC%38.75
Table
Table 3. DEGs in blood fed and starved tropical bed bugs.
Table 3. DEGs in blood fed and starved tropical bed bugs.
DEGeneDescriptionlog2 Fold Changep-ValueFunction
Upregulated in blood-fed and downregulated in starved bed bugsHBA2Hemoglobin subunit alpha 214.297.5295 × 10−15Heme binding
HBBHemoglobin subunit beta13.971.2125 × 10−13Heme binding
OacylO-acyltransferase-like protein2.950.0008Acyltransferase activity
EEF1A1Translation elongation factor EF-1 alpha/Tu9.690.00004Deliver aminoacyl tRNAs to the ribosome
RAB37ras-related protein Rab-378.510.0011Protein transport
N/ACoiled-coil protein TPD521.550.0039Protein homodimerization activity
DAN4Cell wall protein DAN45.570.0119Anchored component of membrane
MigaMitoguardin1.630.0342Mitochondrial fusion, protein heterodimerization and homodimerization activities
EHD3EH domain-containing protein 33.100.0006Cilium biogenesis/degradation, protein transport
N/ADyneins, heavy chain4.840.0128Cilium biogenesis/degradation
GOLGA6L1Golgin subfamily A member 6-like protein 1 Have roles in membrane traffic and Golgi structure
N/ATransmembrane protein3.910.0008Transport
MFSD14AHippocampus abundant transcript 1 protein3.530.0273Transport
N/ANuclear pore complex3.430.0285Protein transport
FTH1Ferritin heavy chain 17.880.0103Iron storage
FTLFerritin light chain7.530.0345Iron storage
N/AThymosin beta 4 X-linked8.220.0043Actin monomer binding
Hsp70BaMajor heat shock 70 kDa protein Ba4.530.0180Stress response
PKMPyruvate kinase4.220.0299Translation regulation
MARF1Meiosis regulator and mRNA stability factor 12.110.0363Meiosis regulator and mRNA stability factor 1
Upregulated in starved and downregulated in blood fed bed bugsACP7Acid phosphatase type 7−3.875.1334 × 10−15Acid phosphatase activity
PCP36Pupal cuticle protein 36−2.100.0011Structural constituent of cuticle
FBXL16F-box/LRR-repeat protein 16−1.850.0081Ubl conjugation pathway
N/AE3 ubiquitin ligase interacting with arginine methyltransferase−1.820.0093Ubiquitin-mediated protein degradation
N/AAnkyrin repeat protein−1.780.0269Mediate protein-protein interactions
N/AUDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit−1.770.0341Ubl conjugation pathway
CYPCytochrome P450−1.370.0128Detoxification
PRG4Proteoglycan 4−1.790.0175Immune response
ALPK1Alpha-protein kinase 1−1.860.0200Innate immunity
ABCCMultidrug resistance-associated protein−8.860.00004Lipid transport
GMPRGMP reductase 1−1.330.0275Purine metabolism
TER94Transitional endoplasmic reticulum ATPase TER94−3.630.0043ATP hydrolysis activity
SBK1Serine/threonine-protein kinase SBK1−1.840.0103ATP binding
SNRNP70U1 small nuclear ribonucleoprotein 70 kDa−2.430.0025mRNA processing
Twk-18TWiK family of potassium channels protein 18−1.810.0059Locomotion
N/AGeneral odorant-binding protein−3.020.00005Sensory perception of smell
FGFR3Fibroblast growth factor receptor 3−1.560.0345Apoptosis
PYRE-FUridine 5′-monophosphate synthase−2.640.0418Pyrimidine biosynthesis
Table
Table 4. KEGG enriched pathways in blood-fed and starved tropical bed bugs.
Table 4. KEGG enriched pathways in blood-fed and starved tropical bed bugs.
StatusPathway
Blood-fedHistidine metabolism, sulfur relay system, steroid biosynthesis, synthesis and degradation of ketone bodies, caffeine metabolism, ubiquinone and other terpenoid-quinone biosynthesis, butanoate metabolism, autophagy, glycosaminoglycan biosynthesis—chondroitin sulfate/dermatan sulfate
StarvedSteroid biosynthesis, glycosaminoglycan biosynthesis—chondroitin sulfate/dermatan sulfate, butanoate metabolism, apoptosis, nicotinate and nicotinamide metabolism, fatty acid elongation, terpenoid backbone biosynthesis, autophagy, protein export, metabolism of xenobiotics by cytochrome P450, drug metabolism—cytochrome P450, riboflavin metabolism
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lim, L.; Ab Majid, A.H. Analysis of Transcriptome Difference between Blood-Fed and Starved Tropical Bed Bug, Cimex hemipterus (F.) (Hemiptera: Cimicidae). Insects 2022, 13, 387. https://doi.org/10.3390/insects13040387

AMA Style

Lim L, Ab Majid AH. Analysis of Transcriptome Difference between Blood-Fed and Starved Tropical Bed Bug, Cimex hemipterus (F.) (Hemiptera: Cimicidae). Insects. 2022; 13(4):387. https://doi.org/10.3390/insects13040387

Chicago/Turabian Style

Lim, Li, and Abdul Hafiz Ab Majid. 2022. "Analysis of Transcriptome Difference between Blood-Fed and Starved Tropical Bed Bug, Cimex hemipterus (F.) (Hemiptera: Cimicidae)" Insects 13, no. 4: 387. https://doi.org/10.3390/insects13040387

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
