Article

Isolation and Characterization of Mosquito-Associated Spiroplasma cantharicola from Aedes japonicus Collected in Hokkaido, Japan

School of Veterinary Medicine, Rakuno Gakuen University, Ebetsu 069-8501, Hokkaido, Japan
*
Author to whom correspondence should be addressed.
Academic Editors: Adriano Pinter and Karin Kirchgatter
Insects 2021, 12(12), 1056; https://doi.org/10.3390/insects12121056
Received: 14 October 2021 / Revised: 18 November 2021 / Accepted: 23 November 2021 / Published: 25 November 2021
(This article belongs to the Special Issue Insect Vector-Focused Approaches for Disease Control)
Spiroplasma, which comprises a group of the smallest known bacteria, is commonly found in insects and plants. Some species of Spiroplasma have shown pathogenicity against mosquitoes and are expected to be useful vector control tools. In this study, we isolated S. cantharicola from the mosquito Aedes japonicus collected in Hokkaido, northern Japan. Field surveillance implied a relatively low prevalence of the bacteria in the local mosquitoes. Phylogenetic analysis showed that our isolate is closer to a strain of S. cantharicola isolated from mosquitoes in previous studies. Our isolate grew well in the R2 broth medium and grew into a visible colony on R2 broth agar. Co-culturing with mosquito-derived C6/36 cells resulted in slightly more bacterial growth than culturing without cells, showing the strong cytopathogenic effect of the cells. To our knowledge, this is the third report on the isolation of S. cantharicola from mosquitoes.

Abstract

Species of the genus Spiroplasma are common within arthropods and plants worldwide. Mosquito-associated Spiroplasma spp. have been reported to show pathogenicity toward mosquitoes, which serve as vectors of several infectious diseases that have detrimental effects on public health. Although Spiroplasma spp. are expected to have potential use as biological vector-control tools, characteristics such as their distribution, host species, and cytopathogenic effects (CPEs) are not well understood. In this study, we isolated a Spiroplasma sp. from a female Aedes japonicus collected in Hokkaido, northern Japan. Phylogenetic analysis based on the 16S rRNA gene sequence indicated our isolate was closely related to S. cantharicola. We screened 103 mosquito pools consisting of 3 genera and 9 species, but only detected S. cantharicola in the first isolation. In an in vitro assay, our isolate grew well at 28 °C, but no propagation was observed at 37 °C. Furthermore, the isolate showed strong CPE on a mosquito-derived cultured cell line (C6/36), and its propagation slightly increased when co-cultured with C6/36 cells. To our knowledge, this is the third report of the isolation of S. cantharicola from mosquitoes and the first case in Asia. Our findings provide epidemiological data on S. cantharicola distribution in the region.
Keywords: Aedes japonicus; C6/36 cells; cytopathogenic effect; Japan; mosquito; Spiroplasma cantharicola Aedes japonicus; C6/36 cells; cytopathogenic effect; Japan; mosquito; Spiroplasma cantharicola

1. Introduction

Spiroplasmas are some of the small and helical bacteria; they are self-replicating and are without a cell wall and flagellum [1]. They are categorized into the class Mollicutes (mostly comprising Spiroplasma, Mycoplasma, and Acholeplasma genera), and currently, almost 40 Spiroplasma species among 34 serological groups have been reported [1]. Spiroplasmas have mostly been found in arthropods, including mosquitoes and ticks, although plants and mammals are occasionally the hosts [2]. Generally, Spiroplasmas propagate in the midgut of arthropods, and in most cases, the bacteria are nonpathogenic to them. The pathogenicity of Spiroplasma seems to be related to the ability of their invasion beyond the epithelial cells of the midgut, i.e., some pathogenic species have been shown to expand their habitat to hemolymph, ovaries, fat bodies, hypodermis, or salivary glands [2].
Mosquitoes are one of the most important arthropods worldwide due to their vector competence for several pathogens, such as Dengue virus, Chikungunya virus, Rift Valley fever virus, and malaria parasites [3]. According to the American Mosquito Control Association, over one million people worldwide die annually from mosquito-borne diseases [4]. Furthermore, in most cases, effective vaccines and antiviral drugs are still under development, and antimalarial drug resistance is bringing further challenges [5,6]. Vector control efforts are also encountering difficulties due to the appearance of insecticide-resistant mosquitoes [7]. However, several mosquito symbionts, such as Wolbachia and Spiroplasma, are expected to be suitable for application as vector control tools [8,9,10,11,12]. Mosquito-associated Spiroplasmas are promising control tool candidates because of their pathogenicity to mosquitoes. The current list of mosquito-associated Spiroplasmas that have been characterized to species level is as follows: S. culicola, S. taiwanense, S. sabaudiense, S. diminutum, S. cantharicola [13], and S. insolitum [14]. A previously reported infectious in vivo experiment using four species of Spiroplasma, S. culicola, and S. taiwanense showed pathogenicity to Aedes aegypti mosquitoes, but all of them were nonpathogenic toward suckling mice and rats [15]. Additionally, the vertical transmission of S. insolitum in Anopheles gambiae was also proven recently [14], raising the possibility of the application of this Spiroplasma in the field such as an actual application of Wolbachia for reducing the Dengue incidence in a population [8,9,16].
In this study, we isolated a kind of arthropod-related Spiroplasma, S. cantharicola, from a female adult Ae. japonicus collected in Hokkaido, northern Japan. To our knowledge, this is the third report of S. cantharicola isolation from a mosquito [17,18]. Additionally, this report provides basic information on phylogenetics, as well as the growth kinetics when co-cultured with a mosquito-derived cell line.

2. Materials and Methods

2.1. Mosquito Sampling

From July 2016 to October 2020, adult mosquitoes were collected around Rakuno Gakuen University in Ebetsu City, Hokkaido Prefecture, Japan, using the human landing catch method and inst nets. The mosquitoes were initially collected for the isolation of arboviruses and were stored at −80 °C until further experiments.
In another experiment aimed at screening for S. cantharicola, 93 pools of previously and newly collected mosquitoes were used. From July to September 2016, adult Ae. togoi and Ae. japonicus were collected from around Otaru Aquarium in Otaru City, Hokkaido Prefecture. From June to October 2020, adult Ae. japonicus, Ae. hokkaidensis, Culex pipiens group, Cx. orientalis, and An. sineroides were collected from around Rakuno Gakuen University. From August to September 2020, adult Ae. japonicus and Ae. galloisi were collected in Nopporo Forest Park, Ebetsu City. All collection methods were the same as described above. As a control, 10 pools of insects from laboratory colonies of Ae. albopictus (Hatsudai linage) and Ae. aegypti (LIV-INB linage) were used for the study. The two species were kindly provided by Dr. Yuki Eshita of Hokkaido University Research Center for Zoonosis Control (Table S3).
Prior to the experiments, the mosquito species were identified based on their morphological characteristics according to Tanaka K. et al. [19]. On encountering difficulty with morphological identification, DNA barcoding based on the COI gene was used to support the species identification [20,21].

2.2. Isolation of Filtrable Microorganisms from Field-Collected Mosquitoes

Ae. albopictus-derived cultured cells (C6/36) were maintained at 28 °C under 5% CO2 in minimal essential medium (MEM) (Sigma-Aldrich, St. Louis, MO, USA) supplemented with 10% heat-inactivated fetal bovine serum (FBS), and an antibiotic cocktail of penicillin, streptomycin, and amphotericin B that was initially prepared for the purpose of isolating arboviruses [22].
For the isolation of arboviruses, mixtures of 1 mL of 2% FBS-MEM, field-collected mosquitoes, and a stainless bead were prepared in microtubes. The mosquitoes were homogenized with Micro Smash MS-100R (Tomy Digital Biology Co., Ltd., Tokyo, Japan) under the conditions of 4000 rpm for 20 s with cooling at 4 °C. The homogenates were centrifuged at 13,000 rpm for 1 min at 4 °C, and the supernatants were filtered with a 0.22-µm sterile syringe filter (Asone, Osaka, Japan) and syringe (Terumo, Tokyo, Japan). The supernatants were inoculated onto a C6/36 cell monolayer and incubated at 28 °C under 5% CO2 for 1 h. Afterward, the supernatant was removed, and 2% FBS-MEM was added to fill the well of the plate, followed by incubation in the same conditions. At 7 days post-infection (PI) the culture fluid was collected and inoculated onto a new C6/36 cell monolayer, and a blind passage was conducted a total of five times in duplicate. During the experiment, the cytopathogenic effects (CPEs) of the cells were observed daily, and the culture fluid of the CPE-positive samples was stored at −80 °C until further experiments.

2.3. DNA Extraction

DNA extraction from mosquito homogenate and culture fluid was conducted using the QIAamp DNA Mini Kit (Qiagen, Hilden, Germany) and/or NucleoSpin TriPrep (Macherey-Nagel, Düren, Germany) in accordance with the manufacturer’s protocols. Regarding the QIAamp DNA Mini Kit, the volume of elution buffer in the final extraction step was modified to between 50 µL and 200 µL, depending on the number of mosquitoes in the pool. The extracted DNA was stored at −30 °C until further experiments.

2.4. Polymerase Chain Reaction and Electrophoresis

To amplify the Spiroplasma-derived DNA, PCR was conducted using Takara Ex Taq (Takara Bio Inc., Shiga, Japan). The reaction mixture was modified to a total of 25 µL containing 0.125 µL of Takara Ex Taq (5 units/µL), 2.5 µL of 10 × Ex Taq Buffer, 2 µL of dNTP Mixture (2.5 mM), 0.5 µM each of forward and reverse primers, 5 µL of template DNA (concentration was not evaluated), and 12.875 µL of sterile distilled water. Two kinds of PCR were conducted for different purposes. The first primer set—BF1 and BR1, targeting universal bacterial 16S rRNA—was designed after referring to two previous studies, with some modification (Figure 1 and Table S1) [23,24]. The thermal cycling conditions were an initial denaturation at 94 °C for 2 min, followed by 30 cycles of denaturation at 98 °C for 10 s, annealing at 44.5 °C for 30 s, extension at 72 °C for 90 s, and a final extension at 72 °C for 10 min. The second primer set—MF1 and MR1, targeting a universal Mycoplasma spacer region between 16S rRNA and 23S rRNA—was designed after referring to the TaKaRa PCR Mycoplasma Detection Set (Takara Bio Inc., Shiga, Japan), with some modifications (Figure 1 and Table S1) [25]. The thermal cycling conditions were an initial denaturation at 94 °C for 2 min, followed by 40 cycles of denaturation at 94 °C for 30 s, annealing at 55 °C for 30 s, extension at 72 °C for 60 s, and a final extension at 72 °C for 10 min. The specificity of the primer set MF1 and MR1 was confirmed using positive control DNA extracted from our isolate before it was used for screening.
The amplicons were loaded onto 1.5% agarose gel containing 0.01% of ethidium bromide and electrophoresed at 7.4 V/cm for 30–40 min in 1x TBE buffer (50 mM Tris-HCl, 48.5 mM boric acid, 2 mM EDTA, pH 8.0).

2.5. Sequencing and Genetic Analysis

The amplicons were purified using the Fast Gene PCR Extraction Kit (Nippon Genetics Co., Ltd., Kanagawa, Japan), and the nucleotide sequences were determined by the FASMAC sequence service (Fasmac Co., Ltd., Kanagawa, Japan) using the above PCR primer sets and two additional sequencing primers, BF2 and BR2, specific to sequences located between the BF1 and BR1 annealing sites (Figure 1 and Table S1) [26,27]. We searched for sequences with similarity using the basic local alignment search tool (BLAST) (https://blast.ncbi.nlm.nih.gov/Blast.cgi (accessed on 15 June 2021)). Contig sequences were generated by the sequence analysis software GeneStudio Professional v2.2.0.0. To conduct phylogenetic analysis, reference sequence data were collected from GenBank (Table S2), and multiple alignments were constructed by ClustalW v2.1. Phylogenetic trees based on the neighbor-joining method were created with 1000 bootstrap replicates, and the tree was visualized with the tree figure drawing tool FigTree v1.4.4. In genetic analysis aiming to compare sequence similarities among our isolate and reference sequences, the pairwise alignment tool EMBOSS Needle (https://www.ebi.ac.uk/Tools/psa/emboss_needle/ (accessed on 8 June 2021)) was used to obtain the global alignment.

2.6. Culturing of S. cantharicola

R2 broth medium, which is a simplified media for culturing Spiroplasma bacteria, was prepared in accordance with a previous study [28]. To make agar plates, 1.5% agarose was added to the R2 broth medium, and the plate was used for the titration of S. cantharicola.
First, the cell culture fluid that showed CPE on C6/36 cells was inoculated onto a PPLO agar plate (Nikkenseibutsu K.K., Kyoto, Japan), and a single colony was picked after incubating the plate at 28 °C. The isolated single colony was inoculated into 7 mL of R2 broth medium [28], which was incubated at 28 °C under 5% CO2 for propagation. When the color of the medium turned orange to yellow (approximately 5 days PI), the propagated bacteria were collected, placed into a medium in microtubes, and stored at −80 °C. For the titration of the bacteria, 10-fold serially diluted medium was inoculated onto R2 agar plates, and the plates were incubated at 28 °C under 5% CO2. Three to 4 weeks later, visible colonies were counted, from which the number of bacteria (colony-forming units, CFU/mL) was calculated. In the growth curve assay, 1.0 × 103 CFU/mL of bacteria was prepared in R2 broth at the starting point, and the plates were incubated at 28 °C or 37 °C under 5% CO2. The culture fluid was harvested every 24 h for up to 7 days PI, and the bacteria titer was determined using the above methods.
In another experiment, our isolate was co-cultured with C6/36 cells to evaluate the effects of the cells on the isolate. Cell monolayers were prepared in 96-well plates, and the bacteria were spiked into 2% FBS-MEM at a multiplicity of infection of 0.002. The plates were incubated at 28 °C under 5% CO2, and the bacteria titer was determined following the above method.

2.7. Statistical Analyses

To evaluate the significant differences of bacteria titers, statistical analyses were performed by Microsoft Excel 2016 software. F-test was used to confirm whether the variance among the samples derived from different replicates was equal. According to the F-test results, an unpaired two-tailed Student’s t-test with the condition of equal variances was conducted to compare the bacteria titers. P value below 0.05 was considered statistically significant.

3. Results

3.1. Isolation and Identification of Filtrable Microorganism from a Field-Collected Mosquito

During the attempt to isolate arboviruses, one pool consisted of a female Ae. japonicus showed CPE on C6/36 cells (Figure 2). Although we could not identify any viral RNA (pan-Flavivirus or pan-Phenuiviridae) in the supernatant, we suspected the presence of filtrable microorganisms that could pass through a 0.22 µm filter; thus, we initially suspected Mycoplasma. To identify the unknown microorganisms, conventional PCR based on the 16S rRNA sequence was conducted. As a result, a size-specific amplicon was obtained, and phylogenetic analysis revealed our isolate to be closely related to S. cantharicola (Figure 3). Furthermore, detailed phylogenetic analysis showed that our isolate was closer to S. cantharicola strain AR1357 (DQ861916.1) and Spiroplasma sp. Ar-1357 (AY189316.1), which were isolated from Aedes mosquitoes, then to S. cantharicola strain CC-1 (NR125516.1) isolated from Cantharis carolinus (Figure 4). Global alignment analysis by EMBOSS Needle showed 99.8% sequence similarity between our isolate and both the S. cantharicola strain AR1357 (DQ861916.1) and Spiroplasma sp. Ar-1357 (AY189316.1) (Table 1). However, the registered sequences of S. cantharicola strain AR1357 (DQ861916.1) and Spiroplasma sp. Ar-1357 (AY189316.1) have 99.8% similarity. Taken together, these findings show our isolate belongs to S. cantharicola and is closely related to mosquito-derived strains. The determined sequence of our isolate was deposited in the GenBank with accession no. LC646116.1 and LC646117.1.

3.2. Prevalence of S. cantharicola in the Field-Collected Mosquitoes and Laboratory Colonies

To clarify the field prevalence of S. cantharicola in northern Japan, an epidemiological survey based on PCR was conducted using MF1 and MR1 primer sets. Prior to the assay, the specificity of the PCR was confirmed using our isolate and cell culture fluid derived from uninfected C6/36 cells. A total of 93 pools consisting of 614 field-collected mosquitoes (3 genera, 9 species) were evaluated by PCR, but no pools were positive (Table S3). Similarly, S. cantharicola DNA was not detected from the two laboratory colonies of Ae. albopictus and Ae. aegypti (Table S3).

3.3. Growth Kinetics of S. cantharicola

Prior to the evaluation of growth kinetics, the colony formation ability of our isolate was confirmed with PPLO agar plates and R2 agar plates (Figure 5A,B). In both plates, our isolate grew into visible colonies by 3 to 5 days PI. The speed of colonization was faster on PPLO agar than on R2 agar, but the colony size was almost equal between the two plates.
To evaluate the effect of temperature on the growth kinetics, we conducted growth curve analysis in the R2 broth medium at two temperatures, 28 °C and 37 °C, to replicate arthropod and mammal environmental conditions, respectively. Although the bacteria propagated efficiently at 28 °C, those grown at 37 °C could not be detected; that is, no colonies were observed from the culture fluid collected 1-day PI at 37 °C. The number of bacteria increased exponentially at 28 °C by 4 days PI, but afterward, the titer slowly decreased (Figure 6A). The color difference of the R2 broth medium was also significant between the culture at 28 °C and that at 37 °C, as the former resulted in a change from orange to yellow at around the growth plateau, but the latter stayed orange throughout the culture (Figure 6B).
Finally, the effect of C6/36 cells on bacteria growth kinetics was evaluated. The titer of the bacteria in the supernatant showed different growth trends under the presence or absence of the cells. Those cultured without C6/36 cells showed higher titers from 3 to 4 days PI but started to decrease after 5 days PI. In contrast, those cultured with C6/36 showed higher titers between 5 and 7 days PI, and the high levels persisted longer (Figure 7). However, contrary to our expectation, the t-test analysis of the bacteria titers did not show any significant differences. Moreover, C6/36 cells began to show CPE identical to those in Figure 2 after 5 days PI.

4. Discussion

In this study, we isolated a filtrable microorganism from Ae. japonicus collected in Hokkaido, northern Japan. Sequence analysis based on the 16S rRNA gene showed our isolate had quite high similarities to S. cantharicola (Table 1). Among S. cantharicola strains, our isolate was closer to strain Ar-1357 (Aedes mosquito-derived strain) at 99.8% sequence similarity, than strain CC-1 (C. carolinus-derived strain) (Figure 4, Table 1). Strain Ar-1357 was isolated from Ae. cantans/vexans in Savoy, France, from 1983 to 1985 [17,29], and strain CC-1 was isolated from C. carolinus in Maryland, USA, in 1982 [18]. To our knowledge, this is the third report of the isolation of S. cantharicola from mosquitoes in Asia. It is intriguing that there have not been more reports of the isolation of S. cantharicola because many scientists have made efforts to find arboviruses using mosquito-derived cells. One hypothesis to answer this question could be a lack of interest in the bacteria, and any strains may have been treated as simple contamination during virus isolation. Ae. japonicus originating from East Asia has been detected in the USA since 1998 and France since 2000, and it has been declared as an invasive species in these countries [30,31]. Similar to other mosquito-borne viruses, such as the Zika virus and West Nile virus, it is possible that Spiroplasma was introduced into new areas that have not kept isolation records.
In the growth curve assay, our isolate grew exponentially at 28 °C in R2 broth medium (one of the simplest broth media for Spiroplasmas), similar to S. helicoides and S. litorale in the same medium at 30 °C [28], but our isolate did not grow at 37 °C (Figure 6). Abalain-Colloc M.L. et al. also reported that Spiroplasma sp. strain Ar-1357 grew well at 10−32 °C but not at 37 °C [29]. In this study, we used the temperatures 28 °C and 37 °C, which are typically used for arthropod- and mammalian-derived cell culture, respectively. In previously reported in vivo infection experiments, mice and rats were challenged with four mosquito-associated Spiroplasmas (S. culicola, S. taiwanense, S. subaudiense, and S. diminutum) [15]; the bacteria did not cause any symptoms or death, and although S. culicicola persisted in the brain for up to 14 days PI, three Spiroplasma sp. could not be re-isolated [15]. In fact, the optimum growth temperature of S. culicola in vitro was 37 °C, but that of the other three bacteria was between 30 °C and 32 °C, showing the correlation between the in vivo and in vitro assays [32]. Collectively, the evidence suggests that our isolate would neither propagate in mammals nor persist in mammalian tissue, even when directly inoculated.
The effect of C6/36 cells on our isolate was not fully unveiled, but our data showed the possibility that they may have had a positive effect on the bacteria’s growth. According to the growth curve analysis using the supernatant from the culture with or without C6/36 cells, the bacteria titer without C6/36 cells was higher than that of the culture with the cells before the CPE of the C6/36 cells appeared (5 days PI), but afterward, the trend was reversed, and the higher titers of those cultured with C6/36 cells persisted for 7 days PI (Figure 7). To date, the infectivity of S. cantharicola to C6/36 cells—the internalization of the bacteria into the cells—is still unclear. Duret S. et al. reported transmission electron microscopy-captured images of the internalization of S. citri, a species that infects both arthropods and plants, into leafhopper (Neoaliturus haematoceps)-derived Ciha-1 cells [33]. The internalization occurs through receptor-mediated endocytosis [34,35]. In another study, Humphery-Smith et al. found that S. sabaudiense induced the lysis of C6/36 cells after several passages with the cells, suggesting that the CPE was a cell-type-specific phenomenon, not the results of simple contamination, as seen with other bacteria [36]. Similar data on the modulation of pathogenicity have been reported by Steiner et al. using S. citri [37]. One possible scenario to explain the enhanced growth of our isolate when it was co-cultured with C6/36 cells is that the bacteria used cellular factors as nutrients after internalization into the cells. As shown in Figure 6A and a previous study [18], S. cantharicola does not require any cellular components for its growth, but if intracellular factors are available as nutrients, replication may be increased. In our preliminary experiments, our isolate did not show CPE on Vero cells, but it was considered to be the result of the bacteria’s inability to grow at 37 °C (data not shown). Multidimensional analysis based on culture with several types of arthropod cell lines is needed to evaluate the effect of cellular components on the bacteria.
Recently, several challenges of the use of mosquito symbionts, such as Wolbachia and Spiroplasma, as vector control tools have been attempted [8,9,10,12,38]. These bacteria have been used to kill the arthropod, reduce its reproductive ability, and diminish the vector competence [12]. As outlined above, some species of Spiroplasma have pathogenicity to mosquitoes [11,15], but their effect on the vector competence of arboviruses is completely unknown. A promising aspect of using vector control pathogens is the possibility of vertical transmission. Chepkemoi et al. reported that S. insolitum was maintained in An. gambiae was vertically transmitted over at least two generations [14]. To date, basic information, such as the effect on vector competence and vertical transmission of S. cantharicola, is sparse, while similar information for other mosquito-associated Spiroplasmas such as S. culicicola, S. taiwanense, S. diminutum, and S. sabaudiense is only partly available [11]. In addition to evaluations in arthropods, the influence of the pathogens on plants and mammals must be evaluated, as positive sera against Spiroplasma sp. have been reported in cows [2,17].
In conclusion, this study provides basic information on the distribution of mosquito-associated S. cantharicola in northern Japan and the basic bacteria characteristics in vitro. Our data contribute to the understanding of this bacteria and will aid its application in further studies.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/insects12121056/s1: Table S1: Primers used in this study, Table S2: Detailed information on bacteria in the phylogenetic tree, Table S3: Detailed information of samples.

Author Contributions

Conceptualization, M.S., Y.M. and L.U.; methodology and investigation, M.S., Y.S. and L.U.; project administration, Y.M.; writing—original draft preparation, M.S.; writing—review and editing, Y.S., Y.M. and L.U.; supervision and funding acquisition, L.U. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JSPS KAKENHI (Early Career Scientists) Grant Number JP19K16675.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The reference sequence data used in this study are openly available at GenBank (https://www.ncbi.nlm.nih.gov/genbank/ (accessed on 12 September 2021)). The determined sequence of our isolate was deposited in GenBank with accession no. LC646116.1 and LC646117.1.

Acknowledgments

We would like to thank K. Morita from the Department of Virology, Institute of Tropical Medicine, Nagasaki University, and S. Gondaira from the Animal Health Laboratory, Department of Veterinary Science, School of Veterinary Medicine, Rakuno Gakuen University, for kindly donating the C6/36 cells and providing technical advice. Additionally, we would like to thank Y. Eshita from the Hokkaido University Research Center for Zoonosis Control for kindly providing the laboratory colonies of Ae. albopictus and Ae. aegypti. We thank Suzanne Leech for editing a draft of this manuscript.

Conflicts of Interest

The authors have no conflict of interest to declare.

References

  1. Cisak, E.; Wójcik-Fatla, A.; Zając, V.; Sawczyn, A.; Sroka, J.; Dutkiewicz, J. Spiroplasma-an emerging arthropod-borne pathogen? Ann. Agric. Environ. Med. 2015, 22, 589–593. [Google Scholar] [CrossRef]
  2. Regassa, L.B.; Gasparich, G.E. Spiroplasmas: Evolutionary relationships and biodiversity. Front. Biosci. 2006, 11, 2983–3002. [Google Scholar] [CrossRef] [PubMed]
  3. Lee, H.; Halverson, S.; Ezinwa, N. Mosquito-borne diseases. Prim. Care 2018, 45, 393–407. [Google Scholar] [CrossRef]
  4. AMCA. Mosquito-Borne Diseases. Available online: https://www.mosquito.org/page/diseases (accessed on 14 October 2021).
  5. Gould, E.A.; Solomon, T. Pathogenic flaviviruses. Lancet 2008, 371, 500–509. [Google Scholar] [CrossRef]
  6. White, N.J. Antimalarial drug resistance. J. Clin. Investig. 2004, 113, 1084–1092. [Google Scholar] [CrossRef] [PubMed]
  7. Ranson, H.; N’Guessan, R.; Lines, J.; Moiroux, N.; Nkuni, Z.; Corbel, V. Pyrethroid resistance in african anopheline mosquitoes: What are the implications for malaria control? Trends Parasitol. 2011, 27, 91–98. [Google Scholar] [CrossRef] [PubMed]
  8. Hoffmann, A.A.; Montgomery, B.L.; Popovici, J.; Iturbe-Ormaetxe, I.; Johnson, P.H.; Muzzi, F.; Greenfield, M.; Durkan, M.; Leong, Y.S.; Dong, Y.; et al. Successful establishment of wolbachia in aedes populations to suppress dengue transmission. Nature 2011, 476, 454–457. [Google Scholar] [CrossRef]
  9. Moreira, L.A.; Iturbe-Ormaetxe, I.; Jeffery, J.A.; Lu, G.; Pyke, A.T.; Hedges, L.M.; Rocha, B.C.; Hall-Mendelin, S.; Day, A.; Riegler, M.; et al. A wolbachia symbiont in aedes aegypti limits infection with dengue, chikungunya, and plasmodium. Cell 2009, 139, 1268–1278. [Google Scholar] [CrossRef]
  10. Humphery-Smith, I.; Grulet, O.; Chastel, C. Pathogenicity of spiroplasma taiwanense for larval aedes aegypti mosquitoes. Med. Vet. Entomol. 1991, 5, 229–232. [Google Scholar] [CrossRef]
  11. Humphery-Smith, I.; Grulet, O.; Le Goff, F.; Chastel, C. Spiroplasma (mollicutes: Spiroplasmataceae) pathogenic for aedes aegypti and anopheles stephensi (diptera: Culicidae). J. Med. Entomol. 1991, 28, 219–222. [Google Scholar] [CrossRef]
  12. Jupatanakul, N.; Sim, S.; Dimopoulos, G. The insect microbiome modulates vector competence for arboviruses. Viruses 2014, 6, 4294–4313. [Google Scholar] [CrossRef]
  13. Chang, T.H.; Lo, W.S.; Ku, C.; Chen, L.L.; Kuo, C.H. Molecular evolution of the substrate utilization strategies and putative virulence factors in mosquito-associated spiroplasma species. Genome Biol. Evol. 2014, 6, 500–509. [Google Scholar] [CrossRef] [PubMed]
  14. Chepkemoi, S.T.; Mararo, E.; Butungi, H.; Paredes, J.; Masiga, D.; Sinkins, S.P.; Herren, J.K. Identification of spiroplasmainsolitum symbionts in anopheles gambiae. Wellcome Open Res. 2017, 2, 90. [Google Scholar] [CrossRef] [PubMed]
  15. Vazeille-Falcoz, M.; Perchec-Merien, A.M.; Rodhain, F. Experimental infection of aedes aegypti mosquitoes, suckling mice, and rats with four mosquito spiroplasmas. J. Invertebr. Pathol. 1994, 63, 37–42. [Google Scholar] [CrossRef] [PubMed]
  16. Utarini, A.; Indriani, C.; Ahmad, R.A.; Tantowijoyo, W.; Arguni, E.; Ansari, M.R.; Supriyati, E.; Wardana, D.S.; Meitika, Y.; Ernesia, I.; et al. Efficacy of wolbachia-infected mosquito deployments for the control of dengue. N. Engl. J. Med. 2021, 384, 2177–2186. [Google Scholar] [CrossRef]
  17. Chastel, C.; Devau, B.; Le Goff, F.; Simitzis-Le Flohic, A.M.; Gruffaz, R.; Kerdraon, G.; Gilot, B. Mosquito spiroplasmas from france and their ecology. Isr. J. Med. Sci. 1987, 23, 683–686. [Google Scholar]
  18. Whitcomb, R.F.; Chastel, C.; Abalain-Colloc, M.; Stevens, C.; Tully, J.G.; Rose, D.L.; Carle, P.; Bové, J.M.; Henegar, R.B.; Hackett, K.J.; et al. Spiroplasma cantharicola sp. Nov., from cantharid beetles (coleoptera: Cantharidae). Int. J. Syst. Evol. Microbiol. 1993, 43, 421–424. [Google Scholar] [CrossRef]
  19. Tanaka, K.; Mizusawa, K.; Saugstad, E.S. A revision of the adult and larval mosquitoes of japan (including the ryukyu archipelago and the ogasawara islands) and korea (diptera: Culicidae). Contrib. Am. Entomol. Inst. 1979, 16, 1–987. [Google Scholar]
  20. Folmer, O.; Black, M.; Hoeh, W.; Lutz, R.; Vrijenhoek, R. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit i from diverse metazoan invertebrates. Mol. Mar. Biol. Biotechnol. 1994, 3, 294–299. [Google Scholar]
  21. Uchida, L.; Shibuya, M.; Morales-Vargas, R.E.; Hagiwara, K.; Muramatsu, Y. Zika virus potential vectors among aedes mosquitoes from hokkaido, northern japan: Implications for potential emergence of zika disease. Pathogens 2021, 10, 938. [Google Scholar] [CrossRef]
  22. Igarashi, A. Isolation of a singh’s aedes albopictus cell clone sensitive to dengue and chikungunya viruses. J. Gen. Virol. 1978, 40, 531–544. [Google Scholar] [CrossRef] [PubMed]
  23. Fredriksson, N.J.; Hermansson, M.; Wilen, B.M. The choice of pcr primers has great impact on assessments of bacterial community diversity and dynamics in a wastewater treatment plant. PLoS ONE 2013, 8, e76431. [Google Scholar] [CrossRef] [PubMed]
  24. Beckers, B.; Op De Beeck, M.; Thijs, S.; Truyens, S.; Weyens, N.; Boerjan, W.; Vangronsveld, J. Performance of 16s rdna primer pairs in the study of rhizosphere and endosphere bacterial microbiomes in metabarcoding studies. Front. Microbiol. 2016, 7, 650. [Google Scholar] [CrossRef]
  25. Uemori, T.; Asada, K.; Kato, I.; Harasawa, R. Amplification of the 16s-23s spacer region in rrna operons of mycoplasmas by the polymerase chain reaction. Syst. Appl. Microbiol. 1992, 15, 181–186. [Google Scholar] [CrossRef]
  26. Hatamoto, M.; Imachi, H.; Ohashi, A.; Harada, H. Identification and cultivation of anaerobic, syntrophic long-chain fatty acid-degrading microbes from mesophilic and thermophilic methanogenic sludges. Appl. Environ. Microbiol 2007, 73, 1332–1340. [Google Scholar] [CrossRef] [PubMed]
  27. Lazarevic, V.; Gaia, N.; Girard, M.; Schrenzel, J. Decontamination of 16s rrna gene amplicon sequence datasets based on bacterial load assessment by qpcr. BMC Microbiol. 2016, 16, 73. [Google Scholar] [CrossRef]
  28. Moulder, R.W.; French, F.E.; Chang, C.J. Simplified media for spiroplasmas associated with tabanid flies. Can. J. Microbiol. 2002, 48, 1–6. [Google Scholar] [CrossRef]
  29. Abalain-Colloc, M.L.; Williamson, D.L.; Carle, P.; Abalain, J.H.; Bonnet, F.; Tully, J.G.; Konai, M.; Whitcomb, R.F.; Bové, J.M.; Chastel, C. Division of group xvi spiroplasmas into subgroups. Int. J. Syst. Evol. Microbiol. 1993, 43, 342–346. [Google Scholar] [CrossRef]
  30. Koban, M.B.; Kampen, H.; Scheuch, D.E.; Frueh, L.; Kuhlisch, C.; Janssen, N.; Steidle, J.L.M.; Schaub, G.A.; Werner, D. The asian bush mosquito aedes japonicus japonicus (diptera: Culicidae) in europe, 17 years after its first detection, with a focus on monitoring methods. Parasit. Vectors 2019, 12, 109. [Google Scholar] [CrossRef]
  31. Peach, D.A.H.; Almond, M.; Pol, J.C. Modeled distributions of aedes japonicus japonicus and aedes togoi (diptera: Culicidae) in the united states, canada, and northern latin america. J. Vector Ecol. 2019, 44, 119–129. [Google Scholar] [CrossRef]
  32. Konai, M.; Clark, E.A.; Camp, M.; Koeh, A.L.; Whitcomb, R.F. Temperature ranges, growth optima, and growth rates of spiroplasma (spiroplasmataceae, class mollicutes) species. Curr. Microbiol. 1996, 32, 314–319. [Google Scholar] [CrossRef] [PubMed]
  33. Duret, S.; Batailler, B.; Dubrana, M.P.; Saillard, C.; Renaudin, J.; Béven, L.; Arricau-Bouvery, N. Invasion of insect cells by spiroplasma citri involves spiralin relocalization and lectin/glycoconjugate-type interactions. Cell Microbiol. 2014, 16, 1119–1132. [Google Scholar] [CrossRef] [PubMed]
  34. Fletcher, J.; Wayadande, A.; Melcher, U.; Ye, F. The phytopathogenic mollicute-insect vector interface: A closer look. Phytopathology 1998, 88, 1351–1358. [Google Scholar] [CrossRef] [PubMed]
  35. Kwon, M.O.; Wayadande, A.C.; Fletcher, J. Spiroplasma citri movement into the intestines and salivary glands of its leafhopper vector, circulifer tenellus. Phytopathology 1999, 89, 1144–1151. [Google Scholar] [CrossRef]
  36. Humphery-Smith, I.; Grulet, O.; Le Lay, G.; Chastel, C. Pathogenicity of spiroplasma sabaudiense (mollicute) for the cells (c6/36) of aedes albopictus (insecta: Diptera) in vitro. Bull. Soc. Pathol. Exot. Fil. 1988, 81, 752–765. [Google Scholar]
  37. Steiner, T.; McGarrity, G.J.; Phillips, D.M. Cultivation and partial characterization of spiroplasmas in cell cultures. Infect. Immun. 1982, 35, 296–304. [Google Scholar] [CrossRef]
  38. Abalain-Colloc, M.L.; Rosen, L.; Tully, J.G.; Bovë, J.M.; Chastel, C.; Williamson, D.L. Spiroplasma taiwanense sp.Nov. From culex tritaeniorhynchus mosquitoes collected in taiwan. Int. J. Syst. Evol. Microbiol. 1988, 38, 103–107. [Google Scholar]

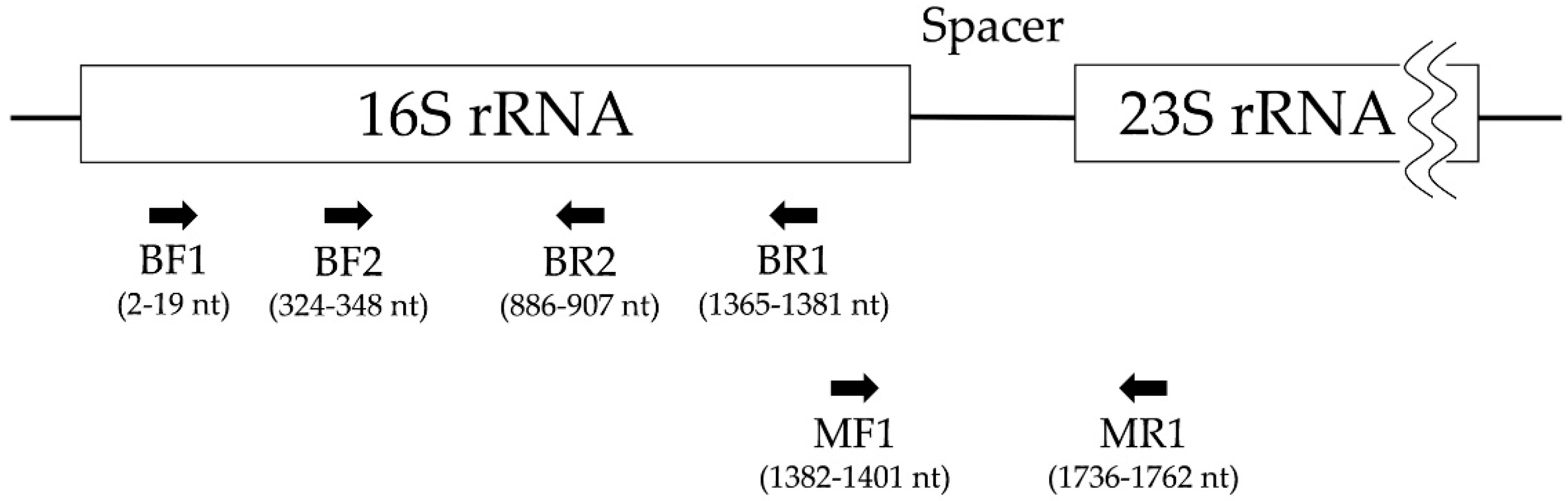

Figure 1. Map showing the location of primers on the 16S rRNA and 23S rRNA gene of Spiroplasma. Locations of the primers used in this study are shown by black arrows (Table S1). Nucleotide positions are based on Spiroplasma sp. (GenBank accession no. AJ245996.1).
Figure 1. Map showing the location of primers on the 16S rRNA and 23S rRNA gene of Spiroplasma. Locations of the primers used in this study are shown by black arrows (Table S1). Nucleotide positions are based on Spiroplasma sp. (GenBank accession no. AJ245996.1).
Insects 12 01056 g001
Figure 2. Cytopathogenic effect of our isolate on C6/36 cells. Mosquito-derived homogenate caused strong CPE on C6/36 cells (A). The mock control does not show any CPE (B). The experiment was conducted in duplicate, and the cell culture fluid was blindly passed five times in total.
Figure 2. Cytopathogenic effect of our isolate on C6/36 cells. Mosquito-derived homogenate caused strong CPE on C6/36 cells (A). The mock control does not show any CPE (B). The experiment was conducted in duplicate, and the cell culture fluid was blindly passed five times in total.
Insects 12 01056 g002

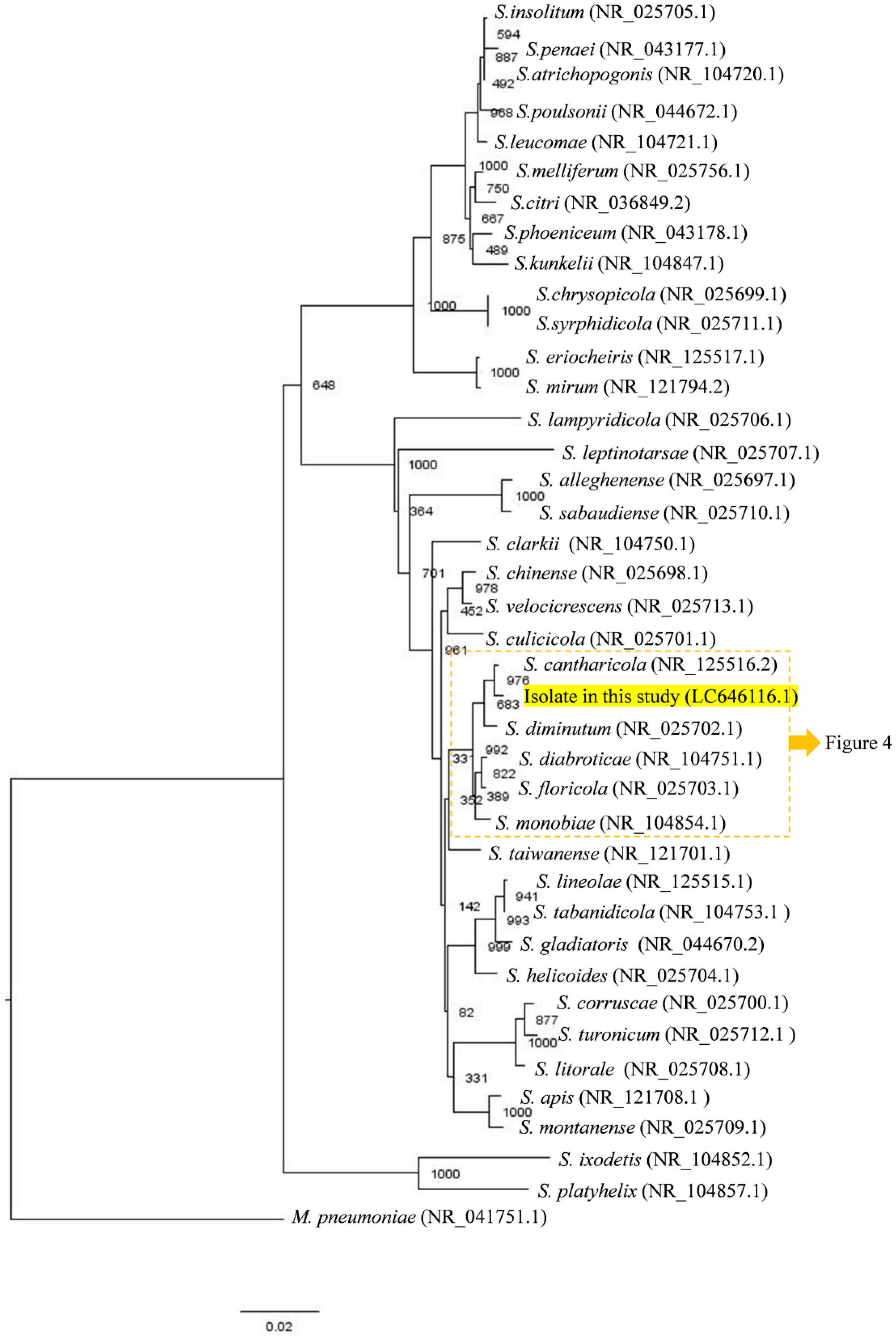

Figure 3. Phylogenetic tree showing the relationship between the Spiroplasma sp. isolated in this study and other Spiroplasmas. Approximately 1250 bp of the 16S rRNA nucleotide sequences of the genus Spiroplasma were aligned by ClustalW with 1000 bootstrap replicates, and the tree was visualized by FigTree. All Spiroplasma species that have been determined to the species name were included in the tree. The available sequences were selected from NCBI Reference Sequence Database, and Mycoplasma pneumoniae was added as an outgroup. The numbers in the nodes indicate bootstrap values. Candidatus Spiroplasma holothuricol was excluded from the analysis.
Figure 3. Phylogenetic tree showing the relationship between the Spiroplasma sp. isolated in this study and other Spiroplasmas. Approximately 1250 bp of the 16S rRNA nucleotide sequences of the genus Spiroplasma were aligned by ClustalW with 1000 bootstrap replicates, and the tree was visualized by FigTree. All Spiroplasma species that have been determined to the species name were included in the tree. The available sequences were selected from NCBI Reference Sequence Database, and Mycoplasma pneumoniae was added as an outgroup. The numbers in the nodes indicate bootstrap values. Candidatus Spiroplasma holothuricol was excluded from the analysis.
Insects 12 01056 g003

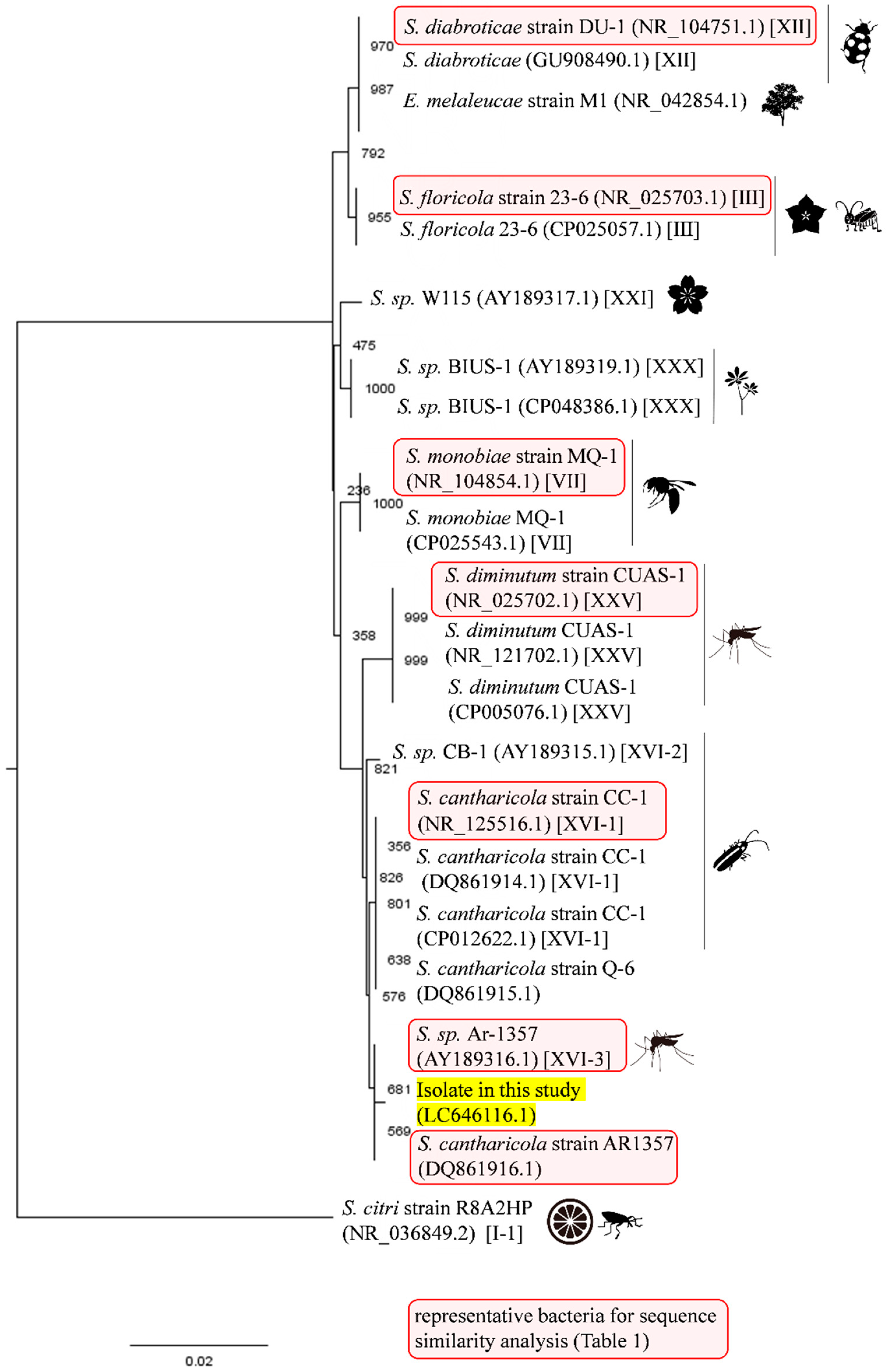

Figure 4. Phylogenetic tree of the Spiroplasma sp. isolated in this study and the top 20 strains from a BLAST search. Approximately 1283 bp of 16S rRNA nucleotide sequences from the top 20 most similar Spiroplasma strains were aligned by ClustalW with 1000 bootstrap replicates. The image was visualized by FigTree. The Roman numerals in brackets show serogroups reported in a previous study (Table S2). Illustrations in addition to the labels indicate the hosts of the bacteria (Table S2) [2]. S. citri was added as an outgroup. The numbers in the nodes indicate bootstrap values.
Figure 4. Phylogenetic tree of the Spiroplasma sp. isolated in this study and the top 20 strains from a BLAST search. Approximately 1283 bp of 16S rRNA nucleotide sequences from the top 20 most similar Spiroplasma strains were aligned by ClustalW with 1000 bootstrap replicates. The image was visualized by FigTree. The Roman numerals in brackets show serogroups reported in a previous study (Table S2). Illustrations in addition to the labels indicate the hosts of the bacteria (Table S2) [2]. S. citri was added as an outgroup. The numbers in the nodes indicate bootstrap values.
Insects 12 01056 g004
Figure 5. Colony on the PPLO and R2 agar plates. The cell culture supernatant that showed CPE on C6/36 was inoculated onto a PPLO agar plate and incubated at 28 °C under 5% CO2. At 15 days PI, an image of a single colony was captured with a digital camera (A). The single colony on the PPLO agar plate was picked, and plated onto R2 agar, and incubated in the same manner as the PPLO agar plate. An image of a single colony on R2 agar plate was captured at 19 days PI (B).
Figure 5. Colony on the PPLO and R2 agar plates. The cell culture supernatant that showed CPE on C6/36 was inoculated onto a PPLO agar plate and incubated at 28 °C under 5% CO2. At 15 days PI, an image of a single colony was captured with a digital camera (A). The single colony on the PPLO agar plate was picked, and plated onto R2 agar, and incubated in the same manner as the PPLO agar plate. An image of a single colony on R2 agar plate was captured at 19 days PI (B).
Insects 12 01056 g005
Figure 6. Growth curve of our isolate in R2 broth medium and color change of the medium. Bacteria at 103 CFU/mL in R2 broth medium were placed into 96-well plates and incubated at 28 °C or 37 °C under 5% CO2. The culture fluid was collected daily, and the bacteria titer was determined using R2 agar (A). The experiments were conducted twice independently, and the average titer was calculated. Error bars in the graph indicate standard error, and the dotted lines show detection limit of the assay. The color change of R2 broth medium at 7 days PI is shown in (B).
Figure 6. Growth curve of our isolate in R2 broth medium and color change of the medium. Bacteria at 103 CFU/mL in R2 broth medium were placed into 96-well plates and incubated at 28 °C or 37 °C under 5% CO2. The culture fluid was collected daily, and the bacteria titer was determined using R2 agar (A). The experiments were conducted twice independently, and the average titer was calculated. Error bars in the graph indicate standard error, and the dotted lines show detection limit of the assay. The color change of R2 broth medium at 7 days PI is shown in (B).
Insects 12 01056 g006

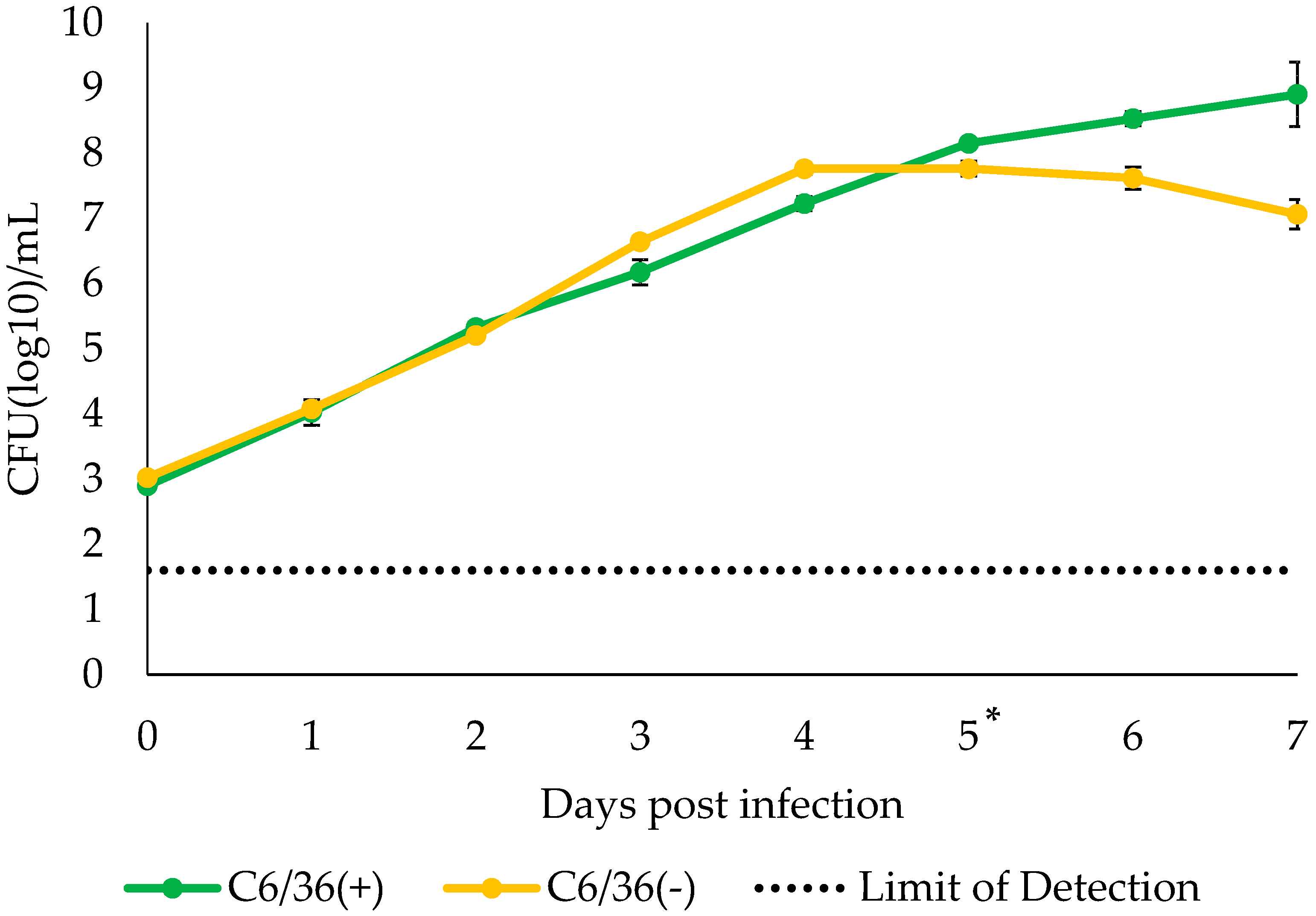

Figure 7. Growth curve of our isolate co-cultured with C6/36 cells. Bacteria at 103 CFU/mL were spiked into 2% FBS-MEM and incubated at 28 °C under 5% CO2 with or without C6/36 cells. The supernatant was collected daily, and the bacteria titer was determined using R2 agar. The experiments were conducted twice independently and the average titer was calculated. Error bars in the graph indicate standard error, and the dotted lines show limit of detection in the assay. Asterisk in the figure indicates the point that C6/36 cells started to show CPE.
Figure 7. Growth curve of our isolate co-cultured with C6/36 cells. Bacteria at 103 CFU/mL were spiked into 2% FBS-MEM and incubated at 28 °C under 5% CO2 with or without C6/36 cells. The supernatant was collected daily, and the bacteria titer was determined using R2 agar. The experiments were conducted twice independently and the average titer was calculated. Error bars in the graph indicate standard error, and the dotted lines show limit of detection in the assay. Asterisk in the figure indicates the point that C6/36 cells started to show CPE.
Insects 12 01056 g007
Table 1. Species similarities based on 16S rRNA sequences from the Spiroplasma sp. isolated in this study and other representative bacteria.
Table 1. Species similarities based on 16S rRNA sequences from the Spiroplasma sp. isolated in this study and other representative bacteria.
Isolate
in This Study
(LC646116.1)
S. cantharicola
Strain AR1357
(DQ861916.1)
Spiroplasma sp. Ar-1357
(AY189316.1)
S. cantharicola
Strain CC-1
(NR_125516.1)
S. diminutum
Strain CUAS-1
(NR_025702.1)
S. monobiae
Strain MQ-1
(NR_104854.1)
S. floricola
Strain 23-6
(NR_025703.1)
S. cantharicola
strain AR1357
(DQ861916.1)
99.8%
(1281/1283)
Spiroplasma sp. Ar-1357
(AY189316.1)
99.8%
(1281/1283)
99.8%
(1502/1505)
S. cantharicola
strain CC-1
(NR_125516.1)
99.7%
(1279/1283)
99.9%
(1503/1505)
99.7%
(1500/1504)
S. diminutum
strain CUAS-1
(NR_025702.1)
99.2%
(1273/1283)
98.9%
(1351/1366)
99.4%
(1507/1516)
99.3%
(1493/1504)
S. monobiae
strain MQ-1
(NR_104854.1)
99.1%
(1272/1283)
99.3%
(1456/1467)
99.3%
(1457/1467)
99.2%
(1455/1467)
98.9%
(1451/1467)
S. floricola
strain 23-6
(NR_025703.1)
98.8%
(1268/1283)
98.9%
(1351/1366)
99.0%
(1364/1378)
98.9%
(1351/1366)
99.0%
(1364/1378)
99.4%
(1355/1363)
S. diabroticae
strain DU-1
(NR_104751.1)
98.8%
(1267/1283)
98.9%
(1487/1504)
99.0%
(1493/1508)
98.9%
(1487/1504)
99.2%
(1496/1508)
99.3%
(1457/1467)
99.7%
(1366/1370)
