Can Anastatus bifasciatus Be Used for Augmentative Biological Control of the Brown Marmorated Stink Bug in Fruit Orchards?

CABI, Rue des Grillons 1, 2800 Delémont, Switzerland
Institute of Ecology and Evolutionary Biology, University of Bremen, Leobener Str. NW2, 28359 Bremen, Germany
Servizio Fitosanitario Cantonale, Dipartimento Delle Finanze e Dell’economia, Sezione Dell’agricoltura Viale S. Franscini 17, 6501 Bellinzona, Switzerland
Consorzio Fitosanitario Provinciale di Modena, Via Santi Venceslao 14, 41123 Modena, Italy
Dipartimento di Scienze della Vita, Centro BIOGEST-SITEIA, Università di Modena e Reggio Emilia, Via G. Amendola 2, 42122 Reggio-Emilia, Italy
Author to whom correspondence should be addressed.
Insects 2019, 10(4), 108;
Submission received: 20 March 2019 / Revised: 11 April 2019 / Accepted: 12 April 2019 / Published: 15 April 2019
(This article belongs to the Special Issue Pest Control in Fruit Trees)


The generalist egg parasitoid Anastatus bifasciatus (Geoffroy) (Hymenoptera: Eupelmidae) is the most prevalent egg parasitoid of the invasive Halyomorpha halys (Stål) (Hemiptera: Pentatomidae) in Europe. To assess its efficacy against the pest H. halys and to validate the potential risks for non-target species in a realistic field setting, inundative releases were conducted over three consecutive years in four fruit orchards in Switzerland and Italy. In total, more than 4300 A. bifasciatus females were released, which was equivalent to 11,000 to 26,000 females per hectare, depending on distances between trees in each orchard. Parasitism of freeze-killed sentinel H. halys eggs achieved with the current release strategy was on average 6% (range: 2%–16%) and considered not high enough to effectively suppress the pest. However, the overall impact of A. bifasciatus on the mortality of H. halys eggs was likely underestimated. If pre-imaginal parasitoid mortality (3.3%) and host feeding (6%) are added to the observed parasitism (6%), the actual induced mortality of H. halys eggs may reach more than 15%. Parasitism of lepidopteran non-target species reached an average of 8% and thus, some degree of non-target parasitism after mass releases may be expected. To quantify the impact of the parasitoids in the orchards more precisely, naturally laid egg masses should be used in future trials to include host-finding cues of the host and host plants, and larger scale releases with potentially higher densities of parasitoids should be considered.

Graphical Abstract

1. Introduction

Egg parasitoids (e.g., Trichogramma spp.) are advantageous for augmentative biological control because they reduce host populations before the damaging stages of the pest [1,2]. A less well-known group of parasitoids is the genus Anastatus Motschulsky (Hymenoptera: Eupelmidae), which comprises primary endoparasitoids of a wide variety of hosts in the insect orders Hemiptera, Lepidoptera, Blattodea, Orthoptera, and Mantodea [3,4,5]. Anastatus species are part of biological control programs worldwide and are used against a number of hemipteran pests such as fruitspotting bugs, Amblypelta nitida Stål and A. lutescens lutescens Distant (Coreidae), in Australian macadamia orchards [6,7,8], the citrus green stink bug, Rhynchocoris humeralis Thunberg (Pentatomidae), in Nepal [9] or the litchi stink bug, Tessaratoma papillosa Drury (Pentatomidae), in China [10,11,12]. In the Beijing Province of China, Anastatus sp. has been successfully mass released against the brown marmorated stink bug Halyomorpha halys (Stål) (Pentatomidae) with parasitism levels of more than 60% [13].
Halyomorpha halys is native to China, Japan as well as Korea, and has become invasive in the Americas and Europe in the mid-1990s and early 2000s, respectively [14,15,16]. Since its arrival in Switzerland, it has spread throughout many European countries [17]. It is a pest of a wide variety of economically important vegetable, fruit, and leguminous crops as well as ornamentals in both its native and invaded range [18,19]. Severe damage has been caused in fruit crops and hazelnuts in the USA, Georgia, and Italy [20,21,22]. In response, the number of insecticide treatments in certain regions has increased four-fold since the introduction of H. halys, thereby disrupting existing integrated pest management (IPM) programs, which led to outbreaks of secondary insect pests [20]. Due to the negative environmental effects of pesticide applications, environmentally friendly solutions such as biological control are needed. Augmentative biological control using native natural enemies against invasive species is a new approach and, to date, only a few examples exist, such as the use of Trichopria drosophilae Perkins (Hymenoptera: Diapriidae) against the spotted wing drosophila Drosophila suzukii (Matsumura) (Diptera: Drosophilidae) [23,24]. In Switzerland and Italy, Anastatus bifasciatus (Geoffroy) is the most prevalent native parasitoid successfully parasitizing H. halys eggs in the field [25,26,27]. It is one of the two European egg parasitoids capable of developing in viable H. halys eggs [26,28] and thus, it was selected as a potential candidate for inundative biological control of H. halys in Europe. Its host range, however, comprises more than 50 heteropteran and lepidopteran species and there are concerns that mass releases of A. bifasciatus might lead to undesired non-target effects [29,30].
The present experimental field study aimed to assess the efficacy of A. bifasciatus against H. halys and validate the potential risks for non-target species in a realistic field setting. Inundative releases were conducted over three consecutive years in four fruit orchards in Switzerland and Italy to develop a release strategy and answer the following questions: (1) What level of egg parasitism can be achieved by releasing A. bifasciatus against H. halys in fruit orchards? (2) Are non-target species parasitized by A. bifasciatus in the field? (3) Does A. bifasciatus persist in fruit orchards after releases?

2. Materials and Methods

2.1. Parasitoid Rearing

The laboratory rearing of A. bifasciatus originated from two parasitized H. halys egg masses collected by S. Fischer (Agroscope Changins, Nyon, Switzerland) in the Canton of Valais, Switzerland, in 2014 [25]. Individuals of the founder population were identified by L. Fusu (University of Iasi, Romania). Approximately 50 adults (sex ratio 1:1) were kept in 100 × 115 mm mesh-top cylindrical plastic containers, placed above a 90 × 20 mm Petri dish filled with 1:10 honey water solution, which was provided to the parasitoids by two cotton wicks connecting the Petri dish to the plastic container. The rearing containers were stored in an incubator at a light/temperature cycle of L 16 h/20 °C and D 8 h/15 °C. Twice a week the wasps in each container were provided with approximately 150 new host eggs glued to cardboard pieces. The removed egg cards were stored at 26 °C until the emergence of the new generation. Newly emerged wasps were collected daily and transferred to the rearing containers. In the first year of the study (2016), A. bifasciatus was reared on eggs of H. halys. When females were seven days old, they were provided with new eggs until the day of release. In the second and third year (2017/2018), to increase the rearing and produce larger females [30] A. bifasciatus females were reared on a mix of H. halys and Dendrolimus pini (L.) (Lepidoptera: Lasiocampidae) eggs in Switzerland and on a mix of H. halys and Manduca sexta (Lepidoptera: Sphingidae) in Italy. Halyomorpha halys eggs were produced following the methods described in Reference [30].

2.2. Release Sites

Releases were conducted in three apple orchards in Switzerland and a single pear orchard in Italy (Table 1). In each orchard, an area of 60 trees in 4 neighboring rows (15 trees per row) located in the center of the orchard was selected as release plot. Depending on the distance between rows and between trees within rows the size of the plots varied between 210 and 480 m2 (Table 1). All sites were equipped with a data logger (“HOBO Pendant Temperature/Light 64K”, Onset Computer Corporation, Bourne, MA, USA), to record the ambient temperature for the length of the experiment.

2.3. Egg Exposure

2.3.1. Parasitoid Efficacy and Persistence

Halyomorpha halys eggs were collected daily from the laboratory rearing, frozen for no longer than one month at −80 °C and thawed earliest two days before the release date. For exposure, egg masses with at least 20 eggs were used (mean ± SE: 26.0 ± 0.09). In each step of the experiment, sentinel H. halys egg masses were glued directly on the underside of leaves of apple/pear trees at a height of 50 to 180 cm. Branches of various host plants with feeding traces of H. halys were taken from the laboratory rearing cages and fixed next to the egg masses (one branch per egg mass) with a twist tie to increase the chance of parasitism by adding chemical cues of the host. Exposure times varied between four and seven days, depending on local weather conditions and phytosanitary treatment schedules (Table 2).
Five days prior releases, 25 H. halys egg masses were randomly distributed in each orchard, independent of its size, to measure parasitism of potential natural A. bifasciatus populations at each site (Table 2). On the day of the release, these egg masses were recollected, and 90 new egg masses were exposed inside the experimental plot (Table 2). Within the plot, 15 trees each were randomly equipped with 0, 1, 2, or 3 H. halys egg masses. During the first two releases in site 1 (2016), 32 H. halys egg masses each were exposed on 16 trees outside of, but in close proximity to, the experimental plot (up to eight meters distance) (Figure 1). Four to seven days after all parasitoid releases, exposed egg masses were recollected (Table 2). Fourteen days after the release, an additional 55 egg masses were placed out to monitor the persistence of the parasitoids (Table 2). Twenty-five of those egg masses were randomly distributed over 25 trees within the entire orchard, while the remaining 30 egg masses were placed on every second tree within the release plots.

2.3.2. Non-target parasitism

Depending on the availability of non-target species in each year of the study, eggs of six different lepidopteran species were exposed in the four release events (Table 3). In Switzerland, apart from Euthrix potatoria (L.) (Lasiocampidae), all non-target species were obtained from commercial insect breeders, the majority as pupae, and Macrothylacia rubi (L.) (Lasiocampidae) as eggs. Euthrix potatoria caterpillars were collected in Bärschwil, Switzerland, and reared until the adult stage in 50 × 50 × 50 cm gauze cages (“BugDorm-4090 Insect Rearing Cage”, MegaView Science Co. Ltd., Taichung, Taiwan) on Dactylis glomerata L. (Poaceae), which was replaced daily. Once the adult stage was reached, all non-target species were kept in a 50 × 50 × 50 cm gauze cage for oviposition and provided with honey water and if necessary, their associated host plants as oviposition stimulus. In Italy, adult females of Macrothylacia rubi (L.) (Lasiocampidae) and Lasiocampa quercus (L.) (Lasiocampidae) were collected in natural parks using light traps and placed in 50 × 50 × 50 cm gauze cages (one cage for each species) together with their host plants as oviposition stimulus.
Newly laid eggs (<24 h) were frozen for no longer than one month at −80 °C and thawed no more than two days before the release date. Freeze-killed non-target egg batches of three to six eggs (see Table 3) were added to about half of the trees inside the release plot that were previously equipped with H. halys egg masses (28 and 24 out of 45 trees in 2016 and 2017/18, respectively). The density of non-target egg masses was matched with the densities of H. halys egg masses (0, 1, 2, or 3 egg masses), but not with the total number of eggs within the egg masses (Table 3). Non-target egg masses were randomly assigned to trees within the plot and egg batches were glued on the underside of leaves in close vicinity of the H. halys egg masses.
In the first release event in 2016, mainly E. potatoria eggs were exposed, but to better understand the potential influence of different non-target hosts, seven additional trees within the plot were equipped with one H. halys and one Samia cynthia (Drury) (Saturniidae) egg mass each. In all following release events, only eggs of single non-target species were used, apart from the release at site 4, where each tree was equipped with three eggs of M. rubi and three eggs of Lasiocampa quercus (L.) (Lasiocampidae) (Table 3).

2.4. Parasitoid Releases

All females used for releases were considered experienced with the target host because they were provided with H. halys eggs prior to releases. Females were deprived of hosts the week before release, so they would store their eggs and have a higher egg load when released. The day before release, females 1 to 5 weeks of age were transferred with glass pipettes into release devices and stored overnight under the rearing conditions described above. Release devices were made of clear plastic cups (8 cm high, 6 cm wide at the top). At the bottom, a small opening used for transferring the parasitoids was covered with a piece of foam dipped in honey to provide parasitoids with food. The top of the cup was covered with mesh wide enough (1.9 × 1.8 mm) to allow A. bifasciatus females to pass. For transport, the cups were closed with screw lids. In addition, cups were wrapped with black paper to ensure parasitoids would move upwards towards the natural light when cups were opened for release. Twelve cups containing 45 females each were equally distributed along the four rows of the plot (3/row) and placed at least five meters apart from each other. Cups were hung into the canopy at a height of 80 cm and fixed with twist ties. For release, screw lids were removed, and within the first hour, all parasitoids had left the containers.

2.5. Treatment of Recollected Eggs

Recollected eggs were stored individually in small 54 × 14 mm Petri dishes at 26 °C, 70% RH, and a 16L:8D photoperiod. Eggs were counted and assigned to one of the following categories: collapsed, chewed, sucked (see Reference [32]) or intact eggs. Collapsed eggs were defined as eggs that looked undamaged but had lost more than half of their volume.
Emerging wasps were counted, sexed and collected daily until no emergence was observed for four weeks. Parasitism was measured by the total number of eggs producing offspring divided by the sum of all intact eggs. Eggs that had been attacked by chewing or sucking predators or had collapsed in the field were excluded from the analysis since it was not possible to detect whether these eggs had been parasitized. Predation was calculated by the number of eggs showing signs of chewing or sucking divided by the sum of eggs with signs of predation and intact eggs. Halyomorpha halys and non-target egg masses recovered in 2017 were overwintered in 54 × 14 mm Petri dishes under outdoor conditions in an open wooden shelter [Canton Jura, Switzerland (N47°22’23; E 7°19’32)] four weeks after emergence had stopped. The following year, egg masses were checked daily for emergence from May onwards.

2.6. Statistical Analyses

The influence of the distance to the closest release point on egg parasitism levels was analyzed for the first two years of the experiment, using a linear regression with the Theil-Sen estimator modified by Siegel repeated medians. The relationship between host density (measured as recovered H. halys eggs from a tree) and host impact was investigated using a generalized linear model (GLM) with a quasipoisson error distribution with the log link function. Statistical analyses were conducted with R version 3.2.3 [33] using the development environment RStudio Version 1.0.136 [34]. The package applied for the Theil-Sen estimator was ‘mblm’ [35].

3. Results

3.1. Parasitoid Efficacy and Persistence

Natural parasitism of sentinel egg masses prior to releases was overall low (site 2) or absent, with the exception of site 4 (Carpi), where it reached 28% (7 out of 25 egg masses). At site 1 (Lindau), parasitoids had been released in 2016, but no parasitism was detected in eggs exposed prior to releases in 2017.
After releasing A. bifasciatus, parasitism of sentinel H. halys eggs was detected in each orchard (Figure 2). On average, 22.04% ± 5.41% (SE) (range: 6.67%–37.6%) (n = 8) of the recovered egg masses were parasitized. Since only an average of 28.2% ± 4.15% (SE) (range: 18.4%–48.4%) (n = 8) of the eggs in parasitized egg masses yielded parasitoid offspring (host exploitation), the actual egg parasitism was much lower, averaging 6.02% ± 1.70% (SE) (range: 2.00%–16.0%) (n = 8) when data from all years and release events were combined. Eggs that were exposed at sites 1 and 2 in July/August 2017 did not produce any A. bifasciatus offspring after overwintering in 2018. There was no significant relationship between host density, measured as the number of recovered eggs per tree, and number of parasitized eggs (quasipoisson GLM, df = 1,80, χ2 = 0.00775, p = 0.930). Both chewing and sucking predation was recorded at all sites (Figure 3), averaging 5.29% ± 1.83% (SE) (range: 0.04%–13.1%) and 0.789% ± 0.458% (SE) (range: 0.00%–3.88%) (both n = 8), respectively (Figure 3). Halyomorpha halys egg masses placed outside the release plots in the first two releases (site 1, 2016) yielded parasitoid offspring, but the level of parasitism was low. The number of parasitized H. halys eggs increased with decreasing distance to the nearest release point (linear regression, df = 119, v = 254.5, p < 0.001; Figure 4).
Sentinel H. halys egg masses exposed two weeks after A. bifasciatus releases yielded parasitoid offspring in three out of the eight release events. However, in the one case where natural A. bifasciatus population were found in the orchard, it remains unclear if detected parasitism was caused by released parasitoids or naturally occurring ones (site 4). On average, A. bifasciatus offspring emerged from 3.24% ± 1.73% (SE) (range: 0.00%–16.7%) (n = 9) of the recovered egg masses and from 2.30% ± 1.75% (SE) (range: 0.00%–16.0%) (n = 9) of the recovered eggs.

3.2. Non-target Parasitism

Non-target parasitism occurred at all release sites, and five out of six non-target species yielded A. bifasciatus offspring. There was no indication of parasitism of S. cynthia eggs (recovered n = 29 eggs). The average parasitism of non-target eggs over all the eight releases was 8.11% ± 2.42% (SE) (n = 8), when eggs of the five parasitized species were combined (E. potatoria: 2.30%, n = 175; O. pruni: 6.70%, n = 120; D. pini: 7.58% n = 145; L. quercus: 11.7%, n = 103; M. rubi: 16.9%, n = 124) and ranged from 1.63% to 22.2% (n = 8) between release events (Figure 5). On average, 12.3% ± 4.20% (SE) (range: 3.3%1–39.4%) (n = 8) of the recovered non-target egg masses were parasitized, and an average of 51.3% ± 8.84% (SE) (range: 19.2%–100%) (n = 8) of the eggs in parasitized egg masses yielded parasitoid offspring (Figure 5).

4. Discussion

After experimental releases of A. bifasciatus females, moderate parasitism of sentinel H. halys eggs was detected in all eight release events at the four experimental sites. In two out of eight release events parasitism of sentinel eggs by natural A. bifasciatus populations was detected prior to releases. Accordingly, for these releases, it was impossible to distinguish if the observed parasitism following the releases was indeed caused by the released parasitoids or naturally occurring ones. In comparison, field releases of another European egg parasitoid, Ooencyrtus telenomicida (Vassiliev) (Hymenoptera: Encyrtidae) only elicited parasitism at 3 out of 6 release sites [26]. When estimating parasitism as the proportion of trees carrying at least one parasitized sentinel egg mass, A. bifasciatus was recovered from 30% of the trees. This is comparable with the results of experimental releases of Anastatus sp. in Australian macadamia orchards against fruitspotting bugs Amblypelta nitida Stål and A. lutescens lutescens Distant (Hemiptera: Coreidae), where parasitized host eggs were recovered from 24% of the plot trees [8].
Host exploitation (proportion of parasitized eggs within an egg mass) by A. bifasciatus was rather low (28%), which may be explained by the low weekly fecundity of the parasitoids [36], assuming that parasitized egg masses were visited by single or few females. In the present study, A. bifasciatus females were deprived of host eggs for one-week prior releases to increase the number of stored eggs and parasitoids’ host searching motivation [37], but this approach did not result in higher host exploitation. Unfortunately, there is no information about the behavior of A. bifasciatus in the field that might help explain the low exploitation values and improve release efficacy. To increase host exploitation by decreasing patch-leaving stimuli, dispersal capacities can be reduced by arresting natural enemies within the patch with chemical cues [37].
When data from all releases were combined, total egg parasitism was on average 6%. Based on the mean host exploitation value in the field (6.70 eggs), only 1% of the 540 released females would have been responsible for the observed parasitism if each of the egg masses was found by only one female. This could also be connected to the small experimental plots, where dispersal is more likely than from bigger areas such as a whole orchard. Calculations carried out by Reference [38] after releases of Trichogramma nubilale Ertle and Davis (Hymenoptera: Trichogrammatidae) revealed that every day 40% of the parasitoid females disappeared, which was attributed to the hot and dry weather conditions. In the present study, weather conditions at release sites were extremely hot and dry over the three years of the study and may have caused some degree of adult mortality. Another factor that might have influenced observed parasitism levels is intraguild predation. Some sentinel eggs that showed signs of predation also had A. bifasciatus host feeding marks, indicating that at least some parasitized eggs had been eaten by predators. As interactions between parasitoids and predators of H. halys have not been studied so far [28], future studies on the subject could provide valuable input.
Host location of parasitoids is facilitated by a number of cues that can either be emitted by the host plant [39], the host itself [40] or a combination of the two factors. The experimental design of the current study was aimed to provide natural conditions and include host cues provided by branches with feeding and walking traces of H. halys next to the sentinel egg masses, assuming that these traces guide parasitoids to their hosts, as demonstrated for Trissolcus basalis (Wollaston) (Hymenoptera: Scelionidae) locating egg masses of Nezara viridula (L.) (Heteroptera: Pentatomidae) [41]. At the beginning of the release experiments, the factors influencing the host finding of A. bifasciatus were unknown, but in the meantime [42] demonstrated that A. bifasciatus positively responded to adult H. halys male volatiles and to H. halys-induced plant volatiles, indicating ability to exploit cues associated with the new host for egg location. Consequently, sentinel H. halys egg masses exposed in this study may have lacked important chemical cues associated with H. halys egg masses in nature, resulting in much lower host finding and thus, lower parasitism by A. bifasciatus. In a preliminary trial at site 4, reproductive H. halys adults were set up in sleeve cages on randomly selected trees two days before the A. bifasciatus release with the aim to expose naturally laid and frozen egg masses simultaneously. Although the number of egg masses laid in the sleeve cages (n = 8) was too low to obtain meaningful results, parasitism of naturally laid eggs (n = 99) was remarkably higher (48.5%) compared to the frozen sentinel eggs (16%), indicating the importance of considering naturally laid egg masses in future release trials (LM, EC, SC, unpublished data).
Apart from trying to increase host exploitation, releasing higher numbers of parasitoids is another alternative to increase pest suppression. In the present study, the release density was 540 female A. bifasciatus per 60 trees, which translates to 11,000 (site 4) to 26,000 (site 1) females per hectare, depending on the distances between rows and trees within rows. In comparison, many commercial and experimental releases involve larger quantities of parasitoids, such as several times 100,000 Trichogramma per hectare [43]. In China, commercial releases of the closely related A. japonicus against less severe infestations of the litchi stink bug, T. papillosa, required180 females per medium-sized tree, which is significantly more than in the present experiments, and yield an average of 52–94% parasitism in the first year of its releases [44].
Measuring parasitism by offspring emergence is less labor-intensive than dissections, but underestimates the actual levels of parasitism if a proportion of individuals cannot undergo complete development. Dissections of parasitized hosts often have the disadvantage that tiny eggs and early instar larvae of parasitoids can be hard to detect inside hosts, and remains of dead parasitoids may be difficult to recognize when hosts decay. An alternative method to detect parasitoids inside their hosts is the use of molecular markers [45,46]. The analysis of remaining unemerged eggs from parasitized egg masses from site 1 in 2017 showed that 14% contained dead developmental stages of A. bifasciatus [47], suggesting that host exploitation was indeed much higher than what was measured by offspring emergence. Another important behavioral trait of A. bifasciatus is host feeding [36]. Since many parasitoids kill hosts by host feeding as well as parasitism, this is a factor that should not be neglected when estimating the efficacy of a parasitoid. To avoid additional damage by increasing H. halys densities in the fruit orchards, freeze-killed H. halys egg masses had to be used for the experiments. As a consequence, it was not possible to assess the number of host eggs killed by A. bifasciatus host feeding in the field. However, data from previous laboratory studies suggest that the number of eggs killed by host feeding is nearly as high as the number of eggs killed by parasitization, which may double the estimated host mortality [36,48]. In addition, parasitoid efficacy might be distinctly higher in a real infestation situation because using sentinel egg masses may underestimate parasitism [49]. If preimaginal parasitoid mortality (3.3%) and host feeding (6%) are added to the observed parasitism (6% offspring emergence), the actual induced mortality of H. halys eggs may have been 15.3%.
Higher parasitism of H. halys may be accompanied by higher non-target parasitism since the host impact values for non-targets (8%) and the target (6%) are similar. These findings agree with studies on the physiological host range of A. bifasciatus, showing that most non-target species where as frequently parasitized and suitable for development as the target host [36]. Even though arthropod biodiversity in apple orchards tends to be higher than in annual crops [50,51], reviewed by [52], insect diversity, in other words, the number of potential non-targets, was still comparably low at our experimental sites. Consequently, potential dispersal of released A. bifasciatus into habitats outside the orchards is a more important factor in its risk assessment [53]. In this study, the parasitoid movement could only be confirmed up to eight meters from the closest release point. Other Anastatus species, however, can disperse up to 60 meters [8,44] and, with wind dispersal, up to 100 meters [44]. Since parasitism levels of sentinel eggs were low, the results of the experiment looking at parasitoid movement are not conclusive and further investigations are needed. As A. bifasciatus has the potential longevity of three months (97.5 days when provided with honey water) [36], released wasps were expected to persist in the fruit orchards, but their presence was only retained for two weeks in three out of eight release events which could also be attributed to dispersal. Since releases were conducted in late summer, nectar sources were hardly available in the orchards, which may have caused a large proportion of parasitoids to leave the orchards and disperse into other habitats.

5. Conclusions

Field releases of A. bifasciatus can increase parasitism of H. halys eggs in fruit orchards, but parasitism levels achieved with the current release strategy were not high enough to effectively suppress the pest. However, the overall impact is likely higher when mortality of parasitoid eggs and larvae inside host eggs and host egg mortality by host feeding are taken into account. Consequently, releasing higher densities of parasitoids, and at a larger scale to reduce the impact of dispersal, should be considered. In addition, naturally laid egg masses should be used in future trials to include host-finding cues of the host and host plants and avoid potential adverse effects of frozen sentinel eggs. If those changes result in an increase of overall parasitism under field conditions, future augmentative releases should be carried out in correspondence with the egg laying peak of the overwintered generation in May/June to have a greater impact in reducing H. halys populations along the entire season. Some degree of non-target parasitism after mass releases can be expected, but whether non-targets would be negatively affected at the population level will require further investigations, including dispersal studies.

Author Contributions

Conceptualization, T.H., D.B. and J.M.S.; methodology, T.H., D.B., J.M.S., E.C., S.C. and L.M.; formal analysis, J.M.S.; investigation, J.M.S., T.H., CM, E.C., S.C. and D.B.; resources, T.H., CM, S.C. and L.M.; data curation, J.M.S. and E.C.; writing—original draft preparation, J.M.S.; writing—review and editing, T.H., D.B. and L.M.; visualization, J.M.S.; supervision, T.H. and D.B.; project administration, J.M.S.; funding acquisition, T.H., D.B., CM and L.M.


This project has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No 641456. Additional funding was provided by the Phytosanitary Service of the Canton Ticino, and the Associazione frutticoltori ticinesi. For the Italian part, funding was granted by the Consorzio Fitosanitario Provinciale di Modena.


The authors are grateful to Serge Fischer (Agroscope Changins, Nyon, Switzerland) for providing the original A. bifasciatus colony. For Switzerland, we would like to thank Warren Wong, Giorgia Frei, Patrick Mrazek, Taylor Kaye, Chelsey Blackman, Darren Blackburn, Jessica Fraser, Lindsay Craig, Christie Laing, Anna Grunsky, Mariah Ediger and Giorgia Mattei for technical assistance. For Italy, we thank Giacomo Vaccari, Luca Casoli (Consorzio Fitosanitario Provinciale di Modena) and Emanuele Di Bella, Giacomo Bulgarini, Marina Cortiello and Cristiano Carapezzi (UNIMORE) for technical assistance in the field and in the laboratory. We are grateful to all growers, especially Cesare Bassi, for allowing us to use their orchard for our studies in Switzerland and Mauro Magnanini for allowing to use his orchard in Italy. We appreciate the taxonomic guidance offered by Lucian Fusu (University of Iasi, Romania). We gratefully acknowledge the funding provided for this research by the following organizations and agencies: CABI is an international intergovernmental organization, and we gratefully acknowledge the core financial support from our member countries (and lead agencies) including the United Kingdom (Department for International Development), China (Chinese Ministry of Agriculture), Australia (Australian Centre for International Agricultural Research), Canada (Agriculture and Agri-Food Canada), Netherlands (Directorate-General for International Cooperation), and Switzerland (Swiss Agency for Development and Cooperation). See for full details.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Bigler, F.; Wajnberg, E.; Hassan, S.A. Quality control in Trichogramma production. In Biological Control with Egg Parasitoids; CAB International: Wallingford, UK, 1994. [Google Scholar]
  2. Smith, S.M. Biological control with Trichogramma: Advances, successes, and potential of their use. Annu. Rev. Entomol. 1996, 41, 375–406. [Google Scholar] [CrossRef] [PubMed]
  3. Narasimham, A.U.; Sankaran, T. Biology of Anastatus umae (Hymenoptera: Eupelmidae), an oothecal parasite of Neostylopyga rhombifolia. Colemania 1982, 1, 135–140. [Google Scholar]
  4. Jones, W.A. World review of the parasitoids of the southern green stink bug, Nezara viridula (L.)(Heteroptera: Pentatomidae). Annu. Entomol. Soc. Am. 1988, 81, 262–273. [Google Scholar] [CrossRef]
  5. Askew, A. A new European species of Anastatus Motschulsky (Hym., Eupelmidae). Entomol. Mag. 2005, 141, 1697–1699. [Google Scholar]
  6. Fay, H.; De Faveri, S. Egg parasitoids of fruitspotting bugs (Amblypelta spp.): Potential for their mass-rearing and strategic release. In Final Report HG308; Queensland Department of Primary Industries: Mareeba, Australia, 1997; p. 23. [Google Scholar]
  7. Huwer, R.; Maddox, C.D.; Fay, H.; Llewellyn, R.; Danne, A.; Hickey, M.; Melville, P.; Burnett, J.; Allen, A.; Groves, I. A multi target approach to fruitspotting bug management. In Proceedings of the VII World Avocado Congress 2011, Cairns, Australia, 5–9 September 2011. Research agreement 2011, MT10049:50. [Google Scholar]
  8. Govender, A.W. Australian Fruitspotting Bugs, Amblypelta nitida Stål and A. lutescens lutescens Distant (Hemiptera: Coreidae), and the Potential for Their Biologically Based Management in Macadamia Orchards. Ph.D. Thesis, University of Queensland, Brisbane, Australia, 2015. [Google Scholar]
  9. Shrestha, R. Productivity Improvement of Citrus Fruits through Effective Fruit Drop Management Technique in the Mid and Far Western Development Region of Nepal; Technical Report; National Citrus Research Program: Dhankuta, Nepal, 2011; p. 7. [Google Scholar]
  10. Chen, Y.; Lin, L.; Chen, J. Preliminary report of study on the release of Anastatus for the control of the stink bug (Tessaratoma papillosa). Fujian Agric. Sci. Technol. 1990, 2, 15–16. [Google Scholar]
  11. He, J.; Guo, L.; Tang, F.; Zhang, F.; Li, F.; Zhao, Z. The study of control Tessaratoma papillosa by releasing Anastatus japonicus. Guangxi Zhiwu 2001, 21, 163–165. [Google Scholar]
  12. Huang, M.; Mai, S.; Wu, W.; Poo, C. The bionomics of Anastatus sp. and its utilization for the control of lichee stink bug Tessaratoma papillosa Drury. Acta Entomol. Sin. 1974, 17, 362–375. [Google Scholar]
  13. Hou, Z.; Liang, H.; Chen, Q.; Hu, Y.; Tian, H. Application of Anastatus sp. against Halyomorpha halys. For. Pests Dis. 2009, 4, 39. [Google Scholar]
  14. Hoebeke, E.R.; Carter, M.E. Halyomorpha halys (Stǻl) (Heteroptera: Pentatomidae): A polyphagous plant pest from Asia newly detected in North America. Proc. Entomol. Soc. Wash. 2003, 105, 225–237. [Google Scholar]
  15. Wermelinger, B.; Wyniger, D.; Forster, B. First records of an invasive bug in Europe: Halyomorpha halys Stal (Heteroptera: Pentatomidae), a new pest on woody ornamentals and fruit trees? Mitt. Schweiz. Entomol. Ges. 2008, 81, 1–8. [Google Scholar]
  16. Faúndez, E.I.; Rider, D.A. The brown marmorated stink bug Halyomorpha halys (Stål, 1855) (Heteroptera: Pentatomidae) in Chile. Arq. Entomolóxicos 2017, 17, 305–307. [Google Scholar]
  17. Leskey, T.C.; Nielsen, A.L. Impact of the invasive brown marmorated stink bug in North America and Europe: History, biology, ecology, and management. Annu. Rev. Entomol. 2018, 63, 599–618. [Google Scholar] [CrossRef]
  18. Kobayashi, T. The developmental stages of some species of the Japanese Pentatomoidea (Hemiptera): XVI. Homalogonia and an allied genus of Japan (Pentatomidae). Appl. Entomol. Zool. 1967, 2, 1–8. [Google Scholar]
  19. Lee, D.-H.; Short, B.D.; Joseph, S.V.; Bergh, J.C.; Leskey, T.C. Review of the biology, ecology, and management of Halyomorpha halys (Hemiptera: Pentatomidae) in China, Japan, and the Republic of Korea. Environ. Entomol. 2013, 42, 627–641. [Google Scholar] [CrossRef] [PubMed]
  20. Leskey, T.C.; Hamilton, G.C.; Nielsen, A.L.; Polk, D.F.; Rodriguez-Saona, C.; Bergh, J.C.; Herbert, D.A.; Kuhar, T.P.; Pfeiffer, D.; Dively, G.P.; et al. Pest status of the brown marmorated stink bug, Halyomorpha halys in the USA. Outlooks Pest Manag. 2012, 23, 218–226. [Google Scholar] [CrossRef]
  21. Bosco, L.; Moraglio, S.T.; Tavella, L. Halyomorpha halys, a serious threat for hazelnut in newly invaded areas. J. Pest Sci. 2017, 91, 661–670. [Google Scholar] [CrossRef]
  22. Maistrello, L.; Vaccari, G.; Caruso, S.; Costi, E.; Bortolini, S.; Macavei, L.; Foca, G.; Ulrici, A.; Bortolotti, P.P.; Nannini, R.; et al. Monitoring of the invasive Halyomorpha halys, a new key pest of fruit orchards in northern Italy. J. Pest Sci. 2017, 90, 1231–1244. [Google Scholar] [CrossRef]
  23. Chabert, S.; Allemand, R.; Poyet, M.; Eslin, P.; Gibert, P. Ability of European parasitoids (Hymenoptera) to control a new invasive Asiatic pest, Drosophila suzukii. Biol. Control 2013, 63, 40–47. [Google Scholar] [CrossRef]
  24. Rossi Stacconi, M.V.; Grassi, A.; Ioriatti, C.; Anfora, G. Augmentative releases of Trichopria drosophilae for the suppression of early season Drosophila suzukii populations. BioControl 2019, 64, 9–19. [Google Scholar] [CrossRef]
  25. Haye, T.; Fischer, S.; Zhang, J.; Gariepy, T. Can native egg parasitoids adopt the invasive brown marmorated stink bug, Halyomorpha halys (Heteroptera: Pentatomidae), in Europe? J. Pest Sci. 2015, 88, 693–705. [Google Scholar] [CrossRef]
  26. Roversi, P.F.; Marianelli, L.; Costi, E.; Maistrello, L.; Sabbatini, P.G. Searching for native egg-parasitoids of the invasive alien species Halyomorpha halys (Stål) (Heteroptera Pentatomidae) in Southern Europe. Redia 2016, 99, 63–70. [Google Scholar]
  27. Costi, E.; Haye, T.; Maistrello, L. Surveying native egg parasitoids and predators of the invasive Halyomorpha halys in Northern Italy. J. Appl. Entomol. 2019, 143, 299–307. [Google Scholar] [CrossRef]
  28. Abram, P.K.; Hoelmer, K.A.; Acebes-Doria, A.; Andrews, H.; Beers, E.H.; Bergh, J.C.; Bessin, R.; Biddinger, D.; Botch, P.; Buffington, M.L.; et al. Indigenous arthropod natural enemies of the invasive brown marmorated stink bug in North America and Europe. J. Pest Sci. 2017, 90, 1009–1020. [Google Scholar] [CrossRef]
  29. Noyes, J.; Universal Chalcidoidea Database—World Wide Web Electronic Publication. Natural History Museum Update March. Available online: (accessed on 15 October 2018).
  30. Stahl, J.M.; Babendreier, D.; Haye, T. Using the egg parasitoid Anastatus bifasciatus against the invasive brown marmorated stink bug in Europe: Can non-target effects be ruled out? J. Pest Sci. 2018, 91, 1005–1017. [Google Scholar] [CrossRef] [PubMed]
  31. Google Site 1, Canton of Zurich, Switzerland. Available online: (accessed on 15 December 2018).
  32. Morrison, W.R.; Lee, D.H.; Short, B.D.; Khrimian, A.; Leskey, T.C. Establishing the behavioral basis for an attract-and-kill strategy to manage the invasive Halyomorpha halys in apple orchards. J. Pest Sci. 2016, 89, 81–96. [Google Scholar] [CrossRef]
  33. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2017; Available online: (accessed on 20 June 2015).
  34. RStudio Team. RStudio: Integrated Development for R. RStudio, Inc., Boston, MA. 2016. Available online: (accessed on 20 June 2015).
  35. Komsta, L. Median-Based Linear Models, R Package Version; 2005. Available online: (accessed on 20 July 2015).
  36. Stahl, J.M.; Babendreier, D.; Haye, T. Life history of Anastatus bifasciatus, a potential biological control agent of the brown marmorated stink bug in Europe. Biol. Control 2019. [Google Scholar] [CrossRef]
  37. Mills, N.J.; Wajnberg, E. Optimal foraging behavior and efficient biological control methods. In Behavioral Ecology of Insect Parasitoids: From Theoretical Approaches to Field Applications; John Wiley & Sons: Hoboken, NJ, USA, 2008; pp. 3–30. [Google Scholar]
  38. Andow, D.A.; Prokrym, D.R. Release density, efficiency and disappearance of Trichogramma nubilale for control of European corn borer. Entomophaga 1991, 36, 105–113. [Google Scholar] [CrossRef]
  39. Vinson, S.B. Habitat location. In Semiochemicals: Their Role in Pest Control; Wiley: New York, NY, USA, 1981. [Google Scholar]
  40. Weseloh, R.M.; Anderson, J.F. Inundative release of Apanteles melanoscelus against the gypsy moth. Environ. Entomol. 1975, 4, 33–36. [Google Scholar] [CrossRef]
  41. Colazza, S.; Salerno, G.; Wajnberg, E. Volatile and contact chemicals released by Nezara viridula (Heteroptera: Pentatomidae) have a kairomonal effect on the egg parasitoid Trissolcus basalis (Hymenoptera: Scelionidae). Biol. Control 1999, 16, 310–317. [Google Scholar] [CrossRef]
  42. Rondoni, G.; Bertoldi, V.; Malek, R.; Foti, M.C.; Peri, E.; Maistrello, L.; Haye, T.; Conti, E. Native egg parasitoids recorded from the invasive Halyomorpha halys successfully exploit volatiles emitted by the plant–herbivore complex. J. Pest Sci. 2017, 90, 1087–1095. [Google Scholar] [CrossRef]
  43. Os, N.; Varshney, R. Utilization of Trichogrammatid egg parasitoids in pest management. Acta Sci. Agric. 2018, 2, 49–53. [Google Scholar]
  44. Li, D.S.; Liao, C.; Zhang, B.X.; Song, Z.W. Biological control of insect pests in litchi orchards in China. Biol. Control 2014, 68, 23–36. [Google Scholar] [CrossRef]
  45. Gariepy, T.D.; Kuhlmann, U.; Gillott, C.; Erlandson, M. A large-scale comparison of conventional and molecular methods for the evaluation of host–parasitoid associations in non-target risk-assessment studies. J. Appl. Ecol. 2008, 45, 708–715. [Google Scholar] [CrossRef]
  46. Gariepy, T.D.; Haye, T.; Zhang, J. A molecular diagnostic tool for the preliminary assessment of host–parasitoid associations in biological control programmes for a new invasive pest. Mol. Ecol. 2014, 23, 3912–3924. [Google Scholar] [CrossRef]
  47. Stahl, J.M.; Gariepy, T.G.; Beukeboom, L.W.; Haye, T. A molecular tool to identify Anastatus parasitoids of the brown marmorated stink bug. Entomol. Exp. Appl. 2019; in press. [Google Scholar]
  48. Konopka, J.K.; Haye, T.; Gariepy, T.D.; McNeil, J.N. Possible coexistence of native and exotic parasitoids and their impact on control of Halyomorpha halys. J. Pest Sci. 2017, 90, 1119–1125. [Google Scholar] [CrossRef]
  49. Jones, A.L.; Jennings, D.E.; Hooks, C.R.; Shrewsbury, P.M. Sentinel eggs underestimate rates of parasitism of the exotic brown marmorated stink bug, Halyomorpha halys. Biol. Control 2014, 78, 61–66. [Google Scholar] [CrossRef]
  50. Risch, S.J.; Andow, D.; Altieri, M.A. Agroecosystem diversity and pest control: Data, tentative conclusions, and new research directions. Environ. Entomol. 1983, 12, 625–629. [Google Scholar] [CrossRef]
  51. Kozár, F. Organization of arthropod communities in agroecosystems. Acta Phytopathol. Entomol. Hung. 1992, 27, 365–373. [Google Scholar]
  52. Simon, S.; Bouvier, J.C.; Debras, J.F.; Sauphanor, B. Biodiversity and pest management in orchard systems. In Sustainable Agriculture; Springer: Dordrecht, The Netherlands, 2011; Volume 2, pp. 693–709. [Google Scholar]
  53. Rand, T.A.; Tylianakis, J.M.; Tscharntke, T. Spillover edge effects: The dispersal of agriculturally subsidized insect natural enemies into adjacent natural habitats. Ecol. Lett. 2006, 9, 603–614. [Google Scholar] [CrossRef]

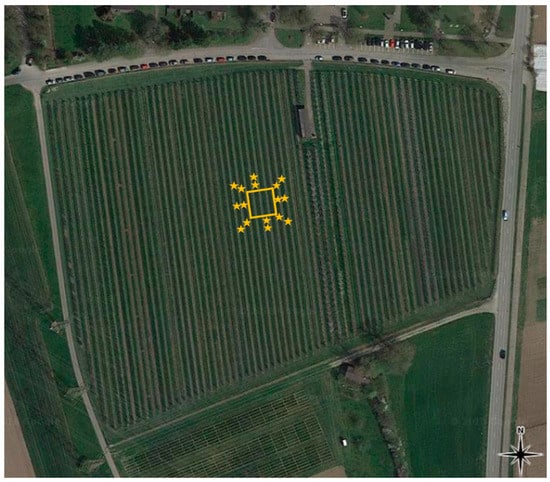

Figure 1. Site 1 with release plot (golden square) for releases 2016–2018, position of H. halys egg masses outside of release plot in 2016. Changed after Reference [31].
Figure 1. Site 1 with release plot (golden square) for releases 2016–2018, position of H. halys egg masses outside of release plot in 2016. Changed after Reference [31].
Insects 10 00108 g001

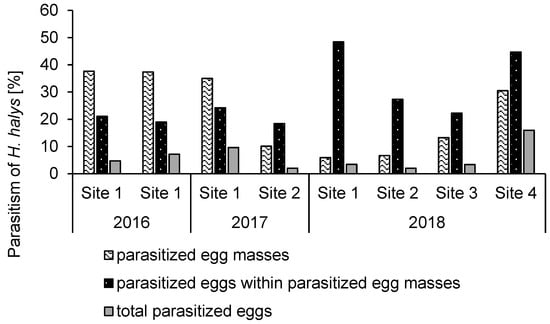

Figure 2. Parasitism measured by A. bifasciatus offspring emergence of sentinel H. halys egg masses exposed after A. bifasciatus releases for 4–7 days between 2016 and 2018 in Switzerland and Italy. Site numbers correspond with Table 1.
Figure 2. Parasitism measured by A. bifasciatus offspring emergence of sentinel H. halys egg masses exposed after A. bifasciatus releases for 4–7 days between 2016 and 2018 in Switzerland and Italy. Site numbers correspond with Table 1.
Insects 10 00108 g002

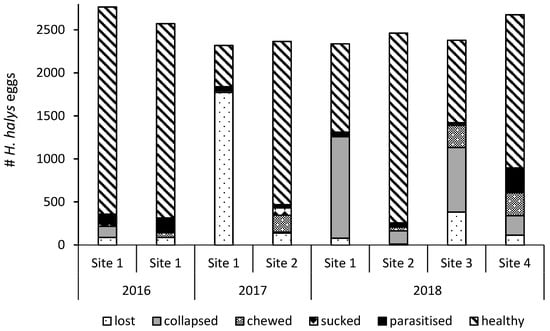

Figure 3. Fate of sentinel H. halys eggs exposed inside the release plots in Switzerland and Italy for 4–7 days after A. bifasciatus releases. Site numbers correspond with Table 1.
Figure 3. Fate of sentinel H. halys eggs exposed inside the release plots in Switzerland and Italy for 4–7 days after A. bifasciatus releases. Site numbers correspond with Table 1.
Insects 10 00108 g003

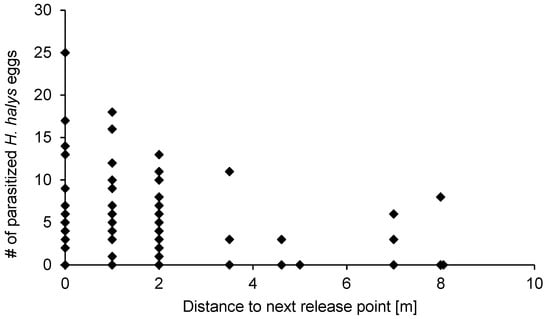

Figure 4. Number of H. halys eggs parasitized by A. bifasciatus depending on the distance to the closest release point during the first two releases in 2016 (site 1).
Figure 4. Number of H. halys eggs parasitized by A. bifasciatus depending on the distance to the closest release point during the first two releases in 2016 (site 1).
Insects 10 00108 g004

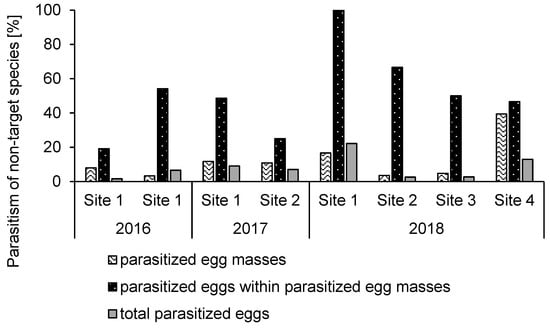

Figure 5. Parasitism measured by A. bifasciatus offspring emergence of sentinel non-target egg masses exposed after A. bifasciatus releases for 4–7 days between 2016 and 2018 in Switzerland and Italy. Site numbers correspond with Table 1.
Figure 5. Parasitism measured by A. bifasciatus offspring emergence of sentinel non-target egg masses exposed after A. bifasciatus releases for 4–7 days between 2016 and 2018 in Switzerland and Italy. Site numbers correspond with Table 1.
Insects 10 00108 g005
Table 1. Field sites for experimental A. bifasciatus releases between 2016 and 2018.
Table 1. Field sites for experimental A. bifasciatus releases between 2016 and 2018.
SiteLocation (Municipality, Canton/Region, Country)GPS CoordinatesManagementHost Plants in Plot (Species, Variety)H. halys PresenceRelease Plot Size [m2]Number of Releases
1Lindau, Zurich, Switzerland47°26’52.0″N 8°40’47.6″EIPMMalus pumila, Golden Delicious/Diwa/Braeburnno2104
2Bellinzona, Ticino, Switzerland46°09’42.1″N 8°58’12.2″EIPMMalus pumila, Golden Delicious/Braeburnyes2882
3Manno, Ticino, Switzerland46°01’52.8″N 8°55’20.4″EOrganicMalus pumila, unknown varietiesyes2121
4Carpi, Emilia-Romagna, Italy44°43’46.8″N 10°52’30.0″EOrganicPyrus communis, Abate Fetelyes4801
Table 2. Overview of H. halys egg masses exposed before parasitoid releases (“pre-release monitoring”), directly after releases within the release plot (“release”) and two weeks after releases (“post-release monitoring”).
Table 2. Overview of H. halys egg masses exposed before parasitoid releases (“pre-release monitoring”), directly after releases within the release plot (“release”) and two weeks after releases (“post-release monitoring”).
Exposure DateLocationTreatmentMean Temperature (Min – Max) [°C]Egg Masses (Eggs) ExposedEgg Masses (Eggs) Recovered 1
23.–28. Jul1 – LindauPre-release monitoring22.4 (12.9–36.0)25 (657)22 (575)
28. Jul – 2. AugRelease21.7 (12.4–38.3)97 (2653)93 (2409)
11.–16. AugPost-release monitoring21.8 (9.6–36.6)55 (1480)54 (1459)
16.–21. AugRelease20.4 (12.1–36.6)90 (2410)83 (2258)
17.–21. Jul1 – LindauPre-release monitoring23.0 (13.8–34.5)25 (623)15 (298)
29. Jul–3. AugRelease23.2 (15.3–35.0)90 (2273)20 (479)
10.–17. AugPost-release monitoring18.8 (10.2–32.7)55 (1410)23 (562)
2.–10. Aug2 – BellinzonaPre-release monitoring23.4 (15.3–38.5)25 (637)20 (416)
14.–21. AugRelease23.1 (10.9–35.2)90 (2327)89 (1897)
28. Aug–4. SepPost-release monitoring21.2 (12.3–33.5)55 (1387)53 (774)
19.–25. Jul2 – BellinzonaPre-release monitoring25.0 (13.9–38.3)25 (685)22 (1371)
25.–30. JulRelease26.1 (15.5–37.9)90 (2418)90 (2205)
8.–13. AugPost-release monitoring23.7 (16.8–36.4)55 (2697)51 (1940)
19.–25. Jul4 – CarpiPre-release monitoring25.0 (16.0–35.0)25 (694)25 (363)
25.–30. JulRelease26.5 (17.0–36.5)90 (2392)82 (1780)
9.–14. AugPost-release monitoring25.4 (17.0–35.5)55 (1469)55 (958)
25.–30. Jul3 – MannoPre-release monitoring26.6 (15.3–44.5)25 (752)20 (545)
30. Jul–3. AugRelease28.0 (17.5–39.4)90 (2347)68 (957)
13.–17. AugPost-release monitoring23.1 (14.6–34.7)55 (1677)51 (1345)
6.–10. Aug 1 – LindauPre-release monitoringNa25 (611)10 (58)
11.–15. AugReleaseNa90 (2303)85 (1026)
24.–28. AugPost-release monitoringNa55 (1760)51 (1536)
Total 1287 (35,662)1082 (25,340)
1 healthy looking eggs, neither collapsed nor predated on.
Table 3. Exposure of non-target eggs during experimental A. bifasciatus field releases 2016–2018.
Table 3. Exposure of non-target eggs during experimental A. bifasciatus field releases 2016–2018.
SpeciesSiteYearEgg Batch SizeTotal # Eggs Exposed/Site
Samia cynthia (Drury) (Saturniidae)12016642
Euthrix potatoria (L.) (Lasiocampidae)120166252
Odonestis pruni (L.) (Lasiocampidae)120164168
Dendrolimus pini (L.) (Lasiocampidae)1, 220174192
Lasiocampa quercus (L.) (Lasiocampidae)1, 2, 3, 420186 (3 in site 4)288 (144)
Macrothylacia rubi (L.) (Lasiocampidae)420183144
