A Practical Approach to Gear Design and Lubrication: A Review

Abstract

The modern design of mechanical parts, such as gears, goes through the continuous demand for a high level of efficiency and reliability, as well as an increased load carrying capacity and endurance life. The aim of the present paper was to perform a review and to collect practical examples in order to provide interesting tips and guidelines for gear design, including both its dimensioning and its lubrication. From this point of view, this paper is particularly novel, as it is a full-comprehensive collection of all the tools supporting gear design. Several practical aspects have been taken into account, including the definition of the right profile shifting, the selection of a proper lubricant, and the definition of the quality grade and of the tolerances needed to obtain the correct backlash. Finally, a numerical example is provided, addressing the research of the best solution to fit a given space, while maximizing the transmittable torque over weight ratio for two mating spur gears.

1. Introduction

The modern design of mechanical parts, such as gears, goes through the continuous demand for a high level of efficiency and reliability, as well as an increased load carrying capacity and endurance life. At the same time, the concepts of “robust design” and “optimization” involve nowadays the need for a very high-power density (involving smaller size, lower weight, lower noise and vibrations), as well as longer service intervals [1,2]. Finally, the aspects related to sustainability (analysis of the impact on the environment) and low-cost design are also commonly regarded as driving forces in the development of modern products. Within this framework, gear design must address, for example, low consumption of lubrication oil, keeping hydraulic losses as low as possible [3]. Oil/air mist (micro-fog) may be used for bearing and gear lubrication, especially in combination with compact design approaches, for instance in the field of machine tool industry. Regarding this point, an applicative example is shown in Figure 1. A continuous lubrication can be achieved by this strategy, involving very low oil quantities with consequent consumption sharp reduction. Depending on the application, the type of oil, whose main feature is viscosity, can be selected between ISO VG32 (high speed) and ISO VG 68 (high load). The oil flow, Q [mm³/h], being needed for lubrication by micro-fog, can be evaluated by Equation (1), where D_m is the mean bearing diameter or the gear pitch diameter.

$$Q=1.2·D_m\hspace{1em}to\hspace{1em}1.3·D_m$$

(1)

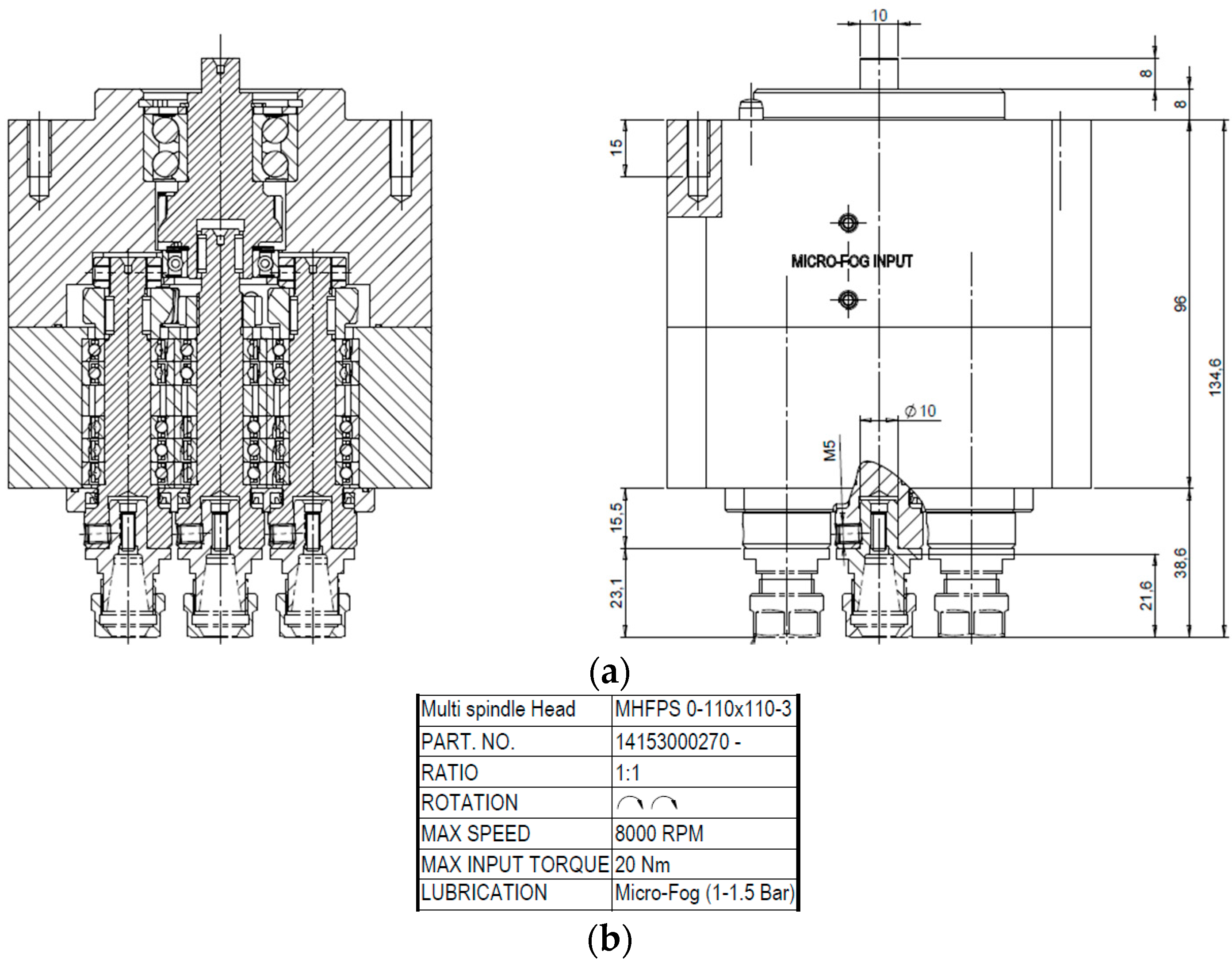

With reference to the case study in Figure 1, a MOBIL DTE LIGHT 32 oil and a centralized unit, having the capability of providing (by a suitable amount of nozzles) 5 to 30 mm³/cycle, were selected. The required oil flow, Q [mm³/h], depending on the number and size of bearings and gears, was estimated as Q = 3000 mm³/h. The nozzles were set at 15 mm³/cycle; therefore, the number of cycles requested to the nozzles, to provide the required flow was set to 200 cycles per hour. The air pressure may be set for this application between 0.3 and 2.0 bar, depending on the dimension of the components (the bigger components, the lower the pressure level).

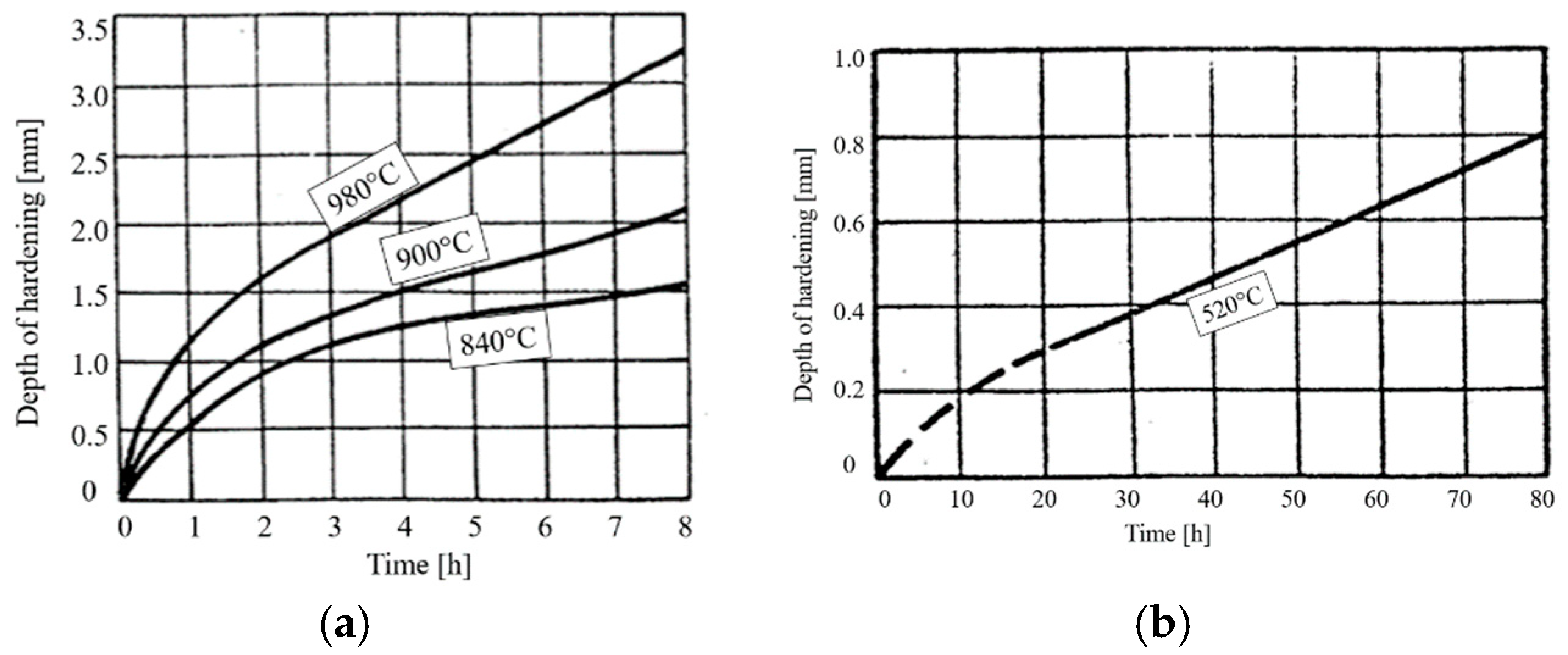

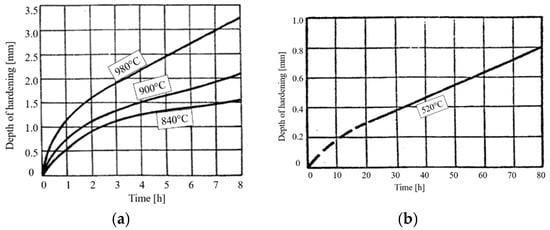

As for lubrication, the selection of the material and its thermal treatment is the other key choice, to increase the power density: case hardened and nitrided gears are the two most common alternative options [4,5,6,7,8]. Both treatments warrant improved contact (and bending) fatigue performance. The main differences between the two treatments, from the point of view of their application, are a consequence of the manufacturing cycle and of the distortions arising from the thermo-chemical process. The high temperature of the carburizing process induces larger distortions that entail subsequent machining, being usually conducted by grinding, and the consequent amount of allowance to be removed. The lower temperature of nitriding treatments allows for finishing process (milling or grinding) being completed before heat treatment, taking advantage of lower distortions. However, nitriding has the drawback of generally requiring a longer treatment duration. Moreover, it produces lower case depths, according to Figure 2.

In the past 20 years, gear design has been approached from these two points of view:

• increasing power density as much as possible, which has led to gears with asymmetric teeth, according to Reference [9,10]; and
• speeding-up gear production time, which has led to additively manufactured gears [11].

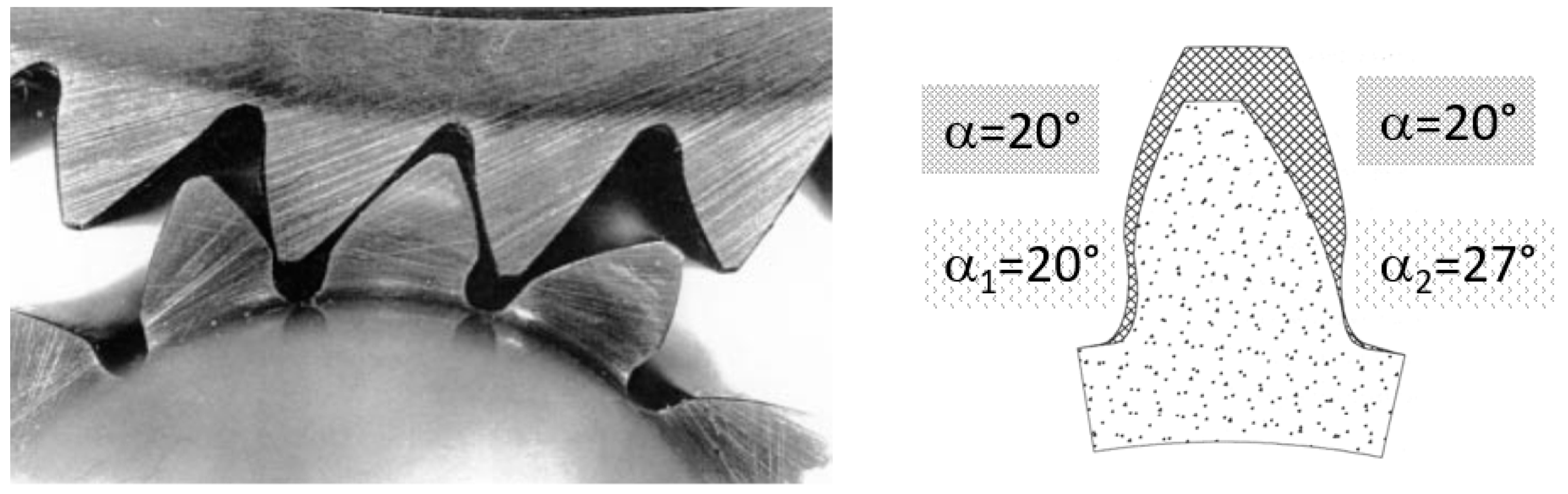

As for asymmetric gears, today, a modern 5-axes Computerized Numerical Control (CNC) machine makes it possible to cut a tooth, where the drive side is differently shaped, if compared to the coast side (see Figure 3). The effect of this tooth profile alteration can be twofold:

• Keeping the same drive side pressure angle (i.e., 20°), while increasing the coast side pressure angle (i.e., 25° to 35°), it is possible to increase tooth bending strength or to obtain the same strength for a thinner tooth head. The benefit arising from this improved shape can be expressed as a function of the difference between the drive and coast pressure angles, according to reference [12]. However, this design does not affect the actual load capacity that is limited by high contact stresses, as no change in drive side pressure angle occurs.
• Increasing drive side pressure angle, according to Reference [9], it is possible to drop down the stresses (due to both bending and contact) and, furthermore, to also reduce the vibrational level.

With regard to additively manufactured gears, a recent study [11] highlighted the performance of gears produced by Selective Laser Melting: the retrieved mechanical strength is generally lower than that of wrought material gears, especially under fatigue [13], mainly due to the induced porosities and residual stresses, but the advantage in terms of saved production time is not negligible. In addition, it is worth mentioning that forged bi-metal gears can be fabricated today [14,15].

This review paper aimed at steering the designer through gear development, based on industrial specifications, including, on one hand, its design, dimensioning, and final drawing, and, on the other hand, its most suitable lubrication. Regarding the first point, this paper deals with a collection of formulas, tables and graphs taken from standards and scientific and technical studies in the literature. These formulas have sometimes been revisited, to account for gear design (instead of just verification) purposes. As for the second point, the guidelines for lubrication this paper provides are based on the available tools in the technical literature and are strictly related to the main features of the industrial application to be developed. Issues of novelty arise from the lack of scientific or technical review studies, addressing this topic and providing what can be regarded as a full-comprehensive collection of the aforementioned tools that are expected to significantly support the design task.

2. Practical Design of Gears

The structural assessment of mating gears can be carried out by well-known standards, such as ISO [16] or American Gear Manufacturers Association, AGMA [17], thus assessing gear load capacity against both bending stresses and pitting (contact) stresses. The verification is based on the calculation of several factors that affect the nominal stresses, as well as the allowable stresses. The stress analysis may also be deepened further determining local stresses for fatigue life prediction, according to Reference [18,19,20,21]. However, these procedures require the full definition of gear geometry: In other words, verification and accurate structural assessment are possible, but gear design, starting from the white paper, is almost impossible, unless an iterative methodology is exploited. In particular, a simplified (practical) procedure must be applied, in order to coarsely design the transmission, thus defining all the starting parameters to allow for verification. This practical procedure must also account for the possible need for profile shifting (both with or without center distance variation): For this purpose, optimal values for the profile shifting coefficient should be made available to the designer. The approach in the present paper is based on the Nomenclature in the Appendix A, also according to Figure 4:

In order to warrant motion regularity, the (transverse) contact ratio must be ε_α > [1.25 to 1.4].

An example of calculation for ε_α is reported in

Table 1. Calculated values of contact ratio ε_α for spur gear using standard tool of 20° pressure angle according to ISO 53 [23] with no addendum modification (no profile shift).

Ii = 100 mm				Ii = 200 mm				Ii = 500 mm
z2/z1	z1	m	εa	z2/z1	z1	m	εa	z2/z1	z1	m	εa
1	100	1	1.853	1	200	1	1.912	1	125	4	1.875
	50	2	1.755		160	1.25	1.896		100	5	1.853
	25	4	1.612		100	2	1.853		50	10	1.755
	20	5	1.557		80	2.5	1.826	1.5	160	2.5	1.909
1.5	80	1	1.849		50	4	1.755		100	4	1.872
	64	1.25	1.821		40	5	1.714		80	5	1.849
	40	2	1.749		25	8	1.612		50	8	1.786
	32	2.5	1.708		20	10	1.557		40	10	1.749
	20	4	1.606	1.5	160	1	1.909	3	125	2	1.909
	16	5	1.551		128	1.25	1.893		100	2.5	1.893
3	50	1	1.823		80	2	1.849		50	55	1.823
	40	1.25	1.792		64	2.5	1.822		25	10	1.714
	25	2	1.714		40	4	1.749	4	200	1	1.937
	20	2.5	1.671		32	5	1.708		160	1.25	1.927
4	40	1	1.805		20	8	1.605		100	2	1.899
	32	1.25	1.773		16	10	1.550		80	2.5	1.881
	20	2	1.691	3	100	1	1.893		50	4	1.833
	16	2.5	1.647		50	2	1.823		40	5	1.805
					25	4	1.714		25	8	1.732
					20	5	1.671		20	10	1.691
					10	10	1.511
				4	80	1	1.881
					64	1.25	1.860
					40	2	1.805
					32	2.5	1.773
					20	4	1.691
					16	5	1.647

.

For powertrain design, the initially available data, to be regarded as specifications, are usually the input/output torque M_t [Nm], the input/output rotational speed n [rpm] (and therefore the transmission ratio τ), and the space available for the application, namely the theoretical wheelbase I [mm]. It is first suggested to evaluate (in a very fast and approximated way) a starting module m, based on the following Equation (2):

$$m\ge Y·\sqrt[3]{\frac{M_t·1000}{\lambda ·{\sigma }_{amm}}}.$$

(2)

In Equation (2), λ can be chosen by the designer in the following ranges (practical value λ = 8 to 12):

• 6 < λ < 10 for gearbox applications (characterized by the need for gear shifting) or for gears mounted on cantilever shaft;
• 15 < λ < 25 for gears on rigid supports;
• 25 < λ < 45 for gears on very rigid supports with rigid shaft; and Y (derived from the Lewis coefficient) can be considered equal to:
• 0.8 for z < 20;
• 0.6 for 20 < z < 40;
• 0.4 for z > 40.

The allowable stress can be assumed as σ_all~150 MPa in the case of gear made of steel. The designer is then expected to select the first available module, according to the ones in ISO 54 [24]. Subsequently, based on the starting module, it is possible to address gear design, following the steps below (input data: I, τ).

The number of teeth z_1,2 can be selected as (Equation (3)):

$$z_1=\frac{2·I}{m·\left(1+\frac{1}{\tau }\right)};\hspace{1em}{z}_2=\frac{z_1}{\tau }.$$

(3)

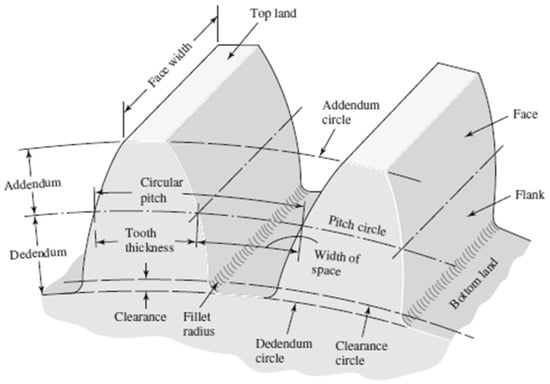

The tooth can be designed according to modular ISO 53 [23] proportion (a = m; d = 1.25 m) or to stub proportion (a = 0.8 m; d = m). Stub proportioning is suitable for highly stressed gears (generally operating under high torque, low speed) because the tooth is made stiffer. On the other hand, it must be remarked that stub design is affected by a reduced contact ratio with respect to the modular proportioning. The designer has to then calculate the contact ratio ε_α and verify the condition for motion regularity (ε_α > [1.25 to 1.4]), as well as the further condition regarding the minimum number of teeth threshold, to avoid under-cut (Equation (4)) without profile shifting:

$$z_{1\_\min }=\frac{2·a}{m·se{n}^2\vartheta }; z_{1\_\min \_ISO}=18; z_{1\_\min \_STUB}=14$$

(4)

The following step is estimating the needed profile shifting [25]. This strategy (generally regarded as positive profile shifting) can be used to obtain different advantages, such as:

• avoiding under-cut;
• improving the response of the pinion gear against bending and pitting; and
• modifying the wheelbase (working wheelbase different from theoretical wheelbase).

The working wheelbase I_i [mm] is usually selected by the designer and, as further steps, the following items may be calculated: (i) the working pressure angle ϑ_i [°]; (ii) the addition of profile shifting x₁ + x₂ [mm]; or (iii) their dimensionless coefficients δ₁ + δ₂ by Equation (5):

$$\{\begin{array}{l}\cos \left({\vartheta }_i\right)=\frac{I·\cos \left(\vartheta \right)}{I_i}\\ x_1+x_2=\frac{z_1+z_2}{2·\tan \left(\vartheta \right)}·\left(inv\left({\vartheta }_i\right)-inv\left(\vartheta \right)\right)·m;\hspace{1em}{\delta }_1+{\delta }_2=\frac{x_1+x_2}{m}\end{array}.$$

(5)

The designer has then to split the sum of profile shifting coefficients δ₁ + δ₂ into two terms, to be applied to the pinion (δ₁) and the wheel (δ₂), respectively. For this purpose, the designer may take advantage of Equation (6), based on the suggestions of Reference [26,27,28]: In particular, for a fast selection (starting point), Reference [26], highlights that the proposed Equation (6) allows, with a certain approximation, the same specific sliding at the tooth base for the pinion and the gear.

$$\{\begin{array}{l}{\delta }_1\approx \frac{{\delta }_1+{\delta }_2}{2}·\left(\frac{z_1}{100}+\tau -\tau ·\frac{z_1}{100}\right)+0.5·\left(1-\frac{z_1}{100}\right)·\left(1-\tau \right)\\ {\delta }_2=\left({\delta }_1+{\delta }_2\right)-{\delta }_1\end{array}.$$

(6)

It is then possible to determine the modified tooth shape and, in particular:

• the coefficient k, which, in turn, makes it possible to evaluate the required reduction of addendum (tooth head cutting). To ensure the same clearance (see Figure 4) with the modified working geometry (Equation (7)):

  $$k=|\frac{I_i-I-\left(x_1+x_2\right)}{m}|;$$

  (7)
• the working addendum a_i and dedendum d_i [mm] (Equation (8)):

  $$\{\begin{array}{l}{a}_{i\_1,2}=a+x_{1,2}-k·m\\ d_{i\_1,2}=d-x_{1,2}\end{array};$$

  (8)
• the actual minimum number of teeth, considering profile shifting. to avoid under-cut (Equation (9)):

  $$z_{i\_1\_min}=\frac{2·\left(a-x_1\right)}{m·si{n}^2\vartheta };$$

  (9)
• the tooth thickness si_1,2 [mm], evaluated at the reference diameter (Equation (10)):

  $$s_{i\_1,2}=m·\frac{\cos \left(\vartheta \right)}{\cos \left({\vartheta }_i\right)}·\left[\frac{\pi }{2}+2·{\delta }_{1,2}·\tan \left(\vartheta \right)-z_{1,2}·\left(inv\left({\vartheta }_i\right)-inv\left(\vartheta \right)\right)\right].$$

  (10)

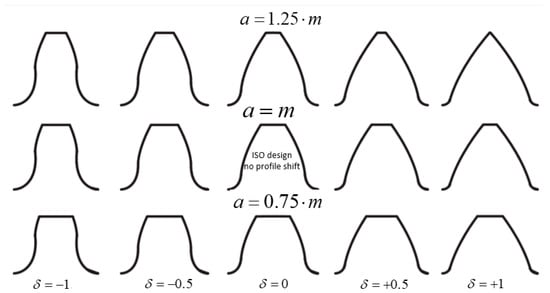

An example of tooth shape evolution, as a function of profile shifting coefficient is shown in Figure 5.

Once the geometrical parameters have been defined, it is possible to proceed with gear calculation against tooth bending and contact stresses. This procedure leads to the final accurate estimation of the gear module. The maximum stress must be lower than the allowable one: the resistance conditions for bending and pitting are reported in Equations (11) and (12), respectively (see Reference [28]):

$${\sigma }_{\max \_bending}=\frac{\left(\frac{2000·M_t}{D}\right)·q·L}{b·m·\epsilon ·{\eta }_d}\le {\sigma }_{\lim \_bending},$$

(11)

$$\{\begin{array}{l}{p}_{\max \_pitting}=f·\sqrt{\frac{\frac{\left(\frac{2000·M_t}{D}\right)·L}{b·m}·\left(\frac{1}{z_1}+\frac{1}{z_2}\right)}{{\eta }_d·{\eta }_E}}\le p_{\lim \_pitting}=\frac{2.5·H_d}{\sqrt[6]{n·h}}\\ f=\sqrt{\frac{{0.417}^2·2}{\frac{1}{2}·\left(\frac{1}{E_1}+\frac{1}{E_2}\right)·sen\left(\vartheta \right)·\cos \left(\vartheta \right)}}\end{array}.$$

(12)

With reference to these formulas, the following parameters need to be considered, according to Reference [28]:

• q is the tooth form factor (with load applied at the outer point of single tooth pair contact): it takes tooth shape into account (

  Table 2. Values of tooth factor q, according to Reference [28], for cutting pressure angle of 20° and modular (ISO 53) proportion; for stub proportion: q_stub = q·0.8.

  z Number of Teeth	δ Profile Shift Coefficient [-]
  	−0.5	−0.4	−0.3	−0.2	−0.1	0	0.1	0.2	0.3	0.4	0.5
  10	*	*	*	*	*	*	4.33	3.68	3.27	3.02	2.87
  12	*	*	*	*	*	4.75	3.84	3.37	3.06	2.88	2.79
  15	*	*	*	*	4.55	3.9	3.45	3.15	2.92	2.78	2.7
  20	*	*	4.85	4.23	3.76	3.37	3.12	2.92	2.76	2.66	2.6
  25	4.9	4.44	4.04	3.71	3.41	3.14	2.98	2.82	2.69	2.6	2.55
  30	4.13	3.87	3.64	3.45	3.24	3.05	2.89	2.75	2.64	2.56	2.52
  35	3.83	3.65	3.45	3.29	3.12	2.97	2.82	2.7	2.6	2.54	2.49
  40	3.68	3.51	3.34	3.18	3.04	2.9	2.77	2.66	2.57	2.52	2.47
  50	3.47	3.32	3.17	3.03	2.91	2.8	2.69	2.6	2.53	2.48	2.44
  60	3.34	3.2	3.07	2.95	3.83	2.72	2.64	2.57	2.5	2.46	2.42
  80	3.14	3.02	2.92	2.81	2.7	2.63	2.57	2.51	2.46	2.42	2.39
  100	3.02	2.91	2.82	2.72	2.64	2.57	2.53	2.48	2.43	2.4	2.38
  150	2.84	2.76	2.69	2.62	2.55	2.5	2.46	2.43	2.39	2.37	2.36

  * undercut: not possible.

  );
• L is the dynamic factor, which accounts for load increments due to dynamic effects upon load application (

  Table 3. Values of load application factor L, according to Reference [28].

  L = [1–1.25]	Regular Motion—No Shocks
  L = [1.25–1.5]	Limited shocks
  L = [1.5–1.75]	Small shocks
  L = [1.75–2.5]	Big shocks

  );
• ε is the factor considering load sharing between more than one tooth pair (

  Table 4. Values of load sharing coefficient ε, according to Reference [28].

  z	ε	z	ε
  10	1.25	25	1.33
  11	1.26	30	1.36
  12	1.26	35	1.39
  13	1.27	40	1.42
  14	1.27	45	1.44
  15	1.28	50	1.47
  16	1.28	60	1.52
  17	1.29	70	1.58
  18	1.29	80	1.63
  19	1.30	90	1.69
  20	1.31	100	1.75

  );
• ƞ_d is the factor that takes speed effect into account (

  Table 5. Values of speed effect coefficient ƞ_d according to Reference [28]: (a) gears with quality grade from 6 to 8 [ƞ_d = 5.6/(5.6 + v^0.5)]; (b) gears with quality grade from 4 to 7 (for quality grade definition, see the next section).

  (a)
  v [m/s]		ƞd		1/ƞd
  5		0.71		1.40
  6		0.70		1.44
  7		0.68		1.47
  8		0.66		1.51
  9		0.65		1.54
  10		0.64		1.56
  11		0.63		1.59
  12		0.62		1.62
  (b)
  v [m/s]	ƞd	1/ƞd	v [m/s]	ƞd	1/ƞd
  5	1	1	13	0.83	1.2
  6	1	1	14	0.82	1.22
  7	1	1	15	0.81	1.24
  8	1	1	16	0.8	1.25
  9	1	1	17	0.79	1.26
  10	1	1	18	0.79	1.27
  11	1	1	19	0.78	1.28
  12	1	1	20	0.77	1.3

  );
• ƞ_E is the factor depending on lubrication condition (

  Table 6. Values of lubrication condition factor ƞ_E, according to Reference [28].

  ISO VG [cst]	Engler [°]	ƞE
  32	4.5	0.7
  46	6	0.8
  68	8.9	0.9
  100	13.2	1
  150	19.8	1.1
  220	29	1.2
  320	42.2	1.3
  460	60.7	-
  680	89.8	-

  ). For high speed gears (v > 10 m/s) oil viscosity can be selected between 46 cst and 100 cst (increasing with the applied load); for highly loaded gears (usually not at high speed), oil viscosity is within 150 cst and 680 cst (increasing with load); for v < 2 m/s, even permanent grease lubrication may be chosen. Wear resistance generally increases with viscosity; however, the higher viscosity, the higher power losses and temperature increase (for service temperature greater than 60 °C, it is suggested to cool the oil);
• the parameter f [N^0.5/mm], for steel on steel gears (Young’s modulus E = 200 GPa) and ϑ = 20°, takes the value of 473 N^0.5/mm; when profile shifting is applied, f must be calculated with ϑ_i instead of ϑ (with positive profile shift, ϑ_i > ϑ; therefore, it is possible to achieve benefits in terms of maximum contact stress value reduction).

As for the expected working hours h, reference values can be considered as:

• h = 40,000 to 150,000 for applications running 24 h per day (like turbines or important production machines);
• h = 20,000 to 30,000 for applications running 8 h per day (standard production machines);
• h = 5000 to 15,000 for applications running some hours per day (automotive or lifting devices);
• h = 500 to 1500 for limited running;

Finally, allowable stresses may be worked out from the values reported in

Table 7. Values of allowable stresses, according to Reference [28], in the case of pulsating load (for alternate load: σ_{lim_bending} ·0.7).

Material	Ultimate Stress [MPa]	σlim_bending [MPa]	Hd [MPa]
Cast iron	180 to 260	40 to 55	1700 to 2100
Structural steel	500 to 600	90 to 100	1500 to 1800
Carbon steel	500 to 700	110 to 140	1600 to 2100
Quenced and tempered steel	700 to 1000	135 to 200	1850 to 2600
			Surface hardened ~52 HRC: 5200;
			Nitrided > 700 HV: 5500
Case hardening steel	600 to 1200	125 to 200	2500
			Surface hardened > 56 HRC: 6500
Bronze	200 to 320	80 to 120	900 to 1200
Plastic material	150	35	350

: Bending strength also takes stress concentration at tooth root into account for a standard 0.25·m fillet radius (Figure 4).

In order to correctly determine the most suitable module value (after its initial rough estimation, based on the raw formula of Equation (2)), the inequalities in Equations (11) and (12) have been inverted, according to Equations (13) and (14), so that module thresholds are yielded as follows:

$$m_{bending}\ge \sqrt[3]{\frac{2000·M_{t\_1,2}·q_{1,2}·L}{z_{1,2}·\lambda ·{\epsilon }_{1,2}·{\eta }_{d\_1,2}·{\sigma }_{\lim \_bending\_1,2}}},$$

(13)

$$m_{pitting}\ge 0.69·\sqrt[3]{\frac{f_{1,2}{}^2·L·M_{t\_1,2}·\left(\frac{1}{z_1}+\frac{1}{z_2}\right)}{{\eta }_{d\_1,2}·{\eta }_E·H_{d\_1,2}^2·\lambda ·z_{1,2}}}·\sqrt[9]{n_{1,2}·h}.$$

(14)

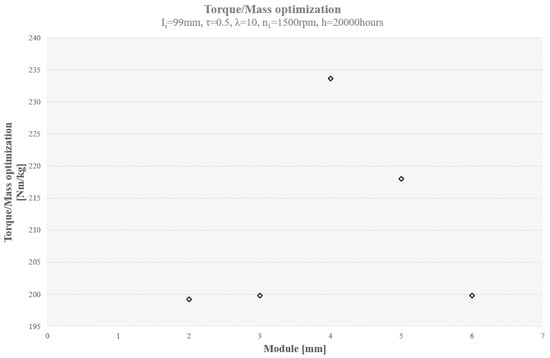

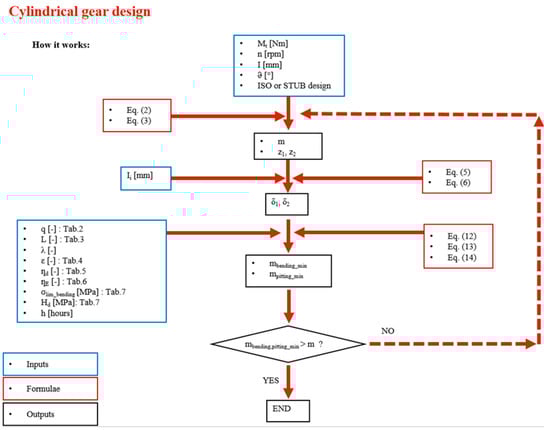

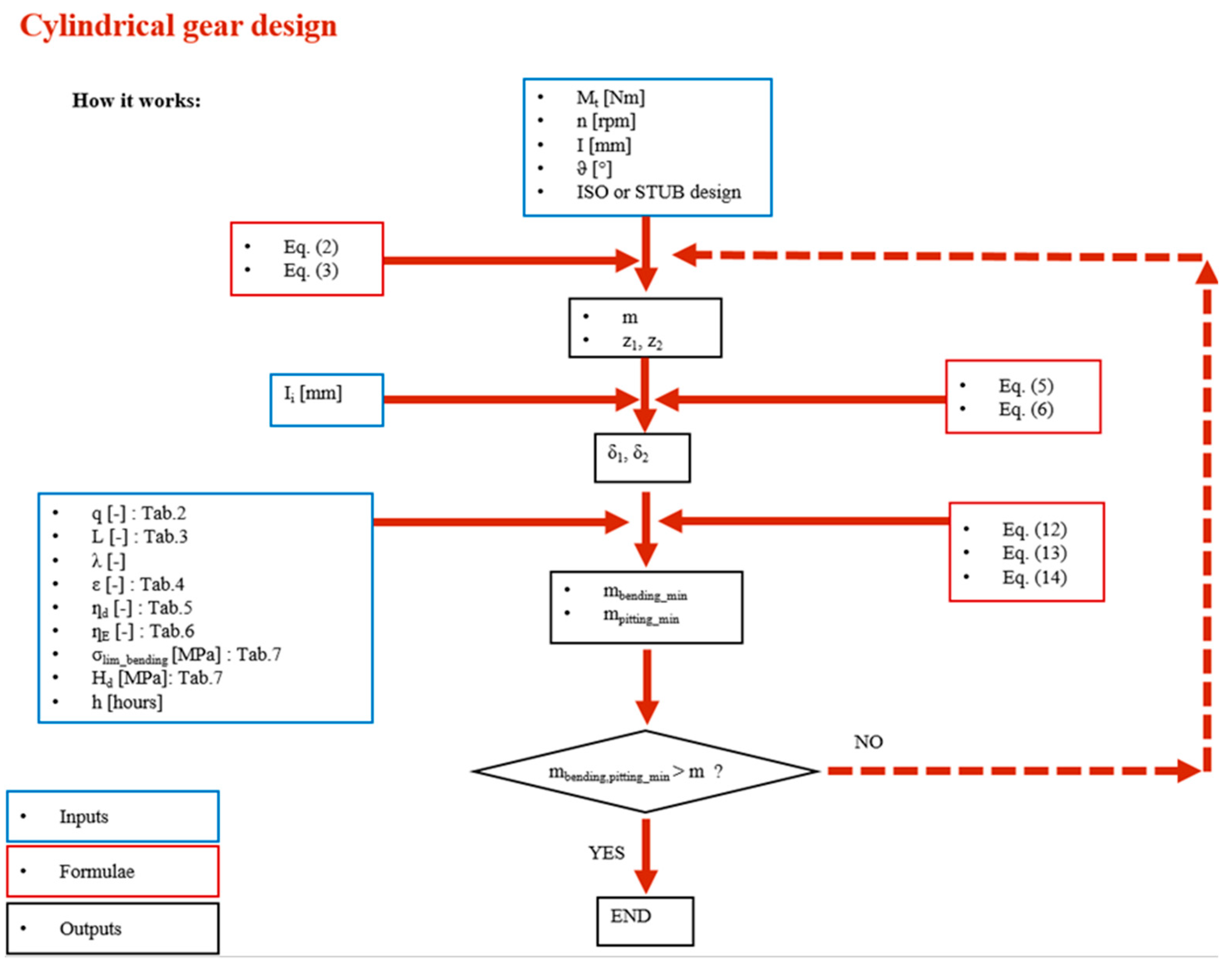

All the proposed steps are particularly suitable for automatic computation by electronic datasheets and may also be used for optimization purposes, as in the numerical example in Section 5. The described procedure is also available for more sophisticated optimization strategies, for instance by Genetic Algorithms, as proposed in Reference [29]. For the sake of clarity and readability, a flowchart collecting all the steps is provided in the Appendix A.

In addition, the proposed Equations can be applied not only to cylindrical spur gear teeth but also to helical teeth, according to Reference [28]. Let β be the helix angle (β > 0 for right-handed helix); it is then possible to evaluate the parameters on two different planes: normal plane, subscript _n, which is the plane being perpendicular with respect to the tooth axis (axis of the cutting tool); and circumferential plane, subscript _c, which is perpendicular to the gear axis. The following formulas apply [28], being m_n the normal module, according to ISO54, ϑ_n the normal pressure angle (usually 20°) and z the number of teeth:

$m_c=\frac{m_n}{cos\beta }$	circumferential module [mm]
$\tan \left({\vartheta }_c\right)=\frac{\tan \left({\vartheta }_n\right)}{cos\beta }$	for the evaluation of the circumferential pressure angle [°]
$z_{}^{*}=\frac{z}{{\left[cos\left(\beta \right)\right]}^3}$	virtual number of teeth of an equivalent spur gear in the normal plane
$D=z·m_c$	pitch diameter [mm]
${\epsilon }_a^{*}=\frac{g^{*}}{t_n}=\frac{g^{*}}{\pi ·m_n}$	virtual transverse contact ratio, calculated with z * and mn

For tooth design, it is possible to apply both ISO 53 or Stub proportion, based on m_n. Correction selection may be addressed by the same formula for spur gears, introducing z * and ϑ_c instead of z and ϑ. For design purposes, to ensure sufficient strength against bending, q is a function of z * instead of z, whereas m_n is used instead of m, and ε can be considered equal to 2. Finally, when addressing design against pitting, 1.25·b may replace b with regard to face width.

3. Gear Lubrication

Reducing friction, increasing efficiency, reducing wear and contact fatigue of the interacting tooth surfaces, and improving durability can be regarded as the main purposes of gear lubrication. Lubrication also facilitates heat exchanges between equipment, dissipating the heat produced by friction, in order to mitigate the power losses. Lubricants are essential to transmissions and can therefore be considered as a real mechanical unit. As a function of the running speed, it is possible to categorize friction within three levels. (i) The first one is boundary friction, where the tooth flanks are only separated by a boundary layer consisting of chemical reaction products. This layer, being a few nanometers thick, is intended to prevent metal to metal contact. (ii) The second one is mixed friction, involving the tooth flanks being partially separated by a lubricant film. Both liquid and dry friction occur at the same time: where the surfaces are in contact, friction turns to be of the boundary type. (iii) Finally, fluid friction (hydrodynamic) occurs when tooth flanks are completely separated by a lubricant film, which involves elasto-hydrodynamic (EHD) lubrication. In the presence of precise gears, with fast running speed (v > 20 m/s) the regime (iii) can be reached: the thickness of the oil film h_c (see Reference [27,30,31,32]) is comparable to the roughness of the teeth (R_a1 + R_a2)/2 and, in the scenario of h_c > (R_a1 + R_a2)/2, the EHD lubrication occurs. Conversely, for standard solutions, i.e., industrial gearboxes, regime (i) and (ii) is reached; therefore, additives must be properly used in order to improve the friction and wear behavior in the presence of dry (or mixed) friction.

Several studies dealing with gear lubrication have been performed, addressing in recent years EHD lubrication and analyses or comparisons between mineral and synthetic customized lubricants. Interesting studies about the effects of lubrication on gear performance are reported in Reference [33,34]; the effects of different types of lubricants, as well as a comparative overview of several gear oils in mixed and boundary film lubrication, are reported in Reference [35,36,37]. According to Reference [38], several tests have been performed at the Gear Research Center (FZG) of TU Munich to develop gear transmission fluids, based on water and plant extract, thus avoiding using non-biodegradable fossil raw material. Similar interesting studies are reported in References [39,40]. Recently, the use of the finite volume Computational Fluid Dynamics modeling (CFD) method has been adopted to study and optimize the lubrication process [41,42,43]. However, numerical models dealing with EHD contacts are often computationally expensive, which makes them unsuitable to assist gear design [44,45,46]. A further refinement may be achieved by these tools, but this is beyond the scopes of the present review study. Gear transmission designer has to select the most proper lubricant in the market and, for this purpose, has to follow some practical design rules based on the analyses of the power losses [47,48,49,50,51], such as:

• Selecting reference working temperature within 60 to 110 °C;
• Selecting modern lubricants, which have a base and appropriate additives;
• Oils are commonly classified, based on their V.I. (viscosity index, ISO 2909), which indicates the behavior of viscosity versus temperature: standard quality oils has V.I. = 95 to 105, whereas high quality oils has V.I. > 150;
• If T < 20 °C or T > 110 °C, then synthetic oils have to be used;
• Most common additives are EP (extreme pressure), AW (antiwear), V.I. (improver);
• A compromise is needed between: (i) gear resistance to scuffing and pitting increase with viscosity (high viscosity desired); (ii) damping capacity increase with viscosity (high viscosity desired); and (iii) friction losses increase with viscosity, so that temperature also increases with viscosity (low viscosity desired).

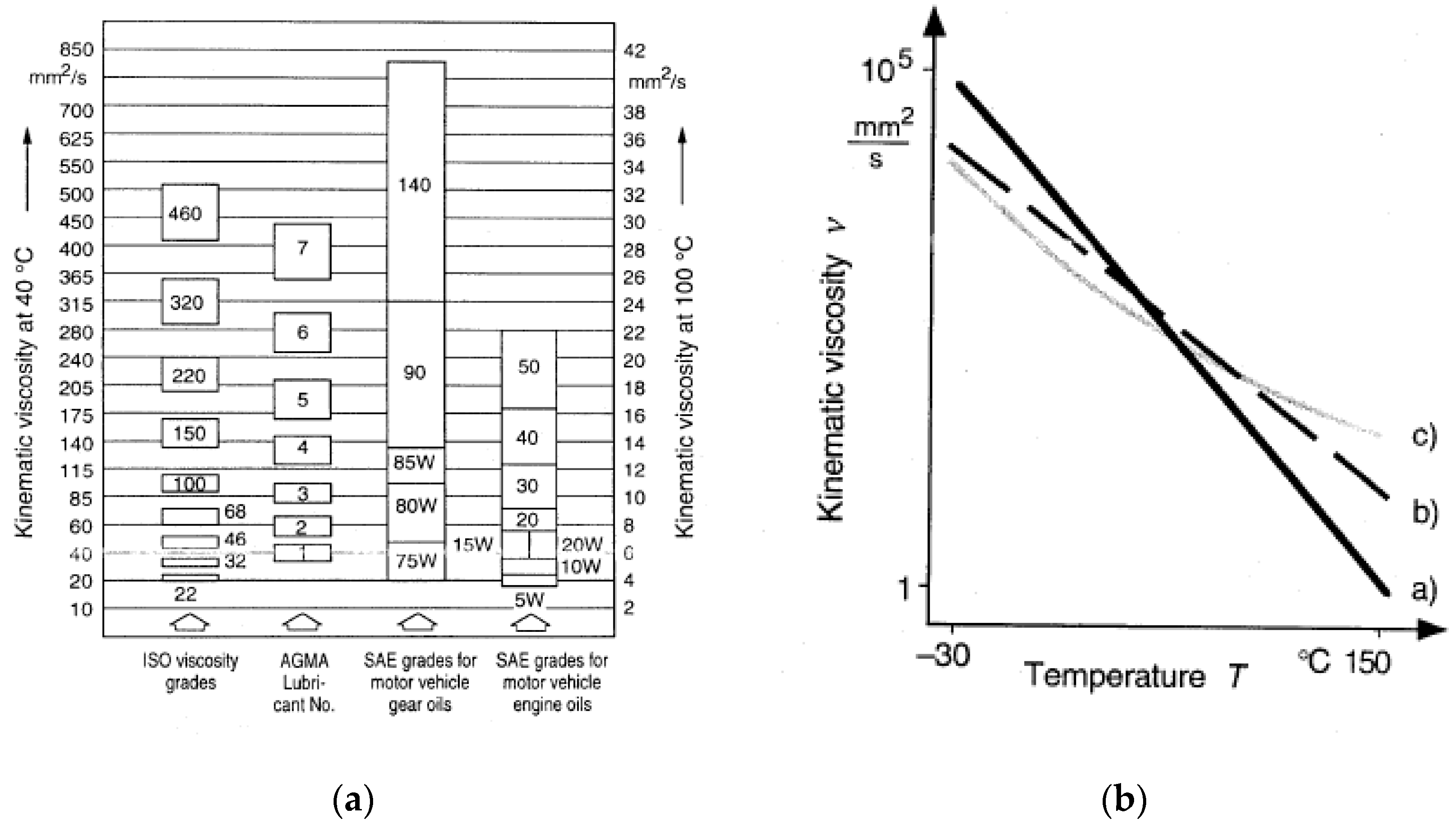

A comparison involving some viscosity classifications (basis V.I. = 100) is shown in Figure 6a, together with the so-called Ubellohde diagram (log-log scale, Figure 6b), where viscosity versus temperature trends are displayed for different gearbox oils (a: mineral; b: Poly-α-oleofin-based; c: Polyglycol-based).

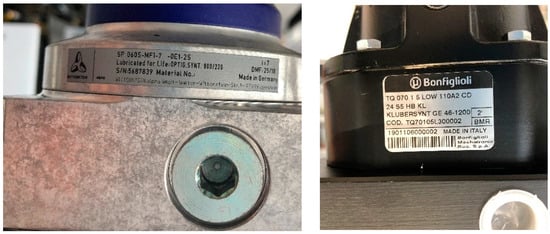

Regarding synthetic products, it is generally possible to properly select the lubricant, according to technical data provided in the datasheet in the market. Two examples of lubrication labels applied in gearboxes are shown in the following pictures of Figure 7: lubrication via synthetic oil (ISO VG 220) for gears and lubrication via synthetic long-term gear grease.

4. Gear Quality and Tolerances

Following proper module calculation and lubricant selection, as described in Section 2 and Section 3, gear designer has to select the right quality and tolerances, according to the precision grade of the gear. This operation can be done by leveraging International Standards, such as ISO1328 [52] (formerly UNI7880 [53]) or DIN3967 [54]. With regard to precision grade selection, reference can be made to

Table 8. ISO or DIN quality class.

	1	2	3	4	5	6	7	8	9	10	11	12
Master gears
Precision gears—mechanical dividers
High speed gears
Gear for precise gearboxes
Gear for gearboxes
Gear for generic mechanics
Low speed gears
	1	2	3	4	5	6	7	8	9	10	11	12
v [m/s]		>20
					8 … 20
								3 … 8
										0 … 3

, where quality class is provided, depending on the industrial application and on the linear speed v [m/s] of the gear [55].

Once the quality class has been selected, the geometrical and dimensional tolerances can be set, based on the data reported in

Table 9. Dimensional and geometrical tolerances, according to Reference [52,53].

Tolerances on the Hub Hole Diameter, Shaft Diameter and Wheel External Diameter
Precision Grade		1	2	3	4	5	6	7	8	9	10	11	12
HUB	Diameter Tolerance	IT 4	IT 4	IT 4	IT 4	IT 5	IT 6	IT 7	IT 7	IT 8	IT 8	IT 8	IT 8
	Form Tolerance	IT 1	IT 2	IT 3
SHAFT	Diameter Tolerance	IT 4	IT 4	IT 4	IT 4	IT 5	IT 5	IT 6	IT 6	IT 7	IT 7	IT 8	IT 8
	Form Tolerance	IT 1	IT 2	IT 3
Tolerance on External Diameter		IT 6	IT 6	IT 7	IT 7	IT 7	IT 8	IT 8	IT 8	IT 9	IT 9	IT 11	IT 11
Reference Surface Radial and Axial Runout Tolerance
Reference Diameter		Precision Grade
mm		1 and 2		3 and 4		5 and 6		7 and 8		from 9 to 12
OVER	TO	Radial and axial runout in µm
-	125	2.8		7		11		18		28
125	400	3.6		9		14		22		36
400	800	5.0		12		20		32		50
800	1600	7.0		18		28		45		71
1600	2500	10.0		25		40		63		100
2500	4000	16.0		40		63		100		160

, which reports standard tolerance intervals in agreement with Standards [52,53].

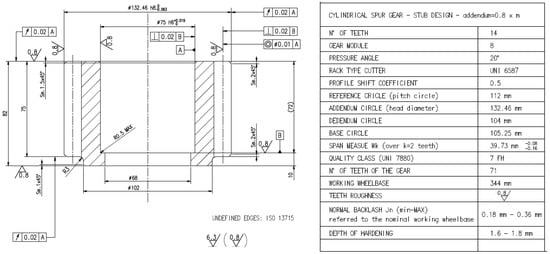

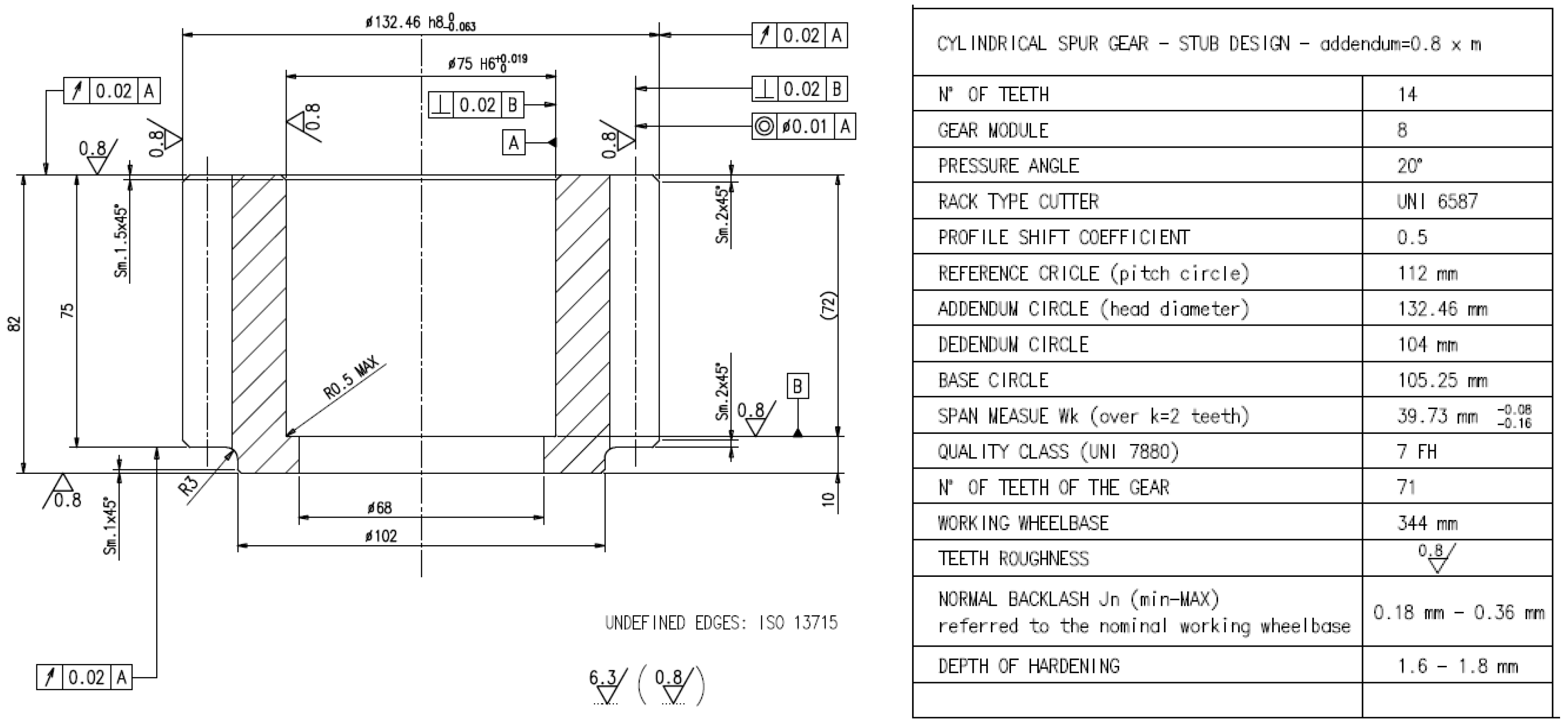

An example of pinion drawing, to be used in a rotary transfer machine, where it has the specific role of moving the main rotary table [56], is reported in Figure 8. The main features related to this industrial application are: M_t = 2.75 kNm, τ = 0.2, n = 75 rpm, theoretical wheelbase 340 mm, material: 18NiCrMo5 (hardening 58–60 HRC).

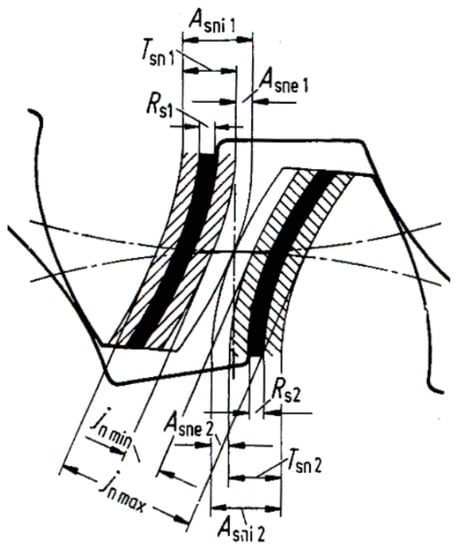

The last important parameters to be calculated and reported in the gear table are: (i) the span measurement W_k (mm) and its tolerance, and (ii) the normal backlash j_n (mm) between the mating gears (referred to the nominal working wheelbase). The theoretical span measurement can be calculated by Equation (15), where the k pedix indicates the number of teeth between the measuring gauges. Its tolerance is a function of single pitch deviation f_pt (μm) reported in

Table 10. Single pitch deviation, according to Reference [52,53].

Single Pitch Deviation
Reference Diameter		Module		Precision Grade
mm		mm		1	2	3	4	5	6	7	8	9	10	11	12
over	to	from	to	fpt μm
-	125	1	3.5	1	1.6	2.5	4	6	10	14	20	28	40	56	80
		3.5	6.3	1.2	2	3.2	5	8	13	18	25	36	50	71	100
		6.3	10	1.4	2.2	3.6	5.5	9	14	20	28	40	56	80	112
125	400	1	3.5	1.1	1.8	2.8	4.5	7	11	16	22	32	45	63	90
		3.5	6.3	1.4	2.2	3.6	5.5	9	14	20	28	40	56	80	112
		6.3	10	1.6	2.5	4	6	10	16	22	32	45	63	90	125
		10	16	1.8	2.8	4.5	7	11	18	25	36	50	71	100	140
		16	25	2.2	3.6	5.5	9	14	22	32	45	63	90	125	180
400	800	1	3.5	1.2	2	3.2	5	8	13	18	25	36	50	71	100
		3.5	6.3	1.4	2.2	3.6	5.5	9	14	20	28	40	56	80	112
		6.3	10	1.8	2.8	4.5	7	11	18	25	36	50	71	100	140
		10	16	2	3.2	5	8	13	20	28	40	56	80	112	160
		16	25	2.5	4	6	10	16	25	36	50	71	100	140	200
		25	40	3.2	5	8	13	20	32	45	63	90	125	180	250
800	1600	1	3.5	1.2	2	3.6	5.5	9	14	20	28	40	56	80	112
		3.5	6.3	1.6	2.5	4	6	10	16	22	32	45	63	90	125
		6.3	10	1.8	2.8	4.5	7	11	18	25	36	50	71	100	140
		10	16	2	3.2	5	8	13	20	28	40	56	80	112	160
		16	25	2.5	4	6	10	16	25	36	50	71	100	140	200
		25	40	3.2	5	8	13	20	32	45	63	90	125	180	250
1600	2500	1	3.5	1.6	2.5	4	6	10	16	22	32	45	63	90	125
		3.5	6.3	1.8	2.8	4.5	7	11	18	25	36	50	71	100	140
		6.3	10	2	3.2	5	8	13	20	28	40	56	80	112	160
		10	16	2.2	3.6	5.5	9	14	22	32	45	63	90	125	180
		16	25	2.8	4.5	7	11	18	28	40	56	80	112	160	224
		25	40	3.6	5.5	9	14	22	36	50	71	100	140	200	280
2500	4000	1	3.5	1.8	2.8	4.5	7	11	18	25	36	50	71	100	140
		3.5	6.3	2	3.2	5	8	13	20	28	40	56	80	112	160
		6.3	10	2.2	3.6	5.5	9	14	22	32	45	63	90	125	180
		10	16	2.5	4	6	10	16	25	36	50	71	100	140	200
		16	25	2.8	4.5	7	11	18	28	40	56	80	112	160	224
		25	40	3.6	5.5	9	14	22	36	50	71	100	140	200	280
C = + 1 fpt		G = −6 fpt				L = −16 fpt					R = −40 fpt
D = 0		H = −8 fpt				M = −20 fpt					S = −50 fpt
E = −2 fpt		J = −10 fpt				N = −25 fpt
F = −4 fpt		K = −12 fpt				P = −32 fpt

, according to letters from C to S [52,53] (practical values between, E and L: FG, GH, or HJ suitable for generic mechanics).

$$\{\begin{array}{l}{W}_k=m·\cos \left(\vartheta \right)·\left[\left(k-0.5\right)·\pi +z·inv\left(\theta \right)+2·\delta ·\tan \left(\vartheta \right)\right]\\ k=0.5+z·\frac{\vartheta }{180}-\frac{2·\delta ·\tan \left(\vartheta \right)}{180}\end{array}.$$

(15)

With reference to the pinion in Figure 8, k corresponds to 2 teeth. Moreover, based on the quality class 7 (FH), the tolerance of the span measurement (W_k = 39.73 mm) ranges from E_ws,1 = −4 f_pt to E_wi,1 = −8 f_pt (which yields the range (80 μm to 160 μm)). Finally, estimating the same values for the wheel makes it possible to estimate the normal backlash j_n (mm), according to Equation (16):

$$\{\begin{array}{l}{j}_{n\_\min }=-(E_{ws,1}+E_{ws,2})\\ j_{n\_\max }=-(E_{wi,1}+E_{wi,2})\end{array}.$$

(16)

The value of the backlash is a very important parameter since it affects both the stiffness and the lubrication condition of the mating gears [57,58].

A faster way to get a rough estimation value of the backlash is provided by the following formula: j_n~0.05 + 0.025·m + 0.01·v. Another option to define the tolerances is given by DIN 3967 Standard [54]: The recommended procedure can be synthetized as follows. For generic mechanical applications, it is advisable to select the group number 8, in the series within c25 and e24 (most used: cd25), according to Figure 9 and

Table 11. Tooth thickness tolerances according to DIN3967 [54].

Upper Tooth Thickness Allowance Asne in μm
Reference Diameter (mm)		Allowance Series
over	up to	a	ab	b	bc	c	cd	d	e	f	g
-	10	−100	−85	−70	−58	−48	−40	−33	−22	−10	−5
10	50	−135	−110	−95	−75	−65	−54	−44	−30	−14	−7
50	125	−180	−150	−125	−105	−85	−70	−60	−40	−19	−9
125	280	−250	−200	−170	−140	−115	−95	−80	−56	−26	−12
280	560	−330	−280	−230	−190	−155	−130	−110	−75	−35	−17
560	1000	−450	−370	−310	−260	−210	−175	−145	−100	−48	−22
1000	1600	−600	−500	−420	−340	−290	−240	−200	−135	−64	−30
1600	2500	−820	−680	−560	−460	−390	−320	−270	−180	−85	−41
2500	4000	−1100	−920	−760	−620	−520	−430	−360	−250	−115	−56
Tooth Thickness Tolerance Tsn in μm
Reference Diameter (mm)		Allowance Series
over	up to	21	22	23	24	25	26	27	28	29	30
-	10	3	5	8	12	20	30	50	80	130	200
10	50	5	8	12	20	30	50	80	130	200	300
50	125	6	10	16	25	40	60	100	160	250	400
125	280	8	12	20	30	50	80	130	200	300	500
280	560	10	16	25	40	60	100	160	250	400	600
560	1000	12	20	30	50	80	130	200	300	500	800
1000	1600	16	25	40	60	100	160	250	400	600	1000
1600	2500	20	30	50	80	130	200	300	500	800	1300
2500	4000	25	40	60	100	160	250	400	600	1000	1600

. The formula for backlash range determination (referred to the nominal working wheelbase) is available in the following Equation (17):

$$\{\begin{array}{l}{A}_{sni1}-A_{sne1}=T_{sn1}\underset{}{};\underset{}{}{A}_{sni2}-A_{sne2}=T_{sn2}\\ j_{n\_\min }=-(A_{sne,1}+A_{sne,2})\\ j_{n\_\max }=-(A_{sni,1}+A_{sni,2})\end{array}.$$

(17)

5. Numerical Example

In recent years, following the development of the E-mobility, the need for high power density has been more and more increased. Therefore, the goal of maximizing the transmittable power while simultaneously minimizing weight is a highly challenging task. Taking advantage of the design methodology proposed in the previous Section, an optimal solution may be easily worked out. In particular, starting from some design parameters and specifications, the optimal gear geometry can be determined. Let us consider a case study with I_i = 99 mm, τ = 0.5, λ = 10, n₁ = 1500 rpm, h = 20,000 h, for a gear made of case-hardened steel. The aforementioned procedure leads to the results in

Table 12. Numerical example of optimization.

I [mm]	99	97.5	96	99	99
εa [mm]	1.49	1.46	1.44	1.66	1.74
m [mm]	6	5	4	3	2
Z1	11	13	16	22	33
D1 [mm]	66	65	64	66	66
ƞd	1.0	1.0	1.0	1.0	1.0
ƞE	1.0	1.0	1.0	1.0	1.0
δ	0.2	0.3	0.5	0.2	0.2
f [N0.5 mm]	473	453	438	473	473
Hd [MPa]	6500	6500	6500	6500	6500
Volume [mm3]	2,052,712	165,915	128,679	102,635	68,424
Mass [kg]	1.61	1.30	1.01	0.81	0.54
Torque [Nm]	322	284	236	161	107
Torque/Mass [Nm/kg]	199.8	218.1	233.6	199.8	199.2

(only design against pitting is considered). The same results are also reported in Figure 10 in terms of torque-to-mass ratio: it can be highlighted that such ratio exhibits a maximum for m = 4, which is therefore the most suitable value for gear module.

6. Conclusions

A review about the practical design of gears, their tolerances, and drawings is presented in the paper in order to propose a guideline for the designer. All the proposed formula, as well as the full methodology, has been used and in-field tested for several years in the framework of gear design in the machine tool industry. The described tools may be regarded as a comprehensive method to guide the engineer from the white paper to final design and gear drawing, following the required steps for gear parameter calculation and verification. From this point of view, this paper is particularly novel, as it is a full-comprehensive collection of all the tools supporting gear design. Furthermore, the proposed method is particularly suitable for automatic computation by electronic datasheets.
