Article

Principal Stress Ratio Effect at Residual Stress Determination Utilizing the Variation of Indentation Hardness

by
Per-Lennart Larsson
Department of Solid Mechanics, Royal Institute of Technology, SE-10044 Stockholm, Sweden
Lubricants 2019, 7(6), 50; https://doi.org/10.3390/lubricants7060050
Submission received: 30 April 2019 / Revised: 2 June 2019 / Accepted: 6 June 2019 / Published: 11 June 2019

Abstract

:
The determination of residual stresses is an important issue when it comes to material failure analysis. The variation of global indentation properties, due to the presence of residual stresses, can serve as a guideline for the size and direction of such stresses. One of these global indentation properties, the material hardness, is unfortunately invariant of residual stresses when metals and alloys are at issue. In this situation, one has to rely on the size of the indentation contact area for residual stress determination. For other materials such as ceramics and polymers, where elastic deformations are of greater importance at indentation, such invariance is no longer present. Here, this variation is investigated based on finite element simulations. The aim is then to determine how the indentation hardness is influenced by the principal residual stress ratio and also discuss if such an influence is sufficient in order to determine the size and direction of such stresses in an experimental situation. It should be emphasized that this work does not suggest a new approach to residual stress determination (by indentation testing) but investigates the applicability of previously derived methods to a situation where the surface stress field is not simplified as equi-biaxial or uniaxial. For simplicity, but not out of necessity, only cone indentation of elastic-perfectly plastic materials is considered.

1. Introduction

An extremely important contribution to the understanding of indentation testing, and other related contact mechanics-based testing, was presented by Johnson [1,2]. In summary, it was concluded in these studies that the mechanical behavior of global indentation properties can be correlated based on a single parameter (here and below named the Johnson parameter) and that the mechanics of the indentation problem is very much dependent on the combination of the material and geometrical quantities included in this parameter. The Johnson parameter will be discussed in more detail in the next section.
The analyses by Johnson are pertinent to initially stress-free materials. Later it has been shown [3,4,5] that it is possible to also include indentation of residually stressed materials in Johnson’s single parameter correlation. A very important conclusion was presented by Pharr et al. [6,7], saying that indentation hardness is invariant of residual stresses for metals and alloys. This is not so however for another global indentation quantity: the relative contact area. This feature can be used for determining residual stresses [8,9,10,11,12].
The results of the Pharr et al. [6,7] study is concerned with metals and alloys where plasticity dominates the deformations around the indentation contact zone. However, this is not so in the case of such materials as ceramics and polymers where elastic and plastic deformations are of equal magnitude at the indent. In such a situation, residual stresses do indeed influence hardness values [13,14] and consequently this quantity could be used for residual stress determination.
The results in [13,14] can be summarized as follows:
  • When elastic deformations around the contact region are in the same order as plastic ones; then the hardness is dependent on residual stresses.
  • In case of equi-biaxial surface stresses, correlation with the Johnson parameter is accurate and produces a general relation with corresponding stress-free results when residual stresses are appropriately accounted for.
  • In case of uniaxial surface stresses, correlation with the Johnson parameter is not good and in such a situation; the hardness variation is not a good tool for an experimental determination of residual stresses.
Obviously, there is a fundamental difference in mechanical indentation behavior between equi-biaxial and uniaxial surface stresses. Accordingly, it is of interest to investigate this feature also for other types of surface stress fields (deviating from equi-biaxial or uniaxial). This is also the aim of the present investigation.
In doing so, previous finite element results [12] and additional finite element simulations performed presently will be revisited within the question at issue above. For simplicity, but not out of necessity, only cone indentation (Figure 1) of elastic-perfectly plastic materials is considered. Strain-hardening effects could easily be incorporated into the analysis based on the representative strain concept [15].
Finally, it should be mentioned that the discussion above has been restricted to features related to sharp indentation. This is the most straightforward interpretation of the results and this study will be entirely devoted to such indenter geometry. Having said this, it is important to emphasize that quite a few important contributions concerning spherical and other blunt indenters (including cones with a rounded tip), as a tool for residual stress determination, has been previously presented [16,17,18,19,20], just to mention a few.

2. Theoretical Background

The analysis by Johnson [1,2] defined the fundamentals for a general analysis of indentation testing. Specifying to sharp indentation on classical elastoplastic materials a general correlation parameter could be defined as:
Λ = Etanβ/((1 − ν2)σrep)
In Equation (1), E is the Young’s modulus and ν is Poisson’s ratio, β is the angle between the (sharp) indenter and the undeformed surface, and σrep is the material flow stress at a representative value of the equivalent (accumulated) plastic strain εp. Based on the parameter Λ three regions or levels of contact behavior can be defined. These levels, as shown in Figure 2, are:
  • Level I: Dominating elastic deformations, i.e., low indentation load, where an elastic contact analysis is sufficient.
  • Level II: Elastic and plastic deformations are of equal magnitude.
  • Level III: Plastic deformations are dominating in the contact region.
In level II, it was determined by Johnson [1,2] that in this region
H ~ ln Λ
while in level III, Tabor [21] showed that at sharp indentation
H = rep
For a Vickers indenter C ≈ 3 and εp ≈ 0.08 (Tabor [2]) and for a cone indenter C ≈ 2.54 and εp ≈ 0.11 (Atkins and Tabor [22]). The latter case is specified for a cone indenter with an angle of 22° between the indenter and the undeformed surface being at issue here, see Figure 1. In Equations (2) and (3), H is the material hardness defined as the average contact pressure between indenter and material.
At level III conditions, and also at substantial parts of the level II region in Figure 2, the hardness is, as stated above, invariant of residual stresses. However, this is not so for the relative contact area:
c2 = A/Anom
where A (true contact area) and Anom (nominal contact area) are projected areas (Figure 1). This quantity can indeed be related to an equi-biaxial residual stress σres according to:
c2 = c2(σres = 0) − 0.35ln(1 + (resy))
where c2(σres = 0) is the value on the relative contact area at indentation of a virgin (unstressed material) and F is a constant that takes on different values at tension and compression. For simplicity but not for necessity ideal plasticity, with a yield stress σy, is here assumed. The Equation (5) was originally proposed by Rydin and Larsson [5] based on the similar mechanical behavior between contact induced stresses in an unstressed material or contact induced stresses in a material with a properly chosen apparent initial yield stress. Rydin and Larsson [5] suggested an apparent yield stress:
σy,apparent = σy + res
(σy being the initial yield stress of the material) in Λ in Equation (1), according to:
Λ = Etanβ/(σy,apparent(1 − ν2))
This makes it possible to rely on a universal c2-curve, shown schematically in Figure 2, regardless if residual stresses are present or not. This curve can be used to determine σres when c2(σres = 0) is known.
When elastic and plastic deformations are of equal size, invariance of hardness is lost. This is pertinent to the linear variation regime of the normalized hardness, H/σy, in Figure 2. It was recently shown by Larsson [13] that it is possible to correlate the influence from residual stresses on hardness values, in essentially the same way as for the relative contact area c2, when the residual stresses are equi-biaxial. This correlation is, again as for c2, based on Equations (6) and (7) and is explicitly shown in Figure 3, and obviously very good agreement with a universal curve is achieved. Corresponding results [14] were then presented for a uniaxial stress state and unfortunately, correlation with a universal curve was not good.
Based on the results in [13,14], it can be concluded that the influence from residual stresses on the indentation hardness is quite different in an equi-biaxial situation compared to a uniaxial situation. This indicates that a more general approach to the problem is of substantial interest and this will be attempted presently. In doing so, a more general residual surface stress state will be investigated.

3. Numerical Analysis

In this section, the present finite element simulations of the cone indentation problem are described. It is then important to emphasize that, due to the fact that uniaxial residual stress states are considered, axisymmetric conditions are lost and a full three-dimensional (3D) solution has to be sought for. Similar analyses have been previously performed [13] and, accordingly, concerning details of the numerical approach of this article is referred to.
Quasi-static cone indentation of elastic-ideally plastic pre-stressed materials is analyzed here. Frictionless contact is assumed in all simulations. Concerning the constitutive description, the rate-independent Prandtl-Reuss equations for classical plasticity are relied upon accounting for large deformations. Ideally, plastic conditions are assumed throughout the entire analysis and accordingly plastic deformation is initiated and maintained when the equivalent stress.
σe = σy
When elastic loading or unloading is an issue, a hypoelastic formulation of Hooke’s law is used.
The material hardness is, as stated above, defined as the average contact pressure during loading according to:
H = F/A
where F is the indentation load and A is the projected contact area. In this context, it should be mentioned that if the residual stresses are homogeneous as assumed presently, the problem is self-similar with no characteristic length and, as a result of global indentation properties, such as hardness and relative contact area, are independent of indentation depth.
As indicated above, the residual stress field is defined by the principal residual surface stresses σ1 and σ2. For a general surface stress state, the contact area will become ellipsoidal with semi-axes a1a2. Accordingly, a three-dimensional finite element analysis is required at uniaxial residual loading. Clearly, since surface residual stresses are at issue the principal stress σ3 = 0.
The boundary value problem schematically outlined above was solved using the multi-purpose finite element program ABAQUS [23]. The full indentation procedure, starting at initial contact between indenter and material, was modelled. Approximately 100,000 eight-node hybrid solid elements (element type C3D8H in ABAQUS [23]) were used to discretize the material while the conical indenter was assumed to be rigid. Due to existing symmetries only one quarter of the material needs to be modelled. The resulting finite element mesh is shown in Figure 4, where for clarity only the mesh details close to the contact region is shown. Residual (applied) stresses are enforced by prescribed boundary displacements leading to a homogeneous residual stress state prior to indentation. Note that no distinction is made between residual and applied stresses in this analysis. The applied pre-stresses are kept within the elastic limit regardless of the ratio between the principal residual surface stresses σ1 and σ2. Accordingly, these stresses are given by Hooke’s law in a homogeneous situation. Indentation loading was applied by controlling the transversal displacement of the rigid indenter.

4. Results and Discussion

In this section, the results for uniaxial (σ2 = 0) and equi-biaxial residual stresses (σ1 = σ2) are presented. Accordingly, these results will be compared with the corresponding ones for other values on the ratio σ1/σ2. The present results are, unless otherwise stated, derived for the case of:
Λ = 3.4
where the Johnson [15,16] parameter Λ is given by Equation (1). This value was chosen to ensure that the stress-free material experienced level III contact (the material hardness is given by Equation (9)) while the behavior entered the level II regime in presence of tensile stresses. This is based on the result for the equi-biaxial case that ln Λ = 3 constitute an approximate border between level II and level III indentation (with Λ defined according to Equations (6) and (7)), and a clear hardness dependence at higher tensile stresses (lower values on Λ when accounting for the change in yield stress) [14] (Figure 3).
The results are presented using the ratios σ1/σy and σ2/σy, where again σ1 and σ2 are the principal residual surface stresses with σ3 = 0. It should also be mentioned that in the present situation a direct comparison between uniaxial and equi-biaxial results is rather straightforward based on the equivalent stress σe, see [14]. In short, this is due to the fact that the value on the equivalent stress σe is the same (σe = σres) for both these residual stress systems (obviously, this refers to a situation prior to indentation). In order to relate the residual stress fields, in other biaxial cases, to the material yield stress also ((σres)ey) is used to describe the present results. In this case, (σres)e is the Mises equivalent stress derived based solely on the residual surface stress field.
It should be emphasized that compressive stresses will increase Λ, when again defined according to Equations (6) and (7), leading to a more pronounced level III (rigid-plastic) situation pertinent to the material hardness, which is not of direct interest presently. Accordingly, compressive residual stresses are not included in detail in the present analysis.
It seems appropriate to start this presentation with some basic previous results that will form the basis of the discussion. Before presenting explicit results, it should be mentioned that in the present situation a direct comparison between uniaxial and equi-biaxial results is rather straightforward based on the equivalent stress σe. As already stated above, this is due to the fact that the value on the equivalent stress (σres)e is the same ((σres)e = σres) for both these residual stress systems (obviously, this refers to a situation prior to indentation). The explicit results are shown in Figure 5 where the non-dimensional hardness is depicted as function of the stress ratio (σresy). Note that in Figure 5 and below, H0 is the hardness for the residual stress-free case. It is very clear from what is shown in Figure 5 that the hardness is far more influenced by an equi-biaxial residual stress σres than a corresponding uniaxial one. For example, at (σresy) = 1, the hardness value is reduced (compared to the stress-free hardness H0) with around 18% in the equi-biaxial case but with only approximately 6% in the uniaxial one. In practice, it would be very hard, if not experimentally impossible, to accurately determine σres based on the small variation, in the uniaxial case, from the stress-free results.
Below are the results pertinent to residual surface stress states that depart from the strictly uniaxial and equi-biaxial. The reason for this is that equi-biaxial, but not uniaxial, stress states are experimentally determinable in a practical situation. It is then of interest to determine at what combination of principal residual stresses indentation experiments is a realistic alternative. In doing so, results for the particular case are:
σ1 = σres = 2σ2
which are in between the two extreme cases discussed above. In this context, it should be mentioned that based on Equation (11) then,
(σres)e = 31/2σres/2
The results pertinent to Equations (11) and (12) are now presented in Figure 6, together with the results shown in Figure 5. Specifically, the cases σres = σy and σres = σy/2 are investigated.
As can be seen in Figure 6, the new results fall essentially between the results for uniaxial and equi-biaxial stress states. In particular, it can be seen that the results for the stress state in Equations (11) and (12) indicate that experimental determination is practically achievable also in this case. This is indeed encouraging and deserves to be investigated further.
The hardness sensitivity (to residual stresses) is evaluated also for other values on the ratio:
k = σ2/σ1
The numerically derived results are shown Figure 7 for the case σ1 = σres = σy. It can be seen that at k = 0.25, the influence from residual stresses on the hardness value is small and it seems appropriate to conclude that k = 0.5 constitutes an approximate lower bound for the practical applicability of the present approach. For k-values smaller than 0.5, the influence from residual stresses is so small that it would be difficult to measure any relevant changes of the material hardness in an accurate manner.
The corresponding results for the case σ1 = σres = σy/2 are shown in Figure 8. As could be expected, the practical applicability of the present approach is then very doubtful. Indeed, it can be argued that only in the case of equi-biaxial stresses any degree of accuracy of results can be expected.
It should be emphasized that the results above are only valid for the Λ-value specified in Equation (10) (ln Λ = 3.4). Correlation of the hardness variation with ln Λ has been attempted previously [13,14] and as stated above, this correlation is acceptably accurate for equi-biaxial stresses but not so for uniaxial ones. As this state of affairs is in direct agreement with the results presented in Figure 6, Figure 7 and Figure 8, correlation and accuracy deteriorate with decreasing values on k; this feature will not be dwelled upon further.
Instead, the Λ-dependence will be illustrated for a specific case, namely ln Λ = 5.7. This is done in Figure 9, where selected results for uniaxial and equi-biaxial stresses are presented. From what could be expected from the initial discussion in this subchapter, the Λ-dependence is essentially non-existent (within the numerical accuracy) also at very high values on residual stresses (in the order of the material yield stress). It should be emphasized though that for values on ln Λ smaller than 3.4, the hardness variation will be more pronounced in particular when it comes to range of values on k.
Further, values on Λ corresponding to rigid plastic contact, such as ln Λ = 5.7, residual stress determination by indentation has to rely on the relative contact area c2 in Equation (4). Corresponding results for equi-biaxial stresses, to the hardness results in Figure 9, for this quantity for ln Λ = 5.7, are shown in Figure 10. Clearly, the Λ-dependence is strong, which is encouraging. Such dependence has been shown previously [3,4,5,6,7,8], but here it is directly compared with the corresponding situation for the material hardness and established for a particular value on Λ.
The nature of different types of residual stresses is of course a matter of basic importance for the present work. For one thing, when it comes to equi-biaxial residual stresses, such a situation can result from temperature loading of thin films or coatings on thick substrates. For more involved cases, for example residual stresses in bearings, gears, and cam-followers (with among other things implications for the onset of fatigue), studies presented in [24,25,26] are referred to.
As a final comment, it should be emphasized that the present results are also of interest for other types of contact problems, i.e., the concerns of scratching and scratch testing where correlation using the Johnson [15,16] parameter Λ also is a major issue, cf. [27,28,29,30].

5. Conclusions

The effects from the residual principal stress ratio on the material hardness is analyzed and discussed. The analysis is restricted to the cone indentation of elastic and ideally-plastic materials. The most important findings can be summarized as follows:
  • The material hardness dependence on residual stresses is highest for equi-biaxial stresses and less for uniaxial ones. Other values on the principal stress ratio yield results that lie between these two extremes.
  • At residual stresses well below the material yield stress, it can be argued that only in the case of equi-biaxial stresses any degree of accuracy of results can be expected with the present approach.
  • For values on the Johnson parameter Λ higher than the one presently investigated (ln Λ = 3.4), the hardness dependence on residual stresses vanishes rapidly. A better alternative for this purpose is then to use the relative contact area, here denoted c2.
From a practical point of view, the most important outcome of the present investigation is the fact that the approach presented is reliable for equi-biaxial stresses. In other types of residual stress states, the limitations are obvious and accurate predictions can be expected essentially at stresses approaching the material yield stress.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Johnson, K.L. The correlation of indentation experiments. J. Mech. Phys. Solids 1970, 18, 115–126. [Google Scholar] [CrossRef]
  2. Johnson, K.L. Contact Mechanics; Cambridge University Press: Cambridge, UK, 1985. [Google Scholar]
  3. Carlsson, S.; Larsson, P.L. On the determination of residual stress and strain fields by sharp indentation testing. Part I. Theoretical and numerical analysis. Acta Mater. 2001, 49, 2179–2191. [Google Scholar] [CrossRef]
  4. Carlsson, S.; Larsson, P.L. On the determination of residual stress and strain fields by sharp indentation testing. Part II. Experimental investigation. Acta Mater. 2001, 49, 2193–2203. [Google Scholar] [CrossRef]
  5. Rydin, A.; Larsson, P.L. On the correlation between residual stresses and global indentation quantities: Equi-biaxial stress field. Tribol. Lett. 2012, 47, 31–42. [Google Scholar] [CrossRef]
  6. Tsui, T.Y.; Oliver, W.C.; Pharr, G.M. Influences of stress on the measurement of mechanical properties using nanoindentation. Part I. Experimental studies in an aluminum alloy. J. Mater. Res. 1996, 11, 752–759. [Google Scholar] [CrossRef]
  7. Bolshakov, A.; Oliver, W.C.; Pharr, G.M. Influences of stress on the measurement of mechanical properties using nanoindentation. Part II. Finite element simulations. J. Mater. Res. 1996, 11, 760–768. [Google Scholar] [CrossRef]
  8. Suresh, S.; Giannakopoulos, A.E. A new method for estimating residual stresses by instrumented sharp indentation. Acta Mater. 1998, 46, 5755–5767. [Google Scholar] [CrossRef]
  9. Lee, Y.H.; Kwon, D. Estimation of biaxial surface stress by instrumented indentation with sharp indenters. Acta Mater. 2004, 52, 1555–1563. [Google Scholar] [CrossRef]
  10. Lee, Y.H.; Kwon, D. Stress measurement of SS400 steel beam using the continuous indentation technique. Exp. Mech. 2004, 44, 55–61. [Google Scholar] [CrossRef]
  11. Larsson, P.L. On the mechanical behavior at sharp indentation of materials with compressive residual stresses. Mater. Des. 2011, 32, 1427–1434. [Google Scholar] [CrossRef]
  12. Larsson, P.L.; Blanchard, P. On the invariance of hardness at sharp indentation of materials with general biaxial residual stress fields. Mater. Des. 2013, 52, 602–608. [Google Scholar] [CrossRef]
  13. Larsson, P.L. On the influence from elastic deformations at residual stress determination by sharp indentation testing. J. Mater. Eng. Perform. 2017, 26, 3854–3860. [Google Scholar] [CrossRef]
  14. Larsson, P.L. On the variation of hardness due to uniaxial and equi-biaxial residual surface stresses at elastic-plastic indentation. J. Mater. Eng. Perform. 2018, 27, 3168–3173. [Google Scholar] [CrossRef]
  15. Larsson, P.L. Investigation of sharp contact at rigid plastic conditions. Int. J. Mech. Sci. 2001, 43, 895–920. [Google Scholar] [CrossRef]
  16. Swadener, J.G.; Taljat, B.; Pharr, G.M. Measurement of residual stress by load and depth sensing indentation with spherical indenters. J. Mater. Res. 2001, 16, 2091–2102. [Google Scholar] [CrossRef]
  17. Huber, N.; Heerens, J. On the effect of a general residual stress state on indentation and hardness testing. Acta Mater. 2008, 56, 6205–6213. [Google Scholar] [CrossRef] [Green Version]
  18. Bocciarelli, M.; Maier, G. Indentation and imprint mapping method for identification of residual stresses. Comput. Mater. Sci. 2007, 39, 381–392. [Google Scholar] [CrossRef]
  19. Buljak, V.; Maier, G. Identification of residual stresses by instrumented elliptical indentation and inverse analysis. Mech. Res. Commun. 2012, 41, 21–29. [Google Scholar] [CrossRef]
  20. Buljak, V.; Cochetti, G.; Cornaggia, A.; Maier, G. Assessment of residual stresses and mechanical characterization of materials by “hole drilling” and indentation tests combined by inverse analysis. Mech. Res. Commun. 2015, 68, 18–24. [Google Scholar] [CrossRef]
  21. Tabor, D. Hardness of Metals; Cambridge University Press: Cambridge, UK, 1951. [Google Scholar]
  22. Atkins, A.G.; Tabor, D. Plastic indentation in metals with cones. J. Mech. Phys. Solids 1965, 13, 149–164. [Google Scholar] [CrossRef]
  23. ABAQUS. User’s Manual, version 6.9; Hibbitt, Karlsson and Sorensen Inc.: Pawtucket, RI, USA, 2009. [Google Scholar]
  24. Ioannides, E.; Harris, T.A. A new fatigue life model for rolling bearings. J. Trib. 1985, 107, 367–377. [Google Scholar] [CrossRef]
  25. Johns-Rahnejat, P.M.; Gohar, R. Point Contact Elastohydrodynamic Pressure Distribution and Sub-Surface Stress Field. Available online: https://www.researchgate.net/publication/331997998_Point_contact_elastohydrodynamic_pressure_distribution_and_sub-surface_stress_field (accessed on 30 April 2019).
  26. Gohar, R.; Rahnejat, H. Fundamentals of Tribology, 2nd ed.; Imperial College Press: London, UK, 2012. [Google Scholar]
  27. Bucaille, J.L.; Felder, E.; Hochstetter, G. Mechanical analysis of the scratch test on elastic and perfectly plastic materials with three-dimensional finite element modeling. Wear 2001, 249, 422–432. [Google Scholar] [CrossRef]
  28. Bucaille, J.L.; Felder, E.; Hochstetter, G. Experimental and three-dimensional finite element study of scratch test of polymers at large deformations. J. Trib. 2004, 126, 372–379. [Google Scholar] [CrossRef]
  29. Wredenberg, F.; Larsson, P.L. Scratch testing of metals and polymers—Experiments and numerics. Wear 2009, 266, 76–83. [Google Scholar] [CrossRef]
  30. Bellemare, S.; Dao, M.; Suresh, S. A new method for evaluating the plastic properties of materials through instrumented frictional sliding tests. Acta Mater. 2010, 58, 6385–6392. [Google Scholar] [CrossRef]

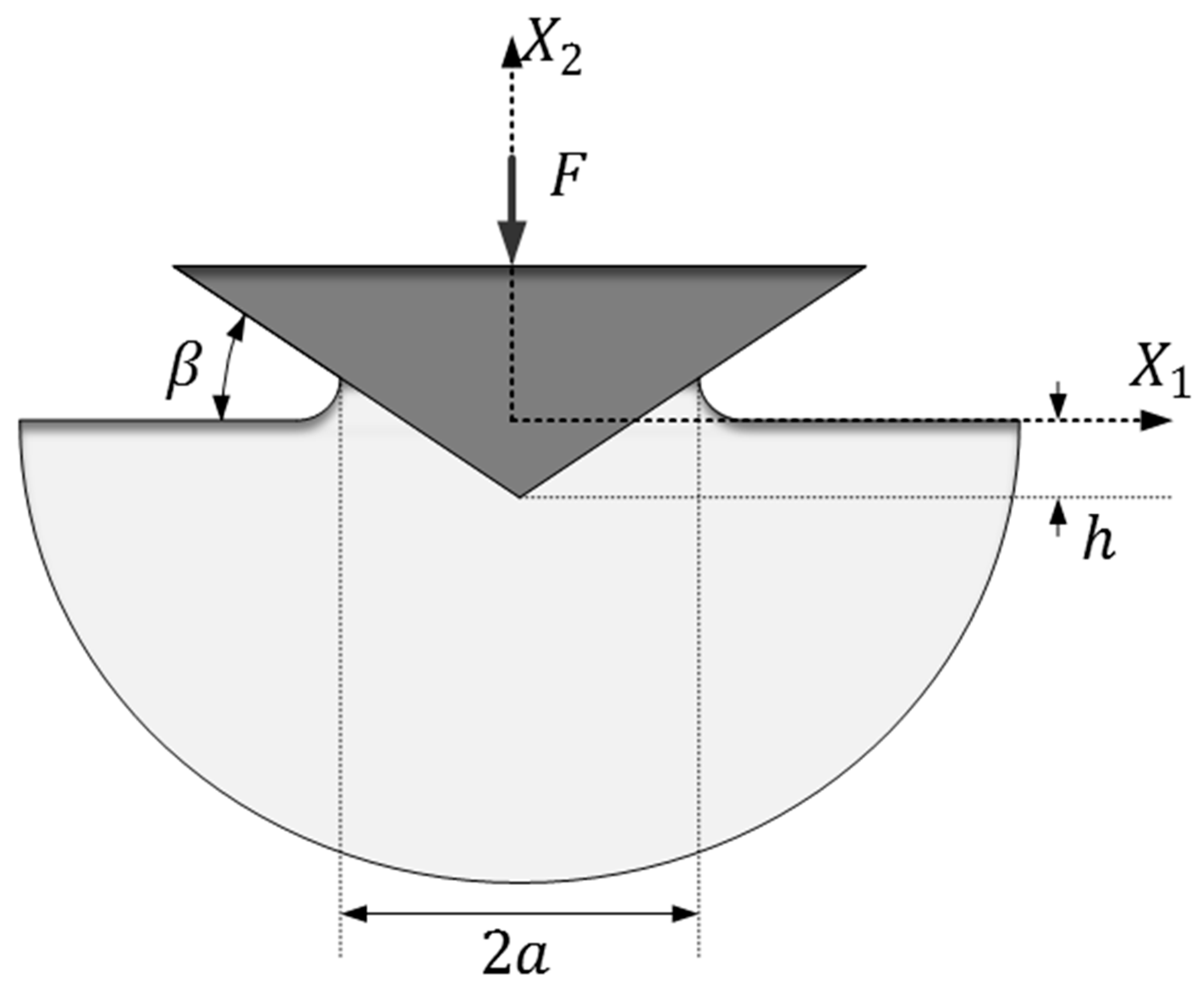

Figure 1. Schematic of the geometry of cone indentation where a represents the true contact radius. In the present investigation β = 22°. The nominal contact area Anom = πh2/(tanβ)2 where h is the indentation depth.
Figure 1. Schematic of the geometry of cone indentation where a represents the true contact radius. In the present investigation β = 22°. The nominal contact area Anom = πh2/(tanβ)2 where h is the indentation depth.
Lubricants 07 00050 g001

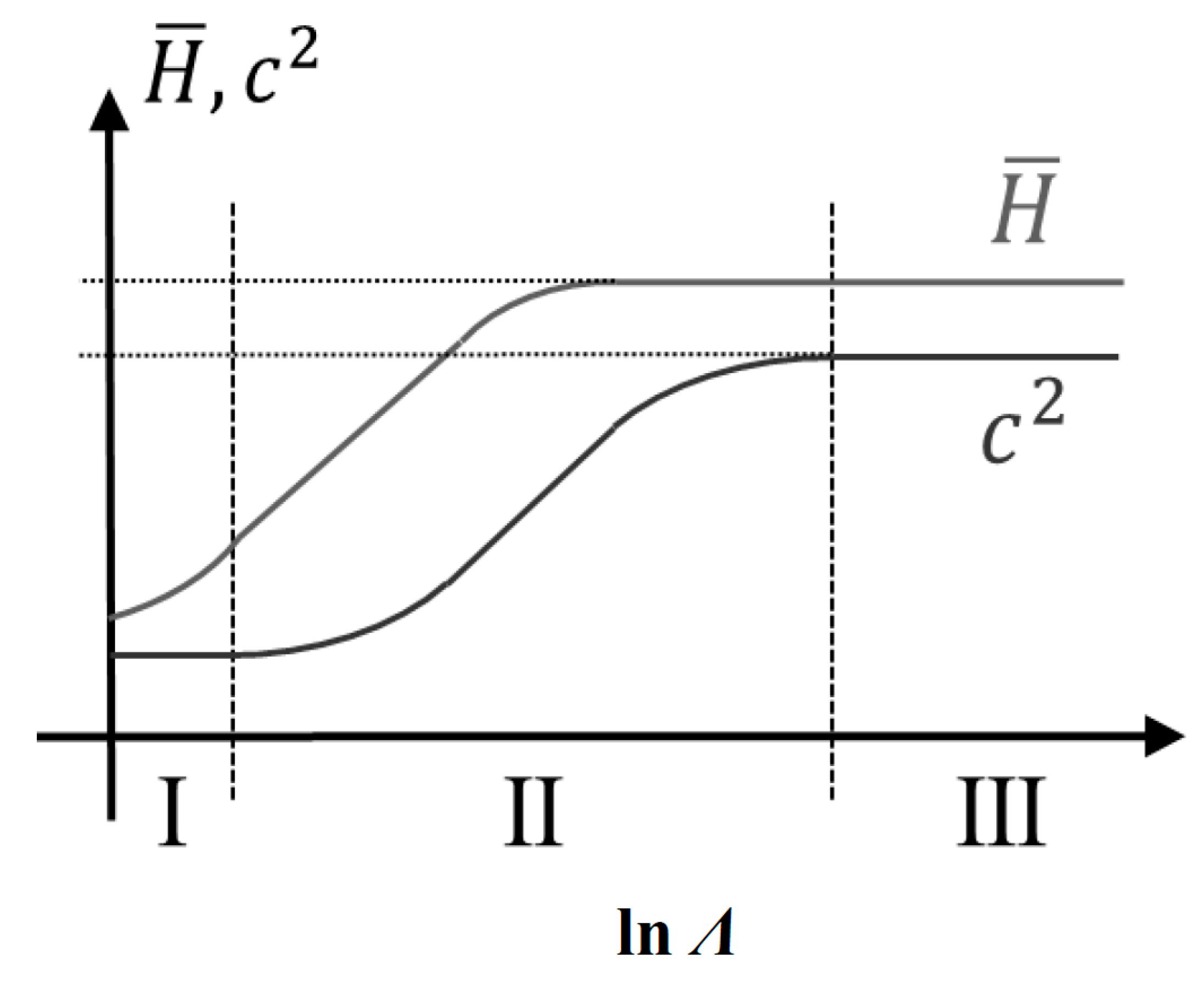

Figure 2. Normalized hardness, H ¯ = H/σy, and area ratio, c2, as functions of lnΛ, defined by Equation (1). Schematic of the correlation of sharp indentation testing of elastic-ideally plastic materials. The three indentation levels, I, II and III, are also indicated. Approximately, level II contact initiates at Λ = 3 level III contact at Λ = 900. The H ¯ -curve flattens out at (approximately) Λ = 30.
Figure 2. Normalized hardness, H ¯ = H/σy, and area ratio, c2, as functions of lnΛ, defined by Equation (1). Schematic of the correlation of sharp indentation testing of elastic-ideally plastic materials. The three indentation levels, I, II and III, are also indicated. Approximately, level II contact initiates at Λ = 3 level III contact at Λ = 900. The H ¯ -curve flattens out at (approximately) Λ = 30.
Lubricants 07 00050 g002

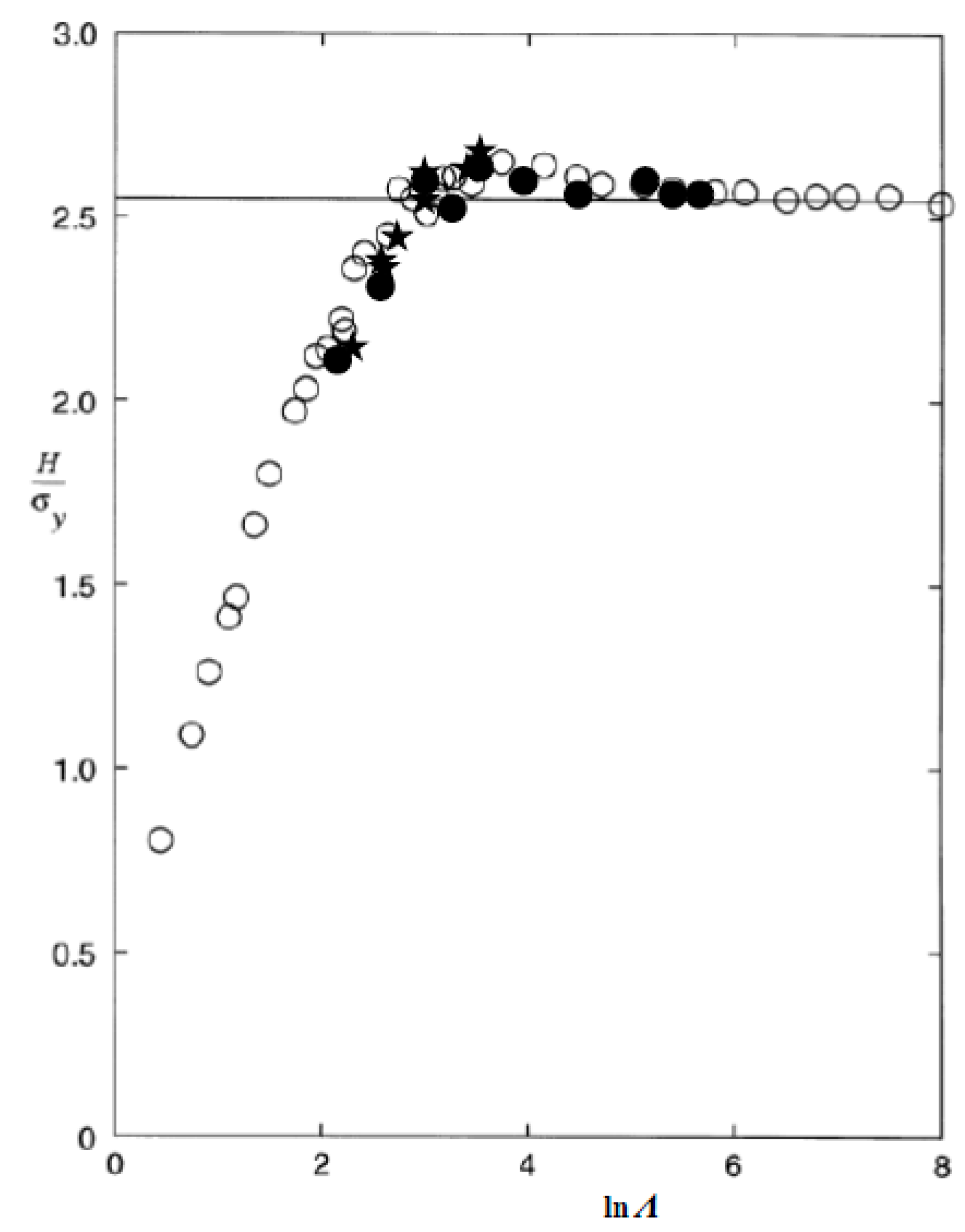

Figure 3. Results for equi-biaxial residual stress fields. Normalized hardness, H/σy, as function of lnΛ, defined by Equation (7) with the yield stress σy replaced by σy,apparent in Equation (6). The straight line represents Equation (7). (○), stress-free results taken from Larsson [17]. (●), hardness values taken from [12] with and without residual stresses. (⋆), hardness values taken from [14] with and without residual stresses.
Figure 3. Results for equi-biaxial residual stress fields. Normalized hardness, H/σy, as function of lnΛ, defined by Equation (7) with the yield stress σy replaced by σy,apparent in Equation (6). The straight line represents Equation (7). (○), stress-free results taken from Larsson [17]. (●), hardness values taken from [12] with and without residual stresses. (⋆), hardness values taken from [14] with and without residual stresses.
Lubricants 07 00050 g003

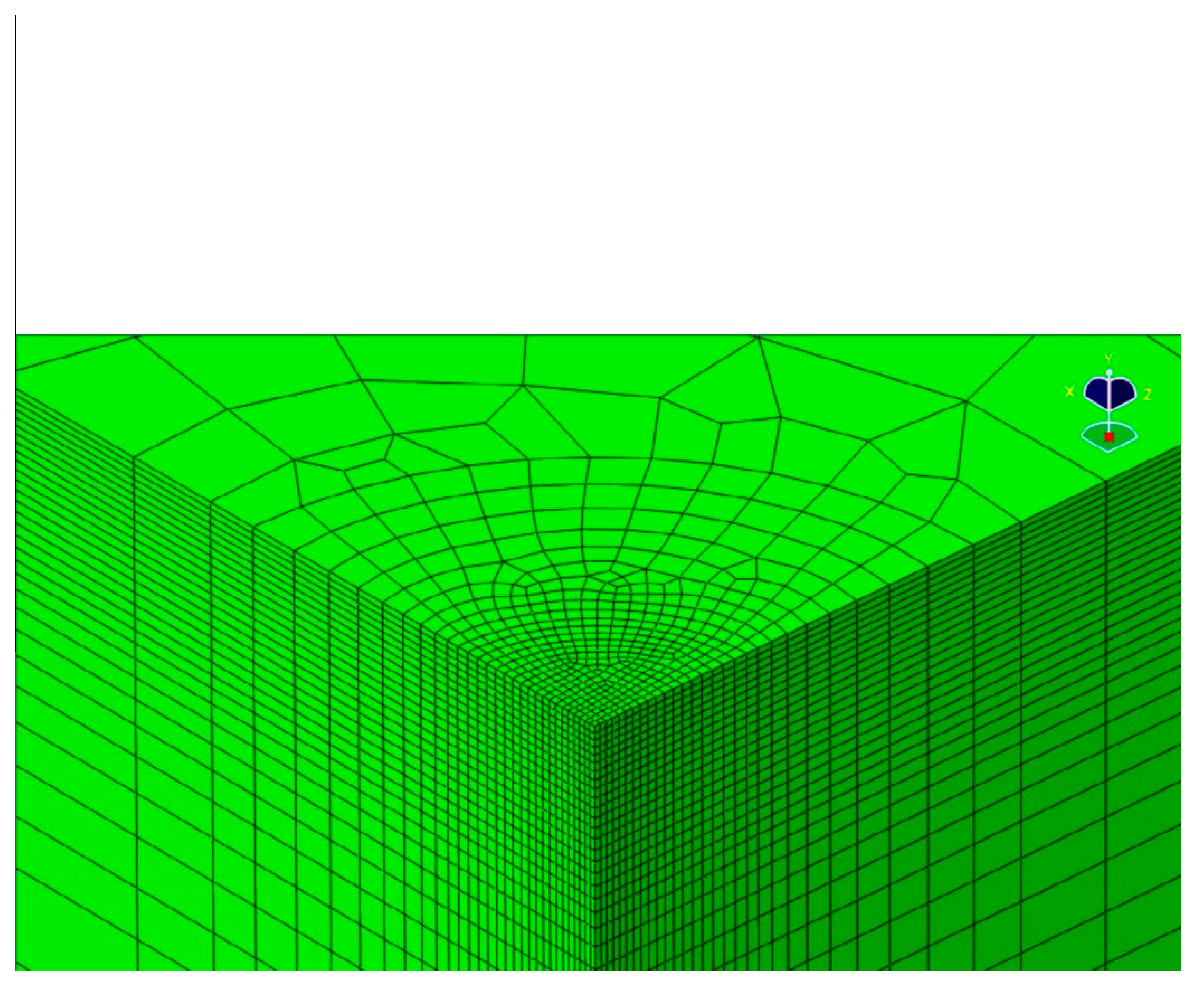

Figure 4. Finite element mesh, close to the region of contact, used in the numerical simulations. The coordinate Y corresponds to X2 in Figure 1. The finite element mesh, modelling a quarter of the material accounting for symmetries, is shown observed obliquely from above.
Figure 4. Finite element mesh, close to the region of contact, used in the numerical simulations. The coordinate Y corresponds to X2 in Figure 1. The finite element mesh, modelling a quarter of the material accounting for symmetries, is shown observed obliquely from above.
Lubricants 07 00050 g004

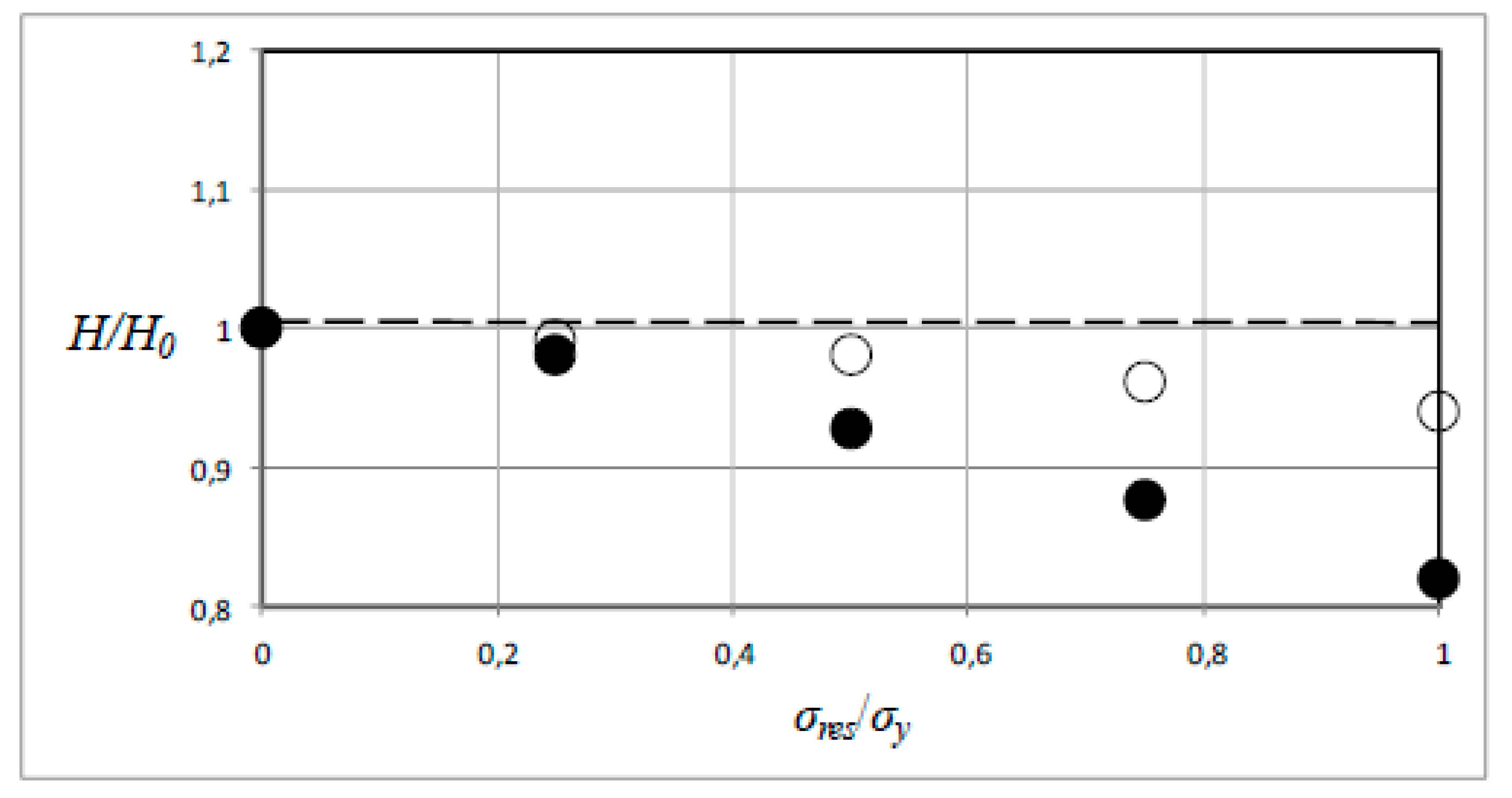

Figure 5. Nondimensionalized hardness, H/H0, as a function of the residual stress ratio, σresy. H0 is the residual stress-free hardness. (- - -), H/H0 = 1. Results from [14]. (○), numerical results for uniaxial residual stresses, σ1 = σres and σ2 = 0. (●), numerical results for equi-biaxial residual stresses, σ1 = σ2 = σres.
Figure 5. Nondimensionalized hardness, H/H0, as a function of the residual stress ratio, σresy. H0 is the residual stress-free hardness. (- - -), H/H0 = 1. Results from [14]. (○), numerical results for uniaxial residual stresses, σ1 = σres and σ2 = 0. (●), numerical results for equi-biaxial residual stresses, σ1 = σ2 = σres.
Lubricants 07 00050 g005

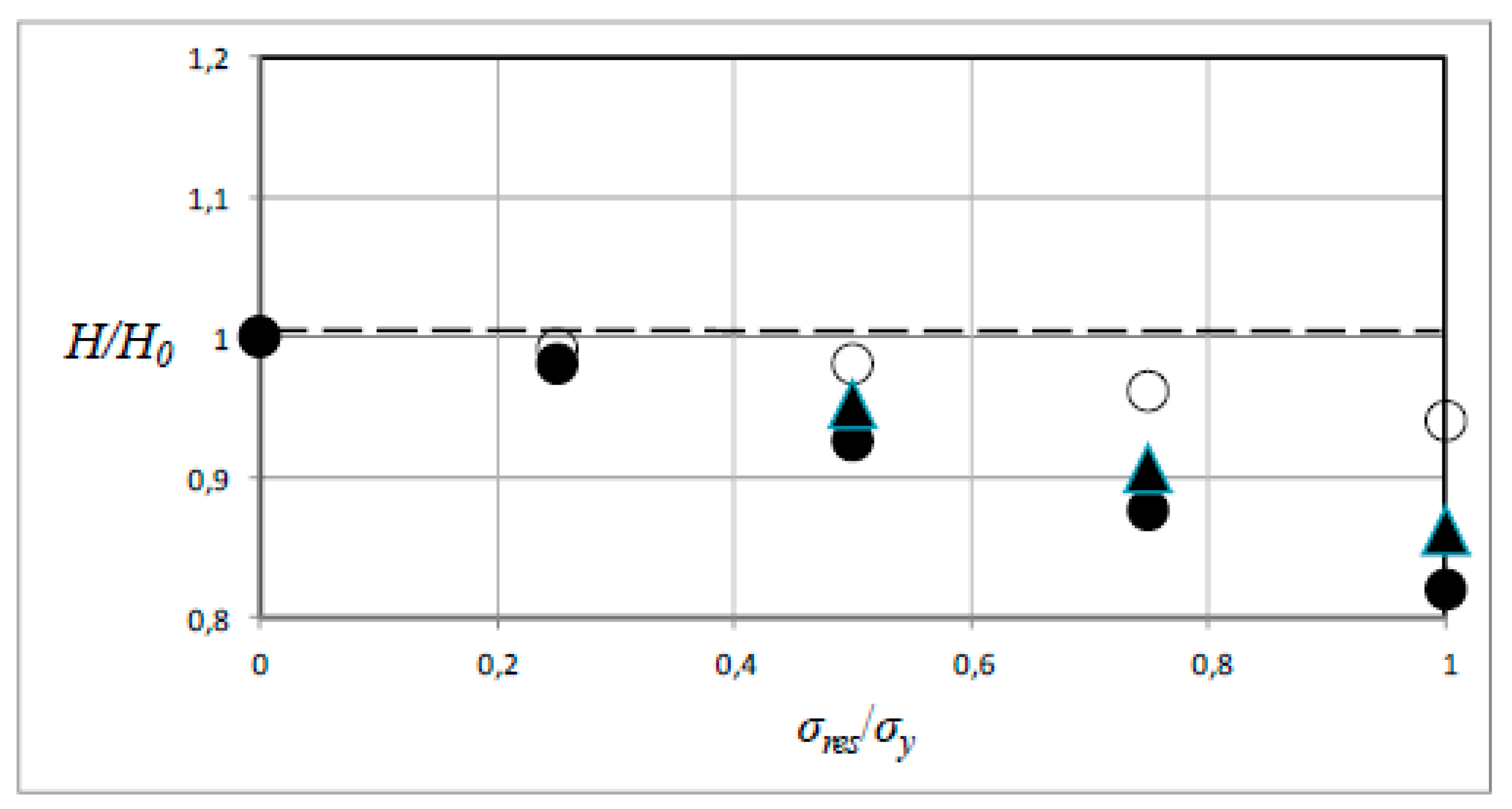

Figure 6. Nondimensionalized hardness, H/H0, as a function of the residual stress ratio, σresy. H0 is the residual stress free hardness. (- - -), H/H0 = 1. (○), numerical results from [14] for uniaxial residual stresses, σ1 = σres and σ2 = 0. (▲), present numerical results for the case σ1 = σres = 2σ2. (●), numerical results from [14] for equi-biaxial residual stresses, σ1 = σ2 = σres.
Figure 6. Nondimensionalized hardness, H/H0, as a function of the residual stress ratio, σresy. H0 is the residual stress free hardness. (- - -), H/H0 = 1. (○), numerical results from [14] for uniaxial residual stresses, σ1 = σres and σ2 = 0. (▲), present numerical results for the case σ1 = σres = 2σ2. (●), numerical results from [14] for equi-biaxial residual stresses, σ1 = σ2 = σres.
Lubricants 07 00050 g006

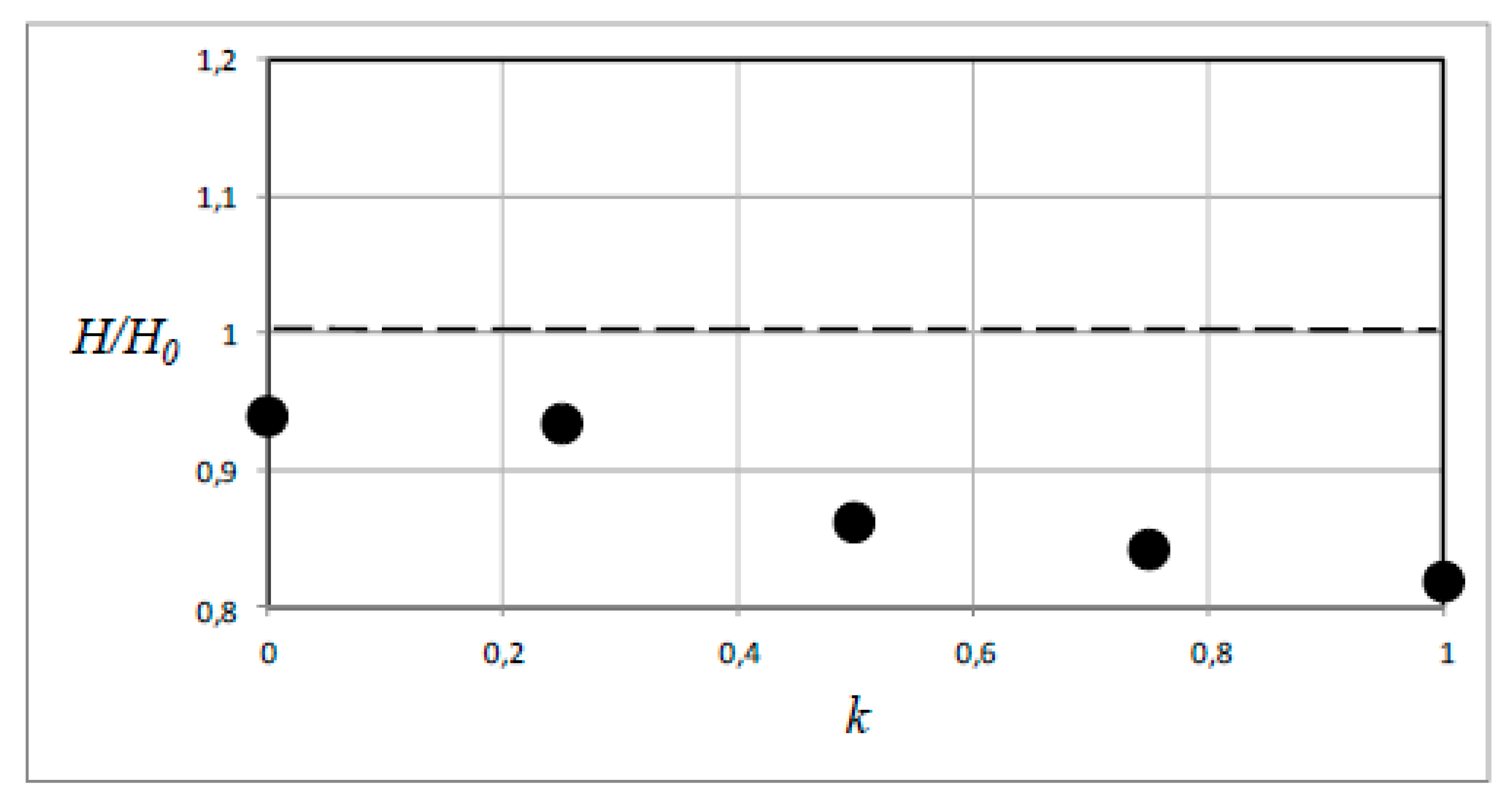

Figure 7. Nondimensionalized hardness, H/H0, as a function of the stress ratio k in Equation (13). H0 is the residual stress-free hardness. (- - -), H/H0 = 1. (●), present numerical results for the case σ1 = σres = σy.
Figure 7. Nondimensionalized hardness, H/H0, as a function of the stress ratio k in Equation (13). H0 is the residual stress-free hardness. (- - -), H/H0 = 1. (●), present numerical results for the case σ1 = σres = σy.
Lubricants 07 00050 g007

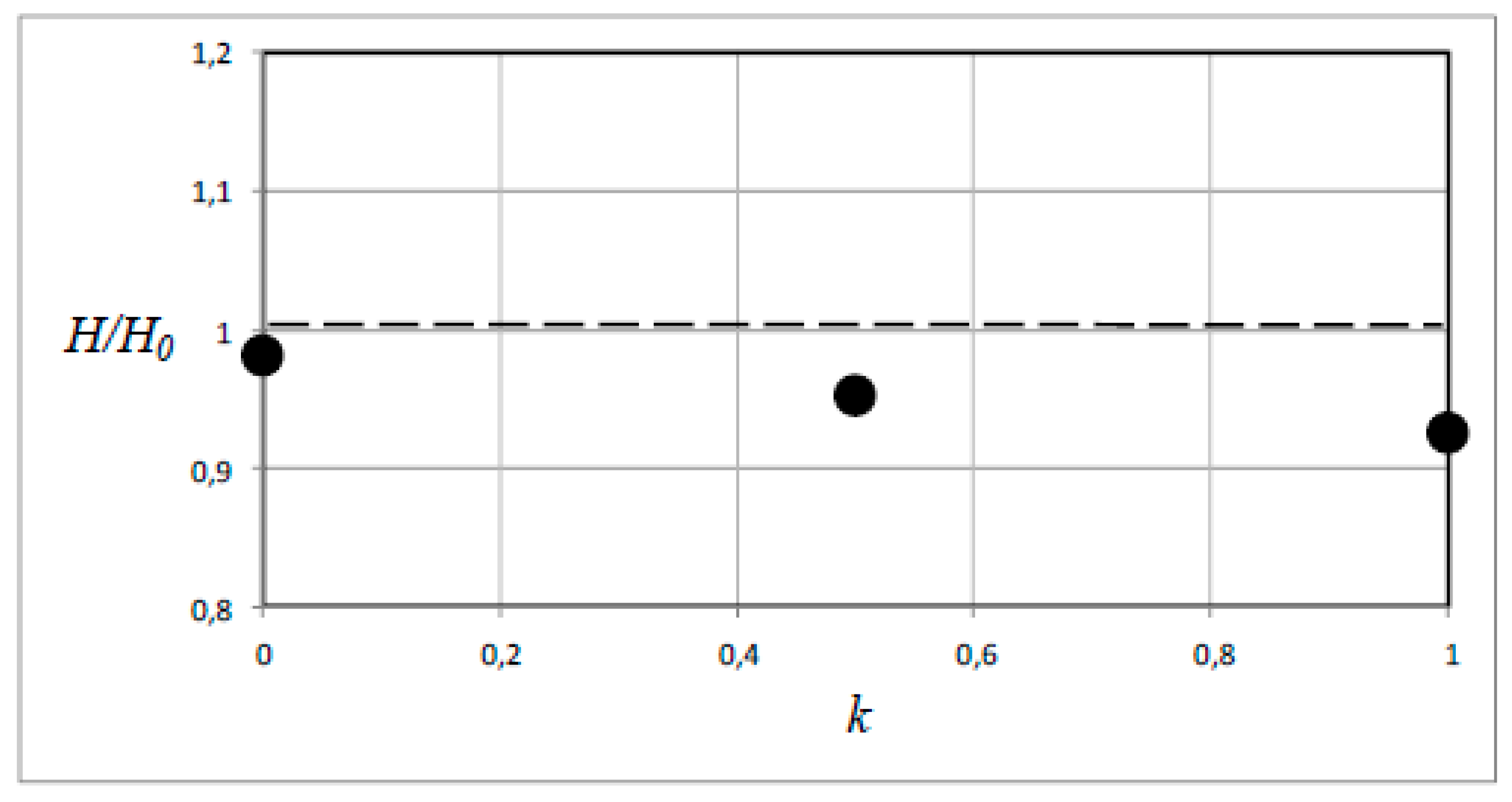

Figure 8. Nondimensionalized hardness, H/H0, as a function of the stress ratio k in Equation (13). H0 is the residual stress-free hardness. (- - -), H/H0 = 1. (●), present numerical results for the case σ1 = σres = σy/2.
Figure 8. Nondimensionalized hardness, H/H0, as a function of the stress ratio k in Equation (13). H0 is the residual stress-free hardness. (- - -), H/H0 = 1. (●), present numerical results for the case σ1 = σres = σy/2.
Lubricants 07 00050 g008

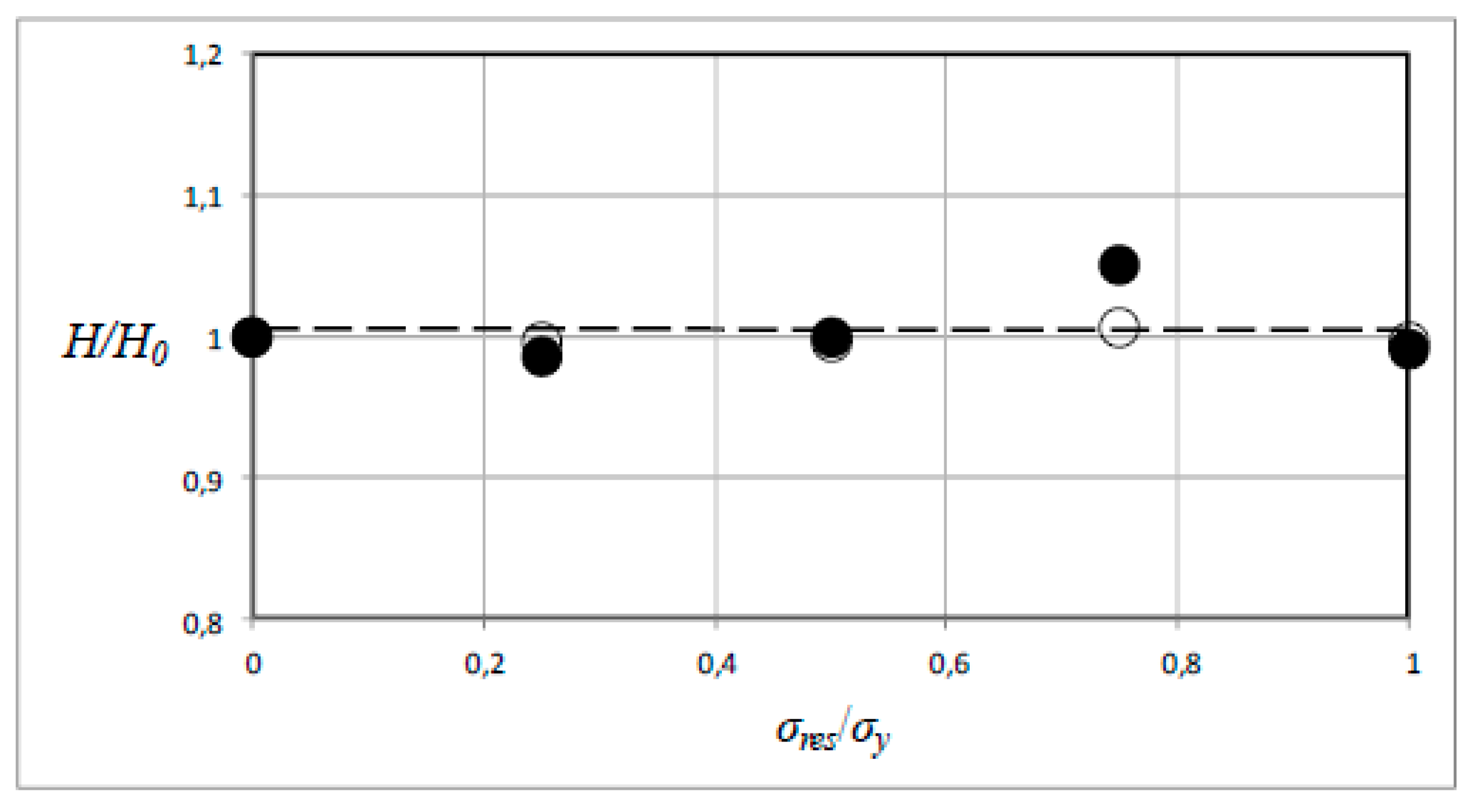

Figure 9. Nondimensionalized hardness, H/H0, as a function of the residual stress ratio, σresy for the case ln Λ = 5.7. H0 is the residual stress free hardness. (- - -), H/H0 = 1. (○), numerical results for uniaxial residual stresses, σ1 = σres and σ2 = 0. (●), numerical results for equi-biaxial residual stresses, σ1 = σ2 = σres.
Figure 9. Nondimensionalized hardness, H/H0, as a function of the residual stress ratio, σresy for the case ln Λ = 5.7. H0 is the residual stress free hardness. (- - -), H/H0 = 1. (○), numerical results for uniaxial residual stresses, σ1 = σres and σ2 = 0. (●), numerical results for equi-biaxial residual stresses, σ1 = σ2 = σres.
Lubricants 07 00050 g009
Figure 10. Normalized relative contact area, RCA = c2/ c02, as a function of the residual stress ratio, σresy for the case ln Λ = 5.7. c02 is the value on the relative contact area at residual stress-free conditions. (- - -), c2/ c02 = 1. (○), numerical results for equi-biaxial residual stresses, σ1 = σ2 = σres.
Figure 10. Normalized relative contact area, RCA = c2/ c02, as a function of the residual stress ratio, σresy for the case ln Λ = 5.7. c02 is the value on the relative contact area at residual stress-free conditions. (- - -), c2/ c02 = 1. (○), numerical results for equi-biaxial residual stresses, σ1 = σ2 = σres.
Lubricants 07 00050 g010
