Lubricants 2018, 6(1), 13; https://doi.org/10.3390/lubricants6010013

An Arbitrary Lagrangian–Eulerian Formulation for Modelling Cavitation in the Elastohydrodynamic Lubrication of Line Contacts

School of Mechanical Engineering, University of Leeds, Woodhouse Lane, Leeds LS2 9JT, UK
*
Author to whom correspondence should be addressed.
Received: 21 December 2017 / Revised: 20 January 2018 / Accepted: 22 January 2018 / Published: 24 January 2018
(This article belongs to the Special Issue Computer Simulation in Tribology and Friction)
Full-Text   |   PDF [2382 KB, uploaded 25 January 2018]   |

Abstract

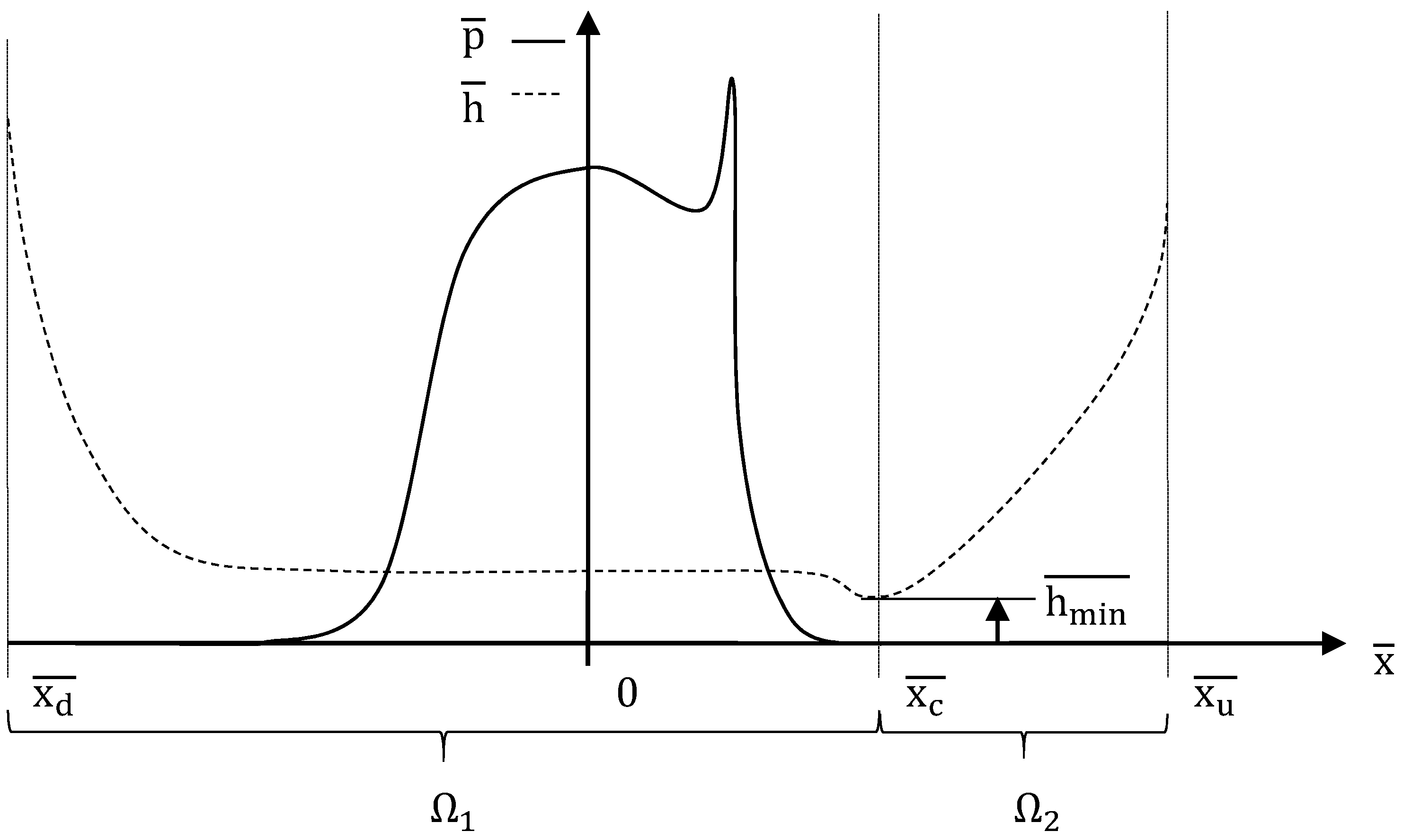

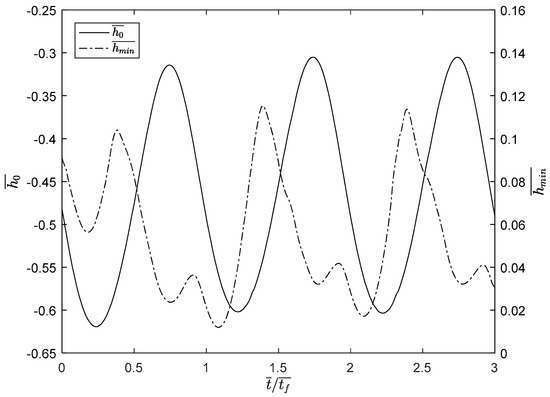

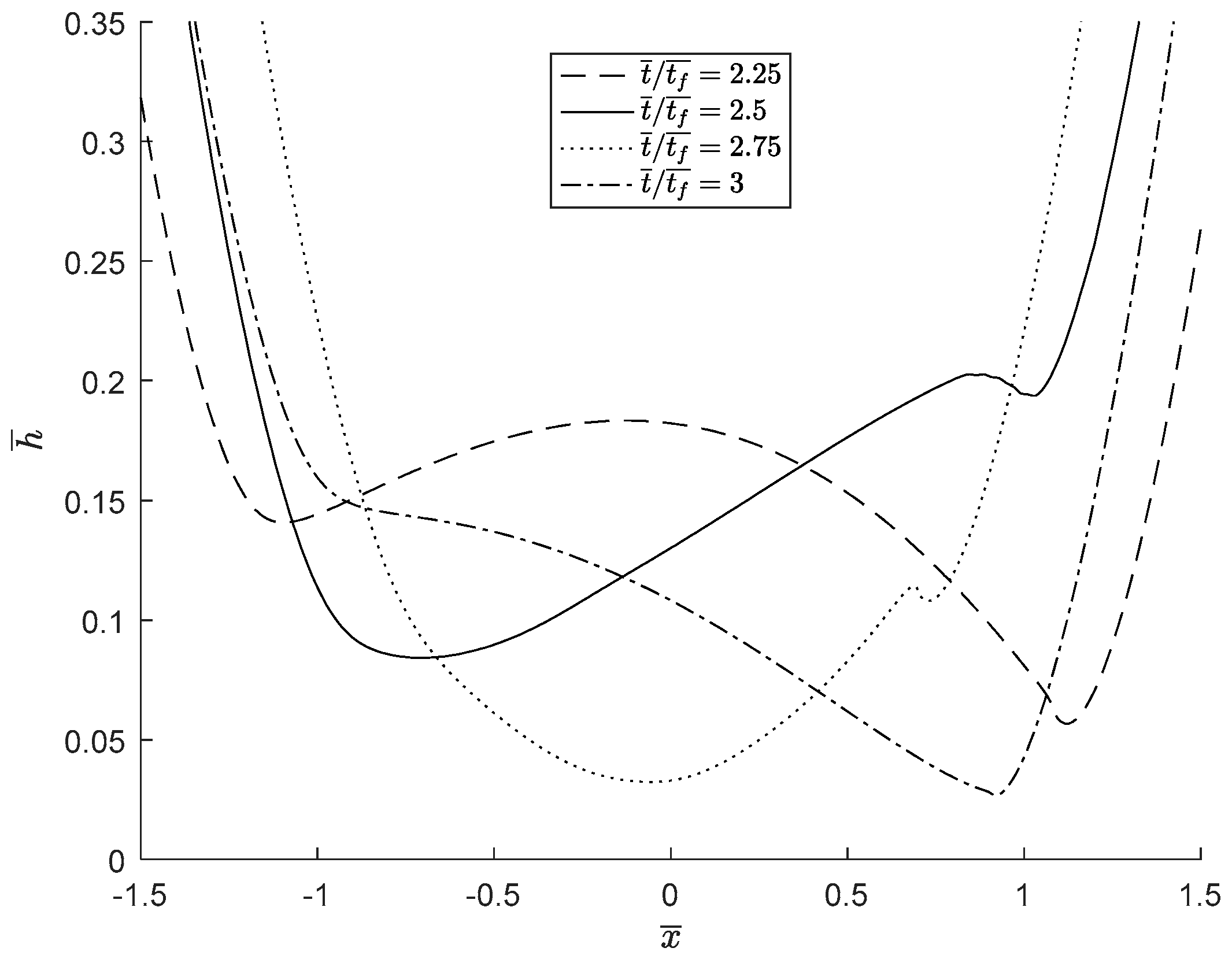

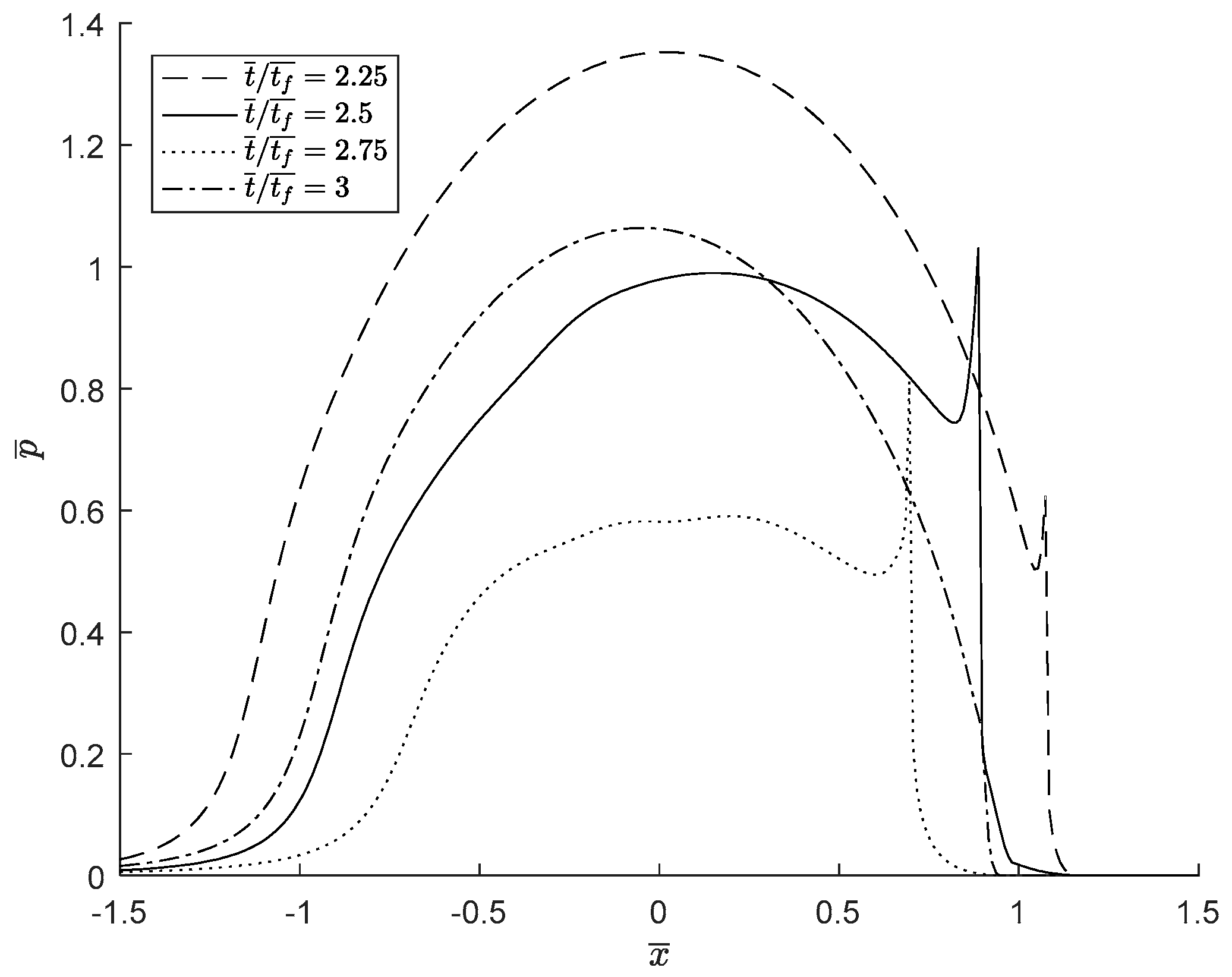

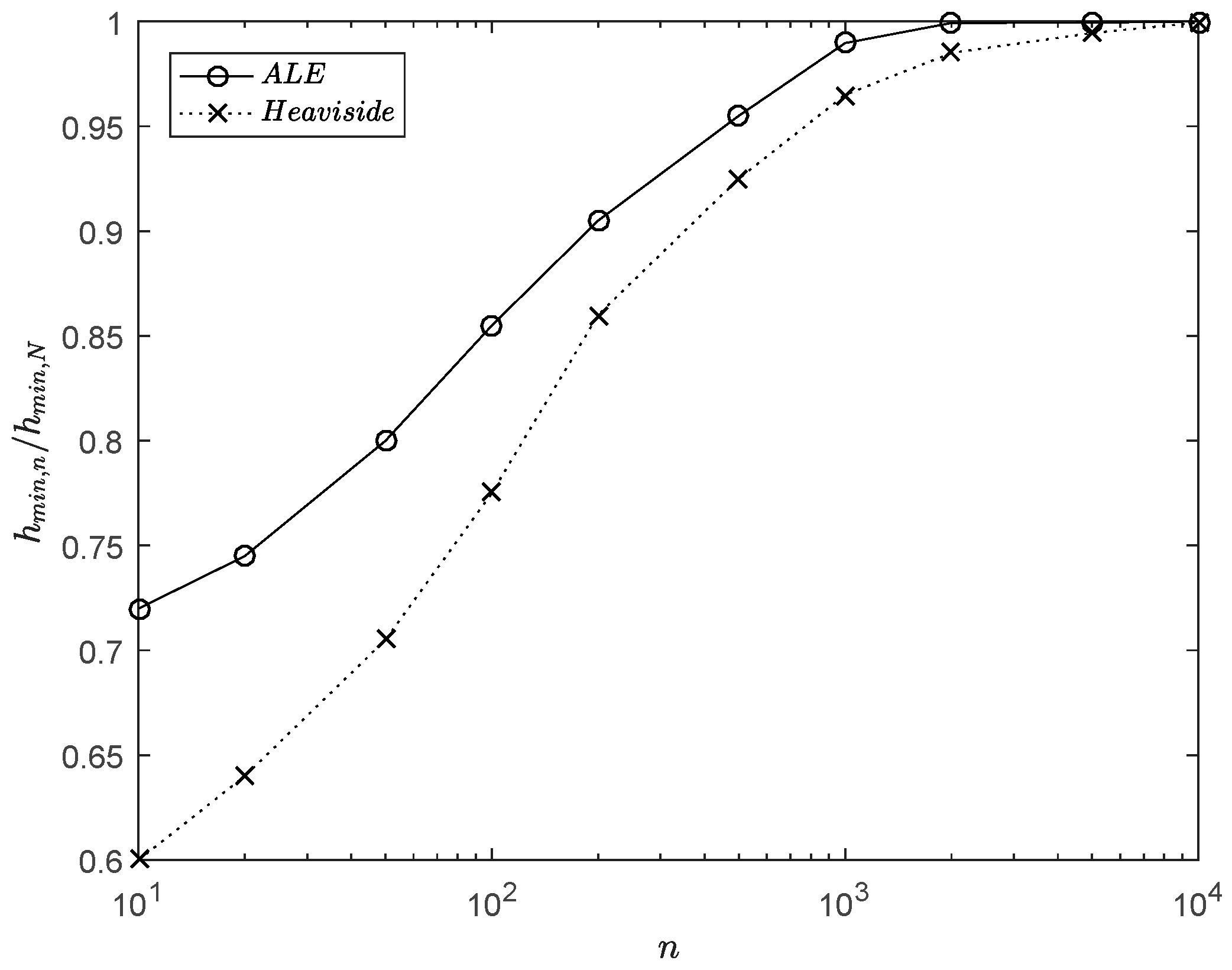

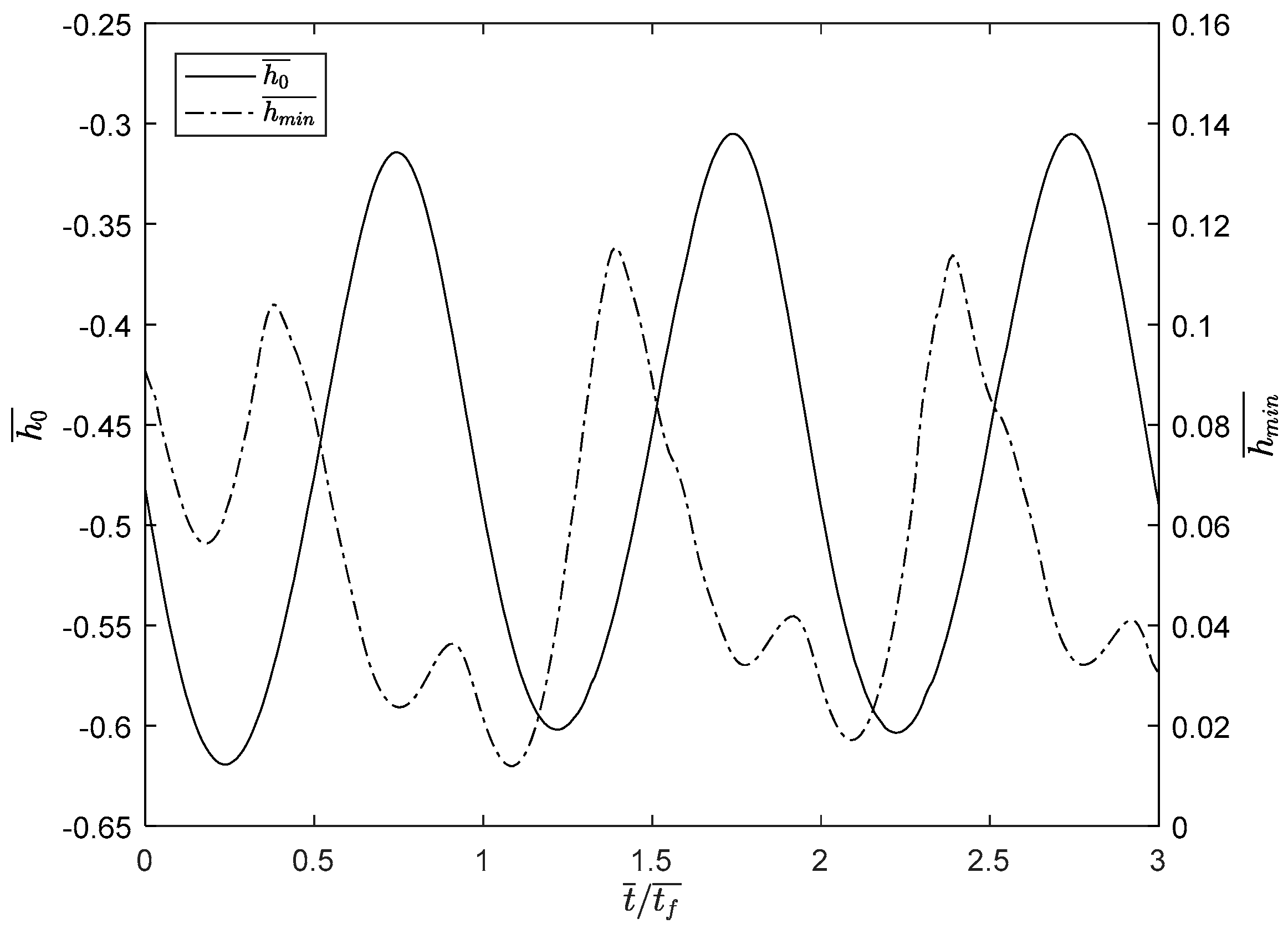

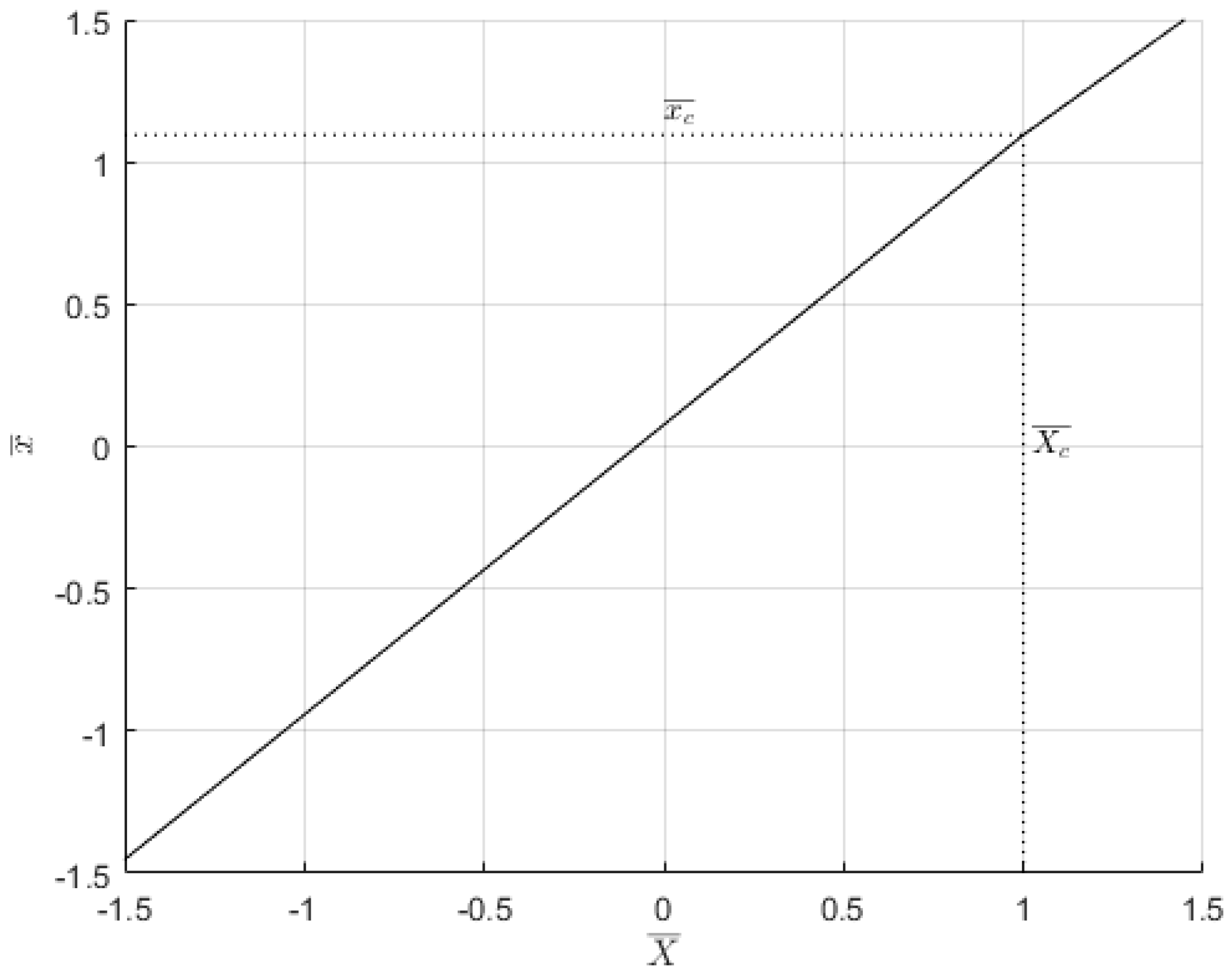

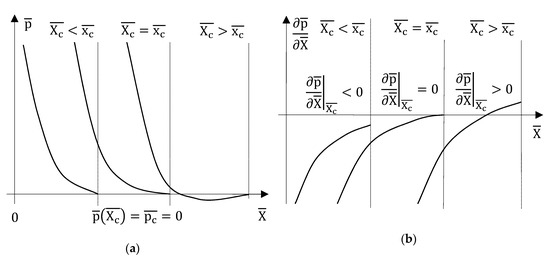

In this article an arbitrary Lagrangian–Eulerian (ALE) formulation for modelling cavitation in elastohydrodynamic lubrication (EHL) is derived and applied to line contact geometry. The method is developed in order to locate the position of cavitation onset along the length of the contacting region which gives the transition from liquid to vapour in the fluid. The ALE is implemented by introducing a spatial frame of reference in which the solution is required and a material frame of reference in which the governing equations are solved. The spatial frame is moved from the material frame according to the error in the Neumann pressure gradient constraint required at the cavitation location when Dirichlet constraints are imposed for pressure in the liquid phase. Results are calculated under both steady-state and transient operating conditions using a multigrid solver. The solutions obtained are compared to established literature and conventional approaches to modelling cavitation which show that the ALE formulation is an alternative, straightforward and accurate means of implementing such conditions in EHL. This is achieved without the penalties associated with the numerical modelling of Heaviside functions or free boundaries. View Full-Text
Keywords: cavitation; elastohydrodynamic lubrication; numerical simulation; finite element method/analysis cavitation; elastohydrodynamic lubrication; numerical simulation; finite element method/analysis
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

de Boer, G.; Dowson, D. An Arbitrary Lagrangian–Eulerian Formulation for Modelling Cavitation in the Elastohydrodynamic Lubrication of Line Contacts. Lubricants 2018, 6, 13.
