Discussion on the Non-Linear Stability of Short Hydrodynamic Bearings by Applying Rabinowitsch Fluid Model

Abstract

Using the Rabinowitsch fluid model, the effects of dilatant fluids (a non-Newtonian factor less than 0) and pseudo-plastic fluids (a non-Newtonian factor greater than 0) on the non-linear stability of hydrodynamic journal bearings is discussed. The modified Reynolds equation is solved by the small perturbation method, and the stiffness and damping coefficients and threshold speed of hydrodynamic bearings are obtained. Through the fourth-order Runge–Kutta method, the trajectory of the journal center is traced and the non-linear stability boundary of hydrodynamic bearings with different non-Newtonian lubricants could be confirmed. The results show that the dilatant fluids could increase the threshold speed and enlarge the non-linear stability region of the hydrodynamic bearing, while the influence of pseudo-plastic fluids is positive. And for the lubricants with a larger non-Newtonian factor, the effect is more obvious. It could be confirmed that the stability of hydrodynamic bearings lubricated with dilatant fluids is better than that of bearings with Newtonian and pseudo-plastic lubricants. The results illustrate that selecting a more appropriate lubricant can enhance the stability of hydrodynamic bearings.

1. Introduction

The hydrodynamic journal bearing is a key support part in many rotating machines, and the rotating and static parts of machines are totally isolated by the thin oil film. The load capacity of oil film is caused by hydrodynamic effects, and the hydrodynamic effect of bearings is positively correlated with the rotating speed of journals. Due to the influence of oil whirl, there is a threshold speed for the hydrodynamic journal bearing [1,2,3]. When a journal is in the equilibrium state with a rotating speed greater than the threshold speed, if an instantaneous impulsion is suddenly impacted on the journal and makes it leave the equilibrium location, the journal would gradually lose stability and reach the bearing surface and damage the bearing. Since the journal operates with a speed under the threshold speed, there is a non-linear stability region for the bearing [4,5,6]; after an instantaneous impulsion impacting on the journal, the journal would gradually go back to the equilibrium location only for the region in the journal center. Thus, for the non-linear stability of hydrodynamic bearings, the threshold speed and non-linear stability region are important parameters which are determined by the stiffness and damping coefficients of bearings. There have been many discussions about these parameters of hydrodynamic bearings in recent decades.

Based on the eigenvector comprising position coordinates and velocity components of the journal center, Khonsari et al. [7] obtained the journal center trajectories of hydrodynamic bearings deviating from the equilibrium location and confirmed the non-linear stability region of the bearings. Through illustrating the locations of the journal center by polar coordinates, the expressions of stiffness and damping coefficients in a simpler form were deduced by Wang et al. [8]. Applying the numerical continuation method, Amamou et al. [9] found the threshold speed of the hydrodynamic journal bearing. Huang et al. [10] proposed a new method to calculate the threshold speeds of both short and long hydrodynamic bearings, and the analytical expression of threshold speed of the long bearing was deduced. In discussions on non-linear stability of hydrodynamic bearings, the oil film forces are usually expressed in polar coordinates while the stiffness and damping coefficients are required to be expressed in rectangular coordinates, to simplify the computation process. Tian et al. [11] established a transformational relation between the two coordinates. Using the short and long bearing approximation, Dyk et al. [12] obtained the non-linear stability parameters of hydrodynamic bearings and compared the results with those of the finite element method, and the influence of length-to-diameter ratio on these parameters was displayed. Applying the small perturbation method, Sayed et al. [13] calculated the dynamic performance coefficients of hydrodynamic bearings and then discussed the non-linear stability of the bearing–rotor system through the Hopf bifurcation method. Considering the water lubricated hydrodynamic journal bearings, Lin et al. [14] discussed the non-linear performances of bearings, and it was found that the inertia force of water should be considered in the discussion. Applying the long bearing approximation, Huang et al. [15] displayed the non-linear stability of the hydrodynamic bearing, and it was found that there were two threshold speeds for long hydrodynamic bearings, and the stability of long bearings was better than that of short bearings. Considering the turbulence of lubricants, Mao et al. [16] modified the Reynolds equation and studied the static performances of hydrodynamic bearings. Dakel et al. [17] discussed the non-linear stability of hydrodynamic bearings with a flexible journal, and a new dynamic model for the bearing–rotor system was proposed. Using the short bearing model and perturbation method, Miraskari et al. [18,19] analyzed the non-linear stability of hydrodynamic bearings, and the dynamic performance coefficients of bearings were calculated. To optimize the computation in the discussion on the non-linear stability of hydrodynamic bearings, the oil film forces of the bearing were approximated to linear forms by Machado et al. [20]; it was shown that the non-linear stability of the hydrodynamic bearing was mainly decided by the excitation force.

The lubricants in the above studies about hydrodynamic bearings were Newtonian fluids, but in modern industry, the lubricants applied in oil film bearings are rarely strictly Newtonian fluids [21,22,23,24,25]. Among all the non-Newtonian models, the Rabinowitsch fluid model is an important one:

$$\tau +k{\tau }^3=\mu {\displaystyle \frac{d\gamma }{dt}}$$

(1)

where τ is the shear stress, k is the non-Newtonian factor, dγ/dt is the shear rate, and μ is the viscosity at zero shear rate. Applying the Rabinowitsch fluid model, Wada et al. [26,27] established the modified Reynolds equation which had been solved by the small perturbation method, and the results of theoretical analysis were verified by the experiment. Based on Wada’s studies, Lin et al. [28] calculated the dynamic performance coefficients of hydrodynamic bearings lubricated with non-Newtonian fluids and deduced the threshold speed of bearings. Applying the numerical integration method, Tian et al. [29] illustrated the influence of pseudo-plastic fluids on the dynamic performance of hydrodynamic bearings, and the results were suitable for all the lubricants with non-Newtonian factors larger than zero. Besides hydrodynamic journal bearings, the Rabinowitsch fluid model was also applied in hydrostatic thrust bearings [30,31,32] and slider bearings [33,34].

Based on the discussion above, it is clear that the influence of non-Newtonian behavior on the performances of oil film bearings cannot be ignored. As far as the authors know, there have been no studies on the influence of pseudo-plastic fluids on the non-linear stability boundary of hydrodynamic bearings. Thus, the non-linear stability of hydrodynamic bearings lubricated with non-Newtonian lubricants is discussed in this study. Applying the Rabinowitsch fluid model, the modified Reynolds equation was deduced. Through the small perturbation method, the modified Reynolds equation was solved, and the stiffness and damping coefficients and threshold speed of hydrodynamic bearings were obtained. Then, by analyzing the trajectory of the journal center, the non-linear stability boundary of hydrodynamic bearings with different non-Newtonian lubricants was found.

2. Theoretical Analysis

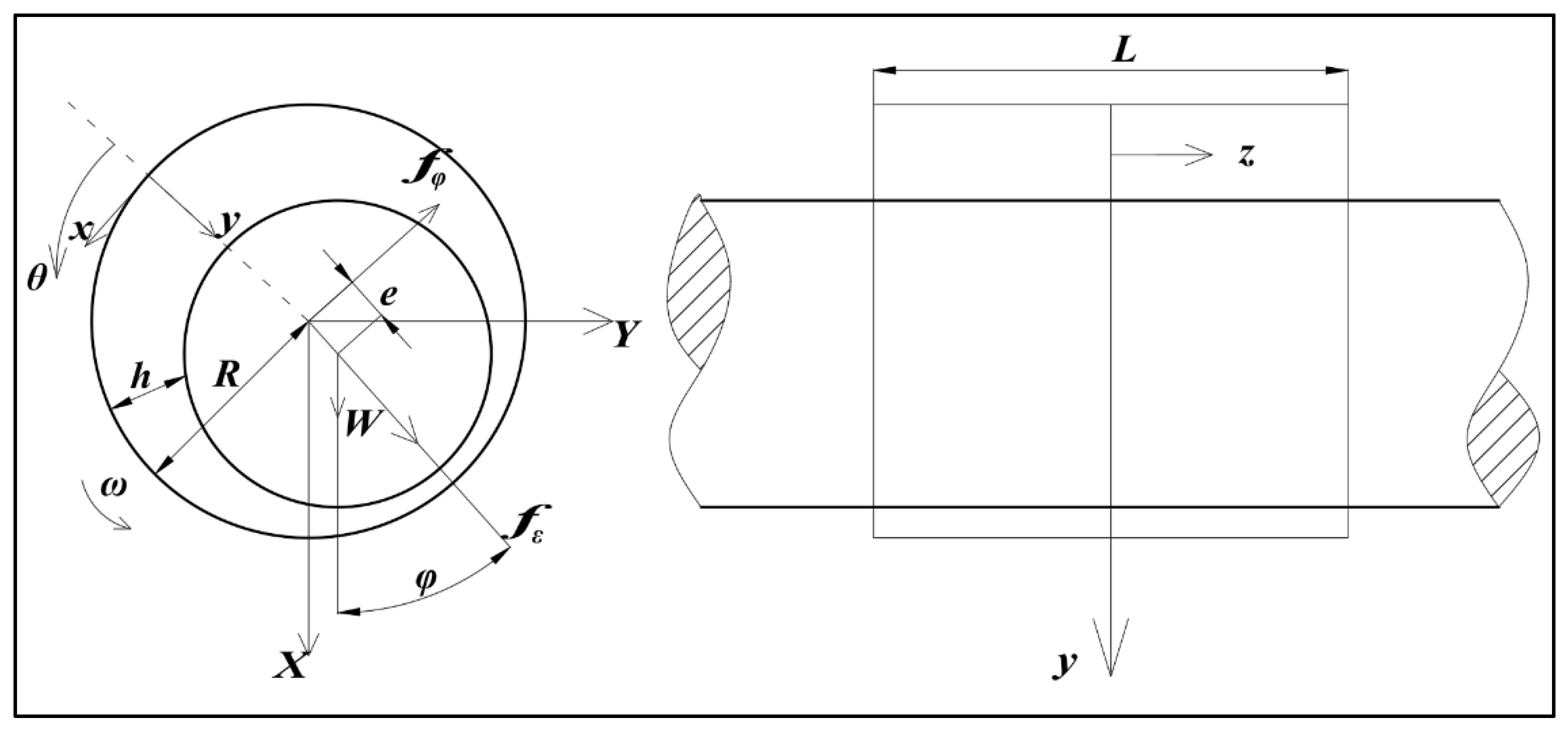

The schematic of the hydrodynamic journal bearing discussed in this study is depicted in Figure 1. The journal, with a radius denoted as R, rotates in an anticlockwise direction at an angular speed of ω. Following the approximation for journal bearings, the film thickness of bearings can be expressed as h = C + ecosθ, where C represents the radial clearance, e is the eccentricity, and θ is the angular coordinate of an arbitrary point on the bearing surface. Additionally, φ signifies the attitude angle, while f_ε represents the fluid force component in the eccentric direction, and f_φ is the component perpendicular to it. The external load acting on the journal is denoted by W.

To avoid calculation errors, dimensionless quantities are applied in the derivation process. The substitution relationships are as follows:

$$\begin{array}{l}x=R\theta ,z={\displaystyle \frac{L}{2}}{z}^{\ast },\alpha =k{\left({\displaystyle \frac{\mu R\omega }{C}}\right)}^2,h=C{h}^{\ast }=C\left(1+\epsilon \cos \theta \right),\\ e=C\epsilon ,p=\mu \omega {\left({\displaystyle \frac{R}{C}}\right)}^2{p}^{\ast },\dot{\epsilon }={\displaystyle \frac{1}{\omega }}{\displaystyle \frac{d\epsilon }{dt}},\dot{\phi }={\displaystyle \frac{1}{\omega }}{\displaystyle \frac{d\phi }{dt}}\end{array}$$

(2)

The dot ‘.’ above the variable means the first derivative of the variable with respect to time t. Considering the hydrodynamic bearing lubricated with non-Newtonian fluids, applying the short bearing model, the modified Reynolds equation can be written as follows [28]:

$${\left({\displaystyle \frac{D}{L}}\right)}^2{\displaystyle \frac{\partial }{\partial z^{\ast }}}\left[{\displaystyle \frac{{h^{\ast }}^3}{12}}{\displaystyle \frac{\partial p^{\ast }}{\partial z^{\ast }}}+\alpha {\left({\displaystyle \frac{D}{L}}\right)}^2{\displaystyle \frac{{h^{\ast }}^5}{80}}{\left({\displaystyle \frac{\partial p^{\ast }}{\partial z^{\ast }}}\right)}^3\right]={\displaystyle \frac{1}{2}}{\displaystyle \frac{\partial h^{\ast }}{\partial \theta }}+\dot{\epsilon }\cos \theta +\epsilon \dot{\phi }\sin \theta$$

(3)

Here, D is the diameter of the bearing, and D = 2R.

To solve this non-linear differential equation, the small perturbation method is applied. Considering the small values of non-Newtonian factor α, the non-dimensional pressure p* could be written into [28]

$$p^{\ast }=p_0^{\ast }+\alpha p_1^{\ast }$$

(4)

Substituting Equation (4) into Equation (3), ignoring the high-order terms of α, using the pressure boundary conditions $p_0^{\ast }{|}_{z^{\ast }=\pm 1}=0,p_1^{\ast }{|}_{z^{\ast }=\pm 1}=0$, the non-dimensional pressure p* could be obtained as follows:

$$\begin{array}{l}{p}^{\ast }=3{\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{\left(2\dot{\phi }-1\right)\epsilon \sin \theta +2\dot{\epsilon }\cos \theta }{{\left(1+\epsilon \cos \theta \right)}^3}}\left({z^{\ast }}^2-1\right)\\ -{\displaystyle \frac{81}{10}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^4{\displaystyle \frac{{\left[\left(2\dot{\phi }-1\right)\epsilon \sin \theta +2\dot{\epsilon }\cos \theta \right]}^3}{{\left(1+\epsilon \cos \theta \right)}^7}}\left({z^{\ast }}^4-1\right)\end{array}$$

(5)

and the film forces are as follows:

$$f_{\epsilon }={\displaystyle \frac{\mu \omega L{R}^3}{2C^2}}{\displaystyle {\int }_{-1}^1{\displaystyle {\int }_0^{\pi }{p}^{\ast }\cos \theta d\theta d{z}^{\ast }}}$$

(6)

$$f_{\phi }={\displaystyle \frac{\mu \omega L{R}^3}{2C^2}}{\displaystyle {\int }_{-1}^1{\displaystyle {\int }_0^{\pi }{p}^{\ast }\sin \theta d\theta d{z}^{\ast }}}$$

(7)

The non-dimensional substitutions are as follows:

$$f_{\epsilon }=SW{f}_{\epsilon }^{\ast },f_{\phi }=SW{f}_{\phi }^{\ast },S={\displaystyle \frac{\mu \omega R{L}^3}{2W{C}^2}},\omega =\sqrt{{\displaystyle \frac{W}{mc}}}{\omega }^{\ast }$$

(8)

where S is the Sommerfeld number, and the expression of S is as follows:

$$S={\displaystyle \frac{1}{\sqrt{{f_{\epsilon }^{\ast }}^2+{f_{\phi }^{\ast }}^2}}}$$

(9)

The expressions of non-dimensional film forces are obtained:

$$\begin{array}{cc}\hfill f_{\epsilon }^{\ast }=& {\displaystyle \frac{2{\epsilon }^2(2\dot{\phi }-1)}{{\left(1-{\epsilon }^2\right)}^2}}-{\displaystyle \frac{\pi \dot{\epsilon }\left(1+2{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^{\frac{5}{2}}}}+{\displaystyle \frac{81}{25}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2\left[-{\displaystyle \frac{{(2\dot{\phi }-1)}^3{\epsilon }^3}{{\left(1-{\epsilon }^2\right)}^5}}\left({\displaystyle \frac{8}{5}}\epsilon +{\displaystyle \frac{4}{15}}{\epsilon }^3\right)+\right.\hfill \\ & {\displaystyle \frac{6{(2\dot{\phi }-1)}^2{\epsilon }^2\dot{\epsilon }}{{\left(1-{\epsilon }^2\right)}^{\frac{11}{2}}}}\left({\displaystyle \frac{1}{8}}+{\displaystyle \frac{17}{16}}{\epsilon }^2+{\displaystyle \frac{1}{8}}{\epsilon }^4\right)\pi -{\displaystyle \frac{12(2\dot{\phi }-1)\epsilon {\dot{\epsilon }}^2}{{\left(1-{\epsilon }^2\right)}^6}}\left({\displaystyle \frac{14}{5}}\epsilon +{\displaystyle \frac{36}{5}}{\epsilon }^3+{\displaystyle \frac{2}{3}}{\epsilon }^5\right)\hfill \\ & \left.+{\displaystyle \frac{8{\dot{\epsilon }}^3}{{\left(1-{\epsilon }^2\right)}^{\frac{13}{2}}}}\left({\displaystyle \frac{3}{8}}+{\displaystyle \frac{101}{16}}{\epsilon }^2-{\displaystyle \frac{29}{4}}{\epsilon }^4+{\displaystyle \frac{1}{2}}{\epsilon }^6\right)\pi \right]\hfill \end{array}$$

(10)

$$\begin{array}{cc}\hfill f_{\phi }^{\ast }=& {\displaystyle \frac{\pi (1-2\dot{\phi })\epsilon }{2{\left(1-{\epsilon }^2\right)}^{\frac{3}{2}}}}+{\displaystyle \frac{4\dot{\epsilon }\epsilon }{{\left(1-{\epsilon }^2\right)}^2}}+{\displaystyle \frac{81}{25}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2\left[{\displaystyle \frac{{(2\dot{\phi }-1)}^3{\epsilon }^3}{{\left(1-{\epsilon }^2\right)}^{\frac{9}{2}}}}\left({\displaystyle \frac{3}{8}}+{\displaystyle \frac{1}{16}}{\epsilon }^2\right)\pi -\right.\hfill \\ & {\displaystyle \frac{6{(2\dot{\phi }-1)}^2{\epsilon }^2\dot{\epsilon }}{{\left(1-{\epsilon }^2\right)}^5}}\left({\displaystyle \frac{28}{15}}\epsilon +{\displaystyle \frac{4}{15}}{\epsilon }^3\right)+{\displaystyle \frac{12(2\dot{\phi }-1)\epsilon {\dot{\epsilon }}^2}{{\left(1-{\epsilon }^2\right)}^6}}\left({\displaystyle \frac{1}{8}}+{\displaystyle \frac{17}{16}}{\epsilon }^2+{\displaystyle \frac{1}{8}}{\epsilon }^4\right)\pi \hfill \\ & \left.-{\displaystyle \frac{8{\dot{\epsilon }}^3}{{\left(1-{\epsilon }^2\right)}^6}}\left({\displaystyle \frac{14}{5}}\epsilon +{\displaystyle \frac{36}{5}}{\epsilon }^3+{\displaystyle \frac{2}{3}}{\epsilon }^5\right)\right]\hfill \end{array}$$

(11)

The analytical integration of Equations (6) and (7) is not obvious at all. The procedure is quite complex, cumbersome, and the reader will appreciate the detailed presentation in Appendix A.

Setting the first and second derivatives of ε and φ to zero, the attitude angle of equilibration point φ_s is obtained as follows:

$${\phi }_s={\tan }^{-1}(-{\displaystyle \frac{f_{\phi }^{\ast }}{f_{\epsilon }^{\ast }}})={\tan }^{-1}\left(-{\displaystyle \frac{\pi {\epsilon }_s{\left(1-{\epsilon }_s^2\right)}^{\frac{7}{2}}-\frac{162}{25}\alpha \pi {\left(\frac{L}{D}\right)}^2{\epsilon }_s^3{\left(1-{\epsilon }_s^2\right)}^{\frac{1}{2}}\left(\frac{3}{8}+\frac{1}{16}{\epsilon }_s^2\right)}{-4{\epsilon }_s^2{\left(1-{\epsilon }_s^2\right)}^3+\frac{162}{25}\alpha {\left(\frac{L}{D}\right)}^2{\epsilon }_s^3\left(\frac{8}{5}{\epsilon }_s+\frac{4}{15}{\epsilon }_s^3\right)}}\right)$$

(12)

Ignoring the deformation and tilt of the journal, applying the Newton second law along the line of centers and the direction perpendicular to it, the non-dimensional motion equations of the journal can be expressed as follows [7]:

$${{\omega }^{\ast }}^2\left(\ddot{\epsilon }-\epsilon {\dot{\phi }}^2\right)-S{f_{\epsilon }}^{\ast }-\cos \phi =0$$

(13)

$${{\omega }^{\ast }}^2\left(\epsilon \ddot{\phi }+2\dot{\epsilon }\dot{\phi }\right)-S{f_{\phi }}^{\ast }+\sin \phi =0$$

(14)

And the acceleration of the journal center in the eccentric and circumferential directions is as follows:

$$\ddot{\epsilon }={\displaystyle \frac{S{f_{\epsilon }}^{\ast }+\cos \phi }{{{\omega }^{\ast }}^2}}+\epsilon {\dot{\phi }}^2$$

(15)

$$\ddot{\phi }={\displaystyle \frac{1}{\epsilon }}\left({\displaystyle \frac{S{f_{\phi }}^{\ast }-\sin \phi }{{{\omega }^{\ast }}^2}}-2\dot{\epsilon }\dot{\phi }\right)$$

(16)

Let us consider a situation where the journal suddenly leaves the equilibration location by being impacted on a transient force and reaches a location of (ε₀, φ₀). As the impact force is transient, the velocity components of the journal center at this point could be regarded as 0. Thus, the initial conditions of acceleration equations could be written as follows:

$$\left\{\begin{array}{l}\epsilon (0)={\epsilon }_0\\ \phi (0)={\phi }_0\\ \dot{\epsilon }(0)=0\\ \dot{\phi }(0)=0\end{array}\right. \mathrm{at} t=0$$

(17)

With Equations (10), (11) and (15)–(17), applying the fourth-order Runge–Kutta method, the journal center trajectory depending upon time could be obtained.

Applying the Routh–Hurwitz stability criterion, the threshold speed of the hydrodynamic journal bearing is found [7] as follows:

$${\omega }_s^{\ast }=\sqrt{{\displaystyle \frac{d_1{d}_3{d}_4}{d_4^2-d_1{d}_2{d}_4+d_1^2{d}_5}}}$$

(18)

where

$$\begin{array}{l}{d}_1=A_{XX}^{\ast }+A_{YY}^{\ast }\\ d_2=K_{XX}^{\ast }+K_{YY}^{\ast }\\ d_3=A_{XX}^{\ast }{A}_{YY}^{\ast }-A_{XY}^{\ast }{A}_{YX}^{\ast }\\ d_4=K_{XX}^{\ast }{A}_{YY}^{\ast }+K_{YY}^{\ast }{A}_{XX}^{\ast }-K_{XY}^{\ast }{A}_{YX}^{\ast }-K_{YX}^{\ast }{A}_{XY}^{\ast }\\ d_5=K_{XX}^{\ast }{K}_{YY}^{\ast }-K_{XY}^{\ast }{K}_{YX}^{\ast }\end{array}$$

(19)

Here, the parameters $K_{\mathrm{ij}}^{\ast }$ and $A_{\mathrm{ij}}^{\ast }$ (i, j = X, Y) are the stiffness and damping coefficients of the bearing. And the values of $K_{\mathrm{ij}}^{\ast }$ and $A_{\mathrm{ij}}^{\ast }$ could be obtained by applying the following transformational relations [11]:

$${\left[\begin{array}{cc}\begin{array}{l}{K}_{XX}^{\ast }\\ K_{YX}^{\ast }\end{array}& \begin{array}{l}{K}_{XY}^{\ast }\\ K_{YY}^{\ast }\end{array}\end{array}\right]}_s=-S{\left[\begin{array}{cc}\begin{array}{l}\cos \phi \\ \sin \phi \end{array}& \begin{array}{l}-\sin \phi \\ \cos \phi \end{array}\end{array}\right]}_s{\left[\begin{array}{cc}\begin{array}{l}{\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\partial \epsilon }}\\ {\displaystyle \frac{\partial f_{\phi }^{\ast }}{\partial \epsilon }}\end{array}& \begin{array}{l}{\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\epsilon \partial \phi }}-{\displaystyle \frac{f_{\phi }^{\ast }}{\epsilon }}\\ {\displaystyle \frac{\partial f_{\phi }^{\ast }}{\epsilon \partial \phi }}+{\displaystyle \frac{f_{\epsilon }^{\ast }}{\epsilon }}\end{array}\end{array}\right]}_s{{\left[\begin{array}{cc}\begin{array}{l}\cos \phi \\ \sin \phi \end{array}& \begin{array}{l}-\sin \phi \\ \cos \phi \end{array}\end{array}\right]}^T}_s$$

(20)

$${\left[\begin{array}{cc}\begin{array}{l}{A}_{XX}^{\ast }\\ A_{YX}^{\ast }\end{array}& \begin{array}{l}{A}_{XY}^{\ast }\\ A_{YY}^{\ast }\end{array}\end{array}\right]}_s=-S{\left[\begin{array}{cc}\begin{array}{l}\cos \phi \\ \sin \phi \end{array}& \begin{array}{l}-\sin \phi \\ \cos \phi \end{array}\end{array}\right]}_s{\left[\begin{array}{cc}\begin{array}{l}{\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\partial \dot{\epsilon }}}\\ {\displaystyle \frac{\partial f_{\phi }^{\ast }}{\partial \dot{\epsilon }}}\end{array}& \begin{array}{l}{\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\epsilon \partial \dot{\phi }}}\\ {\displaystyle \frac{\partial f_{\phi }^{\ast }}{\epsilon \partial \dot{\phi }}}\end{array}\end{array}\right]}_s{{\left[\begin{array}{cc}\begin{array}{l}\cos \phi \\ \sin \phi \end{array}& \begin{array}{l}-\sin \phi \\ \cos \phi \end{array}\end{array}\right]}^T}_s$$

(21)

The subscript s denotes the situation of the journal at the equilibrium location. And the expressions of partial derivatives in Equations (20) and (21) are expressed as follows:

$${\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\partial \epsilon }}=-{\displaystyle \frac{4\epsilon {\left(1+{\epsilon }^2\right)}^3}{{\left(1-{\epsilon }^2\right)}^3}}+{\displaystyle \frac{216}{125}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^3\left(12+21{\epsilon }^2+2{\epsilon }^4\right)}{{\left(1-{\epsilon }^2\right)}^6}}$$

(22)

$${\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\epsilon \partial \phi }}-{\displaystyle \frac{f_{\phi }^{\ast }}{\epsilon }}={\displaystyle \frac{\pi }{2{\left(1-{\epsilon }^2\right)}^{\frac{3}{2}}}}+{\displaystyle \frac{81}{400}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^2\left(6+{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^{\frac{9}{2}}}}$$

(23)

$${\displaystyle \frac{\partial f_{\phi }^{\ast }}{\partial \epsilon }}=-{\displaystyle \frac{\pi \left(1+2{\epsilon }^2\right)}{2{\left(1-{\epsilon }^2\right)}^{\frac{5}{2}}}}-{\displaystyle \frac{81}{400}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^2\left(18+41{\epsilon }^2+4{\epsilon }^4\right)}{{\left(1-{\epsilon }^2\right)}^{\frac{11}{2}}}}$$

(24)

$${\displaystyle \frac{\partial f_{\phi }^{\ast }}{\epsilon \partial \phi }}+{\displaystyle \frac{f_{\epsilon }^{\ast }}{\epsilon }}=-{\displaystyle \frac{2\epsilon }{{\left(1-{\epsilon }^2\right)}^2}}+{\displaystyle \frac{108}{125}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^3\left(6+{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^5}}$$

(25)

$${\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\partial \dot{\epsilon }}}=-{\displaystyle \frac{\pi \left(1+2{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^{\frac{5}{2}}}}+{\displaystyle \frac{243}{200}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^2\left(2+17{\epsilon }^2+2{\epsilon }^4\right)\pi }{{\left(1-{\epsilon }^2\right)}^{\frac{11}{2}}}}$$

(26)

$${\displaystyle \frac{\partial f_{\epsilon }^{\ast }}{\epsilon \partial \dot{\phi }}}={\displaystyle \frac{4\epsilon }{{\left(1-{\epsilon }^2\right)}^2}}-{\displaystyle \frac{648}{125}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^3\left(6+{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^5}}$$

(27)

$${\displaystyle \frac{\partial f_{\phi }^{\ast }}{\partial \dot{\epsilon }}}={\displaystyle \frac{4\epsilon }{{\left(1-{\epsilon }^2\right)}^2}}+{\displaystyle \frac{648}{125}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^3\left(7+{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^5}}$$

(28)

$${\displaystyle \frac{\partial f_{\phi }^{\ast }}{\epsilon \partial \dot{\phi }}}=-{\displaystyle \frac{\pi }{{\left(1-{\epsilon }^2\right)}^{\frac{3}{2}}}}+{\displaystyle \frac{243}{200}}\alpha {\left({\displaystyle \frac{L}{D}}\right)}^2{\displaystyle \frac{{\epsilon }^2\left(6+{\epsilon }^2\right)}{{\left(1-{\epsilon }^2\right)}^{\frac{9}{2}}}}$$

(29)

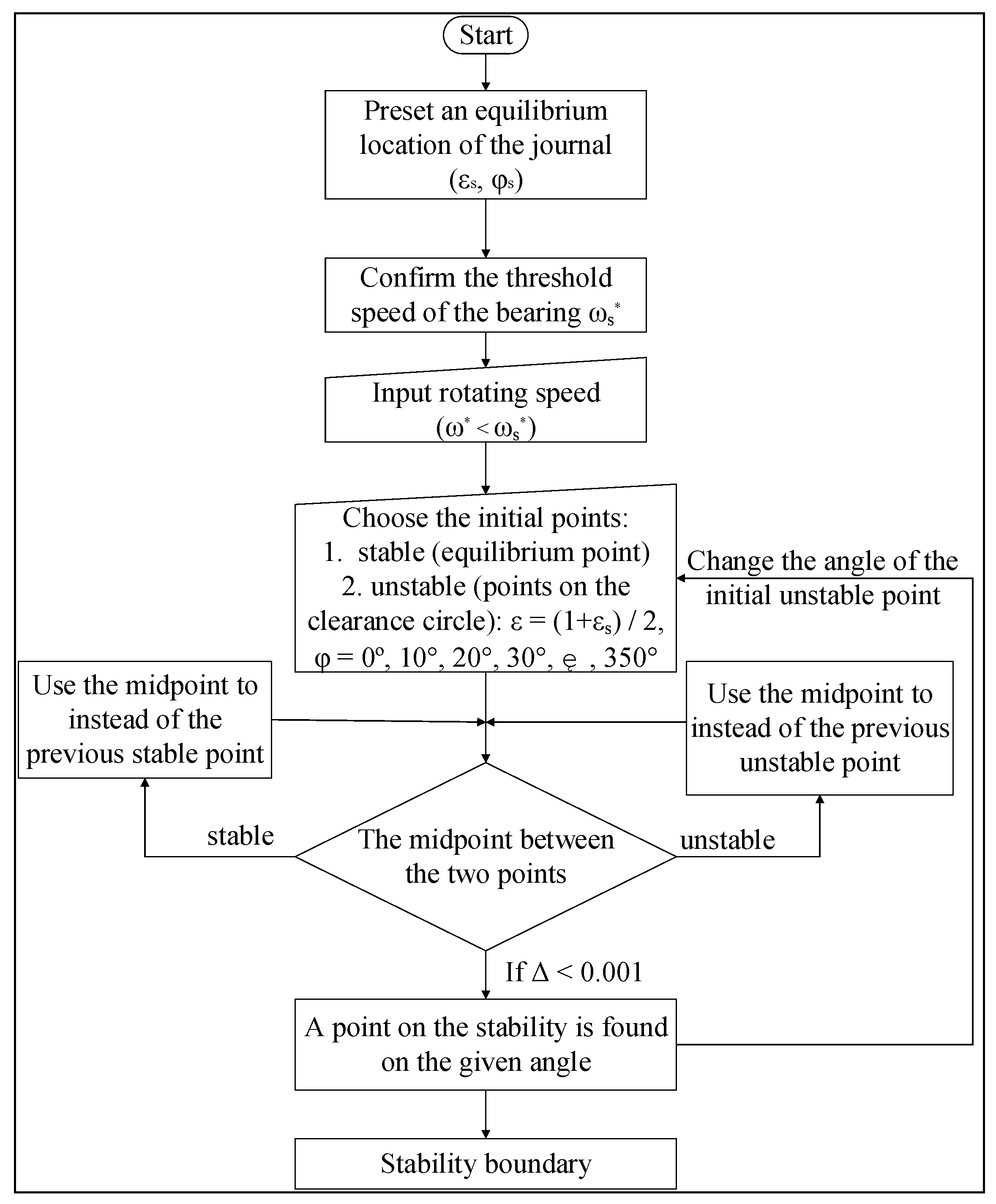

After identifying the linear stability threshold speed, a rotating speed could be selected below this threshold speed. By incorporating this chosen speed into the state Equation (18) and employing the fourth-order Runge–Kutta method, the trajectory of the journal center for the specified rotating speed can be determined. For each designated rotating speed, a distinctive non-linear stability boundary could be established. If the rotating speed of the journal is under the threshold speed and the journal center is in the stability region, the journal would gradually go back to the equilibrium location after an instantaneous impulsion is impacted on the journal. The program flow chart depicted in Figure 2 is utilized to ascertain and visualize the stability boundary. The specific steps to confirm the non-linear stability boundary of a hydrodynamic bearing are as follows:

(1)

From Equation (11), an equilibrium location of the journal center could be preset.

(2)

For the given location of the journal center, substituting the position coordinates into Equation (24), the threshold speed of the hydrodynamic bearing at the given equilibrium location could be obtained.

(3)

Choosing a rotating speed less than the threshold speed and an initial location of the journal center, to confirm the stability boundary more conveniently, the initial location of the journal center is chosen as follows:

(a)

Set the line connecting the bearing center and equilibrium location of the journal center as the starting line, dividing the clearance circle into n parts (generally, the value of n is 36. To make the results more accurate, the value of n could be larger. To shorten the calculation process, the value of n could be smaller. We confirm that the value of n should be larger than 9). Here, n = 36, and 36 points on the clearance circle is found. The eccentricity ratios of all the points are 1, and the attitude angles of these points are 0°, 10°, 20° … 350°.

(b)

First, choose the location ε = (1 + ε_s)/2, φ = 0° as the initial point of the journal center. With Equations (9), (10) and (14)–(16), applying the fourth-order Runge–Kutta method, the trajectory of the journal center could be obtained.

(c)

If the journal center gradually gets close to the bearing surface, choose the middle point between this point and the equilibrium location as the next point.

(d)

If the journal center gradually gets close to the equilibrium location, choose the middle point between this point and the last initial location as the next point.

(e)

With the location of new point, repeat the steps (b) to (d), until the difference between eccentricity ratios of two continuity points is less than 0.001. Then, choose one of these two points, and this point is the point on the stability boundary with the attitude angle of 0°.

(f)

Choosing the location ε = 1, φ = 10° as the initial point of the journal center and repeating the steps (b) to (e), the point on the stability boundary with the attitude angles of 10° is found. Continuing to repeat the steps (b) to (e), the points on the stability boundary with the attitude angles of 20°, 30°, …, and 350° are found.

(4)

After the 36 points on the stability boundary are confirmed, connect these points with a smooth curve, and the stability boundary of the hydrodynamic bearing with the given equilibrium location is obtained.

3. Verification of the Results

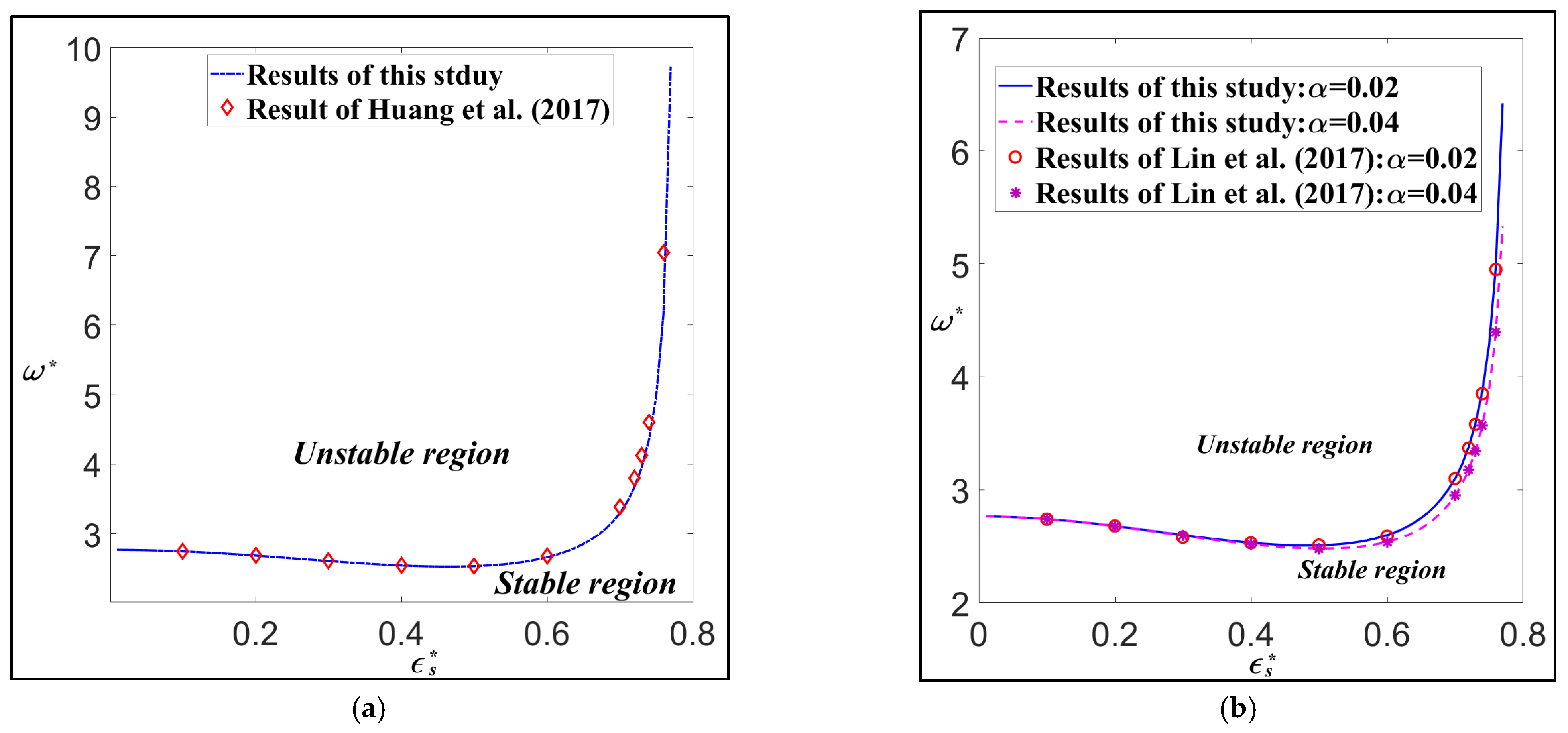

The modified Reynolds equation of hydrodynamic bearings lubricated with non-Newtonian fluids is established by applying the Rabinowitsch fluid model. The non-linear equation is solved through the small perturbation method, and oil film forces are obtained in the form of analytical expression. Then, the stiffness and damping coefficients and threshold speed of the bearing are derived. By tracing the trajectory of the journal center diverging from the equilibrium location, the non-linear stability boundary can be confirmed. To verify the accuracy of the calculation process above, the relationship between the threshold speed and the eccentricity ratio of the journal center at the equilibrium state is compared with that of refs. [10,28]. The comparison is presented in Figure 3: in Figure 3a, the lubricant is Newtonian lubricant, and the results of this study are compared with those of ref. [10], while in Figure 3b, the comparison between this study and ref. [28] is presented. It can be found that the results in this study agree well with those of refs. [10,28] for all the three situations: the Newtonian lubricant, the non-Newtonian factor α = 0.02 and 0.04. Thus, the theoretical calculation in this study is credible.

4. Results and Discussions

The effects of non-Newtonian fluids on the threshold speed and non-linear stability boundary of hydrodynamic bearings are illustrated in this study, and the ratio between the length and diameter of the bearing is L/D = 0.25. The non-Newtonian factors of several typical dilatant fluids have been displayed in

Table 1. The typical values for the non-Newtonian factors k [27].

Additives (%)	T (°C)	k (10−6 m4/N2)
0.3	30	8.06
1.0	30	4.43
2.0	30	4.05

, applying the Rabinowitsch fluid model, three kinds of lubricants are discussed: dilatant fluids with non-Newtonian factor α < 0, Newtonian fluids with non-Newtonian factor α = 0, and pseudo-plastic fluids with non-Newtonian factor α > 0. Except for the Newtonian lubricant, for both the non-Newtonian lubricants, two situations are discussed: α = −0.1, −0.2 and α = 0.1, 0.2. The influence of non-Newtonian lubricants on the threshold speed of hydrodynamic bearings is presented in Figure 4. The trajectories of the journal center released at different locations are shown in Figure 5. The non-linear stability boundaries of hydrodynamic bearings with five lubricants are demonstrated in Figure 6.

The relationships between threshold speeds and eccentricity ratios of hydrodynamic bearings are displayed in Figure 4. And five kinds of lubricants are applied to the bearing: two dilatant fluids with non-Newtonian factor α = −0.1, −0.2, one Newtonian fluid with α = 0, and two pseudo-plastic fluids with α = 0.1, 0.2. With the increase in the eccentricity ratio, the threshold speed of hydrodynamic bearings with dilatant lubricants and Newtonian lubricants would first decrease slowly and then increase quickly. For the bearing with the pseudo-plastic lubricant, the threshold speed would decrease all the time: when the eccentricity ratio is less than 0.55, the rate of descent is slow; for the situation of the eccentricity ratio lager than 0.55, the rate of decent is sharp. It was found that the influence of the lubricants on the threshold speed can be ignored when the eccentricity ratio of journal center is less than 0.4. For the situation of an eccentricity ratio larger than 0.6, with the increase in eccentricity ratio, the threshold speeds of bearings lubricated with Newtonian fluids and dilatant fluids would increase, while that of the bearing with pseudo-plastic lubricants would reduce. The influence of lubricants would be more obvious when the absolute value of the non-Newtonian factor is greater. And for dilatant lubricants, the absolute value of non-Newtonian factor is greater, and the threshold speed of hydrodynamic bearings is higher, while for the pseudo-plastic lubricants, the smaller absolute value of the non-Newtonian factor means a higher threshold speed.

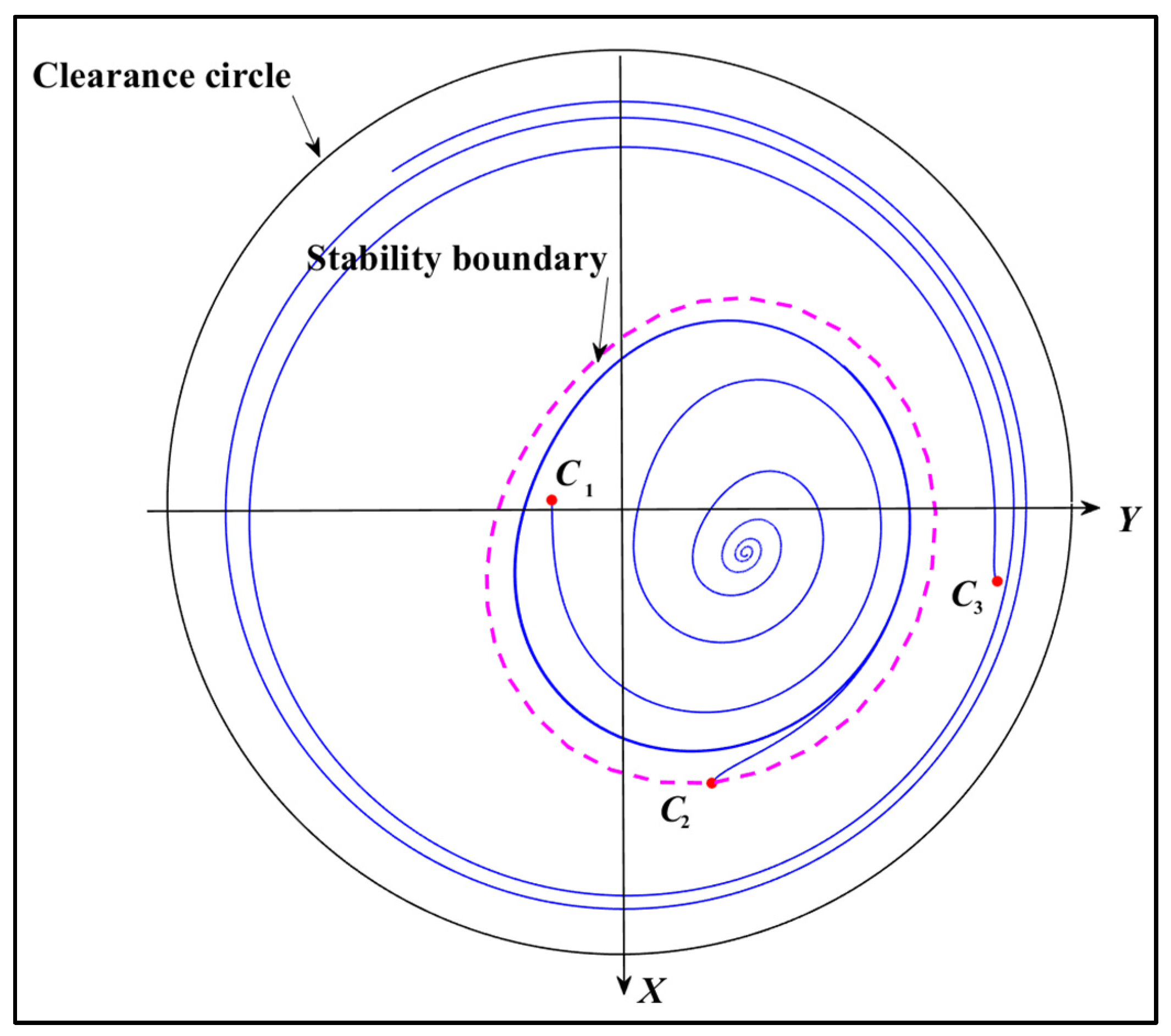

To illustrate the performance of non-linear stability boundary of the hydrodynamic bearing, three initial locations are chosen for the journal center in Figure 5: the initial location C₁ is in the stability region, C₂ is on the stability boundary, and C₃ is out of the stability region. The operational states of the bearing are ${\epsilon }_{\mathrm{s}}^{\ast }$ = 0.3, ${\phi }_{\mathrm{s}}^{\ast }$ = 1.1899 rad, ω* = 2. The threshold speed ${\omega }_{\mathrm{s}}^{\ast }$ = 2.6058, and the lubricant is Newtonian fluid. As the rotating speed of the journal is less than the threshold speed, when the journal center is released in the clearance circle, there are three kinds of situations: (1) The initial location of journal center is in the stability region, as shown by the point C₁ in Figure 5. In this situation, the journal center would gradually come back to the equilibrium location as shown in Figure 5. If the initial location of the journal center is on the stability boundary like the point C₂, the journal center would be in dynamic equilibrium, and the trajectory of the journal center would be a cycle which contains the equilibrium location. (3) For the initial location of the journal center outside the boundary, as shown by the point C₁ in Figure 5, after being released, the journal center would gradually get close to the bearing surface until it reaches and destroys the bearing.

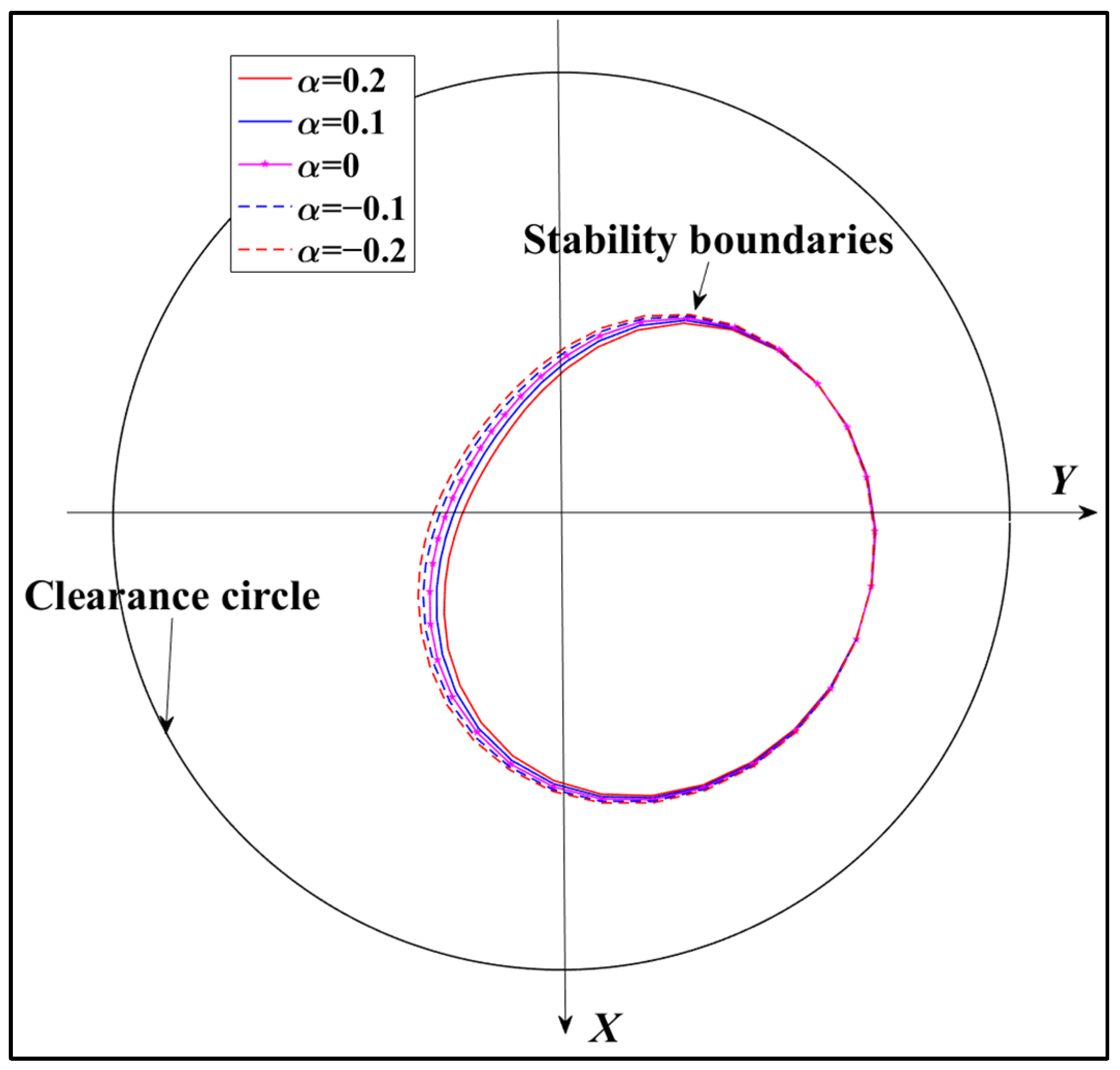

In Figure 6, the non-linear stability boundaries of hydrodynamic journal bearings lubricated with different kinds of fluids are presented. There are three kinds of lubricants: dilatant fluids with non-Newtonian factor α = −0.1 and −0.2, Newtonian fluid with α = 0, and pseudo-plastic fluids with α = 0.1 and 0.2. It is observed that the stability region of bearings lubricated with dilatant fluids is larger than that of bearings with Newtonian fluids, and the stability region of bearings lubricated with pseudo-plastic fluids is smaller than that of bearings with Newtonian fluids. And for a lubricant with a larger non-Newtonian factor, the stability boundary of the bearing lubricated by this fluid would be smaller. Generally speaking, for a hydrodynamic bearing with a larger non-linear stability region, the stability of the bearing would be better. Thus, the stability of hydrodynamic bearings lubricated with dilatant fluids is better than those lubricated with Newtonian fluids, while the stability of bearings lubricated with pseudo-plastic fluids is inferior to those lubricated with Newtonian fluids. For the dilatant lubricant, the larger absolute value of the non-Newtonian factor means a better stability of the bearing, while for the pseudo-plastic lubricant, the smaller absolute value of the non-Newtonian factor shows a better stability of the bearing.

5. Conclusions

Applying the Rabinowitsch fluid model, this study presents the non-linear stability boundaries of short hydrodynamic bearings lubricated with three kinds of fluids. Two non-linear differential motion equations are effectively solved by using the fourth-order Runge–Kutta method, allowing for the tracing of the journal center’s trajectory. Based on the discussion above, the following conclusions could be obtained:

(1)

A non-linear stability boundary exists for short journal bearings within the clearance circle. The trajectory of the journal center, starting outside this boundary, becomes unstable, and even the rotating speed is below the threshold speed. The threshold speed of hydrodynamic bearings with pseudo-plastic lubricants (α > 0) is higher than that of bearings with Newtonian lubricants (α = 0). And the threshold speed of bearings with Newtonian lubricants is higher than that of bearings with pseudo-plastic lubricants (α > 0).

(2)

The non-linear stability region of bearings lubricated with pseudo-plastic lubricants (α > 0) is smaller than that of bearings lubricated with Newtonian lubricants (α = 0). The non-linear stability region of bearings with dilatant lubricants (α < 0) is larger than that of bearings lubricated with Newtonian lubricants (α = 0). The bearing using lubricants with a higher non-Newtonian factor exhibits a smaller non-linear stability boundary.

(3)

Generally, a larger stability region and a higher threshold speed indicate the better stability of the hydrodynamic bearing, and the non-linear stability of bearings is affected by the lubricant. For the three kinds of lubricants discussed in this study, in the hydrodynamic bearing with a lubricant with the smaller value of the non-Newtonian factor, the stability of the bearing is better. Thus, it is confirmed that the choice of a more appropriate lubricant can enhance the stability of bearings. The results in this study provide engineers with greater flexibility in the practical design of hydrodynamic bearings.
