Interaction of Co3O4 Nanocube with Graphene and Reduced Graphene Oxide: Adhesion and Quantum Capacitance

Department of Physics, Saratov State University, 410012 Saratov, Russia
Institute for Bionic Technologies and Engineering, Sechenov University, 119991 Moscow, Russia
Author to whom correspondence should be addressed.
Lubricants 2022, 10(5), 79;
Received: 24 March 2022 / Revised: 21 April 2022 / Accepted: 28 April 2022 / Published: 2 May 2022
(This article belongs to the Special Issue Tribology for Lightweighting)


The composites on the base of Co3O4 and graphene are in demand in the field of portable, flexible energy storage devices due to their small size, lightweight, big specific capacitance, good cycle stability and appropriate capacitance retention. The synthesis of this material always starts from the treatment of graphene oxide, so as a result, experimenters receive Co3O4 nanocubes incorporated into reduced graphene oxide indicates the presence of different oxygen-containing groups in the compound. This fact may limit the advantages of the considered material. Our theoretical quantum chemical calculations show that the process of Co3O4 incorporation between reduced graphene oxide layers is more energetically favorable in comparison to pure graphene. However, the win in the quantum capacitance in the case of pure graphene is in the range of 300–500 F/g in dependence on the applied voltage. The obtained result may indicate the need for modification of the current methods of graphene/Co3O4 synthesis to improve its application in supercapacitors and lithium-ion batteries.

1. Introduction

Lightweight and flexible supercapacitors (SCs) with the planar and fiber-shaped structures are essential elements of portable and wearable devices—one of the most rapidly developing technologies right now [1,2]. Transition metal oxides are considered the most promising materials for chemical power sources such as supercapacitors (SCs) and lithium-ion batteries (LIBs) [3,4]. Among them, Co3O4 attracts increased attention due to its high theoretical capacitance (3560 F/g), low cost, ease of synthesis, large surface area and the best compromise between initial capacity and capacity retention [5,6,7]. However, its application is limited by extremely low electrical conductivity and drastic volume change during Li+ ion insertion/extraction leading to poor cyclability. The integration of Co3O4 with superconductive and ultimately strong graphene (G) solves this problem. The electrodes on the base of Co3O4/G demonstrate high-specific capacitance, fast electron transfer and long-cycle life [8,9,10,11,12,13,14,15,16]. Besides that, graphene and its derivatives have already been considered as an element base for fully flexible, lightweight, high-performance all-solid-state SCs. [17,18].
Li et al. reported on a prepared nanosheet assembly route-layered G/Co3O4 hybrid electrode that exhibited a high specific capacitance of 331 F/g at a current density of 5 A/g and good cycle stability with 122% capacitance retention after 5000 continuous charge–discharge cycles [8]. The Co3O4/G/Co3O4 sandwich architecture obtained by sonochemical synthesis demonstrated high specific capacitance of 276.6 F/g at a current density of 0.5 A/g and good cycling stability with 92.4% capacitance retention after 5000 cycles at 5 A/g [9]. Synthesized via a hydrothermal method and constant current electropolymerization, the sandwich-structured Co3O4@C@PPy electrode delivered a higher areal capacitance of 2.71 F/cm2 at 10 mA/cm2 (1663 F/g at 6.1 A/g) [10]. Synthesized by a facile hydrothermal process and subsequent thermal treatment, the sandwich-like Co3O4/G nanocomposites maintained a specific capacity of 639.8 mAh/g at a current density of 0.5 C after 50 cycles with a capacity retention rate of 71%. Cong et al. received a hierarchal porous structure that represented ultrasmall Co3O4 anchored into ionic liquid (IL)-modified graphene oxide (GO), ultrasmall/Co3O4-GO-IL electrodes were delivered by a remarkably simple hydrothermal and annealing process [11]. The obtained structure demonstrated electrochemical properties with an excellent initial capacity of 1304 mAh/g at a current density of 0.5 C and durable long-term cycling stability of capacity retention of 98.4% even after 500 cycles. Yang et al. reported a novel one-step laser irradiation method that synthesized 2D graphene sheets decorated by numerous ultrafine Co3O4 nanoparticles. This structure reached 978.1 F/g at the current densities of 1 A/g and showed 93.7% capacitance retention of 916.5 F/g at current densities up to 10 A/g [12].
Several attempts were performed to discover the energy and electron properties of Co3O4/G nanocomposite by density functional theory (DFT) methods. Feng et al. studied the coupling effect at the interface of graphene. It was found that the graphene sheet bent on the Co3O4 surface due to the strong electron coupling at the interface, and a Co-C bond with a length of 1.897 Å was formed [19]. Beatty et al. reported that the strong interaction of G with Co3O4 might be explained by the charge transfer while the binding energy was equal to 0.193 eV/atom [20]. Cong confirmed the significant charge transfer from G to the top surface of Co3O4 but noted that the minimal distance between G and Co3O4 was equal to 3.4 Å [11]. Odedairo reported that the shortest equilibrium distances between the graphene layer and the Co3O4 nanosheet were calculated to be 2.6 Å [21]. However, all these theoretical works considered the interaction of Co3O4 particles with pure graphene, while in all real experiments, the synthesis of GO was the essential initial stage [8,9,10,11,12,13,14,15,16]. In fact, the Co3O4/G nanocomposite represented the compound of Co3O4 and reduced graphene oxide (rGO); that is why the presence of oxygen atoms at the graphene surface should be taken into account. Besides that, recent studies have demonstrated the presence of in-plane oxygen in graphene [22,23]. In particular, the so-called “oxygen pair” and “graphitic oxygen” are two configurations where oxygen directly substitutes carbon atoms in the graphene lattice and constitute ~50% of the total relative counts. Substitutional oxygen in the graphene lattice could modify the adhesion parameters between Co3O4 and graphene, as well as the overall calculated capacitance of the nanocomposite, so graphene with in-plane oxygen should also be considered in this study.
This paper aims to theoretically find out the regularities of Co3O4 nanocubes binding to the surface of pure graphene, graphene with substitutional oxygen and graphene oxide with the following obtaining of Co3O4/rGO nanocomposite by the self-consistent charge density-functional tight-binding (SCC DFTB) method. The most favorable hybrid materials for lightweight SCs will be found from the view of energetic and capacitive parameters.

2. Methods

The optimization of the atomic structure, as well as the calculation of zone structure, was performed by the SCC DFTB method [24]. Besides the traditional DFTB terms, the Lennard-Jones potential [25] was introduced to evaluate the interaction of non-bonded atoms. All calculations were performed at the real temperature of 0 K; the SCC tolerance was 1 × 105. The Brillion zone was sampled according to the Monkhorst-Pack scheme with parameters 8 × 8 × 1 for 2D films and 8 × 8 × 8 for 3D composites.
The quantum capacitance (QC) C Q was first introduced as a part of the total capacitance   C T that required extra energy for filling a quantum well with electrons due to the Pauli principle [26]:
1 C T = 1 C G + 1 C Q
For low-dimensional structures, QC was comparable to geometric capacitance C G and played a key role in processes of charge and discharge. In our research, C Q was calculated by the formula [27,28]:
C Q = 1 m V 0 V e D ( E F e V ) d V
where m is the mass structure, V is the applied voltage that corresponds to shift in the Fermi level E F , D is the area under the plot of density of state (DOS) in the considered range and e is the elementary charge.

3. Results

3.1. Adhesion

In the first stage, we attached Co3O4 nanocubes from the Fd3m space group [29] that was observed in [30] to 160 atoms of pure graphene. The most favorable structure was received when the atomic cell was optimized in the periodic box with lattice vectors Lx = 19.78 Å and Ly = 21.41 Å. Energy calculations showed that the complex was stabilized by 7.37 eV:
ΔH (G → G/Co3O4) = E(G/Co3O4) − E(G) − E(Co3O4) = −7.37 eV
We observed the formation of the covalent bond between Co and C atoms with the length of 2.07 Å, which was a repeat of the results of Beatty et al. [20]. After binding, the Co3O4 nanocube reported the charge of 1.16 e to the graphene. We noticed that the Co3O4 particle maintained its cubic form in contrast to Fe3O4 particles that demonstrated partial loss of crystal after attachment to the graphene layer [31].
The atomic structure of the graphene with substitutional graphitic oxygen (G*) is shown in Figure S1. Incorporating into the graphene carcass, the oxygen atom formed two C–O bonds with a length of 1.47 Å and one C-O bond with a length of 1.48 Å. The C–C length of carbon atoms bonded to oxygen decreases to 1.40 Å. After the attachment of the Co3O4 nanocube, the C–O bond with a length of 1.48 Å was broken, and the C atom was bonded to the Co atom with a length of 2.09 Å (Figure 1b and Figure S2). Another C–Co bond of 2.07 Å was observed, as in the case of the G/Co3O4 nanocomposite. The heat of the G*/Co3O4 formation was lower than for G/Co3O4 due to the presence of two chemical bonds and was equal to:
ΔH (G* → G*/Co3O4) = E(G*/Co3O4) − E(G*) − E(Co3O4) = −9.69 eV
As was mentioned in the Introduction, in the process of G/Co3O4 nanocomposite synthesis, Co3O4 nanoparticles are firstly disposed of at the GO surface, and then the oxygen-containing groups are etched. The scheme of this process modeling is shown in Figure 2. In the first stage, the graphene particle was oxidized with the maximum possible energy epoxy functional groups. The number of oxygen atoms was equal to 17. Thus the received mass ratio in obtained GO was m(G):m(O) = 14.2%. Note that after optimization, the lattice vectors were enlarged and were equal to Lx = 19.90 Å, Ly = 21.62 Å. The Co–C bond that was observed in the case of the G/Co3O4 nanocomposite was absent. Therefore, the main type of interaction between the rGO and the Co3O4 nanocube was determined by van der Waals forces. The process was exothermic, and the heat of formation was:
ΔH (G → GO) = E(GO) − E(G) − 17 × E(O) = −51.14 eV.
Then, the Co3O4 nanocube was attached to the obtained GO. After optimization, seven oxygen atoms from the GO surface formed covalent bonds with the Co3O4 nanocube and the energy of:
ΔH (GO → GO/Co3O4) = E(GO/Co3O4) − E(GO) − E(Co3O4) = −52.49 eV
was released. After that, we removed 10 O-atoms from the GO surface that did not bind to the nanocube (these atoms are marked by yellow in Figure 2). This process required additional energy of:
ΔH (GO/Co3O4 → rGO/Co3O4) = E(rGO/Co3O4) − E(GO/Co3O4) + 10 × E(O) = 32.71 eV
that indicated an endothermic process. Finally, we calculated the heat of formation of rGO cell from GO:
ΔH (GO → rGO/Co3O4) = ΔH (GO → GO/Co3O4) + ΔH (GO/Co3O4 → rGO/Co3O4) = −19.78 eV.
Therefore it is seen that such a process is also exothermic, but it is much more favorable than the formation of the rGO/Co3O4 nanocomposite (ΔH (G → G/Co3O4) = −7.37 eV). That is why in most experiments, the presence of GO is essential for the synthesis of the G/Co3O4 nanocomposite.
The same procedure was performed to obtain the energy properties of layered nanocomposites. For this goal, the additional vector of translation (Lz) was added to the periodic box (Figure 3). The optimal Lz in the case of G/Co3O4 was 11.9 Å, in the case of G*/Co3O4 it was 11.8 Å, and in the case of rGO/Co3O4 it was 14.5 Å. Note that during incorporation, the Co3o4 nanocube interacted with two graphene oxide layers, so it formed chemical bonds with 15 O atoms. It is notable that in the case of 3D G*/Co3O4, the rotation of the nanocube was observed. The incorporation of Co3O4 between G, G* and rGO released −2.76, −6.46 and −7.13 eV, correspondingly. Therefore, it can be concluded that the processes of 3D G/Co3O4, G*/Co3O4 and rGO/Co3O4 and nanocomposite synthesis are less favorable than in the case of 2D nanofilms.

3.2. Capacitive and Electronic Properties

The plots of QC for the considered structures are shown in Figure 4. The incorporation of in-plane oxygen into graphene carcasses significantly changed the QC near 0 V and created the peak at 0.2 V. The peak follows from the DOS of the structure in which the peak at −4.55 eV is mainly contributed by carbon’s p-orbital and slightly by oxygen’s p-orbitals (Figures S3 and S4). As it was predicted, the addition of the Co3O4 nanocube significantly (≈30–40 times) raised the level of graphene’s QC, especially at U = 0 V (Table 1). The large peaks of QC were observed near −1 V, which indicated the major contribution of QC to the total capacitance at this value during the charge cycle. We also note that the QC for GO/Co3O4 and rGO/Co3O4 composites are almost similar, especially at the level of 0 V. However, the QC of G/Co3O4 surpasses the QC of GO/Co3O4 and rGO/Co3O4 at ≈190 F/g in the case of 2D films (Figure 4a) and at ≈210 F/g in the case of 3D structures. At −1 V, the differences in QC reached ≈300 F/g in the case of 2D films and ≈500 F/g in the case of 3D structures. The QC plot of G*/Co3O4 almost repeated the QC of G/ Co3O4 except for the range 0 < U < 0.6 V, where the QC of Co3O4 is still higher.
Table 1 also lists the Fermi level of the considered structures. The substitution of the C atom by the O atom shifted the Fermi level of pure graphene from −4.67 to −4.41 eV. The addition of the Co3O4 nanocube raises the Fermi level to −3.50 eV for 2D G/Co3O4, to −3.57 eV for 2D G*/Co3O4 and 2D G*/Co3O4 and to −3.48 for 2D rGO/Co3O4. Further, it can be seen that in the case of the 3D structure, the Fermi level was less, which indicated the enhancement of its conductive properties in comparison to 2D films. Another interesting fact that confirms the advantage of sandwich-like structures of SCs application is the amount of charge that flowed to graphene layers. In the case of 2D G and rGO particles, this charge was equal to 1.15 and 0.88 e, correspondingly, while in the case of 3D structures, the amount of reported charge enlarges to 1.99 and 1.13 e. The most noticeable charge transfer was observed in the case of 3D G*/Co3O4 and was equal to 2.25 e. It can be explained by the formation of the two chemical bonds between graphene and the nanocube.

4. Conclusions and Discussion

The attempt to compare adhesion and electronic properties of G/Co3O4, G*/Co3O4 and rGO/Co3O4 nanocomposites was performed for the first time by the SCC DFTB method. Our calculation showed that the formation of the rGO/Co3O4 started from the attachment of Co3O4 nanocubes to the GO surface with consequent etching of oxygen atoms is more favorable than the straight decoration of G and G* (graphene with substitutional oxygen) with Co3O4 nanoparticles both for 2D films and 3D composites. The addition of Co3O4 nanoparticles to G shifts the Fermi level to 1.10–1.41 eV, which indicates the enhancement of the conductive properties. The maximum charge transfer that was given by Co3O4 nanocubes was observed in the case of 3D G*/Co3O4 and was equal to 2.25 e. The dependence of QC on voltage showed a significant improvement of capacitance in the case of G and G* in comparison to rGO. Independent of the applied voltage, this difference varies in the range of 300–500 F/g. In the Introduction, it was mentioned that G/Co3O4 is obtained from GO that leads to the retention of oxygen atoms and to a decrease in total capacitance. Therefore, one of the main challenges in this field is connected to the straight synthesis of G/Co3O4 from pure G. One of the possible methods is the two-step method in which graphene was initially deposited on a Ni foam with Co3O4 reported by Zhang [32]. Another variant to obtain materials with high capacity is connected with G*/Co3O4 material, the capacitive properties of which are a little less than G/Co3O4. The high QC, along with its small size, may make the G/Co3O4 nanocomposite an important element of lightweight and flexible supercapacitors for future portable and wearable devices.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: The atomic structure of graphene with substitutional graphitic oxygen (G*). The oxygen is located in one plane with a graphene carcass. There are two C–O bond lengths of 1.47 Å (blue line), and one C–O bond length of 1.48 Å. (green line). The C–C bond length near O atoms decreases to 1.40 Å (orange); Figure S2: The atomic structure of graphene with substitutional graphitic oxygen after attachment to the Co3O4 nanocube. It is seen that one of the C–O bonds was broken; Figure S3: The density of state (DOS) for pure graphene (G) and graphene with substitutional graphitic oxygen (G*). Dashed lines mark the Fermi level; Figure S4: The total density of state (DOS) for graphene with substitutional graphitic oxygen (G*) and partial DOS (pDOS) for p-orbitals of carbon and oxygen atoms. Dashed line marks the Fermi level.

Author Contributions

Conceptualization, V.S. and O.G.; methodology, V.S.; software, O.G.; validation, V.S. and O.G.; formal analysis, O.G.; investigation, V.S.; resources, O.G.; data curation, O.G.; writing—original draft preparation, V.S.; writing—review and editing, V.S. and O.G.; visualization, V.S.; supervision, O.G.; project administration, O.G.; funding acquisition, O.G. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Ministry of Science and Higher Education of the Russian Federation (project no. FSRR-2020-0004). V. V. Shunaev wishes to thank Russian President scholarship, project no. SP-3976.2021.1.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. An, B.; Shin, J.; Kim, S.-Y.; Kim, J.; Ji, S.; Park, J.; Lee, Y.; Jang, J.; Park, Y.-G.; Cho, E.; et al. Smart sensor systems for wearable electronic devices. Polymers 2017, 9, 303. [Google Scholar] [CrossRef] [PubMed]
  2. Xu, C.; Song, Y.; Han, M.; Zhang, H. Portable and wearable self-powered systems based on emerging energy harvesting technology. Microsyst. Nanoeng. 2021, 7, 25. [Google Scholar] [CrossRef] [PubMed]
  3. Zhu, X. Recent advances of transition metal oxides and chalcogenides in pseudo-capacitors and hybrid capacitors: A review of structures, synthetic strategies, and mechanism studies. J. Energy Storage 2022, 49, 104148. [Google Scholar] [CrossRef]
  4. Ye, H.; Zheng, G.; Yang, X.; Zhang, D.; Zhang, Y.; Yan, S.; You, L.; Hou, S.; Huanga, Z. Application of different carbon-based transition metal oxide composite materials in lithium-ion batteries. J. Electroanal. Chem. 2021, 898, 115652. [Google Scholar] [CrossRef]
  5. Hou, C.; Wang, B.; Murugadoss, V.; Vupputuri, S.; Chao, Y.; Guo, Z.; Wang, C.; Du, W. Recent Advances in Co3O4 as Anode Materials for High-Performance Lithium-Ion Batteries. Eng. Sci. 2020, 11, 19–30. [Google Scholar] [CrossRef]
  6. Meher, S.K.; Rao, G.R. Ultralayered Co3O4 for High-Performance Supercapacitor Applications. J. Phys. Chem. C 2011, 115, 15646–15654. [Google Scholar] [CrossRef]
  7. Shi, Y.; Pan, X.; Li, B.; Zhao, M.; Pang, H. Co3O4 and its composites for high-performance Li-ion batteries. Chem. Eng. J. 2018, 343, 427–446. [Google Scholar] [CrossRef]
  8. Li, Q.; Yang, Q.; Yan, Z.; Kang, L.; Lei, Z.; Yang, Z.; Liu, Z. Electrocapacitive performance of graphene/Co3O4 hybrid material prepared by a nanosheet assembly route. Electrochim. Acta 2014, 119, 184–191. [Google Scholar] [CrossRef]
  9. Han, X.; Huang, Z.; He, C.; Zhang, Q.; Zhang, X.; Yang, Y. Sonochemical synthesis of Co3O4/graphene/Co3O4 sandwich architecture for high-performance supercapacitors. J. Appl. Electrochem. 2019, 49, 1133–1142. [Google Scholar] [CrossRef]
  10. Guo, D.; Zhang, M.; Chen, Z.; Liu, X.-X. The construction of a sandwich structured Co3O4@C@PPy electrode for improving pseudocapacitive storage. RSC Adv. 2018, 8, 33374. [Google Scholar] [CrossRef][Green Version]
  11. Cong, L.; Zhang, S.; Zhu, H.; Chen, W.; Huang, X.; Xing, Y.; Xia, J.; Yang, P.; Lu, X. Structure-design and theoretical-calculation for ultrasmall Co3O4 anchored into ionic liquid modified graphene as anode of flexible lithium-ion batteries. Nano Res. 2022, 15, 2104–2111. [Google Scholar] [CrossRef]
  12. Yang, S.; Liu, Y.; Hao, Y.; Yang, X.; Goddard, W.A.; Zhang, X.L.; Cao, B. Oxygen-Vacancy Abundant Ultrafine Co3O4/Graphene Composites for High-Rate Supercapacitor Electrodes. Adv. Sci. 2018, 5, 1700659. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Wang, S.; Wang, R.; Chang, J.; Hu, N.; Xu, C. Self-supporting Co3O4/Graphene Hybrid Films as Binder-free Anode Materials for Lithium Ion Batteries. Sci. Rep. 2018, 8, 3182. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Li, Y.; Jia, M.; Xu, L.; Gao, J.; Zhang, F.; Jin, X.-J. Graphene and activated carbon-wrapped and Co3O4-intercalated 3D sandwich nanostructure hybrid for high-performance supercapacitance. N. J. Chem. 2018, 42, 10733. [Google Scholar] [CrossRef]
  15. Jing, M.; Zhou, M.; Li, G.; Chen, Z.; Xu, W.; Chen, X.; Hou, Z. Graphene-Embedded Co3O4 Rose-Spheres for Enhanced Performance in Lithium Ion Batteries. ACS Appl. Mater. Interfaces 2017, 9, 9662–9668. [Google Scholar] [CrossRef] [PubMed]
  16. Lin, G.; Jiang, Y.; He, C.; Huang, Z.; Zhanga, X.; Yang, Y. In Situ encapsulation of Co3O4 polyhedra in graphene sheets for high-capacitance supercapacitors. Dalton Trans. 2019, 48, 5773. [Google Scholar] [CrossRef] [PubMed]
  17. Ramadoss, A.; Yoon, K.-Y.; Kwak, M.-J.; Kim, S.-I.; Ryu, S.-T.; Janga, J.-H. Fully flexible, lightweight, high performance all-solid-state supercapacitor based on 3-Dimensional-graphene/graphite-paper. J. Power Sources 2017, 337, 159–165. [Google Scholar] [CrossRef]
  18. Chee, W.K.; Lim, H.N.; Zainal, Z.; Huang, N.M.; Harrison, I.; Andou, Y. Flexible Graphene-Based Supercapacitors: A Review. J. Phys. Chem. C 2016, 120, 4153–4172. [Google Scholar] [CrossRef]
  19. Feng, Q.; Zeng, Y.; Xu, P.; Lin, S.; Feng, C.; Li, X.; Wang, J. Tuning the electrical conductivity of amorphous carbon/reduced graphene oxide wrapped-Co3O4 ternary nanofibers for highly sensitive chemical sensors. J. Mater. Chem. A 2019, 7, 27522. [Google Scholar] [CrossRef]
  20. Beatty, J.; Cheng, T.; Cao, Y.; Sky Driver, M.; Goddard, W.A.; Kelber, J.A. Nucleation of Graphene Layers on Magnetic Oxides: Co3O4(111) and Cr2O3(0001) from Theory and Experiment. J. Phys. Chem. Lett. 2017, 8, 188–192. [Google Scholar] [CrossRef][Green Version]
  21. Odedairo, T.; Yan, X.; Ma, J.; Jiao, Y.; Yao, X.; Du, A.; Zhu, Z. Nanosheets Co3O4 Interleaved with Graphene for Highly Efficient Oxygen Reduction. ACS Appl. Mater Interfaces 2015, 7, 21373–21380. [Google Scholar] [CrossRef] [PubMed]
  22. Hofer, C.; Skákalová, V.; Görlich, T.; Tripathi, M.; Mittelberger, A.; Mangler, C.; Reza, M.; Monazam, A.; Susi, T.; Kotakoski, J.; et al. Direct imaging of light-element impurities in graphene reveals triple-coordinated oxygen. Nat. Commun. 2019, 10, 4570. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Mackenzie, D.; Galbiati, M.; de Cerio, X.; Sahalianov, I.; Radchenko, T.; Sun, J.; Peña, D.; Gammelgaard, L.; Jessen, B.; Thomsen, J. Unraveling the electronic properties of graphene with substitutional oxygen. 2D Mater. 2021, 8, 045035. [Google Scholar] [CrossRef]
  24. Elstner, M.; Porezag, D.; Jungnickel, G.; Elsner, J.; Haugk, M.; Frauenheim, T. Self-consistent-charge density-functional tight-binding method for simulations of complex materials properties. Phys. Rev. B 1998, 58, 7260–7268. [Google Scholar] [CrossRef]
  25. Lennard-Jones, J.E. On the determination of molecular fields.—II. From the equation of state of a gas. Proc. R. Soc. 1924, 106, 463. [Google Scholar]
  26. Luriy, S. Quantum capacitance devices. Appl. Phys. Lett. 1988, 52, 501–503. [Google Scholar] [CrossRef]
  27. Shunaev, V.V.; Ushakov, A.V.; Glukhova, O.E. Increase of γ-Fe2O3/CNT composite quantum capacitance by structural design for performance optimization of electrode materials. Int. J. Quantum Chem. 2020, 120, e26165. [Google Scholar] [CrossRef]
  28. Xu, Q.; Yang, G.; Fan, X.; Zheng, W. Improving the Quantum Capacitance of Graphene-Based Supercapacitors by the Doping and Co-Doping: First-Principles Calculations. ACSOmega 2019, 4, 13209–13217. [Google Scholar] [CrossRef][Green Version]
  29. Persson, K. Materials Data on Co3O4 (SG:227) by Materials Project. 2016. Available online: (accessed on 23 March 2022).
  30. Mu, J.-C.; Wang, E.-Q.; Zhang, Y.-L.; Zhang, L.-P. Sandwich-Like Co3O4/Graphene Nanocomposites as Anode Material for Lithium Ion Batteries. J. Nanosci. Nanotechnol. 2019, 19, 7819–7825. [Google Scholar] [CrossRef]
  31. Shunaev, V.V.; Glukhova, O.E. Graphene/Fe3O4 Nanocomposite as a Promising Material for Chemical Current Sources: A Theoretical Study. Membranes 2021, 11, 642. [Google Scholar] [CrossRef]
  32. Zhang, J.; Li, P.; Wang, Z.; Qiao, J.; Rooney, D.; Sun, W.; Sun, K. Three-dimensional graphene–Co3O4 cathodes for rechargeable Li–O2 batteries. J. Mater. Chem. A 2015, 3, 1504. [Google Scholar] [CrossRef]
Figure 1. The atomic structure of (a) the G/Co3O4 nanocomposite and (b) the G*/Co3O4 nanocomposite. The translation vectors are Lx = 19.78 Å and Ly = 21.41 Å.
Figure 1. The atomic structure of (a) the G/Co3O4 nanocomposite and (b) the G*/Co3O4 nanocomposite. The translation vectors are Lx = 19.78 Å and Ly = 21.41 Å.
Lubricants 10 00079 g001
Figure 2. The process of the rGO/Co3O4 atomic supercell building. In the first stage, the Co3O4 supercell was attached to the surface of the GO cell, then the O atoms that did not bind to the Co3O4 nanocube (marked by yellow) were removed.
Figure 2. The process of the rGO/Co3O4 atomic supercell building. In the first stage, the Co3O4 supercell was attached to the surface of the GO cell, then the O atoms that did not bind to the Co3O4 nanocube (marked by yellow) were removed.
Lubricants 10 00079 g002
Figure 3. The expanded atomic supercells of 3D nanocomposites (a) G/Co3O4 with translations vectors Ly = 21.41 Å, Lz = 11.90 Å; (b) G*/Co3O4 with translations vectors Ly = 21.41 Å, Lz = 11.80 Å; (c) rGO/Co3O4 with translations vectors Ly = 21.62 Å, Lz = 14.50 Å.
Figure 3. The expanded atomic supercells of 3D nanocomposites (a) G/Co3O4 with translations vectors Ly = 21.41 Å, Lz = 11.90 Å; (b) G*/Co3O4 with translations vectors Ly = 21.41 Å, Lz = 11.80 Å; (c) rGO/Co3O4 with translations vectors Ly = 21.62 Å, Lz = 14.50 Å.
Lubricants 10 00079 g003

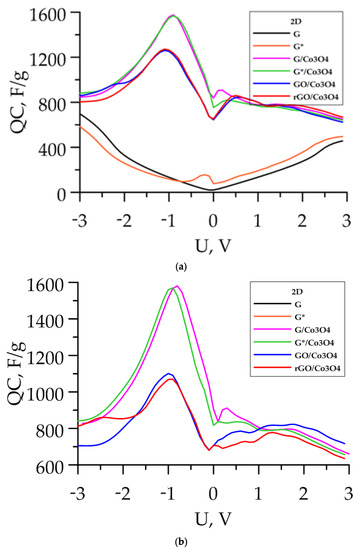

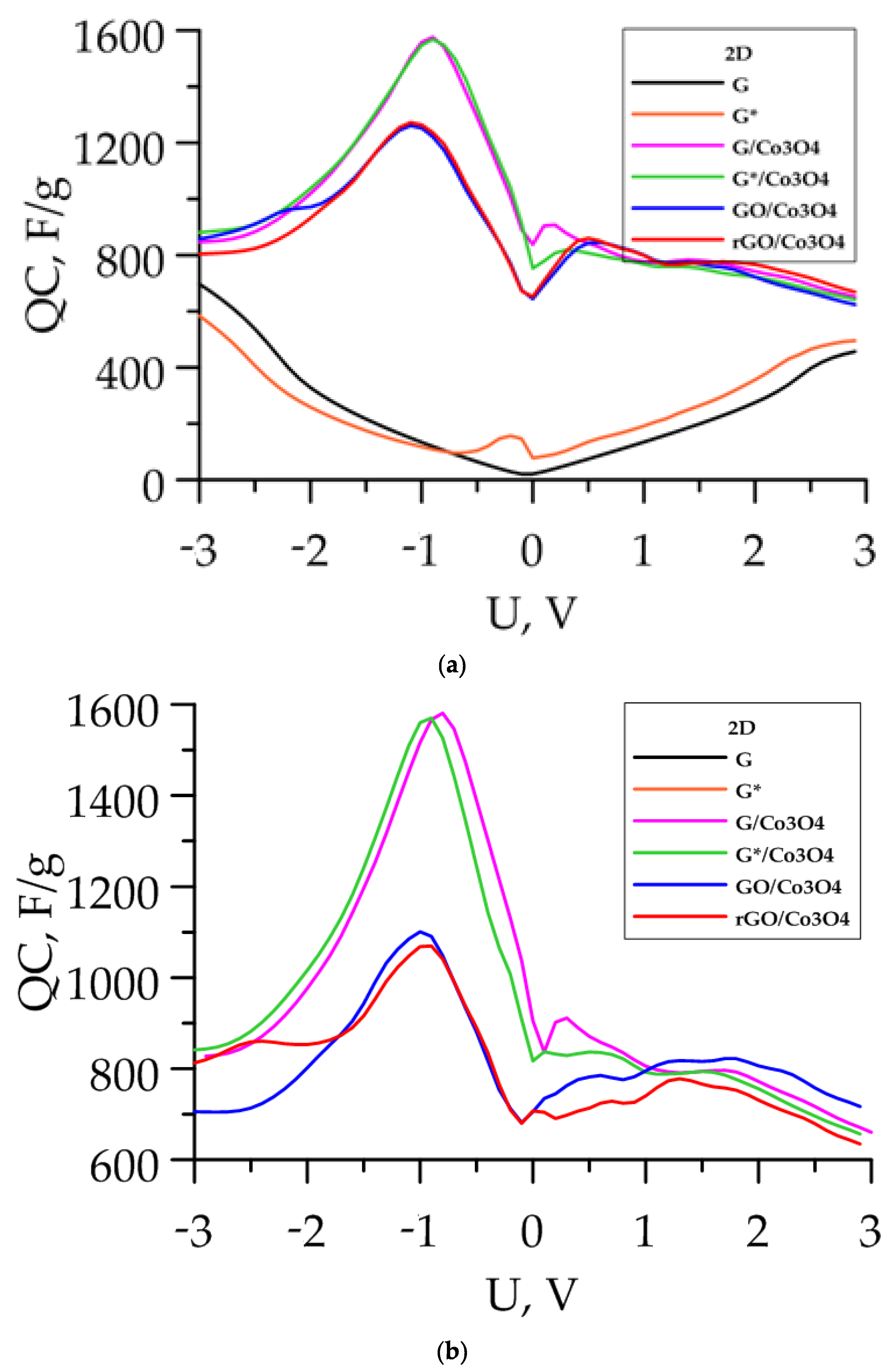

Figure 4. The QC for G, G*, G/Co3O4, G*/Co3O4, GO/Co3O4 and rGO/Co3O4: (a) 2D films; (b) 3D composites.
Figure 4. The QC for G, G*, G/Co3O4, G*/Co3O4, GO/Co3O4 and rGO/Co3O4: (a) 2D films; (b) 3D composites.
Lubricants 10 00079 g004
Table 1. Fermi level, charge transfer and the value of QC at the U = 0 V for pure graphene and 2D and 3D composites: G/Co3O4, GO/Co3O4, rGO/Co3O4.
Table 1. Fermi level, charge transfer and the value of QC at the U = 0 V for pure graphene and 2D and 3D composites: G/Co3O4, GO/Co3O4, rGO/Co3O4.
StructureFermi Level, eVCharge, eQC (0 V), F/g
G−4.67 20.78
G*−4.41 111.5
2D G/Co3O4−3.501.15837.55
2D G*/Co3O4−3.571.32832.50
2D GO/Co3O4−3.571.38644.25
2D rGO/Co3O4−3.480.88652.17
3D G/Co3O4−3.411.73880.34
3D G*/Co3O4−3.402.25862.81
3D GO/Co3O4−3.651.99692.13
3D rGO/Co3O4−3.261.13691.13
