Shaping Planetary Nebulae with Jets and the Grazing Envelope Evolution

Abstract

I argue that the high percentage of planetary nebulae (PNe) that are shaped by jets show that main sequence stars in binary systems can accrete mass at a high rate from an accretion disk and launch jets. Not only does this allow jets to shape PNe, but this also points to the importance of jets in other types of binary systems and in other processes. These processes include the grazing envelope evolution (GEE), the common envelope evolution (CEE), and the efficient conversion of kinetic energy to radiation in outflows. Additionally, the jets point to the possibility that many systems launch jets as they enter the CEE, possibly through a GEE phase. The other binary systems in which jets might play significant roles include intermediate-luminosity optical transients (ILOTs), supernova impostors (including pre-explosion outbursts), post-CEE binary systems, post-GEE binary systems, and progenitors of neutron star binary systems and black hole binary systems. One of the immediate consequences is that the outflow of these systems is highly-non-spherical, including bipolar lobes, jets, and rings.

1. Introduction

The early recognition that jets play major roles in shaping planetary nebulae (PNe; e.g., [1,2,3]) has received great attention and support in recent years (e.g., [4,5,6,7,8,9,10,11]). The binary system might launch jets before and/or after the common envelope evolution (CEE; e.g., [12]). In any case, in most cases the jets are coeval with the main nebula [13]. The precessing of jets in many cases, e.g., as in Fleming 1 [14], show that the launching mechanism is a precessing accretion disk around a compact star, such as a main sequence star or a white dwarf (WD); or the core of the asymptotic giant branch (AGB) progenitor of the PN, rather than a collimation by a large-scale equatorial torus or by the AGB envelope.

To form an accretion disk that might efficiently launch jets, the accretion flow should have a large, specific angular momentum. Binary interaction, mostly mass transfer, must supply the angular momentum in evolved stars. Indeed, observations and their interpretations indicate that most PNe with axisymmetrical and/or point-symmetrical morphological features are born in binary systems (e.g., [15,16,17,18,19,20,21,22,23]).

There are some general properties in the operation of jets which I take to hold in shaping PNe ([24] for a review of all these properties). (1) The jets’ velocity is about the escape speed of the object that launches the jets. For main sequence companions, the most common companion in shaping PNe, the escape speed, is $v_{\mathrm{esc}}\simeq 600{\mathrm{km}\mathrm{s}}^{-1}$, implying jet velocities in the general range of $v_{\mathrm{j}}\simeq (0.5$–$2)v_{\mathrm{esc}}\simeq 300$–$1200{\mathrm{km}\mathrm{s}}^{-1}$. (2) The jets influence the gas in the ambient medium by depositing energy and momentum to the gas; i.e., by heating and/or expelling it. As such, there is less mass available for accretion onto the object that launches the jets, therefore reducing the jets’ power. Namely, the jets operate in a negative feedback cycle. In particular, the jets might shut themselves down by removing the gas available for accretion, and resume activity later on as accretion renews. This might repeat itself several times (the different mass ejection episodes will merge later to one nebula). (3) Alongside the negative feedback cycle, there is a positive feedback cycle due to the jets. As jets are likely to remove energy and high entropy gas, they allow more gas to flow-in, and that way increase the mass accretion rate (e.g., [25]). Chamandy et al. [26] removed mass and pressure via a subgrid mechanism, and showed that this "pressure release valve" mechanism, as jets are expected to act, allows high accretion rates. (4) The jets are not necessarily narrow. Jets might be wide, with a half-opening angle of almost 90° (e.g., observations by [27]).

Several studies have used post-CEE binary central stars of PNe to constrain the physics and parameters of the CEE (e.g., [28,29]). Jones (2020; [29]) presents a thorough review on the usage of post-CEE PNe to learn about the CEE. Here, I concentrate on the role of jets and use some properties of PNe and post-AGB binary systems to learn about the importance and outcome of the grazing envelope evolution (GEE).

2. The Grazing Envelope Evolution (GEE)

In the GEE (suggested in 2015 [30]), the jets that the secondary star launches manage to eject the envelope outside its orbit (for numerical simulations see, e.g., [31,32,33]). During the GEE, the secondary star grazes the envelope, including being somewhat outside the photosphere or somewhat inside it. The accretion process of gas from the giant envelope to the companion is a combination of Bondi–Hoyle–Lyttleton (BHL) accretion flow from the surrounding gas, and a Roche lobe overflow (RLOF) from the inner dense envelope. Rather than directly entering the CEE, the system performs the GEE. It might later enter a CEE, or not. In some cases the secondary might get into the envelope and then exit back (e.g., [34]). This process might repeat itself.

The GEE phase has several effects and outcomes which I list as follows.

2.1. Preventing the CEE

By removing mass at a high rate, the jets might prevent the CEE altogether (e.g., [35]). This process works in a negative feedback cycle, as when the orbital separation increases, the accretion rate decreases, and so does the effect of the jets. Tidal forces then bring the system back into contact, resuming accretion at a high rate and so on. The outcome might be a binary system with an intermediate orbital separation, $a\approx 1\mathrm{AU}$. There is a group of post-AGB binary systems with such orbital separations; in some, the companion is observed to launch jets (e.g., [27,36,37]). The GEE, therefore, might account for these post-AGB intermediate binaries (post-AGBIBs; [35]).

2.2. Postponing the CEE and Removing Mass before the CEE

In some cases the GEE does not prevent the CEE, but postpones it and as a result of that the system loses large amount of mass before entering the CEE. Even without launching jets, many binary systems can lose large amounts of mass before entering the CEE (e.g., [38,39]). Jones [29] concludes in his review that both post-CEE PNe and merging stars (luminous red novae) strongly suggest that appreciable mass transfer/loss occurs before the onset of the CEE.

2.3. Shaping the Outflow

The interaction of the jets with the outskirts of the envelope of the giant star leads to a complicated flow structure (e.g., [32,40]). In this phase, the jets mostly interact with the envelope outskirts and with the dense base of the wind, and do not expand to large distances (Section 3).

2.4. Counteracting Tidal Circularization

Substantially enhanced mass-loss at periastron passages during the GEE can counteract the circularization effect due to tidal interactions [41]. This might account for the non-zero eccentricity of binary systems, such as post-AGBIBs. Additionally, it might lead some systems to enter a CEE while they have high eccentricity.

One outcome of such a process might be a nebula that possesses departure from pure axisymmetrical structure (e.g., [42] and examples therein).

2.5. Experiencing ILOT Events

The jets that the companion launches collide with envelope gas, and if the jets penetrate out they might collide with the shell that the high mass loss rate from the giant star forms. The collision of the jets with the envelope (e.g., [43]) and/or with the slow shell (e.g., [44]) converts kinetic energy to thermal energy. If the photon diffusion time out is not much longer than the expansion time of the gas (which is the adiabatic cooling time), then a large fraction of the thermal energy is carried out by radiation. In a short GEE episode, less than few years, the observation will be of an intermediate-luminousity optical transient—an ILOT (which might be brightest in the IR if efficient dust formation takes place).

2.6. Forming Type IIb Supernovae (SNe IIb)

SNe IIb are core-collapsed supernovae with little hydrogen mass at explosion ($M_{\mathrm{H},\mathrm{ex}}\simeq 0.01$–$1M_{\odot }$). The enhanced mass loss due to jets in a binary system of a giant progenitor of core-collapsed supernova and a main sequence companion that experiences the GEE, might leave little hydrogen mass at explosion; hence, forming a SN IIb progenitor [34]. This is only one of several evolutionary channels that might lead to SNe IIb.

3. Evolutionary Phases of the Jets’ Launch

For the purpose of this study I consider five evolutionary phases where the companion to a giant star might launch jets. I summarize these in two tables. In

Table 1. Evolutionary phases with choked jets.

1. Jets in Wind Acceleration Zone	3. Jets during the GEE	4. Jets during the CEE
Bondi–Hoyle–Lyttleton (BHL) accretion from the slow wind.	BHL + Roche lobe overflow (RLOF) accretion from envelope outskirts.	BHL accretion inside the giant envelope.
Density-surface 3D maps of the gas that originated in the jets and mixed with the wind. Colours are density surfaces according to the colour bars on the left from ${10}^{-17}$ (blue) to $2\times {10}^{-14}{\mathrm{g}\mathrm{cm}}^{-3}$ (red) (from [45]).	The asymptotic giant branch (AGB) is at the center. The secondary star (marked by “+”) is moving to the left in the figure. The red-green-blue colors show gas originated in the jets and moving with velocities $>400\mathrm{km}{\mathrm{s}}^{-1}$. The gray denotes slow AGB gas. Axes from $-7\times {10}^{13}$ to $7\times {10}^{13}\mathrm{cm}$. (For more details, see the original study [40]).	A temperature map (bar in K) in the meridional plane of a 3D CEE simulation. The secondary launches two opposite jets, in the $+z$ and $-z$ directions, as it orbits inside the envelope of a giant star. The high temperature (red) of the shocked jets’ gas shows the jets do not break out from the envelope; i.e., they are choked jets (from [50]).

I list three phases where in most cases the jets do not expand to large distances. In

Table 2. Evolutionary phases with expanding jets.

2. Jets from Pre-CEE RLOF Accretion	5. Jets during the Post-CEE
Accretion onto the secondary star by RLOF from the giant envelope (+wind-RLOF accretion from wind acceleration zone).	The secondary star accretes from the post-CEE circumbinary disk (the remnant of the envelope) and launches jets.
Velocity map in 3D together with density isosurface (wire mesh) from the 3D hydro simulations of [46]. Axes are in pixels. Jets manage to entrain AGB wind and expand out.	A schematic drawing (not to scale) of the last phase of the CEE. The orange hatched region depicts the hot bubble formed by the interaction of one jet with the envelope (opposite bubble not shown). At later times the jets might expand almost freely (from [51]).

I list the two phases where in most cases the jets might expand to large distances and form bipolar lobes and/or other morphological features along and near the symmetry axis.

1. Jets in wind acceleration zone (first column of Table 1). The secondary star can remove mass before it grazes the envelope itself, if it launches jets in the acceleration zone of the dense wind of the giant star, as numerical simulations show [45]. When the accretion rate is mostly due to BHL accretion flow, the jets from main sequence stars are not strong enough to penetrate through the wind from which the secondary star accretes mass [45].

2. Jets from pre-CEE RLOF accretion (first column of Table 2). When the secondary is closer to the surface, the accretion is mainly due to RLOF from the envelope. Most of the accretion flow is equatorial and it is much larger than that of BHL accretion from the wind through which the secondary orbits the giant star. In such a case the jets are likely to penetrate through the wind and expand to large distances, thereby shaping the slow outflow to form a bipolar morphology with one or more pairs of lobes and/or other point symmetric morphologies (e.g., [46]). This case might occur also at a somewhat earlier phase when the dense acceleration zone of the wind overflows its Roche lobe and transfers mass at a high rate to the secondary star via an equatorial flow (for this wind-RLOF see, e.g., [47,48]).

3. Jets during the GEE (second column of Table 1). This phase was the subject of Section 2. The jets strongly interact with the envelope, and in most cases do not expand to large distances. The situation might be different in an eccentric orbit (as might have been the case during the Great Eruption of Eta Carinae; e.g., [49]), when the secondary star accretes mass when it grazes the giant envelope near periastron, and the jets’ launching episode lasts at later times at which the secondary star is near apastron.

4. Jets during the CEE (third column of Table 1). Inside the envelope the density is too large for jets that a main sequence star launches to expand out (e.g., [50]). The jets might play a crucial role in helping mass removal.

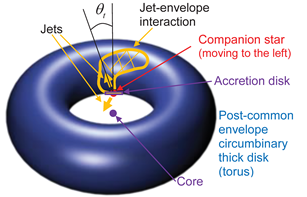

5. Jets during the post-CEE (second column of Table 2). In a recent paper [51] I discussed the possibility that the secondary star accretes mass from a circumbinary disk [52,53,54] at the termination of the CEE. As a result of that, the secondary star might launch jets that have variable directions and intensities. These jets shape the nebula. Note that in this mechanism the secondary star (or maybe even the core of the former AGB star) launches the jets. This should be distinguished from a process wherein the highly deformed envelope collimates a bipolar outflow (e.g., [55,56]).

4. Supporting observations to the GEE

In this section I list some observations that support to some extent the occurrence of the GEE. There is no observation (yet) that directly shows this phase takes place, but I take the observations I list in

Table 3. Observational indirect support for the importance of the GEE.

Property	Example	Possible Implications
Jets launching $\approx {10}^3-{10}^4\mathrm{yr}$ before main nebular ejection.	ETHOS 1 [20]	A strong binary interaction which involves mass transfer and jet launching takes place shortly before the CEE. Might be phase 2 (left column) of Table 2.
Jets launching $\approx {10}^3-{10}^4\mathrm{yr}$ after main nebular ejection.	Hb4 [7]	A strong binary interaction which involves mass transfer and jet launching takes place shortly after the CEE. Might be mass accretion from a circumbinary disk, as phase 5 in Table 2.
High-momentum jets in pre-PNe (or in PNe).	M1-92 [57]	Main sequence stars can accrete mass at high rates, $\dot{M}>{10}^{-4}{M}_{\odot }{\mathrm{yr}}^{-1}$, and launch jets when approaching, inside, or just exiting a CEE [58].
Post-AGBIBs with jets and a circumbinary disk.	IRAS 19135+3937 [27]	(1) Main sequence companion outside an AGB star can launch jets that shape the outflow. (2) Accretion might take place from a circumbinary disk [27].
Low-mass nebulae in some post-CEE PNe [59].	Abell 63 [60]	Significant pre-CEE mass loss; possibly in a GEE [59].
PN central binaries with orbital periods of $P_{\mathrm{orb}}>\mathrm{several}\mathrm{day}$.	NGC 2346 [61]	Significant pre-CEE mass loss; possibly in a GEE [30].

to indirectly support the GEE. These observations are of two kinds: those that show the importance of jets (first four items of Table 3), and those that raise some puzzles that the GEE might solve (last two rows of Table 3).

Jets launching $\approx {10}^3$–${10}^4\mathrm{yr}$ before or after main nebular ejection. Observations suggest that in some cases PN progenitors launch jets shortly before, during, or after they eject the main nebulae (e.g., [12,13,62,63]). In the second and third rows of Table 3, I list two examples and summarize the possible implications of these observations.

High momentum jets in PNe. Blackman & Lucchini [58] studied 19 pre-PNe (taken from [57,64]) and constrained the minimum mass accretion rate to account for the high momenta of the bipolar outflows (jets). They considered main sequence and white dwarf (WD) accretors to launch the jets. They concluded that accretion from the wind is not sufficient to explain the momentum in the jets. Main sequence companions accreting via a RLOF or inside a common envelope can supply the required momentum. As for WD accretors, in most cases that they studied, the accretion rate was super-Eddington. As I discuss in Section 5, another problem with WDs accreting at a high rate is that they ignite nuclear reactions and inflate an envelope. Overall, the conclusion from the work of [58] is that main sequence stars can accrete at high rates, $\dot{M}>{10}^{-4}{M}_{\odot }{\mathrm{yr}}^{-1}$, just before, during, and/or just after the CEE (third item in Table 3).

Post-AGBIBs with jets and a circumbinary disk. Traditional CEE calculations suggest that either the binary system enters a CEE and the final orbital separation is much smaller than the giant radius (≈1 AU), or that mass loss causes the orbital separation to increase much above the giant radius. However, there is a group of post-AGB intermediate binaries (post-AGBIBs) with orbital separations of ≈1 AU. I already mentioned this group in Section 2.1, in which I suggested that the GEE might prevent the formation of a CEE, such that the orbital separation stays at about the giant radius. The point I emphasize here is that observations suggest that the main sequence companion in most post-AGBIBs launches jets (e.g., [27,36,37]). I list the implications in the fourth item of Table 3. The second implication, that the companion accretes mass from a circumbinary disk and launches jets, is directly relevant to post-CEE binaries, as indicated in the second column of Table 2.

Low-mass nebulae in some post-CEE PNe. There are several hints that a large fraction of systems enter the CEE after they have lost a significant amount of mass (e.g., [29] for a recent paper). Santander-García [59] as another example, claim lower nebular mass in post-CEE PNe. This again suggests a substantial pre-CEE mass loss, which the GEE might account for [59]. Many episodes of GEE might help with removing large amounts of mass. Another outcome of significant pre-CEE mass loss might be a large post-CEE orbital separation [30], such as in the central binary system of NGC 2346.

PN central binaries with orbital periods of $P_{\mathrm{orb}}>\mathit{several}\mathit{days}$. Central binary systems of PNe with orbital separations below ≈$100R_{\odot }$ have experienced the CEE (rather than only the GEE for larger orbital separations). If the orbital separation is above ≈$10R_{\odot }$, corresponding to an orbital period of $P_{\mathrm{orb}}>4\mathrm{days}$, the possible implication is that the envelope mass at the beginning of the CEE was small, such that the binary system ejected the entire envelope when the orbital separation was relatively large. The GEE might be a way to remove mass in the pre-CEE phase.

5. The Mass-Accreting Secondary Star

In earlier sections I referred mainly (but not only) to main sequence secondary stars. Here I list also other possibilities. I list by increasing maximum jet power.

5.1. Planets as Secondary Objects

In cases of low mass PN progenitors where the final envelope mass is low, $M_{\mathrm{env}}\simeq 0.1-0.5M_{\odot }$, a planet can play a role in shaping the outflow [65]. This scenario is made more likely if the mass loss rate of AGB stars that do not acquire any angular momentum from a companion (so called Jsolated stars) is lower than what traditional formulae give (e.g., [66]).

Planets might accrete small amounts of mass, and at best launch jets at velocities of ≈$100{\mathrm{km}\mathrm{s}}^{-1}$, which is about the escape velocity of massive planets. As planets have no strong convection that mixes accreted mass inward, I take the mass that a planet of mass $M_{\mathrm{p}}$ can accrete before it expands to be below about $M_{\mathrm{acc},\mathrm{p}}\simeq 0.01$–$0.1M_{\mathrm{p}}$; this number is a crude estimate (a guess even), and it requires further detailed studies. The mass in each jet might be about 10 percent of the accreted mass (as in young stellar objects; e.g., [67]), $M_{\mathrm{jet},\mathrm{p}}\approx 0.001$–$0.01M_{\mathrm{p}}$. Scaling this relation with a massive planet (about 10 times the mass of Jupiter) gives $M_{\mathrm{jet}}\approx {10}^{-5}$–${10}^{-4}(M_{\mathrm{p}}/0.01M_{\odot })M_{\odot }$. It is possible that if the planet accretes more mass it expands such that it does not launch jets anymore.

Interestingly, there are two opposite knots along the symmetry axis of some elliptical PNe, termed “ansae” (or FLIERS), whose typical velocities and masses are $\approx \mathrm{few}\times 10$–$200{\mathrm{km}\mathrm{s}}^{-1}$ and ≈${10}^{-5}$–${10}^{-4}{M}_{\odot }$, respectively [68]. There is a need for more studies to examine whether massive planets and brown dwarfs might launch jets in shaping PNe, and whether in some cases these jets might form ansae (FLIERS).

There is an indirect way for a planet (or a brown dwarf) to form jets. If the core of the AGB star tidally destroys the planet to form an accretion disk at the termination of the CEE, then the core might launch jets made from the destroyed planet material (e.g., [69,70,71,72,73]). These jets, though, will be much faster than the observed velocities of ansae.

5.2. WD Secondary Stars

In [74] I discuss accreting WDs and main sequence stars during the CEE (note that here the WD is the secondary star, and the mass-donor giant is the primary star). The potential well of a WD is about two orders of magnitude deeper than that of a main sequence star. However, the mass accretion rate of a WD is limited. This is because at an accretion rate of ${\dot{M}}_{\mathrm{WD}}>\approx {10}^{-6}{M}_{\odot }{\mathrm{yr}}^{-1}$ nuclear reactions on the surface of the WD inflate an envelope (e.g., [75]). This upper limit is about the lower accretion rate that [58] is required to explain high-momenta bipolar outflows in pre-PNe.

This addition of nuclear energy is about a doublin ofg the luminosity from the core of the AGB star. It is not clear whether the WD can launch jets at accretion rates above that value. Still, at lower values of ${\dot{M}}_{\mathrm{WD}}<\mathrm{few}\times {10}^{-7}{M}_{\odot }{\mathrm{yr}}^{-1}$, the WD might launch jets at terminal velocities of $v_{\mathrm{j},\mathrm{WD}}\approx \mathrm{few}\times 1000{\mathrm{km}\mathrm{s}}^{-1}$. Overall, WDs might launch jets at the different stages that I summarized in Section 3 and play a role in the different phases. I expect jets from WDs not to reach the highest powers of jets from main sequence stars. This question deserves further study.

5.3. Main Sequence Secondary Stars (Low Masses and High Masses)

The supporting observations that I discussed in Section 4 are mainly for main sequence secondary stars in low mass systems. Namely, the secondary stars are mainly in the mass range ≃0.3–1 $M_{\odot }$, and observations suggest that these secondary stars can accrete at a high rate and launch jets. These are main sequence stars with convective envelopes. They are more likely to accrete mass without expanding much. The removal of angular momentum, energy, and high entropy gas by the jets themselves [25], as in the “pressure release valve” mechanism [26], helps in allowing high mass accretion. There is no question that low-mass main sequence stars can launch relatively energetic jets.

I emphasize that observations (e.g., [76]) do show that post-CEE main sequence stars have larger radii than their radii on the main sequence, as expected for such stars that accrete mass (e.g., [77]). The point is that the radii of these post-CEE main sequence stars increase by a factor of only ≈2. Namely, the gravitational potential of the secondary star does not change much, and the escape velocity is still larger than ≈$300\mathrm{km}{\mathrm{s}}^{-1}$. Namely, jets that these stars launch even after they expand are still relatively fast, and they might be sufficiently energetic to shape the nebula and expel mass from the envelope.

There is the question of whether more massive stars that have radiative envelopes can accrete mass and launch jets. I think that the bipolar nebula of Eta Carinae, called Homunculus, which was formed during the Great Eruption in the nineteenth century, is evidence that the answer is yes. There are indications and suggestions (e.g., [78] and references therein) that the Homunculus was shaped by jets. As [78] showed, jets that the secondary star launched might as well account for the very fast outflow in the Great Eruption ($v>{10}^4{\mathrm{km}\mathrm{s}}^{-1})$.

5.4. Neutron Stars and Black Holes

In principle, a neutron star (NS) and a black hole (BH) can be the secondary star in each of the five jet-launching phases that I discussed in Section 3. In particular, during the GEE and the CEE, neutrino cooling allows very high mass accretion rates. The giant primary star is likely to be a massive progenitor of a core-collapsed supernova with a mass above ≈$8M_{\odot }$. The role of jets that a NS and a BH launch during the CEE (and possibly in an earlier GEE phase) must be considered in the study of the formation of NS–NS, NS–BH, or BH–BH close binary systems.

The collision of jets that main sequence stars (and possibly WDs) launch with the envelope and slow outflow can lead to ILOTs; i.e., transient events that have luminosities below the typical luminosity of a supernova. On the other hand, the collision of the very energetic jets that NSs and BHs launch during the CEE can convert huge amounts of energy to thermal energy, part of which is radiated away, possibly as an event as bright as a typical supernova or more. If the NS (or BH) spirals-in all the way to the core, it destroys the core and might accrete a mass of $M_{\mathrm{acc},\mathrm{NS}}\approx 0.1$–$1M_{\odot }$ within minutes [79]. The outcome might be a very bright event, much brighter even than typical supernovae (e.g., [80]). This event is termed a common envelope jets supernova (CEJSN). One plausible outcome might be the nucleosynthesis of r-process elements in the jets [79].

If the NS or BH accretes mass only from the relatively low density envelope, and then gets out without completely destructing the giant star, the event is termed CEJSN impostor [81].

6. Summary

The observations that jets that binary systems launch shape many PNe (Section 1), before, during, and/or after the ejection of the main nebula (Section 3), suggest that the companion might launch jets also—when it enters the envelope and when inside the envelope (Section 4). Therefore, when studying the CEE, it is mandatory to consider jets; in particular, when the companion is a NS or a BH (Section 5.4). These observations support the idea of the GEE (Section 4), wherein the jets manage to remove the envelope outside the orbit of the secondary star (Section 2). The secondary stars might be planets (or brown dwarfs), main sequence stars, WDs, NSs, and BHs (Section 5). This study was mainly on main sequence secondary stars.

It is important to emphasize that it is very difficult, and even impossible at this stage to fully capture the physics near the origin of the jets with numerical simulations. Numerical simulations on the scale of binary interaction cannot resolve the accretion flow and cannot self-consistently launch jets. All relevant numerical simulations of jets use a sub-grid prescription to inject jets into the numerical grid (namely, jets’ injection by hand).

Finally, ≈10% of the systems that experience the CEE might be close triple systems. This might lead to the formation of “messy nebulae”—i.e., nebulae that lack any clear symmetry—by launching inclined jets [82].
