Clin.iobio: A Collaborative Diagnostic Workflow to Enable Team-Based Precision Genomics

Department of Human Genetics, University of Utah School of Medicine, Salt Lake City, UT 84112, USA
Frameshift Labs, Inc., Cambridge, MA 02142, USA
Department of Pediatrics, University of Utah Scbool of Medicine, Salt Lake City, UT 84112, USA
ARUP Laboratories, Department of Pathology, University of Utah School of Medicine, Salt Lake City, UT 84112, USA
Authors to whom correspondence should be addressed.
J. Pers. Med. 2022, 12(1), 73;
Received: 15 December 2021 / Revised: 31 December 2021 / Accepted: 4 January 2022 / Published: 8 January 2022
(This article belongs to the Special Issue Precision Medicine in Clinical Practice)


The primary goal of precision genomics is the identification of causative genetic variants in targeted or whole-genome sequencing data. The ultimate clinical hope is that these findings lead to an efficacious change in treatment for the patient. In current clinical practice, these findings are typically returned by expert analysts as static, text-based reports. Ideally, these reports summarize the quality of the data obtained, integrate known gene–phenotype associations, follow allele segregation and affected status within the sequenced samples, and weigh computational evidence of pathogenicity. These findings are used to prioritize the variant(s) most likely to cause the given patient’s phenotypes. In most diagnostic settings, a team of experts contribute to these reports, including bioinformaticians, clinicians, and genetic counselors, among others. However, these experts often do not have the necessary tools to review genomic findings, test genetic hypotheses, or query specific gene and variant information. Additionally, team members often rely on different tools and methods based on their given expertise, resulting in further difficulties in communicating and discussing genomic findings. Here, we present clin.iobio—a web-based solution to collaborative genomic analysis that enables diagnostic team members to focus on their area of expertise within the diagnostic process, while allowing them to easily review and contribute to all steps of the diagnostic process. Clin.iobio integrates tools from the popular iobio genomic visualization suite into a comprehensive diagnostic workflow, encompassing (1) genomic data quality review, (2) dynamic phenotype-driven gene prioritization, (3) variant prioritization using a comprehensive set of knowledge bases and annotations, (4) and an exportable findings summary. In conclusion, clin.iobio is a comprehensive solution to team-based precision genomics, the findings of which stand to inform genomic considerations in clinical practice.

1. Introduction

As genomic sequencing continues to decrease in cost, its use as a powerful, cost-effective clinical test has been established [1,2]. This is especially true for the diagnosis of suspected genetic conditions in rare diseases and critically ill newborn settings [3,4,5]. Bioinformatic pipelines to map a patient’s genomic data to a reference genome and determine high-confidence variant calls have become increasingly standardized, and can be deployed with relative ease in both academic and commercial settings. However, the path to diagnosis remains complex, and expert, team-based interpretation of potentially causative candidate variants remains a significant bottleneck. Reaching a diagnostic decision often requires the collaboration of bioinformatics analysis teams, genetic counselors, and clinical geneticists, spanning a diverse range of expertise. While each case is unique and workflows differ between clinical settings, the following steps are essentially always required: (1) assessment of data quality; (2) identification of candidate genes, based on relevant phenotype and disease terms; (3) interpretation of candidate diagnostic variants, within the context of both computationally prioritized and phenotype-prioritized genes; and (4) reporting variant findings to clinical teams for final diagnostic decisions. Based on these universal workflow steps, we have developed a web-based tool, clin.iobio, to support a team-based approach to genomic diagnostics, focusing on ease of use, accessibility, and collaboration.
Data quality assessment is an often overlooked but critical component of all genomic analyses, and is typically performed by bioinformaticians. In many clinical diagnostic settings, these quality metrics are buried within reports or omitted entirely. However, data deficiencies can dramatically affect downstream analyses. Important sequencing data quality metrics typically include the overall sequencing coverage/depth across target sequence regions (exome or genome) and the distribution of the types of variants called. Following data quality assessment, a differential clinical diagnosis approach, often performed by medical geneticists or genetic counselors, is typically employed to carefully review patient (and family member) phenotypes. These phenotype terms are then coded into standardized Human Phenotype Ontology (HPO) terms in order to generate a high-confidence list of phenotype-associated genes [6]. Variants within these genes have a higher likelihood of explaining the patient’s phenotype and, consequently, require thorough investigation. Depending on the clinical setting, patients may also present with a large number of non-specific phenotypes where the input of multiple team members can help to refine clinical diagnoses and prioritize the most objective and specific phenotypes [7]. Additionally, proband phenotypes may change over time, requiring revisions to patient phenotype terms; thus, it is necessary that phenotype terms and prioritized genes can be dynamically reviewed and updated.
Following phenotype description, variants are reviewed and interpreted. Typical trio sequencing results range from hundreds of thousands to millions of variants, in exome or genome studies, respectively. This number of variants can be significantly reduced by using computational methods that prioritize variants based on Mendelian modes of inheritance, population frequency, and predicted impacts on coding proteins [8,9,10,11]. However, these methods remain almost exclusively used by bioinformaticians, and require significant computational skills and resources; as such, clinical and genetics experts are typically only provided with static, text-based summaries of candidate variant information for their review. These summaries are often not sufficient to make a diagnostic decision about the variant, and this approach limits the ability of team members to contribute to diagnostic decisions. Lastly, written reports summarizing genomic findings typically require specific information from multiple team members based on their expertise, requiring additional communication exchanges.
Many tools have attempted to address specific challenges within this typical clinical diagnostic workflow. However, these approaches have largely been developed in commercial settings, leaving few options for academic researchers. To date, no academic tools currently exist that provide a comprehensive, team-based, genomic diagnostic workflow. Clin.iobio was specifically designed as a solution to this challenging problem of team-based genomic diagnostics. We identified the major components of a typical genomic analysis workflow, and developed a framework that allows all team members to contribute their domain of expertise to diagnostic decisions via an intuitive web app that provides a comprehensive, dynamic, and collaborative workflow to potentially guide clinical practice based on genomic findings.

2. Results

The development of clin.iobio was guided by our collaboration with clinical teams in the rapid newborn intensive care unit (NICU) sequencing and undiagnosed disease clinics at the University of Utah. Rapid NICU sequencing programs rely on identifying diagnostic variants as quickly as possible, with the hope of impacting newborn clinical care as soon as possible. In these time-sensitive analyses, it is critical that all team members can review case information as soon as it is available. Here, we demonstrate the utility of clin.iobio using a representative case from our University of Utah rapid NICU sequencing program, where the clinical team achieved a rapid genetic diagnosis that informed clinical management.
Clin.iobio is routinely applied for all Utah NICU patient cases. These cases include many complex phenotypic presentations for which diagnostic decisions cannot be made by any available method, including clin.iobio, and remain undiagnosed. However, even in these undiagnosed cases, clin.iobio facilitates a team-based diagnostic process, allowing the team to confidently conclude that there is no feasible diagnosis at this time. Of the Utah NICU cases that were able to be diagnosed, clin.iobio prioritized the diagnostic variant(s) within minutes. Here, we describe a representative diagnostic case to highlight the clin.iobio analysis process. In this NICU case, a newborn was described to have a “fetal akinesia sequence” (HP:0001989) phenotype. Additional, less specific phenotypes included “arthrogryposis multiplex congenita” (HP:0002804), “elevated serum creatine kinase” (HP:0003236), “macrocephaly at birth” (HP:0004488), “nephrolithiasis” (HP:0000787), and “pulmonary hypoplasia” (HP:0002089). Our in-house variant alignment and calling pipeline provided clin.iobio with the necessary CRAM, VCF, and PED files for this case, and allowed our clinical diagnostic team to rapidly review the sequencing data and reach a diagnostic conclusion.
Our iobio suite comprises tools to perform specific focused analyses. For example, gene.iobio provides methods to interrogate individual variants in genes of interest. Clin.iobio differs from these existing tools, as it integrates the tools together into a comprehensive web-based diagnostic workflow, seamlessly passing information between steps and generating a final findings report. Each step in the clin.iobio workflow—and the tools used to power them—is described here for the representative NICU case. Stepwise within clin.iobio, the first step of data quality review revealed that all three individuals displayed the expected Poisson distribution of sequencing coverage, with median read coverages exceeding the minimum expected for this sequencing experiment (Figure 1A). In the second step of clin.iobio, clinically relevant HPO terms were entered into a freeform text box, where clin.iobio automatically interpreted the HPO syntax and generated a list of phenotype-associated genes (Figure 1B). In the initial analysis, the number of phenotype-associated genes was filtered to include only genes associated with three or more of the six provided HPO terms. As these genes were associated with multiple phenotypes present in the patient, they represented the genes most likely to explain the patient’s specific disease presentation. This dynamic filtering within clin.iobio resulted in 19 genes, limiting the number of variants for initial review to a manageable number. The dynamic design of clin.iobio allows this gene list to be expanded if the initial review results in no plausible candidate variants. The next step within clin.iobio is to review candidate variants (Figure 2A); this includes the variants in the 19 phenotypically prioritized genes, as well as candidate variants identified using upstream variant prioritization tools, e.g., Slivar [8] (see Materials and Methods). This integration with variant prioritization tools is critical in order to ensure that clin.iobio supports both phenotype- and gene-based approaches, as well as variants in genes not previously associated with the patient’s phenotypes. This variant review step is powered by our previously published gene.iobio [12] tool, whereby variants in all provided genes are annotated with a comprehensive set of annotations, including ClinVar [13], gnomAD [14], and REVEL [15] for missense variants. This variant prioritization step also provides OMIM-associated [16] genetic disorders and PubMed publications associated with the selected gene. Importantly, this clin.iobio workflow step also provides patient-specific gene–phenotype associations, as provided in the previous workflow step. Integrating this information in a single view enables team members to use primary sources and always up-to-date information in their interpretation of genetic variants. Within seconds, the Review variants step of clin.iobio annotated all variants within the provided gene list, prioritizing and prominently highlighting compound heterozygous variants in the LGI4 gene. These were two missense variants (REVEL scores 0.716 and 0.767), where one variant was annotated as “likely pathogenic” in ClinVar and was associated with “arthrogryposis multiplex congenita” and “fetal akinesia sequence”—the most objective phenotypes provided for our patient. The sequence coverage of each variant was shown for all members of the pedigree, establishing that both variants were high-quality heterozygous variants and were present in the proband and one parent. Specifically for the missense variant in Figure 2A, the number of observations of the reference and alternate alleles was 42 and 37, respectively; the father had 21 and 27 observations, while the mother had 0 and 43, providing ample confidence in the called genotypes. The IGV [17] browser is integrated into this variant review step of clin.iobio to allow further read-level review if desired. Within clin.iobio, these variants were marked as significant, automatically populating the final report with this potentially diagnostic information (Figure 2B).
This representative case demonstrates how clin.iobio supports diagnosis in whole-genome sequencing data. The diagnostic workflow is largely the same when using whole-exome sequencing data, with the addition of extra quality control checks to account for the variable coverage in exome data. The minimum, median, and mean coverage in each exon are determined, and active warnings are provided for exons that fall outside of predefined and customizable thresholds. In exome data, the diagnostic team performs the same variant-level quality control checks as with genome data, but additionally can ensure that all exons in genes of interest are sufficiently covered, allowing team members to potentially identify false negatives due to low or absent coverage.
In this representative case, clin.iobio enabled a collaborative diagnostic approach that identified compound heterozygous LGI4 variants. The patient’s clinical presentation began prenatally with polyhydramnios, arthrogryposis, and limited movement of fetal extremities. Pathogenic LGI4 variants are associated with autosomal recessive arthrogryposis multiplex congenita, which the diagnostic team reviewed in conjunction with all other available information, including literature sources provided by clin.iobio, in the context of the patient. After comprehensive review, the team determined that these compound heterozygous LGI4 variants were likely pathogenic, and were sufficient to return a genetic diagnosis to the family. Importantly, these genomic findings informed clinical care, including sparing the proband from additional invasive procedures and moving the patient towards palliative treatment. Additionally, this crucial prognostic and genetic information empowered the parents’ future family planning decisions. This real-world example demonstrates how clin.iobio provides an accessible team-based interface to enable the rapid identification of causative genetic variants and potentially inform clinical management.

3. Discussion

As genomic testing increasingly becomes a first-line diagnostic technique in many clinical settings, analysis and interpretation of genomic testing results demand significant effort from a multidisciplinary team of experts [18]. This team-based approach guarantees that the genomic data are comprehensively reviewed and all findings are discussed by bioinformaticians, geneticists, and clinical experts. However, this is a high-effort and low-throughput process, where all experts in the team are already extremely time-limited. As such, tools that enable team-based genomics but do not increase the workload of individual team members are urgently needed. We expect that this challenge will become increasingly apparent as the number of patients undergoing genetic testing continues to increase.
Clin.iobio was specifically designed to address the growing need to implement team-based genomic medicine. Clin.iobio is best suited for the analysis of monogenic Mendelian diseases, while providing a method for diagnostic teams to investigate all hypotheses in patient cases. Complex disorders—for example, those with multiple causative variants in multiple genes, especially when these include variants of unknown significance—remain challenging to interpret using any genomic diagnostic tool, including clin.iobio. Clin.iobio integrates a common set of analysis steps in a typical genomic diagnostic workflow into a single, easy-to-use, and visual web-based application that allows all team members to contribute their expertise to the diagnostic process, without imposing a significant time burden. The flexible design of clin.iobio allows for a comprehensive genomic analysis using both phenotype-driven and variant-driven prioritization approaches.
Within a phenotype-based analysis, clin.iobio allows for on-demand updating of phenotype terms and gene lists. This allows team members to dynamically expand or refine phenotype and gene lists. For example, in the case we described here, a user could have been more permissive, and only required genes to be associated with two or more HPO terms. This less stringent filtering would have expanded the gene list to 45 genes. In addition to HPO, users can also utilize the integrated GTR [19] and Phenolyzer [20] resources to generate phenotype-associated gene lists—an approach we published previously [21]. This flexibility allows clin.iobio to go beyond a linear workflow, and provides the opportunity for revision, exploration, and reanalysis of previously negative cases. In conclusion, clin.iobio provides a comprehensive, web-based genomic analysis platform that enables team-based diagnostic decisions that have the potential to significantly impact clinical practice and patient care.

4. Materials and Methods

4.1. System Overview

Clin.iobio utilizes and coordinates multiple components and tools within the iobio suite of visual web-based genomics tools. These include tools for reviewing data quality metrics (based on bam.iobio [22] and vcf.iobio), generating lists of genes associated with specific phenotypes and genetic disorders (based on genepanel.iobio [21]), and variant prioritization and interpretation (based on gene.iobio [12]). Combining these code bases, clin.iobio passes the outputs from individual steps to subsequent steps, resulting in a complete start-to-finish diagnostic workflow. Critically, the final step of clin.iobio produces a research report, summarizing the case and the findings that were noted during the analysis.

4.2. File Input/Output

Clin.iobio accepts file-format-compliant PED files, indexed BAM/CRAM files, and indexed (unannotated or annotated) VCF files. These files can be provided via a publicly accessible URL or from a user’s local machine, or from a combination of the two locations. As with all iobio apps, clin.iobio streams relevant portions of the data and displays the data visually in a web browser; no data are uploaded and no genomic data are stored on iobio servers. Clin.iobio is a JavaScript application that interfaces with cloud-based iobio backend services (, accessed on 17 September 2021). Iobio backend services utilize application programming interface (API) methods to ensure the data and annotations displayed are up-to-date. Furthermore, this architecture delineates application and data processing logic, with the clin.iobio front-end displaying visualizations and coordinating secure HTTPS requests to the backend. Clin.iobio provides an exportable PDF research report that summarizes the user’s findings. Clin.iobio has also been integrated into Mosaic—a commercial and collaborative genomic data platform developed by Frameshift Labs (, accessed on 5 January 2022). With this Mosaic integration, clin.iobio analyses can be saved and relaunched at any time.

4.3. Sequencing Data Coverage and Alignment

Clin.iobio displays sequencing data coverage visualizations based on the data returned from iobio backend services. This coverage-based iobio backend service utilizes SAMtools [23] for region-based queries of CRAM/BAM alignment files, and to determine coverage across a gene or a given region, such as an exon. This coverage information is visualized in both the Review case and Review variants steps.

4.4. IGV Integration

The web-based JavaScript version of the Integrative Genomics Viewer (IGV) [17], called igv.js (, accessed on 17 September 2021), is integrated into the Review variants step (within gene.iobio).

4.5. Variant Annotation

Variant annotation is performed in the variant review step of clin.iobio (using gene.iobio), in a region-specific manner, with the data streamed back to clin.iobio. This variant annotation service includes tabix [24] (for region-based querying of indexed VCF files), vt [25] (for sample subsetting, variant decomposition, normalization, and transformation), VEP [26] (for transcript-aware annotation of variants with functional consequence, impact, ClinVar [13] significance, REVEL [15] score, HGVS [27], and dbSNP [28] ID), and bcftools (for determining variant population allele frequency in gnomAD) (, accessed on 5 January 2022). GnomAD [14] population allele frequencies, as well as heterozygous and homozygous allele counts, are provided. The phlyoP [29] conservation scores and multiple-species sequence alignment visualizations rely on UCSC [30] genome tracks to display multiple-organism sequence alignments surrounding a given variant.

4.6. Gene–Disease Association

The GENCODE [31] and RefSeq [32] are used to provide gene name typeahead and autocomplete functionality. The Select phenotypes step (based on genepanel.iobio) integrates Phenolyzer [20], ClinPhen [33], and the HPO [6], allowing the user to enter a phenotype term and automatically generate a list of genes associated with that phenotype. Up-to-date gene–disease association data from OMIM [34] are retrieved via their web API, while PubMed articles associated with a particular gene are retrieved using the web API NCBI E-utils [35].

4.7. External Resources and Databases

Numerous public datasets are utilized to present up-to-date gene and variant annotations to the user. These external resources and databases are kept up-to-date using iobio backend services built around the individual data type. For instance, the ClinVar resource is maintained via a backend service that retrieves the latest ClinVar VCF on a weekly basis. Numerous other external links are provided at the gene- and variant-specific levels, including MARRVEL [36], VarSome [37], OMIM [34], DECIPHER [38], GeneCards [39], GTEx [40], HumanMine [41], PubMed, UniProt, the Human Protein Atlas [42], and the UCSC Browser [30].

4.8. Deployment, Usage and Availability

Clin.iobio is publicly available and free to use for academic purposes at, accessed on 5 January 2022. Commercial use is licensed through Frameshift Labs, Inc., Cambridge, MA, USA (, accessed on 5 January 2022). The University of Utah and the Utah Center for Genetic Discovery maintain an institutional version of clin.iobio for use by our clinical teams and genetics researchers at our institute. Clin.iobio was developed and optimized for the Chrome browser, with additional support for the Firefox and Safari browsers.

5. Conclusions

Genomic testing is increasingly becoming a first-line diagnostic approach for critically ill newborns as well as patients with rare and undiagnosed diseases. In both of these settings, experts from many specific disciplines contribute their unique expertise to a genetic and clinical diagnosis for the patient. Clin.iobio is an approachable diagnostic genomic analysis workflow specifically designed to engage all members of the clinical diagnostic team, and serves to accelerate the incorporation of genomic findings into patient care.

Author Contributions

Conceptualization: G.M., A.W. and T.D.S.; methodology: A.W., M.V., T.D.S. and A.E.; software: A.E. and T.D.S.; formal analysis: S.M.J., B.M., P.B.-T. and R.M.; writing—original draft: A.W., M.V. and T.D.S.; writing—review and editing: A.W. and M.V.; funding acquisition: G.M. and A.W. All authors have read and agreed to the published version of the manuscript.


This research was funded by NIH R01 HG009712.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created in this study. Data sharing is not applicable to this article.

Conflicts of Interest

Author A.W. is also employed by Frameshift Labs, Inc., and G.M. is affiliated with Frameshift Labs, Inc.


  1. Clark, M.M.; Stark, Z.; Farnaes, L.; Tan, T.Y.; White, S.M.; Dimmock, D.; Kingsmore, S.F. Meta-analysis of the diagnostic and clinical utility of genome and exome sequencing and chromosomal microarray in children with suspected genetic diseases. NPJ Genom. Med. 2018, 3, 16. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Holm, I.A.; The BabySeq Project Team; Agrawal, P.B.; Ceyhan-Birsoy, O.; Christensen, K.D.; Fayer, S.; Frankel, L.A.; Genetti, C.A.; Krier, J.B.; LaMay, R.C.; et al. The BabySeq project: Implementing genomic sequencing in newborns. BMC Pediatr. 2018, 18, 225. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Sanford, E.F.; Clark, M.M.; Farnaes, L.; Williams, M.R.; Perry, J.C.; Ingulli, E.G.; Sweeney, N.M.; Doshi, A.; Gold, J.J.; Briggs, B.; et al. Rapid Whole Genome Sequencing Has Clinical Utility in Children in the PICU. Pediatr. Crit. Care Med. 2019, 20, 1007–1020. [Google Scholar] [CrossRef]
  4. Farnaes, L.; Hildreth, A.; Sweeney, N.M.; Clark, M.M.; Chowdhury, S.; Nahas, S.; Cakici, J.A.; Benson, W.; Kaplan, R.H.; Kronick, R.; et al. Rapid whole-genome sequencing decreases infant morbidity and cost of hospitalization. NPJ Genom. Med. 2018, 3, 1–8. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Berg, J.S.; Agrawal, P.B.; Bailey, D.B., Jr.; Beggs, A.H.; Brenner, S.E.; Brower, A.M.; Cakici, J.A.; Ceyhan-Birsoy, O.; Chan, K.; Chen, F.; et al. Newborn Sequencing in Genomic Medicine and Public Health. Pediatrics 2017, 139, e20162252. [Google Scholar] [CrossRef][Green Version]
  6. Robinson, P.N.; Köhler, S.; Bauer, S.; Seelow, D.; Horn, D.; Mundlos, S. The Human Phenotype Ontology: A Tool for Annotating and Analyzing Human Hereditary Disease. Am. J. Hum. Genet. 2008, 83, 610–615. [Google Scholar] [CrossRef][Green Version]
  7. Solomon, B.D.; Muenke, M. When to suspect a genetic syndrome. Am. Fam. Physician 2012, 86, 826–833. [Google Scholar]
  8. Pedersen, B.S.; Brown, J.M.; Dashnow, H.; Wallace, A.D.; Velinder, M.; Tristani-Firouzi, M.; Schiffman, J.D.; Tvrdik, T.; Mao, R.; Best, D.H.; et al. Effective variant filtering and expected candidate variant yield in studies of rare human disease. NPJ Genom. Med. 2021, 6, 60. [Google Scholar] [CrossRef]
  9. Smedley, D.; Jacobsen, J.O.B.; Jäger, M.; Köhler, S.; Holtgrewe, M.; Schubach, M.; Siragusa, E.; Zemojtel, T.; Buske, O.J.; Washington, N.L.; et al. Next-generation diagnostics and disease-gene discovery with the Exomiser. Nat. Protoc. 2015, 10, 2004–2015. [Google Scholar] [CrossRef][Green Version]
  10. Hu, H.; Huff, C.D.; Moore, B.; Flygare, S.; Reese, M.G.; Yandell, M. VAAST 2.0: Improved Variant Classification and Disease-Gene Identification Using a Conservation-Controlled Amino Acid Substitution Matrix. Genet. Epidemiol. 2013, 37, 622–634. [Google Scholar] [CrossRef][Green Version]
  11. Wang, K.; Li, M.; Hakonarson, H. ANNOVAR: Functional annotation of genetic variants from high-throughput sequencing data. Nucleic Acids Res. 2010, 38, e164. [Google Scholar] [CrossRef]
  12. Di Sera, T.; Velinder, M.; Ward, A.; Qiao, Y.; Georges, S.; Miller, C.; Pitman, A.; Richards, W.; Ekawade, A.; Viskochil, D.; et al. Gene.iobio: An interactive web tool for versatile, clinically-driven variant interrogation and prioritization. Sci. Rep. 2021, 11, 20307. [Google Scholar] [CrossRef]
  13. Landrum, M.J.; Lee, J.M.; Riley, G.R.; Jang, W.; Rubinstein, W.S.; Church, D.M.; Maglott, D.R. ClinVar: Public archive of relationships among sequence variation and human phenotype. Nucleic Acids Res. 2014, 42, D980–D985. [Google Scholar] [CrossRef][Green Version]
  14. Karczewski, K.J.; Francioli, L.C.; Tiao, G.; Cummings, B.B.; Alföldi, J.; Wang, Q.; Collins, R.L.; Laricchia, K.M.; Ganna, A.; Birnbaum, D.P.; et al. Variation across 141,456 human exomes and genomes reveals the spectrum of loss-of-function intolerance across human protein-coding genes. Nature 2020, 581, 434–443. [Google Scholar] [CrossRef]
  15. Ioannidis, N.M.; Rothstein, J.H.; Pejaver, V.; Middha, S.; McDonnell, S.K.; Baheti, S.; Musolf, A.; Li, Q.; Holzinger, E.; Karyadi, D.; et al. REVEL: An Ensemble Method for Predicting the Pathogenicity of Rare Missense Variants. Am. J. Hum. Genet. 2016, 99, 877–885. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Online Mendelian Inheritance in Man. Available online: (accessed on 11 November 2020).
  17. Robinson, J.T.; Thorvaldsdóttir, H.; Winckler, W.; Guttman, M.; Lander, E.S.; Getz, G.; Mesirov, J.P. Integrative genomics viewer. Nat. Biotechnol. 2011, 29, 24–26. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. LeukoSEQ: Whole Genome Sequencing as a First-Line Diagnostic Tool for Leukodystrophies. Available online: (accessed on 5 January 2021).
  19. Home—Genetic Testing Registry (GTR)—NCBI. Available online: (accessed on 5 January 2021).
  20. Yang, H.; Robinson, P.N.; Wang, K. Phenolyzer: Phenotype-based prioritization of candidate genes for human diseases. Nat. Methods 2015, 12, 841–843. [Google Scholar] [CrossRef]
  21. Ekawade, A.; Velinder, M.; Ward, A.; DiSera, T.; Miller, C.; Qiao, Y.; Marth, G. Genepanel.iobio—An easy to use web tool for generating disease- and phenotype-associated gene lists. BMC Med. Genom. 2019, 12, 190. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Miller, C.A.; Qiao, Y.; Di Sera, T.; D’Astous, B.; Marth, G.T. bam.iobio: A web-based, real-time, sequence alignment file inspector. Nat. Methods 2014, 11, 1189. [Google Scholar] [CrossRef][Green Version]
  23. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R.; 1000 Genome Project Data Processing Subgroup. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef][Green Version]
  24. Li, H. Tabix: Fast retrieval of sequence features from generic TAB-delimited files. Bioinformatics 2011, 27, 718–719. [Google Scholar] [CrossRef][Green Version]
  25. Tan, A.; Abecasis, G.R.; Kang, H.M. Unified representation of genetic variants. Bioinformatics 2015, 31, 2202–2204. [Google Scholar] [CrossRef]
  26. McLaren, W.; Gil, L.; Hunt, S.E.; Riat, H.S.; Ritchie, G.R.S.; Thormann, A.; Flicek, P.; Cunningham, F. The Ensembl Variant Effect Predictor. Genome Biol. 2016, 17, 122. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. den Dunnen, J.T.; Dalgleish, R.; Maglott, D.R.; Hart, R.K.; Greenblatt, M.S.; McGowan-Jordan, J.; Roux, A.-F.; Smith, T.; Antonarakis, S.E.; Taschner, P.E.; et al. HGVS Recommendations for the Description of Sequence Variants: 2016 Update. Hum. Mutat. 2016, 37, 564–569. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Sherry, S.T.; Ward, M.-H.; Kholodov, M.; Baker, J.; Phan, L.; Smigielski, E.M.; Sirotkin, K. dbSNP: The NCBI database of genetic variation. Nucleic Acids Res. 2001, 29, 308–311. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Pollard, K.S.; Hubisz, M.J.; Rosenbloom, K.R.; Siepel, A. Detection of nonneutral substitution rates on mammalian phylogenies. Genome Res. 2009, 20, 110–121. [Google Scholar] [CrossRef][Green Version]
  30. Kent, W.J.; Sugnet, C.W.; Furey, T.S.; Roskin, K.M.; Pringle, T.H.; Zahler, A.M.; Haussler, D. The human genome browser at UCSC. Genome Res. 2002, 12, 996–1006. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Frankish, A.; Diekhans, M.; Ferreira, A.-M.; Johnson, R.; Jungreis, I.; Loveland, J.; Mudge, J.M.; Sisu, C.; Wright, J.; Armstrong, J.; et al. GENCODE reference annotation for the human and mouse genomes. Nucleic Acids Res. 2019, 47, D766–D773. [Google Scholar] [CrossRef][Green Version]
  32. O’Leary, N.A.; Wright, M.W.; Brister, J.R.; Ciufo, S.; Haddad, D.; McVeigh, R.; Rajput, B.; Robbertse, B.; Smith-White, B.; Ako-Adjei, D.; et al. Reference sequence (RefSeq) database at NCBI: Current status, taxonomic expansion, and functional annotation. Nucleic Acids Res. 2016, 44, D733–D745. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Deisseroth, C.A.; Birgmeier, J.; Bodle, E.E.; Kohler, J.N.; Matalon, D.R.; Nazarenko, Y.; Genetti, C.A.; Brownstein, C.A.; Schmitz-Abe, K.; Schoch, K.; et al. ClinPhen extracts and prioritizes patient phenotypes directly from medical records to expedite genetic disease diagnosis. Genet. Med. 2019, 21, 1585–1593. [Google Scholar] [CrossRef]
  34. McKusick, V.A. Mendelian Inheritance in Man and Its Online Version, OMIM. Am. J. Hum. Genet. 2007, 80, 588–604. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Sayers, E. The E-utilities In-Depth: Parameters, Syntax and More. In Entrez Programming Utilities Help; National Center for Biotechnology Information: Bethesda, MD, USA, 2009. [Google Scholar]
  36. Wang, J.; Al-Ouran, R.; Hu, Y.; Kim, S.-Y.; Wan, Y.-W.; Wangler, M.; Yamamoto, S.; Chao, H.-T.; Comjean, A.; Mohr, S.; et al. MARRVEL: Integration of Human and Model Organism Genetic Resources to Facilitate Functional Annotation of the Human Genome. Am. J. Hum. Genet. 2017, 100, 843–853. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Kopanos, C.; Tsiolkas, V.; Kouris, A.; Chapple, C.E.; Aguilera, M.A.; Meyer, R.; Massouras, A. VarSome: The human genomic variant search engine. Bioinformatics 2019, 35, 1978–1980. [Google Scholar] [CrossRef]
  38. Firth, H.V.; Richards, S.M.; Bevan, P.; Clayton, S.; Corpas, M.; Rajan, D.; Van Vooren, S.; Moreau, Y.; Pettett, R.M.; Carter, N.P. DECIPHER: Database of Chromosomal Imbalance and Phenotype in Humans Using Ensembl Resources. Am. J. Hum. Genet. 2009, 84, 524–533. [Google Scholar] [CrossRef][Green Version]
  39. Stelzer, G.; Rosen, N.; Plaschkes, I.; Zimmerman, S.; Twik, M.; Fishilevich, S.; Stein, T.I.; Nudel, R.; Lieder, I.; Mazor, Y.; et al. The GeneCards Suite: From Gene Data Mining to Disease Genome Sequence Analyses. In Current Protocols in Bioinformatics; Bateman, A., Pearson, W.R., Stein, L.D., Stormo, G.D., Yates, J.R., III, Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2002; Volume 29, pp. 1.30.1–1.30.33. [Google Scholar]
  40. GTEx Consortium. The Genotype-Tissue Expression (GTEx) project. Nat. Genet. 2013, 45, 580–585. [Google Scholar] [CrossRef]
  41. Kalderimis, A.; Lyne, R.; Butano, D.; Contrino, S.; Lyne, M.; Heimbach, J.; Hu, F.; Smith, R.; Štěpán, R.; Sullivan, J.; et al. InterMine: Extensive web services for modern biology. Nucleic Acids Res. 2014, 42, W468–W472. [Google Scholar] [CrossRef][Green Version]
  42. Uhlén, M.; Fagerberg, L.; Hallström, B.M.; Lindskog, C.; Oksvold, P.; Mardinoglu, A.; Sivertsson, Å.; Kampf, C.; Sjöstedt, E.; Asplund, A.; et al. Proteomics. Tissue-Based Map of the Human Proteome. Science 2015, 347, 1260419. [Google Scholar] [CrossRef] [PubMed]

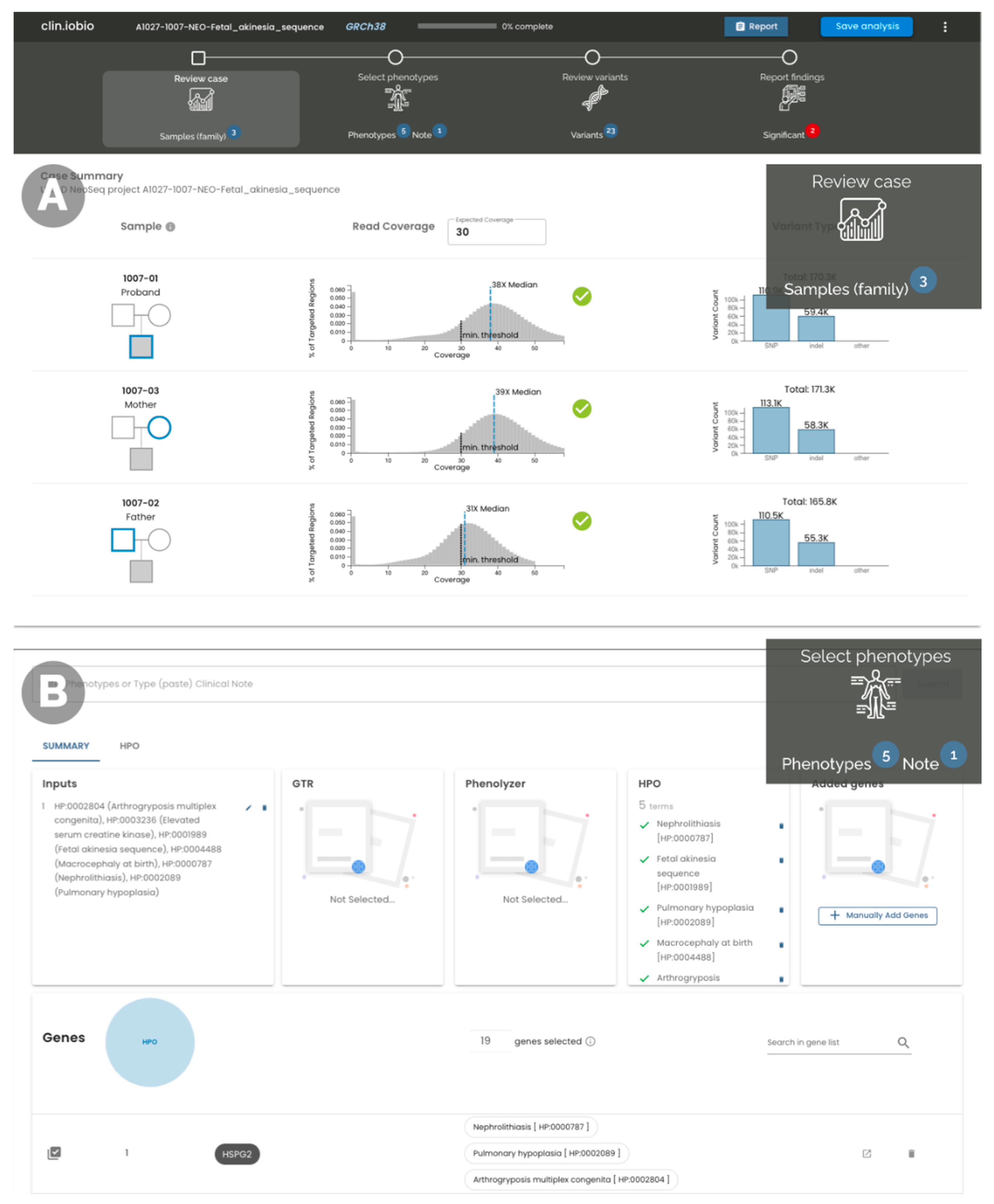

Figure 1. The first two steps in the clin.iobio web app, with the workflow shown at the top of the figure. This workflow is always present at the top of the page, with step-specific information (e.g., the number of identified significant variants) shown with each task. This workflow is not linear; rather, users can jump to whichever step they desire. (A) Basic overall quality control metrics for the patient and family members show that sequencing coverage has expected distributions, with median coverages above the required threshold. (B) A candidate gene list is generated and refined based on patient phenotypes. Here, a set of HPO terms was selected, and interactive charts limit the list to genes that are associated with at least 3 HPO terms.
Figure 1. The first two steps in the clin.iobio web app, with the workflow shown at the top of the figure. This workflow is always present at the top of the page, with step-specific information (e.g., the number of identified significant variants) shown with each task. This workflow is not linear; rather, users can jump to whichever step they desire. (A) Basic overall quality control metrics for the patient and family members show that sequencing coverage has expected distributions, with median coverages above the required threshold. (B) A candidate gene list is generated and refined based on patient phenotypes. Here, a set of HPO terms was selected, and interactive charts limit the list to genes that are associated with at least 3 HPO terms.
Jpm 12 00073 g001

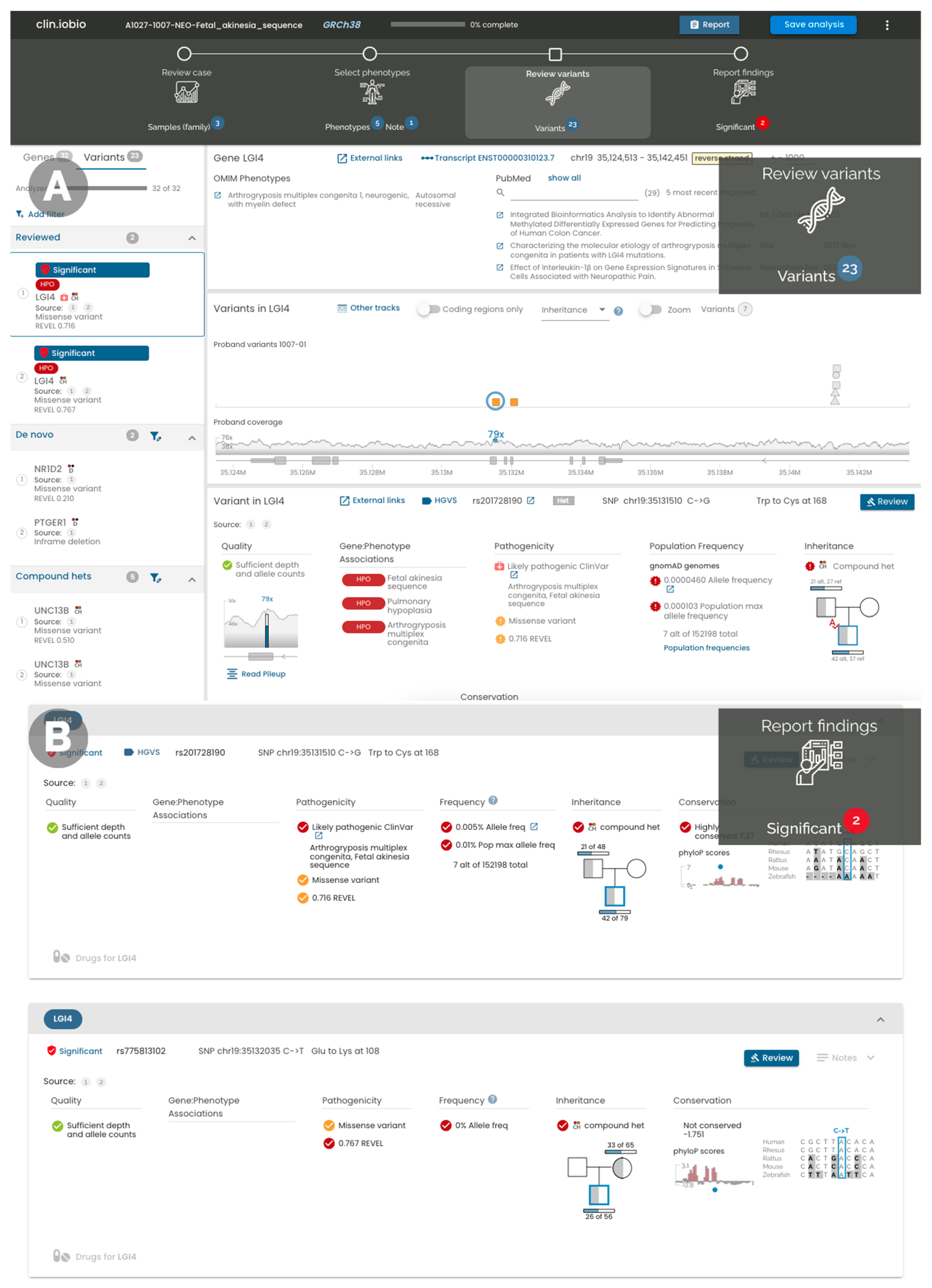

Figure 2. The final two steps in the clin.iobio web app, with the workflow shown at the top of the figure. (A) The variant review process includes all candidate variants in the left panel (variants that conform to a set of predefined filters). All variants in the selected LGI4 gene are shown in the middle panel; one of the LGI4 compound heterozygous variants is selected, showing variant-specific annotations in the bottom panel. This shows that the variant is listed as “likely pathogenic” in ClinVar, and is associated with relevant phenotypes; the gene–phenotype associations integrate information from the previous phenotype step. (B) The final step in the workflow summarizes information on the variants that have been marked as Significant or of Unknown Significance; this step acts as the starting point for a quick review of the case.
