Review

Harnessing Extracellular Matrix Biology for Tumor Drug Delivery

by
Nithya Subrahmanyam
1,2 and
Hamidreza Ghandehari
1,2,3,*
1
Department of Pharmaceutics and Pharmaceutical Chemistry, University of Utah, Salt Lake City, UT 84112, USA
2
Utah Center for Nanomedicine, University of Utah, Salt Lake City, UT 84112, USA
3
Department of Biomedical Engineering, University of Utah, Salt Lake City, UT 84112, USA
*
Author to whom correspondence should be addressed.
J. Pers. Med. 2021, 11(2), 88; https://doi.org/10.3390/jpm11020088
Submission received: 12 December 2020 / Revised: 23 January 2021 / Accepted: 26 January 2021 / Published: 31 January 2021
(This article belongs to the Special Issue EPR Effect-Based Tumor Targeted Nanomedicine)
Browse Figures
Versions Notes

Abstract

:
The extracellular matrix (ECM) plays an active role in cell life through a tightly controlled reciprocal relationship maintained by several fibrous proteins, enzymes, receptors, and other components. It is also highly involved in cancer progression. Because of its role in cancer etiology, the ECM holds opportunities for cancer therapy on several fronts. There are targets in the tumor-associated ECM at the level of signaling molecules, enzyme expression, protein structure, receptor interactions, and others. In particular, the ECM is implicated in invasiveness of tumors through its signaling interactions with cells. By capitalizing on the biology of the tumor microenvironment and the opportunities it presents for intervention, the ECM has been investigated as a therapeutic target, to facilitate drug delivery, and as a prognostic or diagnostic marker for tumor progression and therapeutic intervention. This review summarizes the tumor ECM biology as it relates to drug delivery with emphasis on design parameters targeting the ECM.

Graphical Abstract

1. Introduction

Targeted drug delivery capitalizes on biological aspects of the tumor ECM, and can thus be informed by an understanding of the intricate dynamics that affect the tumor microenvironment. Many drug carriers are modified to target specific upregulated biomarkers, proteins, receptors, and other epitopes within the tumor ECM in order to increase localization by capitalizing on a biological change in the tumor microenvironment compared to healthy tissue. Here we summarize both drug delivery and cancer biology literature to understand the local dynamics that influence drug delivery.
The ECM, the complex non-cellular environment, is essential to cell processes [1]. It has a reciprocal relationship with cells, providing signaling cues that influence nearly all aspects of cell life [2]. Once thought to be merely a structural support, the ECM is now well-recognized to have a homeostatic relationship with cells maintained through biochemical and mechanotransducive interactions [3]. Homeostasis is maintained through a tightly structured enzymatic processing of ECM components. In cancer, this homeostasis is disrupted in favor of promoting excessive growth of cells and an invasive phenotype [4]. The ECM presents opportunities to target, treat, and modulate the stroma, as well as epitope targets and biological mechanisms that can be harnessed for therapeutic intervention [5]. For example, the contribution of various ECM enzymes to tumor growth and invasion has led to development of therapeutics based on enzyme inhibition strategies. Additionally, the biochemical and morphological changes in the ECM can be interpreted as diagnostic and prognostic markers [6,7].
In this review, we take a comprehensive look at the many ways that the ECM can be used as a tool for cancer treatment. To this end, we first discuss the complex biology of the ECM, its function and composition, and the changes it undergoes in cancer. We then examine efforts to employ it as a therapeutic target and as a diagnostic and prognostic marker, as well as strategies to prime the ECM to improve drug delivery through small molecule approaches and mechanical or enzymatic strategies. Finally, we examine efforts to further improve delivery through the use of drug carriers by ECM targeting or modulation.

2. Extracellular Matrix: Structure, Function, and Involvement in Cancer Etiology

In this section, we provide background for ECM-based therapeutic strategies by presenting an overview of the biology of the healthy ECM, its components, and its structure. We then discuss the changes induced by cancer in the ECM, which present epitopes for targeting and pathways to hijack for therapeutic intervention. Finally, we highlight some of the differences between healthy and tumor ECM. These ideas together provide a basis for a biological platform that can be leveraged for ECM-based strategies.

2.1. Function and Role of the ECM

The ECM firstly serves as a physical scaffold that helps to maintain the structure of organs [8]. It delineates tissue boundaries, preventing unnecessary cell migration and abnormal proliferation, and provides elasticity for organs [8,9]. Providing elasticity is particularly important during development and morphogenesis [10].
Next, the extracellular matrix serves as an adhesive substrate to facilitate cell migration. The mechanisms of cell adhesion are carried out through a set of molecules and receptors collectively known as the adhesome [11]. The adhesion sites help connect cells with their neighboring cells [12]. Additionally, with respect to the ECM, these adhesion molecules are important for environmental sensing, including for both chemical and physical properties [12]. Adhesion interactions occur through both integrin and non-integrin receptors. Integrins are transmembrane proteins composed of an α subunit and a β subunit. They interact with molecules in the ECM. There are 18 different α chain subunits and 8 different β chain subunits, which give many possible heterodimeric integrins [12]. The adhesome molecules are substrates for attachment, as well as mediators involved in the growth and remodeling of the ECM [11,13,14]. Integrins are stimulated by both mechanical (detecting stiffness of the ECM) and biochemical cues which instigate a conformational change, leading to downstream biochemical responses that modulate cell behavior [15,16,17]. Specific integrins on cells sense corresponding proteins and epitopes from the ECM [16]. Several matricellular proteins (including fibronectin [18], collagen, and others) are recognized by integrins and participate in the ECM–cell communication. These proteins are then further connected by a web of interactions with cells and other ECM components. Integrins and adhesion dynamics offer many opportunities for drug development and targeting [19,20,21].
Related to this environmental sensing that facilitates cell migration, an interesting and complex role that the ECM plays is in ECM–cell signaling, which is facilitated through multiple mechanisms. Fibrous proteins and glycosaminoglycans in the ECM bind growth factors and serve as a repository of embedded molecules which then get released in a regulated fashion through enzymatic processing [22]. These molecules are presented to the cell surface and in turn activate cellular pathways, in addition to direct ECM molecular interactions with cell surface receptors, facilitating intracellular signaling [22,23]. Examples of the ECM molecules that serve as reservoirs include heparan sulfate and heparan, collagen, and others. Examples of bound growth factors include vascular endothelial growth factor (VEGF), fibroblast growth factors (FGF), and others [24]. Remodeling of ECM molecules is facilitated predominantly by matrix metalloproteinases (MMPs) [25]. In some cases, the ECM molecule instead serves as a cofactor in the binding of growth factors to their cognate receptors [26].
In addition to the biochemical dynamics of these components, biomechanics also plays an important role in the ECM, both in terms of maintaining homeostasis as well as ECM–cell signaling [3]. The ECM communicates with cells through mechanotransduction [3]. In this process, the fibrous structure of the ECM exerts a mechanical pressure on the cell surface, where the tensile strength conveys signals [3]. The density and alignment of the fibrous structures both play an important role in this process [6].
The mechanical and dynamic homeostasis of the ECM is critical [3]. Homeostasis is maintained through effector cells and sensing. In the case of fibrous collagen, fibroblasts are important as effector cells in this process, as they secrete both collagen and proteases such as matrix metalloproteinases that can break down collagen in response to cues [3]. This breakdown maintains homeostasis within the ECM and with respect to cells and cellular function [27]. Disruptions to this homeostasis matter because they are both symptomatic and causative of pathological conditions, and often promote disease progression.

2.2. Composition of the ECM

The composition of the ECM varies depending on the type of ECM and the location. There are approximately 300 proteins in the mammalian ECM [9]. ECM material is secreted by fibroblasts, and it is in general made up of proteins (such as collagen, elastin, and fibronectin), glycosaminoglycans (largely hyaluronic acid), and proteoglycans (heparan sulfate and others). It interacts with cells and organs and maintains a tensile and compressive force [2]. It is also comprised of growth factors and signaling molecules, and it houses various immune and other cells, such as fibroblasts. The most abundant constituent is collagen, with the interstitium containing primarily collagen type I [28]. Fibroblasts secrete collagen and help organize its structure [29]. Elastin is secreted as tropoelastin, assembled into fibers, and tightly associated with the collagen, providing elasticity [2]. Fibronectin is involved in organizing the ECM, mediating cell functions and interaction, and its unfolding is mediated by mechanical forces [2]. Proteoglycans, which are made up of proteins covalently attached to glycosaminoglycans, are involved in interactions with growth factors and other signaling molecules, playing a role in the organization of the ECM structure [1]. Hyaluronan, a glycosaminoglycan, is involved in mediating several functions through binding to cell receptors [1]. Additionally there is a milieu of enzymes, which continually remodel the ECM and maintain homeostasis. Some examples of these include MMPs, a disintegrin and metalloproteases (ADAMs), a disintegrin and metalloproteases thrombospondin motifs (ADAMTs), heparanase, and many others [1]. The interstitium is connected to a basement membrane which separates it from blood vessels [30]. The basement membrane is predominantly composed of collagen type IV and laminin [30]. All of these molecules have receptors with which they interact in order to facilitate communication between cells and the ECM. Specific components of the ECM that are important targets for delivery are described in more detail later.

2.3. Pathological ECM

Hanahan and Weinberg famously described the hallmarks of cancer [31], and Pickup et al. extended this concept to how the extracellular matrix contributes to each of these hallmarks [32]. Cues from the ECM play a role in influencing each of these hallmarks, attesting to the integrative nature of cancer with its environment, and these are in fact essential to the development of malignancies [32]. In cancer, the ECM processes are dysregulated to collectively promote tumor growth and metastasis.

2.3.1. Enzyme Upregulation

Numerous enzymes (such as MMPs and cathepsins) are upregulated in the tumor ECM, which promote degradation and weakening of the basement membrane (although the relationship with these enzymes is more complex, with some enzymes showing both pro- and anti- tumor effects [33,34]). A summary of ECM enzymes is given in Table 1. Additionally, it is important to consider the distribution of enzymes and molecules within the tumor microenvironment, particularly in the context of targeting. Figure 1, adapted from Isaacson et al. [25], summarizes the distribution of MMP enzyme subtypes within a tumor microenvironment. Enzyme inhibition is a common disease therapy, and Table 2 gives examples of enzyme inhibitors with corresponding enzymes. The list is by no means exhaustive, but highlights some of the more studied examples of small molecules, drugs, and others and their associated matrix components. Increased enzymatic remodeling of various constituents primes the microenvironment for cancer through breakdown of the matrix to allow cell migration, weakening of the basement membrane to permit escape, increased growth, and increased presentation and release of pro-tumor cues [4]. Additionally, enzymatic remodeling leads to exposing cryptic domains within ECM protein structures, which enables binding of signaling factors that promote growth and angiogenesis [30]. This includes largely MMPs as well as cathepsins. Cathepsin K, for example, is responsible for bone resorption [35], and it is upregulated in breast cancer tumors that metastasize to the bone. Cathepsin B is involved in weakening of the basement membrane, promoting metastasis [36]. These also vary by tumor type and subtype. The differences attest to the heterogeneity of tumor stroma profiles. Another example, tissue-type plasminogen activator (tPA), is known to be secreted by cancer cells, and it is associated with several proteolytic channels, including fibrin degradation, and coagulation and complement systems [1]. This can lead to fibrin clots, leading to a restriction of tumor vascular permeability. Fibrin blood clots are degraded by plasmin, which is produced through the digestion of plasminogen via tPA [1]. These various enzymatic changes and processes are essential to cancer progression and metastasis.

2.3.2. Weakening of Basement Membrane

The basement membrane is thinner in invasive tumors due to remodeling, and it contains significantly lower levels of laminin (the key structural component of the basement membrane along with collagen type IV) [16]. The basement membrane serves as a barrier between the epithelial cells and the interstitium, and weakening it promotes escape [46]. Invasion is triggered by interactions (degradation) between membrane-bound matrix metalloproteinases (MT-MMPs) and basement membrane. This physical interaction triggers a cross-talk between several factors which then facilitate the process [46].

2.3.3. Increased ECM Deposition and Stiffness

Next, there is an increased deposition of ECM material. One example is an increased deposition of collagen (desmoplasia) [7]. There is also increased alignment of collagen and increased cross-linking. Cross-linking is due to lysyl oxidase activity [47]. This leads to a higher level of mechanical rigidity and stress [2]. These changes are correlated with and further promote tumor growth and invasion, by mechanotransducive signaling (through density, cross-linked stiffness, and fiber alignment) on the cells [3]. Collagen is an integral component of the ECM landscape and it plays an important role in the biophysical communication between ECM and cells, and it has been shown to be highly involved in metastasis [17].

2.3.4. Causative Factors and Pathways

Much of the tumor ECM is synthesized and secreted by cancer-associated fibroblasts (CAFs) [48]. Additionally, stromal cells produce enzymes that digest the basement membrane, which contributes to invasion [48]. Signaling molecules and growth factors play a role as well. For example, TGF-β is particularly important in this cascade in activating fibroblasts [48]. Other important pathways include FAK, ERK, and FGF [49]. Similarly, proteoglycan changes also influence these processes [49]. There are higher levels of proteoglycans, such as chondroitin sulfate and heparan sulfate, as well as variations in enzyme expression. Ultimately, when considering the ECM in tumor progression, it is necessary to consider the effect of the cells on the stroma and the effect of the stroma on the cells [48].

2.4. In Summary

The involvement of the matrix in causing invasive phenotype is being analyzed at the most fundamental level: the interactions between a cell’s local environment and physical cues, and the physical forces translated to biochemical signals, attesting to its complexity and importance [50]. Different cancers (such as breast cancer and prostate cancer for instance) display different stroma profiles [46]. The literature sometimes shows varying conclusions about the stroma profiles in different studies, suggesting heterogeneity. A comprehensive and detailed picture of stroma profiles is important because it is common to make conclusions and generalize about upregulated enzymes in the context of drug delivery, while specifics about the site of the enzyme within the microenvironment and the quantity of the enzyme are not always specified.
Ultimately these changes in the tumor ECM are important because they present new targets and avenues in the treatment of cancer. By targeting the mechanisms and components that play a supportive and causative role in tumor progression and metastasis, we can address the complex integration of cancer with its environment, modulating the ECM in conjunction with cytotoxic approaches. Furthermore, understanding the local architecture and interactions is not only important in the context of ECM-based strategies, but in any tumoral drug delivery, as these local dynamics influence migration of drugs and carriers to cells.

3. Harnessing ECM Biology

With an understanding of matrix biology, research efforts are underway to exploit this information for cancer treatment. This includes enhancing drug delivery to tumor cells by priming the ECM, as well as designing drugs that act on ECM targets and mechanisms. Additionally, upregulated matrix components are used as prognostic and diagnostic markers. The strategies which focus on either small molecule, enzyme-based, or other modalities are discussed in this section. The section following it discusses drug delivery approaches to further improve targeting.

3.1. Priming the ECM to Enhance Drug Delivery

Because the matrix poses a barrier to the migration of drugs and is often cited as the reason for the failure of many treatments, there have been approaches to enhance drug delivery through breaking down the ECM using enzymes such as hyaluronidase. Clinical trials have explored the use of PEGylated hyaluronidase (PEGPH20) in combination with the chemotherapeutic eribulin mesylate, as a means to break down the hyaluronic acid barrier in the ECM [65,66]. Hyaluronidase digests the ECM allowing facile diffusion of the drug molecules to the target. These are particularly relevant in cancers such as pancreatic cancer which have an especially dense stromal matrix. Similarly, it has been shown that administering collagenase improves penetration [67].
In addition to enzyme-based strategies, mechanical strategies are also employed to facilitate drug delivery. An example of priming the matrix to enhance drug delivery is in the use of pulsed high intensity focused ultrasound (HIFU) to alter the collagen structure of the ECM to allow for better penetration of chemotherapeutic drugs [68]. HIFU can be used to induce localized hyperthermia [69], and it can also disrupt collagen structure [68]. Mice inoculated with A549 tumors and administered pulsed-HIFU exhibited increased penetration of chitosan nanoparticles, due to disruption of the ECM. The porosity of the ECM was shown to be increased with higher intensity of the administered ultrasound.
Another strategy is the direct modulation of the cancer-associated fibroblasts (which deposit ECM material) to reduce ECM deposition. An example is the use of all-trans retinoic acid (ATRA), which induces quiescence in pancreatic stellate cells (PSCs) of pancreatic ductal adenocarcinoma (PDAC) [70]. Inducing quiescence in PSCs restores homeostasis in the PDAC ECM, resulting in less ECM deposition. This allows for better penetration and delivery of drugs. Lysyl oxidase inhibition has also been shown to improve delivery, as lysyl oxidase, discussed earlier, is responsible for cross-linking the ECM proteins and thus increasing the tumor stiffness [71]. Inhibiting lysyl oxidase showed the ability to potentiate the delivery of other treatments [71].

3.2. ECM Molecules as a Therapeutic Target

The ECM can be modulated using small molecules as a therapeutic strategy. Many of these rely on either the signaling pathways between the ECM and cells or on enzyme inhibition. Some examples of ECM therapeutic targets include thrombospondins [72], osteopontins [72], periostins [72], tenascins [72], matrix metalloproteinases [73,74], and cathepsins [75]. Inhibitors are often based on epitopes and binding motifs that are inspired by endogenous substrates.
One example is cathepsin K (Cat K), a cysteine protease responsible for osteoclast-mediated bone resorption. Cat K degrades collagen type I by cleaving the triple helices at different sites, and it has been implicated in cancers with skeletal (bone) metastases [60]. It is found to be upregulated in several tumor types (including bone, lung, prostate, and breast cancer), and specifically more expressed in cancers that are more invasive and metastasize to the bone [75,76,77,78]. Modulation of Cat K activity using Cat K inhibitors influences osteolysis [60]. Though cathepsin K inhibitors have predominantly found their home in the treatment of osteoporosis, they have also gone through clinical trials to treat metastatic bone disease [75]. They have been shown to reduce osteolytic lesions (indicative of metastasis) in breast cancer [60,75].
Another example is matrix metalloproteinases (MMPs), a zinc-dependent family of proteinases which is most implicated in matrix degradation, which plays an important role in invasion and metastasis in the context of cancer [79]. These are located either bound to cell surfaces, within the interstitium, or near the periphery [25]. MMP inhibitors have gone through clinical trials, albeit with limited success towards cancer treatment [80]. Some notable examples include batimastat [51], marimastat [79], and several others. Many of these are broad spectrum inhibitors which coordinate with sites on the enzyme (mimicking the enzyme’s endogenous peptide substrate) and act through chelation of the essential zinc, most classically through a hydroxamic acid moiety [79]. The first generation of MMP inhibitors largely failed due to lack of specificity and off-target toxicities [55].
Proteins, glycoproteins, and proteoglycans additionally are therapeutic targets. Osteopontin (OPN) is a matricellular phosphoglycoprotein that binds to integrins to facilitate ECM–cell communication. Its upregulation promotes tumor progression through several interactions and cascades [81,82]. Osteopontin interacts with several integrins (both with and without its RGD motif), as well as with CD44 receptors [82]. It plays a structural role in the ECM, and it binds to collagen and other proteins [83]. Osteopontin has been shown to be upregulated in several types of cancer, and it is thought to be involved in tumor proliferation, metastasis, induction of angiogenesis, and potentially chemoresistance [82,84]. Osteopontin inhibitors are investigated for cancer treatment, at the level of gene delivery as well as small molecule inhibitors [72,81,82,84].
Thrombospondin is another example that has been explored as a target. Thrombospondins are a family of proteins that regulate cell phenotype and ECM structure [85]. They are suggested to have both supportive and suppressive roles in metastasis, complicated by the fact that they have interactions with numerous other proteins [85]. Thrombospondin-1 regulates angiogenesis, and inhibiting it leads to enhanced vasculature formation, which creates a leakier vasculature in order to enhance extravasation and delivery. However, it is also an inhibitor of tumor growth, making the interaction more complicated [86]. Additionally, thrombospondins are thought to activate TGF-β in some tumor types but not others, further complicating its influence on tumor progression [86]. Inhibitors of thrombospondin have had more progress associated with inhibiting fibrosis [87].
Heparan sulfate proteoglycans have also been explored as a target in breast cancer therapy, because they participate in signaling pathways involved in tumor progression [88]. Heparan sulfate binds growth factors that are involved in signaling angiogenesis, metastasis, and tumor proliferation [89]. However, heparan sulfate also contains growth factors that are cancer inhibitory, so its role is complex [89]. Furthermore, heparan itself is also explored as a therapeutic molecule [89].
In summary, the complexity of the ECM interactions offers many opportunities that are very complicated since many proteins have both pro- and anti- tumor properties, emphasizing the importance of homeostasis.

3.3. ECM as a Prognostic and Diagnostic Biomarker

The ECM has also been utilized as a biomarker for its tight correlation with cancer stage. One well-established example is collagen [90]. Collagen radial alignment has been recognized as a prognostic signature for tumor advancement [6]. This has been termed TACS (tumor associated collagen signature) [6]. Increased radial alignment and direction with respect to tumor cells has been associated with local invasion and transition to metastasis.
Osteopontin is also an important biomarker in cancer [84]. Osteopontin is secreted as a glycophosphoprotein, and then post-translationally modified [91]. Osteopontin is overexpressed in several cancers including breast, lung, skin, and ovarian cancer [91]. It has shown potential as a biomarker for treatment and prognosis in osteosarcoma, as patient survival and therapeutic efficacy in osteosarcoma is correlated with osteopontin overexpression [91]. Similarly, fibronectin has also shown promise as an ECM marker for malignancy [92]. Researchers have developed antibody fragments to help detect fibrin as a tumor marker [92]. Additionally, fibronectin targeting has been used along with MRI to detect micrometastases [93].

3.4. In Summary

Given the development of drugs and drug-like molecules that inhibit and generally act on ECM components (through harnessing biology), drug carriers can take this a step further in a few ways. First we can improve delivery of these small molecules, which are subject to rapid wash, to the tumor ECM, by complexing them to nanocarriers. Furthermore, the upregulated ECM components have potential as targets to improve localization to the tumor. In terms of priming the ECM, we can recapitulate some of the approaches described earlier. The next section discusses ways to utilize drug carriers to further the ideas discussed so far.

4. ECM Targeting and Drug Delivery

Macromolecular drug carriers have been employed to improve the pharmacokinetics of small molecule drugs. Both passive targeting by the enhanced permeability and retention effect (EPR) and active targeting through use of targeting ligands have been proposed for tumor targeting. A subset of active targeting is targeting the matricellular components. In this section we first describe the advantages and limitations of ECM targeting, followed by examples of targeted ECM components. We then summarize the ECM-based strategies to improve drug delivery for cancer treatment. The strategies include the use of nanocarriers to modulate the ECM to improve drug penetration, to create a drug depot within the ECM, and to directly modulate the ECM. Finally, we include a briefdiscussion of some immunomodulatory factors that are involved in ECM delivery approaches.

4.1. ECM Targeting

4.1.1. Advantages of ECM Targeting

Targeting the ECM carries several advantages. The dense stromal barrier as well as the inefficient lymphatic drainage results in a higher interstitial pressure that favors intravasation and limits diffusion [94,95]. There is a limitation in the diffusion of macromolecules to the cell surface, which can result in a gradient of drug localization [94,95]. Passive accumulation via the enhanced permeability and retention (EPR) effect does not affect the migration and diffusion upon extravasation. Furthermore, diffusion can be limited not only by pore size through the matrix but may also be influenced by electrostatic interactions [96]. Thus it is influenced not only by the size of nanocarriers but the surface charge of the carrier. This has been shown through in vitro models which simulate ECM interactions [97]. Targeting the matrix itself can limit the need to traverse this barrier, resulting in more accumulation at the target site. Targeting the ECM and extracellular drug activity may allow for evasion of a common mode of drug resistance: cellular efflux pumps [98].

4.1.2. Limitations and Barriers to ECM Targeting

ECM targeting faces some problems of heterogeneity, a problem associated with tumors in general. It is also important to be cognizant of the site-specificity of different ECM components (i.e., their proximity to blood vessels, gradients within the ECM, etc.). Finally, the ubiquity of ECM processes and targeting sites leads to non-specific localization and action, a problem inherent in most cancer treatments. Targeting ECM components with greater upregulation in the ECM can help to improve tumor selectivity.

4.1.3. ECM Components as Targeting Peptides and as Delivery Targets

Interactions between ECM components and with cell surface receptors have provided information on specific epitopes that are involved in integrin binding [99]. Here we look at some of the matrix components that can serve as delivery targets. Table 3 lists a selection of ECM proteins and targeting peptides known to bind to them. Some examples of matrix targets include collagen, laminin, fibronectin, chondroitin sulfate, tenascin-C, heparan sulfate, and aggrecan [99,100].

Fibronectin as a Target

Fibronectin is a glycoprotein that is abundant in the ECM and upregulated in tumors. It regulates a wide range of processes in the ECM. Upregulated fibronectin is an indicator of epithelial-to-mesenchymal transition. Fibronectin has been explored as a binding target, in complex with fibrin [101,102]. The structure of fibronectin contains two domains that are frequently used for targeting: extra domain A (EDA) and extra domain B (EDB), with most methods targeting the latter [102]. Extra domain B is particularly important for tumor angiogenesis. Targeting methods for fibronectin employ either antibodies or peptides [102].
A commonly studied example is CREKA (Cys-Arg-Glu-Lys-Ala), a 5-mer peptide which binds to the fibrin-fibronectin complex and is employed as a targeting moiety [101]. PEGylated liposomes modified to incorporate CREKA, and loaded with doxorubicin, had a higher retention in 4T1 breast tumor inoculated mice, owing to CREKA’s stable binding to fibrinogen [111]. Additionally, an invasion assay demonstrated that binding of CREKA to fibrinogen had an inhibitory effect on cell motility through the invasion chamber [111]. Importantly, CREKA shows negligible binding to fibrin-fibronectin complexes in healthy tissue [93].

Collagen as a Target

Collagen has also been explored for ECM targeting. Collagen is the most abundant protein in the human body and in the extracellular matrix, and there are both fibrillar and non-fibrillar (network-forming) types [106]. There are 28 different known subtypes of collagen, with collagen type I being the most prevalent. All collagen types display a signature triple helix structure [106]. There are several collagen binding peptides which are inspired by various ECM motifs, and which bind both to intact and denatured collagen [106]. Some examples are given in Table 3. One well-known example of a collagen binding peptide is the collagen binding domain from the A3 domain of the von Willebrand factor [112]. For example, albumin modified with this collagen binding domain has been utilized as a drug carrier for delivery of doxorubicin in a subcutaneous MC38 colon cancer mouse model, and it showed an increase in accumulation [113].

Hyaluronan as a Target

Hyaluronan, a non-sulfated glycosaminoglycan in the ECM, is also a common target, due to the CD-44-hyaluronan interaction’s influence on tumor progression [114,115]. CD-44 is a transmembrane protein, and this interaction plays a role in cell motility [115]. Approximately a quarter of tumors overexpress HA [116]. Reducing hyaluronan reduces CD-44 expression [115,117]. Targeting CD-44 receptors to inhibit HA signaling is a common approach related to hyaluronan, as harnessing the interaction between hyaluronan and the cell surface receptors can modulate tumor growth [114]. Hyaluronan itself has also been employed as a targeting moiety for tumor targeting, and it has been used to modify nanoparticles to improve delivery [114].

Tenascin-C as a Target

Tenascin C has been targeted using peptides as well as antibodies [100]. Tenascin-C is a large glycoprotein that is upregulated in tumor ECM, and it plays a supportive role in tumor growth, angiogenesis, and metastasis [100]. Interestingly there is little expression of tenascin in healthy ECM [100]. Using nanoparticle delivery (including liposomes and extracellular release strategies), tenascin-C targeting has been used to deliver drugs towards tumor cells as well as cancer-associated fibroblasts [100].

Heparan Sulfate as a Target

Heparan sulfate is a glycosaminoglycan that is expressed in the ECM, cell surface, and basement membrane [118]. It is also significantly upregulated in the tumor ECM and has served as a target [100]. Targeting peptides have been employed to direct nanoparticles (often liposomes) to heparan sulfate for tumor localization [100].

4.2. ECM Strategies to Improve Drug Delivery and Modulate Tumor Growth and Invasion

ECM-based strategies carry different approaches to facilitate drug delivery, and here we divide them into three broad categories. The first is breaking down the ECM to improve drug penetration. The second is targeting to an epitope within the matrix generally upregulated in order to create a depot for drug delivery to the tumor cells. The third is to target to an epitope in the tumoral ECM to modulate the ECM itself in order to directly impact the tumor. These are depicted schematically in Figure 2.

4.2.1. ECM-Based Strategies to Enhance Drug Penetration through Stroma Modulation

Some cancers are particularly known for their highly desmoplastic stroma, such as pancreatic cancer and some types of breast cancer. Treatment inefficacy is often attributed to an inability to penetrate the ECM. As mentioned earlier, efforts have been made to improve delivery by reducing the ECM barrier. Employing nanocarriers can improve this. One strategy of employing the ECM and nanocarrier targeting to improve drug delivery focuses on reducing the ECM material (which poses a barrier to drug penetration and delivery). Pancreatic ductal adenocarcinoma (PDAC) is often the most utilized application [119]. Many examples of these strategies have found their niche in PDAC, due to the impact of the ECM on its drug exposure. As mentioned earlier PSCs are responsible for ECM deposition in PDAC [120], and the tumor microenvironment is known for its dense desmoplasia and its hypoxic and acidic extracellular environment [121,122]. A greater collagen content in many of these cancers is also correlated with poorer outcomes [123]. Breaking down the stroma also poses the risk of tumor cell escape and metastasis becoming more likely with increased pathways for migration.
Nanoparticles are employed to enhance this strategy through improving the delivery of drugs to tumor ECM with the purpose of downregulating the production of ECM material. This has been done through encapsulating either degradative enzymes (to directly break down ECM) or drug molecules (to downregulate the production of ECM material). These methods further capitalize on ECM biology, by employing an ECM enzyme-responsive aspect to trigger payload release or incorporating binding motifs that bind to upregulated ECM components. For example, MMP-2 responsive peptide-hybrid liposomes (liposome-like particles that incorporate MMP-2 cleavable peptides) designed to encapsulate and release pirfenidone (to down-regulate ECM production) at the site of the pancreatic tumors were able to down-regulate ECM material production and increase penetration of small molecules in a model of PDAC [124]. Gemcitabine was delivered with improved penetration and delivery. Delivery of the ECM-altering drug relied on improved targeting of delivery, which was aided by the nanoparticle. In a similar study, collagenase was encapsulated in liposomes (to afford enzyme protection and encourage localization at the tumor) and delivered similarly to break down the ECM in pancreatic cancer [125]. Following this, paclitaxel micelles were delivered resulting in improved delivery. Interestingly, breaking down the ECM in this study did not seem to increase metastasis [125]. Another study used PEGylated polyethyleneimine-coated gold nanoparticles to deliver all-trans retinoic acid (ATRA) [126]. ATRA is used to inhibit pancreatic stellate cells, which reduces deposition of ECM material in pancreatic tumors. The nanosystem is pH-responsive, capitalizing on the slightly acidic tumor extracellular pH, generally cited as being between pH 6–7. This strategy led to the inhibition of PSCs in order to restore homeostasis in the ECM. Following this gemcitabine is delivered, and drug penetration is increased due to a decreased barrier function.
Photothermal agents have also been incorporated into nanoparticles for delivery to the tumor ECM, in order to then break down the ECM for drug delivery. Bioinspired lipoprotein nanoparticles loaded with a photothermal agent that can be triggered by near-infrared light irradiation were delivered to a 4T1 orthotopic mouse breast tumor model [127]. The photothermal agent used was DiOC18 (7) (DiR), and its purpose was to remodel the tumor microenvironment to allow for better penetration of the drug mertansine, also loaded into the particles. The nanoparticle allowed for increased accumulation at the target site, and administration of near infrared light irradiation allowed for the activation of photothermal effects to remodel the ECM in favor of promoting penetration. The improved drug delivery was effective in killing cancer-associated fibroblasts and tumor-associated macrophages. This study represents another important concept because it addresses these supportive cells present in the ECM which contribute to tumor proliferation, strategically combining aspects of the ECM’s contribution to tumors.
These examples demonstrate that the enzymes that break down the ECM can improve delivery using nanocarriers, and this in turn improves small molecule delivery through the ECM for treatment. Furthermore, nanocarriers can deliver other ECM degraders to help prime the ECM.

4.2.2. Utilizing the ECM as an Attachment Site for a Drug Delivery System

Another often employed strategy utilizing the ECM is in targeting sites within the matrix for localization, and then releasing drugs for delivery to the cells. In this fashion nanoparticles targeted to the ECM serve as a localized depot. The value of doing this is to improve penetration into the tumor microenvironment, reducing the need for a drug to diffuse across this barrier. Utilizing the ECM for targeting and as a drug depot is further beneficial compared to targeting cell surface receptors, as intratumoral heterogeneity may result in targeting some cells while leaving others. Furthermore, it will also directly affect cancer-associated cells, which may not display the same upregulations. Lastly an active targeting strategy to the ECM may also see a greater differential in upregulation compared to one targeting cell surface receptors [100].
Researchers have applied this concept to treat epithelial ovarian cancer, using for example the single chain antibody GD3G7, which binds to chondroitin sulfate, incorporated into a lyophilisome. Chondroitin sulfate is highly expressed in ovarian cancer. The lyophilisomes were loaded with doxorubicin. It was validated that the lyophilisome was bound to chondroitin sulfate and the drug load released extracellularly, demonstrating the ability to create a depot within the ECM [128]. Another study similarly used a triple negative breast tumor 3D spheroid model and demonstrated that liposomes targeted to the ECM could serve as a depot releasing cisplatin to alter the distribution of drug molecules within the matrix [129]. On the premise that many ECM components are negatively charged, they used a positively charged nanoparticle to be attracted to the ECM. An in vivo study showed that this nanoparticle reduced growth rate in tumors. A similar study used pH-sensitive liposomes designed to be triggered to release cisplatin load in an acidic environment [130]. They found that cell viability decreased with delivery using these pH-sensitive liposomes, and that the distribution increased. Again targeting the matrix here addressed the purpose of improving drug distribution within the tumor microenvironment.
These examples illustrate the utility of the ECM as a target, some of which are noted in Table 3. They also illustrate pH-mediated extracellular drug release in the mildly acidic tumor ECM. Finally, they illustrate the idea of delivering drugs to cells, but the concept can be extrapolated to non-cellular targets as well, as is exemplified in the next section.

4.2.3. Modulating the ECM to Reduce Tumor Growth and Invasion

Another important strategy involves direct modulation of the ECM. This addresses the important influence that the ECM has on cancer growth and especially invasion and metastasis. As discussed earlier in this review, the ECM contributes significantly to delivering cues to cells, and modulating it can have a direct result on growth and invasion, as separate from priming the ECM for other drug delivery to cells. Modulation of the ECM in conjunction with cytotoxic approaches may prove to have additional advantages. Here we present examples that either directly modulate the ECM or deliver small molecule drugs that modulate the ECM.
PLGA nanoparticles incorporating batimastat (first generation MMP inhibitor) were delivered to treat hepatocellular carcinoma (HCC) [52]. Batimastat inhibits MMPs, in order to directly modulate the ECM remodeling, and this results in slowing of angiogenesis. Treatment was done in conjunction with transarterial chemoembolization (TACE), which is the primary treatment for HCC and often results in stimulating angiogenesis to compensate for the embolized blood vessels. The strategy employed here is that by using batimastat to inhibit MMPs, angiogenesis could be slowed, supporting the TACE treatment. Thus a combination of nanoparticles and ECM modulation is used to aid another treatment hampered by angiogenesis. Nanoparticles can also be used to deliver ECM-modulating drugs. For example, a study demonstrated the use of lysolipid-containing thermosensitive liposomes to deliver marimastat (an MMP inhibitor) to the breast tumor ECM in order to suppress the ECM remodeling which contributes to metastasis, demonstrating suppression of lung metastasis [131].
These studies exemplify the use of nanocarriers to modulate the ECM, as well to play a supportive role in another form of treatment (TACE), which would be a fruitful use of ECM tools. Table 4 provides a summary of ECM-based strategies.
Finally, it is important to note the immunomodulatory factors that may be associated with ECM targeting and modulation. The tumor microenvironment fosters immune suppression through many pathways. For example, collagen deposition is associated with immune modulation, specifically through functioning as a receptor in immune inhibitory signaling [132]. Disruption of these pathways may have unintended consequences in immune suppression. For example, suppression of the CAFs associated with the aforementioned collagen deposition has also been shown to contribute to immune suppression through other pathways [132].

5. Discussion and Future Directions

At this time, clinical studies employing ECM-based approaches are very limited. While some examples of ECM-acting drugs have progressed to clinical trials (with many obstacles to their success, particularly delivery), there is not a wealth of information on the translatability of these delivery strategies. Furthermore, the heterogeneity of the tumor microenvironment poses a significant obstacle. Many of the biomarkers and epitopes targeted in these strategies have varying levels of overexpression in different patients and at different stages, underscoring the need for a personalized approach. A key merit of ECM-based approaches is that they move away from oversimplifying the tumor microenvironment, by considering the specific location of different ECM components as well as the limits to migration and diffusion within the site. It also takes into consideration the supportive and responsive nature of the tumor environment, including for example pancreatic stellate cells, which critically limit the efficacy of drugs. The drug delivery field has advanced to incorporate and adapt many of its strategies (polymers, antibody-drug conjugates, inorganic nanoparticles, etc.) to address the ECM. Furthermore, strategies have been appropriately applied to cancers in which the ECM is the most significant barrier, notably pancreatic cancer, ovarian cancer, and breast cancer. The ECM provides ample opportunity as a battlefront in the treatment of cancer, and a solid biological understanding is key to harnessing its potential. Furthermore, an understanding of the local stromal biology can aid even other delivery strategies, which sometimes oversimplify the tumor to a homogenous site immediately presenting itself after drug extravasation. There are many elegant approaches to harnessing the ECM’s contribution to tumor biology to aid in treatment, both direct and indirect methods. This includes priming the ECM, directly modulating the ECM, delivery to matrix targets, therapeutically targeting the ECM, and other combinations which can facilitate treatment, and these methods are further enhanced through the wealth of information on nanocarriers. The ECM’s most important role is in invasion and metastasis, and addressing the ECM to slow metastasis can be done in conjunction with cytotoxic approaches. Nanocarrier approaches can greatly benefit from a knowledge of the ECM’s biology and influence, and similarly ECM approaches can greatly benefit from improvements in carrier technology to improve delivery and targeting.

Author Contributions

N.S.: substantial contribution to the conception, analysis, figure design, and writing of this work; H.G.: discussion, advice, editing, and final approval. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Ruth L. Kirschstein NIH National Research Service Award (NRSA), award number #5F31CA213901.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors have no conflicts of interest to declare.

References

  1. Theocharis, A.D.; Skandalis, S.S.; Gialeli, C.; Karamanos, N.K. Extracellular matrix structure. Adv. Drug Deliv. Rev. 2016, 97, 4–27. [Google Scholar] [CrossRef] [PubMed]
  2. Frantz, C.; Stewart, K.M.; Weaver, V.M. The extracellular matrix at a glance. J. Cell Sci. 2010, 123, 4195–4200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Humphrey, J.D.; Dufresne, E.R.; Schwartz, M.A. Mechanotransduction and extracellular matrix homeostasis. Nat. Rev. Mol. Cell Biol. 2014, 15, 802–812. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Insua-Rodriguez, J.; Oskarsson, T. The extracellular matrix in breast cancer. Adv. Drug Deliv. Rev. 2016, 97, 41–55. [Google Scholar] [CrossRef] [PubMed]
  5. Stylianopoulos, T.; Munn, L.L.; Jain, R.K. Reengineering the Physical Microenvironment of Tumors to Improve Drug Delivery and Efficacy: From Mathematical Modeling to Bench to Bedside. Trends Cancer 2018, 4, 292–319. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Conklin, M.W.; Eickhoff, J.C.; Riching, K.M.; Pehlke, C.A.; Eliceiri, K.W.; Provenzano, P.P.; Friedl, A.; Keely, P.J. Aligned collagen is a prognostic signature for survival in human breast carcinoma. Am. J. Pathol. 2011, 178, 1221–1232. [Google Scholar] [CrossRef] [PubMed]
  7. Walker, R.A. The complexities of breast cancer desmoplasia. Breast Cancer Res. 2001, 3, 143–145. [Google Scholar] [CrossRef] [Green Version]
  8. Hoshiba, T.; Yamaoka, T. Chapter 1: Extracellular Matrix Scaffolds for Tissue Engineering and Biological Research. In Decellularized Extracellular Matrix: Characterization, Fabrication and Applications; The Royal Society of Chemistry: London, UK, 2019; pp. 1–14. [Google Scholar] [CrossRef]
  9. Bonnans, C.; Chou, J.; Werb, Z. Remodelling the extracellular matrix in development and disease. Nat. Rev. Mol. Cell Biol. 2014, 15, 786–801. [Google Scholar] [CrossRef]
  10. Rozario, T.; DeSimone, D.W. The extracellular matrix in development and morphogenesis: A dynamic view. Dev. Biol. 2010, 341, 126–140. [Google Scholar] [CrossRef] [Green Version]
  11. Geiger, B.; Yamada, K.M. Molecular architecture and function of matrix adhesions. Cold Spring Harb. Perspect. Biol. 2011, 3, a005033. [Google Scholar] [CrossRef] [Green Version]
  12. Zaidel-Bar, R.; Geiger, B. The switchable integrin adhesome. J. Cell Sci. 2010, 123, 1385–1388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Costa, P.; Parsons, M. Chapter Two—New Insights into the Dynamics of Cell Adhesions. In International Review of Cell and Molecular Biology; Jeon, K., Ed.; Academic Press: Cambridge, MA, USA, 2010; Volume 283, pp. 57–91. [Google Scholar]
  14. Worth, D.C.; Parsons, M. Adhesion dynamics: Mechanisms and measurements. Int. J. Biochem. Cell Biol. 2008, 40, 2397–2409. [Google Scholar] [CrossRef] [PubMed]
  15. Filipe, E.C.; Chitty, J.L.; Cox, T.R. Charting the unexplored extracellular matrix in cancer. Int J. Exp. Pathol 2018, 99, 58–76. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kai, F.; Drain, A.P.; Weaver, V.M. The Extracellular Matrix Modulates the Metastatic Journey. Dev. Cell 2019, 49, 332–346. [Google Scholar] [CrossRef] [PubMed]
  17. Walker, C.; Mojares, E.; Del Rio Hernandez, A. Role of Extracellular Matrix in Development and Cancer Progression. Int. J. Mol. Sci. 2018, 19, 3028. [Google Scholar] [CrossRef] [Green Version]
  18. Humphries, J.D.; Chastney, M.R.; Askari, J.A.; Humphries, M.J. Signal transduction via integrin adhesion complexes. Curr. Opin. Cell Biol. 2019, 56, 14–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Dunehoo, A.L.; Anderson, M.; Majumdar, S.; Kobayashi, N.; Berkland, C.; Siahaan, T.J. Cell Adhesion Molecules for Targeted Drug Delivery. J. Pharm. Sci. 2006, 95, 1856–1872. [Google Scholar] [CrossRef]
  20. Raab-Westphal, S.; Marshall, J.F.; Goodman, S.L. Integrins as Therapeutic Targets: Successes and Cancers. Cancers 2017, 9, 110. [Google Scholar] [CrossRef]
  21. Goodman, S.L.; Picard, M. Integrins as therapeutic targets. Trends Pharmacol. Sci. 2012, 33, 405–412. [Google Scholar] [CrossRef]
  22. Sainio, A.; Järveläinen, H. Extracellular matrix-cell interactions: Focus on therapeutic applications. Cell. Signal. 2020, 66, 109487. [Google Scholar] [CrossRef]
  23. Hastings, J.F.; Skhinas, J.N.; Fey, D.; Croucher, D.R.; Cox, T.R. The extracellular matrix as a key regulator of intracellular signalling networks. Br. J. Pharmacol. 2019, 176, 82–92. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Taipale, J.; Keski-Oja, J. Growth factors in the extracellular matrix. Faseb J. 1997, 11, 51–59. [Google Scholar] [CrossRef] [PubMed]
  25. Isaacson, K.J.; Martin Jensen, M.; Subrahmanyam, N.B.; Ghandehari, H. Matrix-metalloproteinases as targets for controlled delivery in cancer: An analysis of upregulation and expression. J. Control. Release 2017, 259, 62–75. [Google Scholar] [CrossRef] [PubMed]
  26. Hynes, R.O. The extracellular matrix: Not just pretty fibrils. Science 2009, 326, 1216–1219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Naba, A.; Clauser, K.R.; Ding, H.; Whittaker, C.A.; Carr, S.A.; Hynes, R.O. The extracellular matrix: Tools and insights for the “omics” era. Matrix Biol. 2016, 49, 10–24. [Google Scholar] [CrossRef]
  28. Ricard-Blum, S. The collagen family. Cold Spring Harb. Perspect. Biol. 2011, 3, a004978. [Google Scholar] [CrossRef] [Green Version]
  29. Karsdal, M.A.; Nielsen, S.H.; Leeming, D.J.; Langholm, L.L.; Nielsen, M.J.; Manon-Jensen, T.; Siebuhr, A.; Gudmann, N.S.; Rønnow, S.; Sand, J.M.; et al. The good and the bad collagens of fibrosis—Their role in signaling and organ function. Adv. Drug Deliv. Rev. 2017, 121, 43–56. [Google Scholar] [CrossRef]
  30. Kalluri, R. Basement membranes: Structure, assembly and role in tumour angiogenesis. Nat. Rev. Cancer 2003, 3, 422–433. [Google Scholar] [CrossRef]
  31. Hanahan, D.; Weinberg, R.A. The hallmarks of cancer. Cell 2000, 100, 57–70. [Google Scholar] [CrossRef] [Green Version]
  32. Pickup, M.W.; Mouw, J.K.; Weaver, V.M. The extracellular matrix modulates the hallmarks of cancer. EMBO Rep. 2014, 15, 1243–1253. [Google Scholar] [CrossRef] [Green Version]
  33. Decock, J.; Thirkettle, S.; Wagstaff, L.; Edwards, D.R. Matrix metalloproteinases: Protective roles in cancer. J. Cell Mol. Med. 2011, 15, 1254–1265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. López-Otín, C.; Palavalli, L.H.; Samuels, Y. Protective roles of matrix metalloproteinases: From mouse models to human cancer. Cell Cycle 2009, 8, 3657–3662. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Duong, L.T.; Leung, A.T.; Langdahl, B. Cathepsin K Inhibition: A New Mechanism for the Treatment of Osteoporosis. Calcif. Tissue Int. 2016, 98, 381–397. [Google Scholar] [CrossRef] [PubMed]
  36. Ruan, H.; Hao, S.; Young, P.; Zhang, H. Targeting Cathepsin B for Cancer Therapies. Horiz. Cancer Res. 2015, 56, 23–40. [Google Scholar] [PubMed]
  37. Vincenti, M.P.; Brinckerhoff, C.E. Transcriptional regulation of collagenase (MMP-1, MMP-13) genes in arthritis: Integration of complex signaling pathways for the recruitment of gene-specific transcription factors. Arthr. Res. Ther. 2001, 4, 157. [Google Scholar] [CrossRef]
  38. Li, H.; Qiu, Z.; Li, F.; Wang, C. The relationship between MMP-2 and MMP-9 expression levels with breast cancer incidence and prognosis. Oncol. Lett. 2017, 14, 5865–5870. [Google Scholar] [CrossRef] [Green Version]
  39. Mirastschijski, U.; Lupše, B.; Maedler, K.; Sarma, B.; Radtke, A.; Belge, G.; Dorsch, M.; Wedekind, D.; McCawley, L.J.; Boehm, G.; et al. Matrix Metalloproteinase-3 is Key Effector of TNF-α-Induced Collagen Degradation in Skin. Int. J. Mol. Sci. 2019, 20, 5234. [Google Scholar] [CrossRef] [Green Version]
  40. Han, J.-C.; Li, X.-D.; Du, J.; Xu, F.; Wei, Y.-J.; Li, H.-B.; Zhang, Y.-J. Elevated matrix metalloproteinase-7 expression promotes metastasis in human lung carcinoma. World J. Surg. Oncol. 2015, 13, 5. [Google Scholar] [CrossRef] [Green Version]
  41. Balbín, M.; Fueyo, A.; Tester, A.M.; Pendás, A.M.; Pitiot, A.S.; Astudillo, A.; Overall, C.M.; Shapiro, S.D.; López-Otín, C. Loss of collagenase-2 confers increased skin tumor susceptibility to male mice. Nat. Genet. 2003, 35, 252–257. [Google Scholar] [CrossRef]
  42. Jabłońska-Trypuć, A.; Matejczyk, M.; Rosochacki, S. Matrix metalloproteinases (MMPs), the main extracellular matrix (ECM) enzymes in collagen degradation, as a target for anticancer drugs. J. Enzyme Inhib. Med. Chem. 2016, 31, 177–183. [Google Scholar] [CrossRef] [Green Version]
  43. Sudhan, D.R.; Siemann, D.W. Cathepsin L targeting in cancer treatment. Pharmacol. Ther. 2015, 155, 105–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Richard, D.A.W.; Rich, W.; Christopher, J.S.; Roberta, E.B. Cathepsin S: Therapeutic, diagnostic, and prognostic potential. Biol. Chem. 2015, 396, 867–882. [Google Scholar] [CrossRef]
  45. Smith-Mungo, L.I.; Kagan, H.M. Lysyl oxidase: Properties, regulation and multiple functions in biology. Matrix Biol. 1998, 16, 387–398. [Google Scholar] [CrossRef]
  46. Planche, A.; Bacac, M.; Provero, P.; Fusco, C.; Delorenzi, M.; Stehle, J.-C.; Stamenkovic, I. Identification of prognostic molecular features in the reactive stroma of human breast and prostate cancer. PLoS ONE 2011, 6, e18640. [Google Scholar] [CrossRef]
  47. Cox, T.R.; Gartland, A.; Erler, J.T. Lysyl Oxidase, a Targetable Secreted Molecule Involved in Cancer Metastasis. Cancer Res. 2016, 76, 188–192. [Google Scholar] [CrossRef] [Green Version]
  48. Miles, F.L.; Sikes, R.A. Insidious changes in stromal matrix fuel cancer progression. Mol. Cancer Res. 2014, 12, 297–312. [Google Scholar] [CrossRef] [Green Version]
  49. Reiland, J.; Kempf, D.; Roy, M.; Denkins, Y.; Marchetti, D. FGF2 binding, signaling, and angiogenesis are modulated by heparanase in metastatic melanoma cells. Neoplasia 2006, 8, 596–606. [Google Scholar] [CrossRef] [Green Version]
  50. Mierke, C.T. The matrix environmental and cell mechanical properties regulate cell migration and contribute to the invasive phenotype of cancer cells. Rep. Prog. Phys. 2019, 82, 064602. [Google Scholar] [CrossRef]
  51. Giavazzi, R.; Garofalo, A.; Ferri, C.; Lucchini, V.; Bone, E.A.; Chiari, S.; Brown, P.D.; Nicoletti, M.I.; Taraboletti, G. Batimastat, a synthetic inhibitor of matrix metalloproteinases, potentiates the antitumor activity of cisplatin in ovarian carcinoma xenografts. Clin. Cancer Res. 1998, 4, 985. [Google Scholar]
  52. Xiao, L.; Wang, M. Batimastat Nanoparticles Associated with Transcatheter Arterial Chemoembolization Decrease Hepatocellular Carcinoma Recurrence. Cell Biochem. Biophys. 2014, 70, 269–272. [Google Scholar] [CrossRef]
  53. Sinno, M.; Biagioni, S.; Ajmone-Cat, M.A.; Pafumi, I.; Caramanica, P.; Medda, V.; Tonti, G.; Minghetti, L.; Mannello, F.; Cacci, E. The matrix metalloproteinase inhibitor marimastat promotes neural progenitor cell differentiation into neurons by gelatinase-independent TIMP-2-dependent mechanisms. Stem Cells Dev. 2013, 22, 345–358. [Google Scholar] [CrossRef] [PubMed]
  54. Cathcart, J.; Pulkoski-Gross, A.; Cao, J. Targeting matrix metalloproteinases in cancer: Bringing new life to old ideas. Genes Dis. 2015, 2, 26–34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Levin, M.; Udi, Y.; Solomonov, I.; Sagi, I. Next generation matrix metalloproteinase inhibitors—Novel strategies bring new prospects. BBA Mol. Cell Res. 2017, 1864, 1927–1939. [Google Scholar] [CrossRef] [PubMed]
  56. Murphy, G. Tissue inhibitors of metalloproteinases. Genome Biol. 2011, 12, 233. [Google Scholar] [CrossRef] [PubMed]
  57. Sela-Passwell, N.; Kikkeri, R.; Dym, O.; Rozenberg, H.; Margalit, R.; Arad-Yellin, R.; Eisenstein, M.; Brenner, O.; Shoham, T.; Danon, T.; et al. Antibodies targeting the catalytic zinc complex of activated matrix metalloproteinases show therapeutic potential. Nat. Med. 2012, 18, 143–147. [Google Scholar] [CrossRef] [PubMed]
  58. Fields, G.B. Mechanisms of Action of Novel Drugs Targeting Angiogenesis-Promoting Matrix Metalloproteinases. Front. Immunol. 2019, 10, 1278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Bissett, D.; O’Byrne, K.J.; Von Pawel, J.; Gatzemeier, U.; Price, A.; Nicolson, M.; Mercier, R.; Mazabel, E.; Penning, C.; Zhang, M.H.; et al. Phase III Study of Matrix Metalloproteinase Inhibitor Prinomastat in Non–Small-Cell Lung Cancer. J. Clin. Oncol. 2005, 23, 842–849. [Google Scholar] [CrossRef]
  60. Duong, L.T.; Wesolowski, G.A.; Leung, P.; Oballa, R.; Pickarski, M. Efficacy of a cathepsin K inhibitor in a preclinical model for prevention and treatment of breast cancer bone metastasis. Mol. Cancer Ther. 2014, 13, 2898–2909. [Google Scholar] [CrossRef] [Green Version]
  61. Kumar, S.; Dare, L.; Vasko-Moser, J.A.; James, I.E.; Blake, S.M.; Rickard, D.J.; Hwang, S.M.; Tomaszek, T.; Yamashita, D.S.; Marquis, R.W.; et al. A highly potent inhibitor of cathepsin K (relacatib) reduces biomarkers of bone resorption both in vitro and in an acute model of elevated bone turnover in vivo in monkeys. Bone 2007, 40, 122–131. [Google Scholar] [CrossRef]
  62. Jensen, A.; Wynne, C.; Ramirez, G.; He, W.; Song, Y.; Berd, Y.; Wang, H.; Mehta, A.; Lombardi, A. The Cathepsin K Inhibitor Odanacatib Suppresses Bone Resorption in Women With Breast Cancer and Established Bone Metastases: Results of a 4-Week, Double-Blind, Randomized, Controlled Trial. Clin. Breast Cancer 2010, 10, 452–458. [Google Scholar] [CrossRef]
  63. Alberca, L.N.; Chuguransky, S.R.; Álvarez, C.L.; Talevi, A.; Salas-Sarduy, E. In silico Guided Drug Repurposing: Discovery of New Competitive and Non-competitive Inhibitors of Falcipain-2. Front Chem. 2019, 7, 534. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Wilder, C.L.; Walton, C.; Watson, V.; Stewart, F.A.A.; Johnson, J.; Peyton, S.R.; Payne, C.K.; Odero-Marah, V.; Platt, M.O. Differential cathepsin responses to inhibitor-induced feedback: E-64 and cystatin C elevate active cathepsin S and suppress active cathepsin L in breast cancer cells. Int. J. Biochem. Cell Biol. 2016, 79, 199–208. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Fleming, J.M.; Yeyeodu, S.T.; McLaughlin, A.; Schuman, D.; Taylor, D.K. In Situ Drug Delivery to Breast Cancer-Associated Extracellular Matrix. ACS Chem. Biol. 2018, 13, 2825–2840. [Google Scholar] [CrossRef] [PubMed]
  66. Doherty, G.J.; Tempero, M.; Corrie, P.G. HALO-109-301: A Phase III trial of PEGPH20 (with gemcitabine and nab-paclitaxel) in hyaluronic acid-high stage IV pancreatic cancer. Future Oncol. 2018, 14, 13–22. [Google Scholar] [CrossRef] [PubMed]
  67. Goodman, T.T.; Olive, P.L.; Pun, S.H. Increased nanoparticle penetration in collagenase-treated multicellular spheroids. Int. J. Nanomed. 2007, 2, 265–274. [Google Scholar]
  68. Lee, S.; Han, H.; Koo, H.; Na, J.H.; Yoon, H.Y.; Lee, K.E.; Lee, H.; Kim, H.; Kwon, I.C.; Kim, K. Extracellular matrix remodeling in vivo for enhancing tumor-targeting efficiency of nanoparticle drug carriers using the pulsed high intensity focused ultrasound. J. Control. Release 2017, 263, 68–78. [Google Scholar] [CrossRef] [PubMed]
  69. Frazier, N.; Payne, A.; De Bever, J.; Dillon, C.; Panda, A.; Subrahmanyam, N.; Ghandehari, H. High intensity focused ultrasound hyperthermia for enhanced macromolecular delivery. J. Control. Release 2016, 241, 186–193. [Google Scholar] [CrossRef] [PubMed]
  70. Chronopoulos, A.; Robinson, B.; Sarper, M.; Cortes, E.; Auernheimer, V.; Lachowski, D.; Attwood, S.; García, R.; Ghassemi, S.; Fabry, B.; et al. ATRA mechanically reprograms pancreatic stellate cells to suppress matrix remodelling and inhibit cancer cell invasion. Nat. Commun. 2016, 7, 12630. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Röhrig, F.; Vorlová, S.; Hoffmann, H.; Wartenberg, M.; Escorcia, F.E.; Keller, S.; Tenspolde, M.; Weigand, I.; Gätzner, S.; Manova, K.; et al. VEGF-ablation therapy reduces drug delivery and therapeutic response in ECM-dense tumors. Oncogene 2017, 36, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Sawyer, A.J.; Kyriakides, T.R. Matricellular proteins in drug delivery: Therapeutic targets, active agents, and therapeutic localization. Adv. Drug Deliv. Rev. 2016, 97, 56–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Winer, A.; Adams, S.; Mignatti, P. Matrix Metalloproteinase Inhibitors in Cancer Therapy: Turning Past Failures Into Future Successes. Mol. Cancer Ther. 2018, 17, 1147–1155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Liu, H.-Y.; Gu, W.-J.; Wang, C.-Z.; Ji, X.-J.; Mu, Y.-M. Matrix metalloproteinase-9 and -2 and tissue inhibitor of matrix metalloproteinase-2 in invasive pituitary adenomas: A systematic review and meta-analysis of case-control trials. Medicine 2016, 95, e3904. [Google Scholar] [CrossRef] [PubMed]
  75. Liu, H.; Wang, G.; Gu, W.; Mu, Y. Cathepsin K: The association between Cathepsin K expression and sphenoid sinus invasion of pituitary adenomas. Med. Hypotheses 2016, 97, 88–89. [Google Scholar] [CrossRef] [PubMed]
  76. Lu, J.; Wang, M.; Wang, Z.; Fu, Z.; Lu, A.; Zhang, G. Advances in the discovery of cathepsin K inhibitors on bone resorption. J. Enzyme Inhib. Med. Chem. 2018, 33, 890–904. [Google Scholar] [CrossRef] [PubMed]
  77. Yamashita, K.; Iwatake, M.; Okamoto, K.; Yamada, S.-I.; Umeda, M.; Tsukuba, T. Cathepsin K modulates invasion, migration and adhesion of oral squamous cell carcinomas in vitro. Oral Diseases 2017, 23, 518–525. [Google Scholar] [CrossRef] [PubMed]
  78. Le Gall, C.; Bellahcène, A.; Bonnelye, E.; Gasser, J.A.; Castronovo, V.; Green, J.; Zimmermann, J.; Clézardin, P. A Cathepsin K Inhibitor Reduces Breast Cancer–Induced Osteolysis and Skeletal Tumor Burden. Cancer Res. 2007, 67, 9894–9902. [Google Scholar] [CrossRef] [Green Version]
  79. Wojtowicz-Praga, S.M.; Dickson, R.B.; Hawkins, M.J. Matrix metalloproteinase inhibitors. Invest. New Drugs 1997, 15, 61–75. [Google Scholar] [CrossRef]
  80. Rasmussen, H.S.; McCann, P.P. Matrix Metalloproteinase Inhibition as a Novel Anticancer Strategy: A Review with Special Focus on Batimastat and Marimastat. Pharmacol. Ther. 1997, 75, 69–75. [Google Scholar] [CrossRef]
  81. Shevde, L.A.; Samant, R.S. Role of osteopontin in the pathophysiology of cancer. Matrix Biol. 2014, 37, 131–141. [Google Scholar] [CrossRef]
  82. Zhao, H.; Chen, Q.; Alam, A.; Cui, J.; Suen, K.C.; Soo, A.P.; Eguchi, S.; Gu, J.; Ma, D. The role of osteopontin in the progression of solid organ tumour. Cell Death Disease 2018, 9, 356. [Google Scholar] [CrossRef]
  83. Ramadan, A.; Afifi, N.; Yassin, N.Z.; Abdel-Rahman, R.F.; Abd El-Rahman, S.S.; Fayed, H.M. Mesalazine, an osteopontin inhibitor: The potential prophylactic and remedial roles in induced liver fibrosis in rats. Chem. Biol. Interact. 2018, 289, 109–118. [Google Scholar] [CrossRef] [PubMed]
  84. Wei, R.; Wong, J.P.C.; Kwok, H.F. Osteopontin—A promising biomarker for cancer therapy. J. Cancer 2017, 8, 2173–2183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Yee, K.O.; Connolly, C.M.; Duquette, M.; Kazerounian, S.; Washington, R.; Lawler, J. The effect of thrombospondin-1 on breast cancer metastasis. Breast Cancer Res. Treat. 2009, 114, 85–96. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Daubon, T.; Léon, C.; Clarke, K.; Andrique, L.; Salabert, L.; Darbo, E.; Pineau, R.; Guérit, S.; Maitre, M.; Dedieu, S.; et al. Deciphering the complex role of thrombospondin-1 in glioblastoma development. Nat. Commun. 2019, 10, 1146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  87. Xie, X.-S.; Li, F.-Y.; Liu, H.-C.; Deng, Y.; Li, Z.; Fan, J.-M. LSKL, a peptide antagonist of thrombospondin-1, attenuates renal interstitial fibrosis in rats with unilateral ureteral obstruction. Arch. Pharmacal Res. 2010, 33, 275–284. [Google Scholar] [CrossRef] [PubMed]
  88. Chuay-Yeng, K.; Yin-Ping, S.; Boon-Huat, B.; George, W.Y. Targeting Heparan Sulfate Proteoglycans in Breast Cancer Treatment. Recent Pat. Anti Cancer Drug Discov. 2008, 3, 151–158. [Google Scholar] [CrossRef]
  89. Knelson, E.H.; Nee, J.C.; Blobe, G.C. Heparan sulfate signaling in cancer. Trends Biochem. Sci. 2014, 39, 277–288. [Google Scholar] [CrossRef] [Green Version]
  90. Xu, S.; Xu, H.; Wang, W.; Li, S.; Li, H.; Li, T.; Zhang, W.; Yu, X.; Liu, L. The role of collagen in cancer: From bench to bedside. J. Transl. Med. 2019, 17, 309. [Google Scholar] [CrossRef] [Green Version]
  91. Han, X.; Wang, W.; He, J.; Jiang, L.; Li, X. Osteopontin as a biomarker for osteosarcoma therapy and prognosis. Oncol. Lett. 2019, 17, 2592–2598. [Google Scholar] [CrossRef] [Green Version]
  92. Obonai, T.; Fuchigami, H.; Furuya, F.; Kozuka, N.; Yasunaga, M.; Matsumura, Y. Tumour imaging by the detection of fibrin clots in tumour stroma using an anti-fibrin Fab fragment. Sci. Rep. 2016, 6, 23613. [Google Scholar] [CrossRef]
  93. Zhou, Z.; Qutaish, M.; Han, Z.; Schur, R.M.; Liu, Y.; Wilson, D.L.; Lu, Z.-R. MRI detection of breast cancer micrometastases with a fibronectin-targeting contrast agent. Nat. Commun. 2015, 6, 7984. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Jain, R.K. Transport of molecules in the tumor interstitium: A review. Cancer Res. 1987, 47, 3039–3051. [Google Scholar] [PubMed]
  95. Jain, R.K.; Stylianopoulos, T. Delivering nanomedicine to solid tumors. Nat. Rev. Clin. Oncol. 2010, 7, 653–664. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Stylianopoulos, T.; Poh, M.-Z.; Insin, N.; Bawendi, M.G.; Fukumura, D.; Munn, L.L.; Jain, R.K. Diffusion of particles in the extracellular matrix: The effect of repulsive electrostatic interactions. Biophys. J. 2010, 99, 1342–1349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  97. Tomasetti, L.; Breunig, M. Preventing Obstructions of Nanosized Drug Delivery Systems by the Extracellular Matrix. Adv. Healthcare Mater. 2018, 7, 1700739. [Google Scholar] [CrossRef] [PubMed]
  98. Chen, S.; Yang, K.; Tuguntaev, R.G.; Mozhi, A.; Zhang, J.; Wang, P.C.; Liang, X.-J. Targeting tumor microenvironment with PEG-based amphiphilic nanoparticles to overcome chemoresistance. Nanomedicine 2016, 12, 269–286. [Google Scholar] [CrossRef] [Green Version]
  99. Hwang, J.; Sullivan, M.O.; Kiick, K.L. Targeted Drug Delivery via the Use of ECM-Mimetic Materials. Front. Bioeng. Biotechnol. 2020, 8, 69. [Google Scholar] [CrossRef] [Green Version]
  100. Raavé, R.; Van Kuppevelt, T.H.; Daamen, W.F. Chemotherapeutic drug delivery by tumoral extracellular matrix targeting. J. Control. Release 2018, 274, 1–8. [Google Scholar] [CrossRef]
  101. Han, Z.; Lu, Z.-R. Targeting Fibronectin for Cancer Imaging and Therapy. J. Mater. Chem. B 2017, 5, 639–654. [Google Scholar] [CrossRef] [Green Version]
  102. Kumra, H.; Reinhardt, D.P. Fibronectin-targeted drug delivery in cancer. Adv. Drug Deliv. Rev. 2016, 97, 101–110. [Google Scholar] [CrossRef]
  103. Mees, G.; Dierckx, R.; Mertens, K.; Vermeire, S.; Van Steenkiste, M.; Reutelingsperger, C.; D’Asseler, Y.; Peremans, K.; Van Damme, N.; Van de Wiele, C. 99mTc-Labeled Tricarbonyl His-CNA35 as an Imaging Agent for the Detection of Tumor Vasculature. J. Nucl. Med. 2012, 53, 464–471. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Rothenfluh, D.A.; Bermudez, H.; O’Neil, C.P.; Hubbell, J.A. Biofunctional polymer nanoparticles for intra-articular targeting and retention in cartilage. Nat. Mater. 2008, 7, 248–254. [Google Scholar] [CrossRef] [PubMed]
  105. Bennink, L.L.; Li, Y.; Kim, B.; Shin, I.J.; San, B.H.; Zangari, M.; Yoon, D.; Yu, S.M. Visualizing collagen proteolysis by peptide hybridization: From 3D cell culture to in vivo imaging. Biomaterials 2018, 183, 67–76. [Google Scholar] [CrossRef] [PubMed]
  106. Wahyudi, H.; Reynolds, A.A.; Li, Y.; Owen, S.C.; Yu, S.M. Targeting collagen for diagnostic imaging and therapeutic delivery. J. Control. Release 2016, 240, 323–331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Goldbloom-Helzner, L.; Hao, D.; Wang, A. Developing Regenerative Treatments for Developmental Defects, Injuries, and Diseases Using Extracellular Matrix Collagen-Targeting Peptides. Int. J. Mol. Sci. 2019, 20, 4072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  108. Kim, M.Y.; Kim, O.R.; Choi, Y.S.; Lee, H.; Park, K.; Lee, C.-T.; Kang, K.W.; Jeong, S. Selection and characterization of tenascin C targeting peptide. Mol. Cells 2012, 33, 71–77. [Google Scholar] [CrossRef]
  109. Ikemoto, H.; Lingasamy, P.; Anton Willmore, A.-M.; Hunt, H.; Kurm, K.; Tammik, O.; Scodeller, P.; Simón-Gracia, L.; Kotamraju, V.R.; Lowy, A.M.; et al. Hyaluronan-binding peptide for targeting peritoneal carcinomatosis. Tumour. Biol. 2017, 39, 1010428317701628. [Google Scholar] [CrossRef] [Green Version]
  110. Depau, L.; Brunetti, J.; Falciani, C.; Scali, S.; Riolo, G.; Mandarini, E.; Pini, A.; Bracci, L. Coupling to a cancer-selective heparan-sulfate-targeted branched peptide can by-pass breast cancer cell resistance to methotrexate. Oncotarget 2017, 8, 76141–76152. [Google Scholar] [CrossRef] [Green Version]
  111. Jiang, K.; Song, X.; Yang, L.; Li, L.; Wan, Z.; Sun, X.; Gong, T.; Lin, Q.; Zhang, Z. Enhanced antitumor and anti-metastasis efficacy against aggressive breast cancer with a fibronectin-targeting liposomal doxorubicin. J. Control. Release 2018, 271, 21–30. [Google Scholar] [CrossRef]
  112. Romijn, R.A.P.; Bouma, B.; Wuyster, W.; Gros, P.; Kroon, J.; Sixma, J.J.; Huizinga, E.G. Identification of the Collagen-binding Site of the von Willebrand Factor A3-domain. J. Biol. Chem. 2001, 276, 9985–9991. [Google Scholar] [CrossRef] [Green Version]
  113. Sasaki, K.; Ishihara, J.; Ishihara, A.; Miura, R.; Mansurov, A.; Fukunaga, K.; Hubbell, J.A. Engineered collagen-binding serum albumin as a drug conjugate carrier for cancer therapy. Sci. Adv. 2019, 5, eaaw6081. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Platt, V.M.; Szoka, F.C. Anticancer Therapeutics: Targeting Macromolecules and Nanocarriers to Hyaluronan or CD44, a Hyaluronan Receptor. Mol. Pharm. 2008, 5, 474–486. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  115. Shuster, S.; Frost, G.I.; Csoka, A.B.; Formby, B.; Stern, R. Hyaluronidase reduces human breast cancer xenografts in SCID mice. Int. J. Cancer 2002, 102, 192–197. [Google Scholar] [CrossRef] [PubMed]
  116. Kultti, A.; Li, X.; Jiang, P.; Thompson, C.B.; Frost, G.I.; Shepard, H.M. Therapeutic Targeting of Hyaluronan in the Tumor Stroma. Cancers 2012, 4, 873–903. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Stern, R.; Shuster, S.; Wiley, T.S.; Formby, B. Hyaluronidase can modulate expression of CD44. Exp. Cell Res. 2001, 266, 167–176. [Google Scholar] [CrossRef]
  118. Simon Davis, D.A.; Parish, C.R. Heparan Sulfate: A Ubiquitous Glycosaminoglycan with Multiple Roles in Immunity. Front. Immunol. 2013, 4. [Google Scholar] [CrossRef] [Green Version]
  119. Neesse, A.; Michl, P.; Frese, K.K.; Feig, C.; Cook, N.; Jacobetz, M.A.; Lolkema, M.P.; Buchholz, M.; Olive, K.P.; Gress, T.M.; et al. Stromal biology and therapy in pancreatic cancer. Gut 2011, 60, 861–868. [Google Scholar] [CrossRef]
  120. Pothula, S.P.; Xu, Z.; Goldstein, D.; Pirola, R.C.; Wilson, J.S.; Apte, M.V. Key role of pancreatic stellate cells in pancreatic cancer. Cancer Lett. 2016, 381, 194–200. [Google Scholar] [CrossRef]
  121. Looi, C.-K.; Chung, F.F.-L.; Leong, C.-O.; Wong, S.-F.; Rosli, R.; Mai, C.-W. Therapeutic challenges and current immunomodulatory strategies in targeting the immunosuppressive pancreatic tumor microenvironment. J. Exp. Clin. Cancer Res. 2019, 38, 162. [Google Scholar] [CrossRef]
  122. Feig, C.; Gopinathan, A.; Neesse, A.; Chan, D.S.; Cook, N.; Tuveson, D.A. The pancreas cancer microenvironment. Clin. Cancer Res. 2012, 18, 4266–4276. [Google Scholar] [CrossRef] [Green Version]
  123. Dolor, A.; Szoka, F.C. Digesting a Path Forward: The Utility of Collagenase Tumor Treatment for Improved Drug Delivery. Mol. Pharm. 2018, 15, 2069–2083. [Google Scholar] [CrossRef] [PubMed]
  124. Ji, T.; Lang, J.; Wang, J.; Cai, R.; Zhang, Y.; Qi, F.; Zhang, L.; Zhao, X.; Wu, W.; Hao, J.; et al. Designing Liposomes To Suppress Extracellular Matrix Expression To Enhance Drug Penetration and Pancreatic Tumor Therapy. ACS Nano 2017, 11, 8668–8678. [Google Scholar] [CrossRef] [PubMed]
  125. Zinger, A.; Koren, L.; Adir, O.; Poley, M.; Alyan, M.; Yaari, Z.; Noor, N.; Krinsky, N.; Simon, A.; Gibori, H.; et al. Collagenase Nanoparticles Enhance the Penetration of Drugs into Pancreatic Tumors. ACS Nano 2019, 13, 11008–11021. [Google Scholar] [CrossRef] [PubMed]
  126. Han, X.; Li, Y.; Xu, Y.; Zhao, X.; Zhang, Y.; Yang, X.; Wang, Y.; Zhao, R.; Anderson, G.J.; Zhao, Y.; et al. Reversal of pancreatic desmoplasia by re-educating stellate cells with a tumour microenvironment-activated nanosystem. Nat. Commun. 2018, 9, 3390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  127. Tan, T.; Hu, H.; Wang, H.; Li, J.; Wang, Z.; Wang, J.; Wang, S.; Zhang, Z.; Li, Y. Bioinspired lipoproteins-mediated photothermia remodels tumor stroma to improve cancer cell accessibility of second nanoparticles. Nat. Commun. 2019, 10, 3322. [Google Scholar] [CrossRef] [Green Version]
  128. Van der Steen, S.C.; Raavé, R.; Langerak, S.; Van Houdt, L.; Van Duijnhoven, S.M.; Van Lith, S.A.; Massuger, L.F.; Daamen, W.F.; Leenders, W.P.; Van Kuppevelt, T.H. Targeting the extracellular matrix of ovarian cancer using functionalized, drug loaded lyophilisomes. Eur. J. Pharm. Biopharm. 2017, 113, 229–239. [Google Scholar] [CrossRef]
  129. Stras, S.; Howe, A.; Prasad, A.; Salerno, D.; Bhatavdekar, O.; Sofou, S. Growth of Metastatic Triple-Negative Breast Cancer Is Inhibited by Deep Tumor-Penetrating and Slow Tumor-Clearing Chemotherapy: The Case of Tumor-Adhering Liposomes with Interstitial Drug Release. Mol. Pharm. 2020, 17, 118–131. [Google Scholar] [CrossRef]
  130. Stras, S.; Holleran, T.; Howe, A.; Sofou, S. Interstitial Release of Cisplatin from Triggerable Liposomes Enhances Efficacy against Triple Negative Breast Cancer Solid Tumor Analogues. Mol. Pharm. 2016, 13, 3224–3233. [Google Scholar] [CrossRef]
  131. Lyu, Y.; Xiao, Q.; Yin, L.; Yang, L.; He, W. Potent delivery of an MMP inhibitor to the tumor microenvironment with thermosensitive liposomes for the suppression of metastasis and angiogenesis. Signal. Transduct. Target. Ther. 2019, 4, 26. [Google Scholar] [CrossRef]
  132. Mushtaq, M.U.; Papadas, A.; Pagenkopf, A.; Flietner, E.; Morrow, Z.; Chaudhary, S.G.; Asimakopoulos, F. Tumor matrix remodeling and novel immunotherapies: The promise of matrix-derived immune biomarkers. J. Immunother. Cancer 2018, 6, 65. [Google Scholar] [CrossRef]
Jpm 11 00088 g001 550

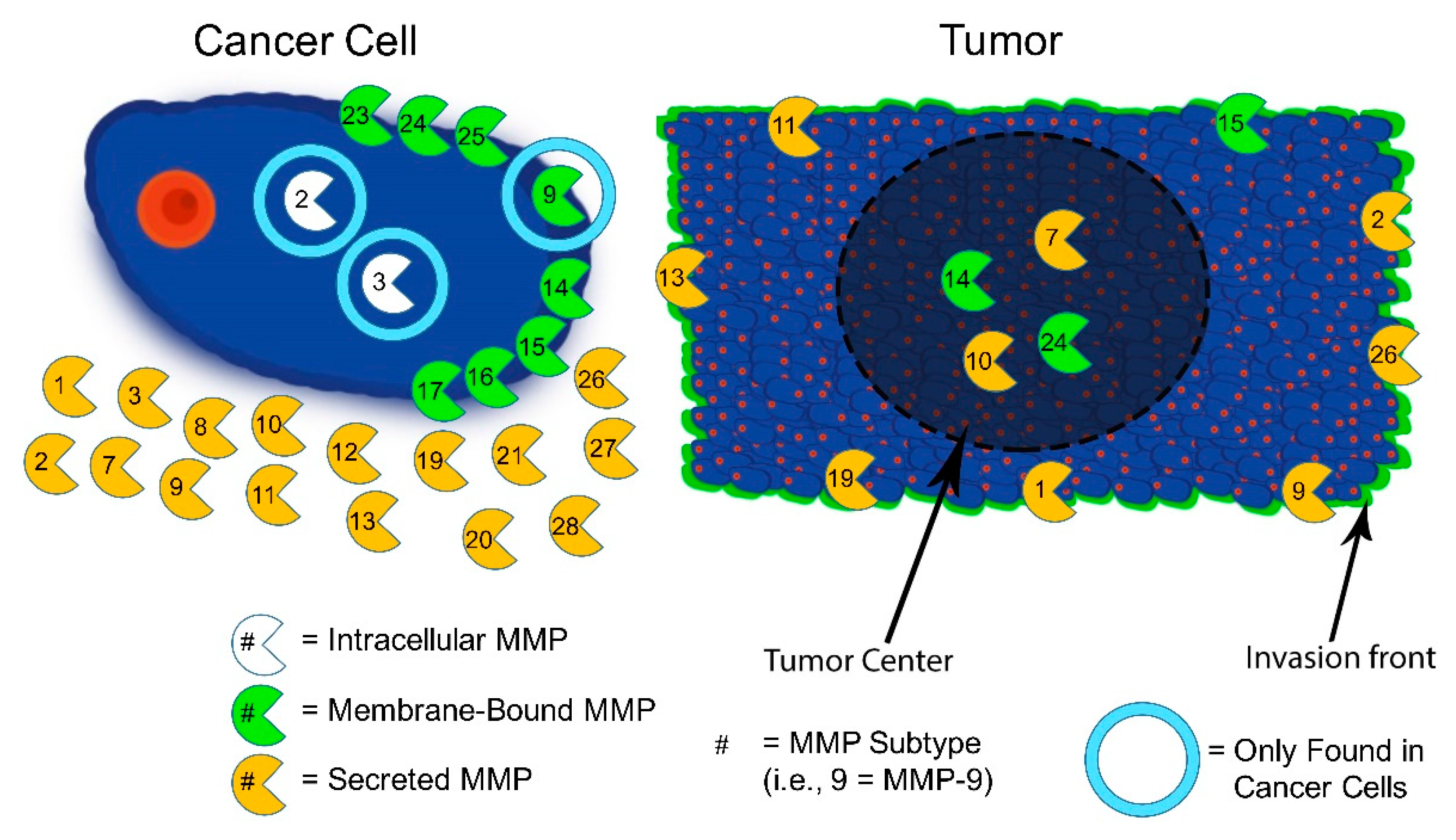

Figure 1. Schematic depicting the distribution of matrix metalloproteinase (MMP) subtypes within the tumor microenvironment. The cancer cell on the left, depicts intracellular MMPs (shown to the right of the nucleus, represented in red), membrane-bound MMPs, and secreted MMPs. Additionally, the light blue circle indicates those MMPs that are found in that particular location only in cancer cells (e.g., MMP-2 is found intracellularly in cancer cells, but not in healthy cells). The tumor microenvironment on the right (depicted with a background of cancer cells for schematic representation) shows the distribution of MMPs within the tumor microenvironment, indicating those present near the tumor interior versus near the periphery. Image adapted with permissions from Isaacson et al., 2017 [25].
Figure 1. Schematic depicting the distribution of matrix metalloproteinase (MMP) subtypes within the tumor microenvironment. The cancer cell on the left, depicts intracellular MMPs (shown to the right of the nucleus, represented in red), membrane-bound MMPs, and secreted MMPs. Additionally, the light blue circle indicates those MMPs that are found in that particular location only in cancer cells (e.g., MMP-2 is found intracellularly in cancer cells, but not in healthy cells). The tumor microenvironment on the right (depicted with a background of cancer cells for schematic representation) shows the distribution of MMPs within the tumor microenvironment, indicating those present near the tumor interior versus near the periphery. Image adapted with permissions from Isaacson et al., 2017 [25].
Jpm 11 00088 g001
Jpm 11 00088 g002 550
Figure 2. Schematic of extracellular matrix (ECM)-based strategies to improve drug delivery and modulate tumor growth and invasion, with the aid of nanoparticles, through ECM degradation to improve drug delivery, ECM-targeting to create a local drug depot, and direct modulation of the ECM.
Figure 2. Schematic of extracellular matrix (ECM)-based strategies to improve drug delivery and modulate tumor growth and invasion, with the aid of nanoparticles, through ECM degradation to improve drug delivery, ECM-targeting to create a local drug depot, and direct modulation of the ECM.
Jpm 11 00088 g002
Table
Table 1. Extracellular matrix enzymes.
Table 1. Extracellular matrix enzymes.
Enzyme FamilyEnzymeSubstrateRef
MMPsMMP-1Type I and II collagen[37]
MMP-2Gelatin, Type IV collagen[38]
MMP-3E-cadherin, laminin, Type IV collagen; activates cytokines and growth factors; activates MMP-1, -8, -13, -9[39]
MMP-7Type IV collagen, fibronectin, vitronectin, elastin, aggrecan[40]
MMP-8Type I, II, and III collagens, gelatin, aggrecan, fibronectin[34,41,42]
MMP-9Gelatin, Type IV collagen[38]
CathepsinsCat BType IV collagen, laminin, fibronectin[36]
Cat KType I collagen, particularly bone[35]
Cat LType I and IV collagen, laminin, fibronectin, and elastin[43]
Cat SCollagen, Elastin, E-cadherin[44]
ADAMsADAMTS-18Chondroitin sulfate
Other ProteinasesLysyl oxidaseCrosslinks elastins and collagens through conversion of lysines[45]
Table
Table 2. Inhibitors of extracellular matrix enzymes.
Table 2. Inhibitors of extracellular matrix enzymes.
Inhibitor FamilyInhibitorType of InhibitorEnzymeClinical Use/TranslationRef.
MMP InhibitorsBatimastatSmall moleculeBroad spectrumEnded at Phase III[51,52]
MarimastatSmall moleculeBroad spectrumEnded at Phase III[53]
TanomastatSmall moleculeMMP-2, -3, -9Ended at Phase III[54]
DoxycyclineSmall moleculeBroad spectrumOngoing[54]
TIMP-1, -2, -3, -4Endogenous
inhibitor		Broad spectrumn/a[55,56]
SDS3AntibodyMMP-2, MMP-9n/a[55,57,58]
PrinomastatSmall moleculeBroad spectrumEnded at Phase III[59]
Cathepsin InhibitorsL-235Small moleculeCat Kn/a[60]
RelacatibSmall moleculeCat K, B, L, S VEnded at Phase I[35,61]
OdanacatibSmall moleculeCat K, B, L, S, VEnded at Phase III[35,62,63]
E64Small moleculeCat B, Cat Ln/a[64]
Table
Table 3. Extracellular matrix components and associated targeting moieties.
Table 3. Extracellular matrix components and associated targeting moieties.
Matrix TargetsTargeting Peptides/AntibodiesReference
FibronectinCREKA[101]
CLT1[101]
CLT2[101]
F8 antibody[102]
L19 antibody[102]
CollagenCNA35[103]
WYRGRL[104]
Collagen mimetic peptides[105]
TKKTLRT[106]
WREPSFMALS[107]
Tenascin-CFHKHKSPALSPVGGG[108]
F16 antibody[108]
HyaluronanCKRDLSRRC (IP3)[109]
Heparan SulfateNT4[110]
CGKRK[100]
Table
Table 4. Strategies Employing the Tumor ECM.
Table 4. Strategies Employing the Tumor ECM.
Types of Nanocarrier Delivery SystemsExamples and Remarks
Targeting ECM ComponentsPolymer nanoparticles [52] Matricellular targets include:
Collagen [112,113], Fibronectin [101,102]. Laminin,
Hyaluronan [114],
Tenascin-C [114], Heparan sulfate [100]
Antibodies [114]
Liposomes [114]
Modulating ECM to reduce barrier to deliveryLiposomes [124]Breakdown of matrix through direct breakdown or reduction of matrix expression
Gold nanoparticles [126]
Lipoprotein nanoparticles [127]
Using ECM as a local drug depotLiposomes [128,129,130]
Lyophilosomes [129]
Modulating ECM to directly alter tumor growth and invasionLiposomes [131]MMP inhibitors [131]
Polymer nanoparticles [52]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Subrahmanyam, N.; Ghandehari, H. Harnessing Extracellular Matrix Biology for Tumor Drug Delivery. J. Pers. Med. 2021, 11, 88. https://doi.org/10.3390/jpm11020088

AMA Style

Subrahmanyam N, Ghandehari H. Harnessing Extracellular Matrix Biology for Tumor Drug Delivery. Journal of Personalized Medicine. 2021; 11(2):88. https://doi.org/10.3390/jpm11020088

Chicago/Turabian Style

Subrahmanyam, Nithya, and Hamidreza Ghandehari. 2021. "Harnessing Extracellular Matrix Biology for Tumor Drug Delivery" Journal of Personalized Medicine 11, no. 2: 88. https://doi.org/10.3390/jpm11020088

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
