Review

Selective Angiographic Roadmap Analysis (SARA) of Hepatocellular Carcinoma Feeding Arteries for Transarterial Chemoembolization

by
Sultan R. Alharbi
Department of Radiology and Medical Imaging, College of Medicine, King Saud University, Riyadh 11362, Saudi Arabia
Diagnostics 2025, 15(19), 2533; https://doi.org/10.3390/diagnostics15192533
Submission received: 19 August 2025 / Revised: 2 October 2025 / Accepted: 7 October 2025 / Published: 8 October 2025
(This article belongs to the Special Issue New Trends in Cardiovascular Imaging: 2nd Edition)

Abstract

Hepatocellular carcinoma (HCC) is a hypervascular malignancy commonly treated with transarterial chemoembolization (TACE), in which success relies on the accurate identification and embolization of tumor feeding arteries while sparing the nontumorous liver parenchyma. This review introduces the concept of selective angiographic roadmap analysis (SARA), a systematic and stepwise approach to evaluating hepatic arterial supply in HCC, with the aim of standardizing angiographic planning and improving TACE outcomes. SARA emphasizes recognition of typical and variant hepatic arterial anatomy, systematic identification of accessory and extrahepatic feeders, and integration with intraprocedural cone-beam computed tomography (CBCT) to enhance feeder detection and reduce nontarget embolization. Although primarily applied in TACE, the principles of SARA are equally relevant to transarterial radioembolization (TARE) where precise arterial mapping is critical. Embolization strategies are discussed across different levels of selectivity, from lobar to superselective techniques. The complementary role of advanced imaging modalities, such as CT angiography (CTA), MR angiography (MRA), and artificial intelligence-assisted vessel tracking, is also explored. Adopting the SARA framework in conjunction with these technologies may improve technical success and tumor control and preserve liver function in patients undergoing intra-arterial therapies.

1. Introduction

Hepatocellular carcinoma (HCC) is the most prevalent primary liver malignancy and ranks as the third leading cause of cancer-related deaths worldwide [1,2,3,4,5,6]. It often arises in the background of liver cirrhosis and hepatic fibrosis [7,8,9,10,11]. As hepatocarcinogenesis progresses, tumor neovascularization shifts the blood supply from the portal vein to the hepatic arteries, while the surrounding noncancerous liver parenchyma continues to be primarily supplied by the portal vein [12,13,14,15]. HCC is typically a hypervascular tumor, making it amenable to treatment through arterial embolization, which induces ischemia and necrosis of the tumor tissue [16,17,18].
Transarterial chemoembolization (TACE) delivers chemotherapeutic agents directly into a tumor’s feeding arteries, followed by arterial embolization to induce ischemia [19,20,21]. TACE is widely recommended as the first-line treatment for intermediate-stage HCC in several international clinical guidelines [22,23,24]. Its application has expanded across the spectrum of HCC management, from curative and bridging therapy to downstaging and palliative care [25,26]. Similarly, transarterial radioembolization (TARE) relies on precise arterial targeting to deliver radioactive microspheres and has shown increasing use in selected patients [27].
Despite its widespread use, TACE outcomes can be highly variable because of differences in patient selection, tumor burden, and technical execution [28,29,30]. Procedural success depends significantly on the complete embolization of all tumor feeding arteries while avoiding nontarget embolization. Thus, a standardized technical approach is essential for consistent and effective treatment [31,32]. Existing descriptions of hepatic arterial anatomy, such as the classical Michels and Hiatt classifications, provide a valuable foundation for understanding vascular variants [33]. However, these frameworks do not offer a procedural roadmap for intraprocedural decision-making during embolization. Operators continue to rely on personal experience and variable strategies for arterial mapping, which limits reproducibility and complicates communication.
This review presents a comprehensive analysis and classification system for angiographic roadmap planning during TACE, introducing Selective Angiographic Roadmap Analysis (SARA) as a systematic framework designed to address this gap. The goal of SARA is not to redefine anatomy but to standardize arterial mapping in HCC cases, enhance feeder identification, and minimize nontarget embolization, thereby improving intra-arterial therapy outcomes.

2. Arterial Anatomy Mapping and Classification

All patients undergoing TACE should undergo preprocedural contrast-enhanced computed tomography (CT) or magnetic resonance imaging (MRI) to confirm an HCC diagnosis. Given the common anatomical variations in the celiac axis, superior mesenteric artery (SMA), and hepatic arteries, meticulous vascular mapping before TACE is crucial [34,35,36,37,38]. During TACE, angiographies of the celiac trunk and the SMA provide vital information on hepatic arterial flow, particularly in cases of vascular stenosis or occlusion [39]. Failure to recognize such variations or identify all tumor feeders may result in incomplete embolization and suboptimal tumor response [36,40].
Computer tomography angiography (CTA) provides excellent spatial resolution, rapid acquisition, and multiplanar/3D reconstruction, making it highly effective for identifying hepatic arterial variants and accessory feeders [41]. Magnetic resonance imaging angiography (MRA) offers high-quality vascular imaging without ionizing radiation and is particularly useful in patients with renal dysfunction or contraindications to iodinated contrast [42]. Both modalities complement digital subtraction angiography (DSA) by allowing noninvasive preprocedural mapping of variant anatomy and feeding arteries, thereby supporting selective angiographic roadmap analysis (SARA) planning [39].
Classical hepatic arterial anatomy has been extensively described by Michels and Hiatt, whose classifications detail common variants, such as a replaced right hepatic artery from the SMA or a replaced left hepatic artery from the left gastric artery [36,40,43]. These anatomical frameworks remain the basis of clinical practice. However, they do not provide a standardized intraprocedural decision-making roadmap for embolization. SARA builds on these established classifications by organizing arterial mapping into a functional framework that links anatomical variants to feeder identification, catheterization strategy, and embolization planning. The tumor’s arterial supply can be assessed through CTA/MRA and digital subtraction angiography (DSA), and it can be classified based on the following:
  • The number of feeding segmental arteries (single vs. multiple).
  • The origin of the feeders (unilobar vs. bilobar).
  • Lobar hepatic artery anatomy (normal vs. variant).
  • The patency of mesenteric arteries (celiac and/or SMA).
  • The presence of accessory feeders from the following:
    • Hepatic arteries;
    • Mesenteric arteries;
    • Extra-mesenteric arteries.
For educational purposes, we simply classified hepatocellular carcinoma feeding arteries into four categories, as listed in Table 1 and illustrated in Figure 1.
Certain variants carrying direct technical consequences may require an alternative catheterization strategy. For example, a replaced right hepatic artery arising from the SMA may require a hydrophilic wire or a more supportive guiding catheter to overcome acute angulation. Tortuous or diminutive accessory feeders may necessitate the use of low-profile thinner microcatheters and smaller hydrophilic microwires for superselective access. Awareness of such variants is critical not only to ensure complete tumor coverage but also to minimize the risk of nontarget embolization [39,43].
This conceptual framework does not aim to replace epidemiological data on variant prevalence but rather to standardize how feeders are described and approached during embolization. Its primary value is educational and procedural, providing a structured roadmap for feeder identification that can be validated prospectively in future studies correlating variant prevalence, technical difficulty, and clinical outcomes.

3. Embolization Point Classification

Successful TACE depends on the accurate identification and catheterization of tumor feeding arteries while sparing the remaining liver parenchyma [44]. Local tumor control and the preservation of liver function are key prognostic factors in HCC management [45]. Embolization strategies are typically classified into three categories: lobar, segmental, and subsegmental TACE (Table 2) [46].
The choice of embolization level depends on the number and accessibility of feeding arteries, which may be affected by anatomical complexity, tortuosity, or unfavorable angulation [47].
Generally, the choice of the embolization point is determined by the number and distribution of tumor feeding arteries, balancing the goals of complete tumor coverage with preservation of nontumorous parenchyma. As summarized in Table 3 and illustrated in Figure 2, superselective embolization is preferred when a single subsegmental or segmental feeder can be accessed, maximizing on-target ischemia while sparing uninvolved liver. In contrast, when multiple feeders arise from a single lobar artery, lobar embolization may be required to ensure complete treatment, albeit at the cost of a larger ischemic territory. Similarly, tumors supplied by feeders from two distinct lobar arteries necessitate two separate embolization points to achieve comprehensive coverage. The schematic use of target signs highlights this decision-making process within the SARA framework, emphasizing that embolization point selection is an anatomically driven strategy aimed at optimizing tumor control and minimizing nontarget embolization.
Superselective TACE is associated with higher tumor necrosis rates and improved survival compared with lobar approaches, which risk larger nontarget embolization and hepatic dysfunction [48,49]. Superselective TACE should be attempted to maximize tumor necrosis and minimize nontarget embolization to the remaining liver parenchyma [49].

4. Embolization of the Principal Feeding Artery

Effective embolization entails treating all identifiable tumor feeding arteries to near stasis [17]. Superselective embolization reduces nontarget effects; however, it may miss minor feeders and result in incomplete therapy [44]. Collateral arteries that are initially nondominant may become significant post-embolization because of hemodynamic redistribution [50]. Thus, performing comprehensive embolization of all primary and accessory feeders while maintaining perfusion to healthy liver tissue is essential [51].
Multiple studies have highlighted the critical role of achieving a “safety margin” during TACE to ensure complete tumor necrosis [44,52,53]. This principle, which is well established in curative treatments, such as surgical resection and thermal ablation, is increasingly recognized in TACE [54,55]. It involves embolizing not only the main tumor feeding arteries but also the peritumoral parenchymal arteries that may harbor microscopic disease, as shown in Figure 3 [56].
Histopathological analyses have shown the presence of microsatellite lesions in almost half of tumors measuring ≥5 cm and in one-third of tumors measuring <2.5 cm, with nearly all such lesions located within 0.5 cm of the primary tumor. The persistence of microsatellites or capsular invasion can lead to peritumoral recurrence after TACE [57,58]. The area of corona enhancement observed on imaging is believed to correspond to this peritumoral zone and may serve as a target for extending the embolization margin [56]. Effectively identifying and embolizing these adjacent feeders is essential, as the ischemic tumor bed may recruit them post-treatment, potentially resulting in tumor progression or recurrence [44].

5. Accessory Arterial Supply

Accessory arterial supply refers to any feeding artery other than the principal feeder that contributes to tumor perfusion, as illustrated in Figure 4. Unrecognized accessory feeding arteries are a common cause of incomplete embolization and a suboptimal tumor response [59]. Hence, a careful analysis of preprocedural imaging and intraprocedural angiography is crucial.
Factors associated with an increased probability of accessory arterial supply include the following [39,40,60]:
(A)
Tumor size, with >5 cm increasing the risk of ectopic arterial supply.
(B)
Tumor location:
  • Exophytic: Larger tumor surface area exposed to adjacent organ arterial supply;
  • Subcapsular: Near to the adjacent organ arterial supply;
  • Perihilar: Near to multiple hepatic and mesenteric artery branches;
  • Segments 4 and 1: Watershed areas between the right and left hepatic arteries.
(C)
Repeated TACE, which may occlude primary feeders and promote collateral formation.
(D)
Partial visualization of tumors on hepatic angiography, which may indicate accessory extrahepatic supply to non-visualized parts of the tumor.
Accessory feeders can be classified as follows:
(A)
Accessory hepatic arteries: Common hepatic artery variations include an accessory left hepatic artery from the left gastric artery, which may supply left liver lobe HCC, and an accessory right hepatic artery from the SMA, which may supply right liver lobe HCC. Segments 1 and 4 frequently receive dual supply from both lobar hepatic arteries. An accessory middle hepatic artery may arise from the left or right hepatic artery or from the hepatic proper artery as a trifurcation branching. Accessory middle hepatic arteries usually supply segment 4 but may contribute to the supply of right or left liver lobe HCC [36,40,61].
(B)
Accessory mesenteric arteries: HCC may be fed by mesenteric branches, such as the left gastric, gastroduodenal, superior mesenteric, and pancreaticoduodenal arteries. Left lobe tumors may recruit the left gastric or pancreaticoduodenal arteries, whereas right lobe tumors may be supplied by gastroduodenal and omental branches [62,63].
(C)
Accessory extra-mesenteric arteries: Tumors that are located anteriorly at liver dome segments 2, 4A, and 8 may receive accessory supply from the internal mammary artery, a branch of the right subclavian artery. However, HCC located posteriorly at liver dome segments 8, 7, and 2 and the caudate may receive accessory supply from the inferior phrenic artery, a branch of the celiac trunk or directly originating from the abdominal aorta [64]. A subcapsular tumor near the ribs may receive accessory supply from intercostal arteries, as shown in Figure 5 [65].
To achieve effective transarterial chemoembolization (TACE), it is essential to identify and embolize not only the hepatic arterial branches but also any accessory or extrahepatic collateral arteries supplying the HCC [49,55,66]. Failure to treat these additional feeding arteries can result in incomplete embolization, a suboptimal tumor response, and poorer prognosis [54]. Therefore, selective angiography should be performed to evaluate suspected extrahepatic collaterals, particularly when pre-treatment imaging reveals variant anatomy or hypertrophied collateral arteries, enabling comprehensive tumor coverage and improving the likelihood of a complete local tumor response [39].

6. Additive Role of Cone-Beam CT

C-arm cone-beam CT (CBCT), which utilizes flat-panel detector technology, has become an invaluable tool for intraprocedural imaging in interventional radiology. It offers a high-resolution, three-dimensional visualization of tumors and their vascular supply. In the setting of TACE, CBCT enhances the detection of small HCC lesions, tumor feeding arteries, and extrahepatic collateral arteries, and it predicts the treatment response [59,67]. Compared to conventional digital subtraction angiography (DSA), CBCT demonstrates superior sensitivity and accuracy in identifying tumor feeders, as shown in Figure 6 [68,69].
This advanced imaging modality can influence the treatment strategy in nearly half of TACE cases, thereby optimizing the procedure and contributing to an improved tumor response and patient survival outcomes [70].
Within selective angiographic roadmap analysis (SARA), CBCT provides intraprocedural three-dimensional arterial mapping that supplements DSA, allowing for precise identification of small and accessory feeders that might otherwise be overlooked. Multiphase CBCT can be employed both before embolization for detailed arterial mapping and after embolization to assess the adequacy of treatment and detect any residual tumor perfusion, as illustrated in Figure 7 [71].
By integrating CBCT into angiographic planning, SARA enables more comprehensive feeder assessment, improves embolization selectivity, and reduces the risk of undertreatment, as described in Table 4.
The integration of CBCT into TACE protocols has been shown to significantly reduce local tumor recurrence, prolong overall survival, and improve local progression-free survival. Due to these clear clinical benefits, the use of CBCT during TACE is strongly endorsed by international guidelines as a standard component of a high-quality TACE procedure [20,39,72,73,74].

7. Additive Role of Artificial Intelligence

C-arm cone-beam CT (CBCT) enables interventional radiologists to acquire real-time cross-sectional and three-dimensional (3D) images during the TACE procedure. These images serve as navigational tools, providing 3D road mapping that facilitates precise catheter guidance and superselective embolization. This advanced vessel navigation significantly improves the detection of tumor nodules and their feeding arteries. In particular, volume-rendered 3D CBCT images can clearly delineate tumor feeding arteries, even when overlaid by naïve hepatic arteries [44,59]. More recently, artificial intelligence (AI)-based automated feeder detection (AFD) software—such as EmboGuide® and FlightPlan®—has been integrated with CBCT imaging in the TACE workflow. These tools enhance the identification of subsegmental tumor feeders, achieving detection rates as high as 81–93%, which surpasses the performance of CBCT interpretation alone, as shown in Figure 8 [31,44,53,72].
As automated feeder detection (AFD) software is built upon the CBCT platform, it is expected to offer at least the same capability as conventional CBCT in preserving healthy liver parenchyma. Additionally, it enhances the detection of small intrahepatic accessory feeding vessels, helping to prevent tumor recurrence due to previously unidentified collaterals [44,75]. Furthermore, second-generation AI tools, such as virtual parenchymal perfusion software based on CBCT, can estimate the expected therapeutic coverage and predict the embolization territory. This allows for more precise targeting, minimizes nontarget embolization, and ultimately improves procedural outcomes while preserving liver function, as illustrated in Figure 9 [76,77].

8. Summary of Stepwise Workflow of SARA

The SARA framework begins before the procedure and extends into intraprocedural decision-making. Artificial intelligence (AI) serves as an adjunctive tool throughout this process, enhancing—but not replacing—the operator’s interpretation.
Step 1: Preprocedural imaging review
Contrast-enhanced CT or MRI defines tumor size, number, and location. CTA or MRA further delineates hepatic arterial anatomy and variants, forming the basis of an anatomical roadmap.
Step 2: Angiographic roadmap construction
Initial DSA of the celiac, superior mesenteric, and hepatic arteries confirms expected feeders and identifies accessory or variant supply. This roadmap is compared with the preprocedural anatomical map.
Step 3: CBCT confirmation and refinement
CBCT acquisitions at lobar or segmental levels provide three-dimensional visualization of tumor enhancement and arterial supply. Technical parameters are adapted to catheter position, ensuring optimal lesion delineation while minimizing artifact.
Step 4: AI-assisted analysis of CBCT
AI software processes CBCT datasets to
  • Automatically extract and reconstruct the hepatic arterial tree;
  • Highlight potential tumor feeders, even when overlying vessels obscure direct visualization;
  • Provide a “virtual roadmap” for catheter trajectory planning.
Step 5: Virtual embolization planning
AI-driven perfusion simulation tools predict the vascular territory affected if embolization is performed at a selected point. This allows operators to visualize whether the target tumor will be fully covered, while simultaneously estimating the extent of nontumorous parenchyma at risk.
Step 6: Informed embolization execution
Armed with both conventional roadmap analysis and AI-generated predictions, the operator selects the most effective embolization point. The embolization is then carried out with greater confidence that feeders are complete and parenchymal preservation is maximized.
Step 7: Post-embolization validation
Post-embolization DSA and CBCT can be re-processed with AI tools to confirm devascularization, assess residual enhancement, and ensure consistency between planned and actual treatment coverage.

9. Conclusions

Transarterial chemoembolization remains a cornerstone in the management of hepatocellular carcinoma. Its success relies heavily on accurate arterial mapping and the complete embolization of tumor feeding arteries while minimizing injury to the surrounding liver parenchyma. The proposed selective angiographic roadmap analysis (SARA) framework provides a structured approach to classifying hepatic arterial anatomy, embolization points, and accessory arterial supply.
Advancements in imaging technologies, such as CBCT- and AI-based vessel tracking and virtual parenchymal perfusion, have further enhanced the precision of TACE, allowing for more personalized and effective treatment strategies. A standardized and meticulous angiographic approach can improve the tumor response, reduce recurrence, and ultimately enhance overall patient outcomes. Further prospective studies are needed to validate the clinical utility of the SARA framework in improving TACE outcomes across various HCC presentations.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
HCCHepatocellular carcinoma
TACETransarterial chemoembolization
SARASelective angiographic roadmap analysis
CTComputer tomography
MRIMagnetic resonance imaging
CBCTCone-beam computed tomography
DSADigital substruction angiography
CACeliac artery
CHACommon hepatic artery
PHRProper hepatic artery
LHALobar hepatic artery
LLHALeft lobar hepatic artery
RLHARight lobar hepatic artery
MHAMiddle hepatic artery
SHASegmental hepatic artery
SSHASubsegmental hepatic artery
LGALeft gastric artery
IPAInferior phrenic artery
ICAIntercostal artery
IMAInternal mammary artery
GDAGastroduodenal artery
AMAAccessory mesenteric artery
AHAAccessory hepatic artery

References

  1. Qiao, W.; Wang, Q.; Mei, T.; Wang, Q.; Wang, W.; Zhang, Y. External validation and improvement of the scoring system for predicting the prognosis in hepatocellular carcinoma after interventional therapy. Front. Surg. 2023, 10, 1045213. [Google Scholar] [CrossRef]
  2. Fang, C.; Luo, R.; Zhang, Y.; Wang, J.; Feng, K.; Liu, S.; Chen, C.; Yao, R.; Shi, H.; Zhong, C. Hepatectomy versus transcatheter arterial chemoembolization for resectable BCLC stage A/B hepatocellular carcinoma beyond Milan criteria: A randomized clinical trial. Front. Oncol. 2023, 13, 1101162. [Google Scholar] [CrossRef] [PubMed]
  3. Alharbi, S.R. Sultan’s score: A novel predictive score to predict complete response following drug-eluting bead chemoembolization. Cureus 2025, 17, e76822. [Google Scholar] [CrossRef] [PubMed]
  4. Altekruse, S.F.; McGlynn, K.A.; Reichman, M.E. Hepatocellular carcinoma incidence, mortality, and survival trends in the United States from 1975 to 2005. J. Clin. Oncol. 2009, 27, 1485–1491. [Google Scholar] [CrossRef] [PubMed]
  5. Qiu, S.; Yu, J.; Fang, F.; Tang, W.; Zhang, W.; Li, Y.; Wang, L. Trends in hepatocellular carcinoma mortality rates in the US and projections through 2040. JAMA Netw. Open 2024, 7, e2445525. [Google Scholar] [CrossRef]
  6. Hwang, S.Y.; Kim, B.K.; Han, K.H.; Kim, S.U. Hepatocellular carcinoma: Updates on epidemiology, surveillance, diagnosis and treatment. Clin. Mol. Hepatol. 2025, 31, S228–S254. [Google Scholar] [CrossRef]
  7. D’Avola, D.; Granito, A.; Torre-Aláez, M.; Piscaglia, F. The importance of liver functional reserve in the non-surgical treatment of hepatocellular carcinoma. J. Hepatol. 2022, 76, 1185–1198. [Google Scholar] [CrossRef]
  8. Tarao, K.; Takemiya, S.; Takahashi, H.; Tanaka, K.; Kumada, T. Real impact of liver cirrhosis on the development of hepatocellular carcinoma in various liver diseases—Meta-analytic assessment. Cancer Med. 2019, 8, 1054–1065. [Google Scholar] [CrossRef]
  9. Johnson, P.J.; Kalyuzhnyy, A.; Boswell, E.; Toyoda, H. Progression of chronic liver disease to hepatocellular carcinoma: Implications for surveillance and management. BJC Rep. 2024, 2, 39. [Google Scholar] [CrossRef]
  10. Bengtsson, B.; Widman, L.; Wahlin, S.; Stål, P.; Björkström, N.K.; Hagström, H. The risk of hepatocellular carcinoma in cirrhosis differs by etiology, age and sex: A Swedish nationwide population-based cohort study. United Eur. Gastroenterol. J. 2022, 10, 465–476. [Google Scholar] [CrossRef]
  11. Enomoto, H.; Akuta, N.; Hikita, H.; Suda, G.; Inoue, J.; Tamaki, N.; Ito, K.; Akahane, T.; Kawaoka, T.; Morishita, A.; et al. Etiological changes of liver cirrhosis and hepatocellular carcinoma-complicated liver cirrhosis in Japan: Updated nationwide survey from 2018 to 2021. Hepatol. Res. 2024, 54, 763–772. [Google Scholar] [CrossRef]
  12. Asayama, Y.; Yoshimitsu, K.; Nishihara, Y.; Irie, H.; Aishima, S.; Taketomi, A.; Honda, H. Arterial blood supply of hepatocellular carcinoma and histologic grading: Radiologic-pathologic correlation. Am. J. Roentgenol. 2008, 190, W28–W34. [Google Scholar] [CrossRef] [PubMed]
  13. Morse, M.A.; Sun, W.; Kim, R.; He, A.R.; Abada, P.B.; Mynderse, M.; Finn, R.S. The role of angiogenesis in hepatocellular carcinoma. Clin. Cancer Res. 2019, 25, 912–920. [Google Scholar] [CrossRef] [PubMed]
  14. Zhu, A.X.; Duda, D.G.; Sahani, D.V.; Jain, R.K. HCC and angiogenesis: Possible targets and future directions. Nat. Rev. Clin. Oncol. 2011, 8, 292–301. [Google Scholar] [CrossRef] [PubMed]
  15. Tümen, D.; Heumann, P.; Gülow, K.; Demirci, C.N.; Cosma, L.S.; Müller, M.; Kandulski, A. Pathogenesis and current treatment strategies of hepatocellular carcinoma. Biomedicines 2022, 10, 3202. [Google Scholar] [CrossRef]
  16. Pérez-López, A.; Martín-Sabroso, C.; Gómez-Lázaro, L.; Torres-Suárez, A.I.; Aparicio-Blanco, J. Embolization therapy with microspheres for the treatment of liver cancer: State-of-the-art of clinical translation. Acta Biomater. 2022, 149, 1–15. [Google Scholar] [CrossRef]
  17. Ayyub, J.; Dabhi, K.N.; Gohil, N.V.; Tanveer, N.; Hussein, S.; Pingili, S.; Makkena, V.K.; Jaramillo, A.P.; Awosusi, B.L.; Nath, T.S. Evaluation of the safety and efficacy of conventional transarterial chemoembolization (cTACE) and drug-eluting bead (DEB)-TACE in the management of unresectable hepatocellular carcinoma: A systematic review. Cureus 2023, 15, e41943. [Google Scholar] [CrossRef]
  18. Nakaura, T.; Awai, K.; Yanaga, Y.; Nakayama, Y.; Oda, S.; Funama, Y.; Yamashita, Y. Detection of early enhancement of hypervascular hepatocellular carcinoma using single breath-hold 3D pixel shift dynamic subtraction MDCT. Am. J. Roentgenol. 2008, 190, W13–W18. [Google Scholar] [CrossRef]
  19. Zhou, L.; Zhang, M.; Chen, S. Comparison of surgical resection and transcatheter arterial chemoembolization for large hepatocellular carcinoma: A systematic review and meta-analysis. Ann. Hepatol. 2023, 28, 100890. [Google Scholar] [CrossRef]
  20. Lanza, C.; Ascenti, V.; Amato, G.V.; Pellegrino, G.; Triggiani, S.; Tintori, J.; Intrieri, C.; Angileri, S.A.; Biondetti, P.; Carriero, S.; et al. All you need to know about TACE: A comprehensive review of indications, techniques, efficacy, limits, and technical advancement. J. Clin. Med. 2025, 14, 314. [Google Scholar] [CrossRef]
  21. Kotsifa, E.; Vergadis, C.; Vailas, M.; Machairas, N.; Kykalos, S.; Damaskos, C.; Garmpis, N.; Lianos, G.D.; Schizas, D. Transarterial chemoembolization for hepatocellular carcinoma: Why, when, how? J. Pers. Med. 2022, 12, 436. [Google Scholar] [CrossRef] [PubMed]
  22. Zhong, B.Y.; Jin, Z.C.; Chen, J.J.; Zhu, H.D.; Zhu, X.L. Role of transarterial chemoembolization in the treatment of hepatocellular carcinoma. J. Clin. Transl. Hepatol. 2023, 11, 480–489. [Google Scholar] [CrossRef] [PubMed]
  23. Piscaglia, F.; Ogasawara, S. Patient selection for transarterial chemoembolization in hepatocellular carcinoma: Importance of benefit/risk assessment. Liver Cancer 2018, 7, 104–119. [Google Scholar] [CrossRef] [PubMed]
  24. Reig, M.; Forner, A.; Rimola, J.; Ferrer-Fàbrega, J.; Burrel, M.; Garcia-Criado, Á.; Kelley, R.K.; Galle, P.R.; Mazzaferro, V.; Salem, R.; et al. BCLC strategy for prognosis prediction and treatment recommendation: The 2022 update. J. Hepatol. 2022, 76, 681–693. [Google Scholar] [CrossRef]
  25. Jin, Z.C.; Zhong, B.Z.; Chen, J.J.; Zhu, H.D.; Sun, J.H.; Yin, G.W.; Ge, N.J.; Juo, B.; Ding, W.B.; Li, W.H.; et al. Real-world efficacy and safety of TACE plus camrelizumab and apatinib in patients with HCC (CHANCE2211): A propensity score matching study. Eur. Radiol. 2023, 33, 8669–8681. [Google Scholar] [CrossRef]
  26. Lu, J.; Zhao, M.; Arai, Y.; Zhong, B.-Y.; Zhu, H.-D.; Qi, X.-L.; de Baere, T.; Pua, U.; Yoon, H.K.; Madoff, D.C.; et al. Clinical Practice of Transarterial Chemoembolization for Hepatocellular Carcinoma: Consensus Statement from an International Expert Panel of International Society of Multidisciplinary Interventional Oncology (ISMIO). Hepatobiliary Surg. Nutr. 2021, 10, 661–671. [Google Scholar] [CrossRef]
  27. Hyun, D. Transarterial Radioembolization for Hepatocellular Carcinoma in Korea: Current Clinical Practices, Facility Requirements, and Patient Selection. J. Korean Soc. Radiol. 2025, 86, 447–456. [Google Scholar] [CrossRef]
  28. Lin, J.; Li, J.; Kong, Y.; Yang, J.; Zhang, Y.; Zhu, G.; Yu, Z.; Xia, J. Construction of a Prognostic Model for Hepatocellular Carcinoma Patients Receiving Transarterial Chemoembolization Treatment Based on the Tumor Burden Score. BMC Cancer 2024, 24, 306. [Google Scholar] [CrossRef]
  29. Kasolowsky, V.; Gross, M.; Madoff, D.C.; Duncan, J.; Taddei, T.; Strazzabosco, M.; Jaffe, A.; Chapiro, J. Comparison of Prognostic Accuracy of HCC Staging Systems in Patients Undergoing TACE. Clin. Imaging 2025, 120, 110438. [Google Scholar] [CrossRef]
  30. Jia, K.; Yin, W.; Gao, Z.; Shen, W.; Wang, F.; Xie, S.; Li, M.; Lv, R. Recommendation of mHAP and ABCR Scoring Systems for the Decision-Making of the First and Subsequent TACE Session in HCC Patients. Eur. J. Gastroenterol. Hepatol. 2023, 35, 461–470. [Google Scholar] [CrossRef]
  31. Taiji, R.; Lin, Y.M.; Chintalapani, G.; Lin, E.Y.; Huang, S.Y.; Mahvash, A.; Avritscher, R.; Liu, C.A.; Lee, R.C.; Resende, V.; et al. A Novel Method for Predicting Hepatocellular Carcinoma Response to Chemoembolization Using an Intraprocedural CT Hepatic Arteriography-Based Enhancement Mapping: A Proof-of-Concept Analysis. Eur. Radiol. Exp. 2023, 7, 4. [Google Scholar] [CrossRef]
  32. Raoul, J.-L.; Forner, A.; Bolondi, L.; Cheung, T.T.; Kloeckner, R.; de Baere, T. Updated Use of TACE for Hepatocellular Carcinoma Treatment: How and When to Use It Based on Clinical Evidence. Cancer Treat. Rev. 2019, 72, 28–36. [Google Scholar] [CrossRef] [PubMed]
  33. Malviya, K.K.; Verma, A.; Nayak, A.K.; Mishra, A.; More, R.S. Unraveling Variations in Celiac Trunk and Hepatic Artery by CT Angiography to Aid in Surgeries of Upper Abdominal Region. Diagnostics 2021, 11, 2262. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  34. Favelier, S.; Germain, T.; Genson, P.Y.; Cercueil, J.P.; Denys, A.; Krausé, D.; Guiu, B. Anatomy of Liver Arteries for Interventional Radiology. Diagn. Interv. Imaging 2014, 95, 775–785. [Google Scholar] [CrossRef] [PubMed]
  35. Boulin, M.; Delhom, E.; Pierredon-Foulongne, M.A.; Cercueil, J.P.; Guiu, B. Transarterial Chemoembolization for Hepatocellular Carcinoma: An Old Method, Now Flavor of the Day. Diagn. Interv. Imaging 2015, 96, 607–615. [Google Scholar] [CrossRef]
  36. Cazejust, J.; Bessoud, B.; Colignon, N.; Garcia-Alba, C.; Planché, O.; Menu, Y. Hepatocellular Carcinoma Vascularization: From the Most Common to the Lesser Known Arteries. Diagn. Interv. Imaging 2014, 95, 27–36. [Google Scholar] [CrossRef]
  37. Song, S.-Y.; Chung, J.W.; Yin, Y.H.; Jae, H.J.; Kim, H.-C.; Jeon, U.B.; Cho, B.H.; So, Y.H.; Park, J.H. Celiac Axis and Common Hepatic Artery Variations in 5002 Patients: Systematic Analysis with Spiral CT and DSA. Radiology 2010, 255, 278–288. [Google Scholar] [CrossRef]
  38. Choi, T.W.; Chung, J.W.; Kim, H.C.; Lee, M.; Choi, J.W.; Jae, H.J.; Hur, S. Anatomic Variations of the Hepatic Artery in 5625 Patients. Radiol. Cardiothorac. Imaging 2021, 3, e210007. [Google Scholar] [CrossRef]
  39. Cho, Y.; Choi, J.W.; Kwon, H.; Kim, K.Y.; Lee, B.C.; Chu, H.H.; Lee, D.H.; Lee, H.A.; Kim, G.M.; Oh, J.S.; et al. Research Committee of the Korean Liver Cancer Association. Transarterial Chemoembolization for Hepatocellular Carcinoma: 2023 Expert Consensus-Based Practical Recommendations of the Korean Liver Cancer Association. Korean J. Radiol. 2023, 24, 606–625. [Google Scholar] [CrossRef]
  40. Abou Khadrah, R.S.; Abedelmalik, M.H.; Alameldeen, M.A.E.; Elbarbary, A.A. Hepatocellular Carcinoma Vascularization: CT Angiography Variations Identifying Arteries Feeding the Tumour. Egypt. J. Radiol. Nucl. Med. 2023, 54, 183. [Google Scholar] [CrossRef]
  41. Bolintineanu, L.A.; Bolintineanu, S.L.; Iacob, N.; Zăhoi, D.-E. Clinical Consideration of Anatomical Variations in the Common Hepatic Arteries: An Analysis Using MDCT Angiography. Diagnostics 2023, 13, 1636. [Google Scholar] [CrossRef]
  42. Gietzen, C.; Janssen, J.P.; Görtz, L.; Kaya, K.; Gietzen, T.; Gertz, R.J.; Pennig, H.; Seuthe, K.; Maintz, D.; Rauen, P.S.; et al. Non-contrast-enhanced MR-angiography of the abdominal arteries: Intraindividual comparison between relaxation-enhanced angiography without contrast and triggering (REACT) and 4D contrast-enhanced MR-angiography. Abdom. Radiol. 2025, 50, 1887–1898. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  43. Samuolyte, A.; Luksaite-Lukste, R.; Kvietkauskas, M. Anatomical variations of hepatic arteries: Implications for clinical practice. Front. Surg. 2025, 12, 1593800. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  44. Cui, Z.; Shukla, P.A.; Habibollahi, P.; Park, H.S.; Fischman, A.; Kolber, M.K. A Systematic Review of Automated Feeder Detection Software for Locoregional Treatment of Hepatic Tumors. Diagn. Interv. Imaging 2020, 101, 439–449. [Google Scholar] [CrossRef] [PubMed]
  45. Chang, Y.; Jeong, S.W.; Jang, J.Y.; Kim, Y.J. Recent Updates of Transarterial Chemoembolization in Hepatocellular Carcinoma. Int. J. Mol. Sci. 2020, 21, 8165. [Google Scholar] [CrossRef] [PubMed]
  46. Kudo, M.; Han, K.H.; Ye, S.L.; Zhou, J.; Huang, Y.H.; Lin, S.M.; Wang, C.K.; Ikeda, M.; Chan, S.L.; Choo, S.P.; et al. A Changing Paradigm for the Treatment of Intermediate-Stage Hepatocellular Carcinoma: Asia-Pacific Primary Liver Cancer Expert Consensus Statements. Liver Cancer 2020, 9, 245–260. [Google Scholar] [CrossRef] [PubMed]
  47. Müller, L.; Stoehr, F.; Mähringer-Kunz, A.; Hahn, F.; Weinmann, A.; Kloeckner, R. Current Strategies to Identify Patients That Will Benefit from TACE Treatment and Future Directions—A Practical Step-by-Step Guide. J. Hepatocell. Carcinoma 2021, 8, 403–419. [Google Scholar] [CrossRef]
  48. Omata, M.; Cheng, A.L.; Kokudo, N.; Kudo, M.; Lee, J.M.; Jia, J.; Tateishi, R.; Han, K.H.; Chawla, Y.K.; Shiina, S.; et al. Asia-Pacific Clinical Practice Guidelines on the Management of Hepatocellular Carcinoma: A 2017 Update. Hepatol. Int. 2017, 11, 317–370. [Google Scholar] [CrossRef]
  49. Paul, S.B.; Gamanagatti, S.R.; Mukund, A.; Abbas, S.Z.; Acharya, S.K. Transarterial Chemoembolization for Hepatocellular Carcinoma: Significance of Extrahepatic Collateral Supply. Indian J. Cancer 2011, 48, 339–344. [Google Scholar] [CrossRef]
  50. Chou, C.T.; Huang, Y.C.; Lee, C.W.; Lee, K.W.; Chen, Y.L.; Chen, R.C. Efficacy of Transarterial Chemoembolization for Hepatocellular Carcinoma in Interlobar Watershed Zone of Liver: Comparison of Unilateral and Bilateral Chemoembolization. J. Vasc. Interv. Radiol. 2012, 23, 1036–1042. [Google Scholar] [CrossRef]
  51. Peng, C.W.; Teng, W.; Lui, K.W.; Hung, C.F.; Jeng, W.J.; Huang, C.H.; Chen, W.T.; Lin, C.C.; Lin, C.Y.; Lin, S.M.; et al. Complete Response at First Transarterial Chemoembolization Predicts Favorable Outcome in Hepatocellular Carcinoma. Am. J. Cancer Res. 2021, 11, 4956–4965. [Google Scholar]
  52. Miyayama, S.; Yamashiro, M.; Sugimori, N.; Ikeda, R.; Okimura, K.; Sakuragawa, N. Outcomes of Patients with Hepatocellular Carcinoma Treated with Conventional Transarterial Chemoembolization Using Guidance Software. J. Vasc. Interv. Radiol. 2019, 30, 10–18. [Google Scholar] [CrossRef]
  53. Iwazawa, J.; Ohue, S.; Hashimoto, N.; Mitani, T. Accuracy of Software-Assisted Detection of Tumour Feeders in Transcatheter Hepatic Chemoembolization Using Three Target Definition Protocols. Clin. Radiol. 2014, 69, 145–150. [Google Scholar] [CrossRef] [PubMed]
  54. Sakon, M.; Nagano, H.; Nakamori, S.; Dono, K.; Umeshita, K.; Murakami, T.; Nakamura, H.; Monden, M. Intrahepatic Recurrences of Hepatocellular Carcinoma after Hepatectomy: Analysis Based on Tumor Hemodynamics. Arch. Surg. 2002, 137, 94–99. [Google Scholar] [CrossRef] [PubMed]
  55. Teng, W.; Liu, K.W.; Lin, C.C.; Jeng, W.J.; Chen, W.T.; Sheen, I.S.; Lin, C.Y.; Lin, S.M. Insufficient Ablative Margin Determined by Early Computed Tomography May Predict the Recurrence of Hepatocellular Carcinoma after Radiofrequency Ablation. Liver Cancer 2015, 4, 26–38. [Google Scholar] [CrossRef] [PubMed]
  56. Miyayama, S.; Matsui, O. Superselective Conventional Transarterial Chemoembolization for Hepatocellular Carcinoma: Rationale, Technique, and Outcome. J. Vasc. Interv. Radiol. 2016, 27, 1269–1278. [Google Scholar] [CrossRef]
  57. Miyayama, S.; Yamashiro, M.; Shibata, Y.; Hashimoto, M.; Yoshida, M.; Tsuji, K.; Toshima, F.; Matsui, O. Comparison of Local Control Effects of Superselective Transcatheter Arterial Chemoembolization Using Epirubicin plus Mitomycin C and Miriplatin for Hepatocellular Carcinoma. Jpn. J. Radiol. 2012, 30, 263–270. [Google Scholar] [CrossRef]
  58. Sasaki, A.; Kai, S.; Iwashita, Y.; Hirano, S.; Ohta, M.; Kitano, S. Microsatellite Distribution and Indication for Locoregional Therapy in Small Hepatocellular Carcinoma. Cancer 2005, 103, 299–306. [Google Scholar] [CrossRef]
  59. Kim, H.C. Role of C-Arm Cone-Beam CT in Chemoembolization for Hepatocellular Carcinoma. Korean J. Radiol. 2015, 16, 114–124. [Google Scholar] [CrossRef]
  60. Kim, H.C.; Chung, J.W.; Lee, W.; Jae, H.J.; Park, J.H. Recognizing Extrahepatic Collateral Vessels That Supply Hepatocellular Carcinoma to Avoid Complications of Transcatheter Arterial Chemoembolization. RadioGraphics 2005, 25 (Suppl. 1), S25–S39. [Google Scholar] [CrossRef]
  61. Sun, Z.; Shi, Z.; Xin, Y.; Zhao, S.; Jiang, H.; Li, J.; Li, J.; Jiang, H. Contrast-Enhanced CT Imaging Features Combined with Clinical Factors to Predict the Efficacy and Prognosis for Transarterial Chemoembolization of Hepatocellular Carcinoma. Acad. Radiol. 2023, 30 (Suppl. 1), S81–S91. [Google Scholar] [CrossRef] [PubMed]
  62. Huang, D.; Chen, Y.; Zeng, Q.; Zhao, J.; Wu, X.; Wu, R.; Li, Y. Blood Supply Characteristics of Pedunculated Hepatocellular Carcinoma Prior to and Following Transcatheter Arterial Chemoembolization Treatment: An Angiographic Demonstration. Oncol. Lett. 2018, 15, 3383–3389. [Google Scholar] [CrossRef] [PubMed]
  63. Miyayama, S.; Matsui, O.; Akakura, Y.; Yamamoto, T.; Nishida, H.; Yoneda, K.; Kawai, K.; Nishijima, H. Hepatocellular Carcinoma with Blood Supply from Omental Branches: Treatment with Transcatheter Arterial Embolization. J. Vasc. Interv. Radiol. 2001, 12, 1285–1290. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, G.W.; Song, B.; Li, Z.L.; Yuan, Y. Ectopic Blood Supply of Hepatocellular Carcinoma as Depicted by Angiography with Computed Tomography: Associations with Morphological Features and Therapeutic History. PLoS ONE 2013, 8, e71942. [Google Scholar] [CrossRef]
  65. Park, S.I.; Lee, D.Y.; Won, J.Y.; Lee, J.T. Extrahepatic Collateral Supply of Hepatocellular Carcinoma by the Intercostal Arteries. J. Vasc. Interv. Radiol. 2003, 14, 461–468. [Google Scholar] [CrossRef]
  66. Nakai, M.; Sato, M.; Kawai, N.; Minamiguchi, H.; Masuda, M.; Tanihata, H.; Takeuchi, T.; Terada, M.; Kishi, K. Hepatocellular Carcinoma: Involvement of the Internal Mammary Artery. Radiology 2001, 219, 147–152. [Google Scholar] [CrossRef]
  67. Kakeda, S.; Korogi, Y.; Ohnari, N.; Moriya, J.; Oda, N.; Nishino, K.; Miyamoto, W. Usefulness of Cone-Beam Volume CT with Flat Panel Detectors in Conjunction with Catheter Angiography for Transcatheter Arterial Embolization. J. Vasc. Interv. Radiol. 2007, 18, 1508–1516. [Google Scholar] [CrossRef]
  68. Iwazawa, J.; Ohue, S.; Mitani, T.; Abe, H.; Hashimoto, N.; Hamuro, M.; Nakamura, K. Identifying Feeding Arteries during TACE of Hepatic Tumors: Comparison of C-Arm CT and Digital Subtraction Angiography. Am. J. Roentgenol. 2009, 192, 1057–1063. [Google Scholar] [CrossRef]
  69. Pung, L.; Ahmad, M.; Mueller, K.; Rosenberg, J.; Stave, C.; Hwang, G.L.; Shah, R.; Kothary, N. The Role of Cone-Beam CT in Transcatheter Arterial Chemoembolization for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis. J. Vasc. Interv. Radiol. 2017, 28, 334–341. [Google Scholar] [CrossRef]
  70. Wang, X.; Yarmohammadi, H.; Cao, G.; Ji, X.; Hu, J.; Yarmohammadi, H.; Chen, H.; Zhu, X.; Yang, R.; Solomon, S.B. Dual Phase Cone-Beam Computed Tomography in Detecting <3 cm Hepatocellular Carcinomas during Transarterial Chemoembolization. J. Cancer Res. Ther. 2017, 13, 38–43. [Google Scholar] [CrossRef]
  71. Joo, S.M.; Kim, Y.P.; Yum, T.J.; Eun, N.L.; Lee, D.; Lee, K.H. Optimized Performance of FlightPlan during Chemoembolization for Hepatocellular Carcinoma: Importance of the Proportion of Segmented Tumor Area. Korean J. Radiol. 2016, 17, 771–778. [Google Scholar] [CrossRef]
  72. Bannangkoon, K.; Hongsakul, K.; Tubtawee, T. Impact of Cone-Beam Computed Tomography with Automated Feeder Detection Software on the Survival Outcome of Patients with Hepatocellular Carcinoma during Treatment with Conventional Transarterial Chemoembolization. BMC Gastroenterol. 2021, 21, 419. [Google Scholar] [CrossRef]
  73. De Baere, T.; Arai, Y.; Lencioni, R.; Geschwind, J.-F.; Rilling, W.; Salem, R.; Matsui, O.; Soulen, M.C. Treatment of Liver Tumors with Lipiodol TACE: Technical Recommendations from Experts Opinion. Cardiovasc. Interv. Radiol. 2016, 39, 334–343. [Google Scholar] [CrossRef]
  74. Zhong, B.Y.; Jia, Z.Z.; Zhang, W.; Liu, C.; Ying, S.-H.; Yan, Z.-P.; Ni, C.-F.; Clinical Guidelines Committee of Chinese College of Interventionalists. Application of Cone-Beam Computed Tomography in Interventional Therapies for Liver Malignancy: A Consensus Statement by the Chinese College of Interventionalists. J. Clin. Transl. Hepatol. 2024, 12, 886–891. [Google Scholar] [CrossRef]
  75. Chiaradia, M.; Izamis, M.-L.; Radaelli, A.; Prevoo, W.; Maleux, G.; Schlachter, T.; Mayer, J.; Luciani, A.; Kobeiter, H.; Tacher, V. Sensitivity and Reproducibility of Automated Feeding Artery Detection Software during Transarterial Chemoembolization of Hepatocellular Carcinoma. J. Vasc. Interv. Radiol. 2018, 29, 425–431. [Google Scholar] [CrossRef]
  76. Baere, T.; Ronot, M.; Chung, J.W.; Golfieri, R.; Kloeckner, R.; Park, J.W.; Gebauer, B.; Kibriya, N.; Ananthakrishnan, G.; Miyayama, S. Initiative on Superselective Conventional Transarterial Chemoembolization Results (INSPIRE). Cardiovasc. Interv. Radiol. 2022, 45, 1430–1440. [Google Scholar] [CrossRef]
  77. Miyayama, S.; Yamashiro, M.; Ikeda, R.; Matsumoto, J.; Ogawa, N.; Sakuragawa, N. Usefulness of Virtual Parenchymal Perfusion Software Visualizing Embolized Areas to Determine Optimal Catheter Position in Superselective Conventional Transarterial Chemoembolization for Hepatocellular Carcinoma. Hepatol. Res. 2021, 51, 313–322. [Google Scholar] [CrossRef] [PubMed]

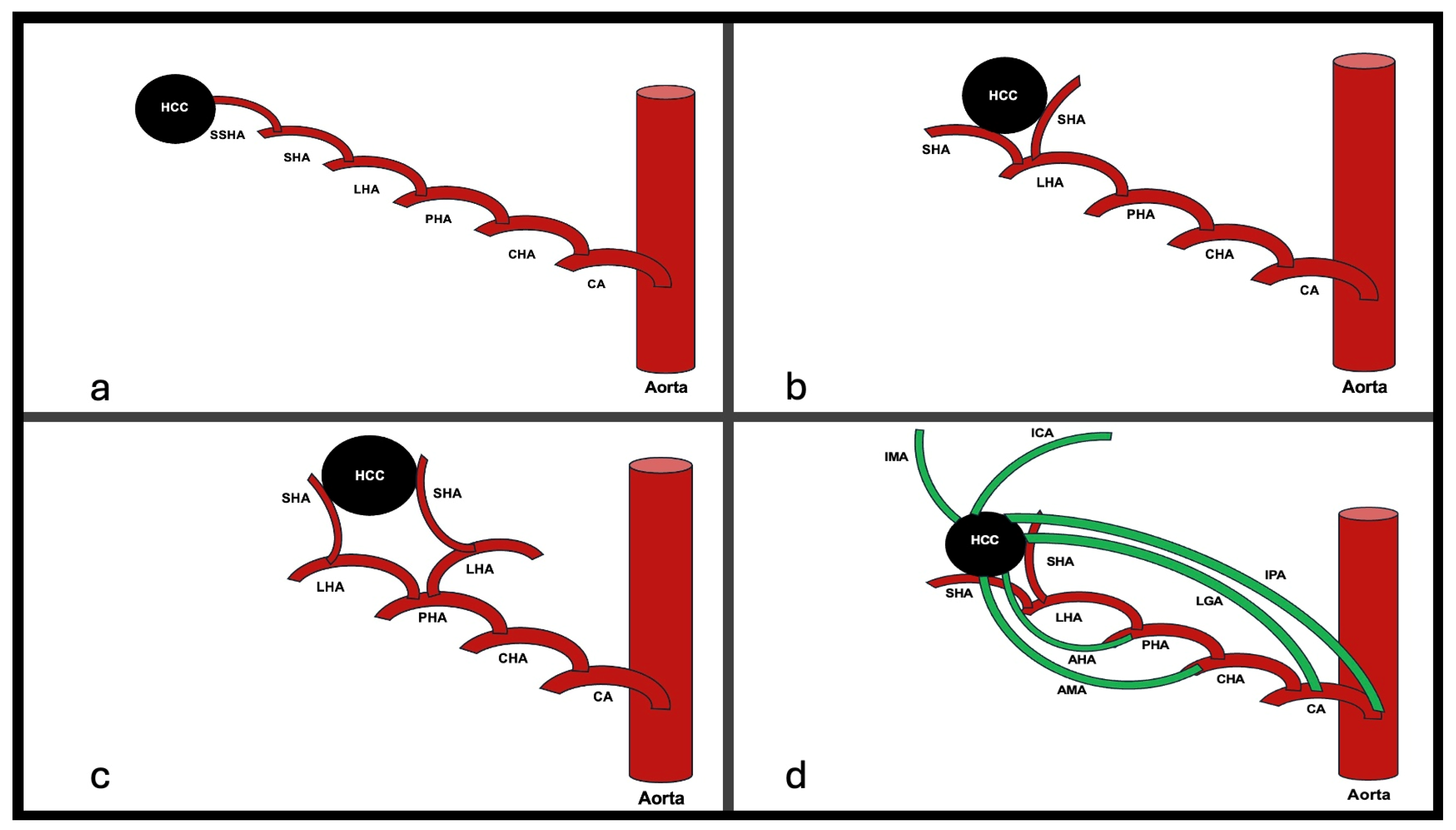

Figure 1. Classification of HCC feeding arteries. (a) Type 1. Single feeding artery branch of single lobar hepatic artery. (b) Type 2. Multiple feeding arteries from single lobar hepatic artery. (c) Type 3. Multiple feeding arteries from multiple lobar hepatic arteries. (d) Type 4. Multiple feeding arteries from lobar hepatic arteries plus accessory arteries. Green colored arteries indicate accessory feeders. CA: celiac artery; CHA: common hepatic artery; PHA: proper hepatic artery; LHA: lobar hepatic artery; SHA: segmental hepatic artery; SSHA: subsegmental hepatic artery; IPA: inferior phrenic artery; LGA: left gastric artery; AMA: accessory mesenteric artery; AHA: accessory hepatic artery; IMA: internal mammary artery; ICA: intercoastal artery.
Figure 1. Classification of HCC feeding arteries. (a) Type 1. Single feeding artery branch of single lobar hepatic artery. (b) Type 2. Multiple feeding arteries from single lobar hepatic artery. (c) Type 3. Multiple feeding arteries from multiple lobar hepatic arteries. (d) Type 4. Multiple feeding arteries from lobar hepatic arteries plus accessory arteries. Green colored arteries indicate accessory feeders. CA: celiac artery; CHA: common hepatic artery; PHA: proper hepatic artery; LHA: lobar hepatic artery; SHA: segmental hepatic artery; SSHA: subsegmental hepatic artery; IPA: inferior phrenic artery; LGA: left gastric artery; AMA: accessory mesenteric artery; AHA: accessory hepatic artery; IMA: internal mammary artery; ICA: intercoastal artery.
Diagnostics 15 02533 g001

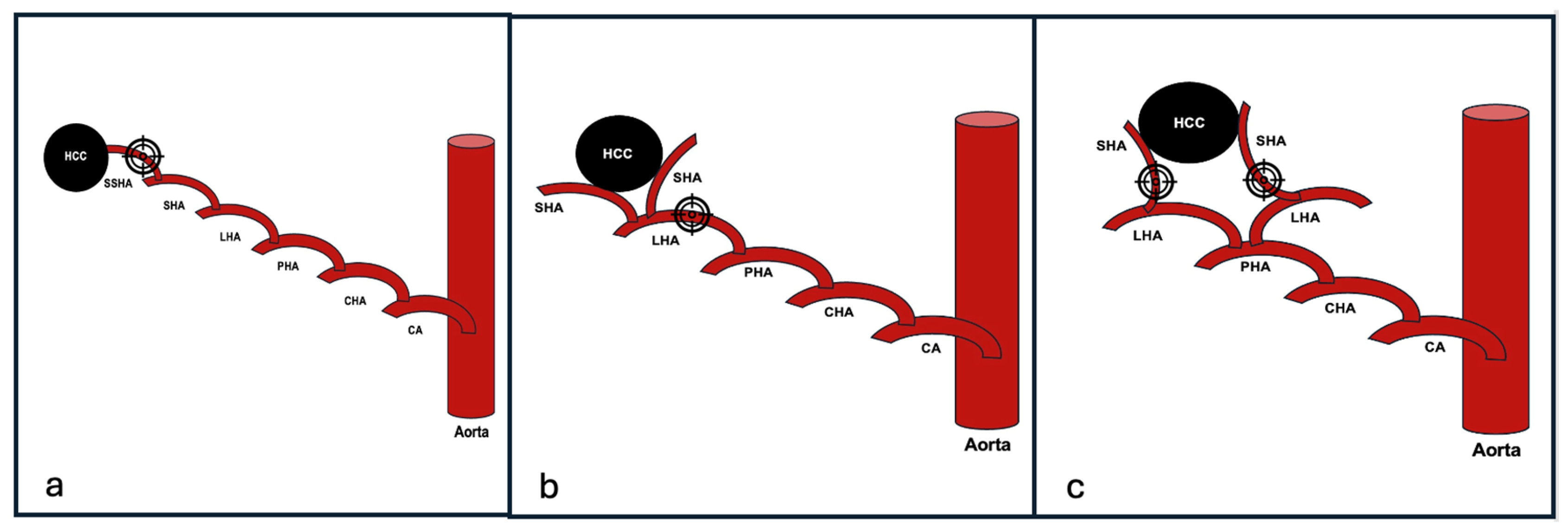

Figure 2. (a) Subsegmental embolization point; (b) lobar embolization point; (c) two segmental embolization points. Target signs indicate the recommended embolization site in each scenario.
Figure 2. (a) Subsegmental embolization point; (b) lobar embolization point; (c) two segmental embolization points. Target signs indicate the recommended embolization site in each scenario.
Diagnostics 15 02533 g002

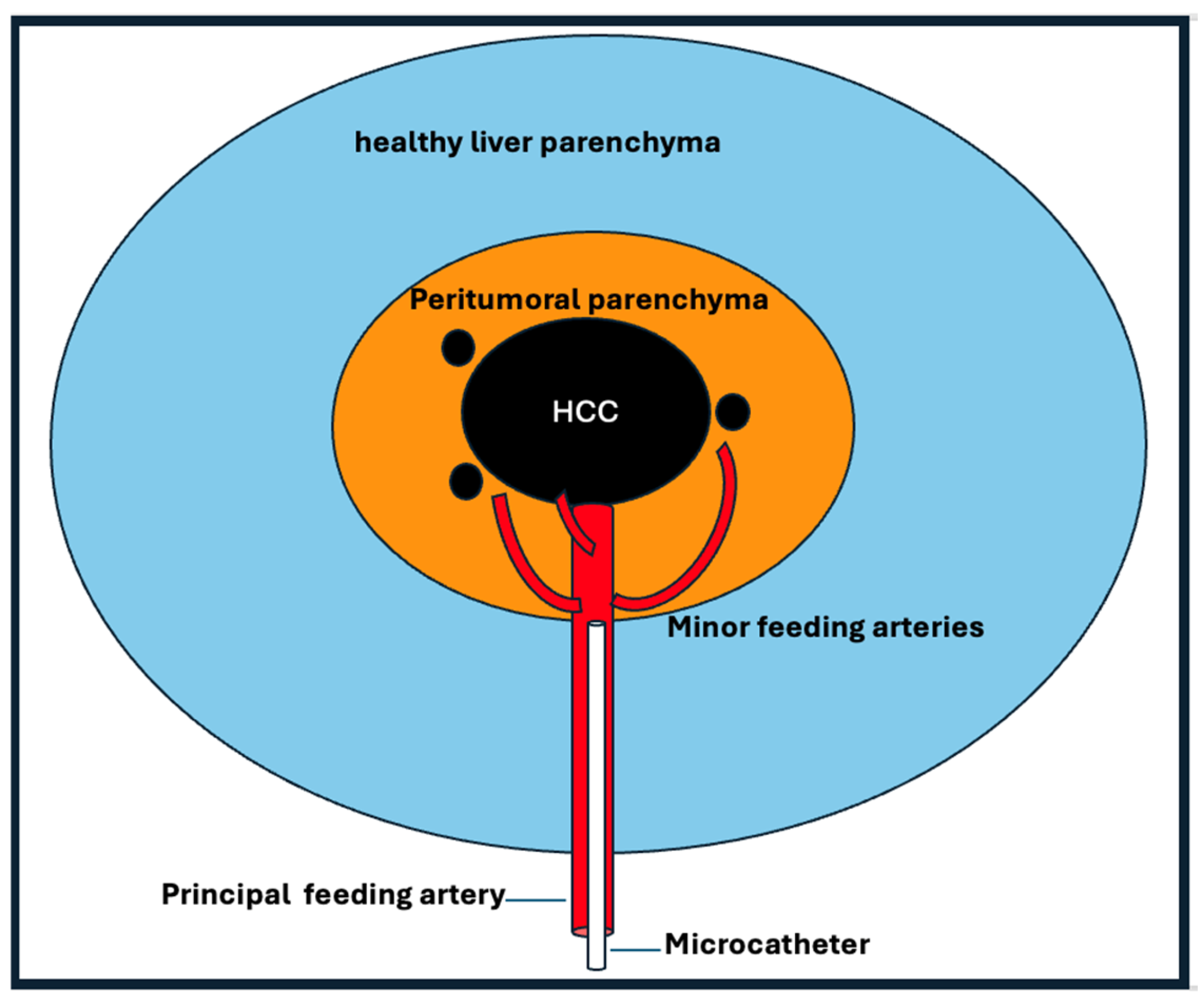

Figure 3. Embolization of the principal feeding artery should include the minor feeding arteries in the peritumoral area. The peritumoral area may contain microsatellite lesions.
Figure 3. Embolization of the principal feeding artery should include the minor feeding arteries in the peritumoral area. The peritumoral area may contain microsatellite lesions.
Diagnostics 15 02533 g003

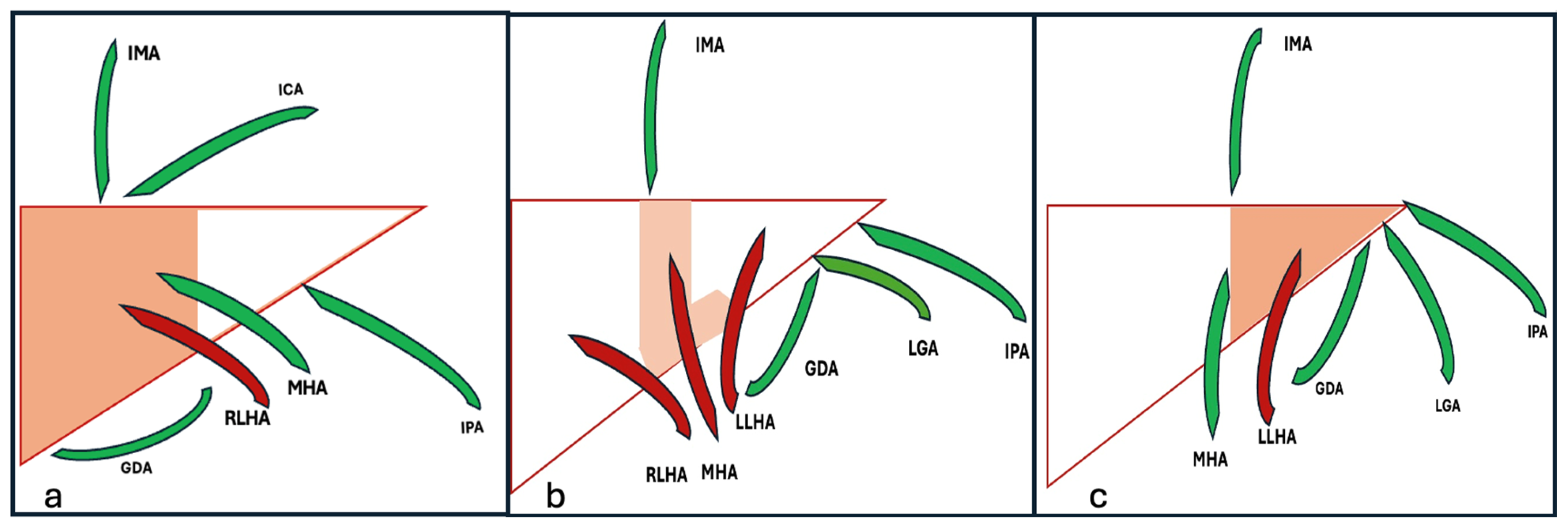

Figure 4. Common accessory arterial supply. (a) Right hepatic lobe, (b) segments 4 and 1, and (c) left liver lobe. RLHA: right lobar hepatic artery; LLHA: left lobar hepatic artery; MHA: middle hepatic artery; GDA: gastroduodenal artery; LGA: left gastric artery; IPA: inferior phrenic artery; IMA: internal mammary artery; ICA: intercostal artery.
Figure 4. Common accessory arterial supply. (a) Right hepatic lobe, (b) segments 4 and 1, and (c) left liver lobe. RLHA: right lobar hepatic artery; LLHA: left lobar hepatic artery; MHA: middle hepatic artery; GDA: gastroduodenal artery; LGA: left gastric artery; IPA: inferior phrenic artery; IMA: internal mammary artery; ICA: intercostal artery.
Diagnostics 15 02533 g004

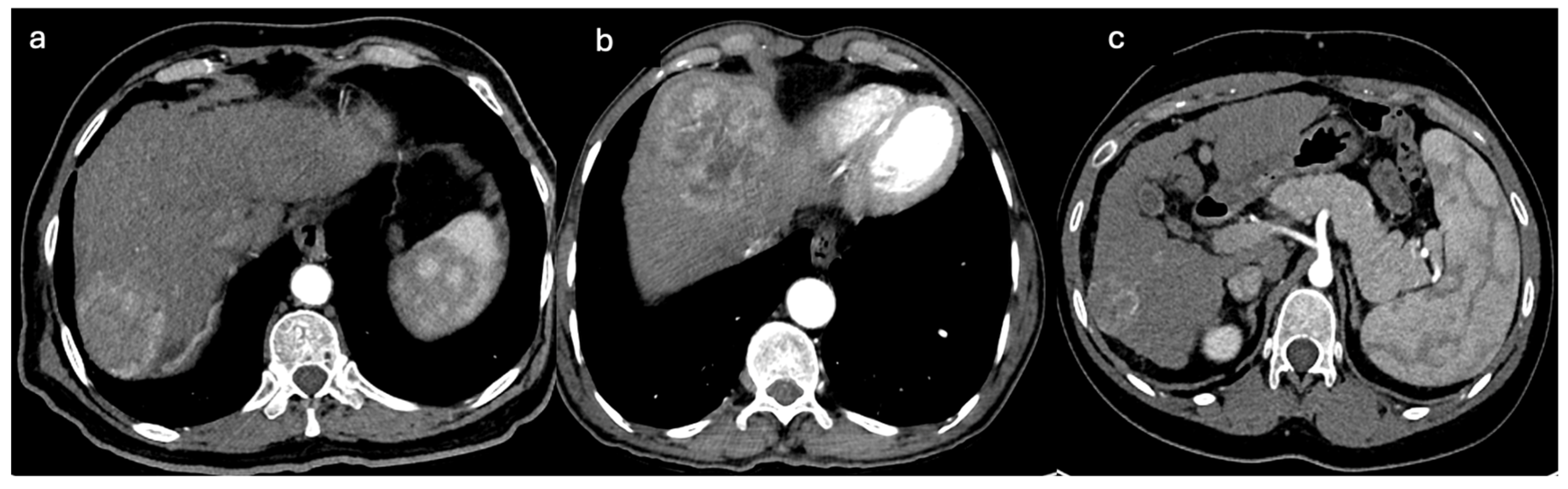

Figure 5. Axial CT. (a) CT image showing HCC located posteriorly at liver dome with an accessory feeding supply from inferior phrenic artery. (b) CT image showing HCC located anteriorly at liver dome with an accessory feeding supply from internal mammary artery. (c) CT image showing subcapsular HCC near the rib with an accessory feeding supply from intercoastal artery.
Figure 5. Axial CT. (a) CT image showing HCC located posteriorly at liver dome with an accessory feeding supply from inferior phrenic artery. (b) CT image showing HCC located anteriorly at liver dome with an accessory feeding supply from internal mammary artery. (c) CT image showing subcapsular HCC near the rib with an accessory feeding supply from intercoastal artery.
Diagnostics 15 02533 g005

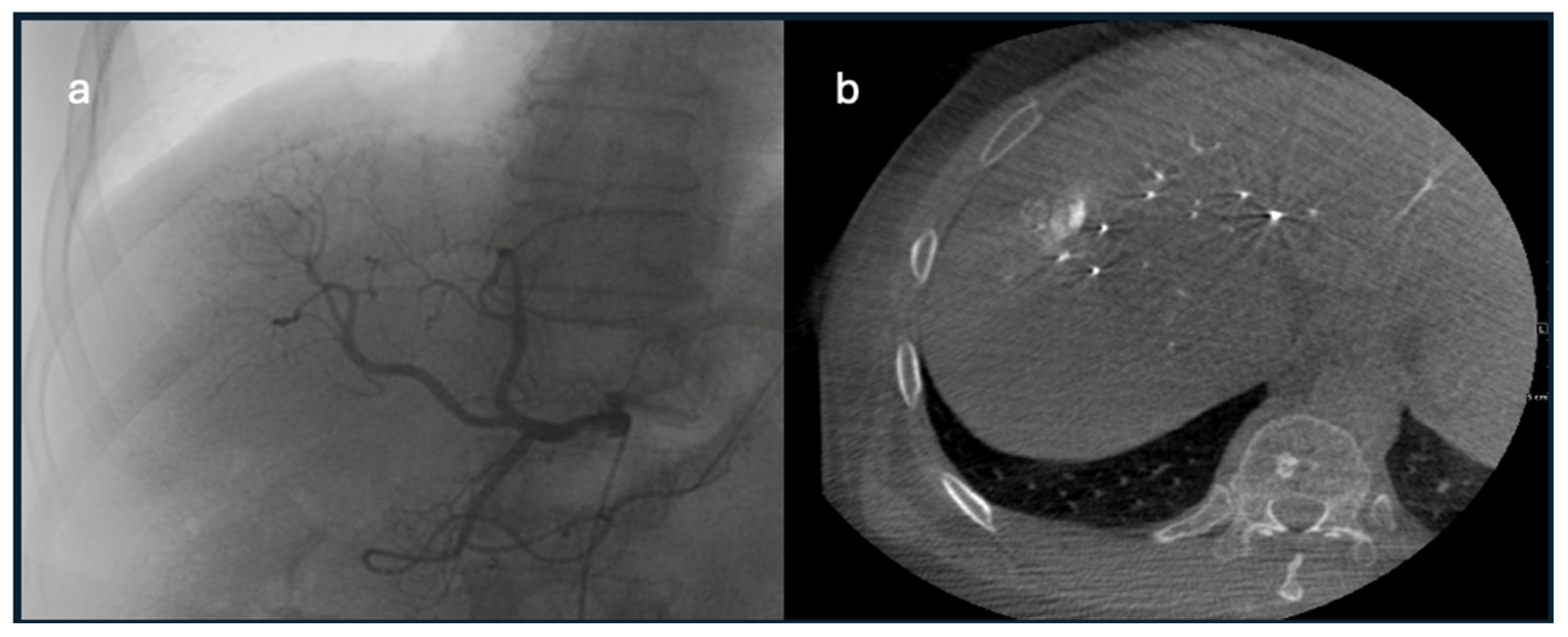

Figure 6. CBCT during TACE. (a) DSA image of HCC feeding artery. (b) CBCT image showing enhancing HCC.
Figure 6. CBCT during TACE. (a) DSA image of HCC feeding artery. (b) CBCT image showing enhancing HCC.
Diagnostics 15 02533 g006

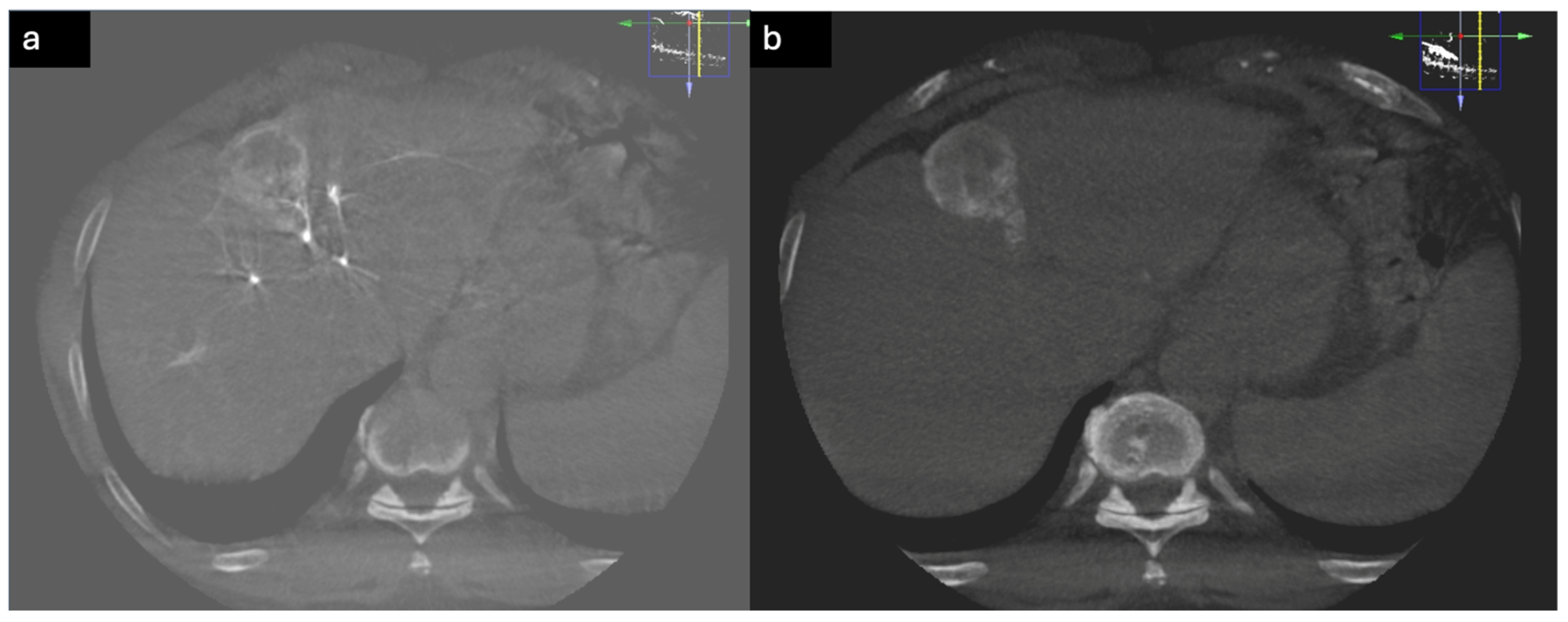

Figure 7. CBCT during TACE. (a) CBCT image of HCC before embolization showing enhancing lesion with feeding artery. (b) CBCT after embolization image (without contrast) showing complete coverage of HCC.
Figure 7. CBCT during TACE. (a) CBCT image of HCC before embolization showing enhancing lesion with feeding artery. (b) CBCT after embolization image (without contrast) showing complete coverage of HCC.
Diagnostics 15 02533 g007

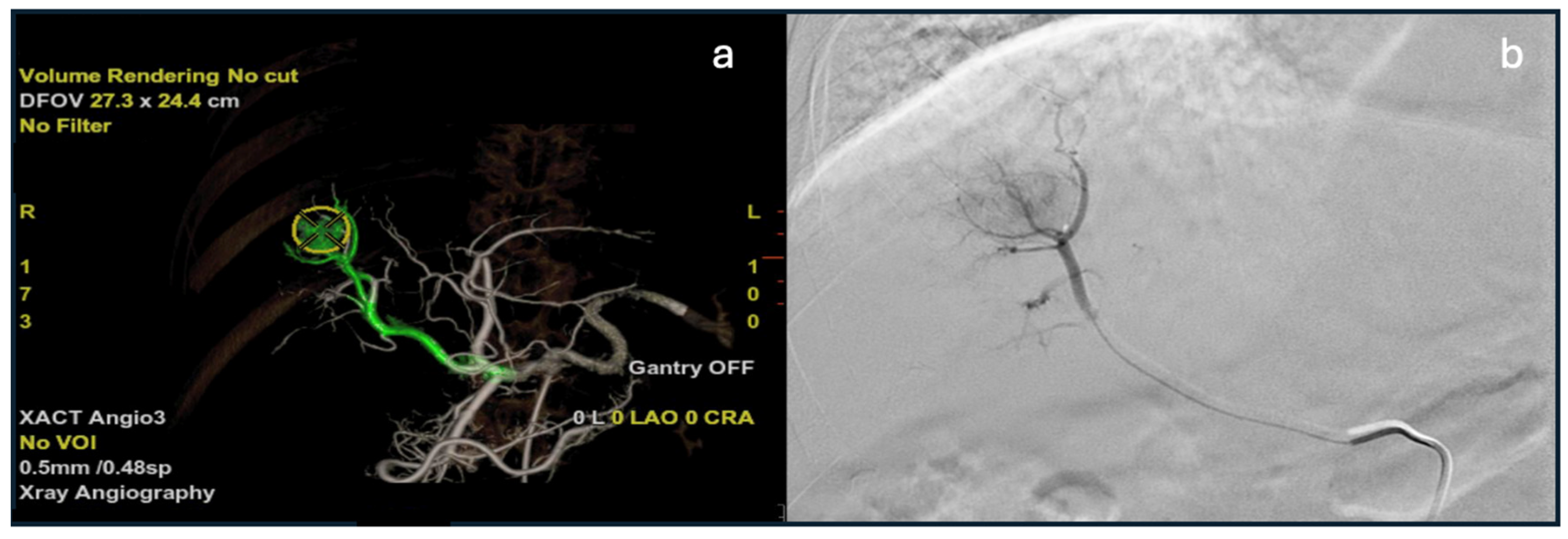

Figure 8. Automated feeder detection software. (a) Volume rendering image of software feeder detection showing a segmental arterial HCC feeder from celiac angiography. (b) DSA image of selected segmental feeder branch showing a hypervascular HCC.
Figure 8. Automated feeder detection software. (a) Volume rendering image of software feeder detection showing a segmental arterial HCC feeder from celiac angiography. (b) DSA image of selected segmental feeder branch showing a hypervascular HCC.
Diagnostics 15 02533 g008

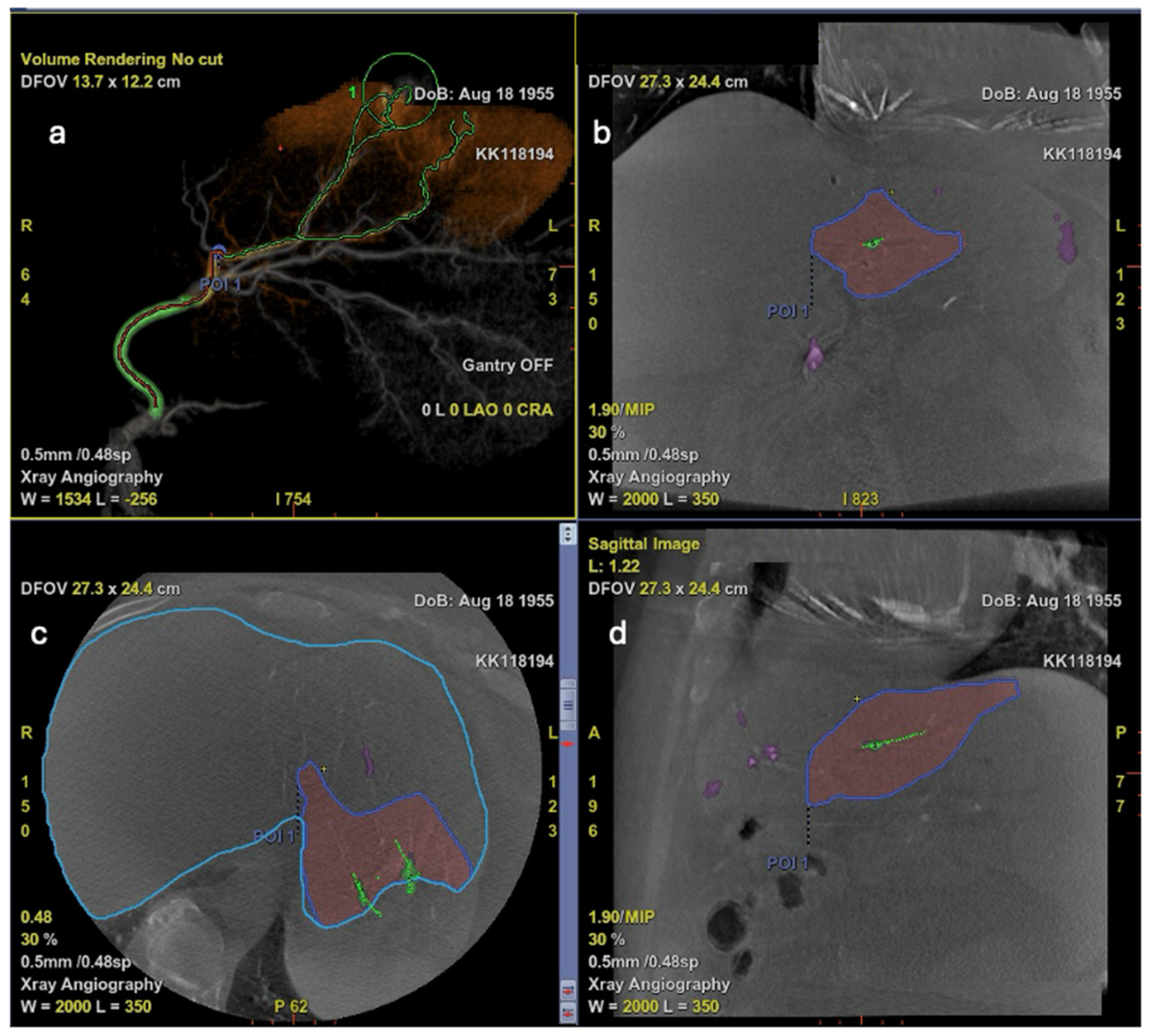

Figure 9. Virtual parenchymal perfusion software images. (a) Volume rendering image of automated detection of HCC feeders. (b) Coronal image of affected liver parenchyma during TACE. (c) Axial image of affected liver parenchyma during TACE. (d) Sagittal image of affected liver parenchyma during TACE. Affected liver parenchyma is colored and labeled by point of interest (POI).
Figure 9. Virtual parenchymal perfusion software images. (a) Volume rendering image of automated detection of HCC feeders. (b) Coronal image of affected liver parenchyma during TACE. (c) Axial image of affected liver parenchyma during TACE. (d) Sagittal image of affected liver parenchyma during TACE. Affected liver parenchyma is colored and labeled by point of interest (POI).
Diagnostics 15 02533 g009
Table 1. Classification of hepatocellular carcinoma feeding arteries.
Table 1. Classification of hepatocellular carcinoma feeding arteries.
TypeDescription
1Single feeding artery branch of a single lobar hepatic artery
2Multiple feeding arteries from a single lobar hepatic artery
3Multiple feeding arteries from multiple lobar hepatic arteries
4Multiple feeding arteries from lobar hepatic arteries plus accessory arteries
Table 2. Embolization point types, locations of catheter tip, and affected liver parenchyma.
Table 2. Embolization point types, locations of catheter tip, and affected liver parenchyma.
Type Catheter Tip LocationHepatic Parenchyma Affected
Lobar TACE (non-selective)Lobar hepatic arteryWhole liver lobe
Selective TACESegmental hepatic arteryLiver segment
Superselective TACESubsegmental hepatic arteryPart of liver segment
Table 3. Embolization points for each feeding artery classification.
Table 3. Embolization points for each feeding artery classification.
Feeding HCC ArteryEmbolization Point
Single feeding artery from single lobar arterySuperselective or selective (one point)
Multiple feeding arteries from one lobar artery Lobar embolization point
Multiple feeding arteries from two lobar arteriesSuperselective or selective (two points)
Table 4. CBCT utilization in different scenarios during TACE.
Table 4. CBCT utilization in different scenarios during TACE.
ScenarioPurpose
1. No tumor blush or feeder artery seen in DSATo detect subtle feeders and confirm subtle less vascular tumors
2. Overlying multiple arteriesTo ensure complete tumor coverage/guide selectivity
3. Suspected accessory feeder arteriesTo identify accessory or extrahepatic tumor supply
4. Post-embolization To verify devascularization and technical success
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alharbi, S.R. Selective Angiographic Roadmap Analysis (SARA) of Hepatocellular Carcinoma Feeding Arteries for Transarterial Chemoembolization. Diagnostics 2025, 15, 2533. https://doi.org/10.3390/diagnostics15192533

AMA Style

Alharbi SR. Selective Angiographic Roadmap Analysis (SARA) of Hepatocellular Carcinoma Feeding Arteries for Transarterial Chemoembolization. Diagnostics. 2025; 15(19):2533. https://doi.org/10.3390/diagnostics15192533

Chicago/Turabian Style

Alharbi, Sultan R. 2025. "Selective Angiographic Roadmap Analysis (SARA) of Hepatocellular Carcinoma Feeding Arteries for Transarterial Chemoembolization" Diagnostics 15, no. 19: 2533. https://doi.org/10.3390/diagnostics15192533

APA Style

Alharbi, S. R. (2025). Selective Angiographic Roadmap Analysis (SARA) of Hepatocellular Carcinoma Feeding Arteries for Transarterial Chemoembolization. Diagnostics, 15(19), 2533. https://doi.org/10.3390/diagnostics15192533

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
