Expanded Performance Comparison of the Oncuria 10-Plex Bladder Cancer Urine Assay Using Three Different Luminex xMAP Instruments
by
, and
Sunao Tanaka
1,
Takuto Shimizu
1,
Ian Pagano
2,
Wayne Hogrefe
3,
Sherry Dunbar
4,
Charles J. Rosser
1,2,5 and
Hideki Furuya
1,6,*
1
Samuel Oschin Comprehensive Cancer Institute, Cedars-Sinai Medical Center, Los Angeles, CA 90048, USA
2
Population Sciences in the Pacific Program, University of Hawaii Cancer Center, Honolulu, HI 96813, USA
3
Nonagen Bioscience Corp., Los Angeles, CA 90010, USA
4
Luminex Corp., Austin, TX 78727, USA
5
Department of Urology, Cedars-Sinai Medical Center, Los Angeles, CA 90048, USA
6
Department of Biomedical Sciences, Cedars-Sinai Medical Center, Los Angeles, CA 90048, USA
*
Author to whom correspondence should be addressed.
Diagnostics 2025, 15(14), 1749; https://doi.org/10.3390/diagnostics15141749
Submission received: 28 May 2025
/
Revised: 27 June 2025
/
Accepted: 9 July 2025
/
Published: 10 July 2025
(This article belongs to the Special Issue Diagnostic Markers of Genitourinary Tumors)
Abstract
Background/Objectives: The clinically validated multiplex Oncuria bladder cancer (BC) assay quickly and noninvasively identifies disease risk and tracks treatment success by simultaneously profiling 10 protein biomarkers in voided urine samples. Oncuria uses paramagnetic bead-based fluorescence multiplex technology (xMAP®; Luminex, Austin, TX, USA) to simultaneously measure 10 protein analytes in urine [angiogenin, apolipoprotein E, carbonic anhydrase IX (CA9), interleukin-8, matrix metalloproteinase-9 and -10, alpha-1 anti-trypsin, plasminogen activator inhibitor-1, syndecan-1, and vascular endothelial growth factor]. Methods: In a pilot study (N = 36 subjects; 18 with BC), Oncuria performed essentially identically across three different common analyzers (the laser/flow-based FlexMap 3D and 200 systems, and the LED/image-based MagPix system; Luminex). The current study compared Oncuria performance across instrumentation platforms using a larger study population (N = 181 subjects; 51 with BC). Results: All three analyzers assessed all 10 analytes in identical samples with excellent concordance. The percent coefficient of variation (%CV) in protein concentrations across systems was ≤2.3% for 9/10 analytes, with only CA9 having %CVs > 2.3%. In pairwise correlation plot comparisons between instruments for all 10 biomarkers, R2 values were 0.999 for 15/30 comparisons and R2 ≥ 0.995 for 27/30 comparisons; CA9 showed the greatest variability (R2 = 0.948–0.970). Standard curve slopes were statistically indistinguishable for all 10 biomarkers across analyzers. Conclusions: The Oncuria BC assay generates comprehensive urinary protein signatures useful for assisting BC diagnosis, predicting treatment response, and tracking disease progression and recurrence. The equivalent performance of the multiplex BC assay using three popular analyzers rationalizes test adoption by CLIA (Clinical Laboratory Improvement Amendments) clinical and research laboratories.
1. Introduction
In 2022, bladder cancer (BC) was newly diagnosed in 614,000 individuals worldwide and was associated with 220,000 deaths, with a 4-fold higher cumulative risk for males than females, and a higher incidence in European and North American populations than other regions [1,2]. Approximately 75% of the 83,000 BC cases diagnosed annually in the USA are non-muscle-invasive disease (NMIBC) that require years of ongoing surveillance for disease recurrence/progression after initial bladder resection with or without Bacillus Calmette–Guerin (BCG) therapy [3,4]. Muscle-invasive BC requires more aggressive initial treatment and long-term follow-up. Cystoscopy and voided urine cytology remain the gold standards for evaluating BC status [3,4]. Cystoscopy is invasive, expensive, and has significant associated risks (e.g., infection, trauma). Performing cytology on voided urine samples is noninvasive, comparatively inexpensive, and has high specificity for BC but also limited sensitivity, especially with low-grade and early-stage disease [5]. Analyzing protein biomarker profiles in urine samples has evolved into a noninvasive means to accurately identify BC, categorize disease risk, and evaluate treatment success [6].
There are no screening programs in common use for detecting BC, and diagnosis often follows patient presentation for gross (macroscopic) hematuria (i.e., cystoscopy, cytology, and upper tract imaging) or BC surveillance (i.e., cystoscopy and cytology). BC is a molecularly diverse disease, and no individual urine biomarker has yet been identified that can reliably identify and track disease, or predict the likelihood of recurrence or treatment-responsiveness to BCG [6,7,8,9]. Furthermore, urinary concentrations of some protein-based BC markers (e.g., nuclear matrix protein 22 [10] and bladder tumor antigen [11]) are increased in non-cancerous scenarios such as urinary tract inflammation, which can erroneously cause positive cancer determinations.
Multiplex assays that simultaneously evaluate diverse BC biomarkers in urine specimens increase test accuracy for identifying cancers with varied etiology and presentation, predicting treatment response, and accurately tracking therapy effectiveness [5]. This approach can quickly and noninvasively create detailed patient-specific BC protein signatures that can assist BC diagnosis, disease characterization and staging, and personalized treatment planning with the goal of improving patient outcomes [5]. Oncuria® (Nonagen Bioscience Corp., Los Angeles, CA, USA) is a bead-based multiplex fluorescence immunoassay that simultaneously measures the concentrations of 10 protein biomarkers in urine [12,13,14,15]. Analyte levels are mathematically integrated with patient characteristics using proprietary algorithms that generate composite BC risk scores designed to assist in BC diagnosis and disease characterization, predicting response to BCG therapy, and tracking treatment progress. The Oncuria assay is currently available in the USA [16,17]. In 2024, we published a proof-of-concept study that demonstrated similar Oncuria performance across three different Luminex instrumentation platforms commonly used by diagnostic clinical laboratories [18]. However, that report was constrained by a limited cohort size comprising urine specimens from 36 subjects (18 with BC). The current study, following regulatory guidance [19], compared Oncuria assay performance across the same three analyzers in an expanded cohort comprising 181 subjects (54 with BC).
2. Materials and Methods
2.1. Subjects and Urine Samples
Subjects included 54 individuals with BC and 127 non-BC controls. Data are reported according to the PROBE criteria [20]. There was no overlap between the current cohort and previously published cohorts [14]. The primary exclusion criterion was renal insufficiency (i.e., GFR <60 mL/min), because this condition is associated with proteinuria that can interfere with protein immunoassay performance and interpretation. Midstream voided urine samples that had been collected for cytology were centrifuged at 1000× g for 10 min to sediment particulates, and supernatants were immediately frozen to −20 °C—only a single freeze–thaw cycle occurred before the Oncuria evaluation.
This study received approval and a waiver of consent to use previously banked anonymized urine samples from the Cedars-Sinai Medical Center Institutional Review Board, Los Angeles, CA, USA (IRB #00001459). All samples were originally collected under IRB-approved protocols with written informed consent from participants for specimen banking and future research use. Study performance complied with the tenets of the Declaration of Helsinki.
2.2. Oncuria Assay
The multiplex Oncuria bead-based fluorescence assay simultaneously evaluates 10 protein analytes [serpin A1/alpha 1 anti-trypsin (A1AT), angiogenin (ANG), apolipoprotein E (ApoE), carbonic anhydrase IX (CA9), CXCL8/interleukin-8 (IL-8), matrix metalloproteinases-9 (MMP-9) and −10 (MMP-10), serpin E1/plasminogen activator inhibitor-1 (PAI-1), CD138/syndecan-1 (SDC-1), and vascular endothelial growth factor-A (VEGF-A)] in urine samples, using Luminex xMAP® (Multiple Analyte Profiling) technology (Luminex Corp.). With Oncuria, 10 distinct capture bead sets (panel #1 MMP-9, IL-8, VEGF-A, CA9; panel #2 A1AT, ANG, APOE, PAI-1, SDC-1; panel #3 MMP-10) allows the 10 target analytes to be concurrently isolated and analyzed by incubation with a single urine sample. Each bead set contains uniquely color-coded (thus differentiable) 6.5 µm polystyrene beads that are coupled to antibodies against a specific target biomarker. The beads’ paramagnetic core allows easy bead retrieval using a magnet. Beads with their captured target antigens are then quantified by flow cytometric analysis (Luminex 200 and FlexMap 3D; Luminex, Austin, TX, USA) and LED image analysis (MagPix; Luminex, Austin, TX, USA). Oncuria is in clinical trials to obtain FDA clearance/approval as an in vitro diagnostic test for detecting new BC cases in patients with hematuria (Oncuria-Detect) [21,22], for predicting responsiveness to BCG treatment in patients with BC (Oncuria-Predict) [23], and for identifying recurrence in patients with history of BC (Oncuria-Monitor) [24]. In a 2021 clinical validation study to detect de novo BC, the assay demonstrated an area under receiver operating curve, AUROC, value of 0.95 (95% CI: 0.90–1.00), with 93% specificity and 93% sensitivity, and an NPV of 0.99 and a PPV of 0.65 [12]. In a 2022 report, Oncuria predicted patient responsiveness to intravesical BCG therapy for treating NMIBC with an AUROC of 0.89, a sensitivity of 82%, and a specificity of 85% [13]. In a 2024 proof-of-concept report of 36 subjects (18 with BC), Oncuria urinary analyte concentrations were essentially identical when measured across three common analyzers [18]. The current report compared Oncuria performance across three analyzer instrumentation systems using a much larger cohort.
2.3. xMAP Instrumentation
Oncuria assay performance was compared using the laser/flow-based Luminex 200 and FlexMap 3D xMAP instruments and the LED/image-based MagPix. Analyzer software was the xPONENT software V4.3 (Luminex 200) and V4.2 (MagPix and FlexMap 3D) from Luminex Corp [25]. The Model 200 analyzer accommodates multiplex analysis of up to 100 analytes per sample and reads 96-well microtiter plates in ≤1 h. The more portable MagPix instrument can simultaneously evaluate 50 analytes in 96-well plates in ≈1 h. Both the 200 and MagPix models provide ≥ 3.5 logs of dynamic range. The newer FlexMap 3D system can measure up to 500 analytes per sample. It has an increased dynamic range (≥4.5 logs) versus earlier analyzers, and uses automated high-throughput analysis to read 96-well plates in ≈20 min and 384-well plates in ≈75 min [25].
2.4. Sample Treatment
Voided urine samples were thawed at 4 °C and centrifuged at 15,000× g for 5 min to sediment any particulates. Samples, standards, and controls (50 μL/well) were assayed in duplicate wells in 96-well plates. Standard curves for all 10 analytes were 3-fold dilutions that covered the dynamic range (>3-log) of all analytes. Bead incubations with sample and standards were performed in 96-well plates; at room temperature for 2 h, beads with captured analytes were immobilized, washed, resuspended, and analyzed.
2.5. Data Analysis
Data were analyzed using the SAS statistical software version 9.4 (SAS Institute Inc., Cary, NC, USA). Analyte concentrations were determined using standard curves generated with a 5-parameter logistical curve fit algorithm available with the xPONENT software. Biomarker concentrations are shown as mean pg/mL ± SD, median values, range, or n (%) of samples, as applicable. The intraclass correlation for inter-rater reliability assessed the agreement among the three instruments. For protein calculations, sample analyte measurements below the lowest standard were entered as the lowest standard concentration for that analyte, and values above the highest standard were replaced with that analyte’s respective highest standard value.
3. Results
3.1. Analyte Detection Ranges
The dynamic range of quantification (the lowest to highest standard concentration) for the 10 analytes are shown in Table 1 according to Certificate of Analysis enclosed in the kit. The lowest quantification limit of the 10 concurrently evaluated analytes was for CA9, at 1.5 pg/mL. The highest upper quantification limit was for A1AT, at 445,620 pg/mL.
3.2. Subject Characteristics
Subject demographics are shown in Table 2. Most subjects were ≥65 years (58%) and male (70%). Self-identified race was approximately evenly divided between White and non-White. Of subjects with BC, 76% (n = 41/54) had NMIBC, and disease was classified as high-grade in 76% (n = 41/54).
3.3. Signal Strength by Instrument
Raw fluorescence signals from the Model 200 and MagPix systems were nearly identical for all 10 analytes, and were both lower than raw signals from the FlexMap 3D analyzer (Supplemental Table S1), in agreement with previously published observations [18]. This variation stems from variations in the optical analysis platforms used by the different systems, and has no impact on calibration curve characteristics or analyte measurements.
3.4. Biomarker Quantification by Instrument
The calculated average concentrations of all 10 analytes were very close to identical, across all three instruments, in 100% (181/181) of urine samples (Table 3, Figure 1), with all intraclass correlations >0.99. A1AT had urinary concentrations that exceeded the upper standard of its dynamic range, observed with all three analyzers in 6% (n = 11/181) of patient samples, i.e., 6/54 cancer subjects and 5/127 controls. Interleukin-8 levels exceeded the highest standard value in 11% (6/54) of cancer subjects and 2% (2/127) of controls. ANG exceeded the highest standard curve value in 11% (6/54) of cancer subjects and 0% of controls. MMP-9 exceeded the highest standard value in 2% (2/54) of cancer subjects and 0% of controls. We acknowledge high SD values for all analytes—this was due to the wide range of measured concentrations across our study cohort that pooled healthy subjects with cancer patients.
While this report is intended to demonstrate assay reproducibility across different xMAP instruments and not for clinical validation, the noteworthy elevations of several analytes were noted in the representative urine samples for cancer versus control (Table 4 and Supplemental Table S2). Clinical studies that validated the Oncuria assay for diagnosing BC have been published elsewhere [12]. In the current cohort, all 10 urinary analyte levels trended higher in cancer versus control subjects.
3.5. Correlation Between Concentration Measurements from Different Analyzers
Scatter plots for all analytes were generated to evaluate the correlation between concentration measurements from three instruments (Supplemental Figure S1). When comparing the three instruments’ output pairwise, excellent correlation existed between calibration curves for all analytes, with R2 (coefficient of determination) values of 0.999 for 15 of 30 comparisons and R2 ≥ 0.995 for 27 of 30 comparisons, while the range of concentrations were wide (Table 5). The largest variation occurred with CA9, with R2 values ranging from 0.948 to 0.970, and associated %CVs ranging from 17.4% to 23.1%; most urinary CA9 concentrations were near the low end of the dynamic range, with multiple outliers at high concentration.
4. Discussion
The multiplex Oncuria BC assay performed equivalently across three different Luminex flow-based analyzers, for simultaneously evaluating its 10 biomarkers in urine samples to develop cancer risk signatures. Such agreement across different xMAP instrumentation platforms that are in common laboratory use supports the feasibility of performing the Oncuria assay in diverse diagnostic laboratories using popular equipment. The Oncuria assay is a noninvasive and rapid-reporting supplement to cystoscopy for identifying BC, predicting disease response to medical therapies, tracking treatment progress, and monitoring for neoplastic recurrence [12,13,14,15]. The Oncuria assay was previously demonstrated to perform equivalently well on these three analyzers [18], but that study was restricted to 36 participants, of whom only 18 had a BC diagnosis. The current study greatly strengthens those initial finding in an expanded cohort of 181 subjects, including 54 individuals with diagnosed BC.
Using multiplex technology to generate complex urinary protein profiles has benefits over single-protein assessment for detecting BC [9]. All three of the current FDA-approved single-plex urinary protein BC assays lack the 10-plex Oncuria assay’s overall 93% sensitivity for identifying BC, including an 89% sensitivity for capturing low-grade BC [12]. In comparison, the commercial nuclear matrix protein-22 (NMP22 BladderChek®) [10], bladder tumor antigen (BTA-Stat® and BTA-Trak®) [11], and mini chromosome maintenance-5 (MCM5) protein (ADxBladder®) [26] single-plex assays have lower respective sensitivities of 25%, 36%, and 50% for detecting low-grade BC. None of these three markers are specifically expressed by BC cells, and test interpretation may be confounded by the fact that both urinary BTA and NMP22 levels can be elevated during urinary tract inflammation unrelated to BC [10,11]. The Oncuria multiplex protein profiling assay can enhance diagnostic accuracy by generating a complex BC urinary analyte signature that better characterizes disease risk than individual biomarkers. The Oncuria assay simultaneously interrogates urine samples for levels of 10 BC-related analytes, and its validated algorithm incorporates patient characteristics (i.e., age, sex, race) to rapidly generate an accurate BC risk stratification score [18]. The Oncuria algorithm is undergoing continuous refinement by considering new patient parameters and medical historical details to additionally enhance its value in providing personalized cancer care [27]. Multiplex testing can reduce labor requirement compared to measuring several biomarker levels individually [28]. The high-throughput capacity of contemporary automated xMAP instrumentation platforms improves laboratory efficiency and speeds up sample-to-results timing [25].
Cystoscopy and voided urine cytology persist as gold-standard approaches for BC clinical evaluation [3,4]. Cystoscopy is an invasive procedure with an attendant risk of adverse events, and these risks are increased in older patients. Also, while white-light cystoscopy can detect papillary lesions with high sensitivity, it may overlook flat lesions (e.g., carcinoma in situ, CIS); however, alternative imaging techniques (e.g., fluorescence cystoscopy, narrow-band imaging, etc.) can better distinguish tumor tissue including CIS [29]. There is no universally accepted protocol for endoscopic follow-up of patients with NMIBC bladder cancer or those with MIBC who underwent bladder-sparing radiotherapy [30]. Cystoscopy may be overused in up to 75% of patients with low-risk NMIBC [31], and high-intensity cystoscopic surveillance does not improve 5-year outcomes in high-risk NMIBC [32]. Overuse of cystoscopy increases both healthcare costs and risk of treatment-related adverse events. Frequent cystoscopy among patients with low-risk NMIBC is associated with twice as many transurethral resections and does not decrease the risk for bladder cancer progression or death [33]. A major benefit of the noninvasive Oncuria assay’s high NPV (99%) [12] is that a determination of low-risk of BC may reduce the need for frequent invasive cystoscopic procedures.
Voided urine cytology and Oncuria are both noninvasive diagnostic approaches. Although voided urine cytology is also economical, it tends to miss early and low-grade BC [5]. However, the implementation of the Paris System for Reporting Urinary Cytology, created in 2016, has improved cytology’s performance in identifying high-grade BC by reducing the rate of indeterminate (atypical) assessments [5]. Cytology has a reported overall sensitivity of 48% for identifying BC (84% for detecting high-grade tumors versus only 16% for low-grade tumors) [34]. The Oncuria assay previously demonstrated 94% sensitivity for detecting high-grade BC and a notable 89% sensitivity for identifying low-grade BC [12]. Cytology alone has a reported overall specificity of 86% for identifying BC [34], whereas Oncuria previously demonstrated 93% specificity [12].
A major study strength is the enhanced generalizability of findings by evaluating an expanded cohort comprising adults of all ages, including a substantial proportion of females, of heterogeneous racial background. This cohort diversity has clinical relevance because the Oncuria algorithm incorporates these specific patient characteristics (i.e., age, race, and gender) into the 10-biomarker analysis to calculate BC risk scores [12]. The main study limitation was that analytical comparisons were limited to three contemporary xMAP instrument systems manufactured by a single company. Besides the fact that Luminex instrumentation has good penetration within diagnostic laboratories worldwide, bead-based multiplex immunoassays can be analyzed using other fluorescence detection instruments, which may facilitate homogeneous assay performance across different facilities [34]. Another study limitation is that this analysis was not designed as a clinical validation study, but rather to ensure technical reproducibility across platforms, which is critical for clinical assay deployment. Oncuria clinical validation studies have been previously published [12,14,15].
5. Conclusions
The multiplex Oncuria BC assay performed similarly well across three different contemporary analyzers for determining 10 biomarker BC signatures in voided urine specimens. This concordant performance across fluorescence detection platforms suggests that the Oncuria assay can be easily integrated into diagnostic laboratories that employ xMAP technology, and may be compatible with other fluorescence analyzers. The Oncuria assay offers a fast and noninvasive diagnostic approach that has clinical value by supplementing cystoscopy for accurately identifying BC, predicting BCG treatment response, and surveilling for treatment effectiveness and disease recurrence.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics15141749/s1; Supplemental Table S1: Example of raw fluorescence data outputs across three flow analyzers (median fluorescence intensity, arbitrary units); Supplemental Table S2: Mean protein values of the 10 Oncuria analytes in BC cases versus controls; Supplemental Figure S1: Pairwise correlation plots of the Oncuria assay’s 10 protein analyte concentrations determined on different instruments.
Author Contributions
Study Conception: H.F., C.J.R. and W.H.; Study Design: H.F., C.J.R. and W.H.; Study Management: H.F., C.J.R., W.H. and S.D.; Data Collection: H.F., T.S. and S.T.; Data Analysis and Interpretation: I.P., C.J.R., W.H. and H.F.; Statistical Analysis: I.P. and H.F.; Manuscript Preparation/Revision: H.F., C.J.R. and W.H.; Manuscript Approval: S.T., T.S., I.P., W.H., S.D., C.J.R. and H.F. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by research grants NIH/NCI R01 CA198887 (C.J.R.), NIH/NCI UH3 CA271377 (C.J.R.), NIH/NCI R01 CA277810 (C.J.R., H.F.) and NIH/NCI U54 CA274375 (H.F.). The APC was funded by Luminex Corp.
Institutional Review Board Statement
The study was conducted in accordance with the Declaration of Helsinki, and approved by the Cedars-Sinai Medical Center Institutional Review Board (IRB #00001459 and date of approval 1 July 2024).
Informed Consent Statement
This study received approval and a waiver of consent to use previously banked anonymized urine samples from the Cedars-Sinai Medical Center Institutional Review Board, Los Angeles, CA, USA (IRB #00001459). All samples were originally collected under IRB-approved protocols with written informed consent from participants for specimen banking and future research use.
Data Availability Statement
The anonymized datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.
Acknowledgments
The authors thank Matthew Silverman, of Biomedical Publishing Solutions (Tallahassee, FL; mattsilver@yahoo.com) for scientific, analytical, and writing assistance. Silverman’s fee was paid by Luminex.
Conflicts of Interest
C.J.R. and W.H. are officers at Nonagen Bioscience Corporation (Los Angeles, CA), the Oncuria assay manufacturer. S.D. is employed by DiaSorin/Luminex, the manufacture of the Luminex instruments.
Abbreviations
The following abbreviations are used in this manuscript:
| A1AT | Alpha 1 anti-trypsin |
| ANG | Angiogenin |
| ApoE | Apolipoprotein E |
| AUROC | Area under receiver operating curve |
| BC | Bladder cancer |
| BCG | Bacillus Calmette–Guerin |
| BTA | Bladder tumor antigen |
| CA9 | Carbonic anhydrase IX |
| CIS | Carcinoma in situ |
| IL-8 | CXCL8/interleukin-8 |
| MCM5 | Mini chromosome maintenance-5 protein |
| MFI | Median fluorescence intensity |
| MIBC | Muscle-invasive bladder cancer |
| MMP | Matrix metalloproteinase |
| NMIBC | Non-muscle-invasive bladder cancer |
| NMP-22 | Nuclear matrix protein-22 |
| NPV | Negative predictive value |
| PAI-1 | Serpin E1/plasminogen activator inhibitor-1 |
| SDC-1 | CD138/syndecan-1 |
| VEGF | Vascular endothelial growth factor |
| xMAP | Multi-Analyte Profiling |
References
- Bray, F.; Laversanne, M.; Sung, H.; Ferlay, J.; Siegel, R.L.; Soerjomataram, I.; Jemal, A. Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2024, 74, 229–263. [Google Scholar] [CrossRef]
- Jubber, I.; Ong, S.; Bukavina, L.; Black, P.C.; Comperat, E.; Kamat, A.M.; Kiemeney, L.; Lawrentschuk, N.; Lerner, S.P.; Meeks, J.J.; et al. Epidemiology of Bladder Cancer in 2023: A Systematic Review of Risk Factors. Eur. Urol. 2023, 84, 176–190. [Google Scholar] [CrossRef] [PubMed]
- Taylor, J.; Becher, E.; Steinberg, G.D. Update on the guideline of guidelines: Non-muscle-invasive bladder cancer. BJU Int. 2020, 125, 197–205. [Google Scholar] [CrossRef]
- Flaig, T.W.; Spiess, P.E.; Abern, M.; Agarwal, N.; Bangs, R.; Buyyounouski, M.K.; Chan, K.; Chang, S.S.; Chang, P.; Friedlander, T.; et al. NCCN Guidelines(R) Insights: Bladder Cancer, Version 3.2024. J. Natl. Compr. Cancer Netw. 2024, 22, 216–225. [Google Scholar] [CrossRef]
- Tian, W.; Shore, K.T.; Shah, R.B. Significant reduction of indeterminate (atypical) diagnosis after implementation of The Paris System for Reporting Urinary Cytology: A single-institution study of more than 27,000 cases. Cancer Cytopathol. 2021, 129, 114–120. [Google Scholar] [CrossRef] [PubMed]
- Castaneda, P.R.; Theodorescu, D.; Rosser, C.J.; Ahdoot, M. Identifying novel biomarkers associated with bladder cancer treatment outcomes. Front. Oncol. 2023, 13, 1114203. [Google Scholar] [CrossRef] [PubMed]
- Malinaric, R.; Mantica, G.; Lo Monaco, L.; Mariano, F.; Leonardi, R.; Simonato, A.; Van der Merwe, A.; Terrone, C. The Role of Novel Bladder Cancer Diagnostic and Surveillance Biomarkers-What Should a Urologist Really Know? Int. J. Environ. Res. Public Health 2022, 19, 9648. [Google Scholar] [CrossRef]
- Laukhtina, E.; Shim, S.R.; Mori, K.; D’Andrea, D.; Soria, F.; Rajwa, P.; Mostafaei, H.; Comperat, E.; Cimadamore, A.; Moschini, M.; et al. Diagnostic Accuracy of Novel Urinary Biomarker Tests in Non-muscle-invasive Bladder Cancer: A Systematic Review and Network Meta-analysis. Eur. Urol. Oncol. 2021, 4, 927–942. [Google Scholar] [CrossRef]
- Maas, M.; Todenhofer, T.; Black, P.C. Urine biomarkers in bladder cancer—Current status and future perspectives. Nat. Rev. Urol. 2023, 20, 597–614. [Google Scholar] [CrossRef]
- Tang, X.; Cao, Y.; Liu, J.; Wang, S.; Yang, Y.; Du, P. The diagnostic and prognostic value of nuclear matrix protein 22 in bladder cancer. Transl. Cancer Res. 2020, 9, 7174–7182. [Google Scholar] [CrossRef]
- Miyake, M.; Goodison, S.; Rizwani, W.; Ross, S.; Bart Grossman, H.; Rosser, C.J. Urinary BTA: Indicator of bladder cancer or of hematuria. World J. Urol. 2012, 30, 869–873. [Google Scholar] [CrossRef] [PubMed]
- Hirasawa, Y.; Pagano, I.; Chen, R.; Sun, Y.; Dai, Y.; Gupta, A.; Tikhonenkov, S.; Goodison, S.; Rosser, C.J.; Furuya, H. Diagnostic performance of Oncuria, a urinalysis test for bladder cancer. J. Transl. Med. 2021, 19, 141. [Google Scholar] [CrossRef]
- Murakami, K.; Kamat, A.M.; Dai, Y.; Pagano, I.; Chen, R.; Sun, Y.; Gupta, A.; Goodison, S.; Rosser, C.J.; Furuya, H. Application of a multiplex urinalysis test for the prediction of intravesical BCG treatment response: A pilot study. Cancer Biomark. 2021, 33, 151–157. [Google Scholar] [CrossRef] [PubMed]
- Furuya, H.; Tabula, L.; Lee, R.; Kralovec, P.; Ramsden, M.; Wong, R.; Rosser, C.J. Analytical validation of ONCURIA a multiplex bead-based immunoassay for the non-invasive bladder cancer detection. Pract. Lab. Med. 2020, 22, e00189. [Google Scholar] [CrossRef]
- Murakami, K.; Pagano, I.; Furuya, H.; Daskivich, T.; Mori, D.; Rosser, C.J. Clinical Utility of Oncuria, a Multiplexed Liquid Biopsy for the Non-Invasive Detection of Bladder Cancer-A Pilot Study. Diagnostics 2022, 12, 131. [Google Scholar] [CrossRef] [PubMed]
- Nonagen Bioscience Corp.: Nonagen Bioscience Granted FDA Breakthrough Device Designation. Available online: https://www.prnewswire.com/news-releases/nonagen-bioscience-granted-fda-breakthrough-device-designation-301385100.html (accessed on 17 March 2025).
- Diacarta Incorporated: DiaCarta Announces That the Oncuria® Bladder Cancer Tests Receive Medicare Coverage Effective January 1, 2024. Available online: https://www.prnewswire.com/news-releases/diacarta-announces-that-the-oncuria-bladder-cancer-tests-receive-medicare-coverage-effective-january-1-2024-302077696.html (accessed on 17 March 2025).
- Furuya, H.; Sakatani, T.; Tanaka, S.; Murakami, K.; Waldron, R.T.; Hogrefe, W.; Rosser, C.J. Bladder cancer risk stratification with the Oncuria 10-plex bead-based urinalysis assay using three different Luminex xMAP instrumentation platforms. J. Transl. Med. 2024, 22, 8. [Google Scholar] [CrossRef]
- Hojvat, S.; Kondratovic, M.U.S.; Department of Health and Human Services, Food and Drug Administration, Center for Devices and Radiological Health. Assay Migration Studies for in Vitro Diagnostic Devices; Guidance for Industry and FDA Staff. Available online: https://www.fda.gov/regulatory-information/search-fda-guidance-documents/assay-migration-studies-in-vitro-diagnostic-devices (accessed on 23 June 2025).
- Pepe, M.S.; Feng, Z.; Janes, H.; Bossuyt, P.M.; Potter, J.D. Pivotal evaluation of the accuracy of a biomarker used for classification or prediction: Standards for study design. J. Natl. Cancer Inst. 2008, 100, 1432–1438. [Google Scholar] [CrossRef]
- U.S. National Library of Medicine. Clinical Trial Registration: A Novel Multiplex ELISA Assay for Evaluating Patients with Gross Hematuria for Bladder Cancer. Available online: https://clinicaltrials.gov/ct2/show/NCT03193528 (accessed on 3 March 2025).
- U.S. National Library of Medicine. Clinical Trial Registration: A Novel Multiplex ELISA Assay for Evaluating Patients with Microscopic Hematuria for Bladder Cancer. Available online: https://clinicaltrials.gov/study/NCT03193541 (accessed on 3 March 2025).
- U.S. National Library of Medicine. Clinical Trial Registration: Predicting BCG Response. Available online: https://clinicaltrials.gov/ct2/show/NCT04564781 (accessed on 3 March 2025).
- U.S. National Library of Medicine. Clinical Trial Registration: A Novel Multiplex ELISA Assay for Surveilling Patients with History of Bladder Cancer. Available online: https://clinicaltrials.gov/study/NCT03193515 (accessed on 17 March 2025).
- Luminex Corporation. xMAP Technology: Instruments. Available online: https://www.luminexcorp.com/xmap-technology/#instruments (accessed on 17 March 2025).
- Sharma, G.; Sharma, A.; Krishna, M.; Ahluwalia, P.; Gautam, G. Diagnostic performance of minichromosome maintenance 5 (MCM5) in bladder cancer: A systematic review and meta-analysis. Urol. Oncol. 2022, 40, 235–242. [Google Scholar] [CrossRef]
- Borhani, S.; Borhani, R.; Kajdacsy-Balla, A. Artificial intelligence: A promising frontier in bladder cancer diagnosis and outcome prediction. Crit. Rev. Oncol. Hematol. 2022, 171, 103601. [Google Scholar] [CrossRef]
- Elshal, M.F.; McCoy, J.P. Multiplex bead array assays: Performance evaluation and comparison of sensitivity to ELISA. Methods 2006, 38, 317–323. [Google Scholar] [CrossRef]
- Fan, Z.; Shi, H.; Luo, J.; Guo, X.; Wang, B.; Liu, Y.; Yu, J. Diagnostic and therapeutic effects of fluorescence cystoscopy and narrow-band imaging in bladder cancer: A systematic review and network meta-analysis. Int. J. Surg. 2023, 109, 3169–3177. [Google Scholar] [CrossRef] [PubMed]
- Russell, B.; Kotecha, P.; Thurairaja, R.; Nair, R.; Malde, S.; Kumar, P.; Khan, M.S. Endoscopic surveillance for bladder cancer: A systematic review of contemporary worldwide practices. Transl. Androl. Urol. 2021, 10, 2750–2761. [Google Scholar] [CrossRef] [PubMed]
- Han, D.S.; Lynch, K.E.; Chang, J.W.; Sirovich, B.; Robertson, D.J.; Swanton, A.R.; Seigne, J.D.; Goodney, P.P.; Schroeck, F.R. Overuse of Cystoscopic Surveillance Among Patients With Low-risk Non-Muscle-invasive Bladder Cancer—A National Study of Patient, Provider, and Facility Factors. Urology 2019, 131, 112–119. [Google Scholar] [CrossRef] [PubMed]
- Rezaee, M.E.; Lynch, K.E.; Li, Z.; MacKenzie, T.A.; Seigne, J.D.; Robertson, D.J.; Sirovich, B.; Goodney, P.P.; Schroeck, F.R. The impact of low- versus high-intensity surveillance cystoscopy on surgical care and cancer outcomes in patients with high-risk non-muscle-invasive bladder cancer (NMIBC). PLoS ONE 2020, 15, e0230417. [Google Scholar] [CrossRef]
- Schroeck, F.R.; Lynch, K.E.; Li, Z.; MacKenzie, T.A.; Han, D.S.; Seigne, J.D.; Robertson, D.J.; Sirovich, B.; Goodney, P.P. The impact of frequent cystoscopy on surgical care and cancer outcomes among patients with low-risk, non-muscle-invasive bladder cancer. Cancer 2019, 125, 3147–3154. [Google Scholar] [CrossRef]
- Cornel, A.M.; van der Burght, C.A.J.; Nierkens, S.; van Velzen, J.F. FACSCanto II and LSRFortessa flow cytometer instruments can be synchronized utilizing single-fluorochrome-conjugated surface-dyed beads for standardized immunophenotyping. J. Clin. Lab. Anal. 2020, 34, e23361. [Google Scholar] [CrossRef]

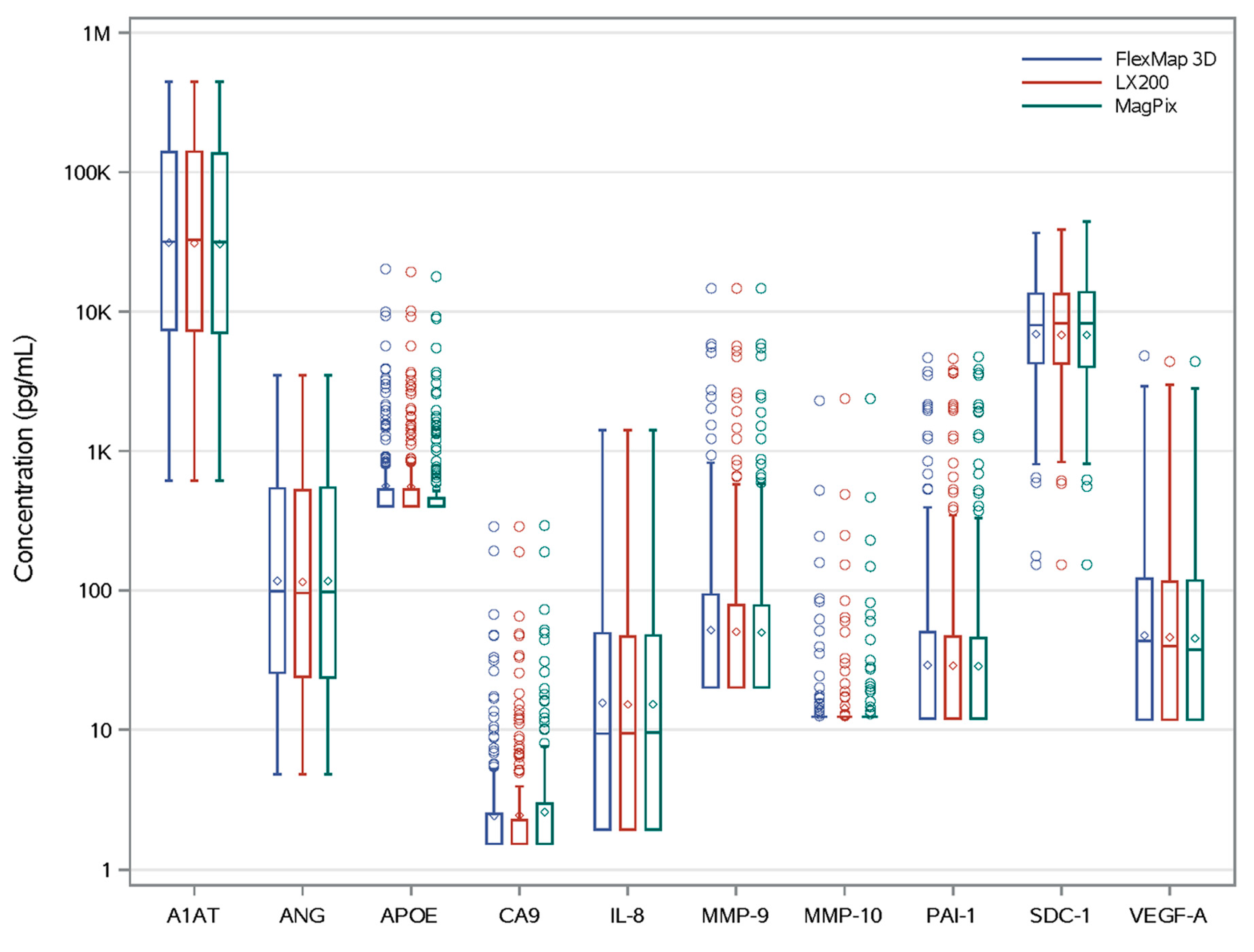

Figure 1.
Oncuria analyte concentrations across three analyzers. All 10 urinary analytes were quantified nearly identically on the three Luminex xMAP analyzers. Box and whiskers indicate median analyte concentrations (pg/mL; horizontal lines within boxes) and interquartile ranges. Diamond symbols (“◇”) indicate mean concentrations, and round symbols (“○”) indicate outliers (concentration >1.5× interquartile range boundaries Q3–Q1).
Figure 1.
Oncuria analyte concentrations across three analyzers. All 10 urinary analytes were quantified nearly identically on the three Luminex xMAP analyzers. Box and whiskers indicate median analyte concentrations (pg/mL; horizontal lines within boxes) and interquartile ranges. Diamond symbols (“◇”) indicate mean concentrations, and round symbols (“○”) indicate outliers (concentration >1.5× interquartile range boundaries Q3–Q1).
Table 1.
The dynamic range of the 10 bioanalytes in the Oncuria assay.
| Biomarker | Lowest Standard, pg/mL | Upper Standard, pg/mL |
|---|---|---|
| A1AT | 611 | 445,620 |
| ANG | 4.8 | 3500 |
| APOE | 400 | 291,720 |
| CA9 | 1.5 | 1110 |
| IL-8 | 1.9 | 1410 |
| MMP-9 | 20.1 | 14,680 |
| MMP-10 | 12.3 | 9030 |
| PAI-1 | 12.0 | 8760 |
| SDC-1 | 153 | 111,500 |
| VEGF | 11.8 | 8620 |
Table 2.
Subject characteristics.
| Parameter | All (N = 181) | Controls, N = 127 | Bladder Cancer, N = 54 | p-Value |
|---|---|---|---|---|
| Age, years, mean (range) | 65.5 (26–88) | 64.2 (26–89) | 68.9 (52–88) | 0.02 |
| 18–54 years, n (%) | 31 (17.1) | 27 (21.3) | 4 (7.4) | |
| 55–64 years, n (%) | 46 (25.4) | 33 (26.0) | 13 (24.1) | |
| 65–74 years, n (%) | 61 (33.7) | 38 (29.9) | 23 (42.6) | |
| ≥75 years, n (%) | 43 (23.8) | 29 (22.8) | 14 (25.9) | |
| Male/female ratio (% male) | 126:55 (69.6% male) | 85:42 (66.9% male) | 41:13 (75.9% male) | 0.23 |
| Race, n (%) | 0.41 | |||
| White | 92 (50.8) | 68 (53.5) | 24 (44.4) | |
| Other | 88 (48.6) | 58 (45.7) | 30 (55.6) | |
| Unknown | 1 (0.6) | 1 (0.8) | 0 (0.0) | |
| Primary Tumor Stage, n (%) | N/A | |||
| NMIBC (Ta, Tis, or T1) | N/A * | 41 (76%) | ||
| MIBC (T2–T4) | N/A | 13 (24%) | ||
| Grade, n (%) | N/A | |||
| Low | N/A | 13 (24%) | ||
| High | N/A | 41 (76%) |
* N/A, not applicable.
Table 3.
Similar mean analyte measurements across analyzers.
| Analyte (pg/mL) | FlexMap 3D (N = 181) | LX200 (N = 181) | MagPix (N = 181) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Mean | SD | Median | Mean | SD | Median | Mean | SD | Median | ICC * | |
| A1AT | 95,335 | 1.3 × 105 | 31,412 | 98,525 | 1.4 × 105 | 31,172 | 98,052 | 1.3 × 105 | 31,168 | >0.99 |
| ANG | 472 | 784 | 99 | 468 | 782 | 96 | 473 | 781 | 98 | >0.99 |
| APOE | 888 | 1874 | 400 | 866 | 1813 | 400 | 829 | 1676 | 400 | >0.99 |
| CA9 | 7 | 26 | 2 | 7 | 26 | 2 | 7 | 27 | 2 | >0.99 |
| IL-8 | 155 | 350 | 8 | 163 | 359 | 9 | 158 | 292 | 10 | >0.99 |
| MMP9 | 397 | 1701 | 20 | 387 | 1686 | 20 | 388 | 1692 | 20 | >0.99 |
| MMP10 | 32 | 176 | 12 | 32 | 181 | 12 | 31 | 174 | 12 | >0.99 |
| PAI-1 | 198 | 656 | 12 | 198 | 658 | 12 | 196 | 658 | 12 | >0.99 |
| SDC-1 | 9540 | 6848 | 8005 | 9470 | 6934 | 8209 | 9553 | 7208 | 8241 | >0.99 |
| VEGF | 165 | 499 | 43 | 160 | 476 | 40 | 159 | 466 | 38 | >0.99 |
Values rounded to the nearest whole value. Measurements below/above the lowest/highest standard curve values were assigned the respective standard value. * ICC is the intraclass correlation for inter-rater reliability.
Table 4.
Biomarker protein concentrations in urine samples compared across three flow analyzers (pg/mL).
Table 4.
Biomarker protein concentrations in urine samples compared across three flow analyzers (pg/mL).
| Sample ID | Instrument | A1AT | ANG | ApoE | CA9 | IL-8 | MMP-9 | MMP-10 | PAI-1 | SDC-1 | VEGF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| #M003 | FlexMap 3D | 340,684 | 3500 | 9321 | 48 | 1410 | 934 | 519 | 4642 | 31,386 | 4836 |
| Cancer | 200 | 324,637 | 3500 | 9104 | 47 | 1410 | 863 | 491 | 4599 | 31,382 | 4397 |
| MagPix | 328,482 | 3500 | 8861 | 52 | 1410 | 871 | 462 | 4756 | 33,713 | 4353 | |
| #M004 | FlexMap 3D | 421,933 | 464 | 851 | 12 | 1410 | 300 | 12 | 271 | 26,923 | 513 |
| Cancer | 200 | 348,662 | 441 | 830 | 13 | 1410 | 280 | 12 | 268 | 28,563 | 497 |
| MagPix | 409,455 | 526 | 769 | 20 | 1410 | 279 | 12 | 280 | 32,092 | 526 | |
| #M006 | FlexMap 3D | 170,574 | 835 | 922 | 3 | 463 | 49 | 12 | 284 | 36,675 | 180 |
| Cancer | 200 | 178,759 | 874 | 886 | 6 | 444 | 46 | 12 | 292 | 38,813 | 174 |
| MagPix | 256,081 | 1001 | 845 | 3 | 468 | 41 | 12 | 303 | 44,261 | 182 | |
| #C017 | FlexMap 3D | 5528 | 98 | 400 | 2 | 2 | 20 | 12 | 12 | 3467 | 12 |
| Control | 200 | 5544 | 95 | 400 | 2 | 2 | 20 | 12 | 12 | 3463 | 12 |
| MagPix | 5286 | 96 | 400 | 2 | 2 | 20 | 12 | 12 | 3353 | 12 | |
| #C018 | FlexMap 3D | 3557 | 6 | 400 | 2 | 2 | 20 | 12 | 12 | 1102 | 12 |
| Control | 200 | 3526 | 8 | 400 | 2 | 2 | 20 | 12 | 14 | 1039 | 12 |
| MagPix | 3100 | 7 | 400 | 2 | 2 | 20 | 12 | 12 | 995 | 12 | |
| #C019 | FlexMap 3D | 69,062 | 174 | 400 | 2 | 4 | 20 | 12 | 12 | 3698 | 47 |
| Control | 200 | 71,593 | 166 | 400 | 2 | 3 | 20 | 12 | 12 | 3525 | 48 |
| MagPix | 71,237 | 166 | 400 | 2 | 3 | 20 | 12 | 12 | 3573 | 46 |
Table 5.
Summary of scatter plots comparing data output between analyzers.
| Biomarker | Instruments | n | RMSE | R2 | %CV |
|---|---|---|---|---|---|
| A1AT | LX200 vs. MagPix | 181 | 1.05 | 0.999 | 0.5% |
| LX200 vs. FlexMap 3D | 181 | 1.05 | 0.999 | 0.4% | |
| MagPix vs. FlexMap 3D | 181 | 1.07 | 0.999 | 0.6% | |
| ANG | LX200 vs. MagPix | 181 | 1.07 | 0.999 | 1.4% |
| LX200 vs. FlexMap 3D | 181 | 1.08 | 0.998 | 1.7% | |
| MagPix vs. FlexMap 3D | 181 | 1.08 | 0.998 | 1.6% | |
| ApoE | LX200 vs. MagPix | 181 | 1.03 | 0.997 | 0.5% |
| LX200 vs. FlexMap 3D | 181 | 1.02 | 0.999 | 0.4% | |
| MagPix vs. FlexMap 3D | 181 | 1.04 | 0.997 | 0.6% | |
| CA9 | LX200 vs. MagPix | 181 | 1.17 | 0.970 | 17.4% |
| LX200 vs. FlexMap 3D | 181 | 1.20 | 0.960 | 20.4% | |
| MagPix vs. FlexMap 3D | 181 | 1.24 | 0.948 | 23.1% | |
| IL-8 | LX200 vs. MagPix | 181 | 1.04 | 0.999 | 1.6% |
| LX200 vs. FlexMap 3D | 181 | 1.06 | 0.999 | 2.2% | |
| MagPix vs. FlexMap 3D | 181 | 1.07 | 0.999 | 2.3% | |
| MMP-9 | LX200 vs. MagPix | 181 | 1.03 | 0.999 | 0.7% |
| LX200 vs. FlexMap 3D | 181 | 1.03 | 0.999 | 0.7% | |
| MagPix vs. FlexMap 3D | 181 | 1.05 | 0.999 | 1.2% | |
| MMP-10 | LX200 vs. MagPix | 181 | 1.03 | 0.997 | 1.2% |
| LX200 vs. FlexMap 3D | 181 | 1.03 | 0.997 | 1.3% | |
| MagPix vs. FlexMap 3D | 181 | 1.04 | 0.995 | 1.6% | |
| PAI-1 | LX200 vs. MagPix | 181 | 1.07 | 0.998 | 2.1% |
| LX200 vs. FlexMap 3D | 181 | 1.06 | 0.999 | 1.6% | |
| MagPix vs. FlexMap 3D | 181 | 1.07 | 0.998 | 2.0% | |
| SDC-1 | LX200 vs. MagPix | 181 | 1.03 | 0.999 | 0.3% |
| LX200 vs. FlexMap 3D | 181 | 1.02 | 0.999 | 0.3% | |
| MagPix vs. FlexMap 3D | 181 | 1.04 | 0.999 | 0.4% | |
| VEGF | LX200 vs. MagPix | 181 | 1.06 | 0.998 | 1.6% |
| LX200 vs. FlexMap 3D | 181 | 1.06 | 0.998 | 1.5% | |
| MagPix vs. FlexMap 3D | 181 | 1.07 | 0.998 | 1.7% |
RMSE = root mean square error; %CV = percent coefficient of variation.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Tanaka, S.; Shimizu, T.; Pagano, I.; Hogrefe, W.; Dunbar, S.; Rosser, C.J.; Furuya, H. Expanded Performance Comparison of the Oncuria 10-Plex Bladder Cancer Urine Assay Using Three Different Luminex xMAP Instruments. Diagnostics 2025, 15, 1749. https://doi.org/10.3390/diagnostics15141749
AMA Style
Tanaka S, Shimizu T, Pagano I, Hogrefe W, Dunbar S, Rosser CJ, Furuya H. Expanded Performance Comparison of the Oncuria 10-Plex Bladder Cancer Urine Assay Using Three Different Luminex xMAP Instruments. Diagnostics. 2025; 15(14):1749. https://doi.org/10.3390/diagnostics15141749
Chicago/Turabian StyleTanaka, Sunao, Takuto Shimizu, Ian Pagano, Wayne Hogrefe, Sherry Dunbar, Charles J. Rosser, and Hideki Furuya. 2025. "Expanded Performance Comparison of the Oncuria 10-Plex Bladder Cancer Urine Assay Using Three Different Luminex xMAP Instruments" Diagnostics 15, no. 14: 1749. https://doi.org/10.3390/diagnostics15141749
APA StyleTanaka, S., Shimizu, T., Pagano, I., Hogrefe, W., Dunbar, S., Rosser, C. J., & Furuya, H. (2025). Expanded Performance Comparison of the Oncuria 10-Plex Bladder Cancer Urine Assay Using Three Different Luminex xMAP Instruments. Diagnostics, 15(14), 1749. https://doi.org/10.3390/diagnostics15141749
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
