# A Criterion of Colorectal Cancer Diagnosis Using Exosome Fluorescence-Lifetime Imaging

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- Finger rectal examination;
- Irrigoscopy (X-ray examination of the intestine);
- Test for hidden blood in feces;
- Capsule endoscopy (evaluation using an endocapsule with a digital video camera that passes through all parts of the intestine);
- Colonoscopy (endoscopic diagnostic method using a colonoscope with a video camera, if necessary with a biopsy);
- Cancer markers’ blood tests.

## 2. Materials and Methods

^{7}/mL: [16 (8; 20)] for healthy volunteers, [24 (20; 138)] for benign breast diseases patients, [21 (10; 180)] for breast cancer patients, and [22 (13; 154)] for ovarian cancer patients [28]. The variation was not very high. Therefore, these values could be used as a estimation of exosomes concentration in our case.

## 3. Results

- For every exosome in an FLIM image, we calculated the TPAF average lifetime ${\mathrm{t}}_{\mathrm{m}}$. If the ${\mathrm{t}}_{\mathrm{m}}$value fell within the intersection of the intervals corresponding to short and long lifetime interval approximations, then this exosome was ignored. Otherwise, we assigned this exosome the appropriate index: “h”, corresponding to a CP-associated exosome, or “c”, corresponding to a CRC-associated exosome.
- For a whole FLIM dataset corresponding to a definite participant, we calculated the ratio as follows:$${N}_{ch}=\frac{\sum {N}_{c}}{\sum {N}_{h}+\sum {N}_{c}},$$

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin.
**2021**, 71, 209–249. [Google Scholar] [CrossRef] [PubMed] - Hossain, M.S.; Karuniawati, H.; Jairoun, A.A.; Urbi, Z.; Ooi, J.; John, A.; Lim, Y.C.; Kibria, K.M.K.; Mohiuddin, A.K.M.; Ming, L.C.; et al. Colorectal Cancer: A Review of Carcinogenesis, Global Epidemiology, Current Challenges, Risk Factors, Preventive and Treatment Strategies. Cancers
**2022**, 14, 1732. [Google Scholar] [CrossRef] - Rawla, P.; Sunkara, T.; Barsouk, A. Epidemiology of colorectal cancer: Incidence, mortality, survival, and risk factors. Gastroenterology
**2019**, 14, 89–103. [Google Scholar] [CrossRef] [PubMed] - Haggar, F.A.; Boushey, R.P. Colorectal Cancer Epidemiology: Incidence, Mortality, Survival, and Risk Factors. Clin. Colon Rectal Surg.
**2009**, 22, 191–197. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ebell, M.H.; Thai, T.N.; Royalty, K.J. Cancer screening recommendations: An international comparison of high income countries. Public Health Rev.
**2018**, 39, 7. [Google Scholar] [CrossRef] - Blackmore, T.; Norman, K.; Kidd, J.; Cassim, S.; Chepulis, L.; Keenan, R.; Firth, M.; Jackson, C.; Stokes, T.; Weller, D.; et al. Barriers and facilitators to colorectal cancer diagnosis in New Zealand: A qualitative study. BMC Fam. Pract.
**2020**, 21, 1–206. [Google Scholar] [CrossRef] - Garborg, K.; Holme, O.; Loberg, M.; Kalager, M.; Adami, H.O.; Bretthauer, M. Current status of screening for colorectal cancer. Ann. Oncol.
**2013**, 24, 1963–1972. [Google Scholar] [CrossRef] - Beaulieu, J.-F. Colorectal Cancer. Methods and Protocols, 1st ed.; Humana New York: New York, NY, USA, 2018; pp. 1–353. [Google Scholar]
- Kolligs, F.T. Diagnostics and Epidemiology of Colorectal Cancer. Visc. Med.
**2016**, 32, 158–164. [Google Scholar] [CrossRef] [Green Version] - Rao, J.; Wan, X.; Tou, F.; He, Q.; Xiong, A.; Chen, X.; Cui, W.; Zheng, Z. Molecular Characterization of Advanced Colorectal Cancer Using Serum Proteomics and Metabolomics. Front. Mol. Biosci.
**2021**, 8, 1–11. [Google Scholar] [CrossRef] - Sharma, S. Tumor markers in clinical practice: General principles and guidelines. Indian J. Med. Paediatr. Oncol.
**2009**, 30, 1–8. [Google Scholar] [CrossRef] [Green Version] - De Toro, J.; Herschlik, L.; Waldner, C.; Mongini, C. Emerging roles of exosomes in normal and pathological conditions: New insights for diagnosis and therapeutic applications. Front. Immunol.
**2015**, 6, 203. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hornick, N.I.; Huan, J.; Doron, B.; Goloviznina, N.A.; Lapidu, J.; Chang, B.H.; Kurre, P. Serum exosome microRNA as a minimally-invasive early biomarker of AML. Sci. Rep.
**2015**, 5, 1–12. [Google Scholar] [CrossRef] [PubMed] - Mathivanan, S.; Ji, H.; Simpson, R.J. Exosomes: Extracellular organelles important in intercellular communication. J. Proteom.
**2010**, 73, 1907–1920. [Google Scholar] [CrossRef] [PubMed] - Keerthikumar, S.; Chisanga, D.; Ariyaratne, D.; Al Saffar, H.; Anand, S.; Zhao, K.; Samuel, M.; Pathan, M.; Jois, M.; Chilamkurti, N.; et al. ExoCarta: A Web-Based Compendium of Exosomal Cargo. J. Mol. Biol.
**2016**, 428, 688–692. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, X.; Yuan, X.; Shi, H.; Wu, L.; Qian, H.; Xu, W. Exosomes in cancer: Small particle, big player. J. Hematol. Oncol.
**2015**, 8, 83–96. [Google Scholar] [CrossRef] [Green Version] - Tamkovich, S.N.; Yunusova, N.V.; Stakheeva, M.N.; Somov, A.K.; Frolova, A.Y.; Kirushina, N.A.; Afanasyev, S.G.; Grigoryeva, A.E.; Laktionov, P.P.; Kondakova, I.V. Isolation and characterization of exosomes from blood plasma of breast cancer and colorectal cancer patients. Biomeditsinskaya khimiya
**2017**, 63, 165–169. [Google Scholar] [CrossRef] - Xiao, Y.; Zhong, J.; Zhong, B.; Huang, J.; Jiang, L.; Jiang, Y.; Yuan, J.; Sun, J.; Dai, L.; Yang, C.; et al. Exosomes as potential sources of biomarkers in colorectal cancer. Cancer Lett.
**2020**, 476, 13–22. [Google Scholar] [CrossRef] - Lucchetti, D.; Litta, F.; Ratto, C.; Sgambato, A. The role of extracellular vesicles as biomarkers in colorectal cancer. Tech. Coloproctol.
**2018**, 22, 989–990. [Google Scholar] [CrossRef] - Borisov, A.V.; Vrazhnov, D.A. Breathomics for Lung Cancer Diagnosis. In Multimodal Optical Diagnostics of Cancer, 1st ed.; Tuchin, V.V., Popp, J., Zakharov, V.P., Eds.; Springer Nature Switzerland AG: Cham, Switzerland, 2020; Volume 1, Chapter 6; pp. 209–244. [Google Scholar]
- Szatanek, R.; Baj-Krzyworzeka, M.; Zimoch, J.; Lekka, M.; Siedlar, M.; Baran, J. The Methods of Choice for Extracellular Vesicles (EVs) Characterization. Int. J. Mol. Sci.
**2017**, 18, 1153. [Google Scholar] [CrossRef] - Malloci, M.; Perdomo, L.; Veerasamy, M.; Andriantsitohaina, R.; Simard, G.; Martínez, M.C. Extracellular Vesicles: Mechanisms in Human Health and Disease. Antioxid. Redox Signal.
**2018**, 30, 813–856. [Google Scholar] [CrossRef] - Meleppat, R.K.; Ronning, K.E.; Karlen, S.J.; Burns, M.E.; Pugh, E.N.; Zawadzki, R.J. In vivo multimodal retinal imaging of disease-related pigmentary changes in retinal pigment epithelium. Sci. Rep.
**2021**, 11, 16252. [Google Scholar] [CrossRef] [PubMed] - Meleppat, R.K.; Prabhathan, P.; Keey, S.-L.; Matham, M.-V. Plasmon Resonant Silica-Coated Silver Nanoplates as Contrast Agents for Optical Coherence Tomography. J. Biomed. Nanotechnol.
**2016**, 12, 1929–1937. [Google Scholar] [CrossRef] [PubMed] - Sorrells, J.E.; Martin, E.M.; Aksamitiene, E.; Mukherjee, P.; Alex, A.; Chaney, E.J.; Marjanovic, M.; Boppart, S.A. Label-free characterization of single extracellular vesicles using two-photon fluorescence lifetime imaging microscopy of NAD(P)H. Sci. Rep.
**2021**, 11, 3308. [Google Scholar] [CrossRef] [PubMed] - Becker, W. Fluorescence lifetime imaging–techniques and applications. J. Microsc.
**2012**, 247, 119–136. [Google Scholar] [CrossRef] - Zhuo, G.-Y.; Kistenev, Y.V.; Kao, F.-J.; Nikolaev, V.V.; Zuhayri, H.; Krivova, N.A.; Mazumder, N. Label-free multimodal nonlinear optical microscopy for biomedical applications. J. Appl. Phys.
**2021**, 129, 214901. [Google Scholar] [CrossRef] - Yunusova, N.; Kolegova, E.; Sereda, E.; Kolomiets, L.; Villert, A.; Patysheva, M.; Rekeda, I.; Grigor’eva, A.; Tarabanovskaya, N.; Kondakova, I.; et al. Plasma Exosomes of Patients with Breast and Ovarian Tumors Contain an Inactive 20S Proteasome. Molecules
**2021**, 26, 6965. [Google Scholar] [CrossRef] - Zhang, Y.; Bi, J.; Huang, J.; Tang, Y.; Du, S.; Li, P. Exosome: A Review of Its Classification, Isolation Techniques, Storage, Diagnostic and Targeted Therapy Applications. Int. J. Nanomed.
**2020**, 15, 6917–6934. [Google Scholar] [CrossRef] - Pena, A.M.; Decencière, E.; Brizion, S.; Sextius, P.; Koudoro, S.; Baldeweck, T.; Tancrède-Bohin, E. In vivo melanin 3D quantification and z-epidermal distribution by multiphoton FLIM, phasor and Pseudo-FLIM analyses. Sci. Rep.
**2022**, 12, 1642. [Google Scholar] [CrossRef] - Zakharova, O.A.; Zhambalova, H.A.; Yunusova, N.I.; Nikolaev, V.V.; Borisov, A.V. Visualization of biological nano-objects with the help of multiphoton microscopy. In Proceedings of the 25th International Symposium on Atmospheric and Ocean Optics: Atmospheric Physics, 112080G, Novosibirsk, Russia, 18 December 2019; SPIE: Bellingham, DC, USA, 2019. [Google Scholar] [CrossRef]
- Datta, R.; Heaster, T.M.; Sharick, J.T.; Gillette, A.A.; Skala, M.C. Fluorescence lifetime imaging microscopy: Fundamentals and advances in instrumentation, analysis, and applications. J. Biomed. Opt.
**2020**, 25, 1–44. [Google Scholar] [CrossRef] - Ma, N.; Mochel, N.R.; Pham, P.D.; Yoo, T.Y.; Cho, K.W.Y.; Digman, M.A. Label-free assessment of pre-implantation embryo quality by the Fluorescence Lifetime Imaging Microscopy (FLIM)-phasor approach. Sci. Rep.
**2019**, 9, 13206. [Google Scholar] [CrossRef] [Green Version] - Redford, G.I.; Clegg, R.M. Polar Plot Representation for Frequency-Domain Analysis of Fluorescence Lifetimes. J. Fluoresc.
**2005**, 15, 805–815. [Google Scholar] [CrossRef] [PubMed] - Becker, W. Advanced Time-Correlated Single Photon Counting Applications; Springer International Publishing: Cham, Switzerland, 2015; Volume 111, p. 642. [Google Scholar]
- Birnbaum, Z.W. On a use of Mann-Whitney statistics. In Proceeding of the Third Berkley Symposium on Mathematical Statistics and Probability, Berkeley, CA, USA, 26–31 December 1956. [Google Scholar]
- David, A.; Vassilvitskii, S. K-means++: The advantages of careful seeding. In Proceedings of the Eighteenth Annual ACM-SIAM Symposium on Discrete Algorithms (SODA ‘07), New Orleans Louisiana, LA, USA, 7–9 January 2007; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 2007; pp. 1027–1035. [Google Scholar]

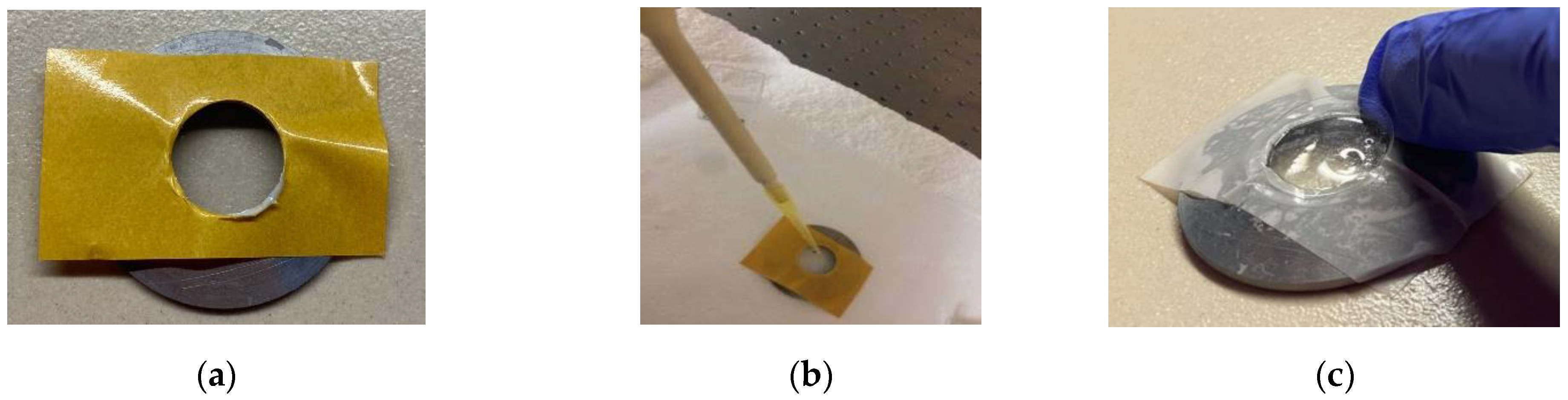

**Figure 1.**An illustration of an exosome sample process prepared for MPTflex microscope analysis: photographs of a glass plate with adhesive tape (

**a**), the process of the exosome sample’s positioning on the glass plate (

**b**), and this construction being covered from above with another glass plate (

**c**).

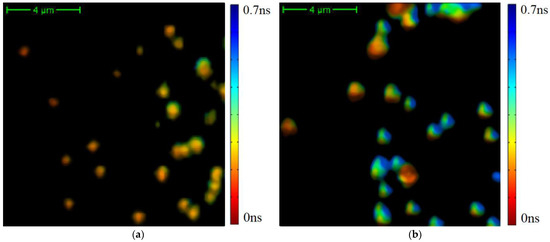

**Figure 2.**Examples of average TPAF lifetime ${\mathrm{t}}_{\mathrm{m}}$images of an exosome sample registered by MPTflex microscope for randomly selected CRC (

**a**) and CP patients (

**b**). The color characterizes ${\mathrm{t}}_{\mathrm{m}}$ values according to the presented legend.

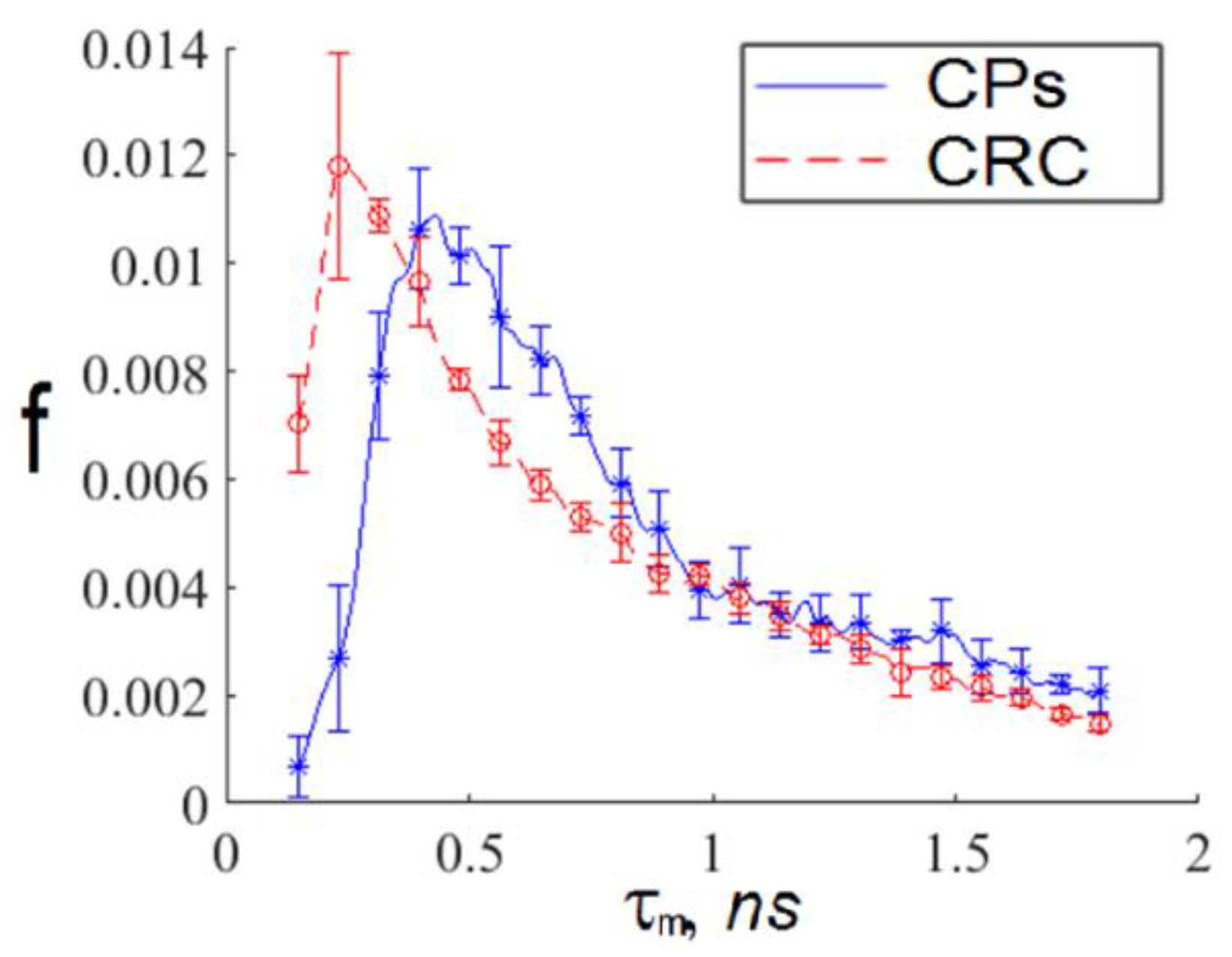

**Figure 3.**The average TPAF lifetime ${\mathrm{t}}_{\mathrm{m}}$ distributions, normalized on an area under the curve, for images of the exosome samples presented in Figure 2. Notations on the legend: CPs—the exosome sample from the randomly selected CRC patient; CRC—the exosome sample from the randomly selected CP patient. The ${\mathrm{t}}_{\mathrm{m}}$ distribution mean values and standard deviations were calculated by ${\mathrm{t}}_{\mathrm{m}}$ value-averaging over images presented in Figure 2a,b.

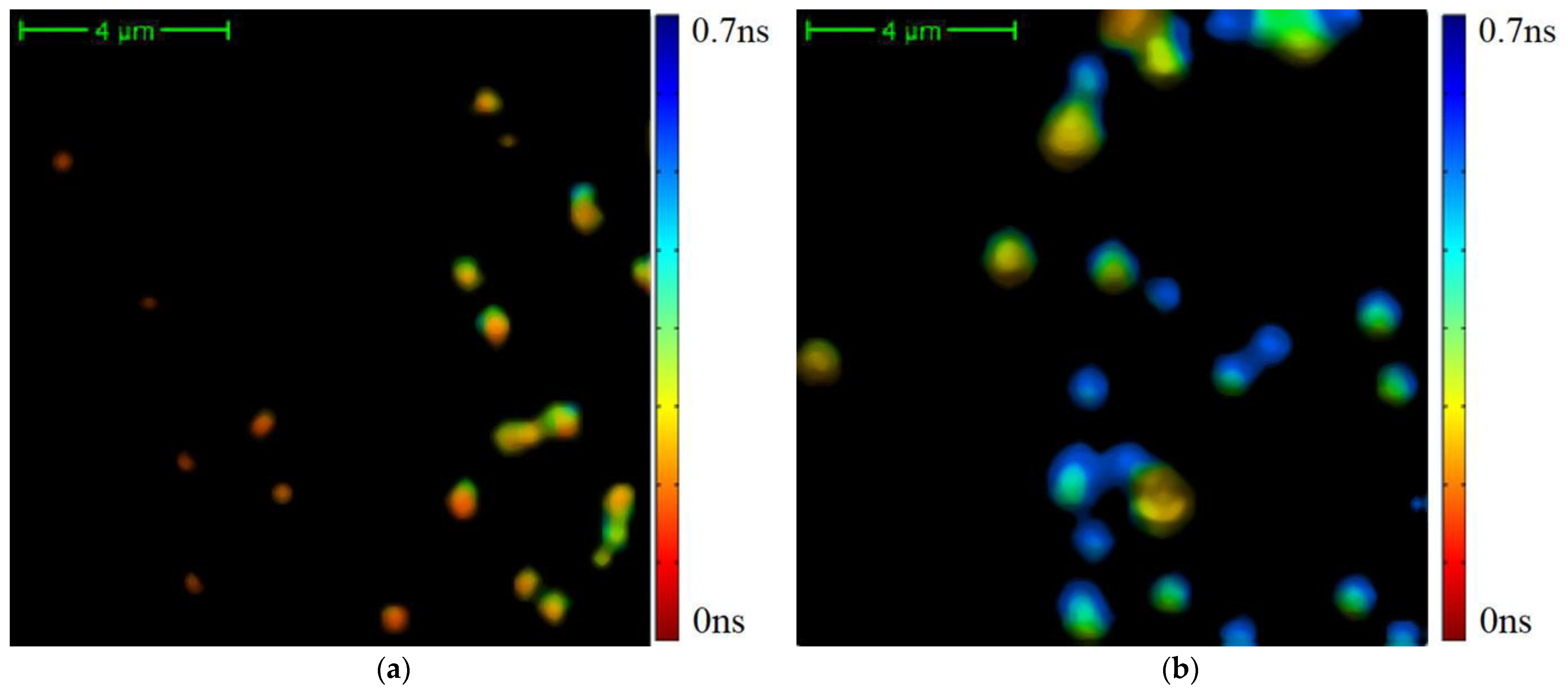

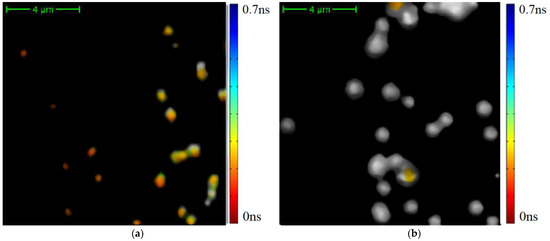

**Figure 4.**The results of the average TPAF lifetime ${\mathrm{t}}_{\mathrm{m}}$ image of exosome samples processed by a cutting filter: the image for the CRC patient (

**a**) and the image the CP patient (

**b**). The cutting filter had a threshold of 800 photons per pixel. The corresponding unprocessed images are presented in Figure 2.

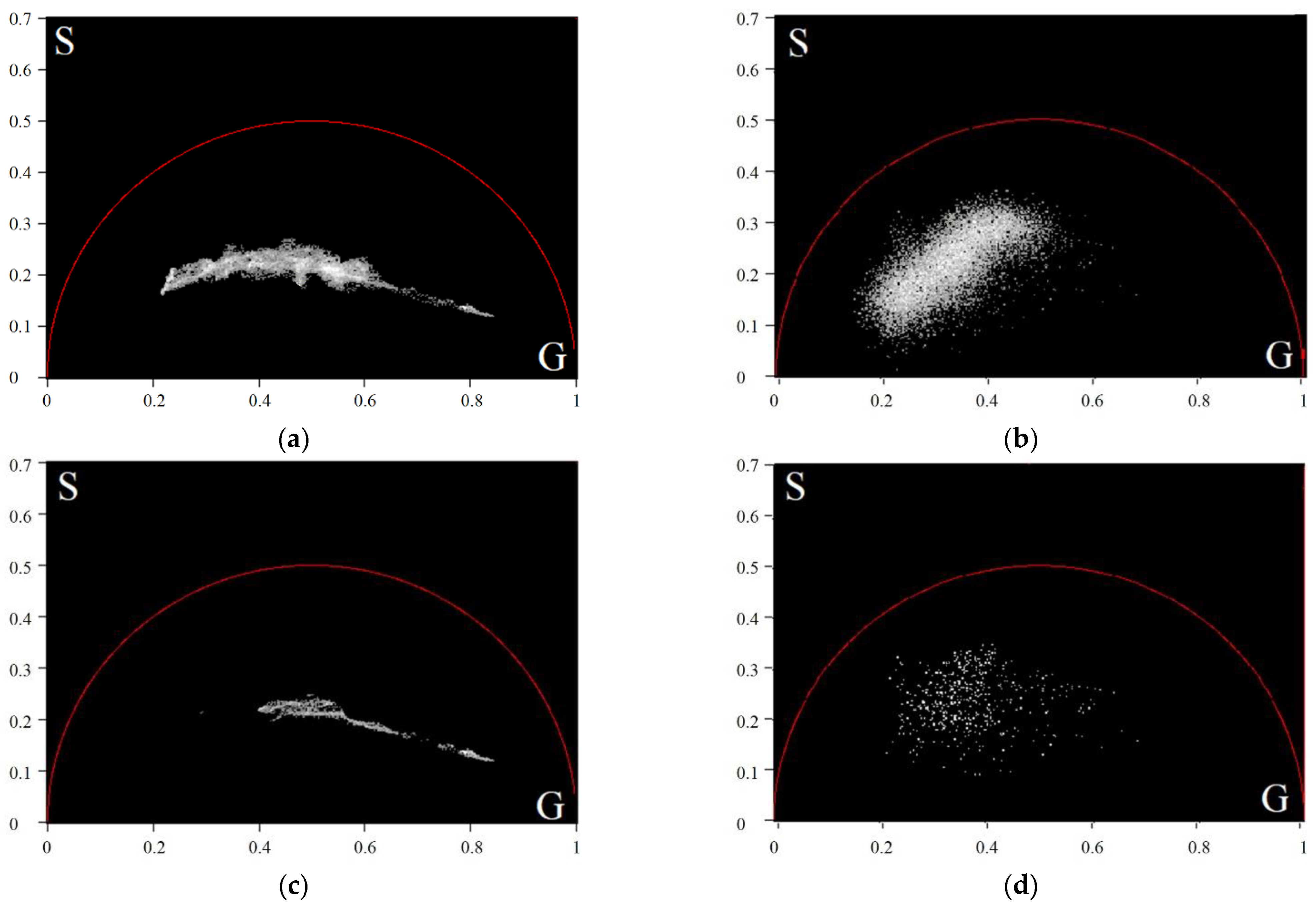

**Figure 5.**The phasor plots of the average TPAF lifetime ${\mathrm{t}}_{\mathrm{m}}$images of the exosome samples for a CRC patient before (

**a**) and after (

**b**) the cutting filter processing; (

**c**–

**d**)—The same for a CP patient. The cutting filter had a threshold of 800 photons per pixel.

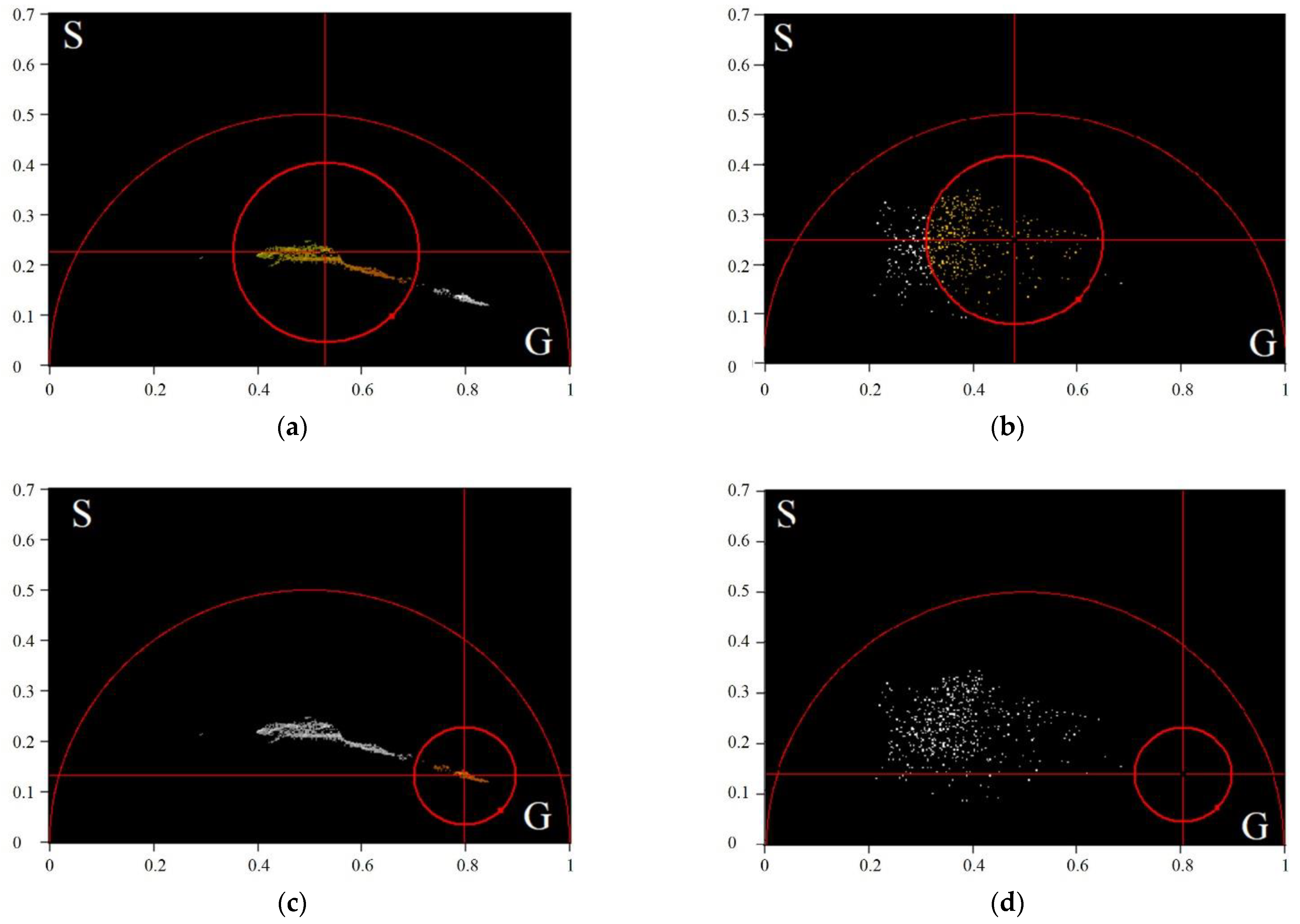

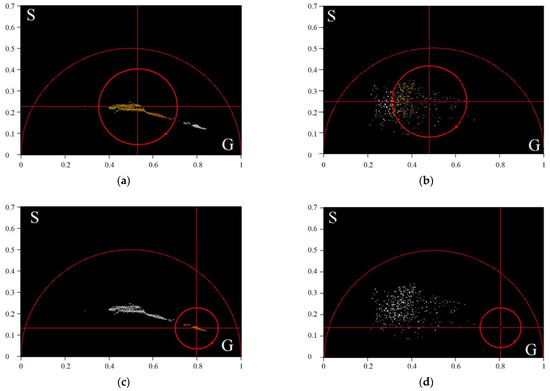

**Figure 6.**The class areas on phasor plots of the average TPAF lifetime ${\mathrm{t}}_{\mathrm{m}}$images of the exosome samples presented in Figure 5: the first class position on the phasor plot for the CRC patient (

**a**) and the CP patient (

**b**), the second class position on the phasor plot for the CRC patient (

**c**) and the CP patient (

**d**). The first class parameters: ${g}_{c,1}=$ 0.80, ${s}_{c,1}=$ 0.14, and ${R}_{1}=$ 0.51; the second class parameters: ${g}_{c,2}=$ 0.53, ${s}_{c,2}=$ 0.23, and ${R}_{2}=$ 0.71. Here, ${g}_{c,j},{s}_{c,j},\mathrm{and}{R}_{j}$ are coordinates of the center and radius of the $j-th$ class.

**Figure 7.**The differentiation of exosomes on the classes described by Formulas (6) and (7). Here, color data points correspond to the exosomes with short average TPAF lifetimes and gray data points correspond to the exosomes with long average TPAF lifetimes. These images are presented unprocessed in Figure 4.

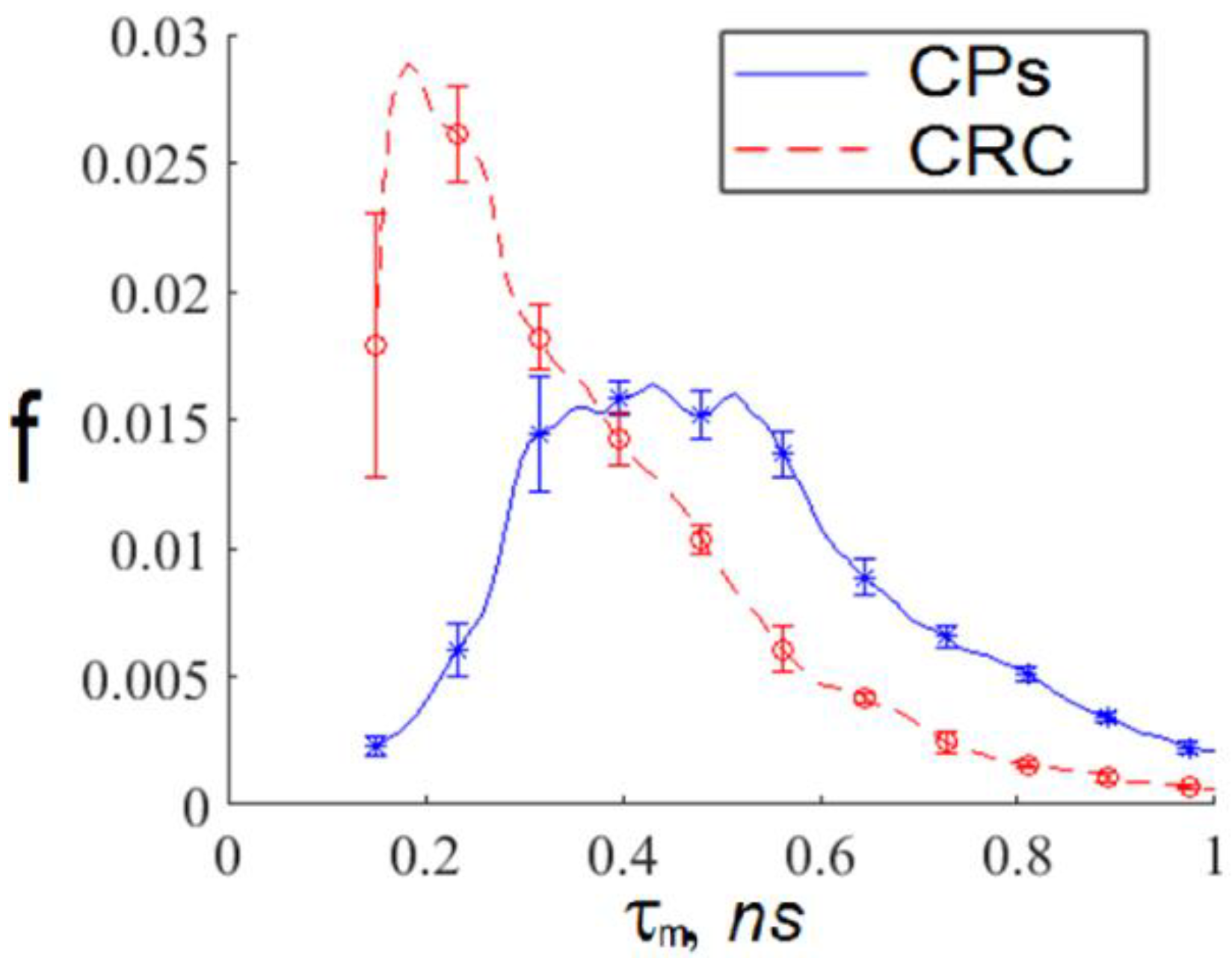

**Figure 8.**The average TPAF lifetime ${\mathrm{t}}_{\mathrm{m}}$ distributions for of the exosome samples, normalized on an area under the curve, for the whole dataset processed by the cutting filter with a threshold of 800 photons per pixel and the circle masks described by Formulas (6) and (7) in a phasor plane. Notations on the legend: CPs—the exosome samples from the whole CRC patient group; CRC—the exosome samples from the whole CP patient group. The ${\mathrm{t}}_{\mathrm{m}}$ distribution mean values and standard deviations were calculated by ${\mathrm{t}}_{\mathrm{m}}$ value-averaging over images presented in Figure 7a,b.

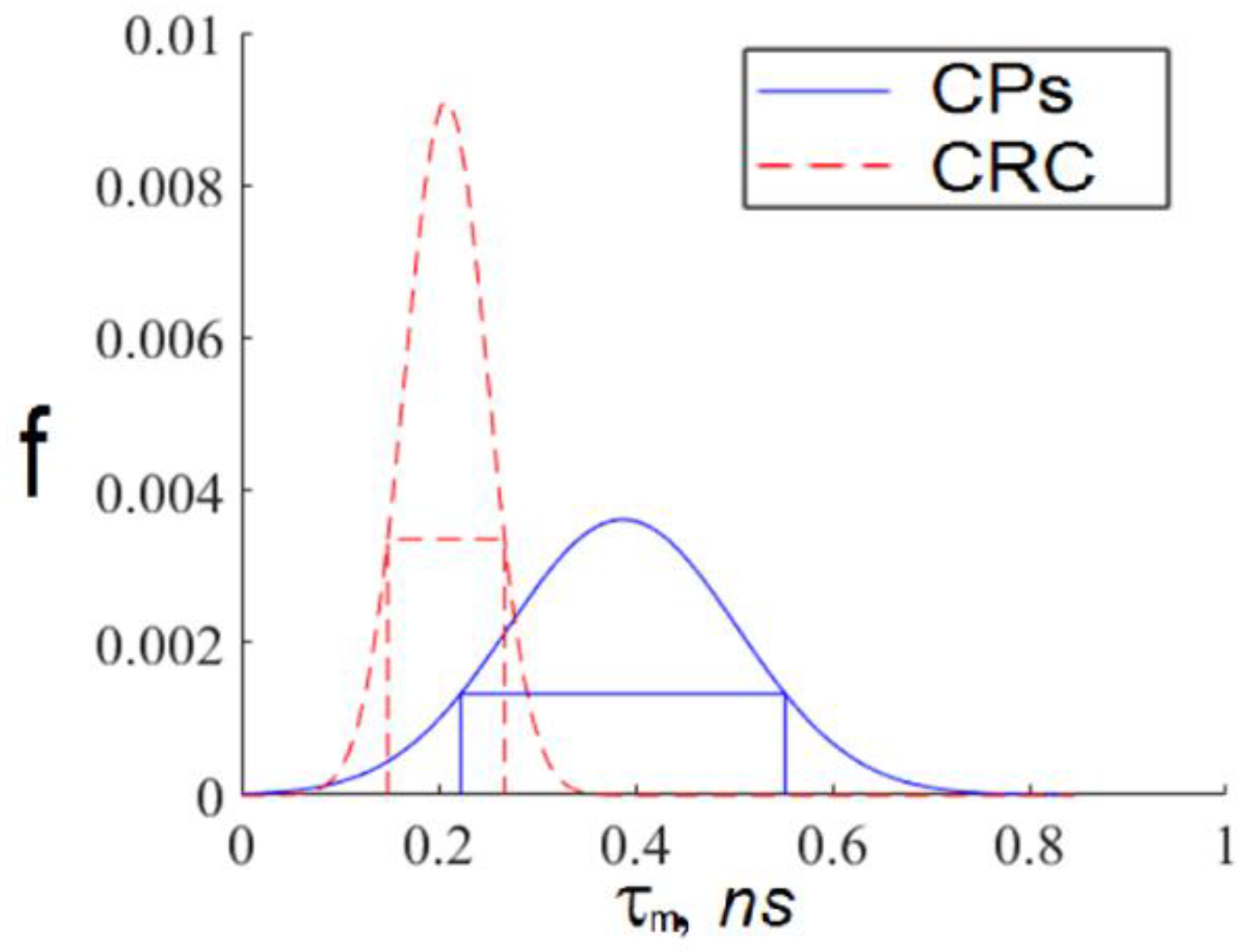

**Figure 9.**Interval approximations of the distribution functions of the short and long average TPAF lifetimes presented in Figure 8. These curves were calculated using Gaussian approximation of the data presented in Table 1. Notations on the legend: CPs—the exosome samples from the whole CRC patient group; CRC—the exosome samples from the whole CP patient group.

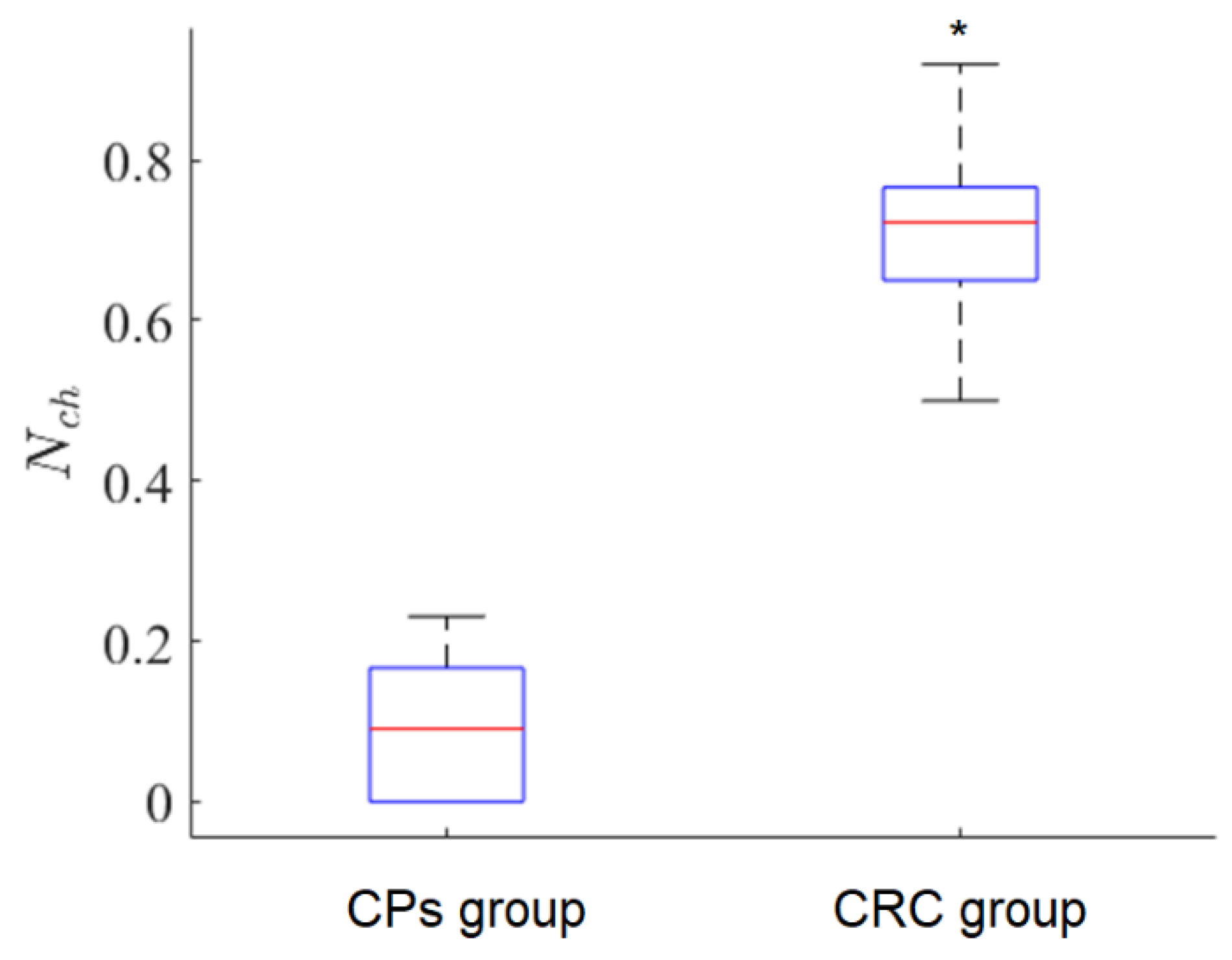

**Figure 10.**A box diagram for ${N}_{ch}$values for CP and CRC patient groups, * p-value is $3.35\xb7{10}^{-5}.$ Here, ${N}_{ch}$ is the relative number of CRC-associated exosomes in the FLIM dataset calculated according to Formula (8).

**Table 1.**Mean and standard deviations for the distributions shown in Figure 8.

Mean Value, ns | Standard Deviation, ns | |
---|---|---|

The short average TPAF lifetime distribution | 0.21 | 0.06 |

The long average TPAF lifetime distribution | 0.43 | 0.19 |
