Communication

Comparative Assessment of Sera from Individuals after S-Gene RNA-Based SARS-CoV-2 Vaccination with Spike-Protein-Based and Nucleocapsid-Based Serological Assays

1
Institute for Medical Microbiology, University Medical Center Göttingen, 37075 Göttingen, Germany
2
Institute for Medical Microbiology, Virology and Hygiene, University Medicine Rostock, 18057 Rostock, Germany
3
Department of Microbiology and Hospital Hygiene, Bundeswehr Hospital Hamburg, 20359 Hamburg, Germany
4
Department of Anesthesiology, University Medical Center Göttingen, 37075 Göttingen, Germany
*
Author to whom correspondence should be addressed.
Hagen Frickmann and Anja Dörschug contributed equally to this work.
Diagnostics 2021, 11(3), 426; https://doi.org/10.3390/diagnostics11030426
Received: 15 February 2021 / Revised: 25 February 2021 / Accepted: 26 February 2021 / Published: 3 March 2021

Abstract

:
Due to the beginning of vaccination against COVID-19, serological discrimination between vaccine-associated humoral response and serology-based surveillance of natural SARS-CoV-2 infections as well as breakthrough infections becomes an issue of relevance. Here, we assessed the differentiated effects of the application of an RNA vaccine using SARS-CoV-2 spike protein epitopes on the results of both anti-spike protein–based serology (EUROIMMUN) and anti-nucleocapsid-based serology (VIROTECH). A total of 80 serum samples from vaccinees acquired at different time points after vaccination was assessed. While positive or borderline serological response in the anti-spike protein assay was observed for all samples (90% both IgG and IgA, 6.3% IgA only, 3.8% borderline IgG only), only a single case of a falsely positive IgM was observed for the anti-nucleocapsid assay as expected due to this assay’s specificity. Positive anti-spike protein antibodies were already detectable in the second week after the first dose of vaccination, with higher titers after the second dose of the vaccine. In conclusion, the combined application of anti-spike protein–based serology and anti-nucleocapsid-based serology will provide a useful option for the discrimination of vaccination response and natural infection.

1. Introduction

At the end of 2020, vaccination against COVID-19 was started in Germany with RNA-based vaccines using epitopes of the SARS-CoV-2 spike protein (SARS-2-S) [1] to induce protective immunity [2,3]. Vaccine-induced antibodies against the spike protein can be expected in vaccinees as indicated by the study on safety and immunogenicity prior to authorization [4]. Accordingly, vaccinated individuals without infection by SARS-CoV-2 should develop measurable antibodies in serological assays targeting the SARS-CoV-2 spike protein but not in assays targeting the nucleocapsid (SARS-2-N) protein [5] of SARS-CoV-2.
In the course of the recent months, various studies have assessed the diagnostic performance characteristics of SARS-CoV-2-specific serological assays, indicating imperfect sensitivity and specificity of the assays, with higher reliability of assays targeting IgG compared to IgM- and IgA-specific ones [6,7,8,9,10,11,12,13,14]. Specificity problems with serological assays based on whole viral antigens [15] facilitated the development of more specific assays based on chosen structures of the virus only. Although the viral nucleocapsid as well as the antigens of the viral open reading frames (ORFs) 8 and 3b were shown to elicit the strongest specific antibody responses after SARS-CoV-2-infections [16], serological assays targeting the spike protein and the nucleocapsid protein have been most frequently designed. Serological response against the spike protein has been considered as particularly interesting due to reported interaction with ACE2 (angiotensin-converting enzyme 2) binding [17]. Further, spike-protein-specific antibodies have been reported to persist longer than nucleocapsid-specific antibodies [18], which decrease within weeks to months [19]. Spike proteins offer even better sensitivity if the spike protein is applied as trimer and not as monomer in the serological assay [20]. Indeed, the trimeric spike protein was one of the first implemented as the primary antigen in various serological assays [21]. Intensity of humoral immunoreactivity toward the SARS-CoV-2 spike protein was shown to be influenced by disease severity and smoking status [22].
In spite of the shorter half-life of nucleocapsid-specific antibodies [18,19], their combination with antibodies against the receptor-binding domain of the spike protein [23] as well as their assessment alone [24] were associated with excellent specificity. In the short-term range of 2 weeks after infection, there are no differences between sensitivity of assays targeting antibodies against the nucleocapsid or the spike protein [25]. In recent comparisons of nucleocapsid- and spike-protein-based assays, no unambiguous superiority of one approach or the other could be identified [26,27,28,29]. In early infection states, sensitivity of anti-nucleocapsid antibodies can even be higher than that of anti-spike protein antibodies [24,30,31]. Other studies suggested a higher degree of inconsistency of the abundance of anti-nucleocapsid antibodies compared to anti-spike protein antibodies after SARS-CoV-2-infections [32,33]. Furthermore, spike-protein-based assays were reported to better predict the outcome of neutralization assays [34].
Considering the reported good specificity results of nucleocapsid assays [23,24], vaccination with SARS-CoV-2 spike-protein-based vaccines should elicit robust anti-spike protein antibodies as its humoral response but ought to show no cross-reaction with anti-nucleocapsid-antibody-specific assays. It should therefore be possible to differentiate between a vaccination response and at least recent natural infections with SARS-CoV-2 [18,19] on the basis of these different test strategies.
In this study, a serological assay by EUROIMMUN targeting the spike protein and an assay by VIROTECH targeting the nucleocapsid protein of SARS-CoV-2 were comparatively applied for the testing of volunteers after mRNA-based vaccination with mRNA encoding the spike protein as described [1,2,3,4]. Both the EUROIMMUN and the VIROTECH assay had already been evaluated in previous assessments [12,35,36]. By doing so, it was intended to confirm the expected differentiated response with reactivity in the spike-protein-based assay, but without reactivity in the nucleocapsid-based assay in vaccinated individuals without previous SARS-CoV-2 infection.

2. Materials and Methods

2.1. Sample Collection

Assessed samples comprised 80 sera of volunteers vaccinated with the Comirnaty COVID-19 mRNA vaccine from BioNTech (Mainz, Germany) and Pfizer (Puurs, Belgium) [36], collected after the first or second vaccination. The sera were stored in the refrigerator at 2 to 8 °C prior to assessment for a maximum of 2 days. The vaccinees were healthcare workers at the University Medical Center Göttingen, Germany.

2.2. Serological Assays

The compared serological assays comprised the spike-protein-based EUROIMMUN COVID-19 IgG/IgA assay (EUROIMMUN, Lübeck, Germany; referred to as “EUROIMMUN assay” in the following) and the nucleocapsid-based VIROTECH SARS-CoV-2 IgA/IgM/IgG ELISA (Rüsselsheim am Main, Germany; referred to as “VIROTECH assay” in the following). Both assays were performed exactly as described by the manufacturers.

2.3. Statistics

Correlation between the titers of the anti-spike protein antibodies and the time from first and second vaccination until sample acquisition as well as the vaccinees’ age at sample acquisition was calculated applying Spearman’s correlation coefficient after conducting a significant Shapiro–Wilk test for normal distribution.
Wilcoxon’s rank sum test was applied to detect statistical differences for the anti-spike protein antibody titers between males and females and between individuals who received one or two vaccinations.

2.4. Ethics

The study was ethically approved by the institutional ethics board of the University Medical Center Göttingen (identification code 21/05/20, provided on 21 May 2020).

3. Results

3.1. Vaccinees

The assessed 80 vaccinees comprised 36 (45.0%) males and 44 (55.0%) females. At the time of sample acquisition, the mean (± standard deviation SD) age in years was 39.4 (± 1.4), and the median age (interquartile range) was 37 (29, 49). At total of 53/80 (66.3%) had received the first and the second vaccine, 27/80 (33.8%) only the first vaccine. For the patients who had only received the first vaccine, the mean (± SD) number of days after this vaccine until sample acquisition was 16.5 (± 5.4), for the patients who had received both vaccines it was 4.5 (± 4.6). The raw study data on the vaccinees are shown in the Appendix A, Table A1.

3.2. Serological Test Results

In the spike-protein-specific EUROIMMUN assays, all assessed 80 vaccinees showed at least one positive (n = 77/80, 96.3%) or borderline (n = 3/80, 3.8%) result for either the immunoglobulin subclass A, G, or both. In detail, in the EUROIMMUN IgG assay 72/80 (90.0%) positive and 3/80 (3.8%) borderline results were observed. In the EUROIMMUN IgA assay, 77/80 (96.3%) showed positive results. Of note, the three cases of borderline EUROIMMUN IgG results were associated with the three negative EUROIMMUN IgA results without exemption, while positive IgA results were always associated with positive IgG results.
The three cases with negative EUROIMMUN IgA and borderline EUROIMMUN IgG comprised a 48-year-old female 19 days after her first vaccine, a 61-year-old female 1 day after her second vaccine, and a 60-year-old male 3 days after his second vaccine, respectively. The five cases with positive EUROIMMUN IgA result but negative EUROIMMUN IgG result consisted of a 21-, 51-, and a 63-year-old female and a 50-year-old male 11 days after their first vaccine, as well as a 23-year-old male 9 days after his first vaccine, respectively.
No positive results were observed for the immunoglobulin subclasses IgG and IgA of the nucleocapsid-specific VIROTECH assay. For IgM, a positive VIROTECH signal was recorded in a 51-year-old female 3 days after her second vaccine.
The raw data are provided in the Appendix A, Table A2.

3.3. Correlation of the Time in Days between the Last Vaccine and Sample Acquisition, Age, Sex and the Measured Titers

Spearman’s correlation coefficient between the time from the first and second vaccination and the titers of the anti-spike protein antibodies are indicated in Table 1. As shown there, respective correlation was weak for IgA, especially in patients who had received only one vaccine at the time of sample acquisition. It was slightly better after two vaccines, in spite of a tendency for higher titers after longer time intervals. For IgG, the correlation was better for all assessed situations.
Table 2 indicates Spearman’s correlation coefficients between the age at the sample acquisition date and the anti-spike protein antibody titers. A non-significant trend for higher titers in young age groups was observed for both IgA and IgG antibodies.
The anti-spike protein antibody titers among males and females were compared by conducting Wilcoxon’s rank sum test and were not statistically significant assuming a level of significance of 0.05 (Table 3).

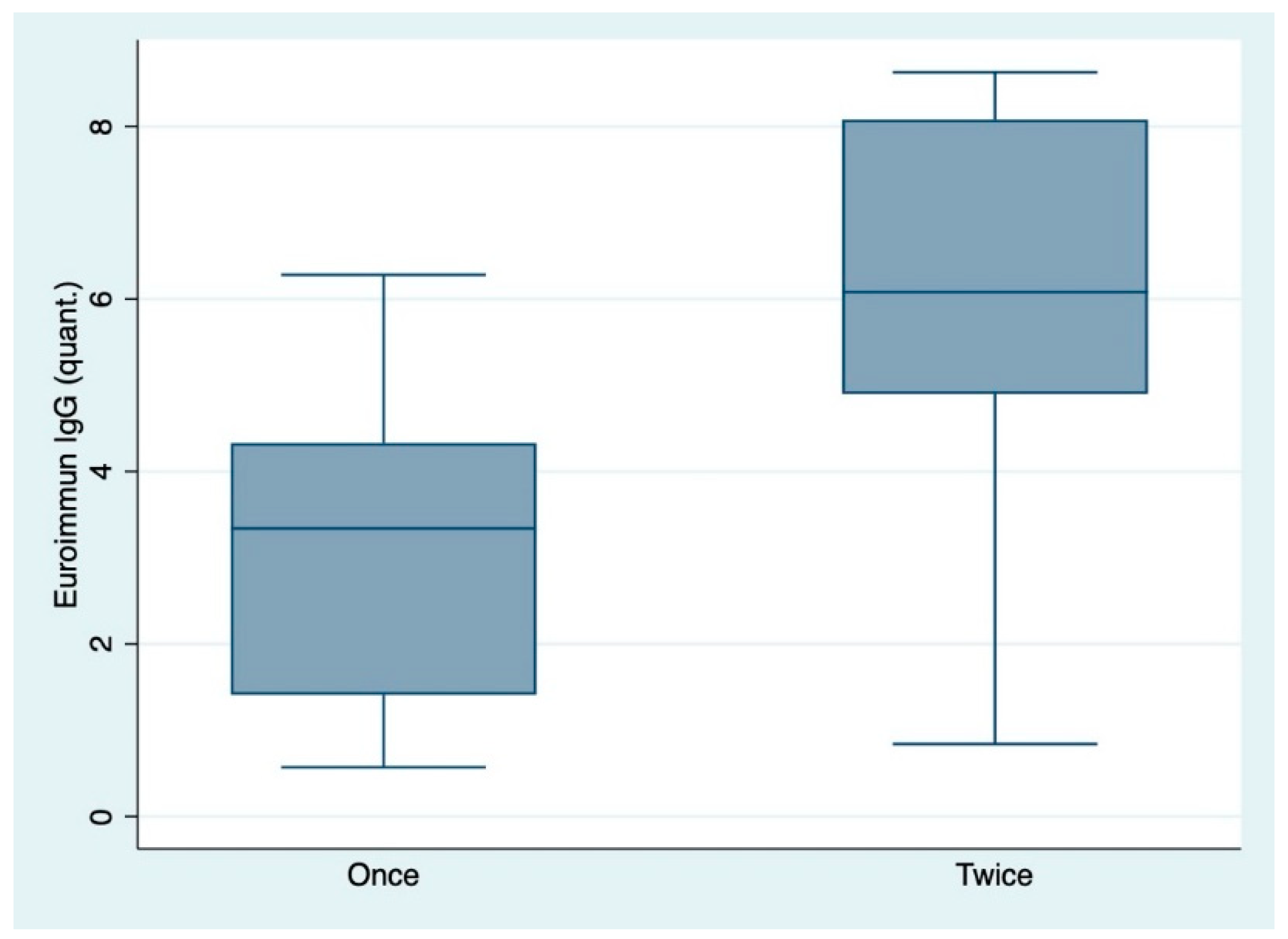

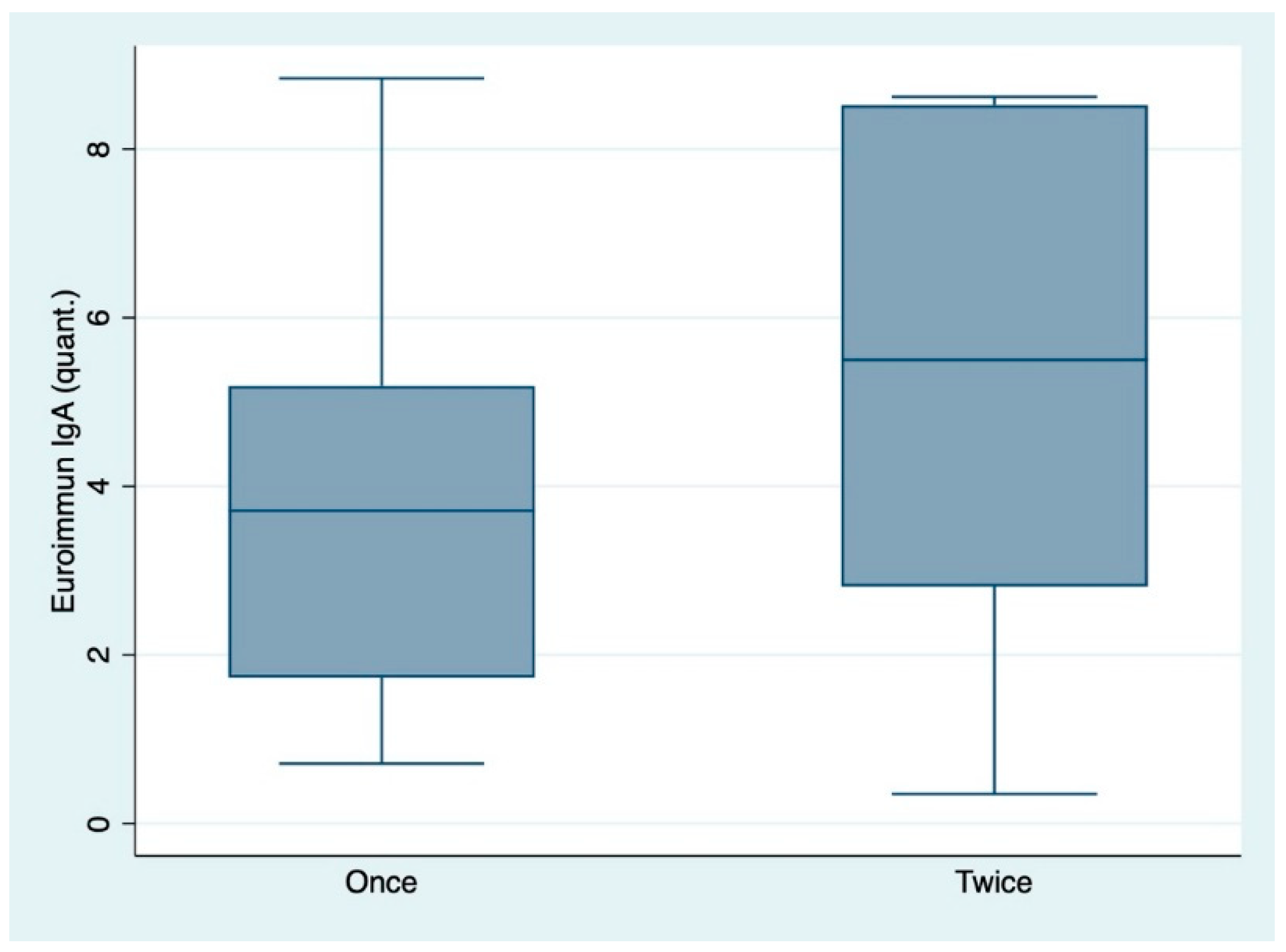

The anti-spike protein antibody titers among individuals who received one or two vaccinations were tested by conducting Wilcoxon’s rank sum test and were statistically significant assuming a level of significance of 0.05 for both subclasses IgA and IgG. The titers were higher among individuals who received both vaccinations (Table 4, Figure 1 and Figure 2).

4. Discussion

The study was conducted to differentiate the vaccination with RNA-based vaccines using epitopes of the SARS-CoV-2 spike protein (SARS-2-S) [1,2,3,4] as a proof-of-principle assessment. First of all, positive or borderline results for anti-spike protein antibodies were observed for all assessed vaccinees, irrespective of vaccination status with just one or with two vaccine doses. In contrast, anti-nucleocapsid IgA and IgG antibodies did not occur in the vaccinees. The single positive IgM result among the 80 assessed samples is as expected in line with the previously calculated specificity of the applied VIROTECH anti-nucleocapsid-IgM assay between 94% and 96.7% as indicated in a previous study [12]. Accordingly, the reported single positive IgM result can most likely be judged as a false positive. Hypothetically, a very early stage of a breakthrough infection is an alternative explanation, so follow-up assessment is recommended in case of such a serological reaction pattern. In this specific case, serological follow-up was unfeasible as the respective volunteer agreed to one blood sample acquisition only. However, in retrospect, when asked, the subject reported no symptoms of a mild upper respiratory tract infection at the relevant time.
Considering the acceptable sensitivity and specificity of the VIROTECH assay with samples from patients with COVID-19 as shown elsewhere [12], our data suggest that a combination of anti-spike protein–based serology and anti-nucleocapsid-based serology can be used to discriminate spike-protein-based vaccination-induced antibody titers from antibodies after acute SARS-CoV-2 infections as well as from potential antibodies due to breakthrough infections in spite of vaccination.
Secondly, it could be shown that anti-spike protein antibodies are already measurable early after vaccination. While 72 vaccinees showed a combination of positive IgG and IgA against the SARS-CoV-2 spike protein, five individuals with samples acquired at very early time points—9 to 11 days after the first vaccine—expressed IgA but still no IgG antibodies. This pattern was not observed at later time points of sample acquisition, suggesting its occurrence at early stages after vaccination only.
A pattern of borderline IgG anti-spike protein antibodies without measurable IgA antibodies, which was observed, compared to the study median, in older vaccinees once after the first and twice after the second vaccine dose, calls for further follow-up. Although this pattern was observed in less than 5% of the vaccinees, it raises the question of potentially insufficient humoral response toward the vaccination applied.
Thirdly, associations of antibody-titers with factors such as age, sex, and time between vaccination and serum sample acquisition were assessed. While respective correlations were generally weak, at least significance for higher anti-spike protein antibody titers in individuals after the second vaccination compared to patients with only one vaccine dose could be shown.
The study has a number of limitations. Firstly, the comparable low number of only 80 vaccinees allows a preliminary interpretation only. Secondly, the intervals between vaccination and sample acquisition were arbitrary and defined by the accessibility of the vaccinees for the sample acquisition. Thirdly, a sample acquisition on a daily basis would have been desirable to assess the seroconversion process. However, this procedure was not feasible for organizational reasons. Fourthly, neutralizing potential of the measured antibodies was not tested, as the correlation of the results of the used serological assays to the results from neutralization tests has already been demonstrated in preliminary studies [7]. Also, the scope of the work was not the confirmation of the neutralizing potential of vaccine-related antibodies but just the establishing of a ready-to-perform approach of serological discrimination of post-vaccination antibodies and wildtype virus infection–related ones in the diagnostic routine.

5. Conclusions

In a small group of recently vaccinated individuals, anti-spike protein antibodies were very consistently recorded, while anti-nucleocapsid antibodies were virtually absent. In spite of the limitations mentioned, the assessment strongly suggests combined application of anti-spike protein–based serology and anti-nucleocapsid-based serology for the discrimination of responses after spike-protein-based vaccination and natural infections. Although not directly assessed in this study, it is likely that this may also apply to breakthrough infections. Positive anti-spike protein antibody results can be expected early after vaccination, although higher titers are seen after the second vaccine. Larger studies are recommended to confirm these preliminary results. From the practical clinical point of view, a combination of serological assays for the discrimination of anti-spike protein antibodies and anti-nucleocapsid antibodies is recommended, if a recent breakthrough infection with SARS-CoV-2 is to be confirmed in vaccinees for clinical, hygiene-related, or surveillance purposes.

Author Contributions

Conceptualization, A.E.Z.; methodology, A.E.Z.; software, A.E.Z.; validation, A.E.Z.; formal analysis, A.H. and J.S.; investigation, A.D., E.Y., A.H., J.S., K.M. and A.E.Z.; resources, A.H., E.Y., U.G. and A.E.Z.; data curation, A.E.Z.; writing—original draft preparation, A.D., H.F. and A.E.Z.; writing—review and editing, A.D., J.S., E.Y., H.F., K.M. and A.E.Z.; visualization, A.H., K.M. and A.E.Z.; supervision, A.E.Z.; project administration, U.G. and A.E.Z.; funding acquisition, U.G. and A.E.Z. All authors have read and agreed to the published version of the manuscript.

Funding

The APC was funded by the Open Access Support Program of the Deutsche Forschungsgemeinschaft and the publication fund of the Georg-August-Universität Göttingen.

Institutional Review Board Statement

The study was ethically approved by the institutional ethics board of the University Medical Center Göttingen (identification code 21/05/20, 21 May 2020).

Informed Consent Statement

Written informed consent has been obtained from the volunteers.

Data Availability Statement

All relevant data are provided in the manuscript and its tables.

Acknowledgments

We are grateful to Luisa Rittmeier and Manuela Resa for excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table A1. Vaccinee-specific raw data.
Table A1. Vaccinee-specific raw data.
Study IDSex (1 = Male, 2 = Female)Age at Sample Acquisition (Years)Date of First VaccineDate of Second VaccineDate of sAmple Acquisition
11192021-01-21 2021-02-01
22212021-01-21 2021-02-01
32252021-01-21 2021-02-01
42362021-01-21 2021-02-01
52512021-01-21 2021-02-01
61502021-01-21 2021-02-01
72632021-01-21 2021-02-01
82492021-01-12 2021-02-02
91622021-01-15 2021-02-02
102482021-01-20 2021-02-02
111242021-01-14 2021-02-02
122302021-01-12 2021-02-02
132482021-01-14 2021-02-02
141442021-01-13 2021-02-02
151542021-01-112021-02-012021-02-02
161312021-01-112021-02-012021-02-02
172282021-01-112021-02-012021-02-02
181312021-01-11 2021-02-02
191482021-01-112021-02-012021-02-02
202612021-01-112021-02-012021-02-02
211322021-01-12 2021-02-02
222452021-01-11 2021-02-02
231342021-01-12 2021-02-02
241332021-01-11 2021-02-02
252322021-01-112021-02-012021-02-02
261402021-01-112021-02-012021-02-03
271262021-01-122021-02-022021-02-03
281412021-01-072021-02-012021-02-03
292272021-01-13 2021-02-03
301432021-01-122021-02-022021-02-03
312482021-01-082021-02-012021-02-04
322462021-01-132021-01-032021-02-04
331342021-01-112021-02-012021-02-04
342502021-01-122021-02-022021-02-04
352492021-01-13 2021-02-04
362282021-01-112021-02-012021-02-04
371602021-01-112021-02-012021-02-04
382282021-01-18 2021-02-04
392342021-01-112021-02-012021-02-04
402542021-01-14 2021-02-04
411602021-01-20 2021-02-04
421392021-02-01 2021-02-04
432252021-01-112021-02-012021-02-04
441232021-01-26 2021-02-04
452622021-01-15 2021-02-05
462252021-01-122021-02-022021-02-05
471482021-01-142021-02-042021-02-05
481422021-01-122021-02-022021-02-05
492302021-01-142021-02-042021-02-05
502412021-01-122021-02-022021-02-05
511232021-01-122021-02-022021-02-05
522542021-01-112021-02-042021-02-05
532342021-01-122021-02-022021-02-05
542392021-01-082021-02-012021-02-06
552532021-01-112021-02-012021-02-08
562502021-01-082021-02-012021-02-08
572642021-01-082021-02-012021-02-08
582382021-01-112021-02-012021-02-08
591432021-01-122021-02-022021-02-08
602362021-01-072021-02-012021-02-08
612632021-01-112021-02-012021-02-08
621422021-01-112021-02-012021-02-08
631392021-01-082021-02-012021-02-08
642512021-01-152021-02-052021-02-08
651332021-01-122021-02-022021-02-08
662312021-01-132021-02-032021-02-09
671332021-01-112021-02-012021-02-09
681322021-01-182021-02-082021-02-09
691302021-01-112021-02-012021-02-09
702582021-01-122021-02-022021-02-09
711282021-01-182021-02-082021-02-09
722282021-01-132021-02-032021-02-09
732332021-01-122021-02-042021-02-09
741312021-01-122021-02-042021-02-09
752272021-01-132021-02-032021-02-09
761252021-01-112021-02-012021-02-09
771232021-01-122021-02-022021-02-09
782572021-01-122021-02-042021-02-09
791252021-01-122021-02-082021-02-09
802272021-01-132021-02-032021-02-09
Table A2. Raw data of the serological test results—for the VIROTECH results, only qualitative data are shown.
Table A2. Raw data of the serological test results—for the VIROTECH results, only qualitative data are shown.
Study IDEuroimmun IgA
(Qualitative, 0 = Negative, 1 = Positive)
Euroimmun IgG
(Qualitative, 0 = Negative, 1 = posItive, 3 = Borderline)
Euroimmun IgA
(Ratio of the Patient Sample over the Extinction of the Calibrator)
Euroimmun IgG
(Ratio of the Patient Sample Over the Extinction of the Calibrator)
Virotech IgA
(Qualitative, 0 = Negative, 1 = Positive)
Virotech IgM
(Qualitative, 0 = Negative, 1 = Positive)
Virotech IgG
(Qualitative, 0 = Negative, 1 = Positive)
1118.841.41000
2101.730.57000
3114.12.20000
4115.23.62000
5103.250.63000
6101.990.64000
7101.150.62000
8117.864.44000
9117.414.26000
10111.321.46000
11113.714.37000
12115.195.54000
13030.711.03000
14310.953.34000
15111.893.03000
16116.265.47000
17111.825.02000
18116.184.41000
19111.762.48000
20030.350.84000
21113.244.33000
22111.253.94000
23114.946.28000
24115.072.13000
25113.674.93000
26115.415.24000
27113.024.90000
28114.945.99000
29111.115.44000
30112.554.95000
31113.965.62000
32111.612.68000
33112.483.68000
34113.323.02000
35114.053.96000
36112.264.99000
37030.561.09000
38116.573.86000
39114.94.47000
40112.331.77000
41115.162.77000
42112.482.81000
43116.446.67000
44105.190.85000
45113.553.45000
46113.316.17000
47118.625.63000
48115.512.40000
49114.167.57000
50116.966.08000
51112.815.37000
52112.562.00000
53111.144.32000
54113.137.47000
55115.157.82000
56118.598.00000
57118.528.50000
58118.528.49000
59118.528.12000
60118.528.15000
61118.527.88000
62118.328.06000
63118.528.26000
64111.733.31010
65118.528.23000
66118.338.63000
67118.528.24000
68118.215.96000
69118.528.13000
70118.528.30000
71113.814.03000
72118.528.58000
73117.258.08000
74116.26.69000
75111.216.80000
76118.528.23000
77118.527.99000
78115.56.50000
79116.955.81000
80118.528.08000

References

  1. Herrera, N.G.; Morano, N.C.; Celikgil, A.; Georgiev, G.I.; Malonis, R.J.; Lee, J.H.; Tong, K.; Vergnolle, O.; Massimi, A.B.; Yen, L.Y.; et al. Characterization of the SARS-CoV-2 S Protein: Biophysical, Biochemical, Structural, and Antigenic Analysis. ACS Omega 2020, 6, 85–102. [Google Scholar] [CrossRef]
  2. Chilamakuri, R.; Agarwal, S. COVID-19: Characteristics and Therapeutics. Cells 2021, 10, 206. [Google Scholar] [CrossRef]
  3. Xia, X. Domains and Functions of Spike Protein in Sars-Cov-2 in the Context of Vaccine Design. Viruses 2021, 13, 109. [Google Scholar] [CrossRef]
  4. Walsh, E.E.; Frenck, R.W., Jr.; Falsey, A.R.; Kitchin, N.; Absalon, J.; Gurtman, A.; Lockhart, S.; Neuzil, K.; Mulligan, M.J.; Bailey, R.; et al. Safety and Immunogenicity of Two RNA-Based Covid-19 Vaccine Candidates. N. Engl. J. Med. 2020, 383, 2439–2450. [Google Scholar] [CrossRef]
  5. Zeng, W.; Liu, G.; Ma, H.; Zhao, D.; Yang, Y.; Liu, M.; Mohammed, A.; Zhao, C.; Yang, Y.; Xie, J.; et al. Biochemical characterization of SARS-CoV-2 nucleocapsid protein. Biochem. Biophys. Res. Commun. 2020, 527, 618–623. [Google Scholar] [CrossRef] [PubMed]
  6. Kohmer, N.; Westhaus, S.; Rühl, C.; Ciesek, S.; Rabenau, H.F. Clinical performance of different SARS-CoV-2 IgG antibody tests. J. Med. Virol. 2020, 92, 2243–2247. [Google Scholar] [CrossRef] [PubMed]
  7. Kohmer, N.; Westhaus, S.; Rühl, C.; Ciesek, S.; Rabenau, H.F. Brief clinical evaluation of six high-throughput SARS-CoV-2 IgG antibody assays. J. Clin. Virol. 2020, 129, 104480. [Google Scholar] [CrossRef] [PubMed]
  8. Wellinghausen, N.; Voss, M.; Ivanova, R.; Deininger, S. Evaluation of the SARS-CoV-2-IgG response in outpatients by five commercial immunoassays. GMS Infect. Dis. 2020, 8, Doc22. [Google Scholar] [PubMed]
  9. Trabaud, M.A.; Icard, V.; Milon, M.P.; Bal, A.; Lina, B.; Escuret, V. Comparison of eight commercial, high-throughput, automated or ELISA assays detecting SARS-CoV-2 IgG or total antibody. J. Clin. Virol. 2020, 132, 104613. [Google Scholar] [CrossRef] [PubMed]
  10. Van Elslande, J.; Decru, B.; Jonckheere, S.; Van Wijngaerden, E.; Houben, E.; Vandecandelaere, P.; Indevuyst, C.; Depypere, M.; Desmet, S.; André, E.; et al. Antibody response against SARS-CoV-2 spike protein and nucleoprotein evaluated by four automated immunoassays and three ELISAs. Clin. Microbiol. Infect. 2020, 26, 1557.e1–1557.e7. [Google Scholar] [CrossRef] [PubMed]
  11. Krüttgen, A.; Cornelissen, C.G.; Dreher, M.; Hornef, M.; Imöhl, M.; Kleines, M. Comparison of four new commercial serologic assays for determination of SARS-CoV-2 IgG. J. Clin. Virol. 2020, 128, 104394. [Google Scholar] [CrossRef]
  12. Dörschug, A.; Schwanbeck, J.; Hahn, A.; Hillebrecht, A.; Blaschke, S.; Mese, K.; Groß, U.; Dierks, S.; Frickmann, H.; Zautner, A.E. Comparison of Five Serological Assays for the Detection of SARS-CoV-2 Antibodies. Diagnostics 2021, 11, 78. [Google Scholar] [CrossRef] [PubMed]
  13. Zilla, M.; Wheeler, B.J.; Keetch, C.; Mitchell, G.; McBreen, J.; Wells, A.; Shurin, M.R.; Peck-Palmer, O.; Wheeler, S.E. Variable Performance in 6 Commercial SARS-CoV-2 Antibody Assays May Affect Convalescent Plasma and Seroprevalence Screening. Am. J. Clin. Pathol. 2020. Epub ahead of print. [Google Scholar] [CrossRef]
  14. Houlihan, C.F.; Beale, R. The complexities of SARS-CoV-2 serology. Lancet Infect. Dis. 2020, 20, 1350–1351. [Google Scholar] [CrossRef]
  15. Meireles, L.R.; da Silva, A.M.F.; Carvalho, C.A.; Kesper, N.; Galisteo, A.J., Jr.; Soares, C.P.; Araujo, D.B.; Durigon, E.L.; Oliveira, D.B.L.; Morganti, L.; et al. Natural versus Recombinant Viral Antigens in SARS-CoV-2 Serology: Challenges in Optimizing Laboratory Diagnosis of COVID-19. Clinics 2020, 75, e2290. [Google Scholar] [CrossRef]
  16. Hachim, A.; Kavian, N.; Cohen, C.A.; Chin, A.W.H.; Chu, D.K.W.; Mok, C.K.P.; Tsang, O.T.Y.; Yeung, Y.C.; Perera, R.A.P.M.; Poon, L.L.M.; et al. ORF8 and ORF3b antibodies are accurate serological markers of early and late SARS-CoV-2 infection. Nat. Immunol. 2020, 21, 1293–1301. [Google Scholar] [CrossRef]
  17. Byrnes, J.R.; Zhou, X.X.; Lui, I.; Elledge, S.K.; Glasgow, J.E.; Lim, S.A.; Loudermilk, R.P.; Chiu, C.Y.; Wang, T.T.; Wilson, M.R.; et al. Competitive SARS-CoV-2 Serology Reveals Most Antibodies Targeting the Spike Receptor-Binding Domain Compete for ACE2 Binding. mSphere 2020, 5, e00802–e00820. [Google Scholar] [CrossRef] [PubMed]
  18. Bolotin, S.; Tran, V.; Osman, S.; Brown, K.A.; Buchan, S.A.; Joh, E.; Deeks, S.L.; Allen, V.G. SARS-CoV-2 seroprevalence survey estimates are affected by anti-nucleocapsid antibody decline. J. Infect. Dis. 2021. Epub ahead of print. [Google Scholar] [CrossRef]
  19. Lumley, S.F.; Wei, J.; O’Donnell, D.; Stoesser, N.E.; Matthews, P.C.; Howarth, A.; Hatch, S.B.; Marsden, B.D.; Cox, S.; James, T.; et al. The duration, dynamics and determinants of SARS-CoV-2 antibody responses in individual healthcare workers. Clin. Infect. Dis. 2021. Epub ahead of print. [Google Scholar] [CrossRef] [PubMed]
  20. Fenwick, C.; Croxatto, A.; Coste, A.T.; Pojer, F.; André, C.; Pellaton, C.; Farina, A.; Campos, J.; Hacker, D.; Lau, K.; et al. Changes in SARS-CoV-2 Spike versus Nucleoprotein Antibody Responses Impact the Estimates of Infections in Population-Based Seroprevalence Studies. J. Virol. 2021, 95, e01828-20. [Google Scholar] [CrossRef]
  21. Esposito, D.; Mehalko, J.; Drew, M.; Snead, K.; Wall, V.; Taylor, T.; Frank, P.; Denson, J.P.; Hong, M.; Gulten, G.; et al. Optimizing high-yield production of SARS-CoV-2 soluble spike trimers for serology assays. Protein. Expr. Purif. 2020, 174, 105686. [Google Scholar] [CrossRef] [PubMed]
  22. Schaffner, A.; Risch, L.; Aeschbacher, S.; Risch, C.; Weber, M.C.; Thiel, S.L.; Jüngert, K.; Pichler, M.; Grossmann, K.; Wohlwend, N.; et al. Characterization of a Pan-Immunoglobulin Assay Quantifying Antibodies Directed against the Receptor Binding Domain of the SARS-CoV-2 S1-Subunit of the Spike Protein: A Population-Based Study. J. Clin. Med. 2020, 9, 3989. [Google Scholar] [CrossRef] [PubMed]
  23. Mariën, J.; Ceulemans, A.; Michiels, J.; Heyndrickx, L.; Kerkhof, K.; Foque, N.; Widdowson, M.A.; Mortgat, L.; Duysburgh, E.; Desombere, I.; et al. Evaluating SARS-CoV-2 spike and nucleocapsid proteins as targets for antibody detection in severe and mild COVID-19 cases using a Luminex bead-based assay. J. Virol. Methods 2021, 288, 114025. [Google Scholar] [CrossRef]
  24. Amrun, S.N.; Lee, C.Y.; Lee, B.; Fong, S.W.; Young, B.E.; Chee, R.S.; Yeo, N.K.; Torres-Ruesta, A.; Carissimo, G.; Poh, C.M.; et al. Linear B-cell epitopes in the spike and nucleocapsid proteins as markers of SARS-CoV-2 exposure and disease severity. EBioMedicine 2020, 58, 102911. [Google Scholar] [CrossRef] [PubMed]
  25. Favresse, J.; Cadrobbi, J.; Eucher, C.; Elsen, M.; Laffineur, K.; Dogné, J.M.; Douxfils, J. Clinical performance of three fully automated anti-SARS-CoV-2 immunoassays targeting the nucleocapsid or spike proteins. J. Med. Virol. 2020. Epub ahead of print. [Google Scholar] [CrossRef]
  26. Rikhtegaran Tehrani, Z.; Saadat, S.; Saleh, E.; Ouyang, X.; Constantine, N.; DeVico, A.L.; Harris, A.D.; Lewis, G.K.; Kottilil, S.; Sajadi, M.M. Performance of nucleocapsid and spike-based SARS-CoV-2 serologic assays. PLoS ONE 2020, 15, e0237828. [Google Scholar] [CrossRef]
  27. Algaissi, A.; Alfaleh, M.A.; Hala, S.; Abujamel, T.S.; Alamri, S.S.; Almahboub, S.A.; Alluhaybi, K.A.; Hobani, H.I.; Alsulaiman, R.M.; AlHarbi, R.H.; et al. SARS-CoV-2 S1 and N-based serological assays reveal rapid seroconversion and induction of specific antibody response in COVID-19 patients. Sci. Rep. 2020, 10, 16561. [Google Scholar] [CrossRef]
  28. Flinck, H.; Rauhio, A.; Luukinen, B.; Lehtimäki, T.; Haapala, A.M.; Seiskari, T.; Aittoniemi, J. Comparison of 2 fully automated tests detecting antibodies against nucleocapsid N and spike S1/S2 proteins in COVID-19. Diagn. Microbiol. Infect. Dis. 2021, 99, 115197. [Google Scholar] [CrossRef] [PubMed]
  29. Tehrani, Z.R.; Saadat, S.; Saleh, E.; Ouyang, X.; Constantine, N.; DeVico, A.L.; Harris, A.D.; Lewis, G.K.; Kottilil, S.; Sajadi, M.M. Specificity and Performance of Nucleocapsid and Spike-based SARS-CoV-2 Serologic Assays. medRxiv 2020. Epub ahead of print. [Google Scholar] [CrossRef]
  30. Burbelo, P.D.; Riedo, F.X.; Morishima, C.; Rawlings, S.; Smith, D.; Das, S.; Strich, J.R.; Chertow, D.S.; Davey, R.T., Jr.; Cohen, J.I. Detection of Nucleocapsid Antibody to SARS-CoV-2 is More Sensitive than Antibody to Spike Protein in COVID-19 Patients. medRxiv 2020. Epub ahead of print. [Google Scholar] [CrossRef]
  31. Burbelo, P.D.; Riedo, F.X.; Morishima, C.; Rawlings, S.; Smith, D.; Das, S.; Strich, J.R.; Chertow, D.S.; Davey, R.T.; Cohen, J.I. Sensitivity in Detection of Antibodies to Nucleocapsid and Spike Proteins of Severe Acute Respiratory Syndrome Coronavirus 2 in Patients with Coronavirus Disease 2019. J. Infect. Dis. 2020, 222, 206–213. [Google Scholar] [CrossRef]
  32. Xiao, C.; Ling, S.; Qiu, M.; Deng, Z.; Chen, L.; Zhu, A.; Chen, Y.; Liu, Y.; Lin, X.; Lin, F.; et al. Human post-infection serological response to the spike and nucleocapsid proteins of SARS-CoV-2. Influenza Other Respir. Viruses 2021, 15, 7–12. [Google Scholar] [CrossRef] [PubMed]
  33. McAndrews, K.M.; Dowlatshahi, D.P.; Dai, J.; Becker, L.M.; Hensel, J.; Snowden, L.M.; Leveille, J.M.; Brunner, M.R.; Holden, K.W.; Hopkins, N.S.; et al. Heterogeneous antibodies against SARS-CoV-2 spike receptor binding domain and nucleocapsid with implications for COVID-19 immunity. JCI Insight 2020, 5, e142386. [Google Scholar] [CrossRef]
  34. Müller, L.; Ostermann, P.N.; Walker, A.; Wienemann, T.; Mertens, A.; Adams, O.; Andree, M.; Hauka, S.; Lübke, N.; Keitel, V.; et al. Sensitivity of anti-SARS-CoV-2 serological assays in a high-prevalence setting. Eur. J. Clin. Microbiol. Infect. Dis. 2021, 3, 1–9. [Google Scholar]
  35. Dörschug, A.; Schwanbeck, J.; Hahn, A.; Hillebrecht, A.; Blaschke, S.; Groß, U.; Heimesaat, M.M.; Frickmann, H.; Zautner, A.E. Evaluation of the Xiamen AmonMed Biotechnology rapid diagnostic test COVID-19 IgM/IgG test kit (Colloidal gold). Eur. J. Microbiol. Immunol. 2020, 10, 178–185. [Google Scholar] [CrossRef] [PubMed]
  36. Wolf, J.; Kaiser, T.; Pehnke, S.; Nickel, O.; Lübbert, C.; Kalbitz, S.; Arnold, B.; Ermisch, J.; Berger, L.; Schroth, S.; et al. Differences of SARS-CoV-2 serological test performance between hospitalized and outpatient COVID-19 cases. Clin. Chim. Acta 2020, 511, 352–359. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Box-plots indicating the difference of IgA antibody titers (as ratio of the patient sample over the extinction of the calibrator) among individuals who received one or two vaccinations. “quant.”: quantitative IgA titers. Once: one vaccination only. Twice: two vaccinations.
Figure 1. Box-plots indicating the difference of IgA antibody titers (as ratio of the patient sample over the extinction of the calibrator) among individuals who received one or two vaccinations. “quant.”: quantitative IgA titers. Once: one vaccination only. Twice: two vaccinations.
Diagnostics 11 00426 g001
Figure 2. Box-plots indicating the difference of IgG antibody titers (as ratio of the patient sample over the extinction of the calibrator) among individuals who received one or two vaccinations. “quant.”: quantitative IgG titers. Once: one vaccination only. Twice: two vaccinations.
Figure 2. Box-plots indicating the difference of IgG antibody titers (as ratio of the patient sample over the extinction of the calibrator) among individuals who received one or two vaccinations. “quant.”: quantitative IgG titers. Once: one vaccination only. Twice: two vaccinations.
Diagnostics 11 00426 g002
Table 1. Spearman’s correlation coefficient between the time from the first and second vaccination and the titers of the anti-spike protein antibodies. The p-values for the titers of the anti-spike protein antibodies and the time from first and second vaccination were 0.00003 and <0.0001, respectively.
Table 1. Spearman’s correlation coefficient between the time from the first and second vaccination and the titers of the anti-spike protein antibodies. The p-values for the titers of the anti-spike protein antibodies and the time from first and second vaccination were 0.00003 and <0.0001, respectively.
PopulationnTime from VaccinationAnti-Spike Protein AntibodiesSpearman’s Correlation Coefficient with 0.95 Confidence Interval
Mean (SD)Median (q25, q75)Mean (SD)Median (q25, q75)
IgA 1: All individuals 8022.53 (5.85)22.50 (21, 27)4.88 (2.73)4.94 (2.48, 8.03)0.479 [0.274, 0.676].
IgA 1: Individuals with only first vaccination2716.48 (5.38)19 (11, 21)3.87 (2.28)3.71 (1.73, 5.19)0.0075 [−0.342, 0.357
IgA 2: Individuals with first and second vaccination 534.49 (4.57)3 (1, 7)5.39 (2.82)5.5 (2.81, 8.52)0.539 [0.261, 0.760]
IgG 1: All individuals 8022.53 (5.85)22.50 (21, 27)4.96 (2.47)4.97 (3.02, 7.52)0.787 [0.646, 0.858]
IgG 1: Individuals with only first vaccination2716.48 (5.38)19 (11, 21)2.96 (1.69)3.34 (1.41, 4.33)0.638 [0.384, 0.810]
IgG 2: Individuals with first and second vaccination534.49 (4.57)3 (1, 7)5.98 (2.18)6.08 (4.90, 8.08)0.698 [0.468, 0.839]
1 Time from first vaccination, 2 time from second vaccination.
Table 2. Spearman’s correlation coefficients between the age at the sample acquisition date and the anti-spike protein antibody titers. The p-value for age at sample acquisition was 0.00238. The p-value for anti-spike protein IgA antibodies was 0.00008 and for IgG anti-bodies 0.00108.
Table 2. Spearman’s correlation coefficients between the age at the sample acquisition date and the anti-spike protein antibody titers. The p-value for age at sample acquisition was 0.00238. The p-value for anti-spike protein IgA antibodies was 0.00008 and for IgG anti-bodies 0.00108.
PopulationnAge in Years at Sample Acquisition Anti-Spike Protein AntibodiesSpearman’s Correlation Coefficient with 0.95 Confidence Interval
Mean (SD)Median (q25, q75)Mean (SD)Median (q25, q75)
IgA 1: All individuals 8039.4 (12.31)37 (29, 49)4.88 (2.73)4.94 (2.48, 8.03)−0.153 [−0.382, 0.092]
IgA 1: Individuals with only first vaccination2740.25 (13.69)39 (28, 50)3.87 (2.28)3.71 (1.73, 5.19)−0.216 [−0.599, 0.187]
IgA 2: Individuals with first and second vaccination 5338.96 (11.66)36 (30, 48)5.39 (2.82)5.5 (2.81, 8.52)−0.078 [−0.367, 0.207]
IgG 1: All individuals 8039.4 (12.31)37 (29, 49)4.96 (2.47)4.97 (3.02, 7.52)−0.213 [−0.440, 0.044]
IgG 1: Individuals with only first vaccination2740.25 (13.69)39 (28, 50)2.96 (1.693.34 (1.41, 4.33)−0.142 [−0.569, 0.296]
IgG 2: Individuals with first and second vaccination5338.96 (11.66)36 (30, 48)5.98 (2.18)6.08 (4.90, 8.08)−0.211 [−0.501, 0.035]
1 Time from first vaccination, 2 time from second vaccination.
Table 3. Comparison of spike protein antibody titers among males and females applying Wilcoxon’s rank sum test.
Table 3. Comparison of spike protein antibody titers among males and females applying Wilcoxon’s rank sum test.
PopulationMalesFemalesWilcoxon Rank Sum Test, p-Value
nMean (SD)Median (q25, q75)nMean (SD)Median (q25, q75)
IgA 1: All individuals 365.39 (2.63)5.30 (2.91, 8.42)444.46 (2.77)4.00 (1.77, 7.10)0.1255
IgA 1: Individuals with only first vaccination124.59 (2.26)5.00 (2.86, 5.68)153.29 (2.19)3.25 (1.25, 5.19)0.1959
IgA 2: Individuals with first and second vaccination 245.78 (2.76)6.23 (2.91, 8.52)295.06 (2.87)4.90 (2.56, 8.52)0.4017
IgG 1: All individuals 364.87 (2.35)4.92 (2.92, 6.48)445.03 (2.60)5.00 (3.16, 7.69)0.7866
IgG 1: Individuals with only first vaccination123.13 (1.69)3.07 (2.13, 4.33)152.83 (1.74)3.45 (1.03, 3.96)0.6256
IgG 2: Individuals with first and second vaccination245.74 (2.16)5.72 (4.46, 8.09)296.17 (2.22)6.67 (4.93, 8.08)0.4529
1 Time from first vaccination, 2 time from second vaccination.
Table 4. Comparison of spike protein antibody titers among individuals who received one or two vaccinations applying Wilcoxon’s rank sum test.
Table 4. Comparison of spike protein antibody titers among individuals who received one or two vaccinations applying Wilcoxon’s rank sum test.
PopulationOnly First VaccinationFirst and Second VaccinationWilcoxon Rank Sum Test, p-Value
nMean (SD)Median (q25, q75)nMean (SD)Median (q25, q75)
IgA: All individuals 273.87 (2.28)3.71 (1.73, 5.19)535.39 (2.82)5.50 (2.81, 8.52)0.0217
IgG: All individuals272.96 (1.69)3.34 (1.41, 4.33)535.98 (2.18)6.08 (4.90, 8.08)<0.0001
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dörschug, A.; Frickmann, H.; Schwanbeck, J.; Yilmaz, E.; Mese, K.; Hahn, A.; Groß, U.; Zautner, A.E. Comparative Assessment of Sera from Individuals after S-Gene RNA-Based SARS-CoV-2 Vaccination with Spike-Protein-Based and Nucleocapsid-Based Serological Assays. Diagnostics 2021, 11, 426. https://doi.org/10.3390/diagnostics11030426

AMA Style

Dörschug A, Frickmann H, Schwanbeck J, Yilmaz E, Mese K, Hahn A, Groß U, Zautner AE. Comparative Assessment of Sera from Individuals after S-Gene RNA-Based SARS-CoV-2 Vaccination with Spike-Protein-Based and Nucleocapsid-Based Serological Assays. Diagnostics. 2021; 11(3):426. https://doi.org/10.3390/diagnostics11030426

Chicago/Turabian Style

Dörschug, Anja, Hagen Frickmann, Julian Schwanbeck, Elif Yilmaz, Kemal Mese, Andreas Hahn, Uwe Groß, and Andreas E. Zautner. 2021. "Comparative Assessment of Sera from Individuals after S-Gene RNA-Based SARS-CoV-2 Vaccination with Spike-Protein-Based and Nucleocapsid-Based Serological Assays" Diagnostics 11, no. 3: 426. https://doi.org/10.3390/diagnostics11030426

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
