# Viscoelastic Biomarkers of Ex Vivo Liver Samples via Torsional Wave Elastography

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Hydrogel Phantoms and Ex Vivo Samples

#### 2.2. Torsional Wave Elastography

#### Time of Flight (TOF)- Signal Processing

#### 2.3. Shear Wave Elastography

#### 2.3.1. Dispersion Velocity Calculation from Shear Wave Elastography Imaging (SWEI)

#### 2.3.2. Tissue Motion Estimation

## 3. Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

TWE | Torsional Wave Elastography |

SWEI | Shear Wave Elastography Imaging |

DE | Dynamic Elastography |

ARFI | Acoustic Radiation Force Impulse |

MRE | Magmatic Resonance Elastography |

SWE | Shear Wave Elastography |

KV | Kelvin–Voigt |

M | Maxwell |

PIP | Probabilistic Inverse Problem |

FDTD | Finite Difference Time Domain |

TOF | Time of Flight |

ROI | Region of Interest |

US | Ultrasonics |

IQ | In-phase and Quadrature Data |

CNC | Computer Numerical Control |

SWV | Shear Wave Velocity |

## References

- Tranquart, F.; Grenier, N.; Eder, V.; Pourcelot, L. Clinical use of ultrasound tissue harmonic imaging. Ultrasound Med. Biol.
**1999**, 25, 889–894. [Google Scholar] [CrossRef] - Ophir, J.; Céspedes, I.; Ponnekanti, H.; Yazdi, Y.; Li, X. Elastography: A quantitative method for imaging the elasticity of biological tissues. Ultrasonic Imaging
**1991**, 13, 111–134. [Google Scholar] [CrossRef] - luc Gennisson, J.; Deffieux, T.; Fink, M.; Tanter, M. Ultrasound elastography: Principles and techniques. Diagn. Interv. Imaging
**2013**, 94, 487–495. [Google Scholar] [CrossRef] - Sarvazyan, A.P.; Rudenko, O.; Swanson, S.D.; Fowlkes, J.B.; Emelianov, S.Y. Shear wave elasticity imaging: A new ultrasonic technology of medical diagnostics. Ultrasound Med. Biol.
**1998**, 24, 1419–1435. [Google Scholar] [CrossRef] - Urban, M.W.; Nenadic, I.Z.; Mitchell, S.A.; Chen, S.; Greenleaf, J.F. Generalized response of a sphere embedded in a viscoelastic medium excited by an ultrasonic radiation force. J. Acoust. Soc. Am.
**2011**, 130, 1133–1141. [Google Scholar] [CrossRef] - Nightingale, K.; Soo, M.S.; Nightingale, R.W.; Trahey, G.E. Acoustic radiation force impulse imaging: In vivo demonstration of clinical feasibility. Ultrasound Med. Biol.
**2002**, 28, 227–235. [Google Scholar] [CrossRef] - Bercoff, J.; Tanter, M.; Fink, M.K. Supersonic shear imaging: A new technique for soft tissue elasticity mapping. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2004**, 51, 396–409. [Google Scholar] [CrossRef] - Fahey, B.J.; Nightingale, K.; Nelson, R.C.; Palmeri, M.L.; Trahey, G.E. Acoustic radiation force impulse imaging of the abdomen: Demonstration of feasibility and utility. Ultrasound Med. Biol.
**2005**, 31, 1185–1198. [Google Scholar] [CrossRef] - Hirsch, S.; Braun, J.; Sack, I. Magnetic Resonance Elastography: Physical Background and Medical Applications; John Wiley & Sons: Hoboken, NJ, USA, 2017. [Google Scholar]
- Asrani, S.K.; Devarbhavi, H.; Eaton, J.; Kamath, P.S. Burden of liver diseases in the world. J. Hepatol.
**2019**, 70, 151–171. [Google Scholar] [CrossRef] - Marcellin, P.; Kutala, B.K. Liver diseases: A major, neglected global public health problem requiring urgent actions and large-scale screening. Liver Int. Off. J. Int. Assoc. Study Liver
**2018**, 38 (Suppl. 1), 2–6. [Google Scholar] [CrossRef][Green Version] - Sande, J.A.; Verjee, S.S.; Vinayak, S.; Amersi, F.; Ghesani, M.V. Ultrasound shear wave elastography and liver fibrosis: A Prospective Multicenter Study. World J. Hepatol.
**2017**, 9, 38–47. [Google Scholar] [CrossRef] - Mancini, M.; Salomone Megna, A.; Ragucci, M.; De Luca, M.; Marino Marsilia, G.; Nardone, G.; Coccoli, P.; Prinster, A.; Mannelli, L.; Vergara, E.; et al. Reproducibility of shear wave elastography (SWE) in patients with chronic liver disease. PLoS ONE
**2017**, 12, e0185391. [Google Scholar] [CrossRef][Green Version] - Hoodeshenas, S.; Yin, M.; Venkatesh, S.K. Magnetic Resonance Elastography of Liver: Current Update. Top. Magn. Reson. Imaging
**2018**, 27, 319–333. [Google Scholar] [CrossRef] - Huwart, L.; Sempoux, C.; Vicaut, E.; Salameh, N.; Annet, L.; Danse, E.; Peeters, F.; ter Beek, L.C.; Rahier, J.; Sinkus, R.; et al. Magnetic resonance elastography for the noninvasive staging of liver fibrosis. Gastroenterology
**2008**, 135, 32–40. [Google Scholar] [CrossRef] - Venkatesh, S.K.; Wang, G.; Lim, S.G.; Wee, A. Magnetic resonance elastography for the detection and staging of liver fibrosis in chronic hepatitis B. Eur. Radiol.
**2014**, 24, 70–78. [Google Scholar] [CrossRef] - Ouared, A.; Montagnon, E.; Cloutier, G. Generation of remote adaptive torsional shear waves with an octagonal phased array to enhance displacements and reduce variability of shear wave speeds: Comparison with quasi-plane shear wavefronts. Phys. Med. Biol.
**2015**, 60, 8161–8185. [Google Scholar] [CrossRef] - Aglyamov, S.R.; Park, S.; Ilinskii, Y.A.; Emelianov, S.Y. Ultrasound imaging of soft tissue shear viscosity. In Proceedings of the IEEE Symposium on Ultrasonics, Honolulu, HI, USA, 5–8 October 2003; Volume 1, pp. 937–940. [Google Scholar]
- Guillermo, R.C.; Nicolás, B.; Juan Manuel, M.R.; Jesús, F.N.; Laura María, P.P. Transductor ultrasónico de torsión para diagnóstico tisular. Extensiones Internacionales PCT/ES2012/070380, 14 July 2011. [Google Scholar]
- Guillermo, R.C.; Alicia, V.M.; Elena, S.M.; Francisca Sonia, M.G. Dispositivo emisor de ondas ultrasónicas de torsión y transductor que lo comprende. Extensiones Internacionales PCT/ES2016/070540, 16 July 2015. [Google Scholar]
- Callejas, A.; Gomez, A.; Melchor, J.; Riveiro, M.; Massó, P.; Torres, J.; López-López, M.; Rus, G. Performance study of a torsional wave sensor and cervical tissue characterization. Sensors
**2017**, 17, 2078. [Google Scholar] [CrossRef] - Callejas, A.; Gomez, A.; Faris, I.H.; Melchor, J.; Rus, G. Kelvin–Voigt Parameters Reconstruction of Cervical Tissue-Mimicking Phantoms Using Torsional Wave Elastography. Sensors
**2019**, 19, 3281. [Google Scholar] [CrossRef][Green Version] - Park, J.M.; Choi, S.M.; Kwon, S.J.; Jeong, M.K. Measurement of the shear modulus of an ultrasound tissue phantom. J. Acoust. Soc. Korea
**2012**, 31, 399–409. [Google Scholar] [CrossRef] - Dunmire, B.L.; Kucewicz, J.C.; Mitchell, S.B.; Crum, L.A.; Sekins, K.M. Characterizing an agar/gelatin phantom for image guided dosing and feedback control of high-intensity focused ultrasound. Ultrasound Med. Biol.
**2013**, 39, 300–311. [Google Scholar] [CrossRef] - Melchor, J.M.; Rus, G. Torsional ultrasonic transducer computational design optimization. Ultrasonics
**2014**, 54, 1950–1962. [Google Scholar] [CrossRef] - Melchor, J.; Muñoz, R.; Rus, G. Torsional ultrasound sensor optimization for soft tissue characterization. Sensors
**2017**, 17, 1402. [Google Scholar] [CrossRef][Green Version] - Rus, G.; Muñoz, R.; Melchor, J.; Molina, R.; Callejas, A.; Riveiro, M.; Massó, P.; Torres, J.; Moreu, G.; Molina, F.; et al. Torsion ultrasonic sensor for tissue mechanical characterization. In Proceedings of the 2016 IEEE International Ultrasonics Symposium (IUS), Tours, France, 18–21 September 2016; pp. 1–4. [Google Scholar]
- Nightingale, K.; Palmeri, M.L.; Nightingale, R.W.; Trahey, G.E. On the feasibility of remote palpation using acoustic radiation force. J. Acoust. Soc. Am.
**2001**, 110, 625–634. [Google Scholar] [CrossRef] - Torr, G.R. The acoustic radiation force. Am. J. Phys.
**1984**, 52, 402–408. [Google Scholar] [CrossRef] - Deng, Y.; Rouze, N.C.; Palmeri, M.L.; Nightingale, K.R. Ultrasonic shear wave elasticity imaging sequencing and data processing using a Verasonics research scanner. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2016**, 64, 164–176. [Google Scholar] [CrossRef][Green Version] - Palmeri, M.L.; McAleavey, S.A.; Trahey, G.E.; Nightingale, K. Ultrasonic tracking of acoustic radiation force-induced displacements in homogeneous media. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2006**, 53, 1300–1313. [Google Scholar] [CrossRef] - Deffieux, T.; luc Gennisson, J.; Larrat, B.; Fink, M.; Tanter, M. The variance of quantitative estimates in shear wave imaging: Theory and experiments. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2012**, 59, 2390–2410. [Google Scholar] [CrossRef] - Carcione, J.M. (Ed.) Wave Fields in Real Media, 3rd ed.; Elsevier: Amsterdam, The Netherlands, 2015. [Google Scholar]
- Peralta, L. Feasibility of Using Ultrasonic Shear Waves to Assess Cervical Remodelling During the Gestation Period. Ph.D. Thesis, Departamento de Mecánica Estructural e Ingeniería Hidráulica, University of Granada, Granada, Spain, 2015. [Google Scholar]
- Catheline, S.; luc Gennisson, J.; Delon, G.; Fink, M.; Sinkus, R.; Abouelkaram, S.; Culioli, J. Measuring of viscoelastic properties of homogeneous soft solid using transient elastography: An inverse problem approach. J. Acoust. Soc. Am.
**2004**, 116, 3734–3741. [Google Scholar] [CrossRef] - Loupas, T.; Powers, J.; Gill, R.W. An axial velocity estimator for ultrasound blood flow imaging, based on a full evaluation of the Doppler equation by means of a two-dimensional autocorrelation approach. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1995**, 42, 672–688. [Google Scholar] [CrossRef] - Rodriguez-Molares, A.; Rindal, O.M.H.; Bernard, O.; Liebgott, H.; Austeng, A.; Lovstakken, L. The ultrasound toolbox. In Proceedings of the 2017 IEEE International Ultrasonics Symposium (IUS), Washington, DC, USA, 6–9 September 2017. [Google Scholar]
- Orescanin, M.B.; Qayyum, M.A.; Toohey, K.S.; Insana, M.F. Complex shear modulus of thermally-damaged liver. In Proceedings of the 2009 IEEE International Ultrasonics Symposium, Rome, Italy, 20–23 September 2009; pp. 127–130. [Google Scholar]
- Barry, C.T.; Mills, B.J.; Hah, Z.; Mooney, R.A.; Ryan, C.K.; Rubens, D.J.; Parker, K.J. Shear wave dispersion measures liver steatosis. Ultrasound Med. Biol.
**2012**, 38, 175–182. [Google Scholar] [CrossRef][Green Version] - Kim, S.O.; Lee, S.Y.; Jang, S.L.; jin Park, S.; Kwon, H.W.; Kim, S.H.; Lee, C.S.; Choi, E.S.; Cho, S.K.; Hong, S.H.; et al. Hepatic Stiffness Using Shear Wave Elastography and the Related Factors for a Fontan Circulation. Pediatr. Cardiol.
**2017**, 39, 57–65. [Google Scholar] [CrossRef] [PubMed] - Ding, X.Z.; Dutta, D.; Mahmoud, A.M.; Tillman, B.W.; Leers, S.A.; Kim, K. An adaptive displacement estimation algorithm for improved reconstruction of thermal strain. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2015**, 62, 138–151. [Google Scholar] [CrossRef] [PubMed][Green Version] - Pinton, G.; Dahl, J.J.; Trahey, G.E. Rapid tracking of small displacements with ultrasound. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2006**, 53, 1103–1117. [Google Scholar] [CrossRef] [PubMed] - Massó, P.; Callejas, A.; Melchor, J.; Molina, F.S.; Rus, G. In Vivo Measurement of Cervical Elasticity on Pregnant Women by Torsional Wave Technique: A Preliminary Study. Sensors
**2019**, 19, 3249. [Google Scholar] [CrossRef][Green Version] - Fink, M.; Sandrin, L.; Tanter, M.; Catheline, S.; Chaffai, S.; Bercoff, J.; Gennisson, J. Ultra high speed imaging of elasticity. In Proceedings of the 2002 IEEE Ultrasonics Symposium, Munich, Germany, 8–11 October 2002; Volume 2, pp. 1811–1820. [Google Scholar] [CrossRef]
- Sigrist, R.M.; Liau, J.; Kaffas, A.E.; Chammas, M.C.; Willmann, J.K. Ultrasound Elastography: Review of Techniques and Clinical Applications. Theranostics
**2017**, 7, 1303–1329. [Google Scholar] [CrossRef] - Hong, E.K.; Choi, Y.H.; Cheon, J.E.; Kim, W.S.; Kim, I.O.; Kang, S.Y. Accurate measurements of liver stiffness using shear wave elastography in children and young adults and the role of the stability index. Ultrasonography
**2018**, 37, 226–232. [Google Scholar] [CrossRef][Green Version] - Samir, A.E.; Dhyani, M.; Vij, A.; Bhan, A.K.; Halpern, E.F.; Méndez-Navarro, J.; Corey, K.E.; Chung, R.T. Shear-wave elastography for the estimation of liver fibrosis in chronic liver disease: Determining accuracy and ideal site for measurement. Radiology
**2015**, 274, 888–896. [Google Scholar] [CrossRef][Green Version] - Mulabecirovic, A.; Mjelle, A.B.; Gilja, O.H.; Vesterhus, M.; Havre, R.F. Repeatability of shear wave elastography in liver fibrosis phantoms—Evaluation of five different systems. PLoS ONE
**2018**, 13, e0189671. [Google Scholar] [CrossRef][Green Version] - Dietrich, C.F.; Bamber, J.; Berzigotti, A.; Bota, S.; Cantisani, V.; Castera, L.; Cosgrove, D.; Ferraioli, G.; Friedrich-Rust, M.; Gilja, O.H.; et al. EFSUMB Guidelines and Recommendations on the Clinical Use of Liver Ultrasound Elastography, Update 2017 (Long Version). Ultraschall Med.
**2017**, 38, e48. [Google Scholar] - Friedrich-Rust, M.; Poynard, T.; Castera, L. Critical comparison of elastography methods to assess chronic liver disease. Nat. Rev. Gastroenterol. Hepatol.
**2016**, 13, 402–411. [Google Scholar] [CrossRef] - Deffieux, T.; Gennisson, J.L.; Bousquet, L.; Corouge, M.; Cosconea, S.; Amroun, D.; Tripon, S.; Terris, B.; Mallet, V.; Sogni, P.; et al. Investigating liver stiffness and viscosity for fibrosis, steatosis and activity staging using shear wave elastography. J. Hepatol.
**2015**, 62, 317–324. [Google Scholar] [CrossRef] [PubMed] - Salameh, N.; Larrat, B.; Abarca-Quinones, J.; Pallu, S.; Dorvillius, M.; Leclercq, I.; Fink, M.; Sinkus, R.; Van Beers, B.E. Early detection of steatohepatitis in fatty rat liver by using MR elastography. Radiology
**2009**, 253, 90–97. [Google Scholar] [CrossRef] [PubMed][Green Version] - Muller, M.; Gennisson, J.L.; Deffieux, T.; Tanter, M.; Fink, M. Quantitative viscoelasticity mapping of human liver using supersonic shear imaging: Preliminary in vivo feasibility study. Ultrasound Med. Biol.
**2009**, 35, 219–229. [Google Scholar] [CrossRef] [PubMed] - Li, C.; Zhang, C.; Li, J.; Huo, H.; Song, D. Diagnostic Accuracy of Real-Time Shear Wave Elastography for Staging of Liver Fibrosis: A Meta-Analysis. Med Sci. Monit. Int. Med J. Exp. Clin. Res.
**2016**, 22, 1349–1359. [Google Scholar] [CrossRef] [PubMed][Green Version] - Cassinotto, C.; Lapuyade, B.; Mouries, A.; Hiriart, J.B.; Vergniol, J.; Gaye, D.; Castain, C.; Le Bail, B.; Chermak, F.; Foucher, J.; et al. Non-invasive assessment of liver fibrosis with impulse elastography: Comparison of Supersonic Shear Imaging with ARFI and FibroScan
^{®}. J. Hepatol.**2014**, 61, 550–557. [Google Scholar] [CrossRef] [PubMed] - Chen, S.; Sanchez, W.; Callstrom, M.R.; Gorman, B.; Lewis, J.T.; Sanderson, S.O.; Greenleaf, J.F.; Xie, H.; Shi, Y.; Pashley, M.; et al. Assessment of liver viscoelasticity by using shear waves induced by ultrasound radiation force. Radiology
**2013**, 266, 964–970. [Google Scholar] [CrossRef][Green Version] - Deffieux, T.; Montaldo, G.; Tanter, M.; Fink, M. Shear wave spectroscopy for in vivo quantification of human soft tissues visco-elasticity. IEEE Trans. Med Imaging
**2008**, 28, 313–322. [Google Scholar] [CrossRef] - Bercoff, J.; Tanter, M.; Muller, M.; Fink, M. The role of viscosity in the impulse diffraction field of elastic waves induced by the acoustic radiation force. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2004**, 51, 1523–1536. [Google Scholar] [CrossRef] - Barry, C.T.; Hah, Z.; Partin, A.; Mooney, R.A.; Chuang, K.H.; Augustine, A.; Almudevar, A.; Cao, W.; Rubens, D.J.; Parker, K.J. Mouse liver dispersion for the diagnosis of early-stage fatty liver disease: A 70-sample study. Ultrasound Med. Biol.
**2014**, 40, 704–713. [Google Scholar] [CrossRef] - Zafra, C.; Manuel, A. Feasibility of Using Torsional Waves to Assess Viscoelasticity of Cervical Tissue; Universidad de Granada: Granada, Spain, 2019. [Google Scholar]

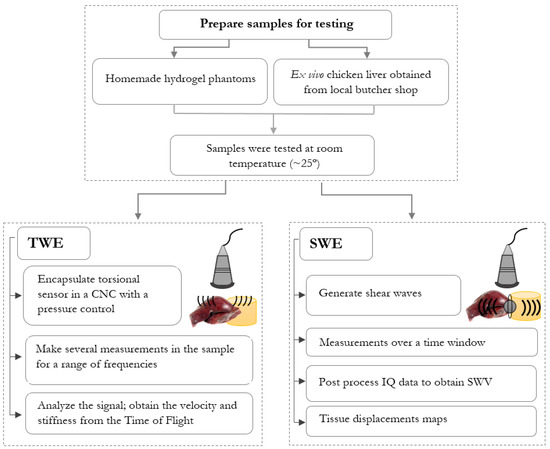

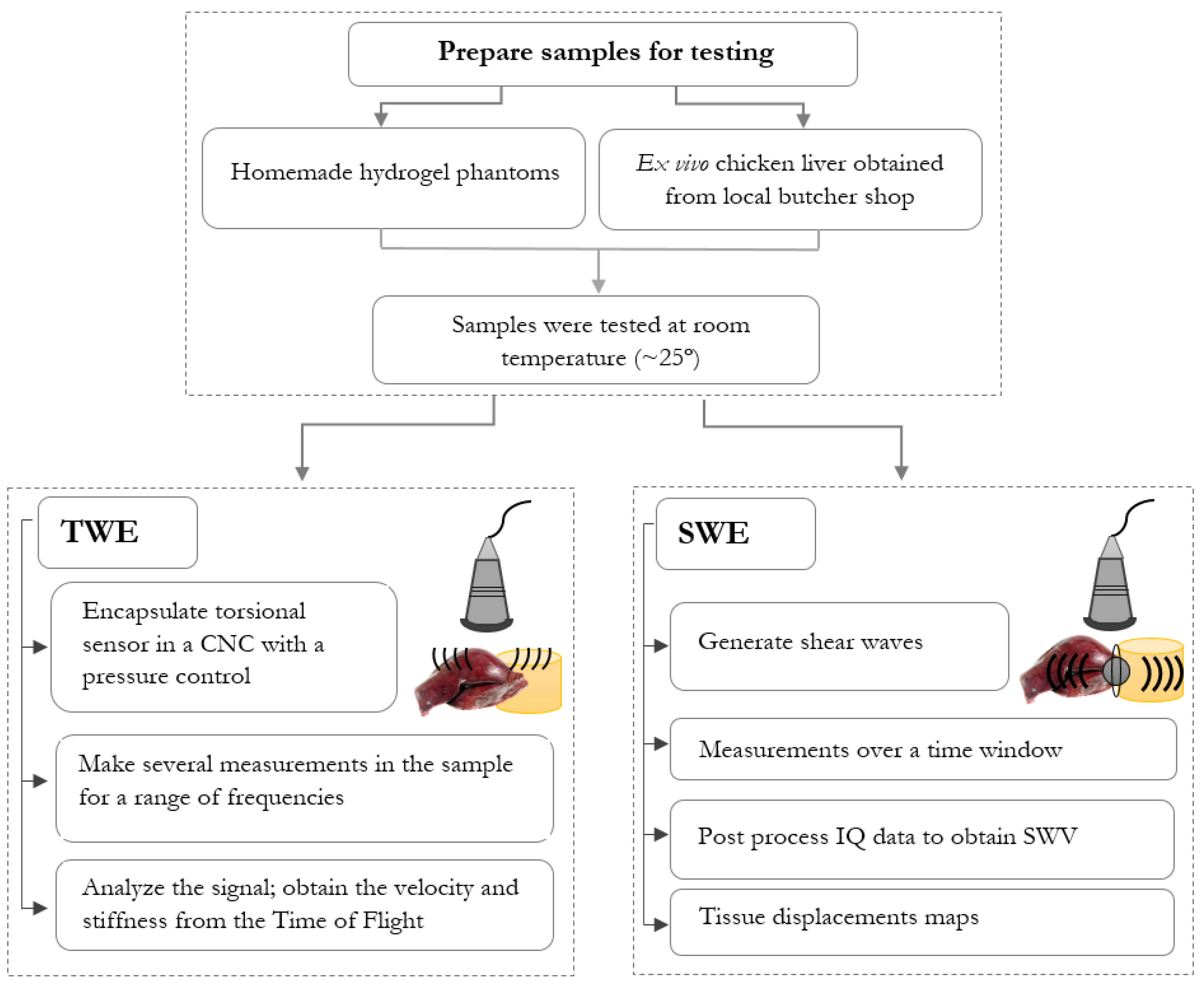

**Figure 1.**Flow chart showing the steps for scans performed with both techniques, Torsional Wave Elastography (TWE) and Shear Wave Elastography Imaging (SWEI).

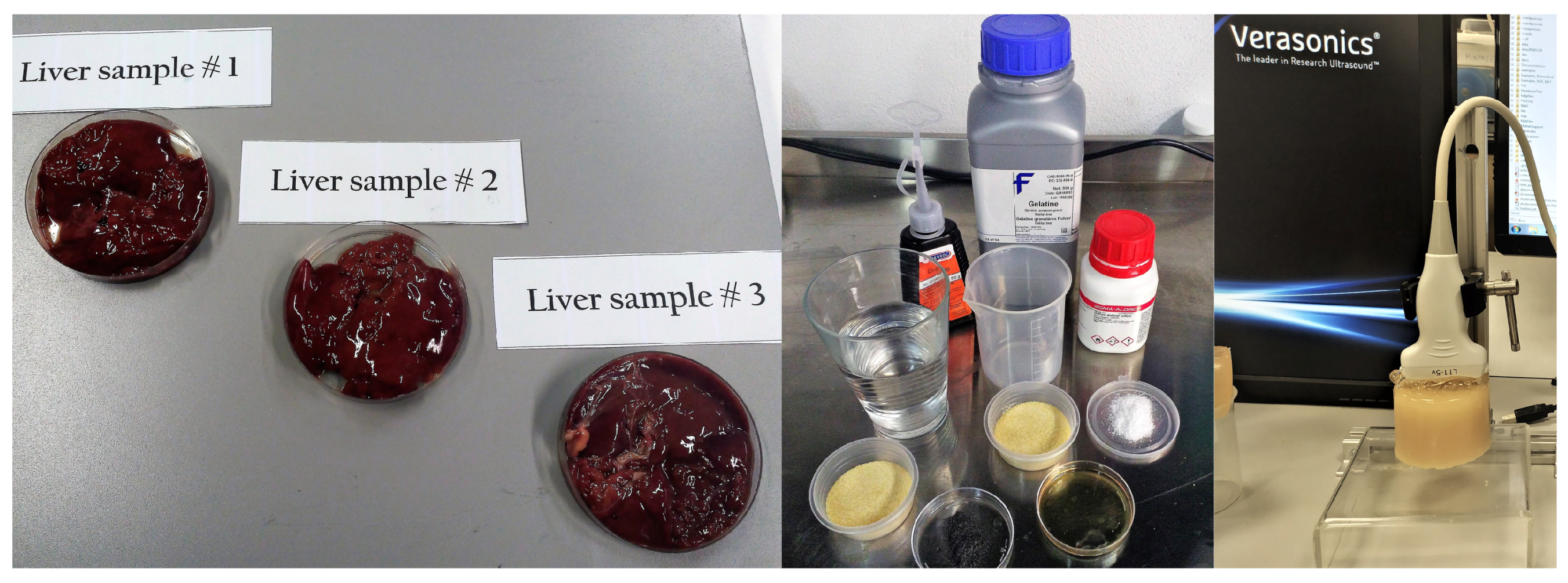

**Figure 2.**Three ex vivo liver samples, phantom ingredients, and one of the phantoms subjected to shear wave elastography imaging.

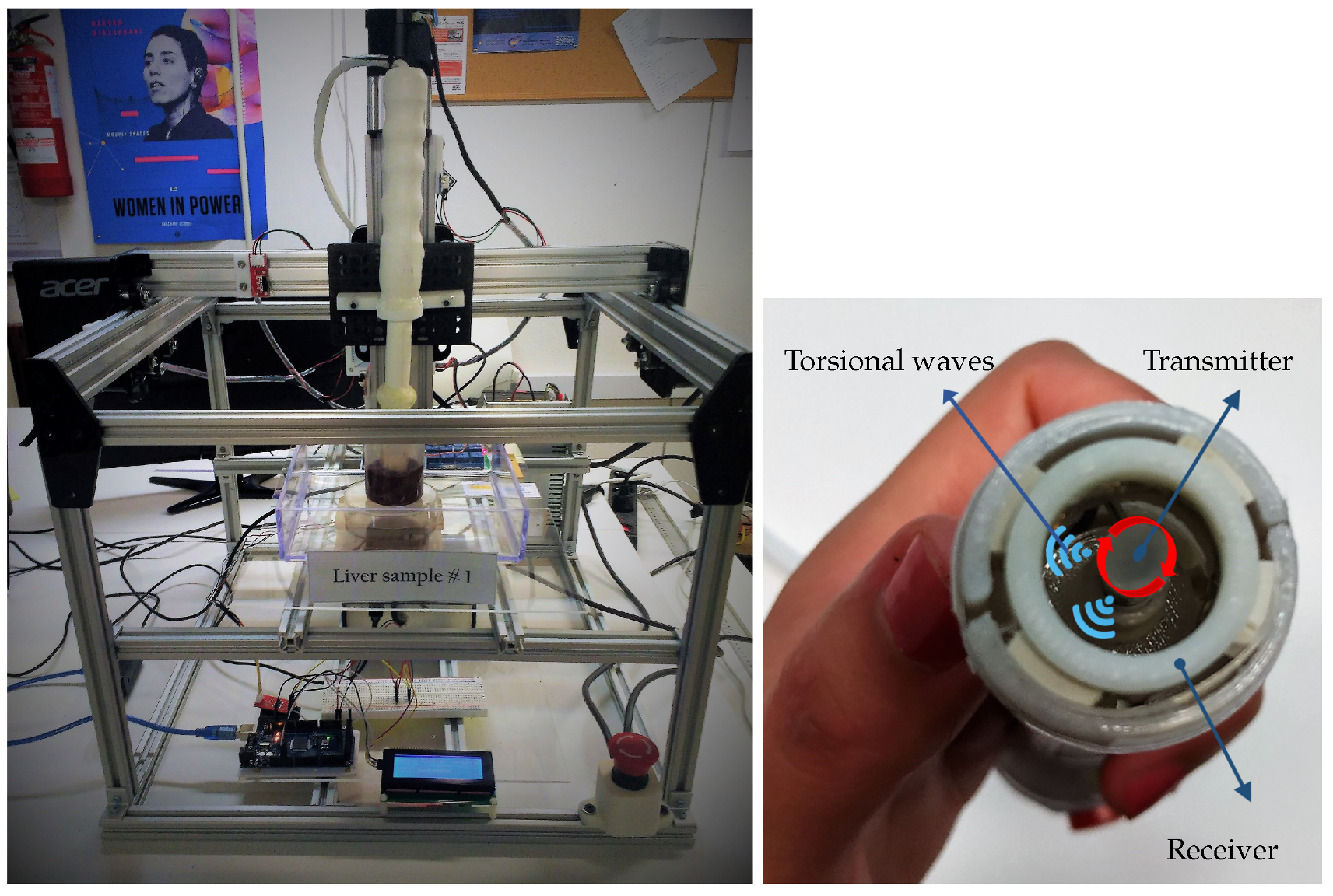

**Figure 3.**Set-up for measurements using TWE technique. The picture was taken during the measurements at the Ultrasonics Lab at the University of Granada. The figure on the left is a computer numerical control (CNC) system for positioning and pressure-control of the TWE probe. The right figure shows a cross-section of the TWE probe.

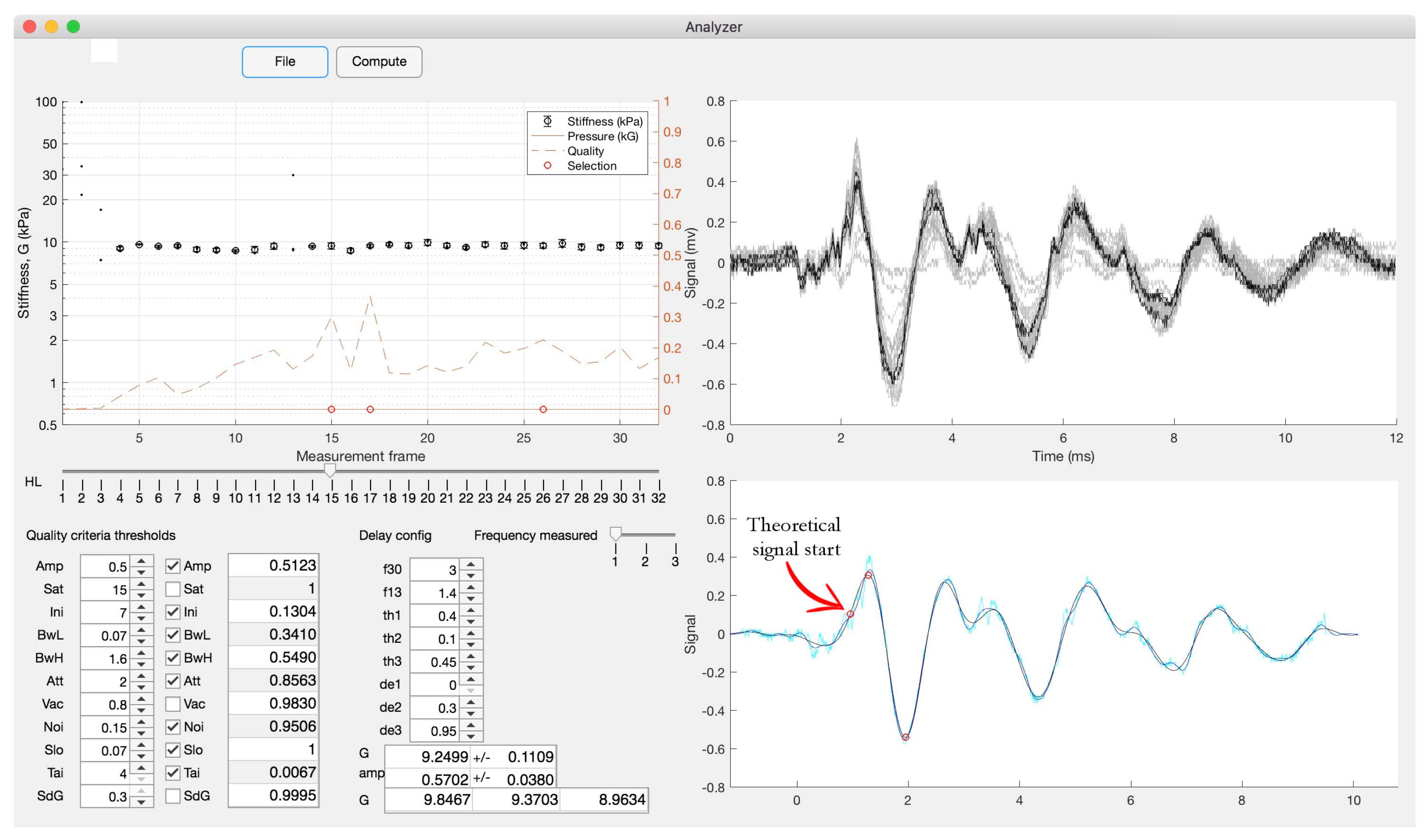

**Figure 4.**Example of an output of the analyzer software used to analyze the signals obtained from the TWE technique. The upper left sub-figure shows the stiffness obtained at each measurement frame. The lower-right sub-figure shows the theoretical signal start.

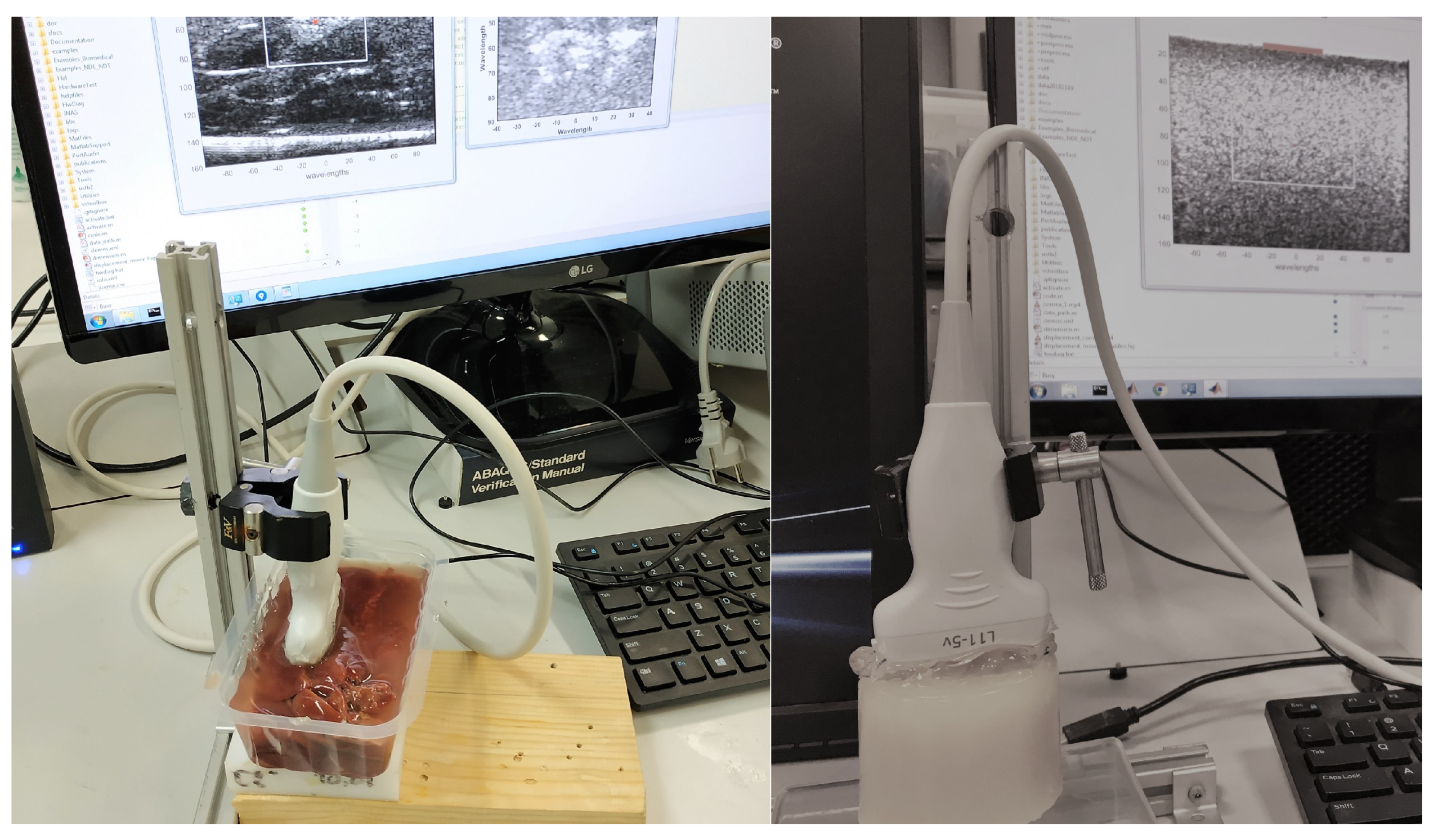

**Figure 5.**Set-up for measurements using SWEI. The picture was taken during the measurements at the Ultrasonics Lab at the University of Granada. In the left image, the ex vivo liver sample is measured while one of the hydrogel phantoms is shown in the right image.

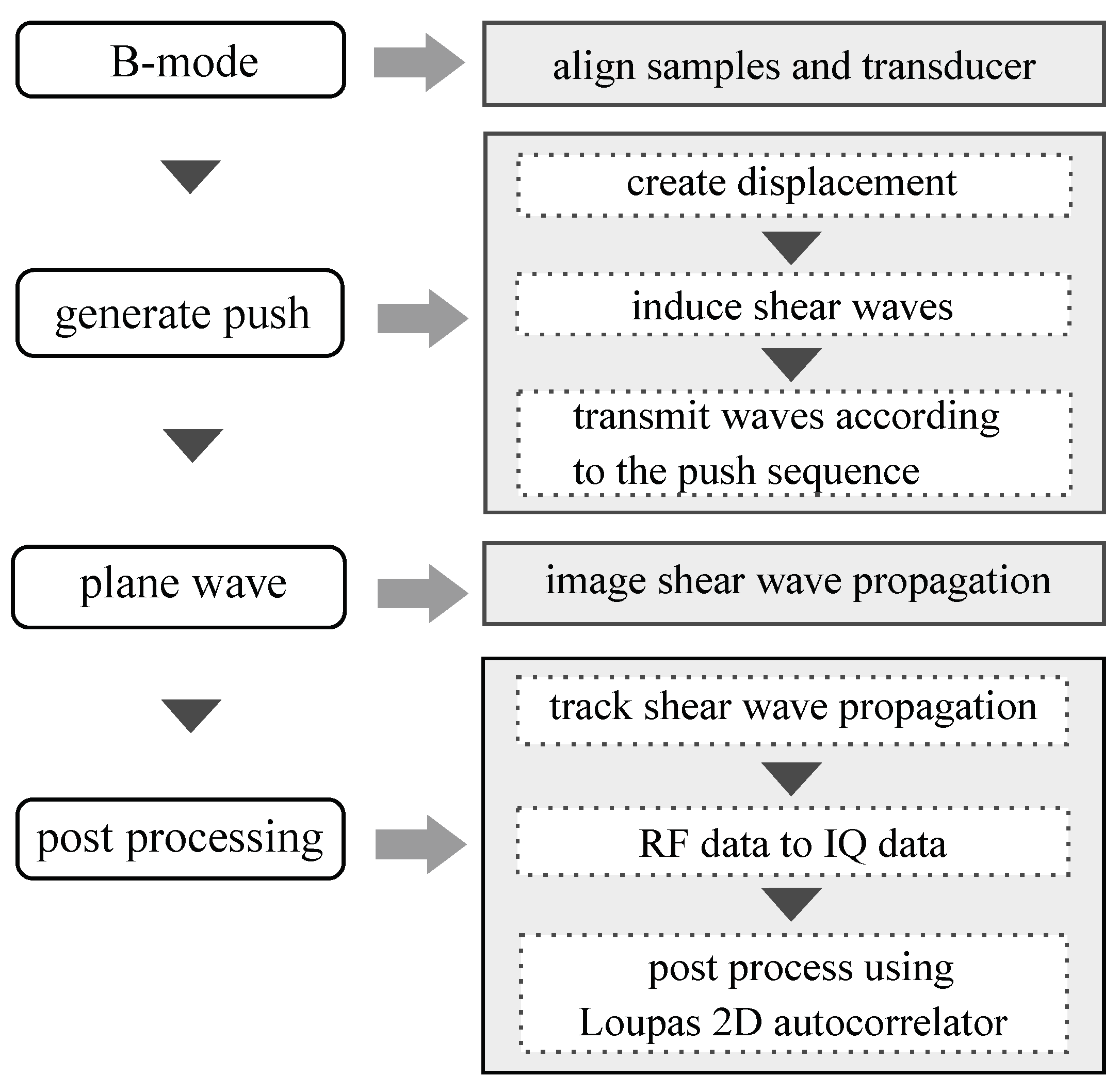

**Figure 6.**Procedure for tissue motion estimation using Shear Wave Elastography Imaging (SWEI) technique.

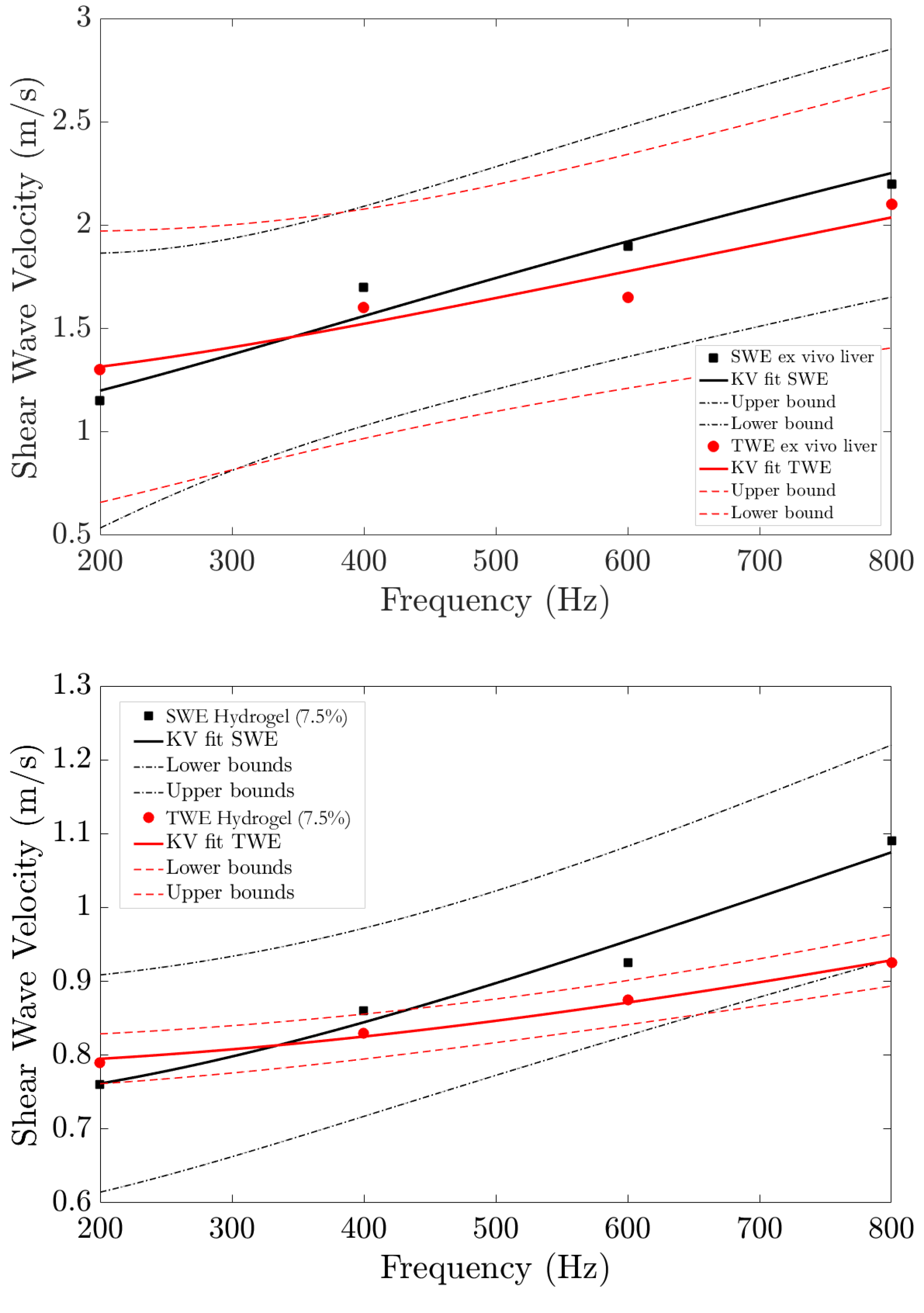

**Figure 7.**Dispersion curve for the two types of samples measured, square/circle marks are the values of shear wave velocity versus frequency via shear wave elastography imaging (SWEI) and torsional wave elastography (TWE) for ex vivo chicken liver samples (

**top**) and hydrogel phantoms (

**bottom**). Kelvin–Voigt (KV) fit is shown with solid lines in black color for SWEI and in red for TWE, and 95% confidence intervals are displayed with dashed lines.

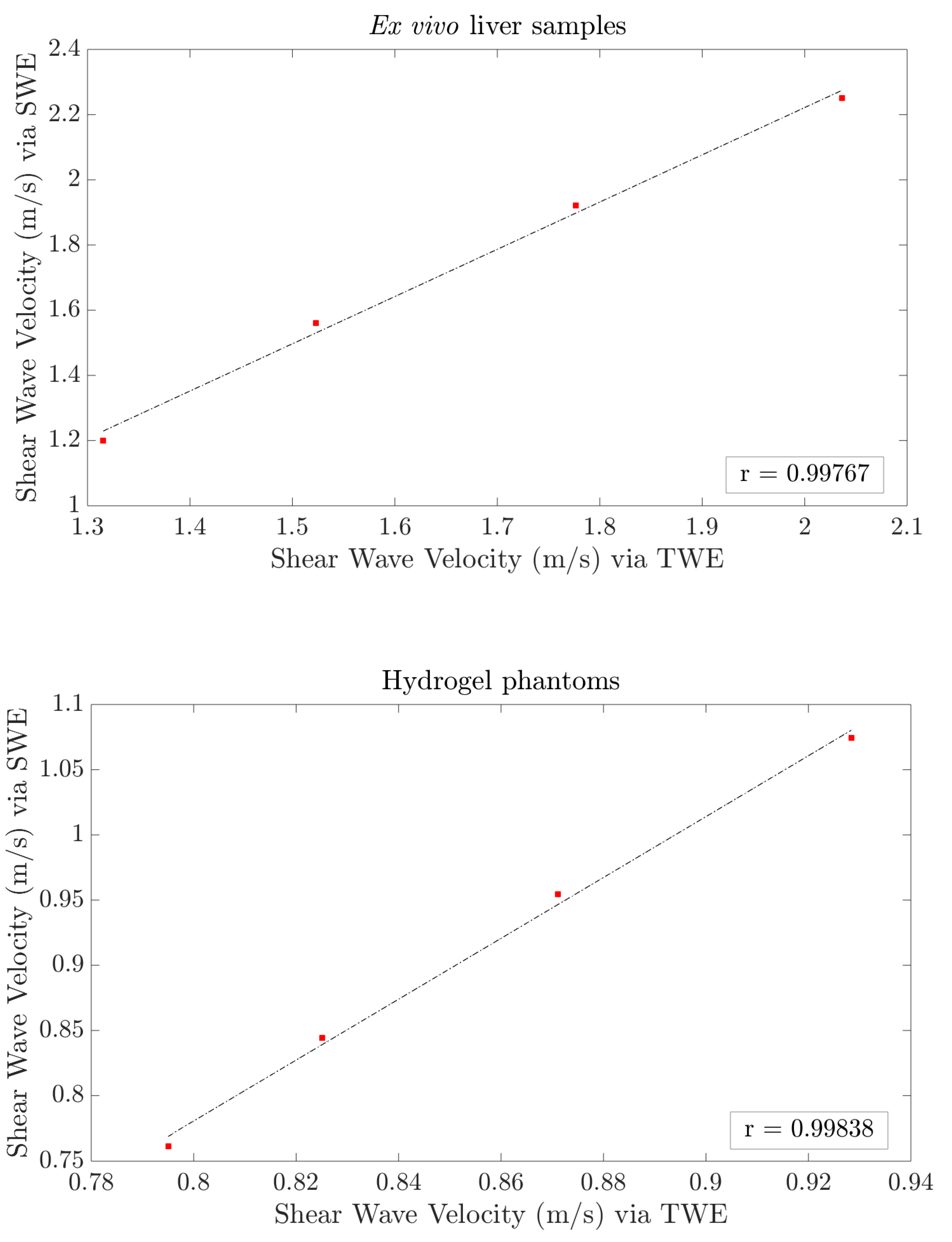

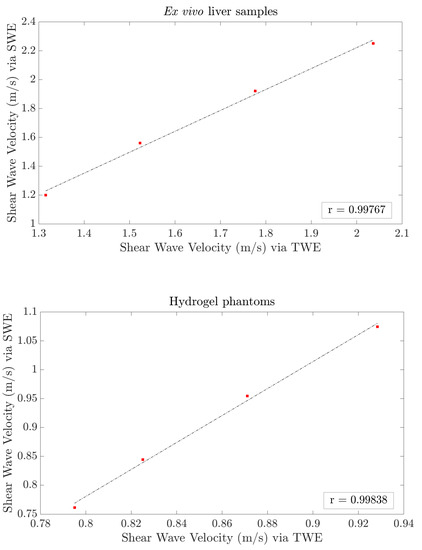

**Figure 8.**Pearson’s correlation between shear wave velocities via SWEI and TWE for both ex vivo liver samples (

**top**) and hydrogel phantoms (

**bottom**) at a frequency range from 200 to 800 Hz. Pearson correlation coefficients are $0.99767$ for liver samples and $0.99838$ for hydrogel phantoms.

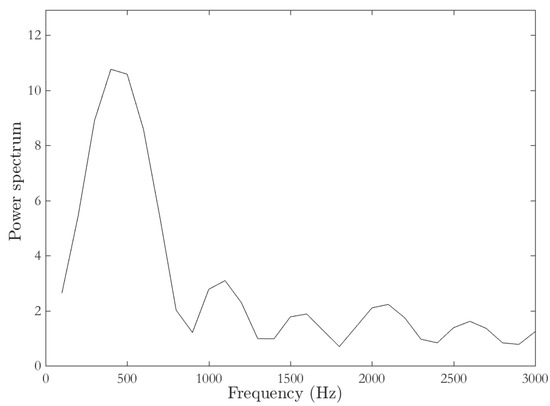

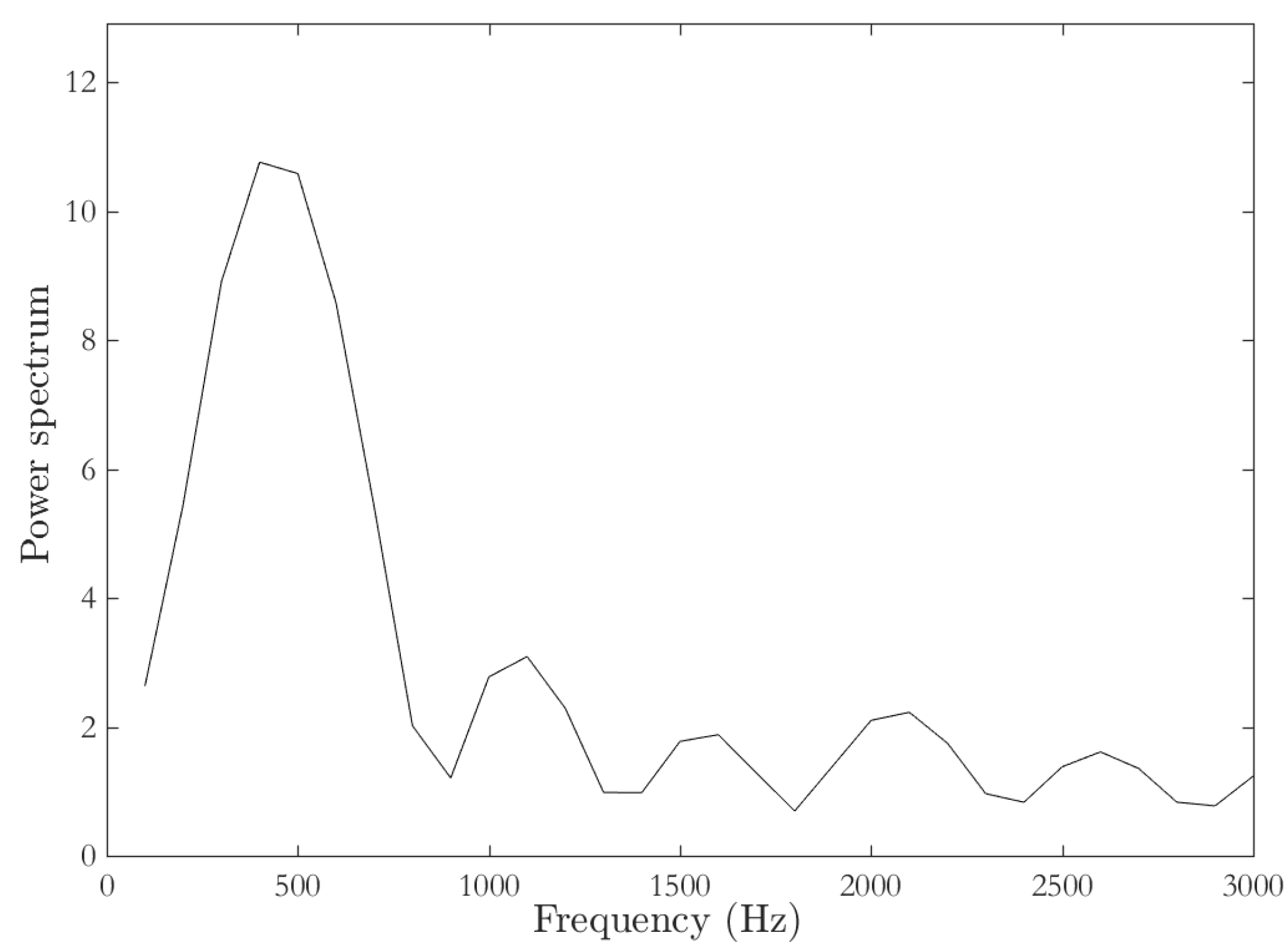

**Figure 9.**The power spectrum of the shear wave tracked by the 7.8Mhz ($L11-5v$) transducer for the ex vivo liver sample using a Verasonics vantage system.

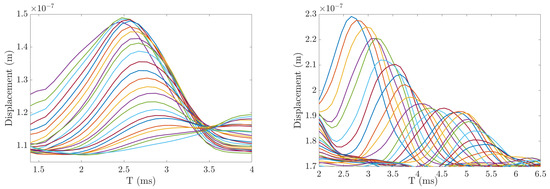

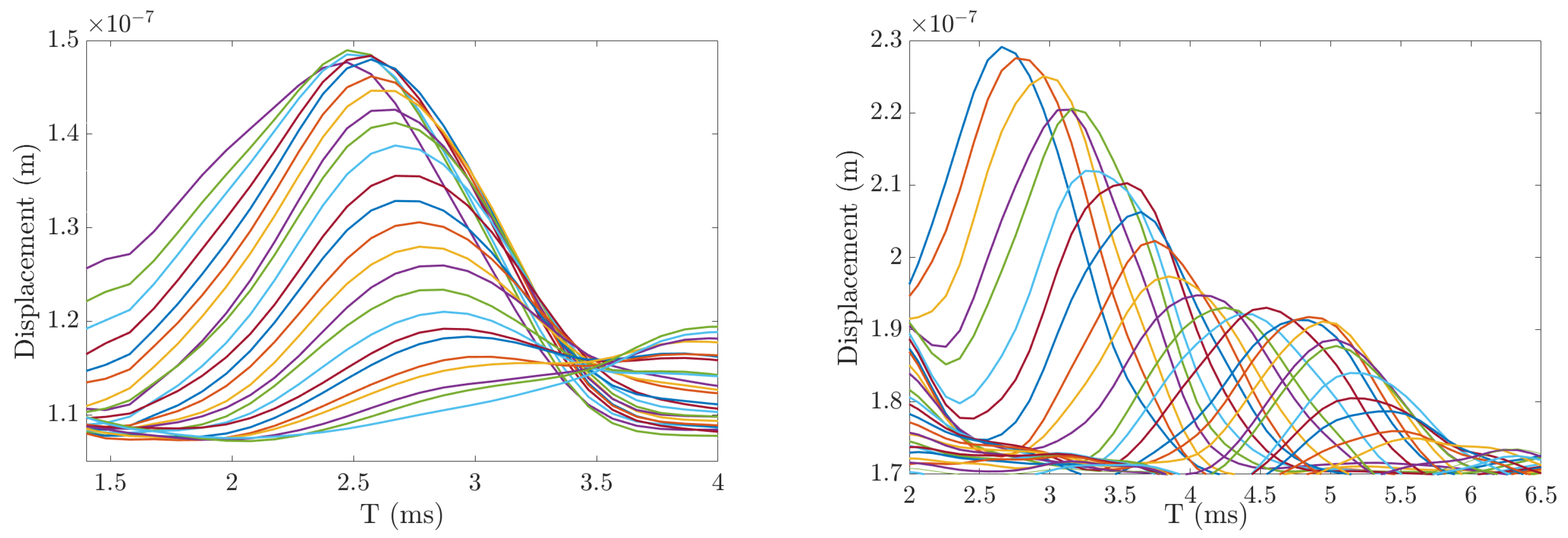

**Figure 10.**Experimental particle displacement versus time profiles at the focal depth resulting from the ARFI excitation. The ARFI moves the tissue in the axial and lateral position. In this figure, each displacement trace indicates a lateral position starting nearby the ARFI push focus to 24 lateral positions. Each individual color curve indicates the lateral position of a displacement trace for ex vivo liver sample II (

**left**) and hydrogel phantom II (

**right**). The curves show that, at farther distances (few milliseconds after the push), the particle displacement is reduced, since the shear wave dissipates.

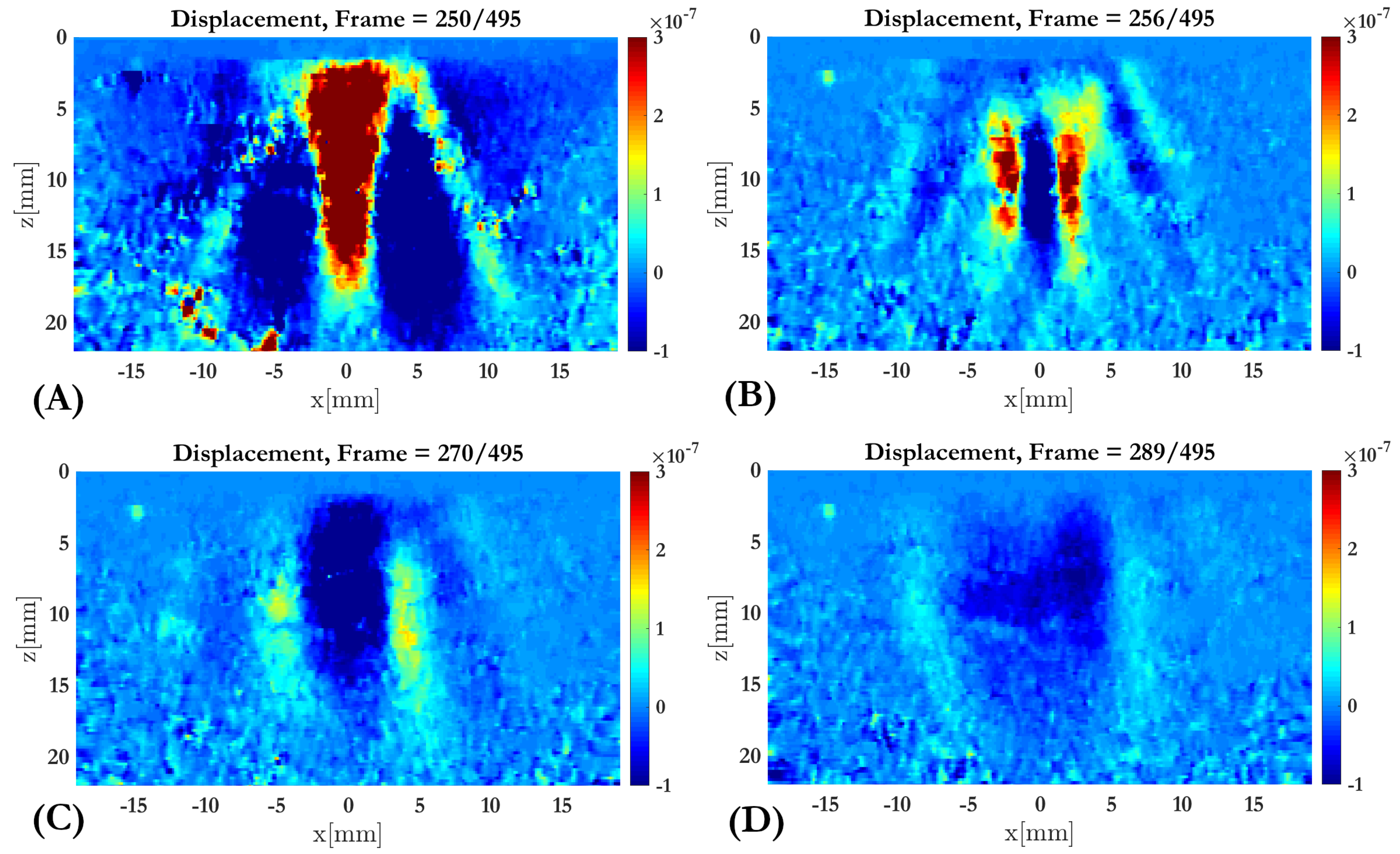

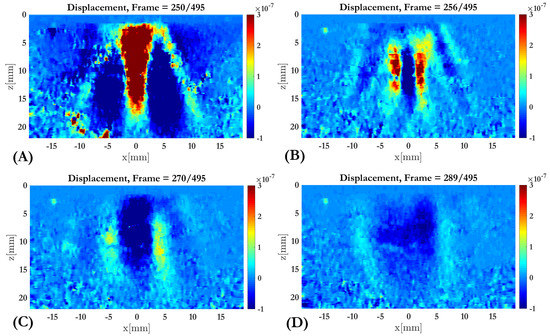

**Figure 11.**A sequence of displacement map (displacements are in meters) of ex vivo liver sample I due to ARFI excitation. The box represents the ROI (Region of Interest) chosen. The sequence from

**A**to

**D**show the push start (

**A**) and the shear wave propagation in different frames (

**A**–

**D**) till its dissipation.

**Table 1.**Torsional wave elastography (TWE) technique acquisition parameters for both ex vivo liver samples and hydrogel phantoms.

Measurements Acquisition Parameters | Value |
---|---|

Sampling frequency | 80 Hz (Decimated 10 × after 800 Hz) |

Ring-disc radius | 3 mm |

Frequency | 200–800 Hz |

Averaging | 10 × |

Excitation power | 20 V |

Property | Value |
---|---|

Number of Elements | 128 |

Pitch (mm) | 0.3 |

Elevation focus (mm) | 18 |

Sensitivity (dB) | −52 ± 3 |

Parameter | Value for the $\mathit{L}11-5\mathit{v}$ Transducer |
---|---|

Push frequency (MHz) | 4.8 |

Track frequency (MHz) | 7.81 |

Push duration (cycles) | 1000 |

Pulse repetition interval $\left(\mathsf{\mu}s\right)$ | 100 |

Impulse duration (cycles/$\left(\mathsf{\mu}s\right)$) | 1000, 128 |

Impulse focus (mm) | 16 for ex vivo liver and 12 for hydrogel phantoms |

Beam focus configuration | Plane wave, fully open |

IQ data beam forming sampling frequency | 0.25$\lambda $ |

Excitation voltage (V) | 40 for ex vivo liver and 28 for hydrogel phantoms |

Sampling frequency(Hz) | 3000 |

Number of transmission channels | 128 |

Number of reception channels | 128 |

**Table 4.**Shear moduli in kPa for both ex vivo liver samples and hydrogel phantoms obtained from torsional wave elastography (TWE) and shear wave elastography imaging (SWEI) techniques.

Elastic Parameter: Shear Moduli in kPa | ||||
---|---|---|---|---|

Ex Vivo Liver Samples | Hydrogel Phantoms | |||

Frequency (Hz) | ${\mathbf{\mu}}_{\mathit{TWE}}$ | ${\mathbf{\mu}}_{\mathit{SWEI}}$ | ${\mathbf{\mu}}_{\mathit{TWE}}$ | ${\mathbf{\mu}}_{\mathit{SWEI}}$ |

200 | $1.69\pm 0.78$ | $1.32$ | $0.62\pm 0.04$ | $0.58$ |

400 | $2.66\pm 0.23$ | $2.82$ | $0.68\pm 0.05$ | $0.74$ |

600 | $2.69\pm 0.47$ | $3.69$ | $0.78\pm 0.065$ | $0.85$ |

800 | $4.00\pm 0.42$ | $4.84$ | $0.86\pm 0.055$ | $1.16$ |

**Table 5.**Viscoelastic parameters for ex vivo liver samples and hydrogel phantoms obtained from torsional wave elastography (TWE) and shear wave elastography imaging (SWEI) techniques.

Sample | Fit | Viscous Parameters | The Goodness of Fit R-square | ||||
---|---|---|---|---|---|---|---|

TWE | SWEI | TWE | SWEI | ||||

Ex vivo liver | Kelvin–Voigt (KV) | $\mu \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}1.512$ kPa | $\eta \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.536$ Pa·s | $\mu \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}1.019$ kPa | $\eta \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.628$ Pa·s | 0.9198 | 0.9572 |

Maxwell (M) | ${\mu}_{1}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}5.773$ kPa | ${\mu}_{2}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}4.316$ Pa·s | ${\mu}_{1}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}13.720$ kPa | ${\mu}_{2}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}3.712$ Pa·s | 0.835 | 0.9861 | |

Hydrogel phantom | Kelvin–Voigt (KV) | $\mu \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.615$ kPa | $\eta \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.093$ Pa·s | $\mu \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.532$ kPa | $\eta \phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.148$ Pa·s | 0.9926 | 0.9764 |

Maxwell (M) | ${\mu}_{1}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}0.827$ kPa | ${\mu}_{2}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}2.897$ Pa·s | ${\mu}_{1}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}1.267$ kPa | ${\mu}_{2}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}1.663$ Pa·s | 0.7879 | 0.8237 |
