Engineering of Synthetic Transcriptional Switches in Yeast

by
Masahiro Tominaga
1,2,
Akihiko Kondo
1,2,3,4 and
Jun Ishii
1,2,*
1
Engineering Biology Research Center, Kobe University, 1-1 Rokkodai, Nada, Kobe 657-8501, Japan
2
Graduate School of Science, Technology and Innovation, Kobe University, 1-1 Rokkodai, Nada, Kobe 657-8501, Japan
3
Department of Chemical Science and Engineering, Graduate School of Engineering, Kobe University, 1-1 Rokkodai, Nada, Kobe 657-8501, Japan
4
Center for Sustainable Resource Science, RIKEN, 1-7-22 Suehiro, Tsurumi, Yokohama 230-0045, Japan
*
Author to whom correspondence should be addressed.
Life 2022, 12(4), 557; https://doi.org/10.3390/life12040557
Submission received: 2 March 2022 / Revised: 31 March 2022 / Accepted: 3 April 2022 / Published: 8 April 2022
(This article belongs to the Special Issue Synthetic Genetic Elements, Devices, and Systems)
Browse Figures
Versions Notes

Abstract

Transcriptional switches can be utilized for many purposes in synthetic biology, including the assembly of complex genetic circuits to achieve sophisticated cellular systems and the construction of biosensors for real-time monitoring of intracellular metabolite concentrations. Although to date such switches have mainly been developed in prokaryotes, those for eukaryotes are increasingly being reported as both rational and random engineering technologies mature. In this review, we describe yeast transcriptional switches with different modes of action and how to alter their properties. We also discuss directed evolution technologies for the rapid and robust construction of yeast transcriptional switches.

1. Introduction

The field of synthetic biology has led to the construction of increasingly sophisticated biological systems [1,2], including biosensors to detect viral mRNA [3,4], one of which has been fabricated as a wearable face-mask to detect the novel coronavirus SARS-CoV-2 [4]. The construction of these biological systems necessitates that researchers develop genetic elements, such as promoters and terminators to satisfy the increasing demand for precise control of complex gene expression. In particular, transcriptional switches are required to regulate gene expression in response to intracellular and extracellular stimuli (e.g., metabolites and inducers) and thereby modulate cellular phenotypes via their output [5]. To date, such switches have been utilized to build inducible expression systems [6,7,8,9], genetic circuits [10,11,12,13,14], and metabolite sensors [15,16,17,18,19].
Endogenous systems, such as the Gal4 transcriptional switch [6,7,8] and G-protein coupled receptor systems [20] have long been used as genetic switches in yeast. Alternatively, genetic switches can be artificially created using heterologous, ligand-responsive, DNA binding proteins, exemplified by bacterial transcription factors (TFs), which can be used to control promoter activity. Tet-ON and Tet-OFF systems that regulate gene expression in response to the small molecule, doxycycline (Dox) were first described as synthetic genetic switches for mammalian systems [21] and subsequently used in various fungi [22,23,24]. Yeast genetic switches can also be created at the translational level using aptamers, riboswitches, and ribozymes, as recently reviewed by Ge and Marchisio [25].
Unfortunately, most genetic switches cannot be used directly for synthetic biology applications because of their inappropriate switching properties. For example, such promoters often exhibit detectable activity in the OFF-state (leaky expression), which hampers the regulated high-level expression of toxic proteins [26]. Furthermore, if genetic switches are to be used as elements of a synthetic bioengineering toolbox, they must be designed to respond specifically to the desired target chemical with minimal cross-reactivity, no leaky expression in the OFF-state, and sufficient output when activated (ON-state) to give an adequately large signal-to-noise ratio, as otherwise the construction of complex, higher-order, genetic circuits, especially with layered logic gates, will fail [2].
In the present review, we summarize how synthetic transcription-level genetic switches have been created and improved in yeast. First, we categorize yeast synthetic transcription switches into two groups according to the mode of action: a transcription activation mode (Figure 1A,B), and a transcription repression mode (Figure 1C,D). Then, we describe general and specific strategies to improve the performance of each type of yeast transcriptional switch with regards to the expression ratio between the ON- and OFF-states (i.e., induction fold), inducer sensitivity and specificity, and target promoter specificity. Finally, we present the evolutionary techniques used to improve or create functional genetic switches in yeast, especially in Saccharomyces cerevisiae.

2. Synthetic Transcriptional Switches with Different Modes of Regulation in Yeast

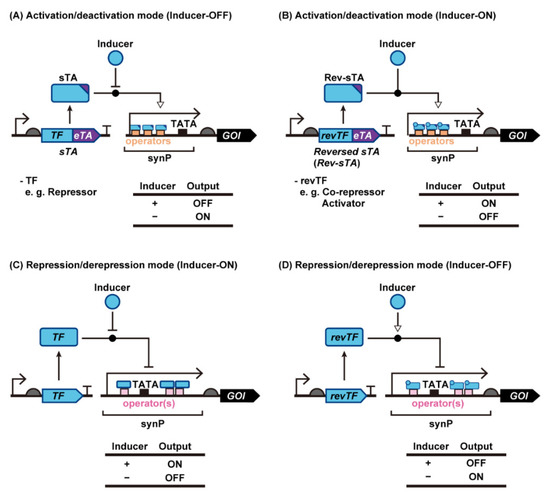

Synthetic genetic switches in yeast are generally categorized according to two types of regulation (Figure 1). One is an activation mode where transcription from a synthetic promoter (synP) is activated by synthetic transcription activators (sTAs), and the other is a repressor mode where transcriptional inhibition is controlled by transcription repressors. The activator mode is further divided into three groups depending on the mode of action. In the following sections, we describe the mechanism of action of each mode of regulation in detail.

2.1. Transcription Activation Mode

Although transcription from a yeast promoter requires the recruitment of multiple endogenous TFs to the promoter, the binding of a single protein fused with eukaryotic transcription activators (eTAs) is sufficient to artificially stimulate the recruitment of yeast TFs. Therefore, synthetic transcriptional switches can be created in yeast by fusing eTAs with ligand-responsive DNA binding proteins, such as bacterial TFs (bTFs; also known as allosterically regulated TFs). Using appropriate design parameters, ligand-dependent binding of bTFs to their operator DNA sequences fused upstream of the yeast core promoter [i.e., a yeast promoter lacking an upstream activation sequence (UAS)] can be translated to the output gene expression [21,24,27,28,29] (Figure 1A,B).

2.1.1. sTAs Based on Bacterial Transcriptional Repressors

The Tet-OFF system [24] is a well-known and proven technology that uses a synthetic transcription activator, i.e., a fusion of tetracycline-responsive transcription repressor TetR and eTA, named VP16. The resultant tetracycline-responsive transcription activator, TetTA, activates transcription from the target synthetic promoter consisting of TetR binding sites (tetO) fused upstream with a eukaryotic core promoter based on a yeast CYC1 promoter which loses its UAS in response to doxycycline, a more effective analog of tetracycline [30]. This system has been used extensively in synthetic biology projects: in particular, this system has been used to explore the function of genes that confer toxic phenotypes because the switches allow regulated expression of the candidate genes [31,32,33].
Bacteria harbor various TetR homologues [34]. The corresponding operator sequences and ligand molecules have been identified for some of these repressor proteins, enabling researchers to construct a series of sTAs and synPs. Ikushima et al. have developed a genetic switch that is tightly controlled by camphor, an inexpensive small molecule [28]. In this case, an sTA was created by fusing three tandem repeats of VP16 and a nuclear localization sequence (NLS) to the CamR transcriptional repressor, a TetR homolog from Pseudomonas putida. A corresponding synthetic promoter was also created by embedding six repeats of CamR binding sites (camO) between the ADH1 terminator (to avoid leaky crosstalk from upstream transcription) and the CYC1 minimal (core) promoter (which lacks the UAS). In the resulting system (the Camphor-OFF switch), the sTA binds camO to promote transcription in response to camphor, facilitating camphor-dependent regulation of downstream gene expression via an “inducer-OFF”-type sTA (Figure 1A).
In subsequent research conducted by Ikushima and Boeke [29], a series of “inducer-OFF”-type genetic switches that function in S. cerevisiae were created using different TetR homolog transcription repressors and their cognate operator DNAs and ligands (Table 1). More recently, the same design was applied to the construction of sensors for malonyl-CoA and xylose in S. cerevisiae [35]. In addition, the versatility of this strategy was demonstrated by applying it to the construction of a malonyl-CoA sensor in the nonconventional yeast Komagataella phaffii [36].

2.1.2. sTAs Based on Bacterial Transcriptional Co-Repressors and Activators

Bacterial transcription repressors can reverse their switching behavior by introducing mutations to them [37]. Thus, opposite regulation can be achieved by using mutant sTAs with these reversed mutations (Figure 1B). The first report of a reversed sTA was a reversed TetTA (rTetTA) based on a reversed TetR mutant that binds to tetO in the presence of Dox. The discovery and evolutionary engineering of rTetTA have been reviewed previously [38]. Briefly, rTetTA was first identified following a directed evolution experiment using Eshcerichia coli [30] and later was identified in yeast [39]. Dox-sensitivity was subsequently improved using directed evolution in yeast [39] and then using viral evolution [40]. Later, Roney et al. serendipitously discovered a mutation in rTetTA that significantly reduces leaky activation of rTetTA [41]. This system has been used extensively in synthetic biology projects for constructing complex gene circuits [42,43,44]. More recently, using a novel directed evolution platform described below (Section 4.4) [45], a reverse PhlF mutant (rPhlF: PhlF with K86T, Q117R, and E143K) that binds to phlO in the presence of 2,4-diacetylphloroglucinol (DAPG) was reported. Furthermore, natural bacterial repressors that bind to their binding sequences upon inducer binding have also be used to construct this type of sTAs; for example, MetJ, which binds to its target sequence metO in response to S-adenosylmethionine (SAM), was used to construct a SAM-monitoring biosensor in S. cerevisiae [46].
Ligand-induced DNA binders can also be sought from bacterial transcriptional activators. Moser et al. were the first to describe this type of sTA that can sense methylating compounds, such as methylnitronitrosoguanidine and methyl methanesulfonate, in yeast [47]. In this system, the N-terminal region of the Ada protein from E. coli was fused with the Gal4 transcription activation domain. Upon addition of methylating compounds, the Ada protein is methylated to bind to the cognate operator sequence, which facilitates transcriptional activation of the synthetic promoter. Subsequently, Castano-Cerezo et al. engineered a 4-hydroxybenzoate-responsive transcription activator, HbaR, from Rhodopseudomonas palustris into an sTA by fusing the protein with the transcription activator B112 and the DNA binding protein LexA [48]. Wei et al. reported the fusion of a xylose-responsive transcription activator, XylR from E. coli, with a eukaryotic transcription activation motif, VPR, or heat shock factor 1 to create a xylose sensor both in S. cerevisiae and in the oleic yeast Yarrowia lipolytica [49]. In a recent example, we described a yeast sTA based on the bacterial quorum-sensor protein LuxTA [45]. Specifically, the TetR-family transcription activator LuxR was fused to three copies of VP16 (VP48) to activate a synthetic promoter in yeast composed of the GAL1 core promoter fused with 1–10 copies of the LuxR binding sequence (luxO), resulting in a genetic switch inducible by the addition of a quorum signal, i.e., 3-oxo-hexanoyl homoserine lactone (HSL).
Table 1. Examples of transcriptional switches based on synthetic transcription activators.
Table 1. Examples of transcriptional switches based on synthetic transcription activators.
Inducer abTF bTF Type cSourceAdditional Motif dOperators eCoreP fReference
DoxReversed TetR (rTetR)Co-repEscherichia coliVP16 × 3[tetO]7PGAL1(Sc)[45]
DoxrTetRCo-repE. coliVP16 × 3[tetO]7PCYC1(Sc)[39]
DoxrTetRCo-repE. coliVP16 × 3[tetO]3 or 4PGAL1(Sc)[41]
DoxTetRRepE. coliVP16ad × 1 or 2[tetO]1, 2 or 7 PCYC1(Sc)[24]
DAPGPhlFRepPseudomonas fluorescensVP16 × 3[phlO]7PCYC1(Sc)[29]
NLS, VP16 × 3[phlO]1PGAL1(Sc)[45]
CamphorCamRRepP. putidaNLS, VP16 × 3[camO]6PCYC1(Sc)[28,29]
[camO]1PGAL1(Sc)[45]
CumateCymRRepP. putidaNLS, VP16 *[cymO]6PCYC1(Sc)[29]
DAPGReversed PhlF (rPhlF)RepP. fluorescensNLS, VP16 × 3[phlO]6PGAL1(Sc)[45]
HSLLuxRActVibrio fischeriNLS, VP16 × 3[luxO]1PGAL1(Sc)[45]
[luxO]5PGAL1(Sc)
[luxO]10PGAL1(Sc)
SAMMetJCo-RepE. coliNLS, B42[metO]1PCYC1(Sc)[46]
Methylating compoundN-Ada bActE. coliGAL4-AD[AdaOp]1, 3 or 8PCYC1(Sc)[47]
XyloseXylRActE. coliNLS, VPRHPTEFup-[Pxo]1PTEF(Yl)[49]
NLS, VPRH[Pxo]1PTEF(Yl)
NLS, VPRNDND
NLS, HSFNDND
NLS, VPRH[Pxo]1PLEU(Yl)
NLS, VPRH[Pxo]1PYlACC1
NLS, VPRH[Pxo]1PTEF(Sc)
Malonyl-CoAFapRRepBacillus subtilisPrm1[fapO]1PAOX1(Kp)[36]
Benzoate HbaRActRhodopseudomonas palustrisB112[LexA binding site]8PCYC1(Sc)[48]
a. Doxycycline, Dox; DAPG, 2,4-diacetylphloroglucinol; HSL, homoserine lactone; SAM, S-adenosyl methionine. b. N-Ada, N-terminal 180 amino acids of Ada protein from E. coli. c. Co-rep, co-repressor; Rep, repressor; Act, activator. d. VP16 and VP16ad, Transcription activation domain of VP16 from herpes simplex virus 2 (VP16: residues from 436 to 447, and VP16ad: residues 367 to 490); NLS, Nuclear localization signal from Simian Vacuolating Virus 40; B42 and B112, transcription activation domain from E. coli; GAL4-AD, Activation domain of GAL4 (residues from 767 to 881) from S. cerevisiae; VPRH, a fusion of 4×VP16 (VP64), a 65 kDa transcription activator domain of human NF-κB (p65), an Rta protein from Epstein–Barr virus, and transactivation domain of human Heat shock factor 1 (HSF); VPR, a fusion of VP64, p65, and Rta; Prm1, transcription activator protein from Komagataella phaffii. VP16 *, the number of VP16 repeats is not described. e. The number of transcription factor binding sequences (operators) is shown as a subscript. LexA, a bacterial transcription repressor; AdaOp, Ada operator, PTEFup-[Pxo]1, synthetic hybrid promoter without lacking UAS of TEF promoter; Pxo, 240-bp promoter sequence including XylR binding sequence from E. coli. ND, Not described. f. Source organism for each core promoter (coreP) is shown in parenthesis. Sc, S. cerevisiae; Yl, Yarrowia lipolytica; Kp, Komagataella phaffii. ND, Not described.

2.1.3. sTAs Based on Ligand-Dependent Nuclear Localization

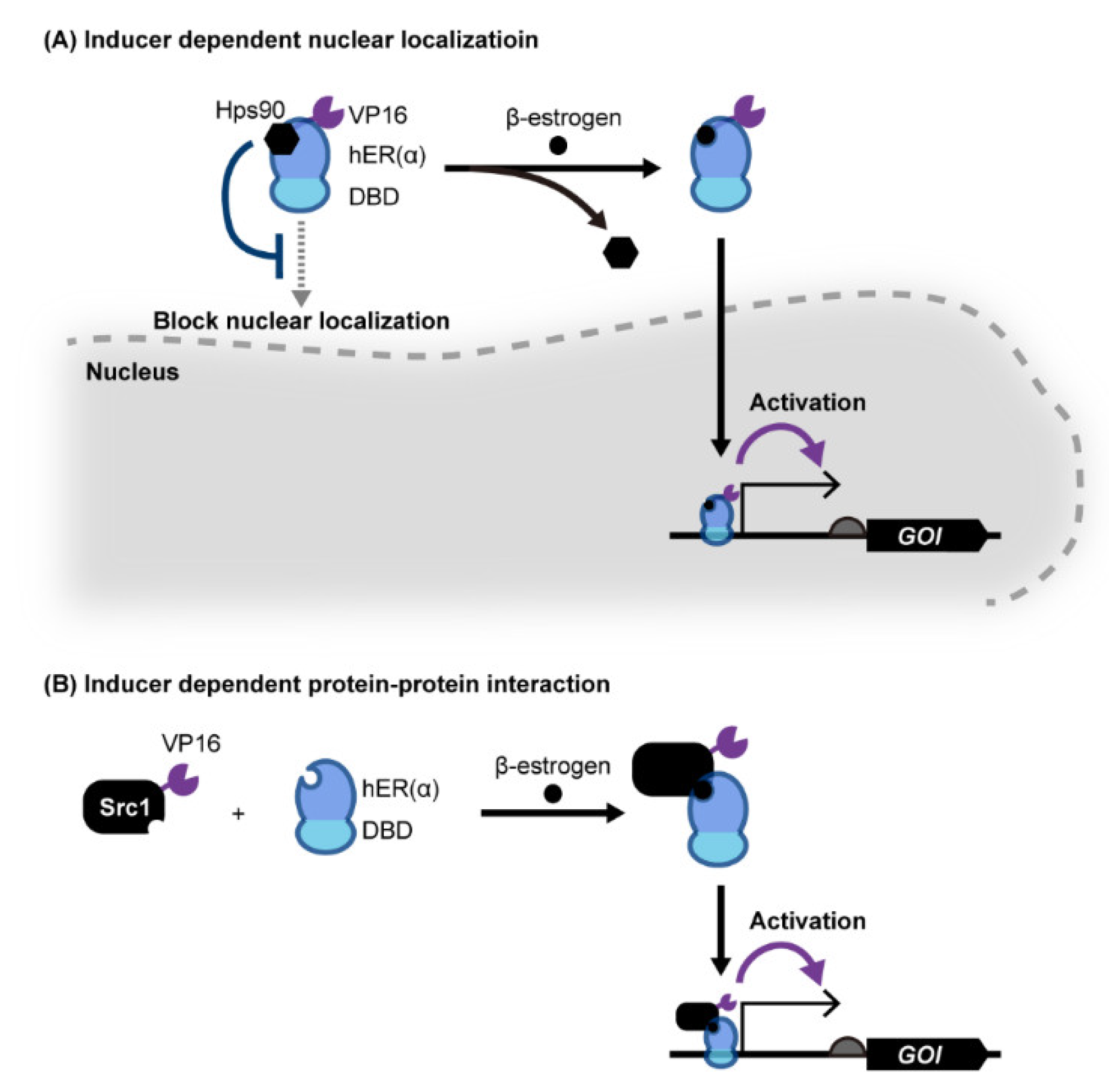

sTAs can also be created with eukaryotic receptor proteins (Figure 2A). In one example, an sTA was created based on human estrogen receptor alpha (hERα) fused with both a DNA binding protein and a transcription activation motif [50,51,52,53,54,55]. In the absence of the native ligand of hERα, β-estrogen (including β-estradiol), the host Hsp90 chaperon complex binds to the sTA and prevents it from being transported to the nucleus (i.e., it remains in the cytosol). Upon ligand binding, the sTA is released from Hsp90 and is transported into the nucleus to bind to the target DNA sequence, resulting in the activation of target gene transcription. More recently, Mormino et al. developed an sTA based on the fusion of an acetic acid-responsive transcription factor from S. cerevisiae, Haa1, and a DNA binding protein, BM3R1, from Bacillus megaterium [56]. In this system, Haa1p is relocated to the nucleus following the binding of acetic acid, which causes binding to the BM3R1 binding sequence fused upstream of the yeast promoter. Using this acetate-responsive genetic switch, it is possible to monitor the acetic acid concentration in yeast within the linear range from 10 to 60 mM. A similar design was used to construct a light-inducible sTA by fusing a photo-sensitive peptide with an eTA, NLS, and a DNA binding protein, where the NLS is concealed from the cellular machinery until light reversibly unfolds the peptide, thereby enabling light-induced nuclear localization of the sTA [57,58].

2.1.4. sTAs Based on Ligand-Induced Protein-Protein Interactions

Recruitment of a transcription activator by using protein-protein interactions has been widely used for yeast two-hybrid (Y2H) systems to investigate protein interactions [59] (Figure 2B). In Y2H systems, eTA and DNA binding domain (DBD) are fused to each protein to be evaluated. This enables reporter gene activation only when these two proteins interact to form a protein complex and thereby recruit the eTA of a nearby promoter of a reporter gene. The Y2H system can be repurposed as a component of a yeast genetic switch using ligand-induced protein-protein interactions. For example, Chockalingam et al. created two fusion proteins: one consists of the ligand binding domain of hERα fused with Gal4 DBD, and the other consists of the mammalian transcription coactivator Src1 fused with the yeast Gal4 activation domain [60]. In this system, hERα and Src1 interact only when estradiol binds to hERα, thereby enabling estradiol-dependent transcription activation. Similarly, light-induced protein dimerization was used to create light-dependent genetic switches in yeast [61,62,63,64]. Furthermore, in addition to sensory proteins, enzymes that bind metabolites and dimerize can be used in this strategy. Chou et al. demonstrated that the endogenous enzymes Idi1p and Erg20p can be repurposed as ligand-responsive dimerizing motifs [65]. In this system, two fusion proteins which consist of an isopentenyl diphosphate (IPP) binding enzyme and a DBD or eTA enable the IPP-dependent co-localization of these fusion proteins onto specific sites of DNA to activate target gene transcription.

2.1.5. Transcription Activation without a Eukaryotic Activation Motif

Although most yeast transcription switches use eTAs to activate transcription, some bacterial transcription activators (bTAs) have been recently found to exert transcription activation in S. cerevisiae even without the fusion of eTA. As the first demonstration of this system, Skjoedt et al. developed biosensors based on bacterial LysR-type transcriptional regulators (LTTR) (Figure 3) [66]. In the native system, the LTTR homotetramer binds to its cognate suboperators [sites 1 and 3 (S1 and S3)] even in the absence of their ligands. Upon ligand binding, the LTTR homotetramer binds to a different set of suboperators [sites 1 and 2 (S1 and S2)], which alters the conformation of the DNA and thereby enhances RNA polymerase (RNAP) binding to the bacterial promoter. In yeast systems, LTTR-binding sequences are embedded in the yeast promoter so that LTTR binding makes the promoter accessible to yeast RNAP. For systematic prototyping, Skjoedt et al. used BenM from Acinetobacter sp. ADP1, which responds to cis,cis-muconic acid (CCM), and its cognate operator DNA, benO. Three synthetic promoters were created by fusing the yeast CYC1 promoter with a single benO sequence at different positions. One of the fusions with benO upstream of the TATA box resulted in a 20-fold increase in promoter activation upon constitutive expression of BenM from the TEF1 promoter. Surprisingly, this activation did not require the presence of a eukaryotic activation motif. Cells containing an evolutionarily optimized BenM mutant (H110R, F211V, and Y286N) exhibit a 10-fold induction following the addition of 1.4 mM CCM. This synthetic promoter configuration has been used to construct three different biosensors by using the operators of FdeR (fdeO), ArgP (argO), MdcR (mdcO) and PcaQ (pcaO) instead of benO; these operators respond to naringenin, L-arginine, and malonic acid and protocatechuic acid, respectively [66,67]. In subsequent research by Snoek et al., the use of fluorescence-activated cell sorting (FACS)-aided directed evolution of BenM enabled the identification of BenM mutants with reversed switching phenotype (CCM-induced deactivation; CCM-OFF), improved induction-fold and operational range, and altered ligand specificity [19].

2.2. Transcription Repression Mode

When an intact bacterial transcription repressor binding sequence is fused to a position upstream of the TATA box in a yeast promoter, transcription is blocked by inhibition of RNAP complex binding. Transcription from the resultant synP is derepressed when the ligand-bound bTFs dissociate from the synP. This mode of action has allowed the creation of many inducible yeast promoters.
The earliest example is a tetracycline-inducible system based on TetR and tetO, called Tet-ON, in which intact TetR binds to tetO and hinders the binding of RNAP to the promoter (transcription repression) [13,68,69]. Following the binding of anhydrotetracycline (aTc) to TetR, TetR dissociates from the operator, resulting in the de-repression of the synthetic promoter (Figure 1C, Table 2). Any transcription repressor and its binding target sequence from bacteria can be assembled into this type of genetic switch. Ikushima and Boeke demonstrated repressor-based sensing using the native PhlF repressor without the VP16 transcriptional activation domain (the DAPG-ON switch) [29]. One or two phlO elements were embedded downstream of the constitutive ADH1 promoter; free PhlF binds to the phlO elements (without DAPG), repressing reporter transcription. In the presence of DAPG, DAPG-bound PhlF dissociates from the phlO elements, which permits the initiation of reporter transcription. It is also possible to create such synthetic systems using the various inducer-responsive transcription factors XylR [13,70,71,72], FdeR [73], FadR [74], FapR [36,75,76], LacI [13,68,77,78] and VanR [18], which respond to xylose, naringenin, fatty acids, malonyl-CoA, isopropyl-β-D-thiogalactopyranoside (IPTG), and vanillin, respectively. Despite differences in core promoter architecture between yeasts, the same design has been applied to fission yeast [78] and the methylotrophic yeast K. phaffii [36,77]. In the latter instance, Cao et al. inserted the LacI binding sequence (lacO) downstream of the GAPDH promoter, which resulted in a 6-fold induction of gene expression upon the addition of IPTG [77]. In principle, reversed bTF described in Section 2.1.2 can be used to repress target gene expression upon inducer addition (Figure 1D).

3. Strategies to Improve the Performance of Yeast Transcriptional Switches

Any ligand-responsive DNA binding protein and its binding sequence can be assembled with yeast promoters to build synthetic gene regulation systems in yeast; however, the prototype switches often perform poorly. Substantial optimization is required to make the systems practical (Figure 4). Ideally, genetic switches should exhibit strong target gene expression in the ON-state with minimal leakiness in the OFF-state, i.e., a strong induction fold. In addition, sensitivity, i.e., the inducer concentration required to turn gene expression ON (often defined as 50% activation, i.e., EC50), is also important, especially for metabolic engineering purposes that require real-time monitoring of intracellular metabolite concentrations, or target gene induction with minimal physiological perturbation caused by large amounts of inducer. We summarize the engineering strategies used to date to improve these properties of yeast transcriptional switches in the following sections.

3.1. Strategies for Improving Fold-Induction

In the following subsections, we describe strategies to improve these properties of yeast transcriptional switches. Since the possible strategies are different depending on the mode of action, we will introduce each strategy one by one. Additionally, we describe genetic circuits to improve fold-induction.

3.1.1. sTA-Based Yeast Transcriptional Switches

Since any synP shows substantial basal promoter activity, minimizing basal promoter activity is one of the most important points for constructing yeast transcriptional switches with a large signal-to-noise ratio. First, the basal activity of synP can be modulated by altering the core promoter sequence [52]. Readthrough from upstream transcription can be a source of leakiness from the deactivated synP. This leakiness is often blocked by the addition of a terminator sequence [24,29,55]. In addition to the intrinsic leakiness of the synP, ligand-independent sTA binding can occur when too many operators are fused to synP. Thus, the number of operators should be optimized to maximize sTA activation while minimizing leakiness [52] but optimization is challenging because the optimal number of repeats is different depending on the level of sTA expression. For example, McIsaac et al. reported that the induction-fold of estradiol inducible yeast genetic switches was maximized using four copies of the sTA binding site fused to the core promoter [52]. Too much expression of the sTA increases ligand independent binding to the synP, while gene expression in the ON-state can be reduced if there is insufficient sTA expression. In both cases, the induction fold of the systems decreases. Therefore, the optimal expression level of the sTAs in each system should be screened by using different expression promoters and terminators [41].
The tunability of eTA activity is another important factor for this mode of regulation, but a systematic comparison of eTAs fused to TFs has only recently been reported. In 2020, Qiu et al. compared different eTAs [i.e., Gal4, Med2, VP16, VP64-p65-Rta (VPR) and Med2-Gal4] fused to the FapR repressor in terms of their activation capacities (i.e., gene expression levels in the ON-state) [35]. They found that Med2 outperformed the other motifs in S. cerevisiae when fused with FapR. Such strong eTAs can be useful, especially when using TFs with weak DNA binding affinity or when there are difficulties with high-level expression in yeast. Again, screening for the optimal combination of TFs and eTAs is required for each transcriptional switch because effective eTA activity is highly dependent on the DNA binding capacity of the TFs.

3.1.2. LTTR-Based Yeast Transcriptional Switches

Due to a lack of detailed understanding of how native LTTR-family transcriptional activators activate the transcription of eukaryotic promoters, systematic construction of synPs or directed evolution of TFs are the only practical strategies for improving such yeast switches. For synP construction, Ambri et al. screened 106 and 133 promoter designs to identify the optimal positions in synthetic promoters for two different bTF-binding sites (benO and pcaO for BenM and PcaQ, respectively) at single-nucleotide resolution in S. cerevisiae [67]. The optimal insertion position was quite different for these two bTFs, and only a few constructs gave distinct switching behavior. For bTF engineering, Snoek et al. reported that FACS-assisted directed evolution of BenM enabled more than a 15-fold improvement in fold-induction [19].

3.1.3. Repressor-Based Yeast Transcriptional Switches

The choice of yeast promoter and the position of the operator greatly affect both the basal (derepressed) and repressed promoter activities. In particular, appropriate operator positions should be screened at single base-pair resolution [67]. Ambri et al. screened 81 promoter designs to identify the optimal positions in synthetic promoters for VanR-binding sites (vanO) at single-nucleotide resolution in S. cerevisiae. Notably, the optimal insertion position differed from that of the LysR-type transcription activator [67]. Recently, Chen et al. performed systematic optimization of this type of genetic switch [13]. First, they found that the minimal synthetic promoter sequence with a 20-bp poly(T) sequence located 4 bp upstream of the TATA box had strong activity independent of nutrient conditions. They also found that blocking transcription readthrough by placing appropriate yeast terminators and ribozymes upstream of the regulated promoters could minimize the leakiness of the repressible genetic switches. The tightest repression by bTF was achieved by separating the two operators by more than 20 bp. Using these design strategies, they developed three strongly repressible switches with >100-fold induction and low basal output and applied the resultant genetic switches with a wide dynamic range to automatically assemble yeast genetic circuits.
In addition to massive screening for optimizing the architecture of synthetic promoters, bTF homologs that respond to the same inducer molecules can be screened to construct yeast transcriptional switches with different switching performances; however, differences in the DNA- and ligand-binding affinity and stability of each TF in yeast complicates the optimization process of yeast genetic switches. To date, XylR, FapR, and FadR have been cloned from seven, three and two species, respectively, and evaluated as components of yeast genetic switches to obtain maximum regulation (Table 2). For example, the choice of XylR–operator combinations substantially affect the switching performance of xylose-responsive switches; following xylose addition, maximum fold induction was obtained with a XylR/operator pair from Bacillus subtilis [71].
If the repression of intact TFs is insufficient, transcriptional repression of given TFs can be strengthened by fusing chromatin remodeling modules, such as Ssn6 and Tup1. The effectiveness of this method was verified by constructing genetic switches with XylR-Ssn6 [72], TetR-Ssn6 and TetR-Tup1 [23] fusions. Two other eukaryotic repressor domains, Mxi1 and KRAB, which are frequently used as components of CRISPRi systems [79], could be used for this purpose, although their use in the context of inducible synthetic transcription repressors has not been experimentally demonstrated.

3.1.4. Genetic Circuits: Assembly of Different Switches

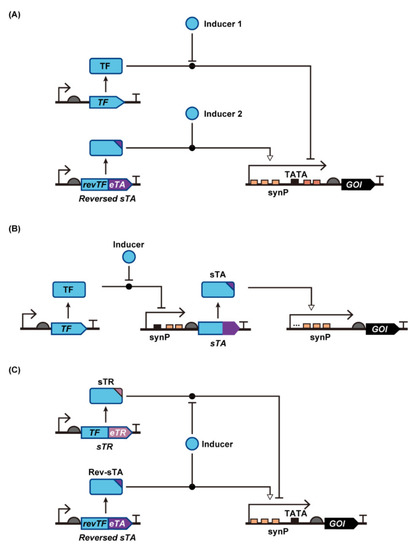

Transcriptional switches with different modes can be combined to improve and maximize fold-induction by fusing the binding sequence for sTA and intact bTF upstream and downstream of the yeast core promoter, respectively (Figure 5A). For example, Mazumder et al. created a hybrid promoter comprising five upstream binding sequences for testosterone-responsive sTA and a single downstream lacO for LacI binding [80]. The resulting system enabled the AND-gated regulation of reporter gene expression: i.e., strong gene expression was induced only when the concentrations of both testosterone and IPTG were sufficient. Another example is a transcription cascade that amplifies ON/OFF regulation (Figure 5B). Recently, Naseri et al. reported LacI/lacO-based regulation in combination with an artificial transcription activator based on a plant-derived TF with up to 2020- and 63-fold induction upon IPTG addition in S. cerevisiae [81] and K. phaffii [82], respectively.
In addition to eTAs, eukaryotic transcription repressors (eTRs) can be fused to bTF to create a synthetic transcription repressor (sTR), which represses synP activity in response to an inducer. By fusing an eTA and eTR to different TFs, yeast genetic switches with dual modes of regulation can be constructed (Figure 5C). The earliest example, by Belli et al., described the simultaneous use of doxycycline (Dox)-responsive sTA and sTR, rTetTA and TetTR, respectively [23]. rTetTA was a fusion of eTA and reversed TetR that binds to tetO in the presence of Dox, and rTetTR was a fusion of eTR (Ssn6 or truncated Tup1 from S. cerevisiae) and TetR that binds to tetO in the absence of Dox. Without Dox, TetTR binds to synP to repress basal promoter activity. Upon Dox addition, rTetTA instead of TetTR binds to synP to activate synP. This dual regulation enabled over 1000-fold induction of reporter gene expression.

3.2. Strategy to Modify Inducer Sensitivity and Specificity, and DNA-Binding Specificity

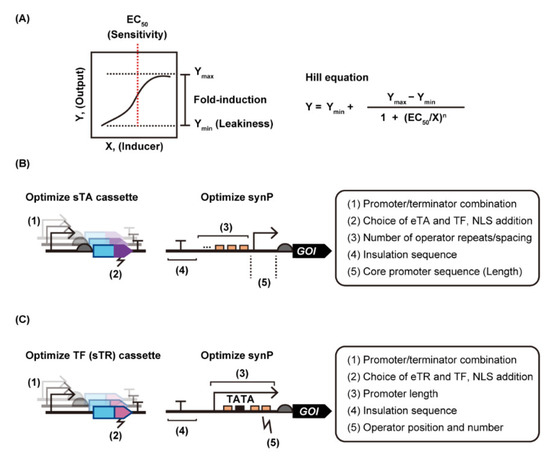

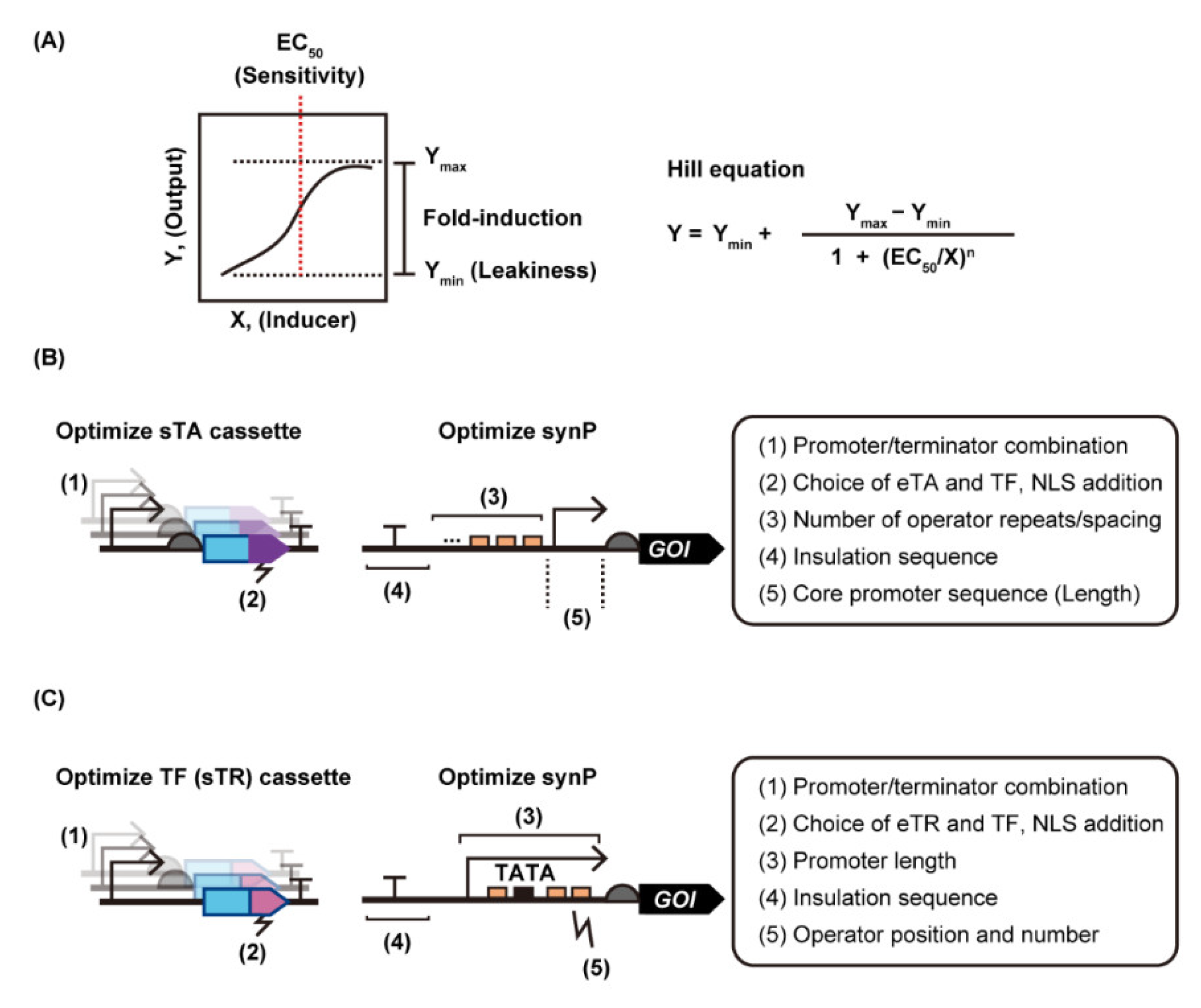

Unlike fold-induction, inducer sensitivity [i.e., EC50 (Figure 4A)] and specificity are solely dependent on the binding affinity between TF and its inducer molecule or operator DNA. Thus, these factors can be modulated only by mining different transcription factors derived from other species, by performing protein engineering, or by directed evolution. For example, the xylose-responsive transcription factor XylR has been extensively mined [13,49,70,71,72] (Table 1 and Table 2). Of the 8 XylR homologs tested, XylR from C. crescentus exhibited the highest sensitivity to xylose, enabling the detection of as low as 2 µM xylose [72].
Alternatively, directed evolution is a promising methodology to alter inducer sensitivity and the specificity of TFs. For example, a 17β-estradiol-responsive human receptor was converted into a mutant receptor responsive to the synthetic nonsteroidal compound 4′-4′-dihydroxybenzyl (DHB) [60] or to synthetic ligands [83] with the aid of directed evolution using genetic selections (see also Section 4.3). Evolutionary engineering has also been applied in yeast to improve the sensitivity of rTetTA to Dox [39] and LuxTA to HSL [45] and to alter the specificity of BenM (from CCM to adipic acid) [19] and VanR (from vanillic acid to vanillin) [18] (Figure 6).
Unlike responsivity to inducers, DNA binding specificity can be easily altered by changing the DNA-binding domain (DBD) of eukaryotic ligand-binding proteins to those of other DNA binding proteins. For example, estradiol-inducible synthetic transcription factor, described in Section 2.1.4, can be altered to recognize different DNA sequences by replacing GAL4 DBD with the sequence for E. coli LexA protein [55]. DNA binding specificity can be rationally engineered by using a four-finger zinc-finger array to relieve the design constraint of the binding sequence [52]. Such a “module-swapping strategy” can be successfully applied to bacterial transcription factors [84,85,86], although the resultant chimeric TFs have not been used in yeast.

4. Directed Evolution of Transcriptional Switches in Yeast

Directed evolution is a practical strategy to develop useful transcriptional switches in yeast, where switch variants with desired performances are designed to be selected from a library with randomized components. This strategy has been widely used in prokaryotic systems, especially in E. coli, resulting in a large genetic switch toolbox. In contrast, only a few examples of this evolutionary engineering strategy have been reported in yeast [1,87,88,89,90,91,92,93], although the tuning process of eukaryotic genetic switches is far more difficult than the process required for prokaryotic cells. For example, the behavior of eukaryotic promoters is easily affected in an unpredictable manner by changes to the surrounding sequences [94,95]. In the following subsections, we summarize recent successes in the evolutionary engineering of genetic switches in yeast, as well as the methodologies used in each example.

4.1. Fluorescence-Based Screening

Most genetic switches have been evaluated by placing genes for fluorescent proteins to provide an output. Fluorescence measurements are then conducted using multiwell-based plate readers or flow cytometry. Ellis et al. developed a tetracycline-responsive genetic switch in yeast by fusing the GAL1 promoter with two distinct tetO sequences and one lacO sequence, where the TetR and LacI protein binds to repress transcription from the GAL1 promoter [68]. They found switch variants with optimal characteristics for the construction of different genetic circuits (a feed-forward loop and timer) by performing green fluorescent protein (GFP)-based screening of synthetic promoter variants in which the sequences around the operators were randomly mutated. Urlinger et al. performed GFP-based screening of approximately 1000 clones on plates with and without Dox to identify TetTA mutants with reversed phenotypes [39]. They also performed a second round of mutagenesis and screening to identify rTetTA mutants with improved sensitivity. As discussed in a previous review article [96], GFP-based colorimetric screening is particularly important when the cells show clonal populations. Flow-cytometry-based screening, rather than agar-plate or plate reader-based screening, can be essential.

4.2. ON/OFF Selections Using FACS

FACS enables the screening of libraries with desired output levels (i.e., fluorescence intensity) at given conditions of as many as 108 variants per day [97,98,99]. This allows for a high-throughput selection of vast libraries of genetic switches. Using a FACS-based selection strategy, directed evolution of the responsivity of bacterial activators that are responsive to muconate (BenM) [19,66] and vanillin (VanR) [18] was performed to obtain mutants with improved specifications in S. cerevisiae. Because FACS-based selection can be performed with tunable selection thresholds by changing the gating conditions, it is independent of the specifications of prototype sensors. However, selection efficiency is highly dependent on both the selection and gating conditions. Thus, sorting experiments must be repeated until the correct selection/gating condition is achieved, given the lack of a priori knowledge related to the necessary selection conditions for each system.

4.3. ON/OFF Selections Using Genetic Selections

Positive and negative selection can be used to enrich genetic switches with defined outputs under ON and OFF conditions. Positive selection markers include auxotrophic markers [e.g., His3/3-aminotriazole (3-AT)] [100], antibiotics markers (e.g., Ble/Zeocin) [101], and counter-selectable markers [102], such as Ura3/5-fluoroorotic acid (5-FOA) [100] and herpes simplex virus thymidine kinase (hsvTK)/5-fluorodeoxyuridine (5FdU) [103]. Directed evolution of genetic switches using genetic selection was first demonstrated by Chockalingam et al., who converted a 17β-estradiol responsive human receptor into a synthetic nonsteroidal compound receptor, namely a DHB-responsive receptor [60]. Only cells with the synthetic transcription activator based on the mutant hormone receptor that responded to DHB grew on media lacking histidine in the presence of DHB by expressing significant amounts of HIS3. Four rounds of saturation mutagenesis to the ligand binding domain and one round of whole-gene mutagenesis followed by genetic selection and screening enabled the authors to identify the mutant that was specifically responsive to DHB. Later, Klauser et al. demonstrated the use of both ON/OFF selections to enrich functional translational switches [100]. In their system, the product of HIS3, imidazole glycerol phosphate dehydratase, was gradually inhibited depending on the concentration of its inhibitor, 3-AT. Titration of 3-AT at different concentrations enabled the enrichment of cells with higher outputs in the ON-state (ON selection). The OFF selection was based on URA3, coding orotidine 5-phosphate decarboxylase. In the presence of 5-FOA, cells expressing more URA3 converted more 5-FOA into the toxic compound 5-fluorouracil, which enabled the enrichment of cells without leaky URA3 expression in the absence of the ligand.

4.4. “Screening of Selection” Strategy

Despite the successes of evolutionary strategies described above, this strategy has not been widely applied to genetic switches in yeast. As previously described [96], stringent selection can be performed when the genetic switches to be selected outcompete other nonfunctional (always-ON and always-OFF) variants; however, it is more difficult to select for mutants with a distinct ON-state output from the majority of variants with slightly weaker output or vice versa. In most cases, even low expression levels of ON and OFF selection markers are sufficient to allow cell growth and to cause cell death, respectively, which results in low selection efficiency. Moreover, genetic selection fails to discriminate desired genetic switches from others when their output levels under selection are too far from the given selection threshold [100,104]. Thus, it is important to identify the appropriate selection conditions that selectively enrich rare mutants with slightly improved performance. To meet this challenge, researchers must reconstruct the selector systems or repeat the sorting experiments in almost each directed evolution cycle until appropriate selection conditions are obtained.
One possible solution to this problem would involve performing multiple selections for different selection pressures in parallel and choosing the most promising selection pools from which the improved mutants would be screened (i.e., “screening of selection conditions”). We recently described an evolutionary platform for yeast genetic switches that could meet this demand using a trifunctional fusion protein consisting of hsvTK, Zeocin-resistance protein (Ble), and GFP [45]. This fusion protein, hsvTK-Ble-GFP, facilitates seamless ON/OFF selection with different selection pressures and requires only liquid handling in parallel using multiwell plates. The ON/OFF-selected cell populations can be characterized seamlessly using flow cytometry, identifying promising populations, from which improved genetic switch mutants can be screened. As a demonstration of this platform, 14 different selection conditions were tested in parallel from which two promising conditions were subjected to further screening to successfully identify improved Dox-ON switches.

5. Conclusions

As described in this review, a number of bacterial transcription factors (TFs) can easily be assembled into yeast genetic switches with or without the use of an evolutionary strategy. This method is becoming the gold-standard for the engineering of genetic switches in yeast; however, rational engineering for the functional tuning of each component, which is crucial for maximizing genetic switch performance, is not currently feasible. An evolutionary platform for genetic switches in yeast was recently demonstrated [18,45,66] and thus, the number of such synthetic switches has rapidly increased, highlighting the potential of prokaryotic TFs as an untapped resource for yeast genetic switches. Umeno et al. argued that TFs are intrinsically evolvable; therefore, mutants that are responsive to non-native compounds can be attained within a few directed evolution cycles [37]. Indeed, dozens of new or evolved genetic switches (biosensors) based on bacterial TFs have been reported within the last 3 years [1,105,106,107,108,109,110,111,112,113]. Library creation guided by machine-learning technology, combined with deep mutagenesis and extensive sequencing technology, will further accelerate the discovery of novel TF mutants [113]. TFs created in this manner will be applied to yeast and then further evolved in yeast, possibly with the aid of in vivo autonomous mutagenesis techniques [114,115,116] as well as automated continuous evolution technologies [117].
Genetic switches in yeast that can sense intracellular metabolites, i.e., metabolite sensors, are beginning to be used in the high-throughput screening of higher metabolite-producing cells [75,118] and in the metabolite-responsive dynamic control of enzyme expression in yeast (see recent reviews [119,120]). These applications require that genetic switches be optimized (evolved) depending on their purpose. For example, the continuous evolution of cis,cis-muconic acid production in yeast uses the evolved sensory protein BenM [120]. Furthermore, because yeast genetic switches and their assembly (genetic circuits) are based on bacterial TFs optimized in yeast, they are readily transferable into mammalian systems [121,122,123]. Expansion of the well-optimized (evolved) yeast genetic switches reviewed above will result in the accelerated development of more complex mammalian systems. Taken together, directed evolution platforms for genetic switches in yeast may be a key technology for advancing eukaryotic synthetic biology.

Author Contributions

M.T.: conceptualization and writing, A.K.: supervision, and J.I.: supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by JSPS KAKENHI (grant number: 18K14374), the JST CREST program (grant number: JPMJCR21N2), and the JST-Mirai Program (grant number: JPMJMI17EJ) from the Japan Science and Technology Agency (JST), and the project focused on developing key technology for discovering and manufacturing drugs for next-generation treatment and diagnosis from the Japan Agency for Medical Research and Development (AMED) (grant numbers: JP20ae0101055, JP20ae0101060, and JP21ae0121002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meyer, A.J.; Segall-Shapiro, T.H.; Glassey, E.; Zhang, J.; Voigt, C.A. Escherichia coli “Marionette” strains with 12 highly optimized small-molecule sensors. Nat. Chem. Biol. 2019, 15, 196–204. [Google Scholar] [CrossRef] [PubMed]
  2. Brophy, J.A.; Voigt, C.A. Principles of genetic circuit design. Nat. Methods 2014, 11, 508–520. [Google Scholar] [CrossRef] [PubMed]
  3. Zhao, E.M.; Mao, A.S.; de Puig, H.; Zhang, K.; Tippens, N.D.; Tan, X.; Ran, F.A.; Han, I.; Nguyen, P.Q.; Chory, E.J.; et al. RNA-responsive elements for eukaryotic translational control. Nat. Biotechnol. 2021, 1–7. [Google Scholar] [CrossRef] [PubMed]
  4. Nguyen, P.Q.; Soenksen, L.R.; Donghia, N.M.; Angenent-Mari, N.M.; de Puig, H.; Huang, A.; Lee, R.; Slomovic, S.; Galbersanini, T.; Lansberry, G.; et al. Wearable materials with embedded synthetic biology sensors for biomolecule detection. Nat. Biotechnol. 2021, 39, 1366–1374. [Google Scholar] [CrossRef] [PubMed]
  5. Voigt, C.A. Genetic parts to program bacteria. Curr. Opin. Biotechnol. 2006, 17, 548–557. [Google Scholar] [CrossRef]
  6. Douglas, H.C.; Hawthorne, D.C. Enzymatic Expression and Genetic Linkage of Genes Controlling Galactose Utilization in Saccharomyces. Genetics 1964, 49, 837–844. [Google Scholar] [CrossRef]
  7. Bassel, J.; Mortimer, R. Genetic order of the galactose structural genes in Saccharomyces cerevisiae. J. Bacteriol. 1971, 108, 179–183. [Google Scholar] [CrossRef]
  8. Ahn, J.; Park, K.M.; Lee, H.; Son, Y.J.; Choi, E.S. GAL promoter-driven heterologous gene expression in Saccharomyces cerevisiae Delta strain at anaerobic alcoholic fermentation. FEMS Yeast Res. 2013, 13, 140–142. [Google Scholar] [CrossRef][Green Version]
  9. Vogl, T.; Glieder, A. Regulation of Pichia pastoris promoters and its consequences for protein production. Nat. Biotechnol. 2013, 30, 385–404. [Google Scholar] [CrossRef]
  10. Gander, M.W.; Vrana, J.D.; Voje, W.E.; Carothers, J.M.; Klavins, E. Digital logic circuits in yeast with CRISPR-dCas9 NOR gates. Nat. Commun. 2017, 8, 15459. [Google Scholar] [CrossRef]
  11. Ryo, S.; Ishii, J.; Matsuno, T.; Nakamura, Y.; Matsubara, D.; Tominaga, M.; Kondo, A. Positive Feedback Genetic Circuit Incorporating a Constitutively Active Mutant Gal3 into Yeast GAL Induction System. ACS Synth. Biol. 2017, 6, 928–935. [Google Scholar] [CrossRef] [PubMed]
  12. Rantasalo, A.; Kuivanen, J.; Penttila, M.; Jantti, J.; Mojzita, D. Synthetic Toolkit for Complex Genetic Circuit Engineering in Saccharomyces cerevisiae. ACS Synth. Biol. 2018, 7, 1573–1587. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, Y.; Zhang, S.; Young, E.M.; Jones, T.S.; Densmore, D.; Voigt, C.A. Genetic circuit design automation for yeast. Nat. Microbiol. 2020, 5, 1349–1360. [Google Scholar] [CrossRef] [PubMed]
  14. Du, P.; Zhao, H.; Zhang, H.; Wang, R.; Huang, J.; Tian, Y.; Luo, X.; Luo, X.; Wang, M.; Xiang, Y.; et al. De novo design of an intercellular signaling toolbox for multi-channel cell-cell communication and biological computation. Nat. Commun. 2020, 11, 4226. [Google Scholar] [CrossRef]
  15. Adeniran, A.; Sherer, M.; Tyo, K.E.J. Yeast-based biosensors: Design and applications. Fems Yeast Res. 2015, 15, 1–15. [Google Scholar] [CrossRef]
  16. D’Ambrosio, V.; Jensen, M.K. Lighting up yeast cell factories by transcription factor-based biosensors. FEMS Yeast Res. 2017, 17, fox076. [Google Scholar] [CrossRef]
  17. Monteiro, F.; Hubmann, G.; Takhaveev, V.; Vedelaar, S.R.; Norder, J.; Hekelaar, J.; Saldida, J.; Litsios, A.; Wijma, H.J.; Schmidt, A.; et al. Measuring glycolytic flux in single yeast cells with an orthogonal synthetic biosensor. Mol. Syst. Biol. 2019, 15, e9071. [Google Scholar] [CrossRef]
  18. D’Ambrosio, V.; Pramanik, S.; Goroncy, K.; Jakočiūnas, T.; Schönauer, D.; Davari, M.D.; Schwaneberg, U.; Keasling, J.D.; Jensen, M.K. Directed evolution of VanR biosensor specificity in yeast. Biotechnol. Notes 2020, 2020, 9–15. [Google Scholar] [CrossRef]
  19. Snoek, T.; Chaberski, E.K.; Ambri, F.; Kol, S.; Bjorn, S.P.; Pang, B.; Barajas, J.F.; Welner, D.H.; Jensen, M.K.; Keasling, J.D. Evolution-guided engineering of small-molecule biosensors. Nucleic Acids Res. 2020, 48, e3. [Google Scholar] [CrossRef]
  20. Shaw, W.M.; Yamauchi, H.; Mead, J.; Gowers, G.F.; Bell, D.J.; Oling, D.; Larsson, N.; Wigglesworth, M.; Ladds, G.; Ellis, T. Engineering a Model Cell for Rational Tuning of GPCR Signaling. Cell 2019, 177, 782–796.e27. [Google Scholar] [CrossRef]
  21. Gossen, M.; Bonin, A.L.; Freundlieb, S.; Bujard, H. Inducible gene expression systems for higher eukaryotic cells. Curr. Opin. Biotechnol. 1994, 5, 516–520. [Google Scholar] [CrossRef]
  22. Helmschrott, C.; Sasse, A.; Samantaray, S.; Krappmann, S.; Wagener, J. Upgrading fungal gene expression on demand: Improved systems for doxycycline-dependent silencing in Aspergillus fumigatus. Appl. Environ. Microbiol. 2013, 79, 1751–1754. [Google Scholar] [CrossRef]
  23. Belli, G.; Gari, E.; Piedrafita, L.; Aldea, M.; Herrero, E. An activator/repressor dual system allows tight tetracycline-regulated gene expression in budding yeast. Nucleic Acids Res. 1998, 26, 942–947. [Google Scholar] [CrossRef]
  24. Gari, E.; Piedrafita, L.; Aldea, M.; Herrero, E. A set of vectors with a tetracycline-regulatable promoter system for modulated gene expression in Saccharomyces cerevisiae. Yeast 1997, 13, 837–848. [Google Scholar] [CrossRef]
  25. Ge, H.; Marchisio, M.A. Aptamers, Riboswitches, and Ribozymes in S. cerevisiae Synthetic Biology. Life 2021, 11, 248. [Google Scholar] [CrossRef]
  26. Caliando, B.J.; Voigt, C.A. Targeted DNA degradation using a CRISPR device stably carried in the host genome. Nat. Commun. 2015, 6, 6989. [Google Scholar] [CrossRef]
  27. Loew, R.; Heinz, N.; Hampf, M.; Bujard, H.; Gossen, M. Improved Tet-responsive promoters with minimized background expression. BMC Biotechnol. 2010, 10, 81. [Google Scholar] [CrossRef]
  28. Ikushima, S.; Zhao, Y.; Boeke, J.D. Development of a Tightly Controlled Off Switch for Saccharomyces cerevisiae Regulated by Camphor, a Low-Cost Natural Product. G3 Genes Genomes Genet. 2015, 5, 1983–1990. [Google Scholar] [CrossRef][Green Version]
  29. Ikushima, S.; Boeke, J.D. New Orthogonal Transcriptional Switches Derived from Tet Repressor Homologues for Saccharomyces cerevisiae Regulated by 2,4-Diacetylphloroglucinol and Other Ligands. ACS Synth. Biol. 2017, 6, 497–506. [Google Scholar] [CrossRef]
  30. Gossen, M.; Freundlieb, S.; Bender, G.; Muller, G.; Hillen, W.; Bujard, H. Transcriptional activation by tetracyclines in mammalian cells. Science 1995, 268, 1766–1769. [Google Scholar] [CrossRef]
  31. Boyer, J.; Badis, G.; Fairhead, C.; Talla, E.; Hantraye, F.; Fabre, E.; Fischer, G.; Hennequin, C.; Koszul, R.; Lafontaine, I.; et al. Large-scale exploration of growth inhibition caused by overexpression of genomic fragments in Saccharomyces cerevisiae. Genome Biol. 2004, 5, R72. [Google Scholar] [CrossRef]
  32. Roemer, T.; Jiang, B.; Davison, J.; Ketela, T.; Veillette, K.; Breton, A.; Tandia, F.; Linteau, A.; Sillaots, S.; Marta, C.; et al. Large-scale essential gene identification in Candida albicans and applications to antifungal drug discovery. Mol. Microbiol. 2003, 50, 167–181. [Google Scholar] [CrossRef]
  33. Tabuchi, M.; Kawai, Y.; Nishie-Fujita, M.; Akada, R.; Izumi, T.; Yanatori, I.; Miyashita, N.; Ouchi, K.; Kishi, F. Development of a novel functional high-throughput screening system for pathogen effectors in the yeast Saccharomyces cerevisiae. Biosci. Biotechnol. Biochem. 2009, 73, 2261–2267. [Google Scholar] [CrossRef][Green Version]
  34. Cuthbertson, L.; Nodwell, J.R. The TetR Family of Regulators. Microbiol. Mol. Biol. Rev. 2013, 77, 440–475. [Google Scholar] [CrossRef]
  35. Qiu, C.; Chen, X.; Rexida, R.; Shen, Y.; Qi, Q.; Bao, X.; Hou, J. Engineering transcription factor-based biosensors for repressive regulation through transcriptional deactivation design in Saccharomyces cerevisiae. Microb. Cell Factories 2020, 19, 146. [Google Scholar] [CrossRef]
  36. Wen, J.; Tian, L.; Xu, M.; Zhou, X.; Zhang, Y.; Cai, M. A Synthetic Malonyl-CoA Metabolic Oscillator in Komagataella phaffii. ACS Synth. Biol. 2020, 9, 1059–1068. [Google Scholar] [CrossRef]
  37. Umeno, D.; Kimura, Y.; Kawai-Noma, S. Transcription Factors as Evolvable Biosensors. Anal. Sci. 2021, 37, 699–705. [Google Scholar] [CrossRef]
  38. Das, A.T.; Tenenbaum, L.; Berkhout, B. Tet-On Systems For Doxycycline-inducible Gene Expression. Curr. Gene Ther. 2016, 16, 156–167. [Google Scholar] [CrossRef]
  39. Urlinger, S.; Baron, U.; Thellmann, M.; Hasan, M.T.; Bujard, H.; Hillen, W. Exploring the sequence space for tetracycline-dependent transcriptional activators: Novel mutations yield expanded range and sensitivity. Proc. Natl. Acad. Sci. USA 2000, 97, 7963–7968. [Google Scholar] [CrossRef]
  40. Das, A.T.; Zhou, X.; Vink, M.; Klaver, B.; Verhoef, K.; Marzio, G.; Berkhout, B. Viral evolution as a tool to improve the tetracycline-regulated gene expression system. J. Biol. Chem. 2004, 279, 18776–18782. [Google Scholar] [CrossRef]
  41. Roney, I.J.; Rudner, A.D.; Couture, J.F.; Kaern, M. Improvement of the reverse tetracycline transactivator by single amino acid substitutions that reduce leaky target gene expression to undetectable levels. Sci. Rep. 2016, 6, 27697. [Google Scholar] [CrossRef] [PubMed]
  42. Becskei, A.; Seraphin, B.; Serrano, L. Positive feedback in eukaryotic gene networks: Cell differentiation by graded to binary response conversion. EMBO J. 2001, 20, 2528–2535. [Google Scholar] [CrossRef] [PubMed]
  43. Zhuravel, D.; Fraser, D.; St-Pierre, S.; Tepliakova, L.; Pang, W.L.; Hasty, J.; Kaern, M. Phenotypic impact of regulatory noise in cellular stress-response pathways. Syst. Synth. Biol. 2010, 4, 105–116. [Google Scholar] [CrossRef] [PubMed]
  44. Gonzalez, C.; Ray, J.C.; Manhart, M.; Adams, R.M.; Nevozhay, D.; Morozov, A.V.; Balazsi, G. Stress-response balance drives the evolution of a network module and its host genome. Mol. Syst. Biol. 2015, 11, 827. [Google Scholar] [CrossRef]
  45. Tominaga, M.; Nozaki, K.; Umeno, D.; Ishii, J.; Kondo, A. Robust and flexible platform for directed evolution of yeast genetic switches. Nat. Commun. 2021, 12, 1846. [Google Scholar] [CrossRef]
  46. Umeyama, T.; Okada, S.; Ito, T. Synthetic gene circuit-mediated monitoring of endogenous metabolites: Identification of GAL11 as a novel multicopy enhancer of s-adenosylmethionine level in yeast. ACS Synth. Biol. 2013, 2, 425–430. [Google Scholar] [CrossRef]
  47. Moser, F.; Horwitz, A.; Chen, J.; Lim, W.; Voigt, C.A. Genetic sensor for strong methylating compounds. ACS Synth. Biol. 2013, 2, 614–624. [Google Scholar] [CrossRef]
  48. Castano-Cerezo, S.; Fournie, M.; Urban, P.; Faulon, J.L.; Truan, G. Development of a Biosensor for Detection of Benzoic Acid Derivatives in Saccharomyces cerevisiae. Front. Bioeng. Biotechnol. 2019, 7, 372. [Google Scholar] [CrossRef]
  49. Wei, W.; Shang, Y.; Zhang, P.; Liu, Y.; You, D.; Yin, B.; Ye, B. Engineering Prokaryotic Transcriptional Activator XylR as a Xylose-Inducible Biosensor for Transcription Activation in Yeast. ACS Synth. Biol. 2020, 9, 1022–1029. [Google Scholar] [CrossRef]
  50. Louvion, J.F.; Havaux-Copf, B.; Picard, D. Fusion of GAL4-VP16 to a steroid-binding domain provides a tool for gratuitous induction of galactose-responsive genes in yeast. Gene 1993, 131, 129–134. [Google Scholar] [CrossRef]
  51. McIsaac, R.S.; Silverman, S.J.; McClean, M.N.; Gibney, P.A.; Macinskas, J.; Hickman, M.J.; Petti, A.A.; Botstein, D. Fast-acting and nearly gratuitous induction of gene expression and protein depletion in Saccharomyces cerevisiae. Mol. Biol. Cell 2011, 22, 4447–4459. [Google Scholar] [CrossRef]
  52. McIsaac, R.S.; Gibney, P.A.; Chandran, S.S.; Benjamin, K.R.; Botstein, D. Synthetic biology tools for programming gene expression without nutritional perturbations in Saccharomyces cerevisiae. Nucleic Acids Res. 2014, 42, e48. [Google Scholar] [CrossRef]
  53. Gao, C.Y.; Pinkham, J.L. Tightly regulated, beta-estradiol dose-dependent expression system for yeast. Biotechniques 2000, 29, 1226–1231. [Google Scholar] [CrossRef]
  54. Quintero, M.J.; Maya, D.; Arevalo-Rodriguez, M.; Cebolla, A.; Chavez, S. An improved system for estradiol-dependent regulation of gene expression in yeast. Microb. Cell Fact. 2007, 6, 10. [Google Scholar] [CrossRef]
  55. Ottoz, D.S.; Rudolf, F.; Stelling, J. Inducible, tightly regulated and growth condition-independent transcription factor in Saccharomyces cerevisiae. Nucleic Acids Res. 2014, 42, e130. [Google Scholar] [CrossRef]
  56. Mormino, M.; Siewers, V.; Nygard, Y. Development of an Haa1-based biosensor for acetic acid sensing in Saccharomyces cerevisiae. FEMS Yeast Res. 2021, 21, foab049. [Google Scholar] [CrossRef]
  57. Niopek, D.; Benzinger, D.; Roensch, J.; Draebing, T.; Wehler, P.; Eils, R.; Di Ventura, B. Engineering light-inducible nuclear localization signals for precise spatiotemporal control of protein dynamics in living cells. Nat. Commun. 2014, 5, 4404. [Google Scholar] [CrossRef]
  58. Geller, S.H.; Antwi, E.B.; Di Ventura, B.; McClean, M.N. Optogenetic Repressors of Gene Expression in Yeasts Using Light-Controlled Nuclear Localization. Cell Mol. Bioeng. 2019, 12, 511–528. [Google Scholar] [CrossRef]
  59. Fields, S.; Song, O. A novel genetic system to detect protein-protein interactions. Nature 1989, 340, 245–246. [Google Scholar] [CrossRef]
  60. Chockalingam, K.; Chen, Z.; Katzenellenbogen, J.A.; Zhao, H. Directed evolution of specific receptor-ligand pairs for use in the creation of gene switches. Proc. Natl. Acad. Sci. USA 2005, 102, 5691–5696. [Google Scholar] [CrossRef]
  61. Salinas, F.; Rojas, V.; Delgado, V.; Lopez, J.; Agosin, E.; Larrondo, L.F. Fungal Light-Oxygen-Voltage Domains for Optogenetic Control of Gene Expression and Flocculation in Yeast. Mbio 2018, 9, e00626-18. [Google Scholar] [CrossRef]
  62. Xu, X.P.; Du, Z.X.; Liu, R.M.; Li, T.; Zhao, Y.Z.; Chen, X.J.; Yang, Y. A Single-Component Optogenetic System Allows Stringent Switch of Gene Expression in Yeast Cells. ACS Synth. Biol. 2018, 7, 2045–2053. [Google Scholar] [CrossRef]
  63. Zhao, E.M.; Lalwani, M.A.; Lovelett, R.J.; Garcia-Echauri, S.A.; Hoffman, S.M.; Gonzalez, C.L.; Toettcher, J.E.; Kevrekidis, I.G.; Avalos, J.L. Design and Characterization of Rapid Optogenetic Circuits for Dynamic Control in Yeast Metabolic Engineering. ACS Synth. Biol. 2020, 9, 3254–3266. [Google Scholar] [CrossRef]
  64. Romero, A.; Rojas, V.; Delgado, V.; Salinas, F.; Larrondo, L.F. Modular and Molecular Optimization of a LOV (Light-Oxygen-Voltage)-Based Optogenetic Switch in Yeast. Int J. Mol. Sci. 2021, 22, 8538. [Google Scholar] [CrossRef]
  65. Chou, H.H.; Keasling, J.D. Programming adaptive control to evolve increased metabolite production. Nat. Commun. 2013, 4, 2595. [Google Scholar] [CrossRef]
  66. Skjoedt, M.L.; Snoek, T.; Kildegaard, K.R.; Arsovska, D.; Eichenberger, M.; Goedecke, T.J.; Rajkumar, A.S.; Zhang, J.; Kristensen, M.; Lehka, B.J.; et al. Engineering prokaryotic transcriptional activators as metabolite biosensors in yeast. Nat. Chem. Biol. 2016, 12, 951–958. [Google Scholar] [CrossRef]
  67. Ambri, F.; D’Ambrosio, V.; Di Blasi, R.; Maury, J.; Jacobsen, S.A.B.; McCloskey, D.; Jensen, M.K.; Keasling, J.D. High-Resolution Scanning of Optimal Biosensor Reporter Promoters in Yeast. ACS Synth. Biol. 2020, 9, 218–226. [Google Scholar] [CrossRef]
  68. Ellis, T.; Wang, X.; Collins, J.J. Diversity-based, model-guided construction of synthetic gene networks with predicted functions. Nat. Biotechnol. 2009, 27, 465–471. [Google Scholar] [CrossRef]
  69. Blount, B.A.; Weenink, T.; Vasylechko, S.; Ellis, T. Rational diversification of a promoter providing fine-tuned expression and orthogonal regulation for synthetic biology. PLoS ONE 2012, 7, e33279. [Google Scholar] [CrossRef][Green Version]
  70. Teo, W.S.; Chang, M.W. Bacterial XylRs and synthetic promoters function as genetically encoded xylose biosensors in Saccharomyces cerevisiae. Biotechnol. J. 2015, 10, 315–322. [Google Scholar] [CrossRef]
  71. Wang, M.; Li, S.; Zhao, H. Design and engineering of intracellular-metabolite-sensing/regulation gene circuits in Saccharomyces cerevisiae. Biotechnol. Bioeng. 2016, 113, 206–215. [Google Scholar] [CrossRef] [PubMed]
  72. Hector, R.E.; Mertens, J.A. A Synthetic Hybrid Promoter for Xylose-Regulated Control of Gene Expression in Saccharomyces Yeasts. Mol. Biotechnol. 2017, 59, 24–33. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, R.F.; Cress, B.F.; Yang, Z.; Hordines, J.C.; Zhao, S.J.; Jung, G.Y.; Wang, Z.T.; Koffas, M.A.G. Design and Characterization of Biosensors for the Screening of Modular Assembled Naringenin Biosynthetic Library in Saccharomyces cerevisiae. ACS Synth. Biol. 2019, 8, 2121–2130. [Google Scholar] [CrossRef] [PubMed]
  74. Teo, W.S.; Hee, K.S.; Chang, M.W. Bacterial FadR and synthetic promoters function as modular fatty acid sensor- regulators in Saccharomyces cerevisiae. Eng. Life Sci. 2013, 13, 456–463. [Google Scholar] [CrossRef]
  75. David, F.; Nielsen, J.; Siewers, V. Flux Control at the Malonyl-CoA Node through Hierarchical Dynamic Pathway Regulation in Saccharomyces cerevisiae. ACS Synth. Biol. 2016, 5, 224–233. [Google Scholar] [CrossRef]
  76. Li, S.; Si, T.; Wang, M.; Zhao, H. Development of a Synthetic Malonyl-CoA Sensor in Saccharomyces cerevisiae for Intracellular Metabolite Monitoring and Genetic Screening. ACS Synth. Biol. 2015, 4, 1308–1315. [Google Scholar] [CrossRef]
  77. Cao, J.; Perez-Pinera, P.; Lowenhaupt, K.; Wu, M.R.; Purcell, O.; de la Fuente-Nunez, C.; Lu, T.K. Versatile and on-demand biologics co-production in yeast. Nat. Commun. 2018, 9, 77. [Google Scholar] [CrossRef]
  78. Kjaerulff, S.; Nielsen, O. An IPTG-inducible derivative of the fission yeast nmt promoter. Yeast 2015, 32, 469–478. [Google Scholar] [CrossRef]
  79. Jensen, M.K. Design principles for nuclease-deficient CRISPR-based transcriptional regulators. FEMS Yeast Res. 2018, 18, foy039. [Google Scholar] [CrossRef]
  80. Mazumder, M.; McMillen, D.R. Design and characterization of a dual-mode promoter with activation and repression capability for tuning gene expression in yeast. Nucleic Acids Res. 2014, 42, 9514–9522. [Google Scholar] [CrossRef]
  81. Naseri, G.; Balazadeh, S.; Machens, F.; Kamranfar, I.; Messerschmidt, K.; Mueller-Roeber, B. Plant-Derived Transcription Factors for Orthologous Regulation of Gene Expression in the Yeast Saccharomyces cerevisiae. ACS Synth. Biol. 2017, 6, 1742–1756. [Google Scholar] [CrossRef]
  82. Naseri, G.; Prause, K.; Hamdo, H.H.; Arenz, C. Artificial Transcription Factors for Tuneable Gene Expression in Pichia pastoris. Front. Bioeng. Biotechnol. 2021, 9, 676900. [Google Scholar] [CrossRef]
  83. Islam, K.M.D.; Dilcher, M.; Thurow, C.; Vock, C.; Krimmelbein, I.K.; Tietze, L.F.; Gonzalez, V.; Zhao, H.M.; Gatz, C. Directed evolution of estrogen receptor proteins with altered ligand-binding specificities. Protein Eng. Des. Sel. 2009, 22, 45–52. [Google Scholar] [CrossRef]
  84. Dimas, R.P.; Jordan, B.R.; Jiang, X.L.; Martini, C.; Glavy, J.S.; Patterson, D.P.; Morcos, F.; Chan, C.T.Y. Engineering DNA recognition and allosteric response properties of TetR family proteins by using a module-swapping strategy. Nucleic Acids Res. 2019, 47, 8913–8925. [Google Scholar] [CrossRef]
  85. Juarez, J.F.; Lecube-Azpeitia, B.; Brown, S.L.; Johnston, C.D.; Church, G.M. Biosensor libraries harness large classes of binding domains for construction of allosteric transcriptional regulators. Nat. Commun. 2018, 9, 3101. [Google Scholar] [CrossRef]
  86. Meinhardt, S.; Manley, M.W., Jr.; Becker, N.A.; Hessman, J.A.; Maher, L.J., 3rd; Swint-Kruse, L. Novel insights from hybrid LacI/GalR proteins: Family-wide functional attributes and biologically significant variation in transcription repression. Nucleic Acids Res. 2012, 40, 11139–11154. [Google Scholar] [CrossRef]
  87. Muranaka, N.; Sharma, V.; Nomura, Y.; Yokobayashi, Y. An efficient platform for genetic selection and screening of gene switches in Escherichia coli. Nucleic Acids Res. 2009, 37, e39. [Google Scholar] [CrossRef]
  88. Shong, J.; Huang, Y.M.; Bystroff, C.; Collins, C.H. Directed evolution of the quorum-sensing regulator EsaR for increased signal sensitivity. ACS Chem. Biol. 2013, 8, 789–795. [Google Scholar] [CrossRef]
  89. Ike, K.; Arasawa, Y.; Koizumi, S.; Mihashi, S.; Kawai-Noma, S.; Saito, K.; Umeno, D. Evolutionary Design of Choline-Inducible and -Repressible T7-Based Induction Systems. ACS Synth. Biol. 2015, 4, 1352–1360. [Google Scholar] [CrossRef]
  90. Tashiro, Y.; Kimura, Y.; Furubayashi, M.; Tanaka, A.; Terakubo, K.; Saito, K.; Kawai-Noma, S.; Umeno, D. Directed evolution of the autoinducer selectivity of Vibrio fischeri LuxR. J. Gen. Appl. Microbiol. 2016, 62, 240–247. [Google Scholar] [CrossRef]
  91. Saeki, K.; Tominaga, M.; Kawai-Noma, S.; Saito, K.; Umeno, D. Rapid Diversification of BetI-Based Transcriptional Switches for the Control of Biosynthetic Pathways and Genetic Circuits. ACS Synth. Biol. 2016, 5, 1201–1210. [Google Scholar] [CrossRef] [PubMed]
  92. De Paepe, B.; Peters, G.; Coussement, P.; Maertens, J.; De Mey, M. Tailor-made transcriptional biosensors for optimizing microbial cell factories. J. Ind. Microbiol. Biotechnol. 2017, 44, 623–645. [Google Scholar] [CrossRef] [PubMed]
  93. Ellefson, J.W.; Ledbetter, M.P.; Ellington, A.D. Directed evolution of a synthetic phylogeny of programmable Trp repressors. Nat. Chem. Biol. 2018, 14, 361–367. [Google Scholar] [CrossRef] [PubMed]
  94. Lee, T.J.; Parikh, R.Y.; Weitz, J.S.; Kim, H.D. Suppression of Expression Between Adjacent Genes Within Heterologous Modules in Yeast. G3 Genes Genomes Genet. 2014, 4, 109–116. [Google Scholar] [CrossRef]
  95. Redden, H.; Alper, H.S. The development and characterization of synthetic minimal yeast promoters. Nat. Commun. 2015, 6, 7810. [Google Scholar] [CrossRef]
  96. Schaerli, Y.; Isalan, M. Building synthetic gene circuits from combinatorial libraries: Screening and selection strategies. Mol. Biosyst. 2013, 9, 1559–1567. [Google Scholar] [CrossRef]
  97. Becker, S.; Schmoldt, H.U.; Adams, T.M.; Wilhelm, S.; Kolmar, H. Ultra-high-throughput screening based on cell-surface display and fluorescence-activated cell sorting for the identification of novel biocatalysts. Curr. Opin. Biotechnol. 2004, 15, 323–329. [Google Scholar] [CrossRef]
  98. Yang, G.; Withers, S.G. Ultrahigh-throughput FACS-based screening for directed enzyme evolution. ChemBioChem 2009, 10, 2704–2715. [Google Scholar] [CrossRef]
  99. Cossarizza, A.; Chang, H.D.; Radbruch, A.; Acs, A.; Adam, D.; Adam-Klages, S.; Agace, W.W.; Aghaeepour, N.; Akdis, M.; Allez, M.; et al. Guidelines for the use of flow cytometry and cell sorting in immunological studies (second edition). Eur. J. Immunol. 2019, 49, 1457–1973. [Google Scholar] [CrossRef]
  100. Klauser, B.; Atanasov, J.; Siewert, L.K.; Hartig, J.S. Ribozyme-based aminoglycoside switches of gene expression engineered by genetic selection in S. cerevisiae. ACS Synth Biol 2015, 4, 516–525. [Google Scholar] [CrossRef]
  101. Johansson, B.; Hahn-Hagerdal, B. Overproduction of pentose phosphate pathway enzymes using a new CRE-loxP expression vector for repeated genomic integration in Saccharomyces cerevisiae. Yeast 2002, 19, 225–231. [Google Scholar] [CrossRef]
  102. Gnugge, R.; Rudolf, F. Saccharomyces cerevisiae Shuttle vectors. Yeast 2017, 34, 205–221. [Google Scholar] [CrossRef]
  103. Alexander, W.G.; Doering, D.T.; Hittinger, C.T. High-efficiency genome editing and allele replacement in prototrophic and wild strains of Saccharomyces. Genetics 2014, 198, 859–866. [Google Scholar] [CrossRef]
  104. Rugbjerg, P.; Genee, H.J.; Jensen, K.; Sarup-Lytzen, K.; Sommer, M.O. Molecular Buffers Permit Sensitivity Tuning and Inversion of Riboswitch Signals. ACS Synth. Biol. 2016, 5, 632–638. [Google Scholar] [CrossRef]
  105. Machado, L.F.M.; Currin, A.; Dixon, N. Directed evolution of the PcaV allosteric transcription factor to generate a biosensor for aromatic aldehydes. J. Biol. Eng. 2019, 13, 91. [Google Scholar] [CrossRef]
  106. Chouichit, P.; Whangsuk, W.; Sallabhan, R.; Mongkolsuk, S.; Loprasert, S. A highly sensitive biosensor with a single-copy evolved sensing cassette for chlorpyrifos pesticide detection. Microbiology 2020, 166, 1019–1024. [Google Scholar] [CrossRef]
  107. Della Corte, D.; van Beek, H.L.; Syberg, F.; Schallmey, M.; Tobola, F.; Cormann, K.U.; Schlicker, C.; Baumann, P.T.; Krumbach, K.; Sokolowsky, S.; et al. Engineering and application of a biosensor with focused ligand specificity. Nat. Commun. 2020, 11, 4851. [Google Scholar] [CrossRef]
  108. Jia, X.; Ma, Y.; Bu, R.; Zhao, T.; Wu, K. Directed evolution of a transcription factor PbrR to improve lead selectivity and reduce zinc interference through dual selection. AMB Express 2020, 10, 67. [Google Scholar] [CrossRef]
  109. Kwon, K.K.; Yeom, S.J.; Choi, S.L.; Rha, E.; Lee, H.; Kim, H.; Lee, D.H.; Lee, S.G. Acclimation of bacterial cell state for high-throughput enzyme engineering using a DmpR-dependent transcriptional activation system. Sci. Rep. 2020, 10, 6091. [Google Scholar] [CrossRef]
  110. Sun, H.; Zhao, H.; Ang, E.L. A New Biosensor for Stilbenes and a Cannabinoid Enabled by Genome Mining of a Transcriptional Regulator. ACS Synth. Biol. 2020, 9, 698–705. [Google Scholar] [CrossRef]
  111. Tang, R.Q.; Wagner, J.M.; Alper, H.S.; Zhao, X.Q.; Bai, F.W. Design, Evolution, and Characterization of a Xylose Biosensor in Escherichia coli Using the XylR/xylO System with an Expanded Operating Range. ACS Synth. Biol. 2020, 9, 2714–2722. [Google Scholar] [CrossRef] [PubMed]
  112. Zhang, X.; Cao, Y.; Liu, Y.; Liu, L.; Li, J.; Du, G.; Chen, J. Development and optimization of N-acetylneuraminic acid biosensors in Bacillus subtilis. Biotechnol. Appl. Biochem. 2020, 67, 693–705. [Google Scholar] [CrossRef] [PubMed]
  113. Unger, E.K.; Keller, J.P.; Altermatt, M.; Liang, R.Q.; Matsui, A.; Dong, C.Y.; Hon, O.J.; Yao, Z.; Sun, J.Q.; Banala, S.; et al. Directed Evolution of a Selective and Sensitive Serotonin Sensor via Machine Learning. Cell 2020, 183, 1986. [Google Scholar] [CrossRef] [PubMed]
  114. Crook, N.; Abatemarco, J.; Sun, J.; Wagner, J.M.; Schmitz, A.; Alper, H.S. In vivo continuous evolution of genes and pathways in yeast. Nat. Commun. 2016, 7, 13051. [Google Scholar] [CrossRef]
  115. Ravikumar, A.; Arzumanyan, G.A.; Obadi, M.K.A.; Javanpour, A.A.; Liu, C.C. Scalable, Continuous Evolution of Genes at Mutation Rates above Genomic Error Thresholds. Cell 2018, 175, 1946–1957.e13. [Google Scholar] [CrossRef]
  116. Tou, C.J.; Schaffer, D.V.; Dueber, J.E. Targeted Diversification in the S. cerevisiae Genome with CRISPR-Guided DNA Polymerase I. ACS Synth. Biol. 2020, 9, 1911–1916. [Google Scholar] [CrossRef]
  117. Zhong, Z.; Wong, B.G.; Ravikumar, A.; Arzumanyan, G.A.; Khalil, A.S.; Liu, C.C. Automated Continuous Evolution of Proteins in Vivo. ACS Synth. Biol. 2020, 9, 1270–1276. [Google Scholar] [CrossRef]
  118. Jensen, E.D.; Ambri, F.; Bendtsen, M.B.; Javanpour, A.A.; Liu, C.C.; Jensen, M.K.; Keasling, J.D. Integrating continuous hypermutation with high-throughput screening for optimization of cis,cis-muconic acid production in yeast. Microb. Biotechnol. 2021, 14, 2617–2626. [Google Scholar] [CrossRef]
  119. Marsafari, M.; Ma, J.B.; Koffas, M.; Xu, P. Genetically-encoded biosensors for analyzing and controlling cellular process in yeast. Curr. Opin. Biotechnol. 2020, 64, 175–182. [Google Scholar] [CrossRef]
  120. Zhang, Y.; Shi, S. Transcription Factor-Based Biosensor for Dynamic Control in Yeast for Natural Product Synthesis. Front. Bioeng Biotechnol 2021, 9, 635265. [Google Scholar] [CrossRef]
  121. Mullick, A.; Xu, Y.; Warren, R.; Koutroumanis, M.; Guilbault, C.; Broussau, S.; Malenfant, F.; Bourget, L.; Lamoureux, L.; Lo, R.; et al. The cumate gene-switch: A system for regulated expression in mammalian cells. BMC Biotechnol. 2006, 6, 43. [Google Scholar] [CrossRef][Green Version]
  122. Nevozhay, D.; Zal, T.; Balazsi, G. Transferring a synthetic gene circuit from yeast to mammalian cells. Nat. Commun. 2013, 4, 1451. [Google Scholar] [CrossRef]
  123. Feng, J.; Jester, B.W.; Tinberg, C.E.; Mandell, D.J.; Antunes, M.S.; Chari, R.; Morey, K.J.; Rios, X.; Medford, J.I.; Church, G.M.; et al. A general strategy to construct small molecule biosensors in eukaryotes. Elife 2015, 4, e10606. [Google Scholar] [CrossRef]
Life 12 00557 g001
Figure 1. Construction of yeast genetic switches using synthetic transcriptional activators or bare transcription factors. Inducer-ON and inducer-OFF types of genetic switches can be constructed using sTA (A,B) and intact bacterial repressors (C,D), respectively. Abbreviations: Core prom, Core promoter; eTA, eukaryotic transcription activator; GOI, gene of interest; revTF, reverse transcription factor; RNAP, RNA polymerase; synP, synthetic promoter; sTA, synthetic transcription activator; TATA, TATA Box; TF, transcription factor.
Figure 1. Construction of yeast genetic switches using synthetic transcriptional activators or bare transcription factors. Inducer-ON and inducer-OFF types of genetic switches can be constructed using sTA (A,B) and intact bacterial repressors (C,D), respectively. Abbreviations: Core prom, Core promoter; eTA, eukaryotic transcription activator; GOI, gene of interest; revTF, reverse transcription factor; RNAP, RNA polymerase; synP, synthetic promoter; sTA, synthetic transcription activator; TATA, TATA Box; TF, transcription factor.
Life 12 00557 g001
Life 12 00557 g002
Figure 2. Yeast genetic switches based on eukaryotic ligand-binding proteins. (A) The nuclear localization of sTA, which consists of a eukaryotic hormone receptor, a DNA binding domain (DBD) and eTA (VP16), is inhibited by Hsp90p. Upon ligand binding to a hormone receptor, sTA releases from Hsp90p and is localized to the nucleus to activate target promoter transcription. (B) Hormone receptor protein hER fused with a DBD binds Src1 only when its agonist hormone is present, activating target gene transcription by recruiting eTA fused with Src1 to the target binding sequence upstream of the promoter. Abbreviations: DBD, DNA binding domain; GOI, gene of interest.
Figure 2. Yeast genetic switches based on eukaryotic ligand-binding proteins. (A) The nuclear localization of sTA, which consists of a eukaryotic hormone receptor, a DNA binding domain (DBD) and eTA (VP16), is inhibited by Hsp90p. Upon ligand binding to a hormone receptor, sTA releases from Hsp90p and is localized to the nucleus to activate target promoter transcription. (B) Hormone receptor protein hER fused with a DBD binds Src1 only when its agonist hormone is present, activating target gene transcription by recruiting eTA fused with Src1 to the target binding sequence upstream of the promoter. Abbreviations: DBD, DNA binding domain; GOI, gene of interest.
Life 12 00557 g002
Life 12 00557 g003
Figure 3. Transcription activation based on intact bacterial transcription activators. Ligand binding to transcription activators induces conformational changes to promoters and the recruitment of RNA polymerase. Abbreviations: GOI, gene of interest; RNAP, RNA polymerase; synP, synthetic promoter TATA, TATA box; TF, transcription factor.
Figure 3. Transcription activation based on intact bacterial transcription activators. Ligand binding to transcription activators induces conformational changes to promoters and the recruitment of RNA polymerase. Abbreviations: GOI, gene of interest; RNAP, RNA polymerase; synP, synthetic promoter TATA, TATA box; TF, transcription factor.
Life 12 00557 g003
Life 12 00557 g004
Figure 4. Engineering strategy for yeast genetic switches with different modes of action. (A) A dose-response curve for a representative “inducer-ON” switch is shown. To evaluate switching performance, reporter gene expression in the presence of different concentrations of inducer is quantified and the resultant data are fitted to the equation to obtain the response function. Strategies to alter the response function of yeast genetic switches with an activation/deactivation mode (B) and repression/de-repression mode (C) are illustrated. Abbreviations: eTA, eukaryotic transcription activator; eTR, eukaryotic transcription repressor; GOI, gene of interest; NLS, nuclear localization signal; synP, synthetic promoter; sTA, synthetic transcription activator; sTR, synthetic transcription repressor; TATA, TATA Box; TF, transcription factor.
Figure 4. Engineering strategy for yeast genetic switches with different modes of action. (A) A dose-response curve for a representative “inducer-ON” switch is shown. To evaluate switching performance, reporter gene expression in the presence of different concentrations of inducer is quantified and the resultant data are fitted to the equation to obtain the response function. Strategies to alter the response function of yeast genetic switches with an activation/deactivation mode (B) and repression/de-repression mode (C) are illustrated. Abbreviations: eTA, eukaryotic transcription activator; eTR, eukaryotic transcription repressor; GOI, gene of interest; NLS, nuclear localization signal; synP, synthetic promoter; sTA, synthetic transcription activator; sTR, synthetic transcription repressor; TATA, TATA Box; TF, transcription factor.
Life 12 00557 g004
Life 12 00557 g005
Figure 5. Yeast genetic circuits that increase induction-fold. (A) Yeast transcriptional switch that uses both activation/deactivation and repression/de-repression modes of regulation. (B). Transcription cascade that amplifies inducer-triggered expression switching. (C). Yeast genetic switch that uses both sTA and sTR. Abbreviations: eTA, eukaryotic transcription activator; GOI, gene of interest; synP, synthetic promoter; sTA, synthetic transcription activator; sTR, synthetic transcription repressor; TF, transcription factor.
Figure 5. Yeast genetic circuits that increase induction-fold. (A) Yeast transcriptional switch that uses both activation/deactivation and repression/de-repression modes of regulation. (B). Transcription cascade that amplifies inducer-triggered expression switching. (C). Yeast genetic switch that uses both sTA and sTR. Abbreviations: eTA, eukaryotic transcription activator; GOI, gene of interest; synP, synthetic promoter; sTA, synthetic transcription activator; sTR, synthetic transcription repressor; TF, transcription factor.
Life 12 00557 g005
Life 12 00557 g006

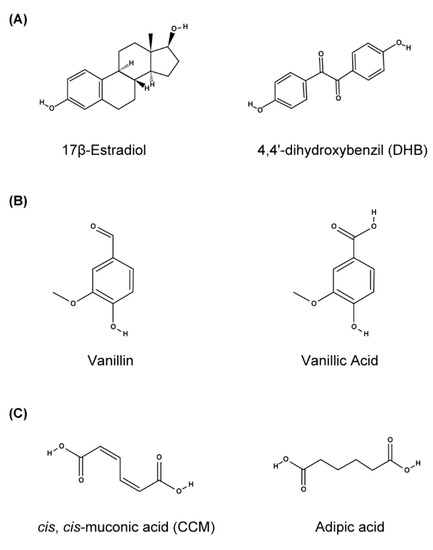

Figure 6. Chemical structure of inducers for wild-type and mutant hERα (A), VanR (B), and BenM (C).
Figure 6. Chemical structure of inducers for wild-type and mutant hERα (A), VanR (B), and BenM (C).
Life 12 00557 g006
Table 2. Examples of yeast transcriptional switches based on bacterial repressors.
Table 2. Examples of yeast transcriptional switches based on bacterial repressors.
Inducer abTFSource of bTF and OperatorAdditional Motif bOperatorsYeast Promoter dReference
aTcTetREsherichia coliNLS[tetO]2Ptet(Sc) e[13]
aTcTetRE. coli–[tetO]2PLibT f[68]
aTcTetRE. coli–[tetO]2PPFY1(Sc)[69]
DAPGPhlFPseudomonas fluorescensNLS[phlO]1 or 2PADH1(Sc)[29]
Vanilic acidVanRCaulobacter crescentus–[vanO]2PTEF1(Sc) orPCYC1(Sc)[18]
Vanillin
NaringeninFdeRHerbaspirillum seropedicaeNLS[fdeO]1PGPM1 (Sc)[73]
Fatty acidsFadRE. coliNLS[fadBA_EC]1 or 3PGAL1 (Sc)[74]
Vibrio cholerae–[fadBA_VC]1 or 3
Malonyl-CoAFapRBacillus subtilisPrm1[fapO]1–3PGAP (Kp)[36]
B. subtilisNLS[fapO]1 or 2PGPM1 (Sc)[76]
B. subtilisNLS[fapO]1–3PTEF1 (Sc)[75]
XyloseXylRB. licheniformisNLS[xylO]2Pxyl(Sc)e[13]
B. subtilis
Tetragenococcus halophile
Clostridium difficile
Lactobacillus pentosus
Caulobacter crescentus
T. halophileNLS[xylO]1UEETEF1-PGAL1m(Sc) g[70]
C. difficileNLS[xylO]1UEETEF1-PGAL1m(Sc) g
L. pentosusNLS[xylO]1UEETEF1-PGAL1m(Sc) g
C. crescentusNLS, Ssn6[xylO]1 or 2PTEF(Ag)[72]
Staphylococcus xylosusNLS[xylO]1 or 2 cPGPM1 (Sc)[71]
B. licheniformisNLS[xylO]1 or 2 cPGPM1 (Sc)
B. subtilisNLS[xylO]1 or 2 cPGPM1 (Sc)
IPTGLacIE. coliNLS[lacO]2Plac (Sc)e[13]
NLS[lacO]1Pnmt(Szp)[78]
–[lacO]2PGAP(Kp)[77]
NLS[lacO]1PLibL f[68]
a. Anhydrotetracycline hydrochloride, aTc; DAPG, 2,4-diacetylphloroglucinol; IPTG, isopropyl-β-D(-)-thiogalactopyranoside. b. NLS, Nuclear localization signal from Simian Vacuolating Virus 40; Ssn6, Transcriptional co-repressor from S. cerevisiae; Prm1, transcription activator protein from Komagataella phaffii. c. Four types of operator positions were evaluated: downstream of TATA box, downstream of UAS, upstream of TATA box, both downstream of UAS and upstream of TATA box. d. Source organism for each yeast promoter is shown in parenthesis. Sc, S. cerevisiae; Kp, Komagataella phaffii; Szp, Schizosaccharomyces pombe; Ag, Ashbya gossypii. e. Ptet, Pxyl, and Plac are completely synthetic promoters, where two operator sequences are separated by a poly (T) sequence, followed by the transcription start site. f. PLibT and PLibL are a completely synthetic promoter, where two tetO sequences are flanked by the randomized sequences. g. Hybrid promotor consisting of the upstream enhancer element of TEF1 promoter (UEETEF1) from S. cerevisiae and modified GAL1 core promoter (PGAL1m) from S. cerevisiae was used.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tominaga, M.; Kondo, A.; Ishii, J. Engineering of Synthetic Transcriptional Switches in Yeast. Life 2022, 12, 557. https://doi.org/10.3390/life12040557

AMA Style

Tominaga M, Kondo A, Ishii J. Engineering of Synthetic Transcriptional Switches in Yeast. Life. 2022; 12(4):557. https://doi.org/10.3390/life12040557

Chicago/Turabian Style

Tominaga, Masahiro, Akihiko Kondo, and Jun Ishii. 2022. "Engineering of Synthetic Transcriptional Switches in Yeast" Life 12, no. 4: 557. https://doi.org/10.3390/life12040557

APA Style

Tominaga, M., Kondo, A., & Ishii, J. (2022). Engineering of Synthetic Transcriptional Switches in Yeast. Life, 12(4), 557. https://doi.org/10.3390/life12040557

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
