Human–Machine Interface in Transport Systems: An Industrial Overview for More Extended Rail Applications

Abstract

This paper provides an overview of Human Machine Interface (HMI) design and command systems in commercial or experimental operation across transport modes. It presents and comments on different HMIs from the perspective of vehicle automation equipment and simulators of different application domains. Considering the fields of cognition and automation, this investigation highlights human factors and the experiences of different industries according to industrial and literature reviews. Moreover, to better focus the objectives and extend the investigated industrial panorama, the analysis covers the most effective simulators in operation across various transport modes for the training of operators as well as research in the fields of safety and ergonomics. Special focus is given to new technologies that are potentially applicable in future train cabins, e.g., visual displays and haptic-shared controls. Finally, a synthesis of human factors and their limits regarding support for monitoring or driving assistance is proposed.

1. Introduction

The field of automation is gaining increasing interest from researchers, and numerous milestones have been achieved which have progressively affected various application fields. This path began in the 1920s with the first radio-controlled vehicle and continues today thanks to the insights of major vehicle manufacturers and the Tech Giants who are committed to designing vehicles without drivers. There is an increasing interest from companies to invest in such technologies as they become aware of the advantages that the large-scale adoption of self-driving vehicles could offer them.

Studies on the user experience aboard autonomous or semi-autonomous vehicles are important as they provide insight on the question of trust in Human Machine Interfaces (HMIs). In particular, in a semi-automatic vehicle, HMI design must give the user an awareness of the driving situation so that they are able to effectively regain control if called upon to intervene. Thus, the user gains awareness of the situation and confidence in the capabilities of the vehicle simultaneously. Regarding fully autonomous vehicles, studying HMI is a way to address the problem of social fear regarding this technology and support its introduction into the market.

The CARBODIN research project was cofunded under the Shift2Rail project, with the aim of meeting the expectations of train drivers and staff engaged in HMI automation functions to facilitate its progressive introduction. Therefore, the focus was on the identification of required inputs and available outputs of various systems and operator preferences. This was further investigated by dedicated surveys depicting the technology of potential HMI configurations in the design of a new driver’s cabin and a virtual mock-up with immersive technology using a specific bank of sounds and gestures. The present paper provides a description of the preliminary research work based on an extended investigation on the current advancements in the field. HMIs are categorized, their technical approaches are described and current issues are discussed.

2. Organization of State-of-the-Art Investigation

The study aims to carry out a review and analysis of HMIs, their design and control systems currently on the market or in experimental operation. The analysis acts as a review manual on HMI technologies addressed to scholars, researchers and professionals who intend to study the subject or design their own HMI and want to analyze the technologies that are being used or tested currently. The investigation is original in terms of its goal to export selected best practices from other transport systems to the railway field, which inspires their selection criteria as detailed below.

A vast amount of research has been conducted within these fields, and this paper has no ambition to be exhaustive, narrowing the focus to the potential applicability of the results to train driving in line with the objective of the research. Specific aspects (e.g., the effects of driver age, management of emergency evacuations) will be the focus of subsequent research, which will include a survey with professional train drivers.

The paper was organized into sections as detailed below.

• Automatic and semiautomatic control systems developed by manufacturers of surface vehicles outside the railway field, including trucks, cars and ships, were detailed. Without claiming universality, selection criteria considered the potential application of automated driving functions to railway vehicles. They were required to ensure the high level of safety typical of guided transport systems and the possibility of a fast switch from autopilot to manual operation and vice versa.
• Simulators were developed for various transport systems, including rail, cars, aviation and integrated solutions. Their selection criteria was in line with that which was applied in Section 3, with the additional requirement of consolidated use for driver training activities in the respective operational fields. For the rail simulation, the focus was on systems developed by authors in previous research activities that were able to deal with operational situations, including traffic conflicts (e.g., nodes, junctions, level crossings). Some interactive functions were also imported from game simulators. However, these had a confined role due to the need to ensure that the safety levels were compatible with strict railway requirements.
• An extended literature review on the performance of supporting tools for driver assistance was conducted. The focus was predominantly on the role of human behaviors and the extent of their consideration by various experimental applications, as well as a wide review of gesture control systems as operational tools to put them into practice.
• A synthetic analysis of results and corresponding conclusions was presented.

3. Systems Developed by Manufacturers of No-Rail Surface Vehicles

3.1. Trucks

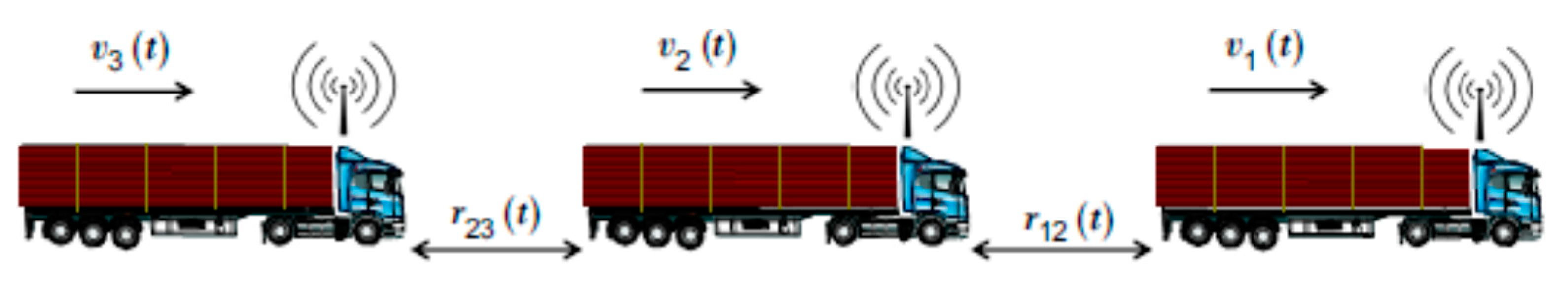

MAN PLATOONING by MAN and DB Schenker is a technical system that turns multiple vehicles into a convoy of trucks (Figure 1). The technology relies on driver assistance and control systems. The driver always keeps his/her hands on the wheel, even when another truck on the road behind him/her reacts directly, without active intervention. A specially designed display provides drivers with additional information about the convoy. Additionally, camera and radar systems continuously scan the surroundings. Figure 1 presents a conceptual visualization of platooning trucks.

HIGHWAY PILOT by Daimler [2] is an autopilot mechanism for trucks. It consists of assistance and connectivity systems enabling autonomous driving on highways by adapting the speed of trucks to traffic density. Overtaking maneuvers, lane changes or exiting the highway remain prerogatives of the driver. The user interface continuously informs the driver about the activation status and can manage received instructions, including activation and deactivation, meaning that the system can be overridden at any time. In addition, control is returned to the driver whenever the onboard system is no longer able to detect safety relevant aspects, as in cases of roadworks, extreme weather conditions or an absence of lane markings.

3.2. Cars

AUTOPILOT 2.5 by Tesla [3] equipment includes:

• 8 × 360° cameras;
• 12 ultrasonic sensors for the detection of hard and soft objects at a distance and with double the accuracy of previous systems;
• A forward-facing radar system, with high processing capabilities, providing additional data on the surrounding environment on different wavelengths in order to counteract the effects of heavy rain, fog, dust and other cars.

The autopilot function suggests when to change lanes in order to optimize the route, and makes adjustments to avoid remaining behind slow vehicles. It also automatically guides the vehicle through junctions and onto highways exits based on the selected destination.

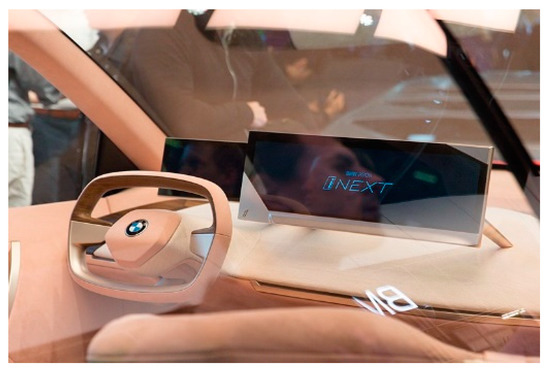

iNEXT-COPILOT by BMW (Figure 2) may be activated for autonomous driving or deactivated for traditional driving. The interior of the vehicle is readjusted according to touch or voice commands:

• The steering wheel retracts, providing more room for passengers;
• The pedals retract, creating a flat surface on the footwall;
• The driver and front passenger can turn back towards other passengers in the rear seats;
• Various displays provide information about the surrounding area.

3.3. Ships

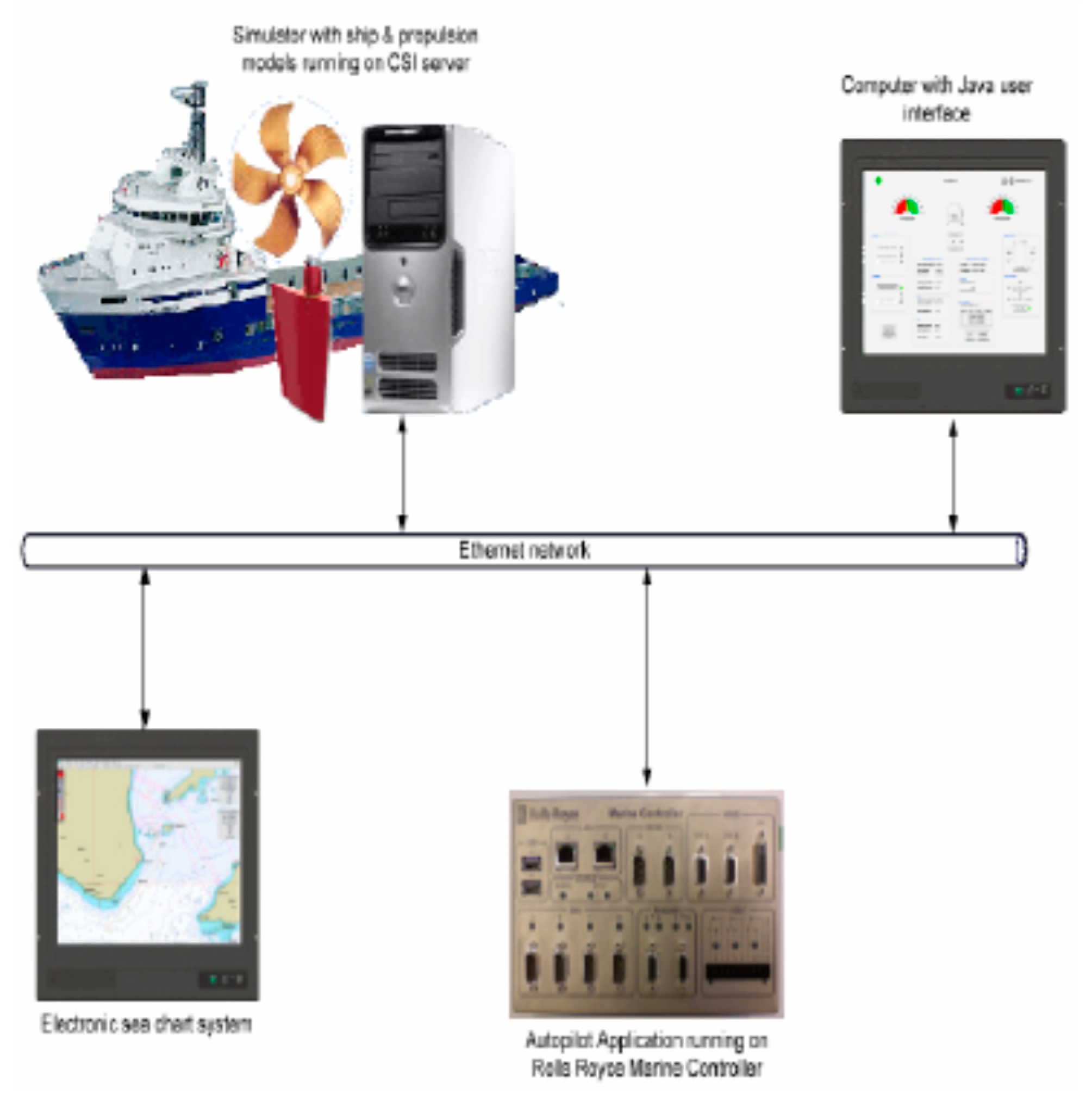

THE FALCO by Finferries and Rolls-Royce allows vehicles to detect objects through a fusion of sensors and artificial intelligence for collision avoidance. It is the culmination of studies launched 2008 (Figure 3) [5]; since then, its realism has improved greatly thanks to the presence of advanced sensors which provide real time images of surroundings with a level of accuracy higher than that of the human eye. Basing on this, the vessel is able to alter course and speed automatically during the approach to a quay, and dock in a full-automated maneuver without human intervention. A unified bridge provides the operator with a functional HMI with control levers, touch screens for calls and control, as well as logically presented information on system status. During maneuvers outside congested harbor areas, the operator can control operations remotely using a joystick or supervise them via onboard situation awareness systems. Various autonomy levels can operate selectively or in combination, depending on the vessel situation and external conditions.

4. Simulators of Transport Systems

4.1. Rail Simulators

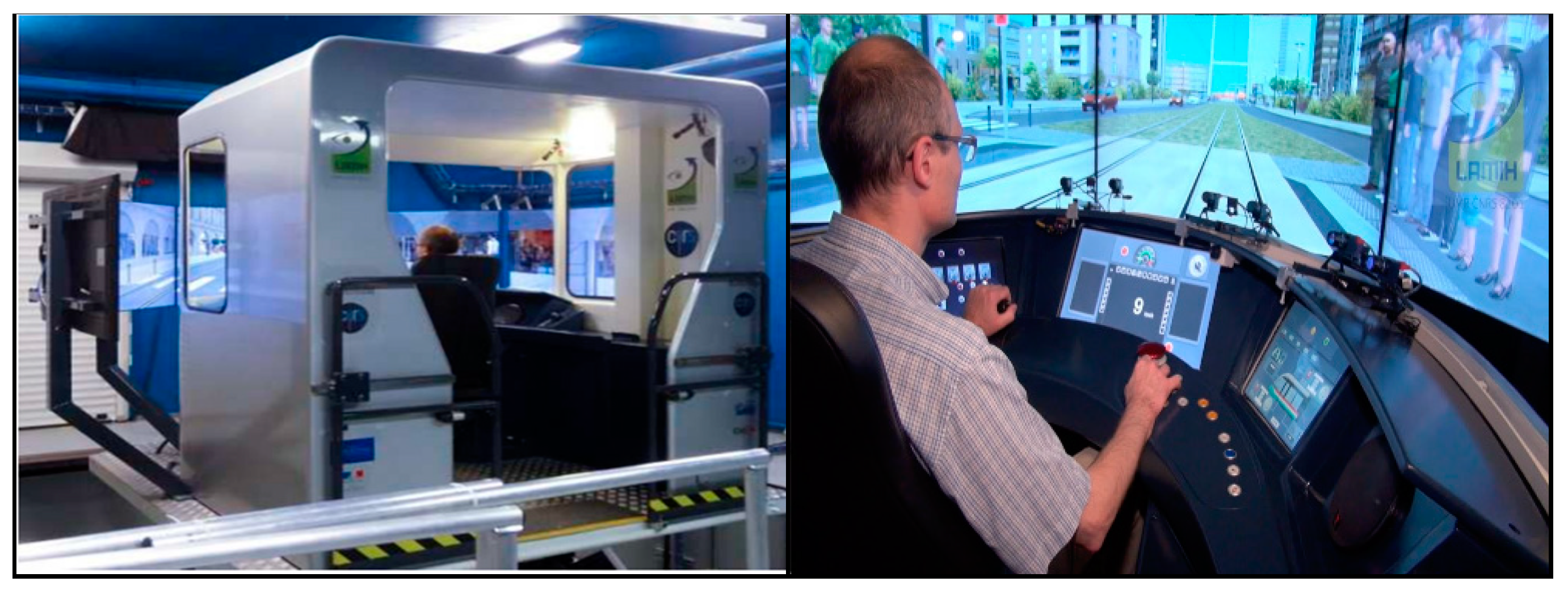

The PSCHITT-RAIL simulator [6] (Figure 4), designed to be an additional support for research and experimentation in the field of transport and funded by the European Union with the European Regional Development Fund (ERDF) and the Hauts-de-France Region, aims to integrate new modular equipment through the study of driver behavior in risky situations. Its main functionalities are:

• Immersion in a sonic and visual environment;
• Integration between real components and a simulated environment;
• Management of driver information.

The equipment includes Alstom Citadis Dualis desk, a six-degrees-of-freedom motion system, OKSimRail software, five screens providing a 225° view, three eye trackers, cameras, a 6.1 audio system, and scripting, synthetized into a dynamic platform by means of measurements, such as systems capturing movements, physiological measurement sensors, etc.

SPICA RAIL, by University of Technology of Compiegne [6], is a supervision platform to recreate real accident scenarios in the laboratory in order to analyze human behaviors and decisions in such situations. It is able to analyze and simulate the entire network by integrating traffic control functions. Moreover, to simulate crises, personnel can start from an automatic control level, and progressively insert disturbances on the network.

OKTAL SYDAC simulators [7] cover solutions for trams, light rail, metro, freight (complex systems), high-speed trains, truck, bus and airports. The full cab or desk is an exact replica of a real cab. The compact desk simulators offer a solution with limited space for training.

The IFFSTAR-RAIL by IFFSTAR [8] is a platform designed to simulate rail traffic for the assessment of some European Rail Traffic Management System (ERTMS) components. It includes three subsystems:

• A driving simulator desk used in combination with a 3D representation of tracks;
• A traffic simulator, acting both as a single train management tool and for railway traffic control;
• A test bench connected with onboard ERTMS equipment, in compliance with specifications and rules.

4.2. Car Simulators

IFFSTAR TS2 is a simulator of internal and external factors influencing driver behavior, and a human-machine interface located in Bron and Salon-de-Provence. It is capable of analyzing driver behavior relative to internal (e.g., anger, sadness) or external environmental factors and studying driver–vehicle interactions. The instrumentation includes:

• Sensors for the control, communication and processing of of dashboard information;
• Images of road scenes projected on five frontal screens in a visual field covering 200° × 40°:
• A device providing rear-view images;
• Quadraphonic sound reproducing internal (motor, rolling, starter) and external traffic noises.

NVIDIA DRIVE [9] is an open platform providing an interface that integrates environmental, vehicle and sensor models with traffic scenario and data managers, including two servers: A simulator, which generates output from virtual car sensors, and a computer, which contains the DRIVE AGX Pegasus AI car computer that runs the complete, binary compatible autonomous vehicle software stack. It processes the simulated data as if it were coming from the sensors of a car actually driving on the road. The car computer receives the sensor data, makes decisions and sends vehicle control commands back to the simulator in a closed loop process enabling bit-accurate, timing-accurate hardware-in-the-loop testing. The kit enables the development of Artificial Intelligence assistants for both drivers and passengers. HMI uses data from sensors tracking the drivers and the surrounding environment to keep them alert, anticipate passenger needs and provide insightful visualizations of journeys. The system uses deep learning networks to track head movements and gaze, and can communicate verbally via advanced speech recognition, lip reading and natural language understanding.

VRX-2019 by OPTIS [10,11] is a dynamic simulator with proportions, shapes, placement and surfaces for the interior which emphasize ergonomics and the comfort of passengers. From the integration of new technologies, such as driving assistance and autonomous driving, to the validation of ergonomics for future drivers and passengers, each step of the interior has been analyzed and validated. It reproduces the feeling of a cockpit HMI. It is very useful for virtual tests and for the integration of next-generation sensors before their actual release, helping to eliminate expensive real-world tests and reduce time-to-market. By virtual displays, actuators, visual simulations, eye and finger tracking and haptic feedback, it provides a tool for full HMI evaluation. Moreover, the user can validate safety and comfort improvements for drivers and pedestrians in dangerous scenarios. Key interface features are:

• A finger-tracking system;
• Tactile displays and dynamic content;
• Windshield or glasshouse reflection studies based on physically accurate reflection simulations;
• Testing and validation of head up displays, specifying and improving optical performance and the quality of the content.

4.3. Aviation Simulators

The CAE 7000XR Series Full-Flight Simulator (FFS) surpasses the operator requirements of Level D regulations. It provides integrated access to advanced functions, such as:

• An intuitive lesson plan builder;
• A 3D map of flight paths with event markers;
• Increased information density;

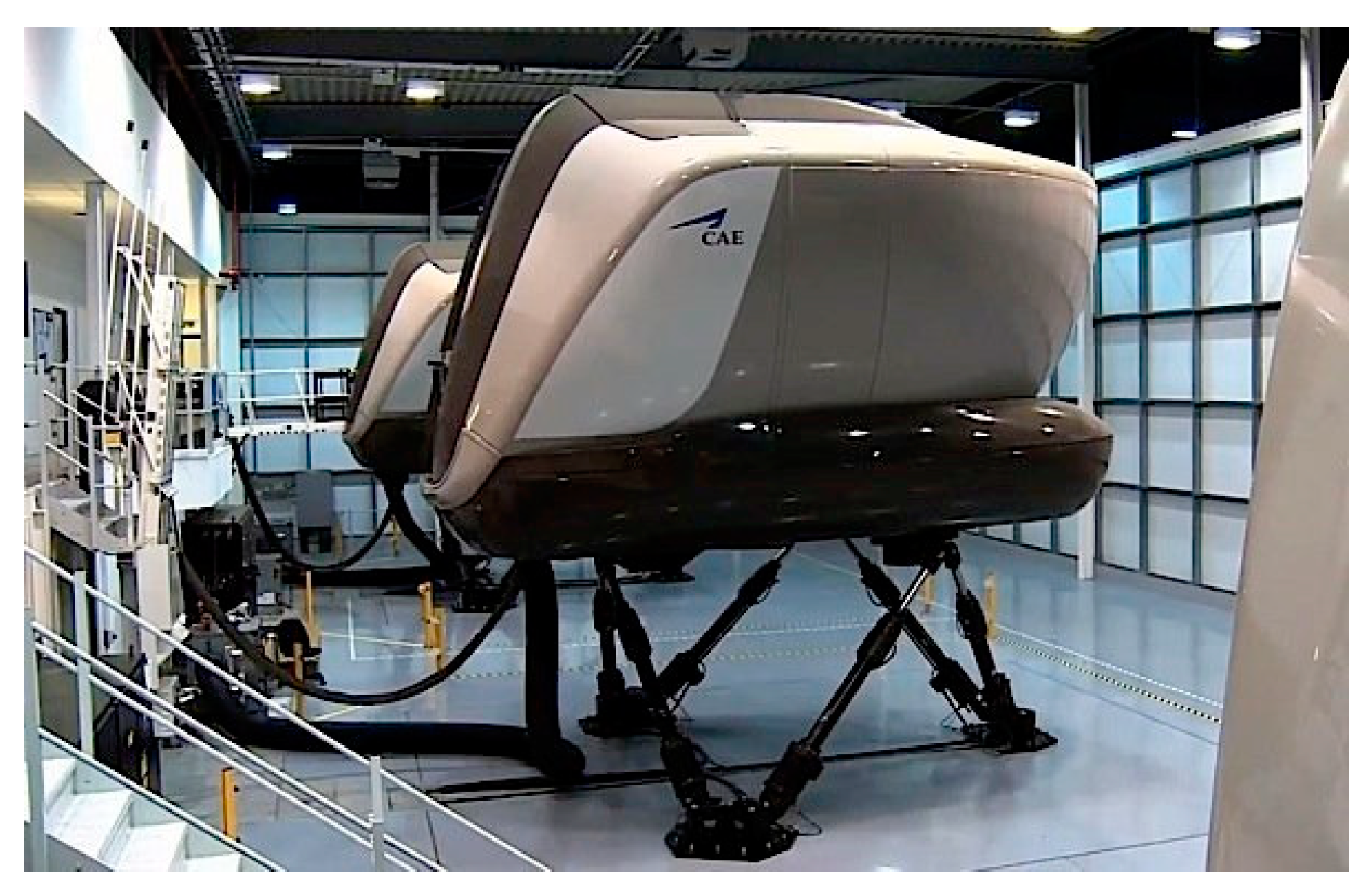

• Ergonomic redesign of interiors (Figure 5).

The CAE 3000 Series Helicopter flight and mission Simulator [13] is helicopter-specific for training in severe conditions, e.g., offshore, emergency services, high-altitude, etc., based on the following features:

• A visual system with high-definition commercial projectors;
• Up to 220° × 80° field-of-view direct projection dome, with full chin window coverage tailored to helicopter training operations.

The EXCALIBUR MP521 Simulator includes a capsule with a six-axis motion system, visual and instrument displays, touch control panels and hardware for flight control. The user can enter parameters to define an aircraft through a graphical user interface (GUI). The graphics also feature airports and reconfigurable scenic elements, in order to meet the requirements of flight training, such as runway lighting, approach aids and surroundings, with the possibility of large wall screens vision for group lessons.

The ALSIM AL250 simulator [14] includes a visual system equipped with a high quality compact panoramic visual display (minimum frame rate of 60 images/s), 250° × 49° field of view, high definition visual systems for better weather rendering and ultra-realism, new map display, positioning/repositioning system, weather condition adjustment, failure menu, position and weather presets. Optional upset recovery and a touch screen with wider instructor surface and adjustable seats complete the setup.

AIRLINER is a multipurpose hybrid simulator which is able to cover the following training scenarios: Multi Crew Cooperation (MCC), Advanced Pilot Standard (APS), airline selection, preparation and skills tests, aircraft complex systems operation, Line Oriented Flight Training (LOFT), type-rating preparation and familiarization, Upset Prevention Training (UPT). It is based on the hybrid Airbus A320/Boeing B737 philosophy, with versatility to adapt flight training and interchangeable cockpit configuration.

i-VISION by OPTIS is an immersive virtual environment for the design and validation of human-centered aircraft cockpits. It is the result of a project developed and applied to accelerate design, validation and training processes of prototyping aircraft cockpits. The applied methods are also exportable to cars, trucks, boats and trains. i-VISION includes three main technological components (Figure 7), which were integrated and validated in collaboration with relevant industrial partners:

• Human cockpit operations analysis module, with human factor methods demonstrated in the prototype of the project;
• Semantic virtual cockpit, with semantic virtual scene-graph and knowledge-based reasoning of objects and intelligent querying functions, providing a semantic-based scene-graph and human task data processing and management engine;
• Virtual cockpit design environment, with a virtual environment provided by human ergonomics evaluation software based upon the Airbus flight simulator, to develop a new general user interface for cockpits.

4.4. Integrated Simulators

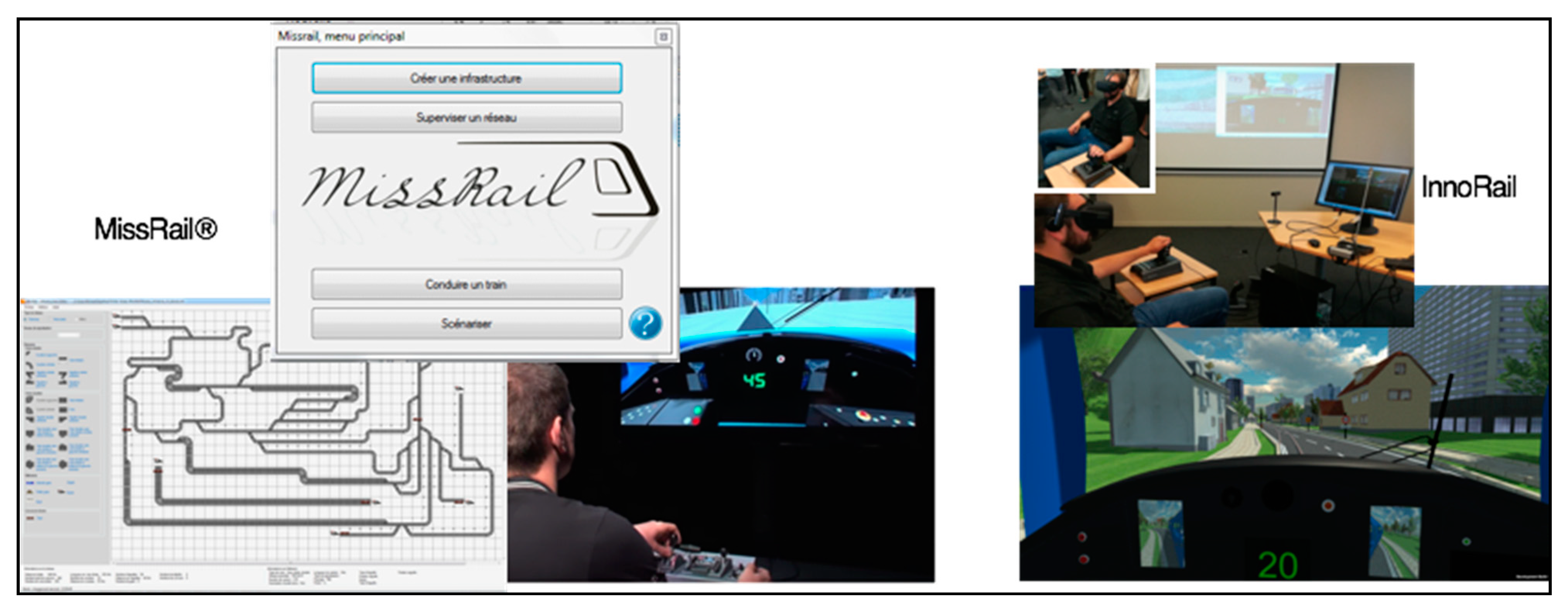

MISSRAIL^® and INNORAIL are tools developed entirely by the Université Polytechnique Hauts-de-France in Valenciennes [15,16,17]. They include four main modules (Figure 6): (1) railway infrastructure design, (2) route design module, (3) driving cab simulation module, 4) control-command room simulation module. A version with an immersive helmet is also available.

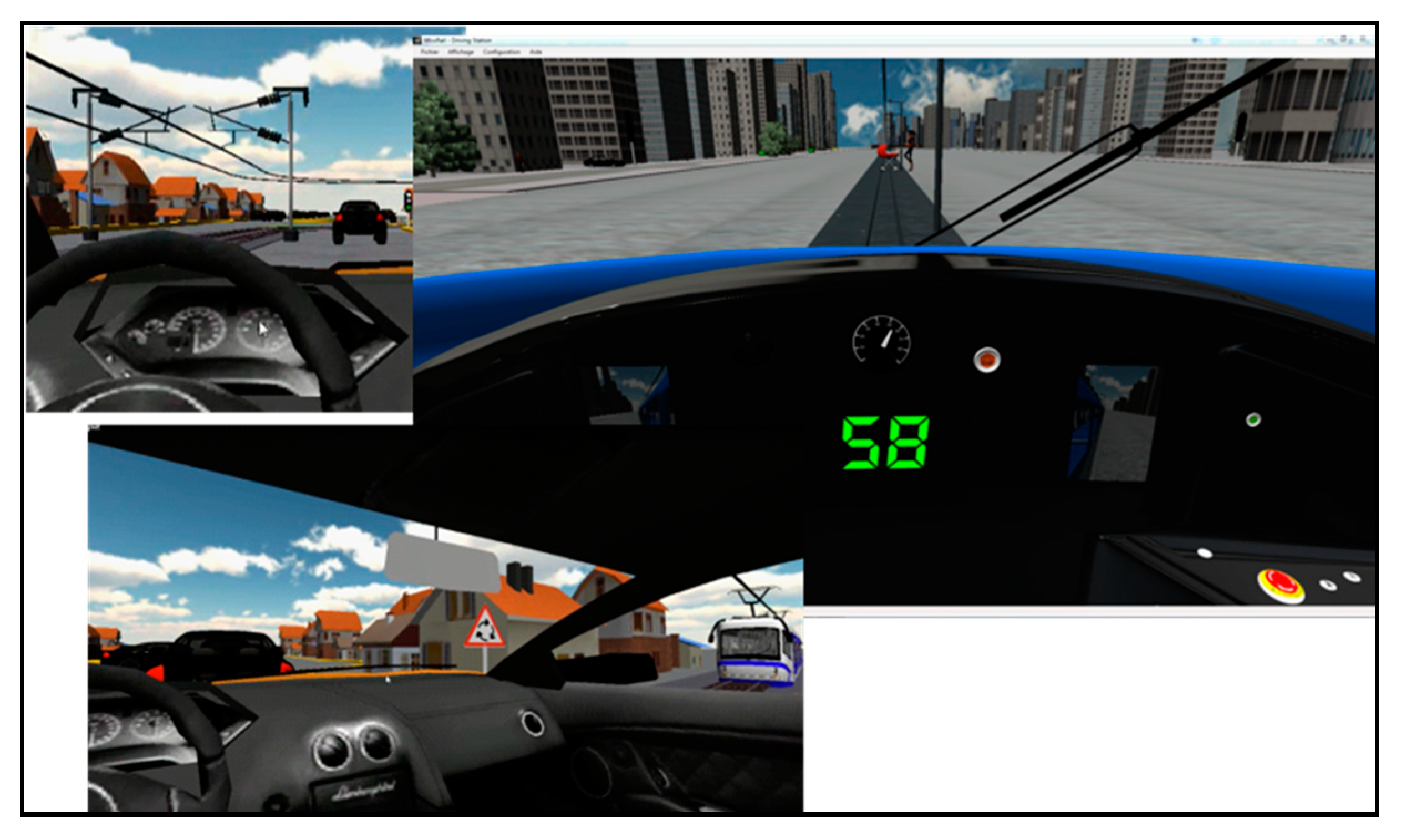

It is a Client/Server application which is capable of connecting different users at the same time. Several configurations are possible: wired, wireless, portable, fixed. Moreover, MISSRAIL^® is able to design various automated driving assistance tools (e.g., eco-driving assistance, collision avoidance system, cruise control and vigilance control system) and accident scenarios combining pedestrians, trains and cars (Figure 7) [17].

5. Support Tools for Driver Assistance

5.1. Human Factors and Their Limits

Human control engineering can use several technological means to control human factors, such as workload, attention or vigilance; however, controversies exist about some of them [18], i.e., studies have highlighted that, independent from technology, vigilance can be improved from dieting or fasting [19], or even from chewing gum [20,21]. Second, two kinds of technological supports can influence human cognitive state: passive tools, i.e., human–machine interaction supports, or active ones, which are capable of making decisions and acting accordingly. Examples are listening to music, which may improve concentration [22,23]. Meanwhile, a dedicated decision support system can decrease workload by improving performance [24]. Moreover, due to disengagement from a driving situation under monotonous driving conditions, automation might lead operators to become more fatigued that they would during manual driving conditions [25,26].

A great deal of research has reported on the utility of using physiological, behavioral, auditory and vehicle data to detect the mental state of the driver, such as presence/sleep, drowsiness or cognitive workload, with considerable accuracy [27,28,29]. Diverse parameters can provide information on targeted mental states: physiological measures include signals such as ElectroEncephaloGram (EEG) data, ElectroDermal Activity (EDA), and heart rate and heart rate variability. Behavioral measures include aspects such as head-direction, head-movement, gaze-direction, pose of the superior part of the body, gaze-dispersion, blinking, saccades, PERCLOS, pupil-size, eyelid movement, postural adjustment and nonself-centered gestures. Such data may be combined in multimodal approaches with information on vehicle activity and auditory information. However, existing approaches still present clear limitations, such as with electroencephalography (EEG), which is hardly usable in real contexts due to possible discomfort, an unprovable performance, as well as, in some cases, the high computational cost for calculations, which constrains implementation in real environments [30]. Note also that more traditional behavioral measures used in experimental psychology, such as the secondary task paradigm, have been shown to be quite useful in workload studies [31].

Results from studies on human factors in driver automation based on these techniques are often concerned with questions such as of how users tackle automated driving and transitions between manual and automated control. Most such studies were motivated by the increasing prevalence of automated control in commercial and public transport vehicles, as well as increases in the degree of automation. Moreover, while automated driving significantly reduces workload, this is not the case for Adaptive Cruise Control (ACC) [32]. For instance, a driving simulator and vehicle with eye-tracking measures showed that the time required to resume control of a car is about 15 s, and up to 40 s to stabilize it [33].

Alarms comprising beeps are safer than those comprising sounds with positive or negative emotional connotations [34], and human performances can differ according to the use of interaction means involving hearing or sight [35]. Moreover, interactions with visual or audio-visual displays are more efficient than those with auditory displays only [36]. In this sense, research on multimodal perception is particularly relevant when studying human factors of driver aid systems [37,38].

Other studies have not observed significant impacts of noise or music on human performance [39] and have even concluded that silence is able to increase attention during human disorder recovery conditions [40].

Moreover, the use of decision support systems can generate ambiguous results by leading to dissonances, affordances, contradictions or interferences with safety critical behavior [41,42,43], potentially increasing hypo-vigilance and extending human response time [44]. As an example, the well-known Head-Up Display (HUD) system is useful to display important information without requiring them to move their gaze in several directions, but it is also a mean to focus attention upon a reduced control area [45]. It is, therefore, a tool to prevent accidents, but can also cause problems of focused attention.

Neuropsychological studies generally use sensors connected to the brain to assess neural activities related to cognitive processes, such as perception or problem solving. In this context, eye trackers have been demonstrated to be useful for the study of visual attention or workload via parameters such as closure percentage, blink frequency, fixation duration, etc. [46,47,48,49]. Indeed, the pupil diameter increases with the increasing demand of the performed task and higher the cognitive loads [50], while an increase of physical demand does the opposite [51], as do external cues, such as variations of ambient light, use of drugs or strong emotions. Facial recognition is also incapable of detecting emotional dissonances between expressed and felt emotions. Moreover, eye blink frequency reduces as workload increases [52,53], but it increases when a secondary task is required [54,55].

Eye-trackers can be useful to analyze overt or covert attention: when a subject looks at a point on a scene, the analysis of the corresponding eye movement supposes that the attention is focused on this point, whereas attention can also focus on other points without any eye movement [56].

Variations in heartbeat frequently correspond to variations in the level of the workload, stress or emotion [57,58,59,60], but a new hypothesis considers that perceptive ability can depend on the synchronization between frequency of dynamic events and heart beats. Recent studies have demonstrated that flashing alarms synchronized with heart rate could reduce the solicitation of the insula, i.e., the part of brain dedicated to perception, and the ability to detect it correctly [61,62]. This performance-shaping factor based on the synchronization of dynamic events with heartbeats is relevant for human error analysis.

The development of future smart tools to support driving tasks has to consider extended abilities, such as the ability:

• To cooperate with and learn from others [63,64,65];
• To explain results in a pedagogical way [17];
• To discover and control dissonances between users and support tools [41,42].

Significant advances for the prediction of driver drowsiness and workload have been made in association with the use of more sophisticated features of physiological signals, as well as from the application of increasingly sophisticated machine learning models, although extrapolation of such to the context of commercial pilots has not yet been attempted. Some approaches have been based on EDA signal decomposition into tonic and phasic components [66], extraction of features in time, frequency, and time-frequency (wavelet based) domains [67], or the use of signal-entropy related features [68].

Moreover, regarding machine-learning models, while the most widely used approach is the support vector machine, artificial neural networks, such as convolutional neural networks, seems to provide better performance for the detection of drowsiness and workload [69,70,71].

The combination of such approaches with multimodal data fusion has been shown to provide a very high degree of accuracy for drowsiness detection [72].

Such approaches are applicable to overcome some of the current limitations in the detection in pilots of drowsiness and mental workload. For instance, the high accuracy accomplished with only a subset of the signals suggests that various predictive models of drowsiness and workload could be trained based on different subsets of features, thereby helping to make the system useful, even when some specific features are not momentarily available (e.g., due to occlusion of the eyes or head). Recent advances can also help in the implementation of detection systems with lower computational cost, such as efficient techniques for signal filtering [73] and feature-selection methods to reduce model dimensionality and complexity [74].

5.2. Gesture Control Technology

Many technologies to control devices by gestures are already on the market. An extended, though not comprehensive, summary of them is presented below.

DEPTHSENSE CARLIB, by Sony, aims to control infotainement by hand movement [75].

EYEDRIVE GESTURE CONTROL by EyeLights is an infrared motion sensor that recognizes simple hand gestures while driving in order to control in-vehicle devices [76].

HAPTIX by Haptix Touch is a webcam-based environment to recognize any classical hand movement and build a virtual mouse to control screen interface [77].

KINECT by Microsoft is a web-cam based device that can capture motion and control devices with body or hand movements [78,79].

LEAP MOTION by Leap Motion Inc. (now UltraHaptics) is an environment for hand movement recognition dedicated to virtual reality. Movement detection is by infrared light, while micro-cameras detect the hands or other objects in 3D [80].

MYO BRACELET by Thalmic Labs proposes an armband to control interfaces with hand or finger movement detected via the electrical activities of activated muscles [74,81,82].

SOLI by Google comprises a mini-radar which is capable of identifying movements, from fingers to the whole body [83,84].

SWIPE by FIBARO is dedicated to home automation; it is controlled via hand motions in front of a simple, contactless tablet [85].

XPERIA TOUCH DEVICE by Sony is a smartphone application for gesture control which is capable of tracking proximate hand gesture via the phone camera [86].

Table 1. SWOT analysis of three gesture control technologies.

	KINECT	LEAP MOTION	MYO BRACELET
Strengths	Body motion identification Development kit	Hand and finger movements identification Low price Lightweight device Development kit	Gesture detection only for the person wearing the bracelet Lightweight device Development kit
Weaknesses	Operational difficulties in limited spaces Possible interference between movements and detection sensor	Deep training required Possible interference between movements and detection sensor	Limited number of identified movements Deep training required
Opportunities	Combining gesture control with facial or voice recognition for security purposes	Combining use of infrared light with cameras for security purposes	Combining physiological detection (e.g., heartbeat) with gesture control for security purposes
Threats	Undefined gesture control intrusion recovery process	Undefined gesture control intrusion recovery process	Undefined gesture control intrusion recovery process

summarizes a Strengths Weaknesses Opportunities and Threats (SWOT) analysis of three of systems defined above: KINECT, LEAP MOTION and MYO BRACELET developed starting from the results of similar studies [87].

6. Analysis of Results and Conclusions

According to the aims to assess state of the art of technologies already in use or under experimentation, in order to identify suitable solutions for innovative train driver cabin. It focuses on the HMI developed by transport industries and other technologies.

The study starts from systems developed by manufacturers of vehicles outside of the railway field, i.e., cars, trucks and ships, with specific regard to how they can support or substitute the driver in the context of autonomous driving.

Table 2. Overview of investigated systems implemented in vehicles outside the railway sector.

Name	Operating Features	Automation Levels	Vehicles
MAN PLATOONING	Driver assistance and control	Driver always keeps hands on the wheel	Trucks
HIGHWAY PILOT	Autopilot	Driver can choose for autonomous driving manually	Trucks
AUTOPILOT 2.5	Autopilot	Driver always keeps hands on the wheel	Cars
iNEXT-COPILOT	Easy switch to automatic mode	Driver can choose autonomous driving manually or with a voice command	Cars
THE FALCO	Full automation	No human intervention, ergonomic HMI with control levers and touch screens for call up and control	Ships

shows the entire set of investigated solutions applied to vehicles outside of the railway field and their relevant characteristics. Important examples, in view of potential application for trains, are:

• DRIVE PILOT, which provides automation with a fallback working mode to switch to driver responsibility;
• iNEXT-COPILOT, which works by voice or tactile command to switch to/from automatic driving.

The maritime application THE FALCO is working on full automation with a powerful HMI, with good potential for rail applications.

Simulators represent an important starting point for the design of innovative driving functions, as well as for the safety of traffic supervision within railway systems [88,89,90] and interactions with other transport networks [91,92]. Their benefits are the possibility to test, in advance, applicability estimations, before the construction of the physical elements, to obtain information about the future design and reduce the cost of testing.

In this framework, IFFSTAR offer simulators that can be applied to multiple types of vehicles, or adapted according to different purposes, such as improved ergonomics, HMI optimization, training, visual systems, etc. Other interesting innovations have emerged from the OPTIS iVISION project, which has provided important ideas on how to design the HMI and integrate multimodal simulators.

Table 3. Overview of investigated simulators.

Name	Operating Features	Vehicles
PSCHITT-RAIL	Movement capturing via eyes trackers, physiological measurement sensors (six degrees of freedom motions)	Trains
SPICA RAIL	Increasing disturbances to evaluate human behavior, and a supervision platform	Trains
OKTAL SYDAC	Exact replicas of the cab for a realistic driving experience	Trains
IFFSTAR-RAIL	Driving and rail traffic supervision simulation	Trains
IFFSTAR TS2	Impact of internal and external factors on driver behavior, and a fixed-base cab HMI	Cars
NDIVIA DRIVE	Interface among environment, vehicles and traffic scenarios by open platform sensors	Cars
VRX-2019	Autonomous vehicle reproducing the cockpit HMI by advanced sensors	Cars
CEE 7000XR	Full-flight with adaptation to operator needs and easy access to advanced functions	Aircrafts
CAE 3000	Helicopter flight in normal and unusual/dangerous conditions	Helicopters
EXCALIBUR MP521	Flight control with graphical user interface and data editor in capsule with six-axis motion system, visual and instrument touch displays	Aircrafts
ALSIM	Flight training and interchangeable cockpit configuration with high performance visual system	Aircrafts
iVISION	Semantic virtual cockpit design environment and validation of human-centered operations with analysis module	Aircrafts
MISSRAIL	Automated driving assistance combining accident scenarios including pedestrians, trains and cars with human factor control	Integrated

shows a summary of the entire set of investigated simulators.

All of the investigated systems have reached, in their respective fields, Technology Readiness Levels (TRL) in the range of TRL7 (System prototype demonstration in operational environment), TRL8 (System complete and qualified) or TRL9 (Actual system proven in operational environment). Therefore, they appear to be highly relevant to the design of train driver cabins, where the design process is less mature and the expected TRL is variable, but in the range of TRL5 (Technology validated in relevant environment), TRL6 (Technology demonstrated in relevant environment) and TRL7 (System prototype demonstration in operational environment) [93].

Future developments will include the identification of specific performance indicators to assess the functional relevance of specific driving-related actions, selected and refined with the involvement of professional train drivers in dedicated surveys. This will take into account human factors, their constraints, reflecting on assistive technologies for driving assistance and monitoring, and the management of critical situations, such as interactions with other transport systems (e.g., level crossings) and emergency management (e.g., evacuations).
