Analysis of Stainless-Steel Tape Dynamic Behavior and Its Impact on Raster Scale Formation Accuracy

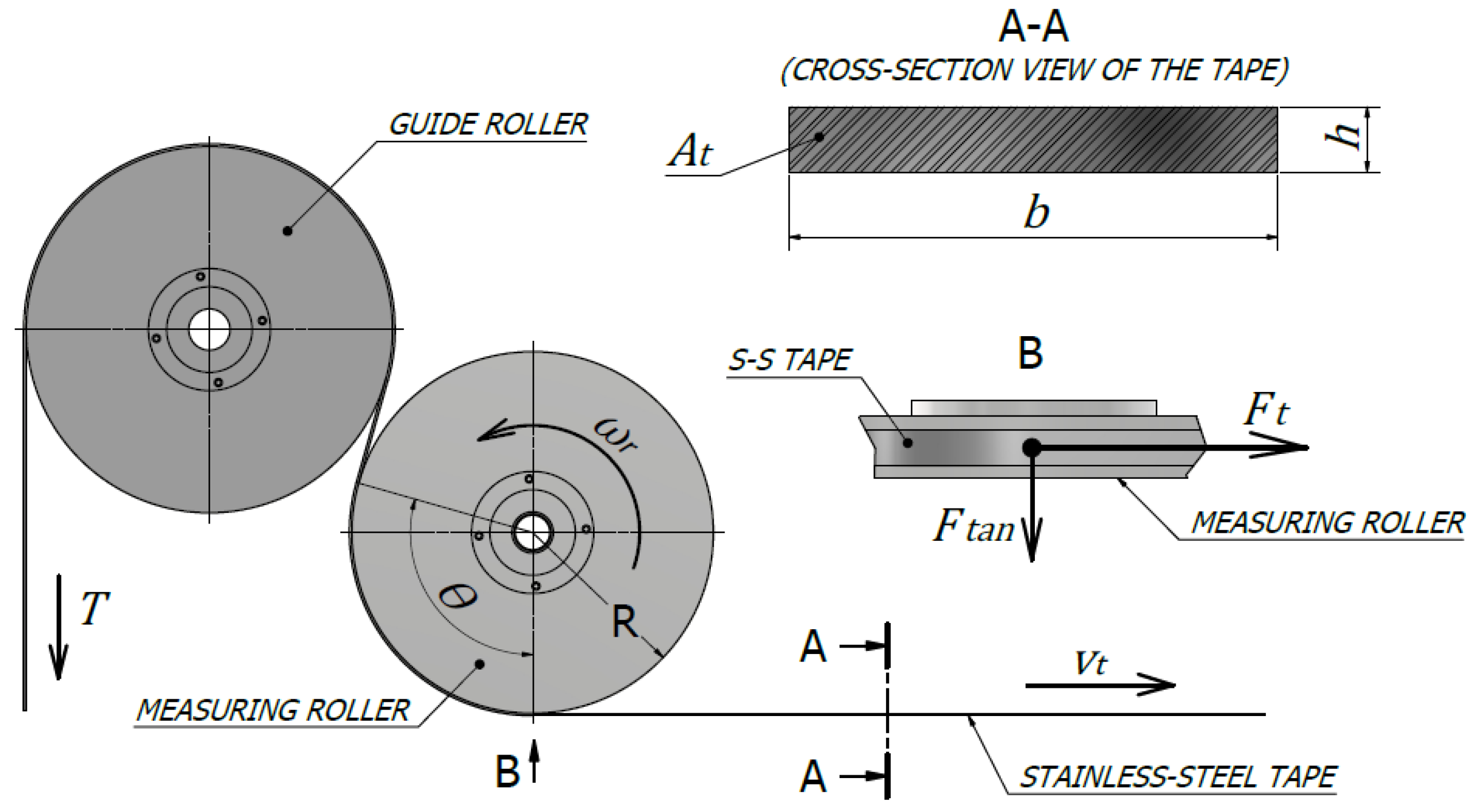

The formation of raster structures on stainless-steel tapes requires high-precision mechatronic systems to ensure accuracy and stability during the process. This article gives a thorough look at a redesigned precise mechatronic system that can make coded or raster linear scales using a dynamic laser process. These scales are critical components in linear measuring systems, such as optical encoders, where accuracy and reliability are paramount. One critical challenge is maintaining precise tape dynamics to mitigate errors caused by slippage at the tape-roller interface and mechanical vibrations. The main goal of this study is to look at these changing behaviors in a redesigned tape displacement measurement unit. Unlike older models, this one does not use a pneumatic roller system; instead, the tape drives the measuring roller directly. Experiments show that the new design greatly lowers errors caused by slippage and vibration, which makes it easier for the tape to move in sync with the laser activation. Additionally, the updated system exhibits enhanced performance in terms of stability, achieving higher accuracy of the raster structure compared to the previous design. These findings underscore the importance of dynamic analysis in optimizing tape displacement measurement units for high-precision raster formation processes.
