A Simplified Method for Inverse Kinematics of a Flexible Panel Continuum Robot for Real-Time Shape Morphing

Abstract

Continuum robots are good candidates for shape morphing. However, due to the coupled problem between kinematics and statics, the inverse kinematics of continuum robots is highly nonlinear, posing a challenging problem for real-time applications. This paper presents a simplified approach to solving the inverse kinematics of a flexible panel continuum robot efficiently. Through an experiment, two approximate relationships are discovered. First, the arc length of the middle backbone can be estimated from the arc lengths of the two panels; second, the length difference between the two panels can be related to the tip angle of the end-effector. Based on these two discovered relationships, a simplified inverse kinematics method is proposed based on a constant curvature model. This method has been validated by the experimental data with high accuracy of less than 2% error, thereby demonstrating the effectiveness of the proposed method for real-time applications.

1. Introduction

Continuum robots have become a topic of recent research, mainly owing to their ability to mimic the movement of certain animals such as snakes [1], elephants (trunks) [2] and octopuses (tentacles) [3]. These robots are made up of flexible materials possessing good ability of bending and dexterity to maneuver in congested environments through shape morphing [4]. Specific applications include medical surgery [5], nuclear reactor maintenance [6], disaster relief [7] and other industrial uses [8].

Continuum robots are often kinematically redundant and highly nonlinear, rendering their kinematic analysis more complex than their rigid-link counterparts. Unlike the rigid robots where the pose of any point in the robot workspace can be fully defined by link lengths and joint angles, the kinematics of continuum robots remains challenging to solve due to the under-determined nature of the underlying problem.

Substantial research has been carried out in the past. Jones and Walker [9,10] developed a modified homogenous transformation matrix in terms of Denavit–Hartenberg (D-H) parameters to analyze the kinematics of the continuum robot. Simaan et al. [11] proposed a differential method to divide the continuum robot into several small units and then computed the position of the end-effector by using an integration method. Godage et al. [12] presented a new three-dimensional kinematic model for multisection continuum arms using a shape-function-based approach and incorporating geometrically constrained structures [13]. Another interesting approach was presented in [14], where the authors used torus segments to represent the sections of a continuum robot called a bionic handling assistant (BHA) manipulator. Escande et al. [15] put forward a forward kinematics model for the compact bionic handling assistant (CBHA) based on the constant curvature assumption. The above-mentioned methods share a common problem in that the inverse kinematics cannot be directly derived from the forward kinematics. Usually, numerical methods such as Least Squares [16] and Newton–Raphson methods [17] are adopted, but they are computationally intensive and not applicable for real-time applications. Because of this reason, qualitative methods have also been explored. Giorelli et al. [18] modeled the inverse kinematics (IK) of a flexible manipulator using feed-forward Neural Networks (NN). Rolf and Steil [19] introduced a goal babbling approach to solve the IK of the bionic handling assistant robot. Melingui et al. [20] used the NN through a distal supervised learning scheme to solve the IK of the CBHA robot. Although the accuracy has been improved, these methods are still time-consuming and computationally expensive.

In conclusion, using the existing methods to solve the kinematics of the continuum robot mainly has the following problems: it is impossible or difficult to find the inverse kinematic solution, the calculation is large and the accuracy of the results is low. For these reasons, we are exploring a simple approach to solving the inverse kinematics for real-time applications.

The rest of this paper is arranged as follows. Section 2 describes the forward kinematics based on the long beam theory. In Section 3, the DOFs are analyzed to determine the number of parameters to be controlled. In Section 4, a simplified model is proposed to solve the inverse kinematics of a flexible parallel robot based on the experimental studies. At last, a number of case studies are supplied to show the effectiveness of the method.

2. Kinematic Analysis Based on Large Deformation Beam Theory

2.1. System Description

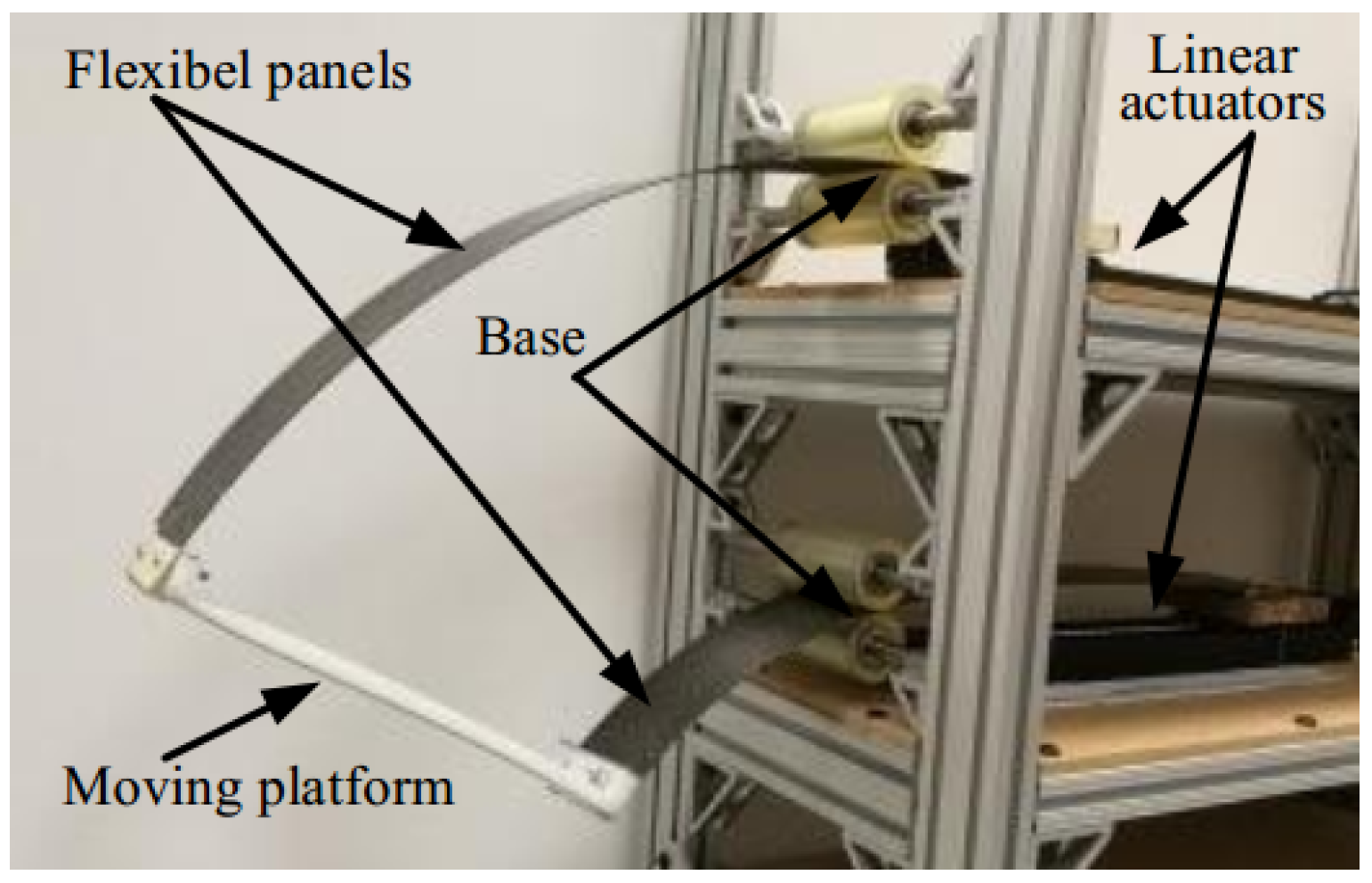

As shown in Figure 1, the continuum robot under study consists of two flexible panels made of carbon fibers. Each panel is connected to a linear actuator on one end and runs through the gap between two sets of rollers to connect to the moving platform on the other end. Both linear actuators and rollers are mounted on a frame fixed to the ground. The two sets of rollers (top and bottom) form the base of the flexible panels. Since the panels are mainly subject to bending, their deformations are directional, very flexible in the length direction yet very rigid in the width direction.

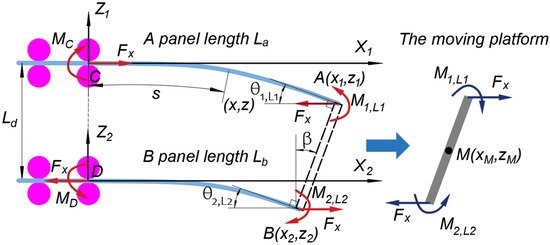

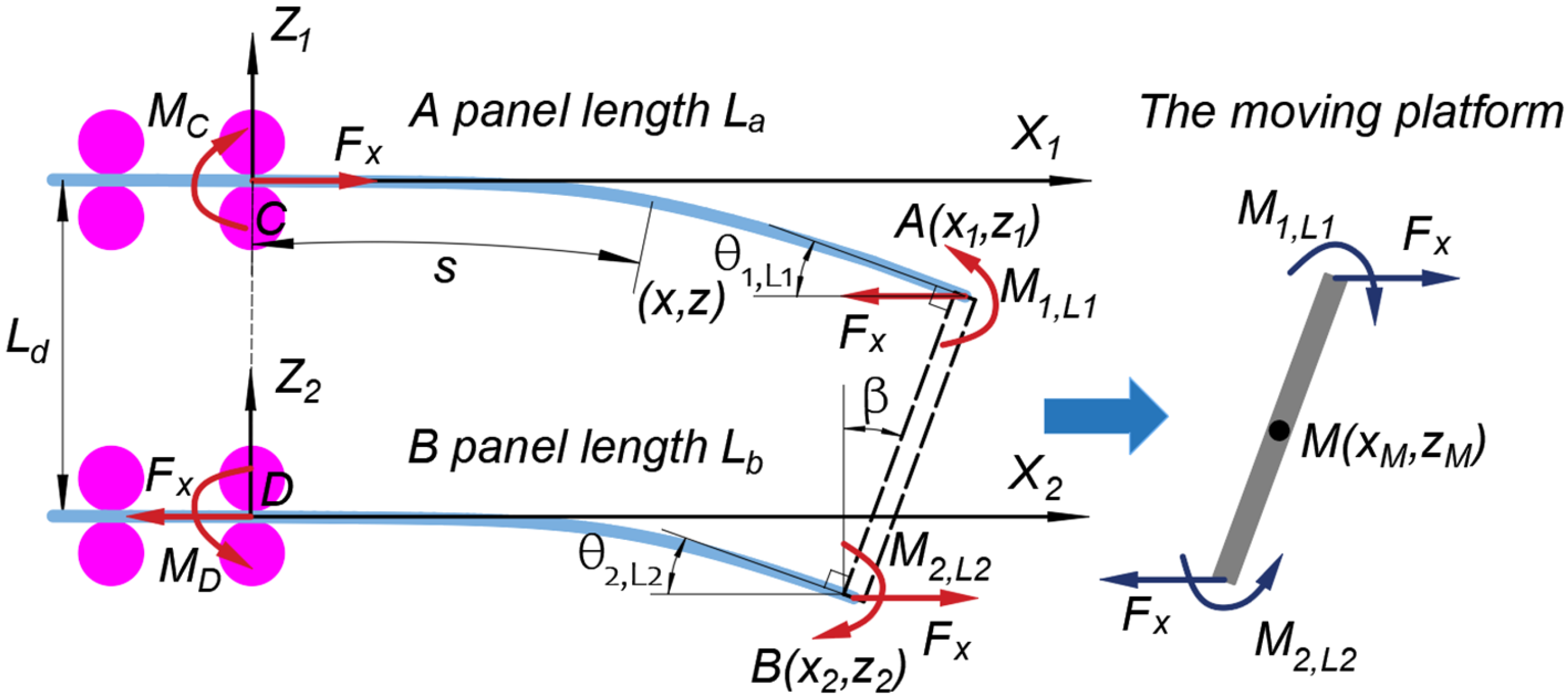

Due to this directionality, they are naturally constrained only to deform along the length direction, i.e., in the X–Z plane, as shown in Figure 2. Thus, the two panels along with the base and the moving platform form a planar flexible panel continuum robot. As the two linear actuators move back and forth, the panel lengths change to cause the robot to curve up or down, depending on the direction of the length difference between the two panels.

Kinematically, this continuum robot is formed by four points: A and B for the moving platform (the moving platform is considered as a rigid body) and C and D for the fixed base. There are two sets of coordinate frames: $\left(x_1,z_1\right)$ for top plate A and $\left(x_2,z_2\right)$ for the bottom plate B. The distance between the origin of two coordinate frames is $L_d$ along the common Z axis. The top panel length is denoted by $L_a$ and the bottom one by $L_b$. $L_a$ and $L_b$ are the changing variables controlled by the respective linear actuators; $x_1$, $z_1$ represent the coordinates of the end point of the top panel (point A) and $x_2$, $z_2$ the coordinates of the end point of the bottom panel (point B), in their respective coordinate frames.

2.2. Review of Forward Kinematic Modeling

A brief review of our previous work on forward kinematic modeling of this continuum robot [21] is provided to show the coupling between the nonlinear deformation of two flexible plates. As described in [21], the deformation equations were established based on Euler–Bernoulli beam theory at first for the problem of nonlinear deformation of a single flexible plate. The deformation curves of two flexible panels under a certain length were given in the form of differential equations (D.E.) with boundary conditions (B.C.), as shown in Equation (1). In Equations (2) and (3), the elliptic integral was used for calculation. Then, the relationship between the lengths of two panels and the position and orientation of the moving platform was established using a kinematically constrained optimization model, as shown in Equation (4). Finally, the forward kinematics model was obtained as expressed in Equation (5) to Equation (8).

$$\left\{\begin{array}{c}D.E.\frac{d^2{\theta }_i}{d^{2}s}=-{\left(-1\right)}^i\frac{F_x}{EI}\sin {\theta }_i\hspace{1em}\hspace{0.17em} i=1,2\hfill \\ B.C.\left\{\begin{array}{cc}{\theta }_i{|}_{S=0}=0\hfill & \hfill \hspace{1em}\hspace{1em}\hspace{1em}i=1,2\\ {\theta }_i{|}_{S=L_i}={\theta }_{i,L_i}\hfill & \hfill \hspace{1em}\hspace{1em}\hspace{1em}i=1,2\end{array}\right.\hfill \end{array}\right.$$

(1)

where ${\theta }_i$ is the slope at any point $\left(x,z\right)$, s is the arc distance of that point along the panel curve from its fixed end, $F_x$ is the axial force exerted by the linear actuator, EI is the stiffness of this mechanism, ${\theta }_{i,L_i}$ is the end slope of the panel i, and $i=1$ stands for panel A and $i=2$ for panel B. By Equations (2) and (3), we can obtain the lengths of panel a ($L_a$) and panel b ($L_b$), respectively.

$$\begin{gathered} L_a=\sqrt{\frac{EI}{2F_x}}{\int }_0^{{\theta }_{1,L_1}}\frac{d{\theta }_1}{\sqrt{{\lambda }_1-\mathit{cos}{\theta }_1}} \\ =\sqrt{\frac{2EI}{F_x}}\frac{1}{\sqrt{{\lambda }_1+1}}F\left(\mathit{arcsin}\sqrt{\frac{\left({\lambda }_1+1\right)\left(1-\mathit{cos}{\theta }_{1,L_1}\right)}{2\left({\lambda }_1-\mathit{cos}{\theta }_{1,L_1}\right)}},\sqrt{\frac{2}{1+{\lambda }_1}}\right), \\ \left[1>{\lambda }_1>0,0\le {\theta }_{1,L_1}\le \frac{\pi }{2}\right] \end{gathered}$$

(2)

$$\begin{gathered} L_b=\sqrt{\frac{EI}{2F_x}}{\int }_0^{{\theta }_{2,L_2}}\frac{d{\theta }_2}{\sqrt{{\lambda }_2+\mathit{cos}{\theta }_2}}=\sqrt{\frac{2EI}{F_x}}\cdot \frac{1}{\sqrt{{\lambda }_2+1}}\cdot F\left(\frac{{\theta }_{2,L_2}}{2},\sqrt{\frac{1+{\lambda }_2}{2}}\right), \\ \left[1>{\lambda }_2>\mathrm{0,0}\le {\theta }_{2,L_1}\le \frac{\pi }{2}\right] \end{gathered}$$

(3)

where ${{\lambda }_i=k_{i,L_i}-cos{\theta }_{i,L_i},k}_{i,L_i}=\frac{M_{l,L_i}^2}{2F_{x}EI}$, $M_{l,L_i}^{}$ is the end moment of the panel, and $i=1$ stands for panel A and $i=2$ for panel B. $min:f\left(F_x,{\theta }_{1,L_1},{\theta }_{2,L_2},{\lambda }_1,{\lambda }_2\right)=$

$${\left(\sqrt{2F_{x}EI\left({\lambda }_2+cos{\theta }_{2,L_2}\right)}-\sqrt{2F_{x}EI\left({\lambda }_1-cos{\theta }_{1,L_1}\right)-F_x{L}_{d}cos\beta }\right)}^2$$

$$subject to:\left\{\begin{array}{c}\sqrt{\frac{EI}{2F_x}}{\int }_0^{{\theta }_{1,L_1}}\frac{d{\theta }_1}{\sqrt{{\lambda }_1-\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_1}}-L_1=0\hfill \\ \sqrt{\frac{EI}{2F_x}}{\int }_0^{{\theta }_{2,L_2}}\frac{d{\theta }_2}{\sqrt{{\lambda }_2+\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_2}}-L_2=0\hfill \\ \sqrt{{\left(x_1-x_2\right)}^2+{\left(z_1-z_2\right)}^2}-L_d=0\hfill \end{array}\right.$$

(4)

The constrained minimization problem in Equation (4) is a nonlinear optimization problem with pure equality constraints. Similarly, they can also be solved by using the SQP method from MATLAB.

$$\begin{gathered} x_1=\sqrt{\frac{2EI}{F_x\left({\lambda }_1+1\right)}}·\left\{\left.\left(1-{\lambda }_1\right)\prod \left(\mathit{arcsin}\sqrt{\frac{\left({\lambda }_1+1\right)\left(1-\mathit{cos}{\theta }_{1,L_1}\right)}{2\left({\lambda }_1-\mathit{cos}{\theta }_{1,L_1}\right)}},\sqrt{\frac{2}{1+{\lambda }_1}}\right)\right\}\right., \\ \left({\lambda }_1>1,0\le {\theta }_{1,L_1}\le \frac{\pi }{2}\right) \end{gathered}$$

(5)

$$\begin{gathered} x_2=\sqrt{\frac{2EI}{F_x\left({\lambda }_2+1\right)}}\left.\left\{\left(1+{\lambda }_2\right)E\left(\frac{{\theta }_{2,L_2}}{2},\sqrt{\frac{2}{1+{\lambda }_2}}\right)\right.-{\lambda }_{2}F\left(\frac{{\theta }_{2,L_2}}{2},\sqrt{\frac{2}{1+{\lambda }_2}}\right)\right\}, \\ \left[0<1<{\lambda }_2,0\le {\theta }_{2,L_2}\le \frac{\pi }{2}\right] \\ {x}_2=\sqrt{\frac{2EI}{F_x}}\{2E\left(\mathit{arcsin}\sqrt{\frac{1-\mathit{cos}{\theta }_{2,L_2}}{{\lambda }_2+1}},\sqrt{\frac{1+{\lambda }_2}{2}}\right)-F\left(\sqrt{\frac{1-\mathit{cos}{\theta }_{2,L_2}}{{\lambda }_2+1}},\sqrt{\frac{1+{\lambda }_2}{2}}\right)\}, \\ \left[0<\left|{\lambda }_2\right|<1,0\le {\theta }_{2,L_2}\le \mathit{arcsin}\left(-{\lambda }_2\right)\right] \end{gathered}$$

(6)

$$z_1=\sqrt{\frac{2EI}{F_x}}\left(\sqrt{{\lambda }_1-\mathit{cos}{\theta }_{1,L_1}}-\sqrt{{\lambda }_1-1}\right),\left[{\lambda }_1>1,0\le {\theta }_{1,L_1}\le \frac{\pi }{2}\right]$$

(7)

$$z_2=\sqrt{\frac{2EI}{F_x}}\left(\sqrt{{\lambda }_2+\mathit{cos}{\theta }_{2,L_2}}-\sqrt{{\lambda }_2+1}\right)-L_d$$

(8)

where $L_d$ is the distance between points C and D (Figure 2).

From Equation (5) to Equation (8), the positions of the end point A $\left(x_1,z_1\right)$ and B $\left(x_2,z_2\right)$ can be solved. The position and orientation (also called tip angle) of the moving platform can be calculated from these two points as

$$x_M=\frac{x_1+x_2}{2},z_M=\frac{z_1+z_2}{2}$$

(9)

$$\beta ={\mathrm{t}\mathrm{a}\mathrm{n}}^{-1}\frac{x_1-x_2}{z_1-z_2}$$

(10)

To this end, the forward kinematics of the continuous robot is solved. In actual applications, however, a desired tip posture is specified, and the inverse problem becomes essential to determine the actuator lengths that correspond to the desired tip posture. From Equations (1)–(10), for given robot’s posture $\left(x_M,z_M\right)$ and β, though x₁, x₂, z₁ and z₂ can be determined by Equations (9) and (10), the actuator lengths L_a and L_b will have to be solved by elliptical integration using Equations (2) and (3), which makes the inverse kinematics a very challenging problem. For this reason, we need to explore a simplified method for real-time applications.

3. Mobility Analysis of the Continuum Robot

For the purpose of understanding the problem at hand, a mobility analysis may be necessary in order to determine the number of parameters involved in the inverse kinematics. This analysis is conducted based on a pseudo-rigid-body model that is usually feasible when the end of a flexible beam is of interest. Previous studies have validated the pseudo-rigid-body models, such as 1R [22,23,24], 2R [25], 3R [26] and PR [27].

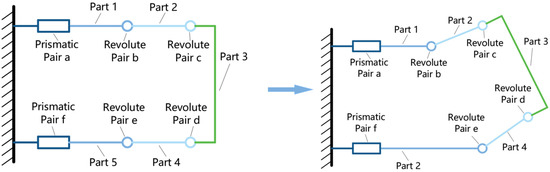

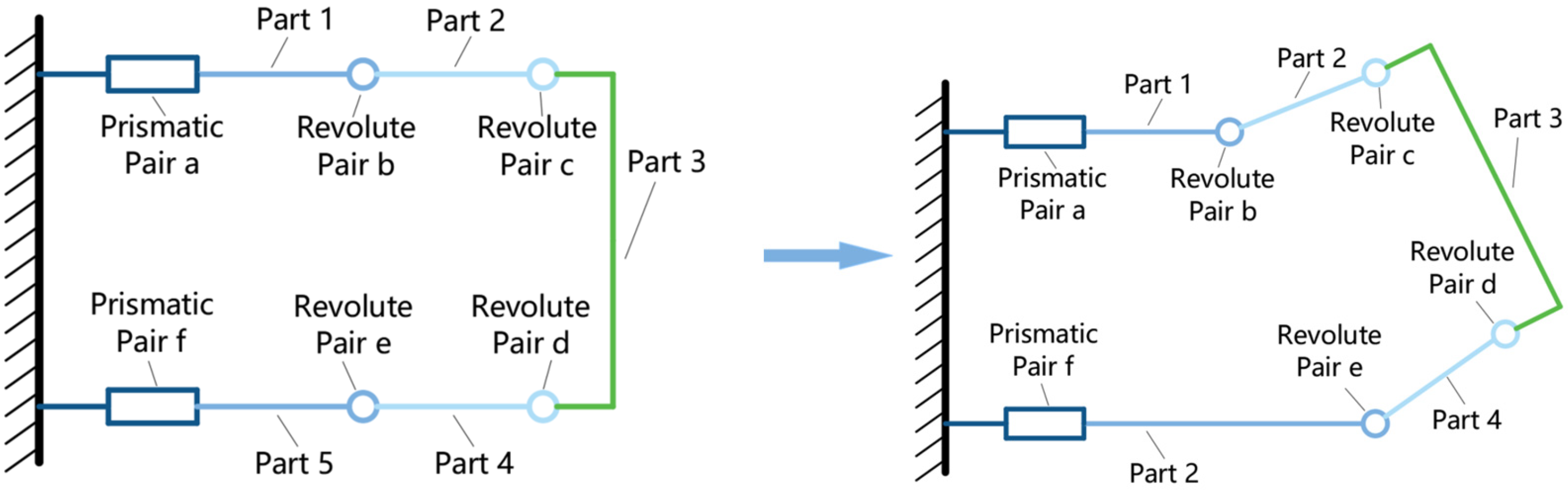

By using a 2R pseudo-rigid-body model, a sliding flexible panel can be simplified as a PRR link, with the P joint for sliding, the first R joint for bending deflection (vertical) and the second R joint for bending curvature. As shown in Figure 3, the flexible panel mechanism is modeled by five rigid parts (part 1 to part 5), two planar prismatic pairs (pair a and pair f) and four revolute pairs (pair b to pair e). Among them, pair a and pair f represent the sliding motion of the upper and lower panels driven by their respective linear actuators. Correspondingly, pair b to pair e represent the bending deflections of the two panels and their bending curvatures. With this model, the DOFs of our robot can be calculated as

$$D_f=3n-2P_L=3$$

(11)

where $D_f$ is the degrees of freedom (DOFs) of this mechanism, $n$ is the number of links, i.e., $n=5$, and $P_L$ represents the number of low pair joints, i.e., $P_L=6.$ Therefore, the DOFs of this mechanism are $D_f=3\times 5-2\times 6=3$. Thus, if three parameters, i.e., the position and orientation of the continuum mechanism X, Z and β, are fully defined, the mechanism can be well controlled. In other words, though there are only two actuators for three pose parameters, which is traditionally considered as under-actuation, the flexibility of the panels adds additional degrees of freedom that are used for full pose control of the robot, a very interesting finding that sets a base for our work on the inverse kinematics.

4. A Quasi-Rigid Model for Inverse Kinematics

Knowing that our continuum robot can realize full pose control, we propose a quasi-rigid model for solving its inverse kinematics for real-time applications. To achieve this goal, first we conducted a series of experiments by inputting the panel lengths and then measuring the end positions of the two panels by an optical coordinated machine measurement (CMM) device from Northern Digital Polaris Vicra. As shown in Figure 4a, by using the two end points A $\left(x_1,z_1\right)$ and B $\left(x_2,z_2\right)$, we can calculate the middle point of the moving platform and its orientation as defined before as $x_M$, $z_M$ and tip angle ${\beta }_{red}$ in Equations (9) and (10).

Table 1. Experimental results unit: mm.

Series1: Lb = 150;	${\mathit{x}}_{\mathit{M}}$	${\mathit{z}}_{\mathit{M}}$	${\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)$	$\frac{({\mathit{L}}_{\mathit{a}}-{\mathit{L}}_{\mathit{b}})}{{\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)}$
La = 200;	174.06	−120.79	13.38	3.737
La = 250;	193.98	−145.74	27.55	3.630
La = 300;	210.10	−175.54	40.71	3.685
La = 350;	219.17	−208.68	54.26	3.686
La = 400;	219.87	−239.81	66.56	3.756
Series2: Lb = 200;	${\mathit{x}}_{\mathit{M}}$	${\mathit{z}}_{\mathit{M}}$	${\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)$	$\frac{({\mathit{L}}_{\mathit{a}}-{\mathit{L}}_{\mathit{b}})}{{\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)}$
La = 250;	222.91	−128.43	13.95	3.584
La = 300;	243.26	−155.72	28.06	3.560
La = 350;	255.21	−191.32	41.41	3.622
La = 400;	262.07	−227.22	54.62	3.662
Series3: Lb = 250;	${\mathit{x}}_{\mathit{M}}$	${\mathit{z}}_{\mathit{M}}$	${\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)$	$\frac{({\mathit{L}}_{\mathit{a}}-{\mathit{L}}_{\mathit{b}})}{{\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)}$
La = 300;	271.85	−135.51	14.01	3.569
La = 350;	289.41	−171.09	27.71	3.609
La = 400;	300.26	−209.69	40.88	3.670
Series4: Lb = 300;	${\mathit{x}}_{\mathit{M}}$	${\mathit{z}}_{\mathit{M}}$	${\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)$	$\frac{({\mathit{L}}_{\mathit{a}}-{\mathit{L}}_{\mathit{b}})}{{\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)}$
La = 350;	319.96	−142.68	14.06	3.556
La = 400;	336.88	−183.78	27.82	3.595
Series5: Lb = 350;	${\mathit{x}}_{\mathit{M}}$	${\mathit{z}}_{\mathit{M}}$	${\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)$	$\frac{({\mathit{L}}_{\mathit{a}}-{\mathit{L}}_{\mathit{b}})}{{\mathit{\beta }}_{\mathit{r}\mathit{e}\mathit{a}}\left(\mathit{d}\mathit{e}\mathit{g}\right)}$
La = 400;	370.91	−150.14	14.25	3.509

records the experimental data in terms of panel lengths L_a and L_b. In the experiment, both panels start from 150 mm and end at 400 mm. In total, there are five series with an increment of 50 mm for L_b, and within each series L_a changes in an increment of 50 mm. For series 1, L_b is at the initial position of 150 mm and L_b changes from 200 mm to 400 mm in an increment of 50 mm. For series 2, L_b advances to 200 mm and L_a changes from 250 mm to 400 mm in an increment of 50 mm. Note that this robot is symmetric along the horizontal axis; L_a does not have to start from the initial position at 150 mm, as this case is already covered by series 1. For series 3, 4 and 5, L_b advances to 250 mm, 300 mm and 350 mm, respectively, while L_a starts after the respective L_b values for the same reason. As a result, both panels are taken into consideration.

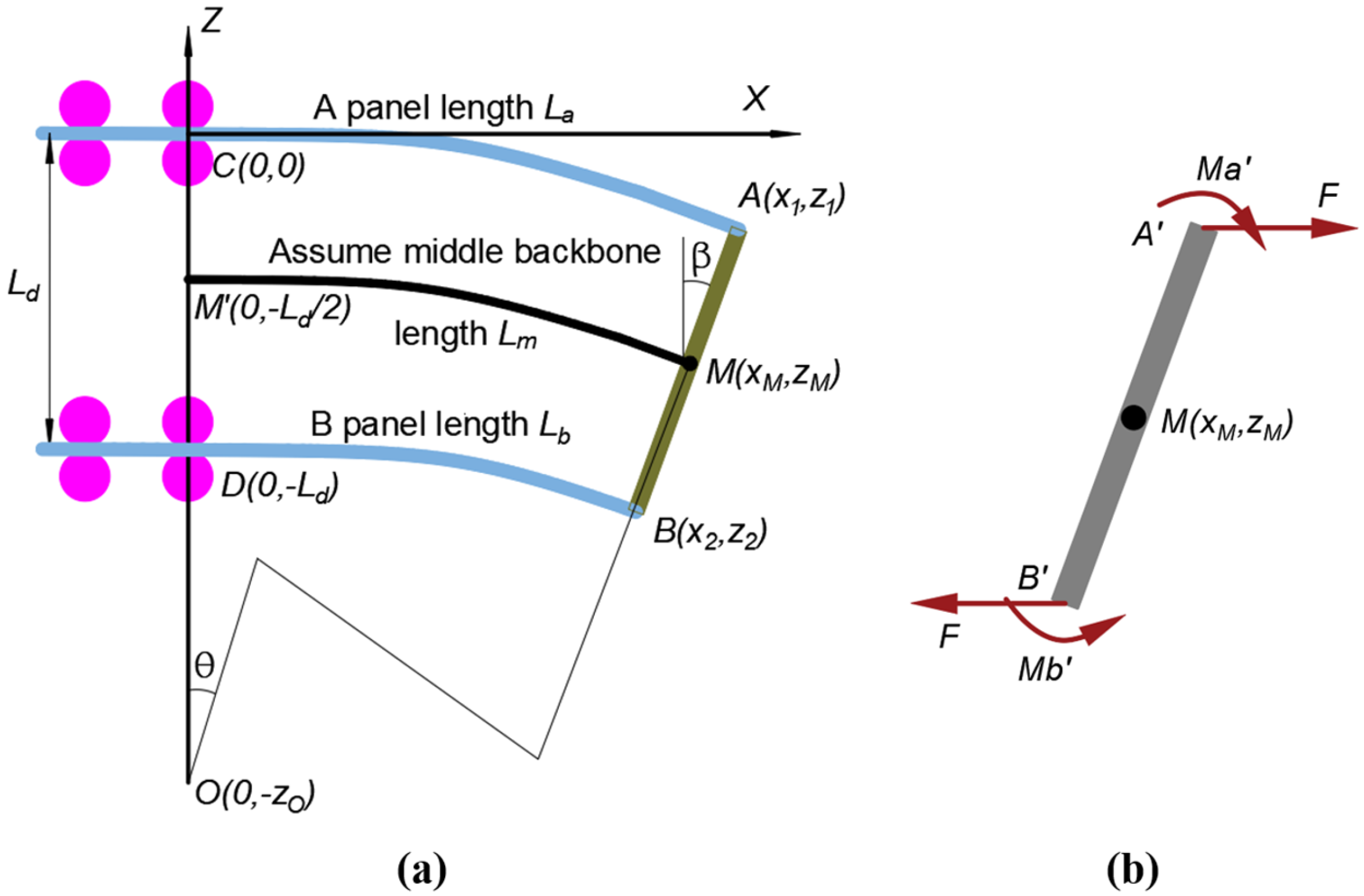

After the experiment, we wanted to delve into if a quasi-rigid model could be established. Upon comparison, one may notice that there is no centric backbone in our robot, as opposed to conventional continuum robots. For this reason, we assume a virtual backbone that runs through the middle axis of the two panels, as shown in Figure 4a. Furthermore, by examining the moving platform in terms of internal forces, there is a pushing force at point A and a pulling force at point B, or vice versa, hence forces are always balanced but only with a moment, as shown in Figure 4b. According to the Bernoulli–Euler beam theory, a beam with a pure-moment load will resemble a circular arc. This loading condition under a pure-moment scenario indicates that the middle backbone would bend into a circular shape. Therefore, we assume the shape of the middle axis (virtual backbone) is of an arc. Since the arc is perpendicular to the Z axis at the start point, the center coordinate of the arc is 0 in X direction and $z_o$ in Z direction. In other words, the middle backbone has the start point at $M^{\prime }(0,-L_d/2)$ and the end point at $M(x_M,z_M)$. Therefore, a circle equation can be written as

$$(L_d/2-z_o{)}^2={x_M}^2+(z_M+z_o{)}^2$$

(12)

from which z_o can be determined for given $x_M$ and $z_M$ as

$$z_o=\frac{x_M^2+z_M^2-\frac{L_d^2}{4}}{2z_M+L_d}$$

(13)

To this end, we have found the center of the circular arc of the middle axis of the robot. The next step is to determine the radius of the circle. This can be readily obtained by subtracting z_o by the half of the distance between the two panels, as shown in Figure 4.

$$r=-\left(z_o-\frac{L_d}{2}\right)$$

(14)

Based on the circle center, we can obtain the following relation

$$tan\theta =\frac{x_M}{\left(z_M-z_o\right)}\hspace{0.33em}\hspace{0.33em},\theta \in \left[0, \frac{\pi }{2}\right]$$

(15)

leading to the angle θ as

$$\theta =\mathit{arctan}\frac{x_M}{\left(z_M-z_o\right)}$$

(16)

Based on this angle, the arc length of the middle backbone can be determined as

$$L_m=\theta ·r$$

(17)

Now let us look at the experiment data to draw certain useful relationships.

Table 2. The length of the assumed backbone in difference ∆L (data from experiment, L_b = 0.15 m).

$∆\mathit{L}:\left(\mathbf{m}\right)$	${\mathit{X}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{Z}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{L}}_{\mathit{m}}:\left(\mathbf{m}\right)$	$\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}:\left(\mathbf{m}\right)$	${\mathit{e}}_{\mathit{L}}=$ ${\mathit{L}}_{\mathit{m}}-\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathbf{b}})}{2}$
0.05	0.1741	−0.1208	0.1750	0.1750	0.000
0.10	0.1940	−0.1457	0.1996	0.2000	−0.0004
0.15	0.2101	−0.1755	0.2255	0.2250	0.0005
0.20	0.2201	−0.2087	0.2513	0.2500	0.0013
0.25	0.2199	−0.2398	0.2714	0.2725	−0.0011

shows the length of the middle backbone under different panel lengths. In this table, $\mathrm{\Delta }L$ represents the difference between the two panels. The initial lengths of the two panels were both at 0.15 m, and panel A is pushed forward by 0.05 m for each increment. By using the previously mentioned 3D optical device, the end coordinates of the two panels were measured and the position of the moving platform $x_M$ and $z_M$ were calculated by using Equations (9) and (10). We further determined the center of the middle backbone and the radius by Equations (13) and (14), and angle θ and the middle backbone length $L_m$ by Equations (16) and (17).

Table 3. The length of assumed backbone in difference ∆L (data from experiment, L_b = 0.20 m).

$∆\mathit{L}:\left(\mathbf{m}\right)$	${\mathit{X}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{Z}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{L}}_{\mathit{m}}:\left(\mathbf{m}\right)$	$\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}:\left(\mathbf{m}\right)$	${\mathit{e}}_{\mathit{L}}=$ ${\mathit{L}}_{\mathit{m}}-\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}$
0.05	0.2229	−0.1284	0.2245	0.2250	−0.0005
0.10	0.2433	−0.1557	0.2503	0.2500	0.0003
0.15	0.2552	−0.1913	0.2742	0.2750	−0.0008
0.20	0.2621	−0.2272	0.2983	0.3000	−0.0017

,

Table 4. The length of assumed backbone in difference ∆L (data from experiment, L_b =0.25 m).

$∆\mathit{L}:\left(\mathbf{m}\right)$	${\mathit{X}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{Z}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{L}}_{\mathit{m}}:\left(\mathbf{m}\right)$	$\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}:\left(\mathbf{m}\right)$	${\mathit{e}}_{\mathit{L}}=$ ${\mathit{L}}_{\mathit{m}}-\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}$
0.05	0.2718	−0.1355	0.2741	0.2750	−0.0005
0.10	0.2894	−0.1710	0.2994	0.3000	0.0003
0.15	0.3003	−0.2097	0.3242	0.3250	−0.0009

,

Table 5. The length of assumed backbone in difference ∆L (data from experiment, L_b = 0.30 m).

$∆\mathit{L}:\left(\mathbf{m}\right)$	${\mathit{X}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{Z}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{L}}_{\mathit{m}}:\left(\mathbf{m}\right)$	$\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}:\left(\mathbf{m}\right)$	${\mathit{e}}_{\mathit{L}}=$ ${\mathit{L}}_{\mathit{m}}-\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}$
0.05	0.3200	−0.1427	0.3226	0.3250	−0.0024
0.10	0.3369	−0.1838	0.3488	0.3500	−0.0012

and

Table 6. The length of assumed backbone in difference ∆L (data from experiment, L_b =0.35 m).

$∆\mathit{L}:\left(\mathbf{m}\right)$	${\mathit{X}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{Z}}_{\mathit{m}}:\left(\mathbf{m}\right)$	${\mathit{L}}_{\mathit{m}}:\left(\mathbf{m}\right)$	$\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathbf{b}})}{2}:\left(\mathbf{m}\right)$	${\mathit{e}}_{\mathit{L}}=$ ${\mathit{L}}_{\mathit{m}}-\frac{{(\mathit{L}}_{\mathit{a}}+{\mathit{L}}_{\mathit{b}})}{2}$
0.05	0.3709	−0.1501	0.3745	0.3750	−0.0005

repeated the same experiments but with different start lengths of panel B to cover the entire motion range for our study. According to Equations (13), (14), (16) and (17), the arc length of the middle backbone can be expressed in terms of $(x_M,z_M)$, β and $L_d$ as

$$L_m=(\frac{L_d}{2}-\frac{x_M^2+z_M^2-\frac{L_d^2}{4}}{2z_M+L_d})·\mathit{arctan}(\frac{2x_M{z}_M+L_d}{z_M\left(z_M+L_d\right)-x_M^2+\frac{L_d^2}{4}})$$

(18)

The proposed inverse kinematics is based on the observation from Table 2 to Table 6. It can be found from these tables that $L_m$ and $\frac{L_a+L_b}{2}$ have very close values, from which the first approximate relation is obtained to relate the panel lengths to L_m as

$$L_m=\frac{L_a+L_b}{2}$$

(19)

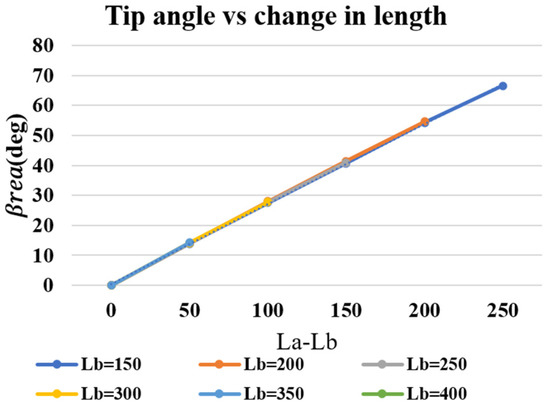

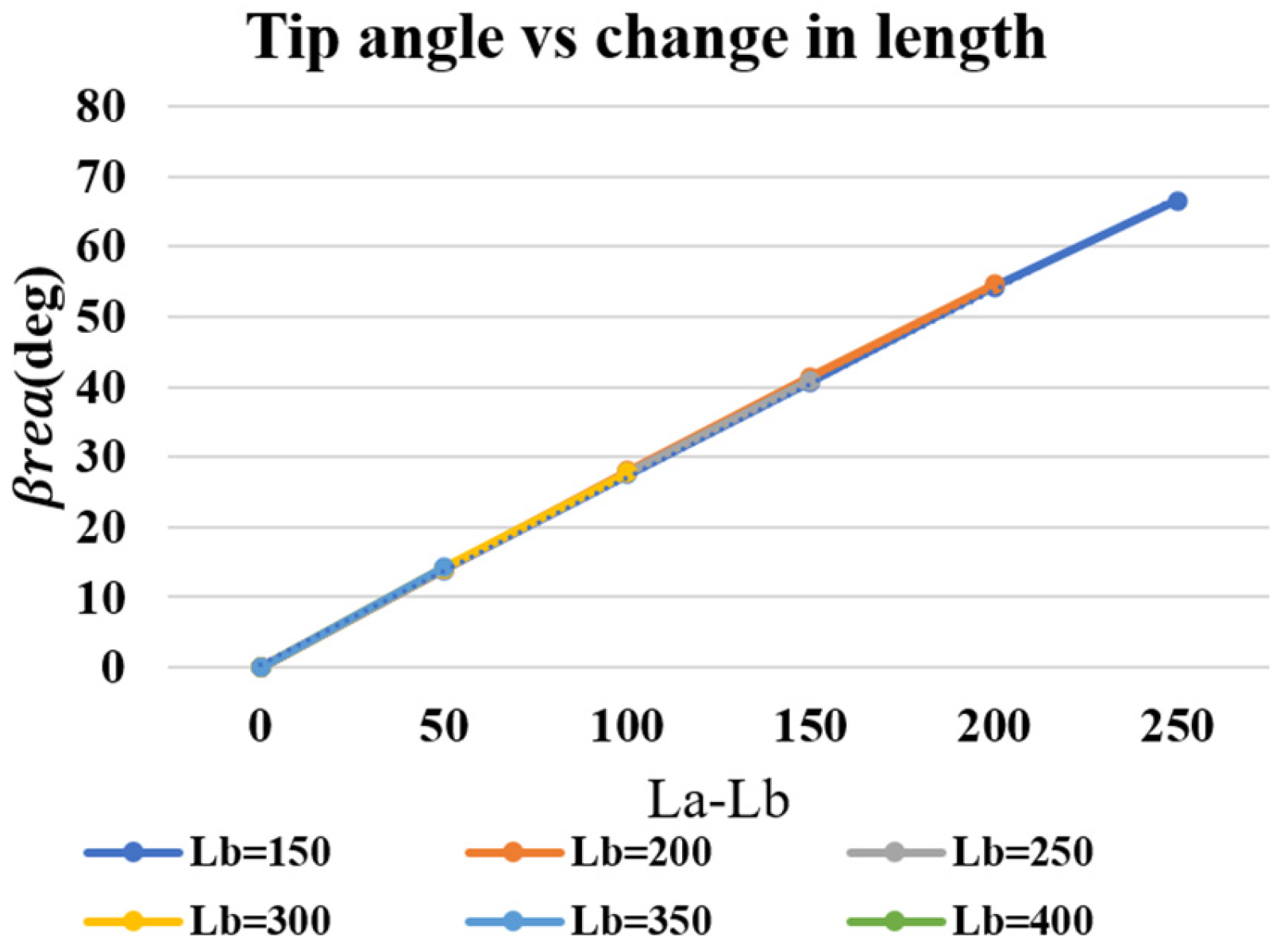

Furthermore, Figure 5 is the experiment data of Table 1 showing that the tip angle β is linearly proportional to the length difference of the two panels $∆L$ [21], from which the second approximate relationship is obtained as

$$L_a-L_b=∆L=k\beta$$

(20)

where $\beta$ is the tip angle defined before and k is the constant coefficient depending on the material of the two panels. From Equations (20) and (21), we can now solve the panel lengths as

$$L_a=L_m+\frac{k\beta }{2}$$

(21)

$$L_b=L_m-\frac{k\beta }{2}$$

(22)

To summarize, the inverse kinematic problem at hand can be solved by our proposed simplified approach as follows. For the given pose of the robot’s end-effector (moving platform), i.e., $\left(x_M,z_M\right)$ and β, Equation (19) is first used to determine L_m, and then Equation (22) and Equation (23) are used to determine the panel lengths $L_a$ and $L_b$ that will drive the robot to reach the given position $\left(x_M,z_M\right)$ and orientation angle β. Apparently, the proposed method provides an approximate closed-form solution that can be readily implemented for real-time applications. The only caveat is that k needs to be calibrated beforehand based on the panel material used.

5. Accuracy Analysis of The Method

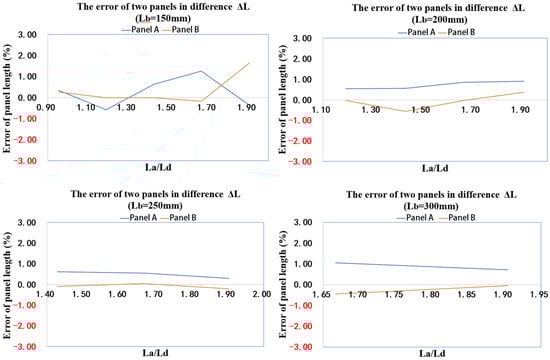

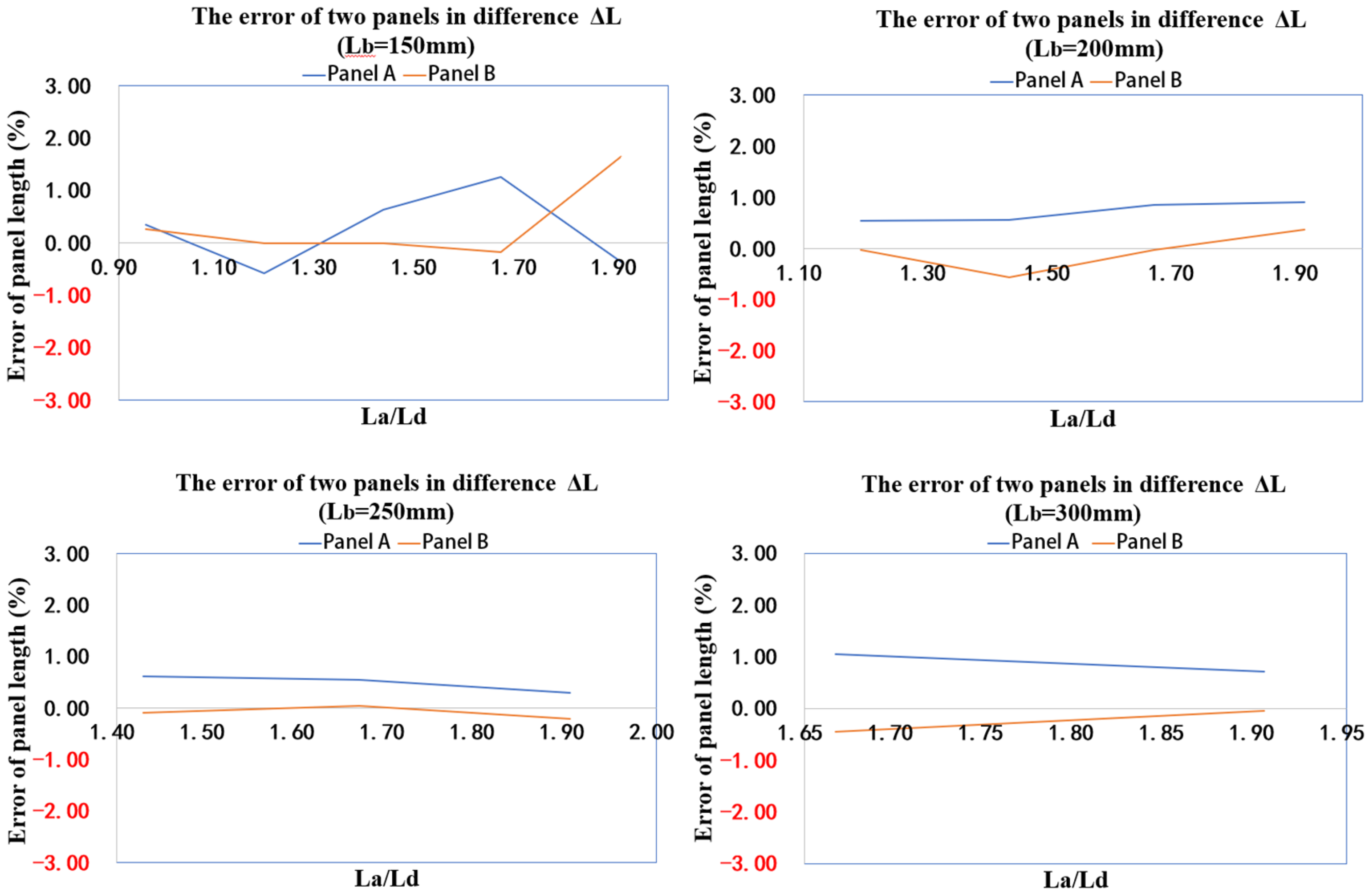

Now we have shown that the proposed inverse kinematic solution can be drastically simplified from Equations (2) and (3) involving elliptical integration to simply algebraic closed-form solutions Equations (21) and (22). The remaining part is to test its accuracy. To validate the proposed method, we use the experiment data recorded in Table 2, Table 3, Table 4, Table 5 and Table 6. In this validation, the original lengths of the two panels are taken as the actual lengths. As explained before, the original lengths were used to input to the robot and then the position and orientation of the robot were measured. For comparison, the measured robot position and orientation were used to solve the lengths using the steps described in the proceeding section. The comparison results are given in Figure 6, where the X label is $L_a/L_d$ with the length of $L_d=0.21 \mathrm{m}$ and the Y label represents the error of panel length A and B. Figure 6 has four small figures covering four cases of different L_b. It can be seen from Figure 6 that the maximum error of the simplified method is less than 2% compared to the actual input values. Therefore, we can claim our inverse kinematic method is valid and effective.

6. Conclusions

This paper presented a simplified method for solving the inverse kinematics of a continuum robot driven by flexible panels. It was shown that the planar panel continuum robot under study, though having two actuators, can control fully the position and orientation of the robot. Through experiment, two approximate relationships were obtained. First, the arc length of the middle backbone can be estimated from the arc lengths of the two panels; second, the length difference between the two panels can be related to the tip angle. Based on these two approximate relationships, a closed-form inverse kinematics method was proposed for real-time applications. The proposed method was validated by the experiment data with less than 2% of error, thereby the effectiveness of the proposed method was demonstrated.
