Performance Analysis of a Robust Controller with Neural Network Algorithm for Compliance Tendon–Sheath Actuation Lower Limb Exoskeleton

Abstract

Robotic rehabilitation of the lower limb exoskeleton following neurological injury has proven to be an effective rehabilitation technique. Developing assistive control strategies that achieve rehabilitative movements can increase the potential for the recovery of the motor coordination of the participants. In this paper, the innovative contributions are to investigate a robust sliding mode controller (SMC) with radials basis function neural network algorithm (RBFNN) compensator for a novel compliance tendon–sheath actuation lower limb exoskeleton (CLLE) to provide intrinsic thigh and shank rehabilitation training. The controller employing the RBFNN compensator is proposed to reduce the impact of friction from the compliance tendon–sheath actuation system (CTSA). In the design of the compensator, a single parameter is investigated to replace the weight information of the neural network. Our proposed controller is shown to yield fast, stable, and accurate control performance regardless of uncertainties interaction. Two additional algorithms, including a robust adaptive sliding mode controller (RASMC) and a sliding mode proportional-integral controller (SMPIC), are introduced in this paper for comparison. The simulations were presented with MATLAB/SIMULINK to validate the superiority of the performance of the proposed controller.

1. Introduction

Due to the fact that the problem of the aging population is increasing and the cost of artificial rehabilitation training is rising, lower limb exoskeleton robots for rehabilitation have become a current interest of researchers [1,2,3]. In the past, rehabilitation training for impaired lower limbs was mainly undertaken by physiotherapists, which is a labor-intensive task. Various rigid exoskeletons have been extensively implemented to free physiotherapists from heavy workloads and boost the rehabilitation training level of lower limbs in the past two decades [4], Ekso [5] and HAL [6] are representatives of them. These lower limb exoskeleton robots have similar lower limbs structure to humans, with a robotic joint axis that matches the joint axis of the human lower limb. The rigid structure allows the exoskeleton to determine the lower limb posture of the wearer and to ensure that the controlled torque is applied to each joint separately. However, some substantial deficiencies in rigid structural exoskeletons, such as their large weight, high inertia, and joint misalignment, seriously affect practicality and safety. The above-proposed prototypes do not address this issue.

In follow-up studies, flexible transmission systems, such as CTSA, have been employed in [7,8,9] to separate the actuator from the exoskeleton to reduce the bodyweight of the exoskeleton. In [10,11,12], soft exoskeletons based on CTSA, which are lightweight and have lower inertia, were developed to assist the rehabilitation of patients. The field of research for compliance tendon–sheath actuation lower limb exoskeleton is worthy of investigation. In the literature, the friction problem caused by CTSA was also introduced, which is the main issue for engineering applications. The friction of CTSA is caused by the changing of the tendon–sheath bending angle, which renders the torque and displacement transmission of CTSA difficult. Proposing a robust control strategy that can describe and manage these uncertainties in a lower limb exoskeleton has been a central concern of researchers.

Controllers are essential for both upper and lower limb exoskeleton robots [13,14,15]. Wu et al. [16] investigated a tendon–sheath-actuated exoskeleton with an anthropomorphic structure using the PID method. The robust adaptive PD controller and the fuzzy PID controller for tracking the trajectory and assisting in the rehabilitation of the exoskeleton were proposed by Rosales Luengas et al. [17] and Sharma R et al. [18]. Many attempts have been made to implement SMC in an exoskeleton system. In [19], a learning control scheme for an upper-limb exoskeleton via the adaptive SMC technique was proposed to accomplish passive rehabilitation therapy tasks for the wearable six-degrees of freedom (DOF) upper limb exoskeleton. Amir Razzaghian [20] investigated a novel fractional-order Lyapunov-based robust SMC based on a fuzzy neural network compensator for exoskeleton robotic systems, which can improve the closed-loop system accuracy. Wu Q et al. [21] investigated a higher-order perturbation observer to estimate unknown composite perturbations and combined it with an adaptive sliding mode controller (ASMC) to achieve the rehabilitation of the human body. In the literature [22], a self-adaptive-coefficient double-power SMC combined with an estimated dynamic model was investigated to eliminate disturbances during operation due to environmental factors. The above studies show that the uncertainties are relatively pronounced in the exoskeleton system. For the lower limb exoskeleton based on CTSA, approaches that can effectively eliminate the effects of not only uncertainties but also friction are extremely required. In this paper, an SMC that employs neural networks was proposed to approximate and compensate for friction and uncertainties, which can effectively improve the engineering value of an exoskeleton based on CTSA.

Neural networks with function-learning capabilities can effectively simplify complex mathematical analysis problems and are effective methods to solve nonlinear control problems. In the literature [23], a sliding mode controller based on an adaptive higher-order neural network has been proposed for realizing precise position-tracking control of a hydraulic rotary drive joint. In [24], a Genetic Algorithm–Back propagation (GA–BP) neural network was proposed to estimate the motion intention of the wearer through electromyography (EMG) signals. Radial basis function neural networks (RBFNN), as one branch of neural networks, can effectively improve the performance of controllers in control of multiple-input–multiple-output (MIMO) nonlinear systems. In [25,26], adaptive RBFNN controllers were investigated for the class of MIMO nonlinear robot manipulators. Liu. Q et al. [27] investigated two kinds of adaptive bias RBFNN control schemes, which are the local bias scheme and the global bias scheme, to remedy the negative influence of the bias of the dynamics. In [28], a novel neural output feedback trajectory tracking controller for robotic exoskeletons was proposed. However, up to now, few researchers have utilized RBFNN to approximate time-varying friction and the uncertainties of lower limb exoskeletons, which possess ample potential and prospects.

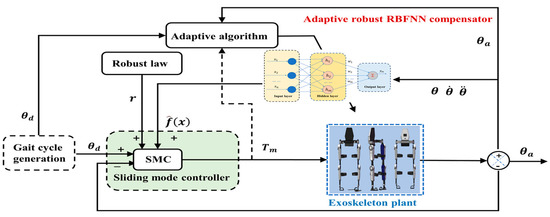

Thus, the innovation of this paper is to investigate a robust adaptive SMC with an RBFNN compensator to approximate and compensate for the uncertainties and time-varying friction. Moreover, the model of the CLLE is developed, and the model information for the hip and knee joints have been analyzed. In the compensator design, a single parameter is investigated to replace the weight information of the neural network, which implements adaptive control based on parameter estimation and can effectively simplify the adaptive algorithm.

The structure of this paper can be divided into the following parts: In Section 2, the model of CLLE is analyzed and developed. In Section 3, an adaptive SMC with RBFNN compensator is investigated, and the stability is proven by employing the Lyapunov method. The model information and the specific parameters of the controllers are introduced in Section 4. Section 5 shows the parameters of the numerical simulations. Section 6 and Section 7 provides the results and discussions at the end.

2. Description and Modeling of CLLE

In this section, the model of CLLE is investigated by combining it with two models: the dynamic model and the friction model. The dynamic model is used to describe the relationship between the joint angles and the torque applied to the joints. The friction model is used to describe the frictional consumption of the CTSA.

2.1. Dynamic Model and Friction Model

The Newton–Euler method and the Legrangian formulas have been used to discover the dynamic model of the system by preceding researchers [29]. The behavior of the lower limb exoskeletons model can be effectively described with the aid of Lagrangian approaches. The dynamic equations for the hip and knee joints in the sagittal plane can be derived from the Lagrangian method. Figure 1 shows a schematic diagram of the simplified mechanical structure of the lower limb exoskeleton, where each leg consists of 3-DOF and the DOF of the ankle is passive. The dynamics of the model are also depicted in Figure 1; the hip and knee angles are considered to be ${\theta }_1$ and ${\theta }_2$, respectively.

According to the Lagrange formula and refs [29], $K$ and $P$ are given as the total kinetic and potential energy of the system, the Equation is given as follows:

$$L=K_{{\theta }_i}-P_{{\theta }_i}$$

(1)

$$T_i=\frac{d}{dt}\left(\frac{\partial L}{\partial {\dot{\theta }}_i}\right)-\left(\frac{\partial L}{\partial {\theta }_i}\right)$$

(2)

where $L$ is the Lagrange function, $K_{{\theta }_i}$ and $P_{{\theta }_i}$ are the total kinetic and potential energy of the system, respectively. $T_i$ represents the actual torques applied to the hip and knee joints, ${\theta }_i$ and ${\dot{\theta }}_i$, indicating the rotation angle and angular velocity of the joints, respectively, where i = 1, 2. The total kinetic and potential energy can be calculated and written as follows:

$$E_{K_{{\theta }_i}}={\displaystyle \sum }_{i=1}^2([\frac{1}{2}{I}_i{\dot{\theta }}_i^2+\frac{1}{2}{m}_i\left({\dot{x}}_i^2+{\dot{y}}_i^2\right)])$$

(3)

$$E_{P_{{\theta }_i}}={\displaystyle \sum }_{i=1}^2(m_i{y}_{i}g)$$

(4)

where i = 1, 2, $m_i$ denotes the mass of the thigh and shank and $I_i$ denotes the rotational inertia. $x_i$ and $y_i$ are the centroid position of the linkage. ${\dot{x}}_i$ and ${\dot{y}}_i$ are the centroid velocity of the thigh and shank in the horizontal and vertical orientation, which can be derived from the geometric relationship of the robotic model. Based on the above formulas (1)–(4), the dynamic model in the sagittal plane is given as follows:

$$T=M\left(\theta \right)\stackrel{..}{\theta }+C\left(\theta ,\dot{\theta }\right)\dot{\theta }+G\left(\theta \right)+\tau$$

(5)

where T denotes the 2 $\times$ 1 vector of the torque applied to the two active joints, $\theta =\left[{\theta }_1 {\theta }_2 \right]$, $M\left(\theta \right)\in R^{2\times 2}$ denotes the symmetric positive definite inertia matrix, the $\mathrm{C}\left(\mathsf{\theta },\dot{\mathsf{\theta }}\right)\in R^{2\times 2}$ denotes the Coriolis and centripetal matrix, $\tau$ denotes the external disturbances, and $\mathrm{G}\left(\mathsf{\theta }\right)\in R^{2\times 1}$ represents the gravity vector.

In [30,31,32,33,34], previous researchers have analyzed the characteristic of CTSA. A diagram of the overall structure of the double tendon–sheath system applied to CTSA is shown in Figure 2. As shown in Figure 1 and Figure 2, the complete CLLE structure mainly consists of four units of double tendon–sheath systems. Each leg of the exoskeleton consists of two compliant tendon–sheath drive units located at the back of the waist above the belt and brace, four tendon–sheath supports, four anchor points, and two guidance mechanisms. In this study, CTSA [21,34] is used for actuation in the lower limb exoskeleton.

For the double tendon–sheath system, assuming that the elongation of the tendon in the double tendon–sheath system keeps within the elastic limit, it can be concluded that the elongation summation of tendons a and b approaches zero. According to previous research [34,35], the friction model in the transmission system can be obtained as follows:

$$F\left(\Theta ,\dot{\theta }\right)=\{\begin{array}{cc}sign\left(\dot{\theta }\right)2T_0{r}_1\mu \Theta ,& \dot{\theta }\left(t\right)\ne 0\\ F\left(\Theta ,\dot{\theta }\right)\left(t^{-1}\right),& \dot{\theta }\left(t\right)=0 \end{array}$$

(6)

where $T_0$ is the pretension of the initial tendon–sheath system, and $F\left(\theta ,\dot{\theta }\right)\left(t^{-1}\right)$ are the friction torque at a moment before $t$. $\mu$ denotes the friction constant between the tendons and sheaths. $\Theta$ represents the bending angle of the CTSA system, which is hard to obtain in engineering applications.

2.2. Model of CLLE

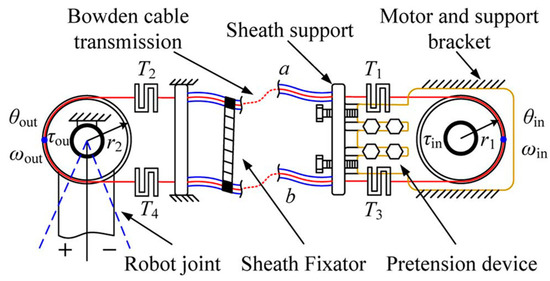

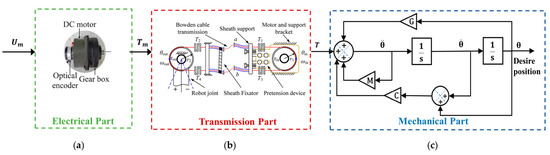

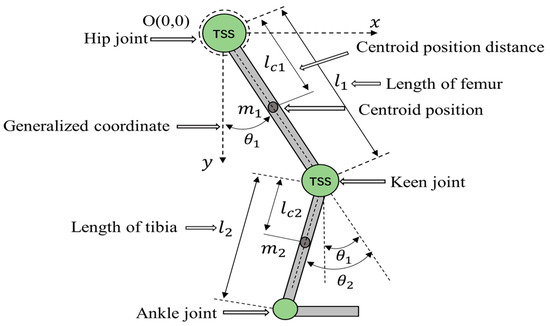

Figure 3 demonstrates the basic structure of the CLLE, including the electrical part, transmission part, and mechanical part. In Figure 3, $U_m$ represents the input voltage of the DC motor, $T_m$ is the input torque of the transmission system, and $T$ represents the torque applied on each joint. In this paper, the discussion mainly focuses on the controller that eliminates the negative friction effects, so the details of the electrical part will not be analyzed.

From Figure 3, the torque $T$, which is applied to the joints can be expressed as $T=T_m-F\left(\Theta ,\dot{\theta }\right)$. Substituting it into Equations (5) and (6), the model of CLLE is given as follows:

$$T_m=M\left(\theta \right)\ddot{\theta }+C\left(\theta ,\dot{\theta }\right)\dot{\theta }+G\left(\theta \right)+\tau +F\left(\Theta ,\dot{\theta }\right)$$

(7)

According to Equations (6) and (7), it can be inferred that the radius of the pulleys, the pretension of the tendon, the total bending angle, and the friction coefficient are the main factors that determine the characteristics of torque transmission. Nevertheless, in practical application, the bending angle of CTSA will constantly change during operation, which will lead to notable variations in torque transmission. Meanwhile, it is hard to construct a real-time measurement system for detecting changes in the bending angle. Therefore, in order to eliminate the effects, a robust adaptive SMC with RBFNN compensator is proposed. The proposed controller can significantly approximate time-varying friction and satisfy the demands of CCLE.

3. Controller Design

Sliding mode controllers (SMC) are popular in robotic control systems [36]. In this section, a robust adaptive SMC with an RBFNN algorithm compensator was introduced to eliminate the effects of uncertainties and friction in the CLLE. The universal approximation characteristic of RBFNN was utilized to enable SMC to implement enhanced performance. Figure 4 shows the scheme of SMC with the compensator.

3.1. SMC Design

The desired and actual angle position are defined as ${\theta }_d$ and $\theta \left(t\right)$ and the desired trajectories error as $e\left(t\right)$, which can be expressed as follows:

$$e\left(t\right)={\theta }_d\left(t\right)-\theta \left(t\right)$$

(8)

The sliding mode function, $s$, can be defined as follows:

$$s=\dot{e}\left(t\right)+\lambda e\left(t\right)$$

(9)

Differentiating $e$ with respect to $t$ and substituting it into Equation (9) can obtain the following:

$$s={\dot{\theta }}_d\left(t\right)-\dot{\theta }\left(t\right)+\lambda e\left(t\right)$$

(10)

Differentiate $s$ with respect to $t$,

$$\dot{s}={\ddot{\theta }}_d\left(t\right)-\ddot{\theta }\left(t\right)+\lambda \dot{e}\left(t\right)$$

(11)

Multiply both sides of the Equation by the matrix $M\left(\theta \right)$ at the same time and substitute Equation (7) into it, then Equation (11) can be rewritten as follows:

$$\begin{gathered} M\left(\theta \right)\dot{s}=M\left(\theta \right)\left({\ddot{\theta }}_d+\lambda \dot{e}\right)+C\dot{\theta }+G\left(\theta \right)+F\left(\Theta ,\dot{\theta }\right)+\tau -T_m \\ =M\left(\theta \right)\left({\ddot{\theta }}_d+\lambda \dot{e}\right)+C({\dot{\theta }}_d+\lambda e)-C\cdot s+G+F\left(\Theta ,\dot{\theta }\right)+\tau -T_m \end{gathered}$$

(12)

The uncertain terms in Equation (12) can be defined as a tag function $f$, which can be written as folows:

$$f=\mathsf{\Delta }M\left(\theta \right)\left({\ddot{\theta }}_d+\lambda \dot{e}\right)+∆\mathrm{C}\left({\dot{\theta }}_d+\lambda e\right)+\mathsf{\Delta }G+F\left(\Theta ,\dot{\theta }\right)$$

(13)

where the tag function $f$ includes the modeling errors terms $\mathsf{\Delta }M$ and $∆\mathrm{C}$, the disturbances term $\mathsf{\Delta }G$ and time-varying friction term $F\left(\Theta ,\dot{\theta }\right)$, respectively. The tag function $f$ is unknown and needs to be approximated. The neural network learning method is adopted here, the upper bound estimated value of the neural network is taken as the estimated value of the neural network, and the adaptive law of parameter estimation is used to replace the weight adjustment of the neural network for approximating the tag function $f$.

3.2. Neural Network Framework

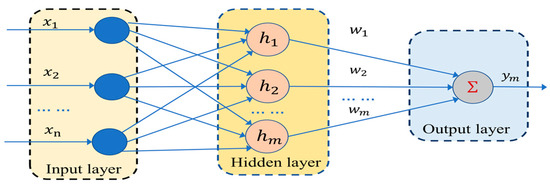

The control system for CLLE robots can be regarded as a multi-input and multi-output (MIMO) model system. For the MIMO system, the neural network is capable of learning complex models online or offline through forward and reverse dynamic behaviors by adapting to changes in the environment design. The RBFNN is investigated here as a controller compensator. As shown in Figure 5, the radial basis function neural network consists of three layers, which are the input layer, hidden layer, and output layer, respectively.

The neuron activation function of the hidden layer is composed of radial basis functions, and the array operation unit is the hidden layer node. Each hidden layer node includes a center vector with the same dimension as the input parameter vector. The nonlinear activation function is designed for the output of the hidden layer as $h_j\left(t\right)$, which can be expressed as follows:

$$h_j\left(t\right)=\mathit{exp}\left(-\frac{\parallel x_j\left(t\right)-c_j{\left(t\right)\parallel }^2}{2b_{ij}^2}\right), i,j=1,\cdots ,m$$

(14)

where $b_{ij}$ is a positive scalar representing the width of the Gaussian function and $m$ is the number of hidden layer nodes. $c_j$, the coordinate vector of the center of the Gaussian function in the hidden layer neuron. $x_j\left(t\right)$ denotes the network input signal. The Weighting function, $y_i\left(t\right)$, is investigated to achieve neural network output, which can be defined as follows:

$$y_i\left(t\right)={\displaystyle \sum }_{j=1}^m{w}_{ji}{h}_j\left(t\right),i=1,\cdots ,n$$

(15)

where $w$ is the weight of the output layer, $n$ and $y_i$ represent the number of the output layer nodes and the output of the neural network. A radial basis function neural network was constructed to approximate the function $f$, the specific method is as follows, define $f$ in a neural network as follows:

$$f_i=W^T{h}_i\left(t\right)+\epsilon$$

(16)

where $W\in R^{1\times m}$ represents the vector of the weight of the output layer. $\epsilon$ indicates the neural network approximation error, which is assumed to be $\left|\epsilon \right|\le {\epsilon }_N$. According to the output of the neural network and function $f$ in the neural network, assuming that the estimated value of function $f$ of the neural network is defined as $\widehat{f_i}$, it can be written as follows:

$$\widehat{f_i}=W_i{}^T{h}_i\left(t\right)+\epsilon$$

(17)

3.3. Control Law

According to the estimated value of function $f$ of the neural network in Section 3.2 and the model of CLLE, $f_i$ and $\widehat{f_i}$ can be defined as follows:

$$f\left(x\right)={\left[\begin{array}{ll}{f}_1\hfill & f_2\hfill \end{array}\right]}^T=\left[\begin{array}{l}{w}_1^{\top }{h}_1+{\epsilon }_1\hfill \\ w_2^{\top }{h}_2+{\epsilon }_2\hfill \end{array}\right]=\left[\begin{array}{l}{w}_1^{\top }{h}_1\hfill \\ w_2^{\top }{h}_2\hfill \end{array}\right]+\epsilon$$

(18)

where $\epsilon ={[{\epsilon }_1 {\epsilon }_1]}^{\mathrm{T}}$. According to Equations (14) and (18), the network input signals were defined as $x_i=\left[e_i\dot{ e_i} q_{di} \dot{q_{di}} \ddot{q_{di}}\right]$ and $x={\left[x_1 x_2\right]}^{\mathrm{T}}$, where i = 1, 2 denotes the number of joints.

The weight of the output layer was defined as $w_1 w_2$ and the estimated weight value as ${\hat{w}}_1 {\hat{w}}_2$. Assuming that the error of the weight function is ${\tilde{w}}_{ }$,

$${\tilde{w}}_{ }=\left[\begin{array}{c}{w}_1-{\hat{w}}_1\\ w_2-{\hat{w}}_2\end{array}\right], \parallel {w_{\mathrm{i}}\parallel }_F⩽\max \left\{w_1\cdot w_2\right\}$$

(19)

Taking a normal number, $\phi$, which can be defined as $\phi ={\max }_{i=1,2}\left\{\parallel w_{\mathrm{i}}{\parallel }^2\right\}$ and $\tilde{\phi }=\hat{\phi }-\phi$, $\hat{\phi }$, represents the estimated value of $\phi$. The control law is investigated as follows:

$$T_m=\frac{1}{2}\hat{\phi }s{h}_1^T{h}_1+k_{v}s-r$$

(20)

where $k_v$ denotes the control parameter and $r$ represents the robust term for overcoming the approximation error of the neural network. $r$ can be defined as $r=-\left({\mathsf{\epsilon }}_N+b_d\right)sgn\left(s\right).$ Substituting Equations (13) and (20) into Equation (12), the following can be obtained:

$$M\left(\theta \right)\dot{s}=-\left(k_v+C\right)s-\frac{1}{2}\hat{\phi }s\cdot h_1^{\mathrm{T}}{h}_1+\left(f+\tau \right)+r$$

(21)

The formula in Equation (9) defines that $S={[s_1 s_2]}^T$, $E\left(t\right)={[e_1 e_2]}^T$, $\dot{E}\left(t\right)={[\dot{e_1} \dot{e_2}]}^T$ and ${\lambda }^{\prime }$=$\left[\begin{array}{ll}{\lambda }_1\hfill & \hfill \\ \hfill & {\lambda }_2\hfill \end{array}\right]$, ${\lambda }_1,{\lambda }_2>0$. Then Equation (9) can be described as $S=E\left(t\right)+{\lambda }^{\prime }\dot{E}\left(t\right)$. Based on Equation (18) and the model of CCLE, the following can be obtained:

$$M\left(\theta \right)\dot{S}=-\left(k_v+C\right)S-\frac{1}{2}\hat{\phi }S\circ H+\left(f+\tau \right)+r$$

(22)

where $H\in R^{1\times 2}={[h_1{}^T{h}_1 h_2{}^T{h}_2]}^T$ denotes the nonlinear activation function of joints. $S\circ H$ can be expressed as, $S\circ H={[s_1{h}_1{}^T{h}_1 s_2{h}_2{}^T{h}_2]}^T$.

3.4. Proof of Lyapunov Stability

A Lyapunov function V is designed as follows:

$$\{\begin{array}{l}V=V_1+V_2\hfill \\ V_1=\frac{1}{2}{S}^{\mathrm{T}}MS\hfill \\ V_2=\frac{1}{2}\frac{1}{\beta }{\stackrel{、}{\phi }}^2\hfill \end{array}$$

(23)

Calculating the derivative of the first term $V_1$, one obtains the following:

$$\begin{array}{ll}{\dot{V}}_1\left(t\right)& =\frac{1}{2}{\dot{S}}^{\mathrm{T}}MS+\frac{1}{2}{S}^{\mathrm{T}}M\dot{S}+\frac{1}{2}{S}^{\mathrm{T}}\dot{M}S\\ & =S^{\mathrm{T}}\left[-\left(k_v+C\right)S-\frac{1}{2}\widehat{\phi }S\circ H+\left(f+{\tau }_d\right)+r\right]+\frac{1}{2}{S}^{\mathrm{T}}\dot{M}S\\ & =S^{\mathrm{T}}\left[-K_{v}S-\frac{1}{2}\widehat{\phi }S\circ H+W_h+\left(\epsilon +{\tau }_d+r\right)\right]+\frac{1}{2}{S}^{\mathrm{T}}\left(\dot{M}-2C\right)S\\ & =S^{\mathrm{T}}\left[-\frac{1}{2}\widehat{\phi }S\circ H+W_h\right]-S^{\mathrm{T}}{k}_{v}S+S^{\mathrm{T}}\left(\epsilon +{\tau }_d+r\right)\end{array}$$

(24)

where $W_h={[w_1{}^T{h}_1 w_2{}^T{h}_2]}^T$. M(θ) ∈ e × 2 denotes the symmetric positive definite inertia matrix, and based on the Matrix characteristics, the following is obtained:

$$S^T\left(\dot{M}-2C\right)S=0$$

(25)

Therefore, it can be defined as follows:

$$S^{\mathrm{T}}\left(\epsilon +{\tau }_d+r\right)=S^{\mathrm{T}}\left(\epsilon +{\tau }_d-\left({\epsilon }_N+b_d\right)\mathrm{sg}n\left(s\right)\right)⩽0$$

(26)

Let $S^{\mathrm{T}}{k}_{v}S\ge 1$, one obtains,

$$\begin{array}{ll}{S}^2\phi h_i^{\mathrm{T}}{h}_i+1\hfill & =S^2\parallel W{\parallel }^2{h}_i^{\mathrm{T}}hi+1\hfill \\ \hfill & =S^2\parallel W{\parallel }^2\parallel h_i{\parallel }^2+1\hfill \\ \hfill & =S^2{\parallel W^{\mathrm{T}}{h}_i\parallel }^2+1⩾2S{W}^T{h}_i\hfill \end{array}$$

(27)

Thus, $\frac{1}{2}{S}^2{\parallel W^{\mathrm{T}}{h}_i\parallel }^2+\frac{1}{2}⩾S{W}^{T}h$. Since $S^{\mathrm{T}}{W}_h=\left[s_1 s_2\right]$ ${[w_1{}^T{h}_1 w_2{}^T{h}_2]}^T={{\displaystyle \sum }}^{ }{s}_i{w}_i^T{h}_i\left(i=1,2\right)$. According to Equation (27), we achieve,

$$S^{\mathrm{T}}{W}_h\le \frac{1}{2}\phi {{\displaystyle \sum }}^{ }{s}_i{w}_i^T{h}_i\left(i=1,2\right)++\frac{n}{2}$$

(28)

From Equation (22), $S^{\mathrm{T}}\left[-\frac{1}{2}\hat{\phi }S\circ H\right]$ can also be transferred to

$$\begin{gathered} S^{\mathrm{T}}\left[-\frac{1}{2}\hat{\phi }S\circ H\right]=-\frac{1}{2}\hat{\phi }\left[s_1{s}_2\right]\left[\begin{array}{l}{s}_1{h}_1^{\top }{h}_1\hfill \\ s_2{h}_2^{\top }{h}_2\hfill \end{array}\right]=-\frac{1}{2}\hat{\phi }\left(s_1^2{\parallel h_1\parallel }^2+s_2^2{\parallel h_2\parallel }^2\right) \\ =-\frac{1}{2}\hat{\phi }{{\displaystyle \sum }}^{ }{ }_{i=1}^n{s}_i^2{\parallel h_{\mathrm{i}}\parallel }^2 \end{gathered}$$

(29)

Thus, $S^{\mathrm{T}}\left[-\frac{1}{2}\hat{\phi }S\circ H\right]\le 0$ is satisfied. As ${\dot{V}}_2=\frac{1}{\beta }\tilde{\phi }\dot{\hat{\phi }}$, we obtain,

$$\dot{V}={\dot{V}}_1+{\dot{V}}_2⩽-\frac{1}{2}\widehat{\phi }{{\displaystyle \sum }}_{i=1}^n{s}_i^2\parallel h_i{\parallel }^2+\frac{1}{2}\phi {{\displaystyle \sum }}_{i=1}^n{s}_i^2{h}_i^{\mathrm{T}}{h}_i+\frac{n}{2}+\frac{1}{\beta }\tilde{\phi }\dot{\widehat{\phi }}-S^T{K}_{v}S$$

(30)

$$=-\frac{1}{2}\tilde{\phi }{{\displaystyle \sum }}_{i=1}^n{S}_i^2\parallel h_i{\parallel }^2+\frac{n}{2}+\frac{1}{\beta }\tilde{\phi }\dot{\widehat{\phi }}-S^T{K}_{v}S$$

$$=\tilde{\phi }\left(-\frac{1}{2}{{\displaystyle \sum }}_{i=1}^n{s}_i^2\parallel h_i{\parallel }^2+\frac{1}{\beta }\dot{\widehat{\phi }}\right)+\frac{n}{2}-S^T{K}_{v}S$$

Then the adaptive control law is investigated as follows:

$$\dot{\widehat{\phi }}=\frac{\beta }{2}{{\displaystyle \sum }}_{i=1}^n{s}_i^2\parallel hi{\parallel }^2$$

(31)

The A Lyapunov function V can be rewritten as follows:

$$\dot{V}=\frac{n}{2}-S^T{K}_v{S}_{ }$$

(32)

Considering that the model of CLLE, $n=2$ is determined. From Equations (30) and (32), one obtains the following:

$$\dot{V}=\frac{n}{2}-S^{\mathrm{T}}{k}_{v}S=1-S^{\mathrm{T}}{k}_{v}S$$

(33)

To ensure the Lyapunov function V and $\dot{V}⩽0$, we can define the parameter of $k_v$ to make $\frac{n}{2}⩽S^{\mathrm{T}}{k}_{v}S$ stand. Therefore, we obtain the following:

$$\dot{V}⩽\frac{n}{2}-S^{\mathrm{T}}{k}_{v}S⩽0$$

(34)

Therefore, the Lyapunov function V will continuously decrease, and the system will be stable. Then the proposed controller of the CLEE system is convergent and stable over time.

4. Model and Controller Identification

4.1. Model Parameters Identification

The model of CLLE is proposed in Equation (7). Actually, the parameters $M\left(\theta \right)$, $C\left(\theta \right)$, and $G\left(\theta \right)$ are formulated in the following specific form.

$$M\left(\theta \right)=\left[\begin{array}{ll}{I}_1+I_2+m_1{l}_{c1}^2+m_2{l}_1^2+m_2{l}_{c2}^2+2m_2{l}_1{l}_{c2}\cos {\theta }_2\hfill & I_2+m_2{l}_{c2}^2+m_2{l}_1{l}_{c2}\cos {\theta }_2\hfill \\ I_2+m_2{l}_{c2}^2+m_2{l}_1{l}_{c2}\cos {\theta }_2\hfill & I_2+m_2{l}_{c2}^2\hfill \end{array}\right]$$

(35)

$$C\left(\theta \right)=\left[\begin{array}{ll}-2m_2{l}_1{l}_{c2}\sin {\theta }_2\cdot {\dot{\theta }}_2\hfill & -m_2{l}_1{l}_{c2}\sin {\theta }_2\cdot {\dot{\theta }}_2\hfill \\ m_2{l}_1{l}_{c2}\sin {\theta }_2\cdot {\dot{\theta }}_1\hfill & 0\hfill \end{array}\right]$$

$$G\left(\theta \right)=\left[\begin{array}{c}-m_{1}g{l}_{c1}\sin {\theta }_1-m_{2}g{l}_1\sin {\theta }_1-m_{2}g{l}_{c2}\sin \left({\theta }_1+{\theta }_2\right)+d_1\\ -m_{2}g{l}_{c2}\sin \left({\theta }_1+{\theta }_2\right)+d_2\end{array}\right]$$

where $I_{\mathrm{i}}\left(i=1,2\right)$ denotes the moment of inertia with the rectus thighs and shank, $g$ denotes the gravitational acceleration, and $d_1$ and $d_2$ represent the external disturbance of gravity on the thigh and shank, respectively.

4.2. Design of SMPIC and RASMC

The superiority of the proposed method is demonstrated when compared with the other two controllers. The classic sliding mode proportional-integral controller (SMPIC) and the robust adaptive sliding mode controller (RASMC) are chosen.

SMPIC was designed as follows. Define $e^{\prime }\left(t\right)={\theta }_d\left(t\right)-\theta \left(t\right)$ and $s^{\prime }=\dot{e^{\prime }}\left(t\right)+\gamma e^{\prime }\left(t\right)$. Assuming that $E^{\prime }\left(t\right)={[{e^{\prime }}_1 {e^{\prime }}_2]}^T$, $\dot{E^{\prime }}\left(t\right)={[\dot{{e^{\prime }}_1} \dot{{e^{\prime }}_2}]}^T$, ${\gamma }^{\prime }$=$\left[\begin{array}{ll}{\gamma }_1\hfill & \hfill \\ \hfill & {\gamma }_2\hfill \end{array}\right]$, ${\gamma }_1,{\gamma }_2>0$. Therefore, the law of SMPIC is designed as follows:

$$T_m^{\prime }=T+k_p{s}^{\prime }+k_i{{\displaystyle \int }}^{ } s^{\prime }dt+{\tau }_s$$

(36)

where $k_p$ and $k_i$ are the proportional gain and the integral gain, which are $k_p>0$ and $k_i>0$. ${\tau }_s$ represents the robust term and ${\tau }_s=k_{s^{\prime }}sgn\left(s^{\prime }\right)$. Substituting it into Equation (12), we can obtain the following:

$$M\left(\theta \right){\dot{S}}^{\prime }+\mathrm{C}\left(\theta ,\dot{\theta }\right)S^{\prime }+k_i{{\displaystyle \int }}_0^t{s}^{\prime }dt=-k_p{s}^{\prime }-k_{s^{\prime }}sgn\left(s^{\prime }\right)+E_S$$

(37)

where E denotes the joint angle error of CCLE and $S^{\prime }={[{s^{\prime }}_1 {s^{\prime }}_2]}^T$. Lyapunov function V is investigated as follows:

$$V=\frac{1}{2}{S}^{\prime \mathrm{T}}M{S}^{\prime }+\frac{1}{2}{\left({{\displaystyle \int }}_0^t{s}^{\prime }d\tau \right)}^{\mathrm{T}}{k}_i\left({{\displaystyle \int }}_0^t{s}^{\prime }d\tau \right)$$

(38)

Calculating the derivative of the first term V, one obtains the following:

$$\dot{V}=S^{\prime T}\left[M{\dot{S}}^{\prime }+\frac{1}{2}\dot{M}{S}^{\prime }+k_i{{\displaystyle \int }}_0^t{S}^{\prime }dt\right]$$

(39)

Considering the symmetry of the matrix, we find $S^{\prime T}\left(\dot{M}-2C\right)S^{\prime }=0$, thus the equation can be rewritten as follows:

$$\dot{V}=S^{\prime T}\left[M{\dot{S}}^{\prime }+\frac{1}{2}\dot{M}{S}^{\prime }+k_i{{\displaystyle \int }}_0^t{s}^{\prime }dt\right]$$

(40)

Due to $k_{s^{\prime }}=diag\left[k_{ii}\right]$, we can define that $k_{s}sgn\left(s\right)\ge \left|E_S\right|$. Substituting Equation (37) into Equation (40), we can obtain the following:

$$\dot{V}=-S^{\prime T}{k}_p{S}^{\prime }-{S^{\prime }}^T{k}_{s^{\prime }}sgn\left(s^{\prime }\right)+S^{\prime T}{E}_S$$

(41)

Thus, we find that $\dot{V}\le -s^T{k}_{p}s\le 0$. So that, if $s^{\prime }$ ≡ 0 while V ≡ 0, as LaSalle’s Invariance Principle, we have that when $t$ approaches infinity ($t$→∞) and $s^{\prime }$ approach to zero ($t$→0), systematic error bounded convergence ($e^{\prime }$→0, $\dot{e^{\prime }}$→0), the system is asymptotically stable.

Then the RAMSC is introduced as follows for the CLLE. The control law is investigated [37] as follows:

$$T_m=\hat{H}\left(\mathrm{q}\right)\dot{q_r}+\hat{C}\left(\mathrm{q},\dot{q}\right)\dot{q_r}+\hat{G}\left(q\right)+Y\hat{a}-K_{D}s+F\left(\Theta ,\dot{\theta }\right)$$

(42)

The adaptive law is investigated as follows:

$$\dot{\widehat{a}}=-\mathsf{\Gamma }\cdot Y^T\cdot s^{″}$$

(43)

where $q={[q_1 q_2]}^T$ represents the angle of the thigh and shank. ${\tau }_a={[{\tau }_h {\tau }_k]}^T$ denotes the torque. $s^{″}={\dot{e}}^{″}\left(t\right)+\xi e^{″}\left(t\right)=\dot{q}-\dot{q_r}$, $\dot{q_r}=q_d-\xi e^{″}$. Moreover, $K_D$, $\mathsf{\Gamma }$, and $c$ are all diagonal gain matrices. The stability proof of RASMC (42) and (43) can refer to former research [37].

5. Parameters and Numerical Simulations

In this section, the parameters of the numerical simulation are presented with three control methods for CLLE. Some nomenclature that is useful for the later analysis of the simulation results is described. The desired and actual angle trajectories of the hip and knee joints are defined in the former section as ${\theta }_d={[{\theta }_{d1} {\theta }_{d2}]}^T$ and ${\theta }_a={[{\theta }_{a1} {\theta }_{a2}]}^T$. The tracking error is defined as $e={\left[e1 e2\right]}^T$, where $e={\theta }_d-{\theta }_a$. The parameters of the CLLE are shown in

Table 1. List of physical parameters in 2-DOF lower limb exoskeleton.

Parameter	Value	Parameter	Value
$m_1$	8 (kg)	$l_{\mathrm{c}1}$	0.25 (m)
$m_2$	4 (kg)	$l_{\mathrm{c}2}$	0.2 (m)
$l_1$	0.5 (m)	$g$	$9.8 (\mathrm{kg}·\mathrm{m}/{\mathrm{s}}^2$)
$l_2$	0.4 (m)

. The length of the upper leg ($l_1$) can be defined as 0.2780 * HT (height of the person, 180 cm), and the length of the lower leg ($l_2$) can be defined as 0.2206 * HT. The mass of the upper leg ($m_1$) is 0.1 MT (total mass of the person, 80 kg) and the mass of the lower leg ($m_2$) is 0.0405 MT. For the CLLE, refer to (6), (7), and refs [34]; the parameters of the CTSA are shown in

Table 2. List of physical parameters in CTSA.

Parameter	Value	Parameter	Value
$T_0$	80 (N-m)	$\mu$	0.1333
$\mathsf{\Theta }$ (initial)	Pi/2 (rad)	$r_1$	65 (mm)
$r_2$	65 (mm)

.

To fully demonstrate the robustness of our proposed approach, a series of comparative numerical simulations were conducted.

Case 0: The desired trajectory for the simultaneous acquisition of CLLE performance is as follows. A simulation with uncertainties and friction is proposed in this case.

$$\theta d_1=0.5\times \sin \left(2t+\frac{\pi }{4}\right)$$

(44)

$$\theta d_2=0.5\times \cos \left(2t+\frac{\pi }{4}\right)$$

(45)

Case Ⅰ: From clinical gait analysis [38], the desired trajectory for the simultaneous acquisition of CLLE performance is as follows. A simulation without uncertainties and friction is proposed in this case.

$$\theta d_1=\frac{\left[18.7\cos \left(4t\right)-9\sin \left(4t\right)+2\cos \left(8t\right)-5\sin \left(8t\right)+0.8\cos \left(12t\right)+\sin \left(12t\right)\right]\pi }{180}$$

(46)

$$\theta d_2=-\frac{\left[23.6+6\cos \left(4t\right)+17\sin \left(4t\right)-10.6\cos \left(8t\right)+6.2\sin \left(8t\right)-0.6\cos \left(12t\right)-4.7\sin \left(12t\right)\right]\pi }{180}$$

(47)

Case Ⅱ: In this case, the desired trajectory is the same as in case1. A simulation is proposed with uncertainties and friction.

Case Ⅲ: In this case, three sets of time-varying uncertainties and disturbances with different magnitudes are introduced in the simulations, namely:

(Ⅰ) $d_1=\cos \left(40t\right)$ and $d_2=\sin \left(40t\right)$.

(Ⅱ) $d_1=4\cos \left(40t\right)$ and $d_2=4\sin \left(40t\right)$.

(Ⅲ)$d_1=8\cos \left(40t\right)$ and $d_2=8\sin \left(40t\right)$.

The external disturbance can be expressed as ${\tau }_d=\left[{\tau }_{d1} {\tau }_{d2}\right]$. In case0 and caseⅡ,${\tau }_d$ is obtained as ${\tau }_{d1}=\sin \left(8t\right);{\tau }_{d2}=\sin \left(6t\right)$, respectively. The initial hip and knee joints angle are taken as ${\theta }_1=0.5 rad$, ${\theta }_2=0.5 rad$, and ${\dot{\theta }}_1=0$, ${\dot{\theta }}_2=0$.

For the parameters employed in the proposed method, SMPIC and RASMC, the parameters are set as follows. In the proposed controller, define that $k_v=diag\left(200,200\right)$, ${\lambda }^{\prime }=diag\left(50,50\right)$, ${\mathsf{\epsilon }}_N$ and $b_d$ are 0.5 and 0.2, respectively. $\beta =500$, $M=2$, and the thickness of the sliding mode surface is 0.01. The initial weight of the neural network is selected as the zero vector. In the SMPIC, the following can be defined, $k_p=diag\left(100,100\right)$, $k_i=diag\left(80,80\right)$, $k_s=diag\left(15,15\right)$, and ${\gamma }^{\prime }=diag\left(5.0,5.0\right)$. In RASMC, the following can be defined, $\xi =diag\left(4.0,2.0\right)$, $k_d=diag\left(10,10\right)$, and $\mathsf{\Gamma }=\mathrm{diag}\left(0.1,0.1,0.1,0.1\right)$. The simulations were performed in MATLAB R2021a with Simulink and ode15s solver. C plus was used for the writing function, and the total simulation time was set to 10 to 15 s. In addition, the disturbance was sufficiently introduced into the simulations.

6. Results and Discussions

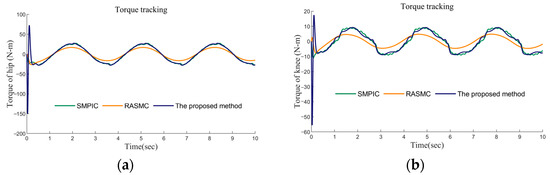

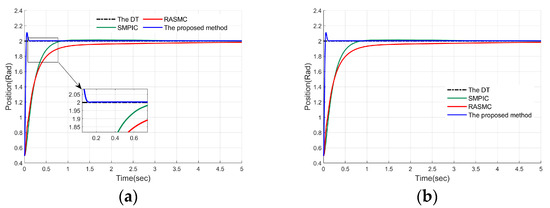

The performance of the three controllers under different conditions in the CLLE has been validated, and the numerical simulation results are as follows in the discussion.

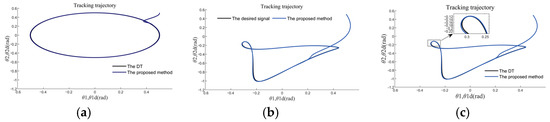

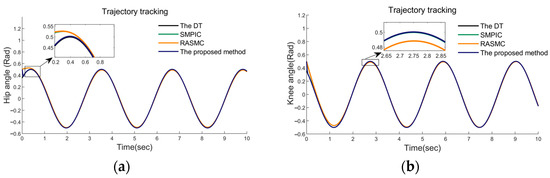

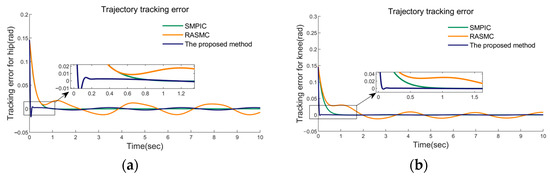

Case 0: The performance of the three controllers on gait tracking in 2−DOF CLLE under uncertainty and friction was observed. The corresponding simulation results, in this case, have been exhibited in Figure 6, Figure 7 and Figure 8 (only 0–10 s are exhibited). In Figure 6, the temporal response of the angular position of the hip and knee joints is shown. The simulation results revealed that our proposed method and SMPIC present slightly better accuracy than the RASMC in tracking the desired gait trajectories. Meanwhile, the control effects and response speed of our proposed method are superior to RASMC and SMPIC. In Figure 7, the tracking errors of the angular position of the hip and knee joints are exhibited. The proposed method possesses smoother convergence in both hip and knee joint control compared to RASMC and SMPIC. In Figure 8a,b, the time histories of the control torque of hip and knee joints have been given, which revealed that the peak input torque varies for different control algorithms.

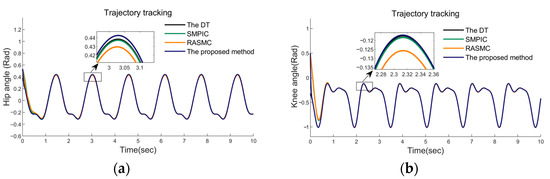

Case Ⅰ: In this case, the tracking performance of the three controllers without uncertainties and frictions was simulated. The desired gait trajectories were obtained from clinical gait analysis [38], and the results are exhibited in Figure 9, Figure 10 and Figure 11. In this condition, all three control methods enable achieving effective trajectory tracking. Figure 9a,b clearly stated that our proposed method, SMPIC and RAMSC can achieve different gait trajectory tracking. From Figure 10, it can be concluded that the convergence of the tracking errors of the proposed method and SMPIC are superior to RASMC. In Figure 11a,b, the time histories of the control torque of hip and knee joints have been given. The input torques of three methods were smooth and can achieve soundtracking of the control torques. In conclusion, all three methods can achieve soundtracking control of the desired gait trajectory, irrespective of uncertainties and disturbances.

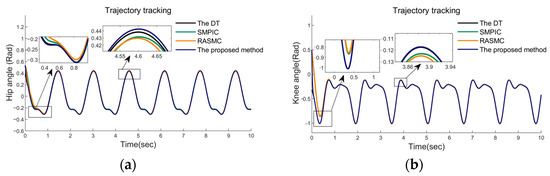

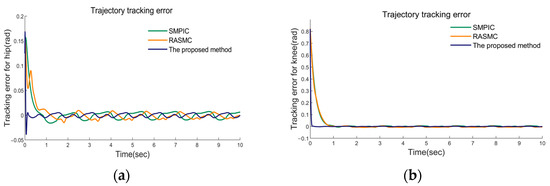

Case Ⅱ: In this case, the uncertainty and the friction of the CTSA were introduced into the numerical simulation. The results of the validation under the condition are given in Figure 12, Figure 13 and Figure 14. Figure 12 show that our proposed method, SMPIC, and RASMC, are insensitive to both uncertainty and friction. The correspondingly soundtracking results can be effectively achieved for the desired trajectory. Figure 13a,b show a significant deterioration in hip trajectory tracking under RASMC and SMPIC. The proposed method received sightly impact by uncertainties and friction but still possesses the smooth convergence of the tracking error. Figure 14 presents the time histories of the control torque of the hip and knee joints and the control torques of our proposed method and SMPIC are much smoother than RASMC. The 2-D trajectory tracking in case0, case Ⅰ, and case Ⅱ of the hip and knee joints are shown in Figure 15, which further demonstrates the stable convergence of the tracking error of our proposed method, which can effectively achieve soundtracking under harsh environments.

To analyze the performance of the three controllers under different conditions, the following evaluation indicators have been introduced for comparison and validation. The criteria indicators of MSE (Mean Square Error), RMSE (Root Mean Square Error), MAE (Mean Absolute Error), and MAPE (Mean Absolute Percentage Error) are proposed to validate the control performance of the three methods. Meanwhile, define the Integral Squared Error (ISE) of the hip and knee tracking as $J_{ISE}={{\displaystyle \int }}_0^t{e}^{2}dt$, which can better demonstrate the tracking performance. The results of performance criteria indicators are shown in

Table 3. The performance criteria indicators (hip, knee) under case 0 condition.

Condition Case 0	MAPE	MSE	MAE	RMSE	ISE
proposed method	(0.0087, 0.0074)	(0.0001, 0.0001)	(0.0025, 0.0012)	(0.0106, 0.0097)	(0.0112, 0.0094)
SMPIC	(0.0479, 0.0804)	(0.0003, 0.0003)	(0.0051, 0.0052)	(0.0189, 0.0198)	(0.0359, 0.0356)
RASMC	(0.0908, 0.1106)	(0.0004, 0.0005)	(0.0115, 0.0114)	(0.0208, 0.0226)	(0.0433, 0.0511)

,

Table 4. The performance criteria indicators (hip, knee) under case 1 condition.

Condition Case 1	MAPE	MSE	MAE	RMSE	ISE
proposed method	(0.0230, 0.0277)	(0.0001, 0.0020)	(0.0035, 0.0039)	(0.0100, 0.0457)	(0.0101, 0.2091)
SMPIC	(0.0504, 0.1575)	(0.0004, 0.0105)	(0.0049, 0.0201)	(0.0210, 0.1127)	(0.0443, 1.0549)
RASMC	(0.1074, 0.1107)	(0.0003, 0.0081)	(0.0072, 0.0184)	(0.0178, 0.0902)	(0.0316, 0.8191)

and

Table 5. The performance criteria indicators (hip, knee) under case 2 condition.

Condition Case 2	MAPE	MSE	MAE	RMSE	ISE
proposed method	(0.0291, 0.0255)	(0.0001, 0.0020)	(0.0040, 0.0039)	(0.0121, 0.0561)	(0.0146, 0.3147)
SMPIC	(0.0700, 0.2569)	(0.0004, 0.0105)	(0.0061, 0.0201)	(0.0321, 0.1772)	(0.0486, 1.4189)
RASMC	(0.1160, 0.1600)	(0.0004, 0.0081)	(0.0094, 0.0184)	(0.0216, 0.1103)	(0.0467, 1.2163)

.

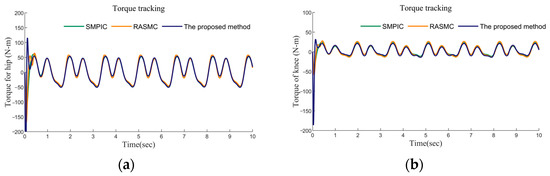

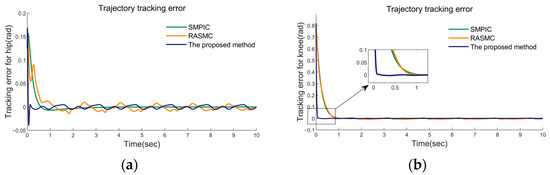

As the results are shown in Table 3, Table 4 and Table 5, our proposed method demonstrates its superiority in performance criteria indicators. The following performance criteria indicators of the proposed method are significantly better than the other two methods, which proves that our proposed method possesses outstanding precision of control and can achieve the purposes of CLLE for rehabilitation applications.

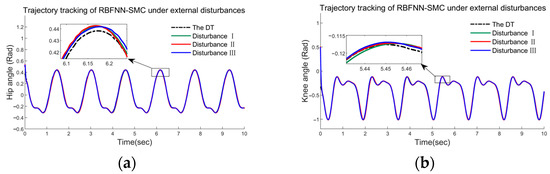

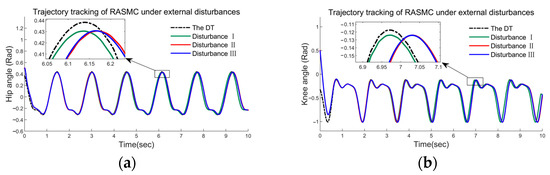

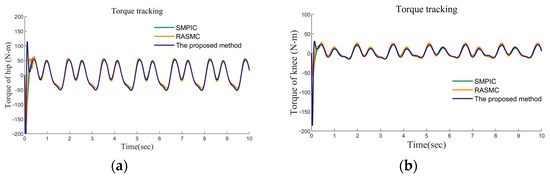

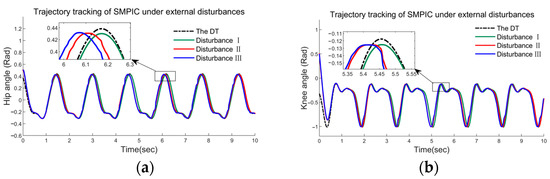

Case Ⅲ: In this case, to verify the robustness of the three methods, a set of comparisons between SMPIC, RASMIC, and the proposed controller in the presence of three different amplitudes of external disturbances were introduced. The data are shown in Figure 16, Figure 17 and Figure 18. As displayed in Figure 16 and Figure 17, the RASMC and SMPIC have shown an obvious deterioration in tracking performances as the external disturbances increase. However, in Figure 18, our proposed controller can still maintain an acceptable tracking control for desired gait trajectories even under such bad uncertainties and disturbances. This phenomenon validates the sound robustness of our proposed method to uncertainties and external disturbances, which is extremely necessary for engineering practice; as a bottom line, the proposed method must be in a position to preserve its robustness even under the worst influence of uncertainties.

Finally, a step–response experiment was implemented to evaluate the stability and response speed of the proposed controller compared with SMPIC and RASMC. The experimental results are shown in Figure 19a,b. The results show that the proposed method responds quickly, and the tracking error can converge to zero in a relatively short period of time. As shown in Figure 19, the performance metrics, such as delay time and the rising time of the proposed method, are in the range of approximately 0.1 to 0.2 s, while both SMPIC and RASMC are at 1 s or above.

In summary, compared with the other two controllers under different conditions, our proposed method can be efficiently adapted to track different trajectories and possess the fastest responding speed and the best tracking performance. In case Ⅰ, case Ⅱ, and case Ⅲ, the robustness of our proposed method has been validated, which is extremely important in engineering practice. Regardless of all the cases, our proposed method is able to accurately complete trajectory tracking and overcome the effects of friction of CTSA while having a fast response speed and smooth torque output to meet the control requirements of CLLE effectively.

7. Conclusions

This paper investigated a robust adaptive sliding mode controller with an RBFNN compensator for 2-DOF CLEE. The model of CLLE was developed, and the model information for the hip and knee joints has been analyzed. Distinguishing from the previous research, the innovation of this paper is to investigate a novel robust adaptive SMC with RBFNN compensator, which can effectively approximate and compensate for the uncertainty and time-varying friction. In this paper, RASMC and SMPIC have been proposed to conduct comparative numerical simulations. All three methods have been proven by Lyapunov’s method. The validation and performance of the proposed controller have been obtained by comparing it with SMPIC and RASMC. In the simulations, the proposed method claims the best tracking performance and fastest response speed compared with the other two methods. The proposed method possesses outstanding robustness and could achieve the purposes of CLLE for rehabilitation applications.

In future works, the validated experiments of the proposed control methods for the CLLE are on the schedule. The neural network algorithm is preparing to improve to achieve a more effective control strategy. More rigorous verification of the proposed controller in the future could be attempted in the underactuated exoskeleton and multiple actuation exoskeleton.
