M-WDRNNs: Mixed-Weighted Deep Residual Neural Networks for Forward and Inverse PDE Problems

Abstract

Physics-informed neural networks (PINNs) have been widely used to solve partial differential equations in recent years. But studies have shown that there is a gradient pathology in PINNs. That is, there is an imbalance gradient problem in each regularization term during back-propagation, which makes it difficult for neural network models to accurately approximate partial differential equations. Based on the depth-weighted residual neural network and neural attention mechanism, we propose a new mixed-weighted residual block in which the weighted coefficients are chosen autonomously by the optimization algorithm, and one of the transformer networks is replaced by a skip connection. Finally, we test our algorithms with some partial differential equations, such as the non-homogeneous Klein–Gordon equation, the (1+1) advection–diffusion equation, and the Helmholtz equation. Experimental results show that the proposed algorithm significantly improves the numerical accuracy.

1. Introduction

In real life, many problems are represented by partial differential equations (PDEs), such as the advection–diffusion equation, the wave equation, and the Klein–Gordon equation. So, solving the partial differential equations [1,2,3,4] is of great practical significance. Traditional numerical methods: finite volume [5], finite element [6], and finite difference [7] have been very mature in solving partial differential equations. With the rapid development of computers, neural networks have been applied to many fields, such as computer vision, image processing, etc. In recent years, neural networks have been widely used to solve partial differential equations [8,9,10,11].

In the past few years, many neural network algorithms for solving partial differential equations have been proposed. The most representative of which are the physics-informed neural networks (PINNs) [12,13,14]. The PINNs algorithm integrates the control equation into the neural network, and constructs a loss function according to the control equation to constrain the space of the solution so that the final result naturally satisfies the constraints of the control equation. When the loss function tends to zero, we can obtain an approximate solution to the problem. At the same time, many improved and extended algorithms of PINNs have been proposed, such as conservative physics-informed neural networks based on domain decomposition [15], BPINN and UQPINN [16,17] based on uncertainty theory and Bayesian theory, Fourier neural network operators [18] etc. But using the governing equation as a regularization term leads to unstable and erroneous predictions in some cases. In [19], a fundamental failure mode of the stiffness-related physics-informed neural network in gradient flow dynamics is explored. Revealing that in some cases, PINNs have an imbalance gradient problem between the regularization terms during back-propagation. In order to alleviate the problem of unbalanced gradients between the regular terms, inspired by the extended stochastic gradient descent algorithm [20], a learning rate annealing program [19] and an improved fully connected neural network that are elastic for gradient pathology are proposed. At the same time, the convergence speed of the PINNs algorithm is slow and unstable. Based on the Galerkin method, a variational physics-informed neural networks (VPINNs) [21,22] algorithm was proposed. The principle of the VPINNs algorithm is to derive the variational form of partial differential equations based on the Galerkin method, and construct the loss function using the variational form of the partial differential equation. And we can reduce the order of the differential operator through integration by parts, making the problem easier to solve. Moreover, based on the intuitive understanding and prior knowledge of the computational domain, we can adaptively split the computational domain [15] and design the appropriate neural network model on each sub-domain separately to improve numerical accuracy; We only need to specifically deal with the common boundaries of different subdomains to ensure the continuity of the global solution.

In this paper, a mixed-weighted deep residual neural network (M-WDRNN) algorithm based on the decoder–encoder framework in the attention mechanism [23,24] and deep-weighted residual neural network is proposed. M-WDRNN can alleviate the gradient pathology and degradation problems. Moreover, the weighted coefficient of the weighted residual block is used as a trainable parameter to participate in the model training, and the optimal parameter is selected according to the optimization algorithm, which saves the adjustment time of the hyperparameters. Finally, the experimental results show the effectiveness of the algorithm we proposed.

The rest of this article is organized as follows: In Section 2, we describe the problem to be solved, deriving the loss function of PINNs and VPINNs in detail; We describe in detail the structure of a mixed-weighted residual neural network in Section 3; The proposed algorithm is applied to solve PDEs in Section 4, including the advection diffusion equation, the Helmholtz equation, and the Klein–Gordon equation, to demonstrate the performance of the proposed algorithm; Finally, in Section 5, we summarize the contributions and shortcomings of the article, and briefly describe future work.

2. Problem Description

When using neural networks to approximate partial differential equations, PINNs and fully connected neural networks have no essential differences in network structure. The difference between the two is that to construct different loss functions. Compared with fully connected neural networks, PINNs is to incorporate the governing equation into the construction of the loss function. Next, the following equations were considered:

$$\begin{array}{cc}\hfill & \ell u(x,t)=m(\mathbf{x},t),(\mathbf{x},t),t)\in X\times [0,\Gamma ],\hfill \\ \hfill & \xi u(x,t)=n(\mathbf{x},t),t),(\mathbf{x},t),t)\in \partial X\times [0,\Gamma ],\hfill \\ \hfill & u(x,0)=\hslash (\mathbf{x},t)),(\mathbf{x},t),t)\in X\times \{t=0\},\hfill \end{array}$$

(1)

where ℓ, $\xi$, and $\hslash (\mathbf{x},t)$ represent the differential operator, the boundary operator, and the initial condition, respectively, X denotes the bounded open set. According to Equation (1), we can define PINN’s loss function:

$$\begin{array}{cc}\hfill L& =\tau \frac{1}{K}\sum _{j=1}^K(\ell u({\mathbf{x}}^j,t^j)-m({\mathbf{x}}^j,t^j))+{\tau }_b\frac{1}{K_b}\sum _{j=1}^{K_b}(\xi u({\mathbf{x}}_b^j,t^j)-n({\mathbf{x}}_b^j,t^j))\hfill \\ \hfill & +{\tau }_0\frac{1}{K_0}\sum _{j=1}^{K_0}(u({\mathbf{x}}_0^j,t=0)-\hslash \left({\mathbf{x}}_0^j\right)),\hfill \end{array}$$

(2)

where $\{{({\mathbf{x}}^j,t^j)}_{j=1}^K,{({\mathbf{x}}_b^j,t_b^j)}_{j=1}^{K_b},{({\mathbf{x}}^j,t=0)}_{j=1}^{K_0}\}$ represent the residual points, boundary points, and initial points, respectively. The parameters $\{\tau ,{\tau }_b,{\tau }_0\}$ represent the weight of residual terms in the loss function, which is used to adjust the weight of the residual terms in the loss function [19]. Although PINNs incorporate the governing equation into the construction of the loss function so that the training results naturally meet the constraints of the governing equation. The training process is unstable, the convergence rate is slow, and it does not necessarily converge. Thus, based on the Galerkin method, variational physics-informed neural networks (VPINNs) [21,22] were proposed, a method that multiplies the residuals of the governing equation with some properly chosen test functions $v_j$ and integrates over the entire computational domain to obtain the variational form of Equation (2):

$$\begin{array}{cc}\hfill & {\Re }_j\left(u\right)={\int }_{\Omega \times (0,\Gamma ]}(\ell u({\mathbf{x}}^j,t^j)-m({\mathbf{x}}^j,t^j)){\vartheta }_{j}d\mathbf{x}dt=0,\hfill \\ \hfill & {\Re }_{b,j}\left(u\right)={\int }_{\partial \Omega \times (0,\Gamma ]}(\xi u({\mathbf{x}}_b^j,t^j)-n({\mathbf{x}}_b^j,t^j)){\vartheta }_{j}d\mathbf{x}dt=0,\hfill \\ \hfill & {\Re }_{0,j}\left(u\right)={\int }_{\Omega }(u({\mathbf{x}}_0^j,t=0)-\hslash \left({\mathbf{x}}_0^j\right)){\vartheta }_{j}d\mathbf{x}=0.\hfill \end{array}$$

(3)

Further, the loss function:

$$\begin{array}{c}\hfill L=\tau \frac{1}{K}\sum _{j=1}^K|{\Re }_j{\left(u\right)|}^2+{\tau }_b\frac{1}{K_b}\sum _{j=1}^{K_b}|{\Re }_{b,j}{\left(u\right)|}^2+{\tau }_0\frac{1}{K_0}\sum _{j=1}^{K_0}{\left|{\Re }_{0,j}\left(u\right)\right|}^2.\end{array}$$

(4)

To reduce convergence time and training costs, variational physics-informed neural networks with domain decomposition (hp-VPINNs) [25] were proposed.

3. Improved Weighted Residual Neural Network

3.1. Weighted Residual Blocks

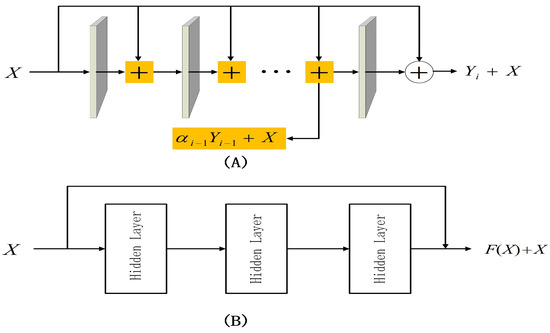

Many studies [26,27,28] have shown that the performance of neural network models is positively correlated with the number of neural layers in the network. But experimental results show that as the number of layers of neural networks increases, the performance of neural network models not only does not improve but begins to decline. As the number of layers of the network increases, it encounters degradation problems. The deep residual neural network [29] greatly alleviates this problem. On the basis of the residual neural network, we propose a weighted residual neural network in our previous work, compared with the residual neural network. The difference between the two is the difference in the residual block. The output of the hidden layer in the weighted residual block is multiplied by the weighted coefficient and increases the skip connection, relying on the weighted coefficient to dynamically adjust the input to the next neural layer. A simple residual block and a weighted residual block, as shown in Figure 1.

3.2. Improved Fully Connected Neural Networks

There are two key factors to the success of neural networks: 1. Construct a suitable loss function. Because the neural network algorithm is to transform the problems to be solved into an optimization problem and uses the optimization algorithm to optimize the loss function to obtain the optimal parameters. The construction of the loss function and the appropriate optimization algorithm are very important. 2. Design a special neural network framework. The framework design of the neural network is equally important for solving the problems. For example, convolutional neural networks [30] and residual neural networks [29] are excellent at solving image problems and degradation problems, so appropriate network architectures can be designed according to actual problems. Inspired by neural attention mechanisms applied to computer vision and natural language processing [31], a neural network with a new structure [19] was proposed. Differing from traditional fully connected architectures by introducing two transformer networks that projected input variables into high-dimensional feature spaces. Introduced new weights and biases and improved the network’s ability to represent complex functions. Its forward update rules are as follows:

$$\begin{array}{cc}\hfill & U_{\aleph }=\sigma (X{W}^1,b^1),\hfill \\ \hfill & V_{\aleph }=\sigma (X{W}^2,b^2),\hfill \\ \hfill & L^1=\sigma (X{W}_1,b^1),\hfill \\ \hfill & Y^j=\sigma (L^j{W}_{j+1},b_{j+1}),j=1,2,\dots ,k-1,\hfill \\ \hfill & L^{j+1}=(1-Y^j)\odot U_{\aleph }+Y^j\odot V_{\aleph },j=1,2,\cdots ,k-1,\hfill \\ \hfill & u^{NN}=L^k{W}^k+b^k.\hfill \end{array}$$

(5)

where $\{W^1,W^2,b^1,b^2\}$ represent additional weights and biases, $\sigma$ and ⊙ represent activation functions and Hadamard product, respectively. This forward structure results in a certain memory overhead, increases training time, but significantly improves the performance of the model.

3.3. Mixed-Weighted Residual Neural Network

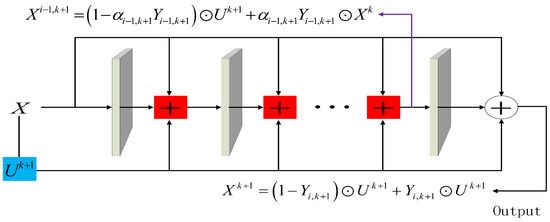

In this section, we consider combining weighted residual neural networks with the forward structure in Section 3.1. At the same time, here, we take the weighted coefficients in the mixed-weighted residual block as trainable parameters to participate in the the model’s training. Eliminating the manual selection of the weighted coefficients. The updated rules for mixed-weighted residual blocks are as follows:

$$\begin{array}{cc}\hfill & U^{k+1}=\sigma (X^k{W}^{{\tau }_{k+1},k+1}+b^{{\tau }_{k+1},k+1}),\hfill \\ \hfill & Y^{1,k+1}=\sigma (X^k{W}^{1,k+1}+b^{1,k+1}),\hfill \\ \hfill & X^{i,k+1}=(1-{\alpha }_{i,k+1}{Y}^{i,k+1})\odot U^{k+1}+{\alpha }_{i,k+1}{Y}^{i,k+1}\odot X^k,i=1,2,\dots ,L-1,\hfill \\ \hfill & Y^{i+1,k+1}=\sigma (X^{i,k+1}{W}^{i,k+1}+b^{i,k+1}),i=1,2,\cdots ,L-1,\hfill \\ \hfill & X^{k+1}=X^{L,k+1}=(1-Y^{L,k+1}\odot U^{k+1})+X^k\odot Y^{L,k+1},\hfill \end{array}$$

(6)

where $\{W^{{\tau }_{k+1},k+1},b^{{\tau }_{k+1},k+1}\}$ represent the extra weight and bias in the k + 1-th mixed-weighted residual block and $X^k$ represents the final output from the k-th mixed-weighted residuals block. Here, we replace transformer network V with $X^k$, and the hidden layer output of the mixed-weighted residual block is given a trainable weight ${\alpha }_{i,j}$. $Y^{i,k+1}$ represents the output of the i-layer in the $k+1$ mixed-weighted residual block, $X^{k+1}$ represents the final output of the $k+1$ mixed-weighted residual block, and a simple mixed-weighted residual block is shown in Figure 2.

4. The Forward and Inverse Problems

In this section, we solve some partial differential equations to test the performance of the algorithm we proposed and build neural network models with different numbers of mixed-weighted residual blocks based on different cases. Adam optimization algorithm [20] is used to optimize the loss function in the following examples.

Example 1.

We first consider the two-dimensional non-homogeneous Poisson equation to test the algorithm we proposed, and the exact solution is shown below:

$$\begin{array}{c}\hfill u(x,y)=sin\left(\pi x\right)sin\left(\pi y\right),(x,y)\in [-1,1]\times [-1,1].\end{array}$$

(7)

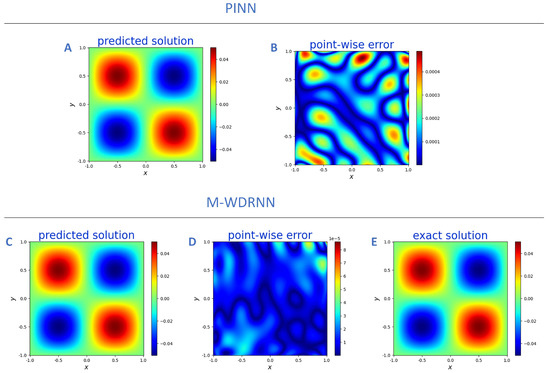

This example uses five mixed-weighted residuals with three hidden layers to model neural networks. Each with a transformer network, the number of neurons in the hidden layer is 10, and the activation function is $sin\left(x\right)$. The point-wise error of PINN and M-WDRNN was compared in Figure 3. The root mean square error (RMSE) of PINN and M-WDRNN is $1.832\times {10}^{-4}$, $1.587\times {10}^{-5}$, respectively. During the training process, the loss function values of M-WDRNN and PINN drop to $4.56\times {10}^{-10}$ and $5.56\times {10}^{-8}$, respectively. The algorithm we proposed greatly improves the approximation of PINN. The approximation on the boundary is significantly better than that of PINN, and M-WDRNN alleviates the gradient imbalance problem of each regular term in the loss function. We randomly took 1000 inner points and 400 boundary points as training samples in all examples.

Example 2.

Here, we apply our proposed algorithm to the problem of the non-homogeneous Klein–Gordon equation:

$$\begin{array}{c}\hfill u{(x,t)}_{tt}+\gamma \Delta u(x,t)+h(x,t)=f(x,t),[-1,1]\times [0,1],\end{array}$$

(8)

where Δ represents the Laplace operator, $f(x,t)=\alpha u(x,t)+\beta u{(x,t)}^k$, the parameters $\gamma =-1,\alpha =0,\beta =1,k=3,$ the exact solution is expressed as:

$$\begin{array}{c}\hfill u(x,t)=xcos\left(t\right).\end{array}$$

(9)

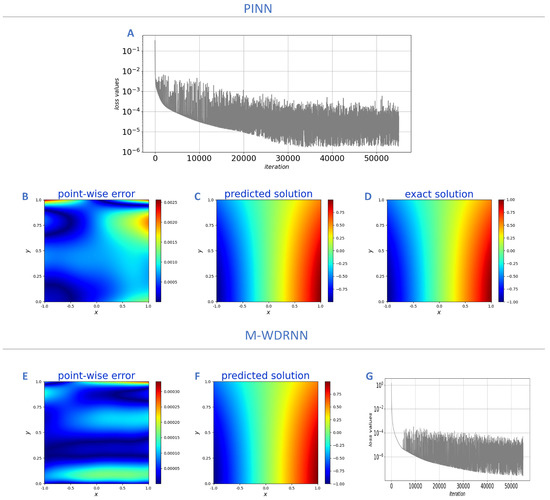

In this example, we select three mixed-weighted residuals with three hidden layers to build a neural network. The hidden layer contains 10 neurons. We chose the function $sin\left(x\right)$ as the activation function, the parameters $\tau ={\tau }_b={\tau }_0=1,K=1000,K_b=200,K_0=100$. The exact solution, prediction of the Equation (8) and point-wise error are shown in Figure 4. The maximum point-wise error of PINN and M-WDRNN are $2.73\times {10}^{-3}$ and $3.12\times {10}^{-4}$, respectively. Note that the approximation of the PINN algorithm is worse than other regions in the boundary. The M-WDRNN algorithm alleviates this phenomenon and significantly improves the overall approximation.

Example 3.

Next, we consider the (1+1) dimensional advection diffusion equation (ADE):

$$\begin{array}{c}\hfill \frac{\partial u(x,t)}{\partial t}+\nu \frac{u(x,t)}{\partial x}=\kappa \frac{{\partial }^{2}u(x,t)}{\partial x^2}.\end{array}$$

(10)

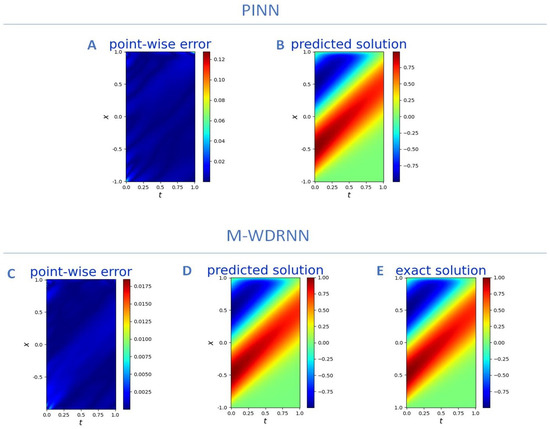

Equation (10) satisfies the following initial condition and boundary condition: $u(1,t)=u(-1,t),$ $u(x,0)=-sin\left(\pi x\right),$ where $\nu =1$ and $\kappa =\frac{0.1}{\pi }$ are the advection coefficient and the diffusion coefficient. The analytical solution to the AD Equation (10) is given in [32] by summing infinite series. We built a neural network model using two mixed-weighted residual blocks with three hidden layers, training samples $K=1000,K_b=200$, and $K_0=100$. Since the analytical solution of the equation involves the sum of infinite series, we consider intercepting finite terms as the analytical solution. We use the first 80,000 terms to calculate the analytical solution to Equation (10), and compare the method we propose with other methods. The result is as shown in Figure 5. Compared with other methods, our algorithm is more accurate.

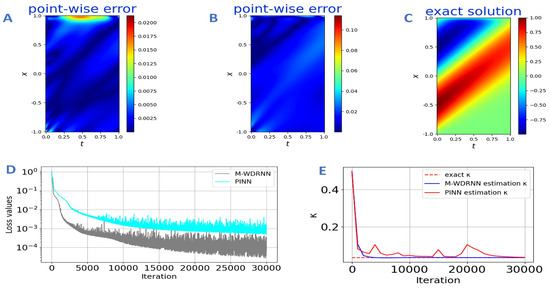

Next, we consider solving the inverse problem of the differential equation, that is, the problem of parameter estimation. In contrast to the partial differential forward problem, the inverse problem only requires adding an observational penalty term to the loss function of the forward problems. Here, we assume that the diffusion coefficient $\kappa$ is unknown, $\kappa$ is initialized by $0.5$, and 5 data points with measurement error 0.02 are randomly extracted as observations. The PINN algorithm and the M-WDRNN algorithm are used to estimate unknown parameters and approximate the true solution, respectively. Except for the network structure, both maintain the same hyperparameter settings. A comparison of the results of PINN and M-WDRNN is shown in Figure 6. The results show that the M-WDRNN algorithm accurately approximates the exact solution and estimates the unknown parameters $\kappa$. The estimation of PINN is extremely unstable during training, so the approximation error exceeds that of the M-WDRNN algorithm. This shows the effectiveness of the M-WDRNN algorithm for PDE inverse problems.

Example 4.

Finally, we consider the Helmholtz equation:

$$\begin{array}{cc}\hfill \Delta u(x,y)& +D^{2}u(x,y)=h(x,y),\hfill \\ \hfill u(-1,y)& =u(1,y)=0,\hfill \\ \hfill u(x,-1)& =u(x,1)=0,\hfill \end{array}$$

(11)

where $D=1$ represents the diffusion coefficient, and the exact solution:

$$\begin{array}{c}\hfill u(x,y)=(x+y)sin\left(\pi x\right)sin\left(\pi y\right),(x,y)\in [-1,1]\times [-1,1].\end{array}$$

(12)

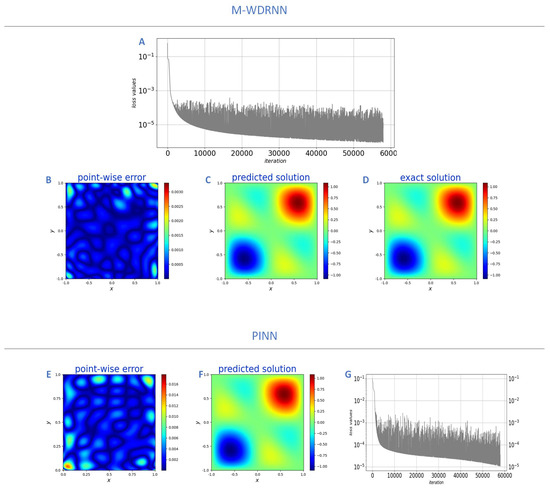

We consider the forward problem. Two mixed-weighted residual blocks with three hidden layers are used to build the network model, the parameters $\tau ={\tau }_b=1$, $K=500$, $K_b=400$. We chose $sin\left(x\right)$ as the activation function, each hidden layer contains 10 neurons. The result is shown in Figure 7. The maximum point-wise error of PINN and M-WDRNN are $1.63\times {10}^{-2}$ and $2.71\times {10}^{-3}$, respectively. The RMSE of PINN and M-WDRNN are $6.83\times {10}^{-3}$ and $5.87\times {10}^{-4}$, respectively. Both M-WDRNN and PINN successfully fit boundaries and inner domains, but the M-WDRNN algorithm has a more powerful approximation capability.

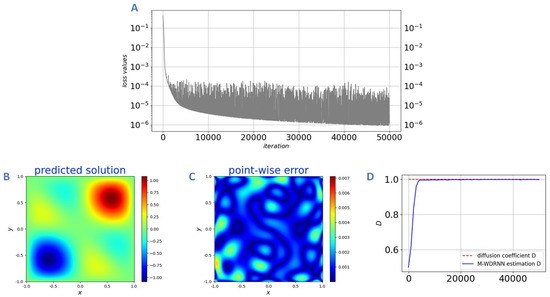

Secondly, we solve the inverse problem of Equation (11), where we assume that the diffusion coefficient $D=1$ is unknown. Randomly select 10 sample points as observation points, and the network model is consistent with the forward problem. As shown in Figure 8, the algorithm we propose can converge quickly with precise values and remain stable during subsequent training, which shows that our algorithm is equally effective for solving inverse problems of differential equations.

5. Summary and Discussion

Although PINNs are widely used to solve partial differential equations, gradient pathology makes it difficult for PINNs to accurately approximate solutions to partial differential equations. We propose a new and improved weighted residual neural network based on the deep-weighted residual neural network and attention mechanism. Unlike the improved fully connected neural networks [19], we no longer use two transformer neural networks to participate in the construction of the network. But each residual block adds a transformer neural network to participate in the construction of the network, and a skip connection replaces the other transformer neural network. Based on the numerical experimental results, we can see that the proposed algorithm can alleviate the gradient pathology. It is worth mentioning that in all experiments, we have kept the weights of each penalty term in the loss function unchanged, indicating our algorithm’s the validity. Secondly, we no longer manually select the coefficient of the weighted residual network but take the weighted coefficients in the mixed-weighted residual block as trainable parameters to participate in the training of the model, relying on the network itself and the optimization algorithm to achieve adaptive selection, saving the time of adjusting the network hyperparameters. Finally, the algorithm we propose is equally valid for the inverse problem but is not discussed in further detail.
