Minerals 2019, 9(8), 461; https://doi.org/10.3390/min9080461

Article
Gemstones of Greece: Geology and Crystallizing Environments
1
Faculty of Geology and Geoenvironment, National and Kapodistrian University of Athens, GR-15784 Athens, Greece
2
PANGEA Research Centre, School of Biological, Earth and Environmental Sciences, University of NSW, 2052 Sydney, Australia
3
CRPG/CNRS, Université Paul Sabatier, GET/IRD et Université de Lorraine, 54501 Vandœuvre cedex, France
4
GeoRessources, Faculté des Sciences et Technologies, Université de Lorraine, CNRS, F-54506 Vandœuvre-lès-Nancy, France
5
Faculty of Geology, Aristotle University of Thessaloniki, 54124 Thessaloniki, Greece
6
Bahrain Institute for Pearls & Gemstones (DANAT), WTC East Tower, P.O. Box 17236 Manama, Bahrain
*
Author to whom correspondence should be addressed.
Received: 28 June 2019 / Accepted: 26 July 2019 / Published: 29 July 2019

Abstract

:
In the Hellenides Orogen, minerals of various gem quality occur in various rock types from mainly four tectono-metamorphic units, the Rhodope, Pelagonian, and the Attico-Cycladic massifs, and the Phyllites-Quartzites unit of Crete Island. In crystalline rocks, gemstones are related to both regional metamorphic-metasomatic processes (e.g., gem corundums, Mn-andalusite, thulite/clinothulite, spessartine, titanite, jadeite), and to the formation of late alpine-type fissures, such as, for example, quartz, albite, adularia and titanite. The Tertiary (and Mesozoic) magmatic-hydrothermal environments provide gem-quality sapphire, beryl, garnet, vesuvianite, epidote, fluorite, and SiO2 varieties. The supergene oxidation zone of the Lavrion deposit hosts gem-quality smithsonite and azurite. Coloration in the studied material is either due to various chromophore trace elements present in the crystal structure, or due to inclusions of other mineral phases. Future modern exploration methods combined with gemological investigations (such as treatment and faceting of selected stones), are necessary in order to obtain a better knowledge of the gemstone potential of Greece for its possible exploitation.
Keywords:
gemstones; corundum; beryl; jadeitite; garnet; quartz varieties; Greece

1. Introduction

By definition, gems are materials used for adornment or decoration that must be relatively rare, hard, and tough enough (shock resistant) to resist “normal” wear and withstand corrosion by skin contact and cosmetics [1]. Gems have been prized for thousands of years for their color, luster, transparency, durability, and high value-to-volume ratio [1,2]. A natural gem is one that has been fashioned (or faceted) after having been found in nature, even if it later undergoes treatment processes. Gem materials cover a large variety of products found in the jewelry market today. Most natural gems are single crystals of natural minerals, although others are amorphous (some varieties of opal, natural glass), some are solid solutions (garnets, peridot, etc.), others are rocks (jade, lapis), and some are composed partly or wholly of organic materials (amber, pearl, coral, etc.) [1].
According to Groat [3,4] and Stern et al. [5], any mineral or stone beautiful enough to be sought, mined, and sold for its beauty alone is a gemstone. Among the most important gemstones are diamond, ruby (red-colored corundum) and sapphire (blue-colored corundum), emerald and other gem forms of the mineral beryl, chrysoberyl, tanzanite (blue zoisite), tsavorite (green grossular garnet), "paraiba-type" tourmaline (copper-colored "neon"-blue tourmaline), topaz and jadeite-"jade" (jadeitite) [4]. More common gem materials include, among others, amber, silica gems, feldspar, tourmaline, spinel, garnets, zircon etc. It is not the mineral itself that makes a gemstone, it is the characteristics of a specific sample [2].
Understanding the geological conditions that give rise to gem deposits is of great importance because it can provide guidelines for exploration [2,3,6]. Specific geological conditions include the availability of uncommon major constituents, the presence of adequate chromophores and open space in order to form crystals of sufficient size and transparency [2], and the absence of dramatic post-growth events (e.g., fracturing).
Traditionally, Greece has not been regarded as a source country for gemstones [7]. Known gem material included rubies from Xanthi [8], sapphire and beryl from Naxos Island [9], red-colored spessartine from Paros Island [10], smithsonite from the oxidation zone of the Lavrion mines [11], and the green quartz variety (prase) from the Serifos skarn [12]. Exploration work in Greece over the last three decades has resulted in the discovery of new occurrences of mineral megacrysts many of them being gem-quality [13,14,15,16,17,18,19]. The gemstones of Greece are set within diverse geological settings, the study of which will increase our knowledge on the conditions necessary for their crystallization and concentration into economically-viable deposits. The aim of this work is to review all available information on the geology, mineralogy, geochemistry, and fluid characteristics involved in the formation of various gemstones in Greece. The occurrences of gemstones in Greece are presented in Figure 1 and Figure 2 and described with respect to their geological framework and the conditions of their formation.

2. Materials and Methods

Analytical methods included optical and electron microscopy, X-ray powder diffraction studies, and electron microprobe analyses, in the Section of Mineralogy-Petrology at University of Athens and at the Institute of Mineralogy and Petrology, University of Hamburg. X-ray powder diffraction measurements were obtained using a SIEMENS D-500 diffractometer with Cu tube and Co filter. For the mineral analyses, a scanning electron microscope JEOL JSM-5600 combined with an energy dispersive X-ray microanalysis system Oxford Link Isis 300 system were used. Thin and thin-and-polished sections of mineral samples and host rocks were studied by a JEOL JSM 5600 scanning electron microscope equipped with back-scattered imaging capabilities, respectively, at the Department of Mineralogy and Petrology at the University of Athens (Greece). Quantitative analyses were carried-out at the Institute of Mineralogy and Petrology, University of Hamburg using a Cameca-SX 100 WDS. Analytical conditions were as follows: accelerating voltage of 20 kV, a beam current of 20 nA and counting time of 20 s for Al, Si, Ca, Fe and Mg, 60 s for Mn and 120 s for Cr. The X-ray lines used were: AlKα, SiKα, TiKα, FeKα, MnKα, MgKα, CrKα, and CaLα. The standards used were: andradite (for Si, Ca and Fe), and synthetic Al2O3 (for Al), MnTiO3 (for Mn and Ti), Fe2O3 (for Fe), Cr2O3 (for Cr), and MgO (for Mg). Corrections were applied using the PAP online program [20].
LA-ICP-MS analyses presented in this study are from Voudouris et al. [18]. The analyses were conducted at the CODES ARC Centre of Excellence in Ore Deposits of the University of Tasmania, Australia, and the Institute of Mineralogy, University of Münster, Germany. For analytical conditions see Voudouris et al. [18].
Stable isotope analyses were performed at the Stable Isotope and Atmospheric Laboratories, Department of Geology, Royal Holloway, University of London (London, UK). The oxygen isotope composition of quartz was obtained using a CO2 laser fluorination system similar to that described by Mattey [21]. Each mineral, separate or standard, is weighed at 1.7 mg ± 10%. These were loaded into the 16-holes of a nickel sample tray, which was inserted into the reaction chamber and then evacuated. The oxygen was released by a 30W Synrad CO2 laser in the presence of BrF5 reagent. The yield of oxygen was measured as a calibrated pressure based on the estimated or known oxygen content of the mineral being analyzed. Low yields result in low δ18O values for all mineral phases, so accurate yield calculations are essential. Yields of >90% are required for most minerals to give satisfactory δ18O values. The oxygen gas was measured using a VG Isotech (now GV Instruments) Optima dual inlet isotope ratio mass spectrometer (IRMS). All values are reported relative to Vienna Standard Mean Ocean Water (V-SMOW). The data are calibrated to a quartz standard (Q BLC) with a known δ18O value of +8.8‰ V-SMOW from previous measurements at the University of Paris-6 (France). This has been further calibrated for the RHUL laser line by comparison with NBS-28 quartz. Each 16-hole tray contained up to 12 sample unknowns and 4 of the Q BLC standard. For each quartz run a small constant daily correction, normally less than 0.3‰, was applied to the data based on the average value for the standard. Overall, the precision of the RHUL system based on standard and sample replicates is better than ±0.1‰.

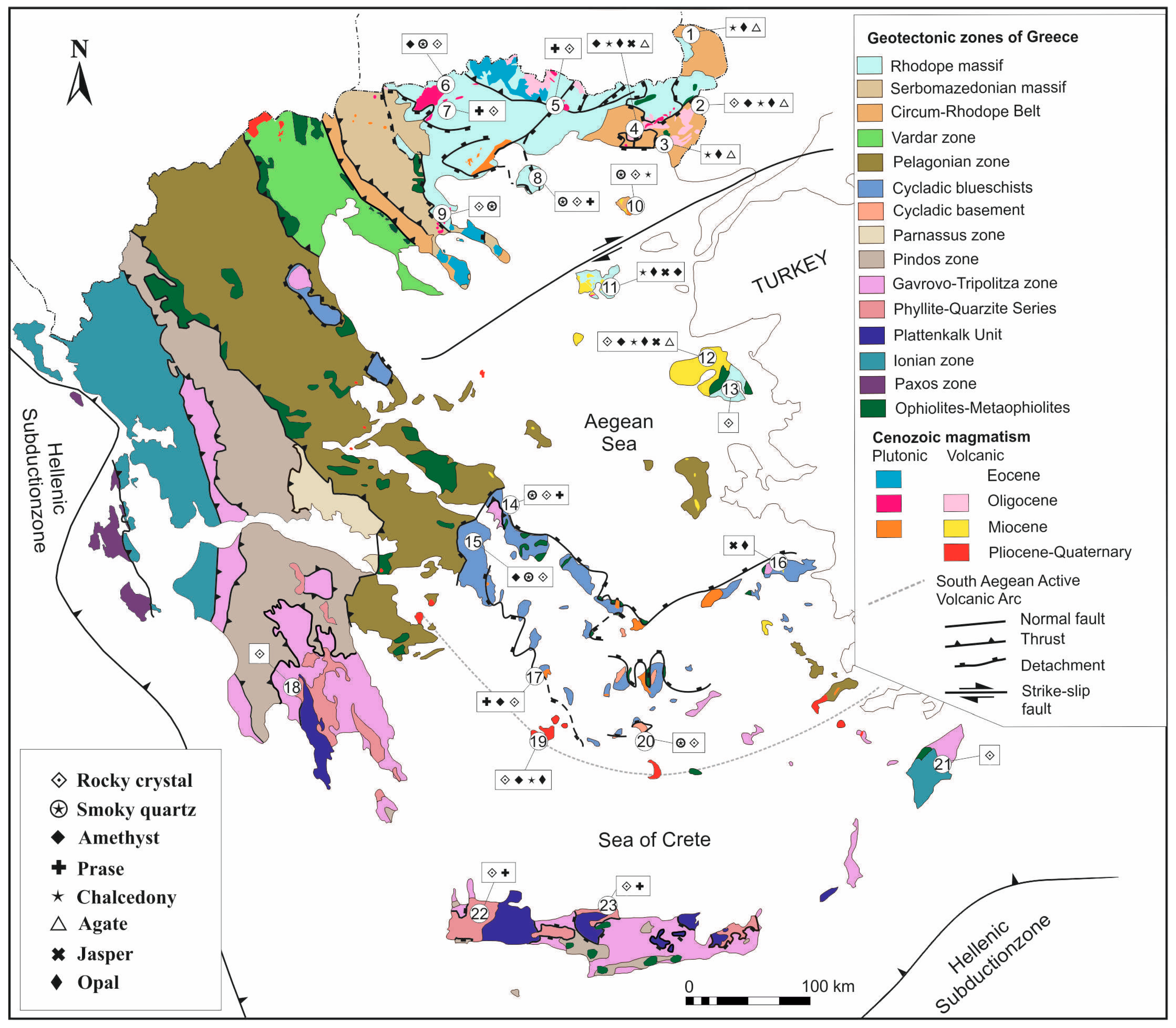

3. Geological Setting

The Hellenides constitute part of the Alpine-Himalayan Orogen and formed when Apulia collided with Europe during the Late Cretaceous to Tertiary. They are subdivided into several units: the Rhodope Massif, Servo-Macedonian Massif, Vardar Zone, Pelagonian Zone (Internal Hellenides) and the External Hellenides built-up by Mesozoic and Cenozoic rocks [22,23,24,25] (Figure 1 and Figure 2). The Hellenides can be considered an accretionary orogen, resulted from thrusting and SW-verging nappe-stacking of the Rhodopes, Pelagonia and Adria continental blocks, and closure of the Vardar and Pindos oceanic domains of the Neotethys [22]. A Permo-Carboniferous igneous event (known from the Pelagonian Zone, the Rhodope Massif, the Attico-Cycladic Zone, Peloponnese and Crete) documents an active continental margin evolution in the Precambrian-Silurian basement of the Hellenides. Final collision between Europe and Pelagonia at the end of the Cretaceous closed the Neotethys Ocean along the Vardar Suture Zone, as evidenced by obducted Jurassic ophiolites on the Pelagonia continental block [26].
Shortening and syn-orogenic exhumation of HP-LT rocks occurred during the late Cretaceous-Eocene, before an acceleration of slab retreat changed the subduction regime and caused the collapse of the Hellenic mountain belt and thinning of the Aegean Sea from the middle Eocene/late Oligocene to the present [22]. During this post-orogenic episode, large-scale detachments formed, which exhumed metamorphic core complexes in a back-arc setting. Tertiary magmatism in the Aegean region occurred mostly in a post-collisional setting behind the active Hellenic subduction zone [26]. The Pliocene to recent volcanic rocks in the active Aegean volcanic arc formed as a consequence of active subduction beneath the Hellenic trench. In the Hellenides Orogen, gemstones occur in various rock types of mainly three tectono-metamorphic units, the Rhodope- and the Attico-Cycladic massifs and the Phyllites-Quartzites unit of Crete Island.

4. Formation Environments of Gems: An Overview

4.1. Metamorphic-Metasomatic

In crystalline rocks, two groups of gemstones are distinguished: those formed during regional metamorphism-metasomatism and those associated with late alpine-type fissures [14,15,16,18,19,27,28,29] (Figure 1 and Figure 2). The first group includes ruby, sapphire, jadeite "jade" (jadeitite), Mn-andalusite, spessartine, Mn-grossular, Mn-zoisite/clinozoisite, Fe-Mn-bearing kyanite and rhodonite. Corundums in the Xanthi-Drama areas (Rhodope massif) and Naxos-Ikaria Islands (Attico-Cycladic massif), are hosted in pargasitic schists, marbles and metabauxites. Host rocks are Carboniferous orthogneisses, metapelites and skarns for Mn-andalusite, spessartine and thulite at Thassos Island, Permian - Middle Triassic schists for rhodonite in Andros Island (Attico-Cycladic massif, [30]) and orthogneisses and marbles in Paros Island [10]. Jadeitites, eclogites and blueschists are host rocks for jadeite "jade" and titanite at Syros Island.
Alpine-type fissure minerals [31,32] in Greece are related to tension gashes formed under brittle-ductile to ductile conditions during the retrograde, late-stage exhumation of metamorphic core complexes [14,33,34]. The alpine-type fissures in Greece contain gem-quality quartz and albite together with adularia, chlorite, epidote, actinolite, hematite, muscovite, rutile, tourmaline and pyrite. Host lithologies are ortho- and paragneisses in the Rhodope Massif (Drama, Thassos Island) and Attico-Cycladic Massif (Penteli Mt, Evia, Ios Islands), amphibolites (Evros, Thassos, Evia and Andros Islands) and finally phyllites (Lesvos Island) and metaquartzites (Crete Island). Quartz in both transparent smoky and colorless (rock crystal) varieties were found in all the above localities and/or host rocks—deep violet amethyst occurs in orthogneisses at Drama area [34]. Albite crystals of gem-quality are abundant in metabasites from Crete Island and orthogneisses from Evia Island.

4.2. Magmatic-Hydrothermal

The Tertiary (and Mesozoic) magmatic-hydrothermal environments in Greece (granitoids, pegmatites, skarns, non-skarn carbonate-replacement deposits, volcanic and ophiolitic rocks) also provide gem-quality material of beryl, corundum, garnet, vesuvianite, diopside, epidote, titanite, spinel, fluorite, rhodochrosite, quartz varieties, and silica microcrystalline species (Figure 1 and Figure 2). Miarolitic cavities and quartz veins cross-cutting granitoids host gem-quality quartz varieties and apatite. Samothraki and Limnos Islands in the northern Aegean, and Kimmeria/Xanthi, Maronia/Rhodopi in the mainland of northern Greece and Tinos Island in the Cyclades are the most important localities. The Greek pegmatites are mostly deficient in miarolitic cavities, and thus contain only matrix embedded mineral crystals. On Naxos Island, blue sapphires are associated with granite pegmatites intruding ultramafic lithologies (plumasites). Blue beryl crystals (var. aquamarine) are typical constituents of Naxos pegmatites both within the migmatitic domes as well as in pegmatites cross-cutting the surrounding metamorphic rocks. Black tourmaline crystals occur in pegmatites near Nevrokopi-Drama and at Naxos Island.
The skarns of Serifos, Kimmeria/Xanthi and Drama, are characterized by abundant quartz. Epidote crystals are associated with quartz at Lefkopetra, near Kimmeria within metasomatized granodiorite and gneiss-hosted exoskarn bodies. Vesuvianite occurs at Kimmeria and Maronia exoscarns, and garnet is a major constituent of the Greek skarns and represented by several gemmy varieties at Maronia, Kimmeria, Kresti, Kos and Serifos. Titanite and spinel occur in the Maronia endo- and exoskarns respectively. The carbonate-replacement Pb-Zn-Au-Ag deposits of Stratoni, Olympias, Lavrion and Serifos host a large variety of non-metallic minerals of gem-quality of both hypogene and supergene origin. Primary, gem-quality minerals from the Chalkidiki mines include: quartz and rhodochrosite. The Lavrion and Serifos deposits are well-known localities for fluorite. Rodingitized gabbros and dolerites at Evros, Evia, Larissa and Othrys Mesozoic ophiolites (Rhodope massif and Pelagonian zone) host gem-quality hessonite and vesuvianite [17].
Hydrothermal-altered volcanic rocks throughout Greece host several silica varieties most of them in gem-quality. Amethyst and chalcedony occur at Kornofolia/Evros area, in Sapes-Rhodopi region and in Lesvos and Milos Islands in epithermal veins accompanying calcite, and/or adularia and barite [35]. Opal occurs in several varieties and colors at Lesvos and Limnos Islands being a constituent of fossilized wood, as well as at various localities at Evros and Milos, Limnos and Lesvos Island and is considered to be part of either silica sinters or steam-heated alteration zones. Fluorite megacrysts occur at Samos and Lesvos Islands, in both cases in the form of monominerallic fluorite veins, cross-cutting epithermally-altered silicified zones and propylitically altered lavas, respectively.

5. Mineralogy of Gems

5.1. Corundum

Greece contains gem corundums mostly within the Rhodope (Xanthi and Drama areas) and Attico-Cycladic (Naxos and Ikaria Islands) tectono-metamorphic units (Figure 1 and Figure 3). In the Xanthi area (Gorgona-Stirigma localities) sapphire deposits are stratiform, occurring within marble layers alternating with eclogitic amphibolites [18,36,37] (Figure 3a). Rubies in the Paranesti-Drama area are restricted to boudinaged lenses of pargasitic schists alternating with amphibolites and gneisses [28,29]. Both occurrences are oriented parallel to the UHP-HP Nestos suture zone. Sapphire from Xanthi marbles is of pink, orange, purple to blue color, usually of tabular or barrel-shaped euhedral form and reaches sizes of up to 4 cm (Figure 3b,c). In some cases, blue corundum alters to spinel. The corundums from Xanthi are transparent with very clear parting and fine cracks. Blue sapphires are zoned, with alternating deep blue and colorless domains. This zoning, or irregular color distribution in the sapphires, is attributed to different Fe and Ti contents in the crystals [18]. The Xanthi sapphires are associated with calcite, dolomite, brown or blue spinel, margarite, and nickeloan tourmaline.
In the Paranesti/Drama area, rubies are associated with kyanite and pargasitic hornblende, and are rimmed by margarite, muscovite, chlorite and chromian spinel. Ruby crystals, ranging in size up to 5 cm and of pale pink to deep red color [28], are mainly flat tabular and less commonly prismatic and barrel-shaped (Figure 3d). The Paranesti rubies are opaque to transparent exhibiting clear parting and lamellar twinning.
On Naxos Island, about 2 km East and Southeast of Kinidaros, blue sapphires up to 3 cm are associated with granite pegmatites intruding ultramafic lithologies (plumasites), occurring either within the pegmatites themselves or the surrounding metasomatic reaction zones [18,37,38] (Figure 3e). Within the plumasites, colorless to blue, purple, and pink corundum may occur either as isolated crystals within the plagioclase matrix, and/or associated with tourmaline and phlogopite (Figure 3f). In the blackwalls that developed at the contacts between the pegmatites and the meta-peridotite country rock purple and pink sapphires are enveloped by phlogopite. The Naxos plumasite sapphire crystals are barrel-shaped, display macroscopic color zoning from a blue core surrounded by a white rim or as a blue-zoned outer rim surrounding a colorless core, or pink cores to purple rims [18]. They are transparent with inner fractures. In the southern part of the Island, close to Kavalaris Hill, a rock termed “corundite” by Feenstra and Wunder [39], which was formed by the dissociation of former diasporites, in meta-bauxites during prograde regional metamorphism, is composed almost entirely of blue corundum. The corundum from this locality does not occur in well-shaped crystals, it is mostly massive, and translucent to opaque, appropriate only to be cut as cabochon.
On Ikaria Island, blue sapphires occur in the metabauxites of Atheras Mt, hosted within marbles, which lie on top of gneisses. The corundum megacrysts fill together with margarite, extensional fissures and networks of veins discordant to the metabauxite foliation [18,37]. The corundums are deep-blue in color, tabular to well-shaped, reach sizes up to 4 cm and are accompanied by Fe-chlorite, hematite, rutile and diaspore. The corundum contains inclusions of ilmenite, hematite, ulvospinel, rutile and zircon.

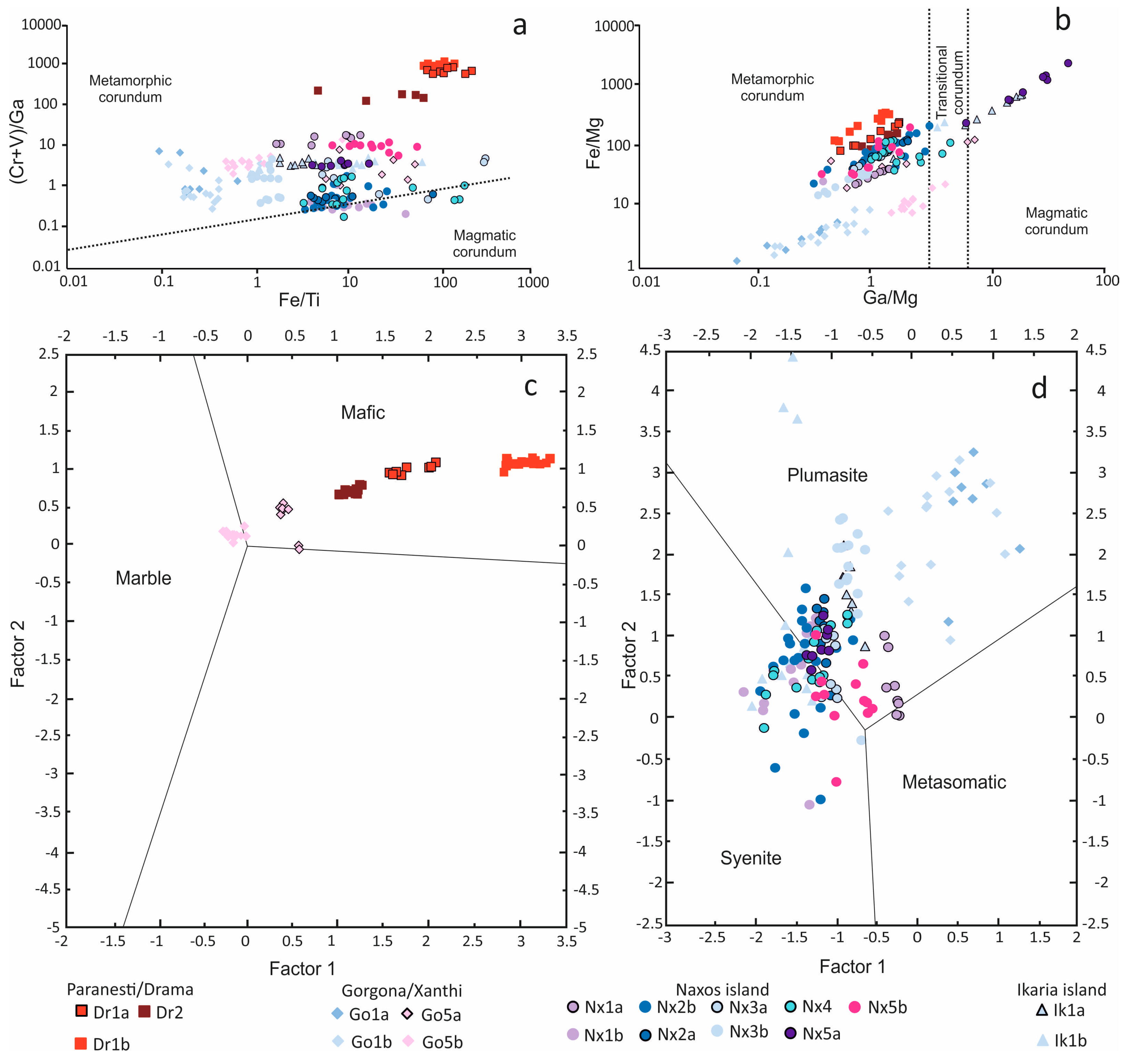

The LA-ICP-MS results for averages and ranges for chromophores and genetic indicator elements (Fe, Cr, Ti, V, Ga and Mg) are listed in Table 1. Colorless to blue sapphires from Gorgona/Xanthi display significant variations in their Ti content which reflects their zoned coloration. Bluish areas display high Ti values up to 6462 ppm, and pink varieties are characterized by much less Ti (up to 810 ppm). Iron content reaches values up to 1339 ppm in both colorless and blue areas and up to 1782 ppm in the pink varieties. Pink corundums are characterized by significantly higher Cr (up to 1082 ppm) concentrations, compared to the colorless/blue areas (Cr < 298 ppm). Maximum values for V and Ga content of up to 227 and 121 ppm, respectively are fixed regardless of the color. Mg values (up to 536 ppm) are generally higher in the colorless to blue grains, compared to the pink grains (< 65 ppm). Rubies from Paranesti/Drama display very high Cr contents (up to 15347 ppm), and Fe (up to 4348 ppm). The Ti, Mg, Ga and V values are low (up to 148, 31, 24 and 6 ppm, respectively).
Sapphires from Naxos Island are characterized by high Fe concentrations (up to 6678 ppm), related to blue-colored domains. Ti is considerably lower (up to 966 ppm), with the exception of one colorless to blue corundum, where values up to 3222 ppm were detected. Chromium in blue to colorless varieties is low and reaches values of up to 851 ppm in grains with pink and purple hues. Vanadium content in the majority of the samples measured varies in the range of 20–40 ppm. Mg and Ga values range between 2–208 ppm and 42–184 ppm, respectively. The higher Ga concentrations occur in the metabauxite-hosted sapphires. Sapphires from Ikaria display high Fe and Ti values (up to 7324 ppm and 4508 ppm, respectively). Cr, Mg and V values reach maximum values of up to 313, 54 and 164 ppm, respectively. Gallium shows elevated concentrations, up to 114 ppm. Figure 4 distinguishes different primary sources for the studied corundums based on the chromophore and genetic indicator elements. In the (Cr + V)/Ga versus Fe/Ti diagram (Figure 4a, [40,41]), the majority of the samples plot in the field of metamorphic corundum, exhibiting a large variation in Fe/Ti ratios. Rubies from Paranesti/Drama show high Cr/Ga and Fe/Ti ratios, followed by the pink and purple sapphires from Naxos Island. In the Fe/Mg versus Ga/Mg plot (Figure 4b, [40,42]), most samples plot in the metamorphic corundum field, except for sapphires from the metabauxites of Naxos and Ikaria Islands. A few blue sapphires from Naxos Island and pink sapphires from Gorgona/Xanthi plot in the area of transitional corundum. In the discriminant factor diagrams of Giuliani et al. [43], the Paranesti rubies within the pargasitic schists, plot in the “mafic” field and pink corundums (e.g. sapphires because Fe > Cr + V), from Xanthi in the “marble” field. In our study we considered pink corundum for which Cr + V < Fe as sapphires. From Figure 4c we can observe that the marble-hosted pink corundum from Xanthi (sample GO5b) plots in the marble area, while those of Go5a (pink purple) plot in the metasomatite field, suggesting that for sapphires the “marble” field (as defined for rubies) may extend to the right into the “metasomatic” field. Only part of the plumasitic sapphires from Naxos plot in the “plumasitic” field, the rest plotting in the “syenite” field (Figure 4d).

5.2. Beryl

The Greek pegmatites are mostly deficient in miarolitic cavities, and thus only contain matrix-embedded mineral crystals. Blue beryl crystals (var. aquamarine) up to 5cm long are typical constituents of Naxos pegmatites both within the migmatitic dome as well as in pegmatites cross-cutting the surrounding metamorphic rocks (Figure 3g–i).

5.3. Jadeitite

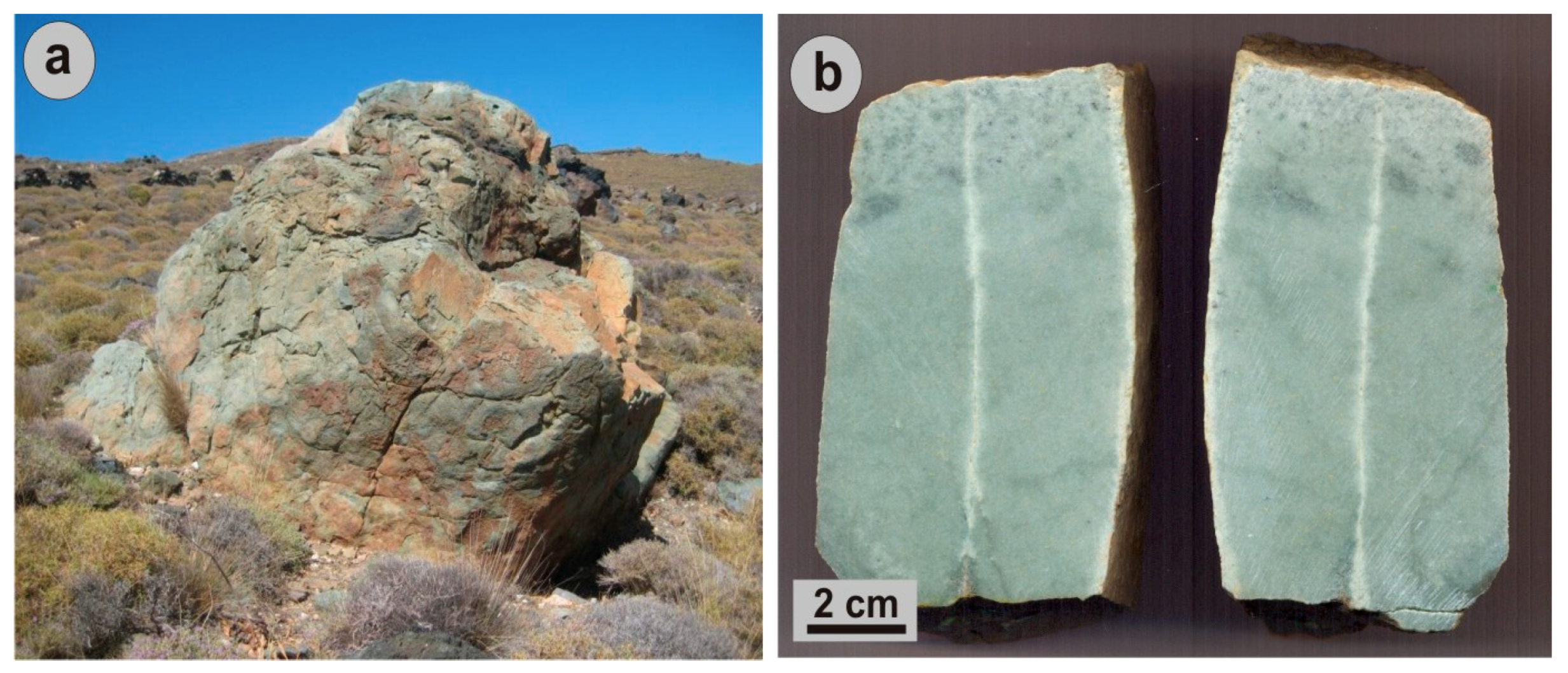

Jadeitite, a rock that is also termed jadeite “jade”, consists almost entirely of the pyroxene mineral jadeite. Its green color is attributed to iron substituting for aluminum in the jadeite [Na(Al,Fe3+)Si2O6] crystal structure [4]. Jadeitite together with omphacitite occurs within the Kampos mélange, Syros Island in contact relationship or enveloping eclogite [27,44,45] as shown in Figure 5a,b. A production of polished jade axe heads on Syros took place at least since the Neolithic period [46].

5.4. Al2SiO5 Polymorphs

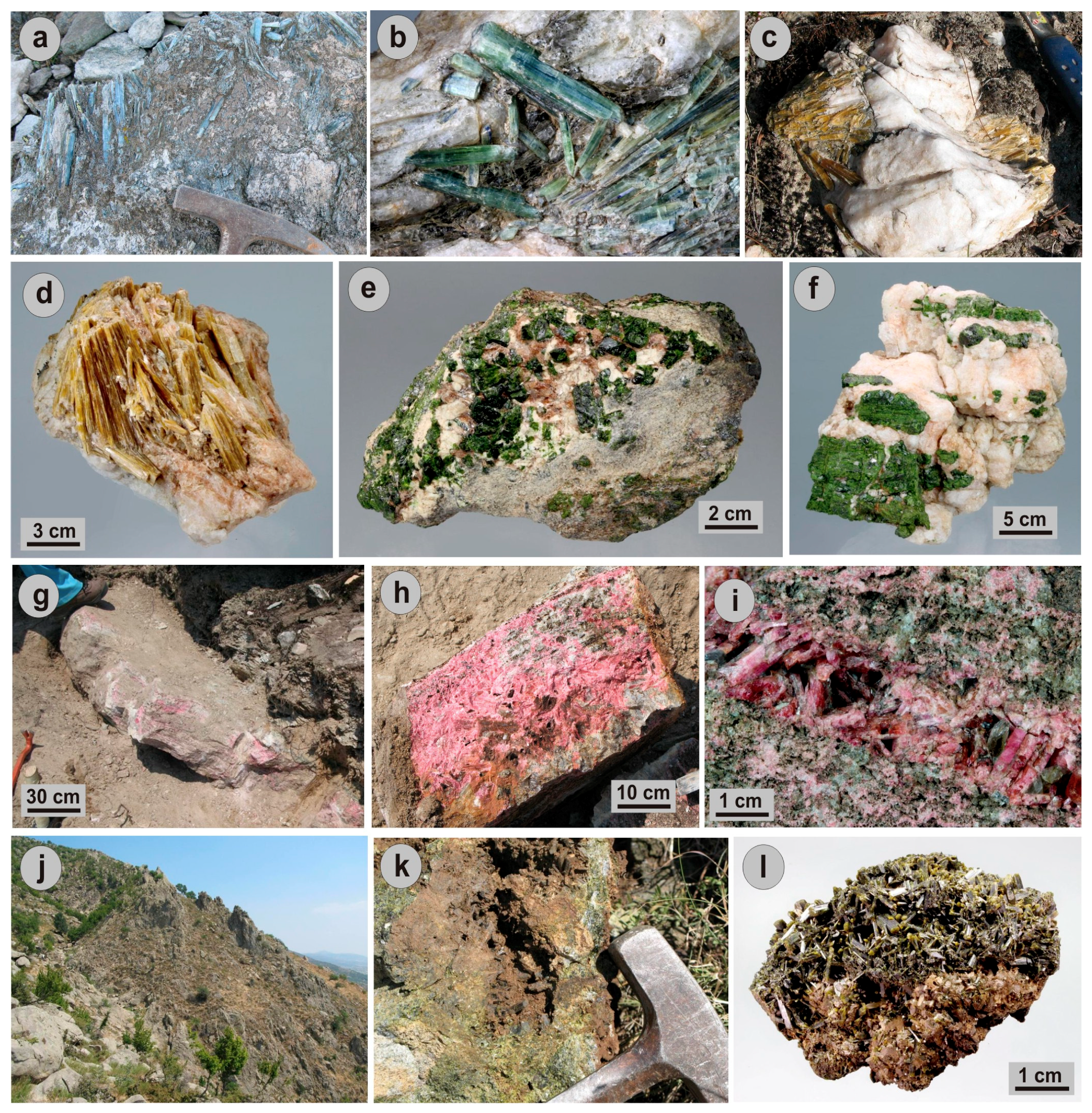

Kyanite in blue, green, yellowish to orange colored crystals up to 20 cm long, is found in quartz ± feldspar boudins intercalated within metapelites at Trikorfo, Thassos Island (Figure 6a–d) [17,19,47]. Orange kyanite also occurs in association with spessartine, and muscovite. Distinct dark blue color zoning is a common feature in the centre of some light blue kyanite; this color zoning can also be observed in some yellow kyanite. Microprobe analyses for orange kyanite indicate MnO up to 0.1 wt. % contributing to the coloration of the crystals [19] and up to 1.5 wt. % FeO. In a similar occurrence on Naxos Island in the Cyclades, kyanite forms up to 10 cm blue-colored crystals in quartz lenses and veins.
Mn-Andalusite (formerly viridine) in dark green-colored euhedral to subhedral crystals up to 7 cm is found in quartz-feldspar boudins (Figure 6e,f) at Trikorfo, Thassos Island. Mn-andalusite also occurs in orange kyanite-mica schists or in association with muscovite. Microprobe data revealed Mn2O3 contents, up to 2.90 wt. % (Table 2). Mn3+ substituting for Al3+ in the mineral formula is responsible for the dark green color [19,47].

5.5. Epidote Group Minerals—Zoisite

Mn-poor zoisite (var. thulite) and Mn-poor clinozoisite in calc-silicate layers at Trikorfo, Thassos Island, are intergrown with Mn-grossular and quartz (Figure 6g–i). They form light pink to red colored translucent subhedral to euhedral crystals up to 10cm long. Available electron microprobe data revealed low Fe2O3 content (1.5 wt. %–2 wt. %) and very low Mn2O3 values from 0.15 wt. %–0.21 wt. %, but enough to be responsible for the pink-red coloration [19,47]. Deep green colored epidote crystals, up to 10 cm long associated with quartz and garnets at Lefkopetra, near Kimmeria, Xanthi, within metasomatized granodiorite and gneiss-hosted exoskarn bodies (Figure 6j–l) are partly of gem-quality.

5.6. Garnets

Spessartine and Mn-grossular are crystallized within andalusite-kyanite schists and in the thulite-bearing calc-silicate layers of Trikorfo respectively [17,19,47]. Spessartine from quartz-muscovite veins within mica schists forms translucent, orange-colored euhedral crystals up to 1 cm and of gem-quality (Figure 7a,b). Electron microprobe analyses of spessartine indicate MnO contents up to 42.9 wt. % (Table 2). Mn-bearing grossular from the calc-silicate layers form euhedral yellowish crystals of gem-quality in close association with pink-to red colored Mn-zoisite and quartz. MnO content ranges from 1.9 wt. %–2.4 wt. % (Table 2).
Deep red colored spessartine crystals up to 3 cm at Paros Island/Cyclades, are related to Mn-bearing skarn occurrences at Thapsana (Figure 7c). Spessartine at Thapsana contains up to 34.4 wt. % MnO and is associated with rhodonite and Mn-oxides [48]. Garnet is also a major constituent and represented by several varieties at Maronia, Kimmeria, Kresti, Kos and Serifos skarns. The Maronia skarn (Figure 7d) includes dark green-colored Ti-Cr andradite-grossular up to 1 cm, which postdates crystallization of earlier black-colored schorlomite-uvarovite-kimzeyite solid solutions [13]. Late pale green, brown to orange grossular-andradite solid solutions reach sizes up to 5cm (Figure 7e,f). Ti-bearing brown grossular-andradite contains up to 4.6 wt. % TiO2. Transparent specimens with shiny dodecahedron faces are of gem-quality. A wide spectrum of colors in andradite-grossular garnets also occurs at Kimmeria where dark green-, brown-, yellow- to orange-colored garnets (up to 3 cm) occur (Figure 7g–i). Orange-colored grossular contains up to 1.15 wt. % MnO, whereas dark green-colored andradite-grossular solid solutions are characterized by elevated Ti contents (up to 2.86 wt. % TiO2; Table 2).
Red-brown Mn-bearing andradite-grossular is present at Kresti in Drama (with up to 3.6 wt. % MnO) and at Kos Island (with up to 1.1 wt. % MnO and 1 wt.% TiO2, Table 2), where they reach spectacular sizes of up to 20 cm (Figure 7j,k). The Serifos andradites are famous due to their zonal growth with colors ranging from deep brown to orange. The Agia Marina and Avessalos areas at Serifos are characterized by splendid occurrences of red-brown, locally transparent andraditic garnets in massif garnetitic skarns (Figure 7l). The garnets (up to 5 cm in size) accompany quartz and hematite in hedenbergitic skarn. Rodingitized gabbros at Evros, Evia, Larissa and Othrys Mesozoic ophiolites host gem-quality orange to brown grossular (hessonite), vesuvianite and diopside crystals up to 2 cm long [17,49].

5.7. Quartz

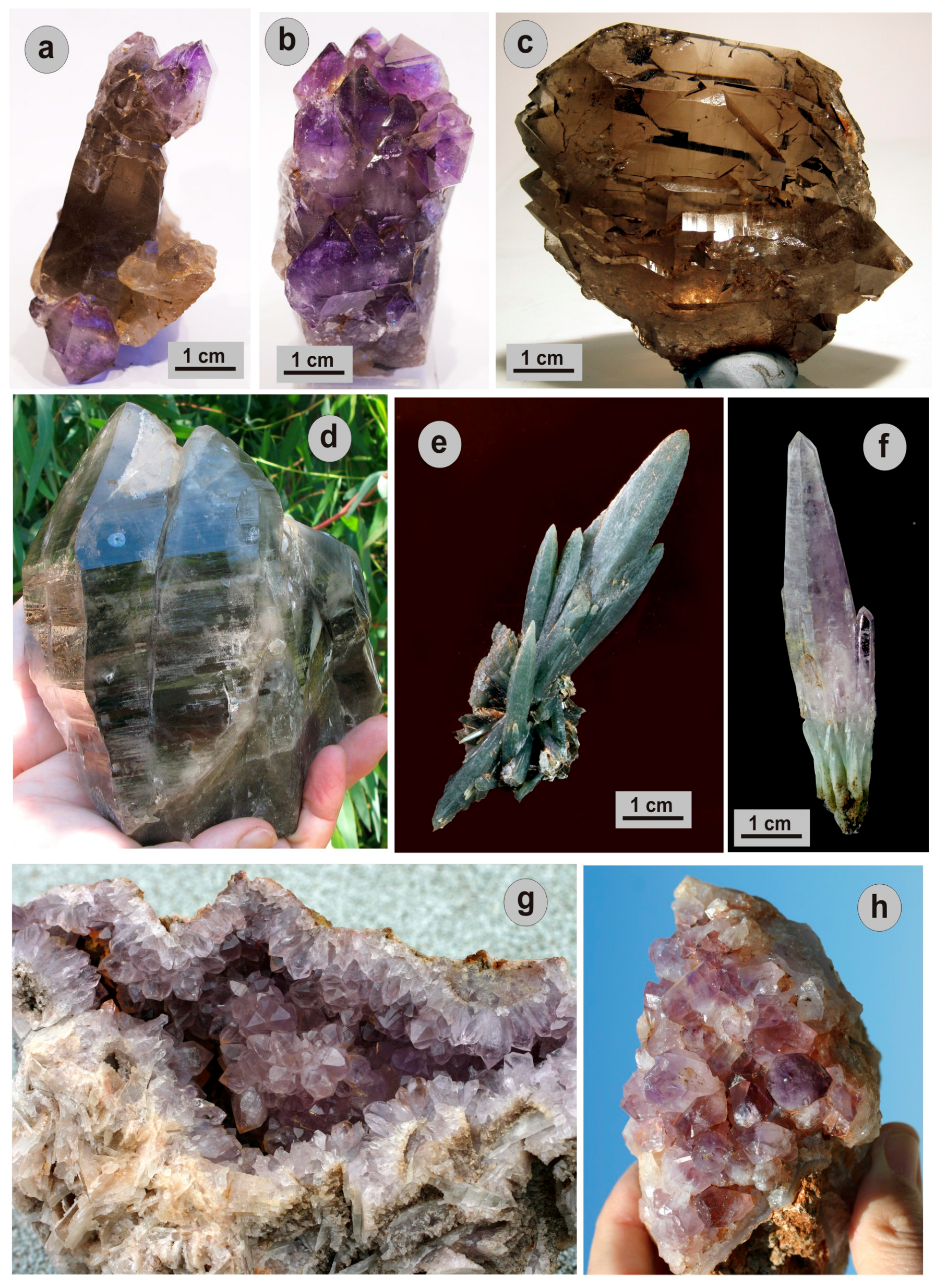

Quartz is found in an enormous variety of forms and colors from alpine-type fissures, granite-hosted miarolitic cavities and/or quartz veins, skarn-carbonate replacement deposits and volcanic-hosted epithermal environments [14,17,35,50,51]. Famous localities of gem-quality alpine-type quartz include the Attica and Drama districts, as well as Evia, Ios, Thassos and Crete Islands (Figure 2 and Figure 8a–c). Crystals reach sizes up to 40 cm. Smoky quartz, black quartz (morion), rock crystal, amethyst, chloritized quartz and rutilated quartz are among the varieties found throughout Greece.
Quartz crystals up to 50 cm, in colorless, smoky and black varieties (morion) fill miarolitic cavities in aplitic granites at Samothraki Island (Figure 8d). Colorless quartz crystals (up to 10 cm) also occur in quartz veins cross-cutting granitoids at Samothraki, Kimmeria, Maronia/Rhodopi and Tinos Island.
Quartz is a very common mineral in the skarns of Serifos, Kimmeria/Xanthi and Kresti/Drama. Combinations of amethyst and green quartz (prase) forming sceptre growths at Serifos are worldwide unique specimens. Green-colored (due to actinolite inclusions) quartz crystals, are also developed within wollastonite skarn, at both Kimmeria and Kresti.
The Avessalos area at Serifos Island is one of the best sites in the world in respect to its green quartz (prase) [12,13,52]. The area is characterized by a garnetitic and hedenbergitic skarn and by the development of huge geodes filled by prograde and retrograde skarn minerals. At Neroutsika location of Avessalos, two forms of prase occur (Figure 8e,f): the first variety refers to very deep green colored crystals accompanied by hematite roses. The second variety refers to double-colored crystals of prase-amethyst. The transition between these two crystals is abrupt within the same crystal, where prase occurs at the base and amethyst at the top of the crystal. The amethysts are transparent and of gem-quality [15,16]. In the southern part of the Avessalos area, rare combinations of scepter-shaped crystals contain both prase and amethyst. These crystals commonly comprise a lower prase part that evolves upwards into amethyst and further upwards again into prase. These alternations can be remarked even within a single crystal [13]. Gem-quality quartz, in crystals up to 60 cm also occurs at the carbonate-replacement deposits of Chalkidiki [53].
Amethyst is the main quartz variety of gem-quality in the volcanic rock-hosted epithermal environments in Greece. It occurs at Kornofolia/Evros area, in Sapes/Rhodopi region and in Lesvos and Milos Islands in epithermal veins accompanying calcite, and/or adularia and barite [13,35]. At Sapes, amethyst occurs in massive form within crustiform banded quartz-chalcedony veins, however cavities in the veins may host deep purple crystals up to 2cm. In Milos and Kornofolia, well-developed amethyst crystals (up to 2 cm) occur as open space filling in the centre of veins cross-cutting propylitic and sericitic altered volcanics (Figure 8g,h). At Megala Therma, Lesvos Island, amethyst is prismatic, up to 10 cm in length and displays sceptre and window growths and shares similarities to the Mexican and Sardinian occurrences.

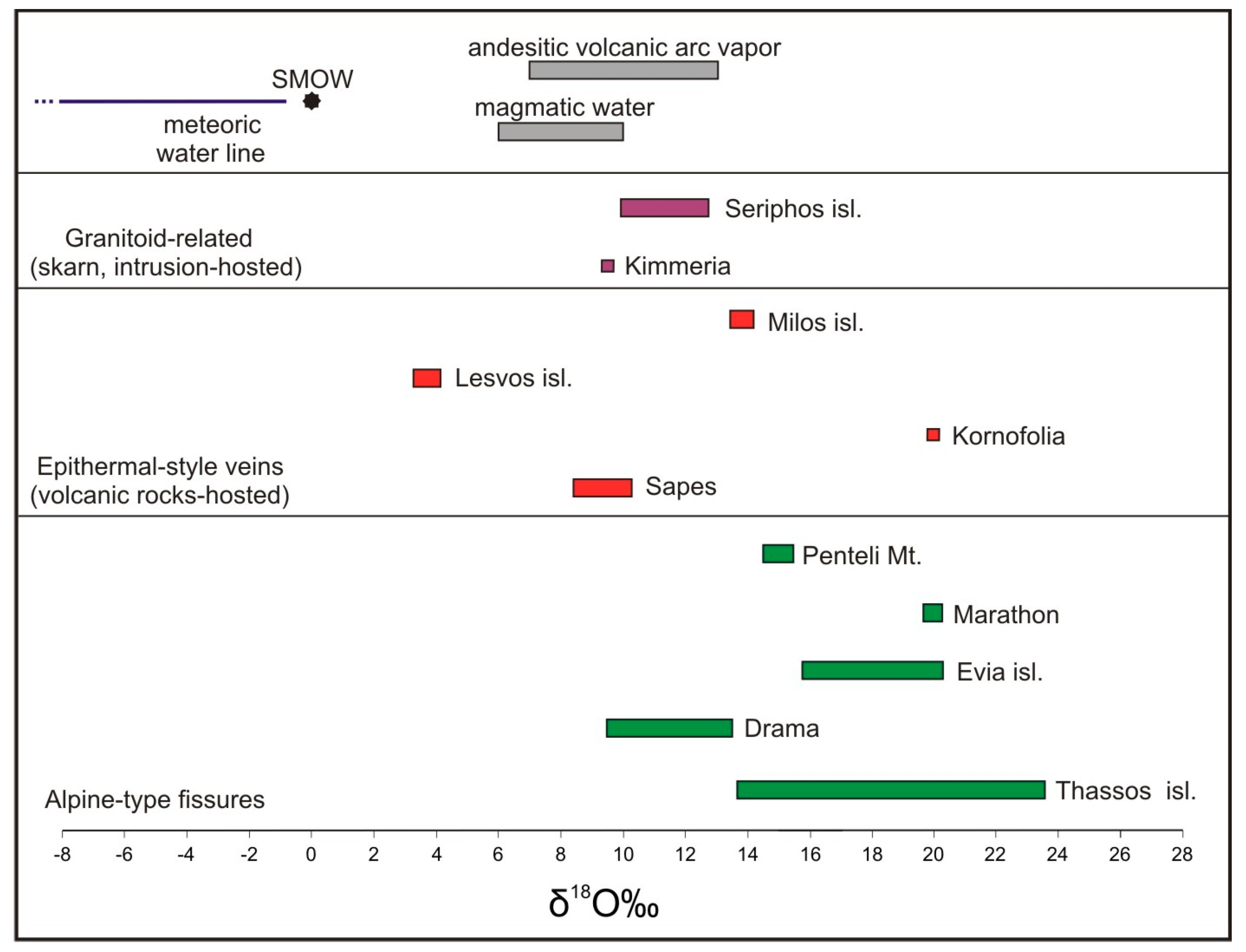

The oxygen isotopic composition of quartz from the various geological environments has been analyzed in hand-picked crystals and the results are presented in Table 3. Quartz from the alpine-type fissures yield isotopic δ18O values between 9.4‰ and 23.7‰ (Figure 9).
In the absence of fluid inclusion temperature results, the composition of the fluid in equilibrium with the quartz crystals on the basis of the fractionation equilibrium equation of Sharp et al. [56], cannot be estimated. However, the available data, especially for sceptered quartz crystals from the Rhodope area (Dassoto and Thassos Island), indicate an increase in δ18O values from the basal Tessin-habit parts of the crystals, towards the amethystine or clear and prismatic-habit sceptres on the upper parts of the crystal. Melfos and Voudouris [57] suggested that smoky quartz and amethyst at Dassoto were formed under different conditions due to mixing of carbonic metamorphic fluids with meteoric waters during the exhumation of the Rhodope core complex. The presence of hematite and pyrite within smoky quartz indicates fS2/fO2 conditions at the hematite/pyrite buffer, which were followed by more oxidizing conditions necessary for trivalent Fe to be incorporated into the quartz structure and to the crystallization of amethyst [57].
Similarly, the Thassos colorless and smoky quartz sceptre, display δ18O values between 21.4 and 23.66‰, heavier than the basal Tessin habit quartz crystals (values from 13.8‰ to 18.8‰, Table 3), thus suggesting involvement of two different fluid types in the crystallization of quartz. This is in accordance to the fluid inclusion results of Bitte et al. [58], who suggested for the quartz crystals from Thassos Island, a continuous event at ductile-brittle to brittle conditions from 360 to 170 °C and at pressures lower than 2 MPa. Carbonic-rich fluids are replaced by surficial fluids, derived from evaporated sea-water during the final period of exhumation.
Smoky, chloritized and colorless quartz crystals in the Attico-Cycladic massif (Evia Island, Penteli Mt including Marathon area) display a similar range of δ18O values (from 14.1 to 20.8‰) to those from Thassos (Table 3, Figure 9). According to Tarantola et al. [59], metamorphic and basinal fluids were trapped in Evia Island quartz crystals during exhumation of the Attic-Cycladic metamorphic complex. Mineral inclusions of biotite and chlorite in quartz indicate continuous crystallization from 430 to 250 °C.
Volcanic-rock hosted amethysts yield isotopic δ18O values between 3.3‰ and 20.5‰ (Figure 9; see also Voudouris et al. [35]. Those from Kassiteres-Sapes show δ18O values of 8.2 to 10.5‰. The amethyst at Kornofolia, Evros district, yielded the highest δ18O values (20.5‰) and those from Lesvos the lowest δ18O value of all amethysts analysed (3.3‰). Finally, the Milos amethyst have δ18O values of 13.4 and 14.1‰. Based on fluid inclusion data, Voudouris et al. [35] suggested that most δ18O values correspond to a mixing of magmatic and oceanic (and/or meteoric) water, with the highest magmatic component in Kornofolia and the lowest in Lesvos Island.
Quartz from a granite-hosted vein at Kimmeria, Xanthi yielded a δ18O value of 9.49‰. The isotopic signature of prase at Serifos skarn is comparable to those of quartz samples from different assemblages of the skarn zone at Serifos, but amethyst displays a significantly lighter isotopic signature [52].

5.8. Chalcedony and Other Silica Rich Varieties

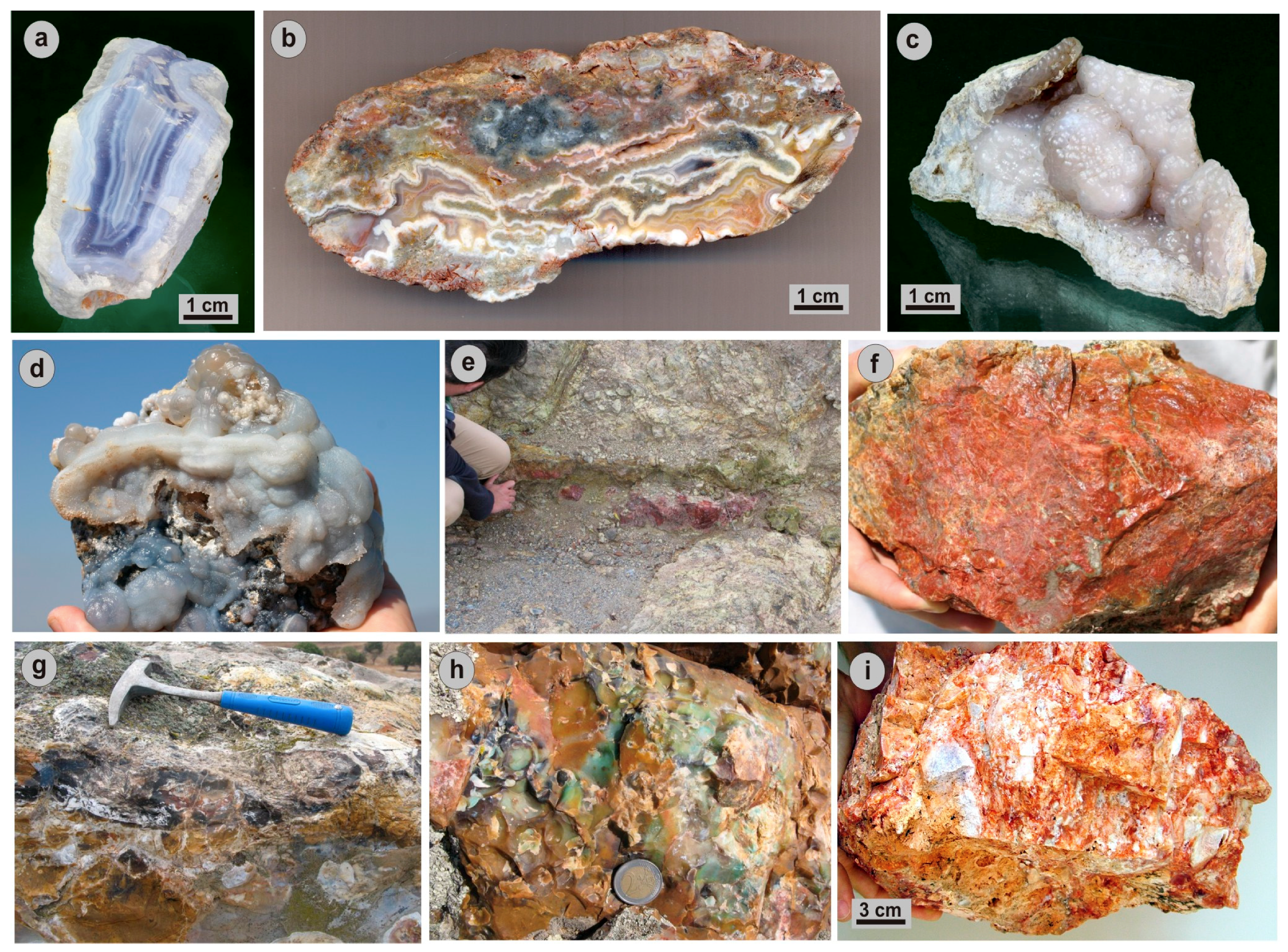

Blue agate occurs in veins cross-cutting dacitic lavas and/or as loose fragments at Aetochori, Evros district (Figure 10a) [17]. Agate with various colors is also found in the volcanic environments of Lefkimi/Evros (Figure 10b), and Limnos Island. Chalcedony is present at Kornofolia/Evros and at Petsofas/Lesvos, where it forms typical botryoidal and stalactitic aggregates up to 10 cm, varying in color from pale to deep blue and pink to purple (Figure 10c,d). Red jasper occurs in the Sapes area in the form of up to 40 cm thick horizons hosted in smectite-altered pyroclastics (Figure 10e,f) [60]. Jasper and agate from Lesvos Island have been described by Thewalt et al. [61].

5.9. Opal

Opal occurs in several varieties and colors (deep red, yellow, black, orange and green) at Lesvos and Limnos Islands being a constituent of fossilized wood [13,62,63,64], as well as at various localities at Evros, Milos, Limnos and Lesvos Islands, where it is considered to be part of either silica sinters or steam-heated alteration zones. At the Moudros area, Limnos Island several horizons of opaline silicification within the pyroclastic rocks host opalized wood [64,65]. These horizons represent either thin-bedded, lacustrine-fluviatile intercalations between the pyroclastic formations and were deposited during erosional periods that lasted between the volcanic activity phases, or true silica sinter deposition. In some places the fossiliferous horizons overly an alunitic alteration zone and hydrothermal breccias rich in natroalunite occur. In other cases the opaline horizon is intercalated between fresh to weak argillicaly altered rocks. Silicification within the horizons varies from red, green, white, to black colored, the white color resulting from total depletion in iron oxides (Figure 10g–i). Representative X-ray powder diffraction diagrams from Greek opals are given in Figure 11, demonstrating the transformation of opal-C to quartz in some samples.

5.10. Feldspars

Gem-quality albite is present as idiomorphic transparent crystals, up to 6 cm in size, grown onto clear and smoky quartz crystals from Evia and Crete Islands (Figure 12a,b). Adularia constitutes well-developed crystals up to 3 cm in size, which occupy alpine-type fissures along with quartz mainly from Evia and Thassos areas.

5.11. Titanite

Titanite in large yellow crystals (up to 3 cm), accompanies zoisite-bearing calc-silicate layers within amphibolites of the Rhodope massif at Therapio, Evros [66]. Green titanite crystals up to 5 cm long at Syros Island, belongs to the retrograde mineral assemblage of eclogites. Titanite in honey colored crystals up to 1 cm, accompany orthoclase and schorlomite in the Maronia endoskarn. Finally, yellow/green colored titanite is associated with adularia in amphibolite-hosted fissures at Thassos Island [51] (Figure 12c). All localities include locally transparent gemmy-material.

5.12. Vesuvianite

The endoscarns from Kimmeria and Maronia host large, up to 10 cm long, partly facetable pale green colored vesuvianite crystals (Figure 12d). Violet-colored vesuvianite in crystals up to 1 cm occur in rodingitized gabbros at Kymi, Evia Island [17].

5.13. Spinel

Spinel at Gorgona, Xanthi occurs either as isolated crystals or as rims around corundum. The color of spinel ranges from blue to green and brown (Figure 12e). Transparent blue-colored octahedral spinel crystals up to 1 cm occur at Maronia in association with phlogopite and grossular.

5.14. Tourmaline

Tourmaline is abundant in quartz veins and lenses at Trikorfo and Thymonia/Thassos, in black crystals (schorl) reaching up to 10 cm. However this material is not suitable as a gemstone. Similar crystals occur in pegmatites near Nevrokopi-Drama and at Naxos Island. Nickel-bearing brown tourmaline (dravite) accompanies corundum in the marbles at Gorgona, Xanthi and contains up to 4.4 wt. % NiO, much higher than the Ni content reported in tourmaline from Samos and nickeloan tourmaline from the Berezovskoe gold deposit by Henry and Dutrow [67] and Baksheev and Kudryavtseva [68] respectively. Crystals are generally small (up to 1 cm) but are locally transparent and of gem-quality.

5.15. Apatite, Fluorite, Azurite, Turquoise

Transparent apatite in well-shaped crystals, 1 cm long, accompany phlogopite and orthoclase in the potassic alteration zone at Fakos, Limnos Island (Figure 12f). The carbonate-replacement deposits at Lavrion and Serifos are well-known for large fluorite (up to 20 cm) crystals with colors varying from blue to purple and green. Gem-quality fluorite is also found in volcanic rocks in Samos and Lesvos Islands, where monominerallic fluorite veins cross-cut epithermally altered silicified zones and propylitically altered lavas. The veins are banded and the voids are filled with deep violet and green colored crystals up to 5 cm respectively (Figure 12g). Azurite associated with malachite is widespread in the Lavrion deposit in crystals up to 4 cm as well as in large massive aggregates suitable for cabochon cutting (Figure 12h). Turquoise in gem-quality occurs in the oxidation zone of the Vathi porphyry Cu-Au deposit, Kilkis area [69].

5.16. Smithsonite

The Lavrion smithsonite occurs in many different forms and colorations (Figure 12i–l). Samples have pale blue or green and yellow colors due to both solid solutions and impurities of other minerals [11,70]. The Lavrion smithsonites were intensively exploited during the last one hundred years with a total production of about 1.2 Mt [71]. They occur in cavities in the marbles where they form colorful botryoidal or stalactitic aggregates and/or monominerallic bodies as cavity fillings. The microanalyses suggest that the total content of minor and trace elements in smithsonite is relatively low. The determined elements are Ca, Mg, Fe, Mn, Cu and Cd (Table 4).
As Cd2+ is colorless, the yellow (“turkey fat”) color of some smithsonites proved to be related only to the presence of greenockite inclusions. Indeed, some samples containing Cd up to 0.7 wt. % but no greenockite inclusions have colors other than yellow. The absence of Cu-rich impurities in blue and green smithsonite and the relatively high amount of Cu indicate that there is a limited solid solution between ZnCO3 and the hypothetical CuCO3 molecule (up to 3.0 wt.% Cu or 6.3 mol % CuCO3) (see also Boni et al. [72]; Frisch et al. [73]). This is in accordance to the findings of Samouchos et al. [74] who suggested that the blue color in Lavrion smithsonite is due to Cu substituting for Zn in the structure. Iron substitution of zinc is limited (up to 1.9 wt. % Fe, except for one sample) and turns the color of smithsonite to a pale yellow. Orange and brown colors are related to impurities of Mn-Fe-Pb oxides and hydroxides. The role of manganese is unknown as its content is very low and the influence on the color is weak.

6. Discussion

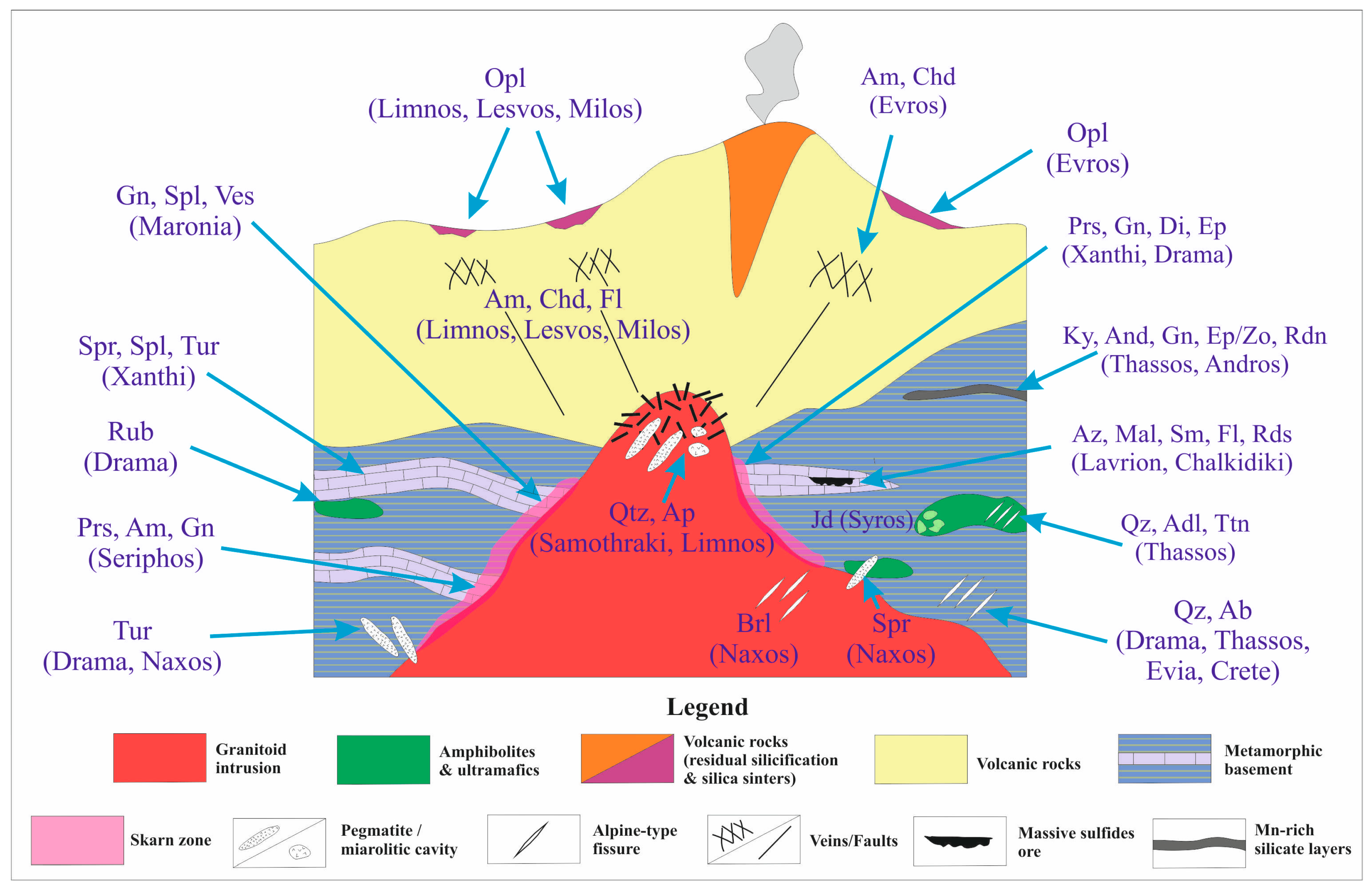

Figure 13 represents a hypothetical schematic model, where gemstone occurrences in Greece are related to the various geological environments (regional metamorphic-metasomatic, alpine-type fissures, plutonic-subvolcanic intrusions and pegmatites, zones of contact metamorphism and peripheral volcanic rocks). The hypothetical depths are speculated on the basis of geological criteria. A Late Cretaceous (~ 81.6 ± 3.5 Ma) eclogite-facies metamorphism in the Eastern Rhodopes, confirm previous data that multiple subduction events took place between ~ 200 and ~ 40 Ma along this section of the southern European plate boundary [75]. In the Cyclades, following an initial compressional phase of the Alpine Orogeny related to eclogite-facies metamorphism of the rocks at ~55–49 Ma [45,76], subsequent exhumation of high-P rocks was accompanied by a regional Barrovian-type metamorphism that locally reached partial melting conditions [77,78]. The onset of post-orogenic extensional deformation in the different tectono-metamorphic terranes occurred at ~42 Ma for the Rhodope Massif and ~35 Ma for the Cyclades [23]. These early compressional and later syn-orogenic and post-orogenic extensional events were responsible for the formation of most gemstones found in both regional metamorphic rocks, as well as in late alpine-fissures in Greece. For ruby and jadeite the term “Plate tectonic gemstones” has been proposed by Stern et al. [5], since they generally form as a result of the plate tectonic processes subduction and collision.
Formation of the jadeitite bodies at Syros Island involved fluid interaction in and around serpentinized peridotite, derived from subduction zone devolatilization [27]. Rodingitization of doleritic and gabbroic dykes in the Rhodope massif and the Pelagonian zone is associated with metasomatic alteration processes, which resulted in the formation of garnet and vesuvianite [79]. According to Koutsovitis et al. [79], rodingitization took place during the exhumation of the mafic–ultramafic mantle wedge rocks within a serpentinitic subduction channel.
Gem corundums in Greece cover a variety of geological environments. The pargasite-schist hosted ruby deposit at Paranesti/Drama area and marble-hosted pink to blue sapphires in Xanthi area occur along the UHP-HP Nestos suture zone and are classified as metamorphic s.s hosted in mafics/ultramafics and marbles respectively [18]. At the Trikorfo area (Thassos Island, Rhodope massif, Northern Greece), which represents a unique mineralogical locality with Mn-bearing minerals such as kyanite, andalusite, garnet and epidote, localized metasomatic reactions occurred during the exhumation of the HP unit locally containing layers enriched in Mn with a strong local fO2 buffering [19]. Metasomatic reactions first occurred under ductile conditions in an extensive context close to the kyanite-andalusite stability curve and continued until purely brittle conditions as indicated by the presence of late alpine-type veins cross-cutting the metamorphic foliation [19].
Based on the existing data, it can be proposed that the formation of the studied alpine-type fissures in Greece and their mineralogy are closely related to the extensional tectonics accompanying the exhumation of the metamorphic rocks. This was a favored environment for the crystallization of gem-quality quartz and albite. A decrease in pressure and temperature around the fissures during exhumation caused oversaturation in SiO2 and precipitation of quartz and other mineral constituents in the fissures. Leaching of chemical components from the host rocks after their interaction with the hydrothermal fluids could also explain fluid enrichment and deposition of alpine-type minerals in the fissures studied. The blue sapphires hosted in metabauxites from southern Naxos and Ikaria, fill open-spaces in fissures cross-cutting the metamorphic foliation. They display atypical magmatic signatures indicating a hydrothermal origin and were formed during late extensional conditions.
The development of magmatic-hydrothermal and epithermal systems during the Tertiary, is closely associated with crystallization of a large variety of gemstones. Several gemstones related to the Tertiary magmatic activity are developed within and around the magmatic centres in W. Thrace (Kimmeria, Kassiteres-Sapes, Maronia-Perama, Soufli-Dadia-Levkimi, Drama, Samothraki), Limnos, Lesvos, Serifos and Milos Islands. Initial deep mineralization occurred where plutonic bodies intruded within the basement rocks. Residual fluids, enriched in volatiles, resulted in the emplacement of pegmatitic bodies and to crystallization of beryl (aquamarine) [80,81] and sapphires (in desilicated pegmatites intruding ultramafic rocks) at Naxos Island. Metasomatic processes caused by the release of magmatic-hydrothermal fluids from the intrusive rocks, led to the deposition of various gemstones in the intrusive bodies as well as in the surrounding rocks.
The mineralization in skarns started with the deposition of anhydrous minerals, some of them of gem-quality such as garnets, spinel, titanite and diopside, and ended in the deposition of gem-varieties of quartz, epidote, and vesuvianite in a retrograde stage and under temperature decrease and meteoric water incursion. Contemporaneously, magmatic-hydrothermal fluids circulating within the granitoids were responsible for the deposition of quartz within miarolitic cavities and within quartz veins associated with feldspar, and gemmy apatite.
Later, the systems shifted from a magmatic-hydrothermal dominated stage to a geothermal one, due to the increasing incursion of meteoric waters. Changes in the physico-chemical conditions of the ascending geothermal fluids were the major factors controlling the mineral deposition of the silica varieties (quartz, amethyst, chalcedony and opal) in this geothermal-epithermal environment. Opalized horizons in Thrace and Limnos could represent silica sinter deposition from alkali or neutral geothermal fluids [82]. Amethyst, indicative of oxidizing conditions [83], was probably deposited as a result of mixing of the ascending hydrothermal fluids with meteoric and/or seawater.
Finally, gem-quality smithsonite in the supergene oxidation zone of the Lavrion/Attika carbonate-replacement deposit, was formed as a result of reactivity of carbonate minerals with acidic, zinc-rich solutions, derived from the destruction of sphalerite [11,84,85]. According to the above authors, the neutralization of the acidic solutions deep in the marbles produces enough CO2 to make smithsonite the stable phase at pH values near neutral.

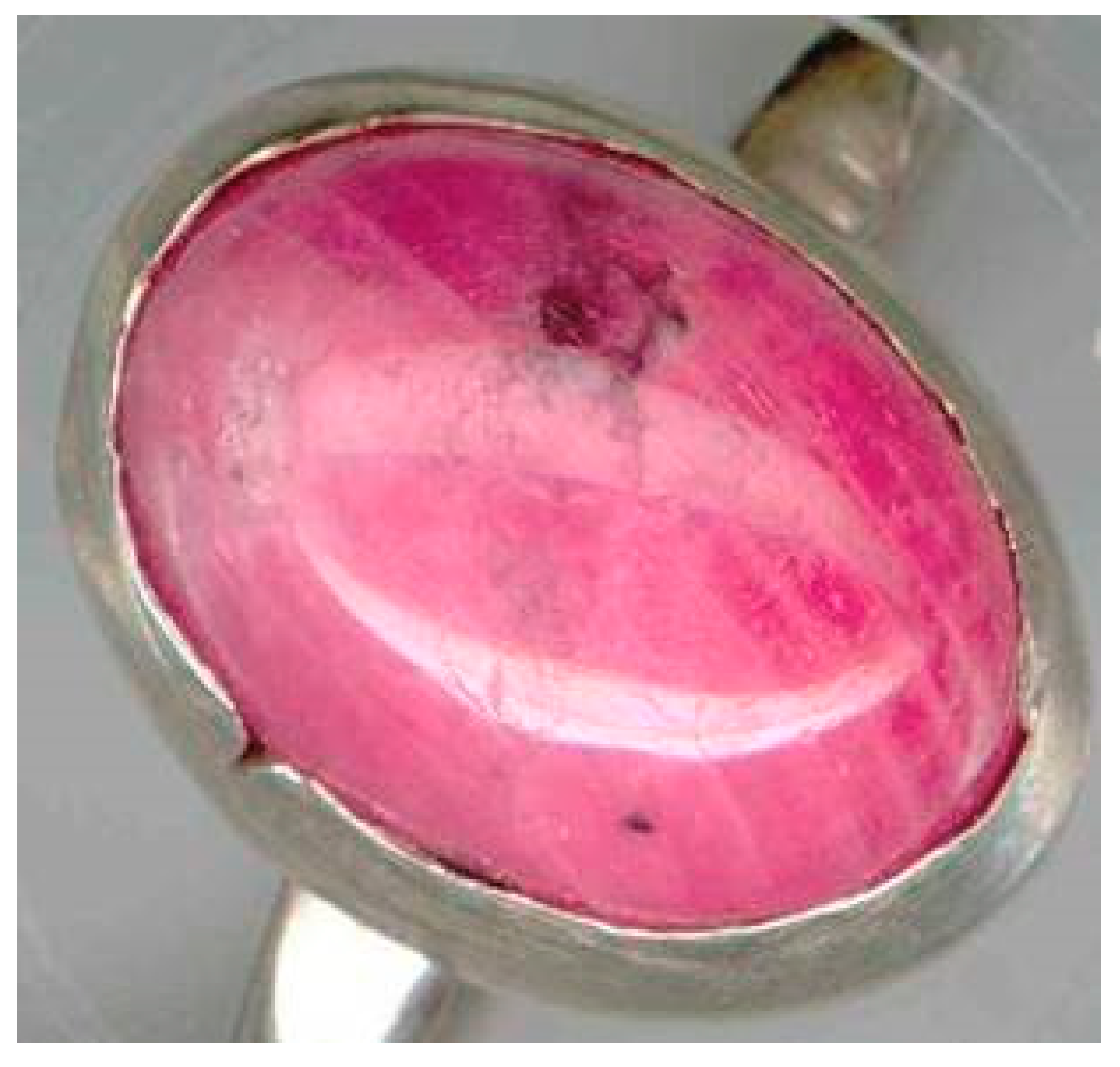

All Greek corundum, especially the vivid-colored varieties, are translucent to opaque, suitable for cabochons (Figure 14). Greek corundums are characterized by a wide color variation ranging from deep red, pink, purple, and blue to colorless, with crystal sizes of up to 5 cm, homogeneity of the color hues and transparency and should be further examined for their suitability as potential faceted gemstones. Similarly, at Trikorfo/Thassos crystals of kyanite, green andalusite, garnet (grossular and spessartine) and red zoisite–clinozoisite are large (up to several cm), show vivid colors, and are suitable for cabochons.
As such, the Trikorfo locality can be regarded as a promising area for the exploration of transparent, facetable gemstones. Their genesis due to metasomatic reactions also underlines the important role of metasomatism for gemstone formation in general, as previously noted in the literature [2,19]. According to Tarantola et al. [19], Thassos Island (Rhodope, Greece) can now be classified as the second locality worldwide where Mn-rich orange kyanite is reported, after that of Loliondo (Tanzania) deposit. Finally, silica varieties provide excellent facetable material or cabochons (Figure 15). Future exploration in addition to detailed studies of trace and minor element chemistry using LA-ICP-MS analysis and gemological evaluations are required in order to establish the potential for economic exploitation and to consider them as marketable gems.

7. Conclusions

In the accretionary Hellenides Orogen, gemstones occur in various rock types of mainly four tectonometamorphic units, the Rhodope- and the Attico-Cycladic massifs, the Pelagonian zone, and the Phyllites-Quartzites of Crete Island. In crystalline rocks, two groups of gemstones are distinguished, those formed during regional metamorphism and those associated with late alpine-type fissures. The first group includes Mn-bearing silicates (Mn-andalusite, spessartine, Mn-grossular, Mn-clinozoisite, Mn-zoisite and orange-colored Fe-Mn-kyanite) hosted in Carboniferous ortho- and paragneisses in both Thassos and Paros Islands (Rhodope- and Attico-Cycladic massifs respectively), as well as gem corundums in Xanthi-Drama areas/Rhodope massif and Naxos-Ikaria Islands (Attico-Cycladic massif). In the Xanthi-Drama area, corundum mineralization (sapphires and rubies) is distributed within marbles and eclogitic amphibolites oriented parallel to the (UHP-HP) Nestos suture zone. In the Attico-Cycladic massif, blue sapphires are found within marble-hosted metabauxites (Ikaria and Naxos Island). Alpine-type fissures in Greece contain gem-quality quartz (green quartz, amethyst, smoky and colorless quartz), albite and titanite. Host lithologies are ortho- and paragneisses and metabasites in the Rhodope- (Drama, Thassos Island) and the Attico-Cycladic (Pentelikon Mt, Evia, Ios Islands) Massifs, and metaquartzites (Crete Island). Metamorphic/metasomatic processes within a subduction channel, resulted in the formation of the jadeitite bodies at Syros Island and of garnet and vesuvianite in rodingite bodies at the Rhodope massif and the Pelagonian zone.
The Tertiary magmatic-hydrothermal environments in Greece (granitoids, pegmatites, skarns and carbonate-replacement deposits, and volcanic rocks) may also provide facet-quality material of several species (beryl, sapphire, garnet, vesuvianite, diopside, epidote, fluorite, rhodochrosite, quartz varieties and silica microcrystalline species). The Naxos pegmatites are prospective for aquamarine and blue, purple to pink colored sapphires. Miarolitic cavities and quartz veins cross-cutting granitoids (Samothraki Island, Maronia and, Kimmeria) contain gem-quality colorless and smoky quartz. The endo- and exoskarns of Kimmeria, Kresti and Maronia (Rhodope massif), Serifos Island (Attico-Cycladic massif) and Kos Island, host facetable grossular-andradite garnets, vesuvianite, epidote, as well as prase and amethyst crystals. Rhodochrosite and fluorite occur in the carbonate-replacement deposits of Olympias/Chalkidiki and Lavrion/Attika respectively. Gemstones associated with hydrothermally-altered volcanic rocks include amethyst, chalcedony, opal, fossilized wood and fluorite in Sapes, Soufli areas (Rhodope massif), Lesvos, Limnos and Samos Islands (northeastern and central Aegean volcanic arc) and Milos Island (Attico-Cycladic massif-south Aegean volcanic arc). Finally, the supergene oxidation of the Lavrion/Attika carbonate-replacement deposit contains gem-quality smithsonite in several colorations. Future work aims towards a gemological evaluation of the Greek gemstones and finally estimating the potential for their possible exploitation.
