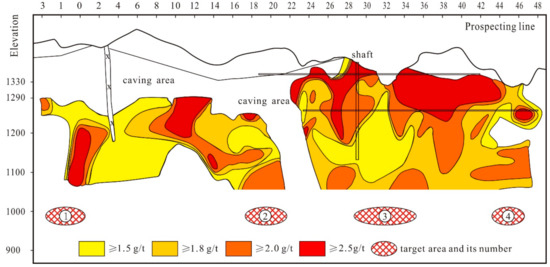

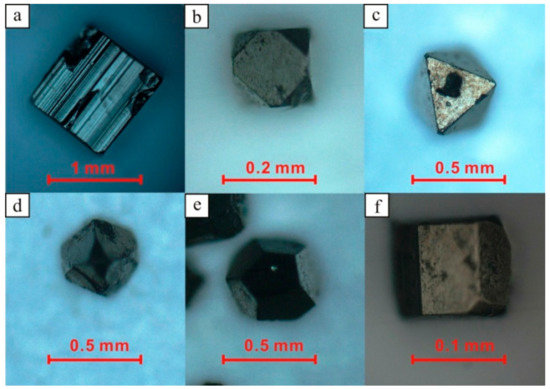

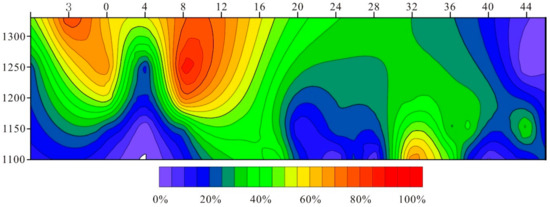

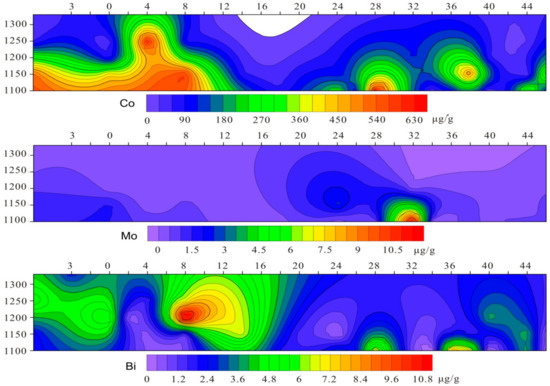

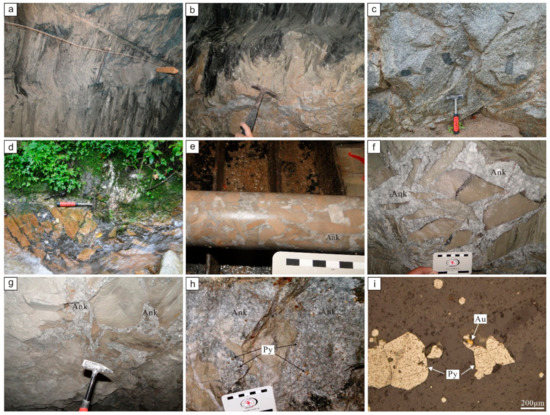

The large Shuangwang gold deposit (>80 t gold) is located in the Western Qinling Orogen (WQO) of central China. It is an orogenic-type gold deposit hosted in an NW-extending breccia belt in the Devonian Xinghongpu Formation. Gold mineralization of the Shuangwang deposit is featured by hydrothermal breccia ores with strata fragments cemented by hydrothermal minerals dominated by ankerite, quartz, and pyrite with minor amounts of calcite and albite. Pyrite is the major gold-hosting sulfide and the most abundant ore mineral. Crystal habits, thermoelectricity, and trace-element composition of pyrites from the main ore-forming stage of the Shuangwang gold deposit were studied by microbinocular, BHTE-06 thermoelectric coefficient measuring instrument, and high-resolution inductively coupled plasma mass spectrometry (HR-ICP-MS). Spatial distribution of the above data for pyrites was delineated by contour maps of morphology index, P-type frequency, and primary halo elements (e.g., supraore halo elements Ba and Sb; near-ore halo elements Pb, Zn, and Cu; and subore halo elements Co, Mo, and Bi). Based on the above results, four target areas (areas between prospecting lines 0 and 1, between lines 14 and 18 below orebody KT9; areas between prospecting lines 30 and 34, between lines 44 and 46 below orebody KT8) were put forward for deep gold exploration in the future. These targets are consistent with the depth extrapolation of proven gold orebodies, indicating the practicality of typomorphic characterization of pyrites as vector to deep/concealed gold orebodies. The effectiveness of the pyrite typomorphic parameter for deep gold prediction seems to be chemical composition, crystal habits, and then thermoelectricity.
