Article

A Novel Process for the Synthesis of NaV2O5 Mesocrystals from Alkaline-Stripped Vanadium Solution via the Hydrothermal Hydrogen Reduction Method

1
School of Resources and Environmental Engineering, Hubei Key Laboratory of Mineral Resources Processing and Environment, Wuhan University of Technology, 122 Luoshi Road, Wuhan 430070, China
2
State Environmental Protection Key Laboratory of Mineral Metallurgical Resources Utilization and Pollution Control, Hubei Collaborative Innovation Center for High Efficient Utilization of Vanadium Resources, Wuhan University of Science and Technology, 947 Heping Road, Wuhan 430081, China
*
Authors to whom correspondence should be addressed.
Minerals 2019, 9(5), 271; https://doi.org/10.3390/min9050271
Submission received: 27 March 2019 / Revised: 28 April 2019 / Accepted: 29 April 2019 / Published: 1 May 2019

Abstract

:
NaV2O5 mesocrystals were successfully synthesized from an alkaline-stripped pentavalent vanadium solution through a novel hydrothermal hydrogen reduction process. The optimal conditions for the hydrogen partial pressure, reaction temperature, initial solution pH value, and reaction time for the pure-phase NaV2O5 synthesis were ascertained to be 4 MPa, 200 °C, 4.0, and 2 h, respectively. The synthesis time (only 2 h) was greatly shortened, by nine times, compared with the most time-saving (18 h) hydrothermal process at present. X-ray diffraction (XRD) analysis revealed that the as-prepared powders demonstrated a typical layered orthorhombic structure of NaV2O5. The purity of the as-prepared NaV2O5 reached up to 99.98%. An electrochemical test showed that the as-prepared NaV2O5 has a potential application in sodium ion batteries. According to scanning electron microscopy (SEM) and transmission electron microscopy (TEM) analyses, the as-prepared NaV2O5 powders were identified to have rod-like mesocrystals consisting of small rods which preferentially grow along the (010) direction. Furthermore, the phase transformation mechanism and crystal growth mechanism in NaV2O5 preparation were discussed systematically, based on which the synthesis mechanism of NaV2O5 was proposed as pentavalent vanadates pre-sedimentation, hydrogen reduction with dehydration, sodium ions insertion, and finally self-assembly oriented attachment. The synthesis process is characterized as time-saving and low-cost, and thus it may have great application prospects.

1. Introduction

Vanadium (V) and its compounds have been widely used in many fields such as electrode materials, catalysts, steel alloys, V redox flow battery, advanced materials, and the chemical industry [1,2,3,4]. NaV2O5 is one of the typical layered alkali vanadates of orthorhombic structure. In the NaV2O5 structure, Na-ions are located in the interlayer space [5,6,7]. NaV2O5 initially drew much attention for its spin-Peierls property [8,9,10,11,12,13,14,15]. In recent years, NaV2O5 has been considered to have a potential application as the cathode material in lithium ion batteries or sodium ion batteries owing to its layered orthorhombic structure [16,17,18,19]. Therefore, the preparation of NaV2O5 has been attracting increasing attention.
NaV2O5 can be prepared by a solid-state reaction process, but this process requires a reaction temperature of 650 °C and a long reaction time (more than two days) [20,21,22,23]. In order to lower the reaction temperature, some hydrothermal methods have been developed [5,6,16,17,18,24]. In the hydrothermal methods, V2O5, NH4VO3, and NaVO3 are usually used as vanadium resources, NaOH and Na2CO3 are usually used as sodium resources, and NH2OH·HCl, ethylene diamine tetraacetic acid (EDTA), H2C2O4, and Na2C2O4 are usually used as reducing agents. Through hydrothermal methods, the reaction temperature for the preparation of NaV2O5 can be lowered to about 200 °C, while the reaction time still must be at least 18 h. Moreover, reducing agents such as NH2OH∙HCl and EDTA are very expensive. The long reaction time and the high price of the agents are disadvantages for the large-scale preparation and application of NaV2O5. Therefore, there is high demand for the development of a time-saving and low-cost process to prepare NaV2O5.
Vanadium-bearing shale is a unique and a strategic vanadium resource that is used in China. Vanadium-bearing shale is also an important raw material for the preparation of V2O5, NH4VO3, NaVO3, and other vanadium compounds through various vanadium extraction processes [25]. Alkaline-stripped pentavalent vanadium solution (ASPVS) is a vanadium-enriched solution obtained in the vanadium extraction process. The typical flowsheet for ASPVS formation is shown in Figure 1 [26]. The extraction agent for pentavalent vanadium (V(V)) ions enrichment is trialkylamine and the stripping agent is sodium hydroxide solution. After the formation process, the ASPVS containing vanadium (V) and sodium (Na) with high concentrations as well as trace impurity ions is prepared [26]. Hence, ASPVS may be expected to be both a sodium resource and a vanadium resource for the preparation of NaV2O5.
In previous research, a vanadium precipitation process of hydrothermal hydrogen reduction (HHR) for synthesizing V2O3 from ASPVS was first developed [27,28]. In the research, it was found that V(V) ions in the solution could be reduced to trivalent vanadium (V(III)) compounds or tetravalent vanadium (V(IV)) compounds by hydrogen (H2). In the HHR reaction, the thermodynamic feasibility of the reaction increases as the solution pH value decreases, while the activity of hydrogen (H2) and the solubility of hydrogen increase as the reaction temperature and the hydrogen partial pressure increase, respectively. Therefore, the degree of the reduction of the product obtained by this method is related to the solution pH value, reaction temperature, hydrogen (H2) gas partial pressure, and reaction time. Additionally, it was found that NaV2O5 was first precipitated from ASPVS in the HHR process, which was further transformed to VO2(H2O)0.5 and finally reduced to V2O3. Therefore, it is reasonable to prepare pure-phase NaV2O5 through the HHR method by controlling reaction conditions. If so, the synthesis process can be low-cost, because ASPVS and H2 are much cheaper than the raw materials and reducing agents used in the previous processes. Moreover, it will be more exciting if the synthesis time can be greatly shortened.
In this paper, the HHR method for preparing pure-phase NaV2O5 from ASPVS is proposed. Through controlling the reaction temperature, solution pH value, H2 consumption, and reaction time, the pure-phase NaV2O5 was successfully synthesized. The effects of different synthesis conditions on the vanadium precipitation percentage and the phase composition of the as-prepared product were investigated in detail. Importantly, the reaction time was shortened to 2 h. Furthermore, the synthesis mechanism of NaV2O5 was revealed in detail.

2. Materials and Methods

2.1. Materials and Reagents

Alkaline stripped pentavalent vanadium solution was prepared from vanadium-bearing shale by a typical vanadium extraction process [26]. H2 gas (99.9% purity) and N2 gas (99.9% purity) were used as the reducing agent and flushing gas, respectively, in the experiment. Distilled water was used in the whole process.

2.2. Synthesis Methods

For NaV2O5 synthesis, ASPVS (150 mL) was first adjusted to a certain pH value by sulfuric acid to prepare the feed solution. The feed solution was then poured into a 250 mL autoclave. The autoclave was flushed by N2 gas three times. After this was done, it took 1 h to heat the solution to the reaction temperature, following which H2 gas was transferred into the autoclave. After the hydrothermal reaction had taken place for a certain period of time, the heating procedure was turned down to cool the autoclave. The collected powder was first washed by distilled water and then dried at 90 °C for 10 h to obtain the final product.

2.3. Characterization

The phase composition of the as-prepared product was analyzed by X-ray diffraction (XRD, D/MAX 2500PC, Rigaku, Tokyo, Japan) using Cu Kα radiation. The micro morphology of the product was investigated by scanning electron microscopy (SEM, JSM-IT300, JEOL Ltd., Tokyo, Japan) and transmission electron microscopy (TEM, JEM-2100F, JEOL Ltd., Tokyo, Japan). The elemental analysis was conducted on an energy-dispersive spectrometer (EDS, X-Act, Oxford Instruments, Oxford, UK). The concentration of the solution and the chemical composition of the product were detected through inductively coupled plasma–atomic emission spectroscopy (ICP–AES, Optima-4300DV, Perkin Elmer, Waltham, MA, USA).

2.4. Electrochemical Testing

The electrochemical performance of the obtained NaV2O5 was characterized by coin cell assembly (2016-type). The obtained NaV2O5, acetylene black, and polyvinylidene difluoride (10 wt.%) were mixed well in weight ratios of 8:1:1, dissolved in N-methyl pyrrolidone solution to obtain a slurry. The obtained slurry was coated uniformly onto aluminum foil, and then dried at 90 °C for 12 h. The dried aluminum foil was punched into round discs with a diameter of 8 mm. The surface density of active materials was about 2 mg∙cm−2. The coin cell (2025) was assembled in an argon-filled glove box with sodium metal as the counter electrode and Grade GF/D (Whatman, Maitstone, UK) as the separator. NaPF6 (1.0 mol/L) dissolved in ethylene carbonate/ethyl methyl carbonate (weight ratio of 3:7) was used as the electrolyte solution. Galvanostatic charge/discharge measurement was performed by a multichannel battery testing system (LAND CT2001A, 5V10Ma-K, Wuhan Blue Electronic Co. Ltd., Wuhan, China) at a current density of 100 mA∙g−1 with a voltage region between 0.01 and 3.0 V.

2.5. Data Treatment

Equation (1) was used to calculate the V precipitation percentage:
γ = [1 − (αVα/βVβ)] × 100%
where γ stands for the V precipitation percentage (%), α stands for the V concentration (mg/L) of the filtrate, β stands for the V concentration of the feed solution, Vα stands for the volume (L) of the filtrate, and Vβ stands for the volume (L) of the feed solution.

3. Results and Discussion

The concentrations of the main elements in the alkaline-stripped pentavalent vanadium solution are listed in Table 1. As shown in Table 1, the concentrations of V and Na in the solution reached up to 20.5 g/L and 23.1 g/L, respectively, while the concentrations of other elements were very low. Thus, the solution can be used to prepare NaV2O5.

3.1. Effect of Initial Solution pH Value

To investigate the effects of the initial solution pH value during NaV2O5 preparation, several experiments at different initial solution pH values were conducted. The reaction temperature, H2 gas partial pressure, and reaction time were fixed at 200 °C, 4 MPa, and 2 h, respectively.
Figure 2 shows that V precipitation percentage decreased from 99% to 11% when the initial solution pH value increased from 4.0 to 12.0. This result indicates that the increase of the initial solution pH value can hinder the reaction proceeding efficiency, because the increase of the initial solution pH can cause the decrease of the thermodynamic driving force of the reaction during the HHR process for vanadium precipitation [27]. Therefore, the initial pH of the solution should be kept at a relatively low value in order to obtain a high recovery.
As shown in Figure 3a,d,e, the diffraction peaks of the products prepared from solutions with initial pH values of 4.0, 7.0, and 8.0 were all attributed to NaV2O5, indicating that the as-prepared powders were pure-phase NaV2O5. The phase compositions of the products prepared from solutions with initial pH values of 5.0, 6.0, and 9.0 were identified as NaV2O5 mixed with VO2(H2O)0.5 (Figure 3b,c,f). When the initial pH value was increased above 10.0, the phase of NaV2O5 could not be detected in the product and the as-prepared products were ascertained as VO2(H2O)0.5 (Figure 3g,h,i).
As shown in Figure 4, the increasing trend of the final pH value was not the same as the increase of the initial pH value. Unexpectedly, the final pH values from initial pH values of 7, 8, and 9 were lower than the final pH values from initial pH values of 5 or 6. However, it was common for the final pH value to be higher than the initial pH value, which indicated that the reaction could consume hydrogen ions. So, the final pH value of the solution during the reaction depends on the percentage of the vanadium precipitation. As the vanadium percentages at initial pH values of 7, 8, and 9 were much lower than the vanadium percentage at an initial pH of 6 (Figure 2), the final pH values at initial pH of 7, 8 and 9 were lower than the final pH values at initial pH values of 5 or 6.
Combining the results shown in Figure 3 with the results shown in Figure 4, when the final solution pH value was below 8.6 (the corresponding initial pH values were 4, 7, and 8), the product obtained was identified as the pure-phase NaV2O5. When the final solution pH value was between 8.6 and 10.6 (the corresponding initial pH values were 5, 6, and 9), the phase of the prepared product was identified as NaV2O5 mixed with VO2(H2O)0.5. As the final pH value of the solution was above 10.7 (the corresponding initial pH values were 10, 11, and 12), the product obtained was ascertained to be VO2(H2O)0.5. Some researchers found that the solubility of NaV2O5 dropped sharply when the solution pH value was above 9.0 [24]. Hereby, it is rational to conclude that some V(IV) in the reduced solution would preferentially precipitate from the solution in the form of VO2(H2O)0.5 instead of NaV2O5 when the solution pH value is above 8.6. Moreover, when the solution pH value is above 10.7, NaV2O5 cannot precipitate from the solution and all the V(IV) in the reduced solution will form the VO2(H2O)0.5 precipitates. Therefore, the solution pH value for the preparation of pure-phase NaV2O5 should be controlled below 8.6. As the solution pH value increase as the reaction progresses, the range of the reaction solution pH values needs to be controlled by the initial solution pH value.
To save the consumption of sulfuric acid during the process of adjusting pH value, the optimal initial solution pH value for the synthesis of the pure-phase NaV2O5 with a high recovery was proposed to be 4.0.

3.2. Effect of Reaction Temperature

To investigate the effects of reaction temperature during NaV2O5 preparation, several experiments with different reaction temperatures were conducted. The initial solution pH value, H2 gas partial pressure, and reaction time were fixed at 4.0, 4 MPa, and 2 h, respectively.
Figure 5 shows that the V precipitation percentage increased from 86% to 99% by raising the reaction temperature from 150 to 200 °C. However, by further raising the reaction temperature, the V precipitation percentage was no longer increased. This result indicates that the increase of the reaction temperature is beneficial to the HHR reaction, because the increase of the temperature can enhance the reaction activity of hydrogen [29,30].
As shown in Figure 6, only a few diffraction peaks of the product obtained at 150 °C were attributed to the desired product of NaV2O5, most of which were indexed to a mixture of V(V) vanadates of Na2V6O16∙3H2O and Na2V6O16. This result revealed that the reaction activity of H2 at 150 °C was too low to reduce all the V(V) to NaV2O5. After increasing the reaction temperature to 175 °C, the characteristic peaks ascribed to Na2V6O16∙3H2O and Na2V6O16 disappeared, and were replaced by the diffraction peaks ascribed to a mixture of NaV0.64O5 and NaV2O5 (Figure 6b). After increasing the reaction temperature to 200 °C, the product could be identified as the pure-phase NaV2O5 (Figure 6c). Moreover, the intensity of the diffraction peaks of NaV2O5 obtained at 200 °C was much stronger than that obtained at 180 °C. The diffraction peaks of the product obtained at 225 °C had no obvious change (Figure 6d,e). Combined with the results obtained from Figure 5, it was revealed that almost all the V(V) (99%) can be reduced to the pure-phase NaV2O5 by H2 gas with a facile reaction temperature of 200 °C.
To save the consumption of energy in heating the autoclave, the optimal reaction temperature for the synthesis of pure-phase NaV2O5 with a high recovery was proposed to be 200 °C.

3.3. Effect of H2 Gas Partial Pressure

To explore the effects of H2 gas partial pressure during NaV2O5 preparation, the initial solution pH value, reaction temperature, and reaction time were fixed at 4.0, 200 °C, and 2 h, respectively.
As shown in Figure 7, V precipitation percentage improved from 82% to 99% when the H2 gas partial pressure was improved from 1 MPa to 4 MPa. V precipitation percentage had no obvious change when the H2 gas partial pressure was increased above 4 MPa. This result indicates that the increase of the H2 gas partial pressure can facilitate the hydrothermal hydrogen reduction reaction, because the increase of the H2 gas partial pressure can enhance the thermodynamic driving force of the hydrothermal hydrogen reduction and increase the solubility of hydrogen in the solution [29,30].
As shown in Figure 8a, when the H2 gas partial pressure was only 1 MPa, the as-prepared product was a mixture of some pentavalent vanadates of Na2V6O16·3H2O, Na6V10O28∙18H2O, and Na2V6O16 and the reduced powers of Na0.287V2O5 and NaV2O5. As the H2 gas partial pressure was increased to 2 MPa, some diffraction peaks indexed to those pentavalent vanadates disappeared, and were replaced by the diffraction peaks ascribed to the desired product of NaV2O5 (Figure 8b). When the H2 gas partial pressure was increased to 3 MPa, the amount of the diffraction peaks attributed to NaV2O5 increased further (Figure 8c). After increasing the H2 gas partial pressure to 4 MPa, the prepared product was identified as pure-phase NaV2O5 without any other phases (Figure 8d). The diffraction peaks had no obvious change as the H2 gas partial pressure was increased to 5 MPa (Figure 8e).
To reduce the consumption of the H2 gas, the optimal H2 gas partial pressure for the synthesis of pure-phase NaV2O5 with a high recovery was proposed to be 4 MPa.

3.4. Effect of Reaction Time

To investigate the effects of the reaction time during NaV2O5 preparation, the initial solution pH value, reaction temperature, and H2 gas partial pressure were fixed at 4.0, 200 °C, and 4 MPa, respectively.
As shown in Figure 9, the V precipitation percentage rose greatly, from 87.88% to 99.58%, as the reaction time was prolonged from 0.5 to 2 h. However, further prolonging the reaction time did not cause the V precipitation percentage to increase.
As can be seen from Figure 10a, some pentavalent vanadates of Na2V6O16∙3H2O, Na6V10O28∙18H2O, and Na2V6O16 could be precipitated from the solution before the reduction reaction. As the reaction lasted for 0.5 h, the pentavalent vanadates of Na2V6O16∙3H2O and Na2V6O16 mostly disappeared, and the reduction intermediate powers of Na0.287V2O5 and the desired product of NaV2O5 could be observed (Figure 10b). When the reaction time was prolonged to 1 h, the intensity of the diffraction peaks ascribed to Na2V6O16∙3H2O, Na6V10O28∙18H2O, and Na2V6O16 became weak; on the contrary, the intensity of the diffraction peaks of NaV2O5 became strong (Figure 10c). Additionally, the diffraction peaks ascribed to Na0.287V2O5 could not be observed, and a new peak ascribed to Na0.64V2O5 was observable. When the reaction lasted for 1.5 h, most of the diffraction peaks attributed to Na2V6O16·3H2O, Na6V10O28·18H2O, and Na2V6O16 could not be detected, and the intensity of the diffraction peaks ascribed to NaV2O5 became stronger than before (Figure 10d). When the reaction proceeded for 2 h, the product was identified as pure-phase NaV2O5 without any other phases (Figure 10e). By extending the reaction time to 4 h, no obvious change was detected in the diffraction peaks of the product (Figure 10f). Therefore, it only takes 2 h to prepare the pure-phase NaV2O5.
To make the process less time-consuming, the optimal reaction time was proposed to be 2 h to synthesize the pure-phase NaV2O5 with a high recovery.
Based on the above, the optimal conditions of initial solution pH value, reaction temperature, H2 gas partial pressure, and reaction time for the preparation of pure-phase NaV2O5 were ascertained as 4.0, 200 °C, 4 MPa, and 2 h, respectively. Excitingly, the formation time was greatly shortened, by nine times, compared with the most time-saving (18 h) hydrothermal process at present [16]. Moreover, the synthesis process can be considered as low-cost due to the low-cost raw material of ASPVS. Therefore, this novel fast process for NaV2O5 synthesis may have great application prospects.

3.5. Structural Characterization

To further verify the structure of the as-prepared product, the single XRD pattern of the powder obtained at the optimal conditions was measured, as shown in Figure 11.
Figure 11 shows that all the diffraction peaks of the as-prepared powders agree with the orthorhombic NaV2O5 with lattice constants a = 1.132 nm, b = 0.361 nm, and c = 0.480 nm according to the values reported in the literature (JCPDS No. 70-0870). No peaks of impurities or any other phases could be detected, indicating that the product is of high purity. Moreover, the diffraction peaks are very sharp and strong, indicating the high crystallization of the product. According to the ISCD collection data, a model of the orthorhombic NaV2O5 can be drawn out (inset in Figure 11). It can be seen that NaV2O5 demonstrates a typical layer structure. The vanadium atom in NaV2O5 is bonded with five oxygen atoms to form an individual structure unit of VO5, which looks like a pyramid. Two VO5 units with the same underlying orientation bond with each other along the a axis by sharing one oxygen atom to form a bridge unit. Two bridge units with the opposite underlying orientation bond together by sharing three corner oxygen atoms to form a ladder-like unit with double chains. The ladder-like unit with double chains arranges in a zigzag pattern along the a axis and arranges in parallel along the b axis forming the ab plane of the crystal. Sodium ions are located in the layers, which are stacked along the c axis, acting as scaffolds in the layer structure. The layered structure provides a fast passage for the de-intercalation of sodium ions; thus, NaV2O5 may be used as an electrode material. These results agree well with those of previous research works [5,6,16,18,24].
Based on the results shown in Table 2, the molar ratio of Na to V2O5 was close to 1, indicating the as-obtained product was NaV2O5. The sum of the content of sodium and vanadium reached up to 99.98%, indicating the purity of the as-obtained NaV2O5 reached up to 99.98%. The contents of other elements appeared in trace accounts, indicating impurity elements hardly co-precipitated with NaV2O5 during the reaction.

3.6. Electrochemical Performance

The NaV2O5 powders obtained under the optimal conditions were assembled as sodium ion batteries to conduct corresponding electrochemical performance tests, as shown in Figure 12. It was clear that the initial discharge capacity was 196.4 mAh/g, and the sodium ion battery still had a specific discharge capacity of 120 mAh/ g after 50 cycles. The Coulombic efficiency at different currents was no less than 97% from the second cycle to the 40th. These results indicate that the as-prepared NaV2O5 powders have a potential application in sodium ion batteries.

3.7. Synthesis Mechanism

The synthesis of NaV2O5 in the hydrothermal hydrogen reduction is a complex process which not only involves a series of reduction reactions with the phase transformation from V(V) ions to NaV2O5 but also involves a crystal growth process. Herein, the synthesis mechanism of NaV2O5 was divided into a phase transformation mechanism and a crystal growth mechanism in order to better understand the synthesis mechanism of NaV2O5.

3.7.1. Phase Transformation Mechanism

The phase transformation mechanism can be determined by further investigating the results shown in Figure 10. It can be seen that several kinds of vanadates, including Na2V6O16∙3H2O, Na6V10O28∙18H2O, Na2V6O16, Na0.287V2O5, Na0.64V2O5, and NaV2O5, were obtained during the whole synthesis process. The models of those vanadates are shown in Figure 13. Based on the phase transformation in the synthesis process, the phase transformation mechanism can be proposed as follows.
On the one hand, before the reduction reaction, V(V)ions can bond with the free sodium ions in a certain proportion to precipitate from the solution in the form of Na2V6O16∙3H2O, Na6V10O28∙18H2O, and Na2V6O16 (Figure 10a and Figure 13a), because the high temperature and high pressure can cause a low solubility for those vanadates. The relevant chemical reaction of this pentavalent vanadate pre-sedimentation process is expressed as Equations (2) to (4). In the initial period of the reduction, the V(V)ions can be reduced by H2, so the polarity of V(V) ions will be reduced, resulting in a decrease in the binding force between V ions and water molecules (H2O), as well as between V and oxygen atoms [18]. As a result, the water molecules in the interlayer of Na2V6O16∙3H2O and Na6V10O28∙18H2O are gradually removed, and the vanadate of Na0.287V2O5 is formed in the reduction process (Figure 10b). The relevant chemical reaction of this process of hydrogen reduction with dehydration is expressed as Equations (5) to (7). As the reduction proceeds, the V ions valence state can be further lowered and sodium ions will be inserted into the structure of Na0.287V2O5 in order to balance the charge [18], leading to the transformation of Na0.287V2O5 to Na0.64V2O5 and then to the desired product of NaV2O5 (Figure 10c–e, Figure 13b). The relevant chemical reaction of this sodium ion insertion process is expressed as Equations (8) and (9). On the other hand, in the initial period of the reduction reaction, some V ions that have been reduced to a lower valence state can also bond to the non-reduced V(V) ions and free sodium ions in a certain proportion to precipitate from the solution as Na0.287V2O5 [18]. The relevant chemical reaction of this process is expressed as Equations (10) and (11). With a prolonged time, the valence state of V ions in the Na0.287V2O5 is further lowered and the free sodium ions will be inserted into the structure of Na0.287V2O5 to maintain the charge in balance [18], which also leads to the formation of NaV2O5. Both of the above two aspects simultaneously lead to the formation of pure-phase NaV2O5.
V10O286− + 6Na+ + 18H2O = Na6V10O28·18H2O
V6O162− + 2Na+ + 3H2O = Na2V6O16·3H2O
V6O162− + 2Na+ = Na2V6O16
400Na6V10O28∙18H2O + 287H2 + 1826H+ = 2000Na0.287V2O5 + 1826Na+ + 8400H2O
2000Na2V6O16∙3H2O + 861H2 + 2278H+ = 6000Na0.287V2O5 + 2278Na+ + 8000H2O
2000Na2V6O16 + 861H2 + 2278H+ = 6000Na0.287V2O5 + 2278Na+ + 2000H2O
2000Na0.287V2O5 + 706Na+ + 353H2 = 2000Na0.64V2O5 + 706H+
100Na0.64V2O5 + 36Na+ + 18H2 = 100NaV2O5 + 36H+
2400Na+ + 400V10O286− + 287H2 + 1826H+ = 2000Na0.287V2O5 + 1826 Na+ + 1200H2O
4000Na+ + 2000V6O162− + 861H2 + 2278H+ = 6000Na0.287V2O5 + 2278 Na+ + 2000H2O

3.7.2. Crystal Growth Mechanism

To investigate the crystal growth mechanism, the products prepared at different reaction times were analyzed by SEM.
Figure 14a shows that the resultant products were composed of a disorderly accumulation of small rods when the reaction lasted for 0.5 h. These small rods were identified as a mixture of un-reduced and reduced sodium vanadates, according to the XRD results (Figure 10b). As the reaction time was increased to 1 h, the small rods became much longer compared with those obtained at 0.5 h. In addition, evidence could be found that a few rods assembled with each other and demonstrated a “slender belts” morphology (Figure 14b). After increasing the reaction time to 1.5 h, more evidence could be found that the long rods further assembled together to form some rod-like mesocrystals (Figure 14c). When the reaction lasted for 2 h, the as-prepared product was demonstrated to consist of typical rod-like mesocrystals (Figure 14d). The corresponding EDS element mapping analysis revealed that the rod-like mesocrystals only consist of the elements Na, V, and O (Figure 14f). Moreover, the relevance of Na, V, and O was quite good. Combining with the XRD results drawn from Figure 10e, the rod-like mesocrystals could be confirmed as NaV2O5. From the partial magnified image of the rod-like NaV2O5 mesocrystals, it can be seen that the individual NaV2O5 rods in the bunch were aligned in the same direction and assembled together (Figure 14e). The fact that the crystals stack preferentially in a certain direction indicates that the growth of NaV2O5 crystals in the HHR process may follow a self-assembly oriented attachment mechanism [16,17,18].
The NaV2O5 samples were further investigated by TEM to obtain more details of the microstructure. Figure 15a,b reveal that the NaV2O5 mesocrystals obtained had a rod-like morphology, which appeared similar to that in the images obtained from the SEM analysis. From the magnified image of the end of the individual NaV2O5 mesocrystal (Figure 15c), it can be clearly observed that the mesocrystal was composed of many nanorods with the same preferred orientation. Moreover, some cleavages between the nanorods at the ends of the crystal supply more evidence for the self-assembled oriented attachment mechanism for rod-like NaV2O5 formation (Figure 15c). The lattice fringes of 0.473 nm associated with the (001) plane [16,18] can be measured from the high-resolution transmission electron microscope (HRTEM) image of NaV2O5 (Figure 15d). The lattice fringes in the direction of the length measured as 0.375 nm correspond to the (010) plane [16], revealing that the crystal’s preferential growth direction is (010) (Figure 10d). These agree with the XRD results. From the analysis of the selected area electron diffraction (SAED) pattern, diffraction spots of (010), (001), and (011) can be clearly identified, which is in good agreement with the orthorhombic NaV2O5. From the above information, it can be concluded that NaV2O5 nanorods with the same preferential crystal growth direction assemble together in the (001) direction to form rod-like NaV2O5 mesocrystals with a preferential crystal growth direction of (010).
Based on the above, a crystal growth mechanism can be proposed (Figure 13c). First of all, many small rod nuclei are obtained through nucleation. As the surface energy can be drastically reduced when the interface is eliminated, the generated small NaV2O5 rods will then spontaneously combine with each other along the same crystal orientation (010) to maintain the system at the lowest systematic energy. Ultimately, rod-like NaV2O5 mesocrystals with a (010) preferential crystal growth orientation, consisting of many nanorods stacking with each other along the (001) direction, are obtained.

4. Conclusions

In summary, we reported a novel fast process for synthesizing NaV2O5 mesocrystals from an alkaline-stripped pentavalent vanadium solution by introducing the technology of hydrothermal hydrogen reduction. The optimal conditions for NaV2O5 synthesis were ascertained to be an initial solution pH value of 4.0, a reaction temperature of 200 °C, a H2 gas partial pressure of 4 MPa, and a reaction time of 2 h. The synthesis time (only 2 h) was greatly shortened, by nine times, compared with the most time-saving (18 h) hydrothermal process at present. XRD analysis revealed that the as-prepared powders demonstrate a typical layered orthorhombic structure of NaV2O5. The purity of the as-prepared NaV2O5 reached up to 99.98%. Electrochemical tests showed that the as-prepared powder had a potential application in sodium ion batteries. Electron microscopy analysis revealed that the rod-like NaV2O5 mesocrystals demonstrated a preferential growth direction of (010), and were formed by a large number of nanorods assembled in the (001) direction. Furthermore, the synthesis mechanism of NaV2O5 was proposed as follows: pentavalent vanadate pre-sedimentation, hydrogen reduction with dehydration, sodium ion insertion, and finally self-assembly oriented attachment. The synthesis process can be considered to be time-saving and low-cost, thus offering promising application prospects for NaV2O5 synthesis.

Author Contributions

G.Z. and Y.Z. provided the original ideas and designed the experiments; G.Z. and L.Z. performed the experiments; G.Z. analyzed the data; S.B. contributed reagents/materials/analysis tools; and G.Z. wrote the paper.

Funding

This work was financially supported by the National Key Science-Technology Support Programs of China (NO. 2015BAB03B05), the National Natural Science Foundation of China (NO. 51874222 and NO. 51804226).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, P.; Zhang, Y.; Liu, T.; Huang, J.; Yuan, Y.; Xue, N. Source separation of vanadium over iron from roasted vanadium-bearing shale during acid leaching via ferric fluoride surface coating. J. Clean. Prod. 2018, 181, 399–407. [Google Scholar] [CrossRef]
  2. Hu, P.; Zhang, Y.; Huang, J.; Liu, T.; Yuan, Y.; Xue, N. Eco-friendly leaching and separation of vanadium over iron impurity from vanadium-bearing shale using oxalic acid as a leachant. ACS Sustain. Chem. Eng. 2018, 6, 1900–1908. [Google Scholar] [CrossRef]
  3. Xue, N.; Zhang, Y.; Huang, J.; Liu, T.; Wang, L. Separation of impurities aluminum and iron during pressure acid leaching of vanadium from stone coal. J. Clean. Prod. 2017, 166, 1265–1273. [Google Scholar] [CrossRef]
  4. Xue, N.; Zhang, Y.; Liu, T.; Huang, J.; Zheng, Q. Effects of hydration and hardening of calcium sulfate on muscovite dissolution during pressure acid leaching of black shale. J. Clean. Prod. 2017, 149, 989–998. [Google Scholar] [CrossRef]
  5. Mjejin, I.; Etteyeb, N.; Sediri, F. NaV2O5 nanoplates: Hydrothermal synthesis, characterization and study of their optical and electrochemical properties. Ceram. Int. 2014, 40, 5379–5386. [Google Scholar]
  6. Hu, F.; Ming, X.; Chen, G.; Wang, C.; Li, A.; Li, J.; Wei, Y. Synthesis and characterizations of highly crystallized α’-NaV2O5 needles prepared by a hydrothermal process. J. Alloys Compd. 2009, 47, 888–892. [Google Scholar] [CrossRef]
  7. Aichhorn, M.; Sherman, E.Y.; Evertz, H.G. Single-particle spectral function of quarter-filled ladder systems. Phys. Rev. B 2005, 72, 155110. [Google Scholar] [CrossRef]
  8. Kamioka, H.; Saito, S.; Isobe, M.; Ueda, Y.; Suemoto, T. Coherent magnetic oscillation in the spin ladder system α’-NaV2O5. Phys. Rev. Lett. 2002, 88, 127201. [Google Scholar] [CrossRef]
  9. Yosihama, T.; Nishi, M.; Nakajima, K.; Kakurai, K.; Takesue, N.; Fujii, Y.; Isobe, M.; Kagami, C.; Ueda, Y. Magnetic excitations in spin-Peierls compound NaV2O5. Phys. B Condens. Matter 1997, 234–236, 539–540. [Google Scholar]
  10. Isobe, M.; Kagami, C.; Ueda, Y. Crystal growth of new spin-Peierls compound NaV2O5. J. Cryst. 1997, 181, 314–317. [Google Scholar] [CrossRef]
  11. Isobe, M.; Ueda, Y. Magnetic susceptibility of quasi-one-dimensional compound NaV2O5. J. Phys. Soc. Jpn. 1996, 65, 1178–1181. [Google Scholar] [CrossRef]
  12. Horsch, P.; Mack, F. A new view of the electronic structure of the spin-Peierls compound α’-NaV2O5. Eur. Phys. J. B 1998, 5, 367–370. [Google Scholar] [CrossRef]
  13. Ohwada, K.; Fujii, Y.; Muraoka, J.; Nakao, H.; Murakami, Y.; Noda, Y.; Ohsumi, H.; Ikeda, N.; Shobu, T.; Isobe, M.; et al. Structural relations between two ground states of NaV2O5 under high pressure: A synchrotron x-ray diffraction study. Phys. Rev. B 2007, 76, 094113. [Google Scholar] [CrossRef]
  14. Spitaler, J.; Sherman, E.Y.; Draxl, C.A. Zone-center phonons in NaV2O5: A comprehensive ab initiostudy including Raman spectra and electron-phonon interaction. Phys. Rev. B 2007, 75, 014302. [Google Scholar] [CrossRef]
  15. Ming, X.; Fan, H.; Huang, Z.; Hu, F.; Wang, C.; Chen, G. Magnetic gap in Slater insulator α’-NaV2O5. J. Phys. Condens. Matter 2008, 15, 155203. [Google Scholar] [CrossRef]
  16. Liu, P.; Zhu, K.; Bian, K.; Xu, Y.; Zhang, F.; Zhang, W.; Huang, W.; Zhang, J. One-step and short-time synthesis of 3D NaV2O5 mesocrystal as anode materials of Na-Ion batteries. J. Power Sources 2018, 395, 158–162. [Google Scholar] [CrossRef]
  17. Liu, P.; Zhu, K.; Gao, Y.; Luo, H.; Lu, L. Recent progress in the applications of vanadium-based oxides on energy storage: From low-dimensional nanomaterials synthesis to 3D micro/nano-structures and free-standing electrodes fabrication. Adv. Energy Mater. 2017, 7, 1700547. [Google Scholar] [CrossRef]
  18. Liu, P.; Zhou, D.; Zhu, K.; Wu, Q.; Wang, Y.; Tai, G.; Zhang, W.; Gu, Q. Bundle-like α’-NaV2O5 mesocrystals: From synthesis, growth mechanism to analysis of Na-ion intercalation/deintercalation abilities. Nanoscale 2016, 8, 1975–1985. [Google Scholar] [CrossRef]
  19. Muller-Bouvet, D.; Baddour-Hadjean, R.; Tanabe, M.; Huynh, L.T.N.; Le, M.L.P.; Pereira-Ramos, J.P. Electrochemically formed α’-NaV2O5: A new sodium intercalation compound. Electrochim. Acta 2015, 176, 586–593. [Google Scholar] [CrossRef]
  20. Smolinski, H.; Gros, C.; Weber, W.; Peuchert, U.; Roth, G.; Weiden, M.; Geibel, C. NaV2O5 as a quarter-filled ladder compound. Phys. Rev. Lett. 1998, 80, 5164. [Google Scholar] [CrossRef]
  21. Smirnov, A.I.; Popova, M.N.; Sushkov, A.B.; Golubchik, S.A.; Khomskii, D.I.; Mostovoy, M.V.; Vasil’ev, A.N.; Isobe, M.; Ueda, Y. High-frequency dielectric and magnetic anomaly at the phase transition in NaV2O5. Phys. Rev. B 1999, 59, 14546. [Google Scholar] [CrossRef]
  22. Smirnov, A.I.; Sosin, S.S.; Calemczuk, R.; Villar, V.; Paulsen, C.; Isobe, M.; Ueda, Y. Thermal and magnetic properties of defects in the spin-gap compound NaV2O5. Phys. Rev. B 2000, 63, 014412. [Google Scholar] [CrossRef]
  23. Onoda, M.; Mizuguchi, Y. Correlation and disorder effects for the electronic transport in the correlation and disorder effects for the electronic transport in the low-dimensional system NaxCa1-xV2O5 and NaxV2O5. J. Phys. Condens. Matter 2008, 20, 445207. [Google Scholar] [CrossRef]
  24. Gui, Z.; Fan, R.; Chen, X.; Hu, Y.; Wu, Y. Hydrothermal synthesis and magnetic property of NaV2O5 nanorods. Trans. Nonferrous Met. Soc. China 2001, 11, 324–327. [Google Scholar]
  25. Zhang, Y.; Bao, S.; Liu, T.; Chen, T.; Huang, J. The technology of extracting vanadium from stone coal in China: History, current status and future prospects. Hydrometallurgy 2011, 109, 116–124. [Google Scholar] [CrossRef]
  26. Yang, X.; Zhang, Y.; Bao, S.; Shen, C. Separation and recovery of vanadium from a sulfuric-acid leaching solution of stone coal by solvent extraction using trialkylamine. Sep. Purif. Technol. 2016, 164, 49–55. [Google Scholar] [CrossRef]
  27. Zhang, G.; Zhang, Y.; Bao, S.; Huang, J.; Zhang, L. A novel eco-friendly vanadium precipitation method by hydrothermal hydrogen reduction technology. Minerals 2017, 7, 182. [Google Scholar] [CrossRef]
  28. Zhang, G.; Zhang, Y.; Bao, S. The effects of sodium ions, phosphorus, and silicon on the eco-friendly process of vanadium precipitation by hydrothermal hydrogen reduction. Minerals 2018, 8, 294. [Google Scholar] [CrossRef]
  29. Agrawal, A.; Kumar, V.; Pandey, B.D.; Sahu, K.K. A comprehensive review on the hydro metallurgical process for the production of nickel and copper powders by hydrogen reduction. Mater. Res. Bull. 2006, 41, 879–892. [Google Scholar] [CrossRef]
  30. Saarinen, T.; Lindfors, L.E.; Fugleberg, S. A review of the precipitation of nickel from salt solutions by hydrogen reduction. Hydrometallurgy 1998, 47, 309–324. [Google Scholar] [CrossRef]

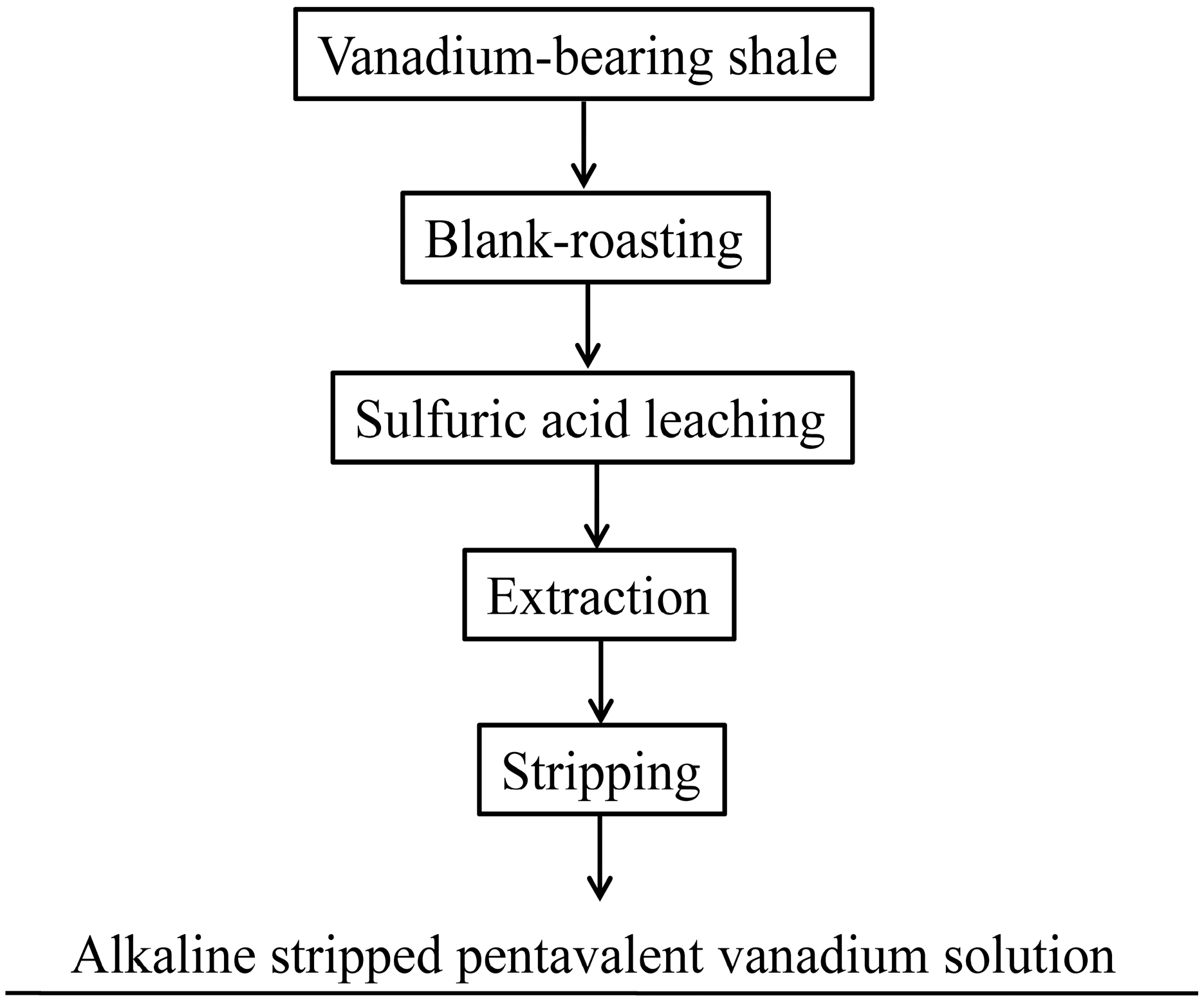

Figure 1. Typical flowsheet for alkaline stripped pentavalent vanadium solution formation.
Figure 1. Typical flowsheet for alkaline stripped pentavalent vanadium solution formation.
Minerals 09 00271 g001

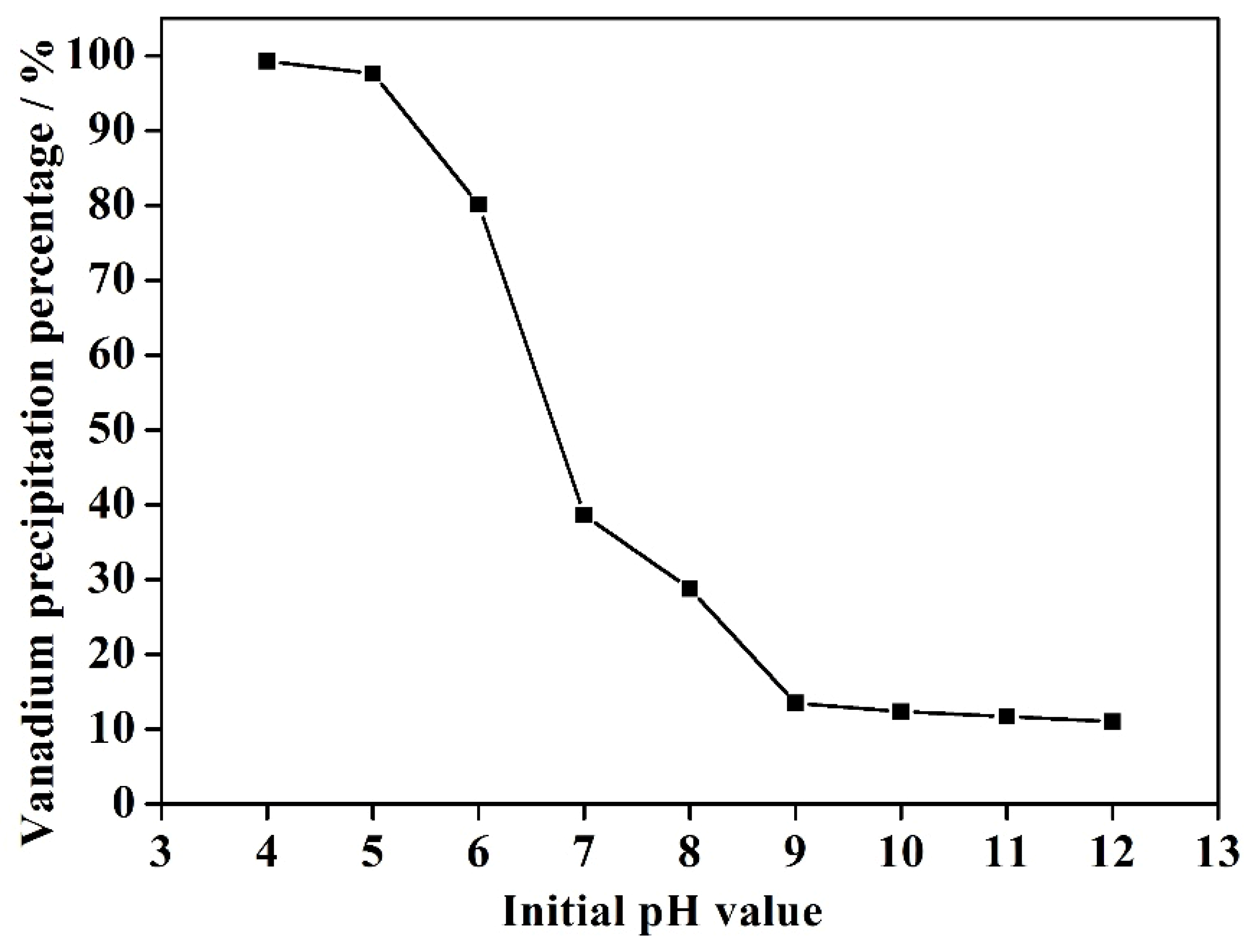

Figure 2. The effect of initial solution pH value on vanadium precipitation percentage.
Figure 2. The effect of initial solution pH value on vanadium precipitation percentage.
Minerals 09 00271 g002

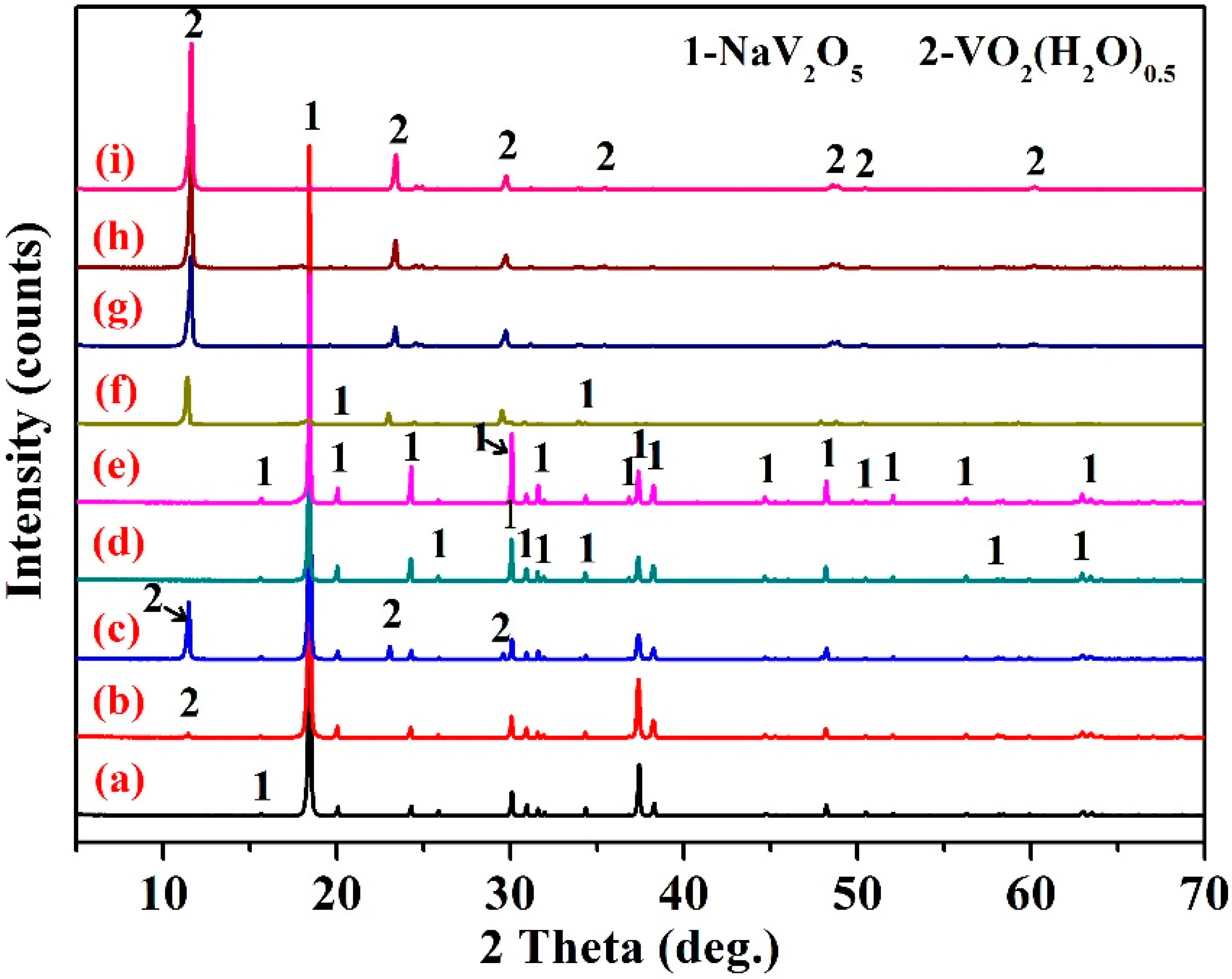

Figure 3. The phase compositions of the products prepared from solutions with different initial pH values of (a) 4.0, (b) 5.0, (c) 6.0, (d) 7.0, (e) 8.0, (f) 9.0, (g) 10.0, (h) 11.0, and (i) 12.0 under a reaction temperature of 200 °C, a H2 gas partial pressure of 4 MPa, and a reaction time of 2 h.
Figure 3. The phase compositions of the products prepared from solutions with different initial pH values of (a) 4.0, (b) 5.0, (c) 6.0, (d) 7.0, (e) 8.0, (f) 9.0, (g) 10.0, (h) 11.0, and (i) 12.0 under a reaction temperature of 200 °C, a H2 gas partial pressure of 4 MPa, and a reaction time of 2 h.
Minerals 09 00271 g003

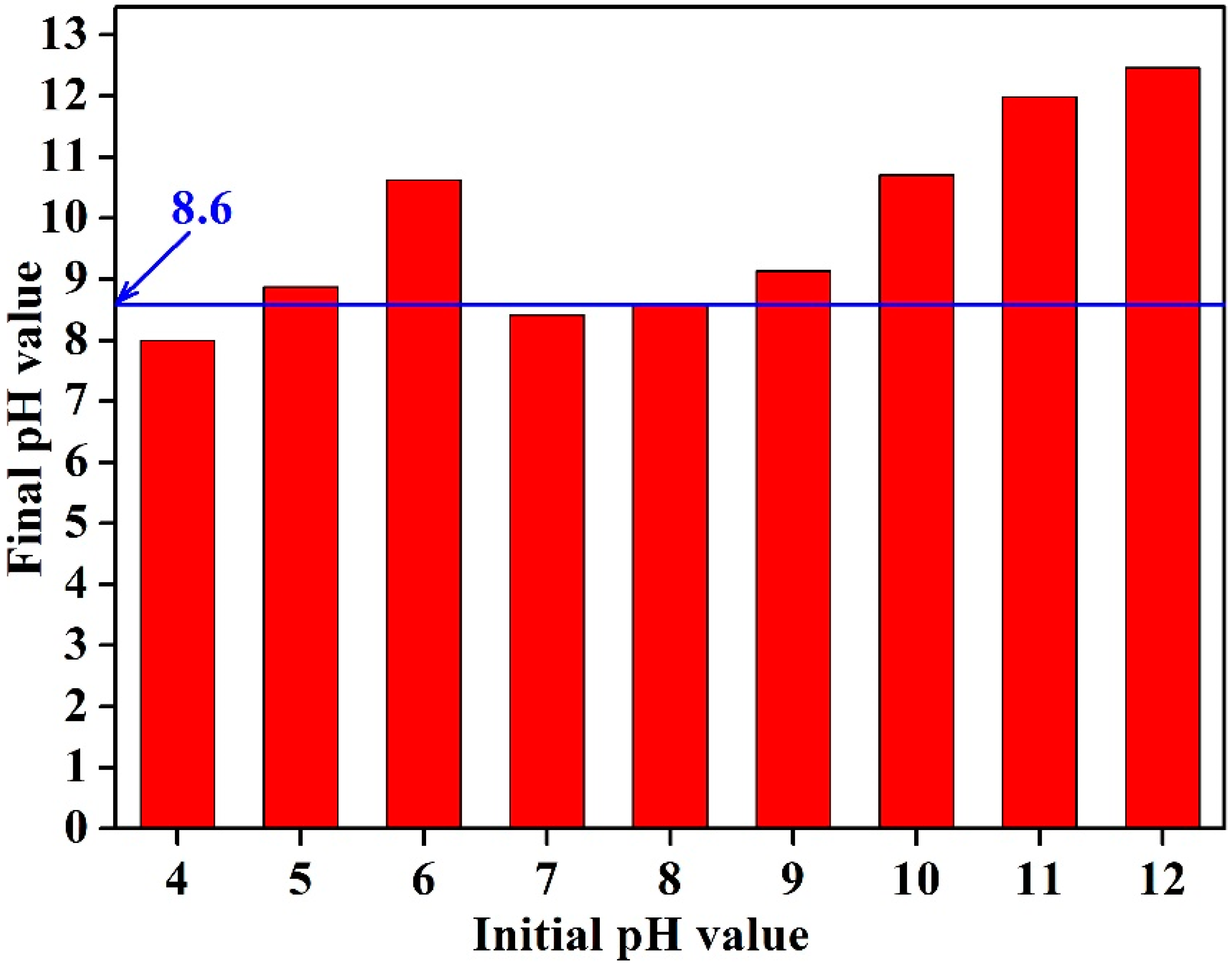

Figure 4. The effect of the initial solution pH value on final solution pH value.
Figure 4. The effect of the initial solution pH value on final solution pH value.
Minerals 09 00271 g004

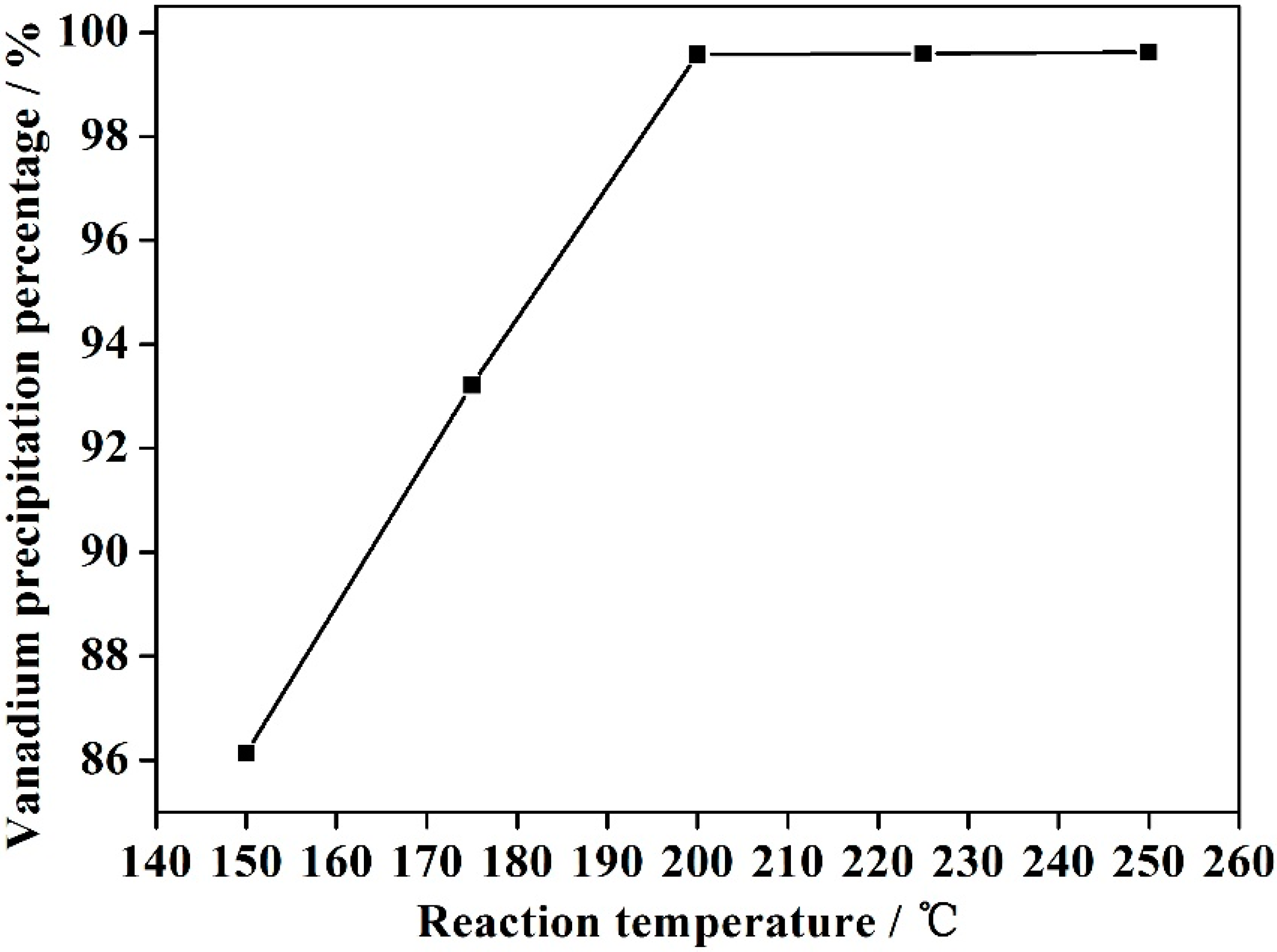

Figure 5. The effect of reaction temperature on vanadium precipitation percentage.
Figure 5. The effect of reaction temperature on vanadium precipitation percentage.
Minerals 09 00271 g005

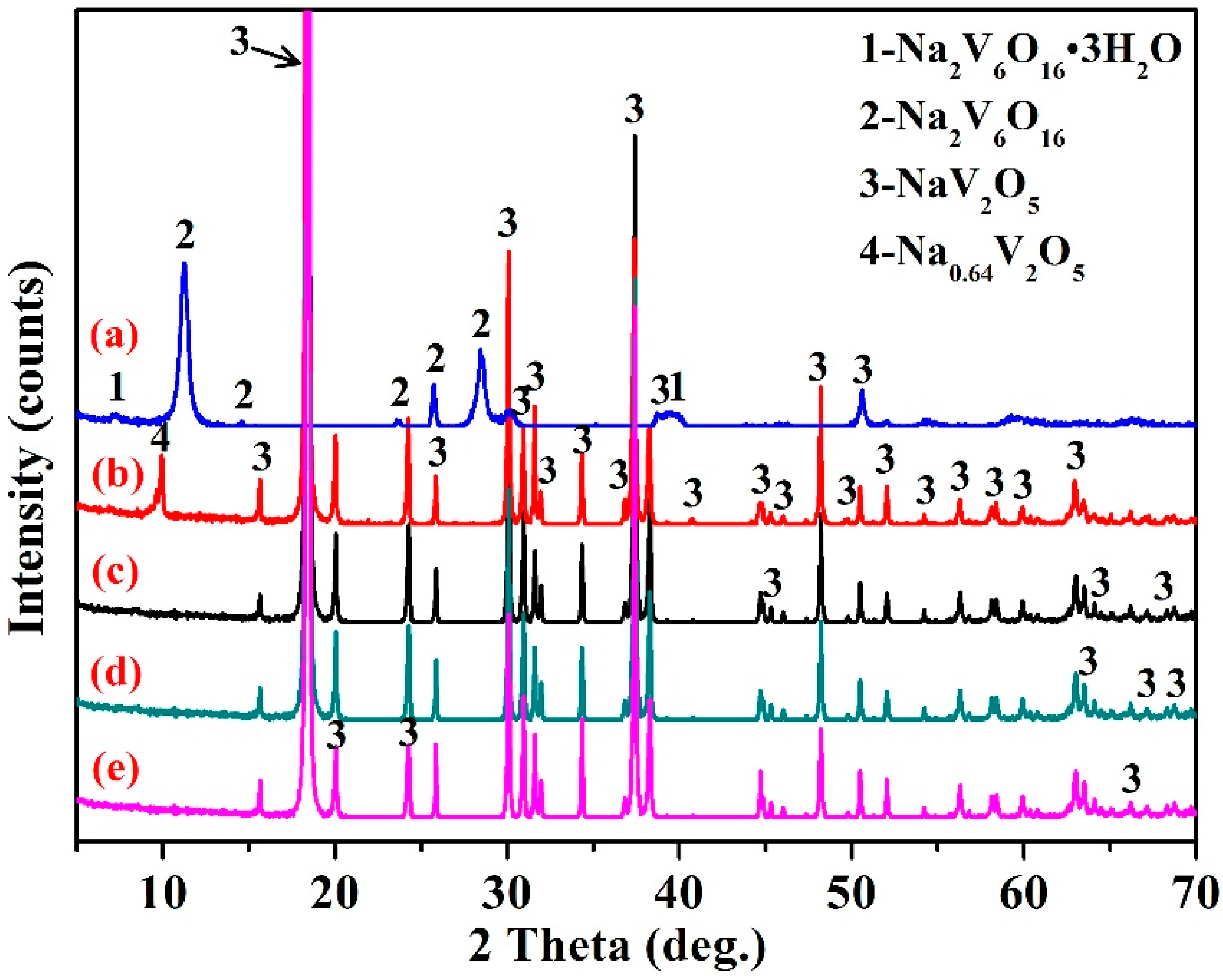

Figure 6. The phase compositions of the products obtained at (a) 150 °C, (b) 175 °C, (c) 200 °C, (d) 225 °C, and (e) 250 °C under an initial solution pH value of 4, a H2 gas partial pressure of 4 MPa, and a reaction time of 2 h.
Figure 6. The phase compositions of the products obtained at (a) 150 °C, (b) 175 °C, (c) 200 °C, (d) 225 °C, and (e) 250 °C under an initial solution pH value of 4, a H2 gas partial pressure of 4 MPa, and a reaction time of 2 h.
Minerals 09 00271 g006

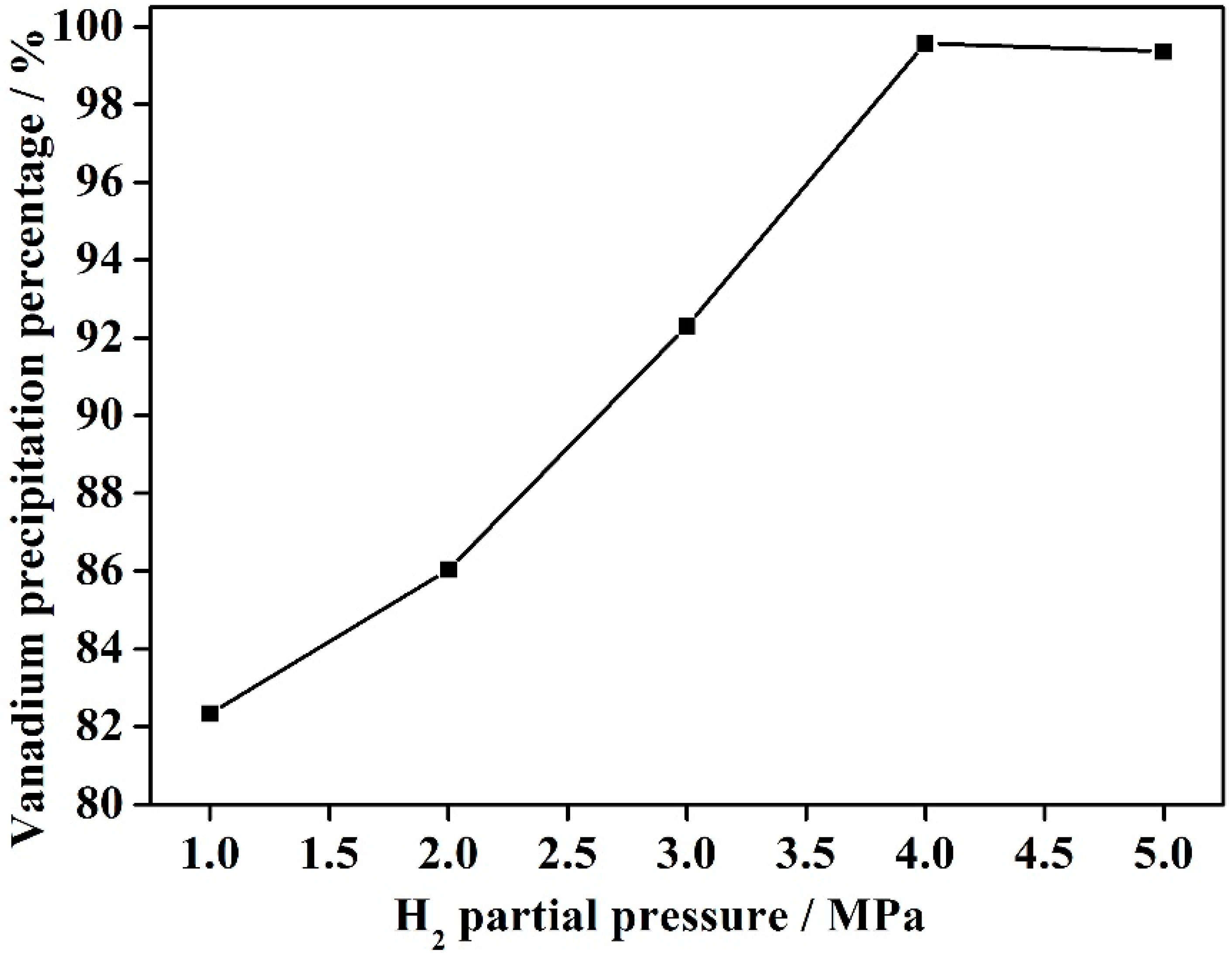

Figure 7. The effect of H2 gas partial pressure on vanadium precipitation percentage.
Figure 7. The effect of H2 gas partial pressure on vanadium precipitation percentage.
Minerals 09 00271 g007
Figure 8. The phase compositions of the products obtained at (a) 1 MPa, (b) 2 MPa, (c) 3 MPa, (d) 4 MPa, and (e) 5 MPa under an initial solution pH value of 4, a reaction temperature of 200 °C, and a reaction time of 2 h.
Figure 8. The phase compositions of the products obtained at (a) 1 MPa, (b) 2 MPa, (c) 3 MPa, (d) 4 MPa, and (e) 5 MPa under an initial solution pH value of 4, a reaction temperature of 200 °C, and a reaction time of 2 h.
Minerals 09 00271 g008

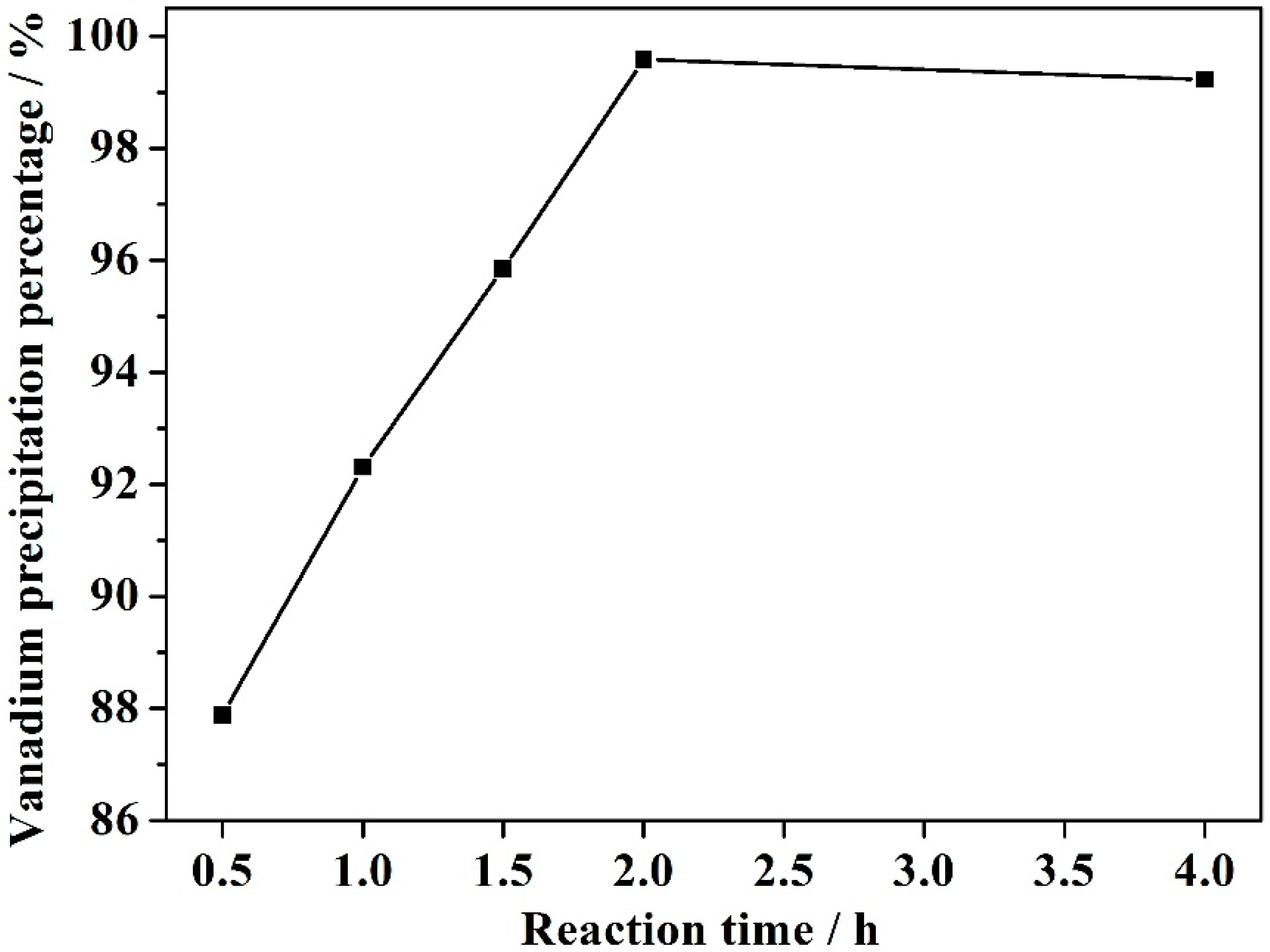

Figure 9. The effect of reaction time on vanadium precipitation percentage.
Figure 9. The effect of reaction time on vanadium precipitation percentage.
Minerals 09 00271 g009

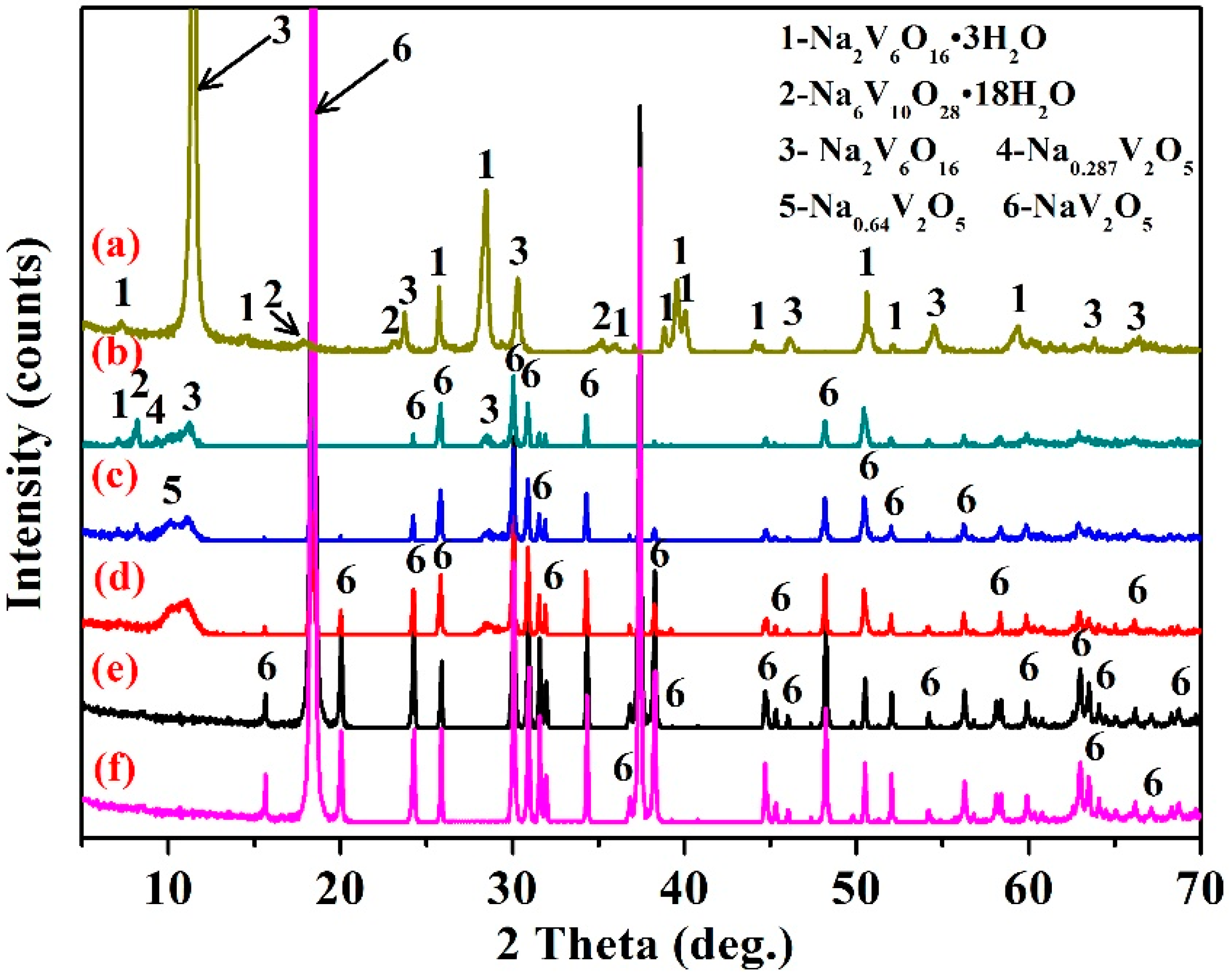

Figure 10. The phase compositions of the products obtained at (a) 0 h, (b) 0.5 h, (c) 1.0 h, (d) 1.5 h, (e) 2 h, and (f) 4 h under an initial solution pH value of 4, a reaction temperature of 200 °C, and a H2 gas partial pressure of 4 MPa.
Figure 10. The phase compositions of the products obtained at (a) 0 h, (b) 0.5 h, (c) 1.0 h, (d) 1.5 h, (e) 2 h, and (f) 4 h under an initial solution pH value of 4, a reaction temperature of 200 °C, and a H2 gas partial pressure of 4 MPa.
Minerals 09 00271 g010

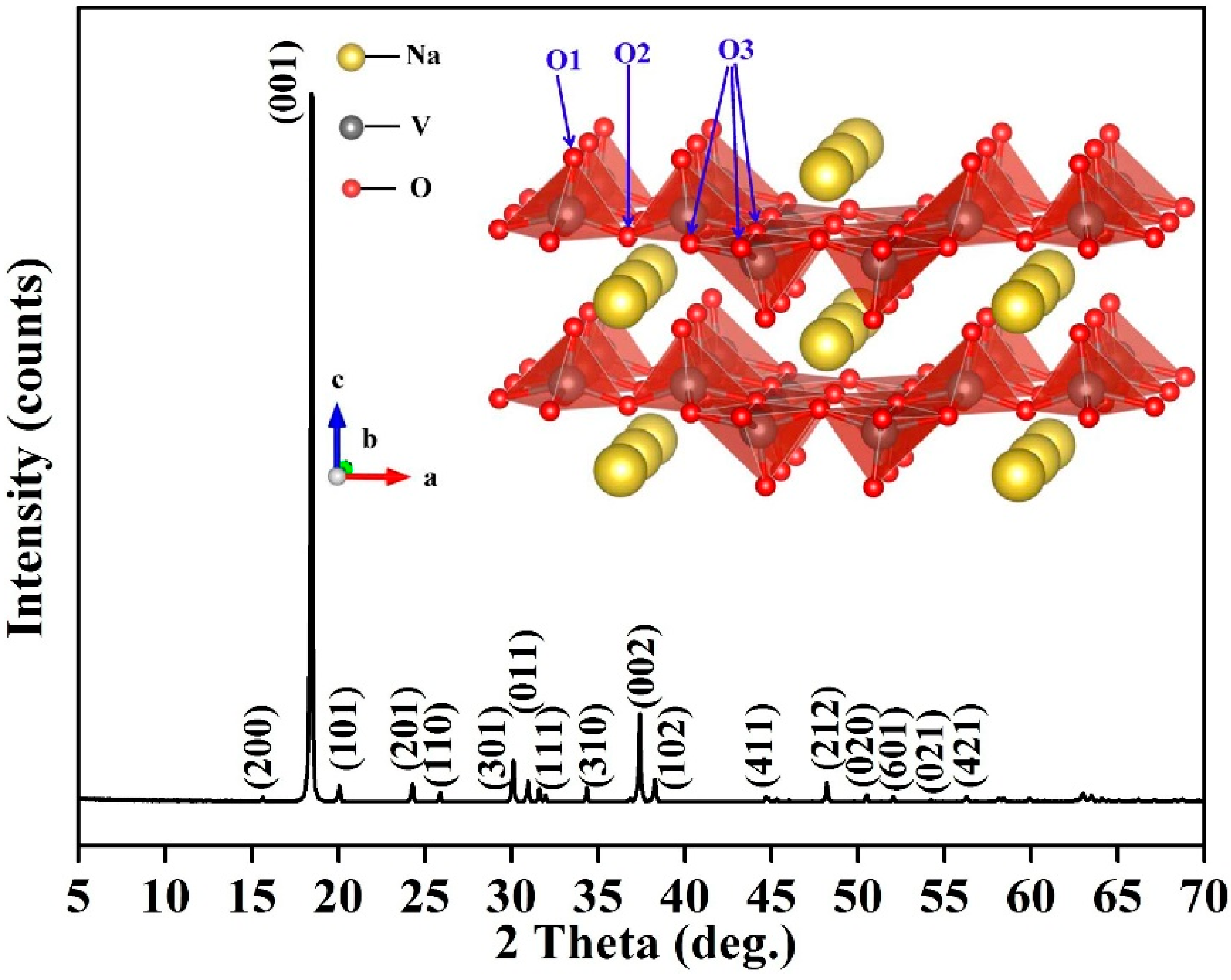

Figure 11. X-ray diffraction (XRD) pattern of the as-obtained NaV2O5.
Figure 11. X-ray diffraction (XRD) pattern of the as-obtained NaV2O5.
Minerals 09 00271 g011

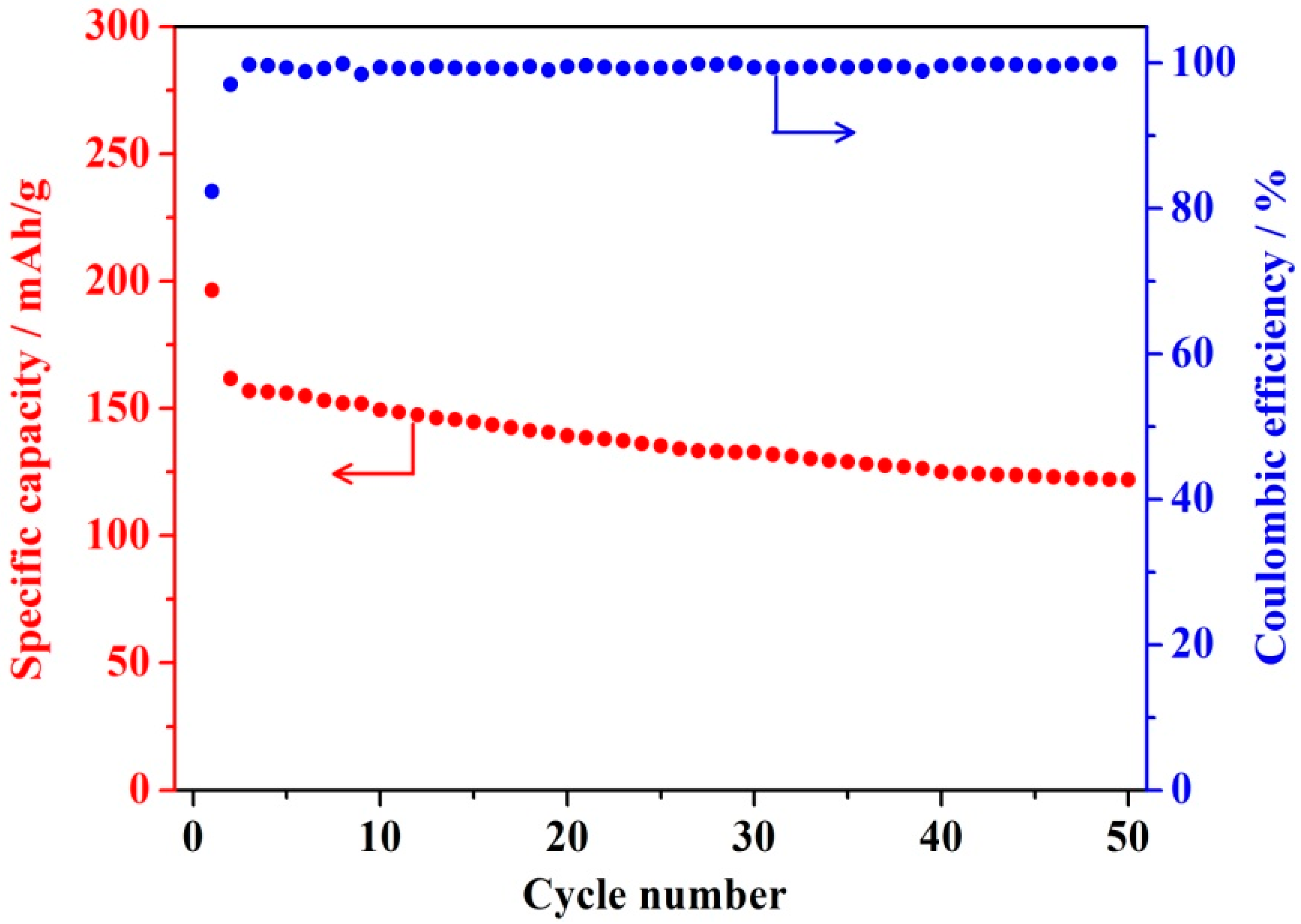

Figure 12. Cycling performance at the current density of 100 mA/g in 0.01–3 V.
Figure 12. Cycling performance at the current density of 100 mA/g in 0.01–3 V.
Minerals 09 00271 g012

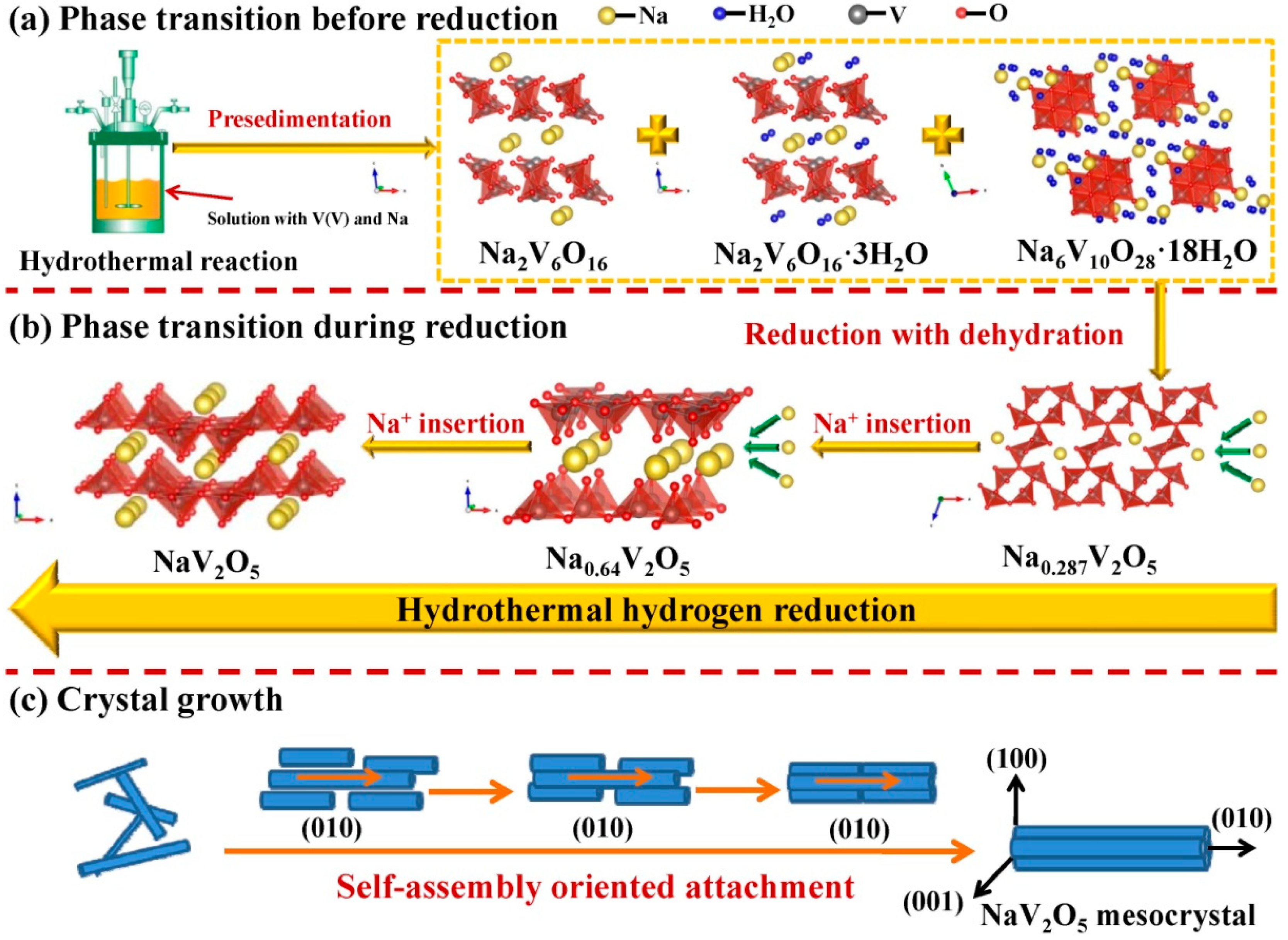

Figure 13. Schematic of the synthesis mechanism for rod-like NaV2O5 mesocrystals. (a) The phase transition in the process of the formation of Na2V6O16∙3H2O, Na6V10O28∙18H2O, and Na2V6O16 before the introduction of H2 gas to the autoclave; (b) the phase transition mechanism in the formation of NaV2O5 during the hydrothermal hydrogen reduction; (c) the crystal growth of rod-like NaV2O5 mesocrystals follows a self-assembly oriented attachment mechanism.
Figure 13. Schematic of the synthesis mechanism for rod-like NaV2O5 mesocrystals. (a) The phase transition in the process of the formation of Na2V6O16∙3H2O, Na6V10O28∙18H2O, and Na2V6O16 before the introduction of H2 gas to the autoclave; (b) the phase transition mechanism in the formation of NaV2O5 during the hydrothermal hydrogen reduction; (c) the crystal growth of rod-like NaV2O5 mesocrystals follows a self-assembly oriented attachment mechanism.
Minerals 09 00271 g013
Figure 14. Scanning electron microscopy (SEM) image of the products obtained at different reaction times of (a) 0.5 h, (b) 1 h, (c) 1.5 h, and (d) 2 h under an initial solution pH value of 4, a reaction temperature of 200 °C, and a H2 gas partial pressure of 4 MPa. (e) The partial magnified image; (f) energy-dispersive spectrometry (EDS) element mapping analysis of the product obtained at 2 h.
Figure 14. Scanning electron microscopy (SEM) image of the products obtained at different reaction times of (a) 0.5 h, (b) 1 h, (c) 1.5 h, and (d) 2 h under an initial solution pH value of 4, a reaction temperature of 200 °C, and a H2 gas partial pressure of 4 MPa. (e) The partial magnified image; (f) energy-dispersive spectrometry (EDS) element mapping analysis of the product obtained at 2 h.
Minerals 09 00271 g014
Figure 15. Transmission electron microscopy (TEM) characterization of NaV2O5 mesocrystals synthesized under the optimal conditions. (a,b) TEM images of NaV2O5mesocrystals; (c) partial magnified image of the NaV2O5 mesocrystals; (d) high-resolution transmission electron microscope (HRTEM) image of NaV2O5 (inset is the corresponding selected area electron diffraction (SAED) pattern).
Figure 15. Transmission electron microscopy (TEM) characterization of NaV2O5 mesocrystals synthesized under the optimal conditions. (a,b) TEM images of NaV2O5mesocrystals; (c) partial magnified image of the NaV2O5 mesocrystals; (d) high-resolution transmission electron microscope (HRTEM) image of NaV2O5 (inset is the corresponding selected area electron diffraction (SAED) pattern).
Minerals 09 00271 g015
Table 1. Concentrations of the main elements in the alkaline-stripped pentavalent vanadium solution (ASPVS).
Table 1. Concentrations of the main elements in the alkaline-stripped pentavalent vanadium solution (ASPVS).
ItemsVNaPAlFeSiMg
Concentration (g/L)20.523.10.0130.0090.0070.0120.008
Table 2. Chemical composition of the as-obtained NaV2O5.
Table 2. Chemical composition of the as-obtained NaV2O5.
ItemsV2O5NaPAlFeSiMg
Content (wt. %)88.7411.240.0030.0010.0020.0010.001
