# Representativity of 2D Shape Parameters for Mineral Particles in Quantitative Petrography

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Overview

^{2}) and has been applied to shape-fabric analysis of deformed grains in a rock [16]. A variation of this parameter is the perimeter over area normalized ratio (PoA) (¥) [17]. This parameter is the inverse of the square root of the shape factor and has been used to assess pore space in sandstone [18].

#### 1.2. Shape Parameter Quantification

^{®}, Aphelion) with morphological functions and a programming module (e.g., Visual basic) to automate the procedure [40], and (iii) free and open source image processing programs (e.g., ImageJ: [35,41]). Due to precision image scales and high data density, observations and measurements are capable of combining roundness and roughness.

#### 1.3. Objectives

## 2. Materials and Methods

#### 2.1. Design and Development of Type Particles

^{®}CS6. Particles of an average diameter of 2.54 cm (1 inch) were taken as a base. The objects were scanned with resolutions of 900, 750, 600, 300, 150, and 75 DPI and saved in a raster format (tif, 8 bits, B/W).

#### 2.2. Parameters and Measurement Techniques

^{®}(v. 1.52), which is compatible with Microsoft

^{®}OS with Windows 10 and OS El Capitan

^{®}. The fractal dimension was calculated using Image-Pro Plus

^{®}(v. 7.0) software, in Microsoft OS with Windows 10, by applying the Richardson Method [31].

#### 2.3. Determination of Analysis Conditions

#### 2.4. Data Acquisition and Evaluation

^{®}), with each particle labelled with a specific identifier. Due to the use of three different programs (ImageJ, Image-Pro Plus, and Roussillon Toolbox), it was necessary to generate a file that would group all the measurements obtained for each particle. In order to facilitate the interpretation of the numerical measurements, type particles were arranged into graphic charts organized by increasing parameter values (e.g., particle template according to Rw and S). These charts were supplemented with qualitative information extracted from visual charts used in particle shape descriptions [6,43,48]. Through mathematical analysis of the measured parameters of the designed, theoretical particles, correlation curves and functions were obtained (e.g., Rw vs. FD, Rw vs. S, FD vs. S, etc.). These analyses were conducted in a previous study [49]. In order to limit the influence of S on other parameters, a correction was applied, based on the methodology proposed by [44].

#### 2.5. Estimation of a Regularity Indicator (RBC)

#### 2.6. Application to A Case Study and Validation

## 3. Results

#### 3.1. Description of Type Particles

#### 3.2. Optimal Analysis Conditions of Shape Parameters

#### 3.3. Shape Parameter Evaluation and A New Regularity Indicator (RBC)

#### 3.3.1. Shape Parameter Evaluation

#### 3.3.2. New Regularity Indicator (RBC)

_{1}) to each of the 18 particles is shown in Table 4. The multiple linear regression (Table 4) was based on the Equation (7):

^{2}= 0.82, and the equation presents a standard deviation of σ = 0.09. The absolute values of the standardized coefficients, a

_{2}= −0.692 and c

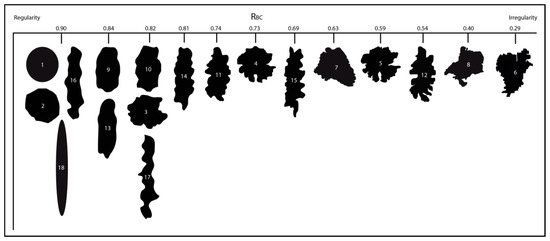

_{2}= −0.252 (Table 4), indicate that the independent variables with higher relative importance in the RBC equation are FD and ¥c (roughness and roundness, respectively). The RBC values of each of the 18 particles calculated from Equation (8) are presented in Table 4 as RBC. Figure 8 shows the 18 types of particles ordered according to the RBC parameter (obtained from the linear regression).

#### 3.4. Application and Validation of Shape Parameters

## 4. Discussion

#### 4.1. Representativity of the Shape Parameters Studied

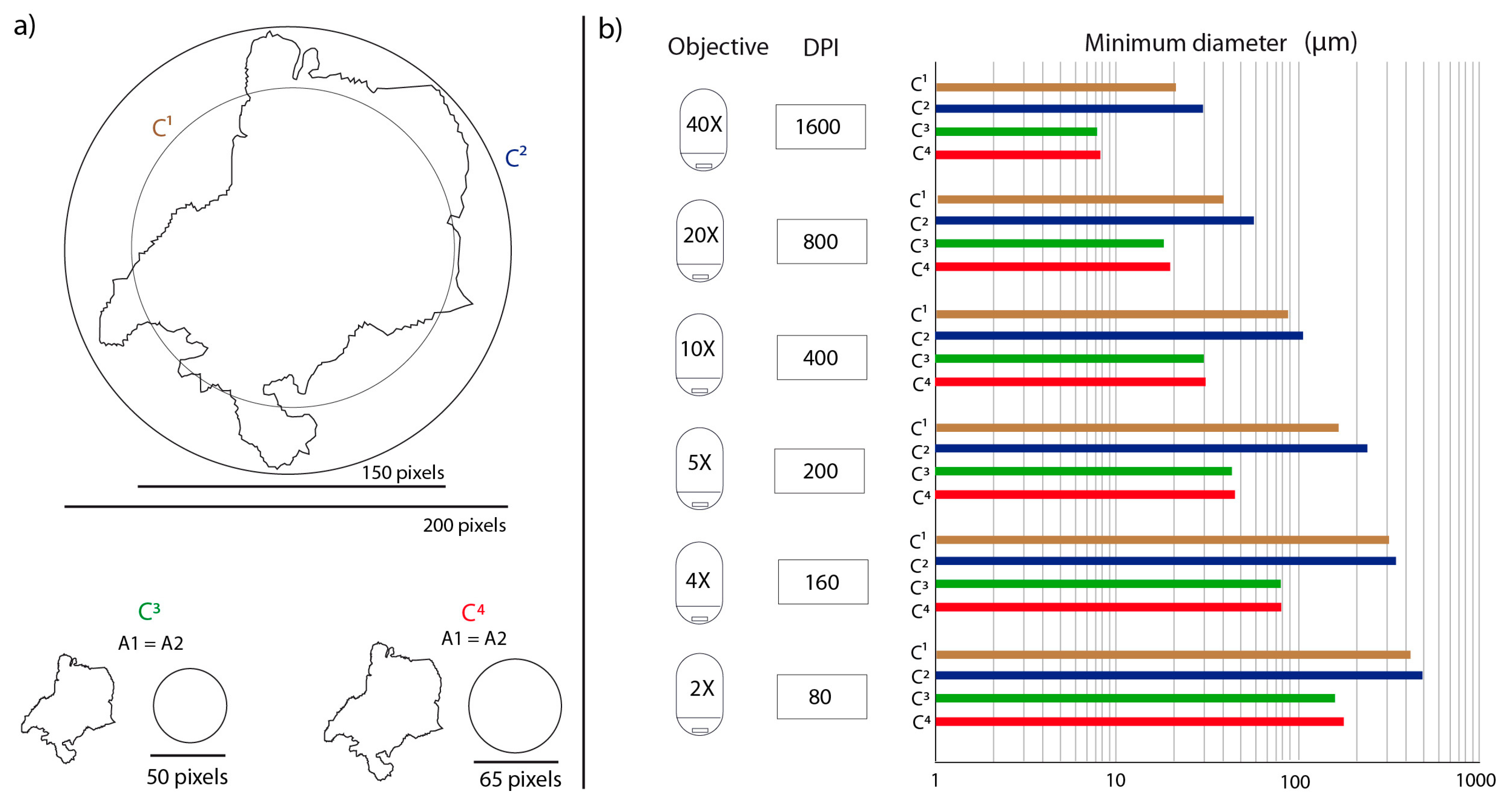

#### 4.2. Minimum Particle Size for Shape Analysis

#### 4.3. Application of the Proposed Indicator of Regularity

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Barrett, P.J. The shape of rock particles, a critical review. Sedimentology
**1980**, 27, 291–303. [Google Scholar] [CrossRef] - Cho, G.C.; Dods, J.; Santamarina, J.C. Particle shape efects o packing density, stiffness and strength: Natural and crushed sands. J. Geotech. Geoenviron. Eng.
**2006**, 132, 591–602. [Google Scholar] [CrossRef] [Green Version] - Tucker, M.E. Sedimentary Petrology: An Introduction to the Origin of Sedimentary Rocks, 3rd ed.; Blackwell Publishing Limited: Oxford, UK, 2001; 272p. [Google Scholar]
- Mitchell, J.K.; Soga, K. Soil composition and engineering properties. In Fundamentals of Soil Behavior, 3rd ed.; John Wiley & Sons: Hoboken, NY, USA, 2005; pp. 83–106. [Google Scholar]
- Blott, S.J.; Pye, K. Particle shape: A review and new methods of characterization and classification. Sedimentology
**2008**, 55, 31–63. [Google Scholar] [CrossRef] - Krumbein, W.C.; Sloss, L.L. Stratigraphy and Sedimentation; W.H. Freeman and Company: San Francisco, CA, USA, 1951; 497p. [Google Scholar]
- Powers, M.C. A new roundness scale for Sedimentology particles. J. Sediment. Petrol.
**1953**, 23, 117–119. [Google Scholar] [CrossRef] - Pettijohn, F.J.; Potter, P.E.; Siever, R. Sand and Sandstone; Springer: New York, NY, USA; Berlin/Heidelberg, Germany, 1973; 618p. [Google Scholar]
- Nichols, G. Sedimentology and Stratigraphy; Wiley-Blackwell: Oxford, UK, 2009; 419p. [Google Scholar]
- Wentworth, C.K. The Shapes of Beach Pebbles; US Government Printing Office: Washington, DC, USA, 1919; Volume 131, pp. 75–83. [Google Scholar]
- Wadell, H.A. Sphericity and roundness of rock particles. J. Geol.
**1933**, 41, 310–331. [Google Scholar] [CrossRef] - Lees, G. A new method for determining the angularity of particles. Sedimentology
**1964**, 3, 2–21. [Google Scholar] [CrossRef] - Sukumaran, B.; Ashmawy, A.K. Quantitative characterisation of the geometry of discrete particles. Geotechnique
**2001**, 51, 619–627. [Google Scholar] [CrossRef] - Cox, E.P. A method of assigning numerical and percentage values to the degree of roundness of sand grains. J. Paleontol.
**1927**, 1, 179–183. [Google Scholar] - Janoo, V. Quantification of Shape, Angularity, and Surface Texture of Base Course Materials (No. CRREL-SR-98-1); US Army Corps of Engineers: Washington, DC, USA, 1998; 28p. [Google Scholar]
- Fernández, F.J.; Menéndez-Duarte, R.; Aller, J.; Bastida, F. Application of geographical information systems to shape-fabric analysis. Geol. Soc. Lon. Spec. Pub.
**2005**, 245, 409–420. [Google Scholar] [CrossRef] - Anselmetti, F.S.; Luthi, S.; Eberli, G.P. Quantitative characterization of carbonate pore systems by digital image analysis. AAPG Bull.
**1998**, 82, 1815–1836. [Google Scholar] - Berrezueta, E.; Kovacs, T. Application of optical image analysis to the assessment of pore space evolution after CO
_{2}injection in sandstones. A case study. J. Pet. Sci. Eng.**2017**, 159, 679–690. [Google Scholar] [CrossRef] - Preparata, F.P.; Shamos, M.I. Computational Geometry; Springer: New York, NY, USA, 1985; 390p. [Google Scholar]
- Melkman, A.A. On-line construction of the convex hull of simple polygon. Inf. Process. Lett.
**1987**, 25, 11–12. [Google Scholar] [CrossRef] - Liu, E.J.; Cashman, K.V.; Rust, A.C. Optimizing shape analysis to quantify volcanic ash morphology. GeoResJ.
**2015**, 8, 14–30. [Google Scholar] [CrossRef] [Green Version] - Chen, S.; Ma, G.; Wang, H.; He, P.; Liu, M.; Wang, H.; Xu, B. Comparison of solidity and fractal dimension of plasma sprayed splat with different spreading morphologies. Appl. Surf. Sci.
**2017**, 409, 277–284. [Google Scholar] [CrossRef] - Wadell, H.A. Volume, shape and roundness of rock particles. J. Geol.
**1932**, 40, 443–451. [Google Scholar] [CrossRef] - Roussillon, T.; Piégay, H.; Sivignon, I.; Tougne, L.; Lavigne, F. Automatic computation of pebble roundness using digital imagery and discrete geometry. Comput. Geosci.
**2009**, 35, 1992–2000. [Google Scholar] [CrossRef] - Rittenhouse, G. A visual method of estimating two-dimensional sphericity. J. Sediment. Petrol.
**1943**, 13, 79–81. [Google Scholar] - Mandelbrot, B.B. Fractals: Form, Chance and Dimension; W.H. Freeman & Company: San Francisco, CA, USA, 1977; 365p. [Google Scholar]
- Vallejo, L.E. Fractal analysis of granular materials. Geotechnique
**1995**, 45, 159–163. [Google Scholar] [CrossRef] - Vallejo, L.E. Fractals in engineering geology preface. Eng. Geol.
**1997**, 48, 159–160. [Google Scholar] [CrossRef] - Hyslip, J.P.; Vallejo, L.E. Fractal analysis of the roughness and size distribution of granular materials. Eng. Geol.
**1997**, 48, 231–244. [Google Scholar] [CrossRef] - Araujo, G.S.; Bicalho, K.V.; Tristao, F.A. Use of digital image analysis combined with fractal theory to determine particle morphology and surface texture of quartz sands. J. Rock Mech. Geotech. Eng.
**2017**, 9, 1131–1139. [Google Scholar] [CrossRef] - Richardson, L. The problem of contiguity: An appendix to statistics of deadly quarrels. Gen. Syst. Yearb.
**1961**, 6, 139–187. [Google Scholar] - Santamarina, J.C.; Cho, G.C. Soil Behavior: The Role of Particle Shape. In Proceedings of the Advances in Geotechnical Engineering: The Skempton Conference, London, UK, 29–31 March 2004. [Google Scholar]
- Rodríguez, J.; Edeskär, T.; Knutsson, S. Particle shape quantities and measurement techniques: A review. Electron. J. Geotechnique Eng.
**2013**, 18, 169–198. [Google Scholar] - He, H.; Courard, L.; Pirard, E.; Michel, F. Shape analysis of fine aggregates used for concrete. Image Anal. Stereol.
**2016**, 35, 159–166. [Google Scholar] [CrossRef] [Green Version] - Igathinathane, C.; Pordesimo, L.O.; Columbus, E.P.; Batchelor, W.D.; Methuku, S.R. Shape identification and particles size distribution from basic shape parameters using ImageJ. Comput. Electron. Agric.
**2008**, 63, 168–182. [Google Scholar] [CrossRef] - Zheng, J.; Hryciw, R.D. Traditional soil particle sphericity, roundness and surface roughness by computational geometry. Geotechnique
**2015**, 65, 494–506. [Google Scholar] [CrossRef] - Zheng, J.; Hryciw, R.D. Roundness and sphericity of soil particles in assemblies by computational geometry. J. Comput. Civ. Eng.
**2016**, 30, 04016021. [Google Scholar] [CrossRef] - Zang, Z.X.; Yan, C.G.; Dong, Z.Y.; Huang, J.; Zang, Y.F. Granger causality analysis implementation on MATLAB: A graphic user interface toolkit for fMRI data processing. J. Neurosci. Methods
**2012**, 203, 418–426. [Google Scholar] [CrossRef] - Liu, K.; Ostadhassan, M. Multi-scale fractal analysis of pores in shale rocks. J. Appl. Geophys.
**2017**, 140, 1–10. [Google Scholar] [CrossRef] - Berrezueta, E.; González-Menéndez, L.; Ordóñez-Casado, B.; Olaya, P. Pore network quantification of sandstones under experimental CO
_{2}injection using image analysis. Comput. Geosci.**2015**, 77, 97–110. [Google Scholar] [CrossRef] - Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods
**2012**, 9, 671–675. [Google Scholar] [CrossRef] [PubMed] - Vallejo, L.E.; Zhou, Y. The relationship between the fractal dimension and Krumbein‘s roundness number. Soils Found.
**1995**, 35, 163–167. [Google Scholar] [CrossRef] [Green Version] - Krumbein, W.C. Measurement and geological significance of shape and roundness of sedimentary particles. J. Sedimentol. Res.
**1941**, 11, 64–72. [Google Scholar] [CrossRef] - Takashimizu, Y.; Iiyoshi, M. New parameter of roundness R: Circularity corrected by aspect ratio. Prog. Earth Planet. Sci.
**2016**, 3, 1–16. [Google Scholar] [CrossRef] [Green Version] - Berrezueta, E.; Domínguez-Cuesta, M.J.; Ordóñez-Casado, B.; Medina, C.; Molinero, R. Pore space quantification of sedimentary rocks before-after Supercritical CO
_{2}Interaction by Optical Image Analysis. Energy Procedia**2017**, 114, 4382–4393. [Google Scholar] [CrossRef] - Altuhafi, F.; O’Sullivan, C.; Cavarretta, I. Analysis of an image-based method to quantify the size and shape of sand particles. J. Geotech. Geoenviron. Eng.
**2013**, 139, 1290–1307. [Google Scholar] [CrossRef] - Vangla, P.; Roy, N.; Gali, M.L. Image based shape characterization of granular materials and its effect on kinematics of particle motion. Granul. Mater.
**2018**, 20, 6. [Google Scholar] [CrossRef] - Krumbein, W.C. The effects of abrasion on the size, shape and roundness of rock fragments. J. Geol.
**1941**, 49, 482–520. [Google Scholar] [CrossRef] - Cuervas-Mons, J. Estudio de Partículas Minerales Mediante Procesamiento de Imágenes Digitales: Análisis Cualitativo—Cuantitativo de Parámetros de Forma; Trabajo Fin de Máster; Universidad de Oviedo: Oviedo, Spain, 2019; 62p. [Google Scholar]
- Russel, R.D.; Taylor, R.E. Roundness and shape of Mississippi river sands. J. Geol.
**1937**, 45, 225–267. [Google Scholar] [CrossRef] - Pettijohn, F.J. Sedimentary Rocks, 2nd ed.; Harper and Brothers: New York, NY, USA, 1957; 718p. [Google Scholar]
- Hawkins, A.E. The Shape of Powder-Particle Outlines; Research Studies Press: Taunton, UK; J. Wiley & Sons: New York, NY, USA, 1993. [Google Scholar]
- Berrezueta, E.; González-Menéndez, L.; Breitner, D.; Luquot, L. Pore system changes during experimental CO
_{2}injection into detritic rocks: Studies of potential storage rocks from some sedimentary basins of Spain. Int. J. Greenh. Gas Control**2013**, 17, 411–422. [Google Scholar] [CrossRef] - Olaya, P. Caracterización Petrográfica Mineralógica Automatizada de Rocas Con Potencial Para Almacenar CO
_{2}. Bachelor’s Thesis, Facultad de Ingeniería en Ciencias de la Tierra (FICT), Escuela Superior Politécnica del Litoral (Espol), Guayaquil, Ecuador, 2011; 110p. [Google Scholar] - Hryciw, R.D.; Zheng, J.; Shetler, K. Particle roundness and sphericity from images of assemblies by chart estimates and computer methods. J. Geotech. Geoenviron. Eng.
**2016**, 142, 04016038. [Google Scholar] [CrossRef] - Cassel, M.; Piégay, H.; Lavé, J.; Vaudor, L.; Sri, D.H.; Budi, S.W.; Lavigne, F. Evaluating a 2D image-based computerized approach for measuring pebble roundness. Geomorphology
**2018**, 311, 143–157. [Google Scholar] [CrossRef] - Saint-Cyr, B.; Delenne, J.Y.; Radjai, F.; Sornay, P. Rheology of granular materials composed of nonconvex particles. Phys. Rev. E
**2011**, 84, 041302. [Google Scholar] [CrossRef] [PubMed]

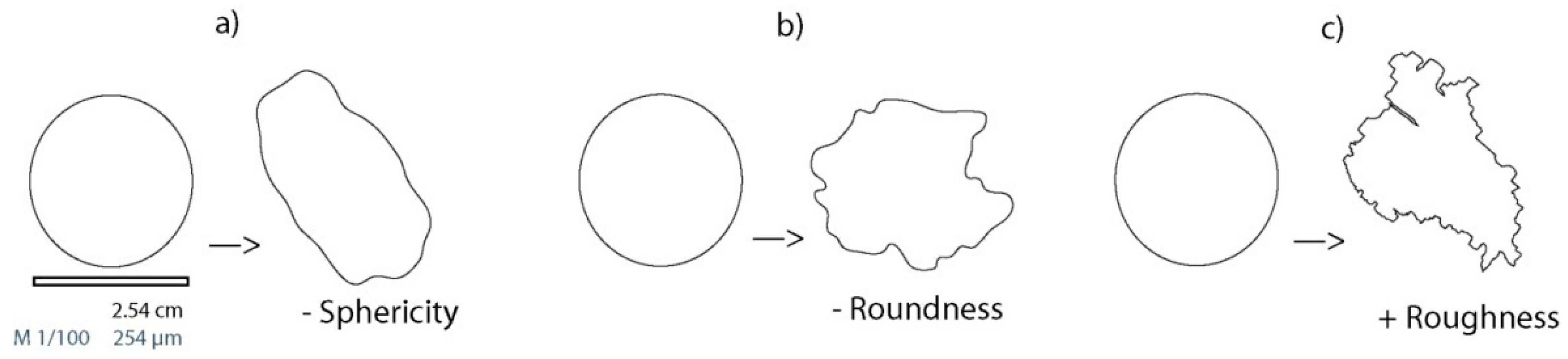

**Figure 1.**Criteria for the development of the 18 type particles, according to the evolution of different morphological parameters: (

**a**) decrease in sphericity. (

**b**) decrease in roundness, and (

**c**) increase in roughness.

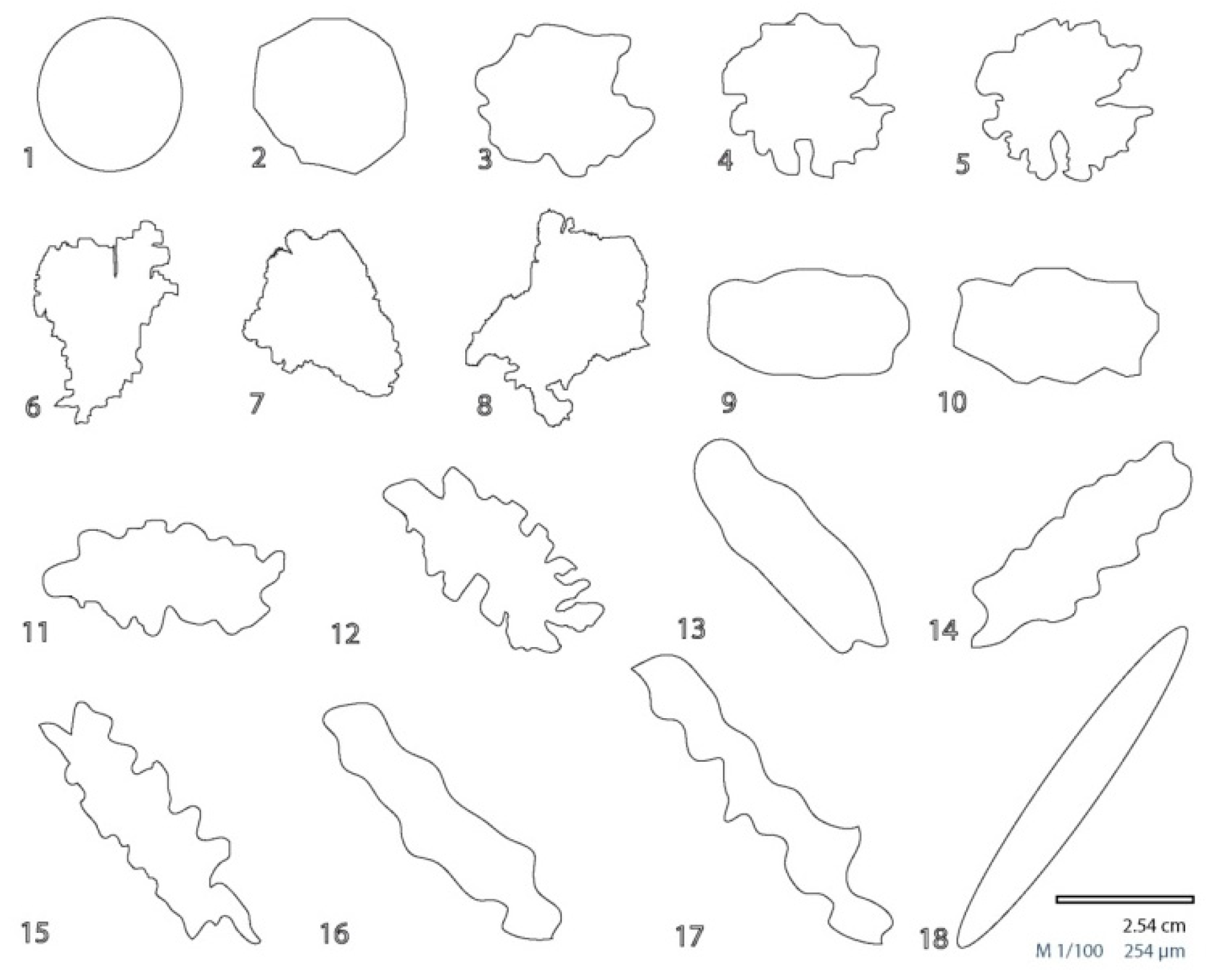

**Figure 2.**Type particles drawn and digitized as a basis for quantifying morphological parameters (Rw, S, So, FD, and ¥) by means of image processing tools. The size of the particles is represented in the graphic scale and corresponds to the size of magnified particles.

**Figure 3.**(

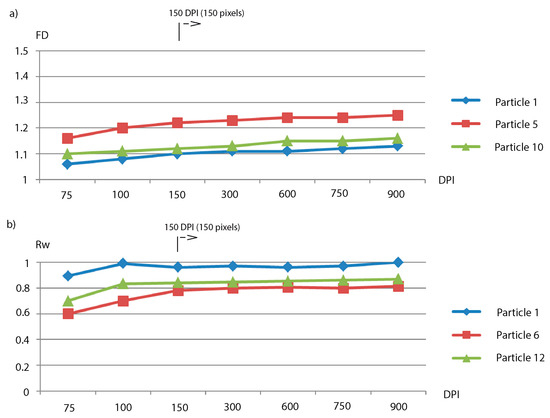

**a**) Relationship between FD values of type particles (1, 5, and 10) vs. optical scanning resolution (75, 100, 150, 300, 600, and 900 DPI). (

**b**) Relationship between values of Rw of type particles (1, 6, and 12) vs. optical scanning resolution (75, 100, 150, 300, 600, 750, and 900 DPI). Calculations after [36].

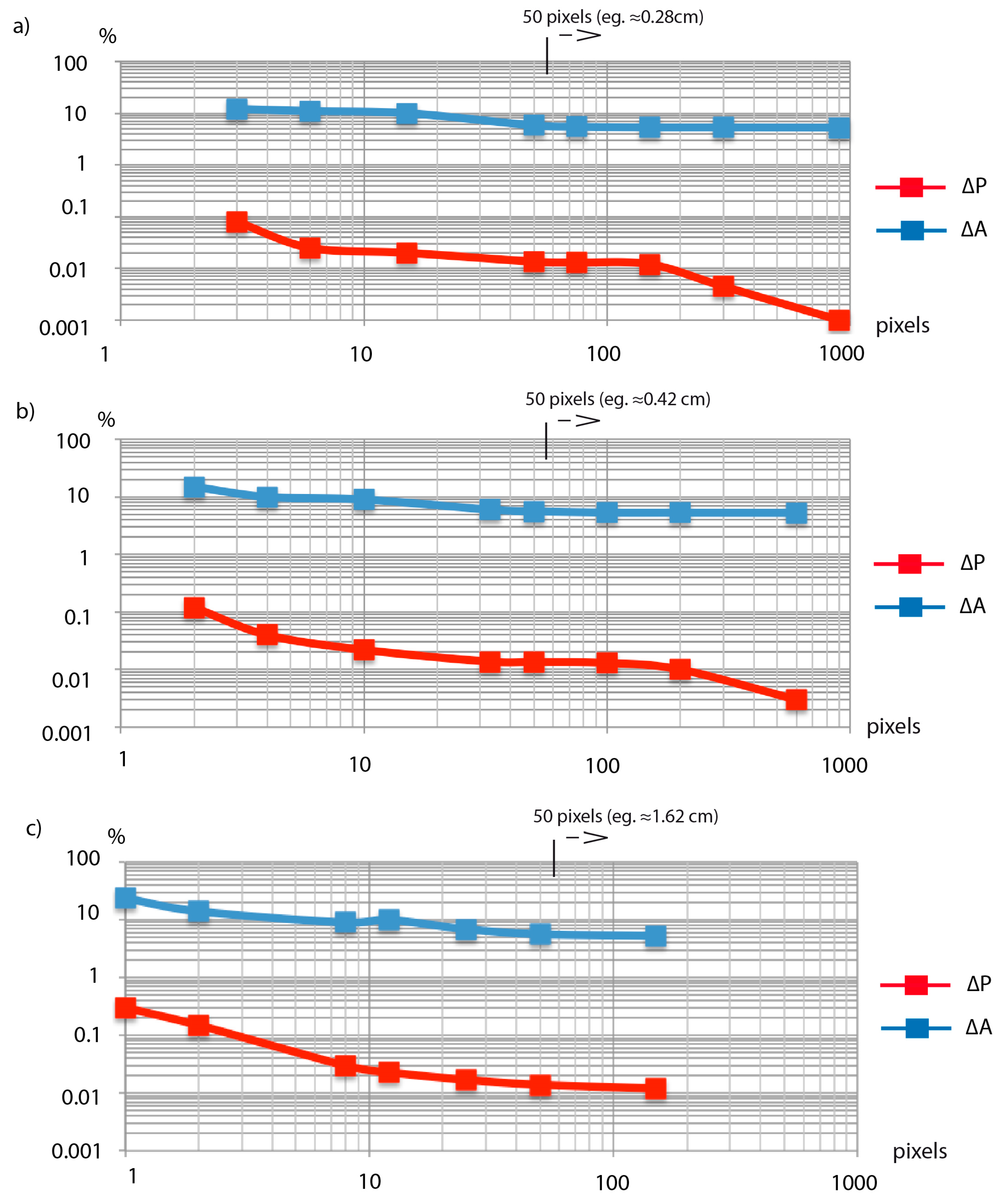

**Figure 4.**Log-log relationship of percentage variation of area (A) and perimeter (P) of the type particle 1 vs. particle size (in pixels) with (

**a**) 900 DPI resolution, (

**b**) 600 DPI resolution, and (

**c**) 150 DPI resolution. Calculations after [44].

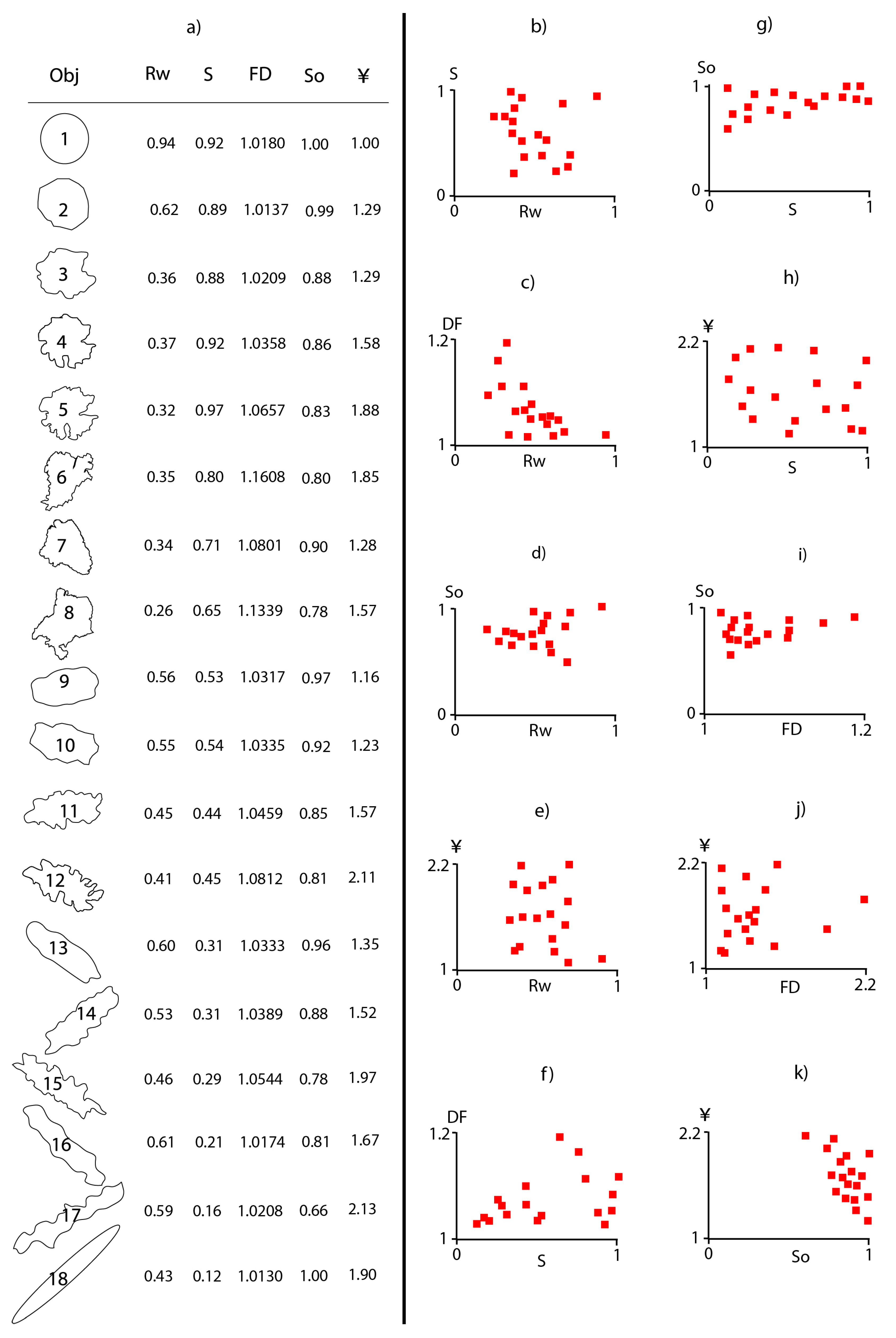

**Figure 5.**(

**a**) Values of the parameters measured for the 18 type particles. (

**b**–

**k**) Schematic diagrams of correlation between the different parameters (Based on [49]).

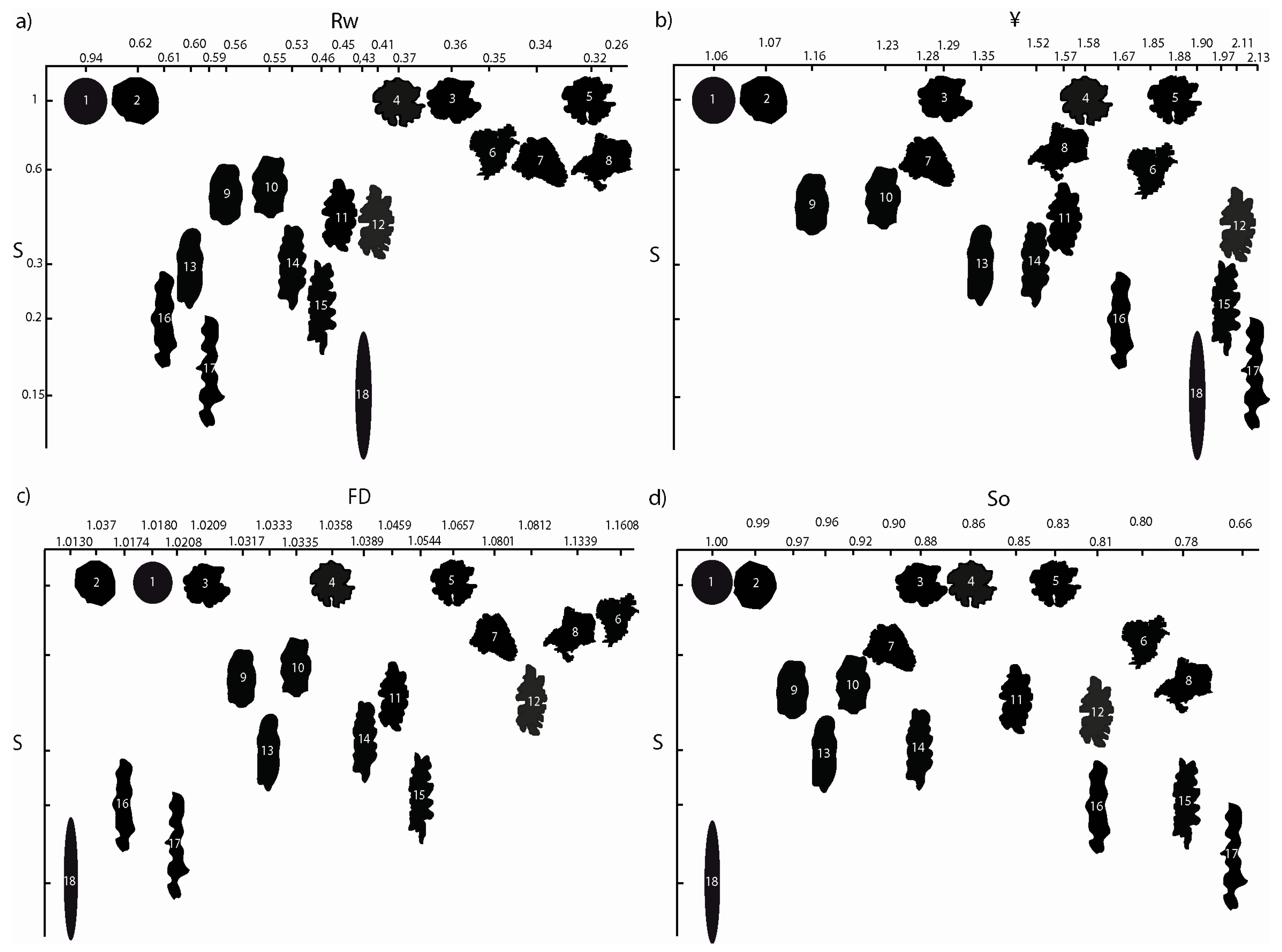

**Figure 6.**Representation of the 18 particles according to the obtained values (

**a**) of Rw vs. S. (

**b**) of ¥ vs. S. (

**c**) of FD vs. S. (

**d**) of So vs S.

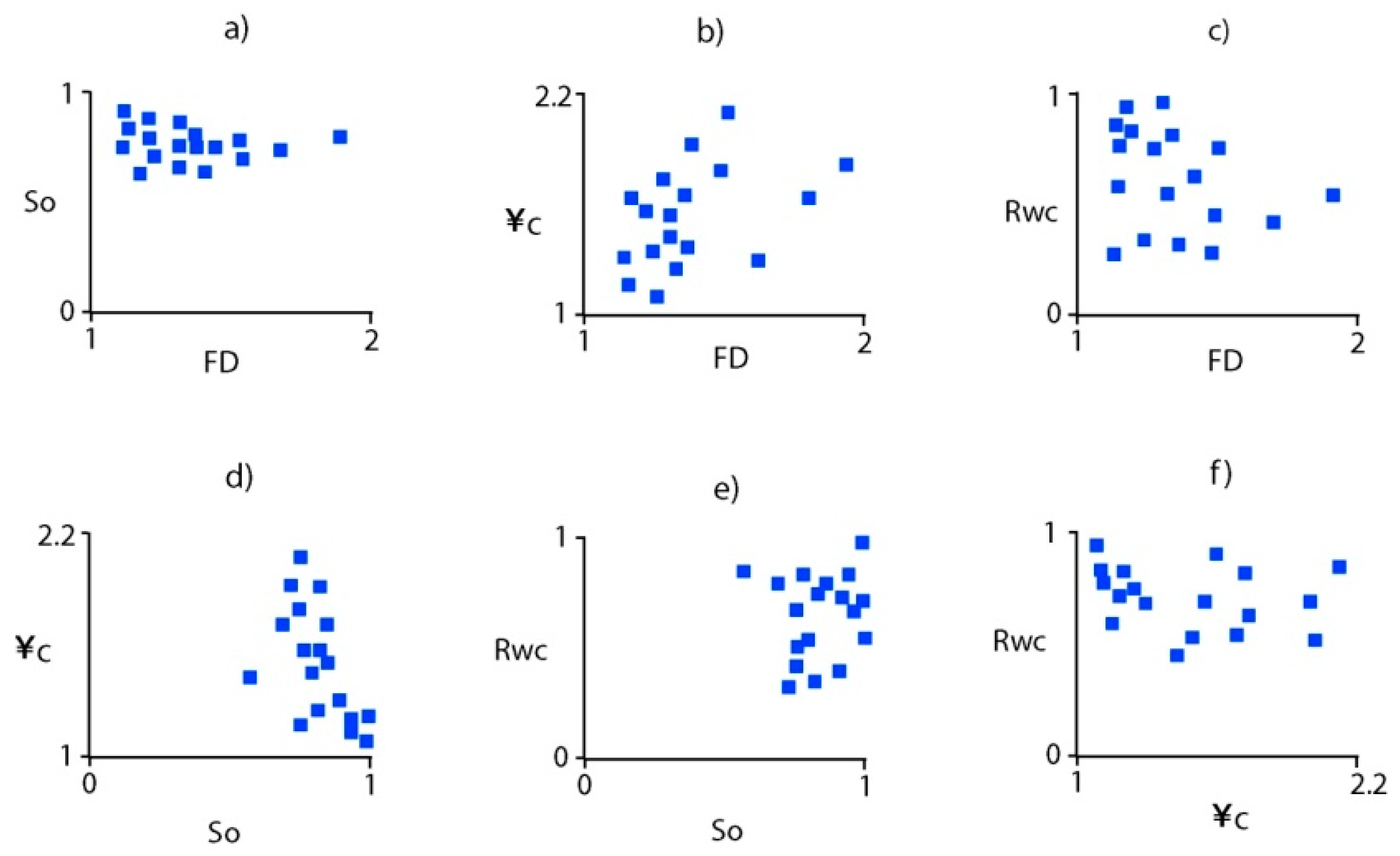

**Figure 7.**Schematic correlation diagrams between the parameters So, FD, Rwc, and ¥c to verify their independence (based on [49]): (

**a**) FD vs. So, (

**b**) FD vs. ¥c, (

**c**) FD vs. Rwc, (

**d**) So vs. ¥c, (

**e**) So vs. Rwc, (

**f**) ¥ c vs. Rwc.

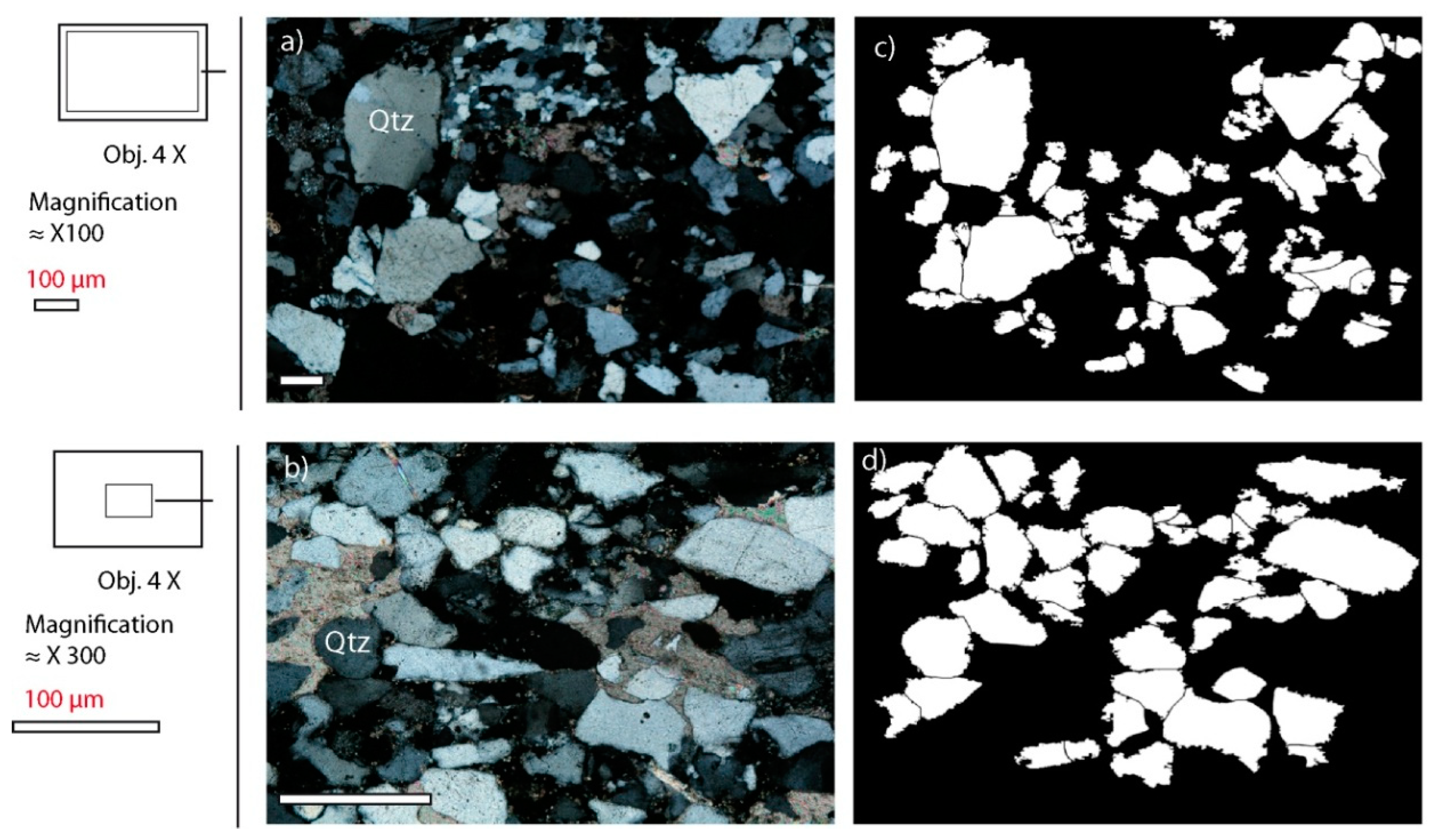

**Figure 9.**Microphotographs of the sandstones studied. Main mineralogy in plane polarized light conditions of: (

**a**) heterogeneous sandstone (SI) and (

**b**) homogeneous sandstone (SB). Segmented quartz particles of (

**c**) SI sandstone and (

**d**) SB sandstone. Images of the SB sample are amplified (3×) to improve visualization.

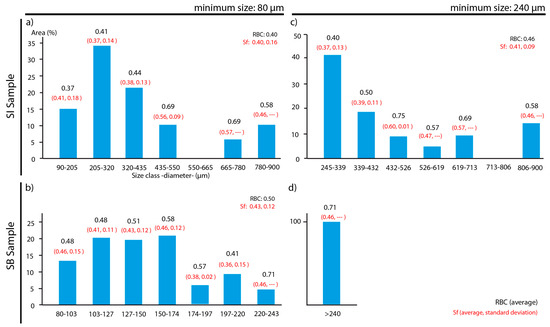

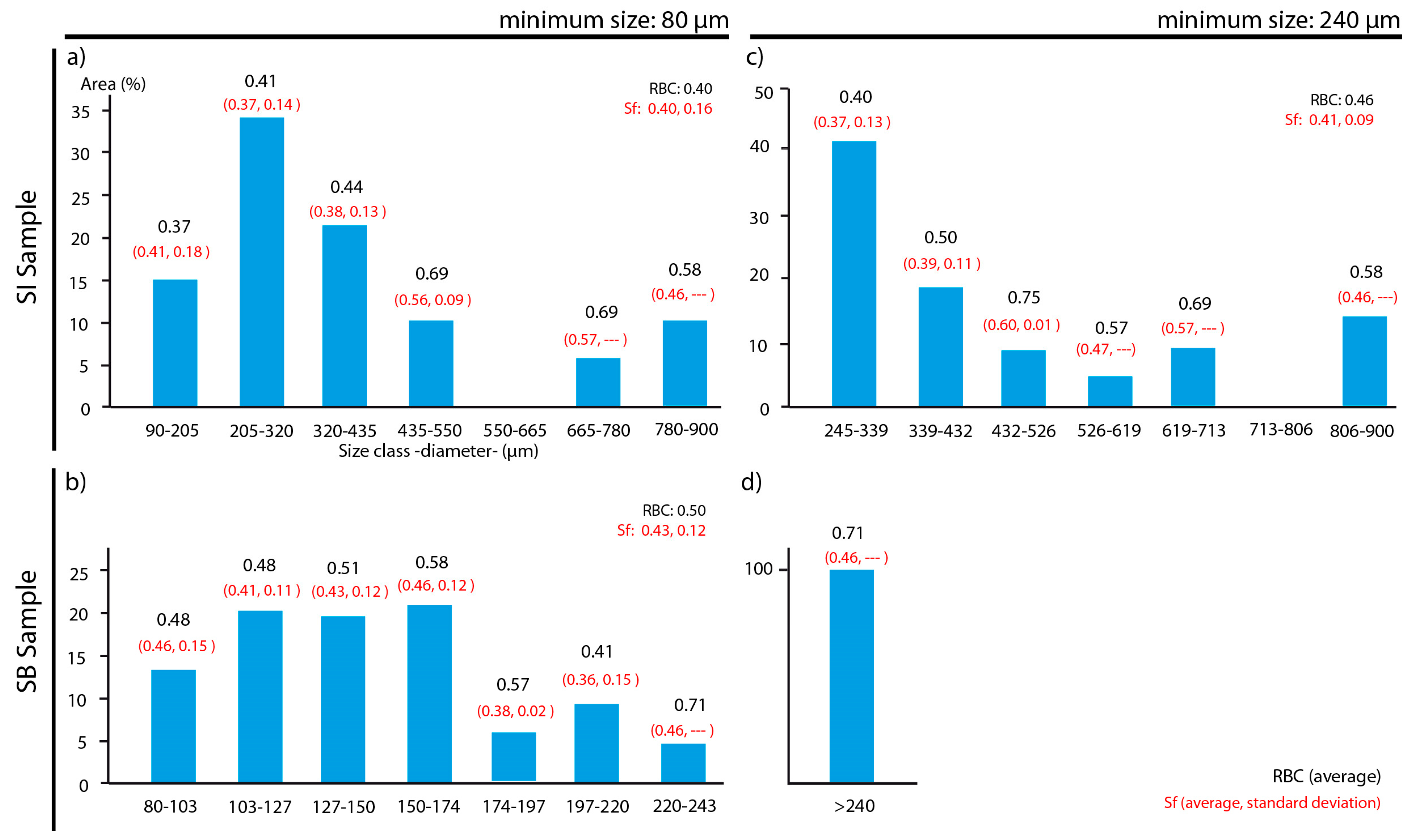

**Figure 10.**Grain size classes (µm) vs. grain area percentages. The average values of RBC (black) and SF (average and standard deviation, in red) are defined for each grain size class: (

**a**) Sample SI with a minimum size of 80 µm, (

**b**) sample SB with a minimum size of 80 µm, (

**c**) Sample SI with a minimum size of 240 µm, and (

**d**) sample SB with a minimum size of 240 µm.

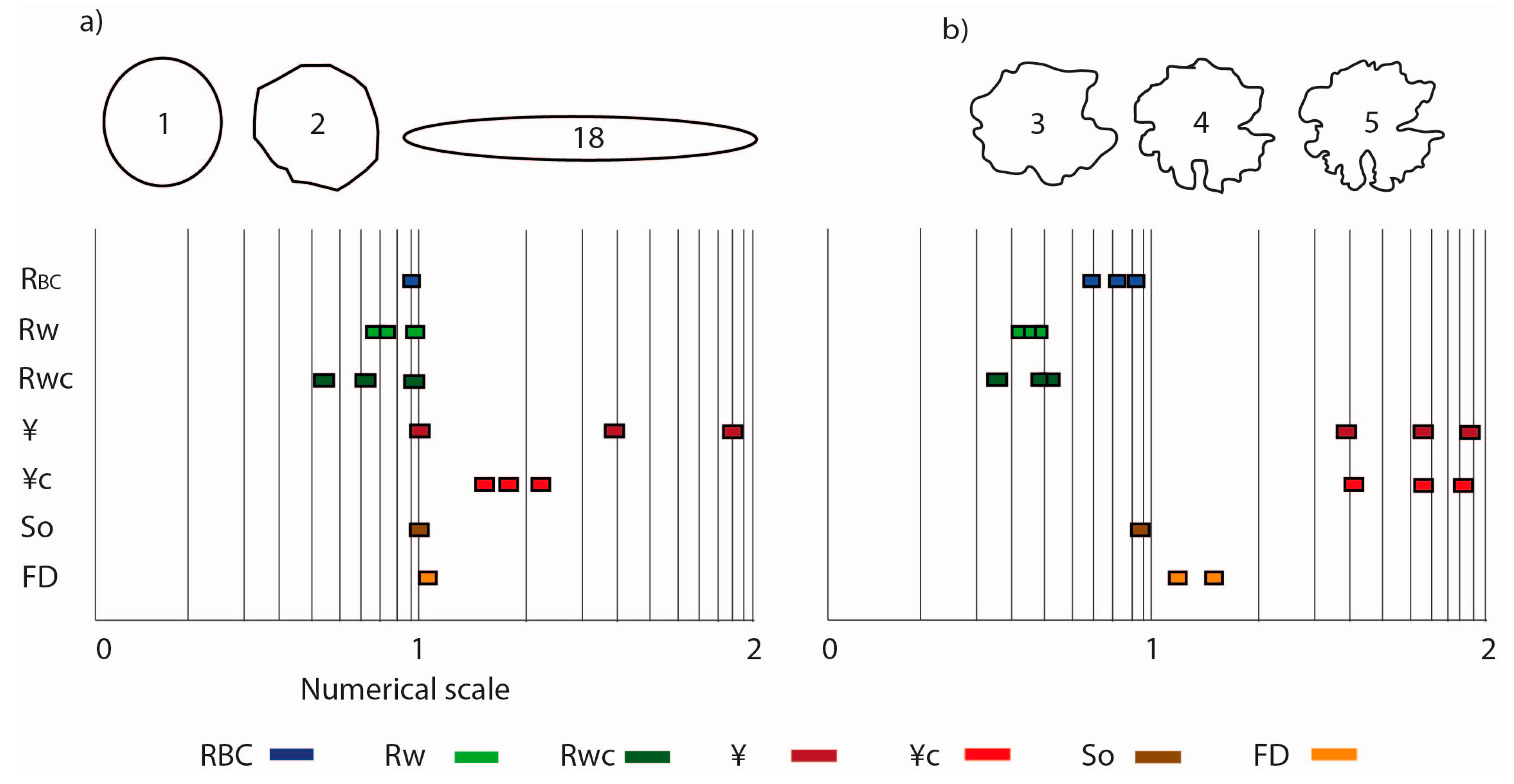

**Figure 12.**(

**a**) Graphical representation of the values of shape parameters of particles 1, 2, and 18. (

**b**) Graphical representation of the values of shape parameters of particles 3, 4, and 5. X-axis on a logarithmic and dimensionless scale.

Properties | Shape Parameters | References |
---|---|---|

Sphericity (form) | Wadell’s circularity | [11,23] |

Sphericity | [6] | |

Ellipticity-aspect ratio-elongation | [16,24] | |

Rittenhouse’s sphericity | [25] | |

Roundness | Wentworth’s roundness | [10] |

Wadell’s roundness | [11] | |

Angularity | [12] | |

Shape Factor | [13] | |

Angularity Factor | ||

Circularity of Cox/ Shape factor | [14,15,16] | |

Perimeter over area normalized ratio | [17] | |

Solidity-convexity | [19,20] | |

Krumbein’s roundness number | [43] | |

Roundness | [44] | |

Roughness (surface texture) | Fractal Dimension | [26,27,28,29,30] |

**Table 2.**Morphological parameters together with their definition, mathematical expression, and the software tools used.

Morphological Parameter | Mathematical Expression | Software |
---|---|---|

Roundness (Rw) [11]. where r _{i} is the radius of curvature of each corner, N is the number of corners, and r_{ins} is the radius of the maximum circle inscribed in the particle. | $Rw=\frac{\raisebox{1ex}{${\Sigma}_{i=1}^{N}{\mathrm{r}}_{i}$}\!\left/ \!\raisebox{-1ex}{$N$}\right.}{{r}_{ins}}$ | Custom application in DOS OS Roussillon Toolbox [24] |

Sphericity (S) [6]. where d _{1} is the length of the particle and d_{2} is the width. | $S=\frac{{d}_{2}}{{d}_{1}}$ | ImageJ (v. 1.52) |

Solidity-convexity (So) [19,20]. where A _{T} is the area of the particle, and A_{convex} is the area defined by the convexity produced by the irregularity of the edge of the particle. | $So=\frac{{A}_{T}}{{A}_{T}+{A}_{convex}}$ | ImageJ (v. 1.52) |

Fractal Dimension (FD) [26]. | Richardson Method [31] | Image-Pro Plus^{®} (v.7) |

¥ (normalized PoA) [17]. where P _{i} and A_{i} are, respectively, the perimeter and the area measured for a particle. | $\mathsf{\yen}=\frac{{P}_{i}}{2\sqrt{\pi {A}_{i}}}$ | ImageJ (v. 1.52) |

Sf (Shape factor) [14]. where P _{i} and A_{i} are, respectively, the perimeter and the area measured for a particle. | $\mathrm{Sf}=\frac{4{\mathsf{\pi}\mathrm{A}}_{\mathrm{i}}\text{}}{{\mathrm{P}}_{\mathrm{i}}^{2}}$ | ImageJ (v. 1.52) |

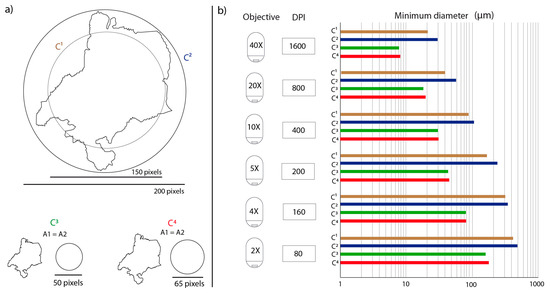

**Table 3.**Minimum particle size (case a: 150 pixels and case b: 50 pixels) in metric units on which particle shape analysis is possible. The data was obtained in reference to the objectives and characteristics of a Leica 6000 M microscope.

Objective | Camera Lenses | Total | Geometric Calibration µm/pixel | Minimum Ø (µm) Case a | Minimum Ø (µm) Case b |
---|---|---|---|---|---|

40 | 0.63 | 25.32 | 0.156 | 23.4 | 7.80 |

20 | 0.63 | 12.66 | 0.312 | 46.8 | 15.60 |

10 | 0.63 | 6.33 | 0.624 | 93.6 | 31.20 |

5 | 0.63 | 3.17 | 1.248 | 187.2 | 62.40 |

4 | 0.63 | 2.52 | 1.564 | 234.6 | 78.20 |

2 | 0.63 | 1.26 | 3.120 | 468 | 156.00 |

**Table 4.**Values of parameters FD, So, ¥c, Rwc, and RBC

_{1}(1: estimated by expert criteria). Values of factors a, b, c, and d in the applied lineal regression (2: normalized value and σ: standard deviation). Values of RBC (a regression function applied).

Particle | Shape Parameters | Linear Multiple Regression | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

FD | So | ¥c | Rwc | RBC_{1} | a, a_{2}, σa | b, b_{2}, σb | c, c_{2}, σc | d, d_{2}, σd | e, σe | RBC | |

1 | 1.0180 | 1.00 | 1.06 | 0.94 | 1.00 | −3.230 −0.692 0.787 | 0.003 0.001 0.339 | −0.161 −0.252 0.15 | 0.037 0.043 0.129 | 4.314 0.82 | 0.90 |

2 | 1.0137 | 0.99 | 1.08 | 0.67 | 0.95 | 0.90 | |||||

3 | 1.0209 | 0.88 | 1.31 | 0.42 | 0.90 | 0.82 | |||||

4 | 1.0358 | 0.86 | 1.57 | 0.38 | 0.70 | 0.73 | |||||

5 | 1.0657 | 0.83 | 1.83 | 0.26 | 0.55 | 0.59 | |||||

6 | 1.1608 | 0.80 | 1.85 | 0.62 | 0.40 | 0.29 | |||||

7 | 1.0801 | 0.90 | 1.32 | 0.55 | 0.50 | 0.63 | |||||

8 | 1.1339 | 0.78 | 1.63 | 0.49 | 0.45 | 0.41 | |||||

9 | 1.0317 | 0.97 | 1.10 | 0.91 | 0.85 | 0.84 | |||||

10 | 1.0335 | 0.92 | 1.19 | 0.90 | 0.80 | 0.82 | |||||

11 | 1.0459 | 0.85 | 1.41 | 0.82 | 0.65 | 0.74 | |||||

12 | 1.0812 | 0.81 | 1.97 | 0.78 | 0.55 | 0.54 | |||||

13 | 1.0333 | 0.96 | 1.06 | 0.94 | 0.80 | 0.84 | |||||

14 | 1.0389 | 0.88 | 1.15 | 0.91 | 0.65 | 0.81 | |||||

15 | 1.0544 | 0.78 | 1.55 | 0.82 | 0.60 | 0.69 | |||||

16 | 1.0174 | 0.81 | 1.09 | 0.94 | 0.95 | 0.90 | |||||

17 | 1.0208 | 0.66 | 1.43 | 0.91 | 0.90 | 0.82 | |||||

18 | 1.0130 | 1.00 | 1.12 | 0.73 | 0.95 | 0.90 |

**Table 5.**Average values and standard deviations of shape parameters of the quartz particles studied. All particles in the SI sample were larger than 50 pixels (80 microns). Only 68% of the particles in SB were larger than 50 pixels (80 microns).

Samples | Statistics | FD | So | Sf | ¥c | Rwc | S | RBC |
---|---|---|---|---|---|---|---|---|

SI sample 105 particles > 50 pixels | Average | 1.1353 | 0.82 | 0.40 | 1.65 | 0.57 | 0.61 | 0.40 |

Standard deviation | 0.0557 | 0.09 | 0.16 | 0.36 | 0.14 | 0.16 | 0.23 | |

SB sample 99 particles | Average | 1.1213 | 0.83 | 0.37 | 1.50 | 0.77 | 0.61 | 0.48 |

Standard deviation | 0.0465 | 0.06 | 0.13 | 0.24 | 0.14 | 0.17 | 0.18 | |

SB sample 68 particles > 50 pixels | Average | 1.1124 | 0.85 | 0.43 | 1.53 | 0.70 | 0.62 | 0.50 |

Standard deviation | 0.0045 | 0.05 | 0.12 | 0.26 | 0.18 | 0.16 | 0.18 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Berrezueta, E.; Cuervas-Mons, J.; Rodríguez-Rey, Á.; Ordóñez-Casado, B.
Representativity of 2D Shape Parameters for Mineral Particles in Quantitative Petrography. *Minerals* **2019**, *9*, 768.
https://doi.org/10.3390/min9120768

**AMA Style**

Berrezueta E, Cuervas-Mons J, Rodríguez-Rey Á, Ordóñez-Casado B.
Representativity of 2D Shape Parameters for Mineral Particles in Quantitative Petrography. *Minerals*. 2019; 9(12):768.
https://doi.org/10.3390/min9120768

**Chicago/Turabian Style**

Berrezueta, Edgar, José Cuervas-Mons, Ángel Rodríguez-Rey, and Berta Ordóñez-Casado.
2019. "Representativity of 2D Shape Parameters for Mineral Particles in Quantitative Petrography" *Minerals* 9, no. 12: 768.
https://doi.org/10.3390/min9120768
