Minerals 2018, 8(5), 218; https://doi.org/10.3390/min8050218

Article
Tsygankoite, Mn8Tl8Hg2(Sb21Pb2Tl)Σ24S48, a New Sulfosalt from the Vorontsovskoe Gold Deposit, Northern Urals, Russia
1
Fersman Mineralogical Museum of Russian Academy of Sciences, Leninsky Prospekt 18-2, Moscow 119071, Russia
2
Department of Geoscience and Resource Management, University of Copenhagen, Østervoldgade 10, DK-1350 Copenhagen, Denmark
3
Institute of Physics ASCR, v.v.i., Na Slovance 1999/2, Praha 18221, Czech Republic
4
Department of Geological Sciences, Faculty of Science, Masaryk University, Kotlářská 2, Brno 61137, Czech Republic
5
Dipartimento di Geoscienze, Università di Padova, Via Gradenigo 6, Padova I-35131, Italy
*
Author to whom correspondence should be addressed.
Received: 2 May 2018 / Accepted: 19 May 2018 / Published: 21 May 2018

Abstract

:
Tsygankoite, ideally Mn8Tl8Hg2(Sb21Pb2Tl)Σ24S48, is a new sulfosalt discovered at the Vorontsovskoe gold deposit, Northern Urals, Russia. It occurs as lath-like elongated crystals up to 0.2 mm embedded in calcite–dolomite–clinochlore matrix. The associated minerals also include aktashite, alabandite, arsenopyrite, barite, cinnabar, fluorapatite, orpiment, pyrite, realgar, routhierite, sphalerite, tilasite, and titanite. The new mineral is non-fluorescent, black, and opaque with a metallic lustre and black streak. It is brittle with an uneven fracture and no obvious parting and cleavage. Its Vickers hardness (VHN10) is 144 kg/mm2 (range 131–167 kg/mm2) and its calculated density is 5.450 g·cm−3. In reflected light, tsygankoite is white; between crossed polars it is dark grey to black. It is strongly anisotropic: rotation tints vary from light grey to dark grey to black. Pleochroism and internal reflections are not observed. The chemical composition of tsygankoite (wt %, electron-microprobe data) is: Mn 6.29, Hg 5.42, Tl 26.05, Pb 5.84, As 3.39, Sb 30.89, S 21.87, total 99.75. The empirical formula, calculated on the basis of 90 atoms pfu, is: Mn8.06Tl8.00Hg1.90(Sb17.87As3.19Pb1.99Tl0.97)Σ24.02S48.03. Tsygankoite is monoclinic, space group C2/m, a = 21.362(4) Å, b = 3.8579(10) Å, c = 27.135(4) Å, β = 106.944(14)°, V = 2139.19(17) Å3 and Z = 1. The five strongest diffraction peaks from X-ray powder pattern (listed as (d,Å(I)(hkl)) are: 3.587(100)(112), 3.353(70)(−114), 3.204(88)(405), 2.841(72)(−513), and 2.786(99)(−514). The crystal structure of tsygankoite was refined from single-crystal X-ray diffraction data to R = 0.0607 and consists of an alternation of two thick layer-like arrays, one based on PbS-archetype and the second on SnS-archetype. Tsygankoite has been approved by the IMA-CNMNC under the number 2017-088. It is named for Mikhail V. Tsyganko, a mineral collector from Severouralsk, Northern Urals, Russia, who collected the samples where the new mineral was discovered.
Keywords:
tsygankoite; new sulfosalt; thallium; crystal structure; Vorontsovskoe gold deposit

1. Introduction

The actively exploited Vorontsovskoe gold deposit in Northern Urals, Russia, similarly to the famous Lengenbach deposit in Switzerland or Allchar in Macedonia, was found to be the remarkable source of a particularly interesting Tl–Hg mineralization. Besides several very rare minerals—such as bernardite, chabournéite, christite, dalnegroite, hutchinsonite, imhofite, parapierrotite, picotpaulite, sicherite, vrbaite, etc.—this deposit also yielded three new Tl-bearing minerals already approved by IMA-CNMNC (vorontsovite, ferrovorontsovite, tsygankoite) with few other potentially new species still being under investigation.
In this paper, we describe the new mineral tsygankoite [pronouncing: tsi gan ko ait] while vorontsovite and ferrovorontsovite are described in another paper of the same special issue.
Tsygankoite is named for Mikhail Vladimirovitch Tsyganko (born 25 October 1979), a mineral collector from Severouralsk, Sverdlovskaya Oblast’, Northern Urals, Russia. His extensive mineral collection is oriented mostly to the minerals of Northern and Subpolar Urals as well as systematic species served as a base for mineralogical museum “Shtufnoi Kabinet” (Mineral Cabinet), which was founded in 2014 by Mikhail and his friends. Mikhail is the author of the book dedicated to the minerals of Northern Urals [1] where he described in detail the mineralogy of the region and presented the list of all mineral species discovered there so far. The new mineral described here was discovered in the specimens collected by M.V. Tsyganko in June 2015 in the ore stockpile of the Vorontsovskoe deposit. Two other new species from the same deposit (vorontsovite and ferrovorontsovite) were also collected by him.
Both the mineral and its name have been approved by the Commission on New Minerals, Nomenclature and Classification (CNMNC) of the International Mineralogical Association, under the number 2017-088.
The type specimen is deposited in the collections of the Fersman Mineralogical Museum of the Russian Academy of Sciences, Moscow, Russia under the registration number 5018/1.

2. Occurrence

The Vorontsovskoe gold deposit is located 0.5 km west of the settlement of Vorontsovka, approximately 13 km south of the city of Krasnotur’insk, Sverdlovskaya Oblast’, Northern Urals, Russia (59°39′5″ N, 60°12′56″ E). The deposit was discovered in 1985 and is currently operated by Russian mining company Polymetal International PLC for high-grade gold-bearing ore. The ore reserves at 01 January 2017 were estimated at 0.9 million. tr.oz of gold and average content of 2.7 g/t. In 2017, the company produced 118,000 tr.oz. of refined gold.
Genesis of the Vorontsovskoe deposit and its main types of ore remains the subject of discussion in Russian geological literature. According to some of the authors, Vorontsovskoe belongs to the Carlin-type deposits [2,3] while others suggest that it is a part of the complex Vorontsovsko–Peschanskaya ore-magmatic system and breccias with orpiment-realgar cement were formed as a result of fluid explosion [4,5].
The geological location of the deposit and composition of its main mineral types of ore is shortly given in companion paper describing two other new Tl-bearing minerals originating from Vorontsovskoe deposit, vorontsovite and ferrovorontsovite, in the same special issue [6].
Similar to vorontsovite and ferrovorontsovite, tsygankoite was found in the ores of the sulfide-carbonate type. They comprise limestone breccias (calcite-dolomite, up to 85% of volume), main silicate minerals (quartz, feldspars, clinochlore, muscovite, up to 10% of volume), accessory minerals, and sulfide-sulfosalt assemblage. Accessory minerals include apatite, arsenic, barite, gold, russellite, titanite, tilasite, and La-analogue of gasparite-(Ce). Apatite forms chemically zoned crystals: they consist mainly of As-Cl-bearing fluorapatite with some compositions corresponding to hydroxylapatite. The As and Cl contents increase from the core to the rim of the crystals up to the appearance of chlorapatite and turneaureite compositions along the edges.
The sulfide-sulfosalt assemblage includes common arsenopyrite, cinnabar, orpiment, pyrite, realgar, sphalerite (including Mn-bearing variety), and rare acanthite, aktashite, alabandine, benavidesite, duranusite, guettardite, jordanite, tennantite, and zinkenite. Thallium mineralization is represented by dalnegroite and routhierite. Neither vorontsovite nor ferrovorontsovite were found in the same association with tsygankoite.
Tsygankoite should be considered as a very rare mineral. Indeed, its occurrence was so far confirmed in three polished sections only.

3. Physical and Optical Properties

Tsygankoite occurs as black lath-like elongated crystals up to 0.2 mm across embedded in calcite–dolomite–clinochlore matrix. Tsygankoite either forms individual crystals or is partially replaced by alabandite (Figure 1 and Figure 2).
Tsygankoite is opaque in transmitted light and exhibits metallic luster and black streak. Its tenacity is brittle and fracture—uneven. Cleavage and parting are not observed. It is non-fluorescent. The Vickers hardness (VHN10) is 144 kg/mm2 (range 131–167 kg/mm2) corresponding to a Mohs hardness of ~3. The density could not be measured because of the absence of suitable heavy liquids and paucity of available material. The calculated density based on the empirical formula (Z = 1) and unit-cell volume obtained from single-crystal X-ray data is 5.450 g·cm−3.
In reflected light, tsygankoite is white. It does not show any pleochroism and internal reflections. The bireflectance is very weak, R = 4.43% (589 nm). Between crossed polars, the mineral is strongly anisotropic with rotation tints varying from light grey to dark grey to black. Quantitative reflectance measurements were performed in air relative to a WTiC standard by means of a Universal Microspectrophotometer UMSP 50 (Opton-Zeiss, Germany) (Table 1).

4. Chemical Composition and Chemical Properties

Preliminary chemical analyses using a scanning electron microscope CamScan 4D equipped with INCA Energy microanalyzer (EDS mode, 20 kV, 5 nA and beam diameter 5 μm) showed the presence in tsygankoite of Mn, Tl, Hg, Pb, Sb, As, and S. No other elements with atomic numbers higher than 8 were detected.
Quantitative chemical analyses were conducted in wavelength-dispersive (WDS) mode, using a Cameca SX-100 electron microprobe operated at 25 kV and 20 nA with the beam size of 1 µm. Peak counting times were 20 s for all elements, with one half of the peak time for each background. The following standards, X-ray lines, and analyzing crystals (in parentheses) were used: Mn—Mn metal, Kα (LIF); Hg—HgTe, Mα (PET); Tl—Tl (Br,I), Mα (PET); Pb—PbSe, Mα (PET); As—pararammelsbergite, Lβ (TAP); Sb—Sb, Lβ (PET); S—chalcopyrite, Kα (PET). Analytical data are given in Table 2 (mean of 7 spot analyses).
The empirical formula of tsygankoite (based on 90 atoms pfu) is: Mn8.06Tl8.97Pb1.98Hg1.90Fe0.03Cu0.02Ag0.01Sb17.85As3.18S48.00Se0.01. Taking into account the structural data, the formula can be given as: Mn8.06Tl8.00Hg1.90(Sb17.87As3.19Pb1.99Tl0.97)Σ24.02S48.03. The ideal chemical formula is Mn8Tl8Hg2(Sb21Pb2Tl)Σ24S48, which requires Mn 6.11, Tl 25.59, Hg 5.57, Sb 35.56, Pb 5.77, S 21.40, total 100.00 wt %. It is essential that Pb and Tl play an important role in the substitution for (Sb + As)3+ and are necessary for the stabilization of the structure (see below).
Tsygankoite showed to be totally insoluble in acids, aqua regia, and alkalis.

5. X-Ray Crystallography

A small crystal fragment of tsygankoite having 0.032 mm × 0.017 mm × 0.007 mm across was carefully extracted from the polished section used for EMPA. This grain was used for collection of X-ray data utilizing a Rigaku SuperNova single-crystal diffractometer equipped with the Atlas S2 detector. The instrument is equipped with a Mo micro-focus X-ray tube, working at 50 kV and 0.8 mA (40 W), providing a beam spot of 120 μm. Omega scan mode produced 272 frames in three runs with exposition time of 500 s per frame. Unit-cell parameters were refined from 514 observed reflections. The following data were obtained: tsygankoite is monoclinic, space group C2/m, with a = 21.362(4) Å, b = 3.8579(10) Å, c = 27.135(4) Å, β = 106.944(14)°, V = 2139.19(17) Å3, Z = 1.
Due to the lack of suitable material, we present calculated powder pattern of tsygankoite only. The theoretical dhkl and relative intensities were calculated using PowderCell program [7] from the structure model. Data are given in Table 3.

6. Description of Crystal Structure and Discussion

The crystal structure of tsygankoite was refined to R = 0.0607 for 957 observed reflections, with criterion I > 3σ(I). The crystal structure of tsygankoite was solved from diffraction data using SHELXT [8] and refined using the least-squares algorithm of the Jana2006 program [9]. Data collection and refinement details are listed in Table 4, atom coordinates and displacement parameters along with the bond-valences are listed in Table 5, and selected bond-lengths in Table 6. The CIF file for tsygankoite is available in Supplementary Materials as file S1.
The crystal structure of tsygankoite contains 11 independent cation sites (four of which are mixed sites which were refined with one set of coordinates each) and 12 distinct sulfur sites. It consists of an alternation of two thick layer-like arrays; both are typical for sulfosalt structures.
The array based on PbS-archetype (i.e., with a PbS-like topology) contains a Hg site with a typical bond scheme, a Tl site, the octahedrally coordinated Mn1 site, and two pure Sb sites, labeled Sb1 and Sb2. The alternating array, based on the SnS-archetype (an array with a more pronounced steric role of lone electron pairs), with a general bond scheme represented by that observed in SnS [10], contains four distinct Sb sites, all of which statistically mix with either heavier cations (refined as Pb or Tl component) or with arsenic. Embedded in this array is a thallium site (refined as “Tl3”), and a Mn2+ site, this being apical to the second array. Interesting is the close spatial relationship of large Tl+ and small Mn2+ polyhedra in the former array and along its contact with the latter array.
The PbS-like portions represent a sequence of interconnected rods, four (100)PbS planes thick, ideally three polyhedra broad but heavily overlapped (rod-based sulfosalt structures were defined in Makovicky [11]). The contact/overlap portions of two adjacent rods are formed by the coordination octahedron of Hg, surrounded by two Mn octahedra and two bicapped trigonal coordination prisms of Tl; paired columns of Sb coordination pyramids form the cores of rods, with a lone electron space in between the pyramidal pairs (Figure 3).
The contact of rods differs from those which were known when Makovicky [11] classified rod-based sulfosalt structures. In the present case, the rods are interconnected via three atomic (100)PbS planes (Figure 3), whereas at that time, only rod interconnections/overlaps via one or two such planes were known. The only hitherto published situation close to the here-described one occurs in the PbS-archetype layers of the crystal structure of rouxelite Cu2HgPb22Sb28S64(O,S)2 [12], in which two adjacent rod-like bulges periodically occur, interconnected and amalgamated via octahedrally coordinated Hg site.
The general orientation of the PbS-based layers is (510) regarding a pseudo-tetragonal subcell which can be defined from Figure 3, and it is (522) regarding a cubic PbS-like subcell which can be defined as an alternative in this layer (Figure 4).
The layer based on the SnS-archetype represents a step-like cut-out of an SnS-like, antimony-based sulfide slab, limited by the overall (410)SnS planes (Figure 4). It consists of a set of double-ribbons which are diagonal to the overall orientation of this slab (Figure 3), tightly bonded by Sb–S bonds in the ribbon interior, and contain planar interspaces which house lone electron pairs, spaced between them. In subsurface portions of double-ribbons, one site is occupied by thallium (Tl3), whereas the step tips are formed by an octahedron of Mn (Mn2). The distribution of shorter and longer bonds in the central portions of this layer differs from that in SnS and is made possible only by lengthening of cation–sulfur bonds due to the partial substitutions of Sb by (Pb,Tl), as described in detail further below. The Sb3–Sb6 distance is 4.196 Å. The complicated match of the two-layer arrays proceeds via Mn octahedra, followed by a space for lone electron pairs of Sb from the PbS-like layer, Tl from the SnS-like layer, and a trigonal coordination prism of Tl (Tl2).
The flattened coordination octahedron of Hg consists of a linear configuration S1–Hg–S1 (bond length 2.320 Å) accompanied by four long Hg–S distances of 3.290 Å. This corresponds well with such values from cinnabar, HgS [13], which are 2.368 Å (2×), 3.094 Å (2×), and 3.287 Å (2×). Another example is the structure of balkanite, Cu9Ag5HgS8 [14], with the Hg–S distances equal to 2.366 Å (2×) and 3.300 Å (4×). The thallium polyhedra have trigonal prismatic distances between 3.120 and 3.240 Å, and between 3.129 and 3.470 Å, respectively for Tl2 and Tl3, with capping distances 3.096 and 3.363 Å, and 3.075 Å, in the same order. This suggests pure thallium sites.
Manganese octahedra are fairly regular, especially the Mn2 site (Mn–S distance from 2.536 to 2.636 Å). The asymmetrically positioned Mn1 site is somewhat less regular (from 2.539 to 2.728 Å). This compares very well with the Mn octahedra in MnSb2S4: the orthorhombic modification [15] has octahedral Mn–S distances between 2.537 and 2.692 Å, the monoclinic modification [16] has two sites with ranges 2.546–2.643 Å and 2.611–2.614 Å, respectively.
The antimony sites Sb1 and Sb2 in the rod-like structure portions have the typical signature of Sb3+, with the Sb–S distances to the vertex of the coordination pyramid equal to 2.427 Å and 2.460 Å, respectively, opposed by 3.225 Å and 3.621 plus 3.676 Å in the same sequence. In the pyramidal base, the distances and their opposites are 2.594 Å vs. 2.940 Å, and 2.654 Å vs. 2.982 Å (each twice) in the above order.
According to the refinement, Sb3 and Sb6 contain 0.36 “Pb” and 0.41 “Tl”, respectively, these being mixture of Pb and, also presumably, Tl. The more marginal sites Sb4 and Sb5 contain 0.23 As and 0.32 As, respectively. These mixed sites show correspondingly altered bond distances: Sb3 has the “Sb”–S distance to the pyramidal vertex equal to 2.680 Å and the bond scheme in the pyramidal base much more equalized—2.895 Å opposed by 3.071 Å. Sb 6 has the same values equal to 2.732 Å, 2.746 Å, and 3.099 Å. The calculations below show that the substituting atoms are a mixture of Pb and Tl.
The substitution by arsenic manifests itself by the vertex-oriented Sb–S distances, which are equal to 2.372 Å for Sb4 and 2.348 Å for Sb5, which can be compared with such distances for Sb1 and Sb2 (above). The in-base distances reveal a complete or at least a partial positional disorder, 2.781 vs. 2.786 Å for Sb4 and 2.571 vs. 3.050 Å for the marginal position Sb5.
Comparison of the empirical chemical formula and the refinement results is as follows: from chemical analyses, the unit cell contains Mn8.06Tl8.97Pb1.98Hg1.90Fe0.03Cu0.02Ag0.01Sb17.85As3.18S48.00Se0.01. Whereas the structure schematically shows Mn8Tl8Hg2(Sb,As)12(Sb,Pb,Tl)12S48. This suggests a spectrum of substitutions and substituted sites (all values that follow are the apfu values). Let’s consider the mercury site to be fully occupied and to contain 2 Hg. Thallium fully occupies two sites, 8 Tl pfu, which leaves 0.97 Tl for combination with Pb in substituting for Sb and As in the central portions of the SnS-like slabs. The EMPA suggests that there should be about three heavy atoms (Tl + 2Pb) at the central Sb sites; from the structure it gives 1.67 Tl and 1.44 Pb, thus only a slight excess. Structure determination gives 2.18 As, in insufficient agreement with chemically ascertained 3.18 As per formula unit. Both differences can be caused either by slightly distinct chemistry of the grain used for EMPA and the fragment of that grain used for SCXRD or are due to less perfect resolution of Sb/As and Sb/Pb + Sb/Tl distribution among the Sb sites. To conclude, the (Sb + As + Pb) value of 23.01 apfu from the chemical analysis plus remaining 0.97 Tl yields 23.98 atoms, very close to the expected sum of 24 apfu for “Sb” sites.
The structure of tsygankoite is unique among minerals. This is the first mineral having Mn, Tl, tsygankoite fits best in Subdivision 2.HD (Sulfosalts of SnS-archetype with Tl).

Supplementary Materials

The following are available online at www.mdpi.com/. Supplementary file S1: Crystallographic information file for tsygankoite.

Author Contributions

A.V.K. found the new mineral in polished sections of the studied samples; E.M. and J.P. performed the X-ray structural investigations; R.Š. and A.V.K. conducted the electron-microprobe analyses; A.A.A. and V.Y.K. determined the optical, physical, and chemical properties; A.V.K., E.M., J.P. and F.N. wrote the paper.

Acknowledgments

This research was supported by the project no. LO1603 under the Ministry of Education, Youth and Sports National sustainability program I of the Czech Republic to J.P.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tsyganko, M.V. Kamennyi Uzor Zemli Vagranskoi. Mineraly Severouralskogo Rayona (Stone Design of Vagranskaya Earth. Minerals of Northern Urals); “Kvist”: Yekaterinburg, Russia, 2015; 120p. (In Russian) [Google Scholar]
  2. Sazonov, V.N.; Murzin, V.V.; Grigor’ev, N.A. Vorontsovsk gold deposit: An example of carlin-type mineralization in the Urals, Russia. Geol. Ore Depos. 1998, 40, 139–151. [Google Scholar]
  3. Murzin, V.V.; Naumov, E.A.; Azovskova, O.B.; Varlamov, D.A.; Rovnushkin, M.Y.; Pirajno, F. The Vorontsovskoe Au-Hg-As ore deposit (Northern Urals, Russia): Geological setting, ore mineralogy, geochemistry, geochronology and genetic model. Ore Geol. Rev. 2017, 85, 271–298. [Google Scholar] [CrossRef]
  4. Minina, O.V. The Auerbahovskiy complex ore-magmatic system of the Middle Ural. Nativ. Geol. 1994, 7, 17–23. (In Russian) [Google Scholar]
  5. Stepanov, S.Y.; Sharpenok, L.N.; Antonov, A.V. Fluid-exposive breccias of the Vorontsovskoe gold deposit (The North Urals). Zapiski RMO 2017, 1, 29–43. (In Russian) [Google Scholar]
  6. Kasatkin, A.V.; Nestola, F.; Agakhanov, A.A.; Škoda, R.; Karpenko, V.Y.; Tsyganko, M.V.; Plášil, J. Vorontsovite, (Hg5Cu)Σ6TlAs4S12, and ferrovorontsovite, (Fe5Cu)Σ6TlAs4S12: The Tl- and Tl-Fe-analogues of Galkhaite from the Vorontsovskoe gold deposit, Northern Urals, Russia. Minerals 2018, 8, 185. [Google Scholar] [CrossRef]
  7. Kraus, W.; Nolze, G. POWDER CELL—A program for the representation and manipulation of crystal structures and calculation of the resulting X-ray powder patterns. J. Appl. Cryst. 1996, 29, 301–303. [Google Scholar] [CrossRef]
  8. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  9. Petříček, V.; Dušek, M.; Palatinus, L. Crystallographic computing system Jana2006: General features. Z. Kristallogr. 2014, 229, 345–352. [Google Scholar] [CrossRef]
  10. Makovicky, E. The building principles and classification of sulphosalts based on the SnS archetype. Fortschr. Mineral. 1985, 63, 45–89. [Google Scholar]
  11. Makovicky, E. Rod-based sulphosalt structures derived from the SnS and PbS archetypes. Eur. J. Mineral. 1993, 5, 545–591. [Google Scholar] [CrossRef]
  12. Orlandi, P.; Meerschaut, A.; Moëlo, Y.; Palvadeau, P.; Léone, P. Lead-antimony sulfosalts from Tuscany (Italy). VIII. Rouxelite, Cu2HgPb22Sb28S64(O,S)2, a new sulfosalt from Buca della Vena mine, Apuan Alps: definition and crystal structure. Can. Mineral. 2005, 43, 919–933. [Google Scholar] [CrossRef]
  13. Auvray, P.; Genet, F. Affinement de la structure cristalline du cinabre, alpha HgS. Bull. Soc. Fr. Min. Cristallogr. 1973, 96, 218–219. [Google Scholar]
  14. Biagioni, C.; Bindi, L. Ordered distribution of Cu and Ag in the crystal structure of balkanite, Cu9Ag5HgS8. Eur. J. Mineral. 2017, 29, 279–285. [Google Scholar] [CrossRef]
  15. Bente, K.; Edenharter, A. Roentgenographische Strukturanalyse von MnSb2S4 und Strukturverfeinerung von Berthierit, FeSb2S4. Z. Kristallogr. 1989, 186, 31–33. [Google Scholar]
  16. Pfitzner, A.; Kurowski, D. A new modification of MnSb2S4 crystallizing in the HgBi2S4 structure type. Z. Kristallogr. 2000, 215, 373–376. [Google Scholar] [CrossRef]
Figure 1. Black elongated grain of tsygankoite with metallic lustre and alabandite (in the center) in white dolomite–calcite matrix along with orpiment (yellow) and native arsenic (black rounded grain on the right). This grain of tsygankoite was extracted from the polished section and used for the structure data collection.
Figure 1. Black elongated grain of tsygankoite with metallic lustre and alabandite (in the center) in white dolomite–calcite matrix along with orpiment (yellow) and native arsenic (black rounded grain on the right). This grain of tsygankoite was extracted from the polished section and used for the structure data collection.
Minerals 08 00218 g001
Figure 2. SEM (BSE) image of tsygankoite grain from Figure 1 shows tsygankoite (tsy) being partially replaced by alabandite (ala). Both minerals are associated with tilasite (til) and are embedded in a dolomite-calcite. Polished section.
Figure 2. SEM (BSE) image of tsygankoite grain from Figure 1 shows tsygankoite (tsy) being partially replaced by alabandite (ala). Both minerals are associated with tilasite (til) and are embedded in a dolomite-calcite. Polished section.
Minerals 08 00218 g002

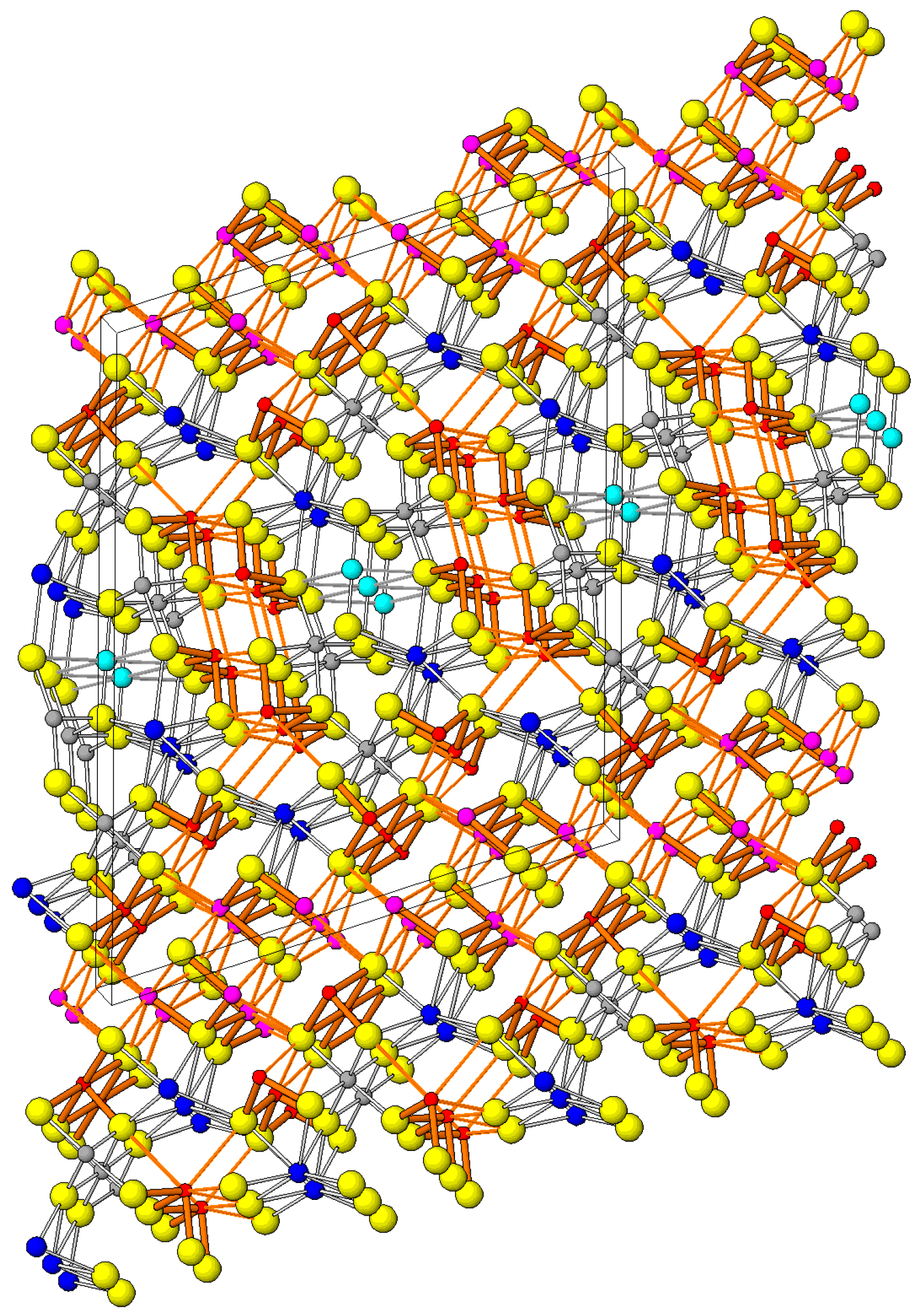

Figure 3. Crystal structure of tsygankoite in projection onto (010). Yellow spheres: S; blue spheres: Tl; turquoise: Hg; red: Sb and (Sb,As); mauve: (Sb,Pb,Tl); grey: Mn. Short, strong Sb–S bonds: thick orange lines, longer distances: thin lines. Remaining cation–anion connections: bonds and distances defining the complete coordination polyhedron. The c direction is upward oriented; inclined slightly.
Figure 3. Crystal structure of tsygankoite in projection onto (010). Yellow spheres: S; blue spheres: Tl; turquoise: Hg; red: Sb and (Sb,As); mauve: (Sb,Pb,Tl); grey: Mn. Short, strong Sb–S bonds: thick orange lines, longer distances: thin lines. Remaining cation–anion connections: bonds and distances defining the complete coordination polyhedron. The c direction is upward oriented; inclined slightly.
Minerals 08 00218 g003

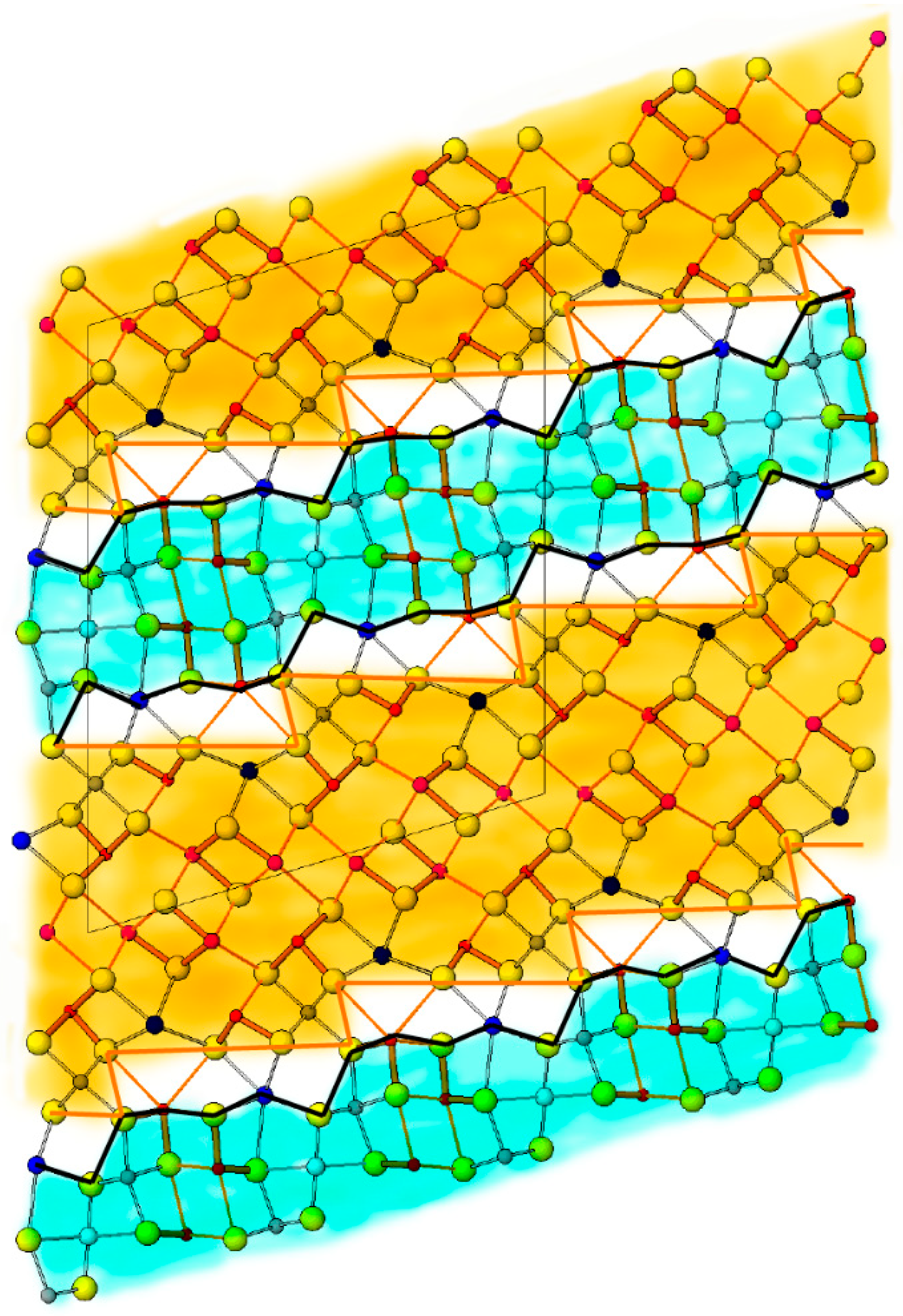

Figure 4. The crystal structure of tsygankoite in terms of mercury containing layers with PbS topology (blue) alternating with Sb-rich layers with SnS-like topology (orange). For atom species see Figure 3. Unit cell edges outlined in black solid line.
Figure 4. The crystal structure of tsygankoite in terms of mercury containing layers with PbS topology (blue) alternating with Sb-rich layers with SnS-like topology (orange). For atom species see Figure 3. Unit cell edges outlined in black solid line.
Minerals 08 00218 g004
Table 1. Reflectance data for tsygankoite.
Table 1. Reflectance data for tsygankoite.
λ (nm)R1 (%)R2 (%)
40033.8530.53
42033.6430.94
44032.3930.72
46032.8831.56
47033.16 31.67
48033.4431.78
50033.2231.71
52032.8431.49
54032.5331.26
54632.4131.11
56032.2631.00
58031.8930.54
58931.5830.18
60031.5130.14
62030.9529.83
64030.2729.10
65029.8328.73
66029.3728.39
68028.2927.58
70027.4126.74
Note: Reflectance percentages for the four COM (Commission on Ore Mineralogy) wavelengths are given in bold.
Table 2. Chemical data (wt %) for tsygankoite.
Table 2. Chemical data (wt %) for tsygankoite.
ConstituentMeanRangeSD
Mn6.296.15–6.400.11
Hg5.425.31–5.580.09
Tl26.0525.52–26.530.35
Pb5.845.01–6.340.59
As3.393.15–3.720.21
Sb30.8930.32–31.390.34
S21.8721.40–22.400.30
Total99.75
Note: SD = standard deviation.
Table 3. Calculated powder X-ray data (d values given in Å) for tsygankoite (only diffractions with Irel. > 5% are listed).
Table 3. Calculated powder X-ray data (d values given in Å) for tsygankoite (only diffractions with Irel. > 5% are listed).
Irel. (%)dcalc. (Å)hklIrel. (%)dcalc. (Å)hkl
1112.98002992.786514
299.483–202222.731511
67.822–203122.711–2010
275.310–40272.688–317
65.109400282.604–516
115.097–40372.586209
94.480–206s62.582117
164.34240282.534–118
144.32600652.530605
233.92740382.525513
253.911–40672.490–517
383.866–207122.473801
143.72211152.435–6010
203.708007172.368–711
1003.587112232.358–119
443.559–602132.328710
83.54340452.275–6011
253.540–603132.268–809
133.511–60172.238119
123.459–604262.198–1110
683.391208132.182318
703.353114172.163–8010
63.327–605122.116–1002
883.204405112.085–1001
103.161–60692.061–719
403.144–11592.054–1111
73.142312132.049517
63.024–315292.047319
283.015–20992.021–913
452.98831392.014–1008
72.978–60781.9608715
412.91040661.9389518
132.895603531.9290020
82.88400951.92413110
192.863–512371.8915–7111
642.85831671.87051003
412.851–511321.8670912
722.84151381.8649807
62.821314151.86022013
602.805510151.8358–3113
* values given in bold represent six observed diffractions having the highest relative intensities.
Table 4. Summary of data collection conditions and refinement parameters for tsygankoite.
Table 4. Summary of data collection conditions and refinement parameters for tsygankoite.
FormulaMn8Tl8.00Hg2.00(Sb18.74·As2.18Tl1.67Pb1.44)Σ24.03S48
Crystal systemmonoclinic
Space groupC2/m
Unit-cell parameters: a, b, c [Å]21.362(4), 3.8579(10), 27.135(4)
β [°]106.944(14)
Unit-cell volume [Å3]2139.19(17)
Z1
Calculated density [g/cm3]5.450 (from empirical formula)
Crystal size [mm]0.032 × 0.017 × 0.007
DiffractometerRigaku SuperNova with Atlas S2 CCD
Temperature [K]295
Radiation, wavelength [Å]MoKα, 0.71073 (50 kV, 0.8 mA)
θ range for data collection [°]3.50–27.14
Limiting Miller indices h = −26 → 26, k = −4 → 4, l = −34 → 17
Axis, frame width (°), time per frame (s)ω, 1.0, 500
Total reflections collected4686
Unique reflections2403
Unique observed reflections, criterion957, [I > 3σ(I)]
Absorption coefficient [mm−1], type33.37; empirical
Tmin/Tmax0.782/1
Data completeness to θmax (%), Rint89.00, 0.105
Structure refinementFull-matrix least-squares on F2
No. of param., restraints, constraints143, 0, 24
R, wR (obs)0.0607, 0.0943
R, wR (all)0.1757, 0.1452
GOF obs/all1.14, 1.04
Weighting scheme, weightsσ, w = 1/(σ2(I) + 0.0001800964I2)
Largest diffraction peak and hole (e3)7.32 (0.48 Å to Sb6), −7.76
Table 5. Atom positions and displacement parameters (in Å2) for tsygankoite.
Table 5. Atom positions and displacement parameters (in Å2) for tsygankoite.
Atomx/ay/bz/cUeqU11U22U33U12U13U23
Hg10.510.50.0243(9)0.0275(16)0.0240(17)0.0240(16)00.0111(13)0
Tl10.61255(10)−0.50.64328(7)0.0360(8)0.0448(13)0.0319(13)0.0361(12)00.0194(11)0
Tl20.35428(9)−0.50.81477(8)0.0362(8)0.0324(12)0.0313(13)0.0454(14)00.0122(10)0
Sb10.28499(15)00.45391(11)0.0259(11)0.0308(19)0.0223(19)0.0231(16)00.0058(15)0
Sb20.33573(19)00.67105(12)0.0415(14)0.077(3)0.019(2)0.0299(19)00.018(2)0
Sb3/Pb30.4110(2)−10.97915(15)0.081(2)0.121(4)0.049(3)0.112(4)00.094(3)0
Sb4/As30.53848(18)00.87986(13)0.0442(17)0.044(3)0.057(3)0.025(2)00.001(2)0
Sb5/As50.67441(18)00.78772(15)0.0427(17)0.026(2)0.050(3)0.046(3)00.000(2)0
Sb6/Tl60.2295(2)−1.50.92414(15)0.091(2)0.173(5)0.034(2)0.112(3)00.116(3)0
Mn10.4134(3)0.50.5777(2)0.023(2)0.024(4)0.022(4)0.022(4)00.006(3)0
Mn20.5162(3)0.50.7581(2)0.022(2)0.023(4)0.026(4)0.017(3)00.006(3)0
S10.4924(5)10.5836(4)0.021(4)0.031(6)0.023(7)0.015(6)00.015(5)0
S20.5745(5)00.7221(4)0.020(4)0.025(6)0.020(6)0.015(5)00.007(5)0
S30.4225(5)0.50.6753(4)0.024(4)0.018(6)0.029(7)0.021(6)0−0.002(5)0
S40.3232(5)00.5780(4)0.020(4)0.033(7)0.018(6)0.010(5)00.007(5)0
S50.3698(5)0.50.4759(4)0.023(4)0.019(6)0.022(7)0.033(7)00.012(6)0
S60.2750(5)00.3625(4)0.024(4)0.033(7)0.021(7)0.018(6)00.005(6)0
S70.4610(6)00.7970(4)0.026(4)0.036(7)0.020(7)0.021(6)00.005(6)0
S80.7220(6)−0.50.7473(4)0.037(5)0.025(7)0.053(9)0.031(7)00.004(6)0
S90.6079(7)0.50.8437(4)0.044(5)0.049(9)0.053(10)0.019(6)0−0.006(7)0
S100.3047(7)−10.8969(5)0.047(6)0.045(9)0.058(11)0.033(7)00.001(7)0
S110.3311(8)–1.51.0129(5)0.062(6)0.096(13)0.029(9)0.035(8)0−0.021(8)0
S120.4678(9)−0.50.9152(6)0.080(8)0.104(14)0.016(8)0.079(11)0−0.037(11)0
Refined occupancies: Sb3 site = 0.64(2)Sb/0.36(2)Pb; Sb4 site = 0.77(3)Sb/0.23(3)As; Sb5 site = 0.68(3)Sb/0.32(3)As; Sb6 site = 0.59(2)Sb/0.41(2)Tl.
Table 6. Selected interatomic distances (Å) in tsygankoite.
Table 6. Selected interatomic distances (Å) in tsygankoite.
Hg1–S12.321(11) (2×)Sb3–S112.896(14) (2×)
Tl1–S13.242(8) (2×)Sb4–S72.373(10)
Tl1–S23.158(10) (2×)Sb4–S92.781(11) (2×)
Tl1–S53.363(12)Sb4–S122.786(15) (2×)
Tl1–S63.119(9) (2×)Sb5–S22.347(10) (2×)
Tl1–S83.096(10) (2×)Sb5–S82.570(9) (2×)
Tl2–S73.129(11) (2×)Sb6–S102.745(12) (2×)
Tl2–S83.470(9) (2×)Sb6–S112.733(13)
Tl2–S103.344(13) (2×)Mn1–S12.573(8) (2×)
Tl2–S123.075(15)Mn1–S32.598(12)
Sb1–S42.940(8) (2×)Mn1–S42.728(9) (2×)
Sb1–S52.594(7) (2×)Mn1–S52.645(11)
Sb1–S62.427(11)Mn2–S22.633(10) (2×)
Sb2–S32.665(8) (2×)Mn2–S32.536(10)
Sb2–S42.459(11)Mn2–S72.636(10) (2×)
Sb2–S62.981(8) (2×)Mn2–S92.565(12)
Sb3–S102.679(13)

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Minerals EISSN 2075-163X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
