Oyonite, Ag3Mn2Pb4Sb7As4S24, a New Member of the Lillianite Homologous Series from the Uchucchacua Base-Metal Deposit, Oyon District, Peru
Open AccessArticle

Trace Element and U–Pb Core Age for Zircons from Western Meiganga Gold Placer, Cameroon: Their Genesis and Archean-Proterozoic Sources

1
Department of Mining Engineering and Mineral Processing, Faculty of Mines and Petroleum Industries, University of Maroua, Maroua 46, Cameroon
2
Department of Earth Sciences, University of Yaoundé I, Yaoundé 812, Cameroon
3
Department of Civil Engineering, The University Institute of Technology, University of Douala, 8698 Douala, Cameroon
4
Department of Applied Geology, Indian Institute of Technology (Indian School of Mines), Dhanbad 826004, India
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(5), 194; https://doi.org/10.3390/min8050194
Received: 4 March 2018 / Revised: 24 April 2018 / Accepted: 25 April 2018 / Published: 4 May 2018

Abstract

Trace element concentrations and U–Pb ages were obtained using Laser Ablation Split Stream Method from the core of 115 zircon grains from the western Meiganga gold placer deposit. The data was used to characterize zircon, to understand the history of crystallization and to locate source rocks within the local and regional geological settings. Zircon trace element geochemistry was used to distinguish between magmatic and metamorphic affinity. The magmatic zircons have characteristics compatible with their probable origin from granitoid, syenite, tonalite, charnockite and mafic to ultramafic rocks. The metamorphic zircons composition is compatible with growth from anatectic melts and by sub-solidus crystallization in equilibrium with garnet. The zircon ages reveal Archean, Paleoproterozoic, Mesoproterozic, and Neoproterozoic events with the principal source could mainly belong to Paleoproterozoic magmatic lineage. Some of the Paleoproterozoic magmatic zircons were probably sourced from two mica granite found within the local geology, whereas the remaining zircons have features indicating source rocks within the Congo Craton. We suggest that the geologic history of these zircons is related to crustal-scale magmatic and/or tectono-metamorphic events, possibly linked to Eburnean and Pan-African orogeny.
Keywords: Western Meiganga; gold placer; detrital zircon; geochronology; Archean Western Meiganga; gold placer; detrital zircon; geochronology; Archean

1. Introduction

Placers are mechanical concentrations of economically viable dense/heavy minerals (e.g., corundum, ilmenite, cassiterite, diamond, rutile, monazite, xenotime, and zircon) and important elements (e.g., gold and platinum, as well as Nb, Ta, and U [1]) sorted and sourced from various areas of erosion within the local and the regional geological settings [2,3]. They are mainly allochthonous in nature, transported and deposited proximally to distally from their source rock [1]. The presence of specific dense and heavy minerals (e.g., zircon, rutile, tourmaline, kyanite, sillimanite, andalusite, and monazite) in placers can be used to track the geological history of the bedrock in the source region [4,5,6,7,8,9,10,11,12,13,14,15]. Zircon in particular plays a prominent role in provenance studies of displaced and accumulated clastic materials [16,17,18]. Detrital zircon can be used to make inferences about the source history, for paleogeographic and tectonic reconstitution [19,20,21,22,23,24]. The use of trace-element geochemistry and U–Pb dating to characterize and interpret the provenance of detrital zircons is well established for constraining source parameters, a commonly used technique in sedimentological and tectonic studies [17,18,25,26]. Hence, geochemical study of detrital or xenocrystic zircon in conjunction with U–Pb geochronology on the same grain is an extremely powerful tracer tool for provenance studies [27].
Gold, zircon and other heavy minerals are found in many areas in Cameroon (e.g., Betaré-Oya in the east; Minton in the south; and Meiganga in the Adamawa). In the Meiganga Sub-division (Figure 1), gold occurs in the south, east, and west. These gold occurrences are mainly found in alluvium and soils, but rarely in primary rocks. In the west of Meiganga Sub-division, gold grains are scattered in sediments from some streams and rivers. There are no known primary gold occurrences in this area, so their source areas have still not been found. In this paper, we used single grain zircon trace element geochemistry and U–Pb core dating to assess the most likely source of the detrital materials associated with gold that is found in substantial quantities in small streams in the west of Meiganga sub-division.

2. Geological Settings

Meiganga is located in the central part of the Pan-African fold belt [28], which is a megatectonic structure formed during the Neoproterozoic and is the product of collision between the Saharan metacraton and the Congo craton [29,30]. This mega-structure covers the main part of the Cameroonian territory and is dominantly composed of pre-Pan-African to syn-Pan-African metamorphic (e.g., gneisses, schists and amphibolites) and igneous rocks (e.g., granite, granodiorite, monzodiorite and monzogranite) [31,32,33,34,35,36,37,38,39].
Geological formations in Meiganga include: paragneiss, orthogneiss, amphibolite, granulite, migmatite, quartzite, metadiorite, schist, hornfel, and granite [28,35,36,37,38,40] which are locally overlain by basalts, sandstones and conglomerates [40]. These rocks are locally covered by red colored soils, eluvium, recent alluvium, and colluvium [41]. Some rocks were intruded by quartzo-feldspathic and syenitic veins (dykelets), doleritic and microgranitic dykes probably formed within the fracture network of the host rocks [28,40]. Shear zones and mylonites [40] are found in some of the metamorphic basement rocks and were interpreted to represent the products of syn-tectonic ductile and cataclastic deformation [28]. Some of the gneisses and amphibolites underwent retrograde metamorphism that led to the formation of greenschist facies mineral assemblages [28,38]. Partial melting of gneiss led to the crystallization of leucogranites found in the northern part of Meiganga [37]. The inherited magmatic zircon ages (2339–1887 Ma and 889–675 Ma) for amphibole-biotite gneiss (locally found) indicate that part of the zircons in this rock were sorted from igneous protoliths [36]. Metadioritic basement rock (with age ranging from 619–614 Ma) was formed during syn-tectonic events [28,37].
The western part of Meiganga, from where the studied detrital zircons were sampled, is locally made up of pyroxene-amphibole banded gneiss, and both calc-alkaline and two mica granites [28,40]. Pyroxene-amphibole banded gneiss (with zircon ages ranging from 2602–2504 Ma, 2478–1685 Ma, and 901 to 550 Ma) outcrops mainly in two villages (Kalaldi and Doua) [28,38]. This rock partly encloses syenitic veins striking parallel in the NW-SE direction [28] and amphibolites [40].

3. Materials and Methods

In total, one hundred and fifteen zircon grains were analyzed for their trace element contents and U–Pb ages at the University of California, Santa Barbara, CA, USA. The analyzed zircons were sampled from small, nameless, first order tributary streams found in the study area (Figure 1c), similar to the sampling strategy employed in [42]. According to [42], during gold exploration, it is better to sample small streams (first-order tributaries) where the streams are <5 km in length rather than larger rivers, because the former yield more valuable information on the provenance of placer gold than samples from large rivers. Collected samples (5 kg × 10) in each point (from gravel layer) and from three localities (Békasiki, Doua, and Kaladi: see Figure 1c) were washed (by panning) immediately in the field and on the spot to obtain substantial quantity of heavy mineral concentrates. Each concentrate was packaged separately, numbered and carried to the laboratory for gold identification and heavy mineral separation. Heavy mineral concentrates with gold grains were separated using dense liquid (bromoform: D ≥ 2.7 g/cm−3) at the Department of Earth Sciences at the University of Yaoundé I, Cameroon. The mineral separation protocols are similar to those described in [43] and [44]. A pre-concentrated gold-host heavy mineral assembly (from Békasiki) was sent to the University of California (Santa Barbara, CA, USA) for the zircon grains separation and analyses by Laser Ablation Split Stream.
Zircon U/Pb geochronology and trace element data were acquired simultaneously using a laser ablation “split stream” setup consisting of a Photon Machines Excimer 193 nm laser ablation unit coupled to a Nu Instruments, “Nu Plasma” multi-collector inductively coupled plasma-mass spectrometer and an Agilent 7700S quadrupole inductively coupled plasma-mass spectrometer, housed at the University of Santa Barbara, CA, USA (for detailed methodology see [45,46,47]). Samples were analyzed for 20 s using a fluence of 1.5 J/cm2, a frequency of 4 Hz, and spot size of 20 µm diameter resulting in crater depths of ~9 µm. Utilizing a standard-sample bracketing technique, analyses of reference materials with known isotopic compositions were measured before and after each set of seven unknown analyses. Data reduction, including corrections for baseline, instrumental drift, mass bias, down-hole fractionation, and age and trace element concentration calculations were carried out using Iolite v. 2.1.2 [48]. “91,500” zircon (1065.4 ± 0.3 Ma 207Pb/206Pb ID-TIMS age and 1062.4 ± 0.4 Ma206Pb/238U ID-TIMS age: [49]) served as the primary reference material to monitor and correct for mass bias, as well as Pb/U down-hole fractionation and to calibrate concentration data, while “GJ-1” zircon (608.5 ± 0.4 Ma 207Pb/206Pb and 601.7 ± 1.3 Ma 206Pb/238U ID-TIMS ages: [50]) was treated as an unknown in order to assess accuracy and precision. Twenty-three analyses of GJ-1 zircon throughout the analytical session yield a weighted mean 207Pb/206Pb date of 593 ± 5 Ma, MSWD = 0.8 and a weighted mean 206Pb/238U date of 603 ± 2 Ma, MSWD = 1.0. Concordia and Kernal Density Estimate (KDE) plots were calculated in Isoplot v 2.4 [51] and Density Plotter [52], respectively, using the 238U, and 235U decay constants of [53]. All uncertainties are quoted at 95% confidence levels or 2 s level and include contributions from the external reproducibility of the primary reference material for the 207Pb/206Pb and 206Pb/238U ratios. For plotting and age interpretation purposes, the 207Pb/206Pb dates are used for analyses older than 1000 Ma, whereas the 206Pb/238U dates are used for analyses younger than 1000 Ma.

4. Results

4.1. Zircon Geochemistry

Twenty three elements (Table 1) quantified from the zircon cores are heterogeneous, as is expected with their elemental concentration ranges similar to those reported in the literature. Within these elementary suites, Hf and Y are minor, whereas other 21 elements (U, Th, Pb, Ti, Nb, Ta, Sr, and REE) are mainly at trace levels. The minor and trace elements concentrations are presented separately.

4.1.1. Minor Elements

Hafnium varies between 6390 and 13,020 ppm, which is in general higher than values reported for detrital zircons from western Mamfe area [10,11,12]. Most of the values are above 9000 ppm with very few being below 7500 ppm. Some zircons have similar abundances (e.g., Hf = 9160 ppm in MW092 and MW093), suggesting same degree of Hf substitution (degree of fractionation) in these zircons. Due to the high heterogeneity of the Hf contents, the zircon grains can be classified into three main groups: (1) relatively low-Hf zircons (Hf ≤ 8910 ppm); (2) moderate-Hf zircons (9010 ppm ≤ Hf ≤ 10,120 ppm); and (3) high-Hf grains (Hf > 10,120 ppm). The Hf values in group 1 are within the range in magmatic zircons crystallized in a continental rift setting (Hf < 9000 ppm: cf. [27]) whereas those in the other group could be that of zircons grew out of rifting.
Yttrium content ranges from 82 to 1867 ppm with the lowest value found in NW081, and the highest in MW093. They are generally greater than 250 ppm, with a few values exceeding 1000 ppm. Four groups can be distinguished; (1) zircons with relatively low Y (<160 ppm); (2) zircons with moderately low Y (204–491 ppm); (3) zircons with relatively high Y (505–988 ppm); and (4) zircons with very high Y (≥1014 ppm). The Y values are mostly within the range noted in [54] and [55] for crustal derived zircons, with some being close to values found in [19] high-Si granitoids. The calculated Hf/Y ratios for the zircon grains vary from 4 to 117 with the lowest values found in MW093 and the highest in MW081.

4.1.2. Trace Elements

The U values, listed in Table 1, ranges from 11 to 1042 ppm with the lowest values mainly found in MW100 and MW113 and the highest in MW023 and MW096. Some zircons have similar contents (e.g., U = 210 ppm in MW017 and M030, or U = 222 ppm: MW11 and U = 223 ppm: M016), suggesting same degree of U substitution in those grains [11,12]. Those with very low U (<30 ppm) values are within the range limit in [54] kimberlitic and [55] syenitic zircons. Zircons with U > 300 ppm are close to those in detrital zircons classified as from high-Si granitoids [19], and within the range noted by [56] for granitic zircons.
Thorium content ranges from 2 to 859 ppm, with some values being much higher than others. They can form three groups: (1) made up of zircons with Th ≤ 70 ppm; (2) zircons with Th (70–101 ppm), and (3) composed of grains with Th ≥ 106 ppm. Correlation exists between the Th and U values in Figure 2a, for zircons whose Th and U contents are <520 ppm and <400 ppm, respectively. The calculated Th/U ratios (0.01 to 2.80) are highly heterogeneous. Due to the heterogeneity of the Th/U ratios, the zircons can be grouped into two: (1) those with Th/U ratio (<0.07) compatible with metamorphic zircons [57] and (2) those with magmatic zircons (0.2 ≤ Th/U ≤ 1: [58]). The Th/U versus Th binary diagram (Figure 2b) shows positive correlation, whereas no correlations are evident in the Th/U versus U diagram (Figure 2c).
The lead content ranges from 1.0 to 713 ppm. The lowest values were obtained in MW052, MW058, and MW065, and the highest in MW095 and MW114. It is noted that some zircons with very low Pb value also have very low Th, with similar Th (Th = 8 ppm: MW015) and Pb (Pb = 8 ppm: MW015) being found in the same grain. Some grains have the same Pb content (e.g., Pb = 149 ppm: MW018 and MW059).
Titanium content ranges from 1.1 to 133 ppm, with most values not exceeding 7.5 ppm. The lowest values are mainly found in NW115 and MW052, and the highest in MW048. Zircons with very low Ti value show very low Pb and Th contents. The calculated Ti-zircon temperatures (estimated Ti activity of 1) range from 571 to 1065 °C (Table 1), with most of the lowest temperatures calculated for zircon with very low Th/U ratio (≤0.09), and the highest temperature (≈1065 °C) calculated for zircon with low Th/U ratio (≈0.25). Some grains have similar temperature or very close values; this may reflect crystallization at the same conditions.
Niobium (0.2–7.0 ppm) and Ta (0.09–8.0 ppm) contents are very low. Most Nb contents are close to that of Ta and show a positive correlation in Figure 2d. The Nb/Ta ratios vary from 0.40 to 2.23 with most of values being slightly greater than 1.

4.1.3. Rare Earth Elements

The quantified rare earth element abundances are highly heterogeneous (Table 2). Within the LREE suite, La is predominantly below detection, except in MW001 and MW115. The Ce content ranges from below detection to 330 ppm, with the lowest quantified values being below 5 ppm (e.g., in MW013 and MW025), and the higher values being greater than 149 ppm (e.g., in MW002 and MW007). The calculated Ce/Ce* for MW001 is 268.2. The Pr content varies from bdl to 7.8 ppm, with most values being ≤0.1 ppm. Within the MREE suite contents (in ppm): Nd ranges from bdl to 1020 ppm with most values being ≤2; Sm (0.02 to 38.0) is generally ≥1.6; Eu (0.06 to 14.0) is dominantly <1.0; whereas Gd (1.0 to 50.0) is mostly ≥9.0. The highest Nd value was obtained in MW006, which exceptionally has the highest Pr (7.8 ppm), Sm (37.1 ppm), and Eu (13.9 ppm) contents. The MW006 normalized chondrite plot in Figure 3a, shows positive Nd and Eu anomaly, not visible for other zircons. The calculated Eu/Eu* anomalies (0.05 to 2.1) and normalized chondrite plots (Figure 3 and Figure 4) predominantly exhibit negative Eu anomalies with a few showing positive to the lack of an anomaly.
Heavy rare earth elements are mainly the highest in zircons from the western Meiganga gold placer. High HREE contents are common in zircon, as these REEs mainly substitute Zr in zircon structure [27]. Within this group of REE, Yb (22 to 555 ppm) and Er (12 to 222 ppm) contents are generally the highest, whereas those of Ho (2 to 53 ppm), Tm (3 to 48 ppm), and Tb (0.7 to 13.1 ppm) are the lowest. The Dy contents (6 to 148 ppm, with most values exceeding 30 ppm) and that of Lu (5 to 74 ppm; with most values exceeding 20 ppm) are moderately high. The calculated Gd/Yb and Lu/Hf ratios range from 0.01 to 0.25 and 0.0005 to 0.010, respectively. The highest Gd/Yb (≈0.24) and Lu/Hf (≈0.010) ratio was respectively obtained in MW002 and MW093; with MW093 having the highest Lu (92 ppm), Yb (555 ppm), Tm (59 ppm), Er (291 ppm), and Ho (177 ppm) contents. The calculated Lun/Smn ratios range from 7 to 7177 and that of Yb/Sm, from 20 to 4827. Except for MW013 (with Th/U ≈ 0.4, Lun/Smn ≈ 7176.5, Yb/Sm ≈ 4827), the highest values were mainly obtained for zircon with Th/U < 0.07.

4.2. U–Pb Dating

The 206Pb/238U (575 to 2927 Ma, dominantly ≥1900 Ma, Figure 5 and Figure 6) and 207Pb/206Pb (565 to 3088 Ma; dominantly >2000 Ma) dates are highly heterogeneous, with some zircons having the same age (Table 3). Due to this high heterogeneity, the 206Pb/238U ages are used to group the zircons into six sets: (1) Neoproterozoic (575 to 834 Ma); (2) Late-Mesoproterozoic (986–1162 Ma); (3) Late Paleoproterozoic (1643–1996 Ma); (4) Early Paleoproterozoic (2003–2490 Ma); (5) Neoarchean (2789–2500 Ma); and (6) Meso-archean (≥2907 Ma). Late Paleoproterozoic zircons are proportionally the highest, whereas Late Mesoproterozic and Meso-archean zircons are the lowest.

5. Discussion

Geochemical and U–Pb geochronological results are used to characterize each zircon grain and to understand its genetic history. They are correlated with rocks within the local and regional setting in order to locate their primary source (s).

5.1. Geochemical Characterization Vis-Vis-Source and Genetic Constraints on Zircon

5.1.1. Geochemistry of Zircon and Possible Magmatic Segregation

Uranium, Th, Hf, Y, and REE contents are commonly used to characterize zircons and understand the history of their genesis [27,57,58,60,61]. Heaman et al. [27] demonstrated that zircon chemistry can reflect the composition of the magma from which it is crystallized and its tectonic setting. Out of 115 zircon grains, a total of nine trace elements and REEs are highly heterogeneous with equal values found in some. The heterogeneity in elemental contents suggests that the zircons were crystallized in different rock types with some of the sources being more chemically enriched than others. The equal elemental contents found in some of the zircons may relate their crystallization to an environment with the same abundance of these elements.
The Th/U of Meiganga zircons fall within the reported envelope for zircons of both igneous [54,58,61] and metamorphic [57] origins. Three main groups distinguished are: (1) magmatic zircons (Th/U ≥ 0.2); (2) metamorphic affiliated zircons (Th/U < 0.07); and (3) grains with Th/U ratios ranging from 0.09 to < 0.2. The highest Th/U ratios (>1.0) obtained in some of the group 1 zircons could suggest preferential incorporation of Th into those zircon lattices over U, or relate the crystallization of their source under amphibolite or eclogite melting conditions [62]. The nature of zircons in group 3 is not easy to determine. They may be metamorphic zircons, with high Th/U [60], originating from high-grade metamorphic rocks (e.g., [63]). In this study, a grain with Th/U (≈0.09) is considered metamorphic as its other features are similar to those of metamorphic zircons in group 3. Those with Th/U ratios (>0.09) and (<0.2), quite close to magmatic grains, were affiliated to magmatic zircons in group 1. They may be zircons from partial melt segregation, as their Th/U ratios are within the range (0.13–0.37) in some partial melt segregation zircons studied by [64]. The partial-melt segregation origin of those grains (MW067, MW081, MW082, and MW108) is supported by Ti thermometric data (618 ± 87 to 744 ± 66 °C), which are similar to those obtained by [64] for zircon that grew by partial melt segregation process. The other features that characterize those grains is their position within various plots, situated out of various fields in Y versus U, Y versus Nb/Ta, and Y versus Yb/Sm binary diagrams (Figure 7, Figure 8 and Figure 9). The significant variation in Y (81–626 ppm), U (115–442 ppm), Th (23–169 ppm), Pb (30–158 ppm), and ∑REE (59–474 ppm) contents in those zircons suggests crystallization in different environments with these environments being Y, U, Th, and REE are enriched than others. The Hf abundance (9430–11,460 ppm) is greater than values (<9000 ppm: [27]) in zircons formed during continental rifting. The Eu/Eu* (0.08–0.63), their large positive and negative Ce anomalies (Figure 3e,f,h) and chondrite-normalized REE patterns are close to that of magmatic zircons, which helps to classify them as magmatic. These may also represent zircon that crystallized in anatectic melts, as their geochemical features are similar to those of anatectic zircons.

Magmatic Affiliated Zircons

The variable Hf contents (6390–13,020 ppm) in the western Meiganga magmatic zircons, suggest a different degree of Hf substitution in the zircon lattice. The same interpretation is consistent for the U, Th, and Y contents, as they also show consistent variations. The Pb (42–629 ppm), Ti (2–133 ppm), Nb (0.2–7.0 ppm), and Ta (0.2–8.0 ppm) contents in the zircons, are significantly low to very low. The presence of relatively-high Pb concentrations (e.g., 618 ppm: MW036; 629 ppm: MW093) in some of these zircons may be due to high concentration of this element in source magma coupled with Pb from Th and U radiogenic decay [65]; In contrast, the very low Pb content may be due loss of radiogenic Pb by diffusion during the geological history of low-Pb zircon source rock (cf. [66,67,68,69]. Titanium does not frequently substitute for Zr in the zircon structure and the concentration is temperature dependent [70,71]. The low Ti in most of the zircons may be due of low degree of Ti substitution, and the absence of favorable temperature for its maximum concentration in those zircons. The relative high Ti content found in MW048 (Ti: 133 ppm) differentiates this zircon from others and relates its crystallization to a Ti-enriched environment, with significantly high temperature to facilitate Ti substitution in its structure.
The very low to low Nb and Ta contents in the western Meiganga zircons are probably due to the fact that these two elements do not easily substitute into the zircon structure. The highest Nb (6.9 ppm) and Ta (7.8 ppm) in some of those zircons can be explained by Nb, Ta, and REE coupled substitutions {(Y, REE)3+ + (Nb, Ta)5+ ↔ 2 Zr4+: [65]}, as those grains also have the highest ∑REE values. As shown in Figure 2d, there is a positive correlation between Nb and Ta showing that the degree of Nb and Ta substitution is the same, as most obtained Nb values are close to those of Ta.
The studied zircons are mostly REE enriched, as the ∑REE (generally below 800 ppm) are below those obtained ∑REE (up to 2161 ppm) in the Western Mamfe clastic zircons as studied by [12]. Within the REE suites, particular features were noted: the absence of La, extreme variation of Ce contents, high Nd in MW006 and Eu anomaly. The Zr4+ radius (0.84 Å) is close and matched the smaller HREE radii than larger LREE (e.g., La3+: 1.60 Å) such that the LREE are generally incompatible in the zircon structure [65]. The absence of La in the western Meiganga magmatic zircons may be due to the non-substitution of this element in their lattice, whereas the extreme variation of Ce abundance can be interpreted differently. For example, the below detection of Ce contents in part of the zircons may typify the lack of substitution of Ce and the presence of Ce3+ (incompatible in zircon structure) and very low oxidization state in the source magma [65]. The low Ce (1–18 ppm) and relatively high (150–330 ppm) contents found in some zircons are due to different oxidation state of Ce substitution in those grains. The low recorded Ce value can be due to limited Ce4+ concentrations (low oxidization condition) in their source magma, whereas the relatively high values may typify high Ce4+concentration (high oxidization state) [72].
The calculated Eu anomalies range from 0.08 to 1.8 with most of those values being below 1 (negative anomalies), indicating reducing condition. The Nd content (1020 ppm in MW006) is the highest obtained value for REE in the studied zircons. This feature differentiates the grain from others, as it also encloses the highest Pr, Sm, and Eu (positive anomaly: Figure 3a). It is difficult to discern a particular interpretation to this feature as data on fluid/melt and mineral inclusions are absent. The very pronounced Eu negative anomalies (Eu/Eu* ≤ 0.1) for the magmatic zircons, characterize reducing conditions and may reflect a crystallization of a mantle source magma as the Eu anomalies in this magma are very low [65]. The low negative Eu anomaly (0.1 < Eu/Eu* < 1; reducing condition) and relatively high positive Eu anomalies: Eu/Eu* = 1(no anomaly), and Eu/Eu* > 1 (positive anomaly: oxidizing condition) are the dominant features found in magmatic zircons that grew within the crust.

Source and Tectonic Frame Work

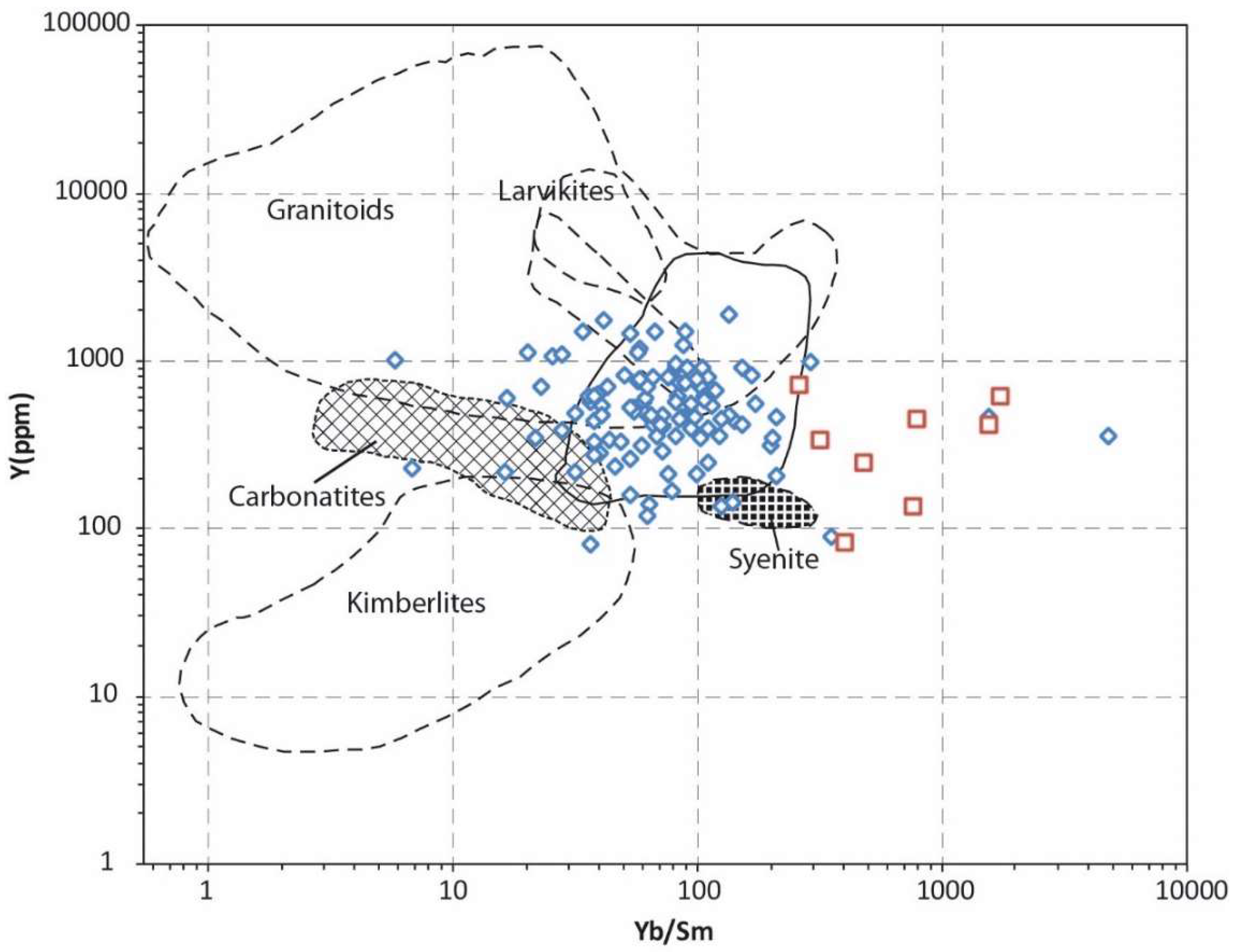

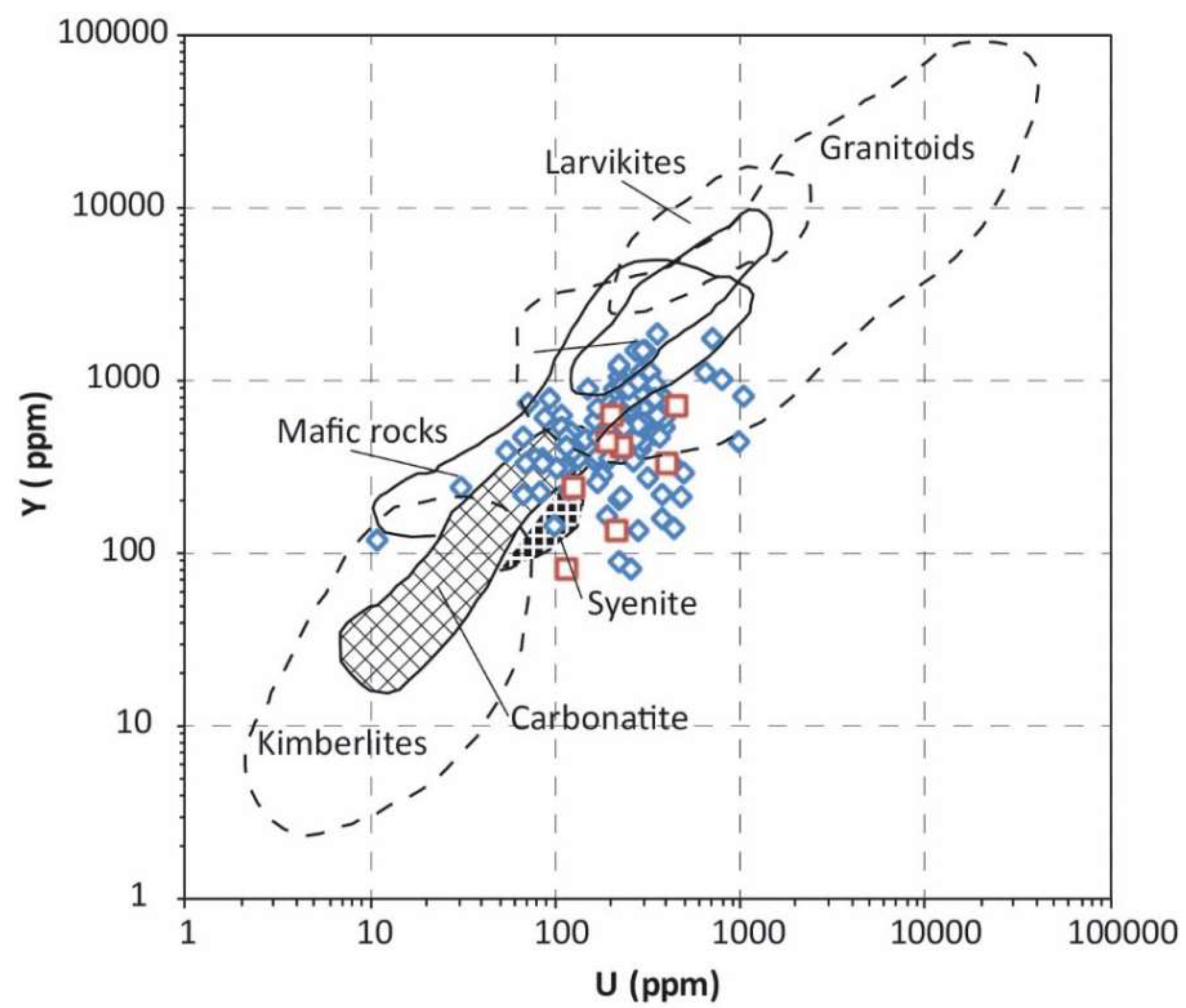

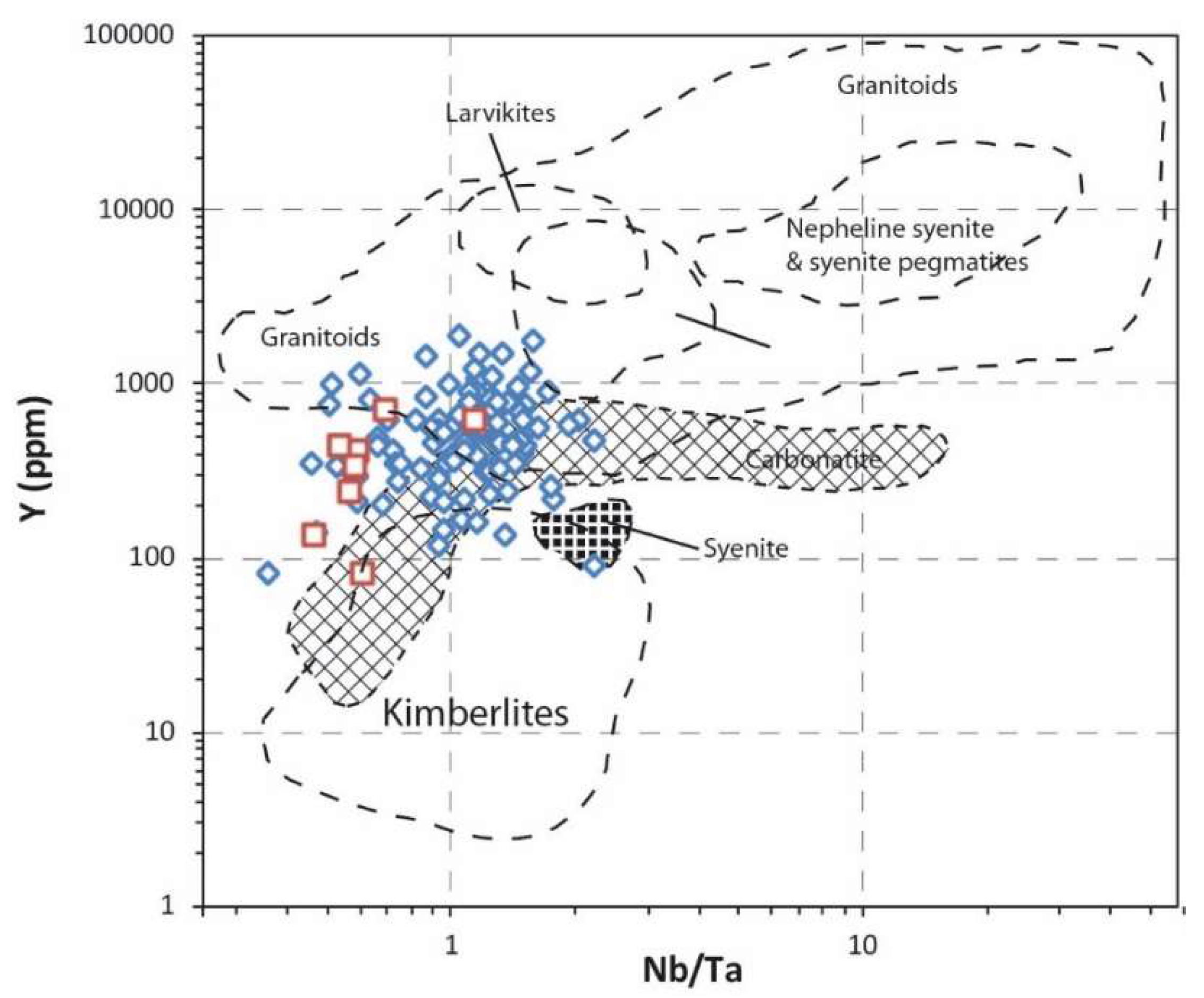

Hafnium, U, Th, Y, Ti, and REE abundances in zircons have been used to study the tectonic setting and identified a specific source rock type [19,27,73,74]. Heaman et al. [27] described the Hf content in zircons crystallized within a continental rift setting as below 9000 ppm. Hafnium contents in the western Meiganga detrital zircons are predominantly >9000 ppm; with part of the zircons grew during continental rifting. For [74] the Hf content in some zircons from oceanic crust is greater than 1.1 wt %. The Hf contents in part of the studied Hf-enriched zircons are within the range limit noted by [74] in oceanic crust zircons. However, it is not easy to associate the crystallization of these zircons (Hf > 10,000 ppm) to an oceanic crust setting, as some analyses/works are still needed to unequivocally support this hypothesis. Hafnium contents in zircons from alkaline magmatic rocks are below 11 wt % (e.g., [19,54]).
Element contents in part of the studied zircons are within the range limit in alkaline magmatic zircons; relating their crystallization in alkaline rocks. The group 1 (Hf ≤ 8910 ppm) are within the range (6000–8000 ppm) in nepheline-syenite zircons of [27], higher than the value (Hf = 5900 ppm) in syenites studied by [63]. Relating their crystallization to nepheline syenite is not possible, as they were not plotted in nepheline syenite field in any of the three diagrams in Figure 7, Figure 8 and Figure 9, but in kimberlite, syenite, granitoid, or mafic rocks. Those greater than 9000 ppm, are within the range in zircons from mafic rocks [27], dolerites [54], and some gabbro [74]. Those in group 3 (Hf ≥ 10,000 ppm) are within the range (dominantly within 10,065 and 12,981 ppm) in zircons from felsic rocks studied by [27], with some of those values close to those in zircons from [54]. The granitoid affiliation of some of those zircons is supported by their U abundance mostly within the range (154–4116 ppm) in [56] granitic zircons.
The U content of kimberlite lies between 3 and 69 ppm, Y between 4 and 194 ppm, and Yb between 0.16 and 36 ppm [54]. The geochemical features in grains (MW100 and MW113) are within the range limit of kimberlitic zircons, as they are plotted within the kimberlite field in Figure 7, Figure 8 and Figure 9. The dominant crustal origin of the western Meiganga zircons is confirmed with their U (>65 ppm) and Th (>45 ppm), Y and ∑REE contents, which generally fall within the range limit in [27], [54], and [65] crustal zircons. The Y (67–1867 ppm) values for the studied zircons are within the range limit in crystals from igneous rocks (e.g., 911–17,258 ppm: syenite pegmatite; 3243–20,612 ppm: nepheline-syenite pegmatite; 120–171: syenite; 83–2342 ppm: basalts; 821–4415 ppm: dolerite; 376–67,922 ppm: granitoids) [54]. Zircon saturation temperatures are a function of crystallization temperature and melt composition [75], and their relationship to Th/U ratios help to understand magmatic melt condition [60]. The calculated Ti-zircon-temperatures in Table 1, are highly heterogeneous with equal values obtained for some zircons (700 °C for MW033 and MW045), suggesting their crystallization at the same temperature. Those values compared to those for primary zircons published in [73,74], and show some correlation. The lowest values (≤697 °C) are more close to temperatures obtained for zircons from tonalites and granites, whereas higher values (700 ≥ T (°C) ≤ 787) are close to data for zircons from tonalites, rhyolitic, and dioritic rocks. Relatively high to very high values: 815 to 892 and 915 to 1065 °C, respectively, are mostly characteristics of zircons from gabbroic rocks, although the obtained temperature (815 °C for MW024) is equal to the maximum value for zircons from anorthosite found Kikkertavak Island, Nain Anorthosite Complex, Labrador studied by [73]. The Ti-zircon temperature correlations for the Western Meiganga magmatic affiliated zircons show that they are mainly composed of zircons from granitoids, anorthosite, tonalites, gabbroic and unidentified felsic intermediate rocks.

Metamorphic Affiliated Zircons

The Hf contents in the metamorphic affiliated zircons from the western Meiganga gold placer range from 9050 to 12,580 ppm, with some of the values being close to those of magmatic zircons found in this same placer. This similarity in Hf content shows that the degree of Hf substitution was almost the same in metamorphic and part of igneous zircons. The relative high Hf content (up to 12,580 ppm) shows that as for igneous zircons, they were crystallized in Hf-enriched melts. The Hf content in these zircons is greater than values that are found in zircons grown within continental rift settings [27]. They may be zircons crystallized within crustal settings during syn-tectonic to syn-metamorphic events, as their U contents are generally greater than values found in mantle-derived zircons.
The Y contents are dominantly greater than 250 ppm and are close to those found in some of the magmatic zircons from this placer, the same is valid for Nb, Ta, Sr, Ti and U contents, and Ti-in-zircon temperatures. This similarity in elemental content and temperature may be due to their similar crystallization conditions. The main difference is that the Th (2–17 ppm) and Pb (1–8 ppm) contents which are, generally, lower than quantified values in magmatic zircons, but are close or similar to some values published by [57] for zircons from Ultra-HP eclogites and metasediments. Relating the crystallization of those metamorphic zircons to Ultra-HP eclogites and metasediments is not easy as more analyses are needed. The depletion in Th and Pb contents may relate their crystallization within Th and Pb depleted melts with low degree of Th and Pb substitution. They may be re-crystallized grains, as re-crystallized zircons are often Hf-enriched and Th–Pb-depleted [65]. Other features distinguishing the metamorphic zircons from the magmatic grains is the enrichment in HREE with respect to LREE is much more variable than that observed in magmatic zircon, and the low MREE. The low MREE in metamorphic zircons is interpreted to be due to the relative depletion of these elements in their crystallization milieu [49]. Some of the zircons that possess relatively depleted HREE abundances and very small negative Eu anomalies (Eu/Eu* = 0.24–0.63), have features found in zircons grown by net transfer reactions in high-grade metamorphic rocks [57]. A negative Eu anomaly is a common feature of HT metamorphic rocks [75]. The calculated Eu anomalies and plotted data in Figure 4 for these zircons are negative and positive, with positive values found in zircon with highest Ti-zircon temperatures; contradicting the above information. Those with positive Eu anomalies were probably grown in oxidizing conditions at high temperature.
The composition of metamorphic zircon in equilibrium with an anatectic melt does not differ greatly from igneous zircons. The zircons are enriched in trace elements and have steep REE patterns increasing from La to Lu with positive Ce and negative Eu anomalies [65]. The features presented above are characteristics of MW001, and relate its crystallization in an anatectic melt. The normalized-chondrite REE data presented in Figure 4 and based on [65] studies, distinguished two main generations of zircons: those produced by sub-solidus growth in equilibrium with garnet (e.g., MW015, MW022, and MW052) and grew in equilibrium with anatectic melt (e.g., MW001). Two groups are distinguished within the first generation: (1) zircons with positive Eu anomaly and (2) grains with negative Eu anomaly. The features in group 2 zircons are common in metamorphic zircons [57], but those presented in group 1 are difficult to interpret as data on source rocks are lacking. For [76] in petrogenesis of metamorphic rocks, during high temperature metamorphism within crustal environments and at the pressure of 500 MPa, and in the presence of an aqueous fluid, granitic rocks begin to melt at a temperature of about 660 °C, whereas basaltic rocks need a much higher temperature of about 800 °C.
The measured Ti-zircon temperature in the metamorphic zircon grains ranges from 571 to 665 °C with the highest value being close to temperatures recorded at the beginning of fusion of granitic rocks. Those with relative high temperature (621 to 665 °C: close to some magmatic zircons), may be the grains crystallized at the beginning of melting of granitic parent rocks during high temperature regional metamorphism. The type of the metamorphism (subduction type or collisional type) is difficult to be determined by simple examination of geochemical features and temperature in clastic zircons, although the recorded temperature for those zircons are much closer to the highest temperatures (up to 700 °C) obtained during subduction-type orogenic metamorphism [76].

5.1.2. Detrital Zircon Geochronology and the Potential Source of Gold Placer

The recorded 206Pb/238U ages ranging from 576 ± 10 to 2927 ± 52 Ma (Table 3 and Figure 5 and Figure 6), are highly heterogeneous, with the youngest ages (≤611 Ma) recorded mostly in metamorphic zircons and oldest ages in mainly those of a magmatic origin. Major age peaks are: Neoproterozoic, late Mesoproterozoic, late Paleoproterozoic, early Paleoproterozoic, and Archean. The metamorphic zircons were mainly crystallized during the Neoproterozoic, whereas the magmatic grains grew during Archean to early Neoproterozoic. Those suggested to crystallize by partial melt segregation were formed during Archean to Paleoproterozoic (2585 ± 45 to 1958 ± 39 Ma) with most of them being of Paleoproterozoic. The mostly magmatic nature of the zircons shows that their source areas are dominantly made of magmatic rocks and/or metamorphic rocks with inherited igneous zircons. The ages of some of the magmatic zircons are similar, suggesting that they have been crystallized at the same time and derived likely from the same rock type.
The age of the magmatic zircon grains is extremely variable, with the peak of crystallization of early Paleoproterozoic, followed by late Paleoproterozoic, late Mesoproterozoic and Archean. This shows that rocks of these ages dominantly provided part of the detritus forming the western Meiganga gold placer. A few were eroded from late Mesoproterozoic and Neoproterozoic age rocks. Within these 5 groups (Archean to early Neoproterozoic), 7 sub-groups can be distinguished with the peak being that of the Rhyacian to Orosirian (2050–1807 Ma). If they are from different source rocks, it should reflect the existence of different magmatic history in their source areas. It started during Rhyacian and continues up to Orosirian. This hypothesis is confirmed by the geochemical characteristics presented above. A single grain (MW105: Hf = 8970 ppm; age: 1922 Ma) is suggested to have crystallized within a continent rift setting, whereas the other grains (Hf > 9000 ppm) are not related to continental rifting. The same interpretation can be applied to other Paleoproterozoic zircons, which are also composed of a population crystallized within rift settings and non-rifting settings. From a general point of view, with the exception of the Mesoproterozoic and early Neoproterozoic age zircons that were exclusively not crystallized during rifting, the other zircon sub-groups are composed of those crystallized during rifting and out of rifting. What is remarkable is that the oldest zircons found in the Archean sub-group were crystallized within a continental rift setting. This shows that the magmatic history in their source of area of the Archean zircons started with rifting and mainly continued by crustal crystallization for the youngest grains, although late and post-Archean rifting were also registered.
The metamorphic zircons ranging in age from 1915 to 576 Ma (206Pb/238U ages) are also variable; they are dominantly composed of grains crystallized during the Neoproterozoic (Ediacarian) with just one grain of Paleoproterozoic (Orosirian). The Hf (>9000 ppm) and U (>65 ppm) contents show that they grew within a crustal setting. The youngest zircons of Neoproterozoic age may be grains formed during metamorphic transformation of oldest rocks found in the source area. The heterogeneity of these ages led to the distinguishing of two generations of metamorphic events within the source area: the Orosirian (the oldest) and the Ediacarian (youngest). This also shows that rocks of those ages provided part of the sediments found in the western Meiganga gold placer. The Ediacarian grains may be zircons crystallized during Pan-African events (730–550 Ma: [77]; 850–550 Ma: [78]) fingerprinted within the Cameroon mobile zone that was formed during the Neoproterozoic, from the collision between the Saharan metacraton and the Congo Craton [29,30]. The age (1915 ± 45 Ma) of the oldest metamorphic zircon date the Eburnean tectonic and metamorphic event (2400–1800 Ma: [79]) in Cameroon.

5.2. Potential Source Rock(s) and Area(s): Implications for Siliciclastic Components

A series of ages were obtained for some rocks found within the local geological setting (e.g., in [28,35,36,37,38]). These ages are compared to those obtained in this study in order to locate the potential source rocks. The U–Pb zircon ages (2339–1887 Ma, 889–675 Ma [35]) for amphibole-biotite gneiss in Meiganga are close to the 206Pb/238U age of some of the studied detrital zircons (Table 4). The similarity is mainly for the oldest zircons; the maximum age 2339 Ma and 1887 Ma for zircons from amphibole-biotite gneiss are almost similar to 2338 Ma (MW019), 1886 Ma (MW021), and 1883 Ma (MW094) zircons. These similarities in age suggest that those zircons were probably eroded from this rock. Similarities are also observed for zircon ages of pyroxene-amphibole-bearing gneiss (≈2.6 to ≈1.6 Ga: [35,38] and meta-diorite (619 to 582 Ma: [36,38]) found in this locality (Table 4); the relationship is consistent for the pyroxene-amphibole-bearing gneiss, than metadiorite, as the youngest dated zircons from the gold placer are metamorphic, whereas zircons from meta-diorite are magmatic. Those youngest zircons were not sorted from the metadiorite, but from an unknown metamorphic rock formed during the same period. Clastic zircons whose age is close to that of pyroxene-amphibole gneiss, where likely derived from this rock. The mean zircons ages: 2645 Ma (Archean), 2309 to 1845 Ma (early to late Paleoproterozoic) obtained for two mica granite found in the western part of Meiganga [28,38], are close to the core age of some Archean (e.g., MW041: 2652 Ma) and similar to late Paleoproterozoic (e.g., MW106: 1842 Ma; MW086: 1862 Ma; MW073: 1848 Ma; MW075: 1839 Ma) zircons from the placer. This age similarity and their magmatic nature (in Figure 7, Figure 8 and Figure 9) indicate that part the oldest zircons were sorted from the two mica-rich granitic rock.
It is possible to establish some correlations within the regional geological settings based on their provenance, paleoweathering and paleotectonic conditions [80]. The Archean ages for the western Meiganga detrital zircons are close to the ages of TTG and other rocks found in Congo Craton (Table 5). The ages (early to late Archean) of the oldest grains are similar to those of some charnockites, tonalites, granodiorites and high-K-granites, found in the Ntem Complex in the north western part of the Congo Craton. This age similarities show the studied zircons and those found in rocks presented above were probably crystallized during the same period (early to late Archean). The Mesoproterozoic and part of Paleoproterozoic grains also have the same age range as those found in, Yobé granite (Cameroon), Doum-Lolodorf and Mengueme syenites, meta dolerite dykes, charnockites, and granodiorites in Sangmelima (Table 5). This similarity in age shows that these zircons and those found in the above rocks were crystallized during the same period.
The source rocks of those detrital zircons are the same nature as those described above (syenitic, doleritic, charnockitic, or granitic) that are distinguished from their geochemical variations. The Neoproterozoic ages (611–576 Ma) of the youngest zircons found within the western Meiganga placer overlap the range of ages for Pan-African zircons found along the Cameroon mobile belt, indicating their crystallization period and has implications on tracking gold placer source(s).

6. Conclusions

The western Meiganga detrital zircons are highly heterogeneous detritus crystallized in chemically enriched and depleted magmatic and metamorphic rocks. The magmatic zircons were crystallized and probably eroded from granitoids, syenites, kimberlites, tonalites, charnockites, and/or unidentified mafic rocks. Their ages of crystallization are Archean, early and late Paleoproterozoic, late Mesoproterozic, and Neoproterozoic. The Neo-archean zircons are inherited crystals and were probably eroded from local pyroxene-amphibole gneiss. Part of the late Paleoproterozoic zircons were probably sorted from two mica granite found in the west of Meiganga. The source of early Proterozoic zircons can possibly be the amphibole-biotite gneiss. The sources of the other grains, with ages close to those of some magmatic rocks are found within the Congo Craton in the South of Cameroon remain to be determined locally.
The metamorphic zircons (late Paleoproterozoic and Neoproterozoic in age) were formed during two tectono-metamorphic events: the Eburnean and Pan- African.

Author Contributions

Kanouo Sylvestre Nguo, Ngueutchoua Gabriel and Kouske Patrice Arnaud, presented and interpreted the results, and conceived the research paper. Yongue Fouateu Rose and Venkatesh Satya Akella edited the paper and also contributed to revise the paper at different stages of the reviewing~process.

Acknowledgments

The authors are grateful to personnel of Department Earth Sciences and Earth Research Institute, University of California, Santa Barbara, CA, USA, for the financial support and laboratory facilities during the geochemical analyses and U–Pb dating of the western Meiganga detrital zircons. Special thanks to John Cottle of the University of California for financing and analyzing the zircons and for his valuable suggestions. The authors extend their gratitude and thanks to David Richard Lentz at the University of New Brunswick for his insightful comments and initial reviews on this manuscript. The authors thank Editor, Associate Editor and reviewers for their useful comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Evans, M.A. Ore Geology and Industrial Minerals: An Introduction, 3rd ed.; Backwell Pubishing: Hoboken, NJ, USA, 1993; p. 403. [Google Scholar]
  2. Force, E.R. Placer Deposits. In Sedimentary and Diagenetic Mineral Deposits, a Basin Analysis Approach to Exploration; Force, E.R., Eidel, J.J., Maynard, J.B., Eds.; Economic Geologic Society: Littleton, CO, USA, 1991. [Google Scholar]
  3. Robb, L. Introduction to Ore-Forming Processes; Backwell Publishing: Hoboken, NJ, USA, 2005; p. 386. [Google Scholar]
  4. Eynatten, V.H.; Gaupp, R. Provenance of Cretaceous synorogenic sandstones in the Eastern Alps: Constraints from framework petrography, heavy mineral analysis and mineral chemistry. J. Sed. Geol. 1999, 124, 81–111. [Google Scholar] [CrossRef]
  5. Morton, C.A.; Claoue-Long, C.J.; Hallsworth, C.R. Zircon age and heavy mineral constraints of North Sea Carboniferous sandstones. Mar. Pet. Geol. 2001, 18, 319–337. [Google Scholar] [CrossRef]
  6. Pakhomova, A.V.; Zalishchak, L.B.; Odarichenko, G.E.; Lapina, I.M.; Karmanov, S.N. Study of melt inclusions in the Nezametnoye corundum deposit, Primorsky region of the Russian Far East: Petrogenetic consequences. J. Geochem. Explor. 2006, 89, 302–305. [Google Scholar] [CrossRef]
  7. Zack, T.; Eynatten, V.H.; Kronz, A. Rutile geochemistry and its potential use in quantitative provenance studies. J. Sed. Geol. 2004, 171, 37–58. [Google Scholar] [CrossRef]
  8. McClenaghan, B.M. Overview of processing methods for recovery of indicator minerals from sediment and bedrock samples. In Proceedings of the Workshop in the 25th International Applied Geochemistry Symposium, Rovaniemi, Finland, 22–26 August 2011; p. 72. [Google Scholar]
  9. Kanouo, S.N.; Yongue, F.R.; Shouyu, C.; Njonfang, E.; Ma, C.; Ghogumo, T.R.; Jiangnan, Z.; Sababa, E. Greyish black rutile megaclasts from the Nsanaragati Gem Placer, SW Cameroon: Geochemical features and genesis. J. Geogr. Geol. 2012, 3, 134–146. [Google Scholar] [CrossRef]
  10. Kanouo, S.N.; Zaw, K.; Yongue, F.R.; Sutherland, L.F.; Meffre, S.; Njonfang, E.; Ma, C.; Tchouatcha, S.T. U–Pb zircon age constraining the source and provenance of gem-bearing Late Cenozoic detrital deposit, Mamfe Basin, SW Cameroon. Resour. Geol. 2012, 62, 316–324. [Google Scholar] [CrossRef]
  11. Kanouo, S.N.; Yongue, F.R.; Ekomane, E.; Njonfang, E.; Ma, C.; Lentz, D.R.; She, Z.; Zaw, K.; Venkatesh, A.S. U–Pb ages for zircon grains from Nsanaragati Alluvial Gem Placers: Its correlation to the source rocks. Resour. Geol. 2015, 65, 103–121. [Google Scholar] [CrossRef]
  12. Kanouo, S.N.; Ekomane, E.; Yongue, F.R.; Njonfang, E.; Zaw, K.; Ma, C.; Ghogomu, R.T.; Lentz, D.R.; Venkatesh, A.S. Trace elements in corundum, chrysoberyl, and zircon: Application to mineral exploration and provenance study of the western Mamfe gem clastic deposits (SW Cameroon, Central Africa). J. Afr. Earth Sci. 2016, 113, 35–50. [Google Scholar] [CrossRef]
  13. Kanouo, S.N. Geology of the Western Mamfe Corundum Deposits, SW Region Cameroon: Petrography, Geochemistry, Geochronology, Genesis, and Origin. Ph.D. Thesis, University of Yaoundé I, Yaoundé, Cameroon, 2014. [Google Scholar]
  14. Taivalkoski, A.; Sarala, P.; Hulkki, H. Gold exploration using heavy minerals in till and weathered bedrock in Petäjäselkä, northern Finland. Geochem. Explor. Env. Analy. 2013, 15, 205–221. [Google Scholar] [CrossRef]
  15. Mbih, P.K.; Meffre, S.; Yongue, F.R.; Kanouo, S.N.; Thomson, J. Chemistry and origin of the Mayo Kila sapphires, NW region Cameroon (Central Africa): Their possible relationship with the Cameroon volcanic line. J. Afr. Earth Sci. 2016, 118, 263–273. [Google Scholar] [CrossRef]
  16. Fedo, M.C.; Keith, N.S.; Robert, H.R. Detrital Zircon Analysis of the Sedimentary Record. In Reviews in Mineralogy and Geochemistry; Mineralogical Society of America: Washington, DC, USA, 2003; Volume 53, pp. 277–333. [Google Scholar]
  17. Murphy, B.J.; Fernandez-Suarez, J.; Jeffries, T.; Strachan, R. U–Pb (LA-ICP-MS) dating of detrital zircons from Cambrian clastic rocks in Avalonia: Erosion of a Neoproterozoic arc along the northern Gondwana margin. J. Geol. Soc. Lond. 2004, 161, 243–254. [Google Scholar] [CrossRef]
  18. Paulsen, T.; Deering, C.; Sliwinski, J.; Bachmann, O.; Guillong, M. New detrital zircon age and trace element evidence for 1450 Ma igneous zircon sources in East Antarctica. Precambrian Res. 2017, 300, 53–58. [Google Scholar] [CrossRef]
  19. Veevers, J.J.; Belousova, A.E.; Saeed, A.; Sircombe, K.; Cooper, F.A.; Read, E.S. Pan-Gondwanaland detrital zircons from Australia analyzed for Hf-isotopes and trace elements reflect an ice-covered Antarctic provenance of 700–500 Ma age, TDM of 2.0–1.0 Ga, and alkaline affinity. Earth Sci. Rev. 2006, 76, 135–174. [Google Scholar] [CrossRef]
  20. Belousova, E.A.; Kostitsyn, Y.A.; Griffin, W.L.; Begg, G.C.; O’Reilly, S.Y.; Pearson, N.J. The growth of the continental crust: Constraints from zircon Hf-isotope data. Lithos 2010, 119, 457–466. [Google Scholar] [CrossRef]
  21. Dickinson, W.R.; Gehrels, G.E. Use of U–Pb ages of detrital zircons to infer maximum depositional ages of strata: A test against a Colorado Plateau Mesozoic database. Earth. Planet. Sci. Lett. 2009, 288, 115–125. [Google Scholar] [CrossRef]
  22. Makoundi, C.; Zaw, K.; Large, R.R.; Meffre, S.; Chun-Kit, L.; Hoe, G.T. Geology, geochemistry and metallogenesis of the Selinsing gold deposit, central Malaysia. Gondwana Res. 2013, 26, 241–261. [Google Scholar] [CrossRef]
  23. McQuarrie, N.; Long, P.S.; Tobgay, T.; Nesbit, N.J.; Gehrels, G.; Ducea, N.M. Documenting basin scale, geometry and provenance through detrital geochemical data: Lessons from the Neoproterozoic to Ordovician Lesser, Greater, and Tethyan Himalayan strata of Bhutan. Gondwana Res. 2013, 23, 1491–1510. [Google Scholar] [CrossRef]
  24. Kanouo, S.N.; Njonfang, E.; Kouské, P.A.; Yongue, F.R.; Ngueutchoua, G. U–Pb zircon age: Preliminary data evaluating the Earth history recorded by two basement rocks (granitic pegmatite and mica-Schist) in Mamfe Basin (SW Cameroon, Central Africa). J. Geol. Geophys. 2017, 6, 1–9. [Google Scholar] [CrossRef]
  25. Kresten, P.; Fels, P.; Berggren, G. Kimberlite zircons a possible aid in prospecting for kimberlites. Miner. Depos. 1975, 10, 47–56. [Google Scholar] [CrossRef]
  26. Sutherland, L.F.; Meffre, S. Zircon megacryst age and chemistry, from a placer, Dunedin volcanic area, eastern Otago, New Zealand. N. Z. J. Geol. Geophys. 2009, 52, 185–194. [Google Scholar] [CrossRef]
  27. Heaman, L.M.; Bowins, R.; Crocket, J. The chemical composition of igneous zircon suites: Implications for geochemical tracer studies. Geochem. Cosmochem. Acta 1990, 54, 1597–1607. [Google Scholar] [CrossRef]
  28. Ganwa, A.A. Les Granitoïdes de Méiganga: Etude Pétrographique, Géochimique, Structurale et Géochronologique. Leur Place Dans la Chaîne Panafricaine. Thèse de Doctorat d’État ès Sciences Naturelles, Université de Yaoundé I, Yaoundé, Cameroon, 2005. [Google Scholar]
  29. Abbelsalam, G.M.; Liégeois, P.J.; Stern, J.R. The Saharan Metacraton. J. Afr. Earth Sci. 2002, 34, 119–136. [Google Scholar] [CrossRef]
  30. Ngako, V.; Njonfang, E.; Affaton, P. Pan-African tectonics in northwestern Cameroon: Implication for the history of the western Gondwana. Gondwana Res. 2008, 14, 509–522. [Google Scholar] [CrossRef]
  31. Nzenti, J.P.; Barbey, P.; Macaudiere, J.; Soba, D. Origin and evolution of the Late Precambrian high-grade Yaoundé gneisses (Cameroon). Precambrian Res. 1988, 38, 91–109. [Google Scholar] [CrossRef]
  32. Nzenti, J.P. Neoproterozoic alkaline meta-igneous rocks from the Pan-African north Equatorial Fold Belt (Yaoundé, Cameroon): Biotitites and magnetite rich pyroxenites. J. Afr. Earth Sci. 1998, 26, 37–47. [Google Scholar] [CrossRef]
  33. Toteu, F.S.; Van Schmus, W.R.; Penaye, J.; Michard, A. New U–Pb and Sm–Nd data from north-central Cameroon and it bearing on the Pre-Pan African history of Central African. Precambrian Res. 2001, 108, 45–73. [Google Scholar] [CrossRef]
  34. Ngako, V.; Affaton, P.; Nnangue, J.M.; Njanko, T. Pan-African tectonic evolution in central and southern Cameroon: Transpression and transtension during sinistral shear movements. J Afr. Earth Sci. 2003, 36, 207–214. [Google Scholar] [CrossRef]
  35. Ganwa, A.A.; Frisch, W.; Siebel, W.; Ekodeck, E.G.; Shang, K.C.; Ngako, V. Archean Inheritances in the Pyroxene-Amphibole-Bearing Gneiss of the Méiganga Area (Central North Cameroon): Geochemical and 207Pb/206Pb Age Imprints. C. R. Geosci. 2008, 340, 211–222. [Google Scholar] [CrossRef]
  36. Ganwa, A.A.; Siebel, W.; Shang, K.C.; Naimou, S.; Ekodeck, G.E. New Constraints from Pb-Evaporation Zircon Ages of the Méiganga Amphibole-Biotite Gneiss, Central Cameroon, on Proterozoic Crustal Evolution. Int. J. Geosci. 2011, 2, 138–147. [Google Scholar]
  37. Ganwa, A.A.; Frisch, W.; Siebel, W.; Shang, C.K. Geochemistry of Magmatic Rocks and Time Constraints on Deformational Phases and Shear Zone Slip in the Méiganga Area, Central Cameroon. Int. Geol. Rev. 2011, 53, 759–784. [Google Scholar] [CrossRef]
  38. Ganwa, A.A.; Klotzli, S.U.; Hauzenberger, C. Evidence for Archean inheritance in the pre-Panafrican crust of Central Cameroon: Insight from zircon internal structure and LA-MC-ICP-MS U–Pb ages. J. Afr. Earth Sci. 2016, 120, 12–22. [Google Scholar] [CrossRef]
  39. Tetsopgang, S.; Suzuki, K.; Njonfang, E. Petrology and CHIME geochronology of Pan-African high K and Sr/Y granitoids in the Nkambe area, Cameroon. Gondwana Res. 2008, 14, 686–699. [Google Scholar] [CrossRef]
  40. Lasserre, M. Etude Géologique de la Partie Orientale de L’adamaoua (Cameroun Central) et les Principales Sources Minéralisées de L’adamaoua; Université de Clermont-Ferrand: Clermont-Ferrand, France, 1961. [Google Scholar]
  41. Kenna, H.S. Prospection des Indices de Minéralisations d’or Dans la Zone de Meiganga Ouest. Master’s Thesis, Université de Yaoundé I, Yaoundé, Cameroon, 2015. [Google Scholar]
  42. Moles, N.; Chapman, R. Placer gold microchemistry in conjunction with mineralogy and mineral chemistry of heavy mineral concentrates to characterize bedrock sources. In Proceedings of the 25th International Applied Geochemistry Symposium, Rovaniemi, Finland, 22–26 August 2011; pp. 19–25. [Google Scholar]
  43. Parfenoff, A.; Pomerol, C.; Tourenq, J. Les Minéraux en Grains. Méthodes D’étude et Détermination; Masson et Cie Edition: Paris, France, 1970; p. 571. [Google Scholar]
  44. Mange, A.M.; Maurer, W.F.H. Heavy Minerals in Colour, 1st ed.; Chapman and Hall: London, UK, 1992; p. 154. [Google Scholar]
  45. Cottle, J.M.; Waters, D.J.; Riley, D. Metamorphic history of the South Tibetan Detachment System, Mt. Everest region, revealed by RSCM thermometry and phase equilibria modelling. J. Metamorph. Geol. 2011, 29, 561–582. [Google Scholar] [CrossRef]
  46. Cottle, J.M.; Burrows, A.J.; Kylander-Clark, A.; Freedman, P.A.; Cohen, R. Enhanced sensitivity in laser ablation multi-collector inductively coupled plasma mass spectrometry. J. Anal. At. Spectrom. 2013. [Google Scholar] [CrossRef]
  47. Kylander-Clark, A.R.C.; Hacker, B.R.; Cottle, J.M. Laser-ablation split-stream ICP petrochronology. Chem. Geol. 2013, 345, 99–112. [Google Scholar] [CrossRef]
  48. Paton, C.; Woodhead, J.; Hellstrom, J.; Hergt, J.; Greig, A.; Maas, R. Improved laser ablation U–Pb zircon geochronology through robust down hole fractionation correction. Geochem. Geophys. Geosyst. 2010, 11. [Google Scholar] [CrossRef]
  49. Wiedenbeck, M.; Alle, P.; Corfu, F.; Grin, W.; Meier, M.; Oberli, F.; Von Quadt, A.; Roddick, J.; Spiegel, W. Three natural zircon standards for U–Th–Pb, Lu–Hf, trace element and REE analyses. Geostand. Newslett. 1995, 19, 1–23. [Google Scholar] [CrossRef]
  50. Jackson, S.; Pearson, N.; Griffin, W.; Belousova, E. The application of laser ablation-inductively coupled plasma-mass spectrometry to in situ U/Pb zircon geochronology. Chem. Geol. 2004, 657, 47–69. [Google Scholar] [CrossRef]
  51. Ludwig, K. User’s Manual for Isoplot 2.4: A Geochronological Toolkit for Microsoft Excel; Berkeley Geochronology Center: Berkeley, CA, USA, 2012. [Google Scholar]
  52. Vermeesch, P. On the visualisation of detrital age distributions. Chem. Geol. 2012, 312–313, 190–194. [Google Scholar] [CrossRef]
  53. Steiger, R.; Jager, E. Subcommission on geochronology: Convention on the use of decay constants in geo- and cosmochronology. Earth Planet. Sci. Lett. 1977, 36, 359–362. [Google Scholar] [CrossRef]
  54. Belousova, A.E.; Griffin, L.W.; O’Reilly, Y.S.; Fisher, I.N. Igneous zircon: Trace element composition as an indicator of source rock type. J. Miner. Petrol. 2002, 143, 602–622. [Google Scholar] [CrossRef]
  55. Dawaï, D.; Jean-Luc Bouchez, L.J.; Paquette, L.J.; Tchameni, R. The Pan-African quartz-syenite of Guider (north-Cameroon): Magnetic fabric and U–Pb dating of a late orogenic emplacement. Precambrian Res. 2013, 236, 132–144. [Google Scholar] [CrossRef]
  56. Ahrens, L.H.; Cherry, R.D.; Erlank, A.J. Observations on the Th–U relationship in zircons from granitic rocks and from kimberlites. Geochim Cosmochim. Acta 1967, 31, 2379–2387. [Google Scholar] [CrossRef]
  57. Rubatto, D. Zircon trace element geochemistry: Partitioning with garnet and link between U–Pb ages and metamorphism. Chem. Geol. 2002, 184, 123–138. [Google Scholar] [CrossRef]
  58. Konzett, J.; Armstrong, R.A.; Sweeny, R.J.; Compston, W. The timing of Marid suite metasomatism in the Kaapvaal mantle: An ion probe study of zircons from Marid xenoliths. Earth Planet. Sci. Lett. 1998, 160, 133–145. [Google Scholar] [CrossRef]
  59. McDonough, F.W.; Sun, S.S. The composition of the Earth. Chem. Geol. 1995, 120, 223–253. [Google Scholar] [CrossRef]
  60. Kirkland, C.L.; Smithies, R.H.; Taylor, R.J.M.; Evans, N.; McDonald, B. Zircon Th/U ratios in magmatic environs. Lithos 2015, 212–215, 397–414. [Google Scholar] [CrossRef]
  61. Sutherland, F.L.; Coenraads, R.R.; Abduryim, A.; Meffre, S.; Hoskin, O.W.P.; Giuliani, G.; Beattie, R.; Wuhrer, R.; Sutherland, B.G. Corundum (sapphire) and zircon relationships, Lava Plains gem fields, NE Australia: Integrated mineralogy, geochemistry, age determination, genesis and geographical typing. Miner. Mag. 2015, 79, 545–581. [Google Scholar] [CrossRef]
  62. Shang, C.K.; Satir, M.; Siebel, W.; Nsifa, E.N.; Taubald, H.; Liegeois, J.P.; Tchoua, F.M. Major and trace element geochemistry, Rb–Sr and Sm–Nd systematics of TTG magmatism in the Congo craton: Case of the Sangmelima region, Ntem complex, southern Cameroon. J. Afr. Earth Sci. 2004, 40, 61–79. [Google Scholar] [CrossRef]
  63. Wan, Y.; Liu, D.; Dong, C.; Liu, S.; Wang, S.; Yang, E. U–Th–Pb behavior of zircons under high-grade metamorphic conditions: A case study of zircon dating of met-adiorite near Qixia, eastern Shandong. Geosci. Front. 2011, 2, 137–146. [Google Scholar] [CrossRef]
  64. Hiess, J.; Nutman, A.P.; Bennett, V.C.; Holden, P. Ti-in-zircon thermometry applied to contrasting Archean metamorphic and igneous systems. Chem. Geol. 2008, 247, 323–338. [Google Scholar] [CrossRef]
  65. Hoskin, P.W.O.; Schaltegger, U. The composition of zircon and igneous and metamorphic petrogenesis. In Reviews in Mineralogy and Geochemistry; Mineralogical Society of America: Washington, DC, USA, 2003; Volume 53, pp. 27–55. [Google Scholar]
  66. Kröner, A.; Jaeckel, P.; Williams, I.S. Pb-loss patterns in zircons from a high grade metamorphic terrain as revealed by different dating methods: U–Pb and Pb–Pb ages of igneous and metamorphic zircons from Northern Sri Lanka. Precambrian Res. 1994, 66, 151–181. [Google Scholar] [CrossRef]
  67. Whitehouse, M.J.; Kamber, B.S.; Moorbath, S. Age significance of U–Th–Pb zircon data from early Archean rocks of west Greenland-a reassessment based on combined ion-probe and imaging studies. Chem. Geol. 1999, 160, 201–224. [Google Scholar] [CrossRef]
  68. Shang, C.K.; Siebel, W.; Satir, M.; Chen, F.; Mvondo, J.O. Zircon Pb–Pb and U–Pb systematics of TTG rocks in the Congo craton: Constraints of crustal formation, crystallization and Pan-African lead loss. Bull. Geosci. 2004, 79, 205–219. [Google Scholar]
  69. Shang, K.C.; Liégeois, P.J.; Satir, M.; Frisch, W.; Nsifa, E.N. Late Archaean high-K granite geochronology of the northern metacratonic margin of the Archaean Congo craton, Southern Cameroon: Evidence for Pb-loss due to non-metamorphic causes. Gondwana Res. 2010. [Google Scholar] [CrossRef]
  70. Watson, E.B.; Wark, A.D.; Thomas, B.J. Crystallization thermometers for zircon and rutile. Contrib. Miner. Petrol. 2006, 151, 413–433. [Google Scholar] [CrossRef]
  71. Cherniak, D.J.; Watson, E.B. Ti diffusion in zircon. Chem. Geol. 2007, 242, 470–483. [Google Scholar] [CrossRef]
  72. Murali, A.V.; Parthasarathly, R.; Mahadevan, T.M.; Sankar Das, M. Trace elements characteristics, REE patterns and partition coefficient of zircons from different geological environment-A case study of Indian zircons. Geochem. Cosmochem. Acta 1983, 47, 2047–2052. [Google Scholar] [CrossRef]
  73. Fu, B.; Page, F.Z.; Cavosie, A.J.; Fournelle, J.; Kita, N.T.; Lackey, J.S.; Wilde, S.A.; Valley, J.W. Ti-in-zircon thermometry: Applications and limitations. Contrib. Miner. Petrol. 2008. [Google Scholar] [CrossRef]
  74. Grimes, C.B.; John, E.B.; Cheadle, J.M.; Mazdab, K.F.; Wooden, L.J.; Swapp, S.; Schwartz, J.J. On the occurrence, trace element geochemistry, and crystallization history of zircon from in situ ocean lithosphere. Contrib. Miner. Petrol. 2009. [Google Scholar] [CrossRef]
  75. Hoskin, P.W.O.; Black, L.P. Metamorphic zircon formation by solid-state recrystallization of protolith ignous zircon. J. Met. Petrol. 2000, 18, 423–439. [Google Scholar] [CrossRef]
  76. Bucher, K.; Grapes, R. Petrogenesis of Metamorphic Rocks, 8th ed.; Springer: Berlin/Heidelberg, Germany, 2011; p. 441. [Google Scholar]
  77. Black, R.; Liegeois, P.J. Cratons, mobile belts, alkaline rocks and continental lithospheric mantle: The Pan-African testimony. J. Geol. Soc. Lond. 1993, 150, 89–98. [Google Scholar] [CrossRef]
  78. Kröner, A.; Stern, J.R. Pan-African Orogeny; Encyclopedia of Geology; Elsevier: Amsterdam, The Netherlands, 2004; Volume 1, pp. 1–12. [Google Scholar]
  79. Lasserre, M.; Soba, D. Age Libérien des granodiorites et des gneiss à pyroxènes du Cameroun Méridional. Bull. BRGM 1976, 2, 17–32. [Google Scholar]
  80. Kumar, A.; Venkatesh, A.S.; Kumar, P.; Rai, A.K.; Parihar, P.S. Geochemistry of Archean Radioactive Quartz Pebble Conglomerates and Quartzites from western margin of Singhbhum-Orissa Craton, eastern India: Implications on Paleo-weathering, Provenance and Tectonic Setting. Ore Geol. Rev. 2017, 89, 390–406. [Google Scholar] [CrossRef]
  81. Toteu, S.F.; Van Schmus, W.R.; Penaye, J.; Nyobé, J.B. U–Pb and Sm–Nd evidence for Eburnean and Pan-African high-grade metamorphism in cratonic rocks of southern Cameroon. Precambrian Res. 1994, 108, 45–73. [Google Scholar] [CrossRef]
  82. Pouclet, A.; Tchameni, R.; Mezger, K.; Vidal, M.; Nsifa, E.; Shang, C.; Penaye, J. Archean crustal accretion at the northern border of the Congo Craton (South Cameroon). The charnockite-TTG link. Bull. Soc. 2007, 5, 331–342. [Google Scholar]
  83. Vicat, J.P.; Leger, J.M.; Nsifa, E.; Piguet, P.; Nzenti, J.P.; Tchameni, R.; Pouclet, A. Distinction au sein du craton congolais du Sud-Ouest du Cameroun, de deux episodes doleritiques initiant les cycles orogeniques eburneen (Paleoproterozoïque) et Pan-Africain (Neoproterozoïque). C. R. Acad. Sci. 1996, 323, 575–582. [Google Scholar]
  84. Tchameni, R.; Mezger, K.; Nsifa, N.E.; Pouclet, A. Crustal origin of Early Proterozoic syenites in the Congo craton (Ntem complex), South Cameroon. Lithos 2001, 57, 23–42. [Google Scholar] [CrossRef]
  85. Vicat, J.P.; Pouclet, A.; Nkoumbou, C.; Mouangué, S.A. The fissural volanisms of Lower Dja, Yokadouma (Cameroon) and Nola (RCA) Series-Geotectonic meaning. C. R. Acad. Sci. 1997, 325, 671–677. [Google Scholar]

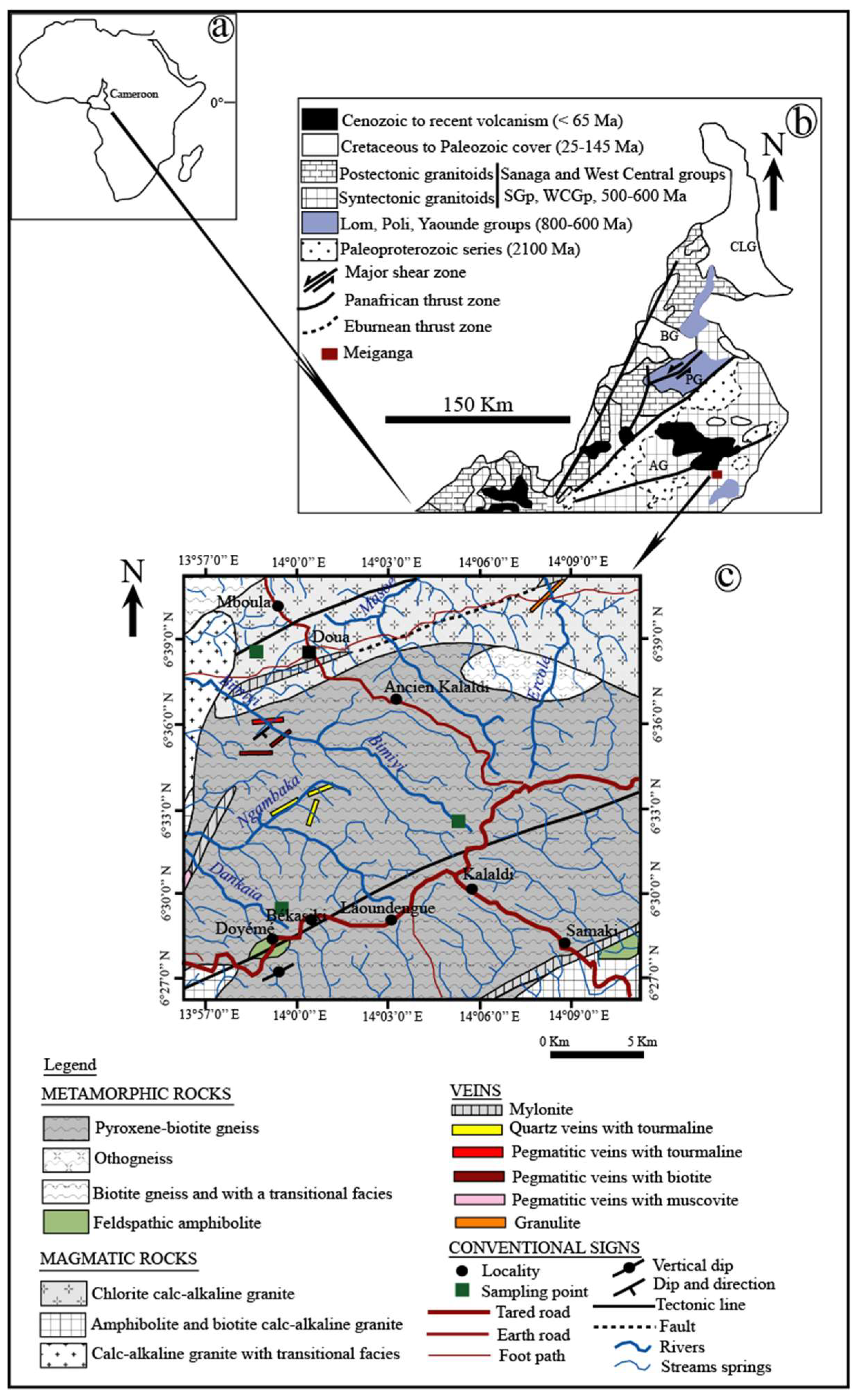

Figure 1. Sketch geologic map locating West of Meiganga within the local and regional settings.
Figure 1. Sketch geologic map locating West of Meiganga within the local and regional settings.
Minerals 08 00194 g001
Figure 2. Geochemical correlation of various elements/ratios within the western Meiganga detrital zircons (a): Th versus U; (b): Th/U versus Th; (c): Th/U versus U; (d) Nb versus Ta; blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Figure 2. Geochemical correlation of various elements/ratios within the western Meiganga detrital zircons (a): Th versus U; (b): Th/U versus Th; (c): Th/U versus U; (d) Nb versus Ta; blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Minerals 08 00194 g002

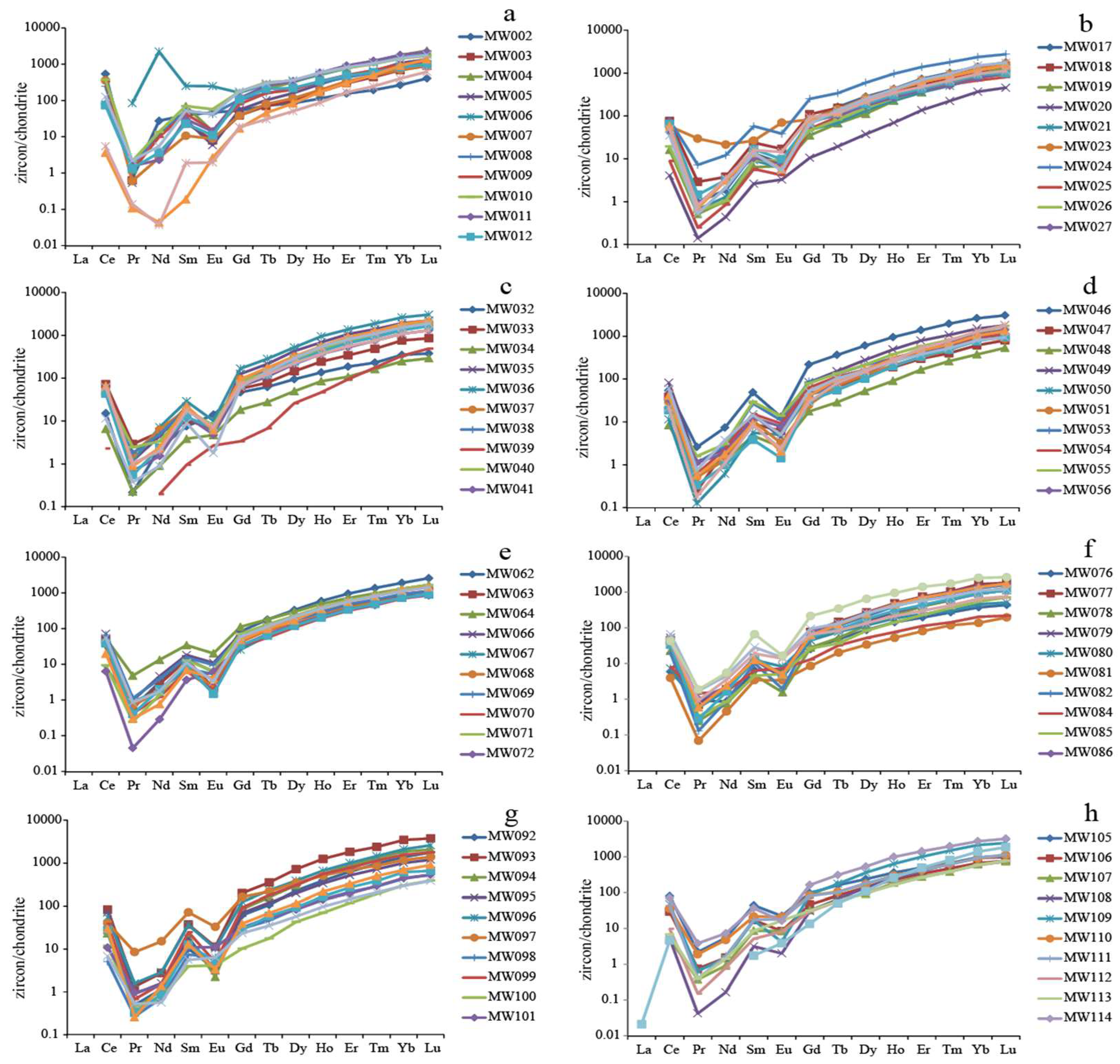

Figure 3. The western Meiganga magmatic zircon grains are normalized to [59] chondrite values and are plotted on Log10 versus element (La–Lu) diagrams.
Figure 3. The western Meiganga magmatic zircon grains are normalized to [59] chondrite values and are plotted on Log10 versus element (La–Lu) diagrams.
Minerals 08 00194 g003

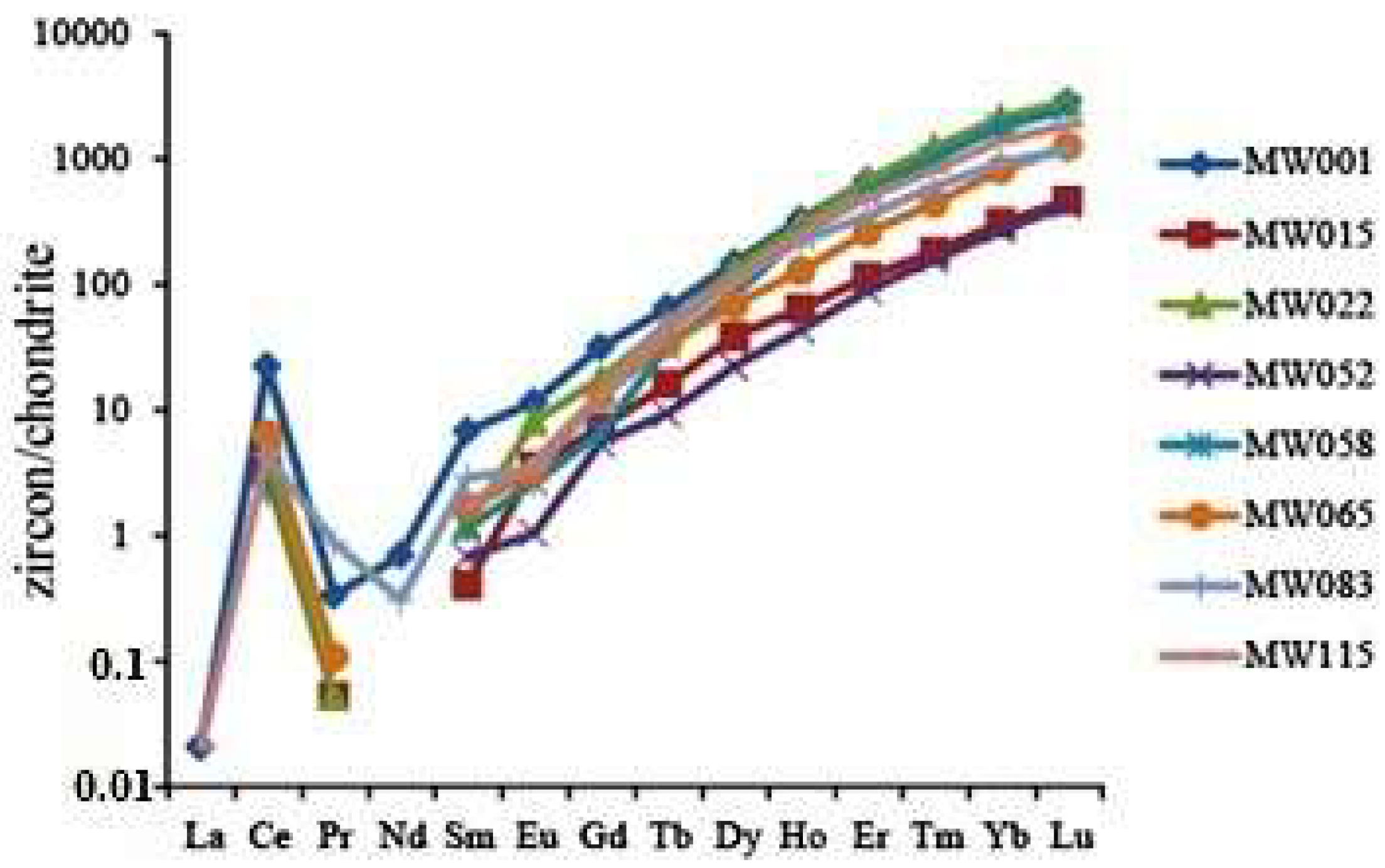

Figure 4. The western Meiganga metamorphic zircon grains are normalized to [59] chondrite values and are plotted on Log10 versus element (La–Lu) diagrams.
Figure 4. The western Meiganga metamorphic zircon grains are normalized to [59] chondrite values and are plotted on Log10 versus element (La–Lu) diagrams.
Minerals 08 00194 g004
Figure 5. U–Pb discordia diagram for the western Meiganga detrital zircons.
Figure 5. U–Pb discordia diagram for the western Meiganga detrital zircons.
Minerals 08 00194 g005
Figure 6. Plot showing spatial distribution of U–Pb ages for the western Meiganga detrital zircons.
Figure 6. Plot showing spatial distribution of U–Pb ages for the western Meiganga detrital zircons.
Minerals 08 00194 g006
Figure 7. Y versus U plot of western Meiganga magmatic zircons (adapted from [19,54], blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Figure 7. Y versus U plot of western Meiganga magmatic zircons (adapted from [19,54], blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Minerals 08 00194 g007
Figure 8. Y versus Nb/Ta plot of western Meiganga magmatic zircons (adapted from [19,54], blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Figure 8. Y versus Nb/Ta plot of western Meiganga magmatic zircons (adapted from [19,54], blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Minerals 08 00194 g008
Figure 9. Y versus Y/Sm plot of western Meiganga magmatic zircons (adapted from [19,54], blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Figure 9. Y versus Y/Sm plot of western Meiganga magmatic zircons (adapted from [19,54], blue and white diamond-shape plots are for magmatic zircons; red and white square plots are for metamorphic zircon).
Minerals 08 00194 g009
Table 1. Minor and trace elementary abundance (in ppm) in the western Meiganga detrital zircons.
Table 1. Minor and trace elementary abundance (in ppm) in the western Meiganga detrital zircons.
Spot/Grain NumberHfYUThPbTiNbTaSrHf/YTh/UNb/TaTi-in-Zircon T
°C±2σ
MW00112,5807204511442.42.13.040.1917.470.0320.69162106
MW00210,41022883404715.10.50.560.0645.660.4770.891786154
MW00310,950387551371288.31.51.490.128.32.4571.00772958
MW00411,30010652203072899.44.43.790.1910.611.3831.16174048
MW00512,380571169153143102.22.190.1421.680.911.00574674
MW00612,140101479928514058.847.840.4911.970.3550.51194542
MW00712,850412126555691.41.950.0731.190.4310.718736109
MW00810,8005952491701898.21.20.930.1218.150.6831.29172861
MW00912,71070230227124315.14.13.230.1518.110.8941.26978668
MW01011,90011092884093417.72.42.020.1410.731.4181.18872240
MW01111,69011862223933605.642.580.279.861.7761.55169473
MW01210,7806211071652228.72.81.370.117.361.5312.04473366
MW01310,5503548438424.10.40.310.1329.80.4291.29166981
MW01411,51011043264474015.12.72.150.1610.431.371.25668671
MW01512,380136212883.812.150.0591.030.0380.46566258
MW01612,02020422360735.80.91.320.0658.920.2670.68269757
MW01711,7109102102602516.221.630.1312.871.2381.22770367
MW01812,34070225918414912.84.83.240.1117.580.7071.48277035
MW01912,1704352362082336.911.780.1327.980.8810.56271247
MW0206390144100465870.80.830.0444.380.4610.96471335
MW02111,0304602573092828.32.32.150.1123.981.2021.0772953
MW02210,9606222041343.92.52.20.1717.620.0651.13666589
MW02313,0208241042432168472.23.481.7915.80.4090.63291541
MW02411,210174771385944319.95.63.523.16.421.2151.59181525
MW02512,15053510758584.91.31.120.1222.710.5391.16168358
MW02610,64046567637713.90.90.70.0922.880.9471.28677873
MW02710,9204703162552247.34.23.240.0823.240.7911.29671759
MW02811,0205242111731663.92.52.10.1321.030.8241.19166575
MW02910,6907302242482466.13.52.650.1214.641.1051.32170165
MW03010,96079021031431415.23.63.070.1613.871.4771.17378775
MW03110,6405623622682167.74.62.940.1318.930.7361.56572235
MW032924023711756756.910.810.0438.990.4771.23571244
MW03310,86040529224721364.63.090.0926.820.8421.48970069
MW03410,250141437931003.30.61.280.0472.70.210.46965159
MW03510,99012302203093015.62.52.190.278.941.4021.14269463
MW03610,76014773046166183.83.12.340.257.292.0121.32566258
MW03710,6109011483002925.72.42.080.1711.782.0241.15469686
MW03810,4708082503723645.74.43.570.1712.961.4681.23369679
MW03983709021860737.10.20.090.05930.2742.22271540
MW04010,3207471972972905.23.53.140.2313.821.491.11568874
MW0419850613871321765.61.61.710.1316.071.5220.93669466
MW04299507102183072875.83.52.780.1414.021.3931.25969744
MW04311,3109533444134005.33.12.140.1811.871.2031.44969069
MW04411,27083029383784.32.12.420.1813.580.2850.86867252
MW045945059816619418962.51.930.1215.811.1751.29570046
MW046991014662996246074.92.32.640.236.762.0960.87168347
MW0478840352791221234.62.12.150.0725.121.5630.97767866
MW04812,50016618947451330.80.750.0975.30.2491.067106579
MW04910,0807829326225963.52.540.1512.892.8221.37870062
MW05011,1204121961261545.311.390.1326.990.6430.71969058
MW0519700354135991087.41.72.320.1727.40.7430.733718127
MW052905082115411.30.60.990.05110.370.0380.60658488
MW05310,10048228022518662.41.830.0720.960.811.31270056
MW05410,9504913432893497.31.21.80.1422.30.8420.66771753
MW05590605453921321718.71.31.390.1716.630.3280.93573363
MW05610,42044798831615232.53.24.813.4823.310.3210.66587028
MW05710,06031311290908.21.210.1332.140.7961.272866
MW05810,900413230621.42.84.770.226.390.0250.58758961
MW05910,4704602331611493.92.42.640.1222.760.6840.90966566
MW06010,2403932021541515.832.610.0926.060.7621.1569741
MW0619970505120861072.81.51.590.1619.740.7160.94363842
MW06297609162313283334.12.32.090.210.661.3791.10166959
MW06396204723702822616.24.32.910.1320.380.7591.47870354
MW06410,1707953891741634.64.33.330.1712.790.4461.29167849
MW06511,810244127212.21.52.630.0948.40.0140.5762170
MW06697004412972732634.53.92.580.11220.931.51267650
MW06710,41033742260659.80.71.280.2330.890.1390.54774466
MW06895803921261691704.521.490.0724.441.3421.34267663
MW06997204782492182134.53.92.670.1220.340.8871.46167663
MW07090803131011111123.12.11.70.0929.011.1091.23564639
MW07199206163851061173.81.41.990.1816.110.2780.70466258
MW0729400348267779420.91.20.0627.010.2880.7561355
MW07398503451651941794.632.090.128.551.1781.43567845
MW07497005673012111973.81.51.670.1817.110.7080.89866147
MW07596705542433072785.63.52.940.1317.461.2691.19169445
MW07686602104801011415.20.71.190.0641.240.2090.58868834
MW07789407552583924004.14.93.240.1511.841.5271.51366933
MW07894103601711431394.42.52.450.1126.140.8281.02167451
MW07997704582692092063.93.82.890.121.330.7781.31566440
MW0808910292494971382.70.71.190.0530.520.1950.58863677
MW08194308125550552.10.30.840.05116.420.1940.35761887
MW08296306263581601584.42.93.530.1415.380.4490.82267468
MW08395303354071751.31.42.390.0828.450.0420.58658499
MW084924013428070742.60.50.950.0668.960.250.52663366
MW0858030218671441463.21.20.890.0736.842.1321.34864955
MW086949066520419819338.94.32.420.1914.270.9681.77789262
MW08790104671151211233.82.52.390.119.291.0651.04666253
MW08893507001702212273.421.420.1713.361.3071.40865463
MW08987605902292001853.83.92.670.3214.850.8621.46166139
MW090702032786901343.61.90.980.0721.471.0571.93965860
MW091924014942734354374.12.72.050.246.181.5821.31766963
MW09291606152102692483.13.42.890.1414.891.2671.17664763
MW093916018673534626295.34.83.240.424.911.3231.48269066
MW09491908982492071974.32.92.770.1610.230.8311.04767251
MW09593105542814944665.14.52.60.1216.811.7481.73168645
MW0969780113464965171314.36.94.270.278.631.0121.616781152
MW0977570750711451807.60.81.330.1610.092.0240.60272189
MW0989540217374811042.30.61.180.0343.960.2140.50862366
MW09910,0007813452802874.32.92.690.1712.810.8161.07867248
MW10075001191121347.40.30.270.0463.031.9571.111718155
MW10193002102311071285.40.90.960.1644.290.4560.93869157
MW10210,36028317758554.31.71.780.0636.610.3220.95567265
MW1039790333701131154.71.41.50.0729.41.6130.93367934
MW1049820159380941044.70.80.950.161.760.2460.84268056
MW10589705332332752675.83.83.30.1316.831.1741.15269744
MW10693203491971561445.51.41.450.1126.710.7840.96669367
MW107947027531868871.90.61.310.0834.440.2130.45861282
MW10811,46042111523303.81.72.280.127.220.1950.74666243
MW10995509882803203359.22.22.050.229.671.1421.07373865
MW11085404511451652597.90.70.710.1218.941.140.98672453
MW11190404711671721826.51.410.219.190.9911.470771
MW112972026116745524.50.60.270.0937.240.2682.22267654
MW11371202443110153.90.40.230.0629.180.3061.73966446
MW11410,07015022956416599.63.42.470.266.712.1931.37774265
MW11510,2604481891751.123.740.1222.910.0920 .535571114
Table 2. Rare earth element abundance (in ppm) in the western Meiganga detrital zircons.
Table 2. Rare earth element abundance (in ppm) in the western Meiganga detrital zircons.
Spot/Grain NumberLaCePrNdSmEuGdTbDyHoErTmYbLu∑REEGd/YbLu/HfEu/Eu*Ce/Ce*Lun/SmnYb/Sm
MW0010.01140.0310.310.6562.336181062728769567.830.0220.00550.786268.16412.203261.214
MW002bdl3300.112.65.82.65102.62162554310473.530.2420.0011.04-10.36256.815
MW003bdlbdl0.1bdl3.60.4582.5259481111022238.6980.070.0020.261-37.11727.986
MW004bdlbdl0.1bdl10.30.79227.678301302928658652.0580,0780.00510.159-33.87825.525
MW005bdlbdl0.1bdl4.30.33113.73915761617333371.960.0640.00270.146-46.59136.984
MW006bdlbdl7.8102037.113.93310.1832812327235461663.240.1380.00381.22-7.508165.823
MW007bdl2180.11.21.60.582.92811541211323472.8960.0670.00180.441-87.753166.163
MW008bdl1510.15.37.72.35215.75317691413926511.5470.150.00240.566-20.549116.582
MW009bdl2020.14.56.40.85165.74918801716130590.5890.0970.00240.258-28.013223.154
MW010bdl2300.26.210.43.233511.487301252522942833.1570.1520.00350.518-24.065120.206
MW011bdl490.11.14.50.79239.284321473128854722.8450.0790.00460.237-72.328858.832
MW012bdl450.11.73.40.62217.55418771513224401.4750.1610.00230.222-43.125435.903
MW013bdl20.010.020.0280.1531.6209491214733278.5680.0230.00321.484-7176.544826.087
MW014bdl780.22.57.72.393610.789321322623344692.1150.1530.00380.44-34.345127.853
MW015bdl20.0049bdl0.10.210.61031 844911100.82490.0290.00092.074-1143.09756.85
MW016bdl30.0130.0170.30.1141.11352766515138.280.0570.00130.331-325.952211.757
MW017bdl260.10.920.44155.969231172522643553.8210.0680.00370.244-132.236105.458
MW018bdl470.31.73.50.96225.55319851816332449.7790.1330.00250.335-53.992142.689
MW019bdl100.0480.510.3872.42812571414733312.3080.0480.00270.449-210.252142.243
MW020bdl30.0130.20.40.1920.7942265911116.6360.0360.00170.623-172.158139.302
MW021bdl370.10.61.40.3492.53313571213327325.6090.0710.00240.288-118.11389.898
MW022bdl20.005bdl0.20.4641.732161083033971604.5550.010.00641.759-2356.371731.263
MW023bdl352.89.83.93.91175.265221102321741555.470.0760.00311.482-62.464750.958
MW024bdl480.75.58.52.175012.31475322144381681040.330.1310.0060.322-47.917741.204
MW025bdl50.0230.40.90.23103.43616691310820292.2870.0920.00160.244-138.514115.655
MW026bdl120.10.51.30.53934814651312623303.8860.0730.00210.46-101.01986.094
MW027bdl450.11.41.60.42153.74315631312324347.2650.1230.00220.265-91.201972.135
MW028bdl400.11.52.50.55144.24717681614824381.7340.0920.00220.29-59.673555.118
MW029bdl360.11.420.32154.359221012118537484.0250.0830.00350.176-112.20385.169
MW030bdl210.049120.3134.962221122424143545.6990.0540.00390.179-128.447110.77
MW031bdl300.11.62.40.81184.25219771715428403.7050.1190.00260.375-70.614659.985
MW032bdl90.021.11.10.7992.2237306569155.270.1650.0010.749-50.135546.542
MW033bdl440.32.51.50.38112.83613541212221320.8770.0930.00190.275-81.649372.764
MW034bdl40.0210.40.60.274112517440794.8060.0920.00070.561-75.467164.025
MW035bdl310.123.20.31257.7105371703430654776.260.0820.00490.106-102.08887.904
MW036bdl360.13.34.30.573310.21285221946419741026.4210.0790.00690.146-104.58289.992
MW037bdl300.22.92.80.41195.478291312825049625.4740.0760.00460.169-103.68581.462
MW038bdl270.22.32.80.35175.168261202523446573.7060.0720.00440.155-98.272776.55
MW039bdl1bdl0.10.10.1510.263154541296.5430.0130.00141.503-515.679351.287
MW040bdl260.21.52.60.45174.966261182625747592.6770.0670.00460.204-107.79189.488
MW041bdl280.10.71.90.271345220841817132428.8570.0720.00320.169-98.927282.875
MW042bdl270.11.11.90.38144.460231062221140510.2610.0660.00410.227-129.977103.723
MW043bdl410.11.13.30.34196.379301463029354702.8230.0640.00480.132-98.994881.563
MW044bdl70.0350.41.30.1125.172291292724246572.1060.0510.00410.076-207.875166.22
MW045bdl370.10.92.60.41144.45520891817532449.4170.080.00340.207-74.046361.873
MW046bdl330.23.47.20.744313.11485222048421751064.2310.1030.00760.128-62.585853.751
MW047bdl240.02311.30.3592.42910481013920252.6140.0880.00220.315-89.11368.08
MW048bdl50.10.60.70.153113526614013135.3530.0580.00110.285-111.00478.331
MW049bdl500.11.12.20.25175.56827126264444607.2420.0690.00440.124-119.781100.245
MW050bdl70.01170.30.80.2882.73414651513728314.81470.060.00260.329-205.93153.947
MW051bdl180.0480.61.60.1852.53111521215122294.9680.0360.00220.195-82.247681.453
MW052bdl3bdlbdl0.10.0610.352144441184.1790.0250.00120.545-634.716399.876
MW053bdl180.11.340.62174.75216741413725364.860.1260.00240.227-36.907731.498
MW054bdl330.11.12.30.52134.14117721615127376.4770.0830.00250.296-71.55961.149
MW055bdl130.11.44.40.78164.95321932019243461.9180.0820,00470.287-59.334740.481
MW056bdl220.10.91.90.44933514701717235379.9040.0510.00340.334-113.82185.366
MW057bdl120.0310.50.60.08622511531212424270.0420.050.00240.131-251.205200.14
MW058bdl1bdlbdl0.20.1511.22013842528961496.550.0050.00560.965-2144.621562.733
MW059bdl250.10.81.40.1183.64016741616532381.9260.0490,00310.105-143.329111.189
MW060bdl370.11.72.20.29103.73914611312923332.9340.0810.00230.184-64.359955.07
MW061bdl130.0170.51.20.1362.93615832020644427.8910.0280.00440.153-213.259153.956
MW062bdl250.11.52.10.35176.581321523430663719.8940.0540.00650.182-183.685135.89
MW063bdl320.11.320.121044416741514738372.1280.0680.00290.083-82.093866.567
MW064bdl320.46.15.11.14226.572271142420941561.0090.1070.00410.326-48.793337.82
MW065bdl40.01bdl0.30.1831.2177421113131246.3780.0190.00260.681-738.797482.425
MW066bdl440.12.12.70.62144.54315681312822356.0510.1080.00220.31-48.756343.639
MW067bdl50.10.81.10.352.32913571211722263.7020.0430.00210.379-117.66395.017
MW068bdl230.10.81.70.1183.23314621311922299.3890.070.00230.093-76.894264.457
MW069bdl410.11.82.30.54123.74216771614727386.2050.0820.00280.313-71.509159.268
MW070bdl180.040.610.11622611511111121258.480.0580.00230.136-134.256107.311
MW071bdl60.0230.61.90.37144.75621992121141476.010.0660.00410.218-130.193102.626
MW072bdl40.00420.10.50.3572.53212561112021264.78620.0540.00220.56-234.23203.768
MW073bdl240.0380.91.30.0972.33011541211623280.6830.0590.00230.087-104.5982.097
MW074bdl120.02760.410.23103.54219902019236425.94460.050.00370.222-212.058174.749
MW075bdl340.10.81.70.19124.15220912017835448.7260.0650.00360.13-126.88899.28
MW076bdl40.10.410.3951.82183176011150.0830.0840.00120.544-67.762158.155
MW077bdl270.10.920.27155.366261192526745598.9080.0570.0050.152-135.214123.96
MW078bdl140.0230.40.70.0961.92912641516232335.9410.0350.00340.136-275.889212.742
MW079bdl320.10.91.80.2393.43815691514328354.6590.0610.00280.176-91.739772.829
MW080bdl40.10.81.90.4692.829103977412191.1440.120.00140.345-40.205436.523
MW081bdl20.00640.20.50.1920.78313322559.51640.0770.00050.622-56.623639.654
MW082bdl120.01220.41.50.11114.153221022320639473.19120.0530.00410.082-158.027126.06
MW083bdl30.10.10.40.1931.52612561514929295.0430.0170.0030.551-404.349318.532
MW084bdl50.10.80.90.4131.213418333587.3750.080.00060.799-34.305531.978
MW085bdl240.0310.40.70.2951.32183798718210.3410.0610.00220.468-157.141119.229
MW086bdl240.112.20.26154.864251132423142545.5920.0660.00440.137-115.5998.309
MW087bdl210.0260.72.10.27113.24416691614728357.1760.0760.00310.168-77.311862.973
MW088bdl290.11.11.90.28124.560251112321943530.4210.0570,00450.174-136.006107.083
MW089bdl410.22.14.20.83194.86323931817530472.530.1070.00340.285-42.585438.255
MW090bdl250.11.62.80.771333312481010419272.280.1250.00260.389-39.681733.999
MW091bdl260.22.59.80.934312.51585122442402641036.7830.1060.00690.139-39.105737.708
MW092bdl200.0460.51.50.2123.956211002422343505.6110.0550.00470.138-172.918135.453
MW093bdl510.11.35.60.644012.71776829159555921353.3050.0720.01010.131-100.05491.925
MW094bdl140.0380.52.90.13175.875311433229851669.6050.0570.00550.055-105.23394.137
MW095bdl440.10.72.60.18144.44918831816229424.7130.0850.00320.091-67.769457.057
MW096bdl340.11.35.40.58258.496361613633764804.2120.0740.00650.153-70.858257.368
MW097bdl250.8710.61.86327.986281112118934554.2220.170.00450.307-19.356216.344
MW098bdl30.0250.31.10.3661.72183477013165.7850.0860.00140.427-71.648258.414
MW099bdl240.10.73.70.28186.575311252825144605.5880.0730.00440.102-71.249562.405
MW100bdl70.0390.30.60.2420.61141954910107.5540.0420.00130.651-97.687775.877
MW101bdl70.10.71.70.62622183177213169.270.0890.00140.583-47.765539.834
MW102bdl170.0310.41.90.2962.12394399916227.0610.0580.00160.272-52.119548.421
MW103bdl180.0240.61.90.1982.52812521211222269.9350.070.00270.151-69.927253.76
MW104bdl40.0490.30.80.3651.3145235489116.8790.0980.0010.555-68.425953.051
MW105bdl490.22.56.61.27195.85820801615626439.6650.1230.00290.344-23.609321.658
MW106bdl180.10.72.60.48933512541210619271.970.0880.0020.3-44.651938.135
MW107bdl30.0350.41.30.4872.323104499818217.0850.0660.00190.507-85.543770.452
MW108bdl30.00390.10.50.1162.43414641615024313.86290.0410.00210.205-308.493293.379
MW109bdl290.10.72.50.24186.389351613734560781.9790.0510.00620.11-142.051125.85
MW110bdl220.22.23.21.2173.84216681614427362.8080.1160.00320.499-50.506940.771
MW111bdl270.0370.82.61.03163.74515681515128374.0170.1060.00310.486-65.737553.665
MW112bdl60.0140.40.80.4662.124943109319213.5940.0640.00190.652-144.547111.266
MW113bdl40.0370.71.30.9462.12494299519213.5170.0660.00271.005-88.611667.697
MW114bdl430.43.45.50.923211.11315422849436791073.5680.0740.00780.21-86.196672.872
MW1150.013bdlbld0.30.2231.82714792022446417.6150.0120.00440.8-1052.85791.973
Table 3. Isotopic geochemical data and U–Pb core age (in Ma) for the west Meiganga detrital zircons.
Table 3. Isotopic geochemical data and U–Pb core age (in Ma) for the west Meiganga detrital zircons.
Spot/Grain Number207Pb/206Pb2 s %207Pb/235U2 s %206Pb/238U2 s %207Pb/206Pb Age2 s. Abs.207Pb/235U Age2 s. Abs.206Pb/238U Age2 s. Abs.% of Age Discordance
MW0010.058981.05592970.80972.21351290.09941.9454181568660213611127.57
MW0020.187731.025897212.6581.98519620.48851.6995702272217265453256444−5.81
MW0030.126811.0963776.452.18134580.37071.8857961205419203944203338−1.02
MW0040.128851.01719916.5732.06069380.37161.7921398208218205642203737−2.16
MW0050.128281.01594636.5252.06050220.37111.7926301207518204942203536−1.93
MW0060.107191.02276162.7282.39309050.18542.1635251175219133632109624−37.44
MW0070.173031.03326519.6762.05018160.40861.7707647258717240449221039−14.57
MW0080.173581.009513310.6762.05315250.45131.787825259317249551240143−7.41
MW0090.129671.02304796.1592.10944460.34851.8447574209418199842192736−7.97
MW0100.127331.02389285.6782.07186540.32641.8011856206218192840182133−11.69
MW0110.128491.02026756.2312.11457410.35371.8521549207718200942195236−6.02
MW0120.201171.021561814.872.07978170.54141.8116025283617280758278951−1.66
MW0130.19731.144917412.843.04242810.4742.8187822280319266481250070−10.81
MW0140.129471.04003396.0852.17908440.34221.914873209118198843190036−9.13
MW0150.129151.0185636.142.56960110.34612.3591056208718199551191545−8.24
MW0160.192321.021400212.962.44061190.48892.2166028276217267665257057−6.95
MW0170.129611.04209356.3872.14529710.35791.8751909209318203044197237−5.78
MW0180.127251.03113485.6722.18947080.32351.9314615206018192742180735−12.38
MW0190.16941.037775710.1742.13528020.43731.8661305255217245152233844−8.39
MW0200,19521.022885913.582.04982050.50541.7763638278717272156263747−5.38
MW0210.128721.04266566.0312.01645310.33991.7259581208018198040188633−9.33
MW0220.059921.12590310.78652.07932470.095141.7481228602245891258610−3.32
MW0230.103141.11990471.962.38894380.13812.110181516812111012683418−50.39
MW0240.108271.05980332.9422.12457510.19751.841368177119139330116221−34.39
MW0250.12941.05376726.6852.0661820.37481.7772684209019207143205437−1.72
MW0260,162791.07906159.9172.01736690.44241.704522248618242749236340−4.95
MW0270.126831.04168415.4612.39221510.31222.1535058205518189445175138−14.79
MW0280.129691.05848766.2081.97303880.34711.6650784209419200640192132−8.26
MW0290.131051.03121746.5772.11989960.36441.8521784211218205644200337−5.16
MW0300.131191.05234626.6712.05036350.36861.759704211418206942202336−4.31
MW0310.124941.02142334.9942.1292260.29031.8682339202818181839164331−18.98
MW0320.200881.076383413.9422.01845940.50311.7075061283318274655262745−7.27
MW0330.128191.04990295.5762.13492780.3171.8589299207318191341177533−14.38
MW0340,19141.180287210.552.03839950.40051.661925275419248551217136−21.17
MW0350.129531.05611986.9582.00587730.38981.70533122092192106422122361.34
MW0360.133491.06524156,7512.11049320.36721.8219336214419207944201637−5.97
MW0370.130031.07699876.3952.00829540.35731.6950883209819203241196933−6.15
MW0380.131651.05928676.5732.17411490.3621.8986014212019205645199238−6.04
MW0390.19871.049060312.7292,144,8270.46421.8707633281617266057245846−12.71
MW0400.12991.04190956.5192.07855350.36521.7985575209718204843200636−4.34
MW0410.195531.041624313.652.0226650.5091.7338375278917272655265246−4.91
MW0420.129261.02835646.2442.247070.3511.9979506208818201045193939−7.14
MW0430.132491.0585586.6032.22626650.3631.9584988213119206046199639−6.34
MW0440.131091.0411676.2712.18505430.3481.9210501211318201444192537−8.90
MW0450.12991.02989566.4322.0878990.36071.816215209718203743198536−5.34
MW0460.132721.04442996.8032.13821010.37511.8657729213418208645205338−3.80
MW0470.129171.06414066.6332.07087680.37561.7765515208719206443205637−1.49
MW0480.155651.04838198.072.26630010.37852.0092316240918223851206942−14.11
MW0490.128911.03826246.7242.02521260.38191.73882072083182076422085360.10
MW0500.190191.026412112.52.15698620.48071.8971209274417264257253048−7.80
MW0510.129221.09611296.22.05788930.34881.7416788208719200441192934−7.57
MW0520.058911.18999660.7622.16523170.09481.80890485652657512584113.36
MW0530.124551.02495825.2962.24308440.31041.9952164202218186842174235−13.84
MW0540.210681.067992113.392.30385290.46542.0413552291117270962246350−15.39
MW0550.201511.043386913.632.31871920.49452.070701283817272663259054−8.74
MW0560.100871.07214162.2832.27451030.16532.005968516402012072798620−39.88
MW0570.129041.0669436.4962.05853240.36771.7604511208519204542201836−3.21
MW0580.058711.07399850.78912.13488470.097951.84506365562359113602118.27
MW0590.127141.03931486.0282.23275850.34491.9761161205918197944191038−7.24
MW0600.129641.05117046.2812.21033420.3531.9443812209318201645194838−6.92
MW0610.170041.034425611.0022.11312290.47051.842621255817252453248546−2.85
MW0620.131711.02561236.8162.19052110.37641.9355883212118208746205940−2.92
MW0630.131711.05675516.1962.30909970.3422.0530977212119200346189639−10.61
MW0640.132661.10703586.3762.20148060.34951.9028895213319202945193237−9.42
MW0650.059271.23545170.76352.16691450.093531.7802184579275761257610−0.52
MW0660.131131.02583656.4262.07753160.35761.8065982211318203742197136−6.72
MW0670.189131.102947610.9472.26421120.42171.9774122273418251857226845−17.04
MW0680.127841.03889356.5492.16190990.37361.8959311206818205244204639−1.06
MW0690.129831.03773186.5312.13164650.36751.8619961209718205044201738−3.81
MW0700.128491.04281536.571.99818560.37441.7044887207718205541205035−1.30
MW0710.198831.099758411.3872.19708960.41811.9020342281618255556225143−20.07
MW0720.195841.07451812.6112.12314180.47161.8311587279218265156249046−10.82
MW0730.127091.05074965.7292.21496970.3321.949876205819193543184836−10.21
MW0740.129821.0246476.1292.19424160.34621.9403079209618199444191637−8.59
MW0750.128191.03260375.7792.2250060,33021.9708834207318194343183936−11.29
MW0760.20851.321099212.022.94208670,42192.6287966289321260677226960−21.57
MW0770.132581.04672536.8312.31094620,37752.0603006213218208948206443−3.19
MW0780.127061.03936346.22.22528130,3581.9676384205818200445197239−4.18
MW0790.130431.05056736.532.31946240,36642.067901210518204948201242−4.42
MW0800.2121.311829711.823.40374780,4073.1407964292021258988220069−24.66
MW0810.168411.04314259.352.56028470,40472.3381427254217237261219051−13.85
MW0820.133041.10325866.432.29023490.35492.0069868213919203647195839−8.46
MW0830.060281.07634430.79952.35070880.09672.0898121614235961459512−3.09
MW0840.186661.0410054102.66942810.39122.4580794271317243365212752−21.60
MW0850.129581.04886296.7282.35279610.37972.1060713209218207849207444−0.86
MW0860.127731.03090475.8722.31276910.33492.0702986206718195645186239−9.92
MW0870.129851.0510096.6842.24463780.37541.9833756209618207046205541−1.95
MW0880.128131.04759646.5562.3990840.37282.1582739207218205249204244−1.44
MW0890.128371.06491815.6392.58452920.31832.3549397207619192150178142−14.21
MW0900.232991.027484818.32.4604280.572.2356165307316300474290765−5.40
MW0910.132461.07156056.7672.3077660.36972.0435769213119208148203142−4.69
MW0920.127231.07444895.6122.33500950.31862.0731206206019191945178237−13.50
MW0930.20991.128998614.272.40680450.49312.1255752290418276767258355−11.05
MW0940.130981.0759256.1282.40872460.33942.155073211119199448188341−10.80
MW0950.130681.0940696.172.32310520.34362.0493489210719200046190439−9.64
MW0960.14511.81627356.383.3384470.31752.8011388228831203068177750−22.33
MW0970.166821.042246210.4212.0858770.45271.806822252617247352240743−4.71
MW0980.199471.099148112.982.276610.47081.9936967282218267861248750−11.87
MW0990.135111.16215086.7412.25366520.36081.9309097216520207947198638−8.27
MW1000.20421.580786414.533.52423360.5163.1498153285926278398268084−6.26
MW1010.197861.04946812.522.15226790.45671.8790621280917264457242546−13.67
MW1020.129441.05373486.3272.0962480.35261.8121531209019202242194735−6.84
MW1030.129461.05617896.6872.06795530.37411.7778992209119207143204936−2.01
MW1040.186471.083961810.3672.14157320.4011.8469875271118246853217340−19.85
MW1050.131031.09052196.2912.14422840.34741.8462062211219201843192235−8.99
MW1060.128641.06201155.8951.99598390.33081.6899951207919196039184231−11.40
MW1070.19571.173027712.3882.14217580.45791.7924629279119263456243344−12.83
MW1080.185351.020799812.6512.02613640.49341.7501991270217265554258545−4.33
MW1090.132971.06836076.6612.08377090.36231.7890519213719206843199336−6.74
MW1100.23531.081638418.512.04840360.57131.7395447308817301762291351−5.67
MW1110.209411.040237110.592.34742820.36582.1043588290117248758200942−30.75
MW1120.167891.03081619.682.17390410.41891.913969253717240652225543−11.12
MW1130.223141.048050817.662.06707730.57411.7816841300317297161292752−2.53
MW1140.132971.05332616.6942.03423530.36521.7402924213718207242200735−6.08
MW1150.060061.19233230.78932.05999960.095741.679863760726591158910−2.96
2 s %: isoplot error in percentage; 2 s. abs: absolut isoplot error; % of age discordance = (206Pb/238U age/207Pb/206Pb age − 1) × 100.
Table 4. Possible correlations between the (206Pb/238U) age of the western Meiganga detrital zircons and that of zircon from rocks published in [37,44,45,46,47].
Table 4. Possible correlations between the (206Pb/238U) age of the western Meiganga detrital zircons and that of zircon from rocks published in [37,44,45,46,47].
PAGnNWD-ZirconABGnMWD-ZirconABGnMWD-ZirconM-DNWD-Zircon
Age (Ma)Age (Ma)Age (Ma)Age (Ma)Age (Ma)Age (Ma)Age (Ma)Age (Ma)
1813.7 ± 3.4 1887.6 ± 2.11886 ± 30768.7 ± 4.1 614.3 ± 5.8611 ± 12
1711.7 ± 3.4 1955.6 ± 2.61958 ± 39877.5 ± 3.3 622.3 ± 3.0
1685.0 ± 4.01643 ± 311963.8 ± 2.5 879.6 ± 2.9 626.6 ± 4.6
2453.4± 4.3 1983.7 ± 1.7 721.3 ± 3.3 582.1 ± 7.8
2512.3 ± 3.4 1988.0 ± 1.91986 ± 38811.9 ± 3.0 584.2 ± 7.6584 ± 11
2478.2± 3.32463 ± 502005.5± 1.82007 ± 35845.0 ± 3.4 619.0 ± 5.4
2430.7± 3.4 2022.8 ± 2.1 740.4 ± 6.5 633.2 ± 3.9
2504.3± 3.72500 ± 702099.3 ± 0.9 859.2 ± 4.0 620.7 ± 4.8
2602.6 ± 13.5 2153.7± 1.4 887.1 ± 6.6 627.1 ± 8.1
2170.0± 4.02171 ± 362269.0± 2.5 753.5 ± 4.3
2274.5 ± 3.32269 ± 602319.7± 1.7 814.4 ± 6.2
2387.8 ± 4.6 2339.4 ± 2.62338 ± 44889.4 ± 2.3
2398.2± 4.1 675.1 ± 7.0
2514.0 ± 3.5 829.1 ± 6.2834 ± 18
2578.2 ± 4.02583 ± 55
PAGn: Pyroxene-amphibole gneiss; MWD-Zircon: Western Meiganga detrital zircon, ABGn: Amphibole-biotite gneiss; M-D: Meta-diorite.
Table 5. Possible correlations between the (206Pb/238U) age of the western Meiganga detrital zircons and that of zircons from some rocks within regional geological settings.
Table 5. Possible correlations between the (206Pb/238U) age of the western Meiganga detrital zircons and that of zircons from some rocks within regional geological settings.
Locality and Author (s)MethodRock Type Age (Ma)Age of MWD-Zircon (Ma)
Sangmelima [68]Rb–Sr biotite datingGranodiorite1997 ± 191996 ± 39,1993 ± 36, 1992 ± 38
Charnockite2064 ± 20, 2299 ± 222059 ± 40, 2255 ± 43, 2269 ± 60
Sangmelima [62] Pb-evaporation zircon datingCharnockites2792 ± 4
2689 ± 20
2671 ± 25
2789 ± 51
2680 ± 84
2637 ± 47
Granodiorites2686 ± 31
2674 ± 21
2920 ± 7
2933 ± 13
2939 ± 13
2962 ± 11
2627 ± 45
2927 ± 52
2913 ± 51
2907 ± 65
Tonalites2678 ± 172680 ± 84
Sangmelima [69]Pb-evaporation zircon datingHigh-K granites2175 ± 11
2218.4 ± 4.0
2302.3 ± 1.7
2345.5 ± 5.1
2386 ± 2.7
2403.2 ± 8.2
2424.4 ± 2.9
2427.9 ± 8.7
2428.2 ± 3.1
2435.4 ± 5.2
2481.6 ± 3.2
2487.4 ± 3.7
2496.1 ± 2.3
2506.5 ± 4.2
2509 ± 3.2
2512.0 ± 7.9
2565.8 ± 7.4
2565 ± 19
2591.6 ± 4.3
2598.3 ± 8.0
2600.9 ± 3.2
2614.5 ± 4.9
2622 ± 14
2631.9 ± 3.9
2657.7 ± 2.7
2682.6 ± 1.8
2684.6 ± 6.8
2688.8 ± 2.7
2719.4 ± 3.4
2721.2 ± 1.5
2720.6 ± 3.2
2788 ± 35
2122 ± 36
2125 ± 52
2171 ± 36
2173 ± 40
2200 ± 69
2210 ± 39
2190 ± 51
2255 ± 43
2338 ± 40
2363 ± 40
2401 ± 43
2407 ± 43
2425 ± 46
2433 ± 44
2458 ± 46
2463 ± 50
2485 ± 46
2487 ± 50
2500 ± 70
2530 ± 48
2564 ± 44
2570 ± 57
2590 ± 54
2583 ± 55
2585 ± 45
2680 ± 84
2637 ± 47
2627 ± 45
2789 ± 51
Ebolawa [81] U–Pb zircon dating
Rb/Sr isochrons
Charnockites2896 ± 7
2882 ± 70
2913 ± 51,
2907 ± 65
Northern border of the Congo Craton [82] Pb-evaporation zircon datingCharnockites2912 ± 252907 ± 65
Tonalite2833 ± 15
South Region of Cameroon [79] Rb/Sr isochronsGranodiorites2880 ± 702913 ± 51,
2907 ± 65
South Region of Cameroon [81,83]Sm–Nd whole rocks isochronMeta-doleritedikes2059 ± 162059 ± 40,
2053 ± 38
Doum–Lolodorf and Mengueme [84]Pb-evaporation zircon datingTwo pyroxene syenite2321 ± 12269 ± 60
Clinopyroxene syenite2349 ± 1,
2667 ± 1
2637 ± 47
Yobé –Cameroon [85]Rb/Sr isochronsGranites1167 ± 611162 ± 21,
1096 ± 24
Back to TopTop
