The Gersdorffite-Bismuthinite-Native Gold Association and the Skarn-Porphyry Mineralization in the Kamariza Mining District, Lavrion, Greece ^†

Abstract

Vein-type Pb-Ni-Bi-Au-Ag mineralization at the Clemence deposit in the Kamariza and “km3” in the Lavrion area, was synchronous with the intrusion of a Miocene granodiorite body and related felsic and mafic dikes and sills within marbles and schists in the footwall of (and within) the Western Cycladic detachment system. In the Serpieri deposit (Kamariza area), a porphyry-style pyrrhotite-arsenopyrite mineralized microgranitic dike is genetically related to a garnet-wollastonite bearing skarn characterized by a similar base metal and Ni (up to 219 ppm) enrichment. The Ni–Bi–Au association in the Clemence deposit consists of initial deposition of pyrite and arsenopyrite followed by an intergrowth of native gold-bismuthinite and oscillatory zoned gersdorffite. The zoning is related to variable As, Ni, and Fe contents, indicating fluctuations of arsenic and sulfur fugacity in the hydrothermal fluid. A late evolution towards higher sulfur fugacity in the mineralization is evident by the deposition of chalcopyrite, tennantite, enargite, and galena rimming gersdorffite. At the “km3” locality, Ni sulfides and sulfarsenides, vaesite, millerite, ullmannite, and polydymite, are enclosed in gersdorffite and/or galena. The gersdorffite is homogenous and contains less Fe (up to 2 wt.%) than that from the Clemence deposit (up to 9 wt.%). Bulk ore analyses of the Clemence ore reveal Au and Ag grades both exceeding 100 g/t, Pb and Zn > 1 wt.%, Ni up to 9700 ppm, Co up to 118 ppm, Sn > 100 ppm, and Bi > 2000 ppm. The “km3” mineralization is enriched in Mo (up to 36 ppm), Ni (>1 wt.%), and Co (up to 1290 ppm). Our data further support a magmatic contribution to the ore-forming fluids, although remobilization and leaching of metals from previous mineralization and/or host rocks, through the late involvement of non-magmatic fluid in the ore system, cannot be excluded.

1. Introduction

The Lavrion district in Greece is part of the Attic-Cycladic metamorphic core complex, and contains a variety of ore types including porphyry Mo-W, skarn Fe-Cu-Bi-Te, carbonate-replacement Pb-Zn-Cu-As-Sb-Ag ± Au-Bi, and vein/breccia Pb-Zn-Cu-As-Sb-Ag-Au-Ni-Bi [1,2,3,4,5,6,7]. Mineralization was synchronous with the intrusion of a Miocene granodiorite body in the footwall and hanging wall of the Western Cycladic detachment system (WCDS) and related felsic dikes and sills within marbles and schists, which locally crosscut the detachment. Although dominated by base metal sulfides, nickel- and to a lesser extent cobalt-bearing metallic minerals have been described from several sites in the Lavrion district, for example, at the Kamariza, Plaka and “km3” deposits. Gersdorffite, rammelsbergite, nickeline, and safflorite were described from the “km3” site by Marinos and Petraschek [1], Wendel and Markl [8], and Rieck et al. [9]. Gersdorffite related to sulfides and fluorite was found along the detachment fault in the Villia deposit and in chimneys from the Jean Baptiste deposit [7]. Kolitsch et al. [6] described the following Ni and Co minerals at Plaka (145 Adit), associated with pyrrhotite-bearing skarn: cattierite, cobaltite, pentlandite, polydymite, siegenite, ullmannite, and violarite. Polydymite, ullmannite, vaesite, and violarite were detected at “km3” within the galena-nickelskutterudite-gersdorffite assemblage. Vaesite and violarite were also reported from the Jean Baptiste deposit (Kamariza) [6]. Gersdorffite associated with gold was described by Voudouris et al. [4] from the Clemence deposit, in the Kamariza area.

This paper evaluates the primary mineralogical and chemical characteristics of the breccia/vein and carbonate-replacement mineralization at the Clemence deposit (Kamariza district) and the “km3” district, which both host Ni-Au-Bi ores, and provides preliminary information on their potential genetic relationship to intrusive rocks in the Lavrion district [6,10]. The present study also describes the mineralogy and geochemistry of intrusive bodies in the Kamariza area and describes a new occurrence of skarn and porphyry-style mineralization in the Serpieri deposit, which is spatially associated with a felsic dike intruding marbles [6,9]. A comparison between sulfide assemblages within the Kamariza intrusives and the studied breccia/vein and carbonate-replacement mineralization provides information about the formation conditions of the Lavrion ore deposits. Finally, phase diagrams were used to constrain the physicochemical conditions of ore formation at Kamariza.

2. Materials and Methods

Samples were collected underground from the Clemence, Jean Baptiste, and Serpieri mines in the Kamariza area and from the “km3” district. Forty-three thin and polished sections of host-rocks, skarn, and sulfide mineralization were studied by optical microscopy and a JEOL JSM 5600 scanning electron microscope, equipped with backscattered imaging capabilities, at the Department of Mineralogy and Petrology, University of Athens. Quantitative analyses were carried out at the University of Athens, Department of Geology, using a JEOL JSM 5600 scanning electron microscope equipped with automated OXFORD ISIS 300 energy-dispersive analysis system. Analytical conditions were 20 kV accelerating voltage, 0.5 nA beam current, <2 μm beam diameter, and 60 s count times. The X-ray lines used were AlKα, SiKα, CaKα, CeLα, NdLα, LaLα, KKα, FeKα, NaKα, TiKα, MgKα, and FKα. The standards used were orthoclase, albite and wollastonite for K, Na, Si and Ca; pyrite for Fe; and synthetic Ti, MgO, Al₂O₃, CeO₂, NdF₃, LaB₆, SrF₂ for Ti, Mg, Al, Ce, Nd, La and F. The chemical composition of sulfides, sulfosalts, and native elements were determined with a Cameca-SX 100 wavelength-dispersive electron microprobe at the Department of Mineralogy and Petrology, University of Hamburg, Germany. Operating conditions were 20 kV and 20 nA, with a beam diameter <1 μm. The following X-ray lines were used: AgLα, AsLα, AuMα, BiMβ, CuKα, FeKα, HgMα, PbMα, SKα, SbLα, SeLα, TeLα, and ZnKα. Pure elements (for Ag, Au, Bi, Se, Te), pyrite and chalcopyrite (for Fe, Cu, and S), galena (for Pb), sphalerite (for Zn), HgS (for Hg), Sb₂S₃ (for Sb) and synthetic GaAs (for As) were used as standards. Three fresh rock samples from the Kamariza intrusive rocks were selected for whole-rock geochemical analysis. Major elements were analyzed on lithium tetraborate glass beads by X-ray fluorescence (XRF) using a Philips PW 1410 spectrometer at the Institute of Mineralogy and Petrology at Hamburg University (Germany). Detection limits for trace elements are 10 ppm for Ba, Cr, Cu, Nb, Ni, Pb, Rb, Sr, V, Y, Zn, Zr, Th; 20 ppm for La, Nd; and 25 ppm for Ce. The precision for major elements is better than ±0.4% for SiO₂, ±0.13% for Al₂O_3, and Fe₂O₃, ±0.22% for MgO, ±0.10% for CaO, ±0.33% for Na₂O, and 0.02–0.04% for K₂O, TiO₂, P₂O_5. and SO₃. Phase diagrams were constructed using the methods of Garrels and Christ [11] and Henley et al. [12].

3. Geology and Mineralization

The Lavrion district belongs to the Attic-Cycladic Crystalline Belt, which is characterized by a Late Cretaceous–Eocene deformation and blueschist facies metamorphism, followed by Late Oligocene to Miocene post-orogenic extension in the back-arc region of the Aegean continental crust, leading to exhumation of metamorphic core complexes into greenschist facies that overprint the high-pressure rocks [13,14,15,16,17,18,19,20,21,22]. A lower (or Kamariza) unit composed of a sequence of Triassic–Early Jurassic age rocks metamorphosed to blueschist facies and retrogressed to greenschist-amphibolite facies, consists of a lower marble, the Kamariza schists (and marbles), and an upper marble formation [1,15,21]. The upper tectonic unit, also referred to as the Lavrion or Cycladic Blueschist Unit, comprises a phyllitic nappe of Late Cretaceous age [1,15,16]. It consists of a volcano-sedimentary formation, a mafic meta-ophiolite, and crystalline limestone [15,17,18].

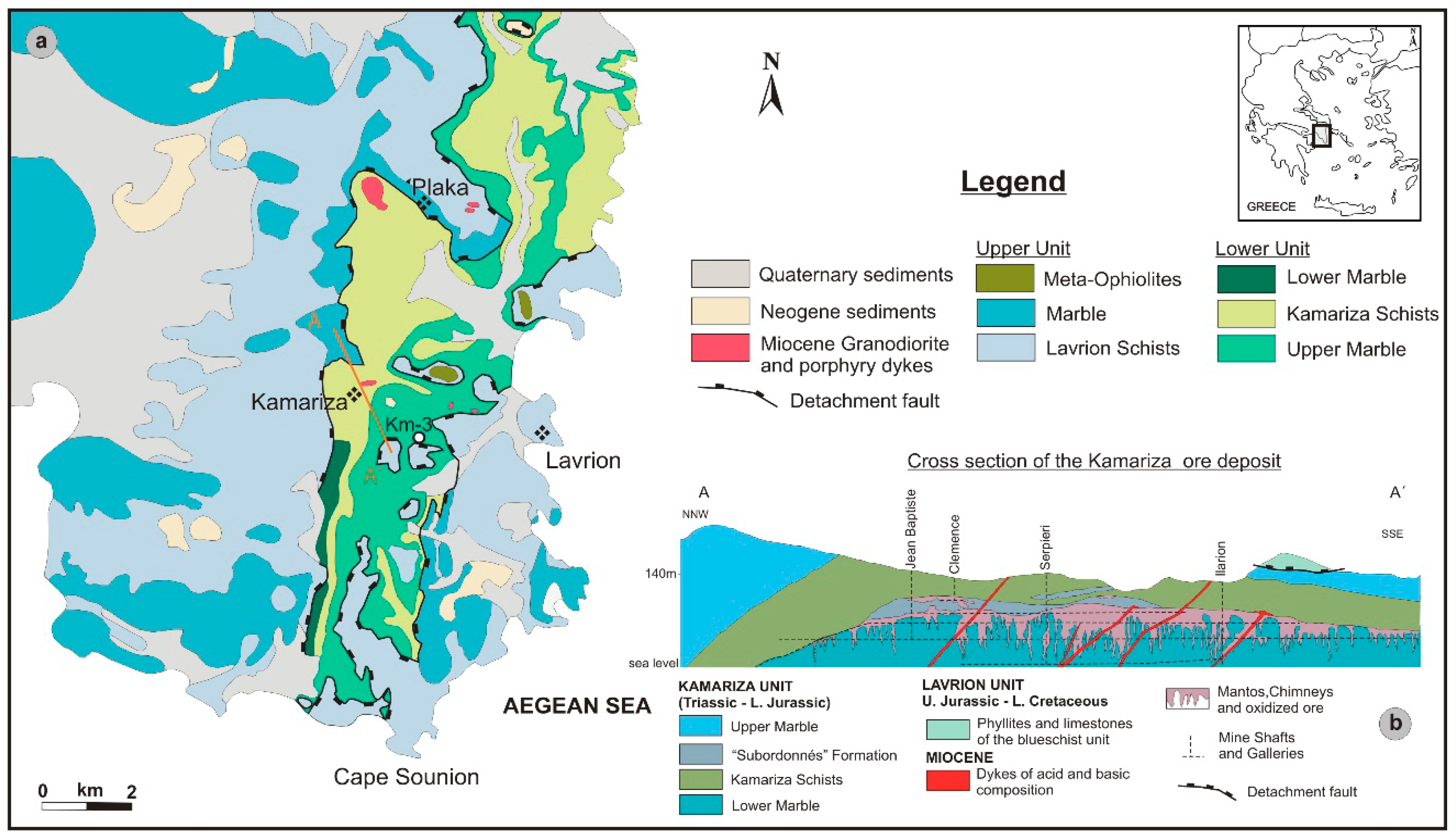

Contacts between the upper and lower units are considered to be part of the Western Cycladic detachment system (Figure 1) [20,21]. A Miocene I-type granodiorite intrusion is exposed at Plaka (Figure 1), and was synchronous with the extensional detachment faulting [7,23,24]. Several occurrences of granite and granodiorite porphyry laccoliths, pipes, dikes and sills are exposed throughout the Lavrion district [1,7,16,24]. East to west trending diorite and granite dikes and sills crosscut the lower marble and the Kamariza schists in the Kamariza area. According to Marinos and Petrascheck [1], the largest dikes are found north of the “Serpieri 1” shaft, between the “Serpieri 1”, “Ilarion 1” shafts, and south of the Ilarion orebody (Figure 1b). The dikes are locally boudinaged, thus testifying to an emplacement before the activation of the WCDS. The mafic dikes are equigranular to porphyritic rocks consisting of plagioclase and biotite with interstitial quartz and albite. They have undergone propylitic alteration (Figure 2a) and are characterized by chlorite, carbonates, actinolite, pyrite, and chalcopyrite that replaced primary minerals and/or which occur in veinlets and as disseminations in the groundmass. Adjacent to the marbles and the orebodies, the mafic dikes are pervasively altered to quartz-sericite ± kaolinite ± carbonates, and contain disseminated or vein sulfides. Felsic dikes at the Serpieri mine consist of primary plagioclase, biotite, and muscovite associated with quartz and orthoclase, the latter in micrographic intergrowth (Figure 2b and Figure 3a,b). Allanite-(Ce) and synchysite-(Ce) (CaCe[CO₃]₂F) are included in plagioclase and in late magmatic quartz (Figure 3c,d). Biotite was partly replaced by chlorite. Figure 4 shows the geochemical characteristics of mafic and felsic igneous rocks in the Kamariza district. The Serpieri magmatic rocks analyzed in the present study (

Table 1. Major (in wt.%) and trace element content (in ppm) of microgranite porphyry from the Serpieri mine.

Sample	S8	IL 1	S6
SiO2	69.29	69.61	69.41
TiO2	0.29	0.28	0.30
Al2O3	14.87	14.62	15.01
Fe2O3	2.29	2.15	1.86
MnO	0.02	0.03	0.02
MgO	0.81	0.70	0.76
CaO	3.18	2.87	2.98
Na2O	3.65	3.52	3.44
K2O	3.00	3.31	2.87
P2O5	0.09	0.09	0.10
H2O	1.41	1.25	1.89
SO3	0.04	0.08	0.08
Total	98.94	98.51	98.72
Ba	917	913	895
Ce	50	56	67
Cu	2	3	6
La	25	25	37
Nd	24	29	29
Pb	12	17	24
Rb	85	85	94
Sr	442	413	419
Zn	12	12	166
Zr	156	162	157

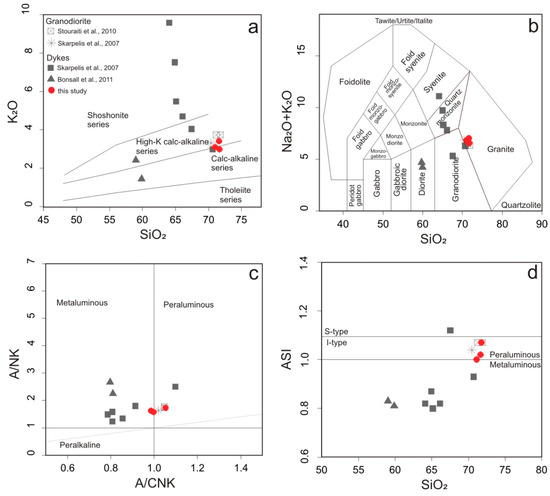

), plot in the calc-alkaline to high-K calc-alkaline field (Figure 4a) of Pecerrillo and Taylor [25], and are classified as microgranite in the TAS classification diagram of Middlemost [26] (Figure 4b). Based on the discrimination diagrams of Schand [27] and Maniar and Piccoli [28], they are I-type granitoids and metaluminous to slightly peraluminous with ASI < 1.1 (Figure 4c,d), and can be considered subvolcanic equivalents of the Plaka granite.

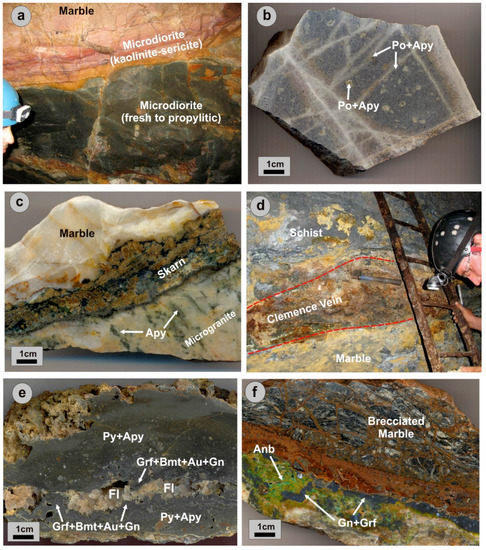

In the Serpieri deposit, microgranite dikes are crosscut by porphyry-style sericite-chlorite-calcite ± quartz stockworks hosting sulfide mineralization consisting of pyrrhotite, arsenopyrite, pyrite, and galena (Figure 2b and Figure 5a,b). The veinlets are related to carbonate-sericite alteration of the host rock, which overprints secondary biotite and K-feldspar, being part of an earlier potassic alteration event in the system. The skarn occurrence is located along the contact of a microgranitic body and the lower marble of Kamariza (Figure 2c). It is a garnetitic skarn, with andradite, wollastonite, apatite, and magnetite being part of the prograde mineral assemblage (Figure 3e). Calcite, actinolite, epidote, chlorite, quartz, and hematite, as well as pyrite, chalcopyrite, and pyrrhotite formed during the retrograde stage (Figure 3f). Adjacent to the skarn the microgranite is carbonate-sericite altered and contains pyrrhotite and arsenopyrite (Figure 2c).

The nickeliferous assemblage from Clemence mine is composed of vein-type mineralization, which developed at the contact between marbles and schists of the Kamariza unit [4] (Figure 2d). The mineralization also replaced marbles, where it forms extensive manto and chimney bodies. The mineralization in the Clemence vein is characterized by open space filling and mineralogical zonation. Pyrite, arsenopyrite, and sphalerite dominate in the outer parts of the vein, whereas galena and fluorite occur in its center (Figure 2e). Paragenetic relationships in the vein suggest initial deposition of pyrite, arsenopyrite, stannite, and Fe-rich sphalerite, followed by gersdorffite, bismuthinite, and native gold, then by chalcopyrite, tennantite/tetrahedrite, bournonite, enargite, and Fe-poor sphalerite, and finally by galena containing exsolved grains and inclusions of semseyite, boulangerite, native antimony, Ag-rich tetrahedrite, stephanite, and miargyrite (Figure 5c–i). Quartz is the main gangue mineral in the early stage of ore deposition followed by fluorite, the latter of which accompanies galena. In the “km3” district, the nickeliferous assemblage is associated with veins of calcite and galena that crosscut brecciated upper marble of the Kamariza Unit (Figure 5j–l).

4. Bulk Ore Geochemistry

Bulk analyses of Clemence ore reveal Au and Ag grades exceeding 100 g/t, Pb and Zn > 1 wt.%, Ni up to 9700 ppm, Co up to 118 ppm, Sn > 100 ppm, and Bi > 2000 ppm (Table 1). Mineralization at “km3” is enriched in Mo (up to 36 ppm), As and Ni (both >1 wt.%), and Co (up to 1290 ppm), whereas other elements occur in lesser amounts: Te (up to 2 ppm), Sn (up to 8.5 ppm), and Bi (up to 1.3 ppm). Preliminary data on sericite altered dikes and sills indicate enrichment in Ni (up to 220 ppm), Cu (up to 175 ppm), As (up to 510 ppm), Mo (up to 6 ppm), and Pb (up to 830 ppm) (

Table 2. Trace element content (in ppm) of mineralization in the Clemence (CLM-series) and “km3” (Km3-series) deposits, and porphyry-style mineralized Serpieri (S-series) dikes. bd = below detection.

	Mo	Cu	Au	Ag	Pb	Zn	As	Sb	Ni	Co	Te	Sn	Bi	Cd
CLM-1	0.26	5869	0.04	>100	>10,000	536	>10,000	>2000	3.1	14.7	1.63	28.4	93.9	12.1
CLM-2	0.25	3485	0.10	>100	>10,000	1129	>10,000	>2000	11.6	42.7	1.48	27	85.2	9.35
CLM-3	0.11	323	0.04	>100	>10,000	>10,000	4952	1554	1.1	83.9	1.51	25.1	12.4	304
CLM-4	1.90	45.1	bd	7.97	1441	324	1338	62	8.9	92.2	0.03	0.9	0.74	3.87
CLM-6	0.31	2503	>100	>100	>10,000	326	>10,000	>2000	9686	118	1.26	16.4	>2000	14.6
CLM-6B	0.26	>10,000	3.80	>100	>10,000	>10,000	7983	>2000	388	80.4	1.34	>100	133	171
Km3-1	4.31	933	0.08	>100	>10,000	4195	>10,000	>2000	>10,000	207	1.73	8.3	1.29	15.5
Km3-2	35.8	45.2	0.02	>100	>10,000	1591	>10,000	>2000	>10,000	175	2.10	5.7	0.81	4.09
Km3-3	11.7	88.9	0.08	>100	>10,000	864	>10,000	>2000	>10,000	231	2.25	8.1	1.18	5.06
S-1	5.62	175	0.02	0.07	10.7	145	431	1.21	0.4	20.6	1.76	3.1	4.38	0.43
S-3	0.19	29.8	0.03	0.04	15	79.6	410	0.72	1.3	21.3	0.24	0.3	0.26	0.13
S-5	0.49	15.4	0.03	1.22	831	26.2	512	14.4	219	41.7	0.08	0.4	0.14	0.19
S-8b	2.82	18.8	0.01	0.03	110	69.3	8.8	12.8	0.8	68.5	<0.02	0.7	0.17	0.41
S-9	0.88	30.8	0.03	0.09	38.4	136	15.2	0.76	6.2	51.9	<0.02	0.4	0.11	0.19
S-11	5.37	74.2	0.05	0.25	32.8	166	121	0.77	2.9	15.7	0.14	3.7	0.87	0.18

).

5. Ore Mineralogy

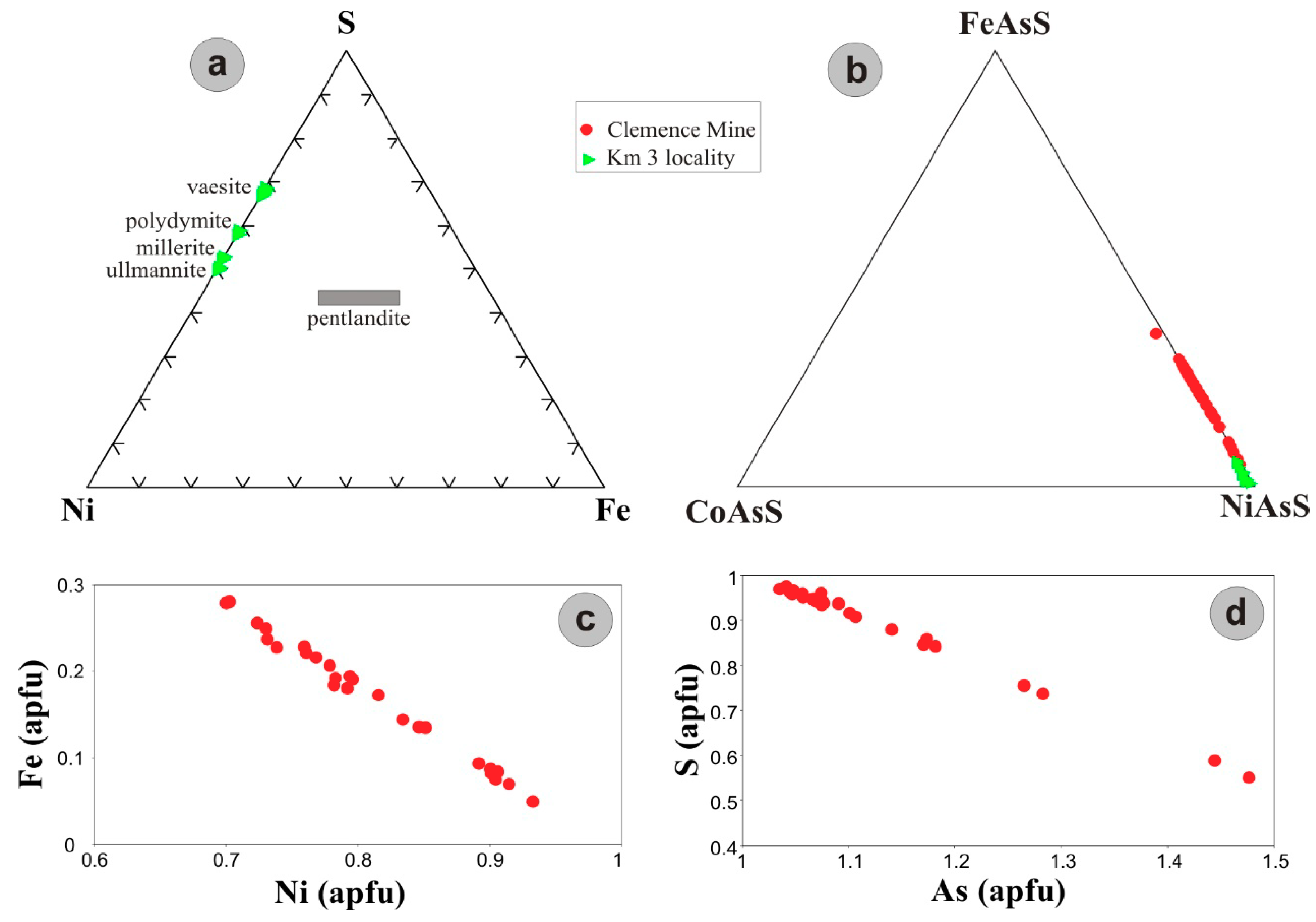

Previous work by Voudouris et al. [4] described the mineralogy and mineral chemistry of metallic minerals from the Clemence deposit in detail. Additional information is given here: in summary, pyrite (Figure 5c,d) has Co and Ni contents below detection limits. It includes small grains of stannite (Cu₂FeSnS₄) (Figure 5d). Arsenopyrite contains 41.10 to 43.15 wt.% As, which corresponds to 29.90–31.06 atomic % As. Early sphalerite is Fe-rich (up to 24.7 mole % FeS) and associated with arsenopyrite, whereas late sphalerite is Fe-poor (2.9 mole % FeS) and associated with the Cu-As-bearing association that includes chalcopyrite, tennantite, and enargite. Galena contains inclusions of gersdorffite, semseyite, bismuthinite, bournonite, native antimony, and native gold (Figure 5e–i). It also contains exsolved grains of boulangerite, Ag-rich tetrahedrite, stephanite (Ag₅SbS₄), and miargyrite (AgSbS₂) (Figure 5h). Bismuthinite is included in gersdorffite and galena (Figure 5e–g). Native gold commonly forms grains up to 150 μm in size enclosed in gersdorffite, but can also be found as intergrowths with bismuthinite and/or as isolated grains enclosed in galena (Figure 5e,g). It contains 11.50 to 18.56 wt.% Ag [2]. Gersdorffite occurs as zoned idiomorphic crystals enclosed in galena, and as rims on pyrite and arsenopyrite (Figure 5d,f). It displays oscillatory zoning in terms of Fe, Ni, and As content, varying from ~1.5 to 9.0 wt.%, ~24 to 32 wt.% and 47 to 60 wt.%, respectively (Table 2, Figure 6 and Figure 7). There is an almost perfect linear correlation between Fe–Ni and As–S in the gersdorffite structure (Figure 7c,d). Gersdorffite from the Clemence deposit contains up to 0.2 wt.% Se, which likely substitutes for sulfur in the structure. At the “km3” locality, gersdorffite contains ~0.5–2 wt.% Fe, 46–48 wt.% As, and ~31–34 wt.% Ni (Table 2). Millerite (NiS) is found in association with gersdorffite as small inclusions or as euhedral needle-shaped crystals enveloped by galena (Figure 5j). As-bearing ullmannite, Ni(Sb,As)S, occurs as inclusions in gersdorffite (Figure 5k), whereas vaesite (NiS₂) rims gersdorffite (Figure 5l). Cobalt (of up to 0.35 wt.%) substitutes for Ni in vaesite and millerite (

Table 3. Representative electron microprobe analyses of gersdorffite (1–8: Clemence Mine; 9,10: “km-3”), vaesite (11,12), millerite (13,14); polydymite (15,16); ullmannite (17,18). bd: below detection limit, na: not analyzed; apfu: atoms per formula unit.

wt.%	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18
Ni	24.12	26.81	32.04	28.67	25.00	27.59	25.04	25.22	34.55	32.65	46.19	45.93	63.18	62.48	56.42	56.67	28.00	27.71
Fe	9.10	7.59	2.23	5.70	8.06	4.46	5.54	5.40	0.49	1.63	0.37	0.05	0.54	0.20	0.16	0.38	0.02	0.11
Co	bd	bd	bd	bd	bd	bd	bd	bd	0.13	bd	0.18	0.35	0.06	0.26	bd	bd	bd	bd
Au	0.12	bd	0.07	0.08	0.06	0.25	0.29	0.29	na	na	na	na	na	na	na	na	na	na
As	50.12	47.55	46.26	47.84	51.61	54.07	58.96	59.95	46.99	47.55	0.97	0.09	0.45	0.16	bd	bd	8.41	8.88
Sb	0.08	bd	0.78	0.10	bd	0.13	0.04	0.02	na	na	na	na	na	na	bd	bd	47.93	46.72
Bi	bd	bd	0.18	bd	bd	0.05	bd	bd	na	na	na	na	na	na	na	na	na	na
S	16.48	18.40	18.46	18.06	15.66	13.22	10.21	9.51	18.71	19.21	52.65	53.60	36.38	36.32	43.47	42.58	15.24	15.15
Se	0.16	0.17	0.19	0.15	0.14	0.20	0.20	0.18	na	na	na	na	na	na	na	na	na	na
Total	100.18	100.54	100.26	100.64	100.59	100.01	100.34	100.60	100.88	100.82	100.36	100.02	100.61	99.42	99.97	99.40	101.11	98.84
apfu	3	3	3	3	3	3	3	3	3	3	3	3	2	2	7	7	3	3
Ni	0.700	0.759	0.915	0.816	0.730	0.835	0.782	0.792	0.975	0.918	0.962	0.955	0.967	0.963	2.902	2.943	0.977	0.977
Fe	0.278	0.226	0.067	0.170	0.247	0.142	0.182	0.178	0.016	0.048	0.008	0.001	0.008	0.003	0.009	0.021	0.000	0.000
Co	0.000	0.000	0.000	0.000	0.000	0.000	Bd	0.000	0.003	0.000	0.003	0.002	0.001	0.004	0.000	0.000	0.000	0.000
Au	0.001	0.000	0.001	0.001	0.001	0.002	0.003	0.003	-	-	-	-	-	-	-	-	-	-
As	1.140	1.056	1.035	1.067	1.181	1.282	1.443	1.475	1.039	1.048	0.016	0.002	0.006	0.001	0.000	0.000	0.230	0.245
Sb	0.001	0.000	0.011	0.001	0.000	0.002	0.001	0.000	-	-	-	-	-	-	0.000	0.000	0.806	0.796
Bi	0.000	0.000	0.001	0.000	0.000	0.000	0.000	0.000	-	-	-	-	-	-	-	-	-	-
S	0.876	0.955	0.965	0.941	0.837	0.732	0.584	0.547	0.967	0.989	2.009	2.037	1.018	1.027	4.094	4.048	0.973	0.996
Se	0.003	0.004	0.004	0.003	0.003	0.004	0.005	0.004	-	-	-	-	-	-	-	-	-	-

).

6. Discussion

The genesis of the Pb–Zn–Ni–As–Bi–Au and the Pb–Ni–Co–As–Mo–Ag associations from the Clemence and “Km3” deposits, respectively, is still a matter of debate. Both styles of mineralization share some similarities with the so-called “five element” deposits that are characterized by the elemental association Ag–Ni–Co–As–Bi ± U [30,31]. The characteristic feature of these deposits is the presence of native silver in association with Ni-Co-Fe-Sb sulfarsenides, and Ni-Co-Fe arsenides, with the best examples containing the element association Ag–Ni–Co. In some respects, there are some common features of the studied mineralization and the five elements association but there are differences, including the absence of dendritic native silver and bismuth. The Kamariza veins are Pb–Zn–Cu-dominant and contain relatively little Ag–Bi–Co. Therefore, they do bear some resemblance to, but are not, classical five element veins.

A magmatic contribution for metals in the Lavrion area was proposed by Voudouris et al. [4] and Bonsall et al. [5], mainly based on the close spatial relationship of the deposits with porphyritic dikes of granodioritic to andesitic composition. A genetic relationship between nickel sulfides and sulfarsenides, native bismuth, bismuthinite, pyrrhotite, and precious metals (Au, Ag) with granitoid intrusions was reported previously from several ore deposits (e.g. Ulsan Fe-W deposit in S. Korea [32], Cradock in South Africa [33] and Erzgebirge, Germany [34]). For the multi-stage Ag–Bi–Co–Ni–U and Cu–Bi vein mineralization at Wittichen, Schwarzwald, SW Germany, which consists of Ni sulfarsenides, native Bi and various Bi sulfosalts, Staude et al. [35] suggested a granitic source for the occurrence of Bi in all stages and leaching from the host rock (redbeds) of some ore-forming elements (e.g. Ag, Co and Ni) at temperatures from around 300 to <100 °C. Remobilization and leaching of Co, Ni, Fe, and As from mafic/ultramafic wall rocks was favoured for the ore at Bou Azzer, Morocco [36] and Cobalt, Ontario, Canada [37]. However, at Bou Azzer, where no Bi-bearing minerals were reported, acidic magmatic fluids under moderately reducing conditions at high fluid/rock ratios leached Co, Ni, Fe, and As from serpentinites [36]. At the neighboring Imiter Ag-Hg deposit, Morocco, Essaraj et al. [38] distinguished two mineralizing events: The first is related to magmatic intrusions and comprises uneconomic Co-Ni-As ores that were superimposed by an economic, Ag-rich mineralization, deposited by basinal brines, which leached the metals from the basement rocks. Similarly, the likely source of Ni and Au in the Ni–Sb–Ag–Au association, as exemplified by the presence of ullmannite, allargentum, Au-rich silver, and Au-bearing dyscrasite, from the Kutná Hora Pb-Zn-Ag ore district (Czech Republic), was the serpentinized ultramafic bodies, which were cut by the “silver” lodes in the south of the ore district [39]. The scenario of remobilization and leaching of metals from previous mineralization and/or host rocks, including the metabasite boudins found in the Lavrio schists, through the late involvement of non-magmatic fluid in the ore system, was recently favoured by Scheffer et al. [40], for at least the Pb-Zn-Ag vein-style mineralization in the Lavrion district.

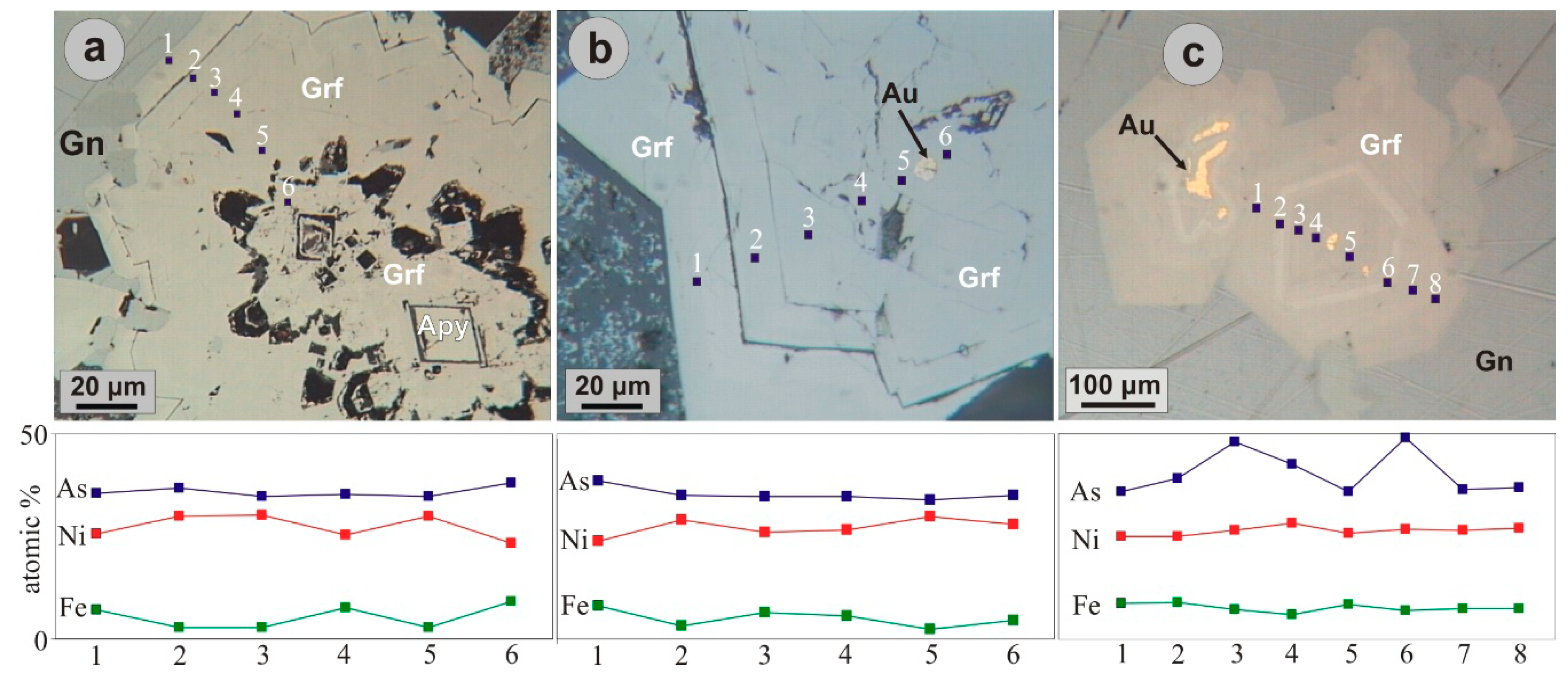

Oscillatory zoning is common in sulfides (e.g. pyrite, arsenopyrite, sphalerite, molybdenite and fahlores) [41,42,43]. Oscillatory zoning in gersdorffite was reported from the San Juan de Plan deposit, Spain [44], the high-grade Ni-Co-Fe-As hydrothermal vein ores from Dobšiná (Slovakia) [45], and from Pb-Ag-Zn deposits within the Rogozna ore field, Serbo-Macedonian metallogenic province [46]. The oscillatory variations in As, Ni, and Fe content of individual micro-zones observed within the Clemence gersdorffite suggest physical or chemical fluctuations within the bulk system and disequilibrium in the ore fluids [47].

On the basis of arsenopyrite composition (30.8 to 32.7 at. % As) for the pyrite–arsenopyrite assemblage at the Clemence deposit, a temperature range of 400–450 °C is deduced at fS₂ = 10⁻⁶ to 10⁻⁸ atm, using the calibrations of Kretschmar and Scott [48] and Sharp et al. [49] (shaded area, Figure 8a). It should be mentioned that the arsenopyrite geothermometer of Kretschmar and Scott [48] may overestimate temperatures when compared to those derived from fluid inclusion data, and underestimates sulfur fugacity since, according to the work of Sharp et al. [49], it is also a function of pressure. However, the lower limit of this temperature range is in accordance with the early quartz in the Kamariza district, which crystallized between 300 and 400 °C [4]. These temperatures are in agreement with those recorded during post-orogenic exhumation and mark the ductile–brittle transition [21,22]. Fluid inclusions in fluorite from the Clemence deposit associated with galena and homogenized at between 233 and 275 °C [4]. It is suggested here that the initial ore deposition at Clemence took place at about 350 to 400 °C at log fS₂ = −10 to −8. This range of temperature and fS₂ corresponds to deposition of pyrite–arsenopyrite–gersdorffite in equilibrium with Fe-rich sphalerite within the stability field of bismuthinite and native gold, and then by a decrease in the Fe content of sphalerite from about 25 to 3 mol % FeS, and by the deposition of enargite (arrow, Figure 8b). A subsequent path of decreasing temperature (from about 350 to 200 °C) probably occurs along the tennantite–enargite/luzonite boundary with contemporaneous deposition of galena (Figure 8b).

Previous work by Voudouris et al. [4] suggested that the association between bismuthinite and native gold in the gold-bearing galena ores within the Clemence deposit may have been caused by the sulfidation of maldonite in response to an increase in fS₂, and that the presence of sulfarsenide minerals associated with native gold and bismuthinite from reduced hydrothermal fluids. If this was the case, maldonite should be part of a very early low-sulfidation and strongly reduced assemblage in the Kamariza district, in the stability field of pyrrhotite, arsenopyrite and/or lӧllingite (all three phases are present in Kamariza ore). Maldonite was not observed as part of the present study, although its presence in Lavrion ore was reported in association with native bismuth and native gold by Wendel and Markl [8] and Rieck [52]. However, Solomos et al. [3] argued for a contemporaneous deposition of chalcopyrite with bismuthinite, native bismuth, and maldonite (which was later decomposed to native gold and native bismuth) for oxidized Au-Bi ores in the Ilarion deposit in the Kamariza district. Native gold also occurs as isolated grains within galena but not in contact with bismuthinite, thus suggesting that the hydrothermal fluids were probably buffered along the boundary Au + Bi₂S₃/Au₂Bi during gold deposition.

The discovery of a new, previously unknown skarn and porphyry-style mineralization in the Kamariza district gives new information on the origin of the sulfide mineralization in the Lavrion district. It also allows for a direct comparison with the major skarn and porphyry deposits of the neighboring Plaka area, since both skarn occurrences contain pyrrhotite, pyrite, and magnetite. Sulfide and oxide mineralogy are used to constrain fO₂ and fS₂ values of hydrothermal solutions during the evolution of the Serpieri skarn-porphyry style mineralization at 400 °C/0.5 kb and 275 °C (vapor saturation), in accordance with the temperatures estimated by fluid inclusion temperatures determined by Voudouris et al. [4] for the Kamariza district (Figure 8c,d). Early-stage skarn and contemporaneous porphyry-style mineralization formed at around 400 °C/0.5 kb at logfS₂ = −8 and −7 and logfO₂ = −27 (Figure 8c). These values are consistent with the stability of the assemblage magnetite-pyrite-pyrrhotite in the ore system. During the retrograde stage of mineralization (e.g. at ~275 °C), the logfS₂ = −11 and −9 and logfO₂ = −33 to −31 are constrained by the stabilities of pyrite, chalcopyrite, hematite, and galena (Figure 8d).

This study suggests that both the Kamariza skarn and the associated microgranites (porphyry-style veinlets) are mineralized with base metal sulfides (e.g. pyrite, chalcopyrite, pyrrhotite, arsenopyrite, sphalerite and galena), which is the same metallic mineral assemblage that characterizes the manto- and vein/breccia-style mineralization in the Lavrion district. Carbonate-replacement mineralization is especially enriched close to the contacts between dikes and the surrounding marbles and schists. It is suggested here that these intrusive bodies fed the deposit with metals and volatiles, as has been proposed previously [2,3,4,5].

In the “km3” district, deposition of Ni sulfides was followed by formation of gersdorffite, the presence of which indicates an increase in the As content and a decrease in the Ni activity of the hydrothermal fluid. Late galena associated with fluorite rims gersdorffite in both the Clemence deposit and “km3” district, demonstrating a common fluid evolution along the detachment system in the Lavrion district.

7. Conclusions

The famous Lavrion Pb-Zn-Ag-Au district hosts several Ni-Bi-Pb-bearing deposits that formed synchronously with the intrusion of a Miocene granodiorite body and related felsic and mafic dikes and sills within marbles and schists of the Attic-Cycladic blueschists. At the Seprieri deposit (Kamariza district), a porphyry-style pyrrhotite-arsenopyrite mineralized granitic sill/dike is genetically related to a garnet- and wollastonite-bearing mineralized skarn characterized by base metal sulfides and enriched in Mo, Sn, and Ni. At the neighboring Clemence deposit, oscillatory zoned gersdorffite is associated with native gold and bismuthinite within a vein-type Pb-Ni-Bi-Au-Ag mineralization, which contains arsenopyrite, pyrite, chalcopyrite, tennantite, enargite, and galena. Variable As, Ni, and Fe contents in gersdorffite indicate fluctuations in arsenic and sulfur fugacities in the hydrothermal fluid. An evolution towards higher sulfur fugacity in the mineralization is evident by the late deposition of enargite in the ore system. Gersdorffite-bearing ore from “km3” is associated with vaesite, millerite, ullmannite, and polydymite, enclosed in galena. Our data further support a magmatic contribution to the ore-forming fluids, although remobilization and leaching of metals from previous mineralization and/or host rocks, through the late involvement of non-magmatic fluid in the ore system, cannot be excluded.
