Minerals 2018, 8(1), 26;

Sb-Bi Alloys and Ag-Cu-Pb-Sb-Bi Sulphosalts in the Jialong Cu-Sn Deposit in North Guangxi, South China

Key Laboratory of Metallogenic Prediction of Nonferrous Metals and Geological Environment Monitoring, Ministry of Education, Central South University, Changsha 410083, China
School of Resources and Safety Engineering, Central South University, Changsha 410083, China
Author to whom correspondence should be addressed.
Received: 30 August 2017 / Revised: 21 November 2017 / Accepted: 8 January 2018 / Published: 16 January 2018
Full-Text   |   PDF [14072 KB, uploaded 19 January 2018]   |

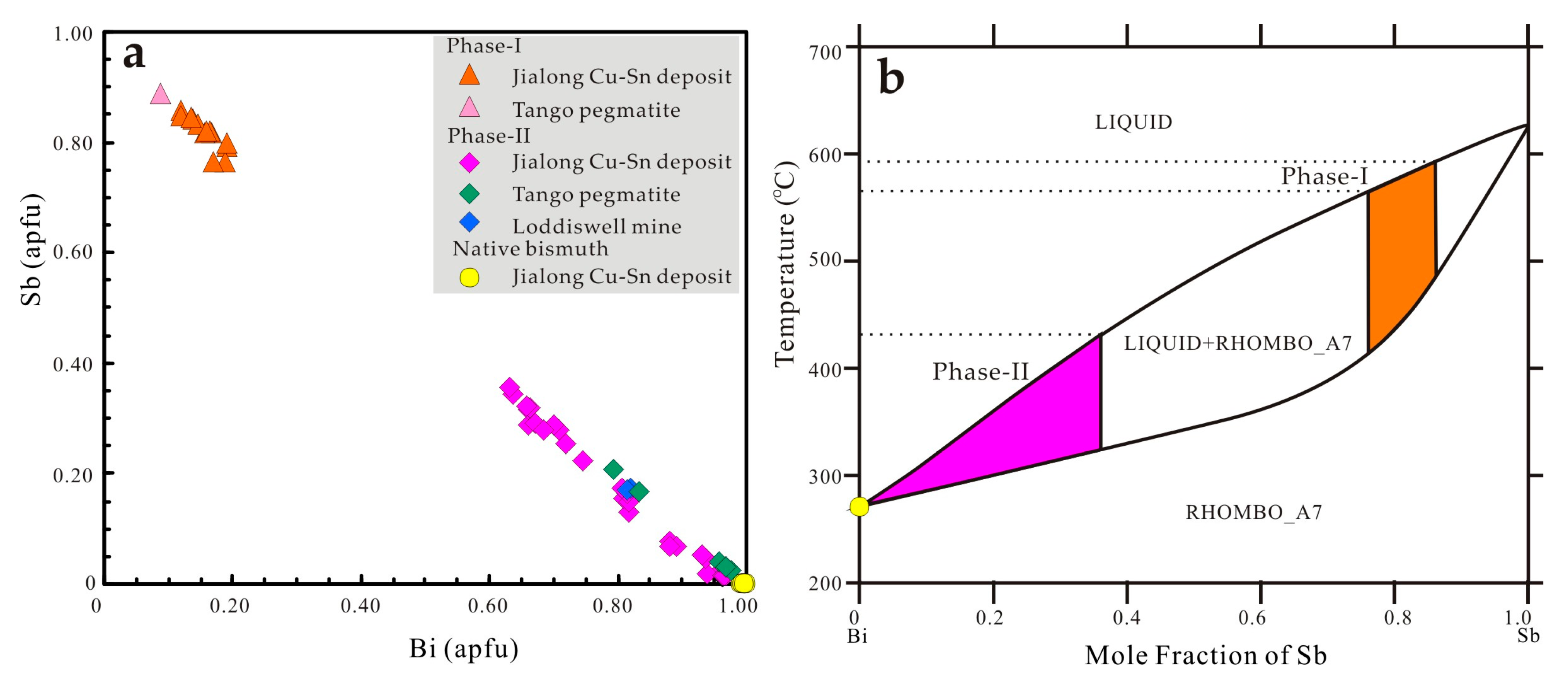

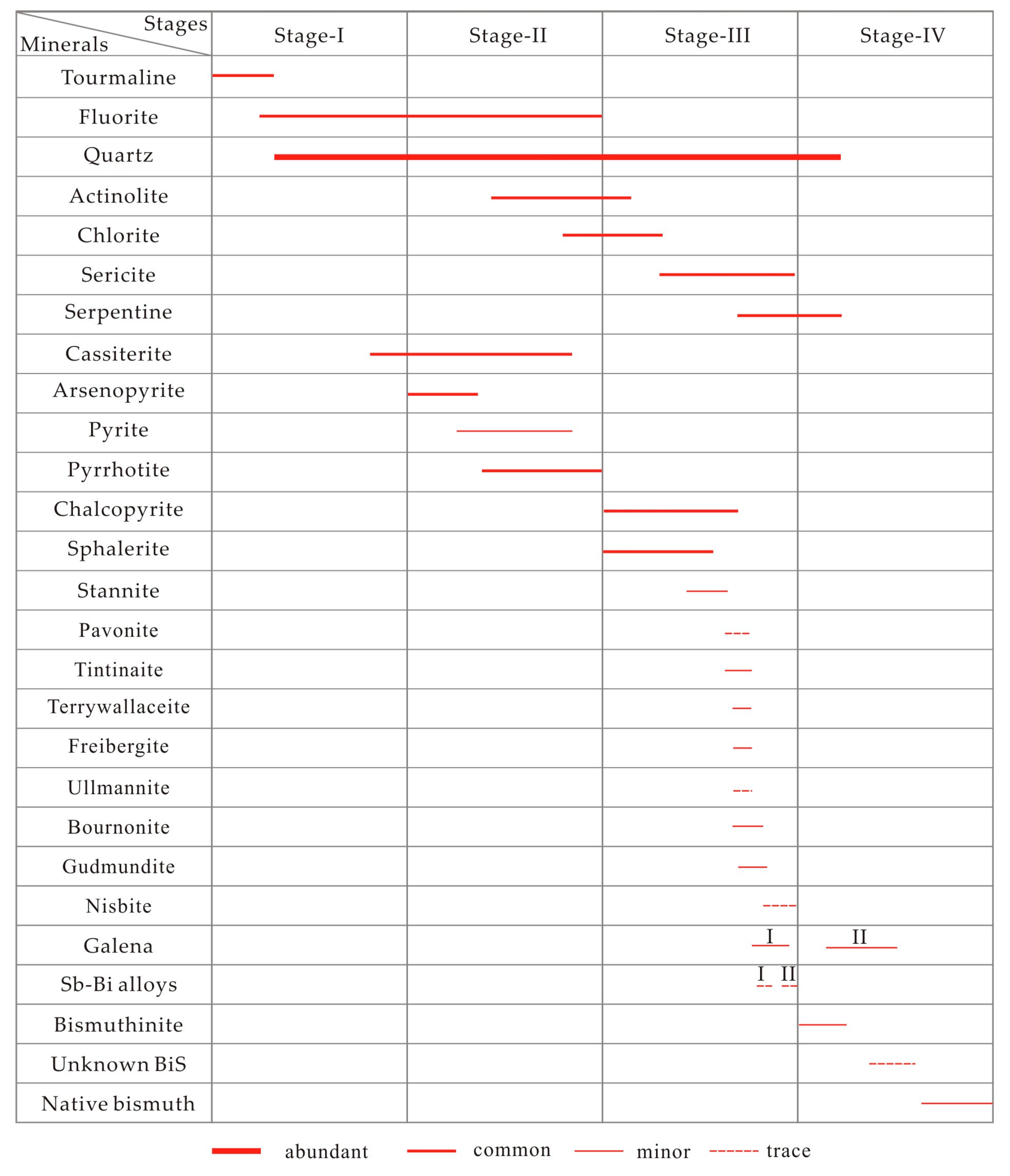

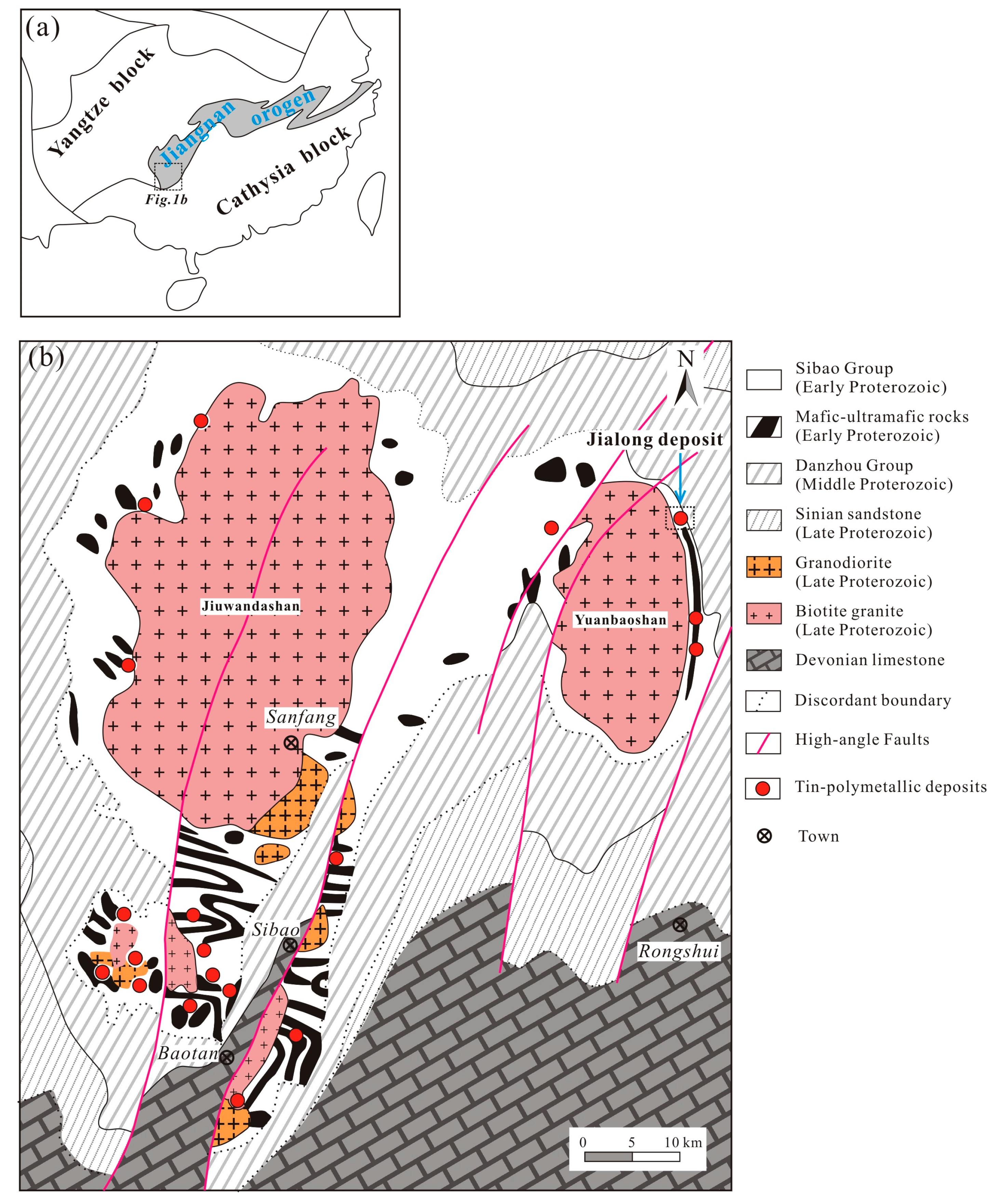

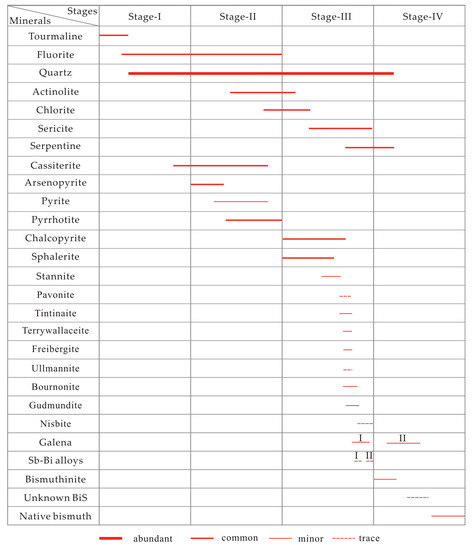

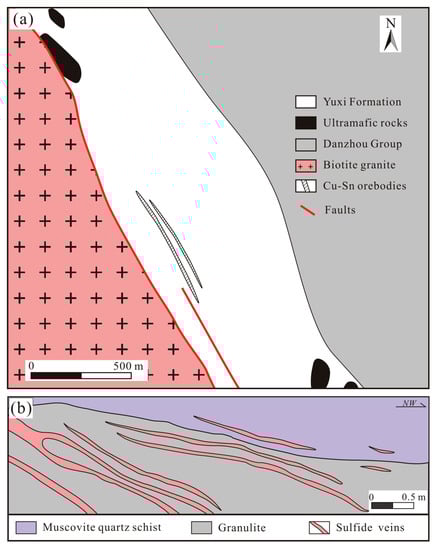

Although native bismuth is a relatively common mineral, native antimony is less abundant, and Sb-Bi alloys are relatively rare phases in Nature. Sb-Bi alloys and Ag-Cu-Pb-Sb-Bi sulphosalts have been discovered in the Jialong vein-type Cu-Sn deposit in North Guangxi, South China. The Jialong deposit is hosted by schist within the contact zone of a Neoproterozoic granite. Four stages of ore formation are recognised, with the Sb-Bi alloy- and sulphosalt-bearing assemblage formed during the third stage. Sulphosalts include Pb-Bi-Ag sulphosalts (pavonite), Sb-Bi sulphosalts (tintinaite, terrywallaceite), and Sb sulphosalt (ullmanite, freibergite, bournonite). Grains of Sb-Bi alloy measure 2–20 μm in diameter, show rounded margins and occur together with galena along the edges or internal fissures of sulphosalts. The Sb-Bi alloys do not coexist with bismuthinite, BiS (an unnamed mineral), or with native bismuth. Two phases of Sb-Bi alloys are identified based on back-scattered electron image observations and electron microprobe analysis. The textural and thermodynamic relationships indicate that Phase I was formed before Phase II. Phase I contains high Sb (69.15–80.12 wt %) and lower Bi (18.01–27.85 wt %), while Phase II contains low Sb (0.89–25.24 wt %) and high Bi (72.95–98.89 wt %). Cooling in the range of 270–400 °C and decreasing sulphur fugacity promote precipitation of Sb-Bi alloys and sulphosalts during the late stage of incursion of Sb- and Bi-bearing magmatic hydrothermal fluids. View Full-Text
Keywords: Sb-Bi alloys; sulphosalts; Jialong Cu-Sn deposit; south China Sb-Bi alloys; sulphosalts; Jialong Cu-Sn deposit; south China

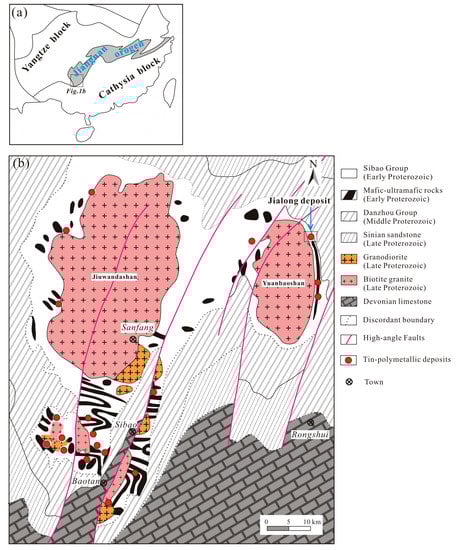

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
